Nebula

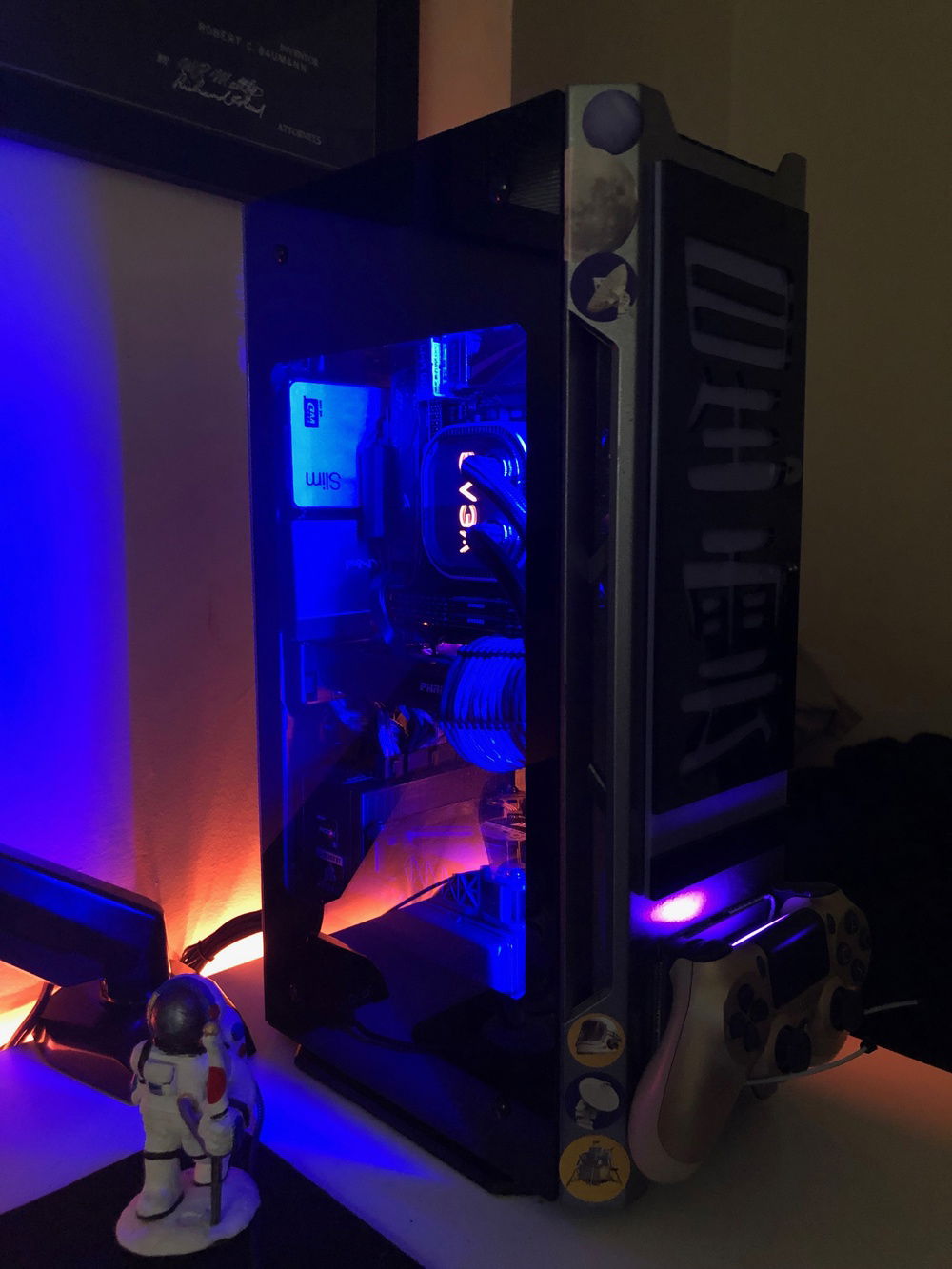

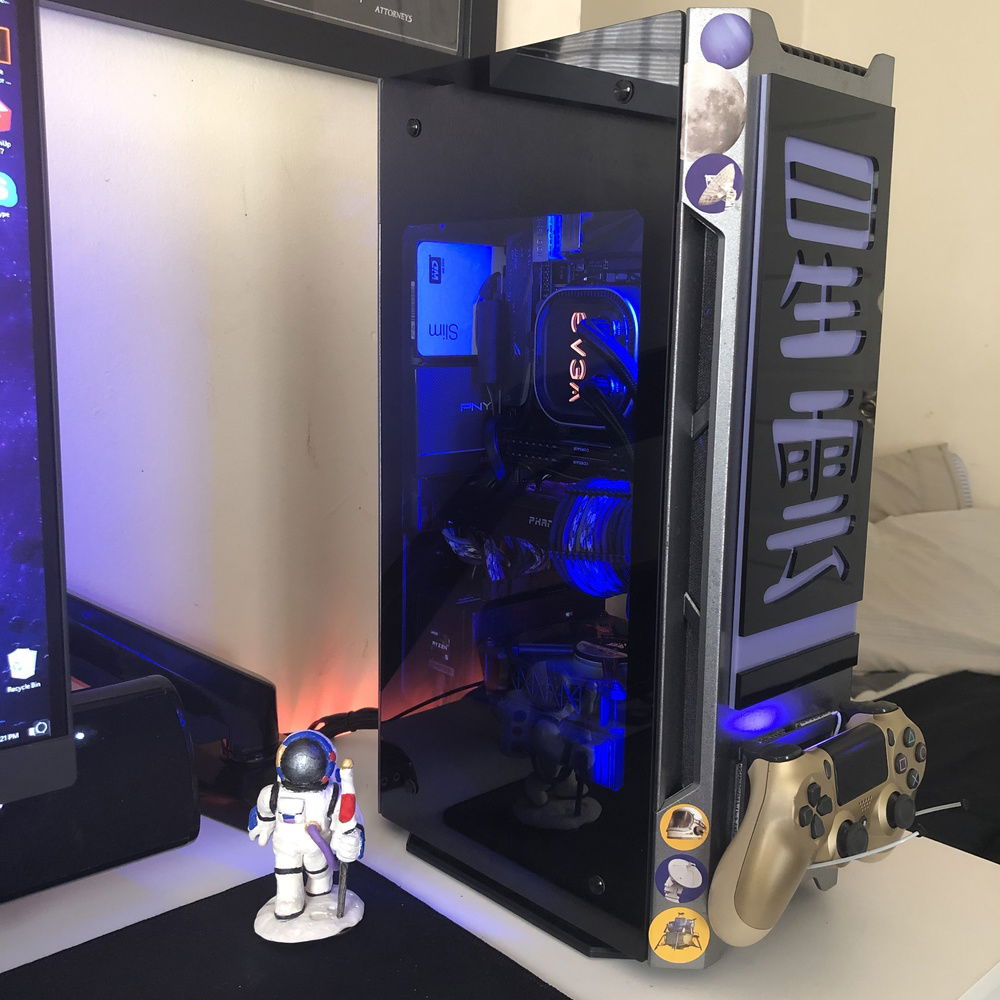

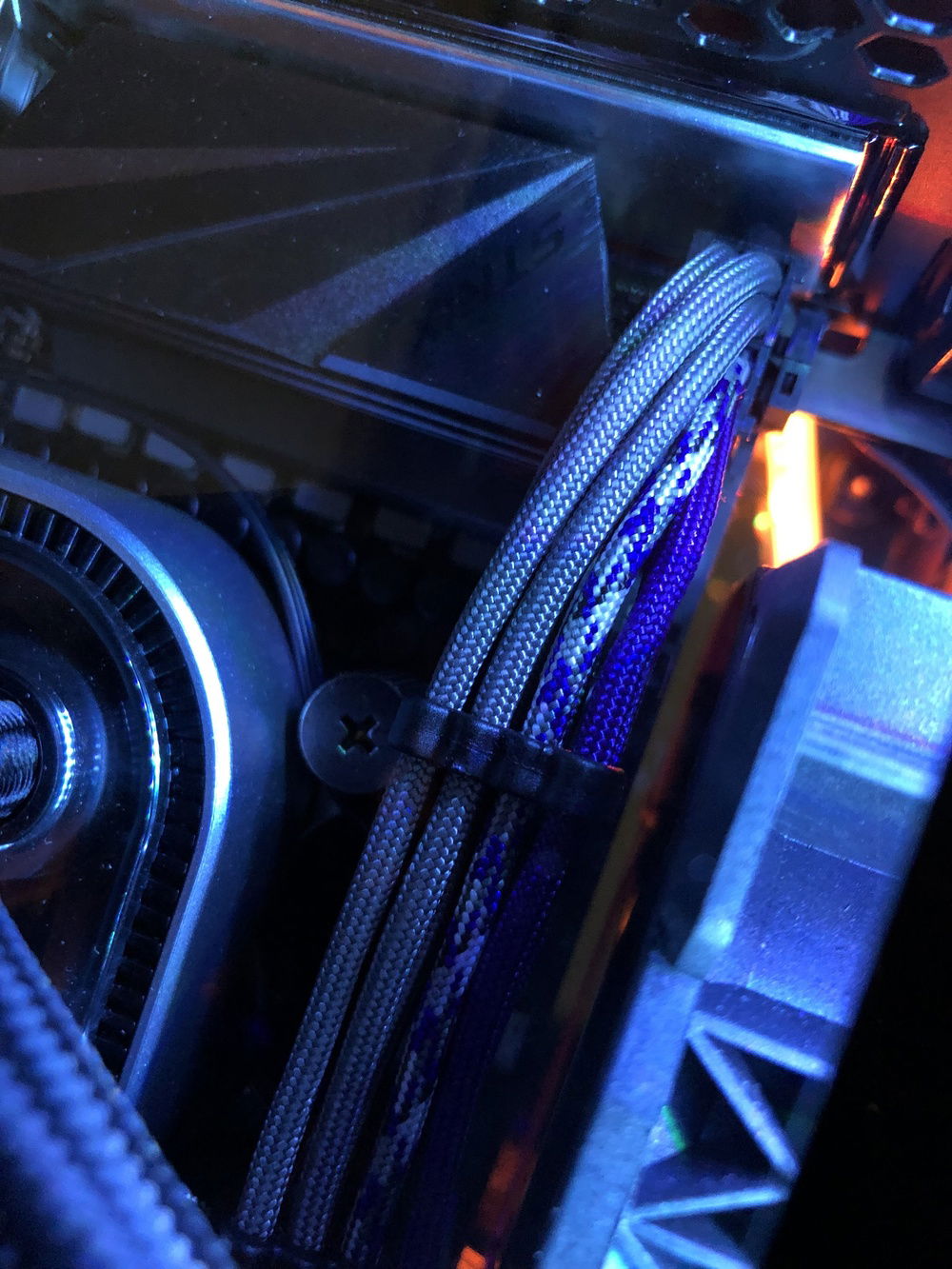

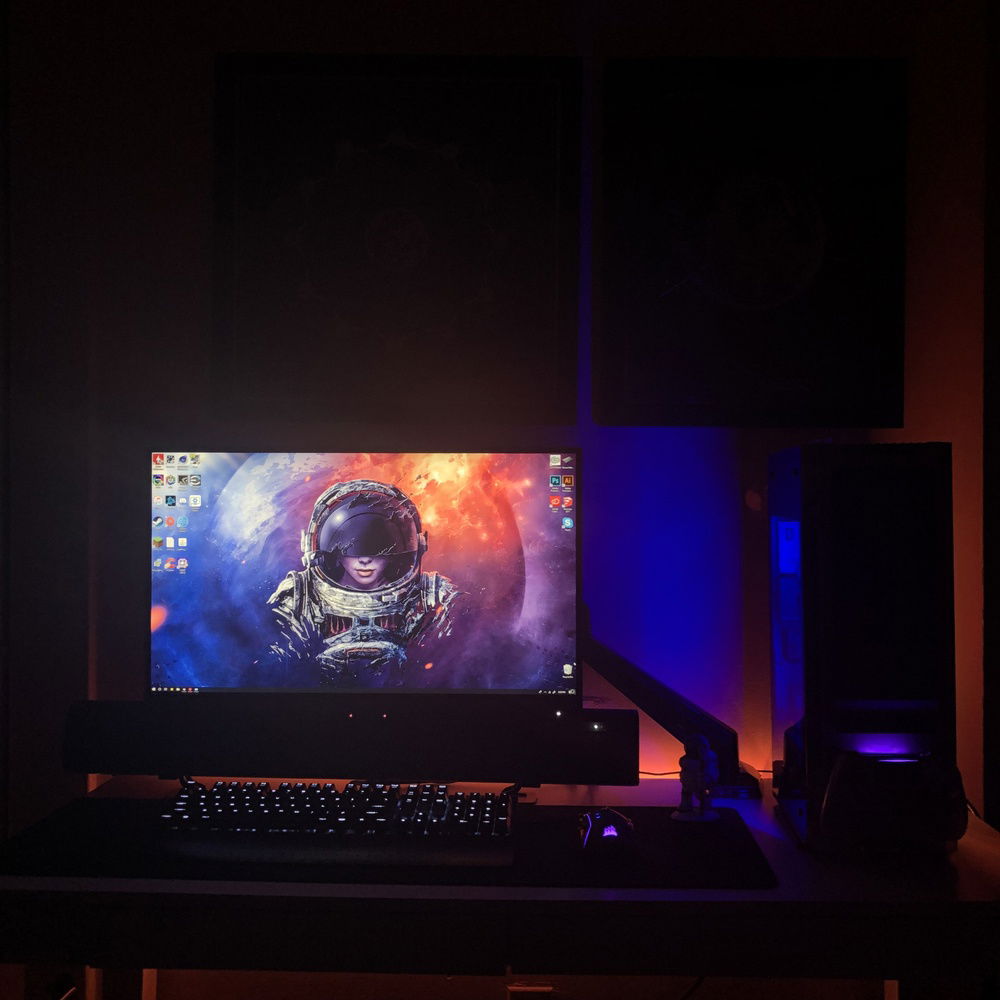

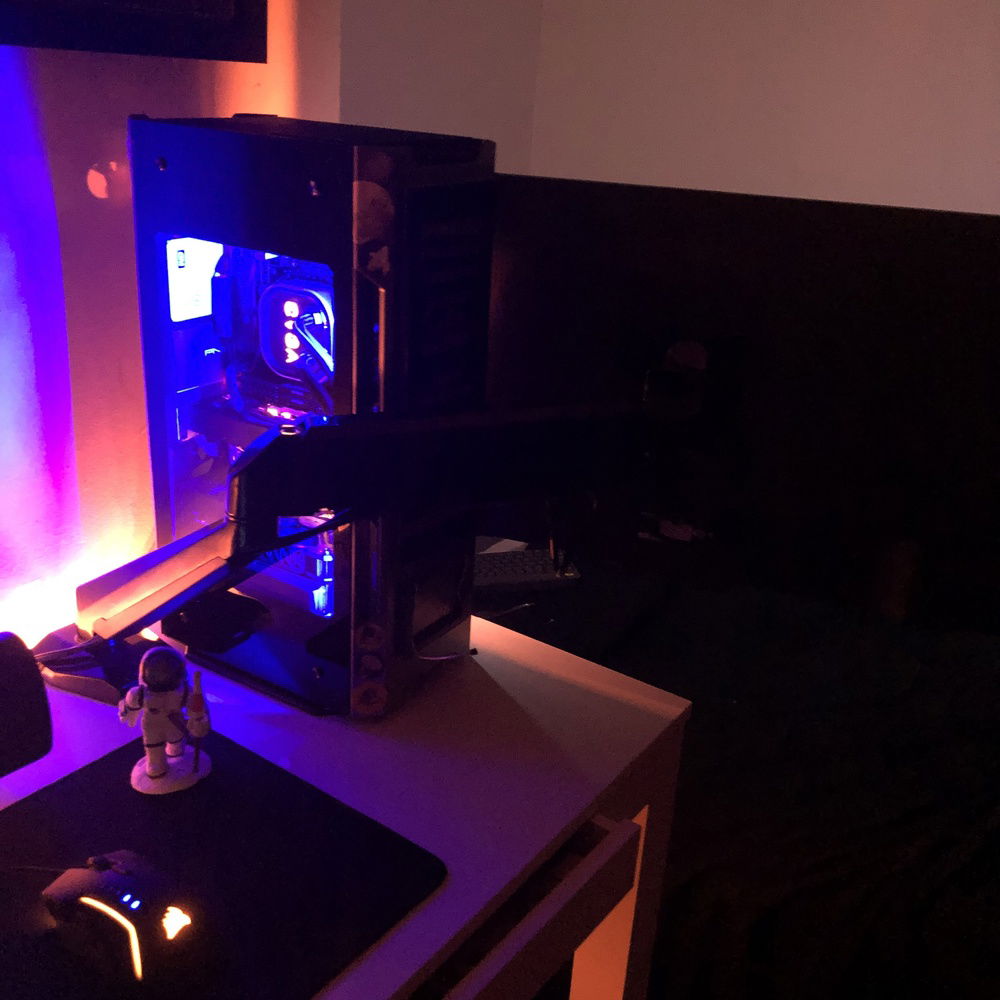

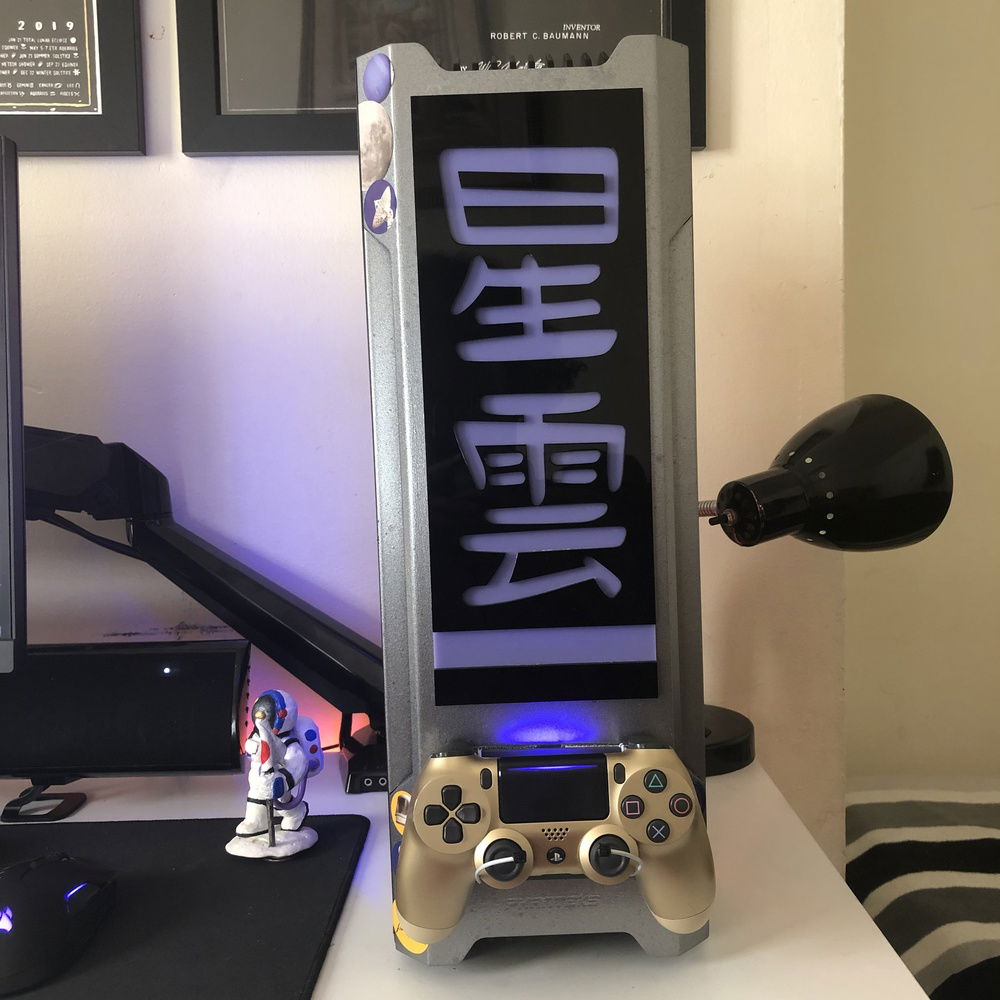

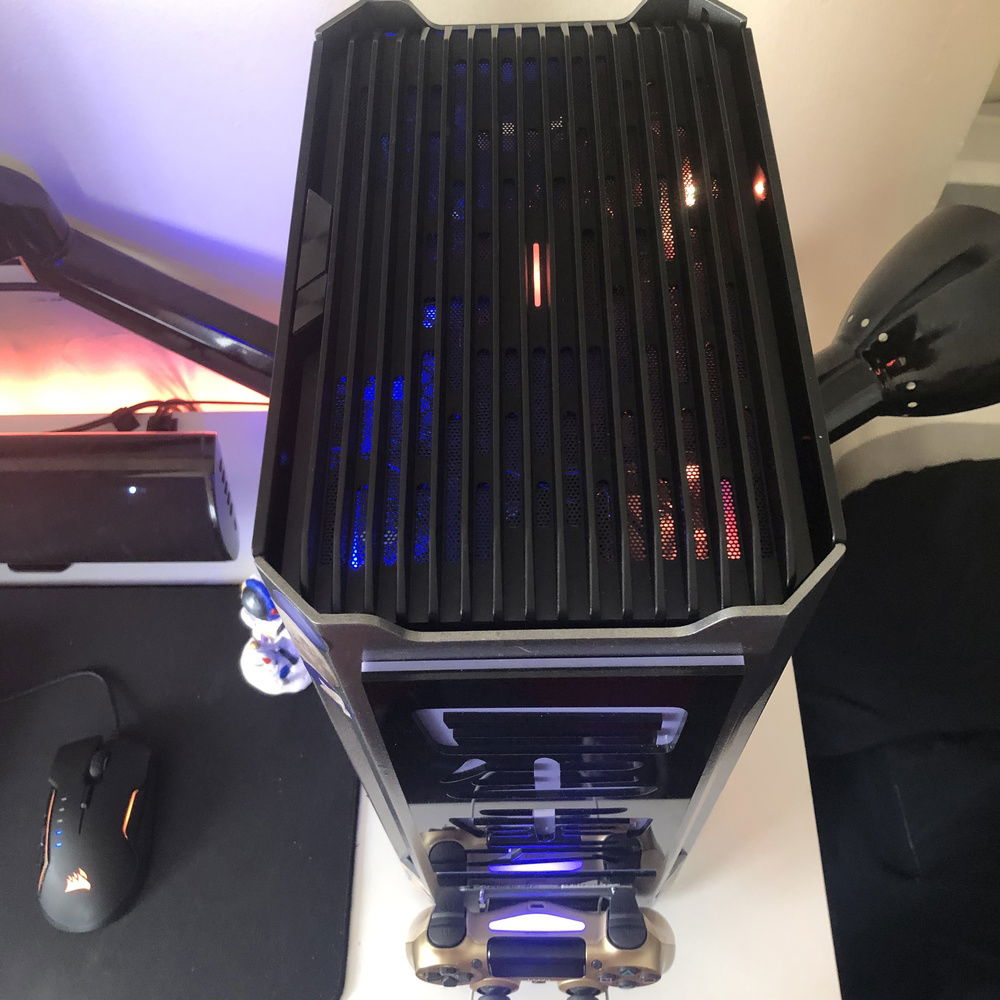

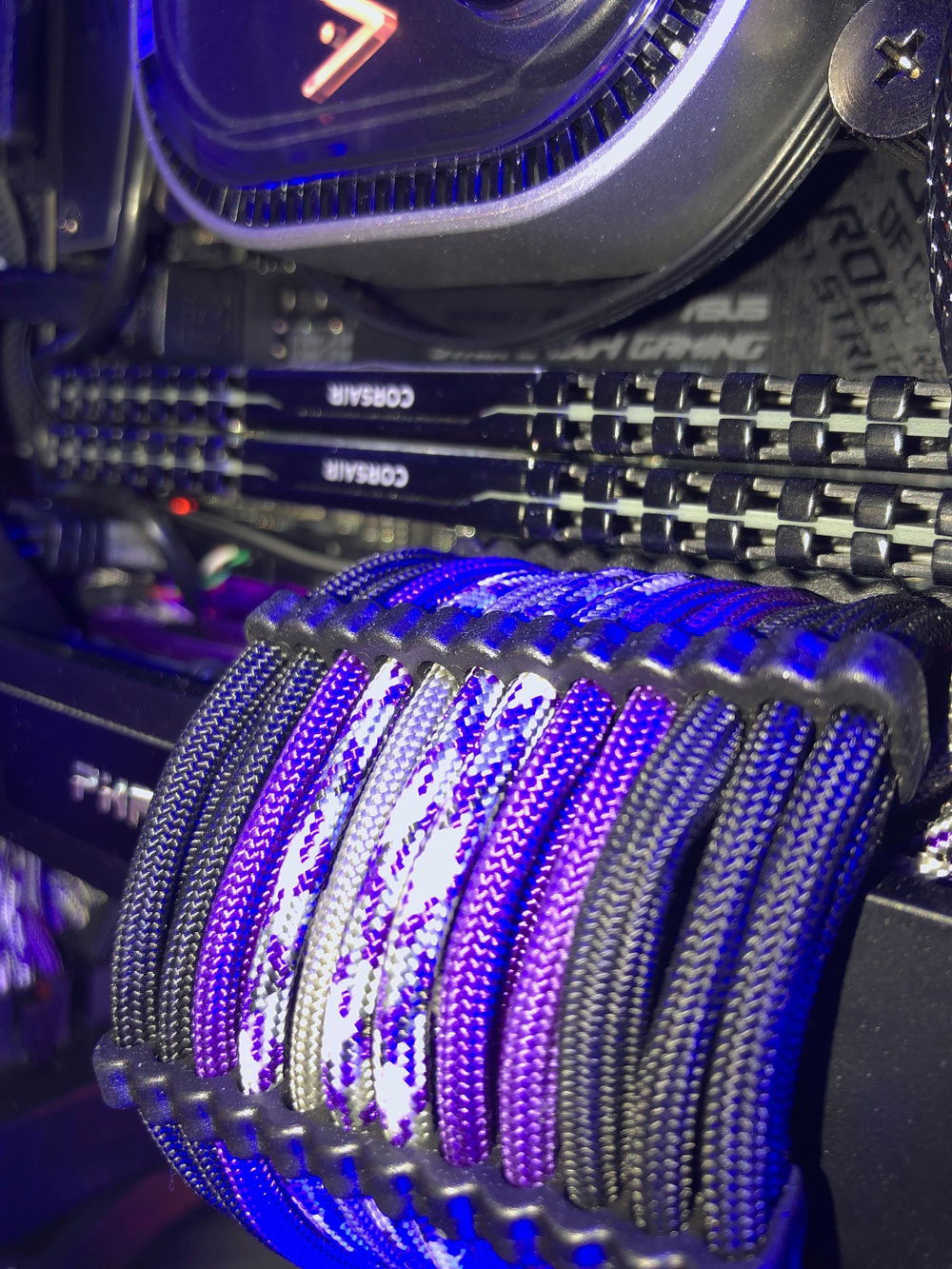

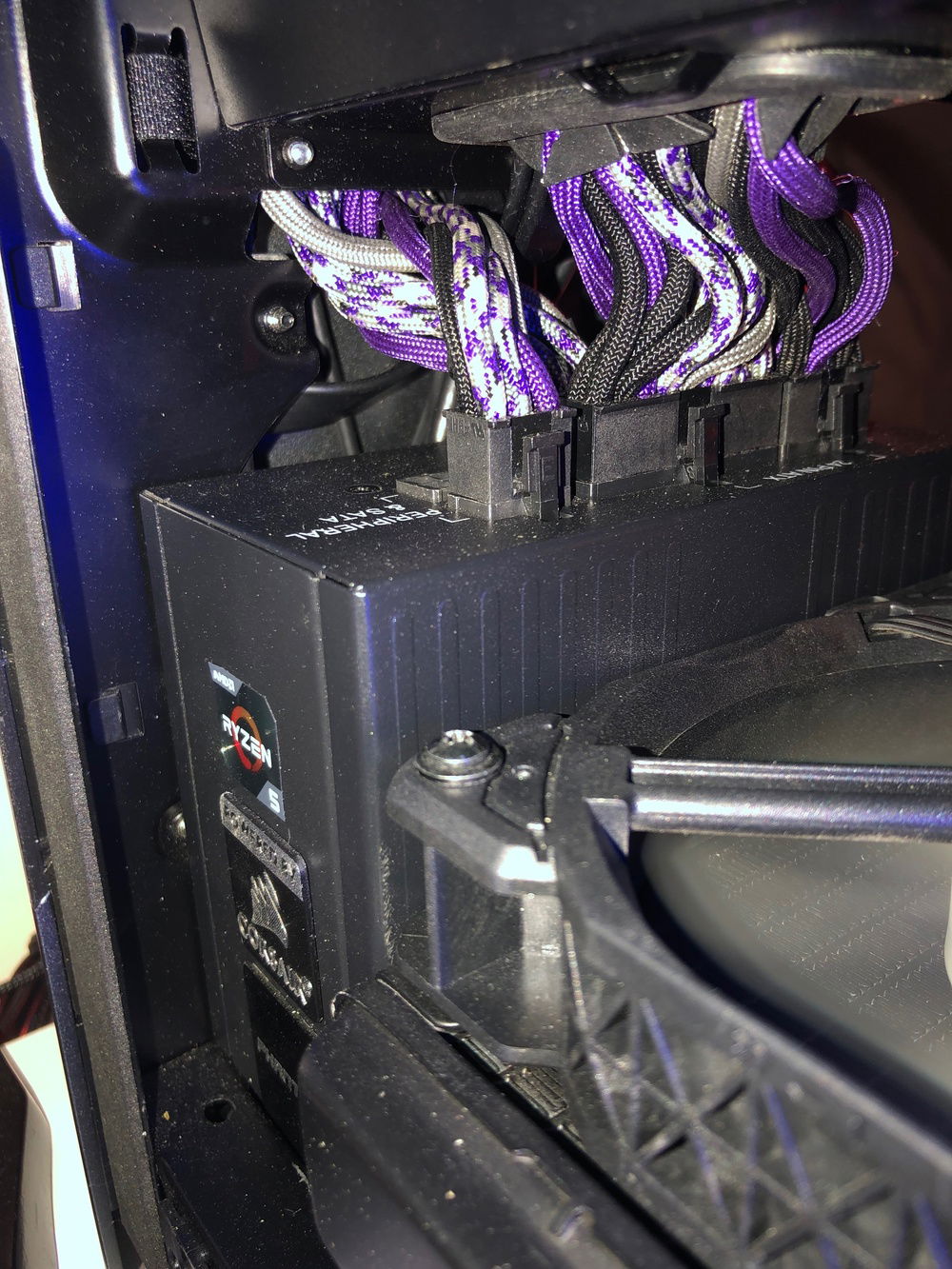

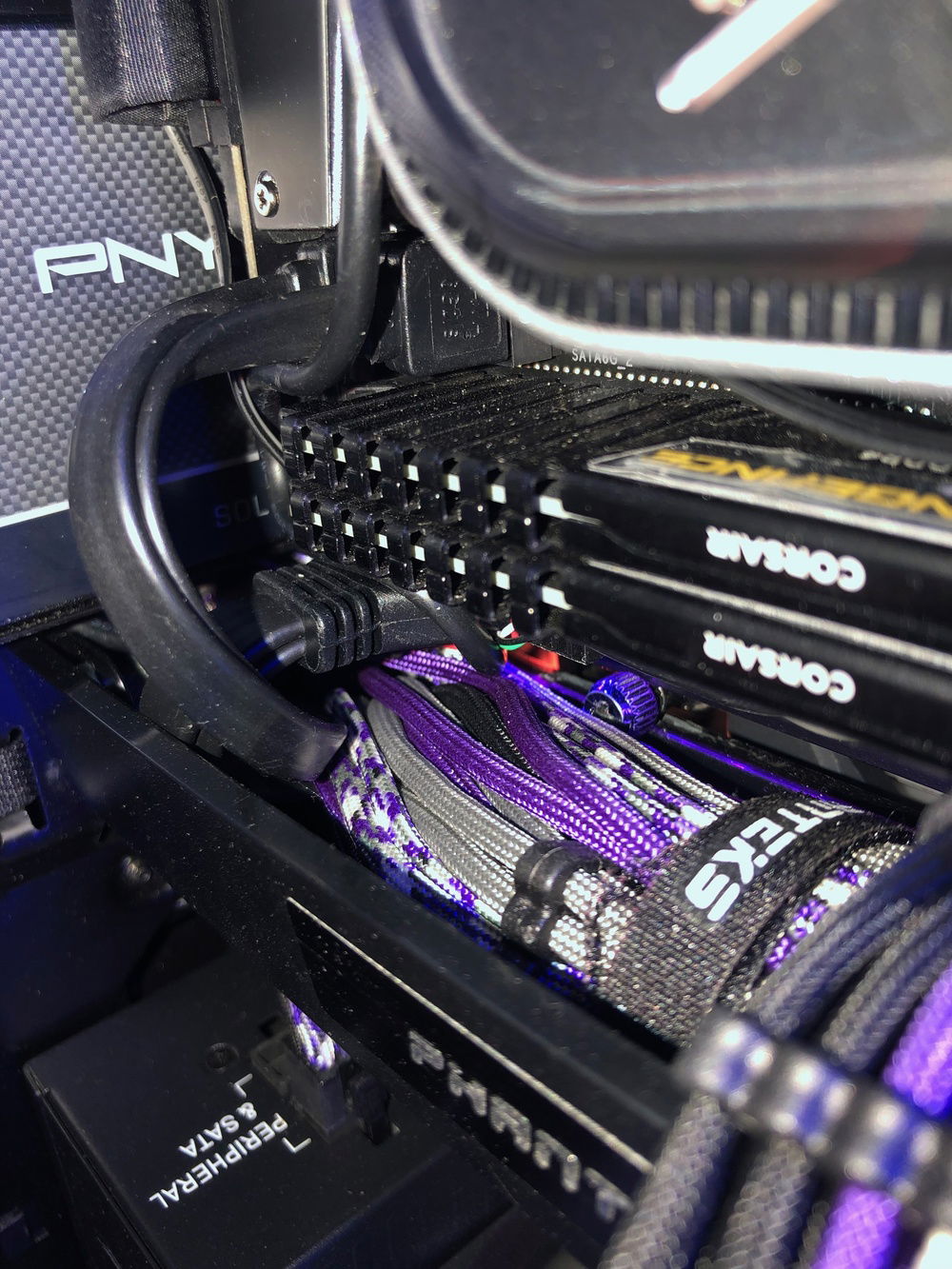

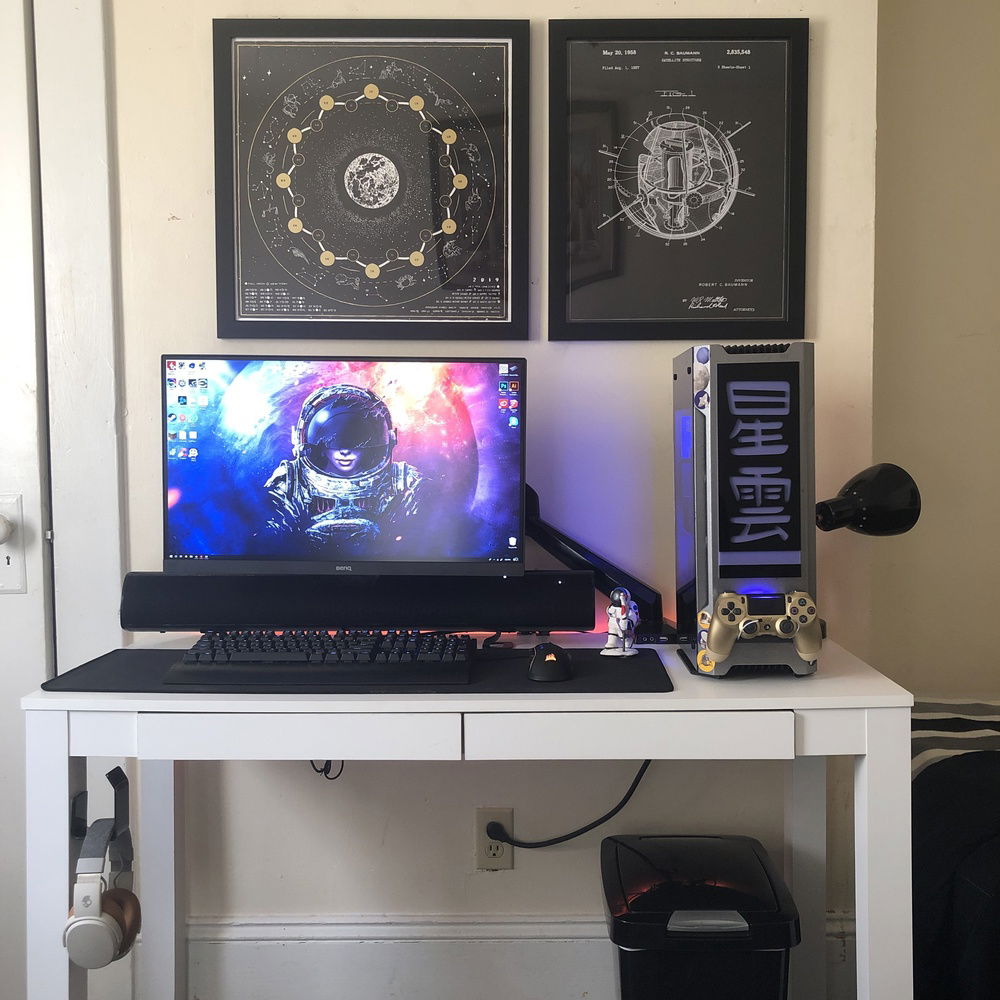

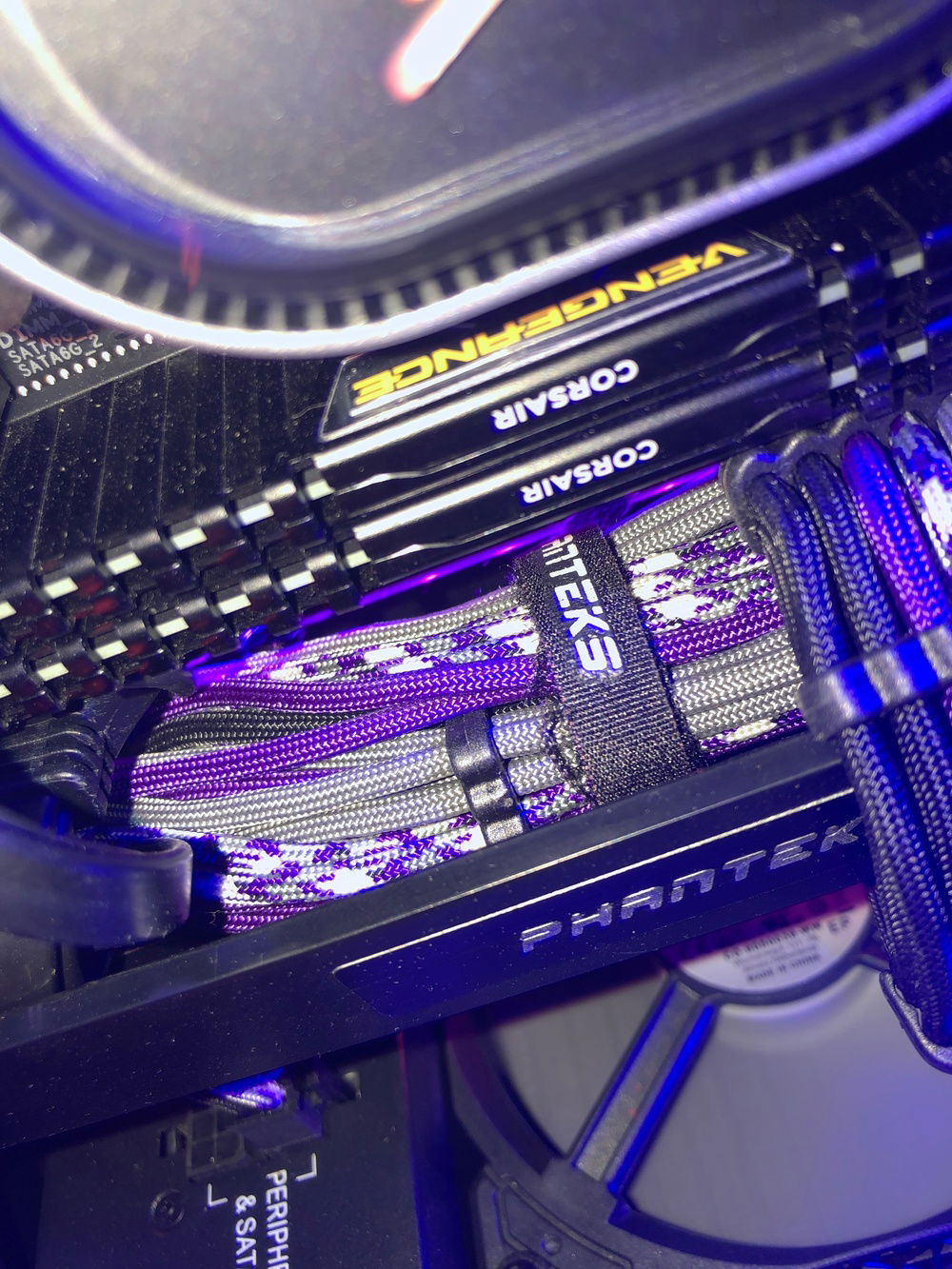

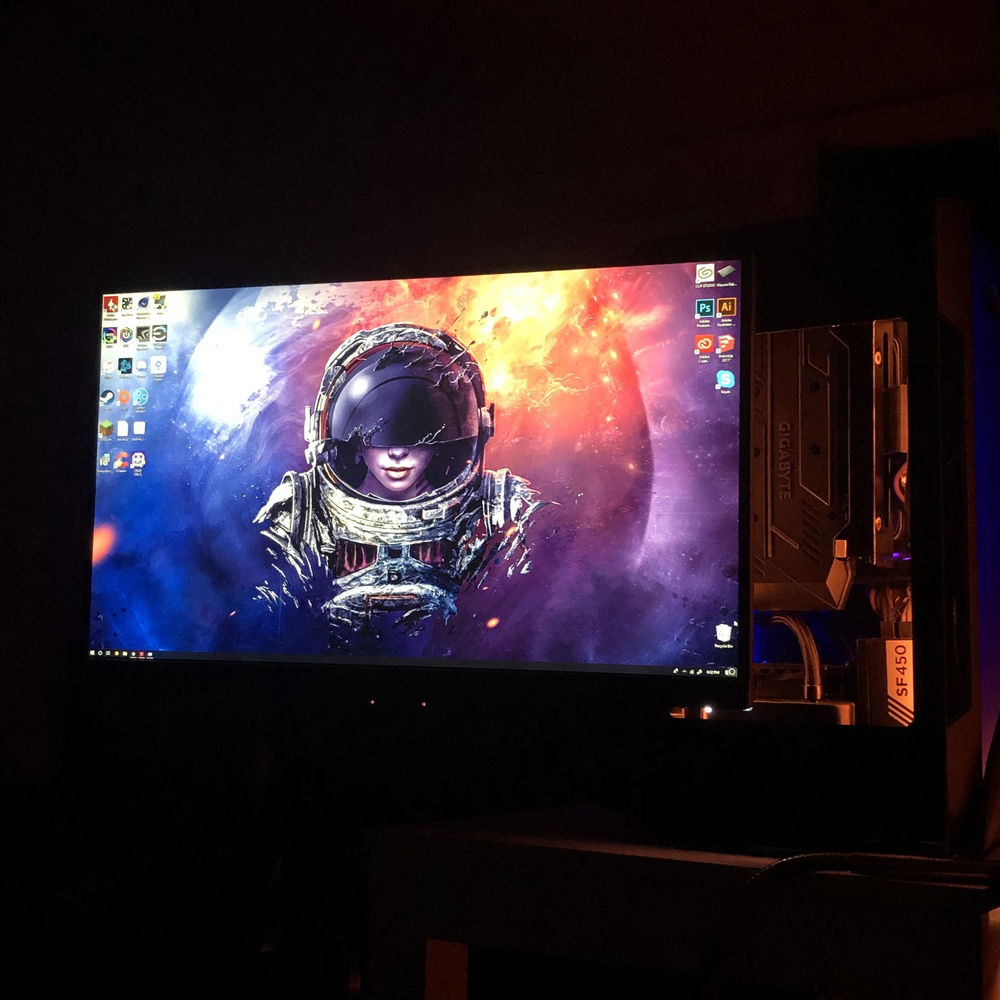

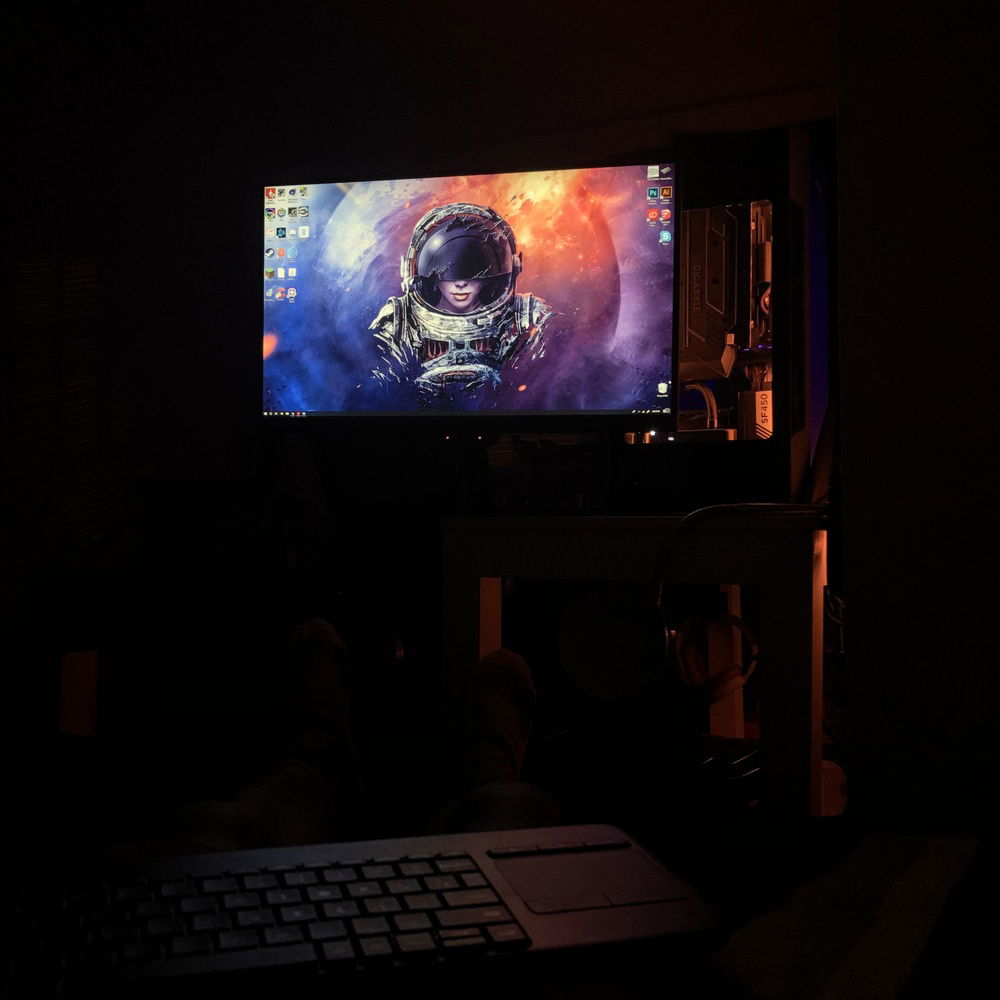

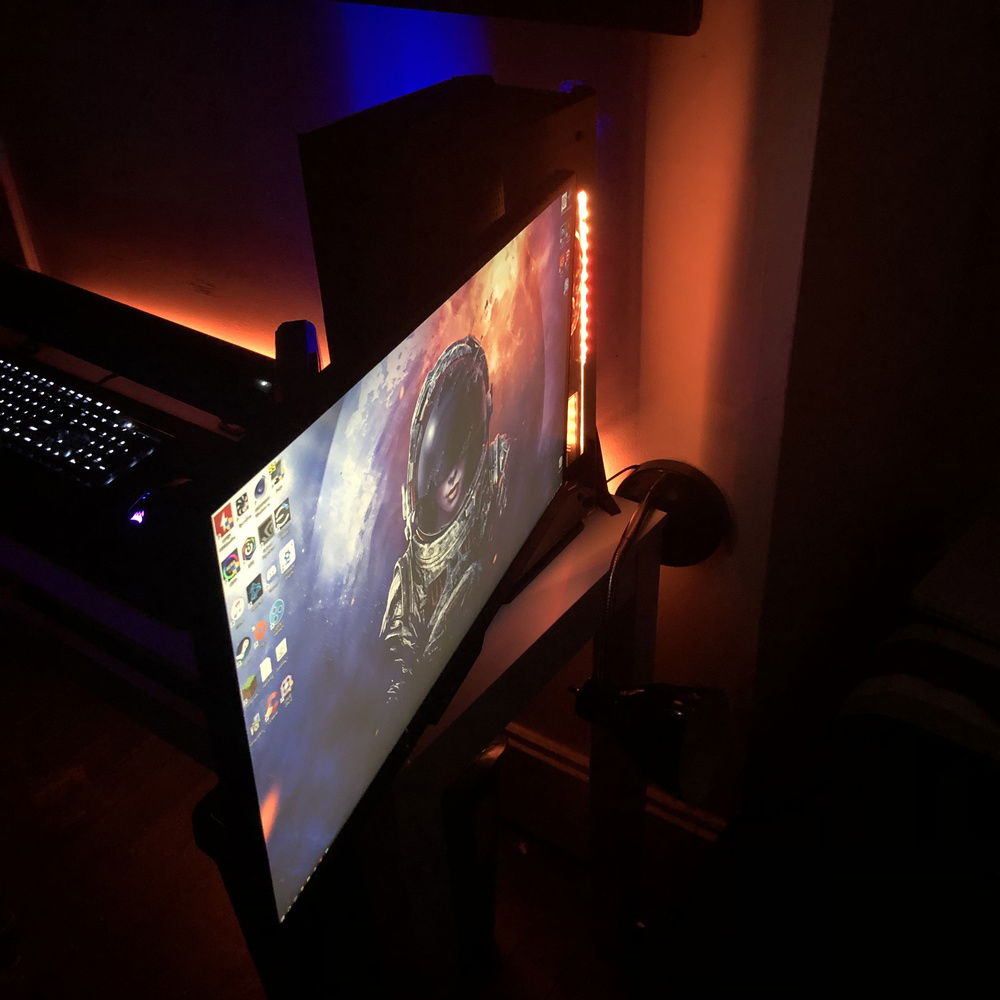

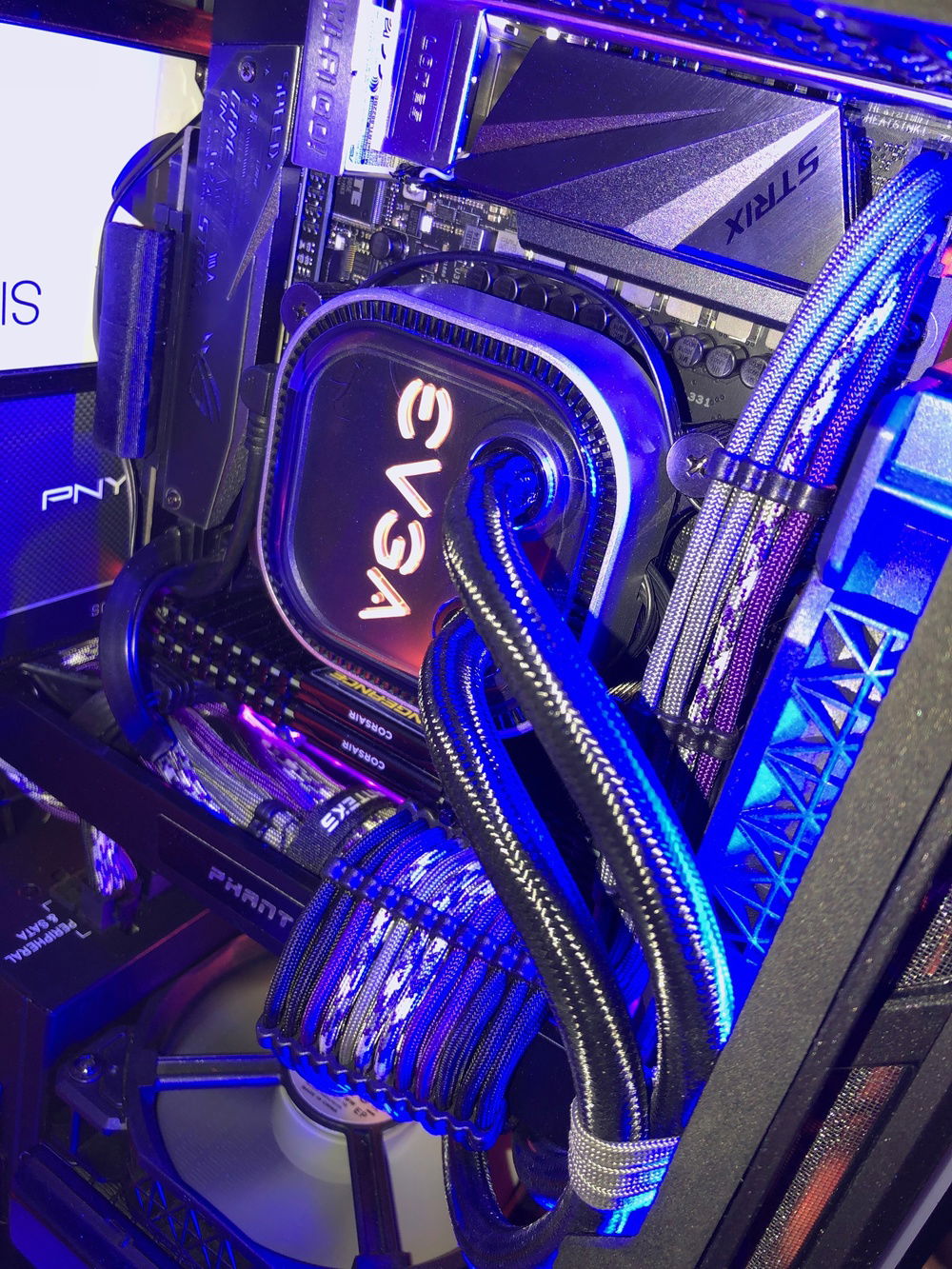

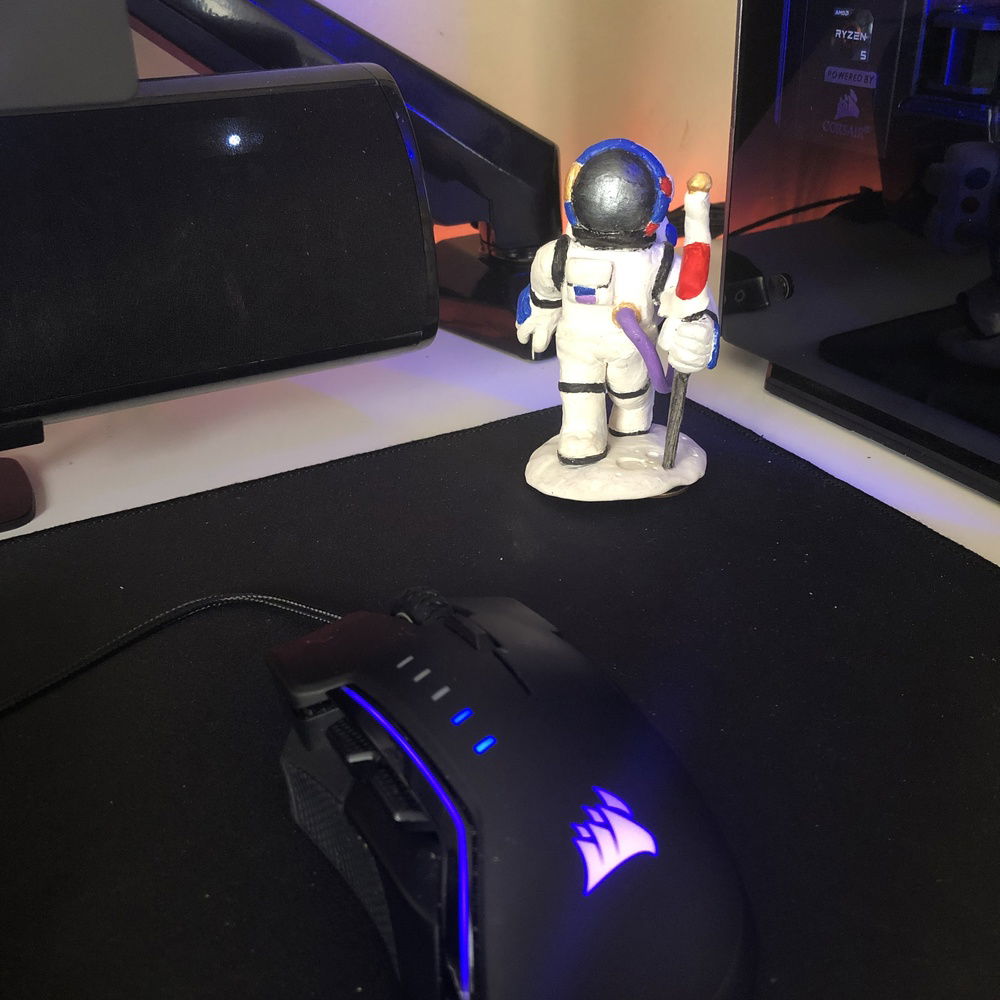

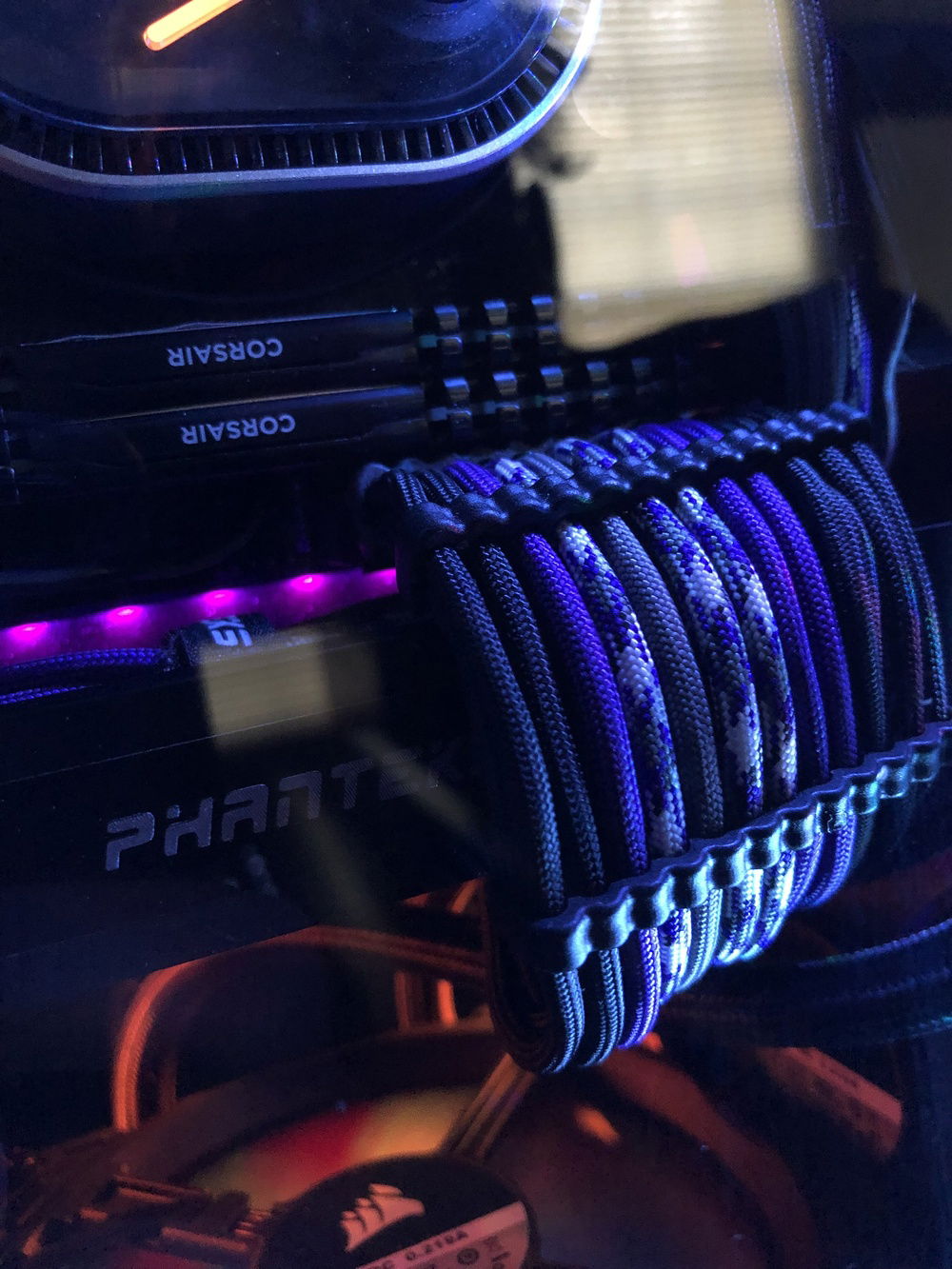

This is the third revision of my second pc build, Nebula. It's used for graphic design, digital art, and gaming. The front panel mod is just two layers of laser-cut acrylic. I sleeved the cables myself, it took me two days and my hands were killing me but that's probably the component I'm most proud of because I put so much work into them. The case also has a very subtle silver sparkle paint + splatter that's hard to photograph. That being said even in person it almost looks like the stock anodizing color until you get close. The biggest difference it makes is that the side vents are now sparkle silver and match the panel instead of the black plastic finish that's stock. The Dualshock 4 controller sits in a controller hangar I made myself mounted to the front panel of the case. The secondary keyboard (Logitech k400) is used from my bed, the way my room is set up I can swing my monitor (which is mounted on an arm) around and browse/ play games from my bed. (See pictures). (My mouse is set to fade between orange and purple which is why it's different in different pictures).

Planning to cram a full custom loop in here in the future, if anyone has any parts suggestions or other helpful info I'd love to hear your ideas! Clearances will obviously be an issue so if you know components that fit will fit in this case let me know!

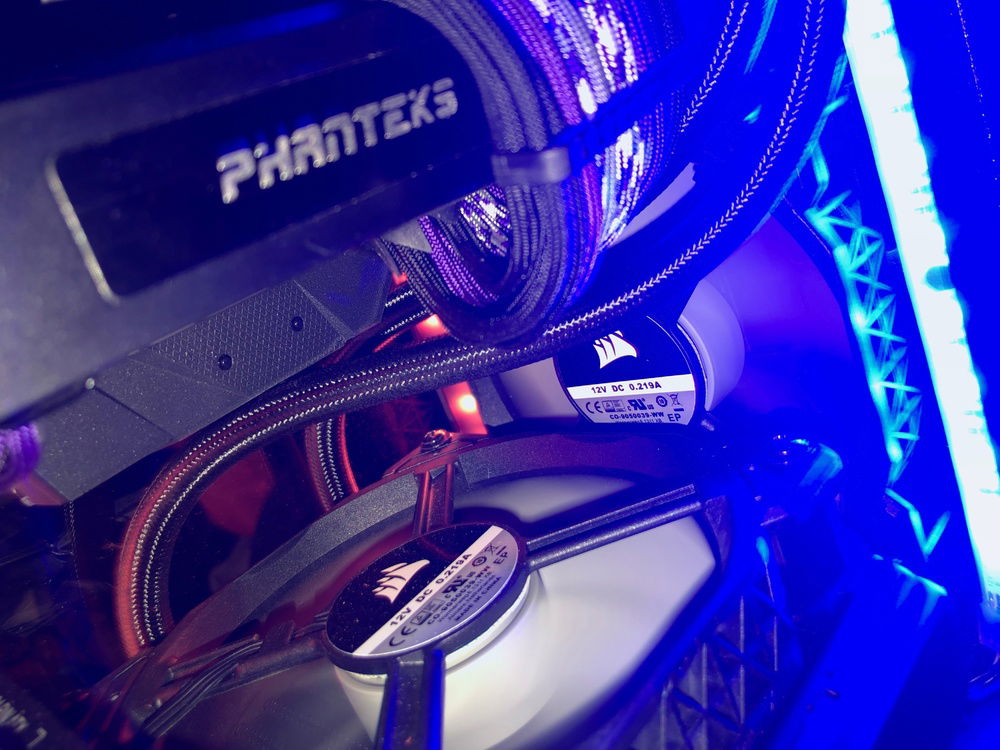

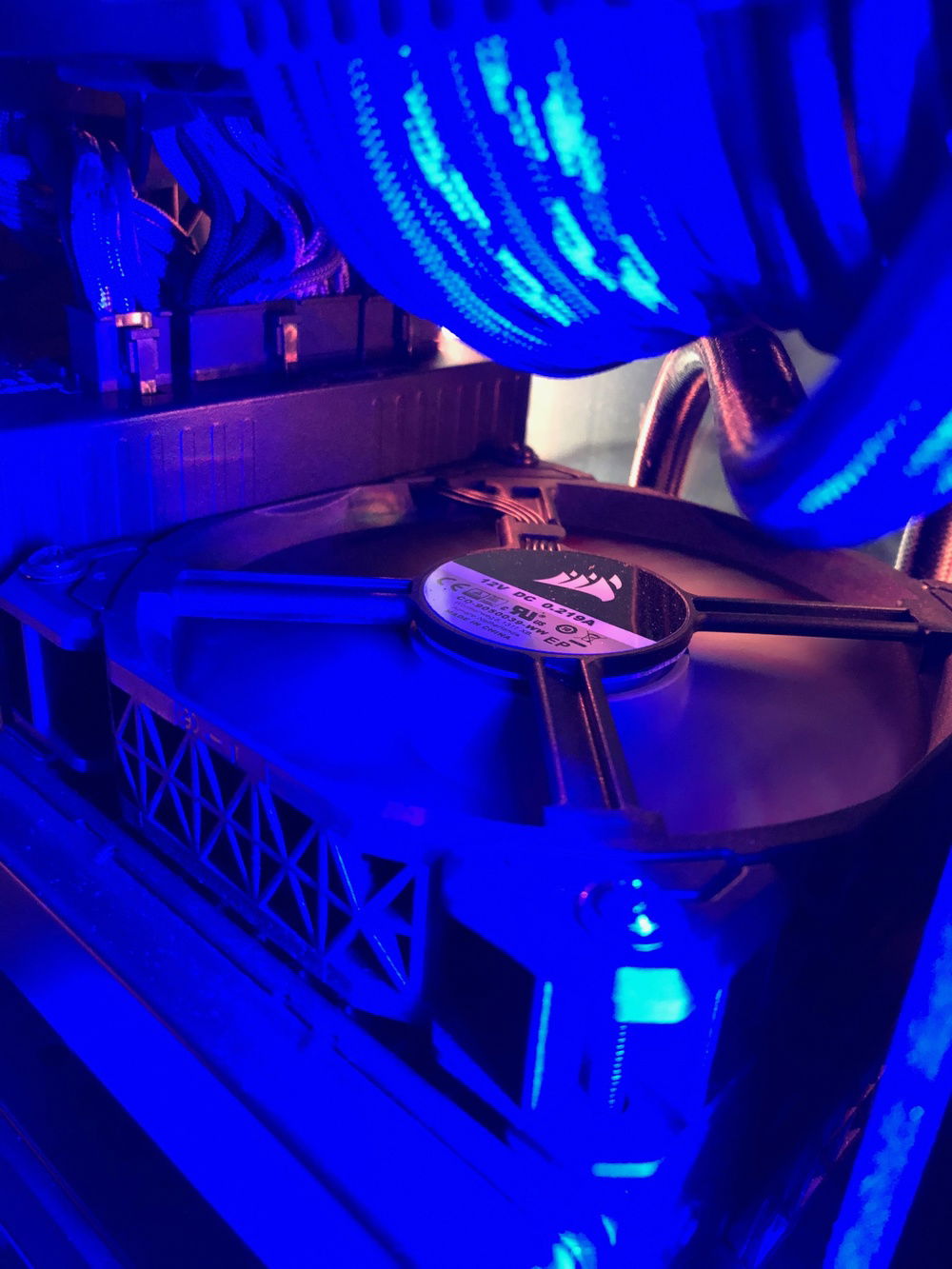

More info not found in Hardware section for those that are interested in specifics: Monitor (BenQ PD2500Q) is OC'd to 85mhz, Ryzen 5 1600 @3.7ghz / 16gb Corsair Vengange LPX DDR4 @3000mhz / 4x120 Corsair MagLev Fans (2 front intake, push/pull bottom intake on AIO). 3x30cm Phanteks RGB Strips
Color(s): Black Gold Orange Purple Silver White
RGB Lighting? Yes
Theme: none
Cooling: AIO Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 109.38
AMD - Ryzen 5 (1600) (YD1600BBAEBOX)
Socket: AM4
Cores: 6
Motherboard
$ 324.20
ASUS - ROG Strix Gaming (B450-I)
Chipset: B450
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 24.99
Corsair - Vengeance LPX (3000MHz) (Black)
Type: DDR4
Capacity: 8 GB
Graphics

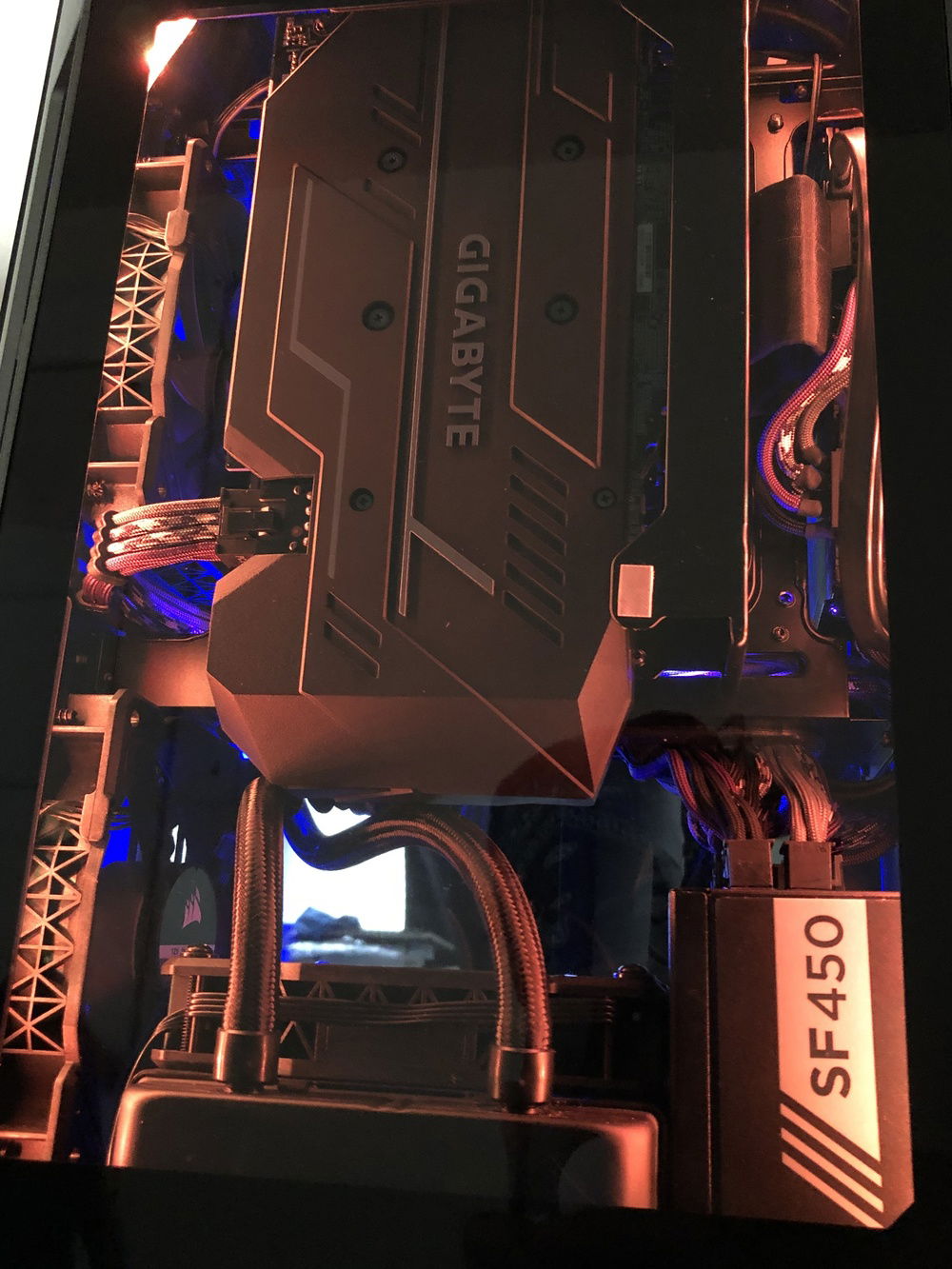

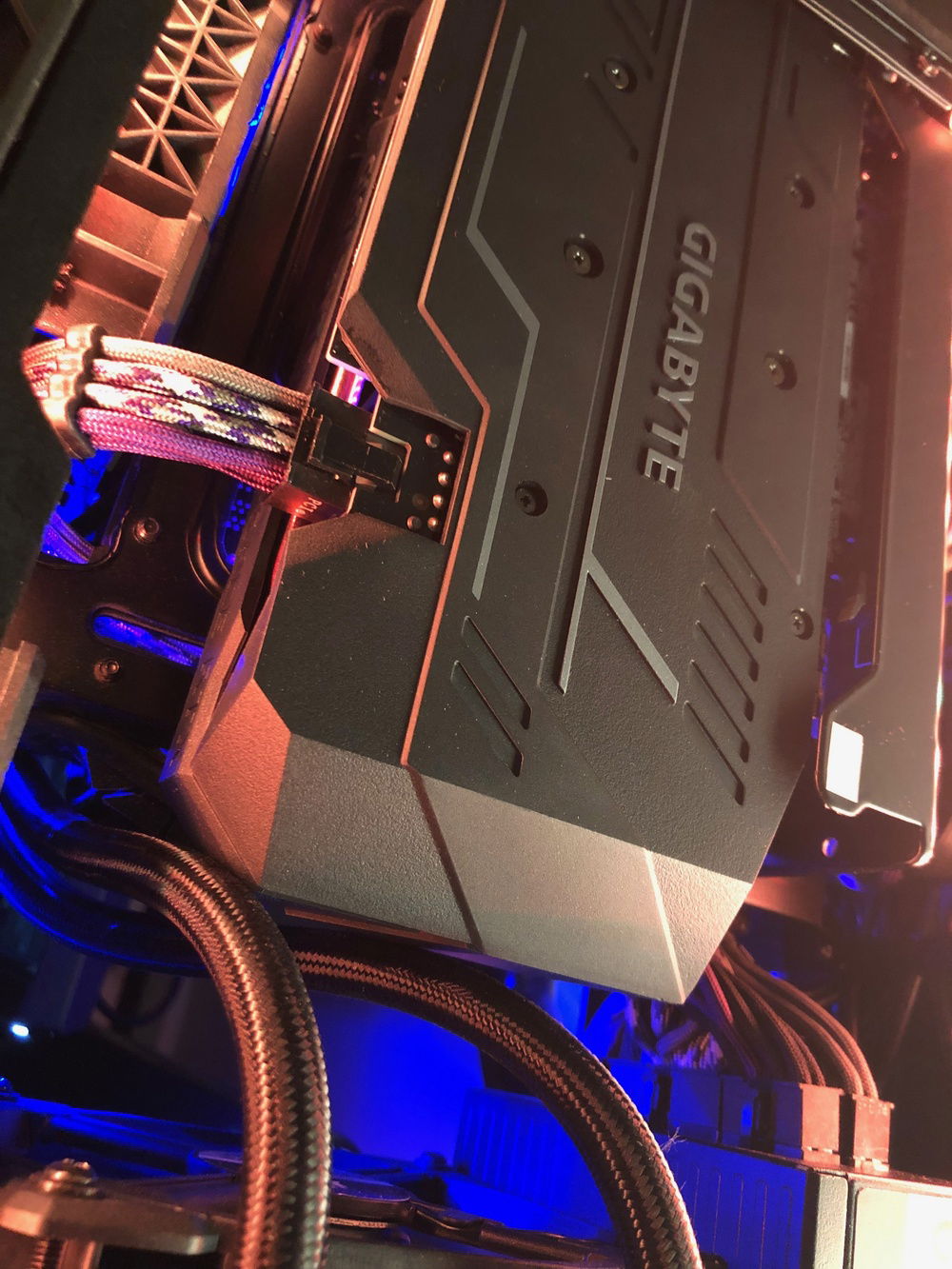

$ 286.66
Gigabyte - GAMING OC
Chip Manufacturer: NVIDIA
Chip: RTX 2060
Storage
$ 77.48
Crucial - P1
Form Factor: PCIe x4
Interface: PCIe x4
Capacity: 500 GB
Storage
$ 19.99
PNY - CS900
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
Storage
$ 63.99
Western Digital - Slim
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 179.98
Corsair - SF450
Wattage: 450
Form Factor: SFX
Efficiency: 80+ Gold
Case
$ 149.99
Phanteks - Evolv Shift
Type: Mini-Tower
Side Panel: Tempered Glass
Cooling
$ 155.80
EVGA - CL11
Type: AIO
Accessories
$ 21.99
Accessories
Monitor
$ 249.99
BenQ - PD2500Q
Size: 25 Inch
Panel: IPS
Refresh Rate: 60 Hz
Keyboard
$ 39.99
AZIO - MGK1-K
Interface: Wired
Key Switch Type: Kailh Brown
Type: Full Size
Keyboard
$ 39.88
Logitech - K400
Interface: Wireless
Type: Tenkeyless
Mouse
$ 94.99
Corsair - Glaive RGB
Interface: Wired
Estimated total value of this build:
$ 1,380.65
