Hey everyone! Time for the next build!

Since i completed my last build (the Frankenstein build) i already had this in mind, though it wasnt a simple task, but it made it to reality in the past few weeks/months. As usual i cannibalized on the parts of my last build, so this build is also a "Frankenstein" build in a way, but now with only a few things. Most of the components are new, as my goal was also to somewhat max out the good old AM4 platform (in the "best bang for the buck" kind of way).

Most of the time went into planning the parts, trying to think of everything before having anything phisycal in my hands, and once the plan and (then later) the parts were complete the second biggest task was to stick to everything i planned 😀

It wasnt easy, some things fit better then the others, and i also missed a few things to account for beforehand, but all-in-all it came together pretty nicely!

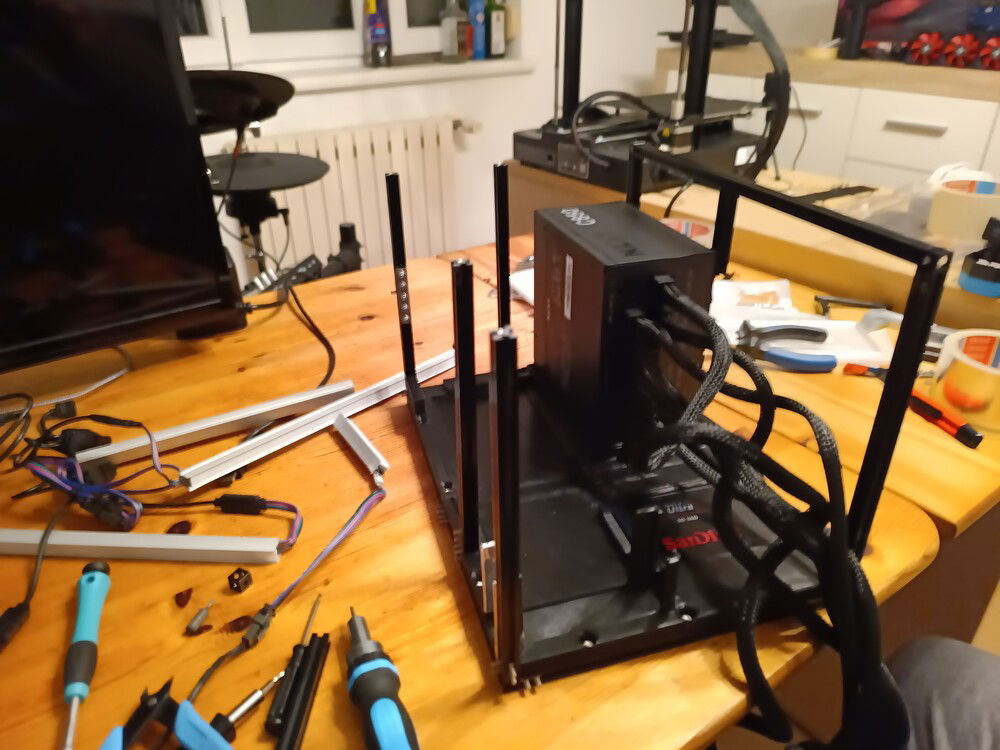

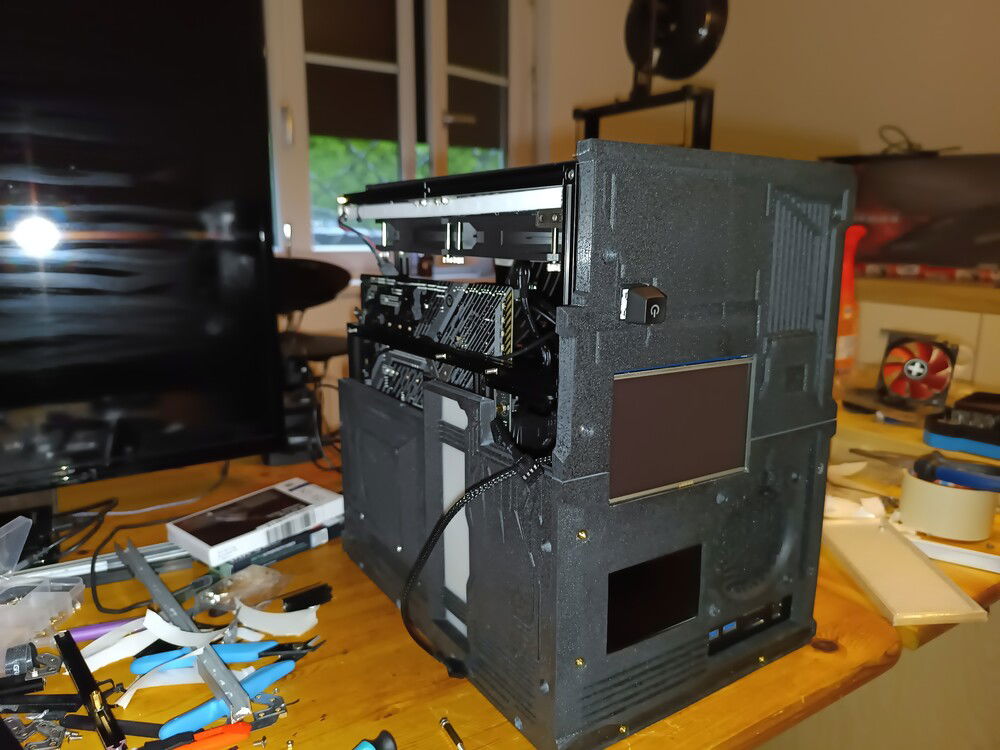

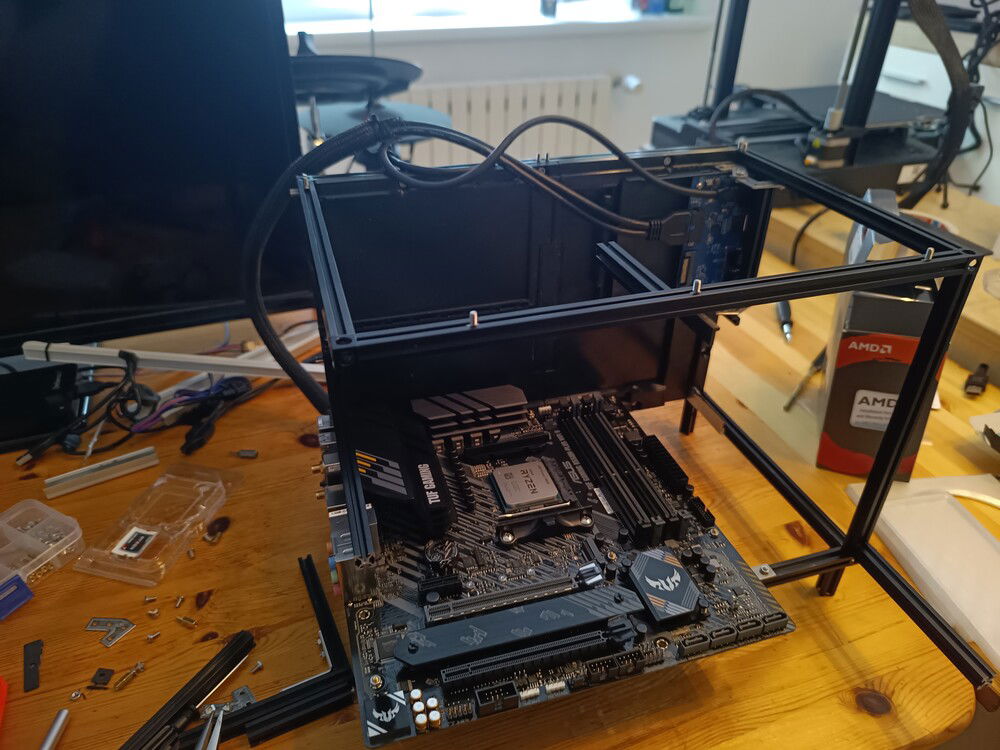

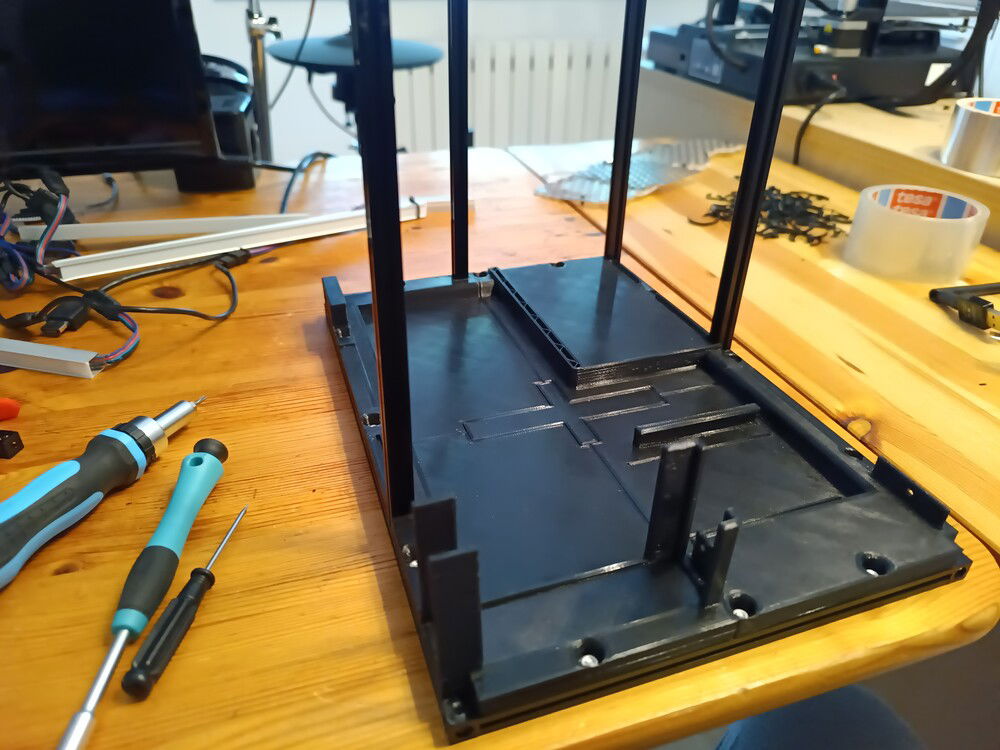

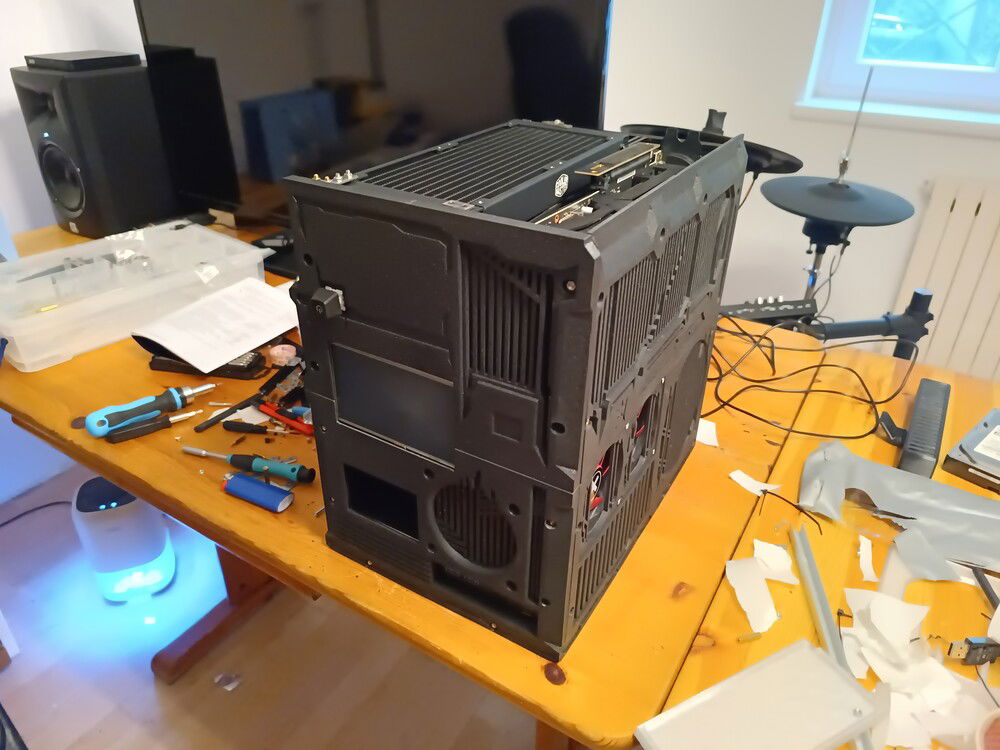

It's a "body on frame" construction (just to use a fancy automotive term), the "skin" or in this case the body is completely 3d printed and is bolted to an aluminium frame (built in tandem as the hardware and the outer shell was built, it made good fitment possible). Be sure to check out the build updates regarding the process.

This is the whole build, from the beginning to the very end, from plan to reality, from parts to machine, from nothing to Maximus.

Features :

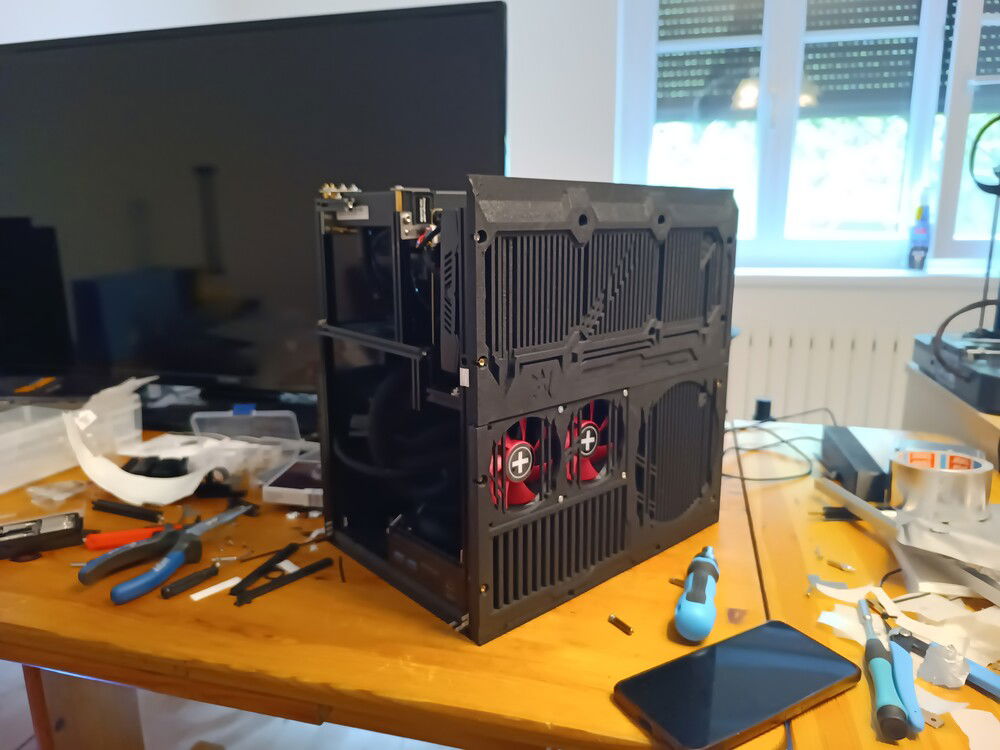

Home designed and 3d printed "body"

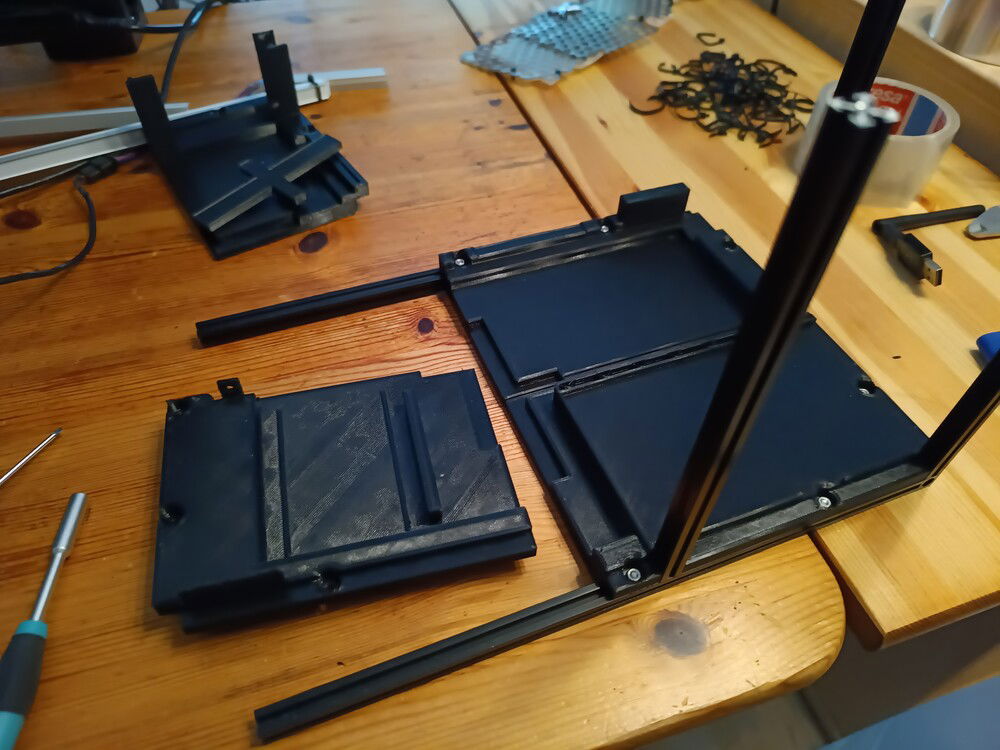

Custom Aluminium frame underneath

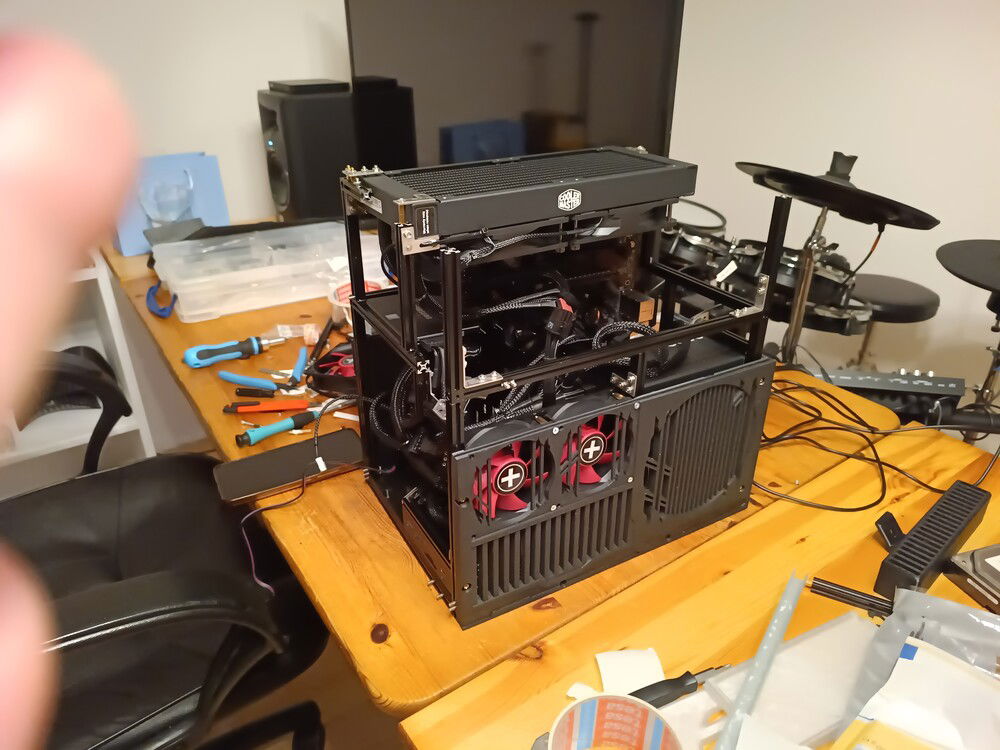

4x80mm intake fans (bottom)

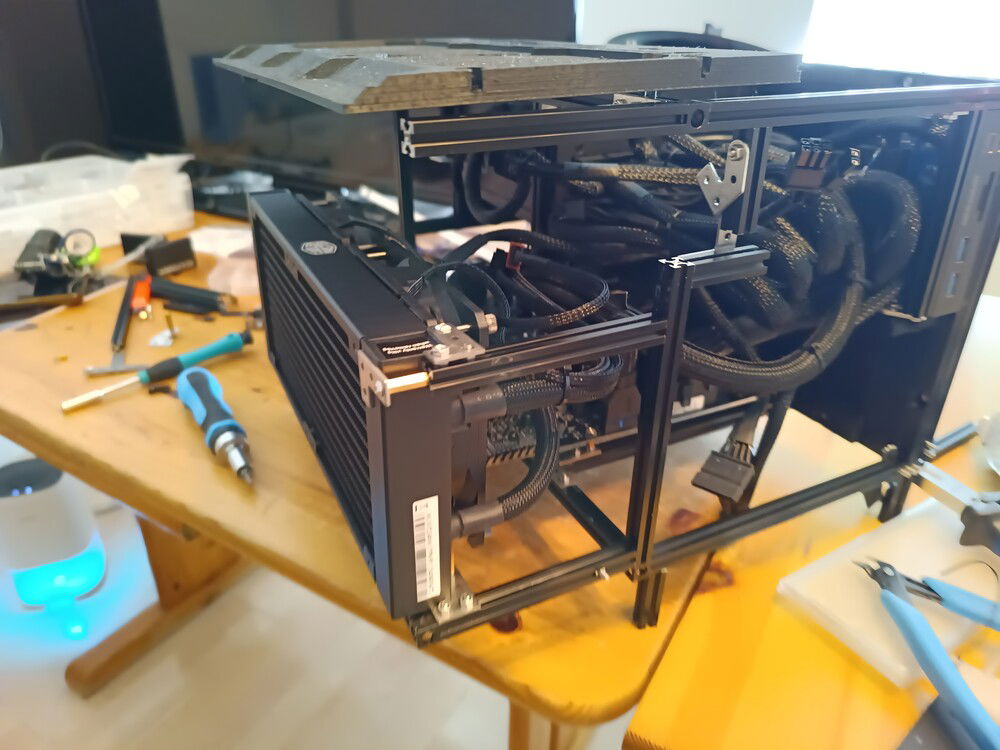

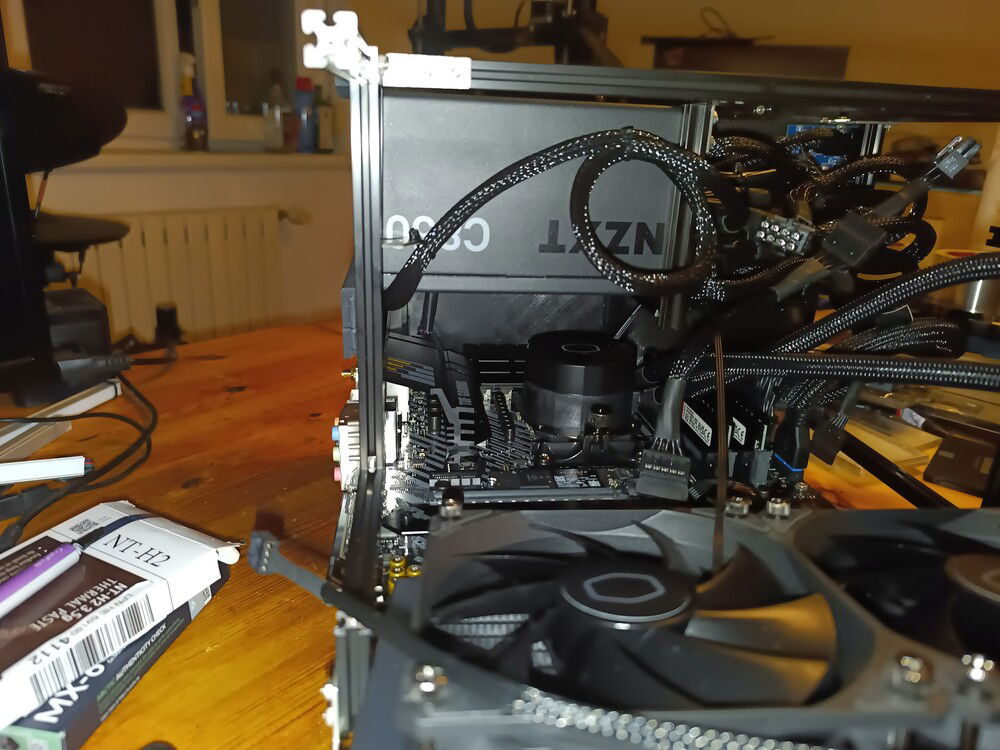

GPU & AiO exhausts on top
Great bottom-to-top airflow:

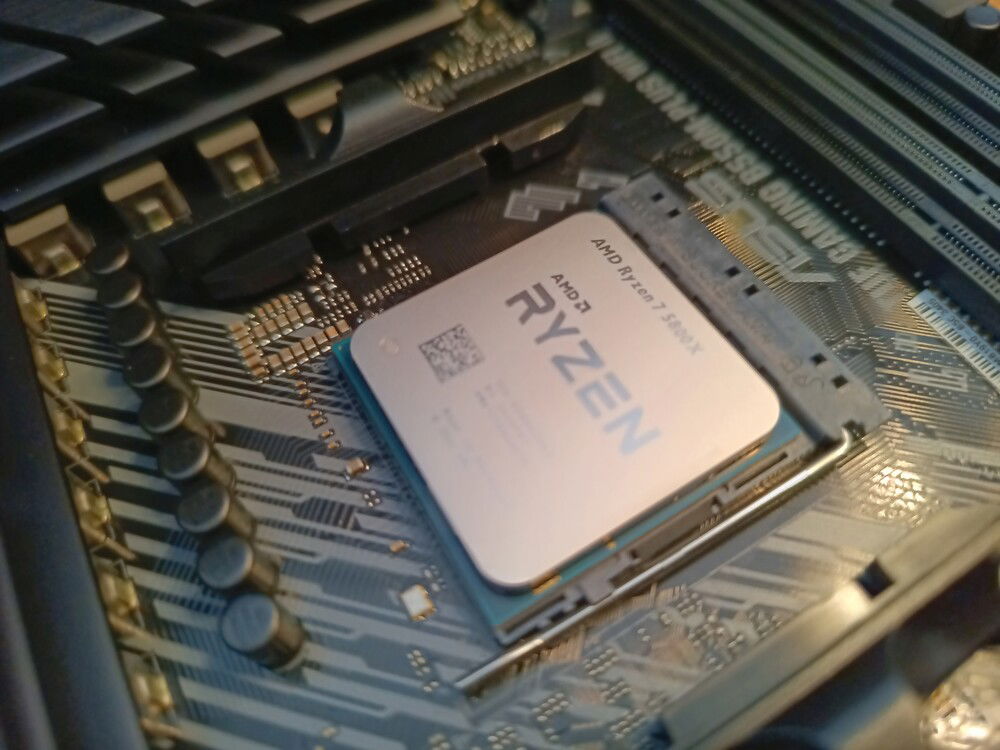

- Undervolted 5800x idles at 28C, at full load 50C

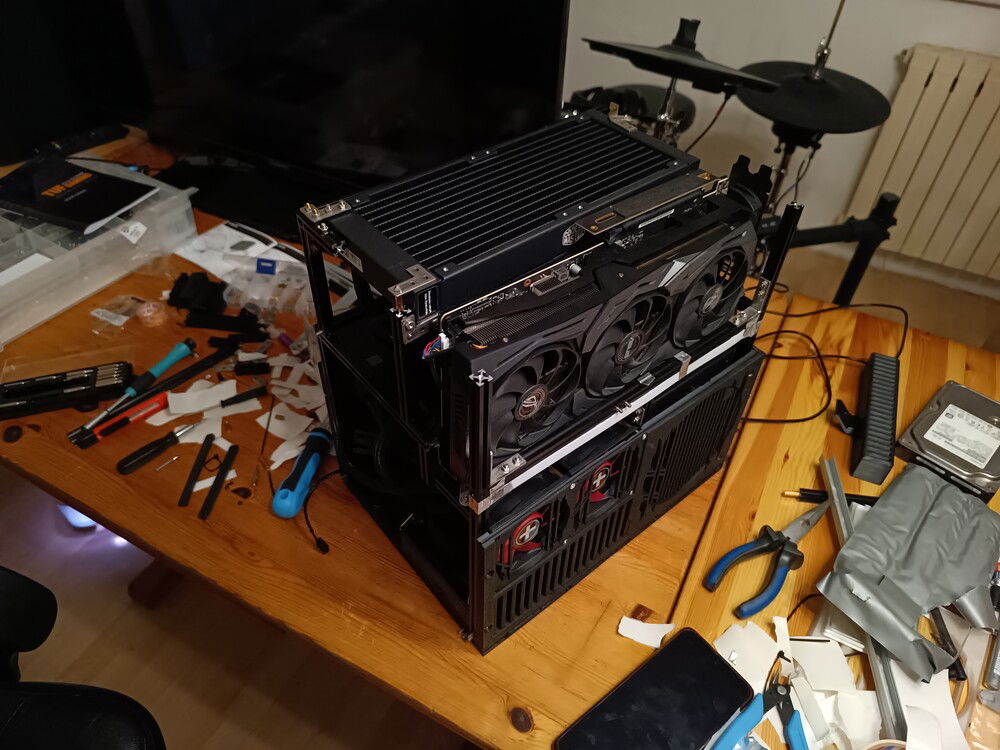

- Overclocked 2080TI full load at 61C

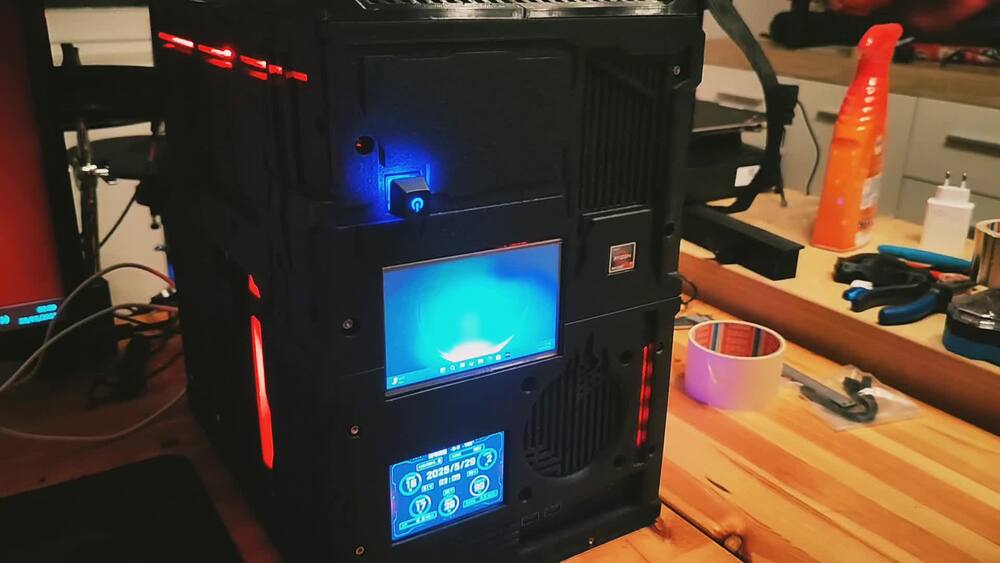

1x5" Secondary display
1x3,5" System "telemetry" display
1x7" RGB Dot-matrix display (for aestehetics)

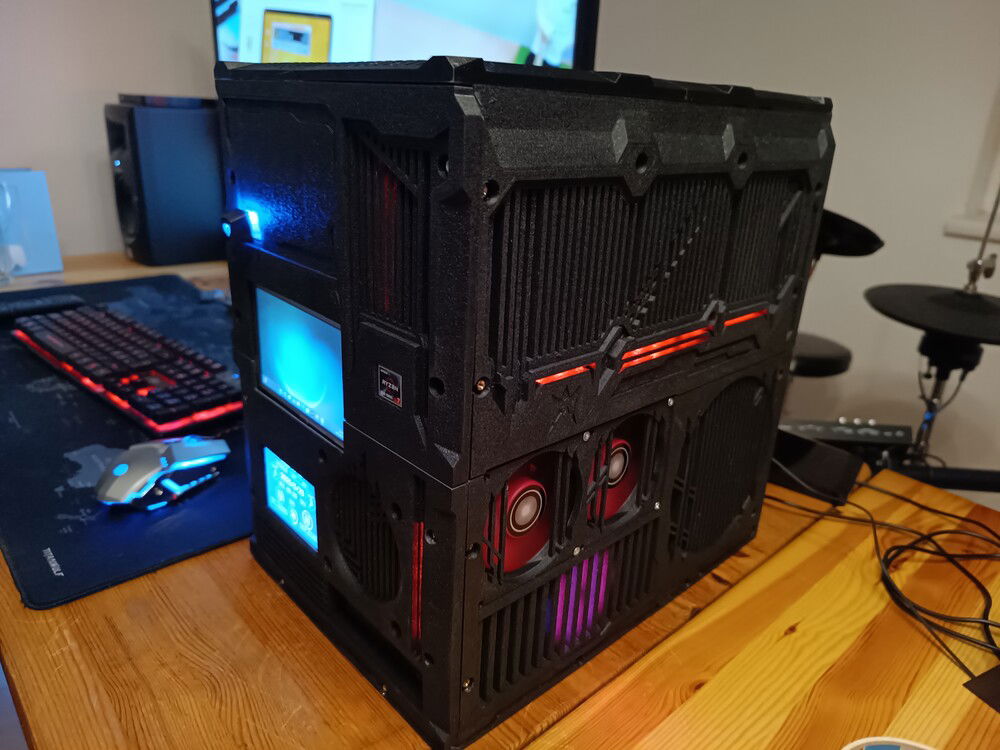

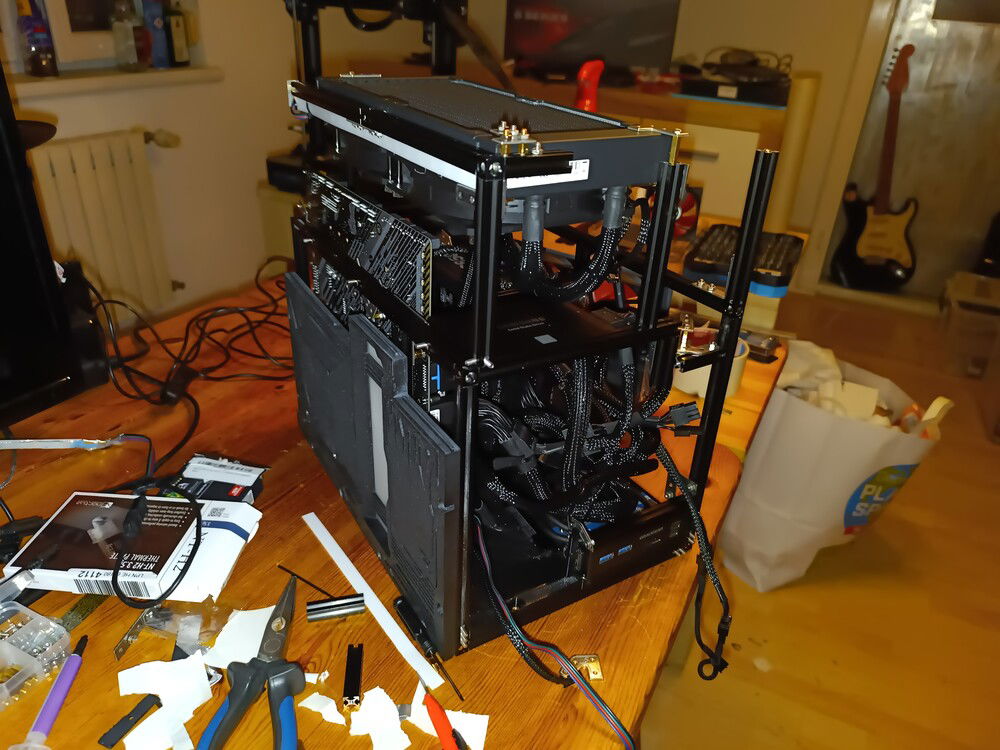

Aura RGB (MoBo, GPU + 4x LED strips)
mATX form factor
