Magnus II

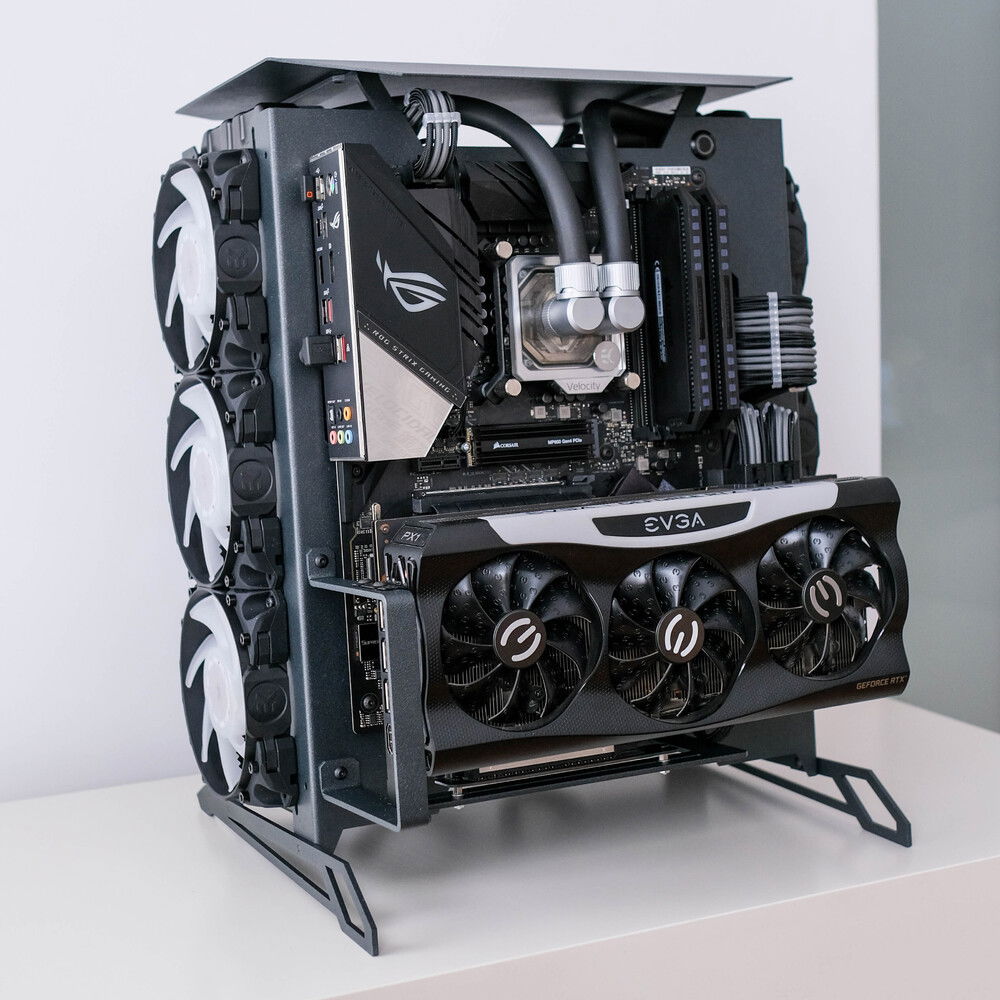

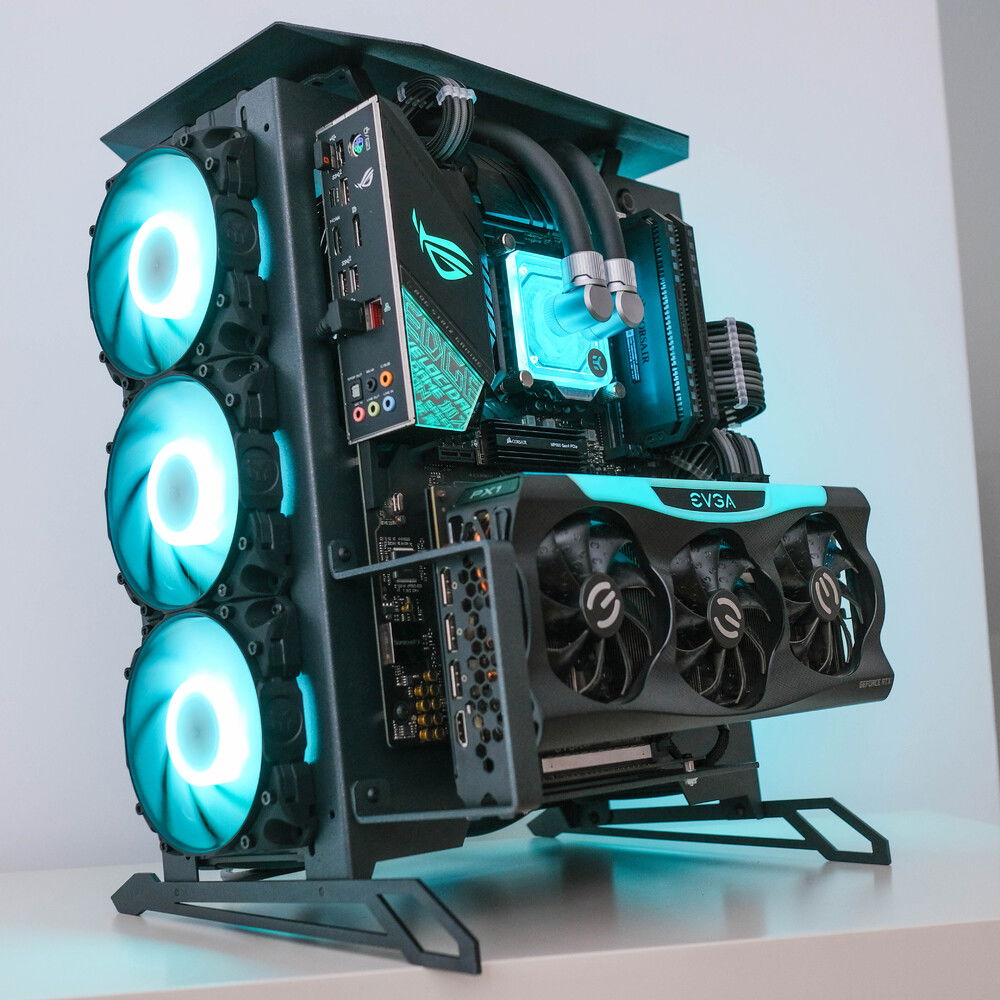

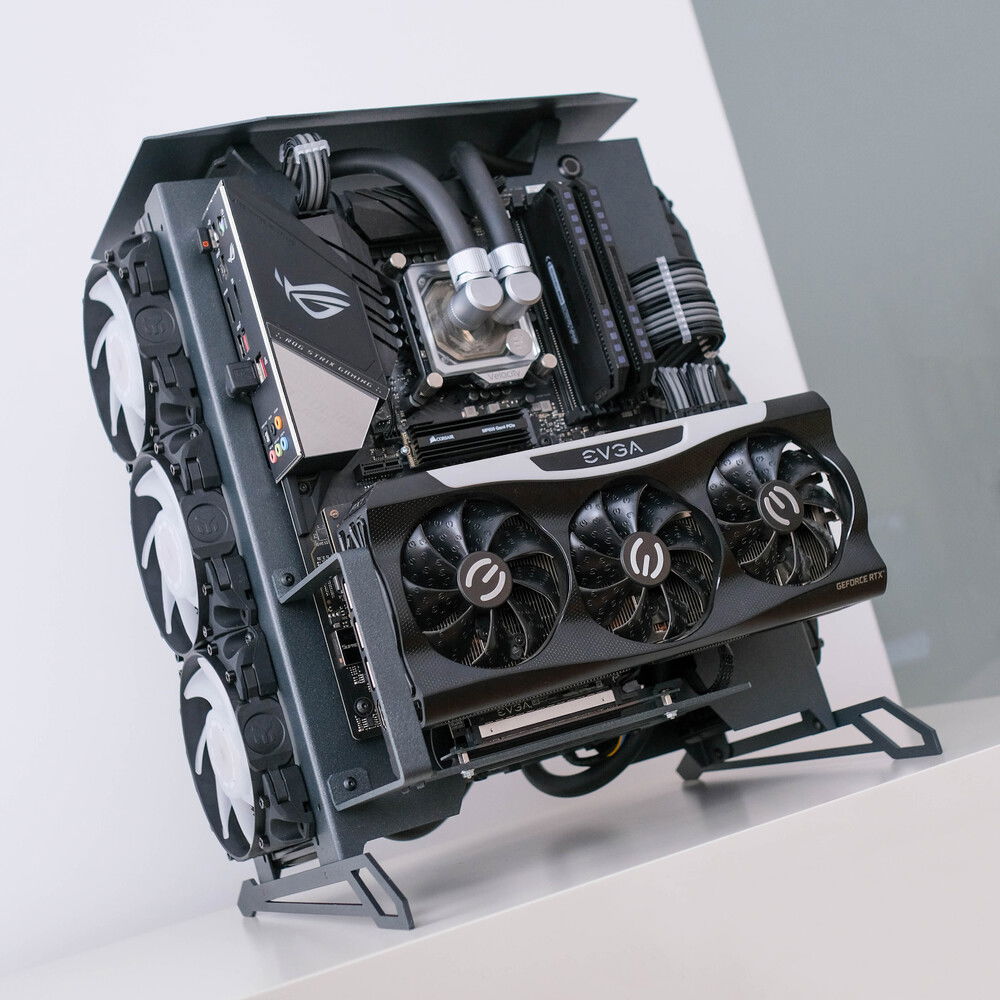

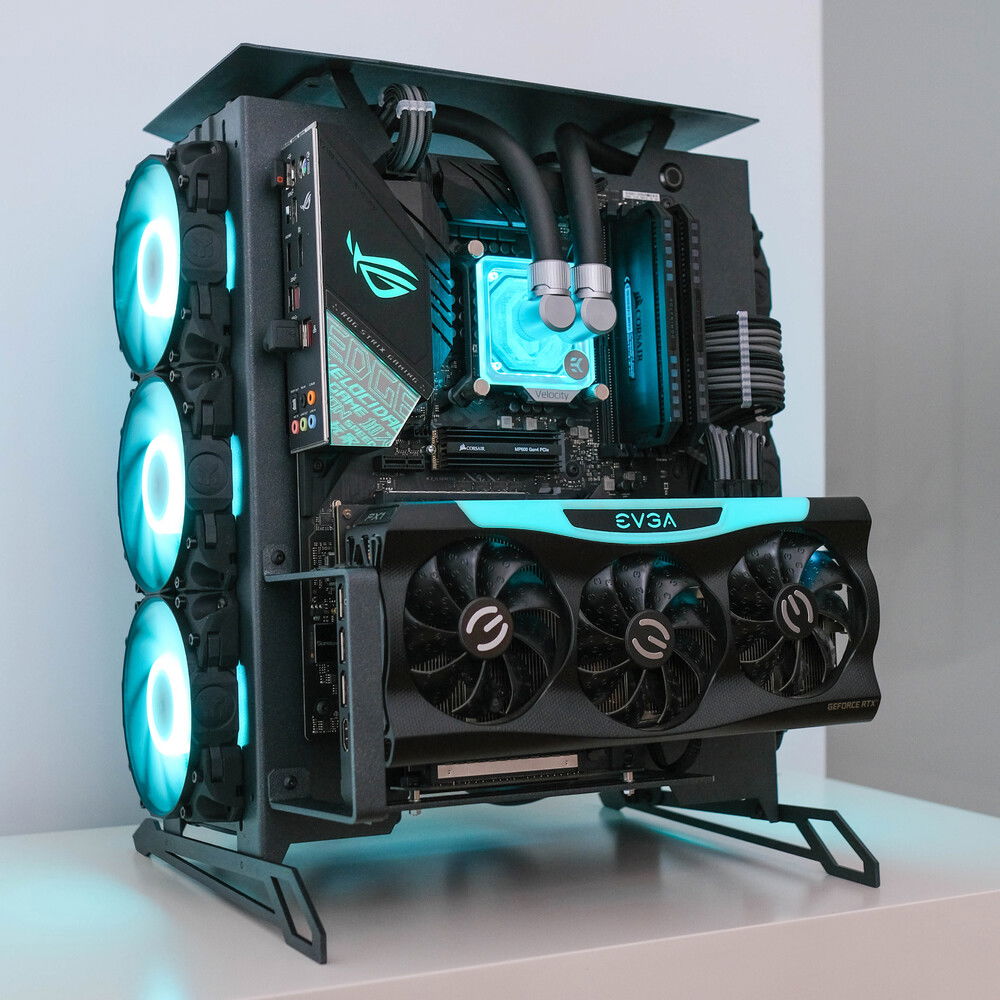

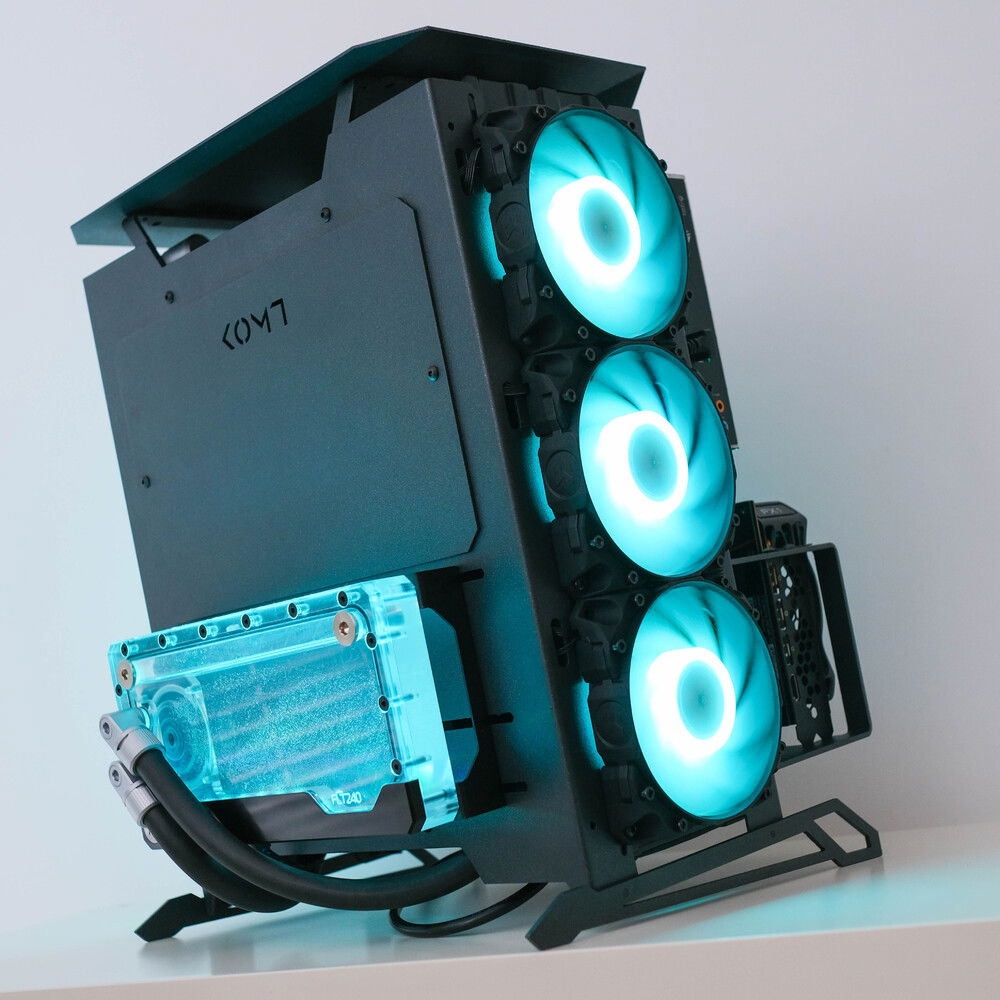

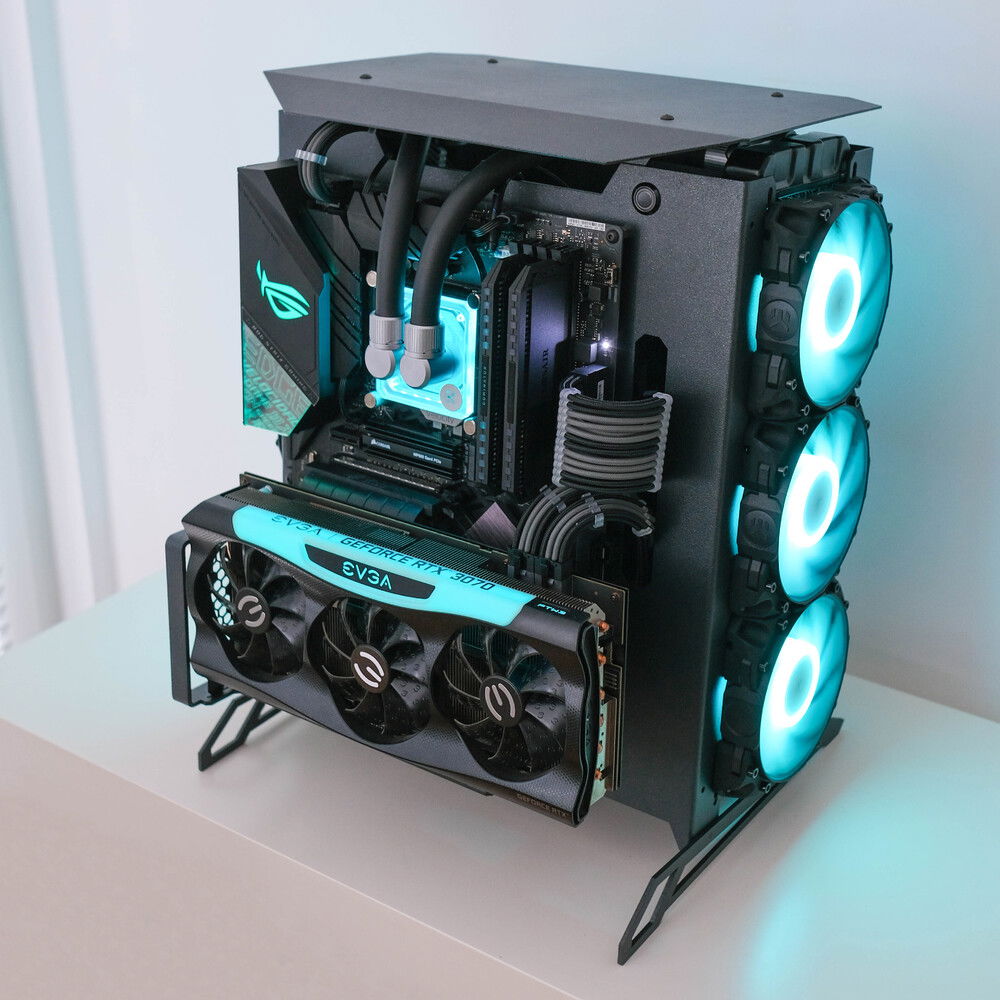

Introducing our second iteration of our open air chassis called the Magnus. Although it is mainly focused for custom loop builds, the chassis can easily accommodate all in one coolers as well. The main panels of the chassis are made out of 1.5mm graded steel. The supporting brackets, the feet and the GPU bracket are all made out of 3mm graded steel. For weight reduction, the back service panel and the top "hat" are made out of 1.5mm aluminum. Powder coated with a scratch resistant paint called: Black Sand. The chassis can support two 360mm radiators on both sides and up to 60mm in thickness if placed on the inside of the chassis. If radiators are placed on the outside, there are no thickness limitations. The back of the chassis can accommodate large variety of pump-reservoir options as well. There are no length restrictions neither for the PSU neither for the GPU. The Magnus II definitely makes a presence not only on your desk but in your room as well.
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 427.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 369.00
ASUS - ROG Strix Z390-E Gaming
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
Corsair - Dominator Platinum (3000Mhz)
Type: DDR4
Capacity: 32 GB
Graphics
$ 499.00
EVGA - GeForce FTW3 Ultra Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3070
Interface: PCIe x16
Storage
$ 64.99
Corsair - Force MP600
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 185.47
NZXT - C850
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
Custom - Custom (custom)
Case Fan
$ 377.94
Cooling
$ 229.98
Corsair - Hydro X XR7 (2x)
Type: Radiator
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 255.26
Cooling
$ 70.00
EKWB - EK-Velocity RGB Intel Nickel/Plexi
Type: CPU Waterblock
