Lian Li O11D Rebuild

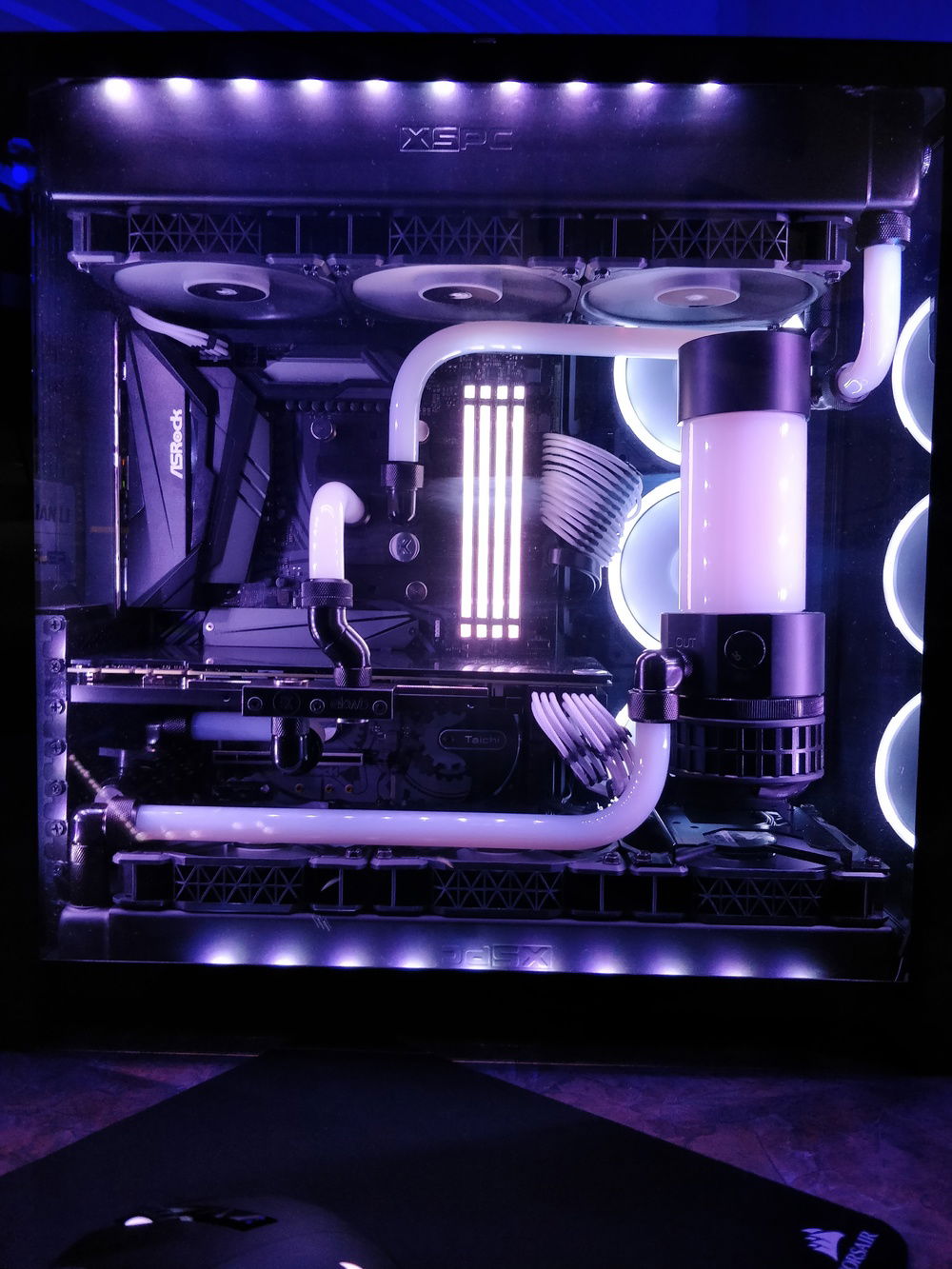

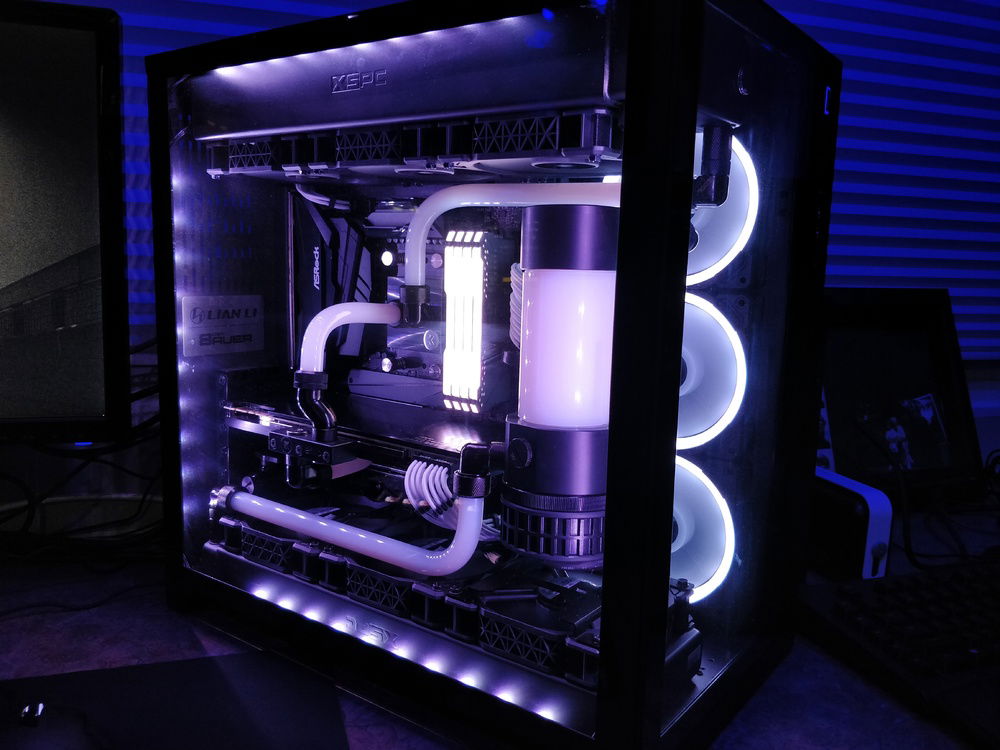

This build is my second watercooling build, my first being the original design of this loop.

I added an additional radiator to the bottom of the case as well as re-bent all my tubes and utilized the top inlet of my pump. I tried to keep everything very simple and not over complicate bends like I had done in the previous build.

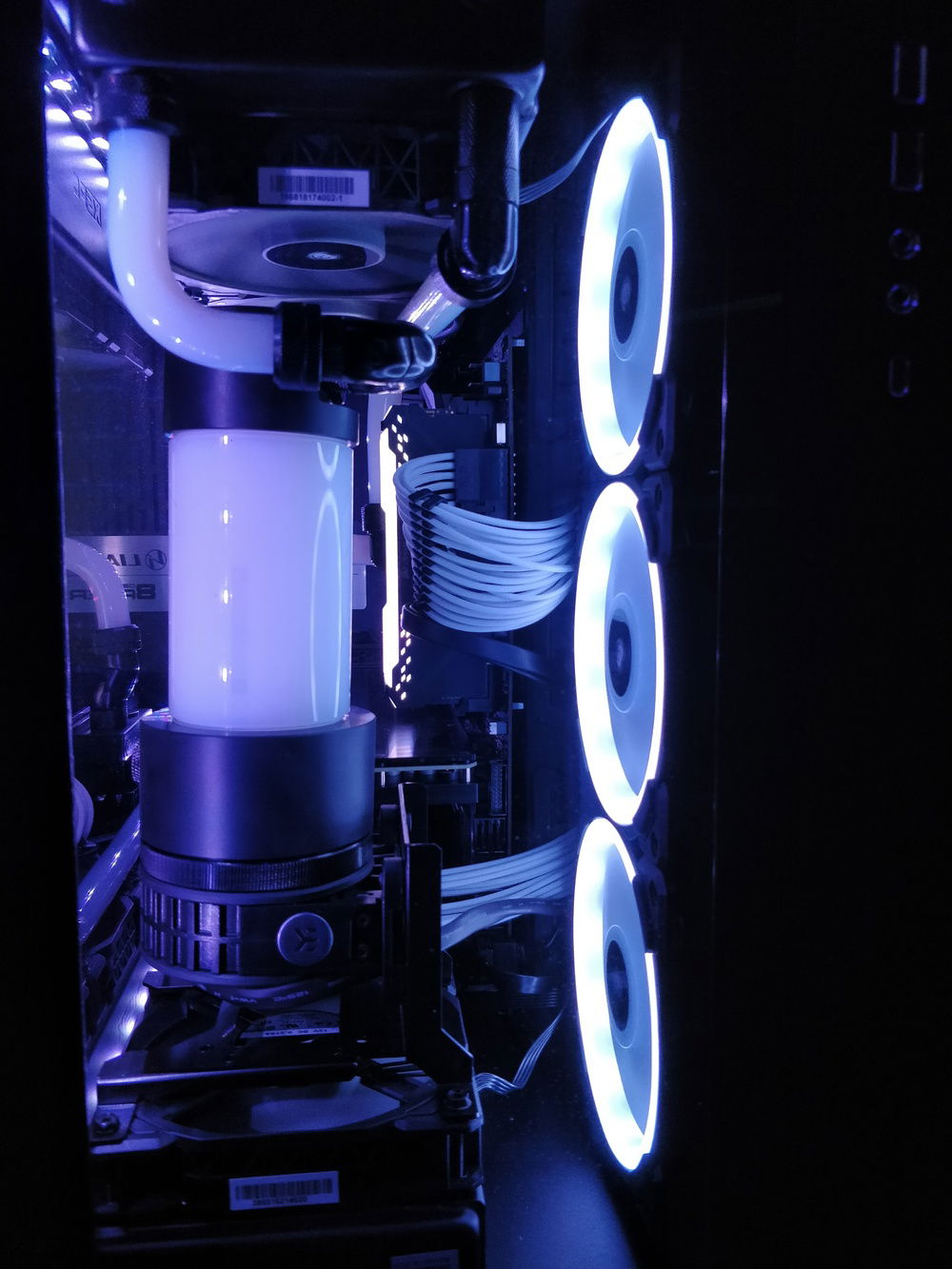

I have the 3 fans pulling air in from the bottom and the top 3 and side 3 are all exhaust fans. The fan speed is controlled via a temp sensor plugged into the Commander Pro and it is unbelievably quiet. The fans sit at 750 RPM almost all the time and only occasionally ramp up to the 800-900 RPM mark. CPU idles in the high 20's low 30's and the GPU idles at 25C. Under load the max CPU temp I've seen is 55C and the GPU 45C-50C. No overclocking yet but that may come in the future.

Overall I am seeing many improvements from the single radiator setup and the temps are significantly lower. Very pleased with the final results.
Color(s): Black White
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 250.00
AMD - Ryzen 7 (2700X)
Socket: AM4
Cores: 8
Motherboard
$ 179.99
ASRock - Taichi
Chipset: X470
CPU Socket: AM4
Size: ATX
Memory
$ 72.99
Corsair - Vengeance Pro (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 8 GB
Graphics
$ 649.00
EVGA - GeForce Founders Edition
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 39.99
Intel - 660P
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 35.99
Western Digital - Blue 7200RPM
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 55.36
Western Digital - WD Green (B)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 240 GB
PSU
$ 600.00
EVGA - SuperNOVA G2
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 149.99
Lian Li - O11 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 39.61
Corsair - LL120 (RGB) (Black)
Size: 120 mm
Cooling
Alphacool - Fittings
Type: Custom Loop
Cooling
Barrow - Fittings
Type: Custom Loop
Cooling
Bitspower - Tubing
Type: Custom Loop
Cooling
Cooling
EKWB - EK-FC1080 GTX - Acetal/Nickel
Type: Custom Loop
Cooling
Cooling
EKWB - EK-XRES 140 Revo D5 PWM
Type: Pump/Reservoir Combo
Cooling
Mayhems - Fluid
Type: Custom Loop
Cooling
$ 90.99
XSPC - EX Series
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 144.38
XSPC - RX Series V3
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Accessories
$ 74.29
Accessories
Corsair - RBG Lighting Kit (discontinued)
