Killskreen

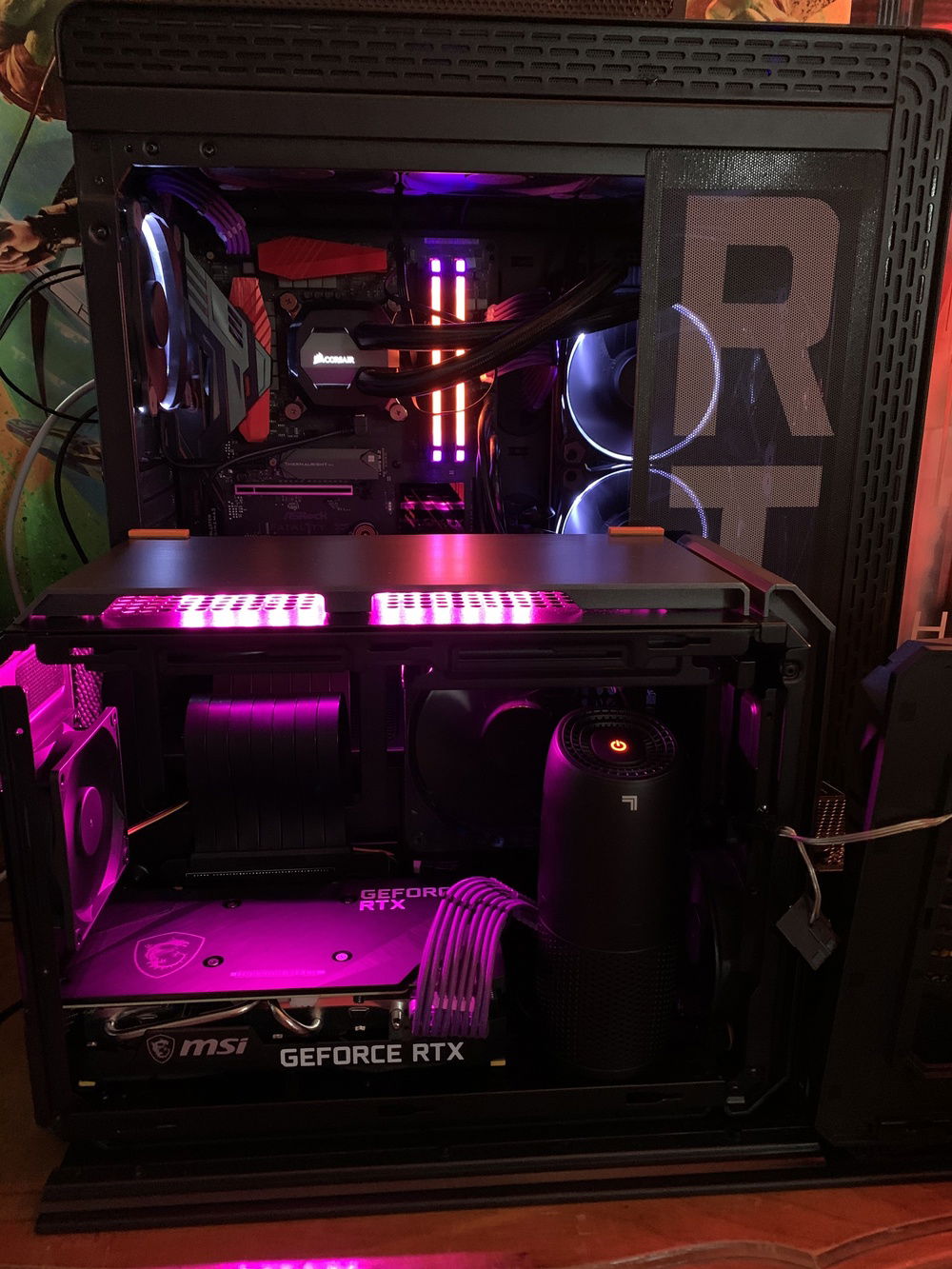

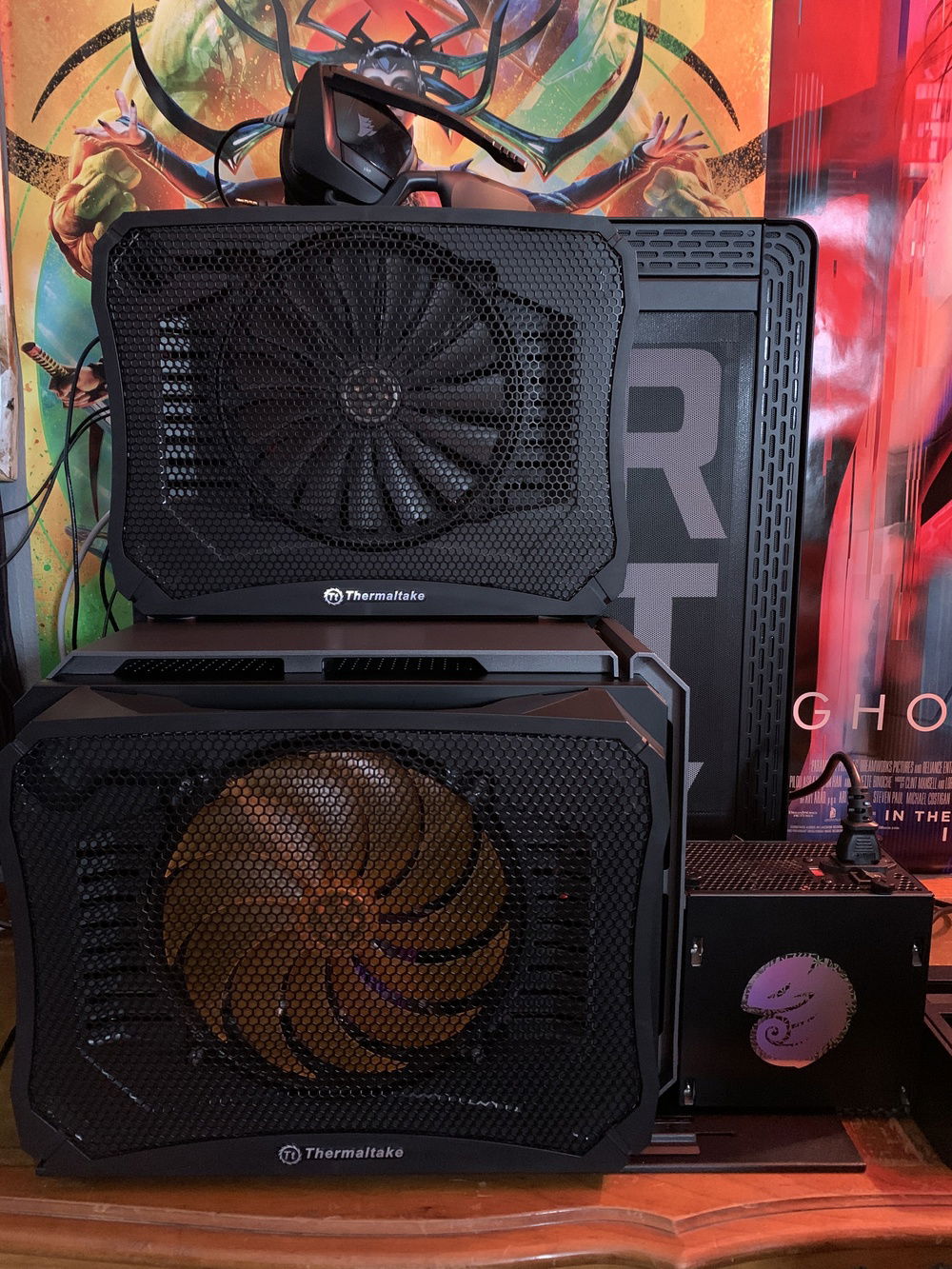

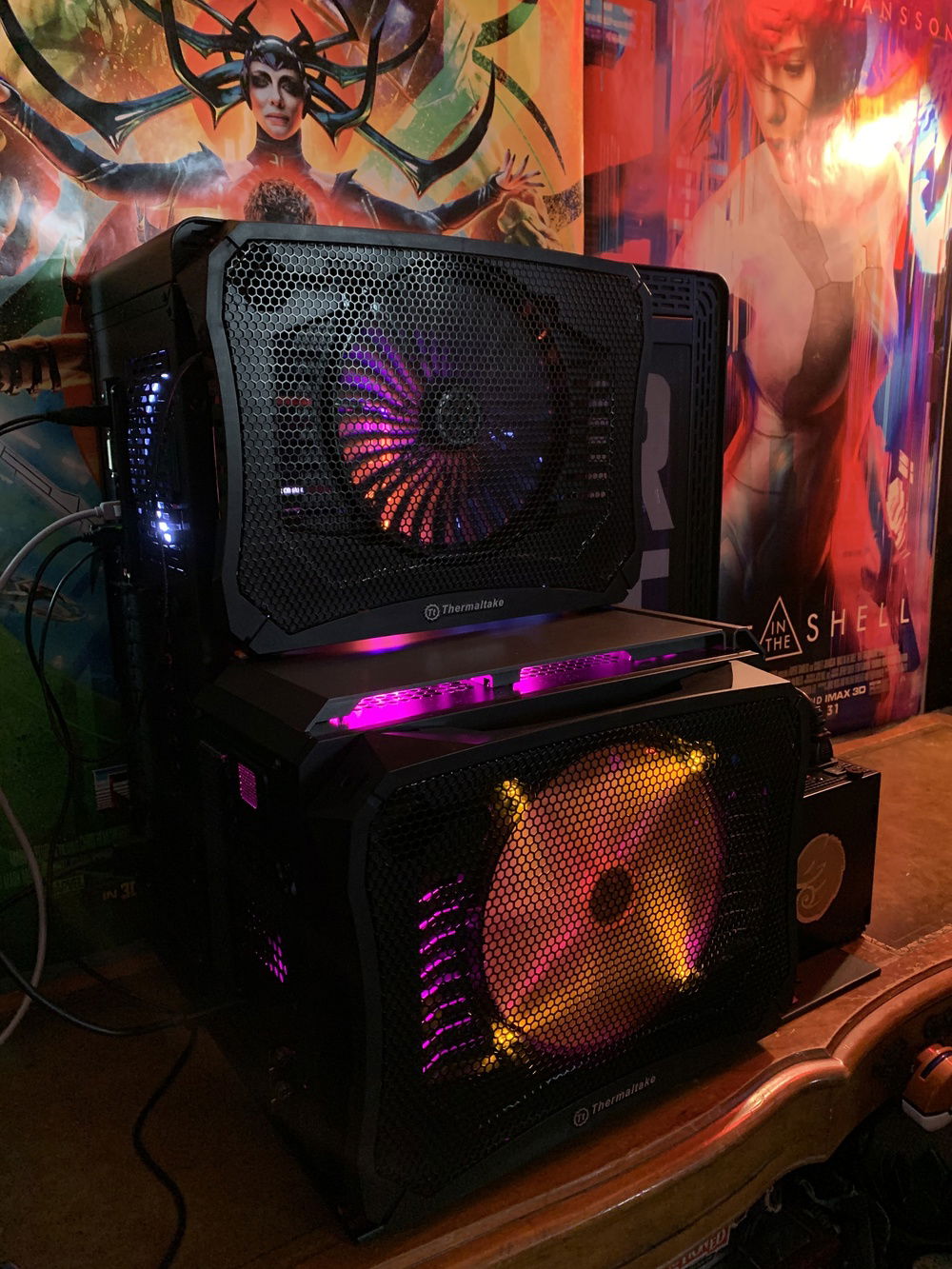

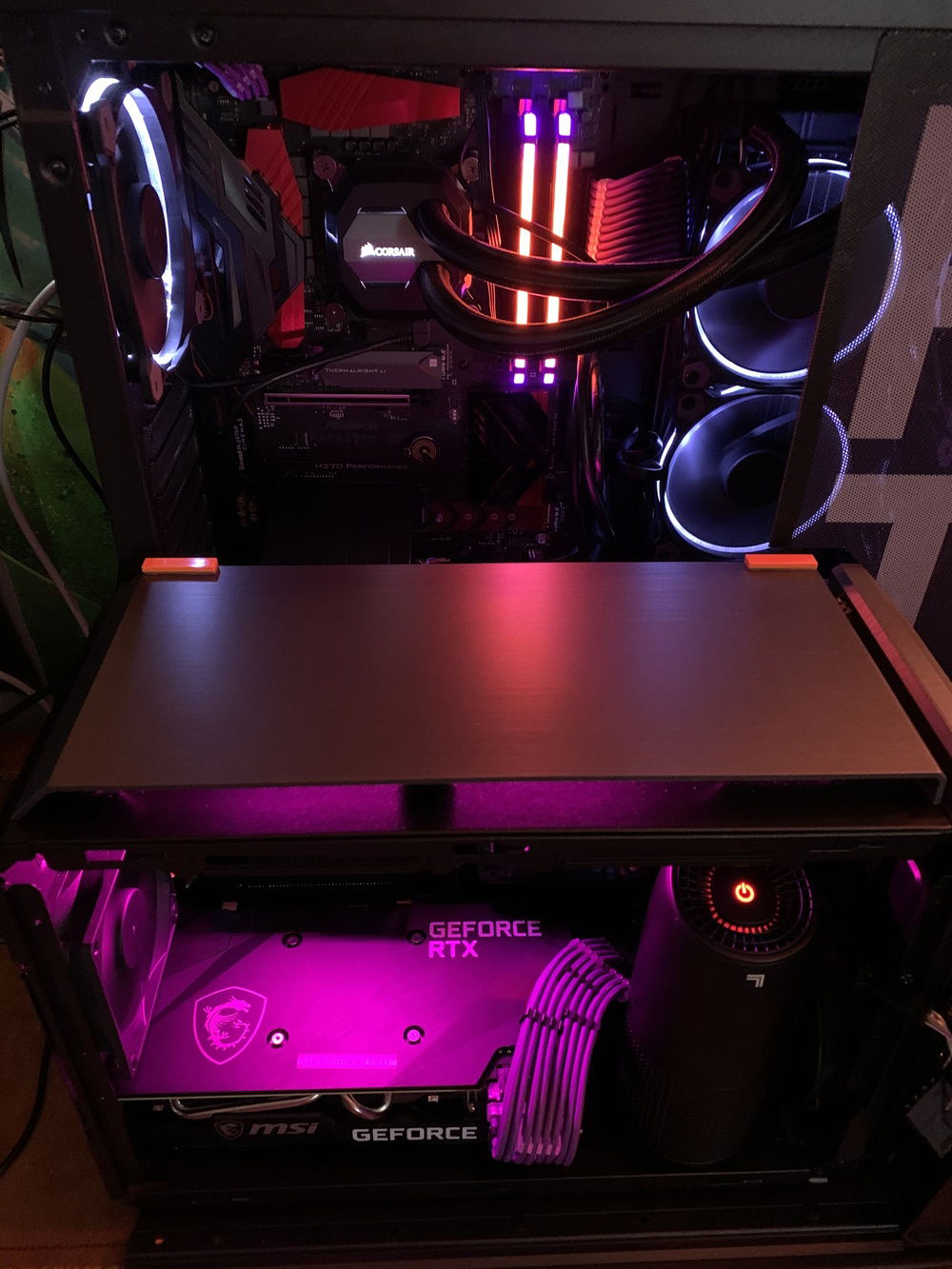

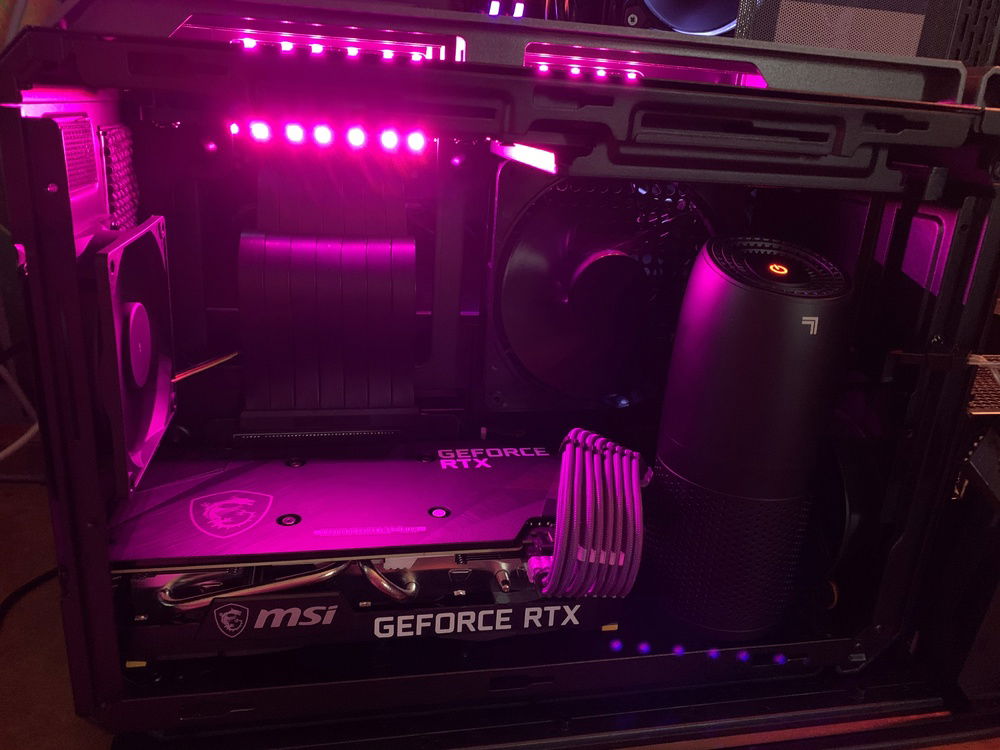

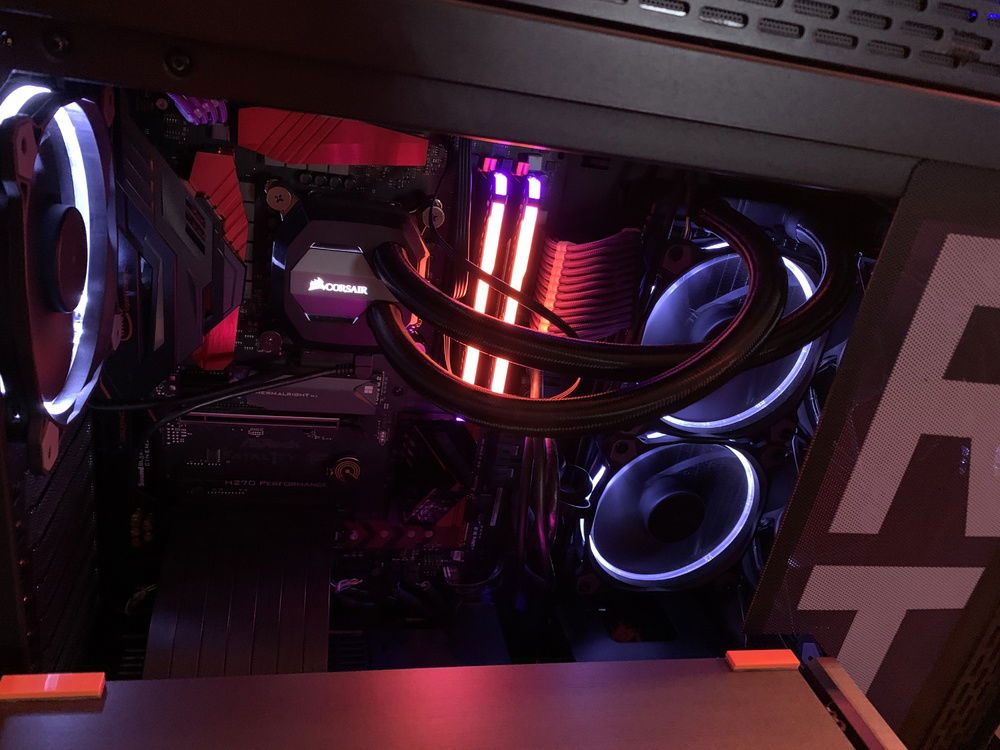

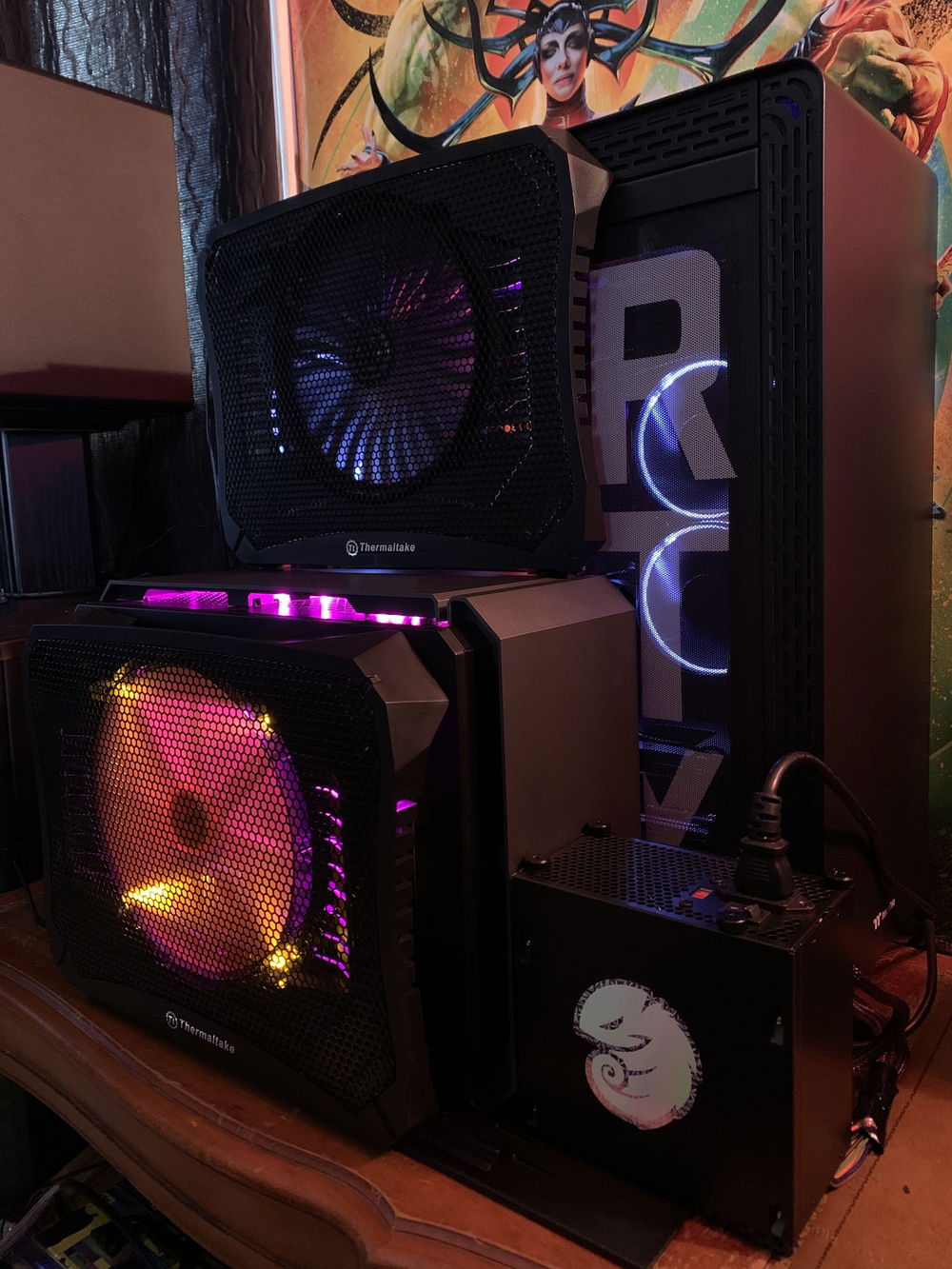

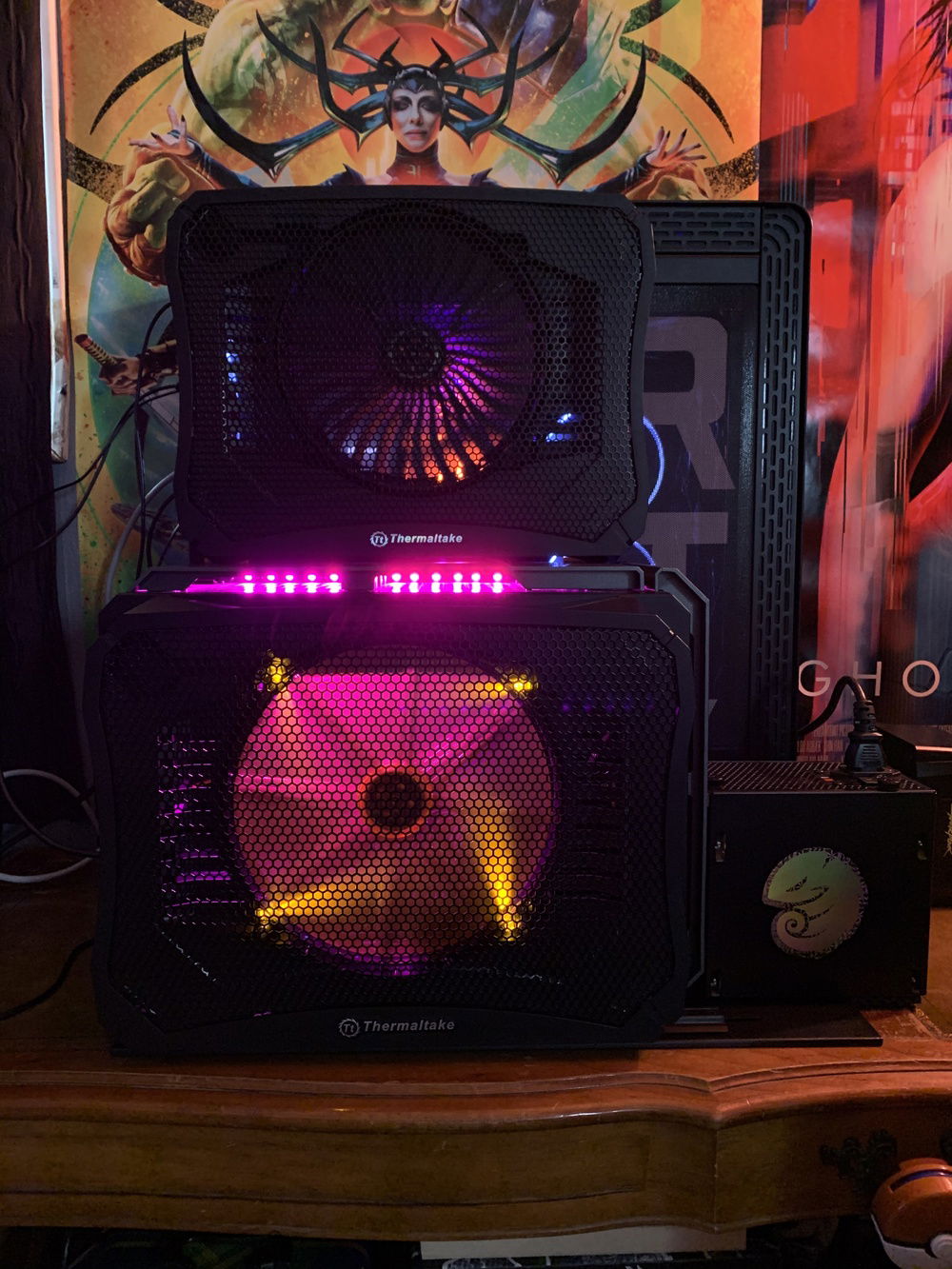

My build consists of two pc cases one for motherboard and the normal components, the smaller case is for the gpu. I wanted to make something unique but not have to do cutting or drilling to make things work. I researched and bought the pieces for this build and surprisingly it all kinda fell into place and worked. The doors/ windows are made from modded laptop cooling pads manufactured by thermaltake, there is a separate psu (500 watt) that powers the gpu case fans(6 fans) it also powers the rgb lights inside the case. I loved the idea of external gpu but wanted to improve on that idea. I use a 600mm phanteks premium riser cable connected through my main case into the back side of the gpu case. I did it this way so I could get the best performance using a external gpu type setup. Also I added a portable air purifier (usb powered) to the modded gpu case for added dust protection.
Color(s): Gray Orange Pink Red
RGB Lighting? Yes
Theme: Futuristic
Cooling: AIO Cooling
Size: ATX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 235.00
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 58.00
ASRock - Fatal1ty H270 Performance
Chipset: H270
CPU Socket: LGA 1151
Size: ATX
Memory
$ 240.00
Corsair - Vengeance Pro (3200MHz) (Black/RGB) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 579.99
MSI - GeForce Ventus 2x
Chip Manufacturer: NVIDIA
Chip: RTX 3060 Ti
Interface: PCIe x16
Storage
$ 30.00
ADATA - SU650
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
Storage
$ 19.99
Intel - Optane
Form Factor: M.2
Interface: M.2 (M)
Capacity: 16 GB
Storage
$ 79.79
Western Digital - WD Blue (WD20SPZX)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 89.99
Corsair - CX750M
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Bronze
Case
$ 70.18
COUGAR - QBX
Type: Mini-Tower
Side Panel: Solid
Case
$ 195.72
Thermaltake - S500 (Black)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 271.38
Thermaltake - Riing 12 LED RGB (6x)
Size: 120 mm
Case Fan
$ 50.97
Thermaltake - Riing 12 LED White (3x)
Size: 120 mm
Cooling
$ 115.00
Corsair - Hydro H100i v2
Type: AIO
Accessories
$ 399.99
Estimated total value of this build:
$ 2,131.03
