Jonsplus Z20 mATX: White and clean modern classic

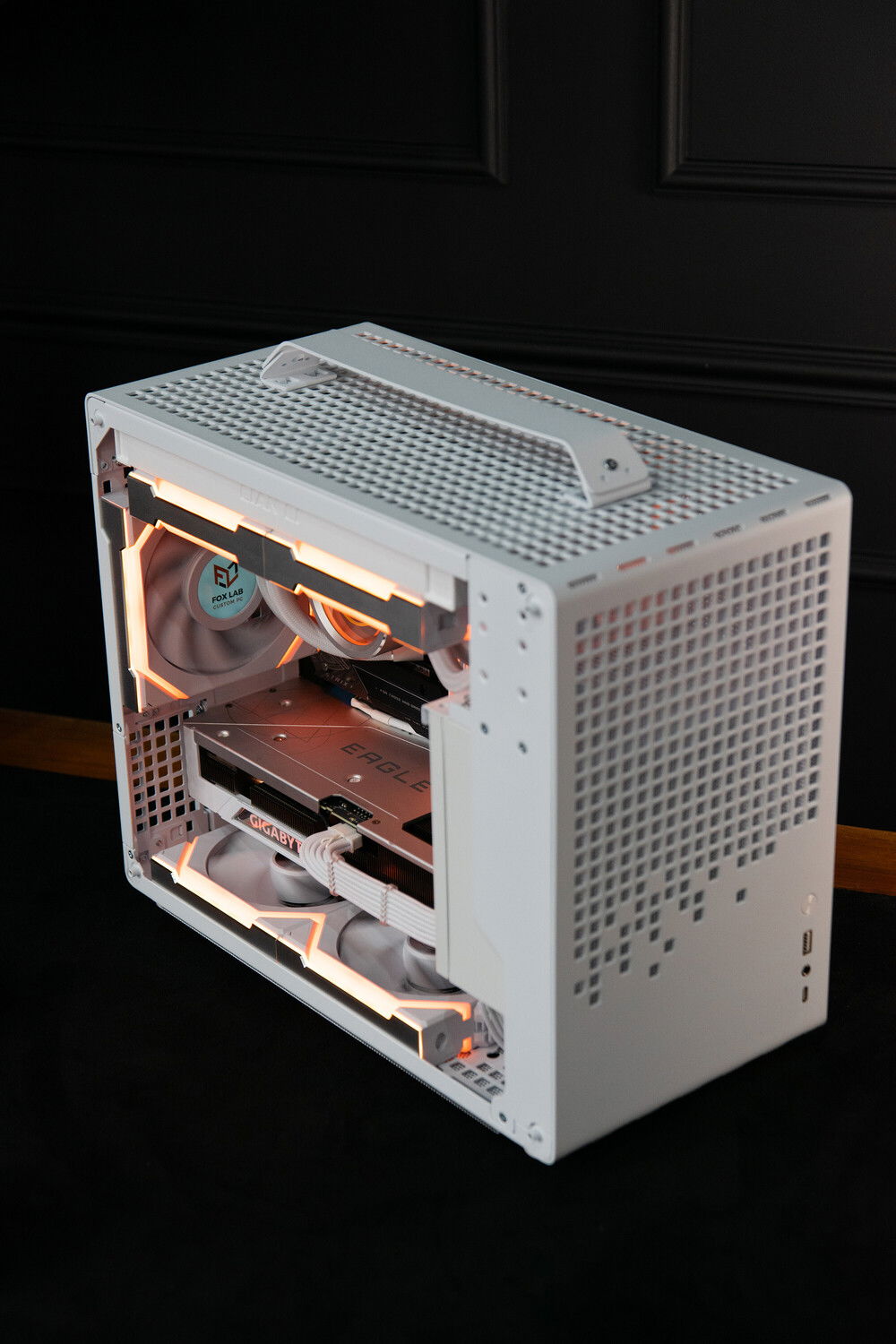

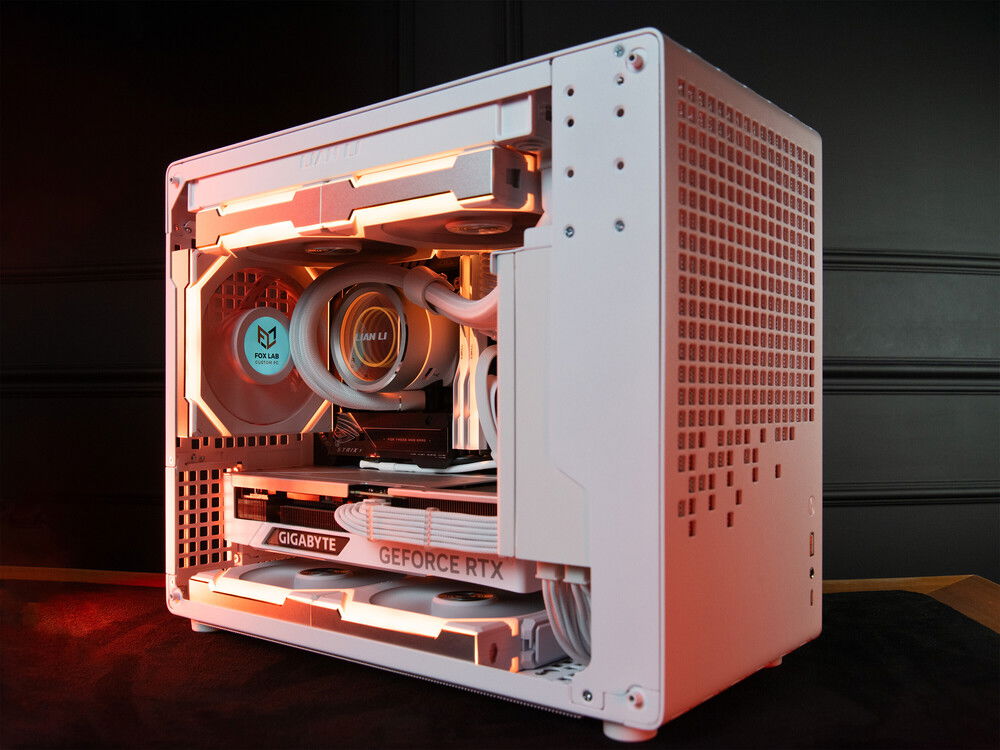

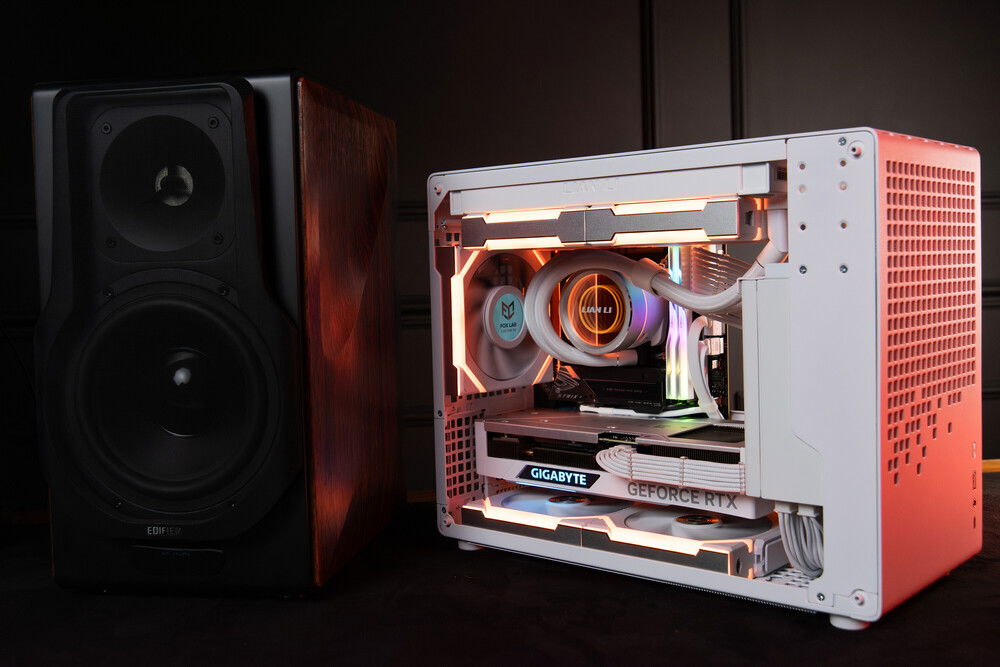

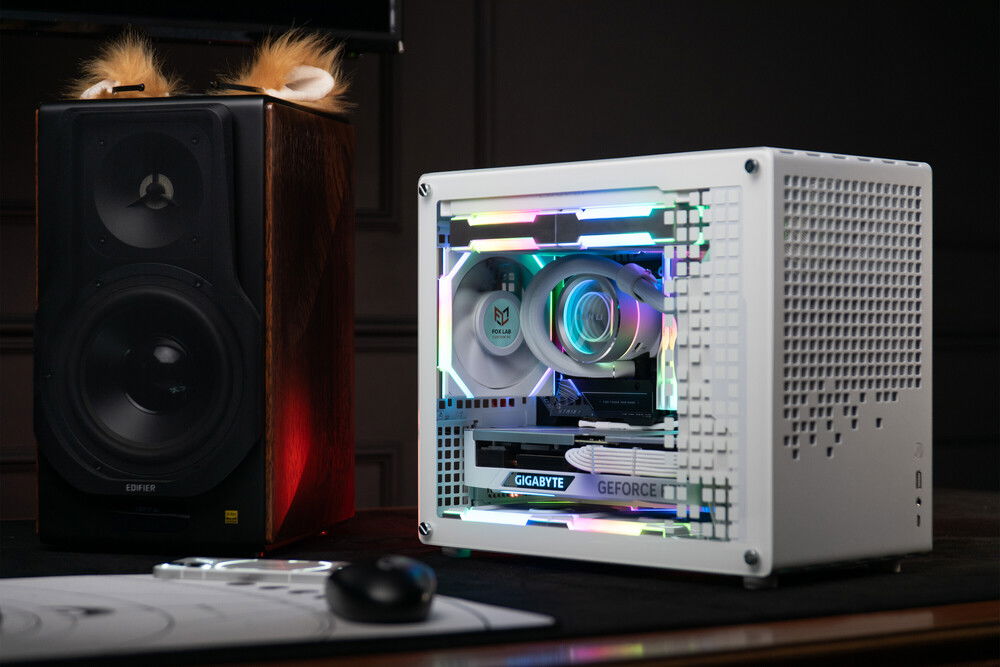

The white one is finished – presenting it to you.

The Jonsplus Z20 case is already compact enough not to dominate the room, but it’s not quite SFF, where everything is crammed in and you have to carefully select each component. Here, you can fit a standard (but short) ATX power supply, affordable mATX motherboards, relatively long graphics cards, and a normal dual-radiator liquid cooler (as long as it isn’t too thick).

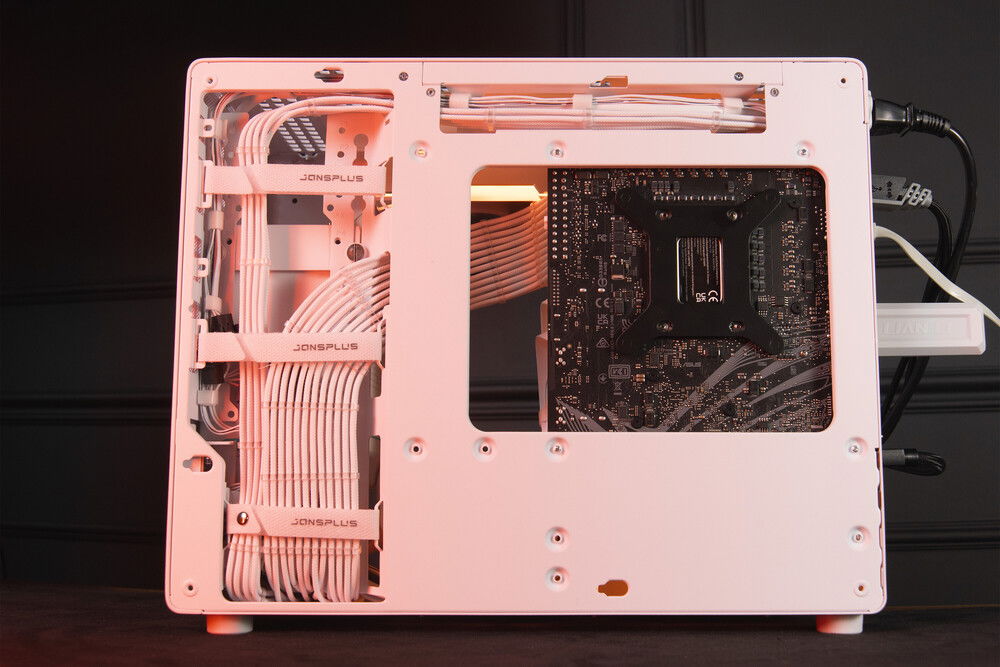

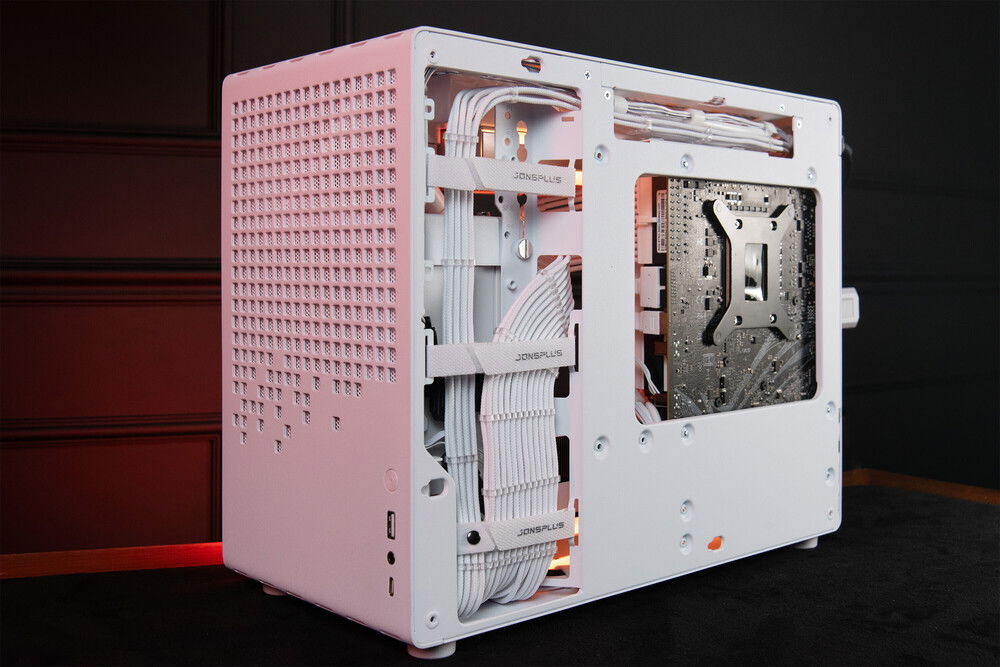

The case performs well for its size, but the compactness does require a special approach. There’s nowhere to hide cables, so building a clean setup without custom cables will be very difficult. You also need to figure out where to put the liquid cooler hoses. The power supply tends to conflict either with the top-mounted cooler or with a long graphics card below, and sometimes there’s barely half a centimeter separating success from disaster.

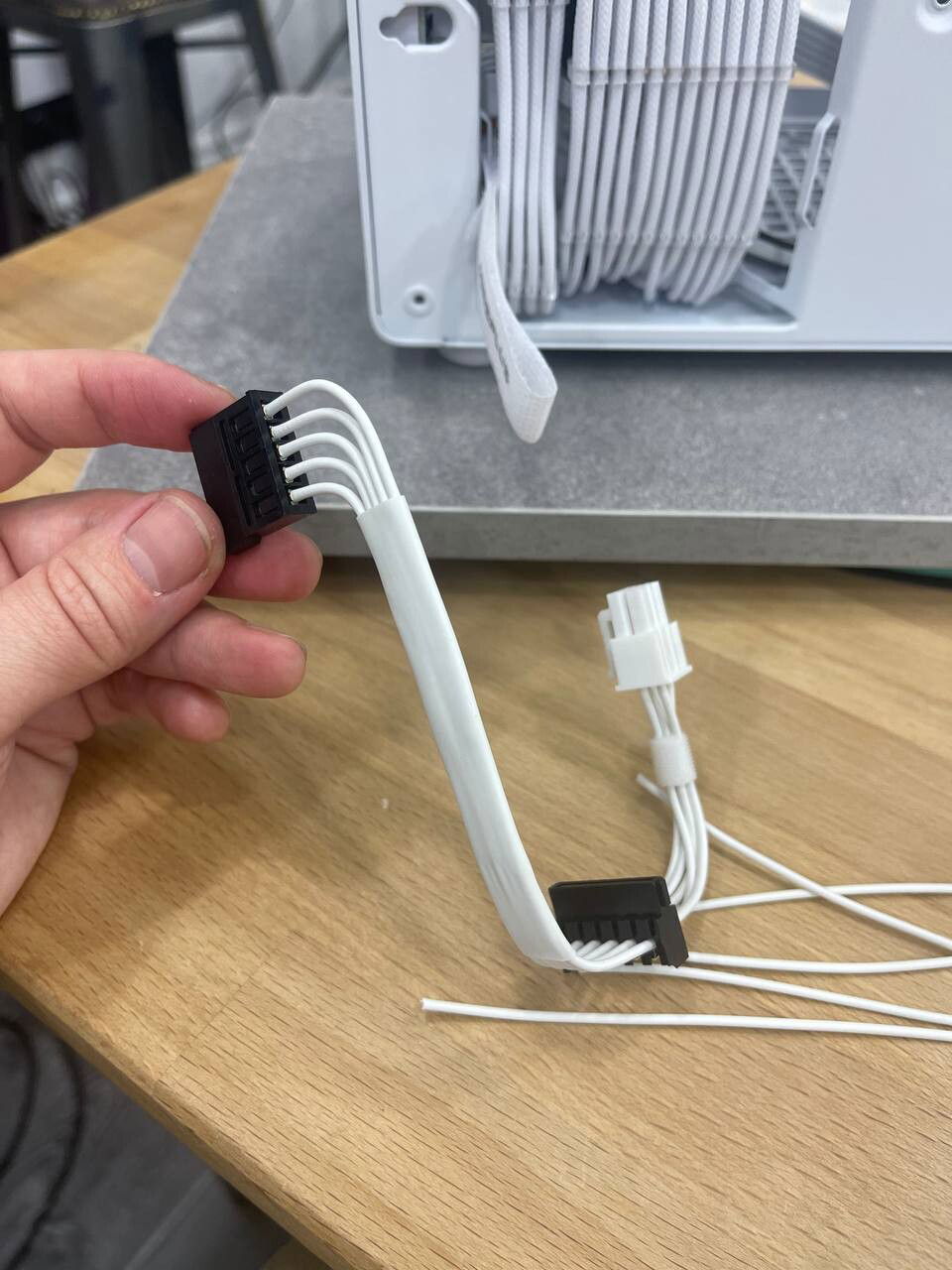

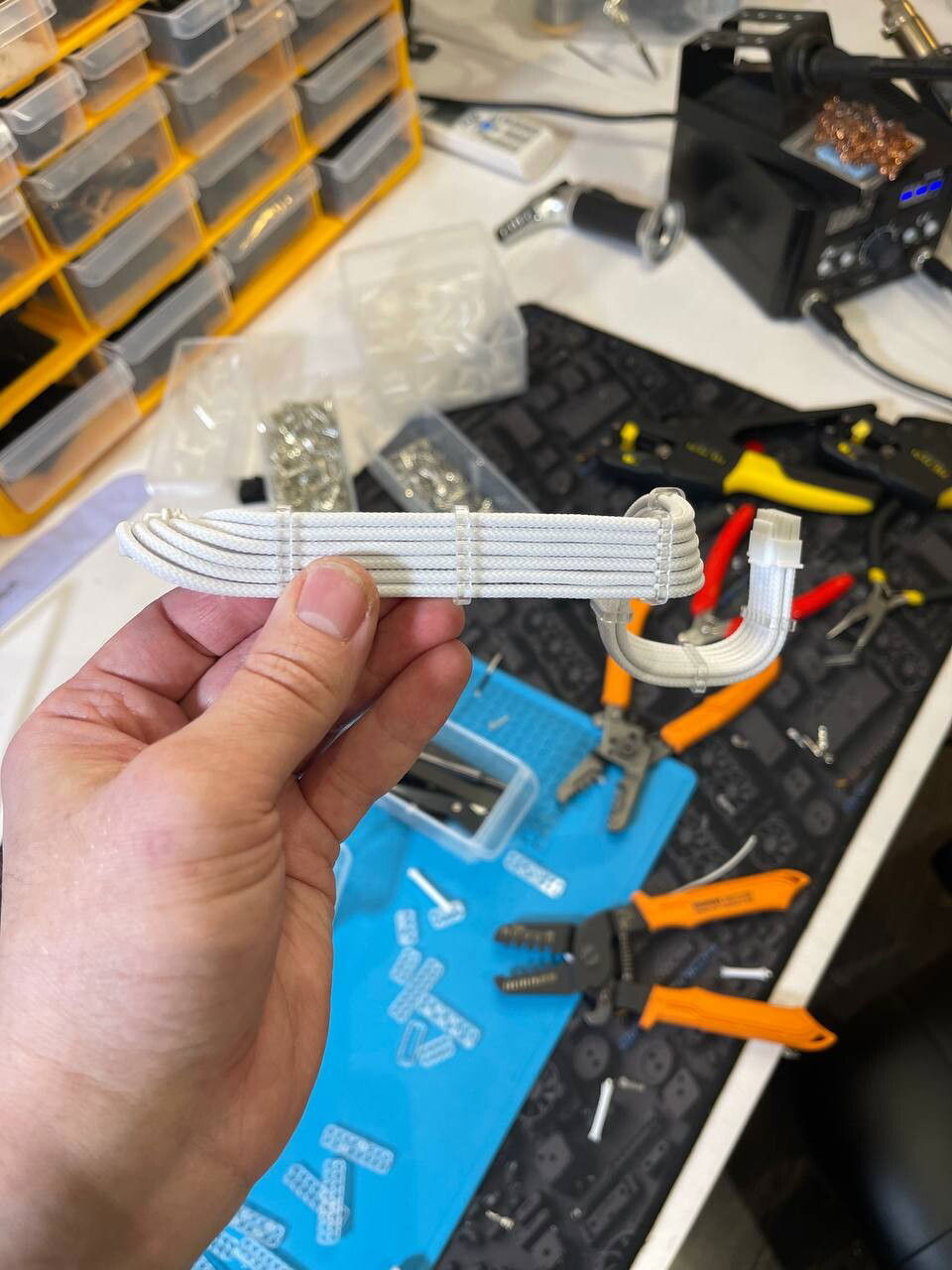

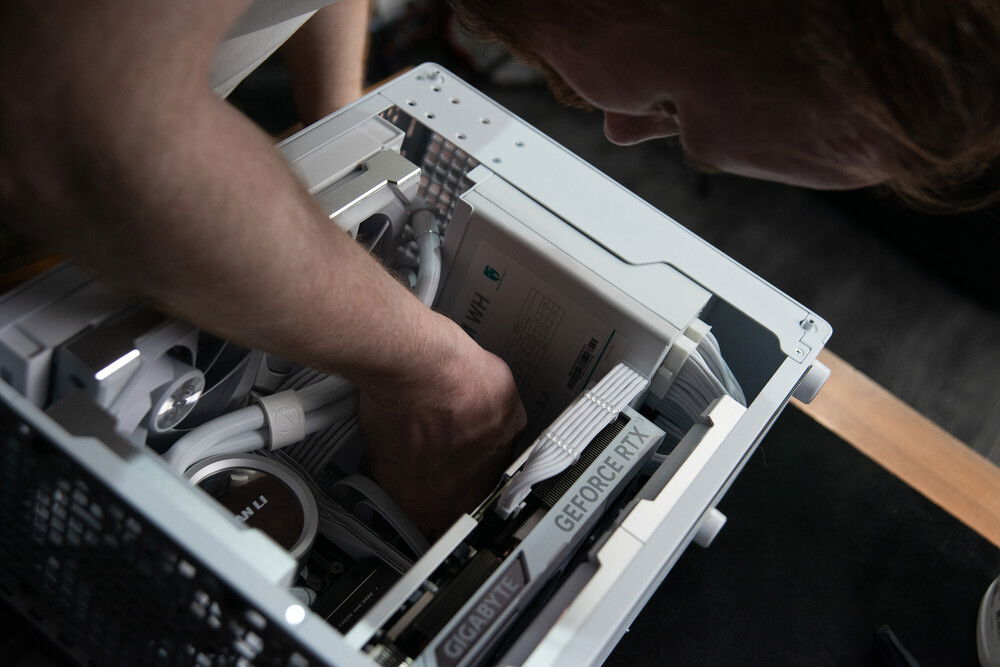

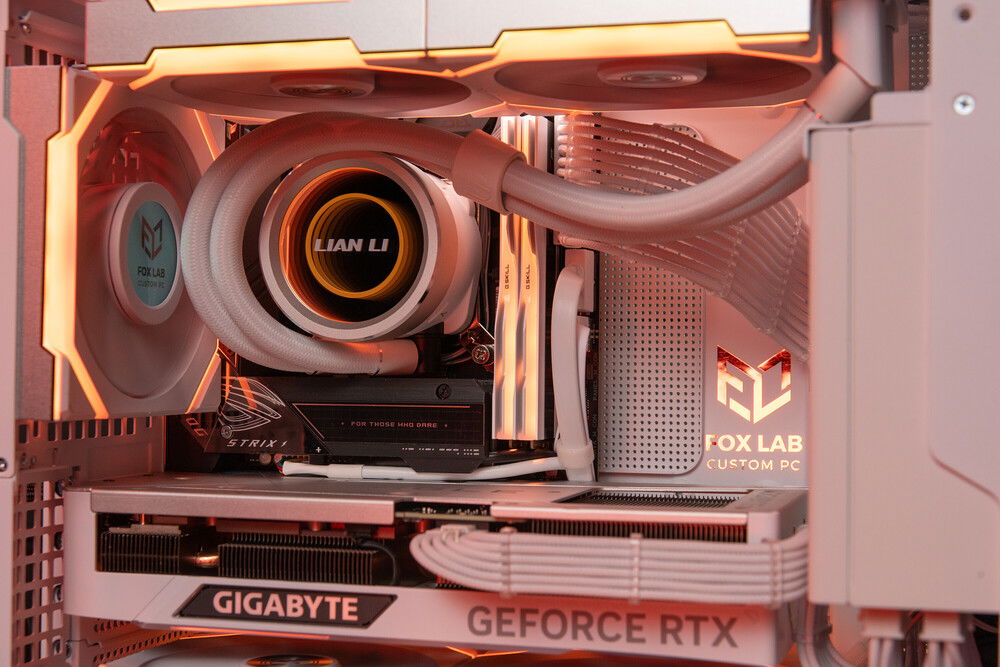

This build is relatively simple yet very nice and pleasant, though it called for extra precision in cable work. We made a custom cable set for this build and used the "wireless" (not so wireless, of course) Lian Li fan set. It would have been better with a white motherboard, of course, but this one was sort of predetermined.

If you have any questions about the hardware or case compatibility, please ask us in the comments and we'll be grateful to answer. And please give us a like and subscribe—we tried our best, and there’s more to come!
Color(s): White
RGB Lighting? Yes
Theme: none
Cooling: AIO Cooling
Size: Micro-ATX
Type: General Build

Hardware

CPU
$ 255.00
Intel - Core i5-14600k
Socket: LGA 1700
Cores: 14
Integrated Graphics: Yes
Motherboard
$ 399.99
ASUS - Rog Strix Z690-I Gaming 6E (WiFi)
Chipset: Z690
CPU Socket: LGA 1700
Size: Mini-ITX
Memory
$ 754.00
G.Skill - Trident Z5 Neo (6000MHz) (White/RGB)
Type: DDR5
Capacity: 64 GB
Graphics
Gigabyte - GeForce Super Aero OC
Chip Manufacturer: NVIDIA
Chip: RTX 4070 Ti
Interface: PCIe x16
Storage
$ 247.53
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 159.31
DeepCool - PQ850M
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 94.99
Jonsbo - Z20
Type: Micro-ATX
Side Panel: Tempered Glass
Case Fan
Lian Li - UNI Fan SL Wireless (2x)
Size: 120 mm
Case Fan
$ 201.34
Lian Li - Uni TL LCD
Size: 120 mm
Cooling
$ 199.99
Lian Li - Galahad II
Type: AIO
