i7XL

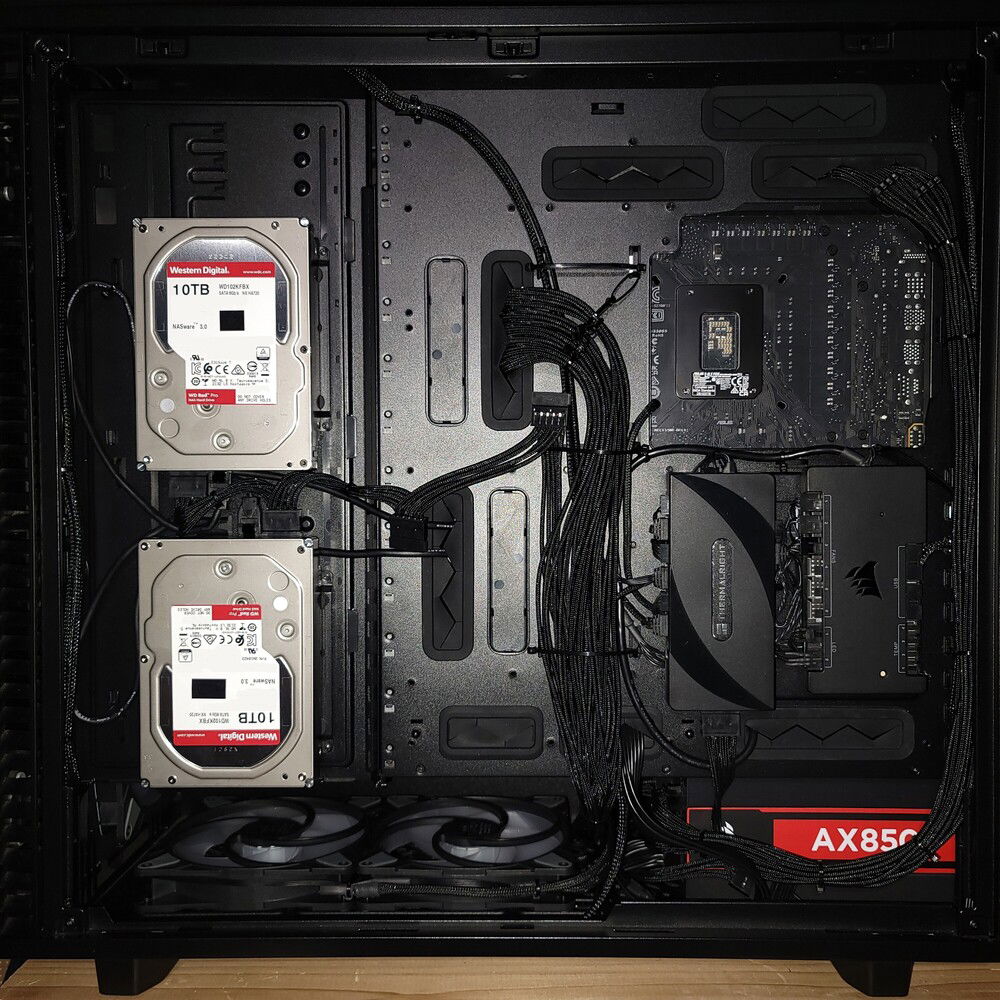

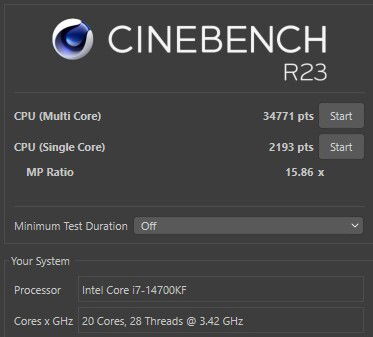

This build is an upgrade for an older, Intel 10th Gen., system that we own. I customized the lengths of most of the fan & RGB cabling to keep the build relatively clean. The build went smoothly, and the initial benchmarks delivered good scores for the i7 14700KF CPU.

The Arctic Freezer III 420 performed admirably, and kept CPU thermals under 60C during all-core testing. After configuring DRAM speed, voltage, primary timings, and command rate, in the BIOS, the DDR5 ran at XMP speed (Corsair DDR5-6000 CL30 1.40V Hynix IC's) without any issues. The GPU also performed well, delivering frame rates very comparable to an RTX 3080 Ti we compared it with.

At this time, we are satisfied with this build, it performs well, it's quiet, and the thermals are excellent. We did flash the BIOS to the latest revision in hopes of warding off any issues with CPU degradation. I also capped PL1/PL2 to 253W in the BIOS.

Have FUN, be CREATIVE, and, BUILD ON!
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 327.93
Intel - Core i7-14700KF
Socket: LGA 771
Cores: 20
Motherboard
$ 319.99
ASUS - ROG Strix Z790-F Gaming WiFi II
Chipset: Z790
CPU Socket: LGA 1700
Size: ATX
Memory
$ 195.99
Corsair - Vengeance (6000MHz)
Type: DDR5
Capacity: 64 GB
Graphics
$ 839.99
MSI - GeForce Super 16G Gaming X Slim
Chip Manufacturer: NVIDIA
Chip: RTX 4070 Ti
Interface: PCIe x16
Storage
$ 234.00
Samsung - 980 Pro (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 539.98
Western Digital - WD Red Pro NAS (WD102KFBX) (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 10 TB
PSU
$ 301.43
Corsair - AX850
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 234.99
Fractal Design - Define 7 XL (Dark)
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 19.72
ARCTIC - P14 PWM PST (A-RGB)
Size: 140 mm
Cooling
$ 98.55
ARCTIC - Liquid Freezer III
Type: AIO
Size (WxHxD): 420 mm (3 x 140 mm)
CableMod
$ 99.99
CableMod - C-Series Kit AXi/HXi/RM
Mode: Custom
Sleeve: PRO ModMesh
Color: Carbon
CableMod
$ 29.90
Estimated total value of this build:
$ 3,202.77
