Hardline Custom Compact Lan Case

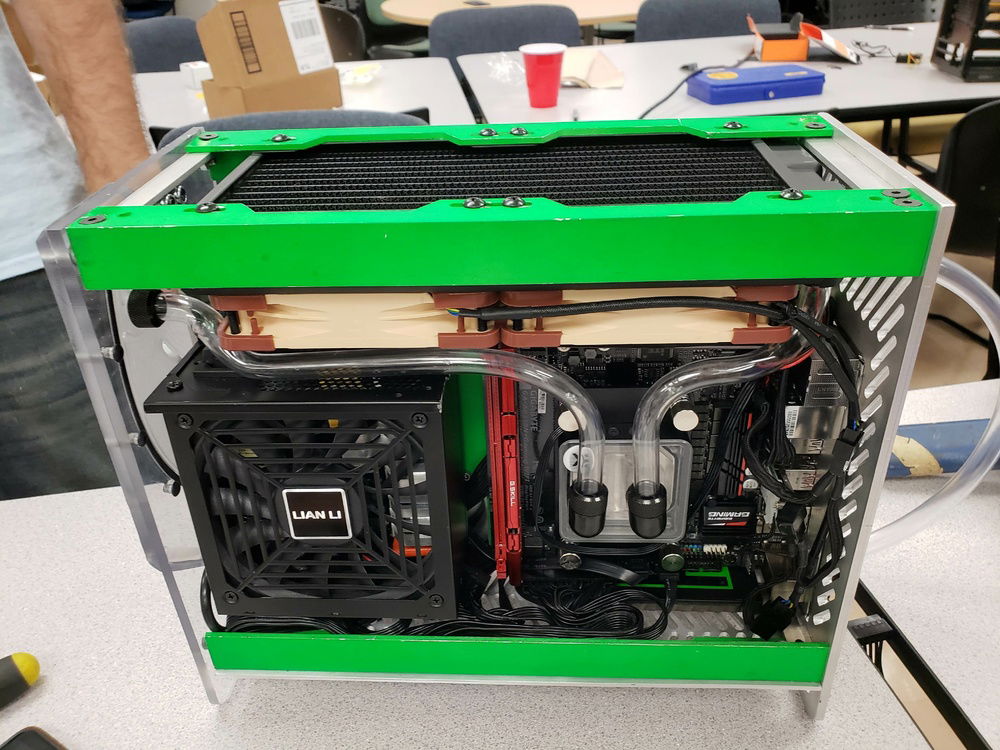

Fully custom case and first time hardline water-cooled with custom integrated reservoir/distro plate.
Winner of LTT x Dreamhack Custom PC Competition
Total case volume ~ 10L


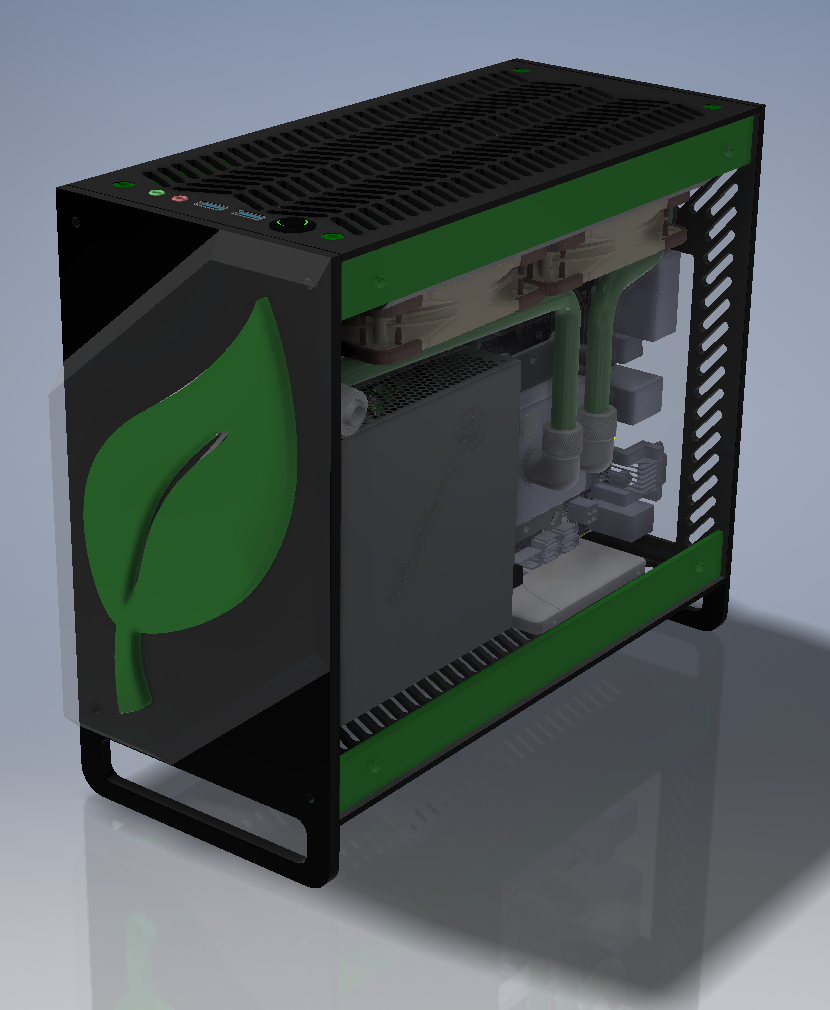

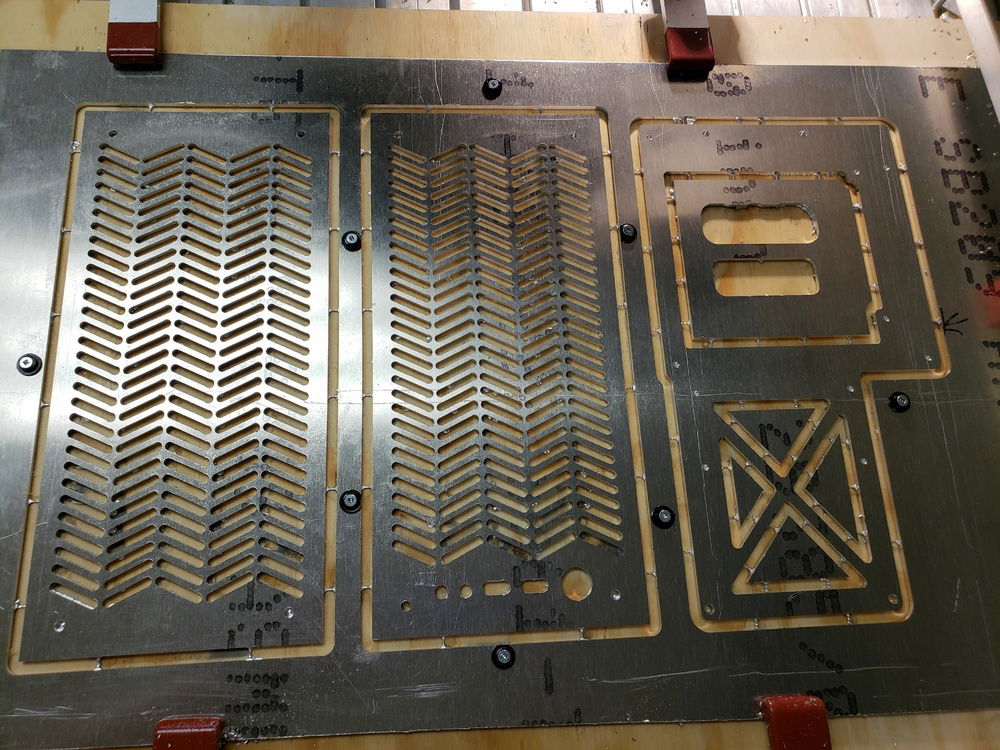

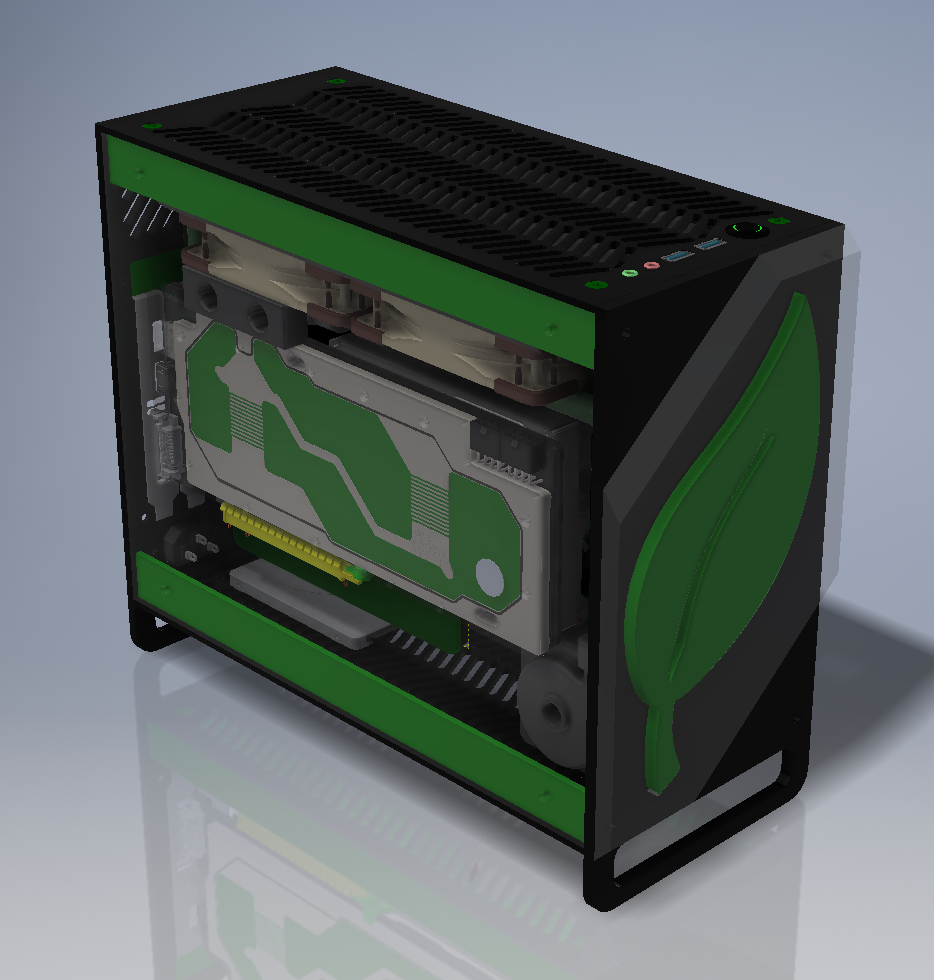

Case is fully custom, and designed by me. The objective was the smallest possible hard lined liquid cooled case. I am short on funds, but high on engineering, so I wanted to include my current hardware, including a 240mm rad, full length graphics, SFX-L PSU, and room for an 2.5"ssd AND 3.5"HDD.

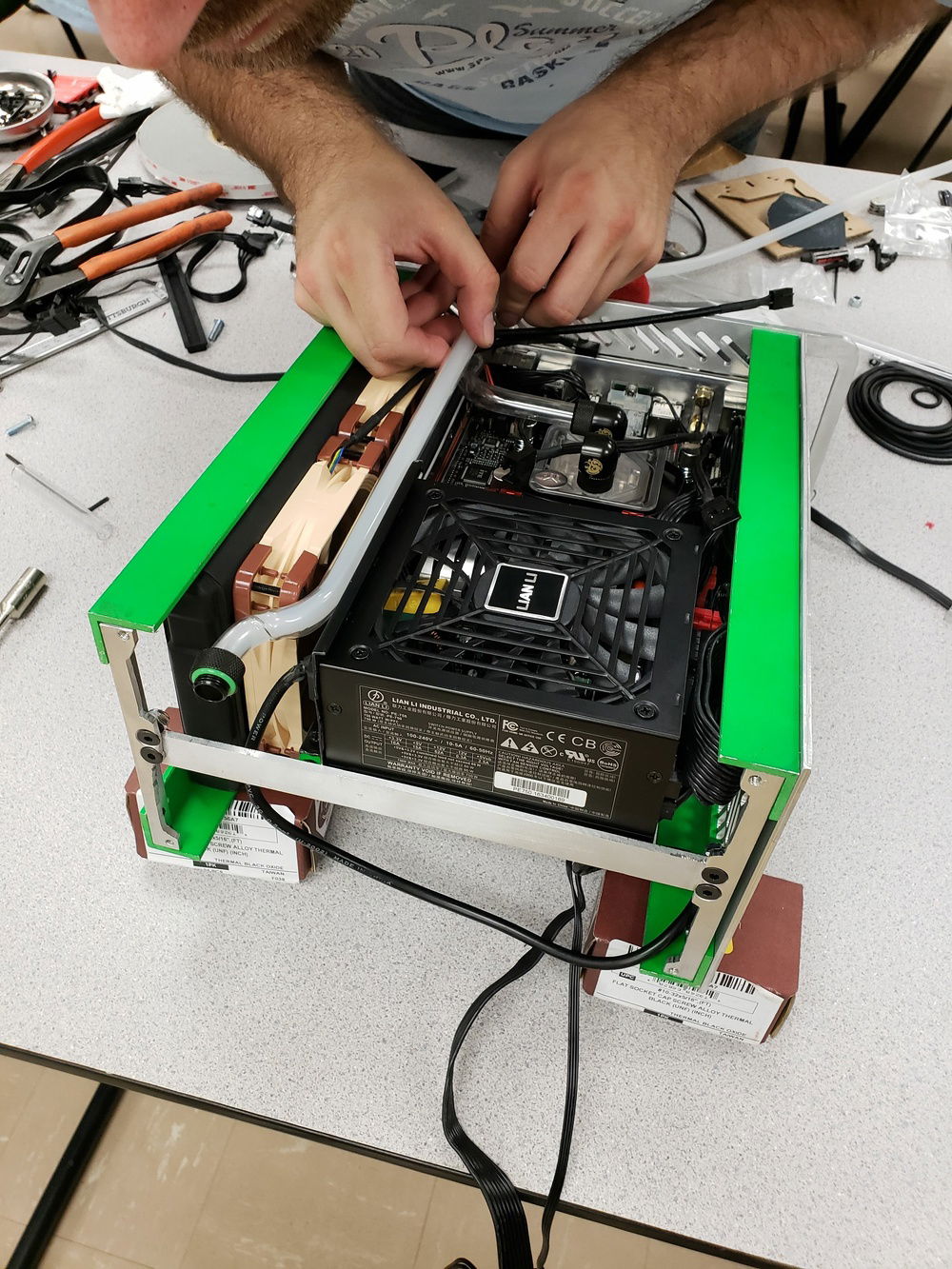

This was my first time doing a fully custom case and also my first time doing any custom liquid cooling so it was an adventure in both respects!

Interesting innovations to make this compact system work:

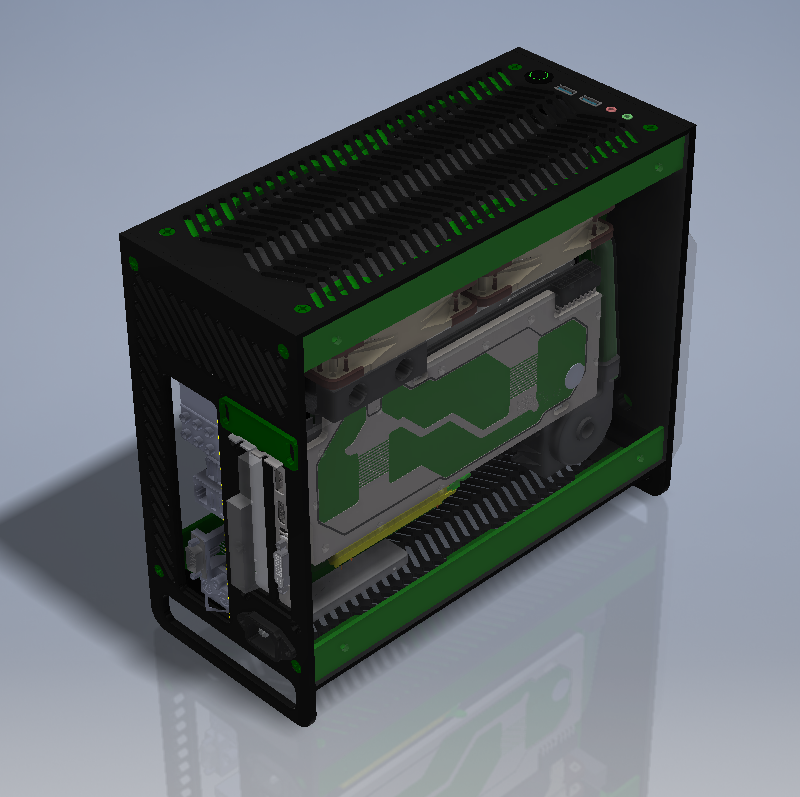

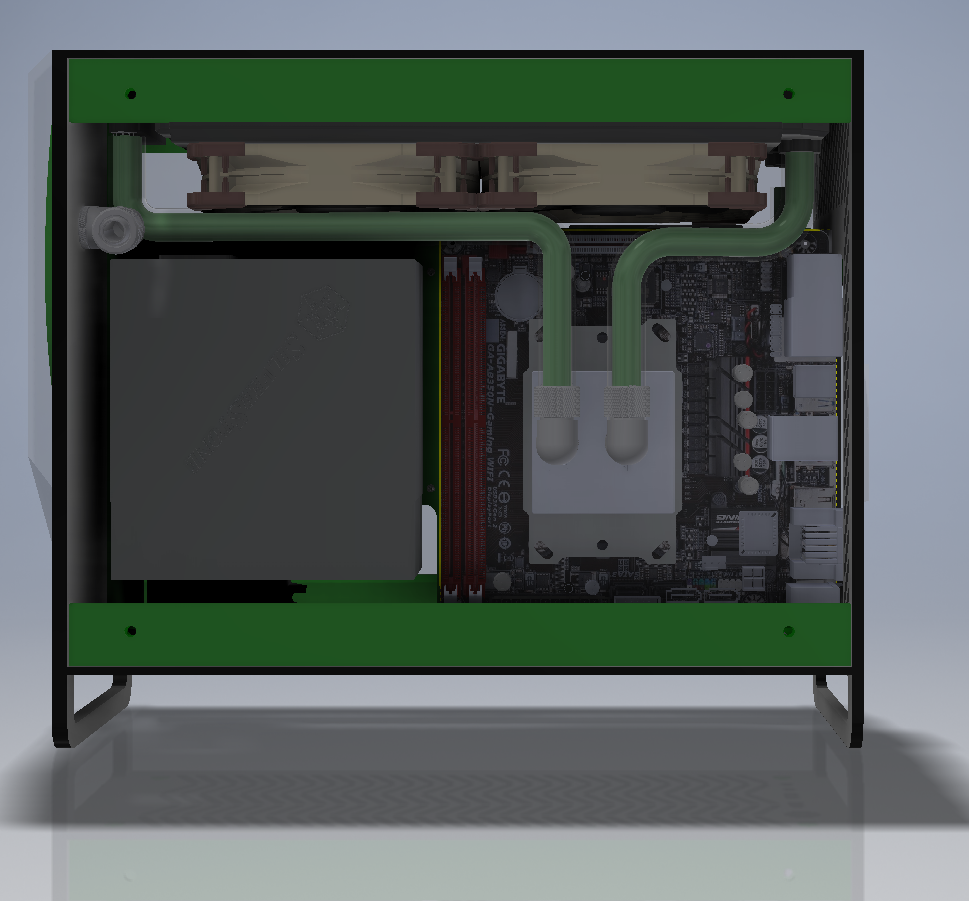

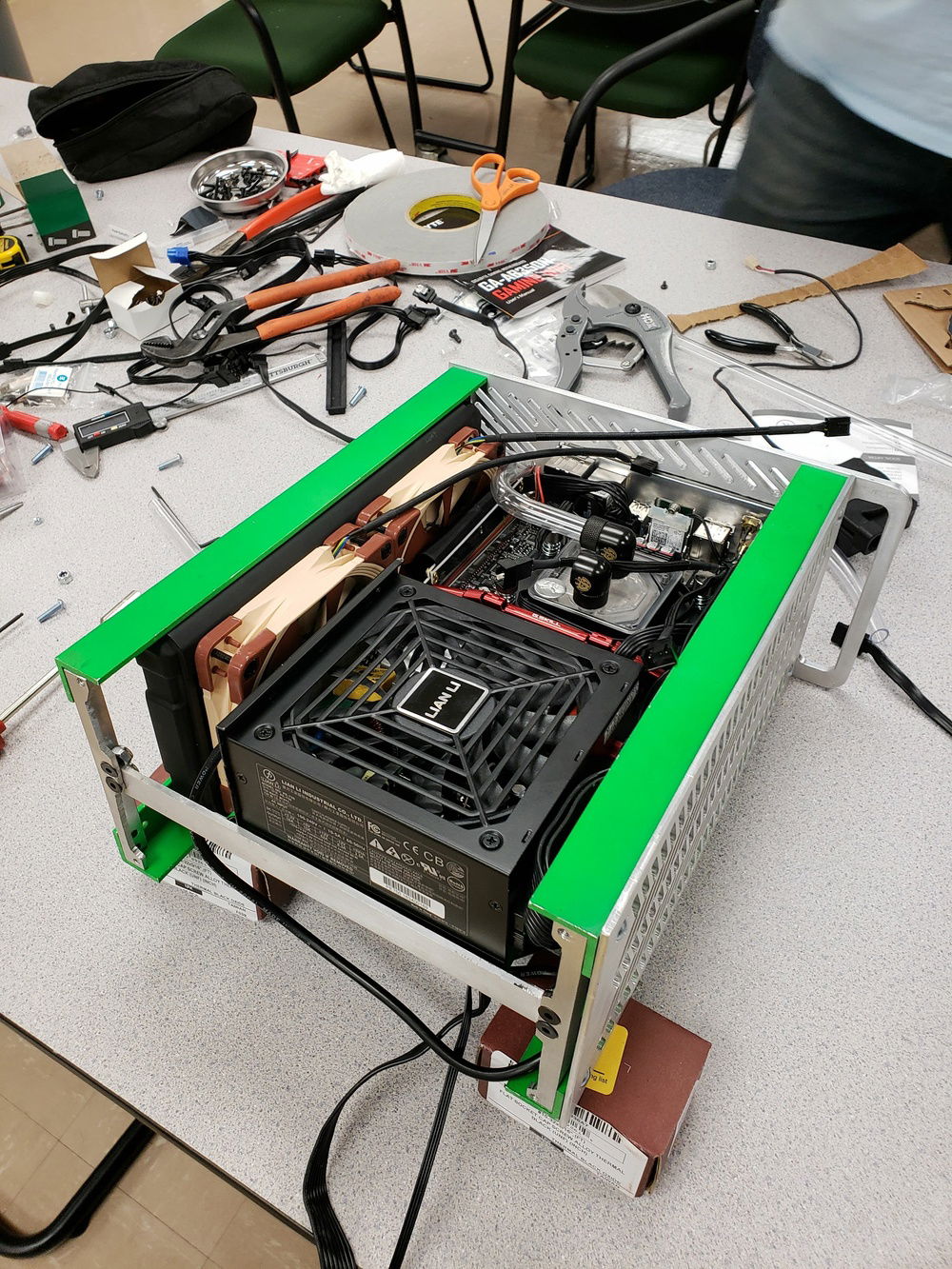

-DANcase 'sandwich' style layout

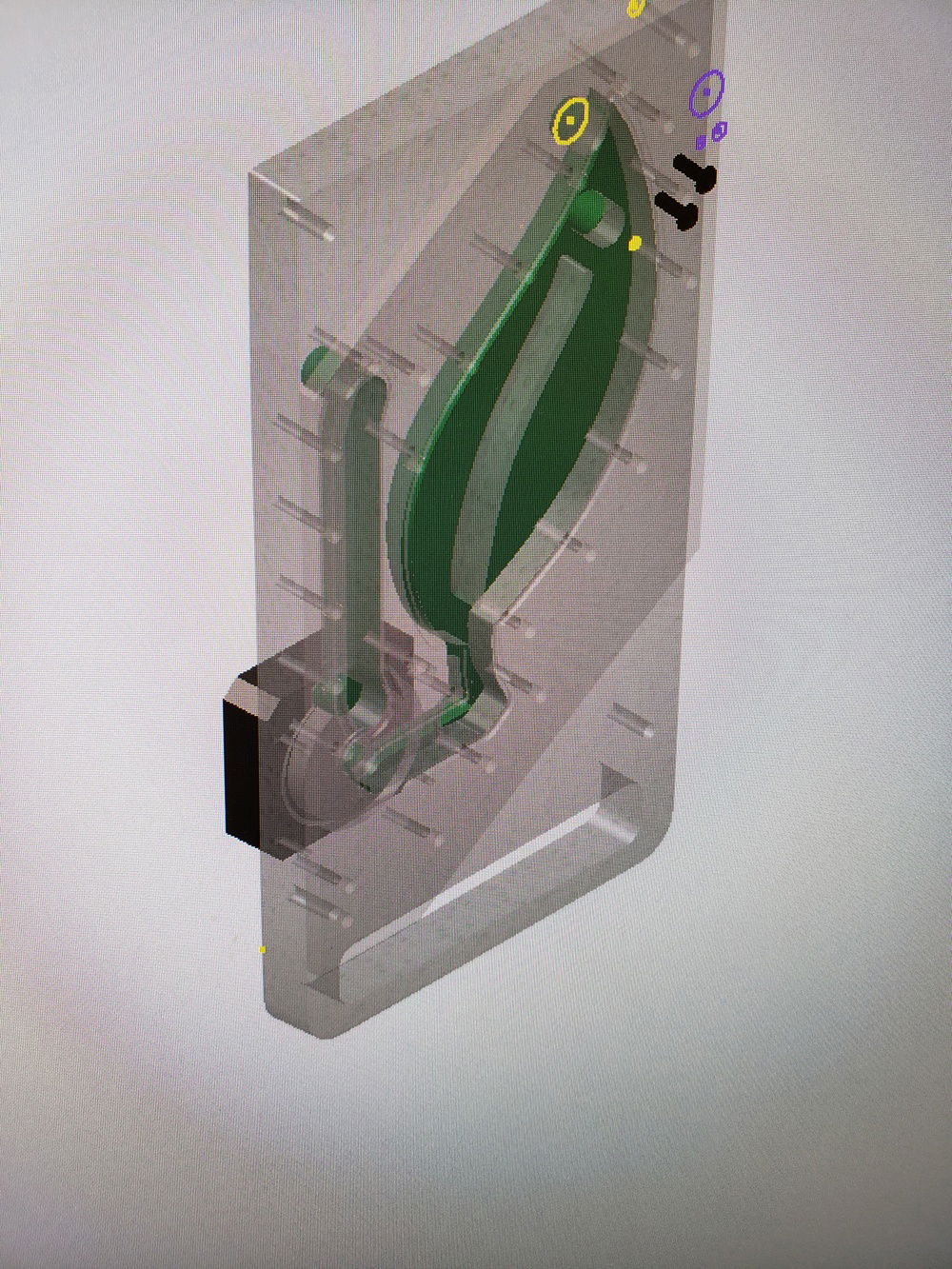

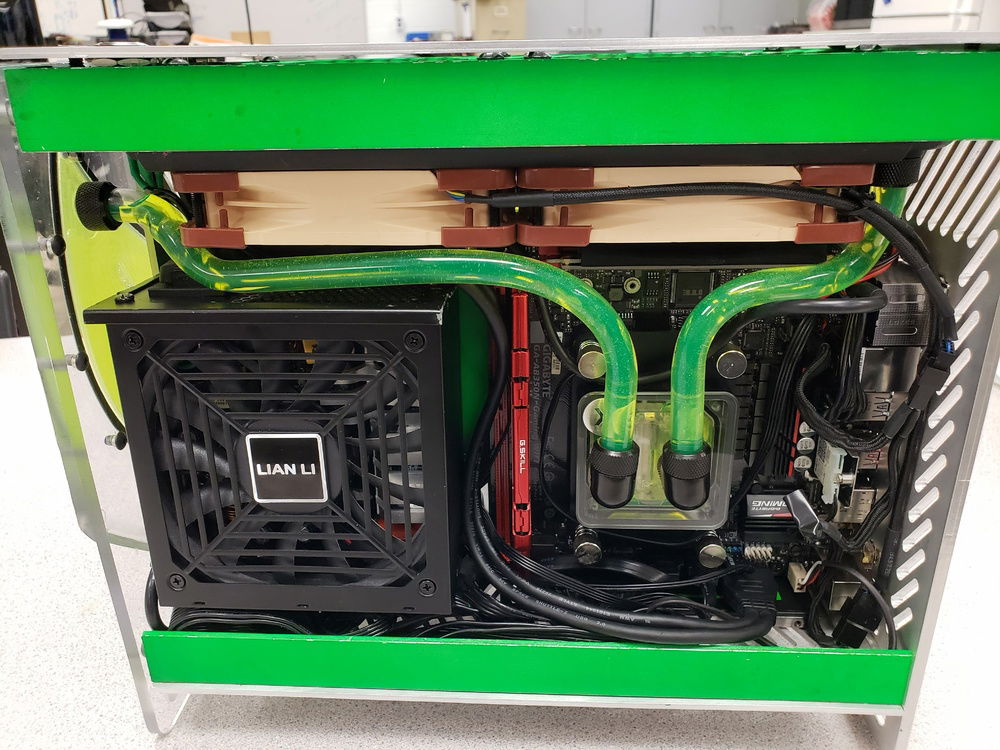

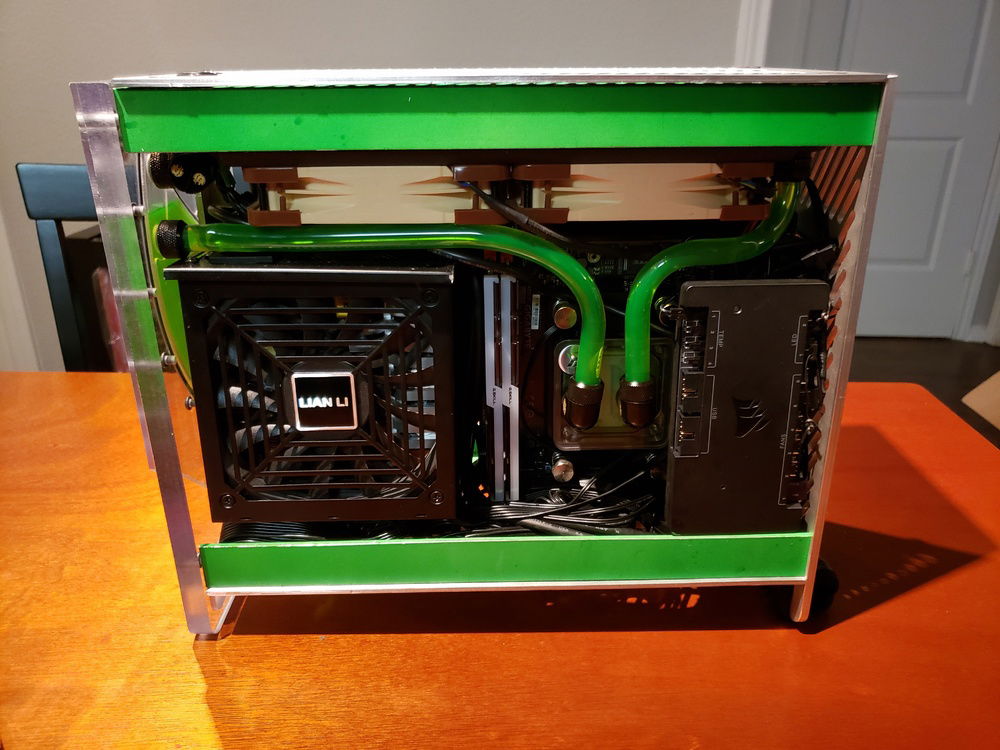

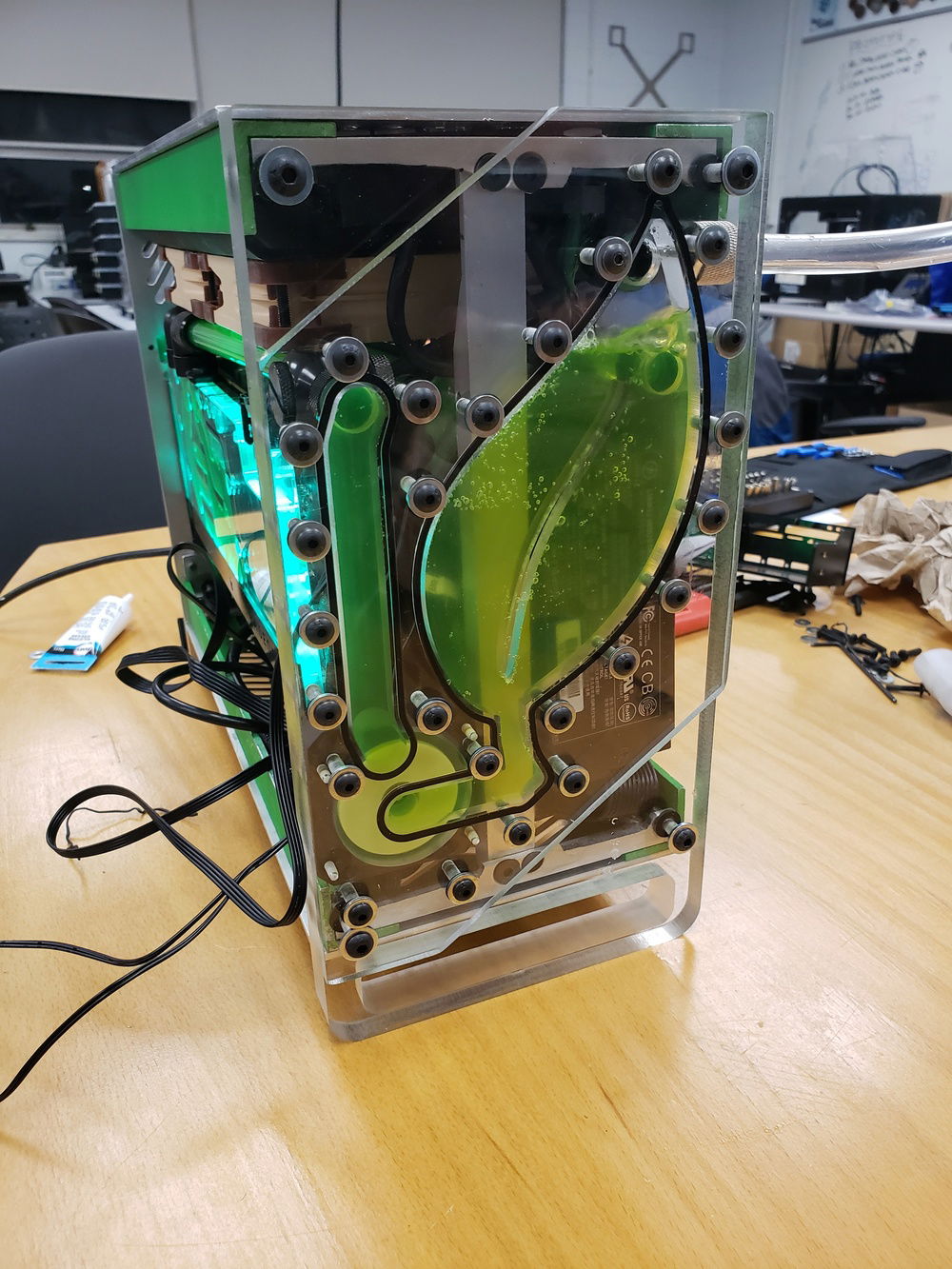

-Front panel contains integrated custom reservoir and custom pump top
-Use radiator to cross sides of the case and Front panel res to cross back

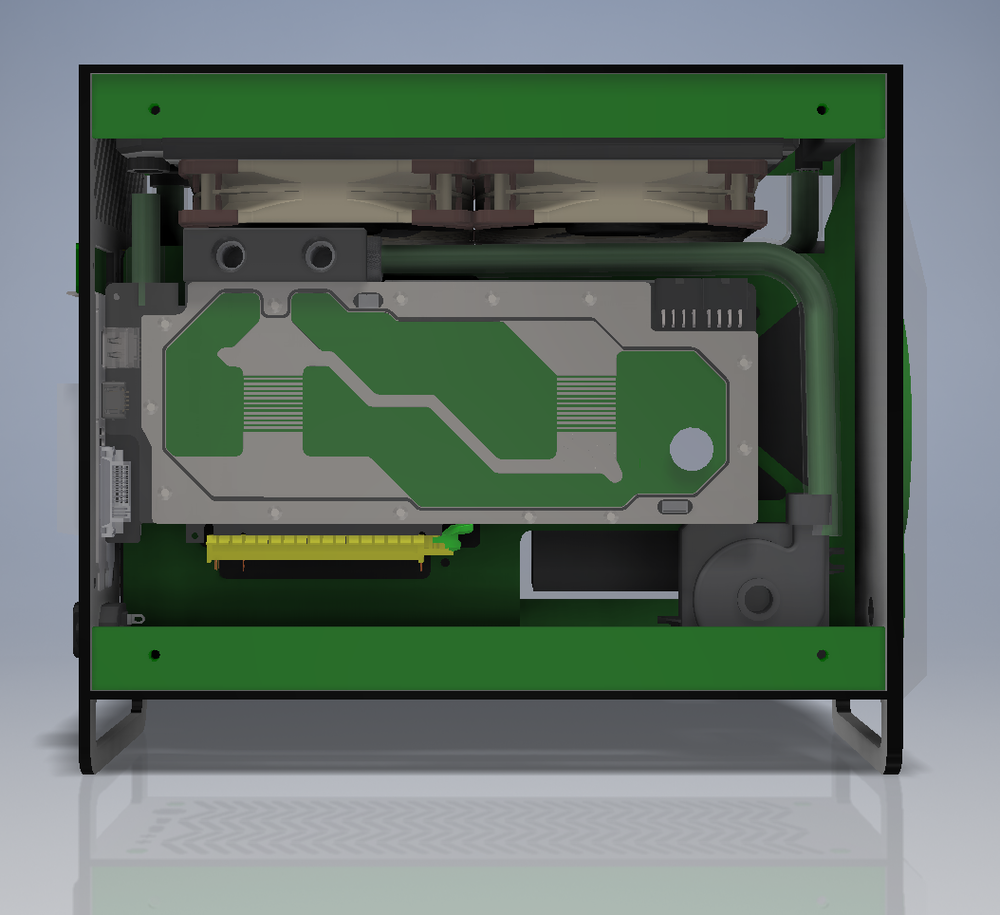

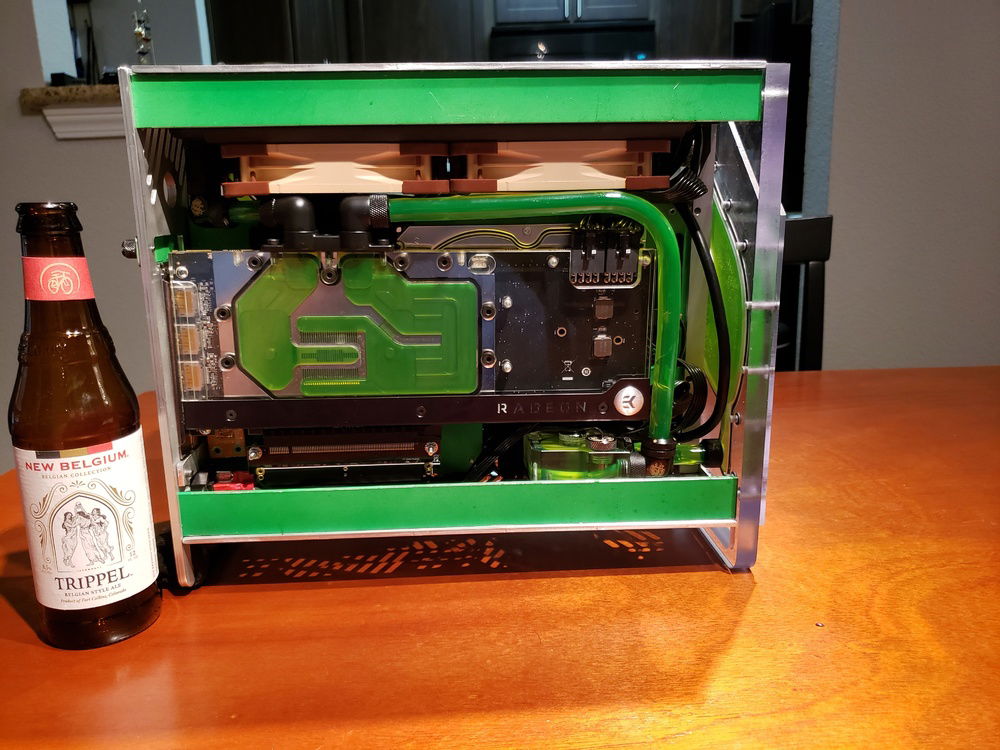

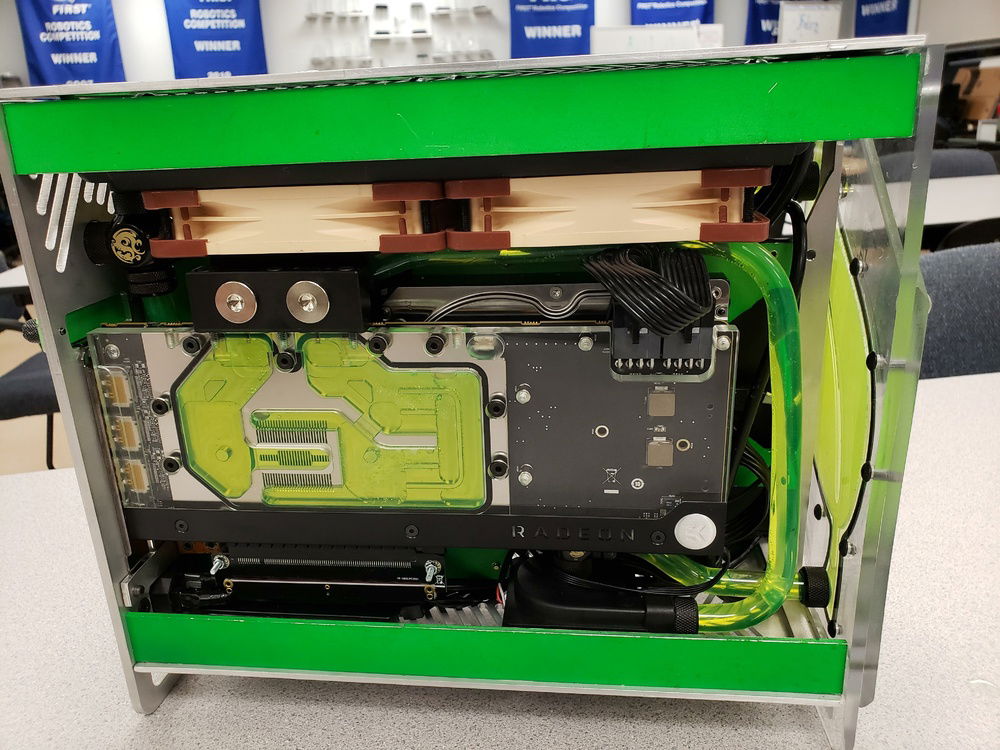

-Single slot liquid cooled GPU hides 3.5"HDD (didn't want that on the outside layer)
-Feet to add height double as LAN/Airport carry handles

Ryzen 7 1700 overclocked - 3.9 Ghz
Vega 56 flashed to 64 bios and overclocked and undervolted
32GB (16x2) Trident Z Rgb Memory 3 Ghz OC to 3.2 Ghz
512 GB M.2, and 250gb ssd, AND 3 TB 3.5" HDD (Hiding behind the GPU)

750w lian li SFX-L PSU
Gigbyte mITX AB350N gaming wifi AC

Corsair commander pro for fan control based on temperature.
Color(s): Aluminum Green
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: SFF
Type: General Build
