Setup
Setup
Setup
Setup
Video of setup

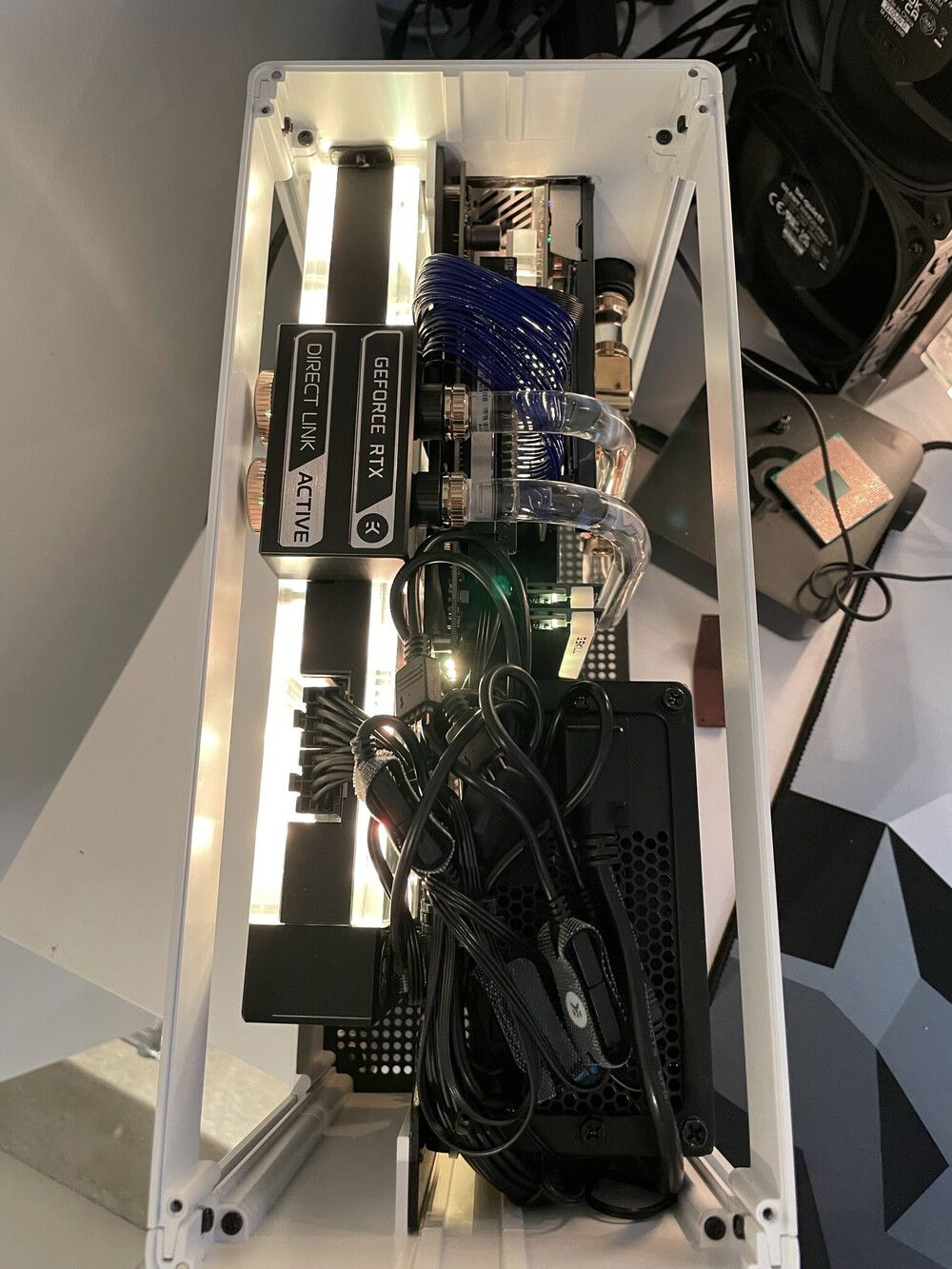

Tight inside, love the unsleeved cables for small builds.
Tight inside, love the unsleeved cables for small builds.

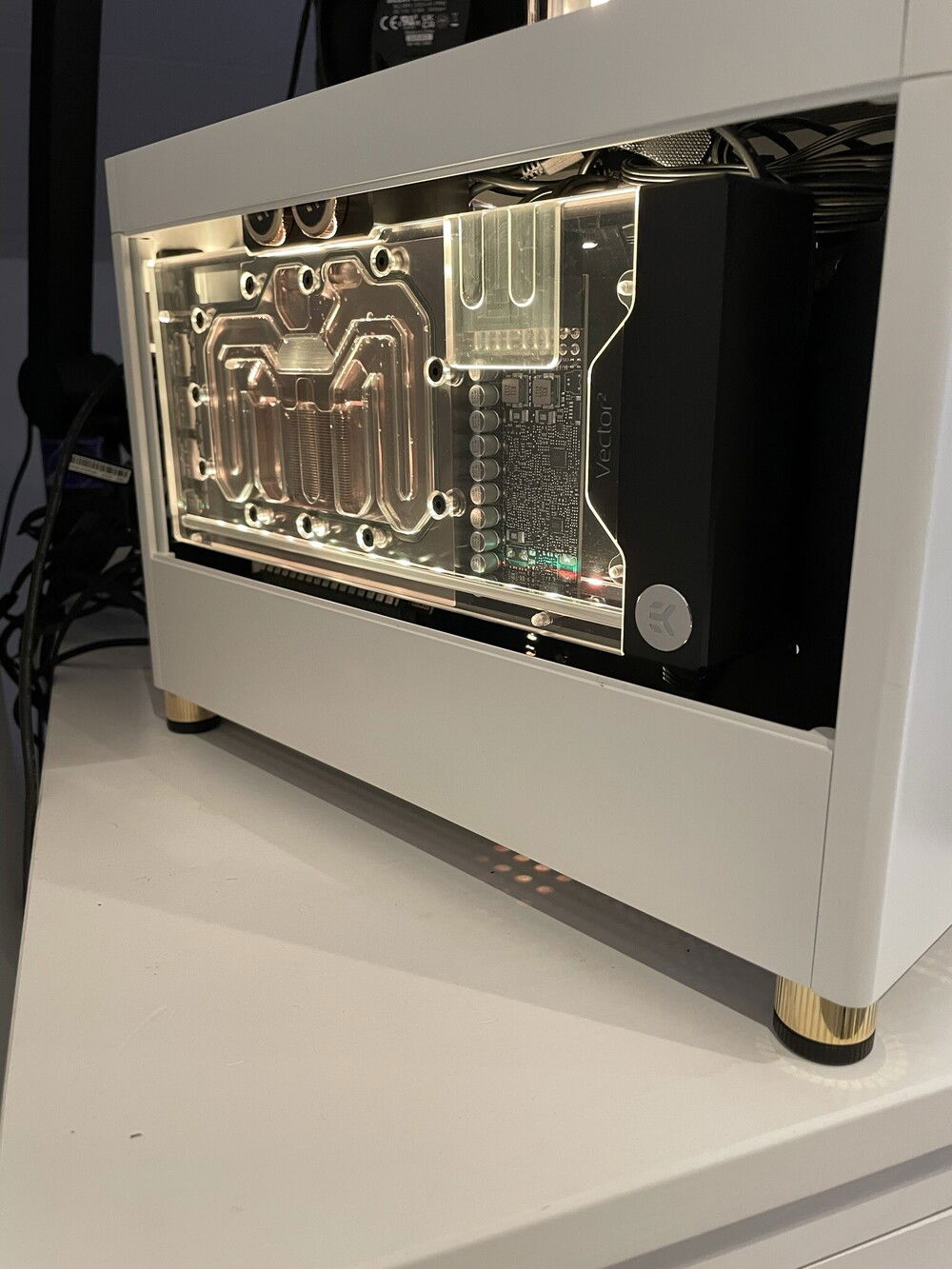

Gpu-side
Gpu-side

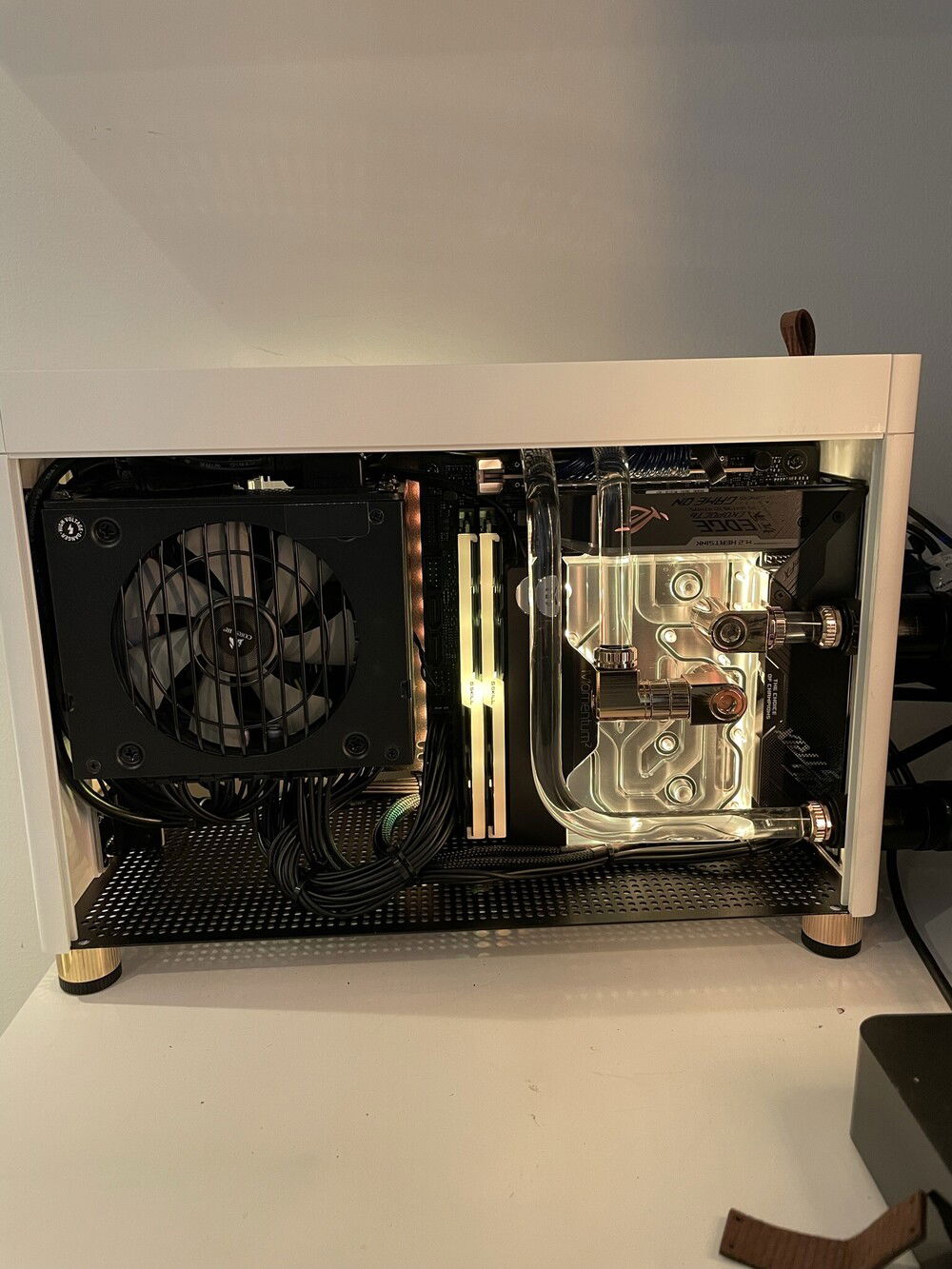

Cpu-side
Cpu-side

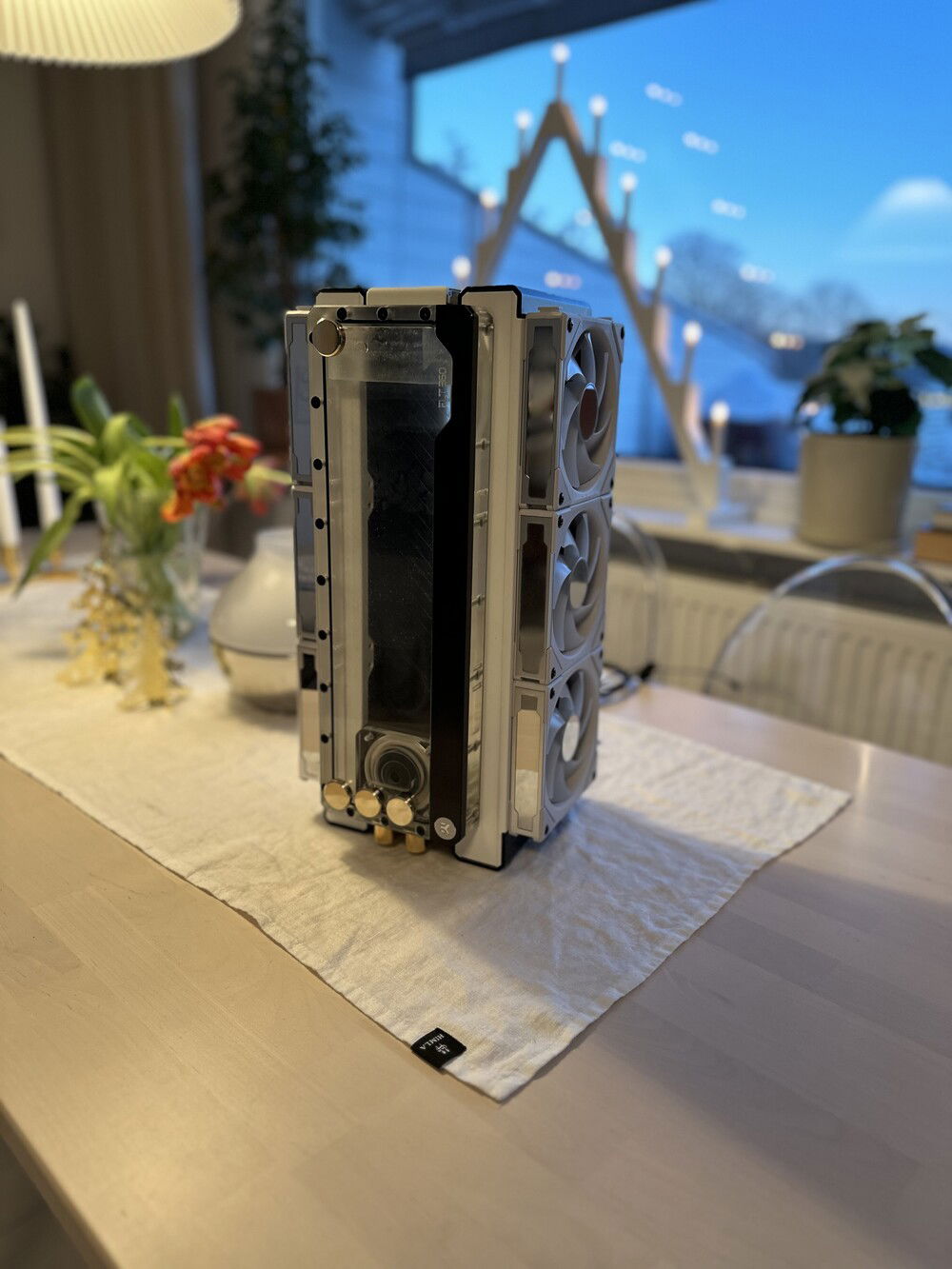

Closer look at cooling-tower
Closer look at cooling-tower

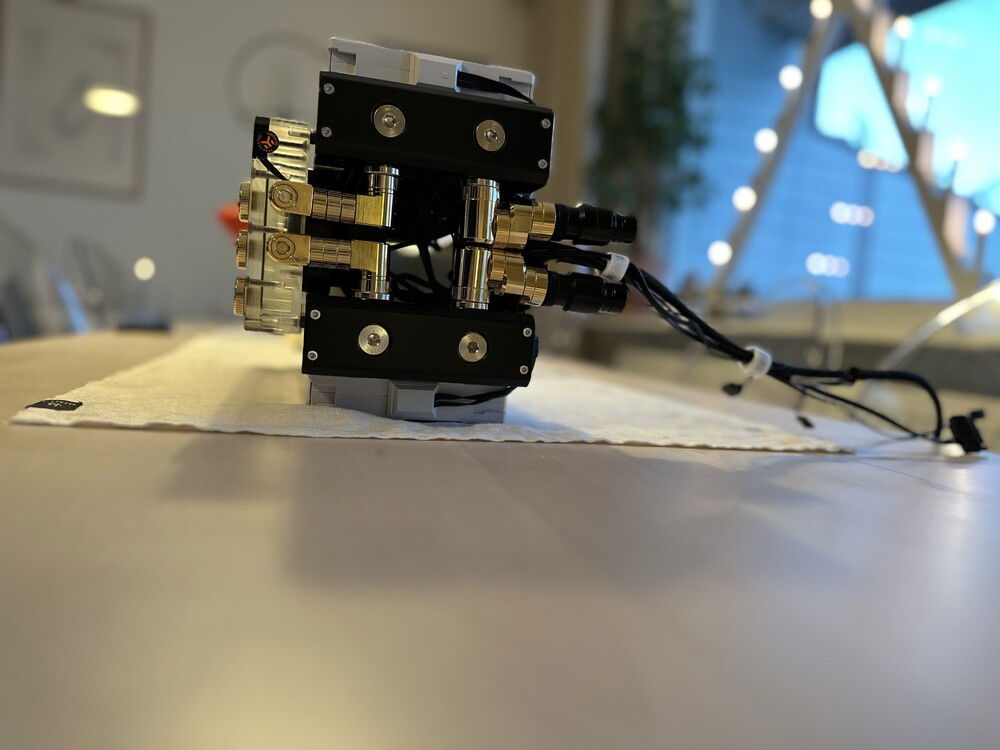

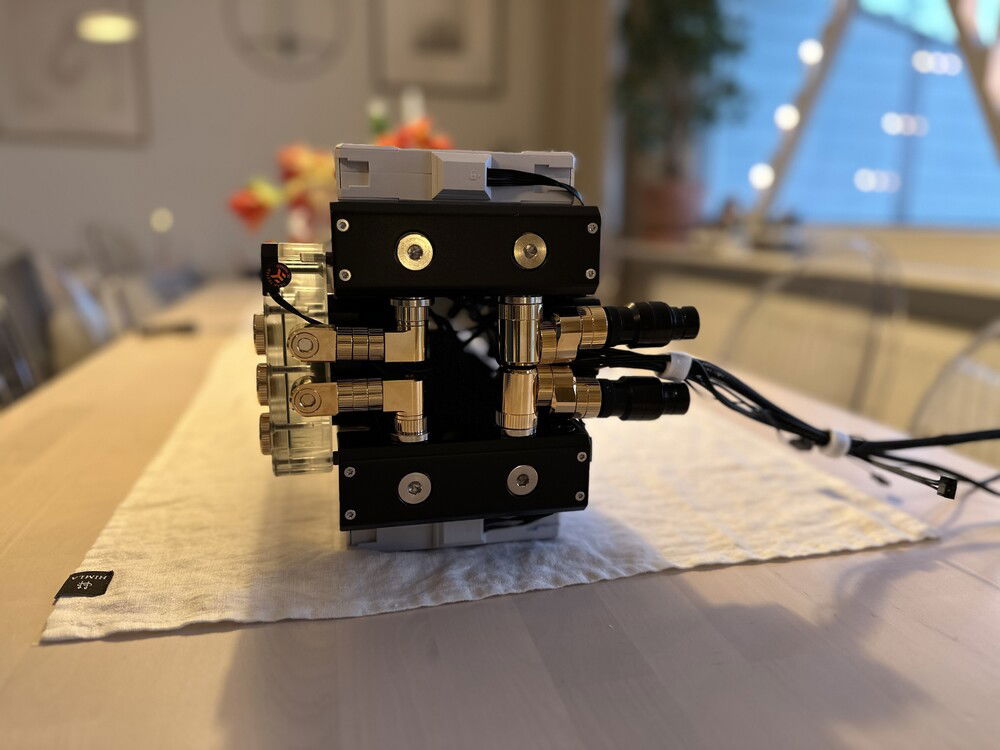

Closer look at cooling-tower, underside with alot of angles and extendors.
Closer look at cooling-tower, underside with alot of angles and extendors.
Closer look at cooling-tower, underside with alot of angles and extendors.
Closer look at cooling-tower, underside with alot of angles and extendors.

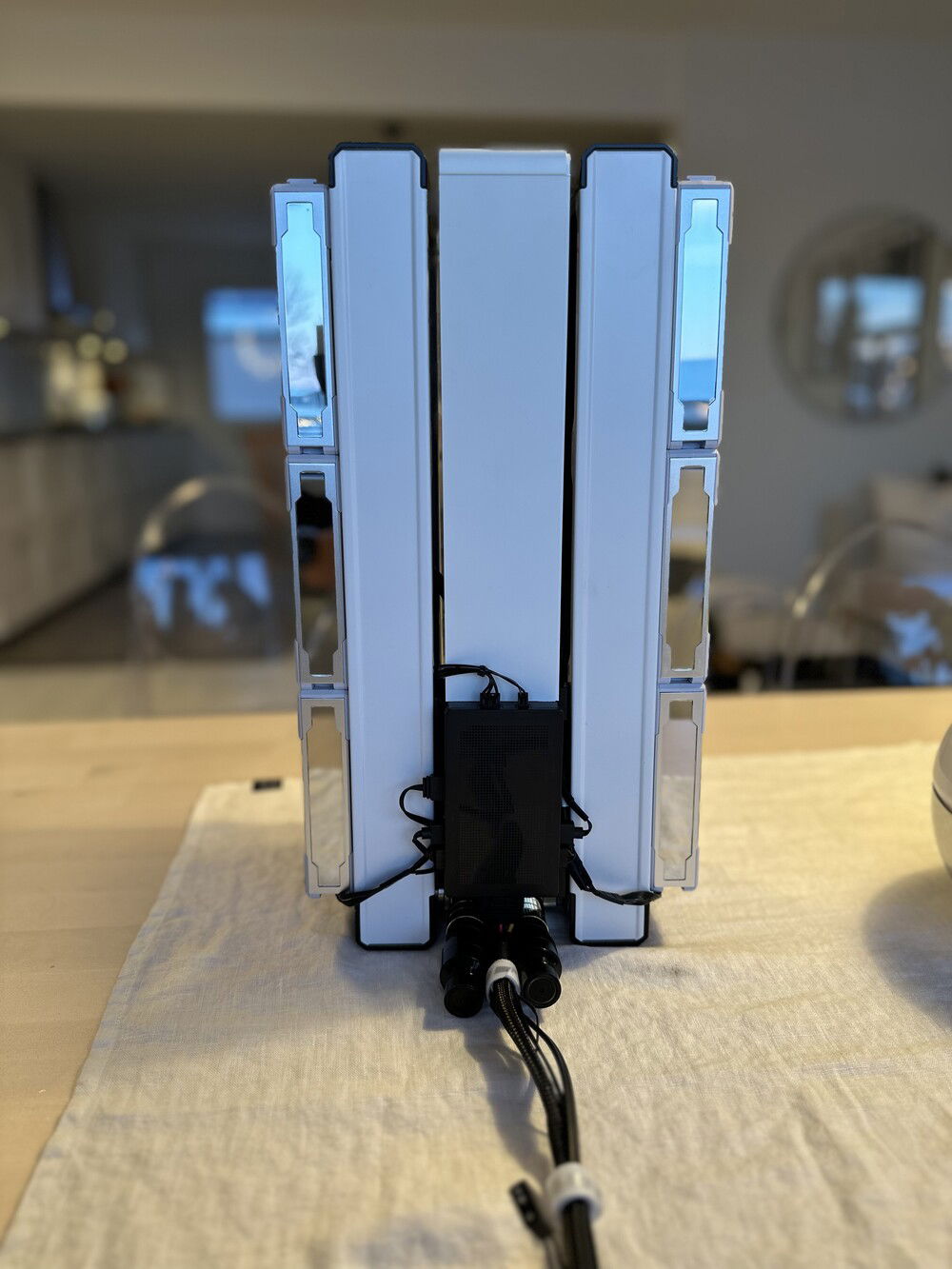

Backside with a d-rgb/pwm hub.
Backside with a d-rgb/pwm hub.

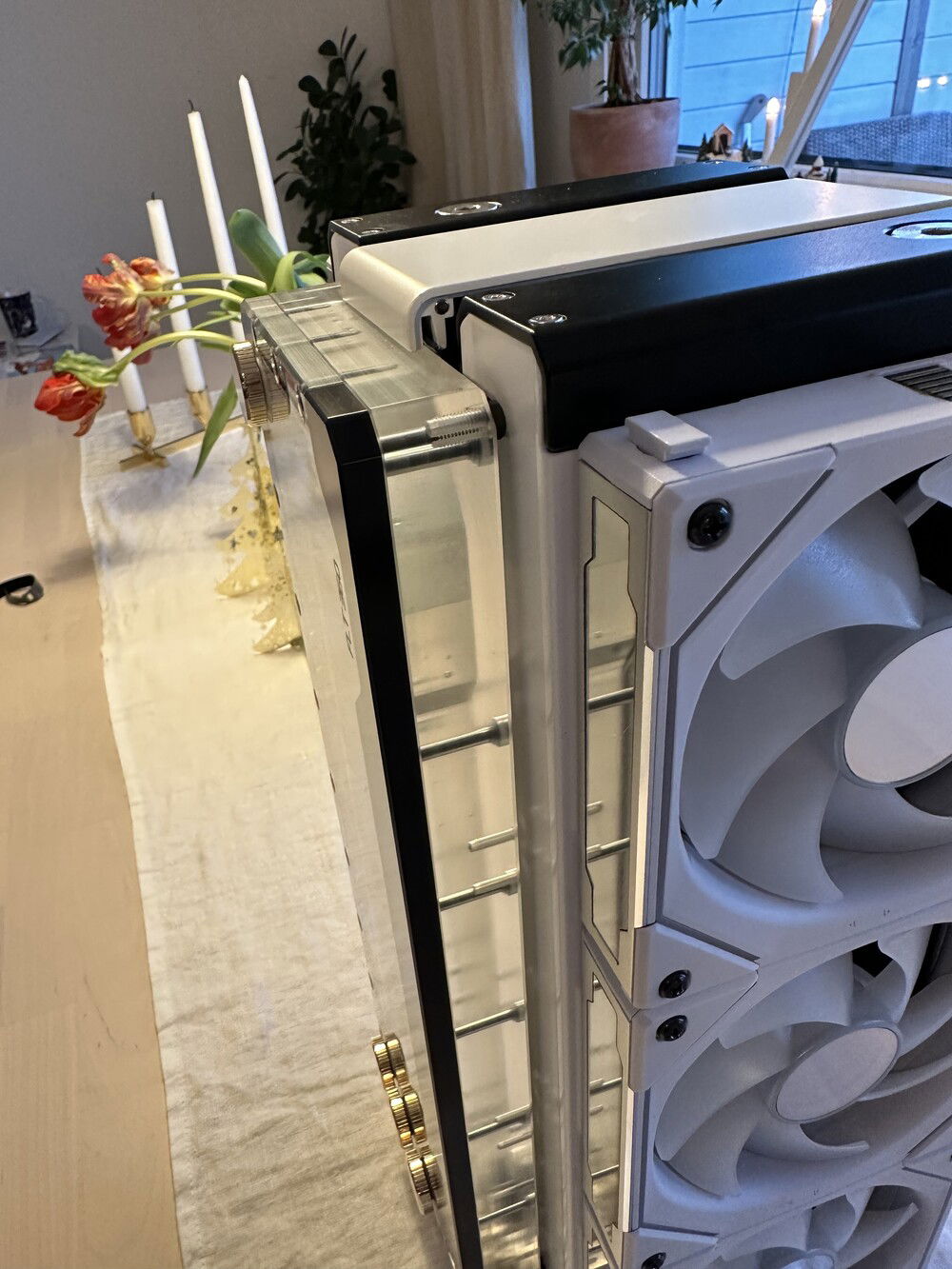

Mounted with screws through side of radiators. Topplate from louqe large tophatt.
Mounted with screws through side of radiators. Topplate from louqe large tophatt.

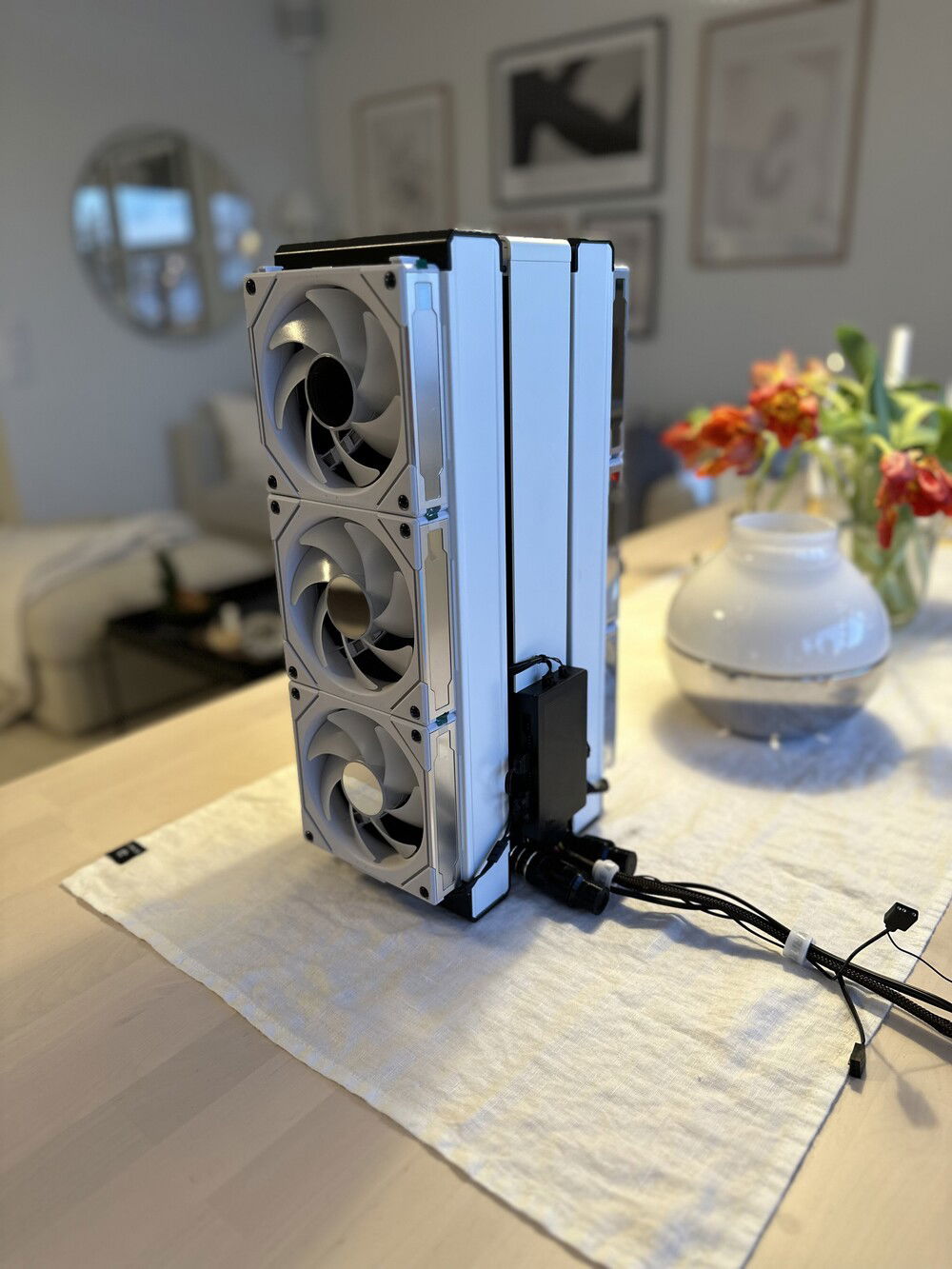

Another photo of the back, the cur tophatt wraps around to the back.
Another photo of the back, the cur tophatt wraps around to the back.

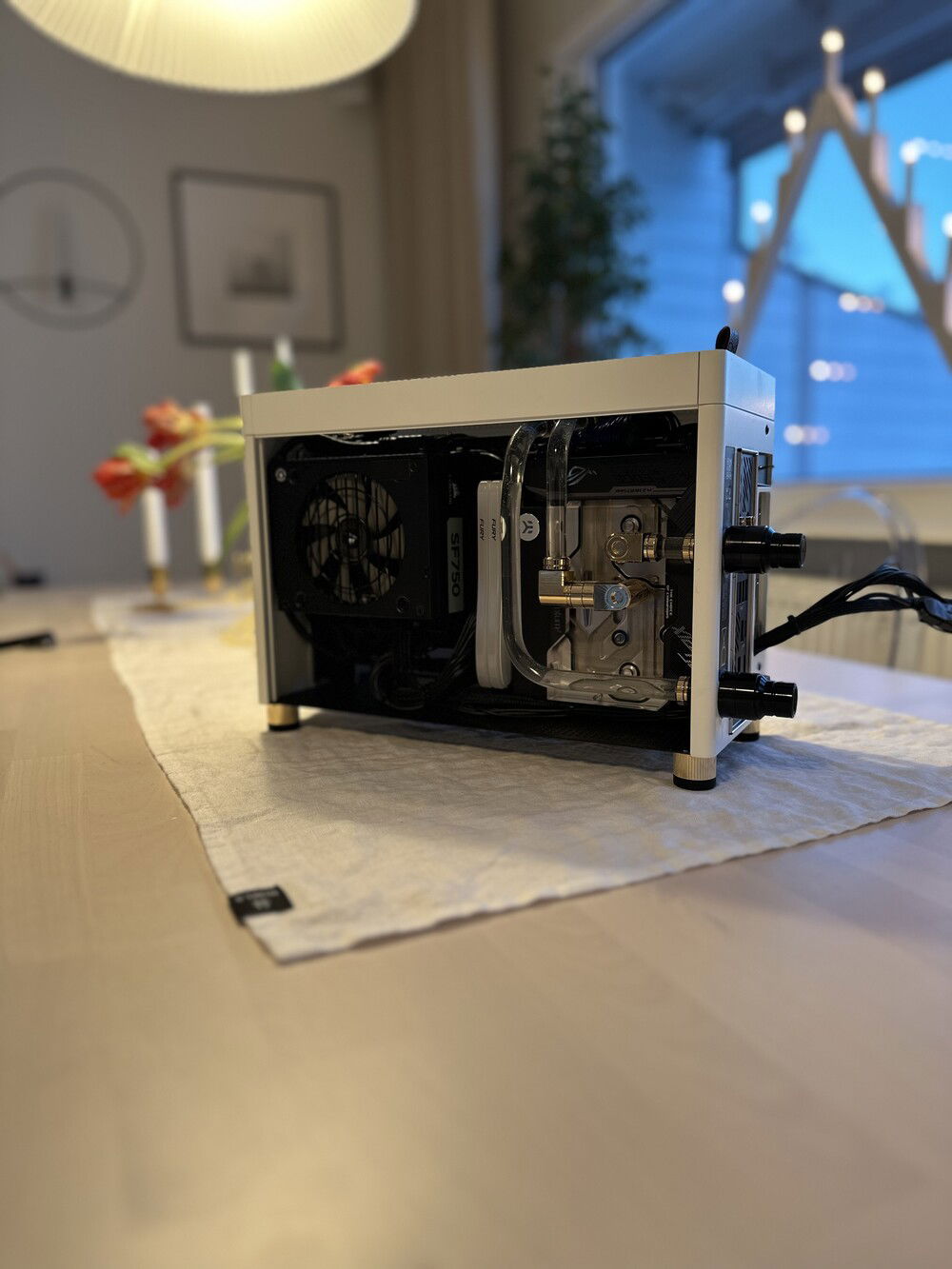

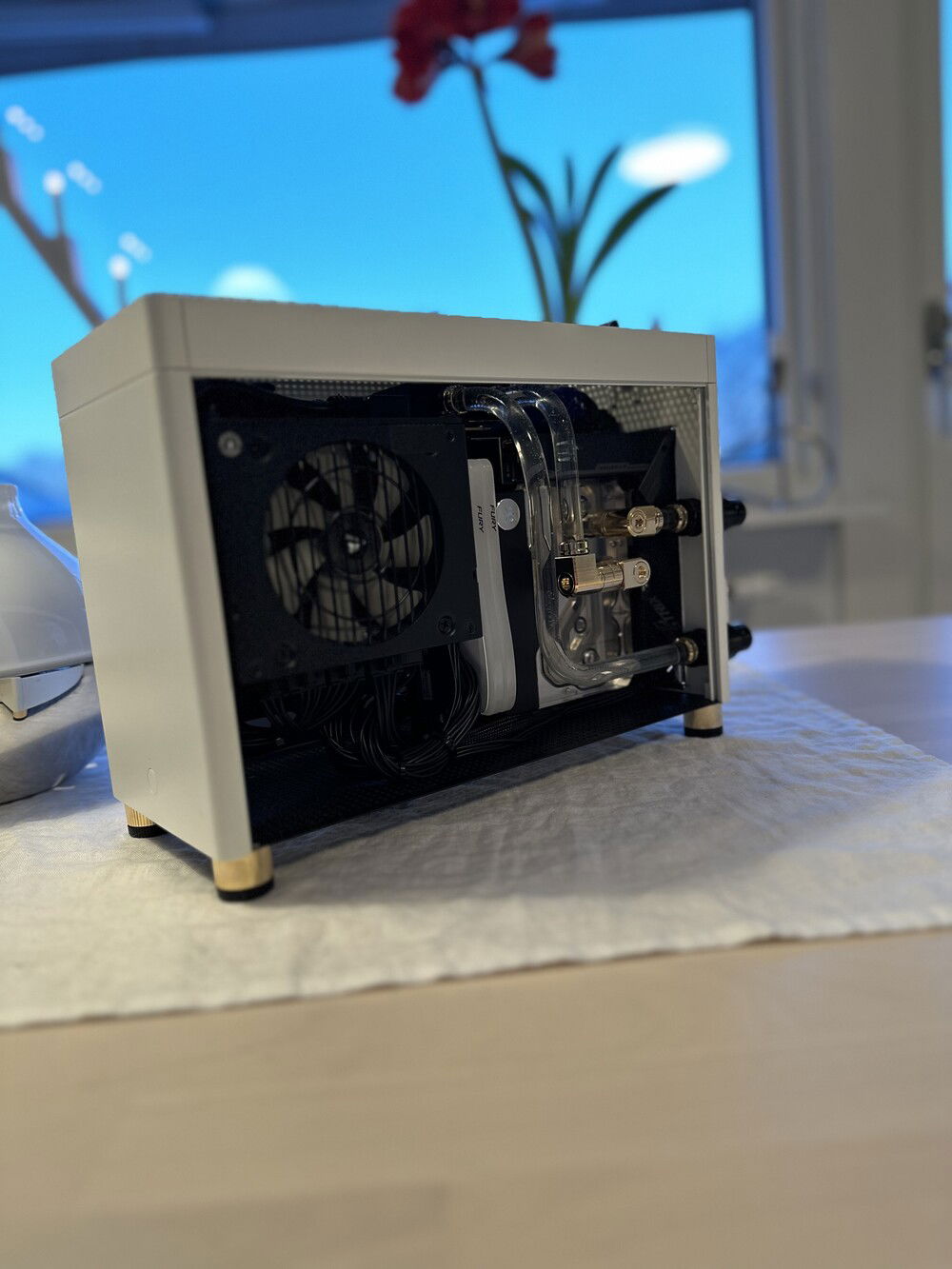

Cpu-side and qdc-fittings.
Cpu-side and qdc-fittings.
Cpu-side and qdc-fittings.
Cpu-side and qdc-fittings.

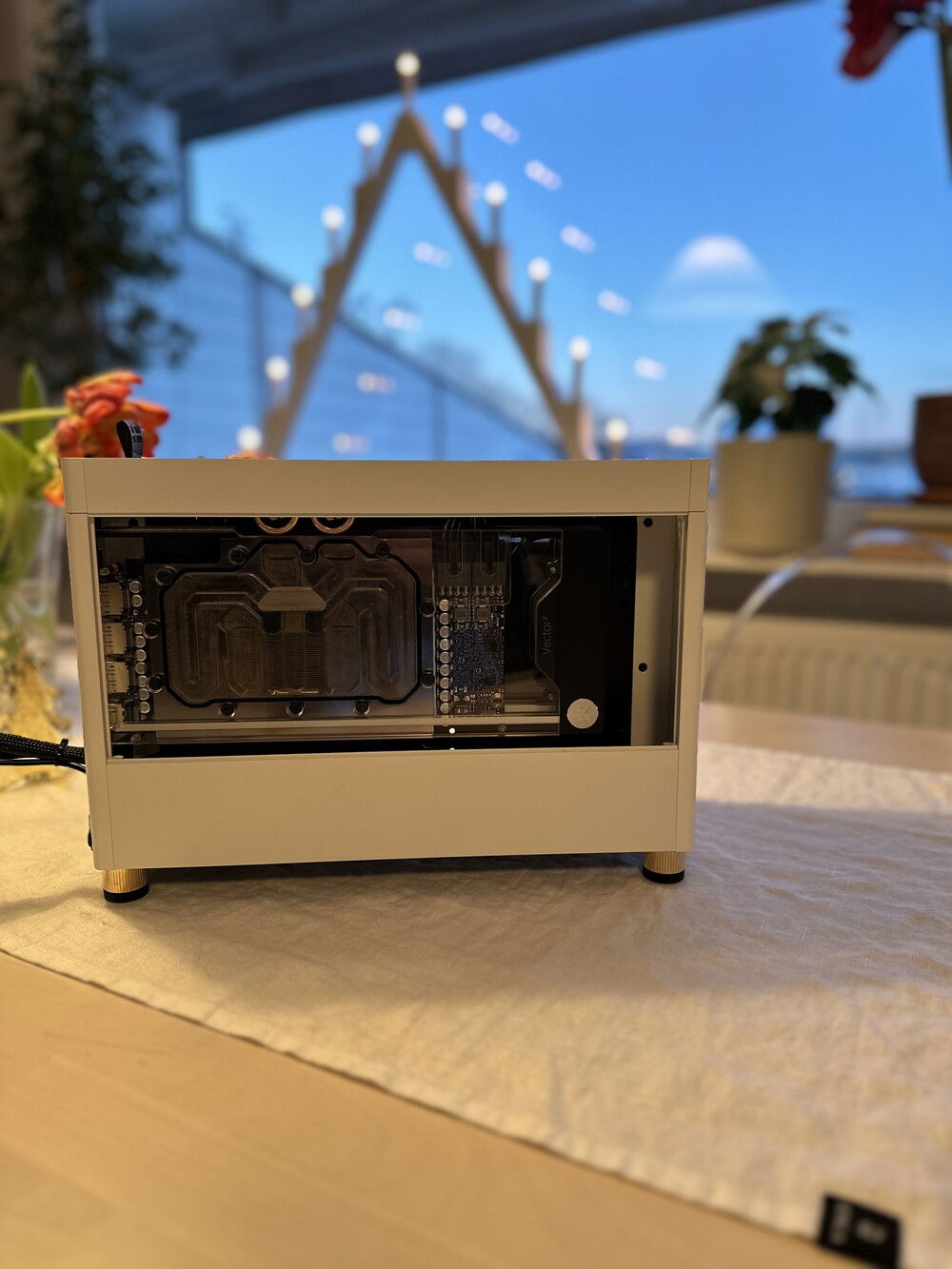

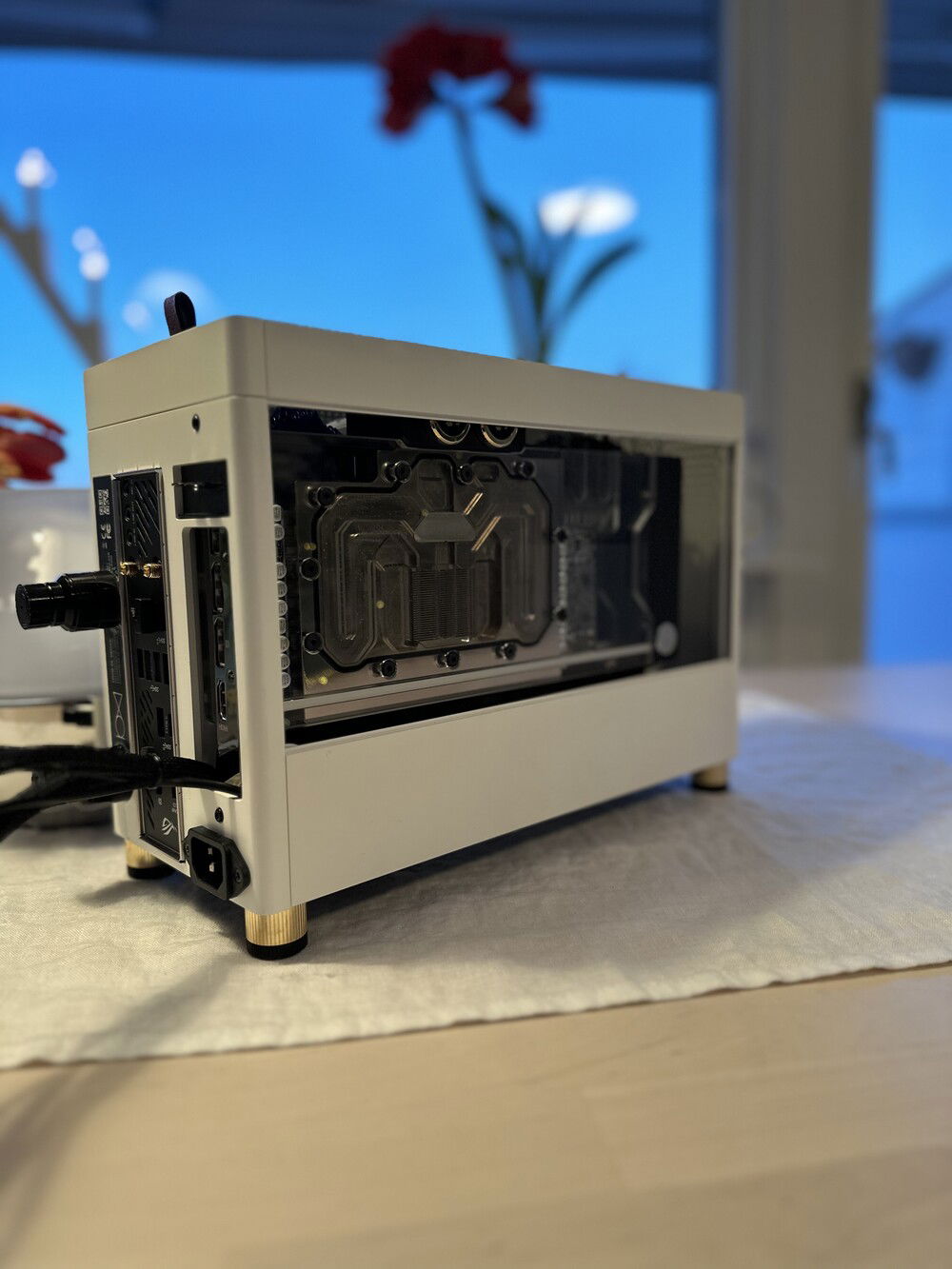

Gpu side, snug fit :)
Gpu side, snug fit :)
Gpu side, snug fit :)
Gpu side, snug fit :)

Ghost S2 with external cooling

Hi!

My latest build where i have a louqe Ghost S1 thats housing a 5950x + 3090 with only a small tophat. This is achieved wigh my external tower of cooling!

Hope you enyoj!
Color(s): Black Gold White
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: SFF
Type: General Build

Hardware

CPU
AMD - Ryzen 9 (5950X)
Socket: AM4
Cores: 16
Motherboard
$ 415.29
ASUS - ROG Strix Gaming (X570-I)
Chipset: X570
CPU Socket: AM4
Size: Mini-ITX
Memory
TeamGroup - T-Force Xtreem (3600MHz) (White/ARGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 3,999.99
ASUS - GeForce EKWB
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 355.58
Kingston - Fury Renegade
Form Factor: M.2
Interface: PCIe x4
Capacity: 4 TB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
$ 272.05
Louqe - Ghost S1 Mk.II
Type: Mini-Tower
Side Panel: Solid
Case Fan
$ 187.02
Lian Li - Uni Fan SL-Infinity (White) (6x)
Size: 120 mm
Cooling
$ 309.99
EKWB - EK-Quantum Kinetic FLT 360 D5 PWM D-RGB - Plexi
Type: Pump/Reservoir Combo
Cooling
EKWB - EK-Quantum Momentum ROG Strix X570-E D-RGB - Plexi
Type: Monoblock
Cooling
$ 419.98
EKWB - EK-Quantum Surface P360M - Black (2x)
Type: Radiator
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
EKWB - EK-Quantum Vector² RE RTX 3080/90 ABP Set D-RGB - Nickel + Plexi
Type: GPU Waterblock
