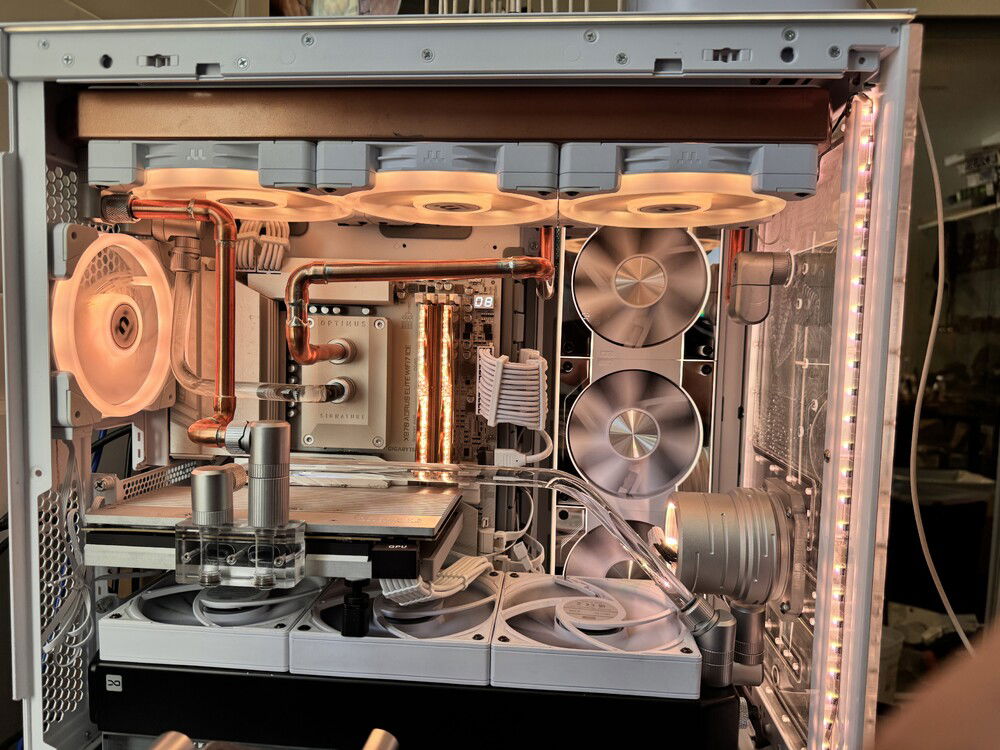

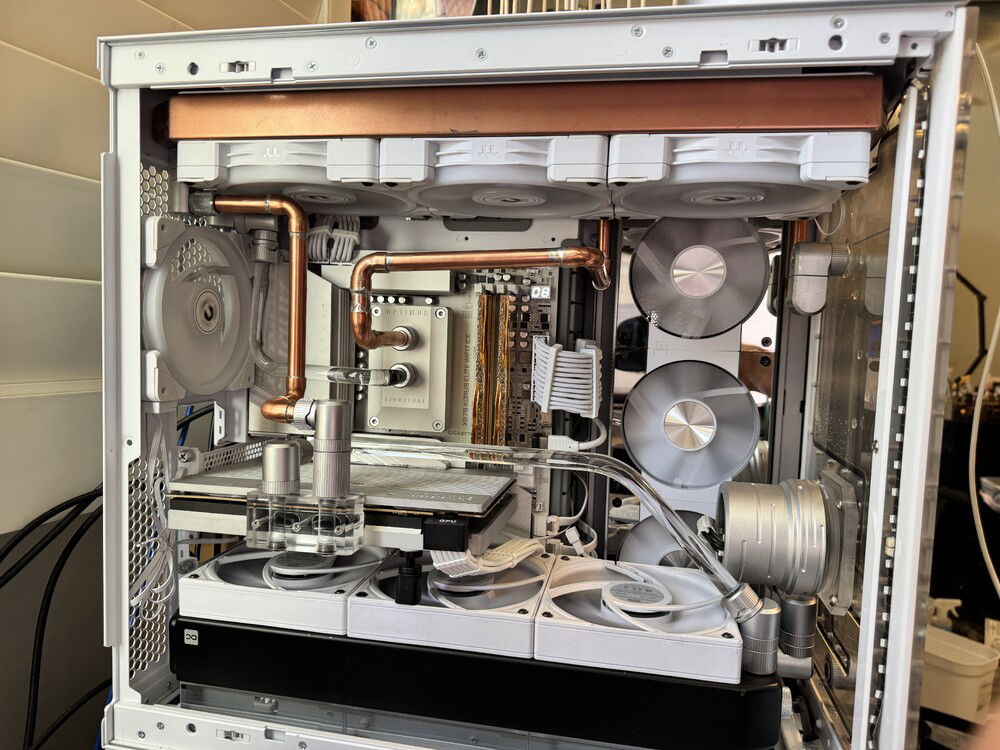

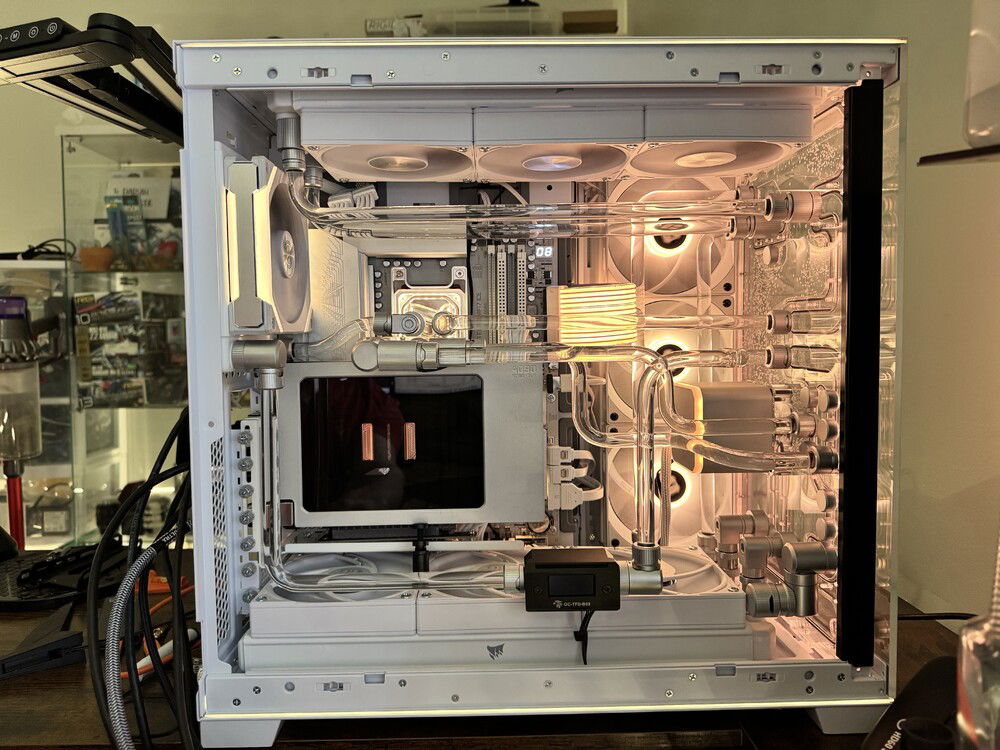

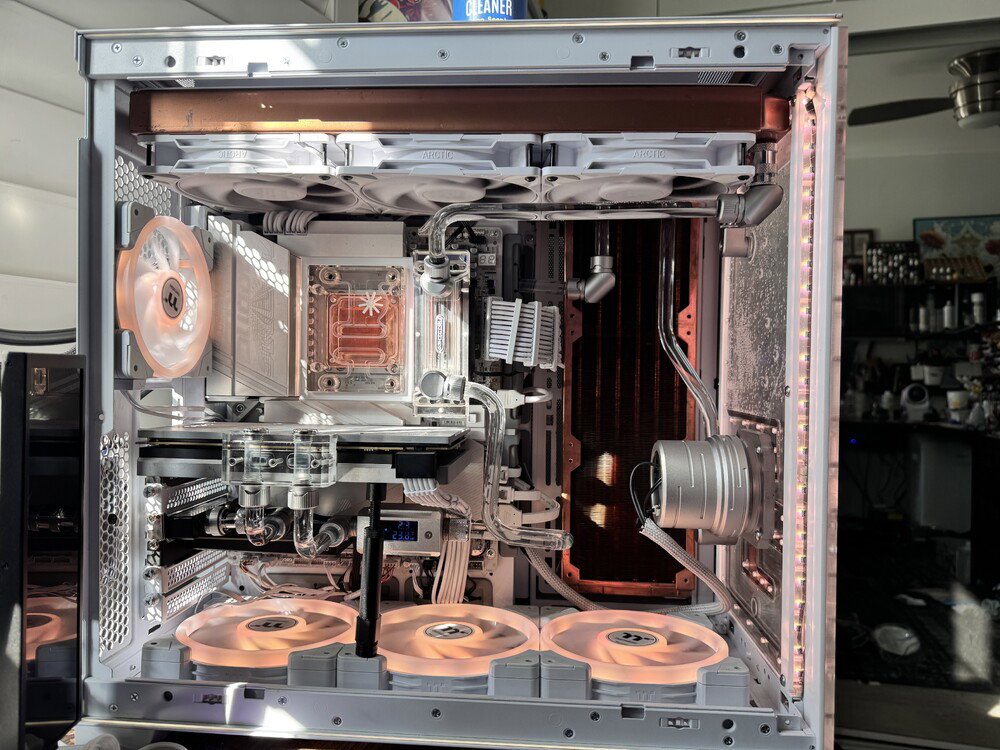

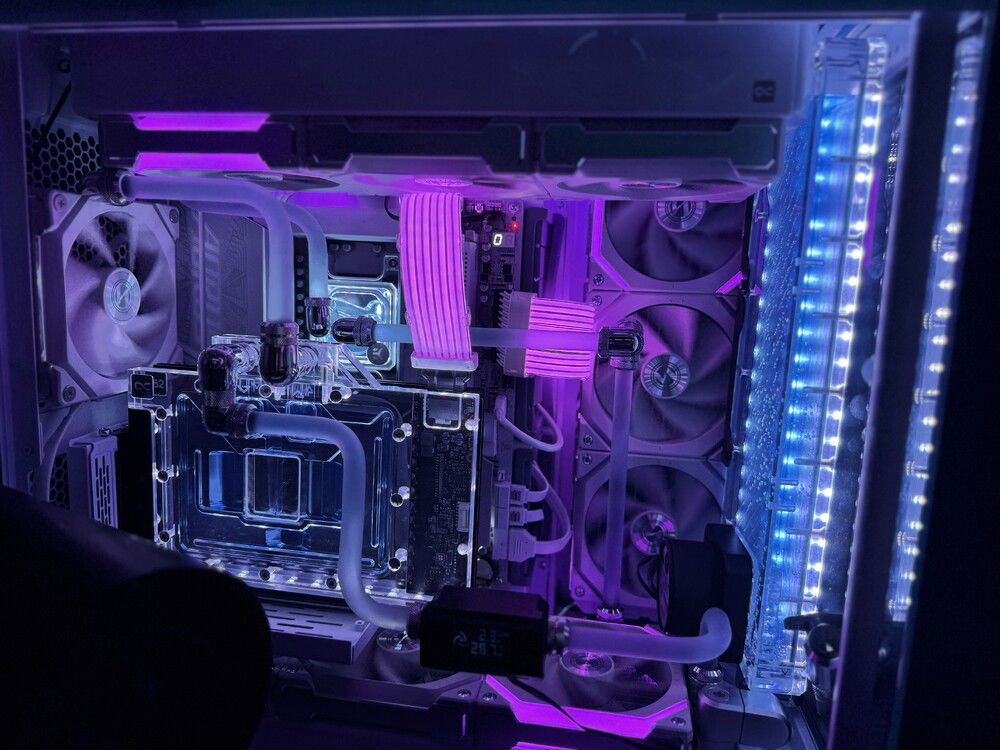

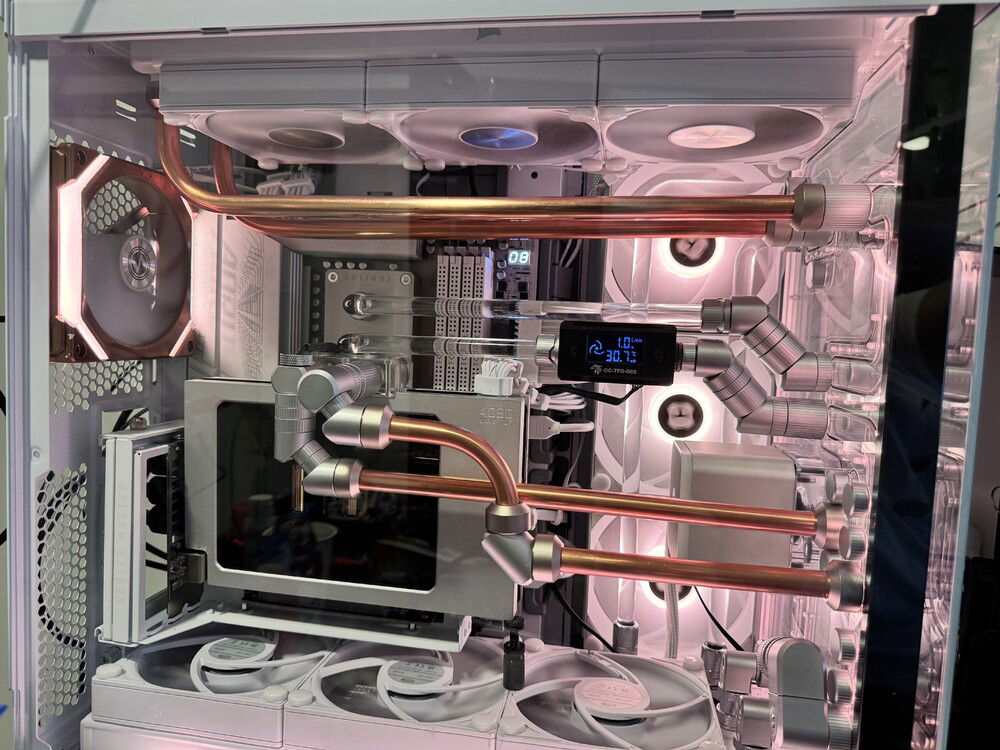

Had to redo the loop since I needed to install a capture card.
Had to redo the loop since I needed to install a capture card.

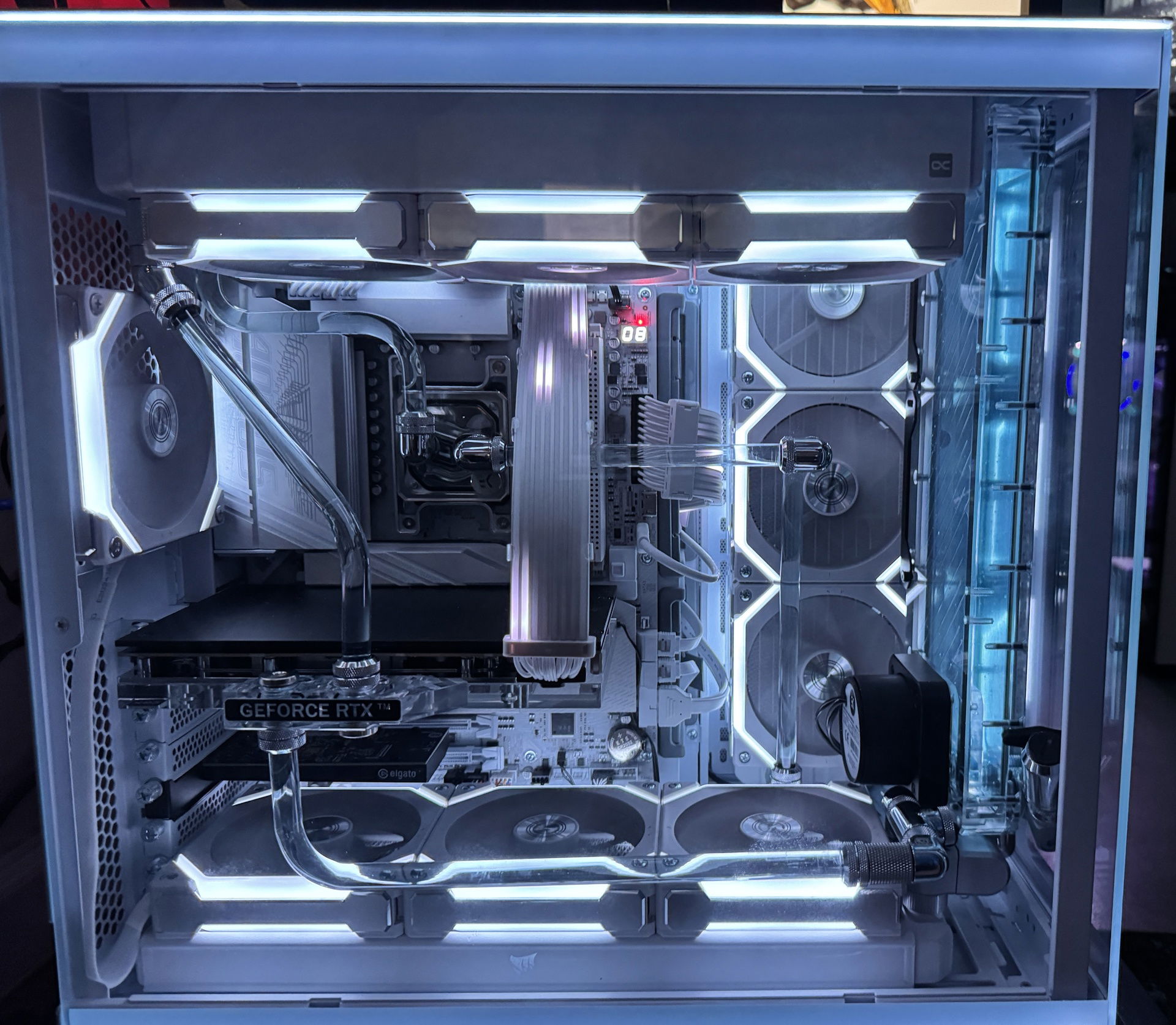

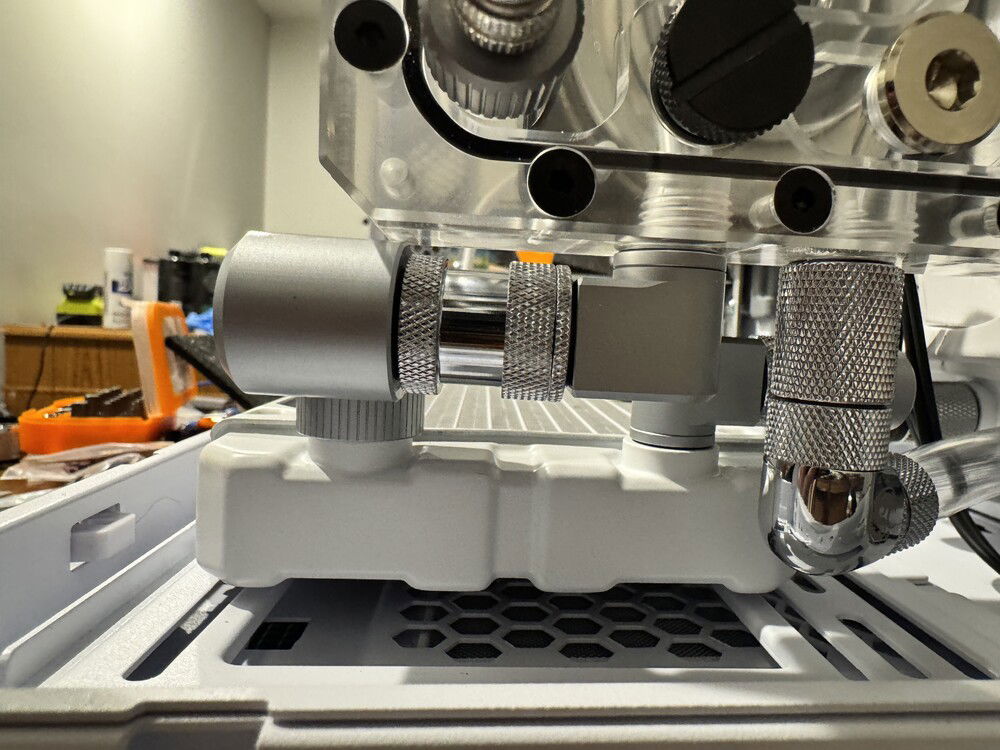

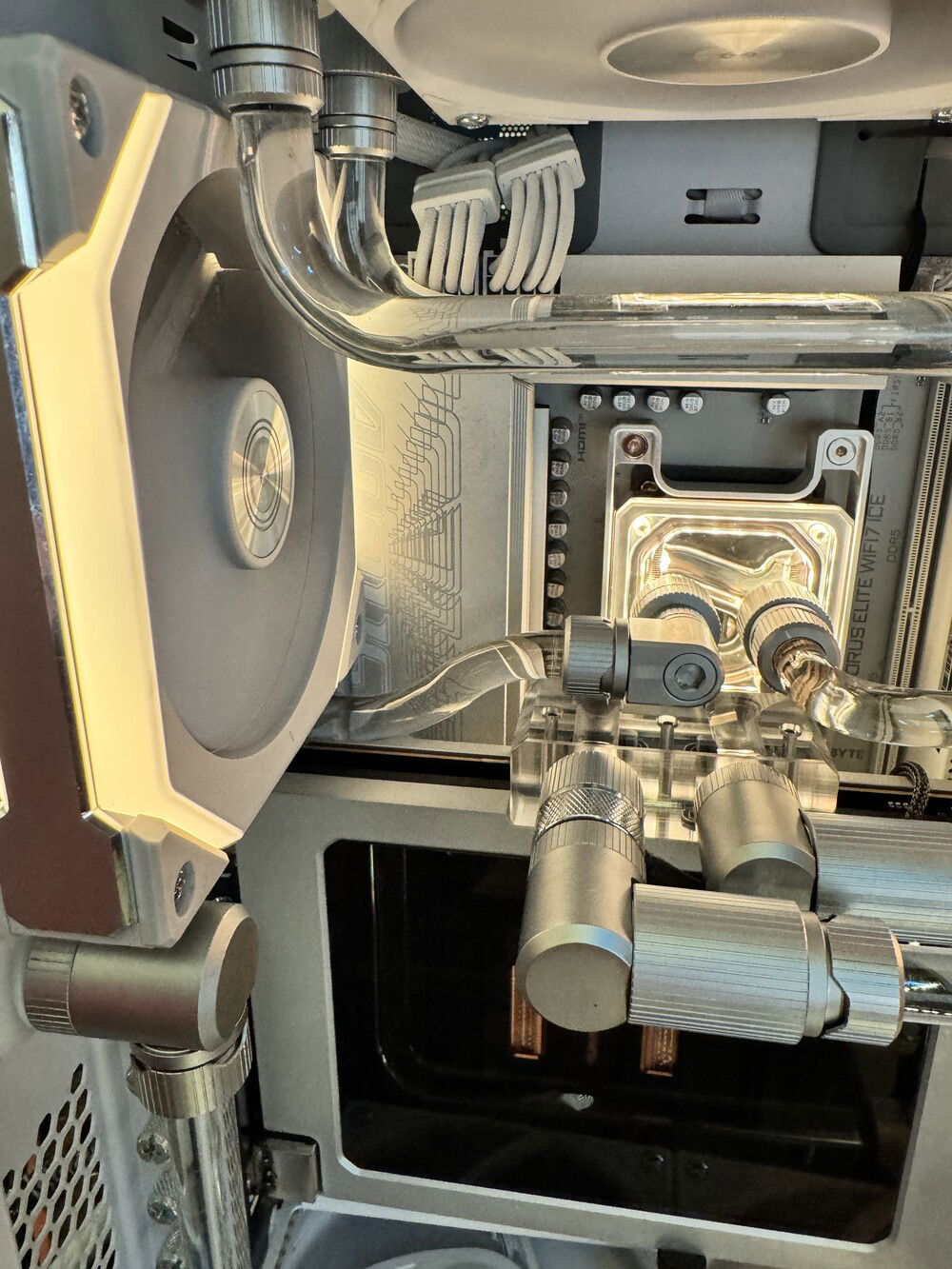

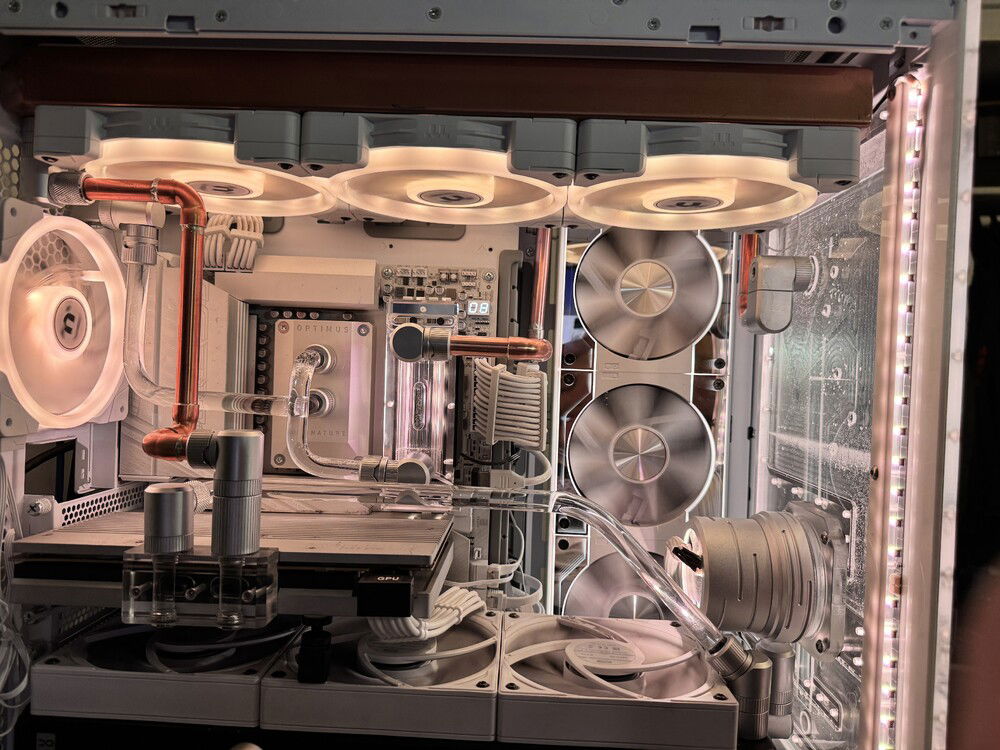

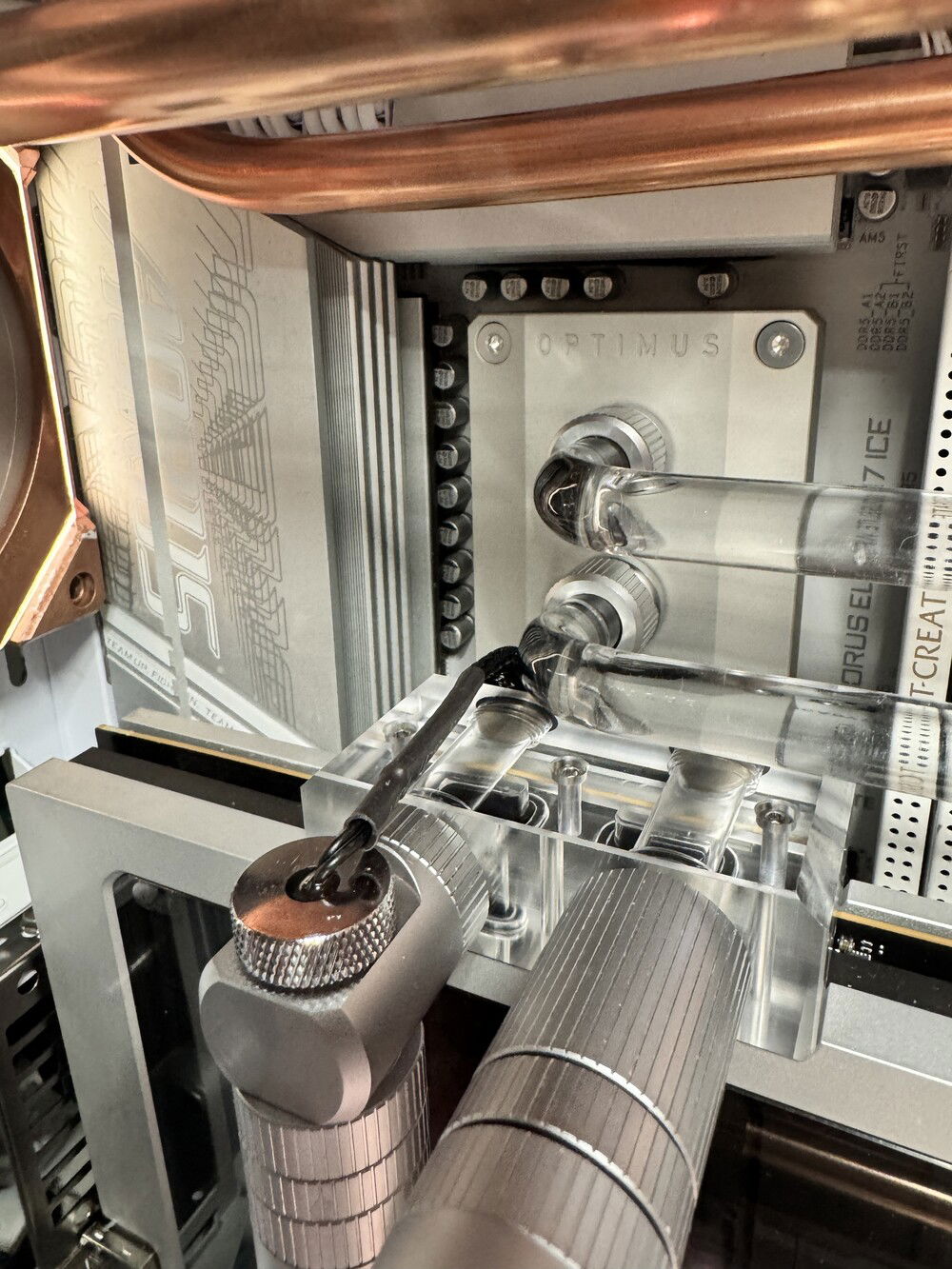

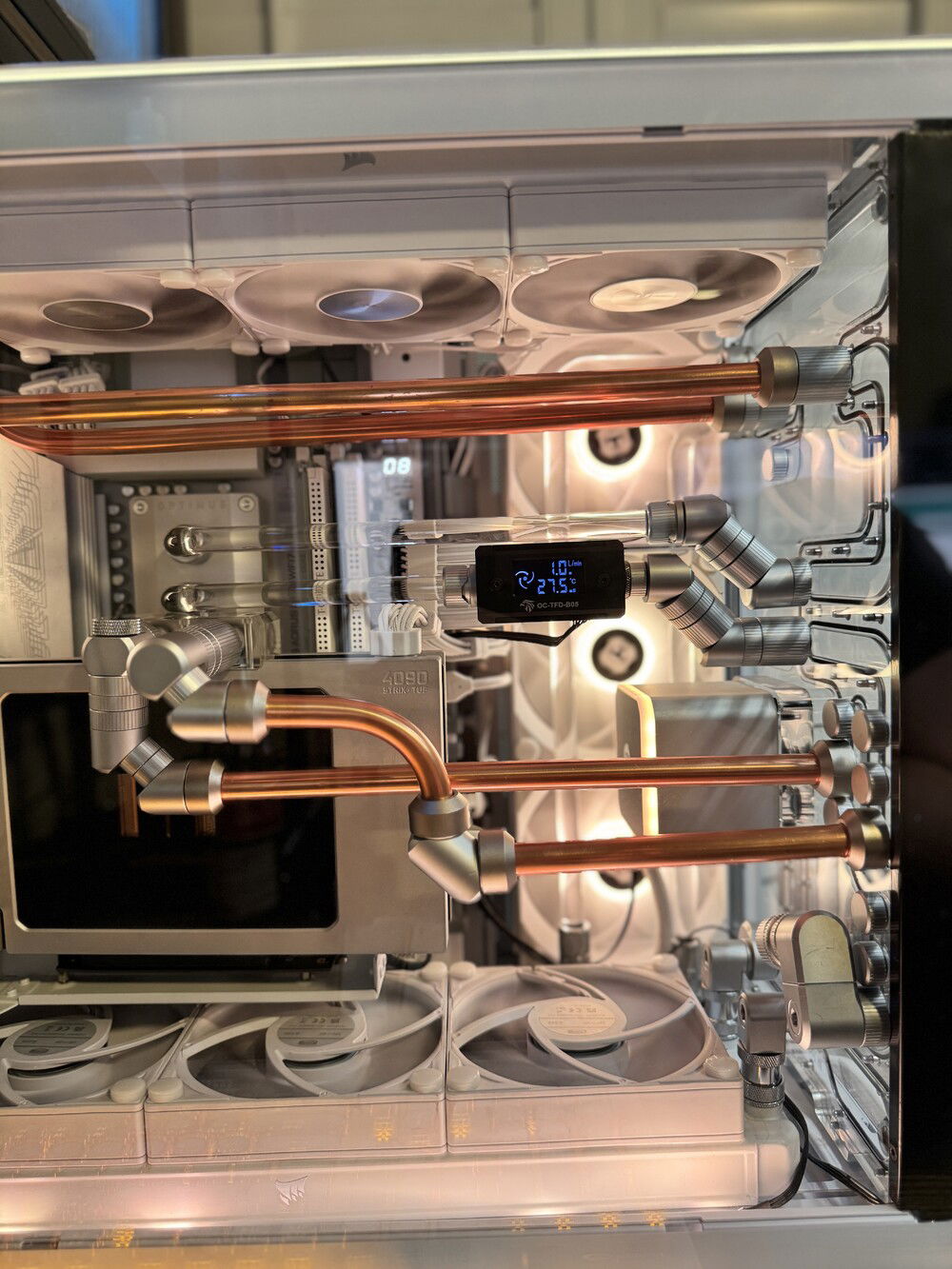

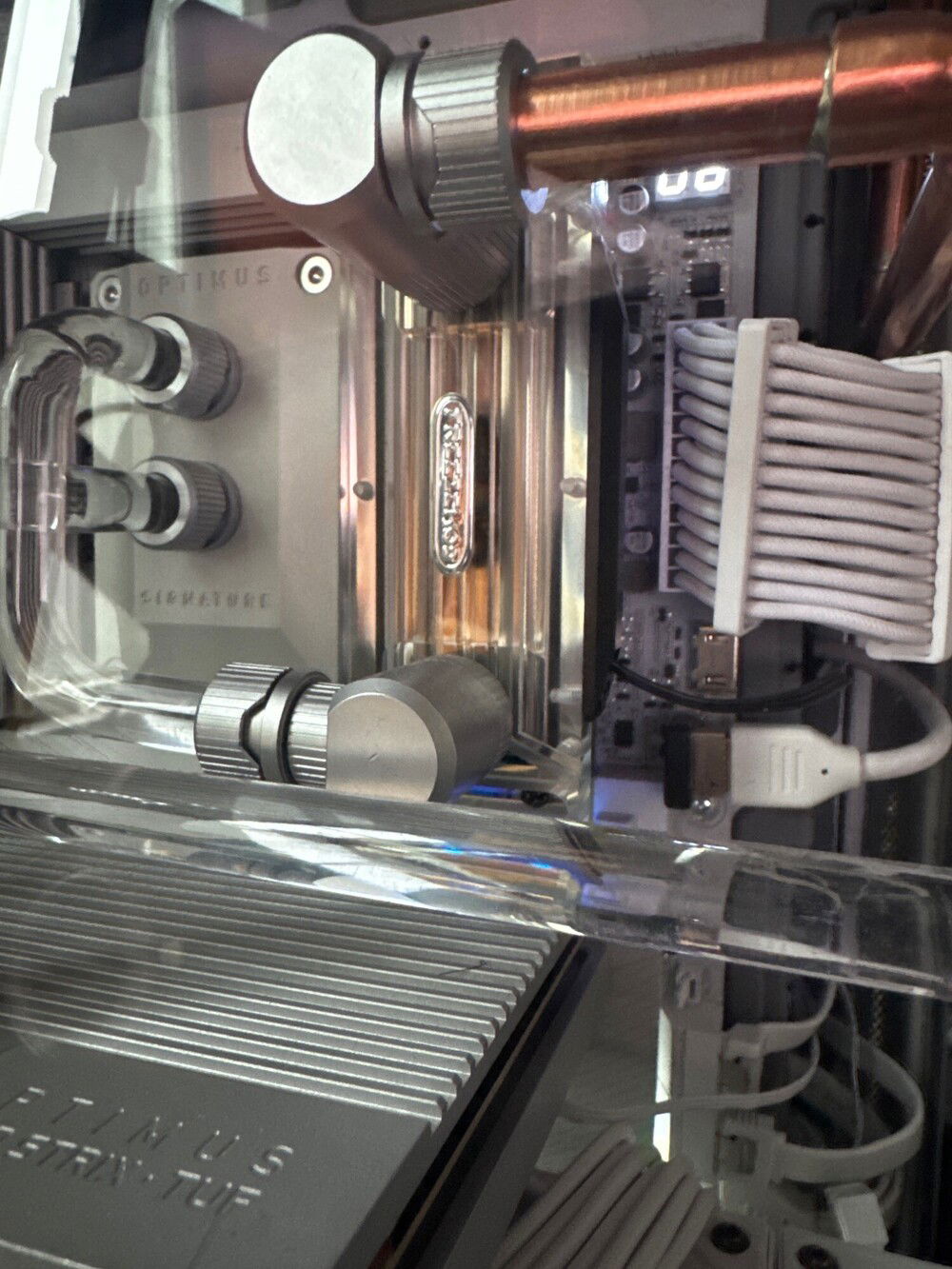

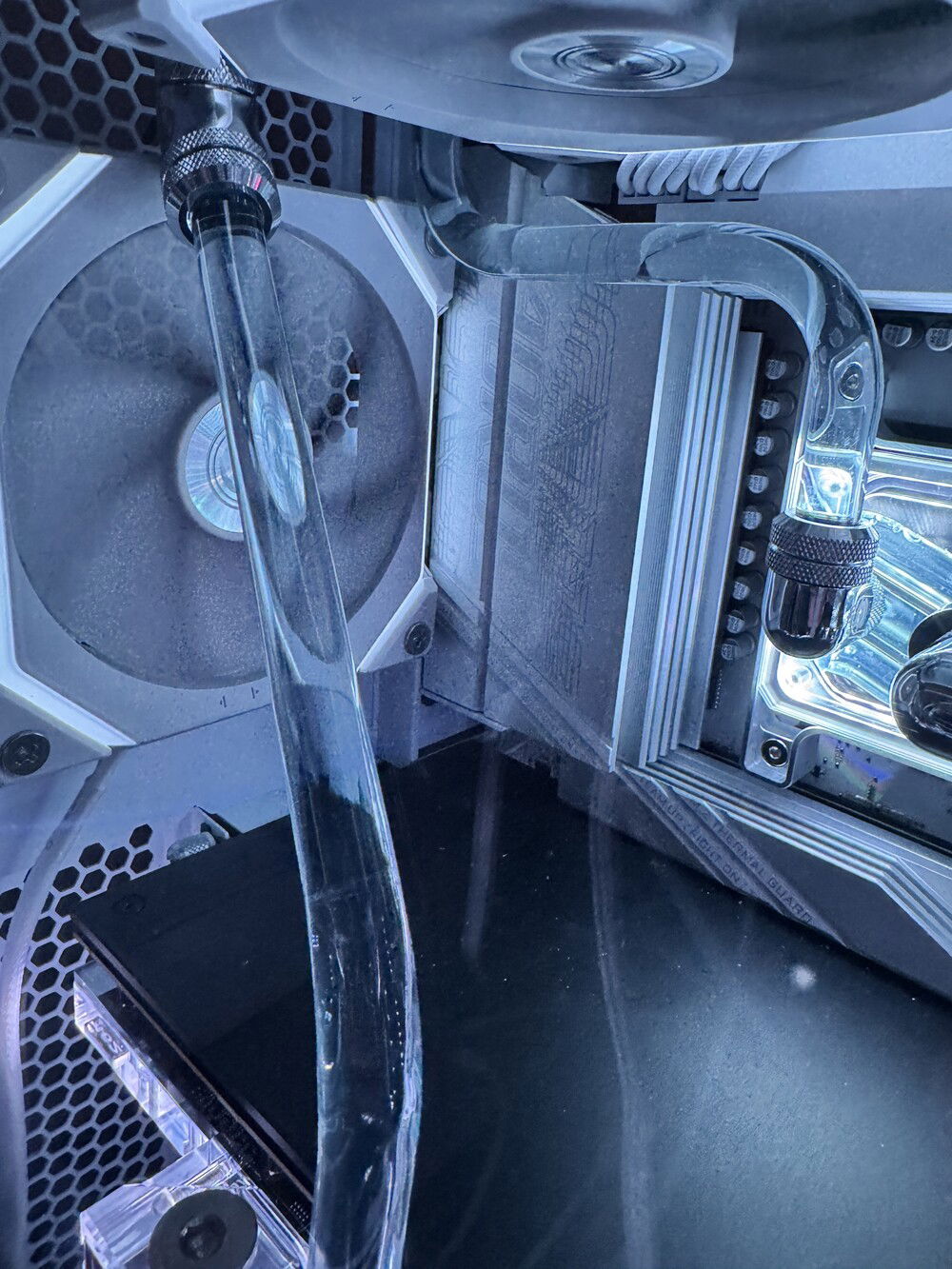

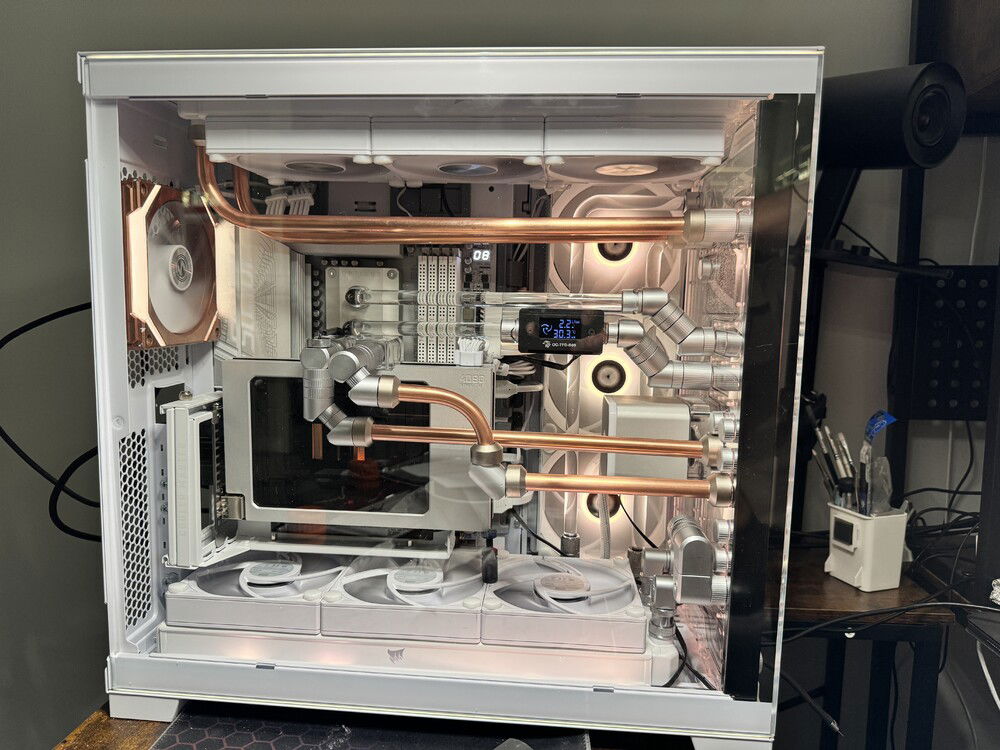

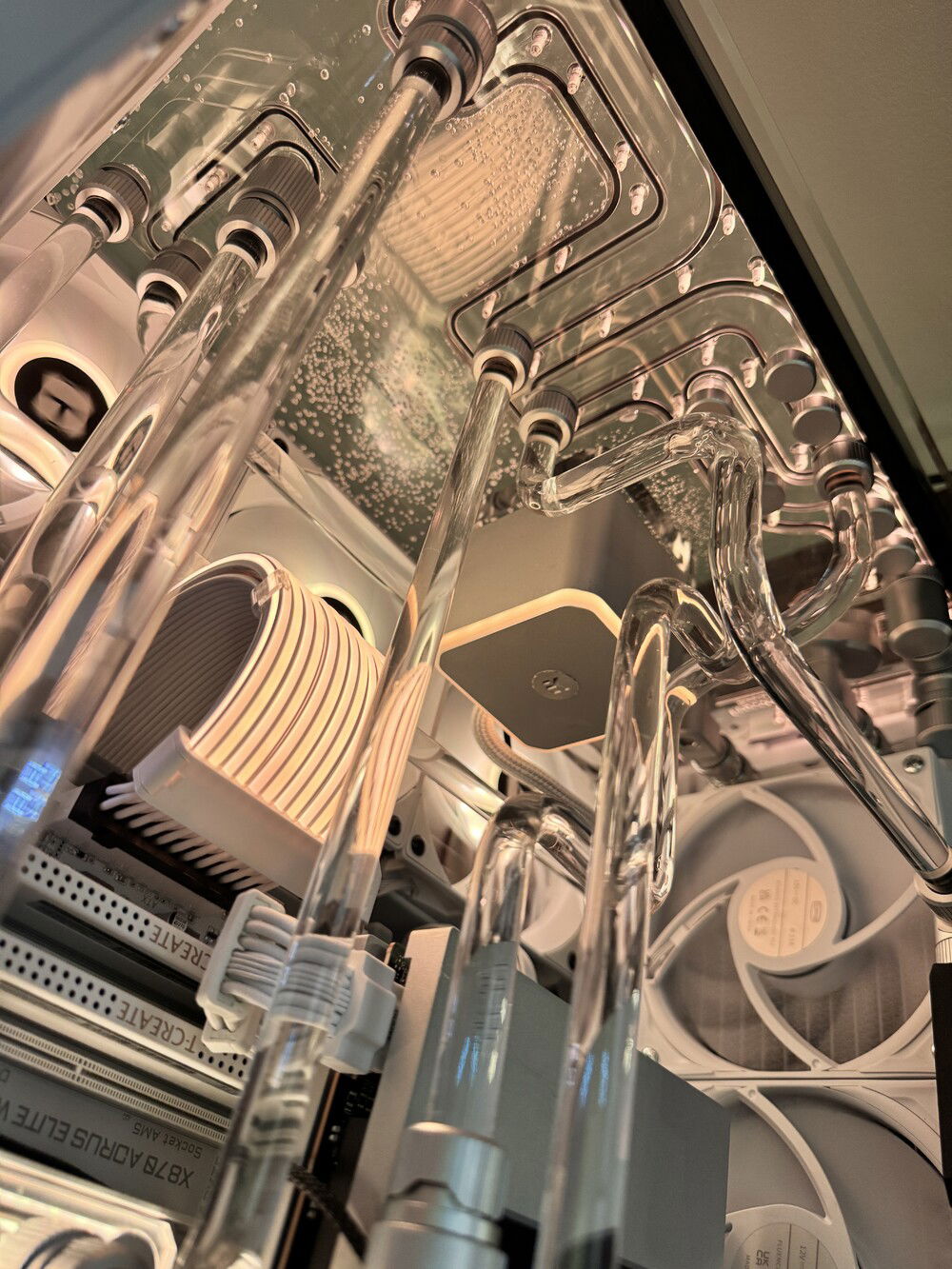

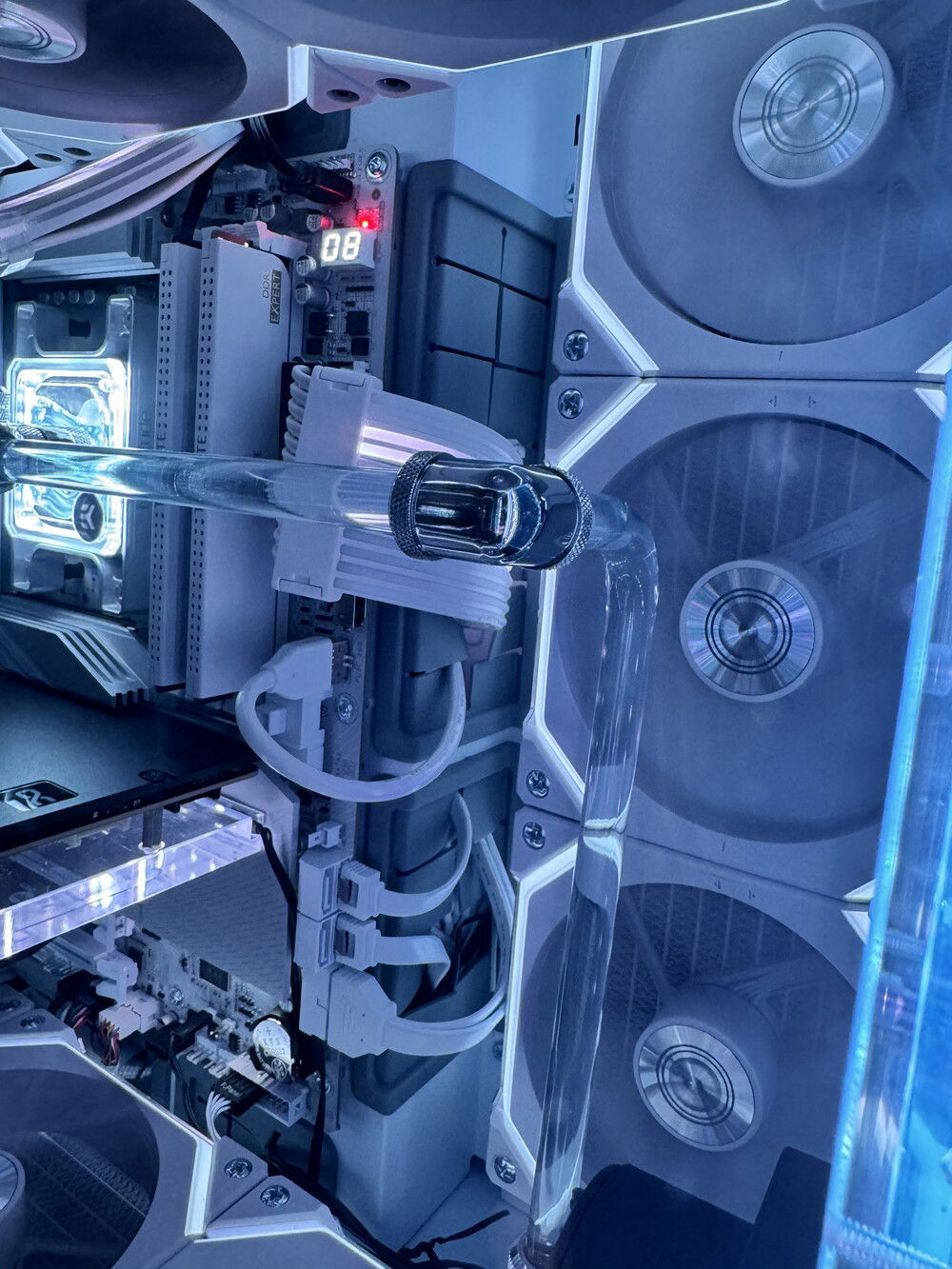

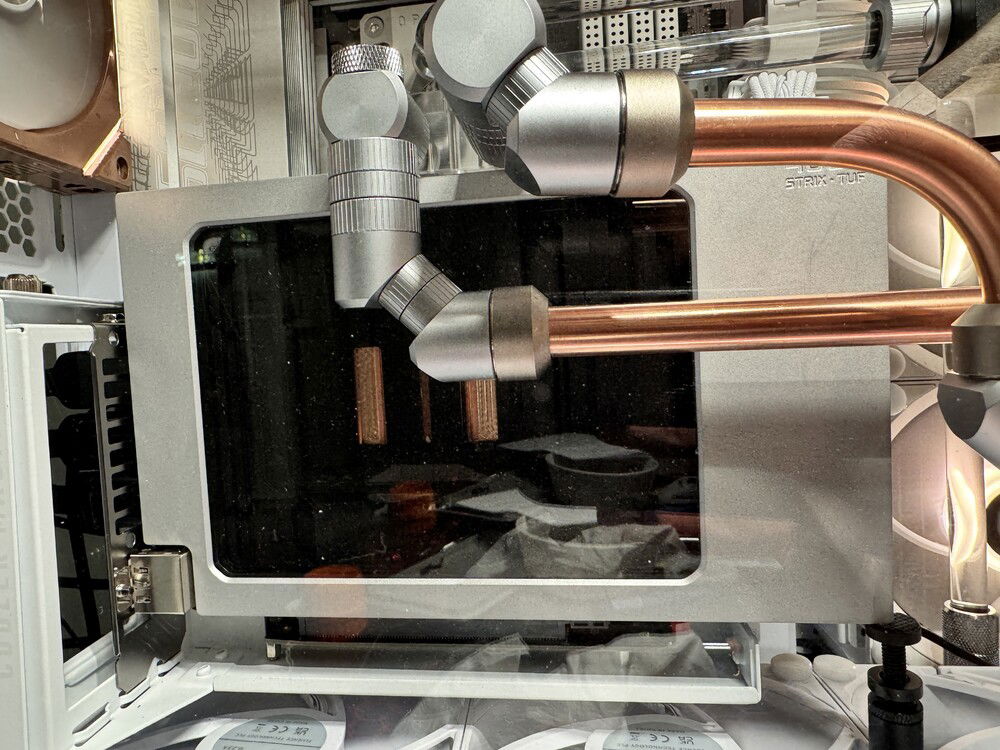

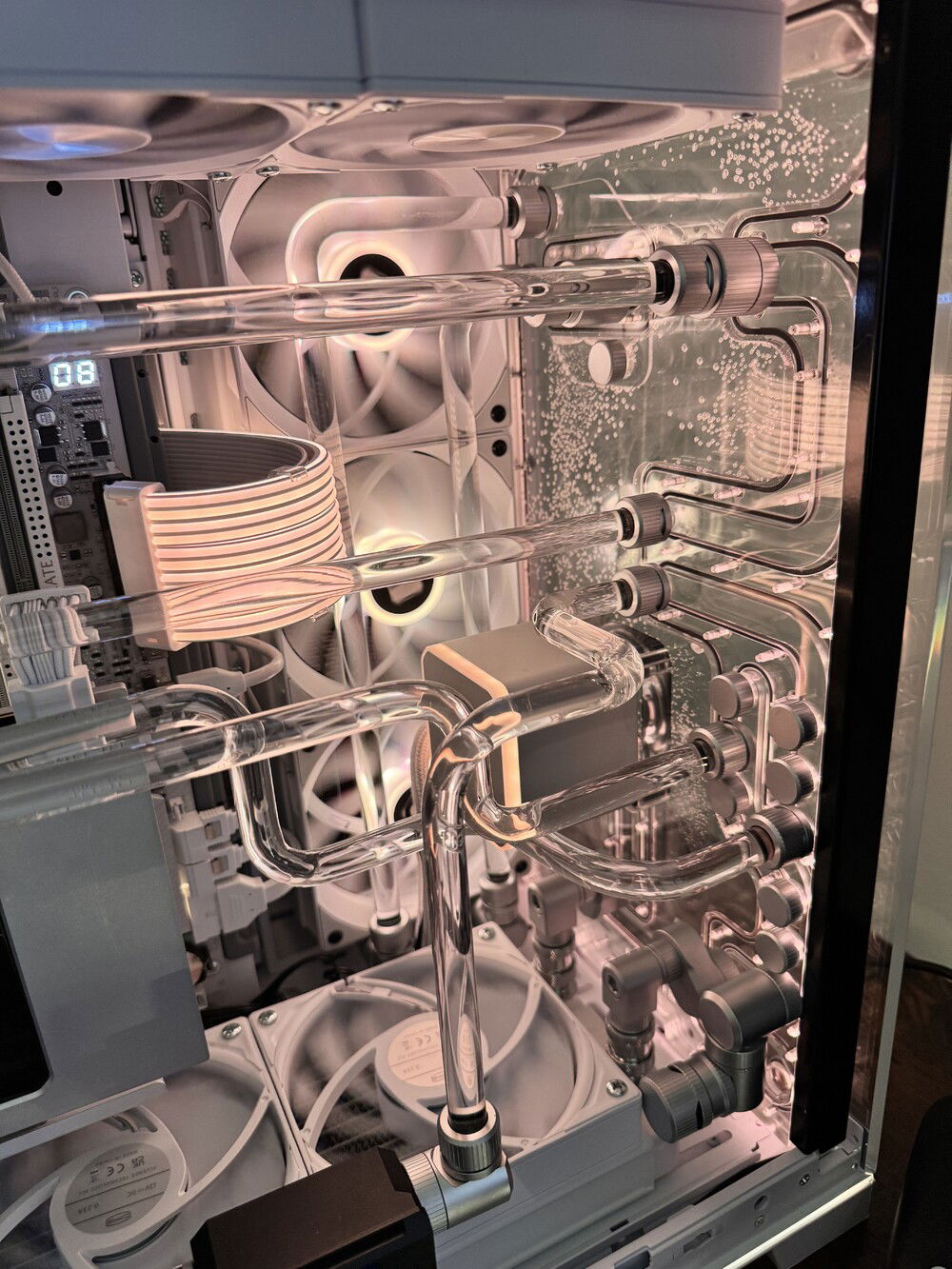

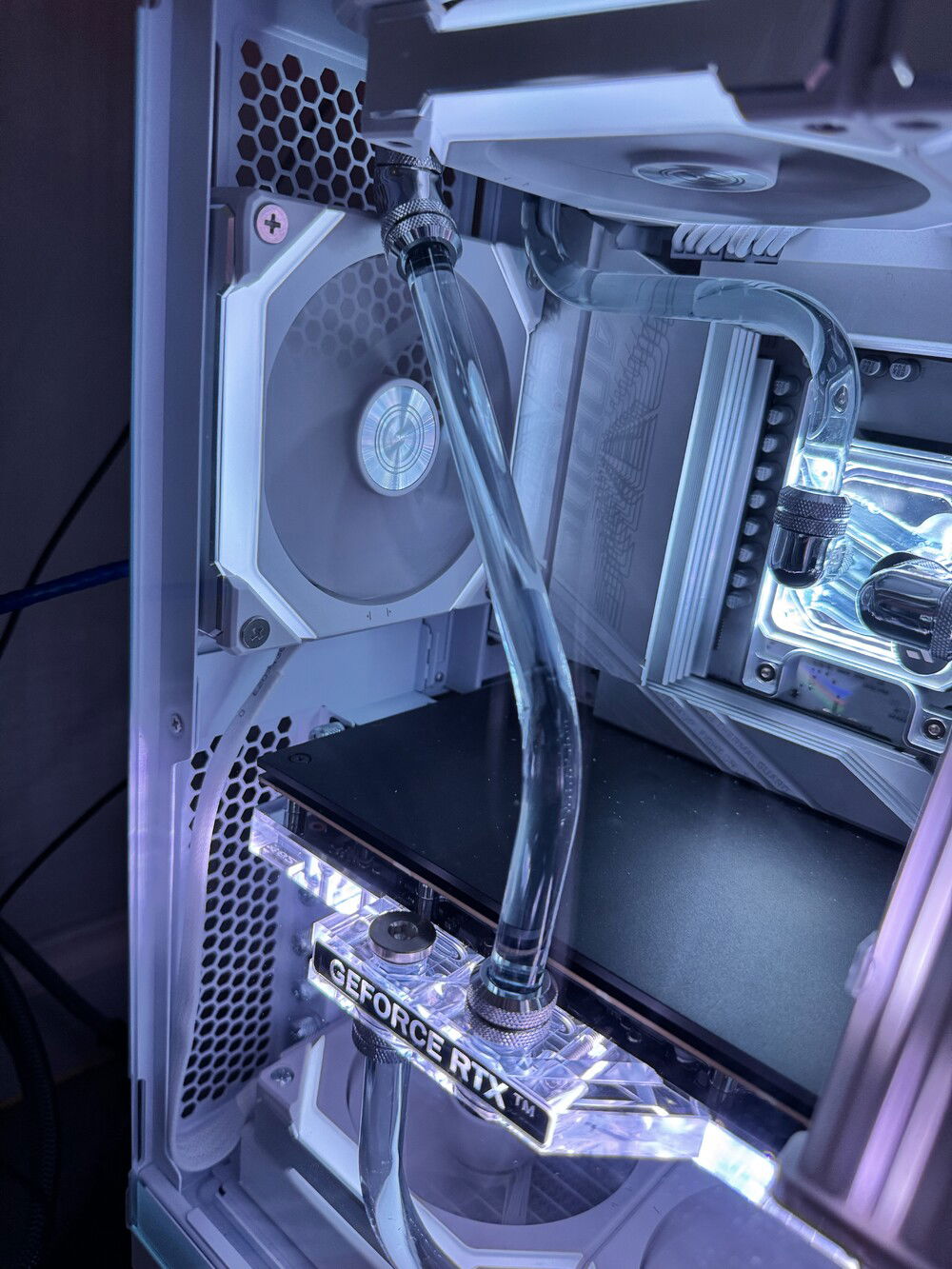

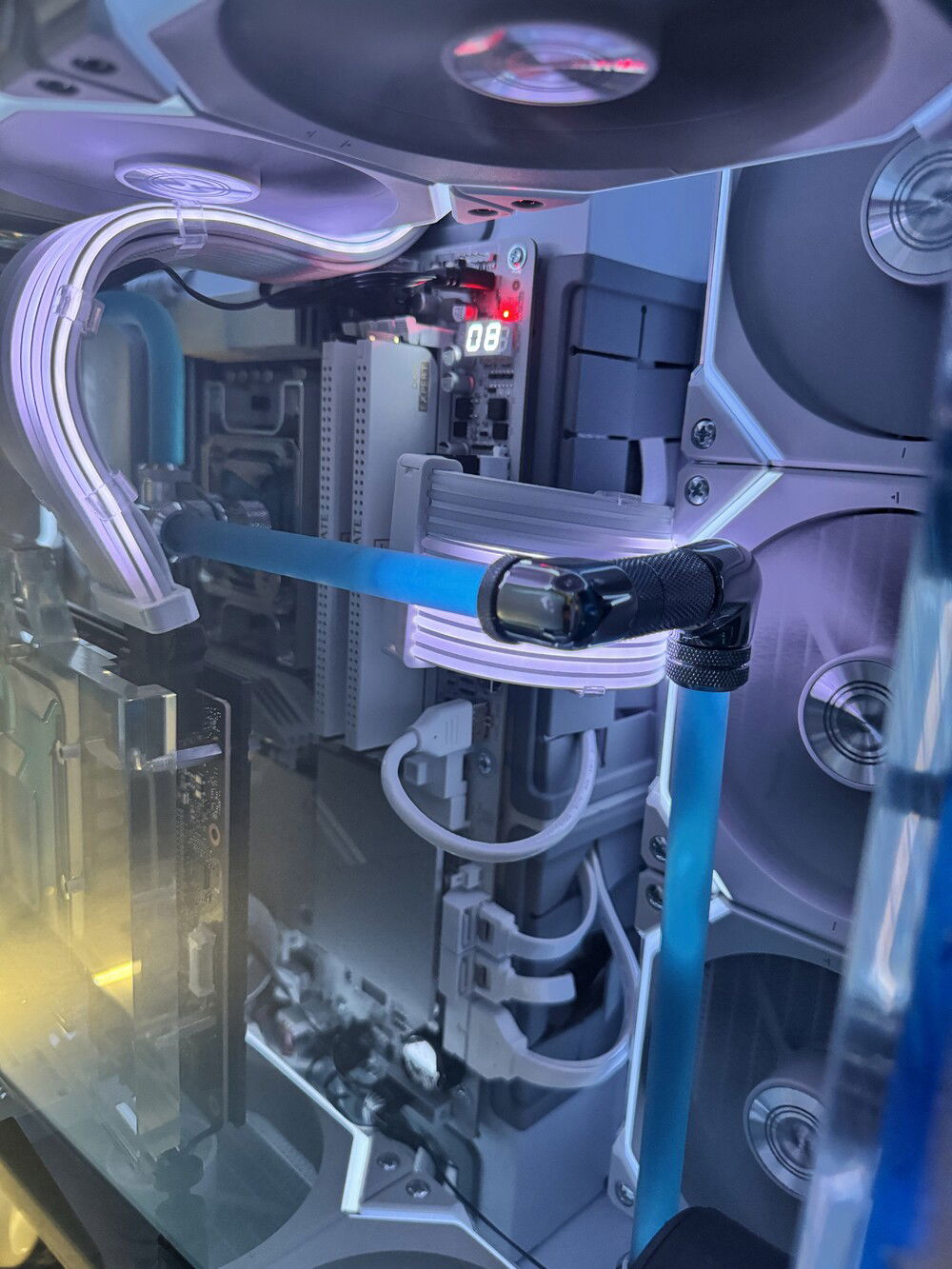

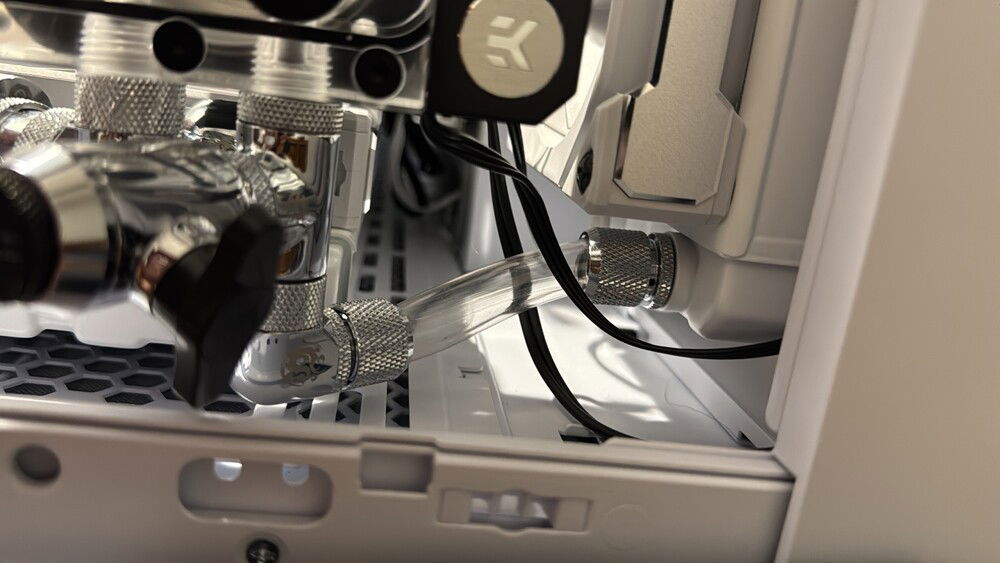

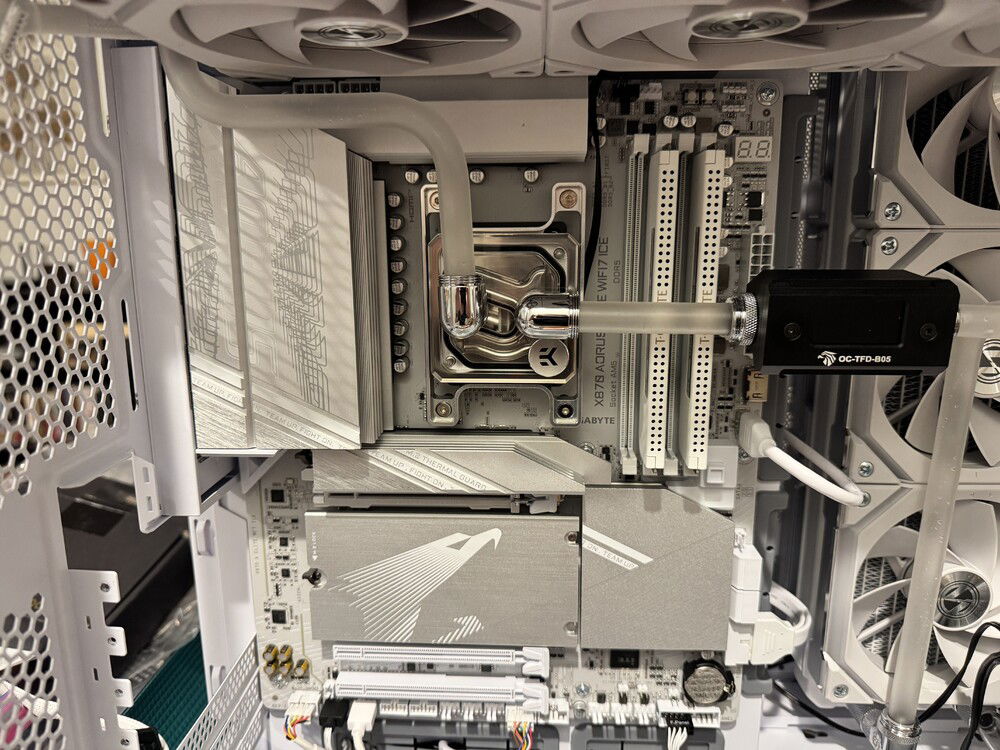

Was running low on satin tubing so decided to go with clear acrylic. Also had a 45 degree fitting that I wanted to try out.
Was running low on satin tubing so decided to go with clear acrylic. Also had a 45 degree fitting that I wanted to try out.

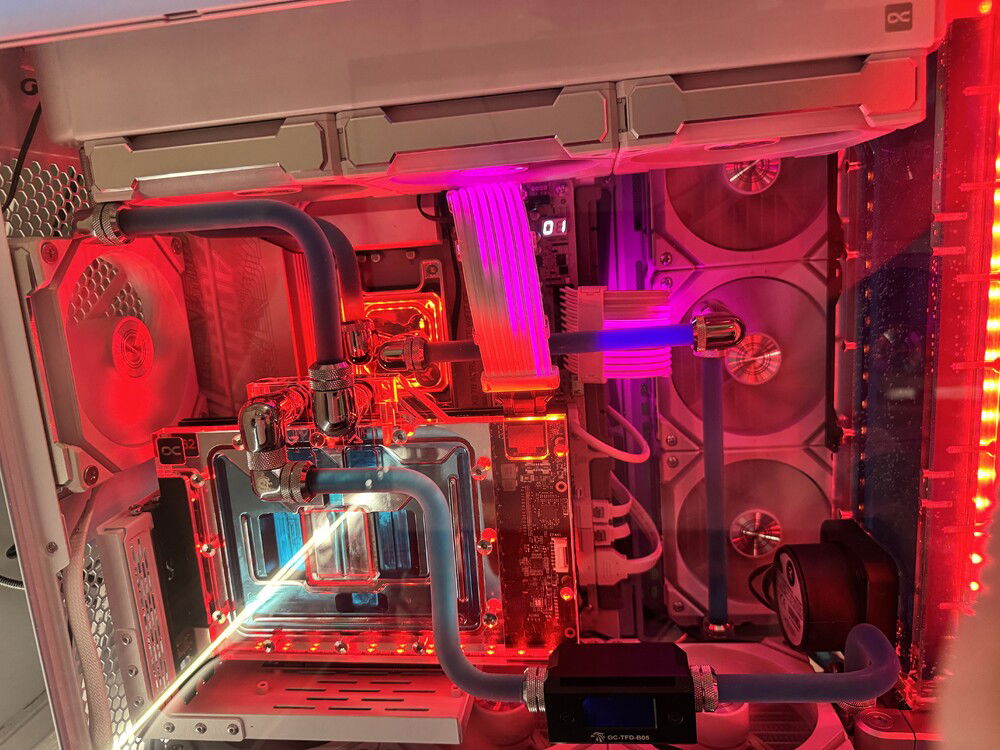

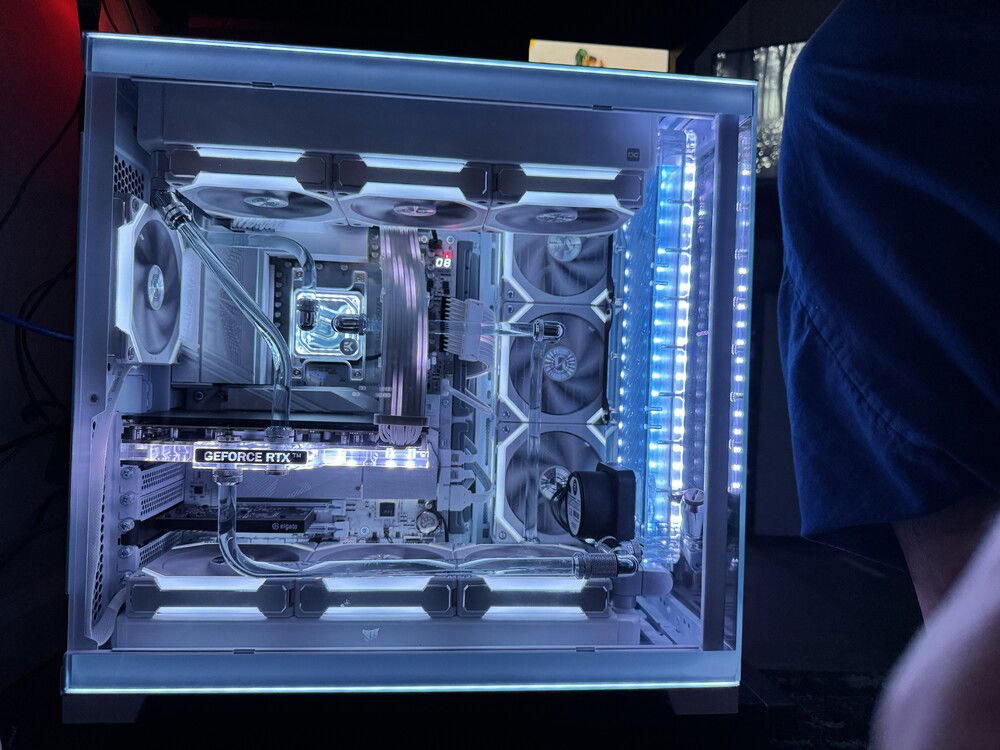

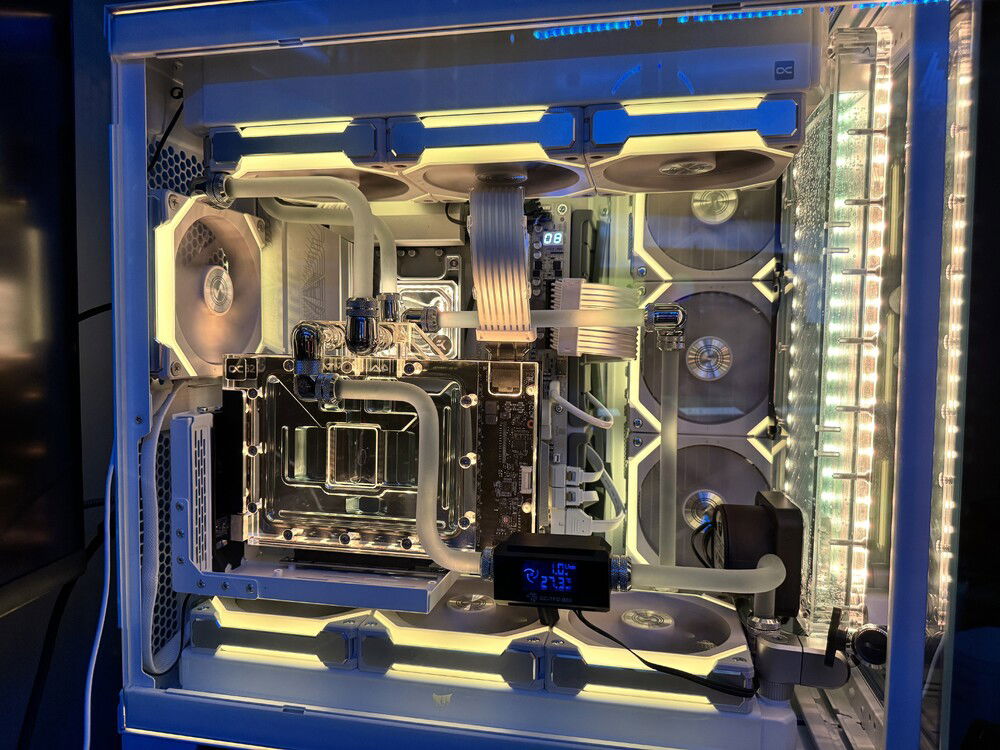

First custom loop

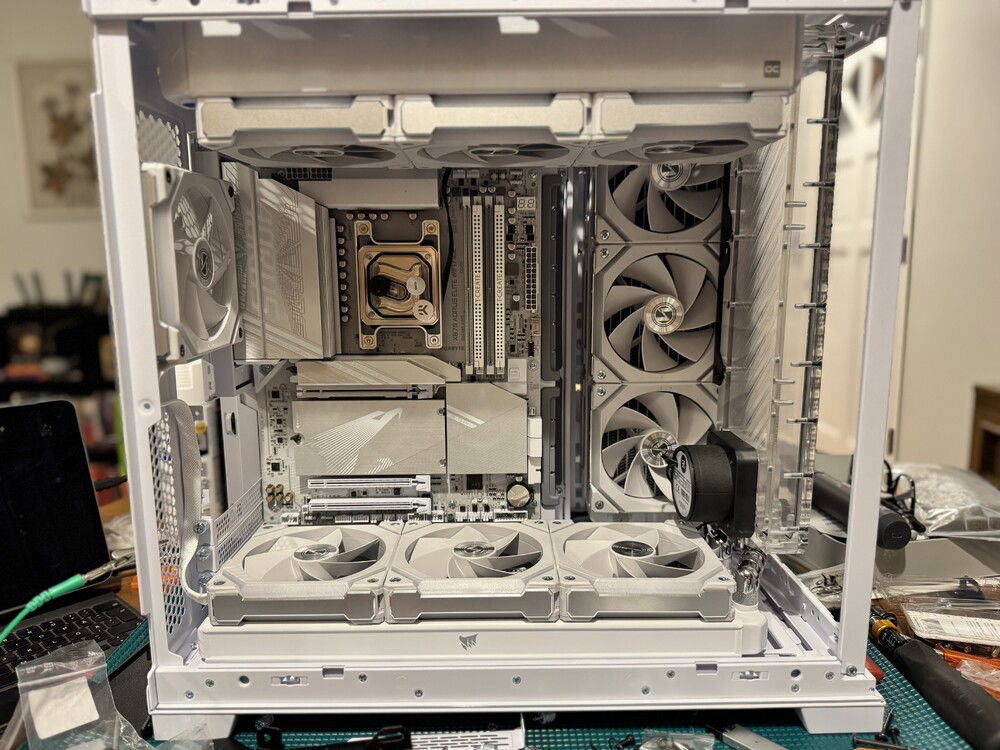

Just documenting the progression and iteration as this system gets built.
Color(s): White
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Build Updates

Loop redone in a few hours

Hardware

CPU
$ 649.99
AMD - Ryzen 9 9950X
Socket: AM5
Cores: 16
Integrated Graphics: Yes

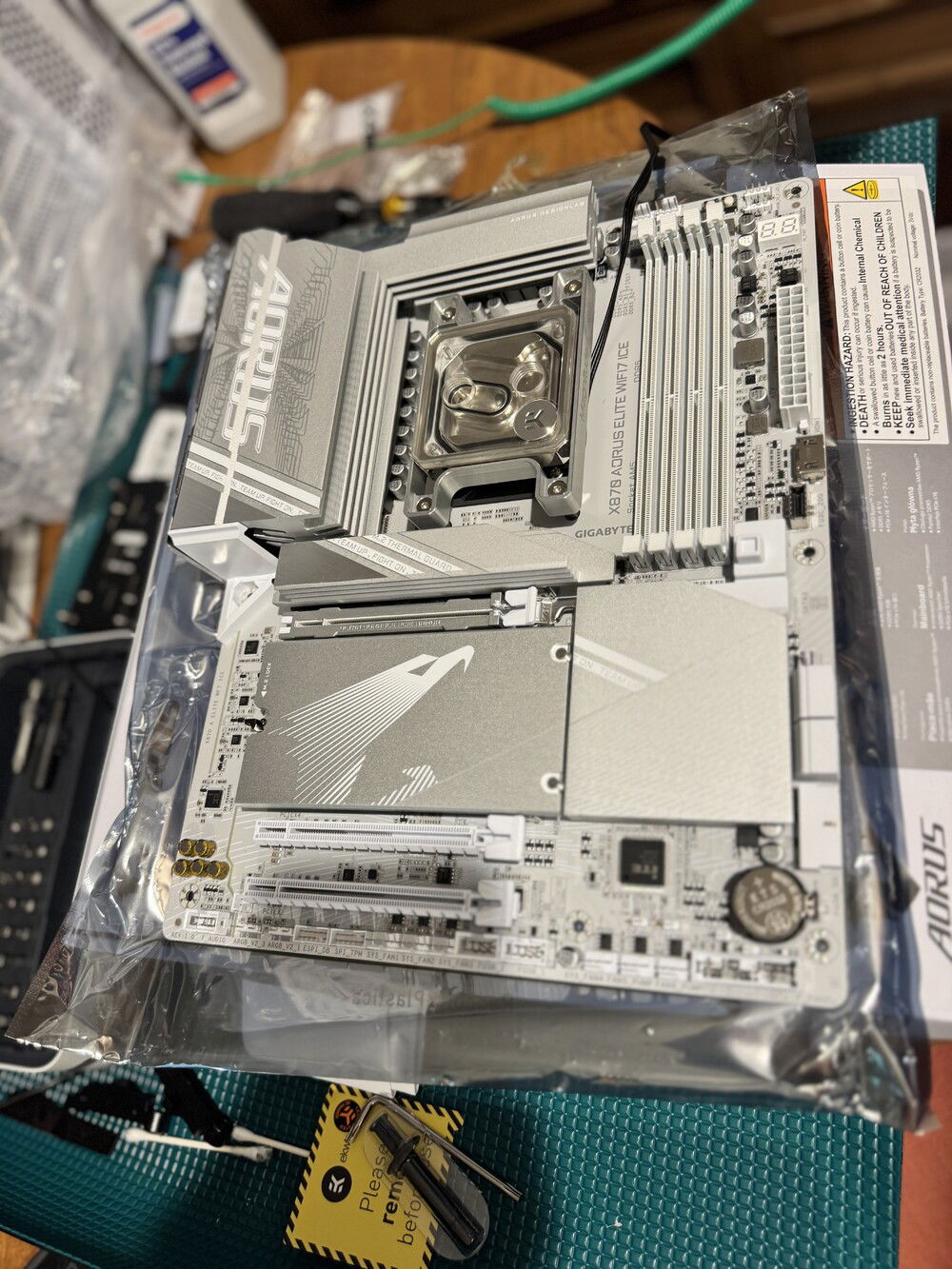

Motherboard
$ 289.99

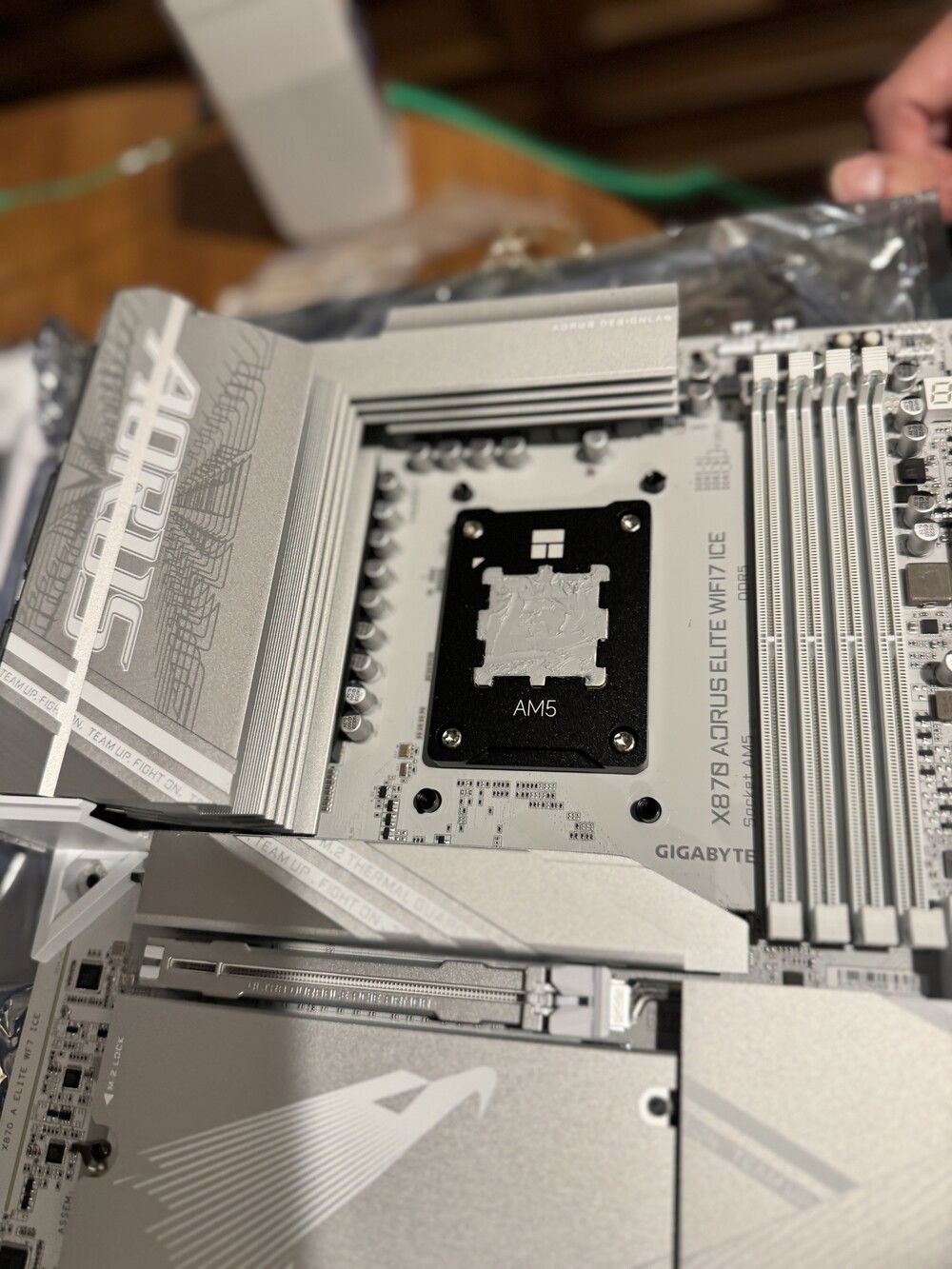

Gigabyte - X870 Aorus Elite WIFI7 ICE
Chipset: X870
CPU Socket: AM5
Size: ATX
Memory
$ 450.99
Corsair - Dominator Titanium (6600MHz) (White)
Type: DDR5
Capacity: 96 GB
Memory
$ 181.98

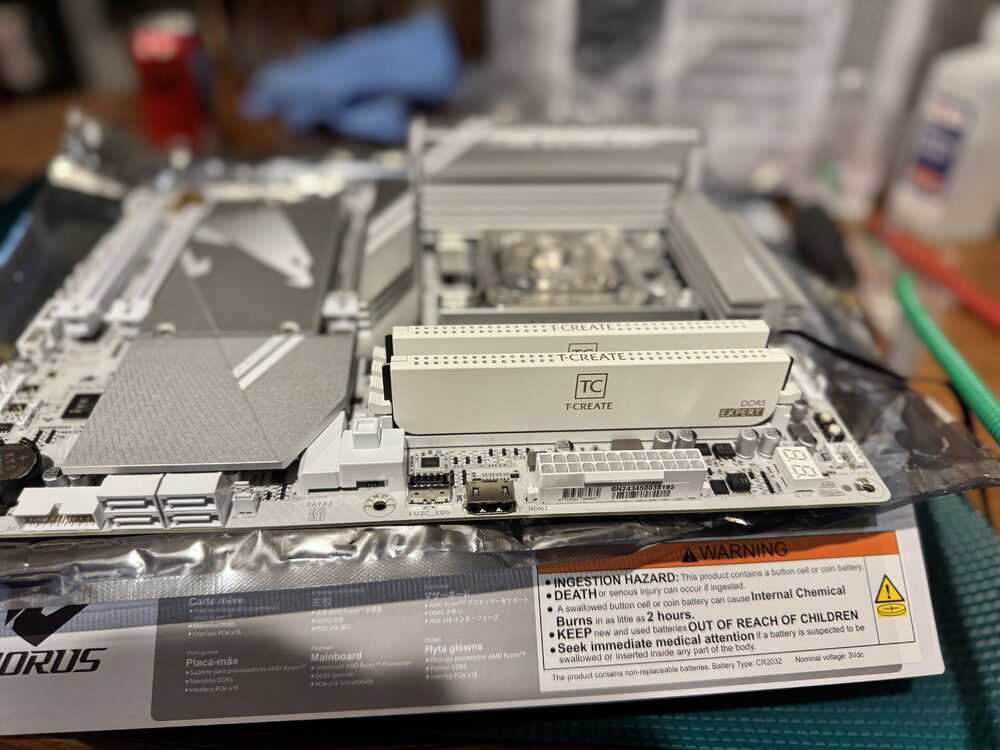

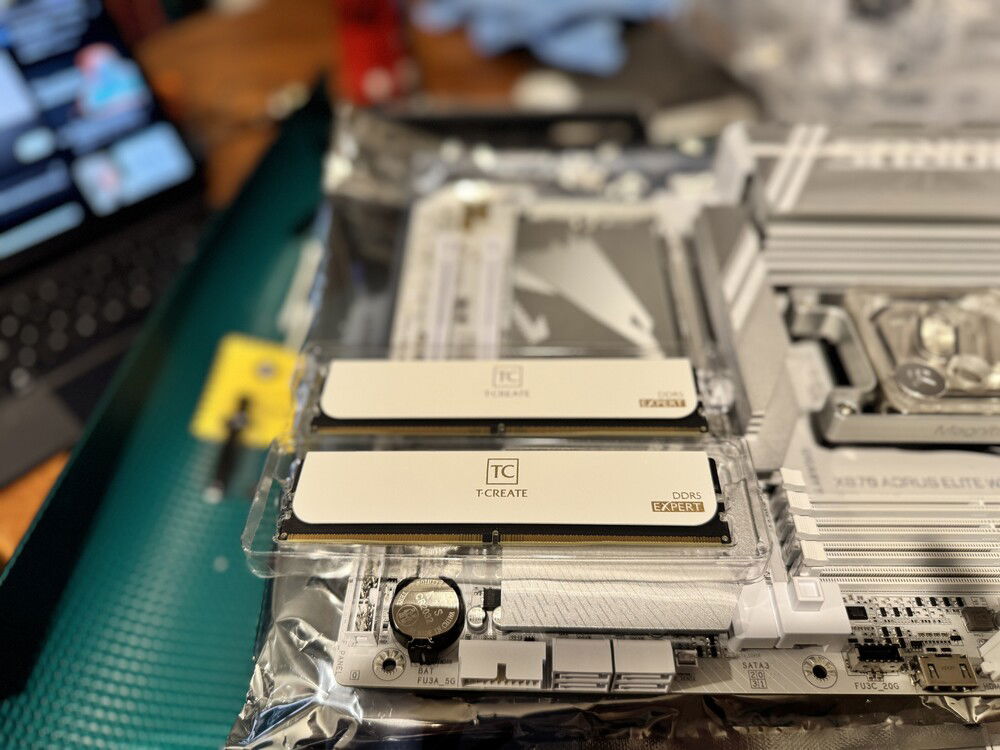

TeamGroup - T-Create Expert CL30 (6000MHz) (2x)
Type: DDR5
Capacity: 32 GB
Graphics
$ 1,999.00

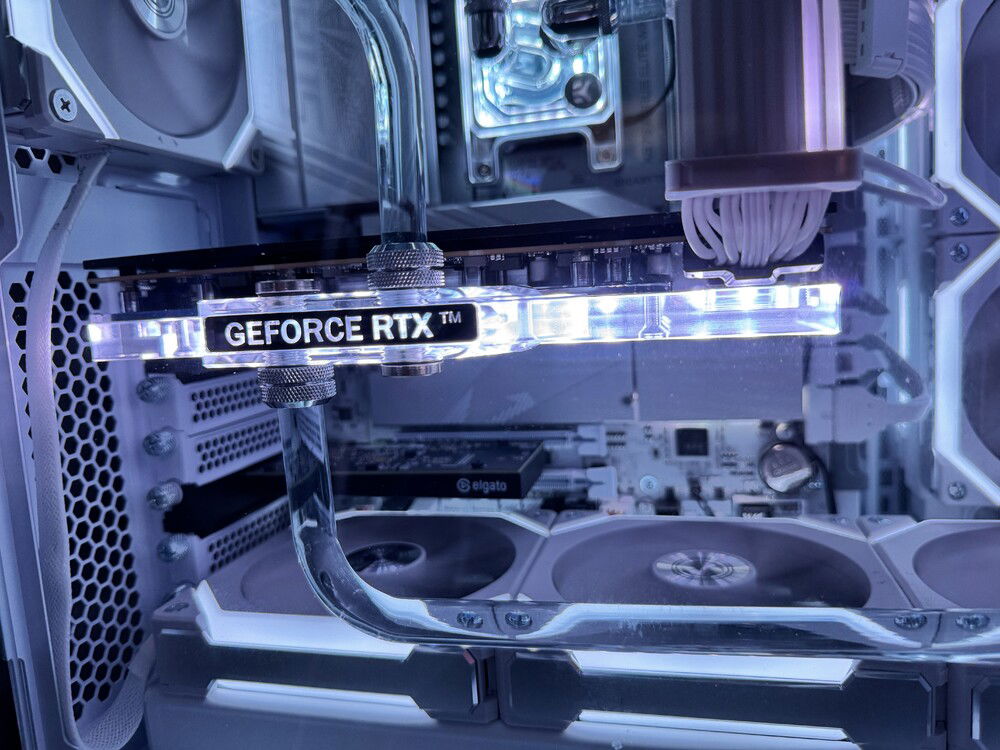

ASUS - ROG Strix GeForce OC EVA-02
Chip Manufacturer: NVIDIA
Chip: RTX 4090
Interface: PCIe x16
Storage
$ 59.16
Crucial - P3
Form Factor: M.2
Interface: PCIe x4
Capacity: 1 TB
Storage
$ 119.99

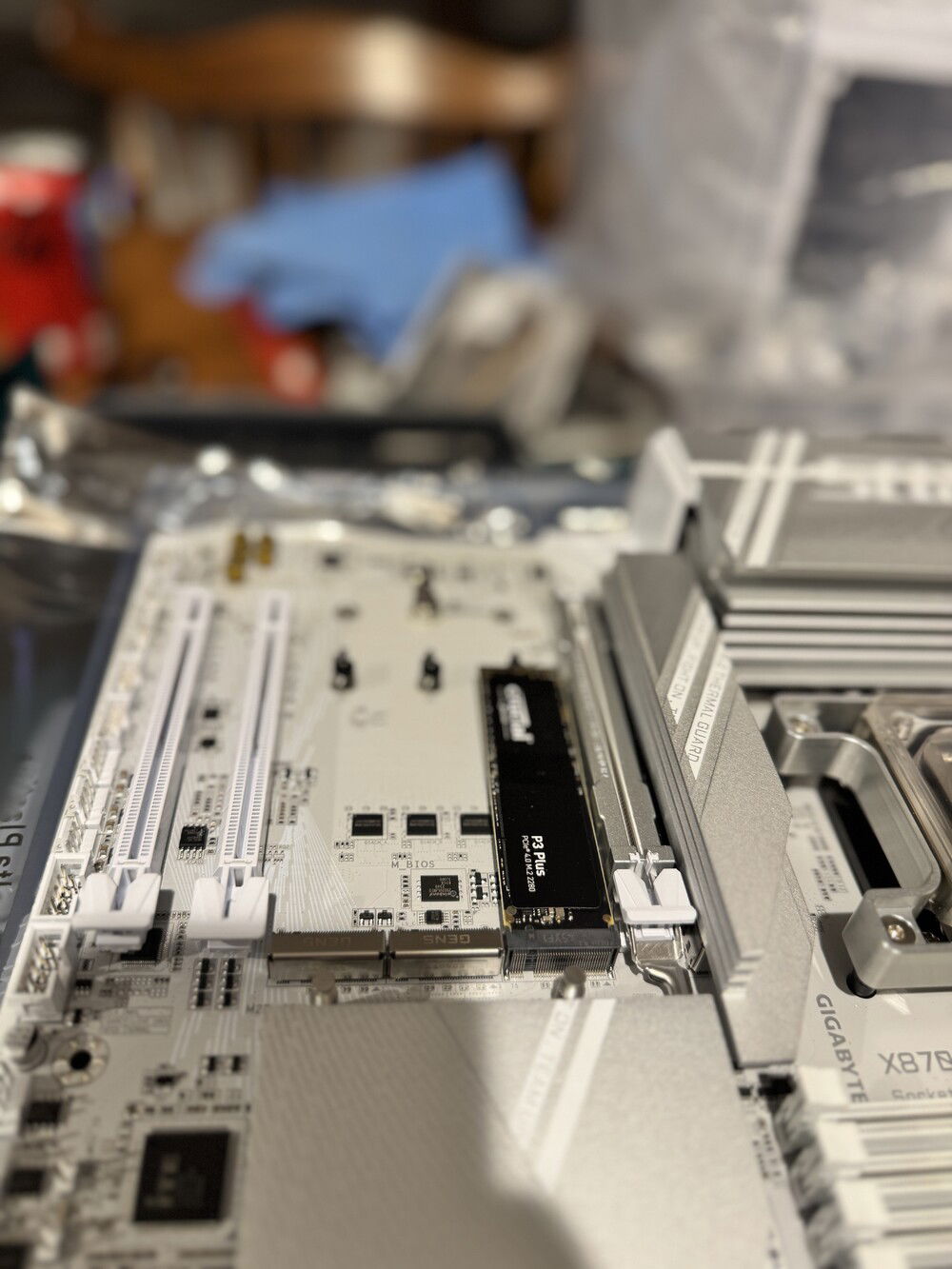

Crucial - P3 Plus
Form Factor: M.2
Interface: PCIe x4
Capacity: 2 TB
PSU
$ 179.99
Lian Li - Edge
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case

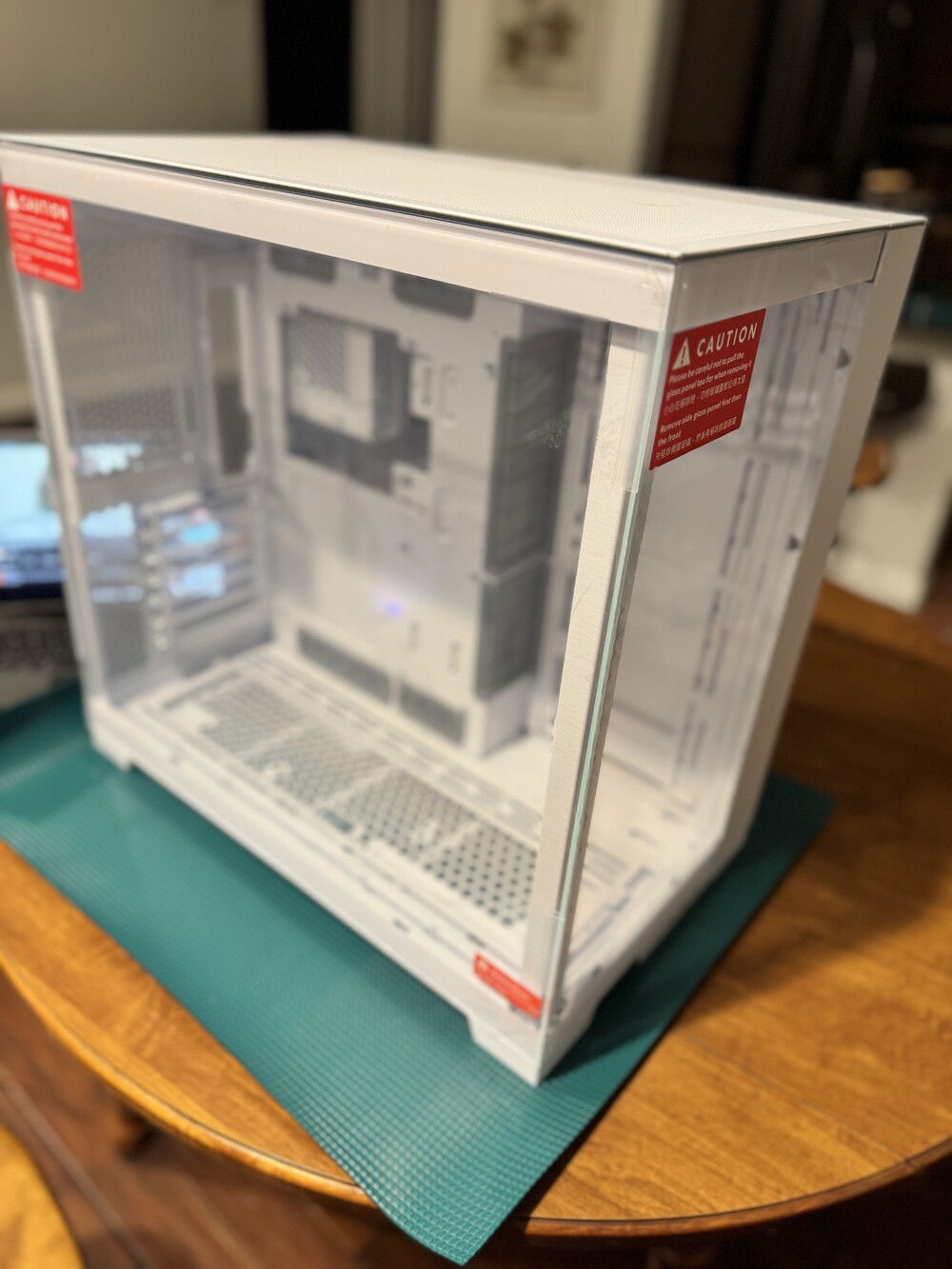

$ 169.99
Lian Li - O11D Evo RGB
Type: Desk
Side Panel: Tempered Glass
RGB: Yes
Case Fan
$ 124.99
Lian Li - Uni SL120 V2
Size: 120 mm
Case Fan
$ 49.99
PcCooler - Moonlight (3 Pack)
Size: 120 mm
Case Fan
$ 86.97
Thermalright - TL-C12R-S (3x)
Size: 120 mm
Cooling
$ 114.00
Alphacool - NexXxoS UT60 Full Copper White
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 465.00
Aquacomputer - Double Protect Ultra 1L - Clear (5x)
Type: Coolant
Cooling
$ 159.98
Corsair - Hydro X XR5 (Slim) (2x)
Type: Radiator
Size (WxHxD): 360 mm
Cooling
$ 19.85
EKWB - EK-Quantum Torque Drain Valve - Satin Titanium
Type: Fittings
Cooling
$ 940.64
EKWB - EK-Quantum Torque HDC 12 - Satin Titanium (16x)
Type: Fittings
Cooling
$ 328.00

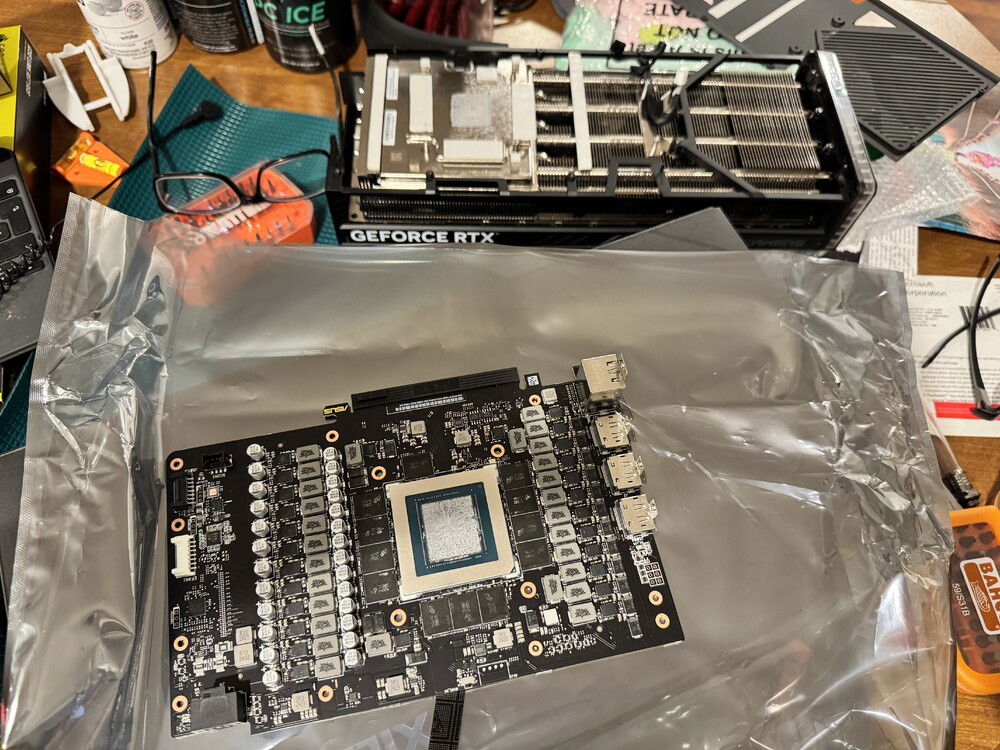

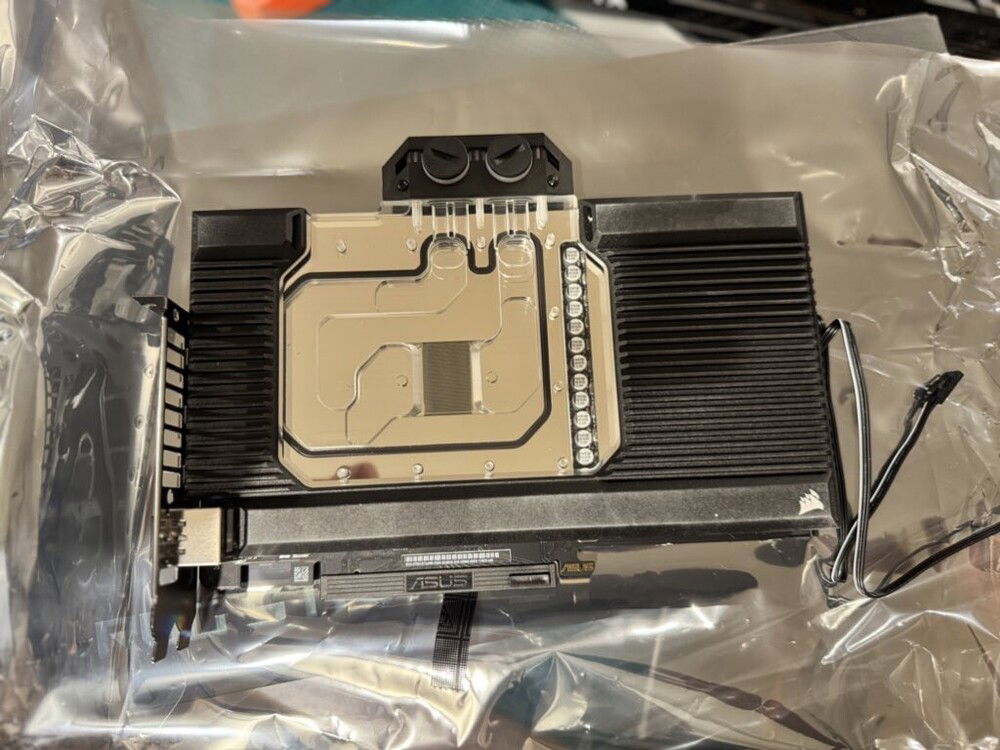

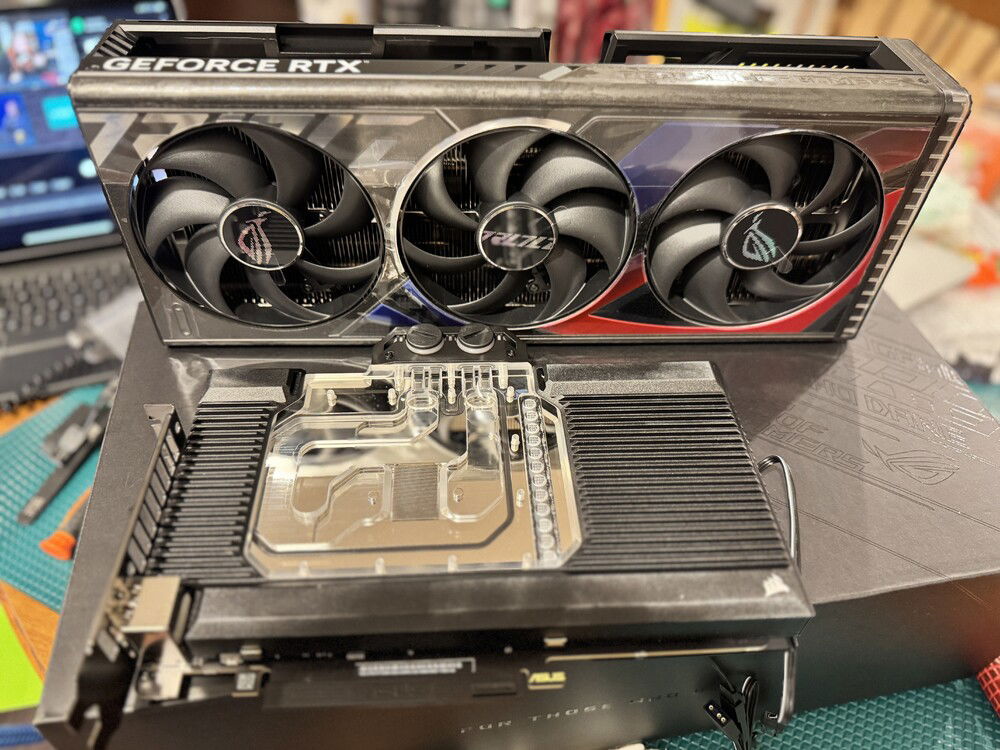

Optimus - Signature 4090 Strix/Tuf - REV 1
Type: GPU Waterblock
Size (WxHxD): 200 mm
Cooling
$ 355.00
Optimus - Signature v3
Type: Block
Cooling
$ 273.00

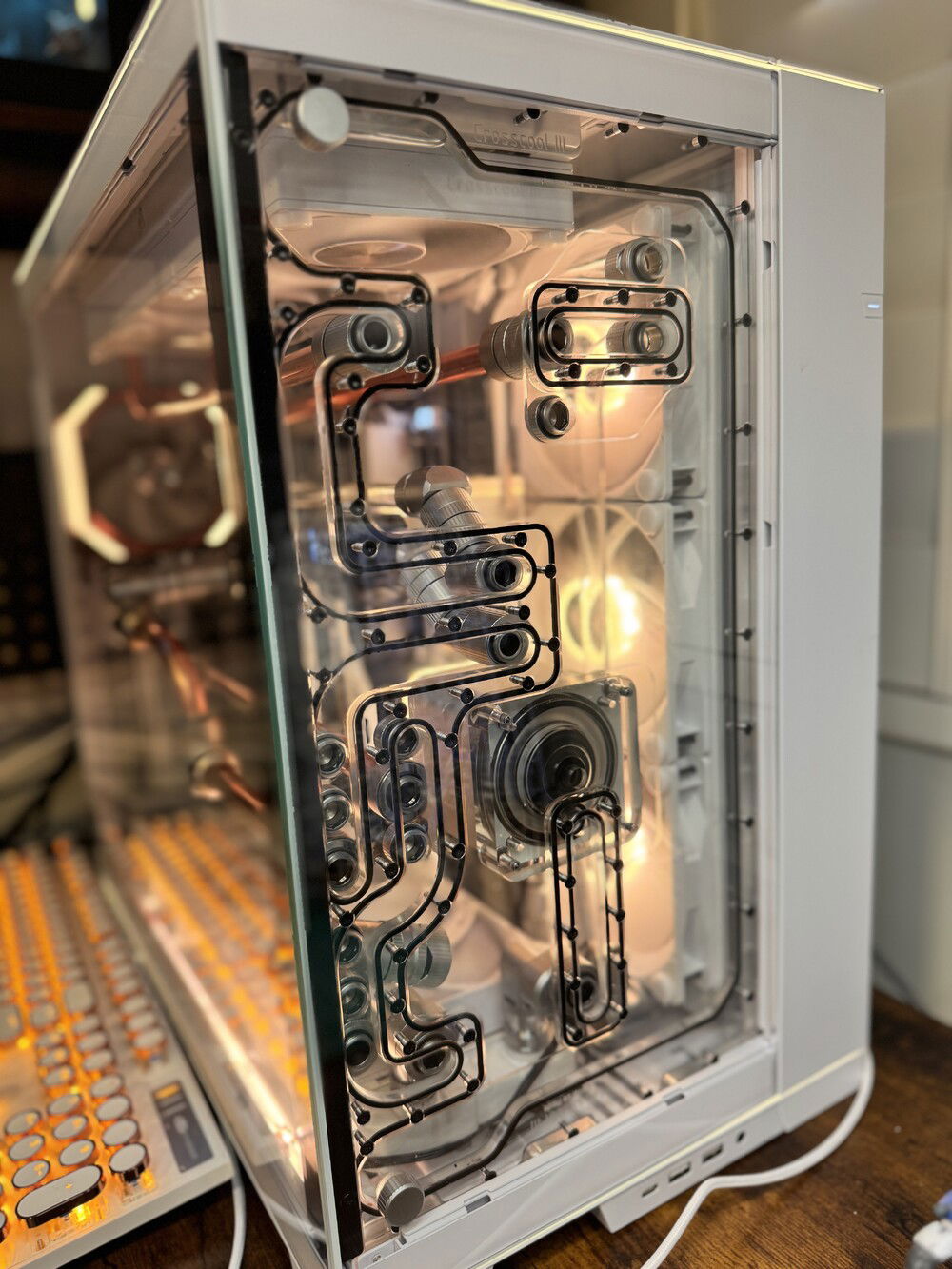

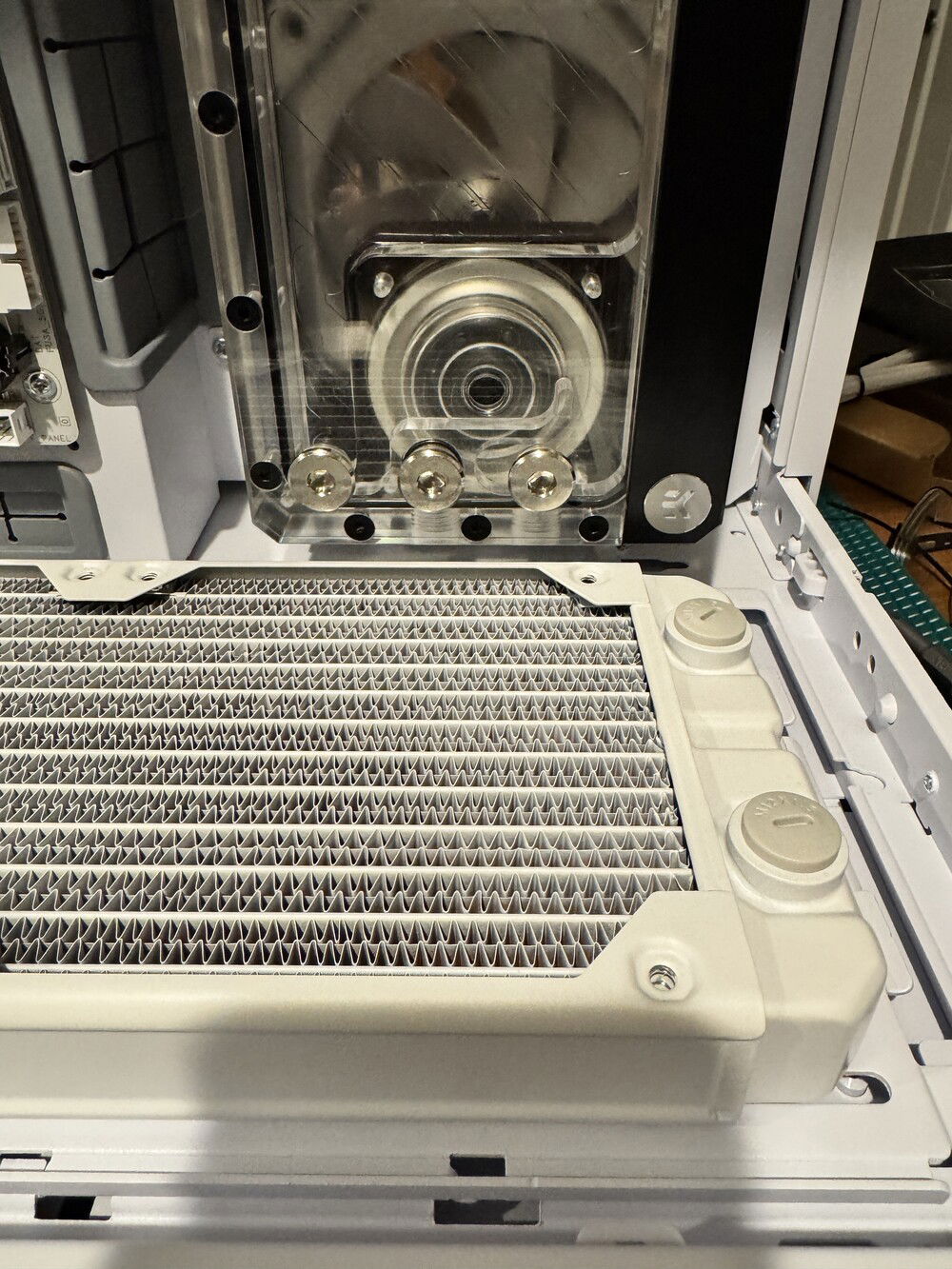

Stealkey - Crosscool III Distro Plate for O11D Evo RGB
Type: Pump/Reservoir Combo
Monitor
$ 392.00
Acer - Acer XV273K
Size: 27 Inch
Panel: IPS
Refresh Rate: 144 Hz
Monitor
$ 1,044.30
ASUS - ROG Swift (PG32UCDM)
Size: 32 Inch
Panel: OLED
Refresh Rate: 240 Hz
Monitor
$ 399.99
Dell - Curved Gaming (S3422DWG)
Size: 34 Inch
Panel: VA
Refresh Rate: 144 Hz
Keyboard
$ 75.00
Microsoft - Natural Ergonomic Keyboard 4000
Interface: Wired
Type: Full Size
Mouse
$ 135.25
Logitech - G502 X Plus Lightspeed Gaming
Interface: Wired/Wireless
Estimated total value of this build:
$ 6,962.30
