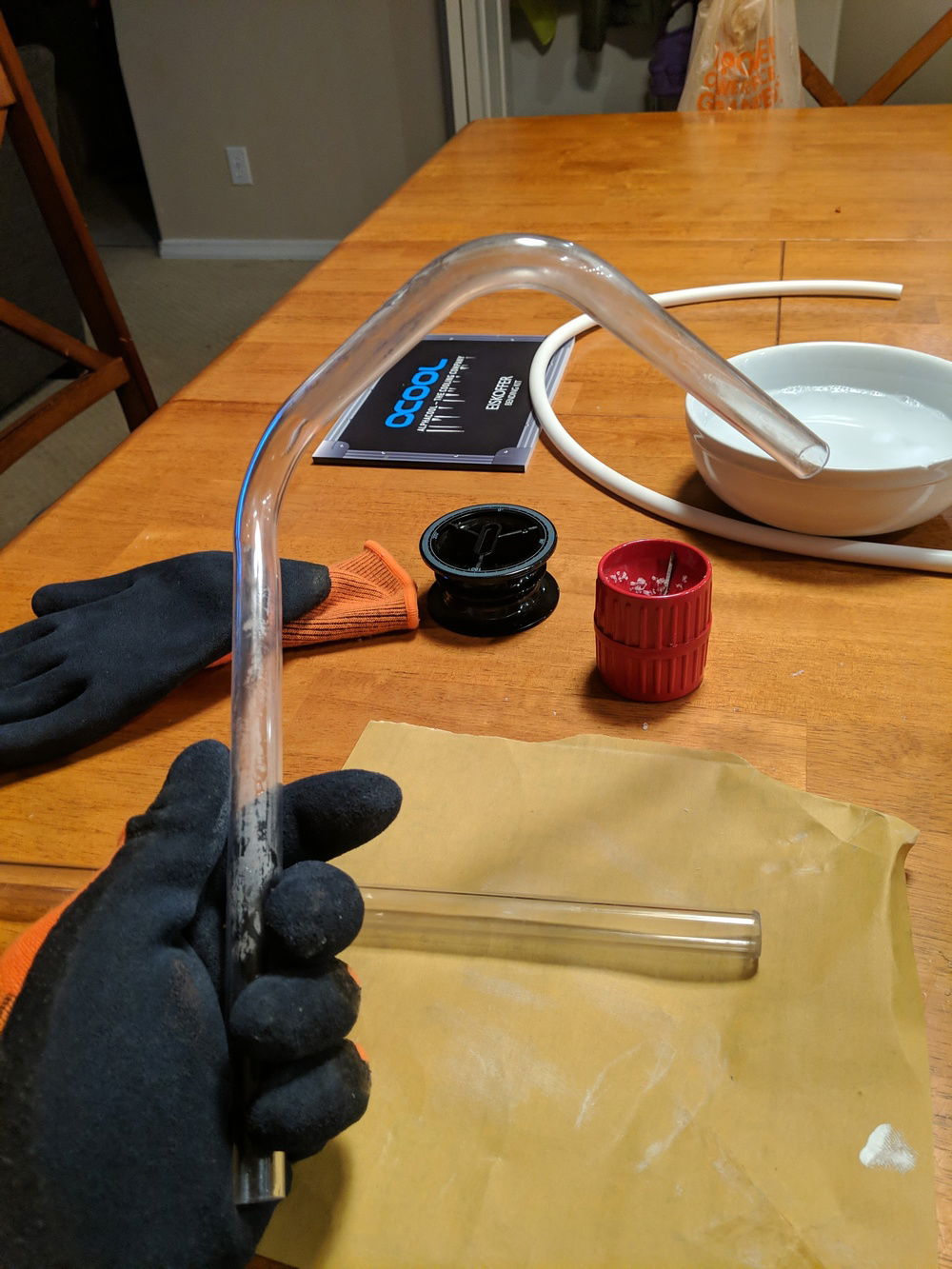

First bend. . .I had to get rid of that chamfer tool. I have a drill bit one now that works WAY better.

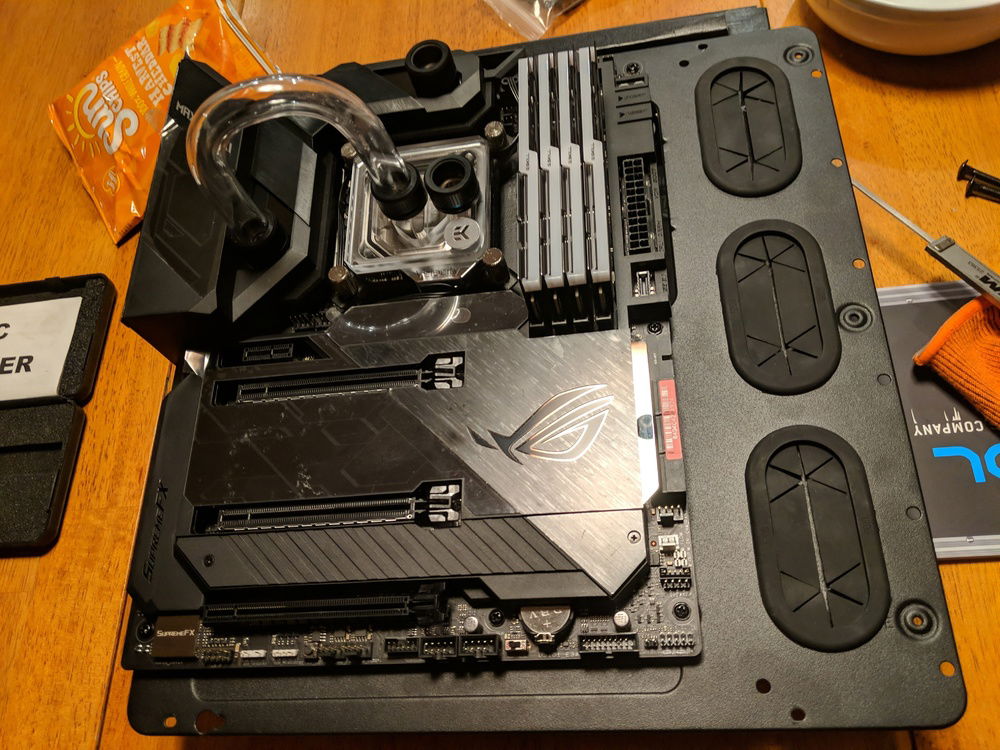

First hard tube test fit.

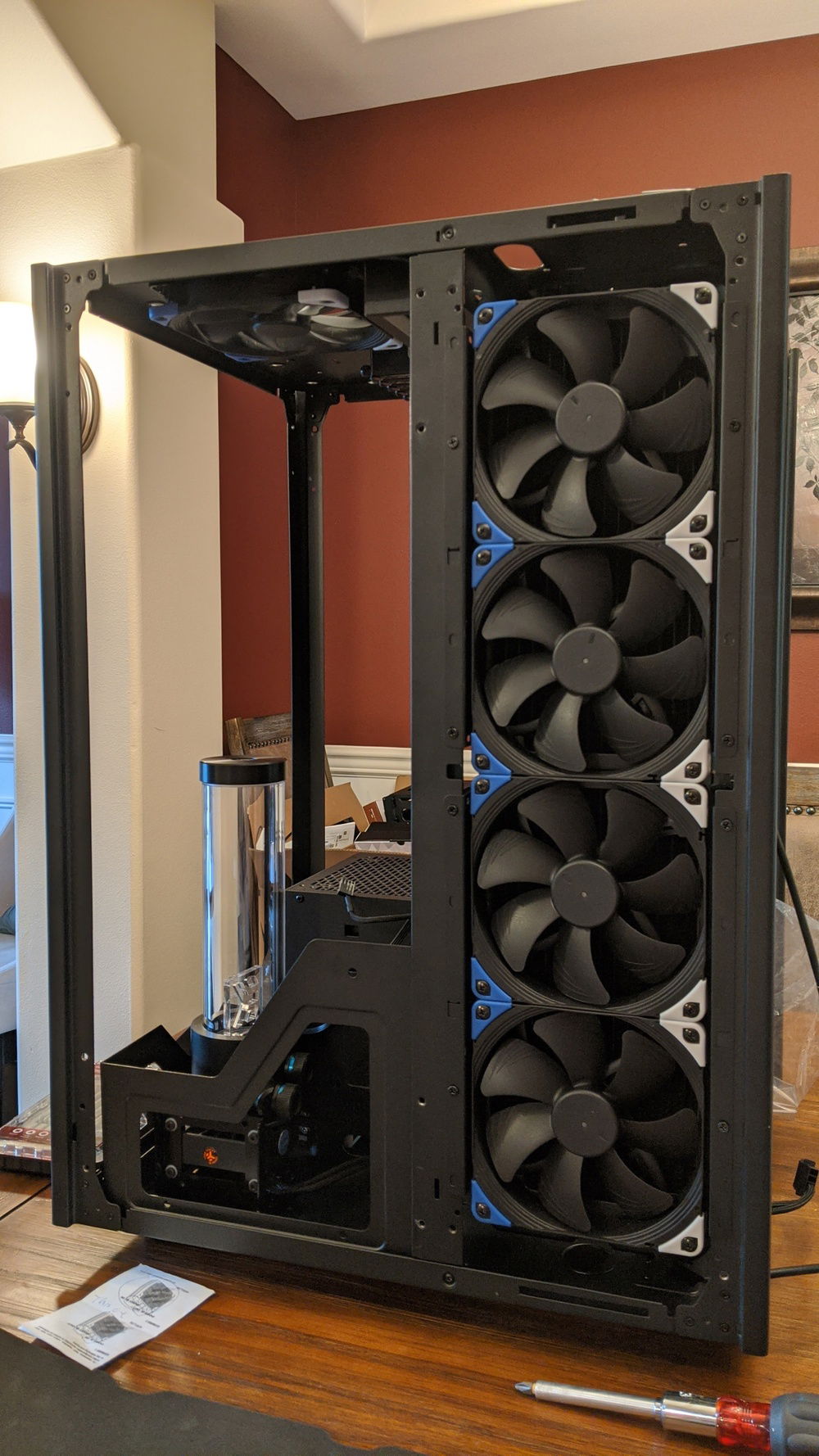

4x140 noctua PWM fan test fit on rad side.

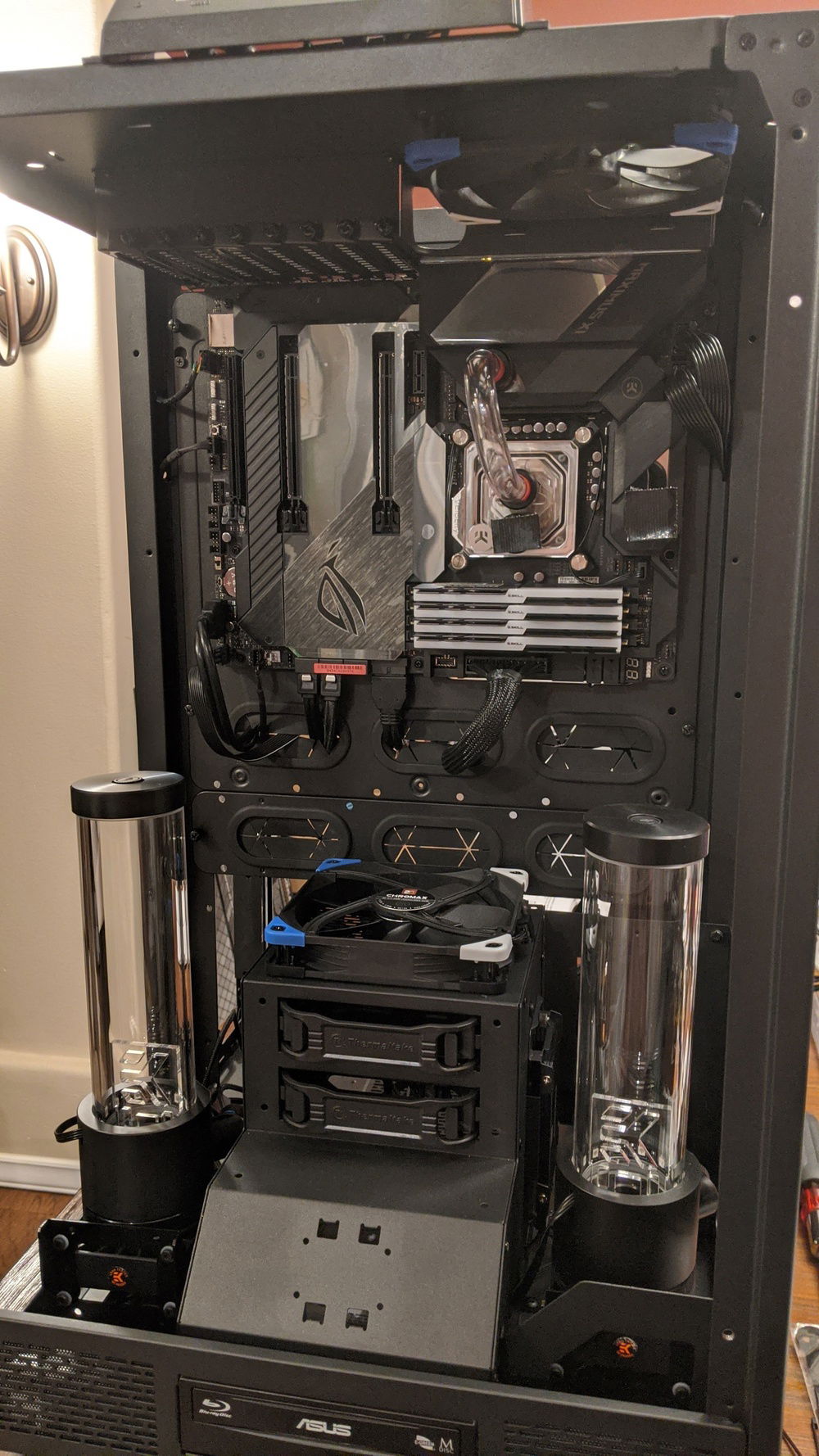

Test fitting, and eventual goal.

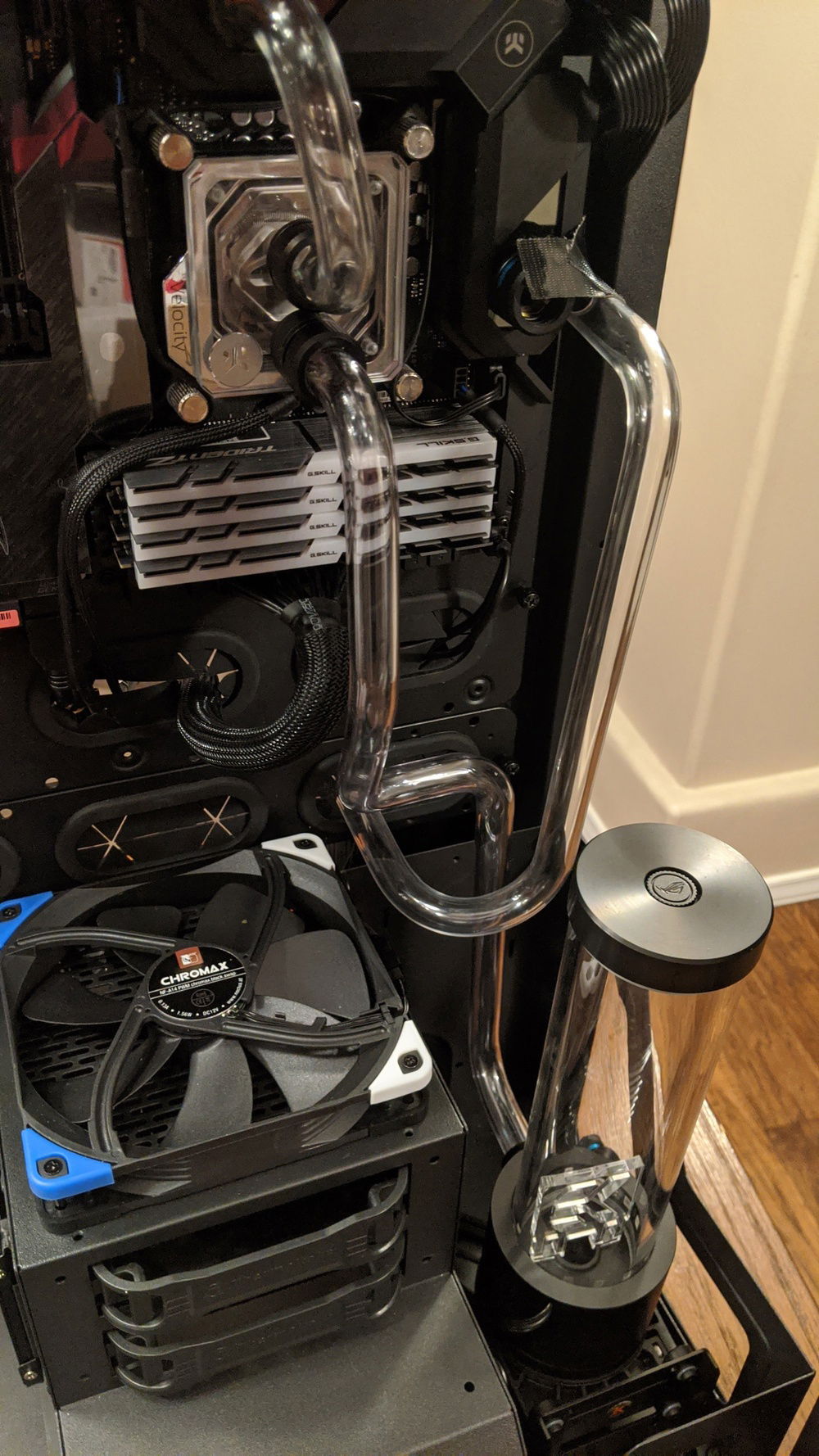

Tubes in the CPU loop.

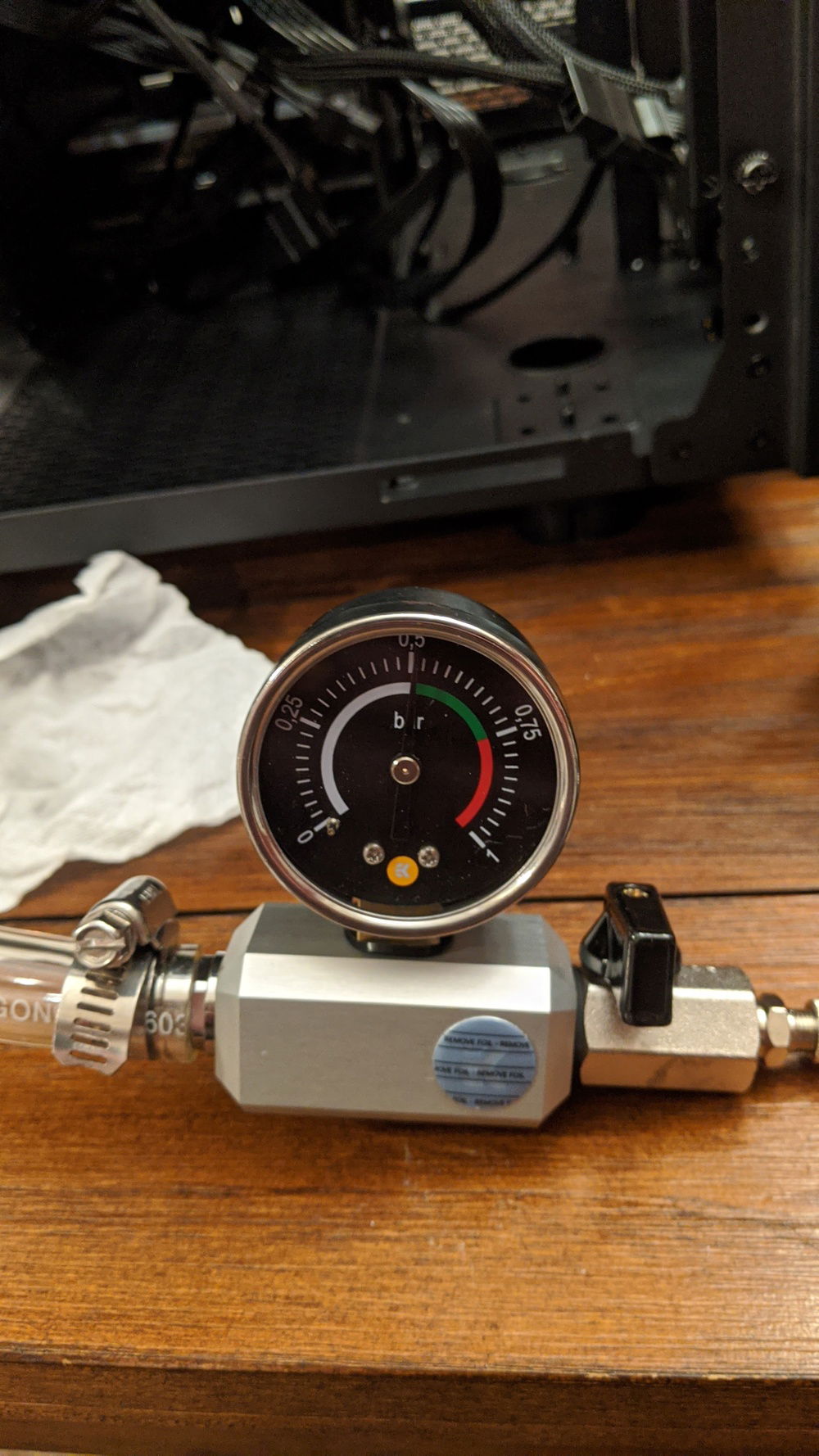

Leak check time!

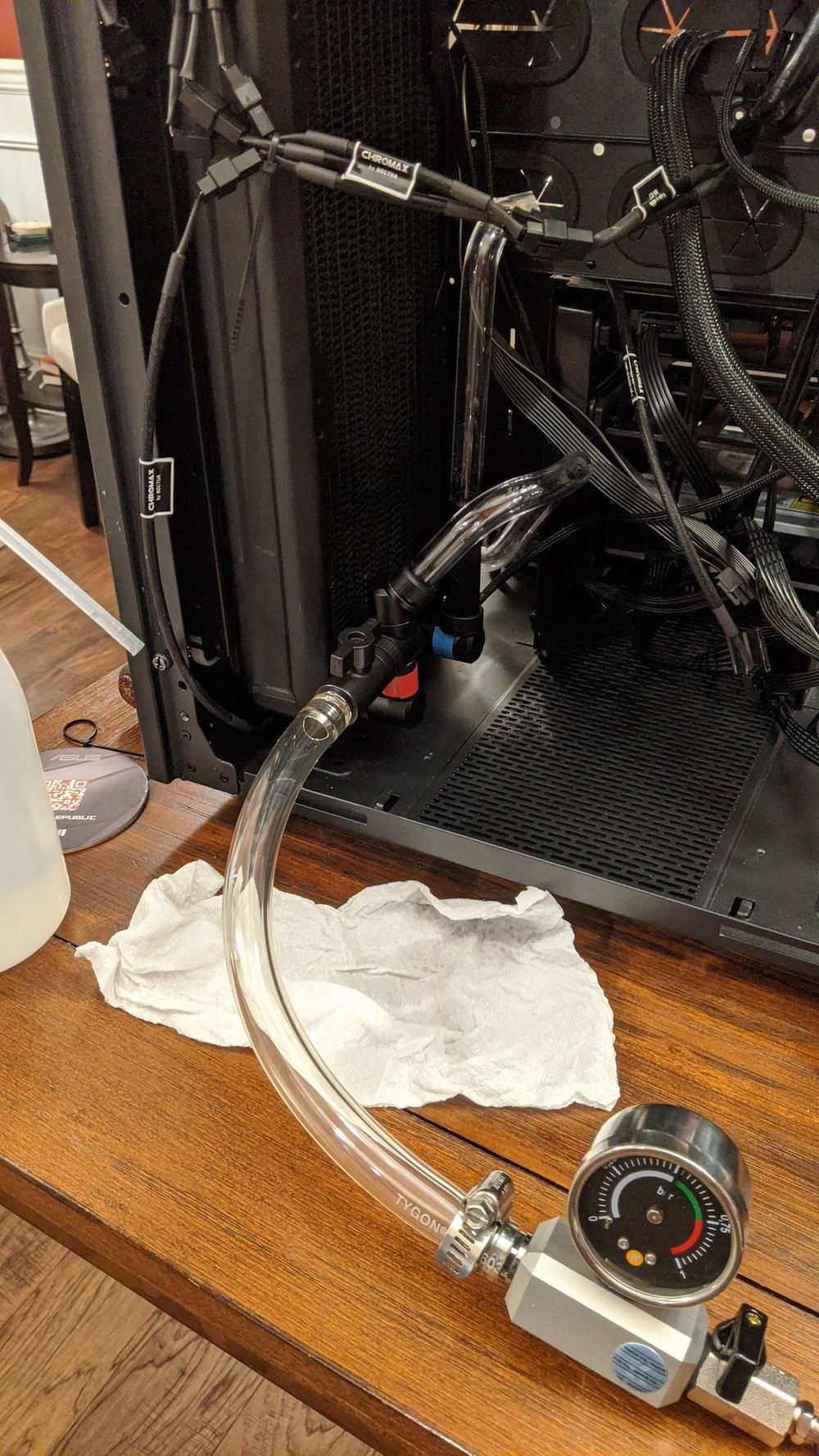

Finally added drain ports.

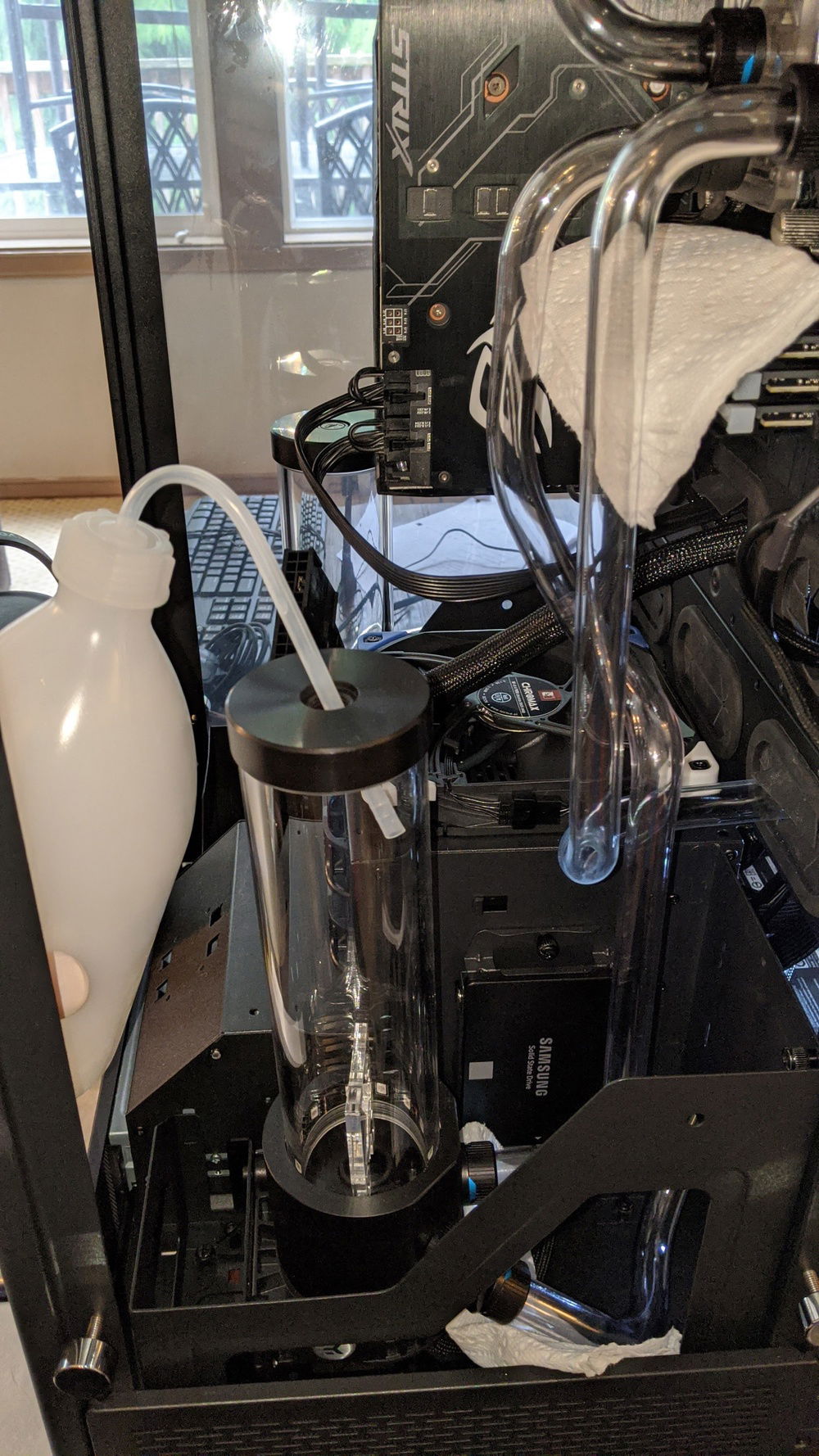

Adding the translucent white coolant.

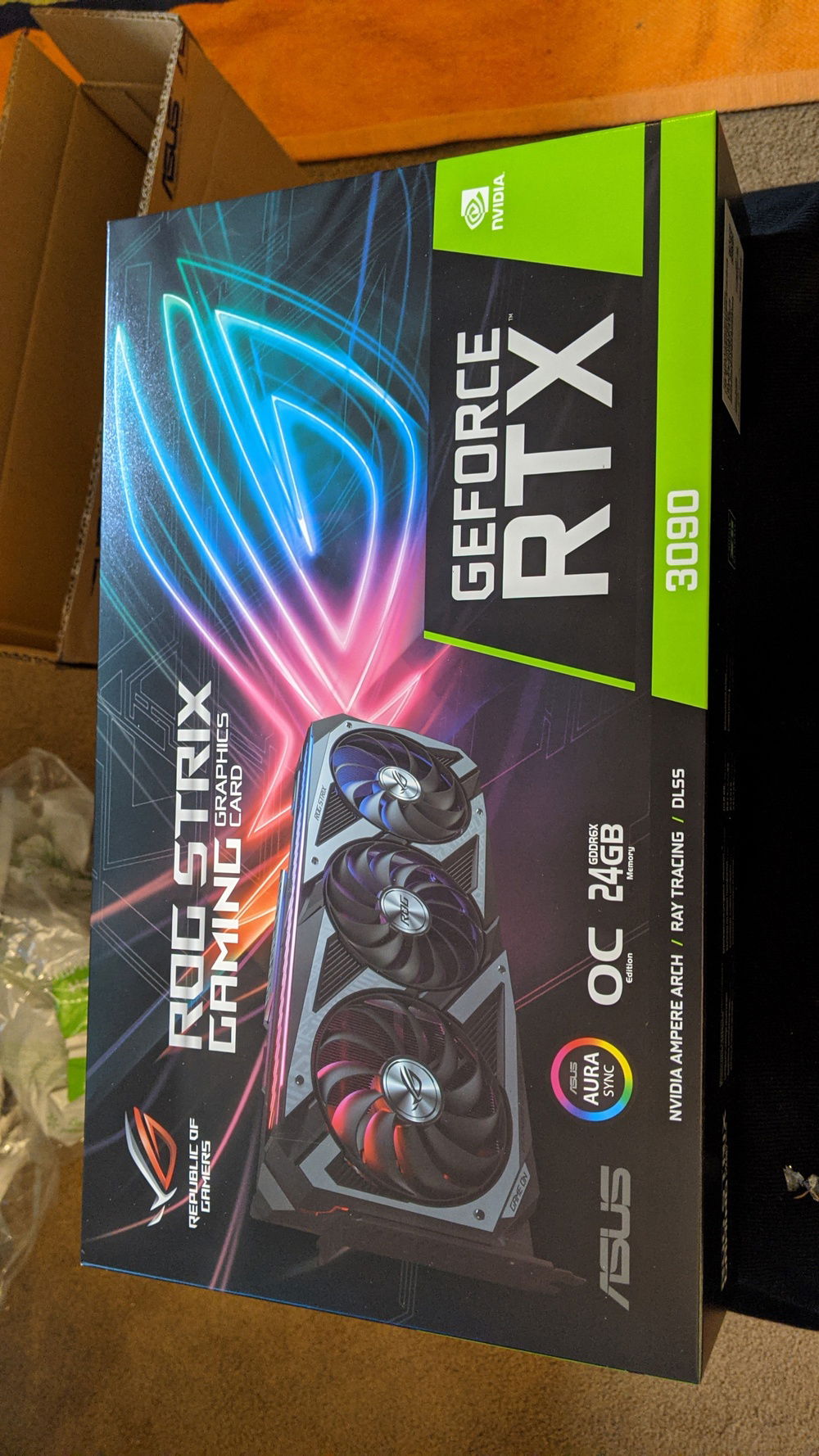

Hooray for a year later!

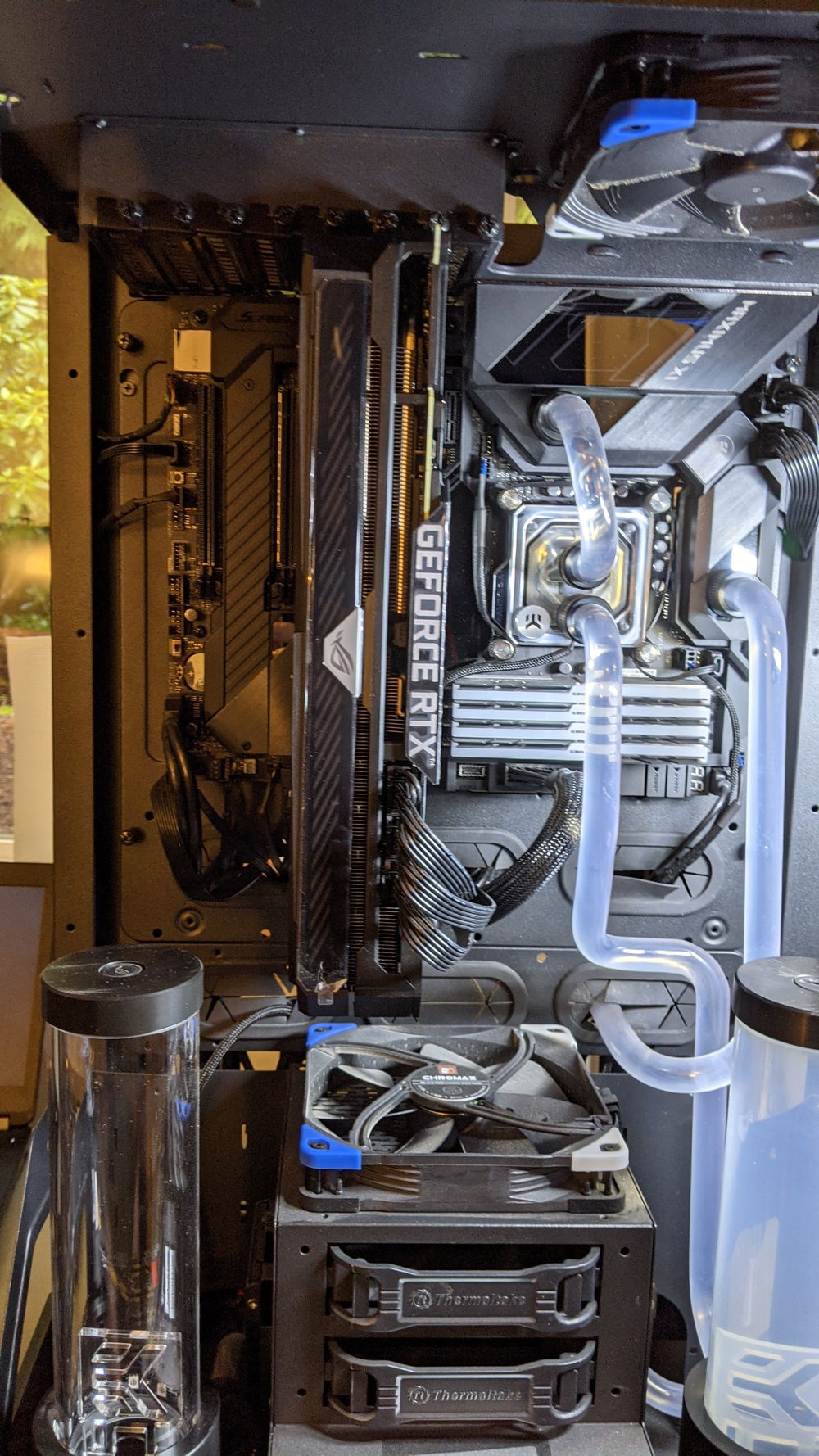

Burn in. (aka make sure it actually works!)

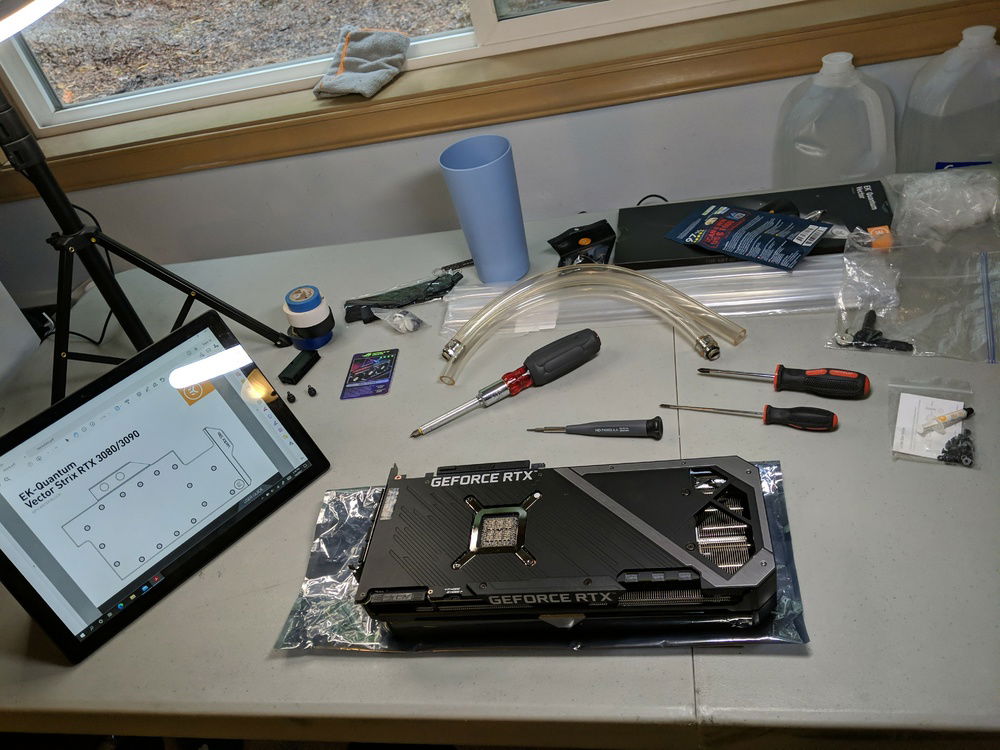

Surgery time!

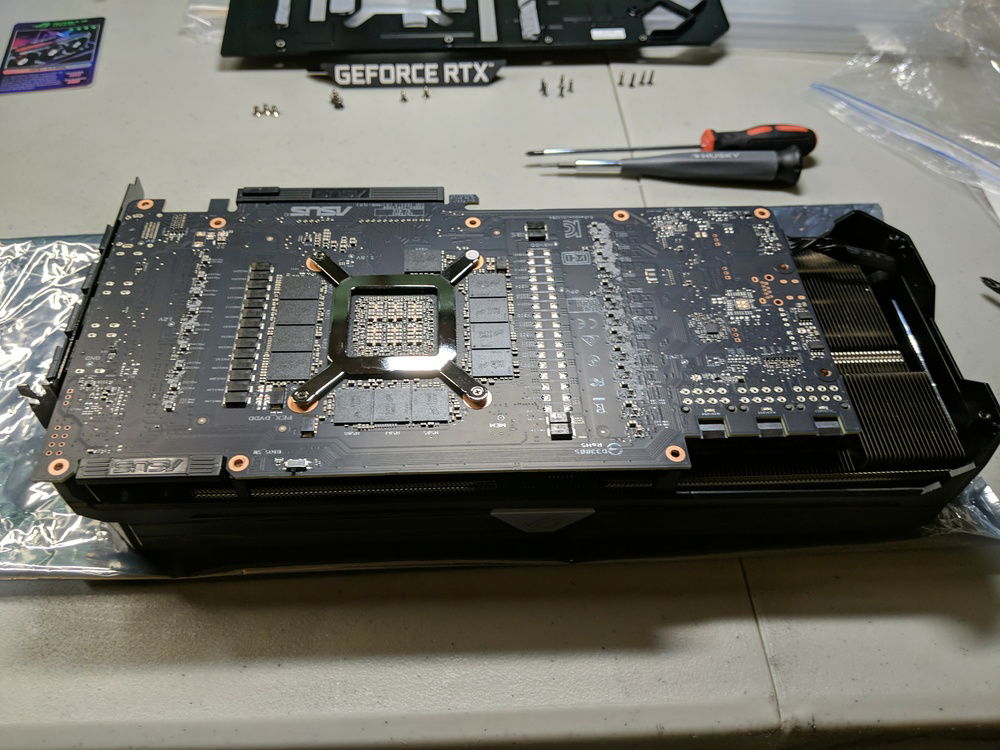

Bakeplate off.

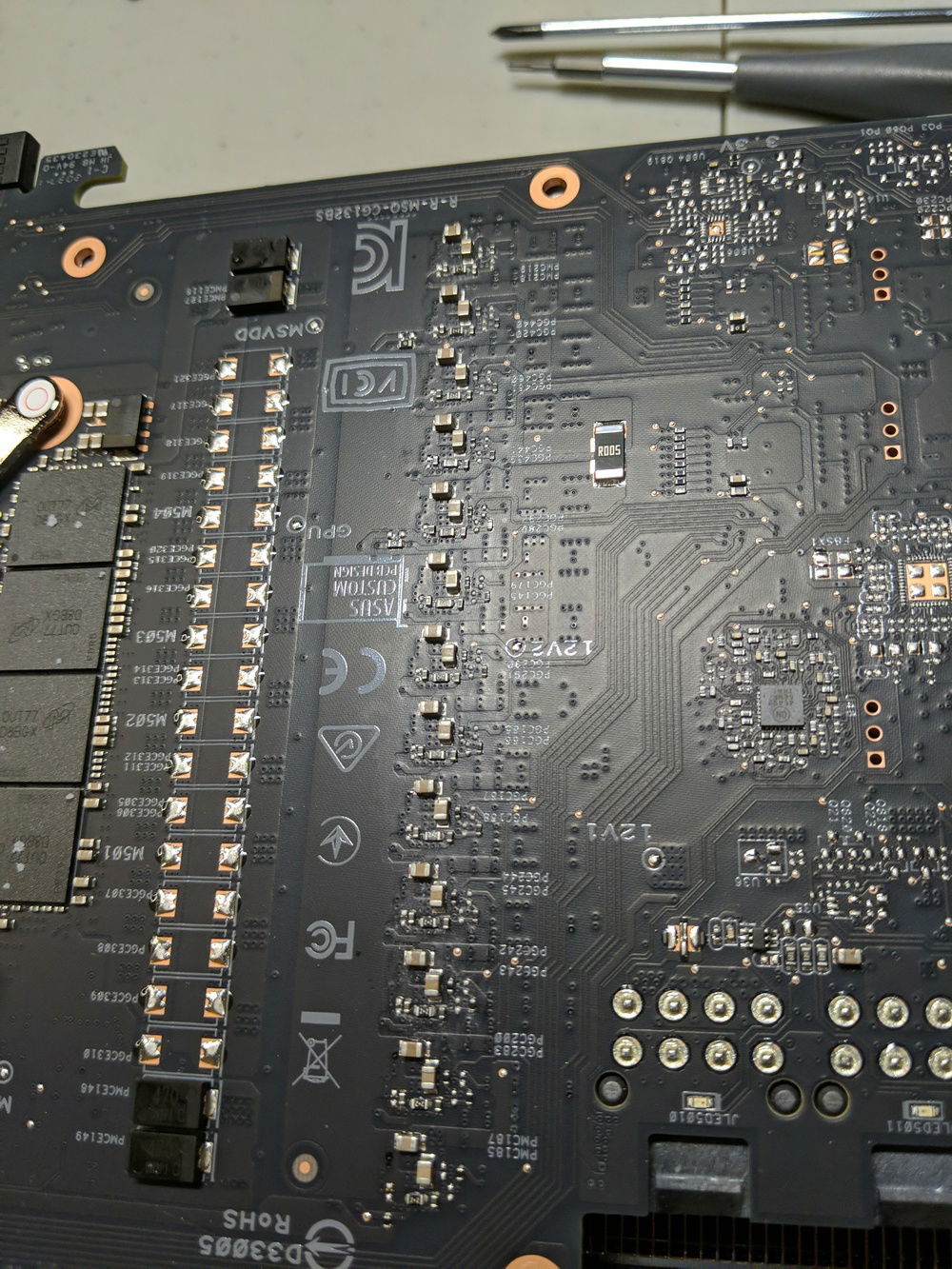

After cleanup.

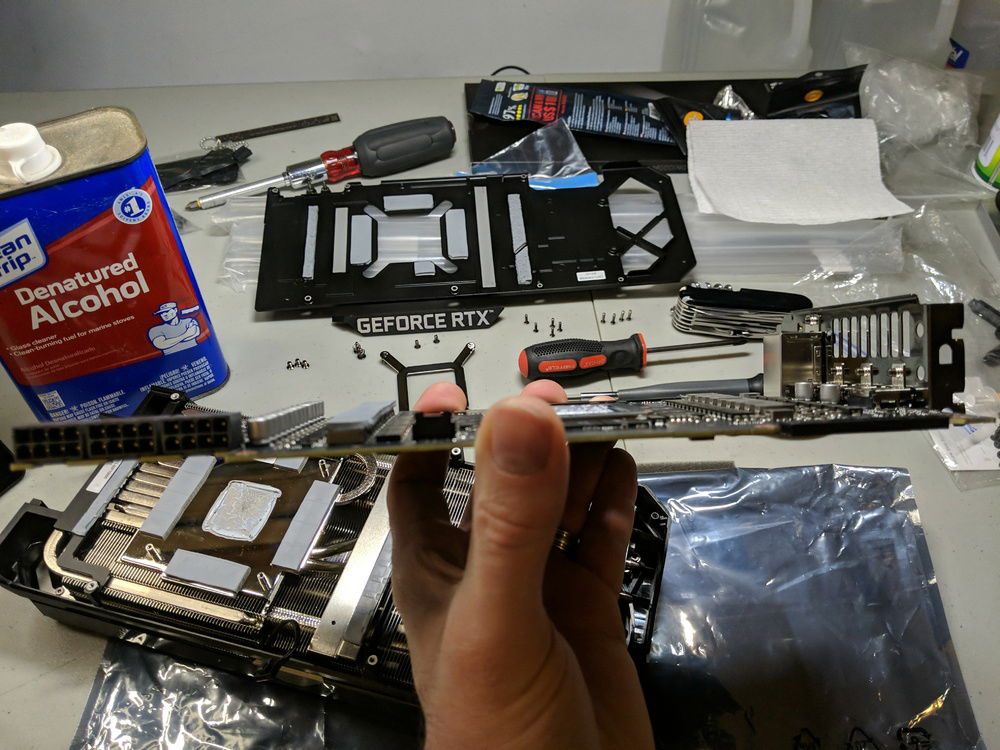

So skinny without the cooler!

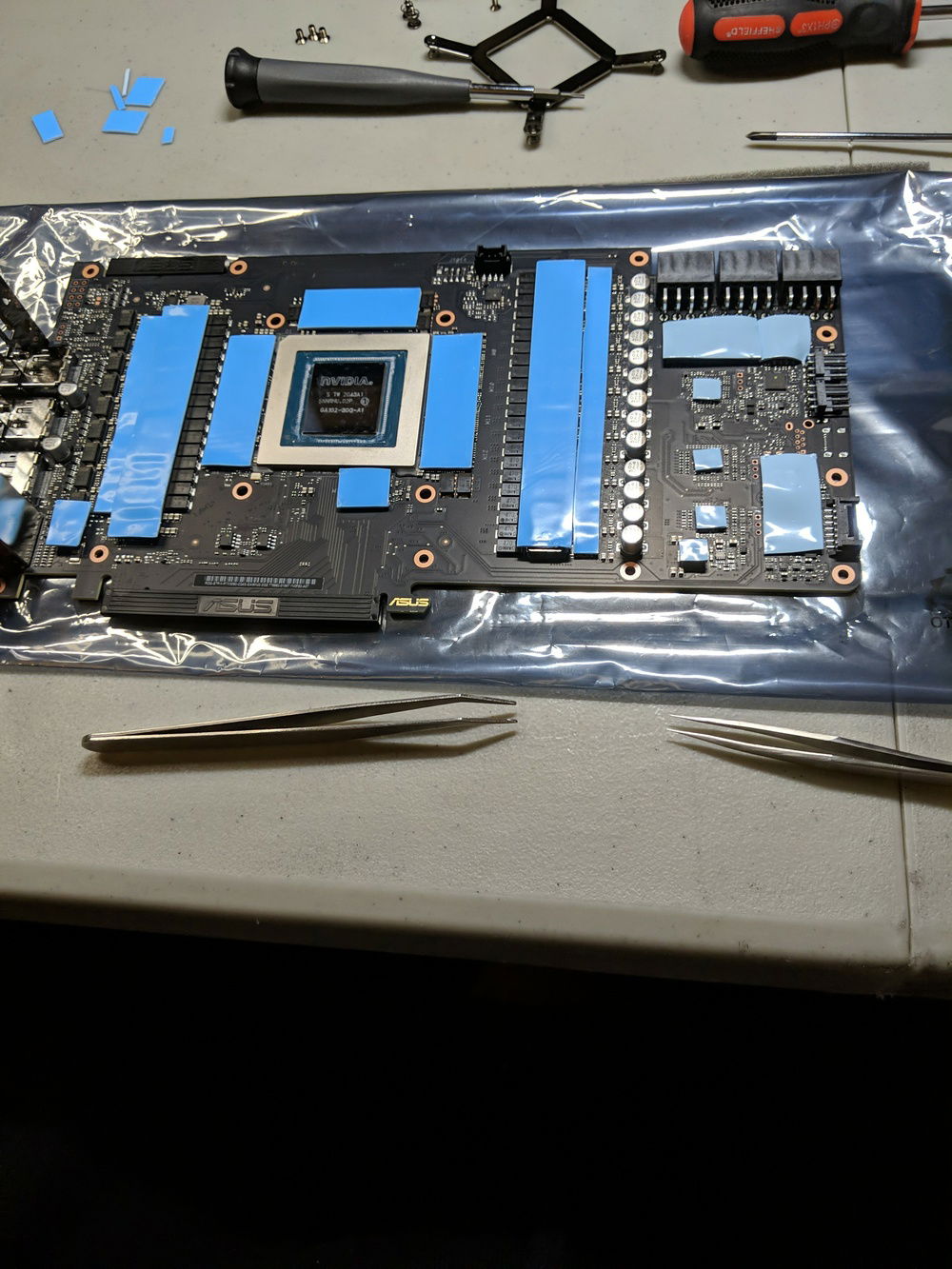

Thermal pads.

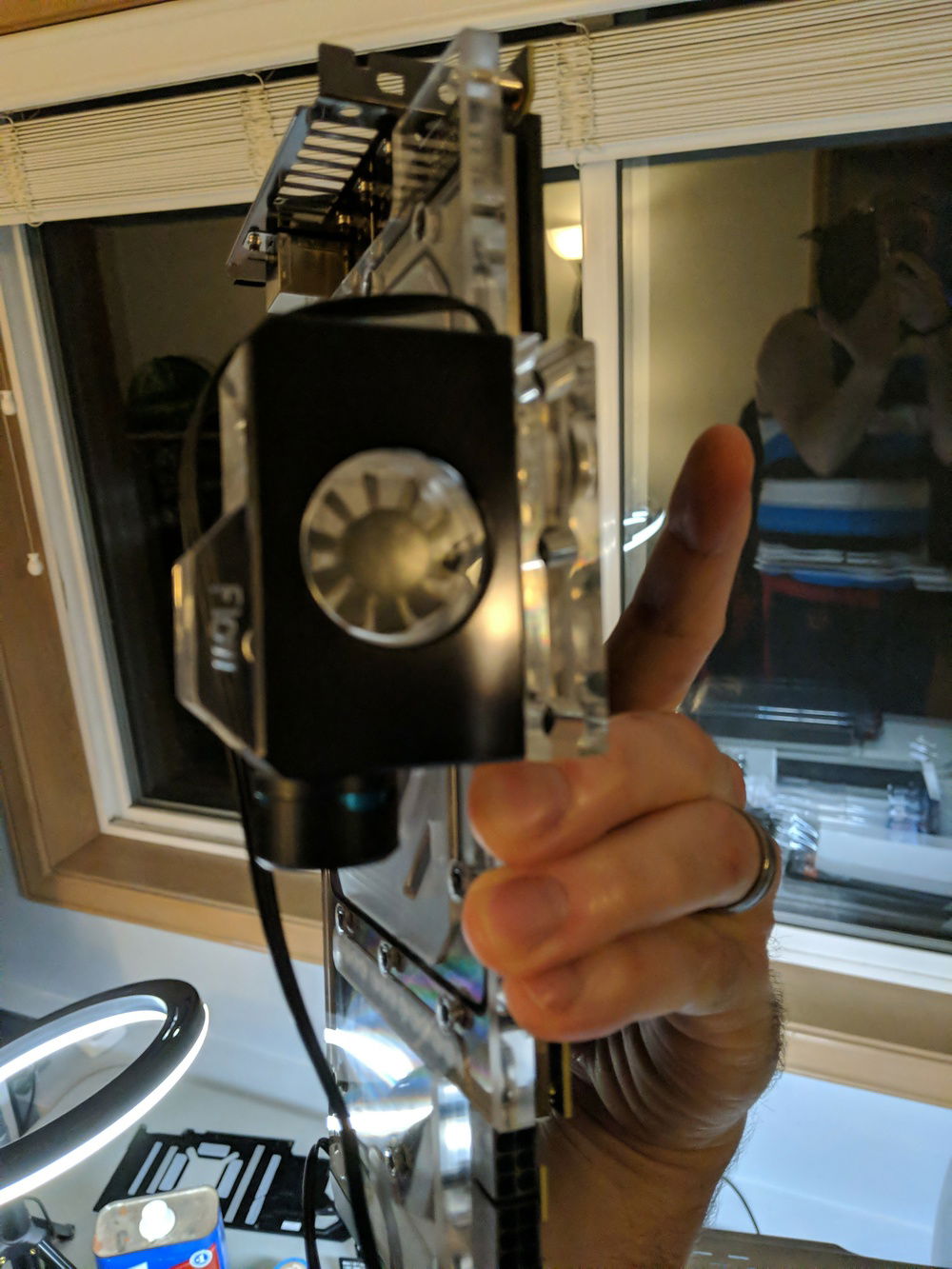

Flow meter.

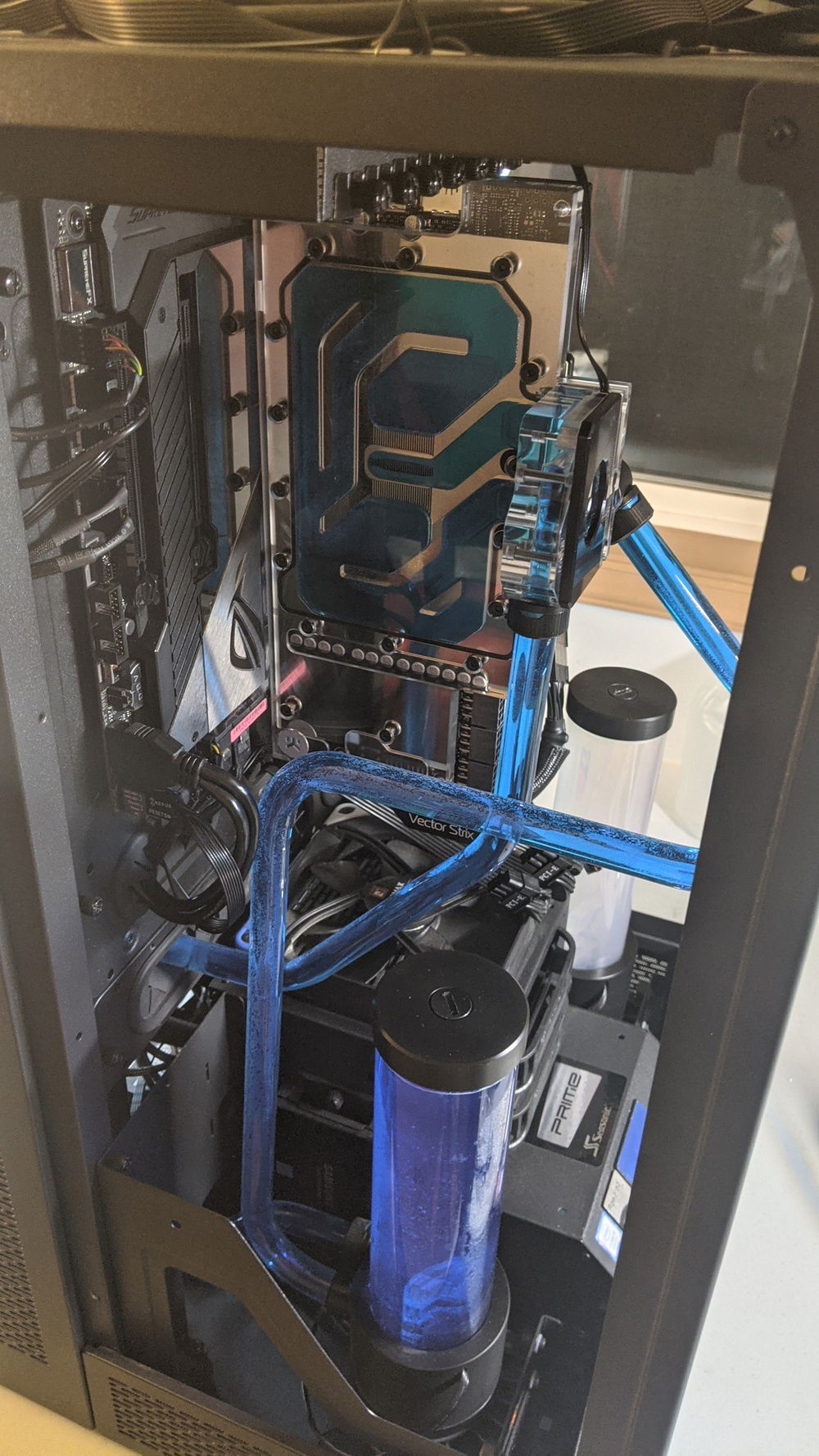

GPU loop

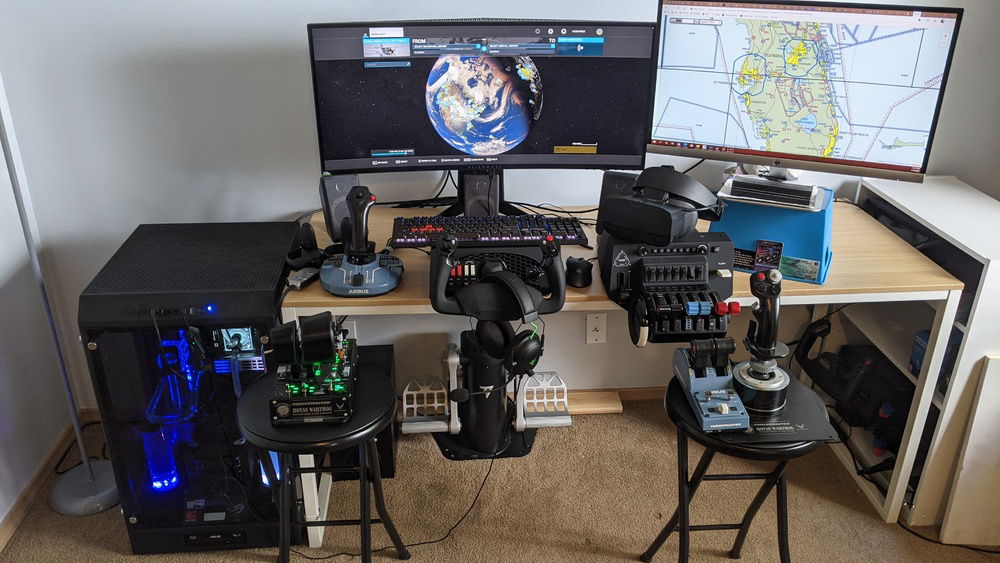

All of this. . .just to play flight simulator. :T
Estonian Gonk
My first hard tube, dual loop system. I've been piecing it together over the past 18 months, and finally have it fully up and running. The GPU loop is dark blue RGB with dark blue (but transparent) coolant. The CPU loop is supposed to be white RGBs with transparent white coolant. That was hard to achieve, and the pictures don't do it justice. However, it does sort of give the impression of an Estonian flag, with the all important Blue, Black, White. Thanks EK for blocking the VRMs on the motherboard, because now I've discovered my new favorite liquid cooling component company!
