Worklog on YT :

https://www.youtube.com/watch?v=hGMaSZW_g8E&t=15s

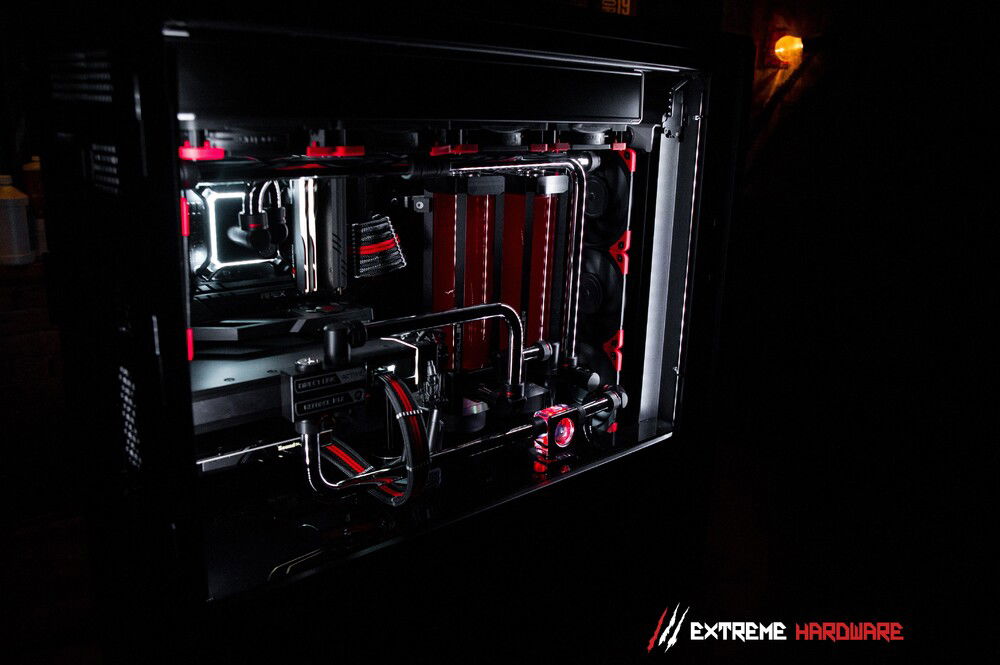

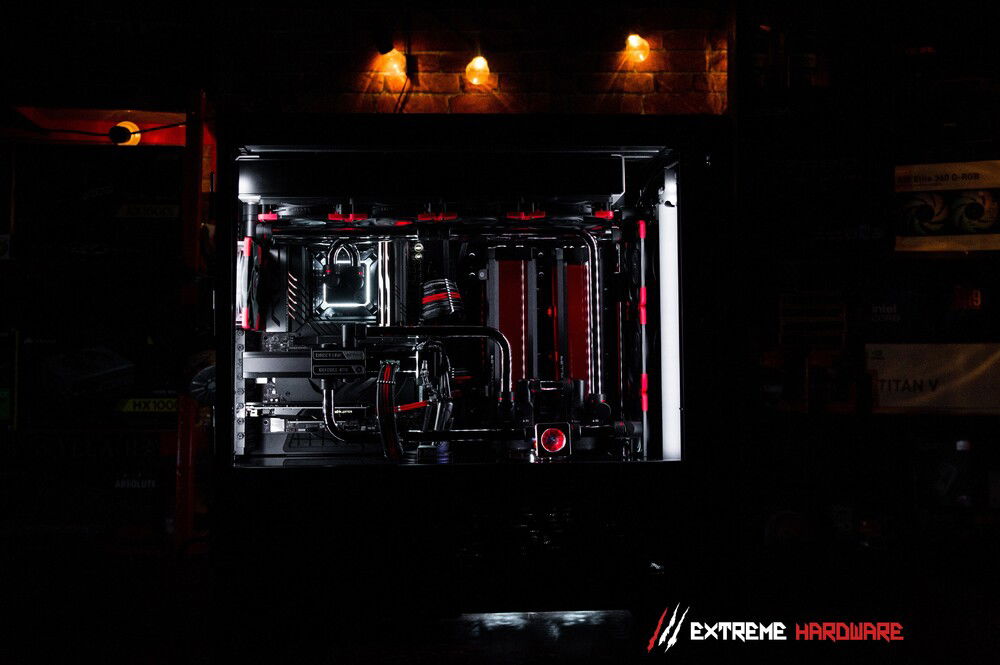

EH "SKYNET" as the name suggests, is a Terminator inspired, powerful configuration in every aspect.

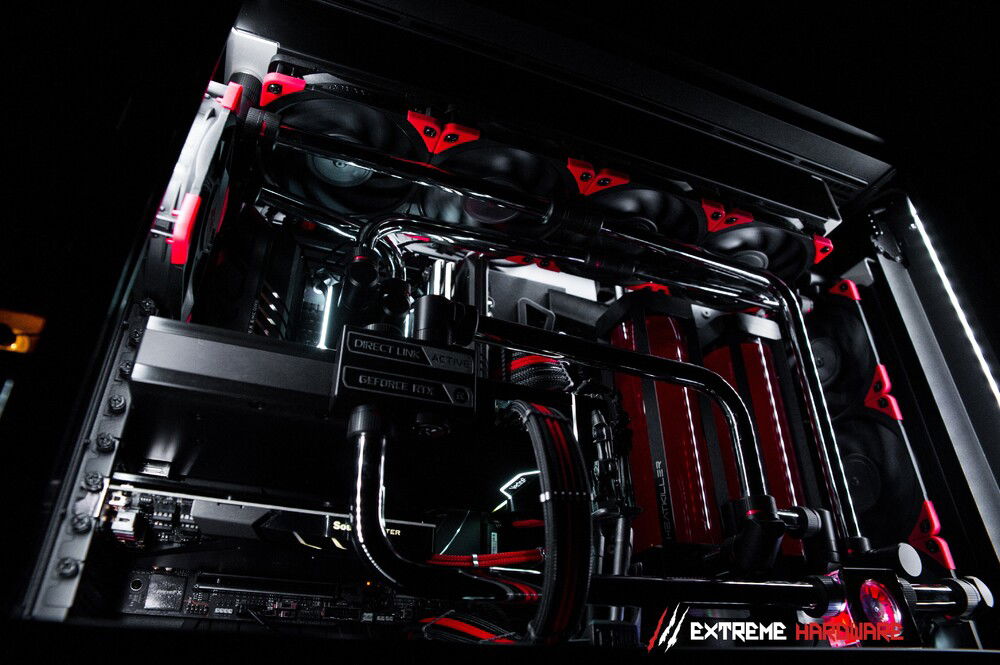

The design resembles a factory of deadly machines. The huge LC system equipped with 480/60 coolers in P&configuration and two 480/45 radiators, one front P&side pull, and four D5 pumps allows this unit to operate extremely quietly while maintaining extremely low temperatures.

RTX 4090 STRIX in the OC version, with additional manually increased clocks by 150 MHz on the GPU and 1000 MHz on the memories, at around 500W consumption does not exceed 51C, maintaining an average temperature of 46C during gaming. All this with the pumps set to only 60% and fans at 900 RPM.

The cooling potential is huge. i9-14900KS on the 6 GHz P / 4.5E / 4.8 Ring profile allows you to increase performance compared to the factory-set CPU, by up to 20% in the context of games while reducing temperatures and power consumption (material showing the benefits of i9-14900KS regulation in preparation, including showing the possibilities captured on EH "SKYNET"). A slightly more modest 24/7 profile, but also bringing specific benefits in terms of performance, is 5.8P / 4.3E / 4.8 Ring. In each case, of course, we are talking about all cores set to the given values.


EH "SKYNET" spec :

i9-14900KS 5.8P / 4.3 E / 4.8 Ring (24/7) 6.0 P / 4.5E / 4.8 Ring profile "Terminator"
ROG Z790 APEX Encore
2x 32 GB Trident Z5 7400 Mhz Cl36.44.44.36 T2.G2 main modules
and profile 2x24 GB 8000 Mhz Cl38.48.48.56 T2.G2 on other memory set.
ROG RTX 4090 STRIX OC / +150/+1000 / PT 600W / 1.07v
2x 1 TB KINGSTON KC3000
1x KINGSTON FURY 4 TB
1x Lexar NM790 4 TB
Creative AE-9 + custom backplate
be quiet! Dark Power 12 1500 PRO Titanium

Custom LC :

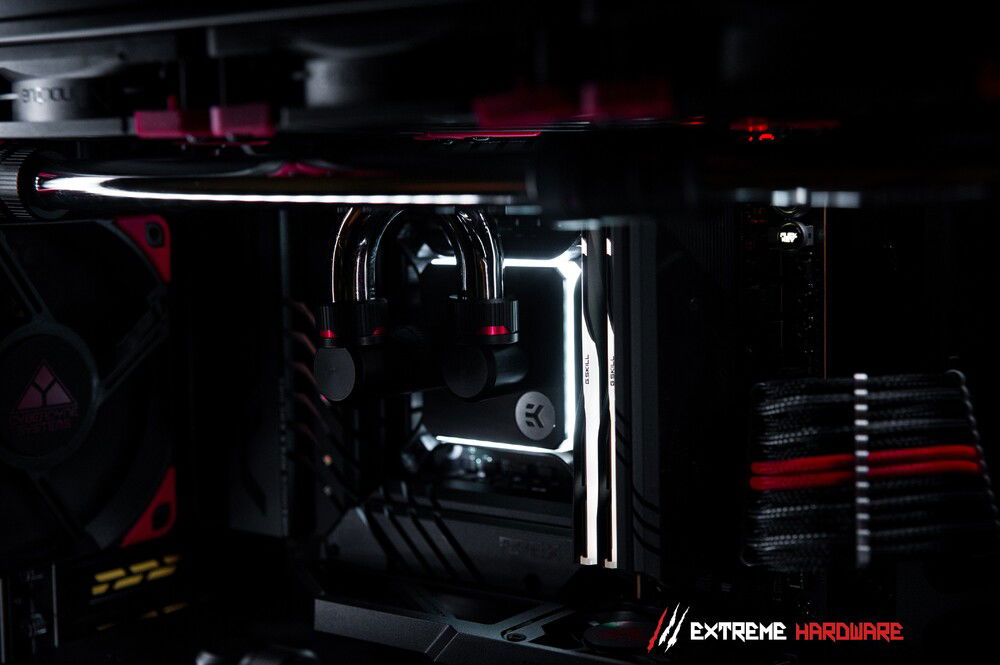

EK Water Blocks EK-Quantum Magnitude D-RGB - 1700 Nickel + Acetal

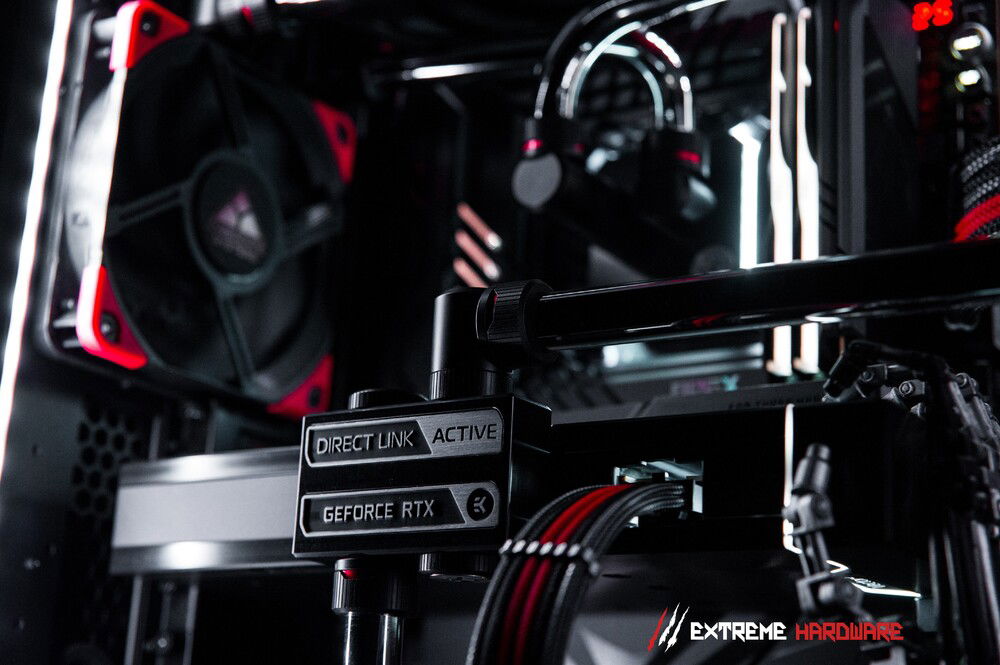

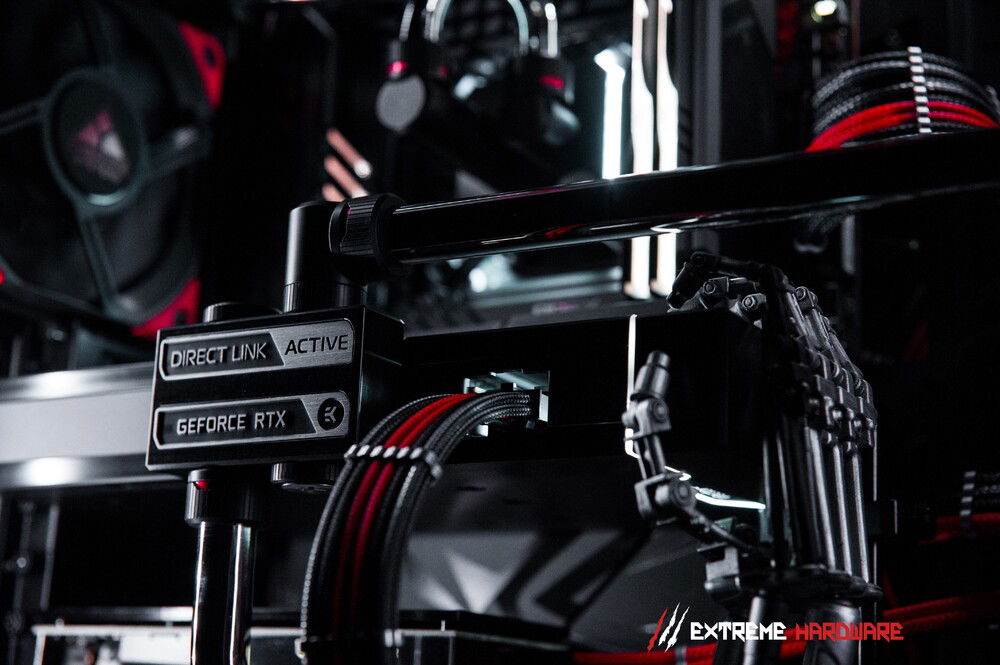

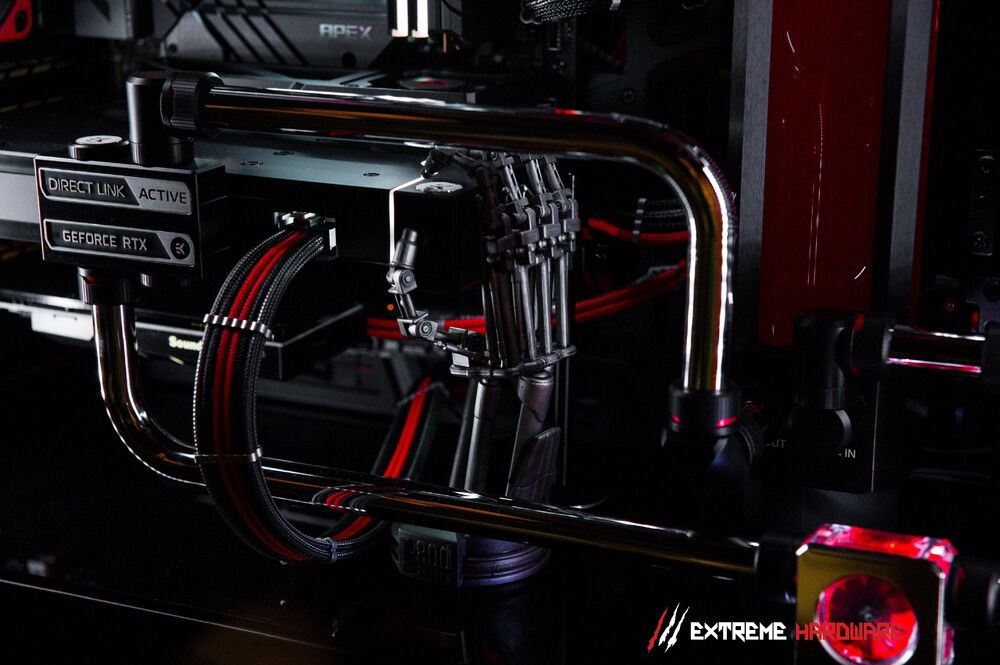

EK Water Blocks EK-Quantum Vector² Strix/TUF RTX 4090 D-RGB ABP Set - Nickel + Acetal
EK Water Blocks EK-Quantum Surface P480M - Black (2)
EK Water Blocks EK-Quantum Surface X480M - Black (1)
EK Water Block EK-Torque HTC-16 Black (30+)
EK Water Blocks EK-Torque Angled 90° - Black (14+)
EK Water Blocks EK-Quantum Torque Static FF 90° - Black (6)
EK Water Blocks EK-Quantum Torque Extender Static MF 14 - Black (6)
EK Water Blocks EK-Quantum Torque Extender Static MF 28 - Black (6)
EK Water Blocks EK-Quantum Torque Drain Valve - Black (2)
EK Water Blocks EK-Quantum Torque Extender Rotary MM 14 - Black (4)
EK Water Blocks EK-Quantum Torque Splitter 3F T - Black (4)

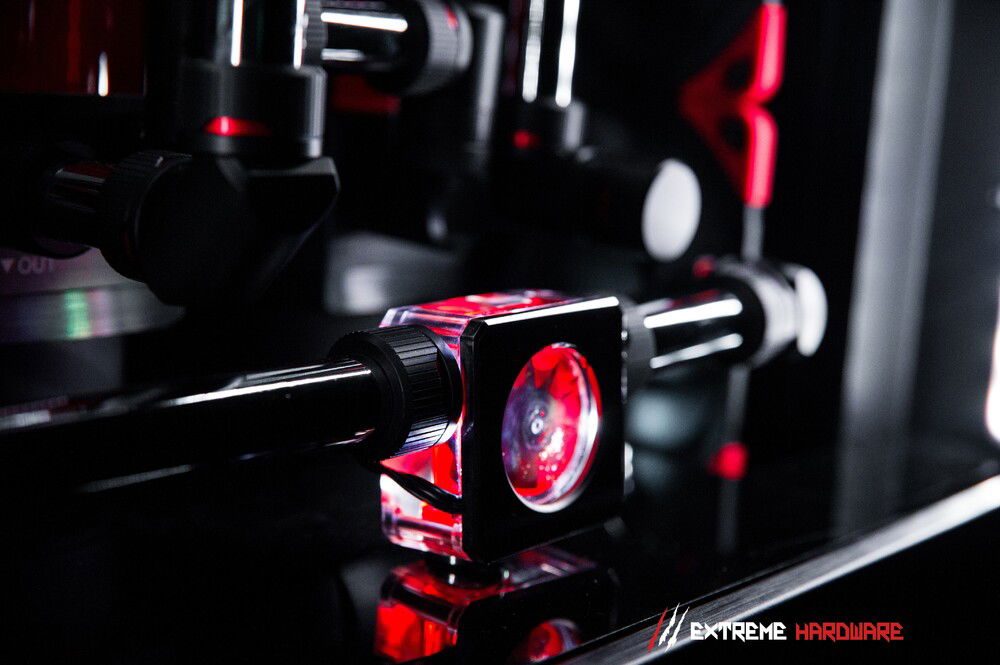

EK Water Blocks EK-Quantum Flow Indicator D-RGB – Nickel (2, used 1)
EK Water Blocks EK-CryoFuel Blood Red (Premix 1000mL) (5x1L)
EK Water Blocks EK-Quantum Inertia D5 PWM D-RGB - Acetal (2)
EK Water Blocks EK-Loop D5 G3 PWM Motor (2)
EK Water Blocks EK-Quantum Torque Plug w/Badge - Black (4)
EK Water Blocks EK-Quantum Torque Micro Plug - Nickel (6)
EK Water Blocks EK-Torque HTC-16 Color Rings Pack - Red (30)

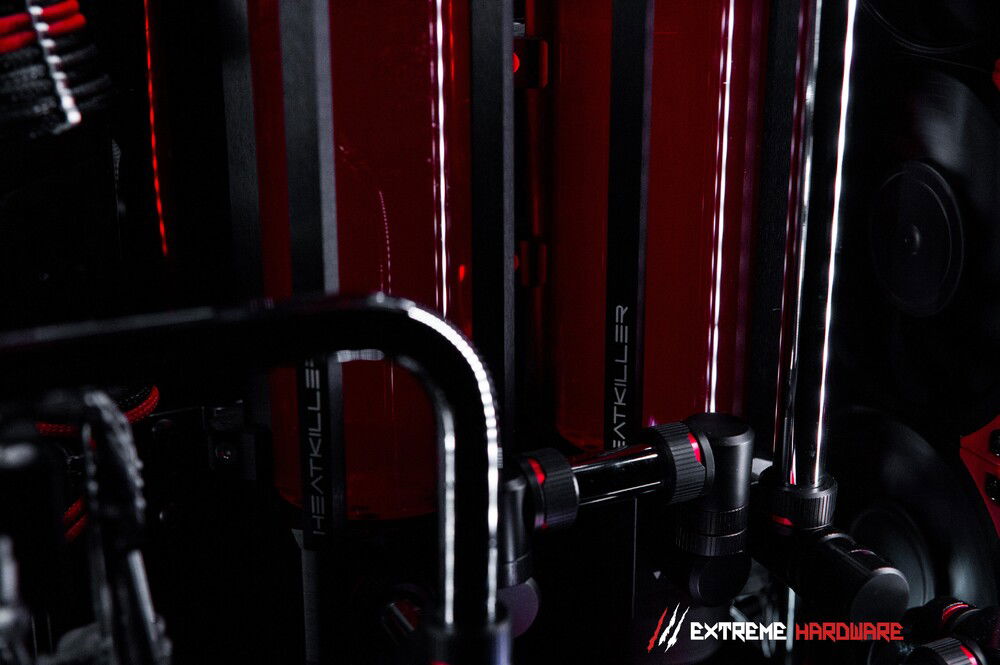

Watercool HEATKILLER® Tube 200mm D5 (2)
Noctua 120mm NF-A12x25 PWM Chromax (21)
Thermal Grizzly LGA 1700 CF
Thermal Grizzly Kryonaut Extreme 2G (2x)
Gelid Ultimate for GPU
