EH "MYSTIC PANTHER" worklog :

https://www.youtube.com/watch?v=u6obHBhNdGs&t=1s

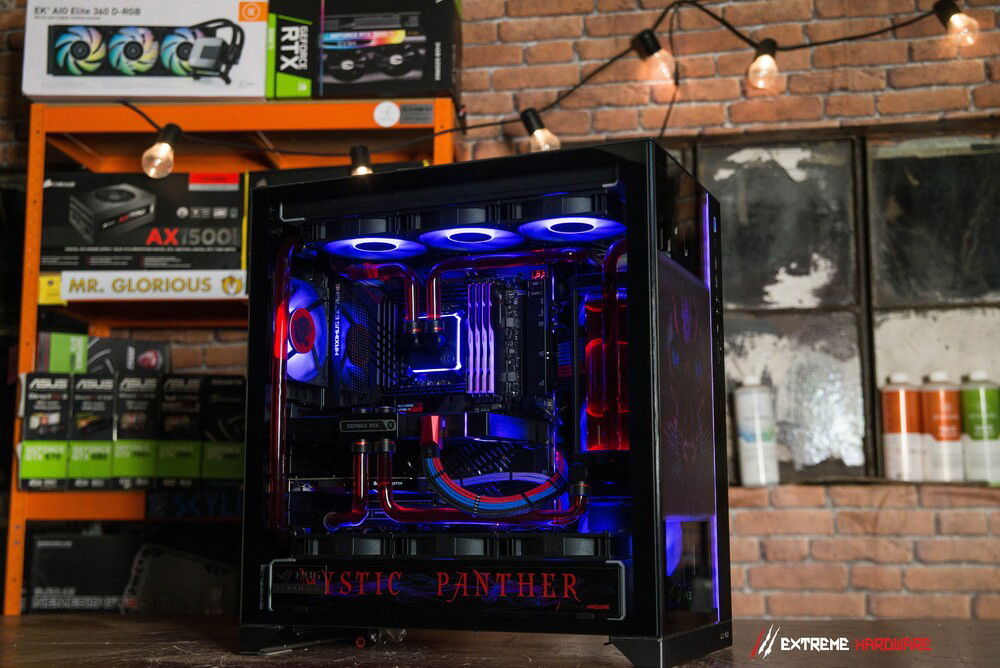

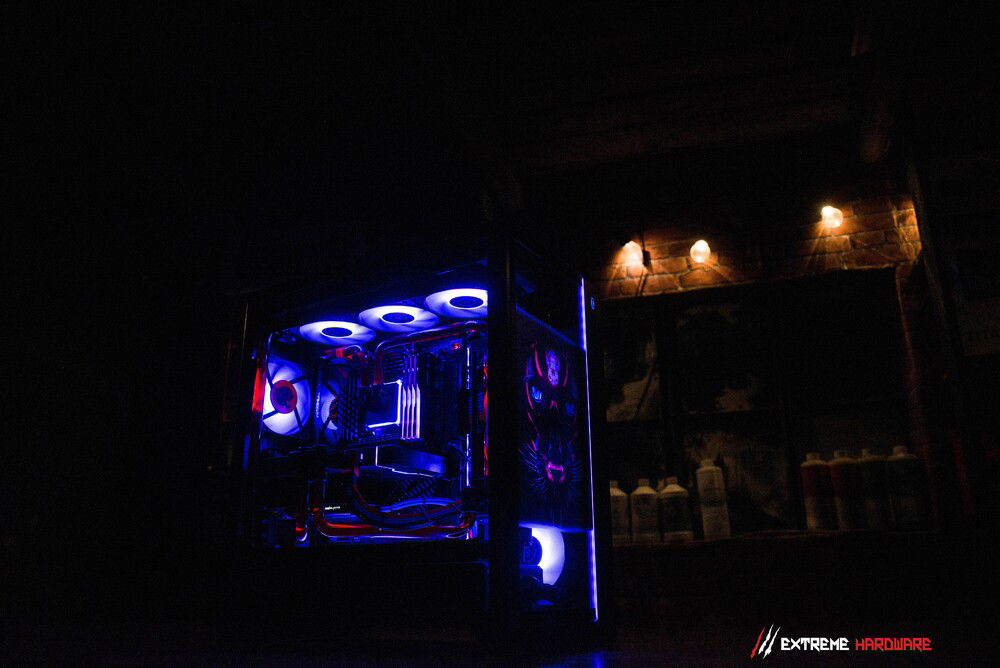

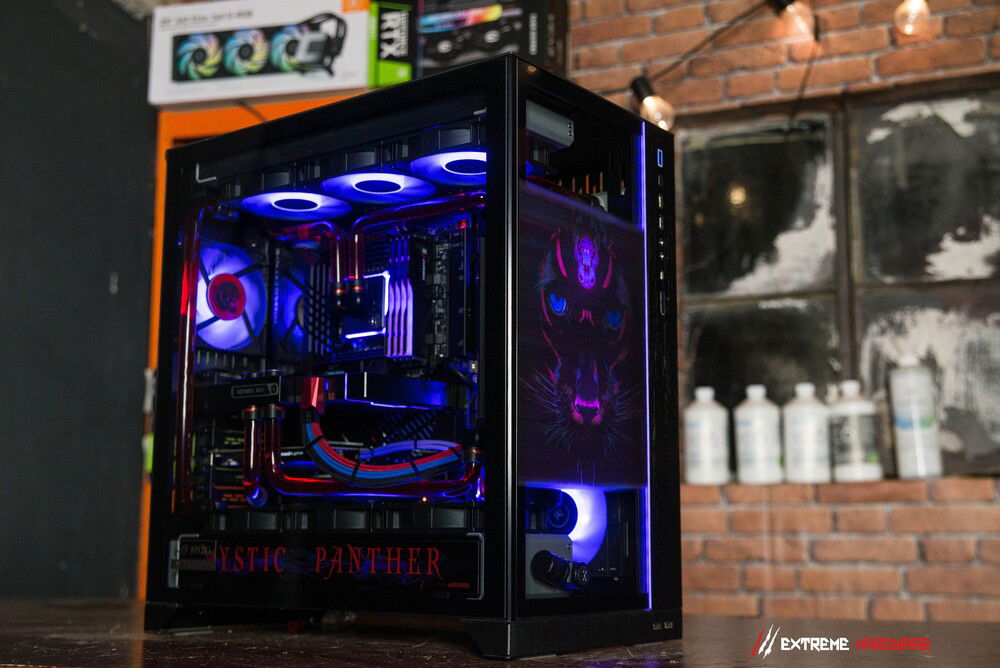

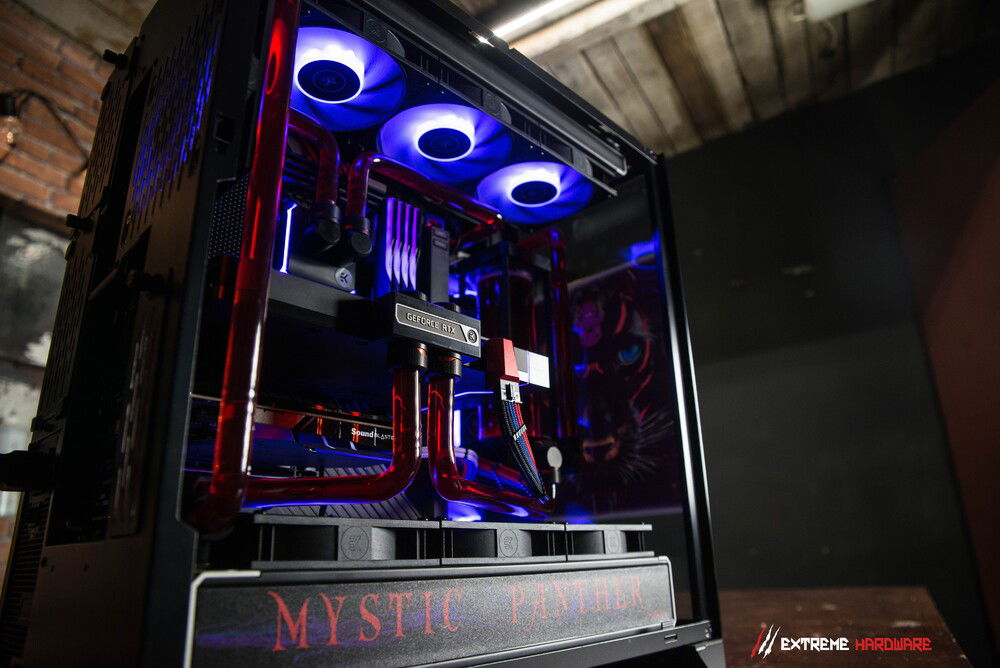

EH "MYSTIC PANTHER" is a powerful config designed for uncompromising gameplay in 3440x1440p resolution (Dell Alienware AW3423DW 3440x1440p 175 Hz QD-Oled), combines top performance with extraordinary colors and unique appearance. Initially, the machine was to be equipped with AIO EK 360 Elite, and the RTX 4090 STRIX would remain on factory cooling. Only in the future we were supposed to do the conversion to a Custom LC. However, in essence, once the original config concept was completed, there was a change of direction.

The project was created before the i9-13900KS debuted on the market, but the i9-13900K in this config having a solid IMC (memory controller) which allowed to fully stabilize the memory in the 4x16 configuration to 6000 MHz CL 36.39.39. 36 T2 G2, keeping to the lowest possible voltages crucial for achieving this goal. The clock speed of 6200 MHz was also achievable with the same CL, but the requirements for VDD / VDDQ / SA voltages and IVR Transmitter did not translate into the pragmatics of this solution.

The platform, as always, is precisely adjusted in terms of optimizing voltages, performance and energy efficiency, which translated into full subjugation of the appetite for heat of the i9-13900K and RTX 4090 STRIX cooled with one loop. The extremely powerfull VRM of the ROG Z790 EXTREME is also helpful because 24 phases, 105A each, allow to very effectively reduce the heat of the mosfets, which in turn translates into lower pcb temperatures around the CPU socket and DDR5 slots.

EH's "MYSTIC PANTHER" project pleases his new "dad" with beauty and performance for a good few months now.

EH "MYSTIC PANTHER" spec :

i9-13900K 5.5 GHz P / 4.4 E / 4.6 Uncore
ASUS ROG MAXIMUS Z790 EXTREME
ASUS ROG RTX 4090 STRIX + 100 / + 1000 PT 600
4x16 Trident Z5 @ 6000 MHz CL36.39.39. 36 T2 G2 + II / III
2x SAMSUNG 980 PRO 2 TB
CORSAIR AX1600i
CREATIVE AE-9

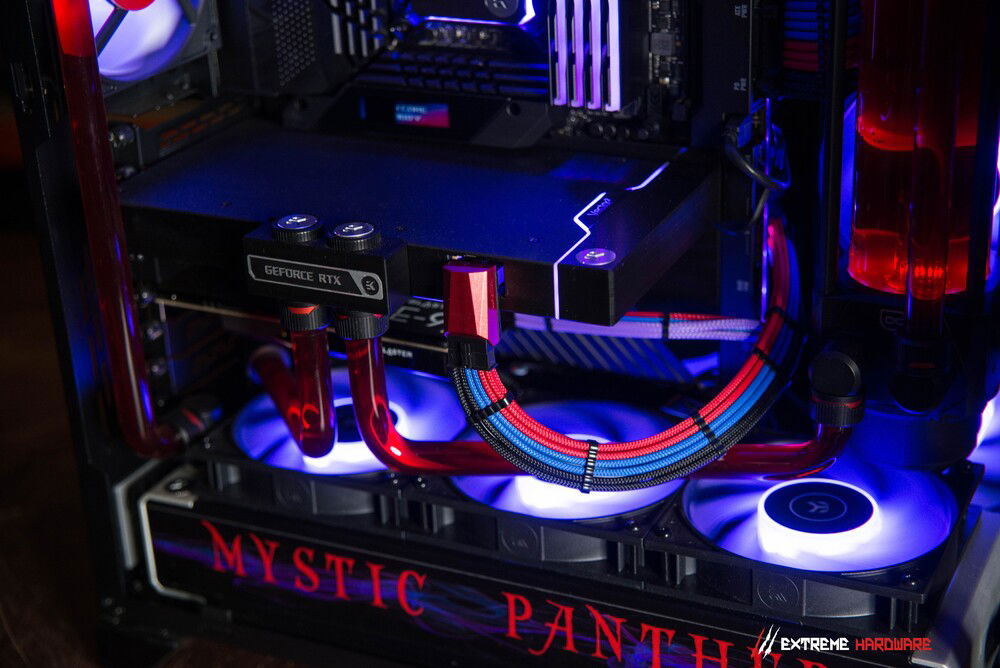

CableMod 12VHPWR 90 Adapter (RED) Variant A
ThermalRight LGA 1700 CF RED
Lian LI011XL


Custom LC

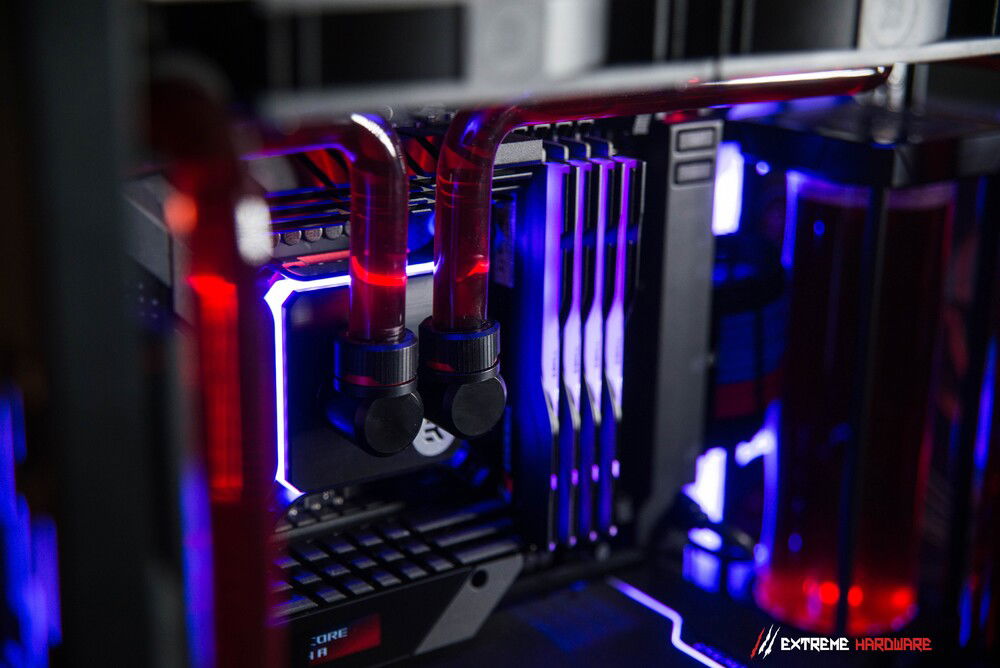

EK Magnitude LGA 1700 Nickiel + Acetal

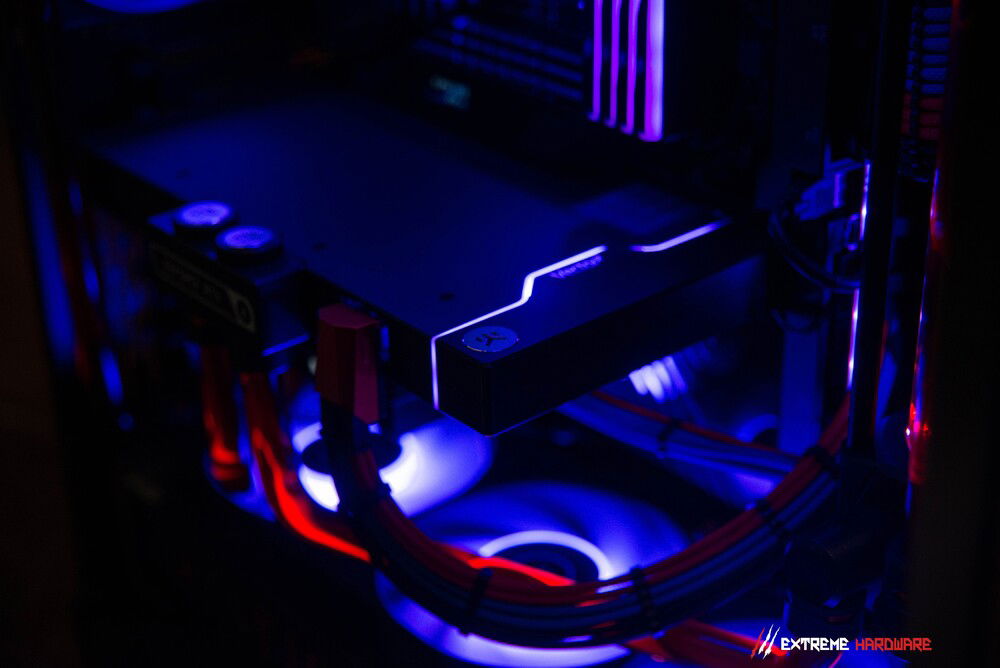

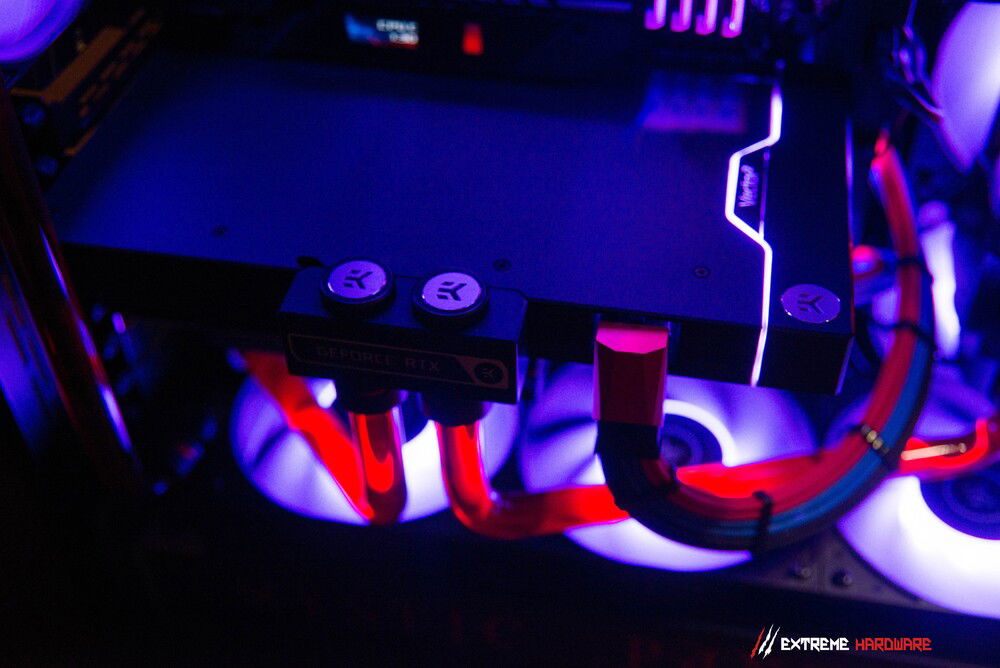

EK Vector 2 RTF 4090 STRIX / TUF Nickiel + Acetal
EK Torque HTC Black x12
EK Torque 90 Black x6
EK-Torque HTC-16 Color Rings Pack - Red x13
EK-Quantum Surface P360M
EK-Quantum Surface S360
EK-Quantum Surface X360M
EK-Loop D5 G3 PWM Motor
EK-Quantum Torque Plug w/Badge - Black x2
EK-Quantum Torque Drain Valve - Black
EK-AF T-Splitter 3F G1/4 - Black x1
EK-D-RGB 6-Way Splitter Cable x2
EK-Cable Splitter 4-Fan PWM Extended x3
EK Water Blocks EK-Vardar EVO 120ER D-RGB x10
Gelid GP-Ultimate thermalpad 120x20x1mm TP-GP04-R-B x1
Gelid GP-Ultimate thermalpad 120x20x1mm 2pcs TP-VP04-R-B x2
Gelid GP-Ultimate thermalpad 120x20x1.5mm 2pcs TP-VP04-R-C x1
Gelid GP-Ultimate thermalpad 120x20x2mm 2pcs TP-VP04-R-D x2

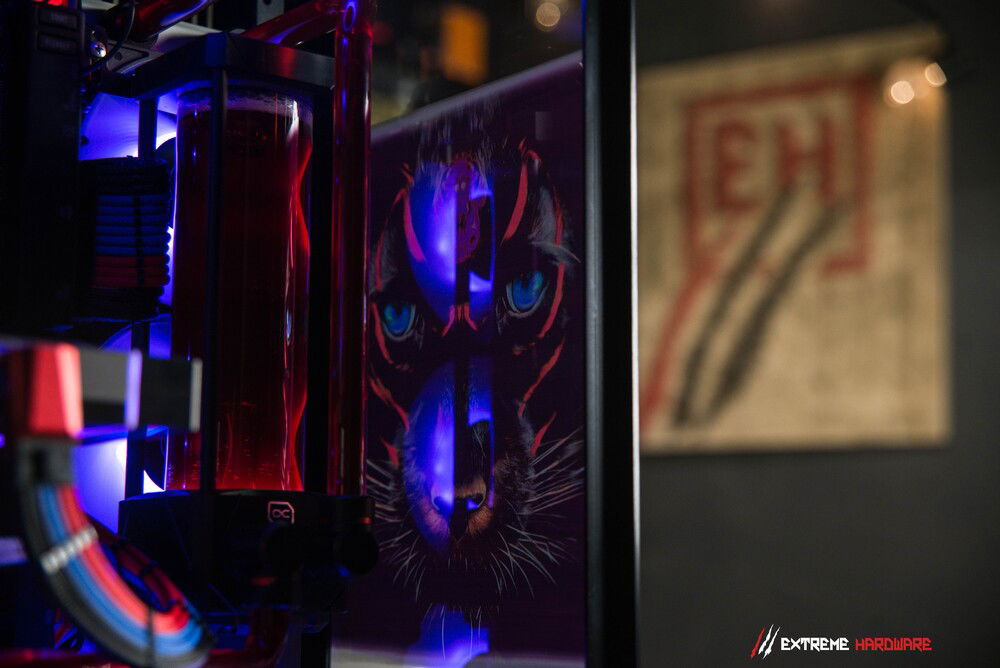

Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm
XSPC PURE Premix Distilled Coolant - Clear UV x3
XSPC EC6 Concentrated ReColour Dye - Blood Red x1
Thermal Grizzly Kryonaut Extreme 2g x1
