EH "MR.GLORIOUS"

Worklog video :

https://www.youtube.com/watch?v=9F0yW6D7CB4

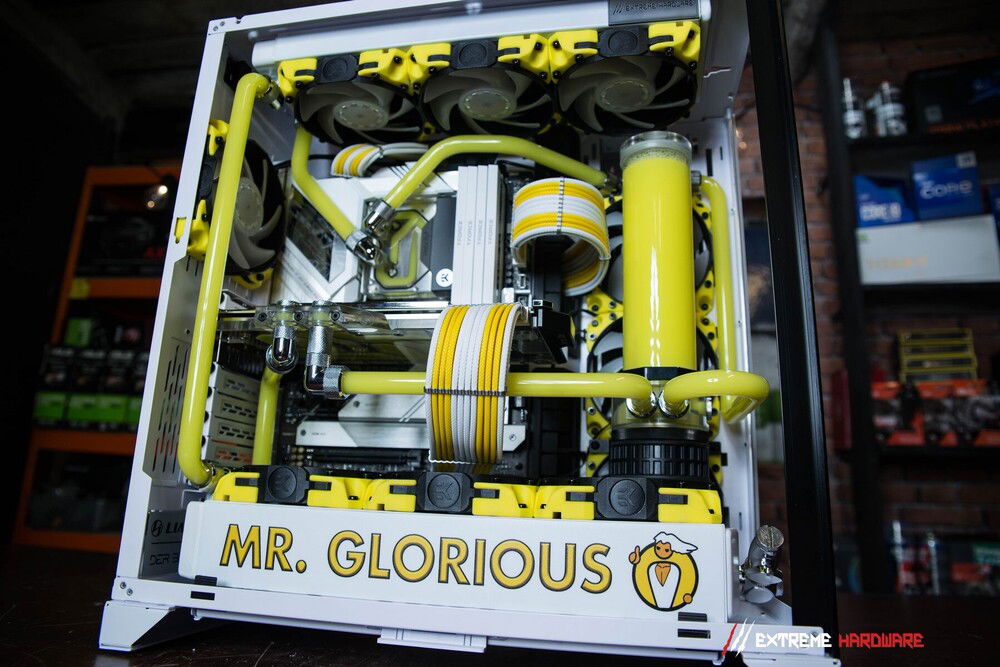

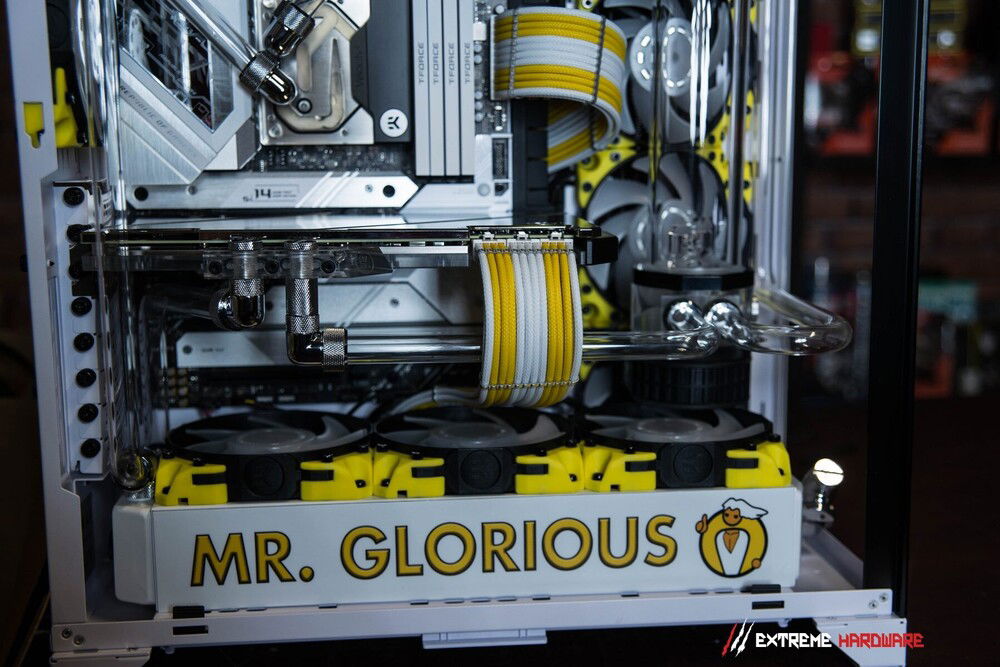

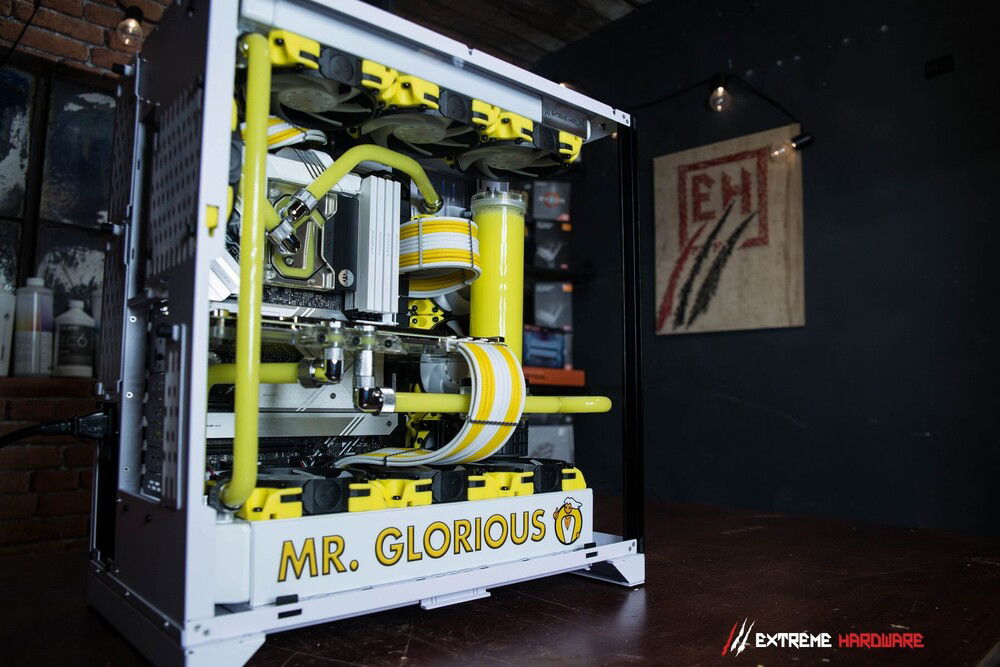

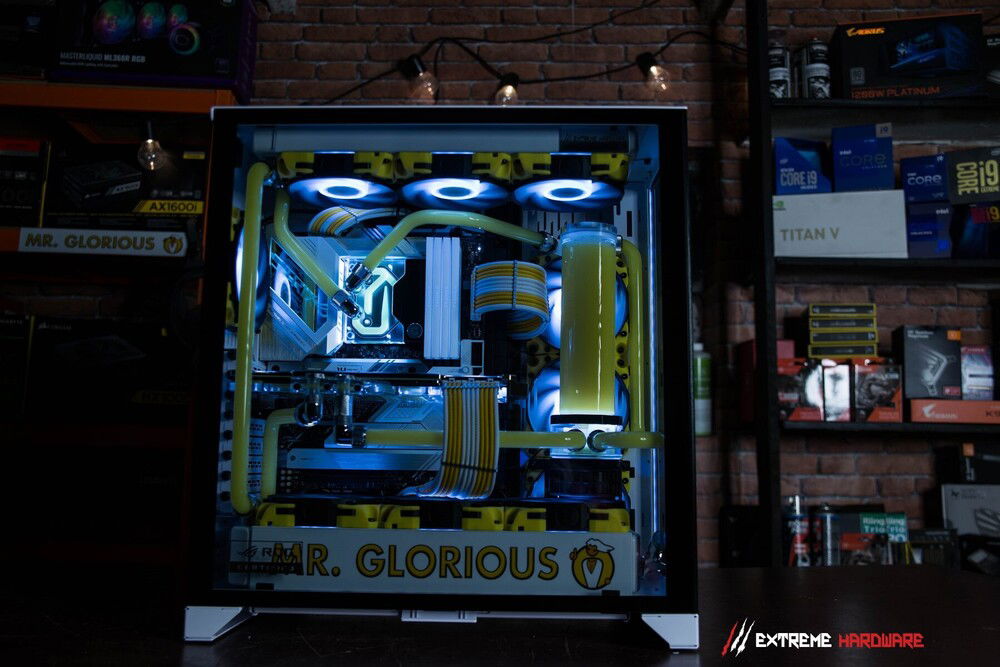

EH "MR.GLORIOUS" is a configuration maintained in white and yellow colors, referring to the Glorious PC Master Race trend. Machine equipped with i9-12900KF mounted on a very decent white Z690 STRIX-A supporting DDR4 memory. A model that is characterized by high precision and stability of voltage regulation and all necessary values. The 16-phase 75 amp power section allows the i9-12900KF to be fully utilized with additional OC. The memories used in the configuration are white modules from the TeamGroup, naturally on B-Die dice.

RTX 3080 Ti STRIX provides phenomenal performance in 2560x1440p and also perfectly well in 3800x1600p, which is the target resolution that "MR.GLORIOUS" will work with.

The AORUS 1200 Platinium takes care of the stability of voltages and ensuring adequate power.
PSU based on Seasonic Platinium, equipped with additional AORUS features, including LCD display. Unfortunately, the power supply is hidden at the back of the case. The client for whom the machine was created purchased this model earlier. We considered the use of modifications, i.e. a cut in the back of the window casing and the addition of tempered glass so that you could see inside. However, after thinking about the subject, we gave up this concept because the position of the power supply in the case would rule out the pragmatic nature of the idea anyway.

The config was created at the beginning of 2022, it will probably see an improvement in the form of a change from RTX 3080 Ti to RTX 4080 Ti / RTX 4090 when proprietary models and water blocks for these constructions appear.


Spec :

i9-12900KF 5.2 GHz P / 4.1 GHz E / 42 Uncore
Z690 STRIX-A
4x8 TeamGroup XTREEM White ARGB
bin 3600 Cl14.16.16 @ 3800 MHz Cl15.15.15. 30 T2 Gear 1 + 2nd/3rd
RTX 3080 Ti STRIX @ PT 450W OC + 100/+800
SAMSUNG 980 PRO 2 TB
AORUS 1200 Platinium
Lian LI 011XL White

Custom LC :

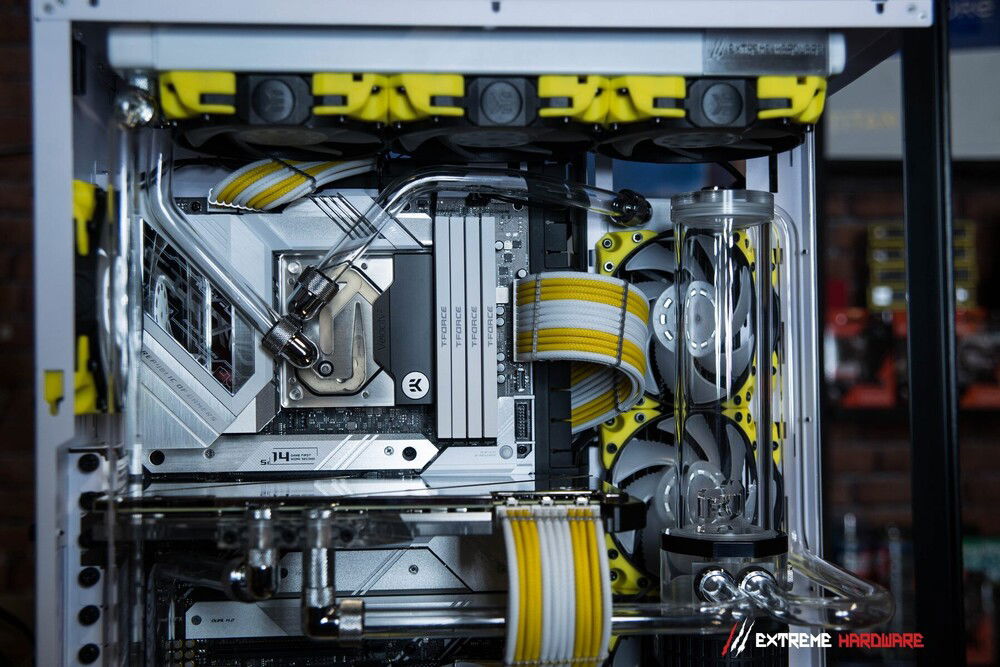

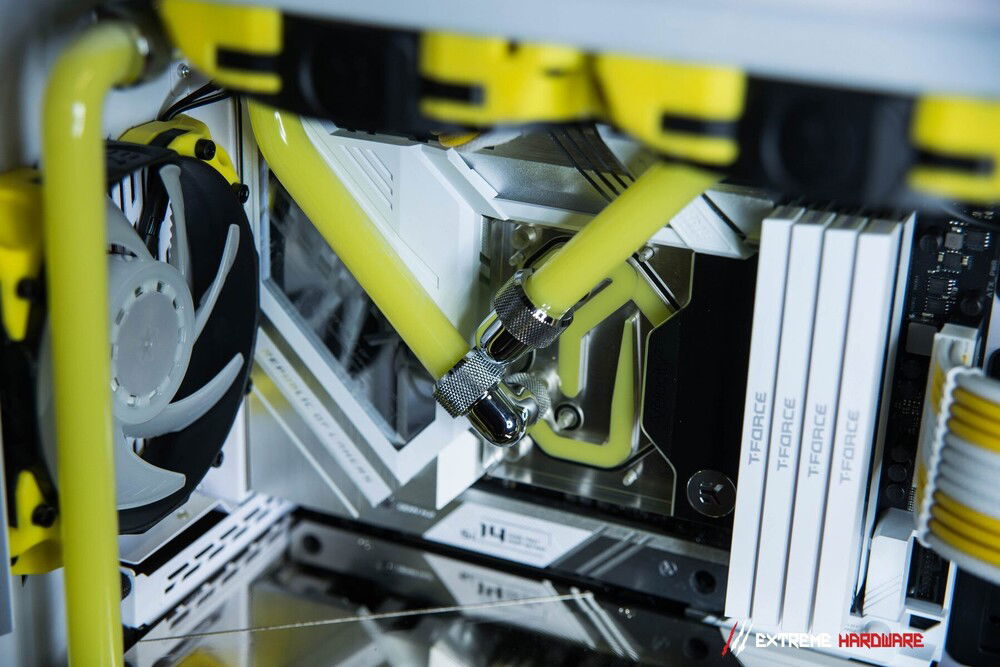

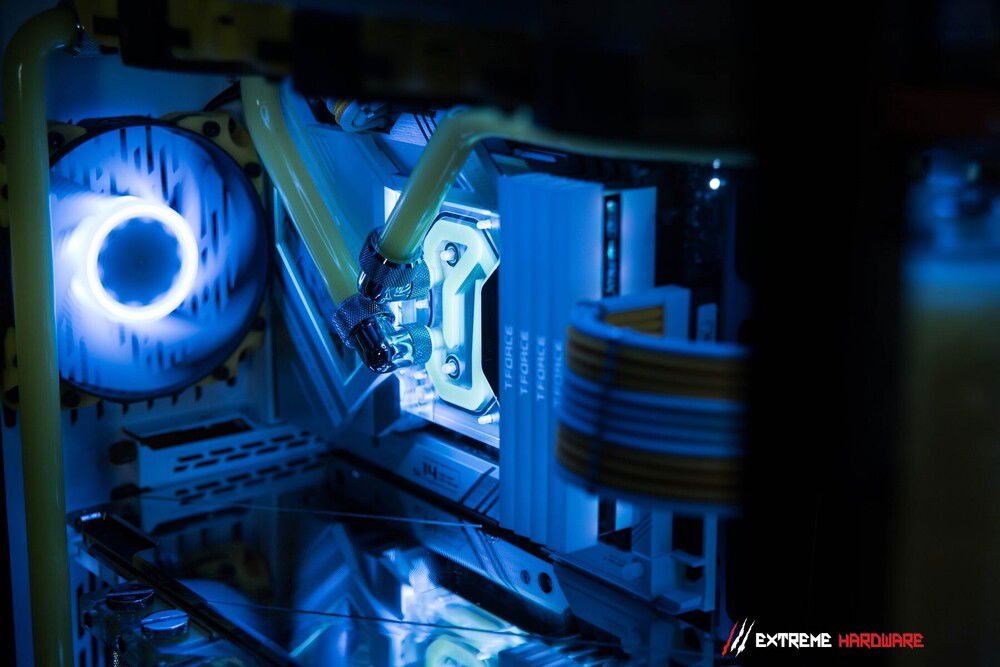

EK Water Blocks EK-Quantum Velocity² D-RGB - 1700 Nickel + Plexi
Alphacool NexXxoS UT60 Full Copper 360mm - White Special Edition
Alphacool NexXxoS XT45 Full Copper 360mm V.2 - White Special Edition
Alphacool NexXxoS ST30 Full Copper 360mm V.2 - White Special Edition

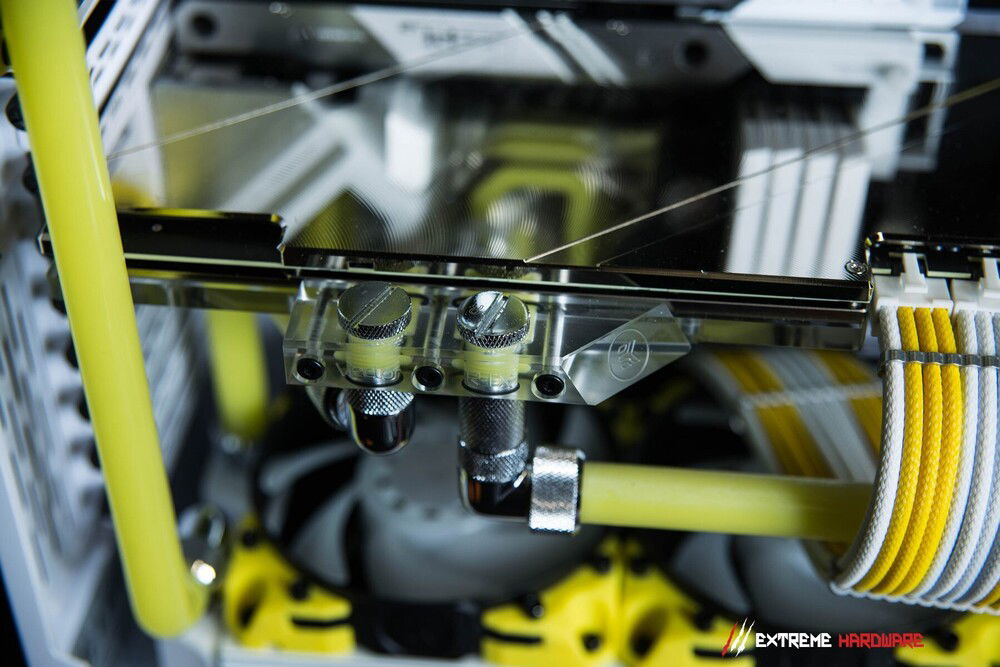

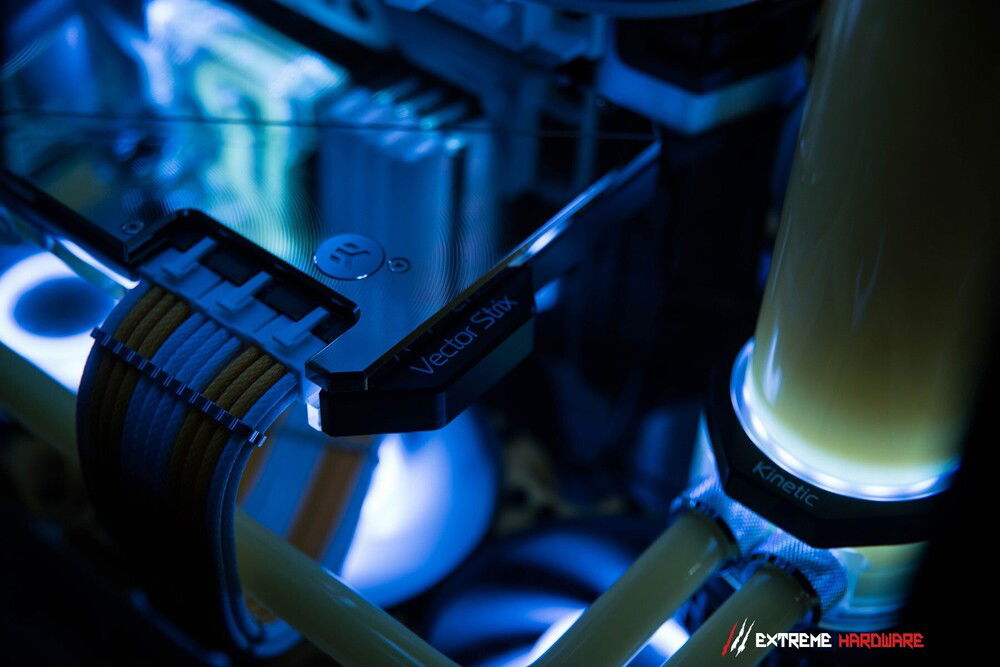

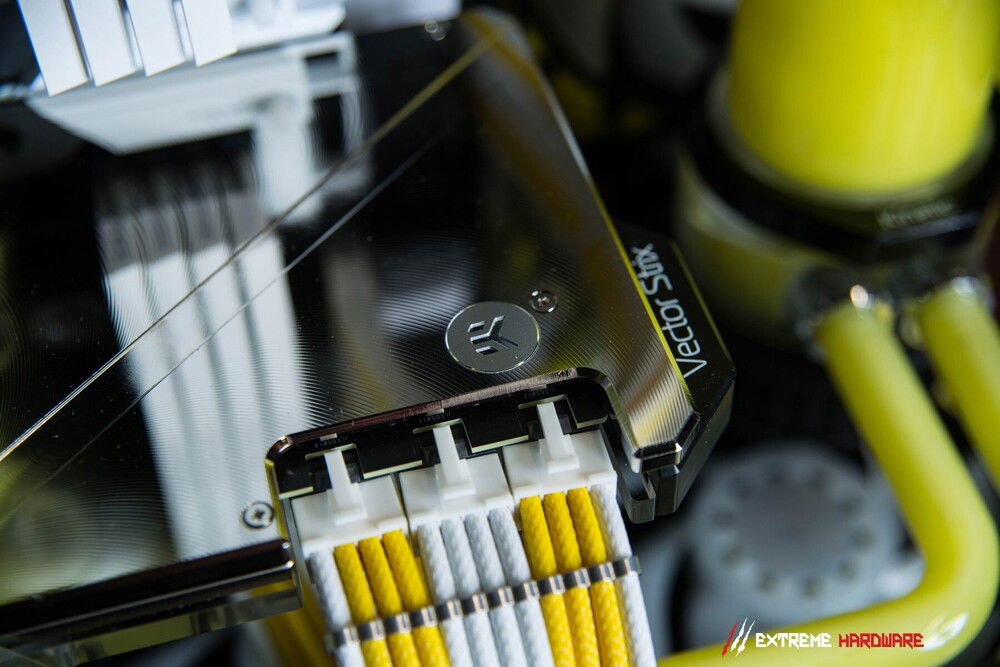

EK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 D-RGB - Nickel + Plexi
EK Water Blocks EK-Quantum Vector Strix RTX 3070/3080/3090 Backplate - Nickel
EK Water Blocks EK-Quantum Kinetic TBE 300 D5 PWM D-RGB - Plexi
EK Water Blocks EK-CryoFuel Solid Laguna Yellow (Premix 1000mL) x2

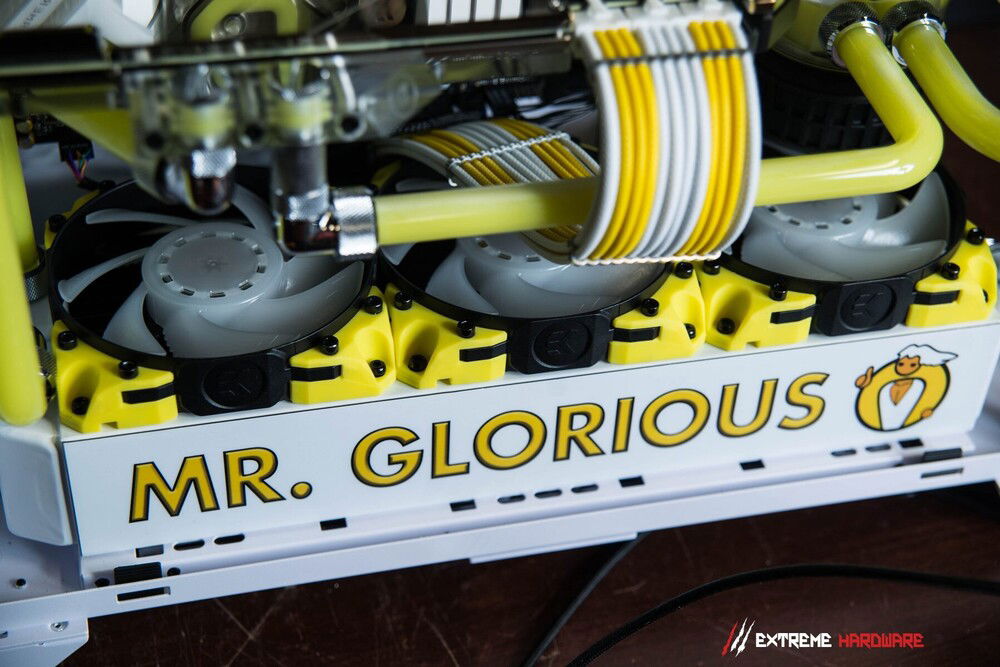

EK Water Blocks EK-Vardar X3M 120ER D-RGB (500-2200rpm) - White x10
EK Water Block EK-Vardar X3M Damper Pack - Yellow x10
EK Water Blocks EK-Cable Splitter 4-Fan PWM Extended x3
EK Water Blocks EK-Loop D-RGB 2-Way Splitter Cable x1
EK Water Blocks EK-D-RGB 6-Way Splitter Cable x2
EK Water Blocks EK-Quantum Torque Extender Rotary MM 14 - Nickel x1
EK Water Blocks EK-UNI Pump Bracket (120mm FAN) Vertical
Alphacool Eiszapfen adapter G1/4" na IG1/4" 20mm - Chrome x2
Alphacool Eiszapfen korek G1/4" - Chrome x5
XSPC Ball Valve Chrome
Barrow Hardtube Fitting 16mm Twin Seal - Shiny Silver x12

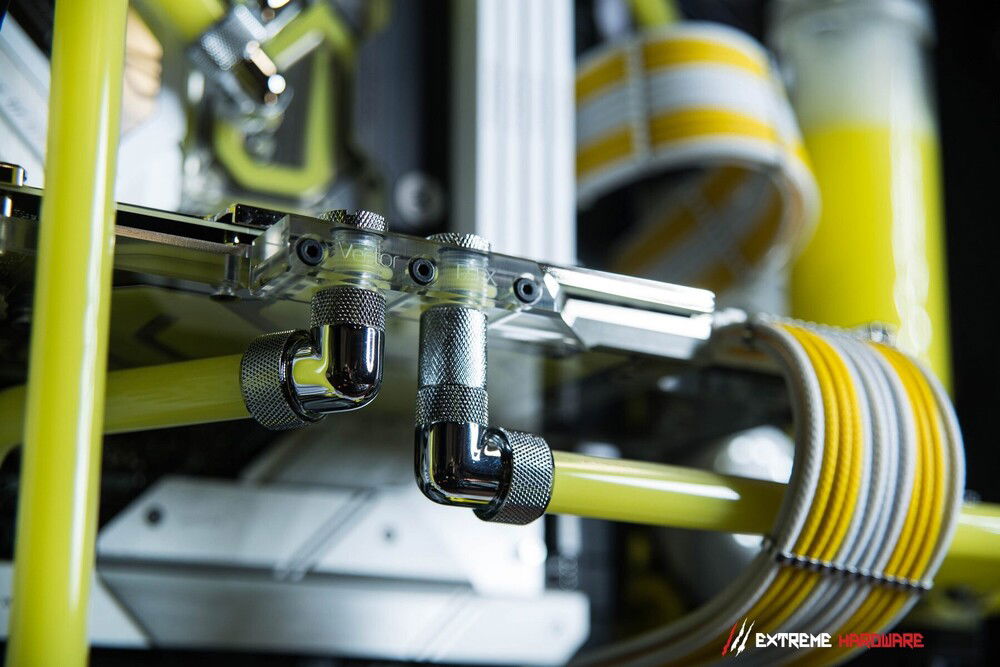

Barrow G1/4" 90 Degree Rotary Adaptor Fitting silver nickel x6
Barrow G1/4" 3-Way Splitter Cube silver nickel x1
Gelid GP-Ultimate thermalpad 90x50x1mm 2pcs TP-VP04-B x3
Gelid GP-Ultimate thermalpad 90x50x2mm TP-GP04-D x2
Thermal Grizzly Krynoaut
Sleeves - EC ExpendableCustoms
https://www.facebook.com/ExpendableCustoms
Color(s): White Yellow
RGB Lighting? No
Theme: Art
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 282.99
Intel - Core i9-12900KF
Socket: LGA 1700
Cores: 16
Integrated Graphics: Yes
Motherboard
$ 202.55
ASUS - Rog Strix Z690-A Gaming D4 (WiFi)
Chipset: Z690
CPU Socket: LGA 1700
Size: ATX
Memory
$ 350.00
TeamGroup - T-Force Xtreem (3600MHz) (White/ARGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 688.98
ASUS - GeForce ROG Strix Gaming OC
Chip Manufacturer: NVIDIA
Chip: RTX 3080 Ti
Interface: PCIe x16
Storage
$ 201.37
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 350.00
Seasonic - Platinum-1200(SS-120
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 265.00
Lian Li - 011D XL
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 629.90
Cooling
$ 70.78
Alphacool - NexXxoS ST30 Full Copper
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 150.00
Alphacool - NexXxoS UT60 Full Copper White
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 113.41
Alphacool - NexXxoS XT45 Full Copper
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 72.00
Barrow - Fittings (12x)
Type: Custom Loop
Cooling
$ 200.00
Cooling
$ 176.19
EKWB - EK-Quantum Velocity D-RGB + Satin Titanium
Type: Block
Size (WxHxD): 92 mm
Cooling
$ 38.00
EKWB - Fluid (2x)
Type: Custom Loop
Cooling
$ 58.00
Estimated total value of this build:
$ 4,175.83
