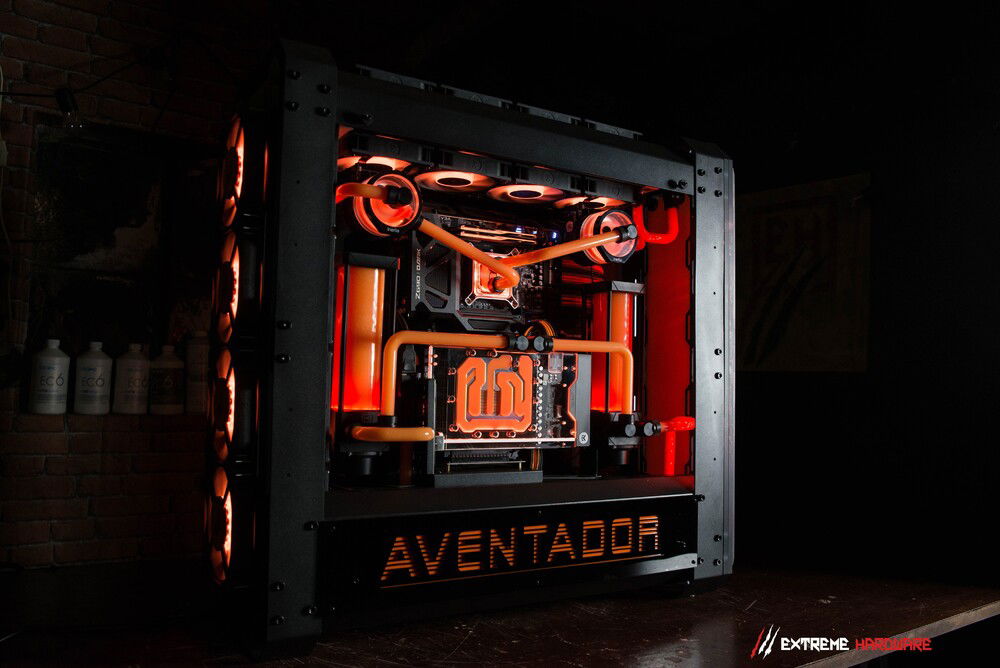

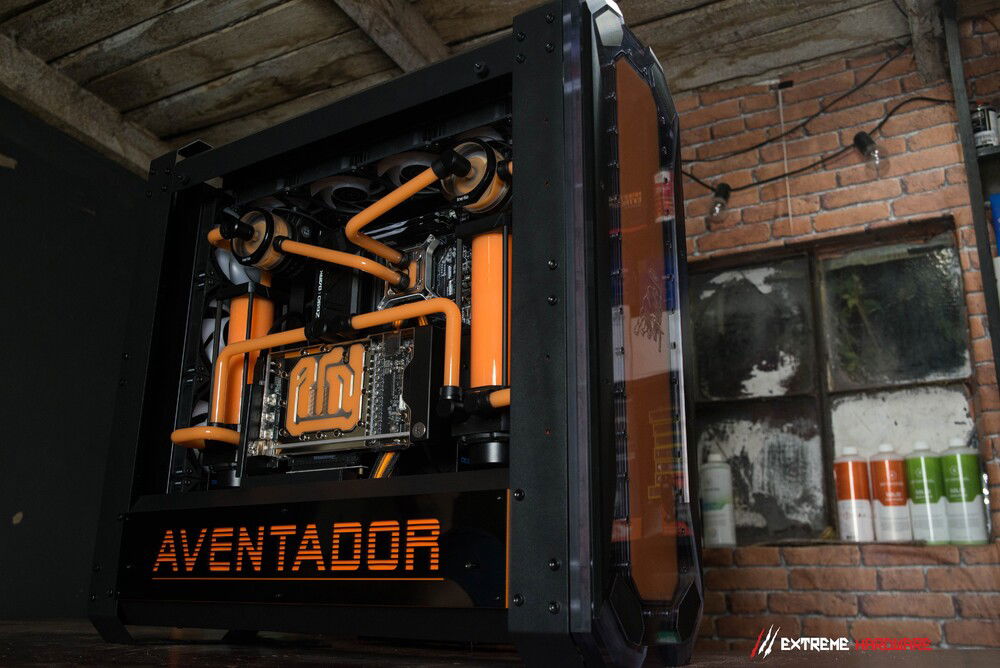

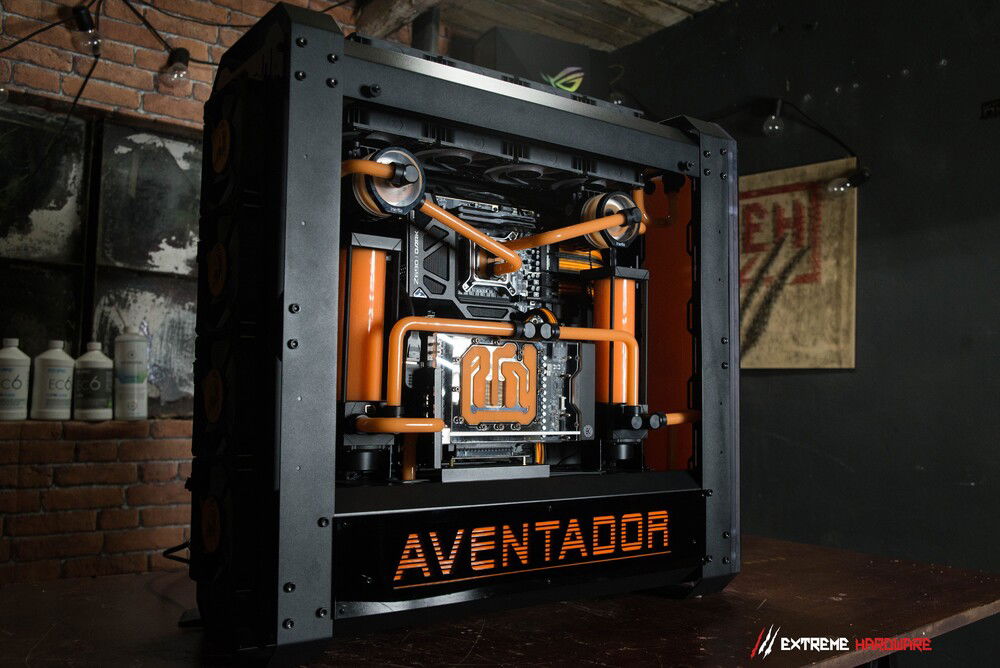

EH "AVENTADOR" is a powerful machine both in terms of configuration, dimensions, a huge liquid cooling system and the scale of the project.

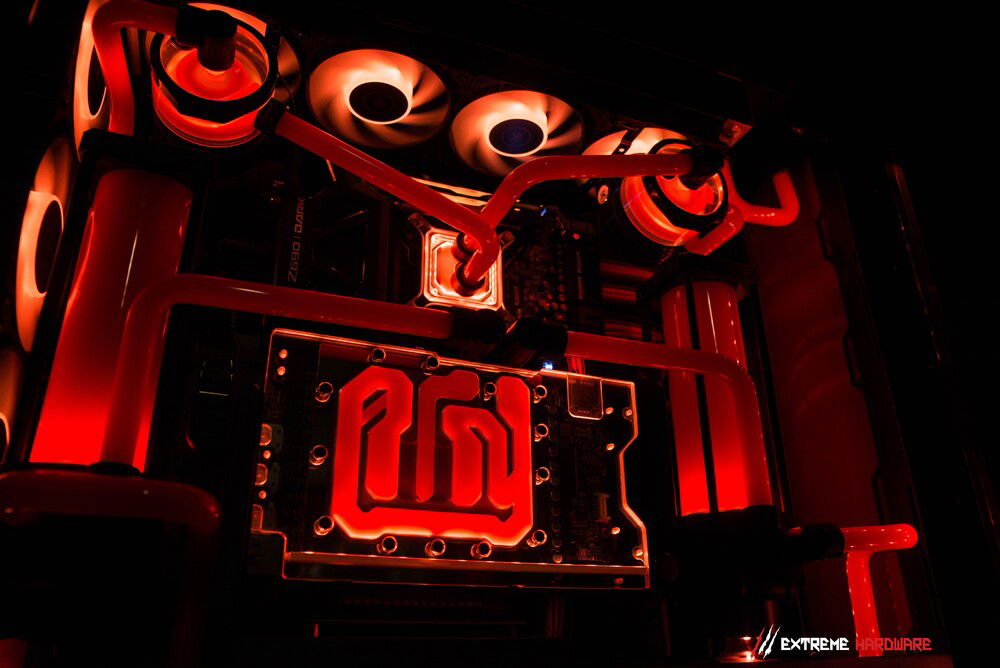

In fact, this setup features the most powerful single loop circuit we've ever built. The i9-13900KS and RTX 4090 STRIX are cooled with 560/60 and 480/60 radiators, both coolers in a Push&Pull configuration, and we used four D5 pumps.

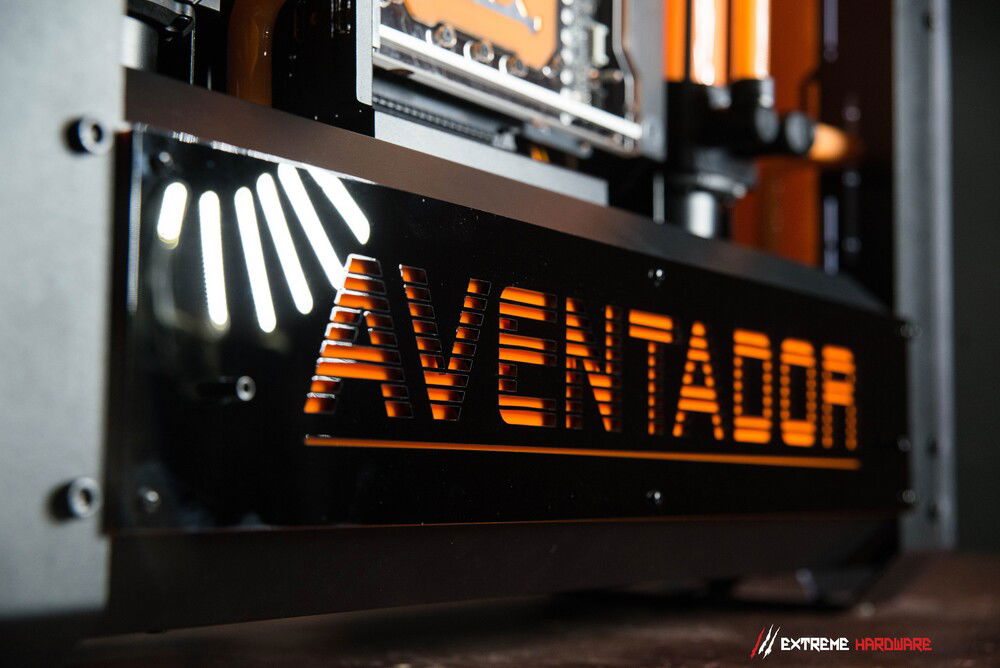

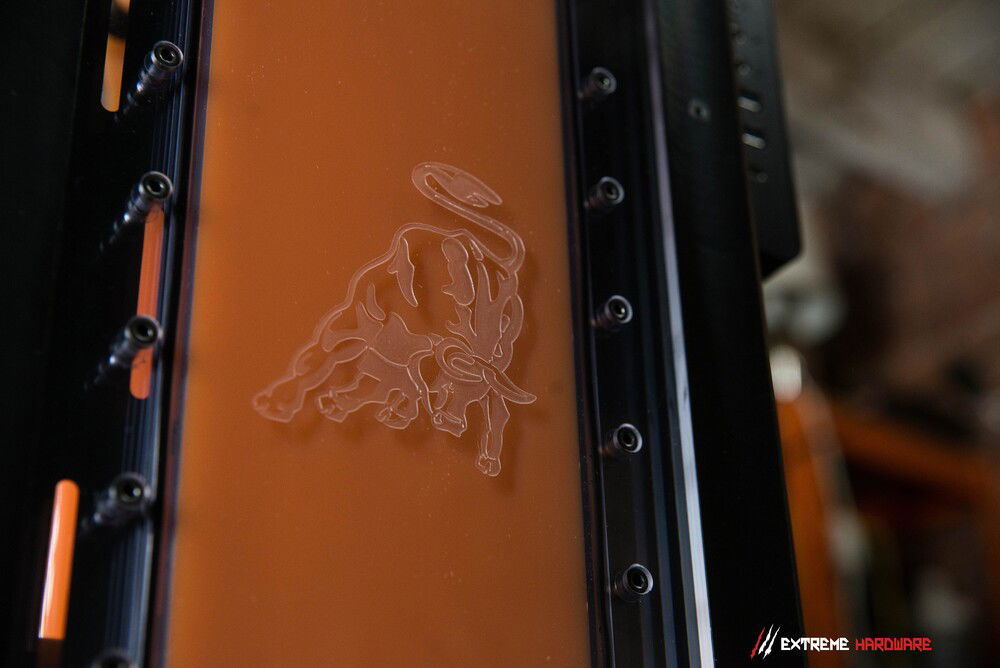

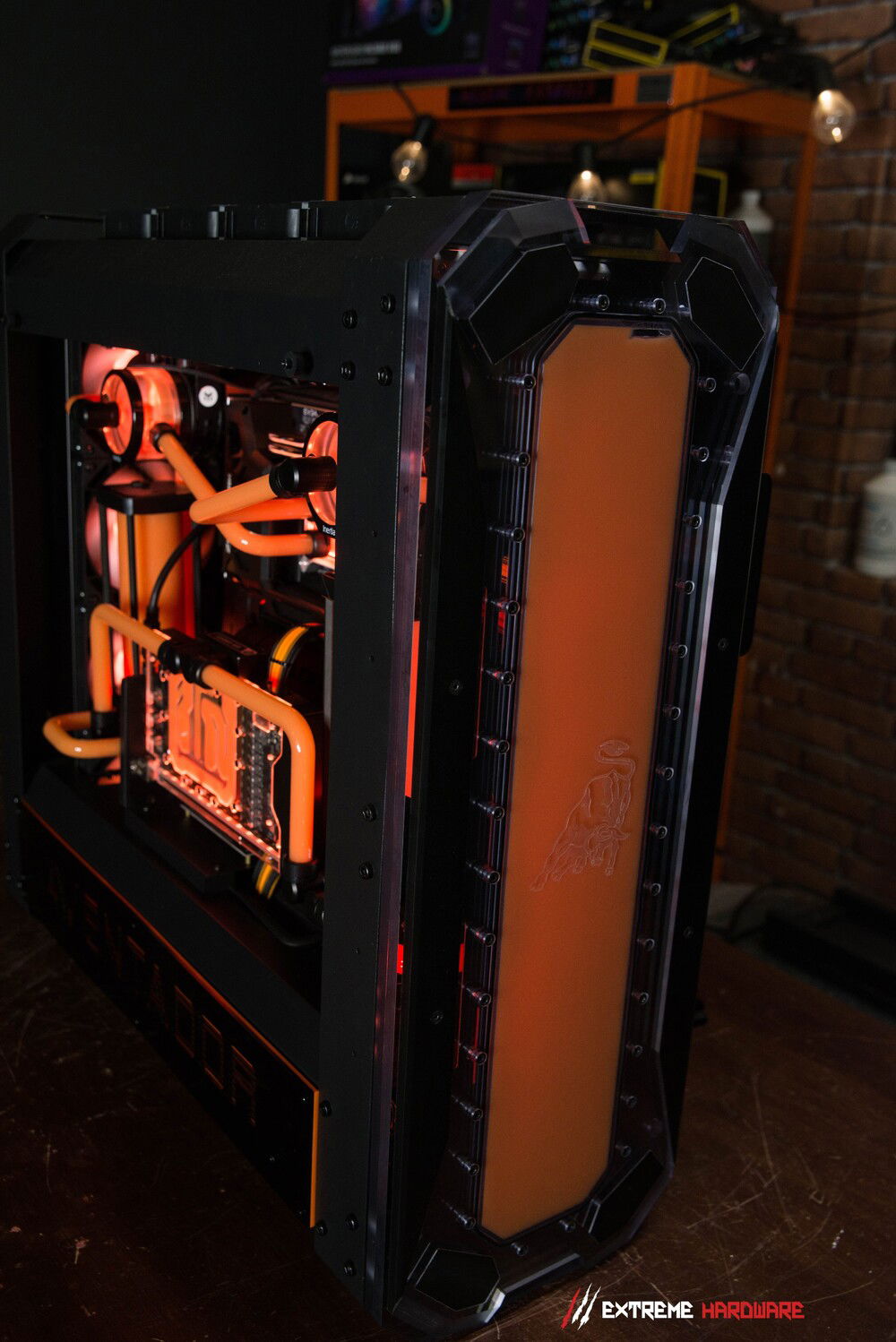

Two classic pumps in tube reservoirs and two additional EK WB Inertia pumps. At the front of the machine there is a huge cassette reservoir, inspired by the Lamborghini Aventador front bumper, designed and made by Bartłomiej from Bartxstore. When we tested the system with one D5 pump turned on (set at 100% RPM), the liquid barely moved, only two pumps allowed us to obtain an almost optimal flow, and with three pumps active it was ok. However, only four D5s working synchronously allowed us to achieve a very satisfactory effect. As a result, it is difficult to exceed around 48-49 C on the RTX 4090 STRIX at PT 600W and OC + 150/+1200 under full load in long-term gameplay, and with pumps set to only 60% and fans spinning around 780-800 RPM .


i9-13900KS on the 5.7 GHz P / 4.4E / 4.8 Ring profile under full multi-hour 100% load (AVX renderings) and constant consumption of about 280 W does not exceed 70C on the hottest core. Even setting the CPU to 6 GHz was not a problem (all P cores, and 4.5 E / 5.0 RIng), but the voltage demand in this case is impractical, although the temperatures do not exceed 90C with a continuous consumption of around 340W of the CPU itself.
For comparison, in games the CPU, even on the most pressed OC profile, does not exceed around 45C.

Initially, this configuration was to be created in 2022 and that's when its current owner Krzysztof purchased EVGA Z690 DK, but due to various personal matters and redirection of attention to these matters, the implementation of the project and the collection of all key components were finally postponed to 2023. Here comes the great EVGA Z690 DARK KINGPIN motherboard, which allowed for very precise adjustments of both the CPU and the memory itself, which resulted in achieving 7800 MHz CL36.46.46.36 T2 G2 with improved row II and III. However, due to the much higher demand for VDD/VDDQ and IMC voltages to achieve 7800 MHz (8000 is also possible, but the voltage requirements are impractical for 24/7), the memories ultimately work in the 7600 MHz CL36.46.46.36 T2 G2 configuration, but the voltages are at least VDD /VDDQ 1.46 vs 1.58 is a significant difference and it is definitely more practical to use a profile with a lower voltage specification, safer for the equipment in long-term use.

EH "AVENTADOR" spec :

Intel i9-13900KS - 6.0 GHz P / 4.5 GHz E / 5.0 GHz Ring (Main profile 56/44/48)
EVGA Z690 DARK KINGPIN
2x16 Trident Z5 7800 MHz CL36.46.46.36 (Main profile 7600 CL36.46.46.36)
ROG RTX 4090 STRIX White OC / PT 600 / Core +150 / VRAM + 1200
2x SAMSUNG 990 PRO 1 TB
1x SAMSUNG 990 PRO 2 TB
CORSAIR HX 1200
RAIJNTEK Eris EVO
Lian LI PCI-E 4.0 x16 riser

Custom LC :

EK Quantum 560/60
EK Quantum 480/60

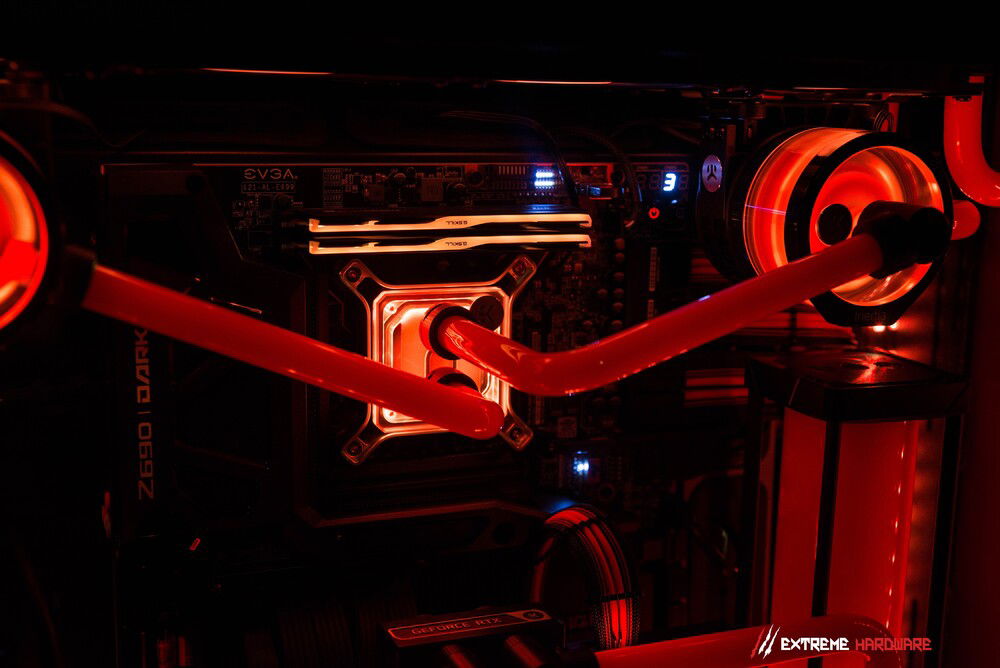

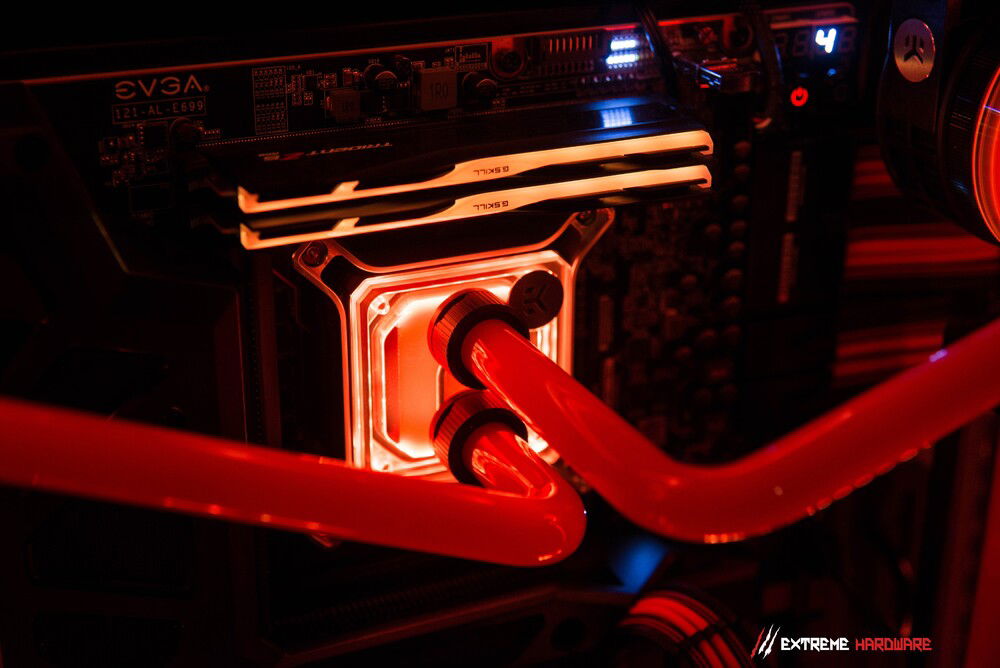

EK Magnitude LGA 1700 Nickiel Plexi

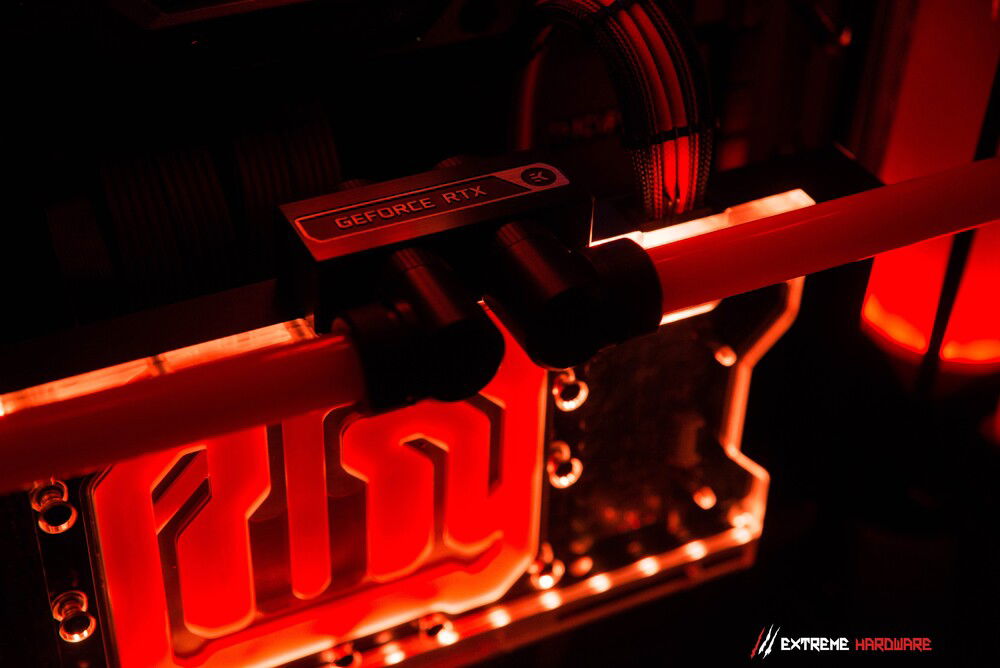

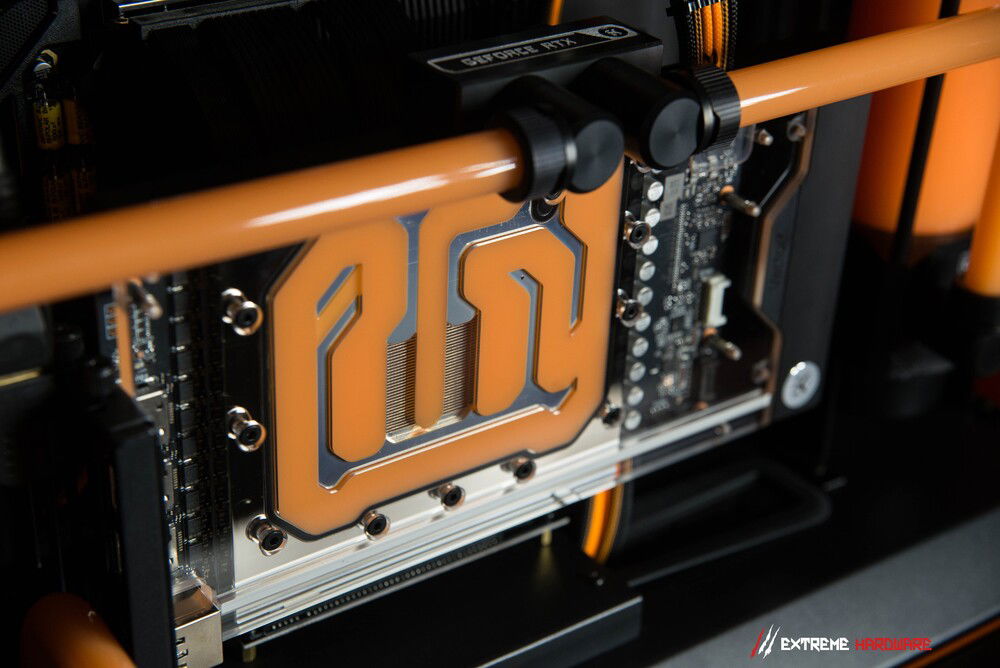

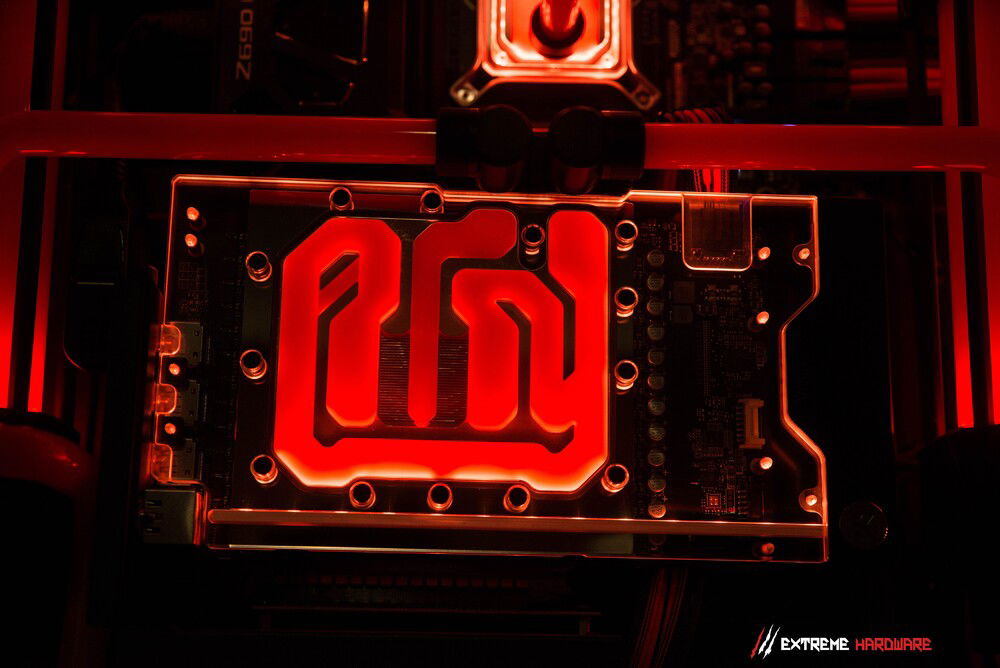

EK Vector 2 RTX 4090 STRIX Nickiel Plexi
2x EK D5 Inertia Plexi
2x Alphacool D5 APEX
2x Alphacool Acetal Glass 250 mm
8x EK 120 mm FPT D-RGB
8x EK 140 mm FPT D-RGB
2x XSPC D-RGB Splitter (2x 36W)
4x EK Cloud White
2x EK Dye BOX
EK Torque Black HTC / 90 etc. (30+)
Thermal Grizzly Contact Frame LGA 1700
Thermal Grizzly Krynoaut Extreme
