V2.0
V2.0
Finished install of the Mycro Direct Die Pro
Finished install of the Mycro Direct Die Pro

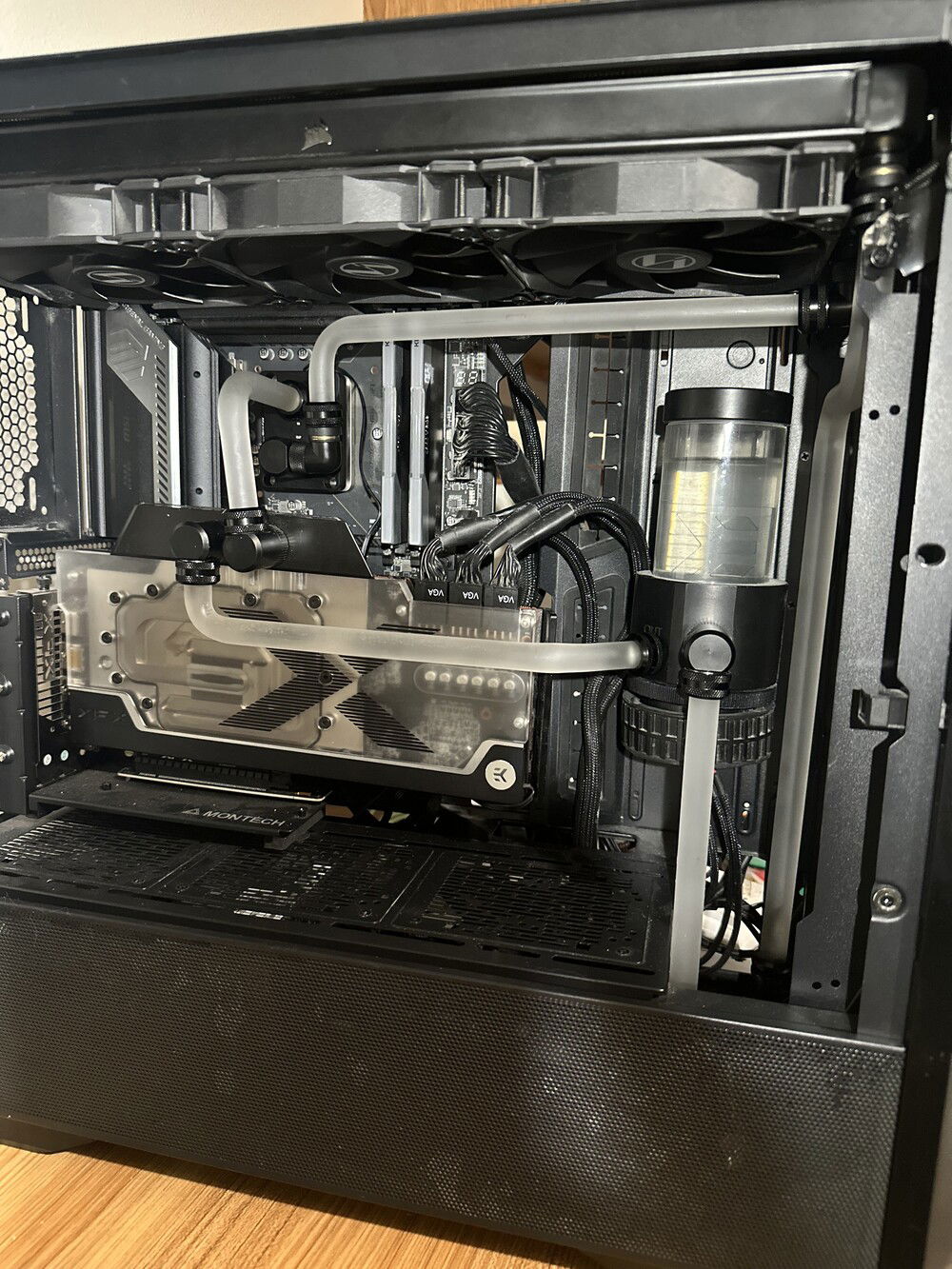

V2.0 Direct Die Cooling
V2.0 Direct Die Cooling

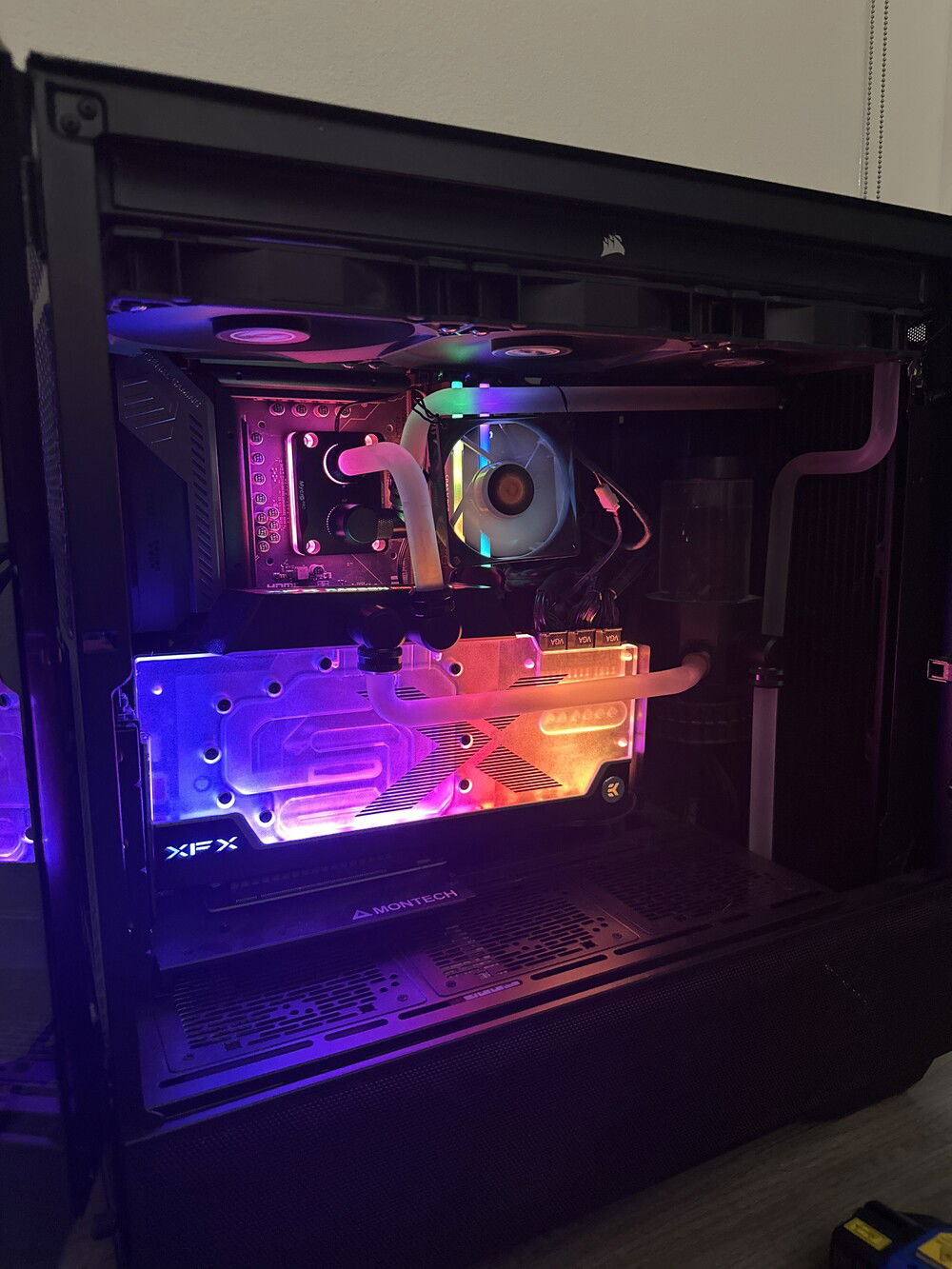

V2.0 Gotta keep the ram cooled!
V2.0 Gotta keep the ram cooled!

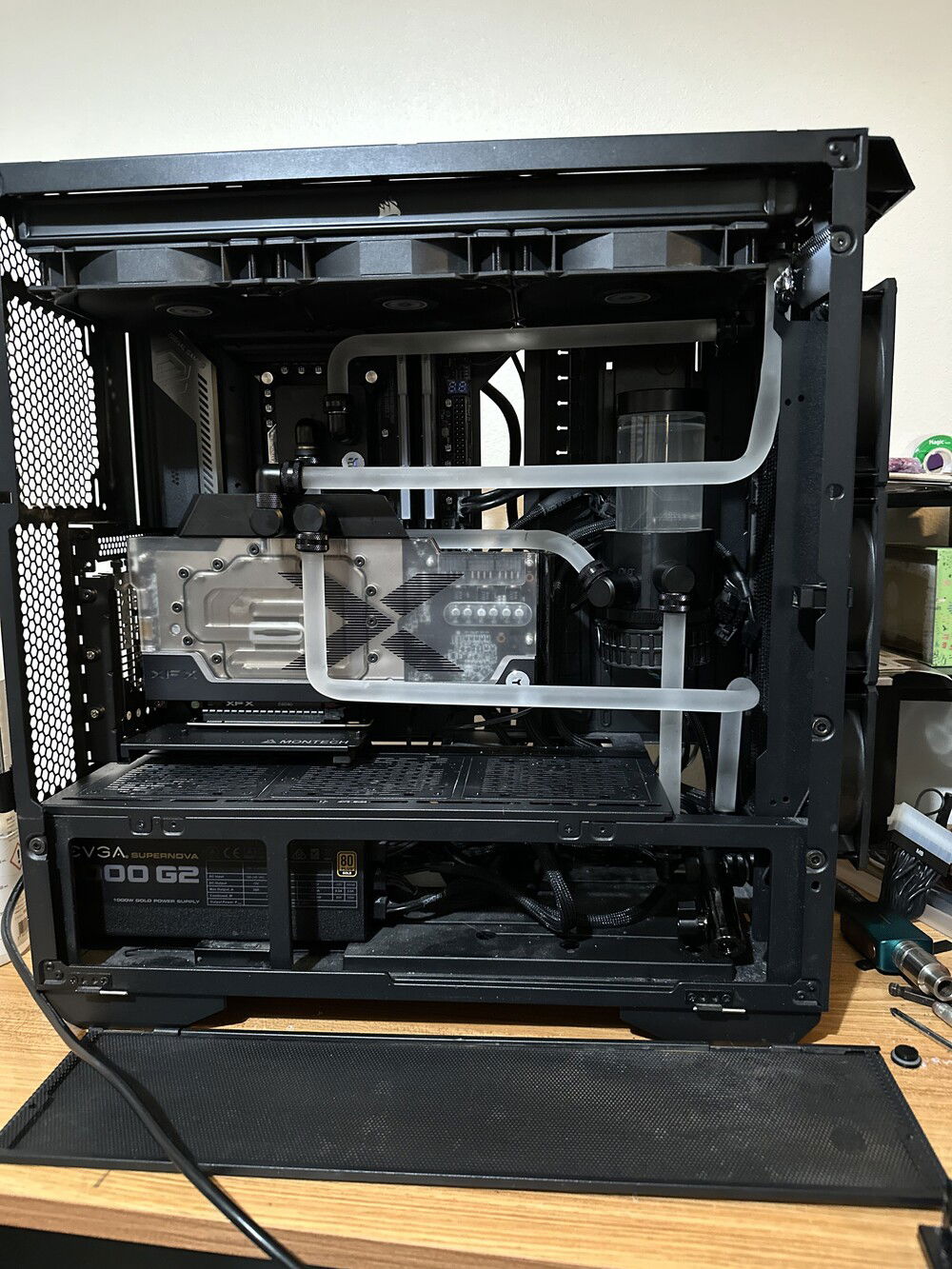

V1.5 Finished installing Vertical GPU mount and 420mm Rad! Just dont pay attention to that gpu return 90... yuk!
V1.5 Finished installing Vertical GPU mount and 420mm Rad! Just dont pay attention to that gpu return 90... yuk!

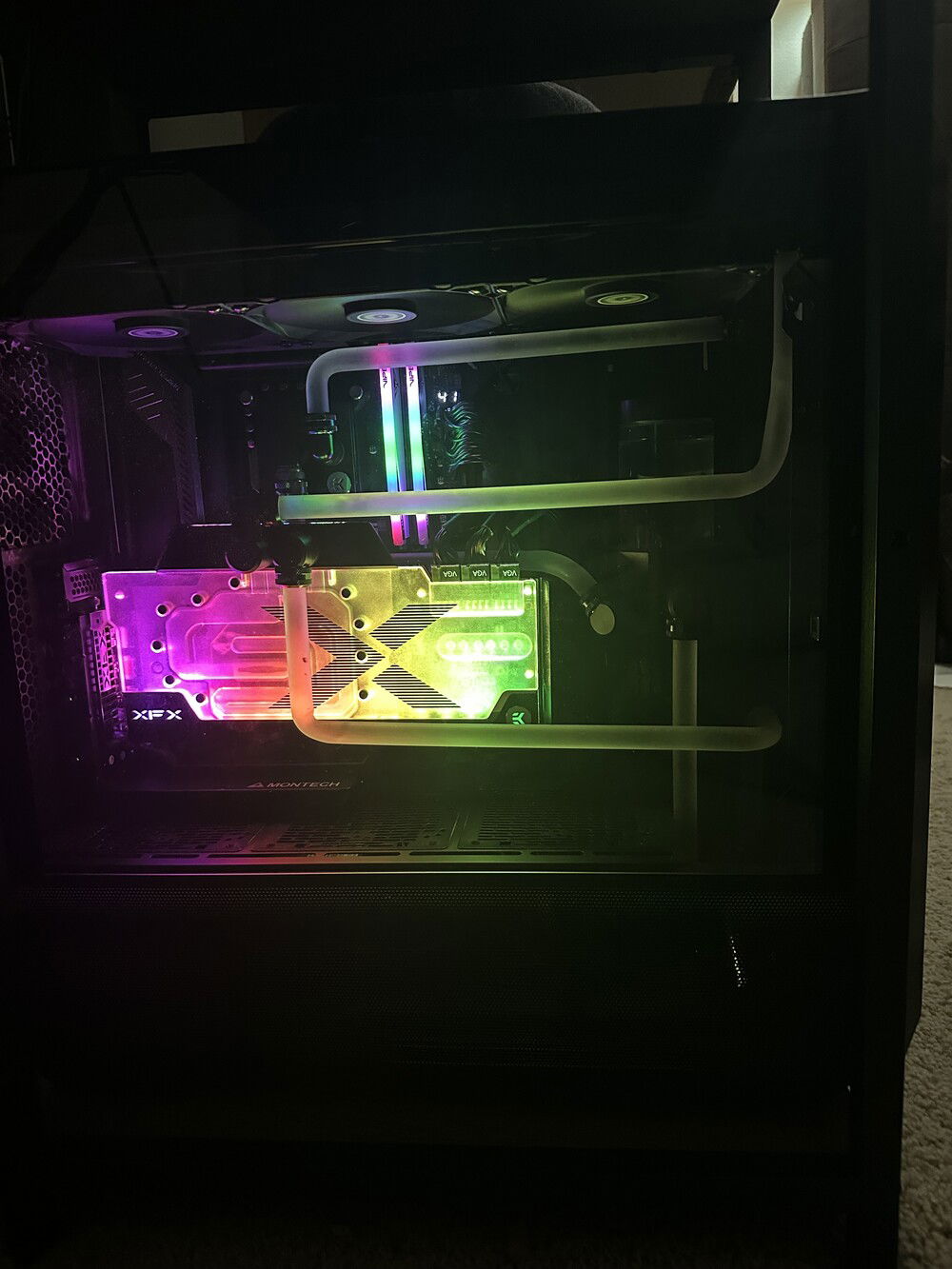

V1.5 Waiting for Fan controller to plug in both loop temp and pump RGB
V1.5 Waiting for Fan controller to plug in both loop temp and pump RGB

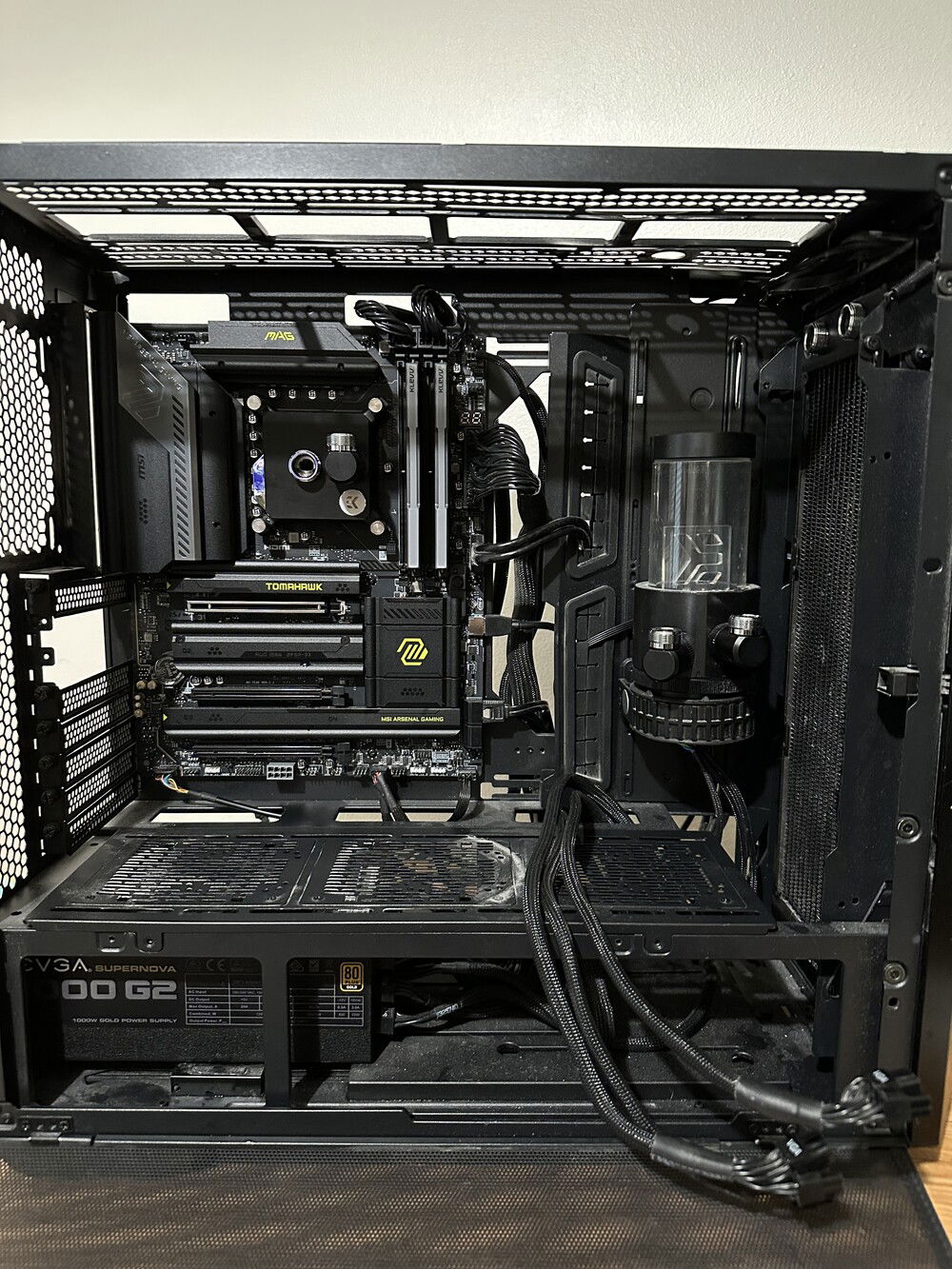

V1.5 Fresh Slate to Start!
V1.5 Fresh Slate to Start!

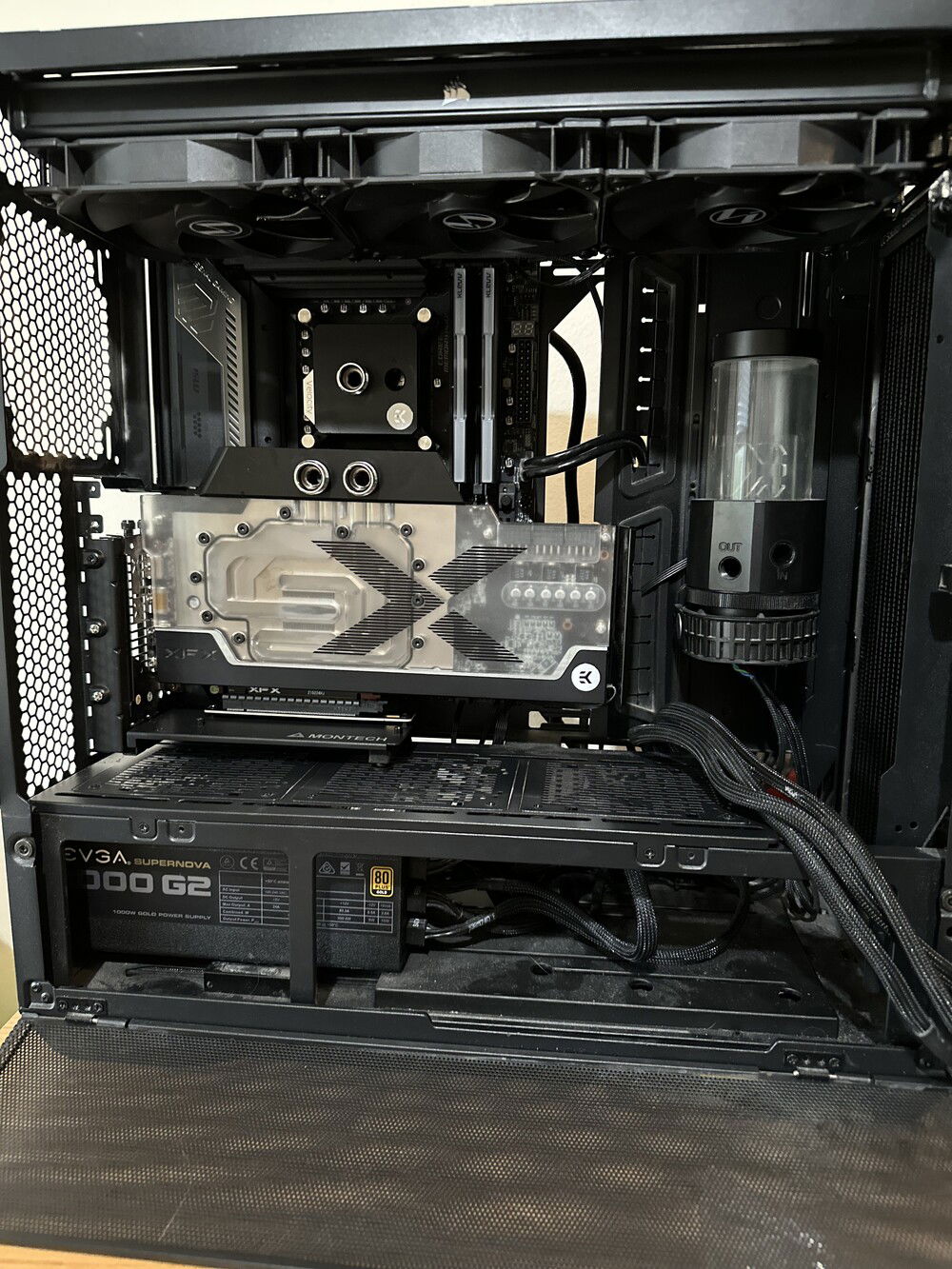

V1.5 GPU mount works but its a little...... off.
V1.5 GPU mount works but its a little...... off.

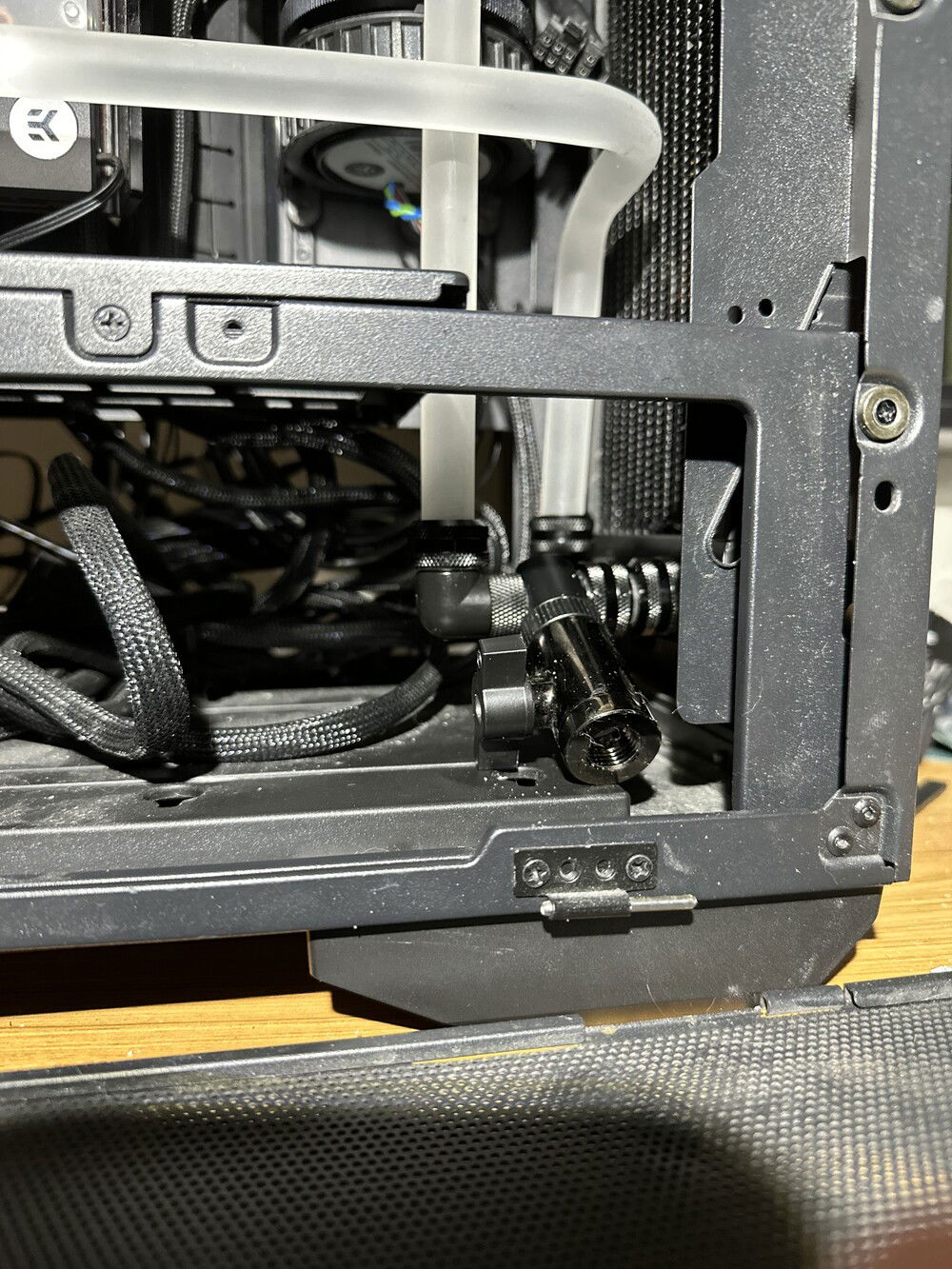

V1.5 Finally added a drain! It is soo much easier to do maintenance now.
V1.5 Finally added a drain! It is soo much easier to do maintenance now.

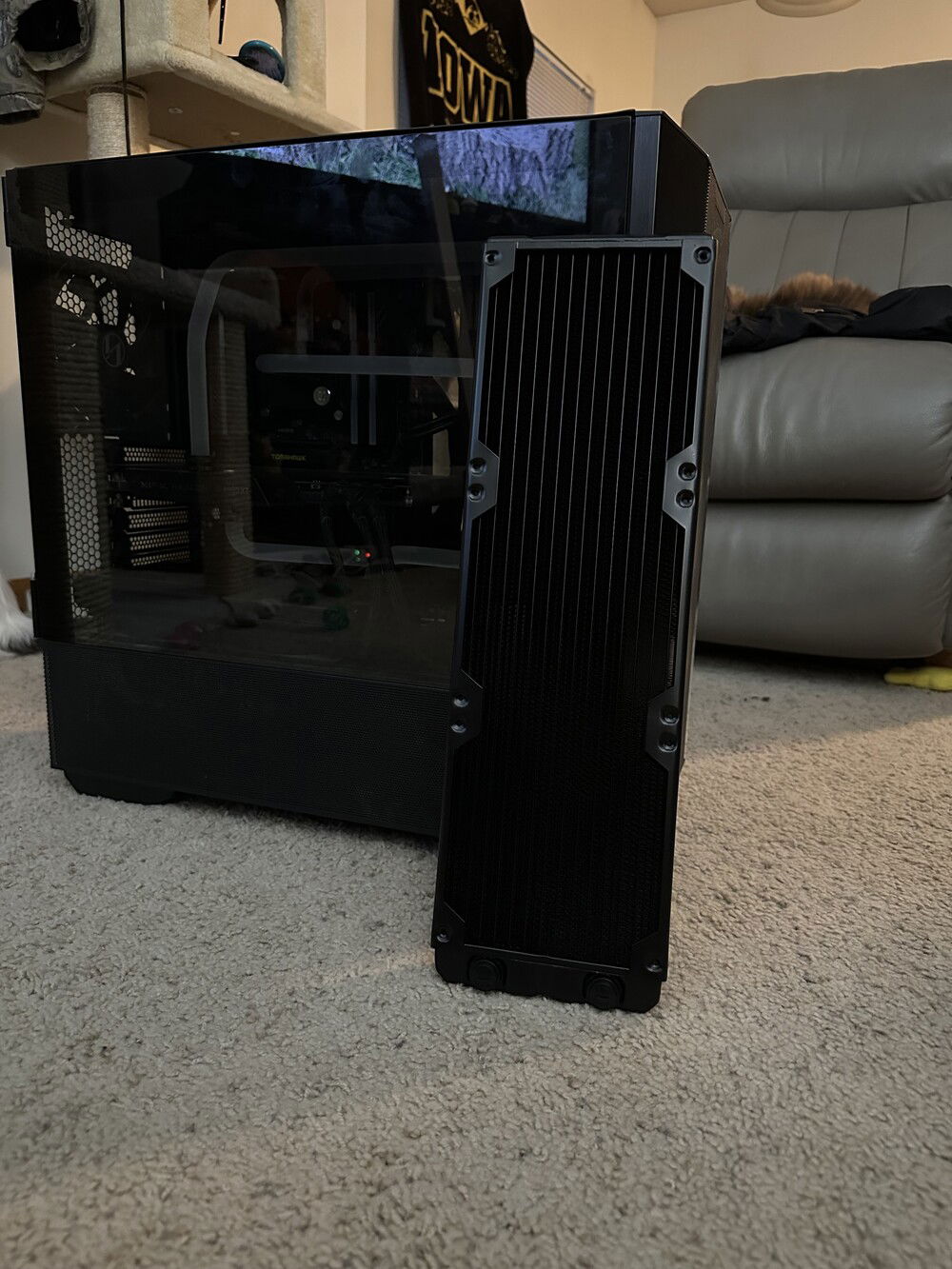

V1.5 Showing just how big the 420mm Rad is.
V1.5 Showing just how big the 420mm Rad is.

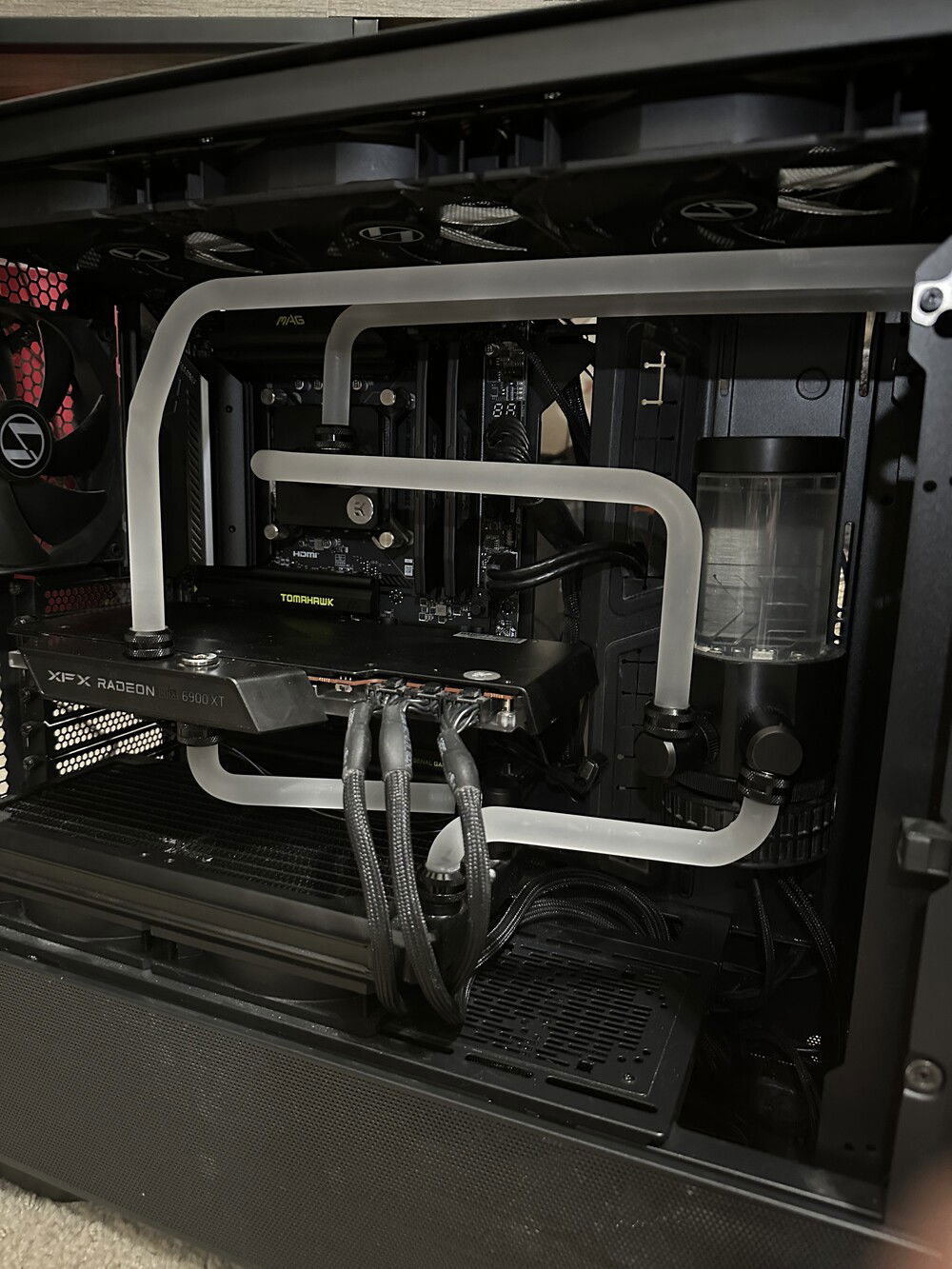

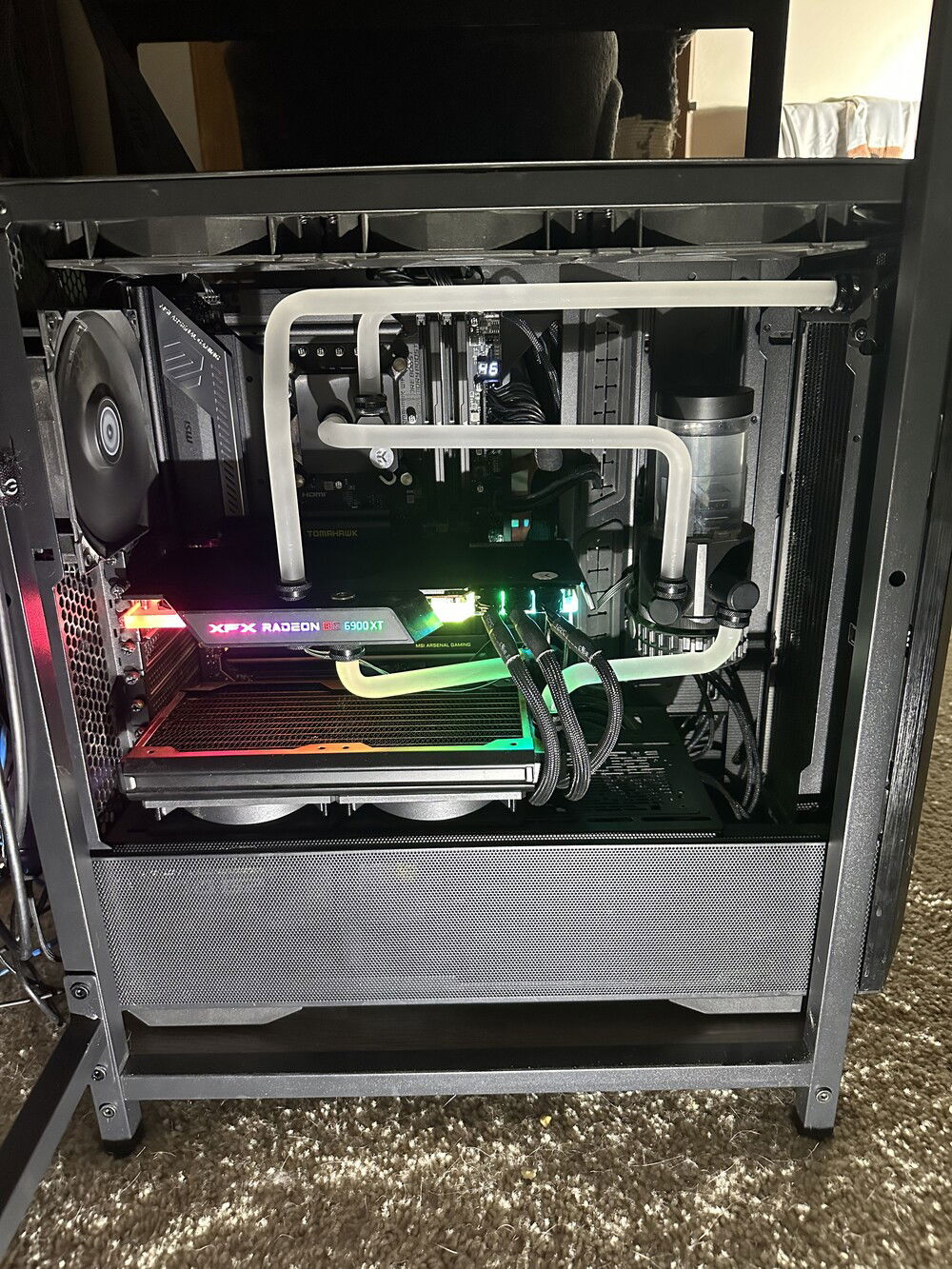

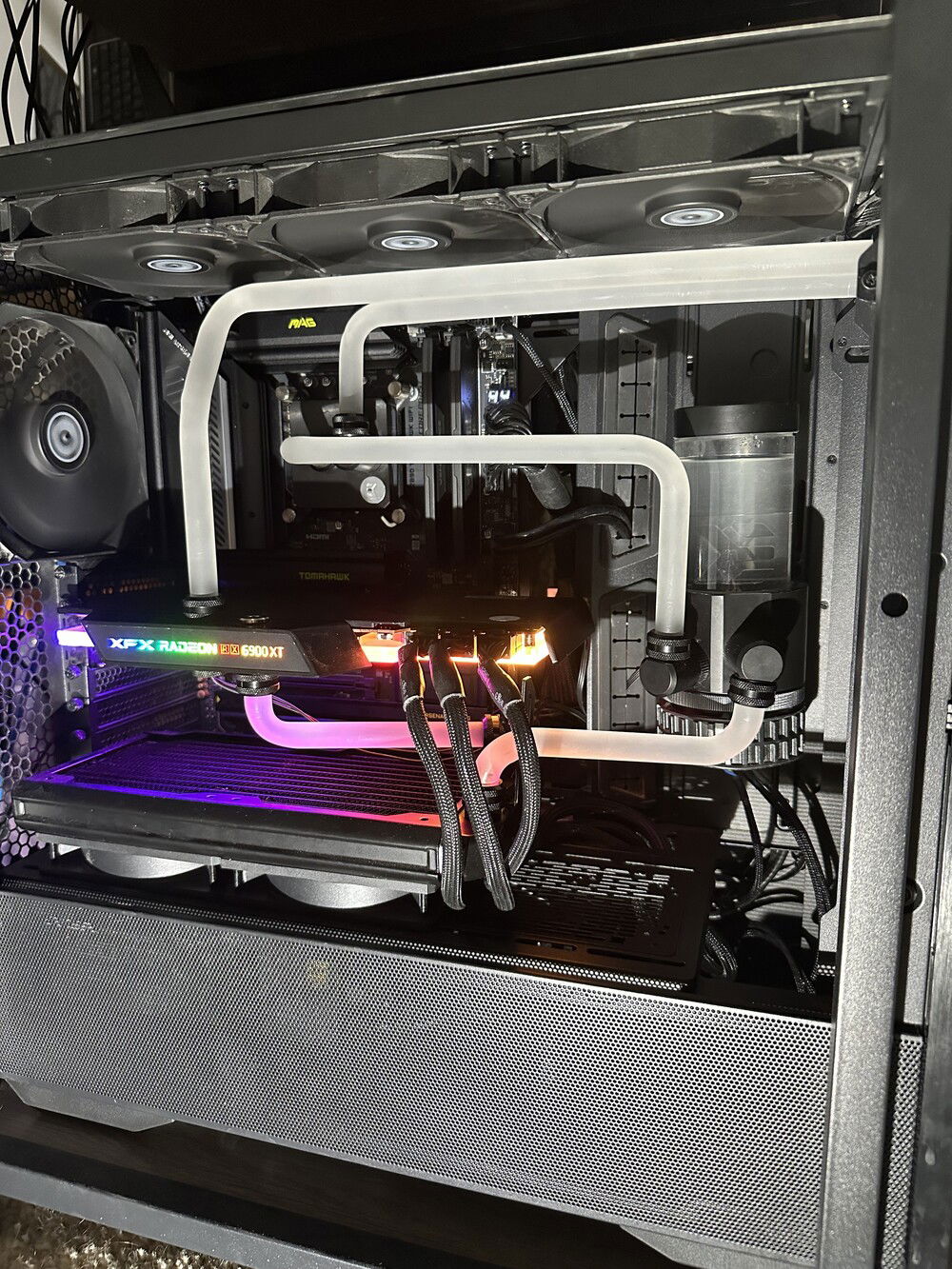

V1.0
V1.0
V1.0
V1.0
V1.0
V1.0

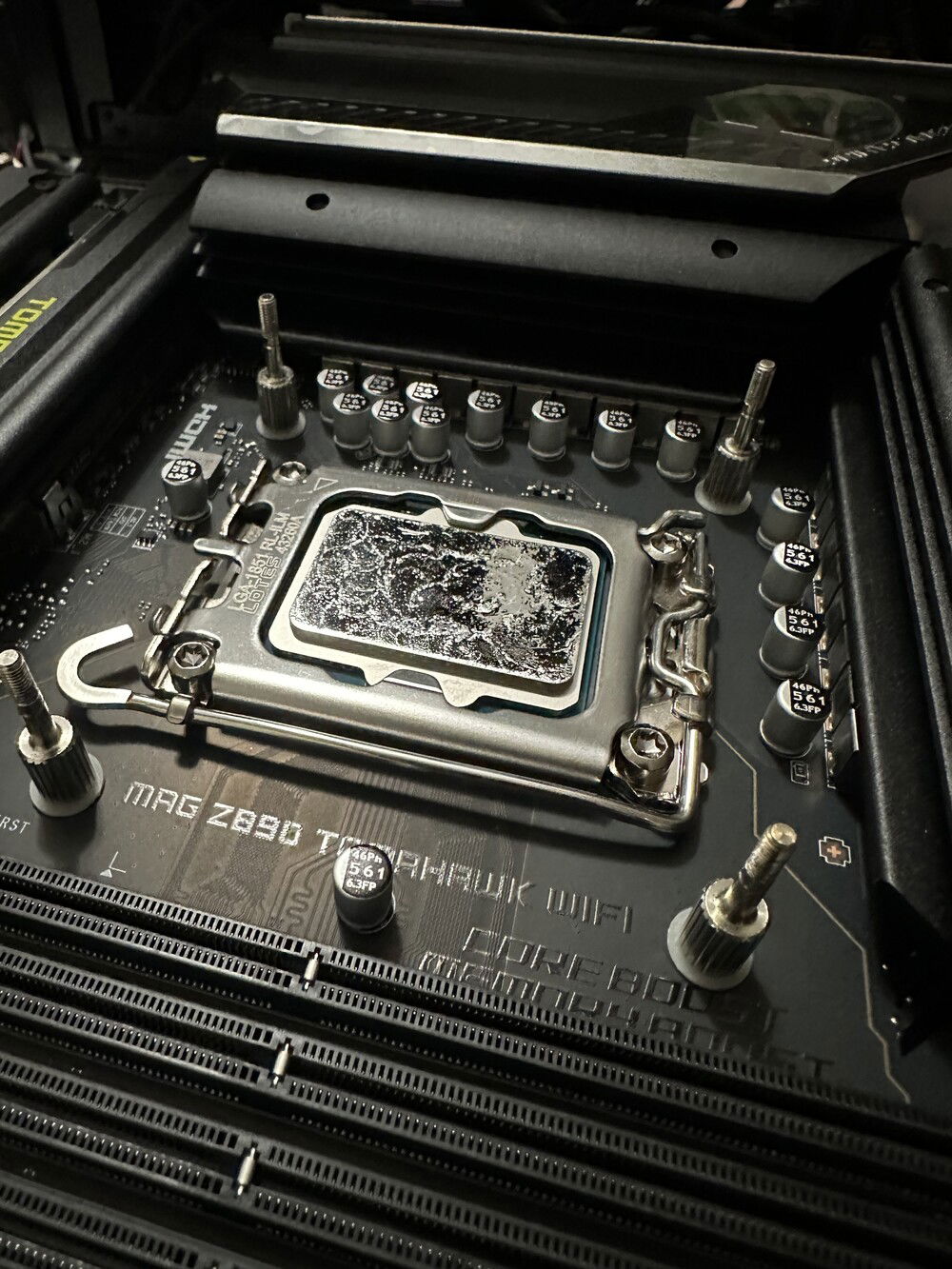

Little bit O liquid metal
Little bit O liquid metal

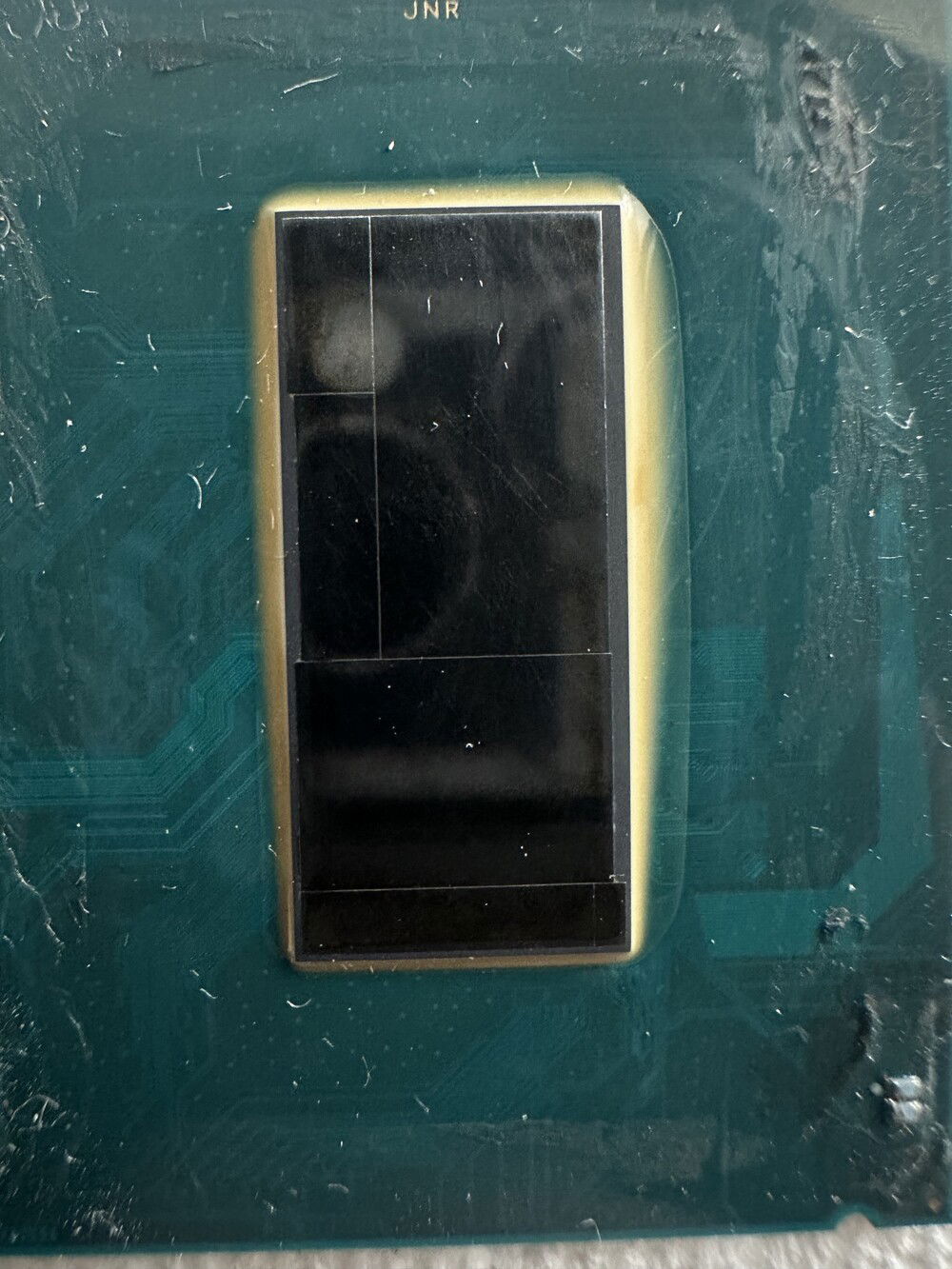

Couple of die shots
Couple of die shots.
Couple of die shots.

Direct Die 285K Madness

Intel Core Ultra 285K
MSI z890 Tomahawk motherboard
32GB Klevv Cras V 7600 C36 @ 8000 C36-46-46-128 68.5ns AIDA64
6900XTHT GPU
Mycro Direct Die Pro block
Artic PWM fans all around
SK Hynix P41 2TB main boot drive
Samsung 980 Pro 1TB secondary drive
Lian LI Lancool 3 case
360mm EK Radiator up front
420mm Radiator on top
EK D5 Pump/Res combo
Montech Universal vertical GPU mount


Thanks to the amazing results from delidding the 285K I have been able to successfully overclock it even further. It is now daily ran with 5.7ghz all P cores, 5.0 all e cores (got 1 bad cluster that just refuses to be stable past 5ghz Emoji) 3.6 D2D, 3.4 NGU, 4.1 cache. Scores over 47000 in r23 and 2650+ in r24. Any questions about the build please asks.
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 859.00
Intel - Core Ultra 9 285K
Socket: LGA 1851
Cores: 24
Integrated Graphics: Yes
Motherboard
$ 189.64
MSI - Mag Tomahawk (WiFi)
Chipset: Z790
CPU Socket: LGA 1700
Size: ATX
Memory
$ 103.99
KLEVV - Cras V (Black/RGB)
Type: DDR5
Capacity: 32 GB
Graphics
XFX - Radeon Speedster Zero (EKWB Waterblock Limited Edition)
Chip Manufacturer: AMD
Chip: RX 6900 XT
Interface: PCIe x16
Storage
$ 99.50
Samsung - 980
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 599.99
EVGA - SuperNOVA G2 G+
Wattage: 1600
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 269.00
Lian Li - Lancool III
Type: Full-Tower
Side Panel: Tempered Glass
