Desk Dual PC

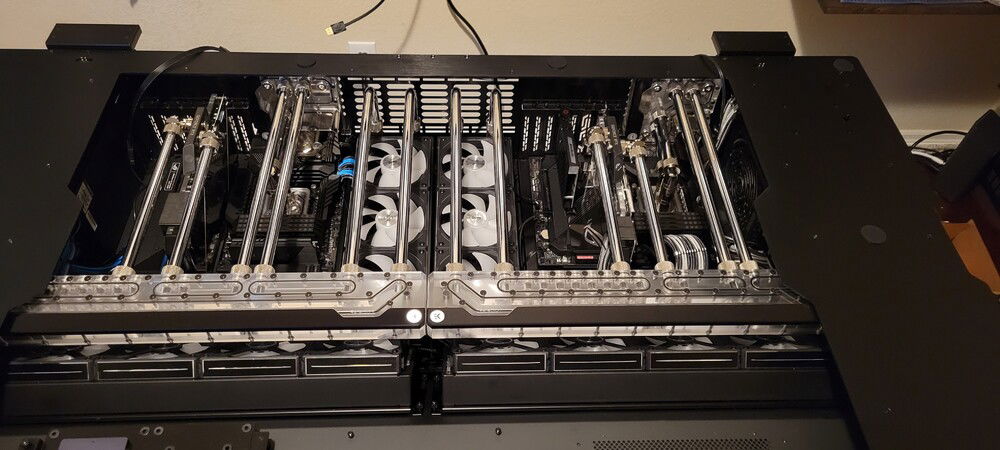

Found the desk in stock and decided to do another custom build. All watercooling products are from EKWB except for the tubing (Bykski) and the compression fittings (Primochill). I liked Primochill's O-ring design more than EK's Luckily, their Nickel fittings were similar in color. All the runs were made pretty simple with EK's reservoir and distribution plates. EK's Torque fittings lineup made all the mismatches disappear and made the build very clean and parallel. The only runs I was concerned with was the cpu to the reservoir, as the holes weren't 100% lined up, so a 90 bend wouldn't work for me as the mismatch would be shown more readily than a straight tube supported by extensions and a 90 fitting. Didn't want to use another opaque fluid or Mystic Fog so I decided to use Chrome plated Copper tubing to make the tubes bring their own Aesthetic to the build. Not interested in blockage from opaque coolants (see my caselabs build, and before I used Vue). Copied the 10850k build by using a quantum velocity waterblock on the Z690 build, the new specifically designed LGA1700 waterblock (quantum velocity2) didn't provide great connections to the reservoir no matter which way it was oriented (and yes I used the new LGA1700 backplate). Thanks to Performance PC's for having all these fittings and blocks in stock!
Color(s): Black Blue Chrome Green
RGB Lighting? Yes
Theme: Desk / Table
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Hardware

CPU
$ 299.97
Intel - Core i9-10850k
Socket: LGA 1200
Cores: 10
Integrated Graphics: Yes
CPU
$ 416.53
Intel - Core i9-12900K
Socket: LGA 1700
Cores: 16
Motherboard
$ 959.50
ASUS - Rog Maximus Extreme
Chipset: Z690
CPU Socket: LGA 1700
Size: E-ATX
Motherboard
$ 500.00
ASUS - ROG Maximus XI Formula
Chipset: Z490
CPU Socket: LGA 1200
Size: ATX
Memory
$ 599.98
Corsair - Dominator Platinum (3600MHz) (Black/RGB) (2x)
Type: DDR4
Capacity: 16 GB
Memory
$ 739.98
Corsair - Dominator Platinum (5600MHz) (Black/RGB) (2x)
Type: DDR5
Capacity: 32 GB
Graphics
$ 1,499.00
EVGA - GeForce FTW3 Ultra Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3080 Ti
Interface: PCIe x16
Graphics
$ 660.10
MSI - Gaming X Trio
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Interface: PCIe x16
Storage
$ 599.95
Samsung - 980 Pro (5x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 328.00
EVGA - SuperNOVA 1200
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
PSU
$ 299.66
EVGA - SuperNOVA P2
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 2,100.00
Lian Li - DK-05 FX
Type: Desk
Side Panel: Tempered Glass
Case Fan
$ 447.75
Lian Li - Uni AL120 (5x)
Size: 120 mm
Estimated total value of this build:
$ 9,365.86
