An old Poweredge 2200 server pc that i rescue from the scrapbin at work.
gutted it and put a customloop ryzen system in it.
Phobya Xtreme 200 in front tallest rad i could fit
NexXxos gpx on gpu, 120mm rad in back and a Eisblock xpx on the ryzen 1600

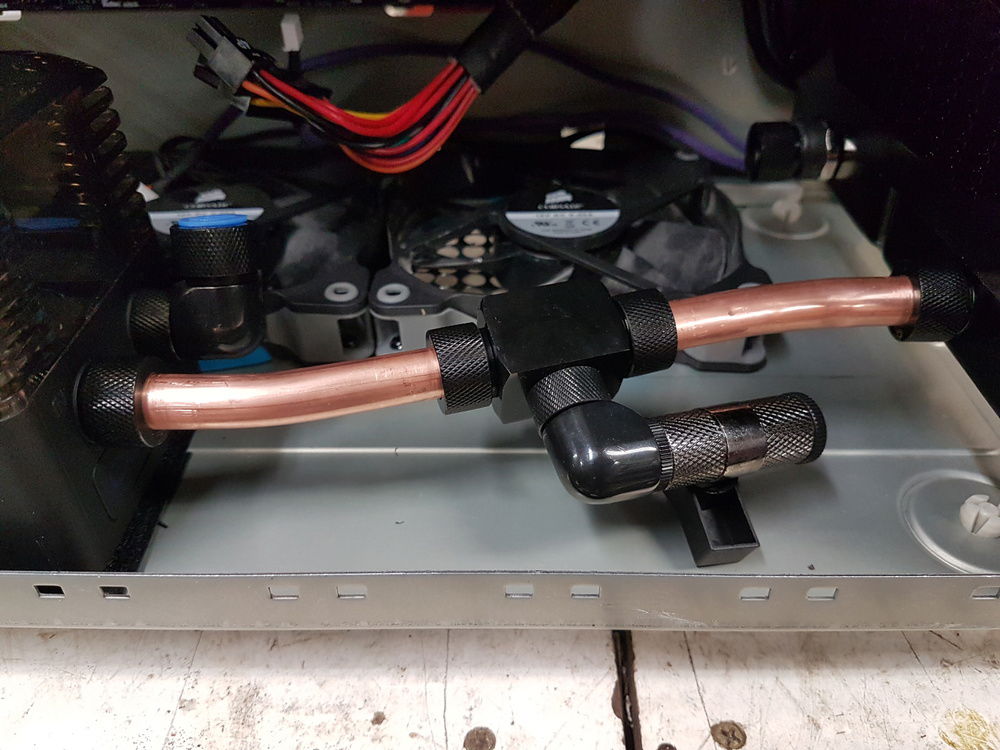

Drainpipe
Eisstation dc-lt 2600 pump
Commence piping with 12 mm copper pipe

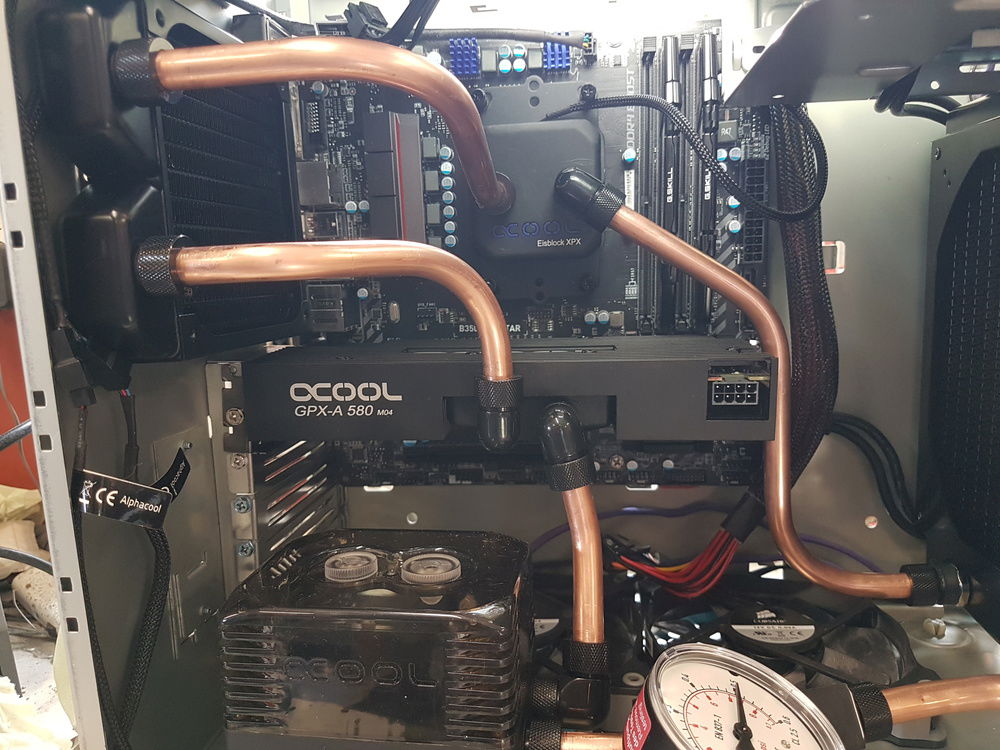

All done

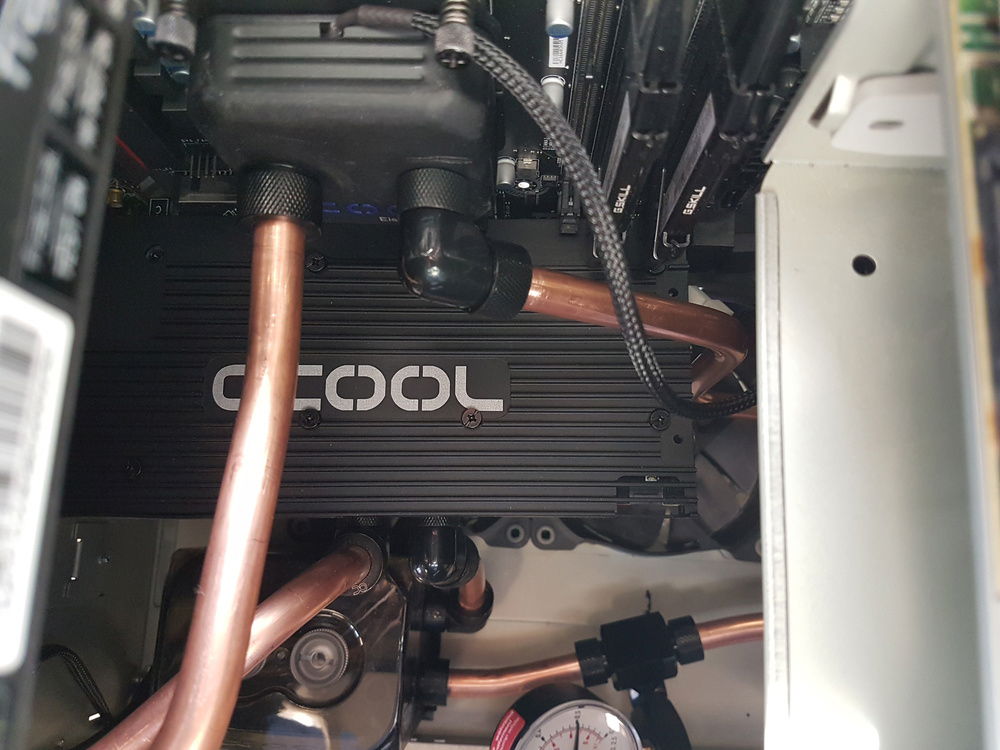

topp view
This pipe from gpu to rad was driving me crazy, it took me 3 times to make it right.

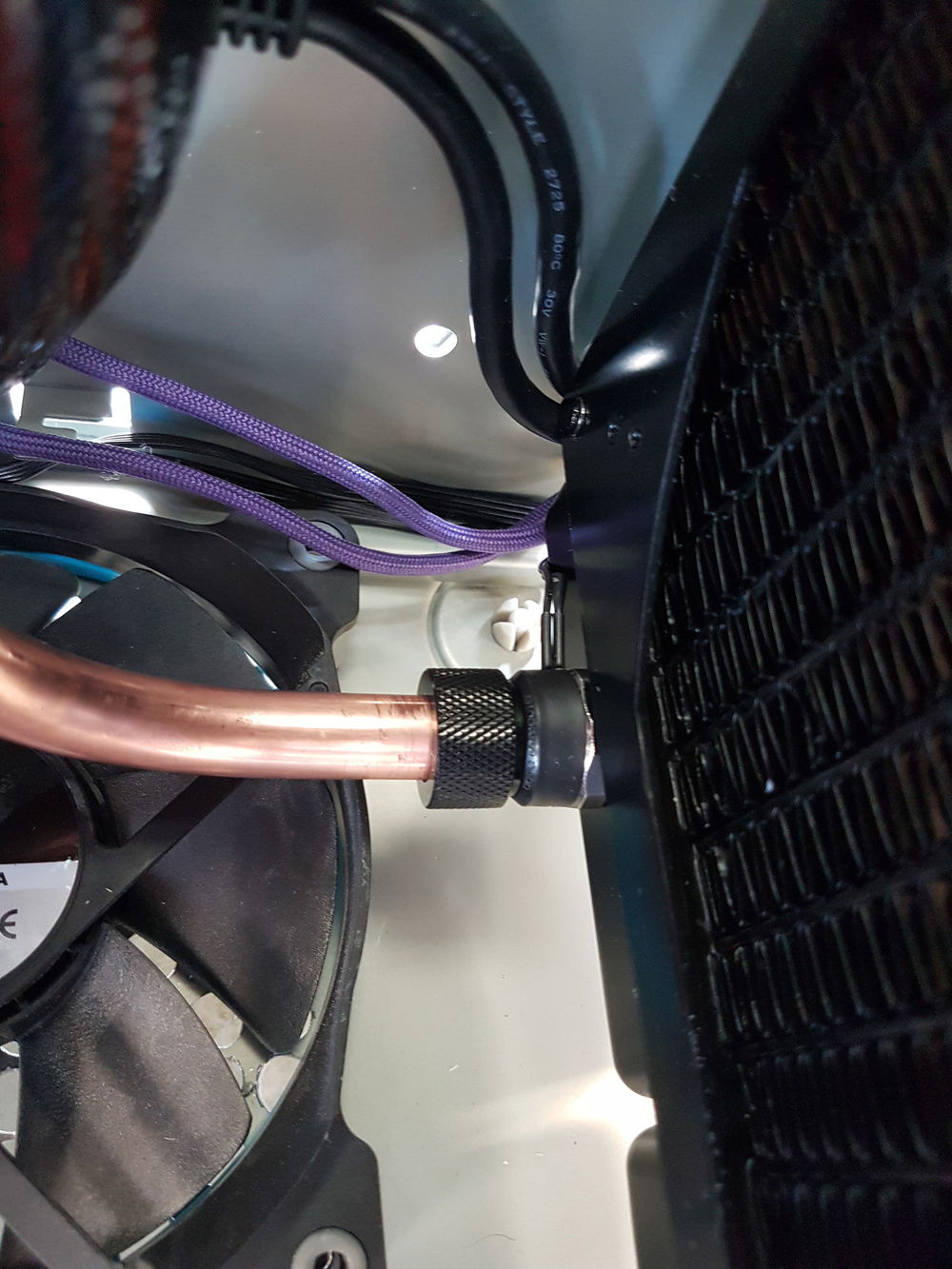

Tempsensor on front rad
bending tool borrowed from work

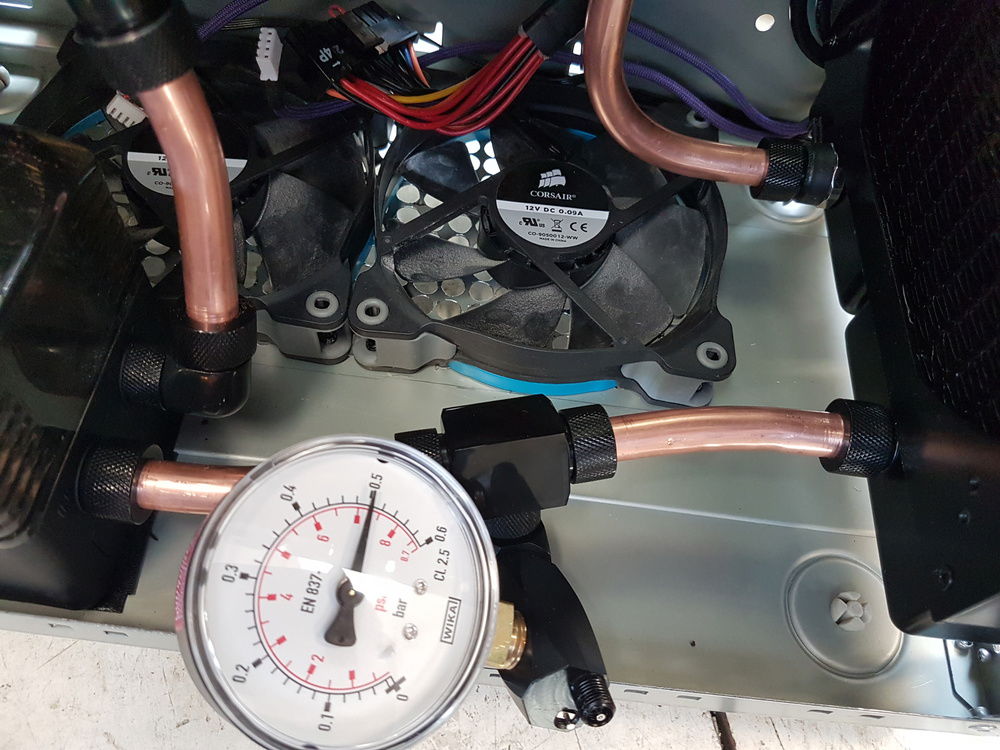

Pressure test with Aquacomputer Dr. Drop pressure tester.
it stayed on 0.5 bars for over 6 hours and when i check on the 11 hours mark i lost 0.1 bar
water filling and leak test
No leaks in the 5 hours it ran

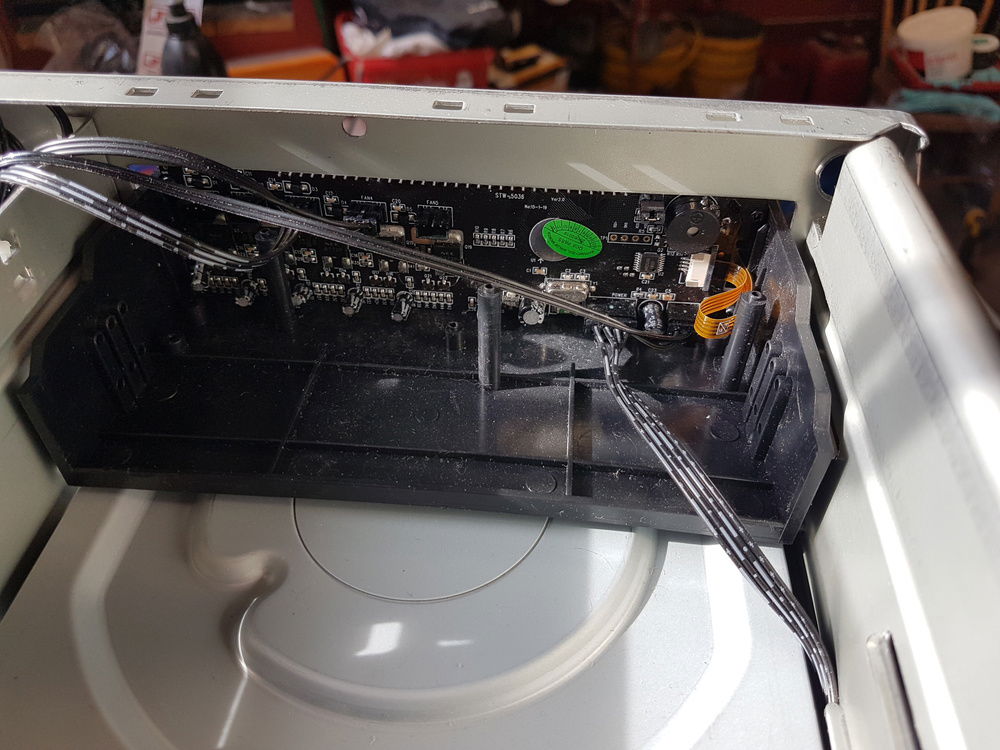

a simple STW fan controller that control the system

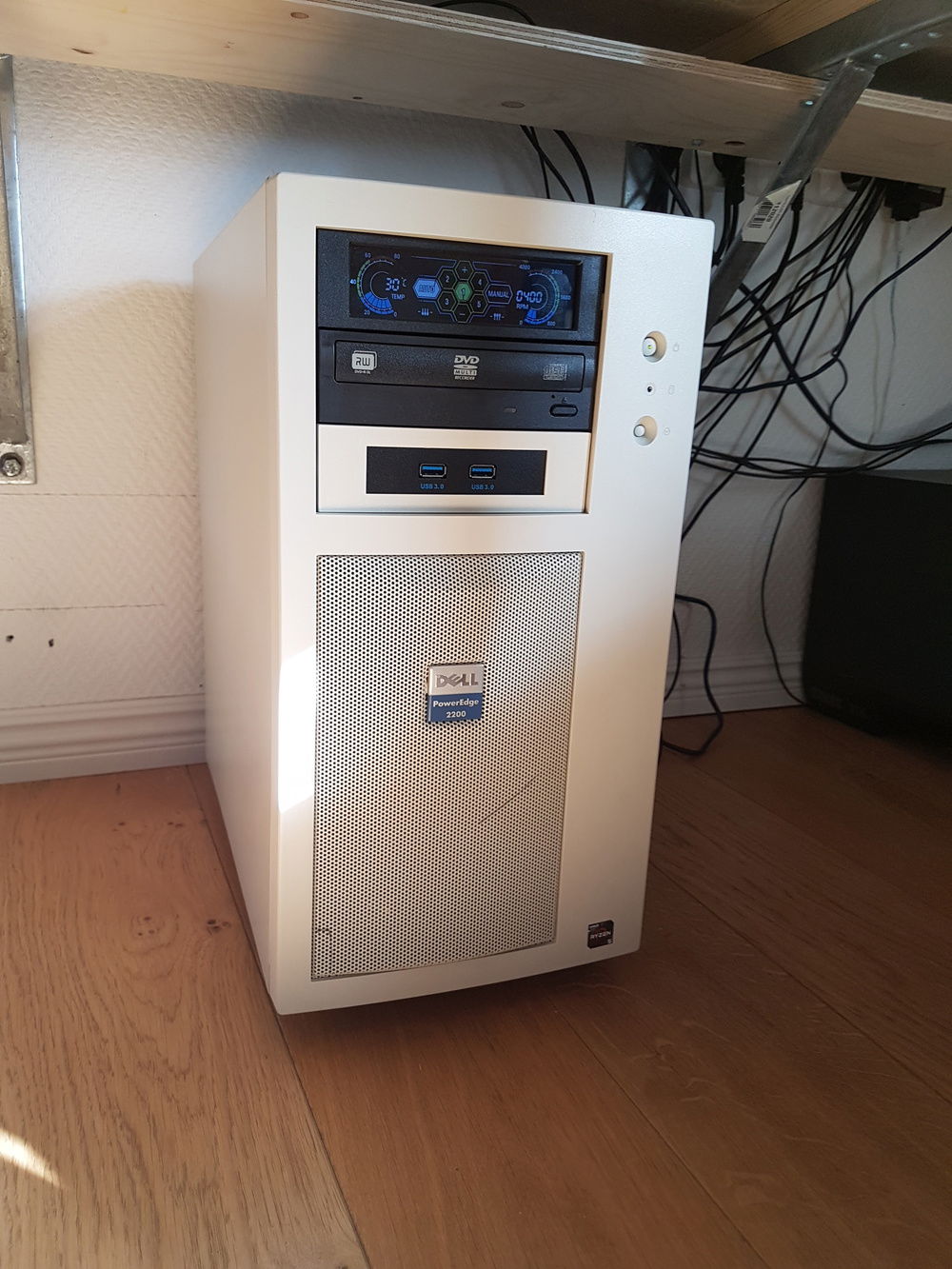

Dell PowerEdge 2200 2019 edition
Color(s): Beige
RGB Lighting? No
Theme: Retro
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build
