Arctic Storm

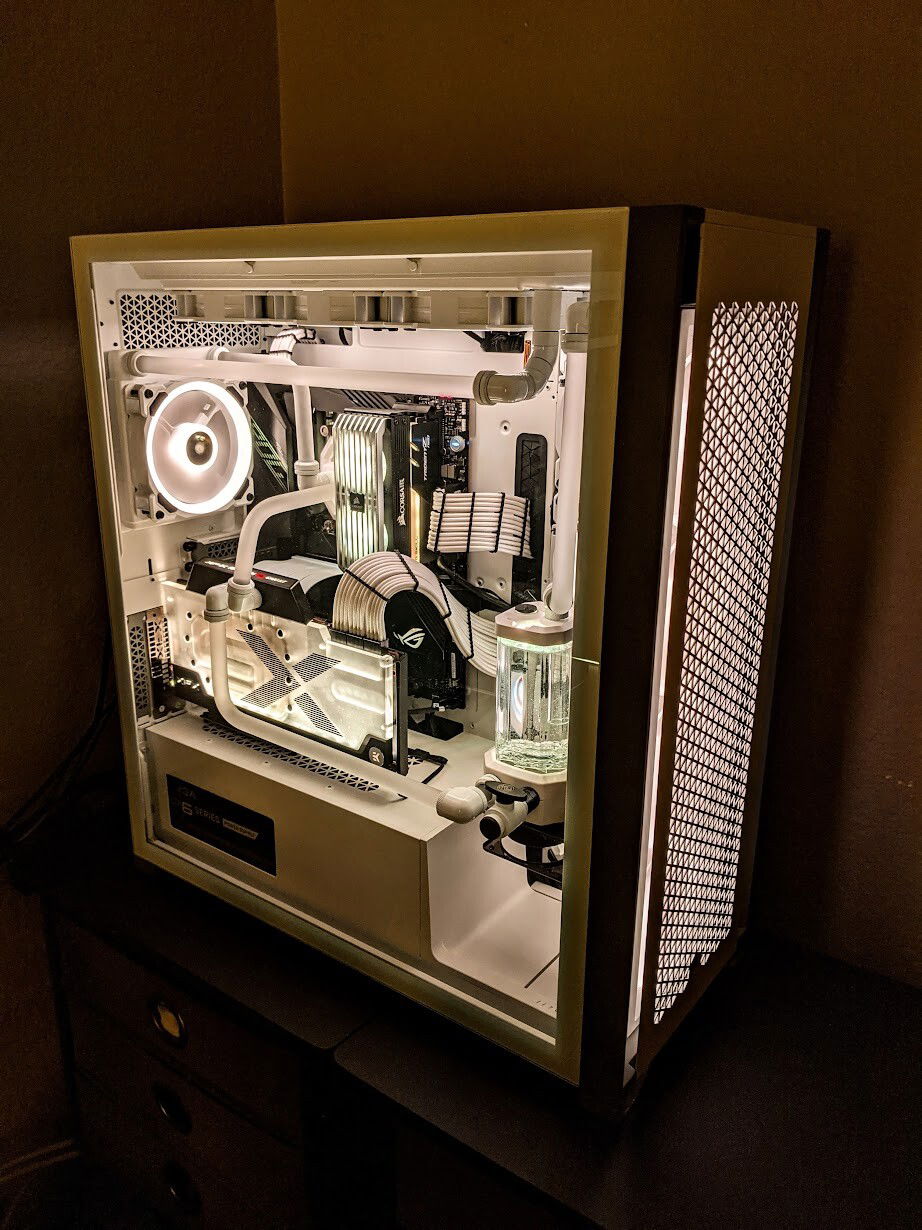

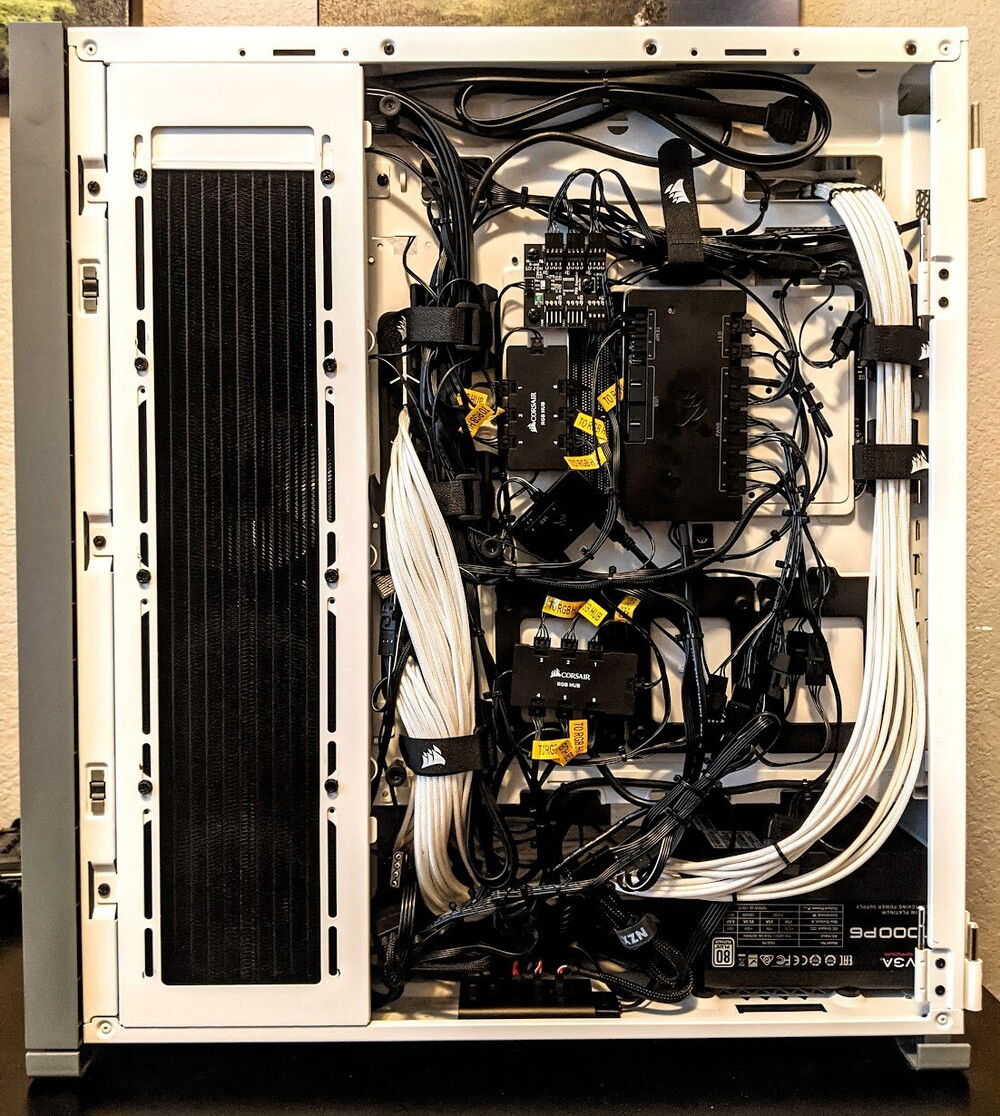

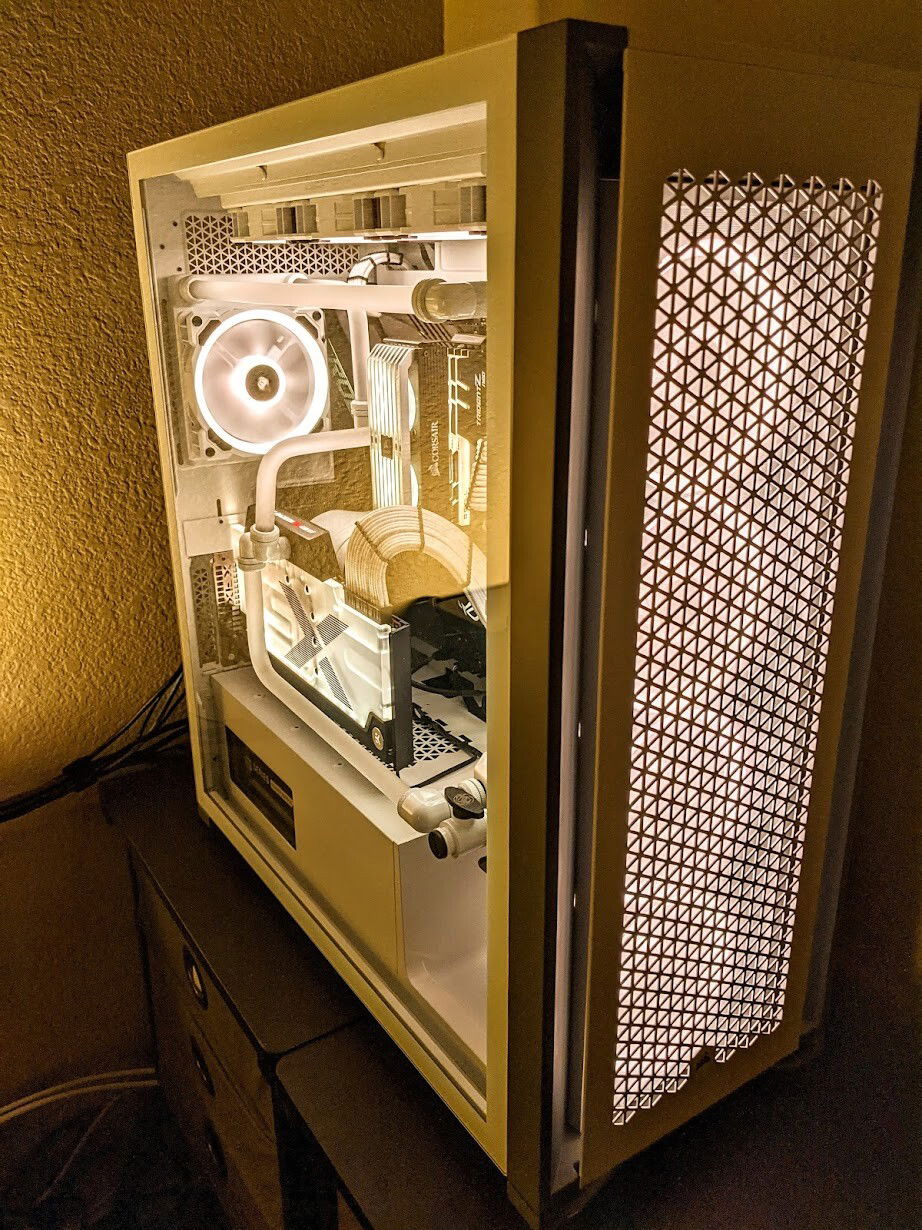

All out AMD Build, focus on soft white/cream ambient lighting for my room to reduce eye fatigue. RGB and 12 case fans speed controlled by a Corsair Commander Pro, Front and Side fans split via Y Splitters and a line run to the case included Sata powered fan hub which runs the 4 exhaust fans, while still connected to the Commander Pro. Custom cables purchased through EnSourced.

1440mm Radiator Watercooling setup
XSPC TX480 (Front) - Fans @ 1000RPM
XSPC TX480 (Side) - Fans @ 900RPM
XSPC TX360 (Top) - Fans @ 1100RPM
XSPC TX120 (Back) - Fan @ 1100RPM
Corsair XD5 Pump
Corsair XC7 Pro CPU Block (Gelid GC Extreme Paste)
XFX / EK Factory GPU Block (Repasted with Gelid GC Extreme + Thermalright pads)
Corsair 14mm Satin White Transparent Tubing
Corsair 14mm OD Fittings
Barrow 90's / 45's / Drain Valve
Bitspower Extensions

Temps (Max Load)
CPU: 84 C
GPU: 50 C Edge / 72 C Hotspot
Ram: 48 C

Temps (Typical Gaming)
CPU: 60 C
GPU: 40 C Edge / 52 C Hotspot
Ram: 40 C

Typical Ambient Room Temp: 74 F / 23 C
Typical Coolant Temp: 32 C

Daily Driver OC Specs
AMD 5950x - PBO2 "Per Core Curve" undervolt with +100MHz boost
XFX 6900xt - 2750MHz Core / 2050MHz VRAM with 1150mv undervolt
G.Skill 3600MHz 4x8GB - Stock @ 3600MHz 1:1 with default timings (Very little gaming difference to 3800MHz without more stress on the memory controller).

3dMark Time Spy Run: 23,706
Color(s): Black White
RGB Lighting? Yes
Theme: Sci-Fi
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 799.99
AMD - Ryzen 9 (5950X)
Socket: AM4
Cores: 16
Motherboard
$ 482.80
ASUS - ROG Crosshair VIII Dark Hero
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 133.98
G.Skill - Trident Z Neo (3600MHz) (White/Black/RGB) (2x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 1,799.99
XFX - Radeon Speedster Zero (EKWB Waterblock Limited Edition)
Chip Manufacturer: AMD
Chip: RX 6900 XT
Interface: PCIe x16
Storage
$ 166.98
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 295.90
EVGA - SuperNova P6
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 269.99
Corsair - 7000D AirFlow
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 579.96
Corsair - LL120 (RGB) (White) (4x)
Size: 120 mm
Cooling
$ 70.99
Barrow - Fittings
Type: Custom Loop
Cooling
$ 44.99
Bitspower - Fittings
Type: Custom Loop
Cooling
$ 80.97
Cooling
$ 249.00
Corsair - Hydro X XD5 (RGB)
Type: Pump/Reservoir Combo
Cooling
$ 89.99
Corsair - Hydro XC7 (White/RGB)
Type: CPU Waterblock
Cooling
$ 194.86
XSPC - TX Ultrathin (2x)
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 63.99
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 120 mm
Cooling
$ 99.99
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Accessories
$ 74.29
Accessories
$ 85.67
Accessories
$ 75.99
Accessories
$ 24.99
Accessories
$ 19.99
Accessories
$ 129.99
Accessories
$ 49.98
VIVO - Desk Clamp (2x)
Monitor
$ 286.99
ASUS - VG248QE
Size: 24 Inch
Panel: TN
Refresh Rate: 144 Hz
Monitor
$ 479.99
BenQ - Mobiuz Ultrawide Curved Gaming (EX3415R)
Size: 34 Inch
Panel: IPS
Refresh Rate: 144 Hz
Keyboard
$ 198.68
Corsair - K95 Platinum XT (RGB)
Interface: Wired
Key Switch Type: Cherry MX Silver
Type: Full Size
Mouse
$ 59.99
Corsair - Scimitar Pro RGB
Interface: Wired
Estimated total value of this build:
$ 5,523.55
