Heatkiller Pro IV AM4 block on the CPU, TPV brass compressions and Barrow angled fittings, cooled by a Magicool G2 240 slim rad with noctua A12x15 and F12

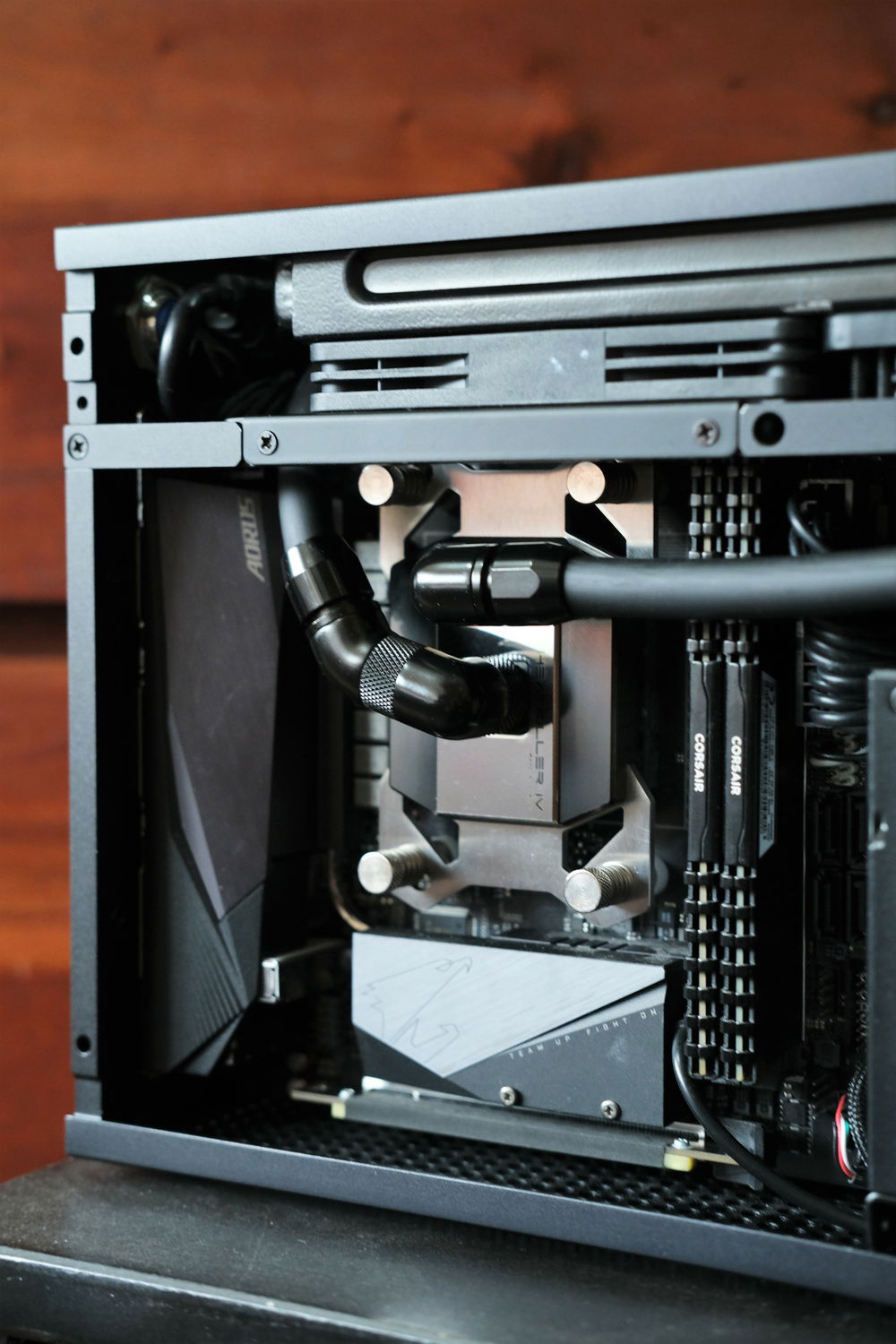

Love the two tone of the HKIV!

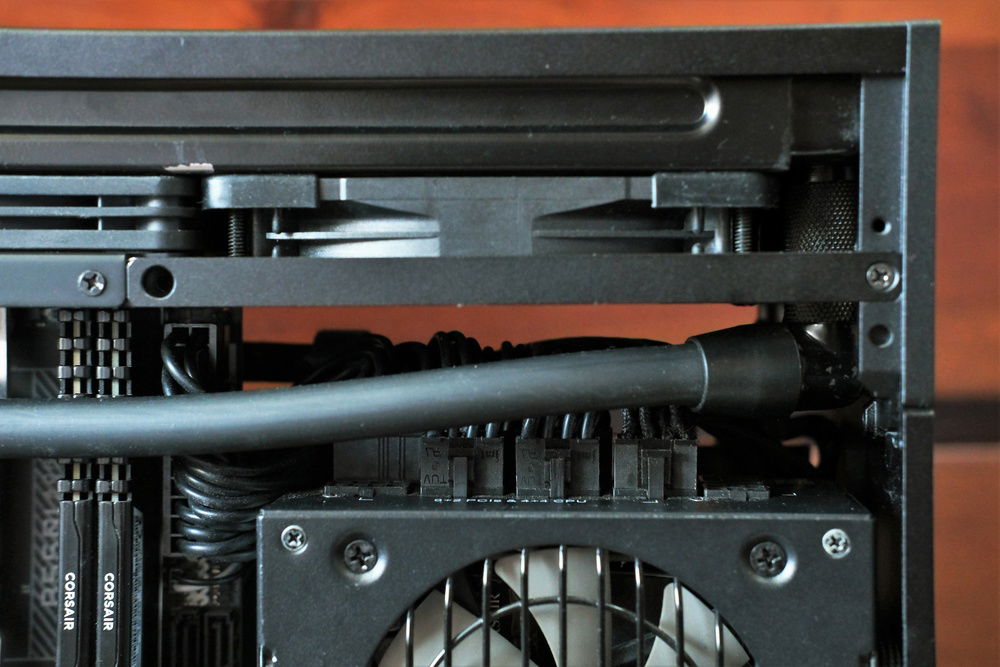

Cable management above SF750, neat and tidy to allow for as much breathing room for the fans as I could.
Aquacomputer Quadro pasted onto the side of the PSU, handling the fans and pump, as well as temperature input. Aquasuite is an amazing program.

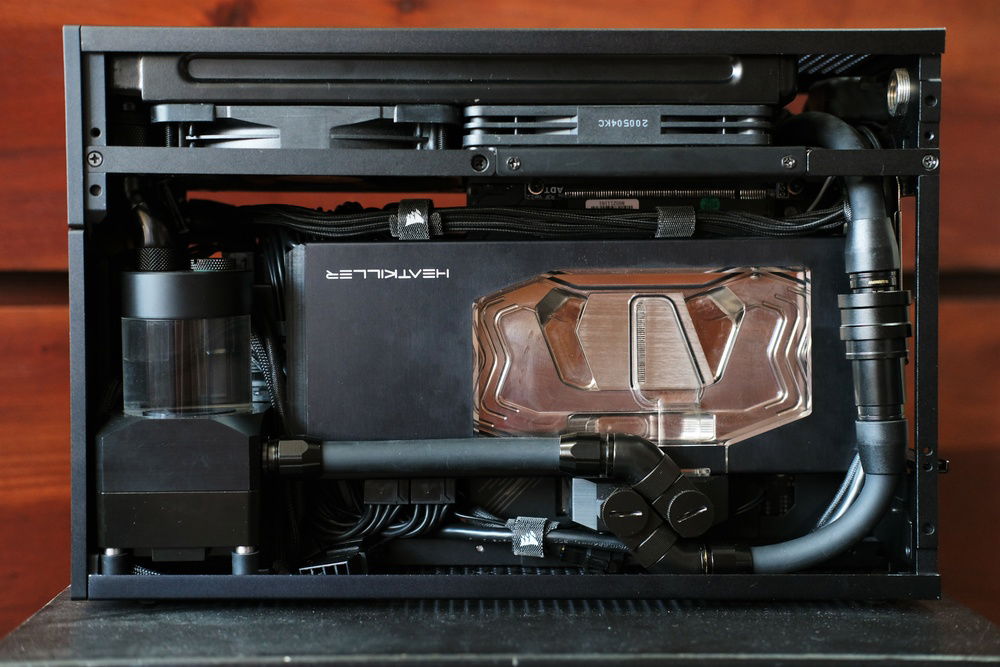

Side shot of the GPU side! 3090 Trinity undervolted to 1920mhz at 850mv, pulling 290w of heat. The Heatkiller V block keeps GPU temp delta at 10-12C over coolant, which is absolutely awesome. Plus it's one of the sexiest block out there, imo.
Barrow integral DDC pump block fits snug beside the GPU. It's convenient to have a tank for fill.

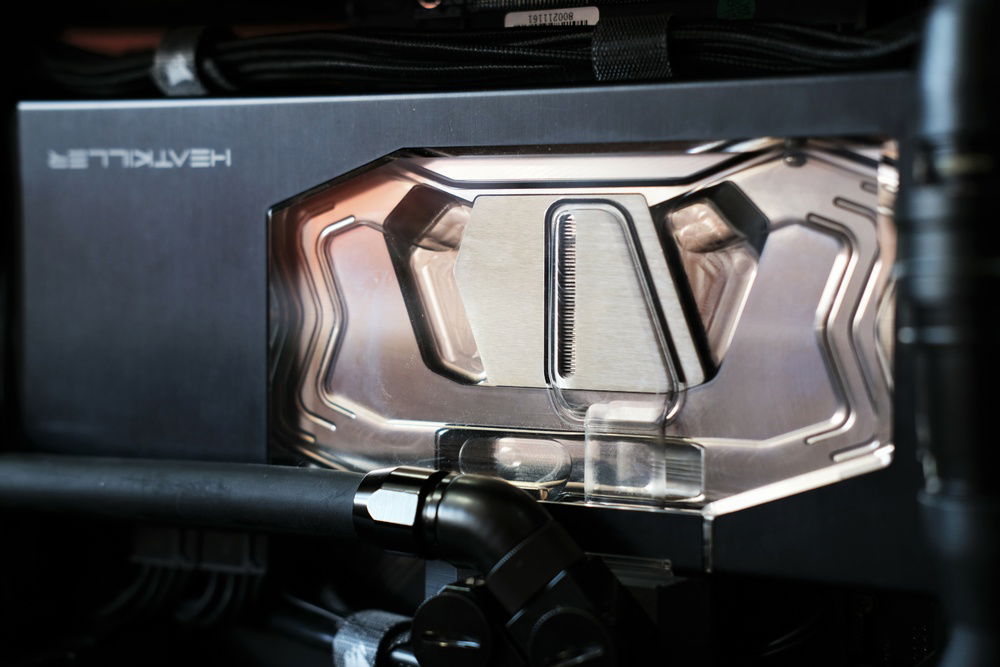

Close up of the Heatkiller V.

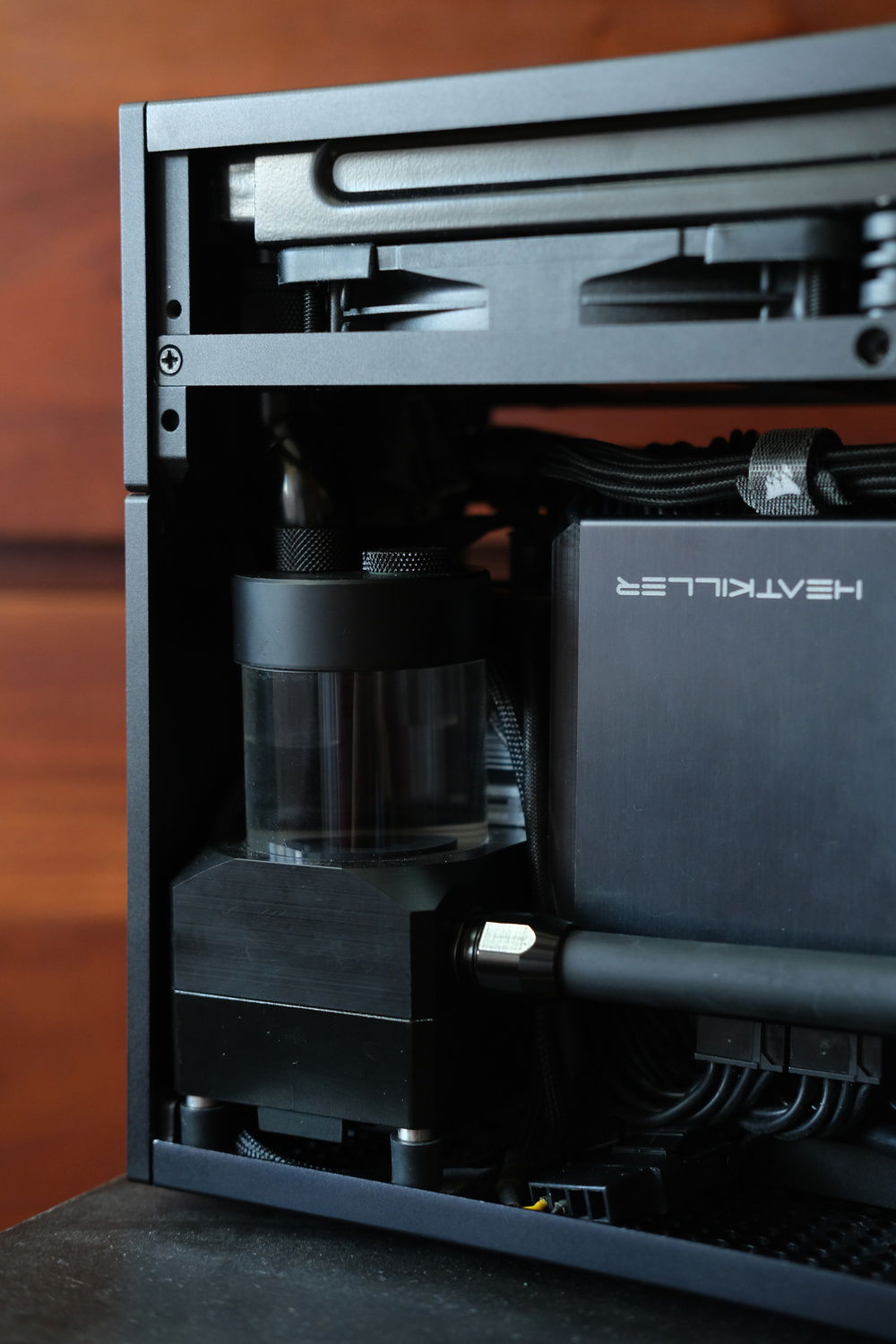

Barrow DDC Integral pump block with EK DDC 3.2 PWM.

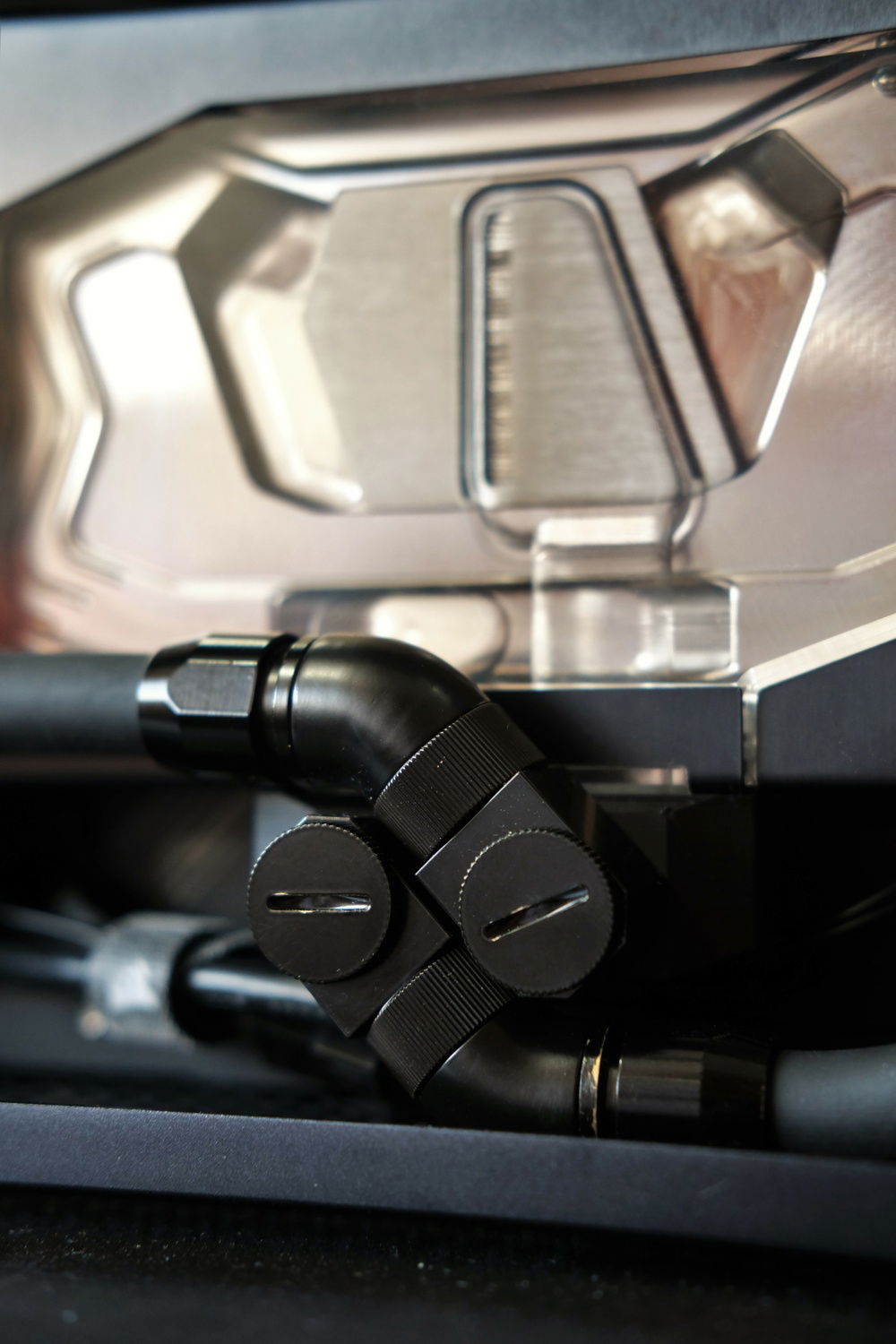

In order to close the side panels, Koolance low profile elbows were used. In order to get the correct flow path, I had to use 45 degree EK fittings to do so. I dub this the 69 combo.

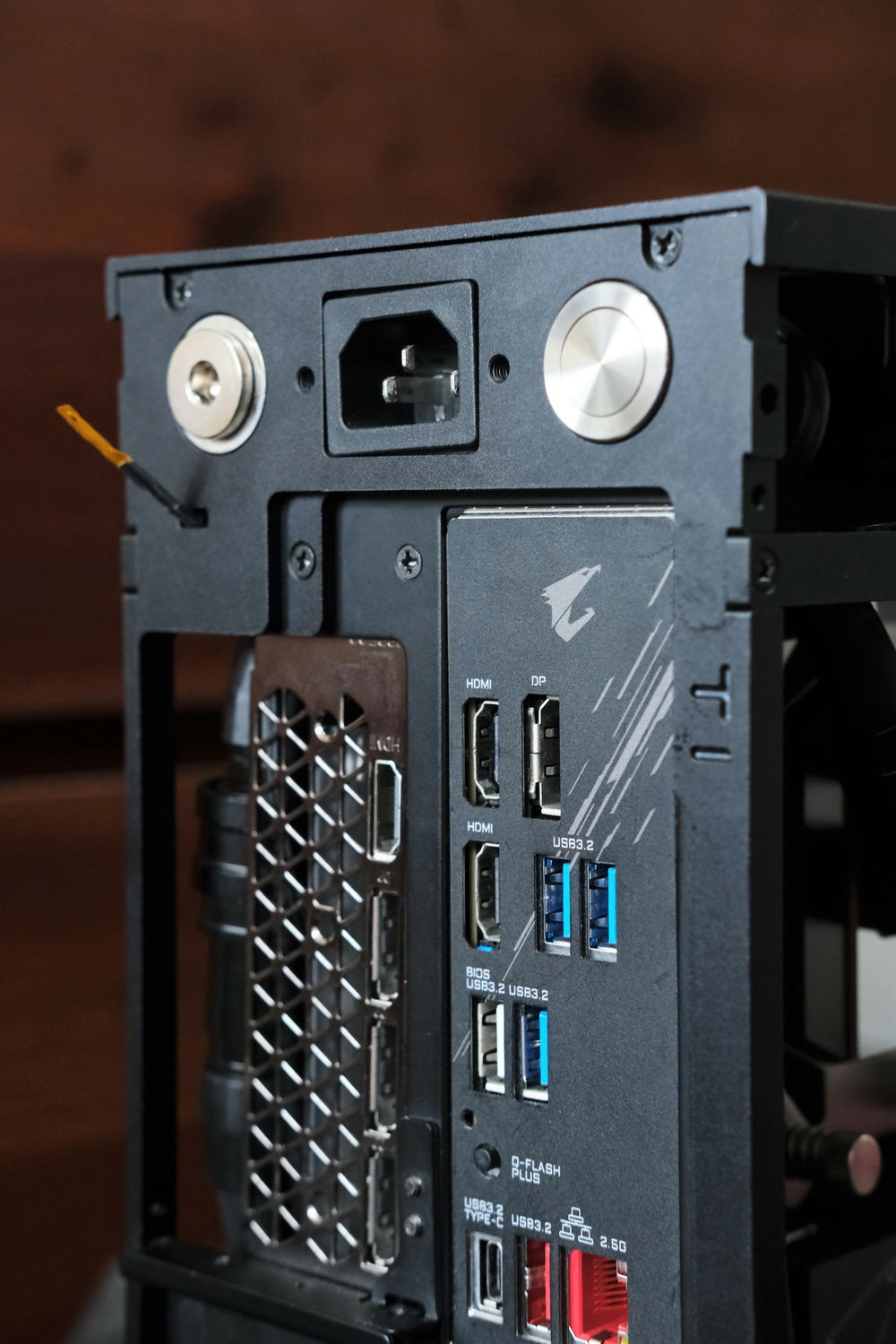

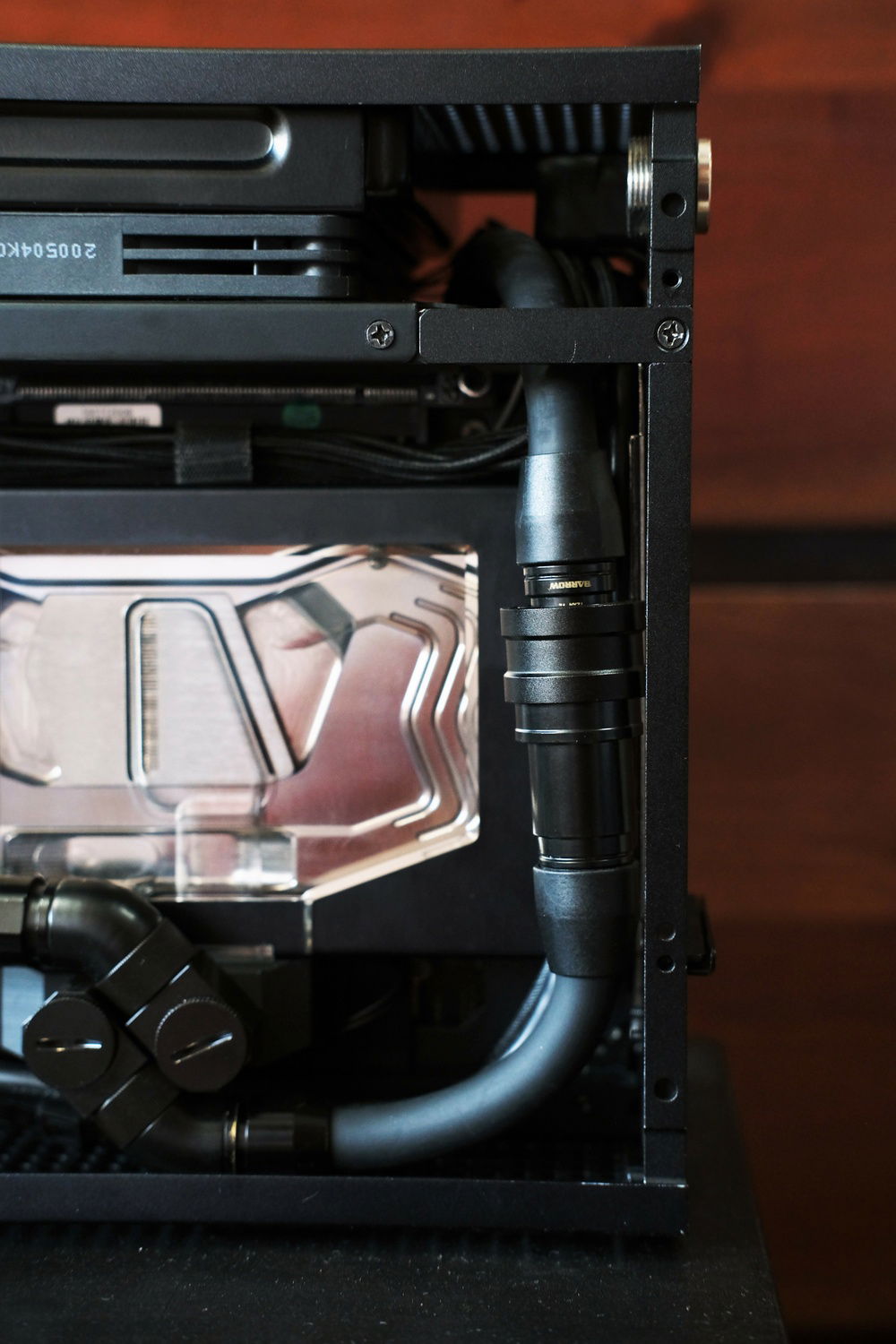

Barrow QDC just in case i want to push the 3090 or have lower fan noise, i could connect it to an external rad. Also very useful to drain the system!
Darkside FormD T1

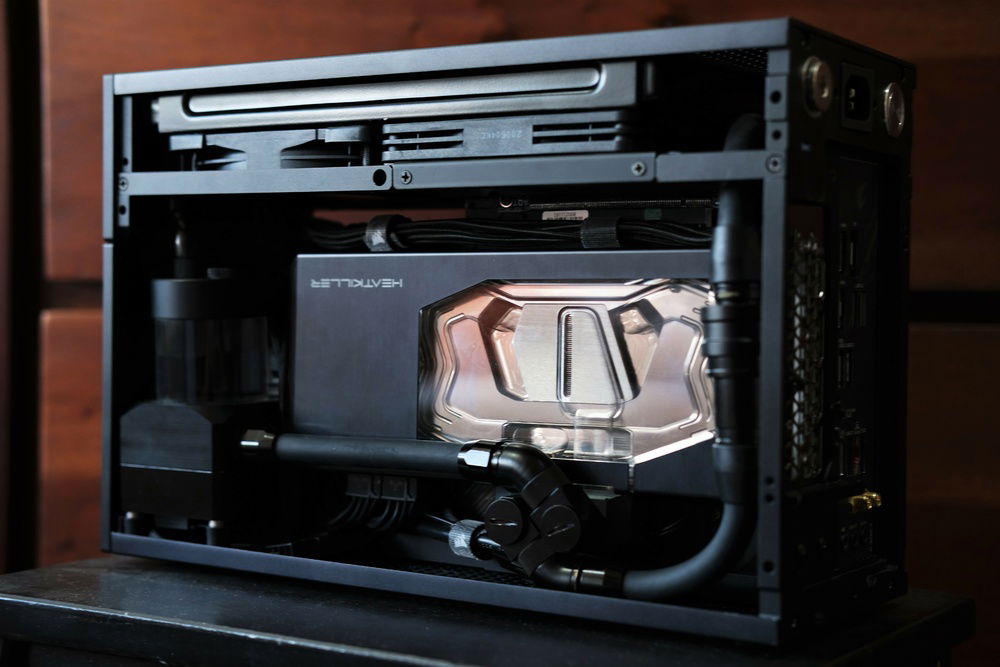

FormD T1, stuffed to the gills with a Heatkiller custom loop with a tiny but proper pump res! Chose heatkiller as my go-to blocks for their exceptional performance, build quality and sleek looks. System runs a little hot, but nothing a little undervolt couldn't solve. During gaming, system is only outputting 60-70w for CPU, 280w for GPU (1920mhz, 850mv). Am extremely pleased too that I managed to fit a full pump res in there, it makes filling so much easier and allows for some thermal mass to soak up before hitting equilibrium.
Color(s): Black
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build
