Coffee

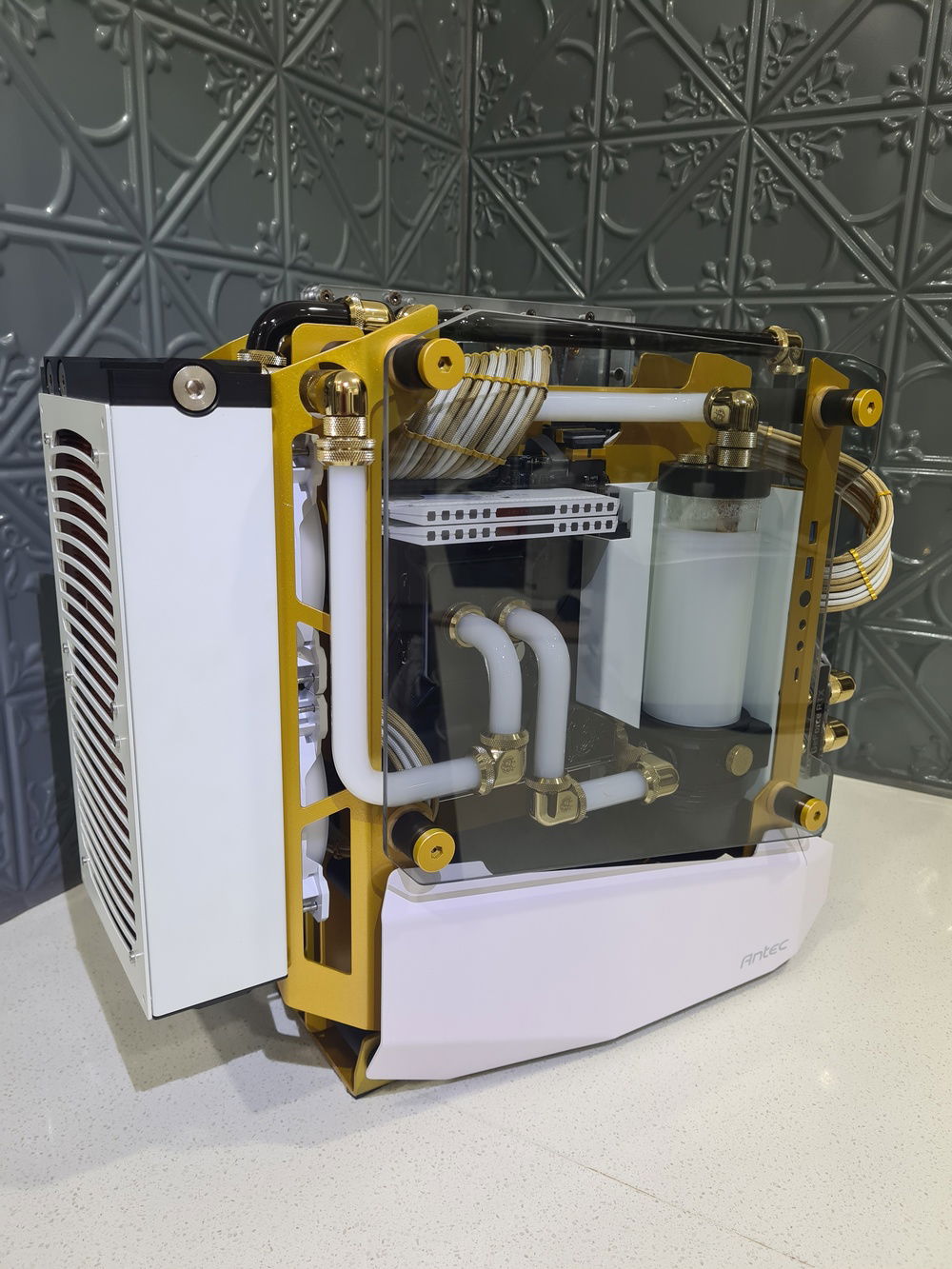

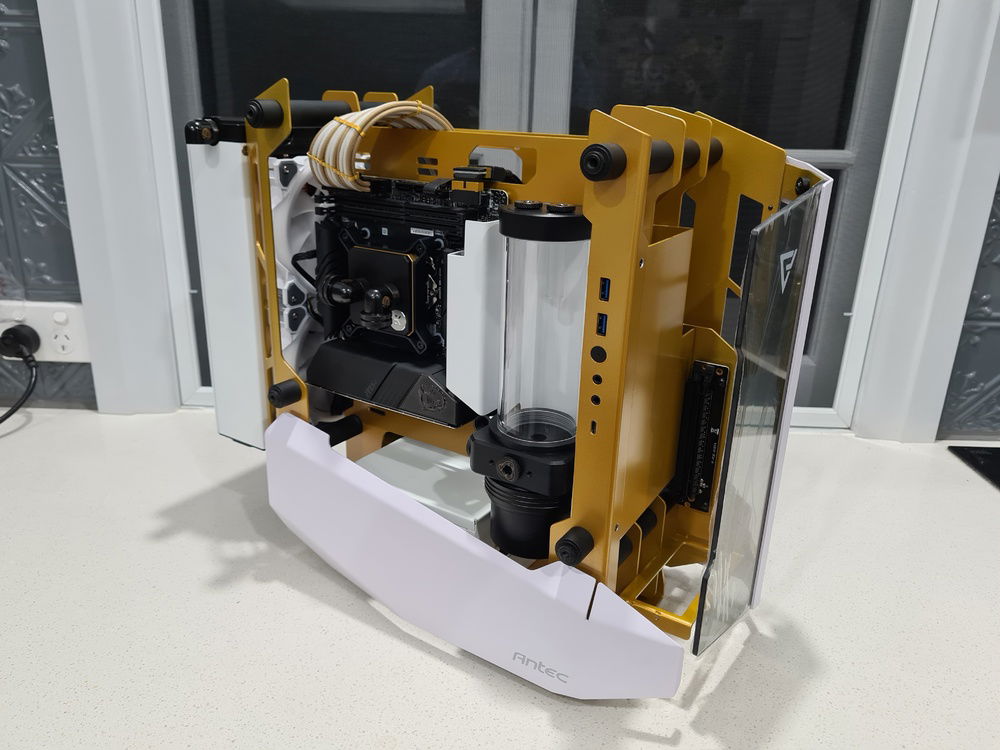

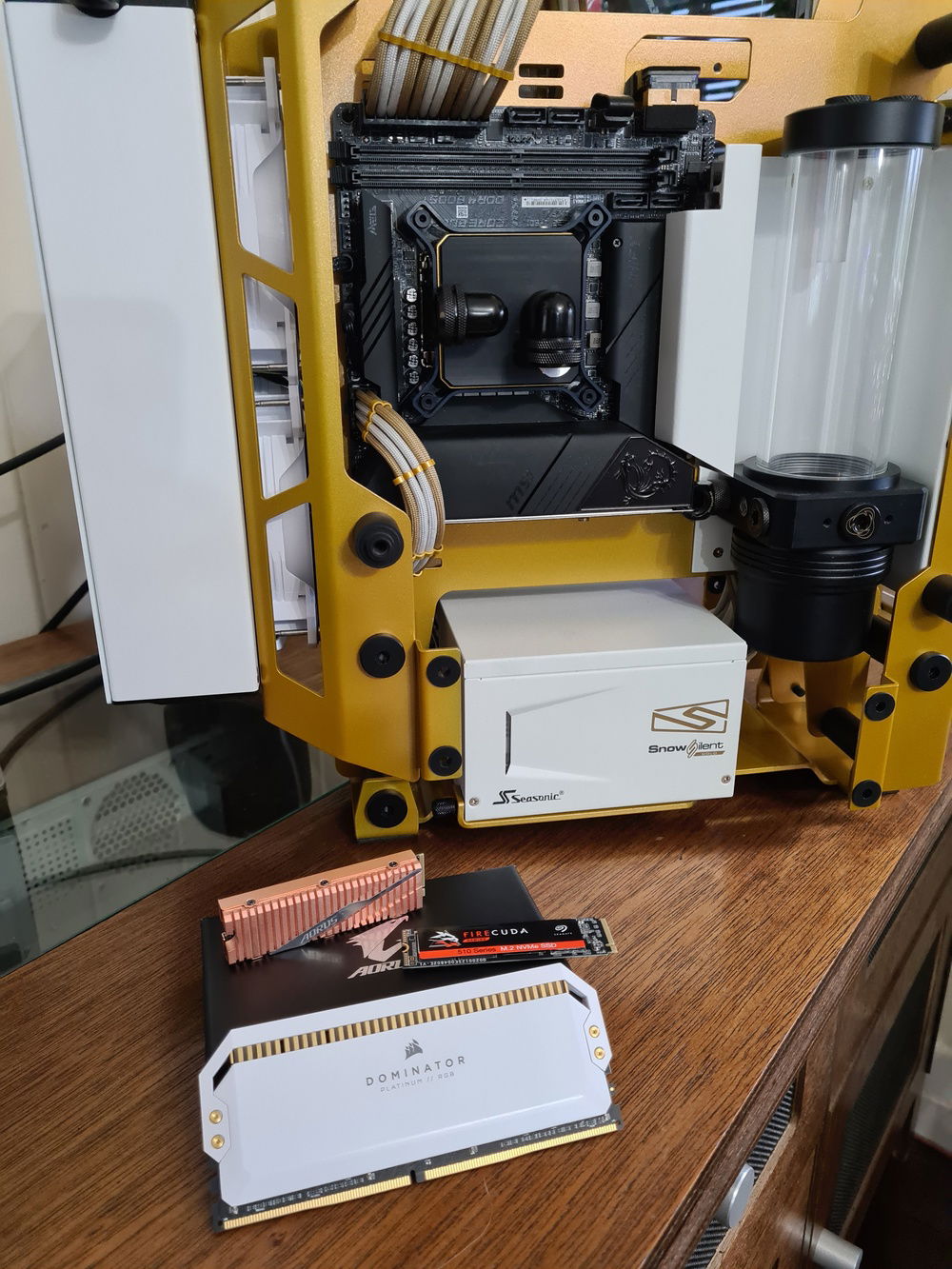

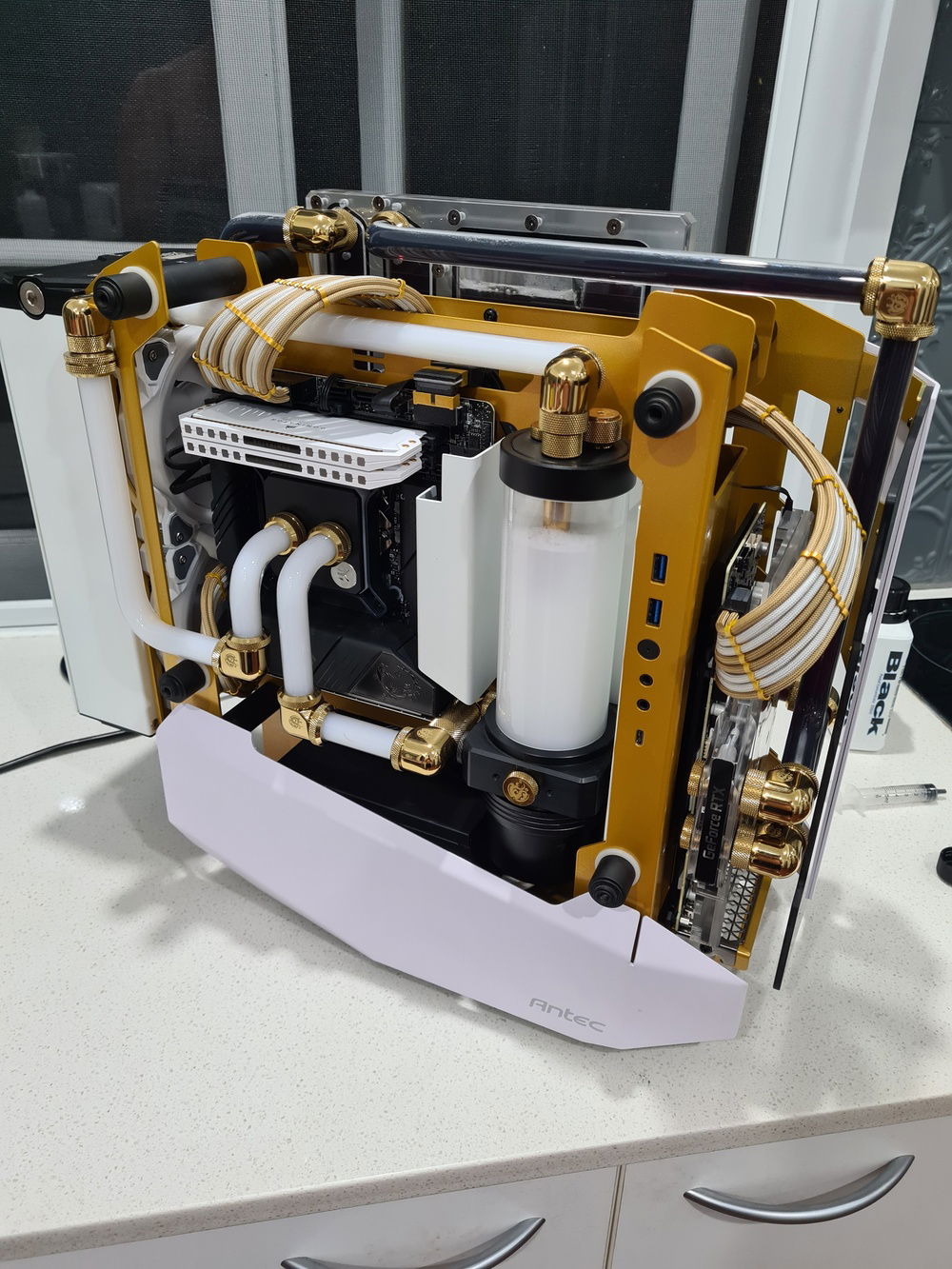

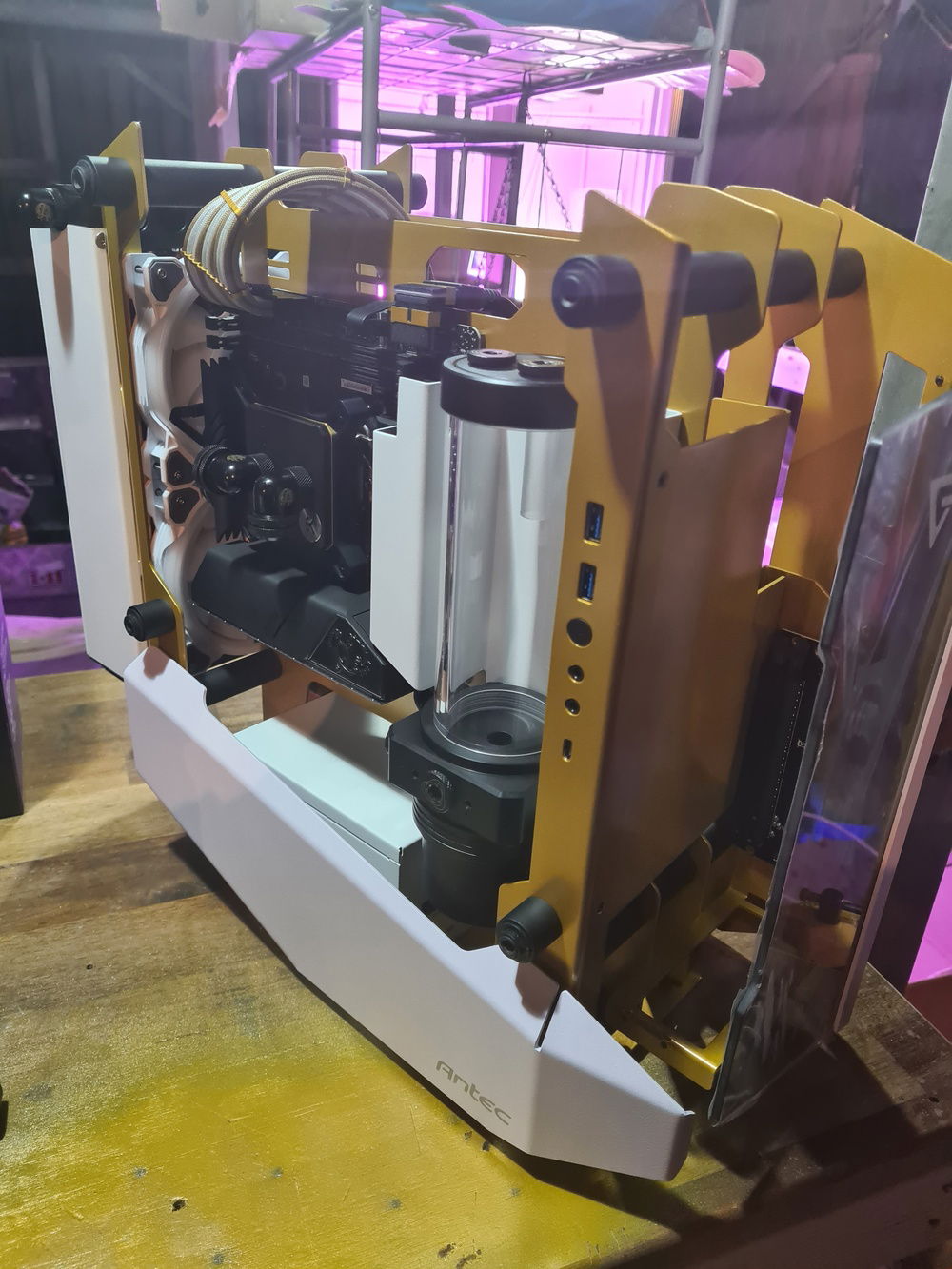

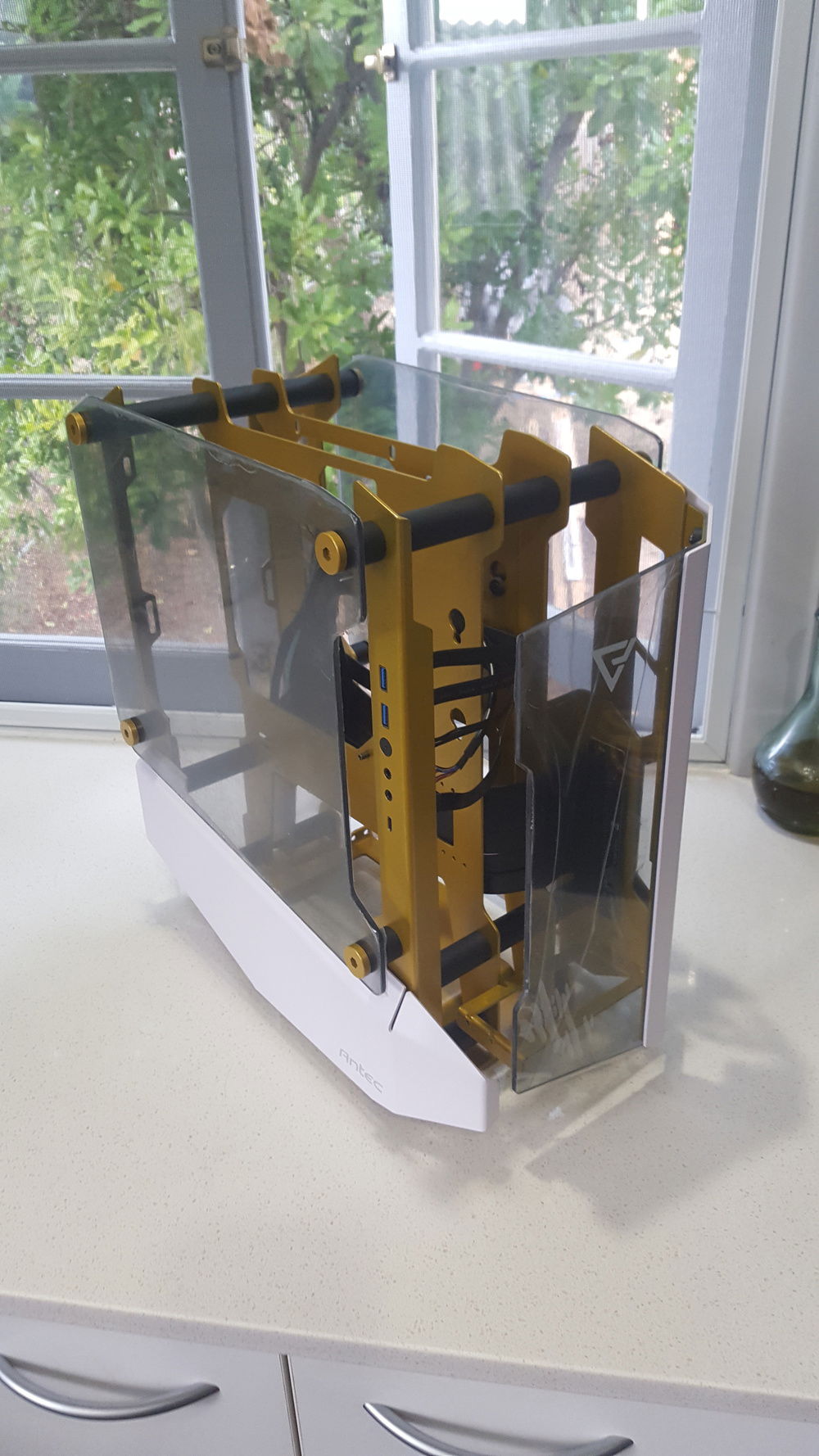

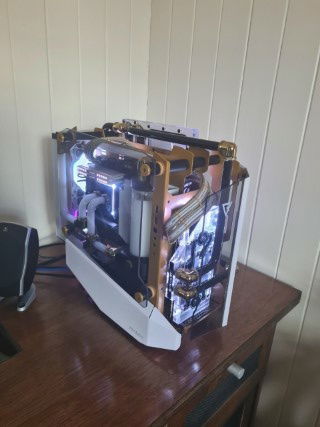

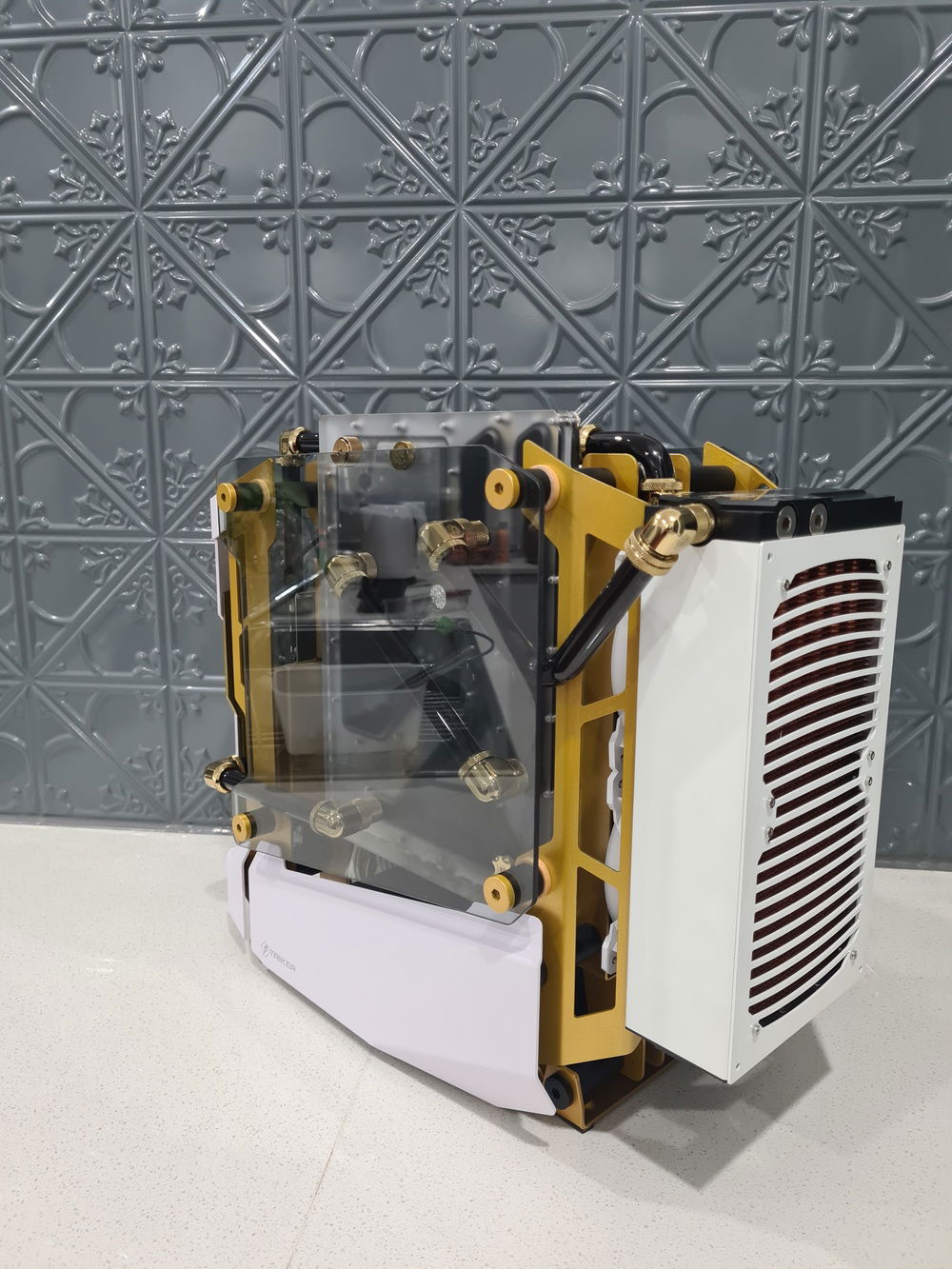

My custom loop computer using the antec striker open air case. I named this computer "Coffee" as people I showed this to asked if it was some fancy cold drip coffee machine.

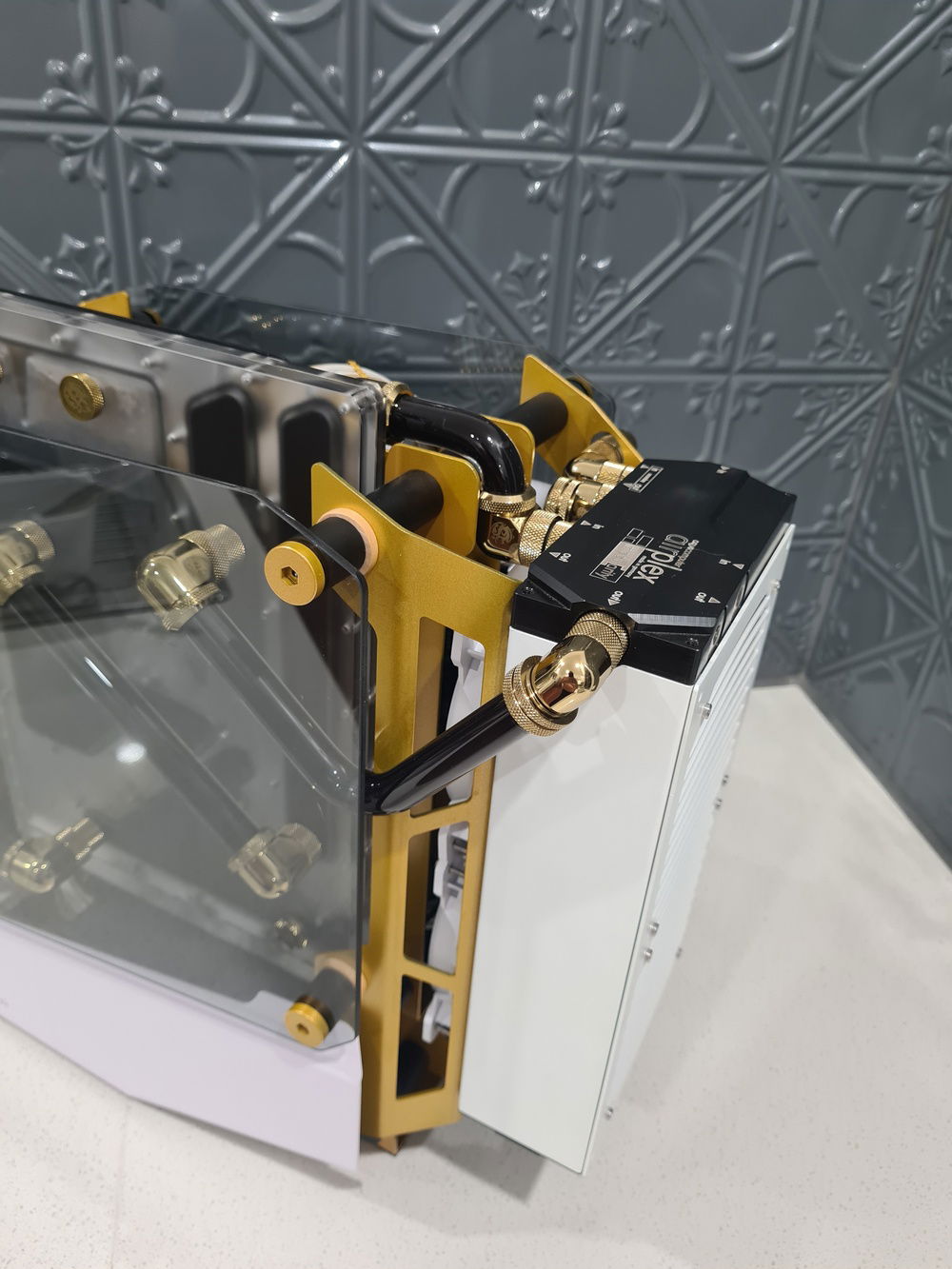

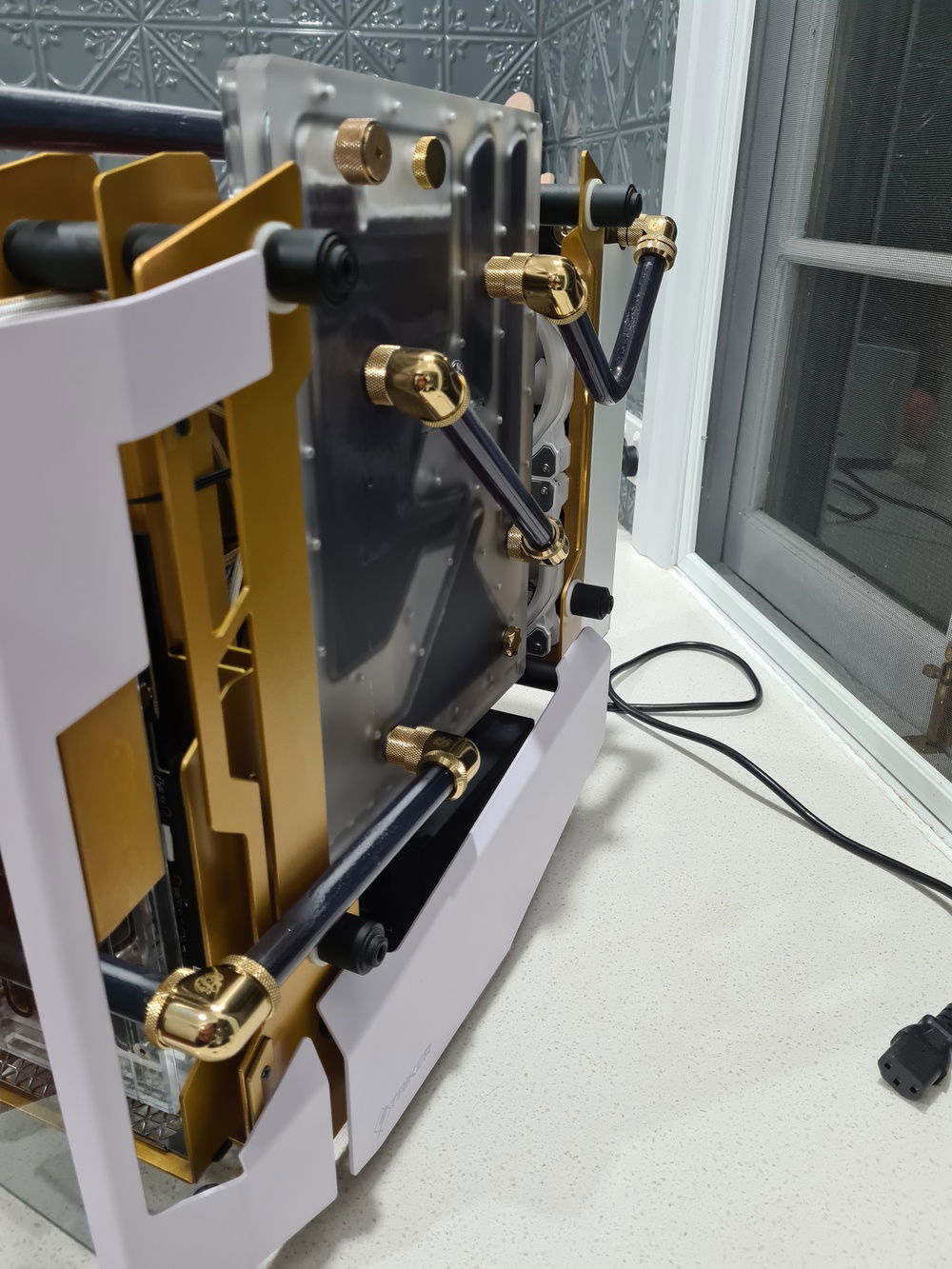

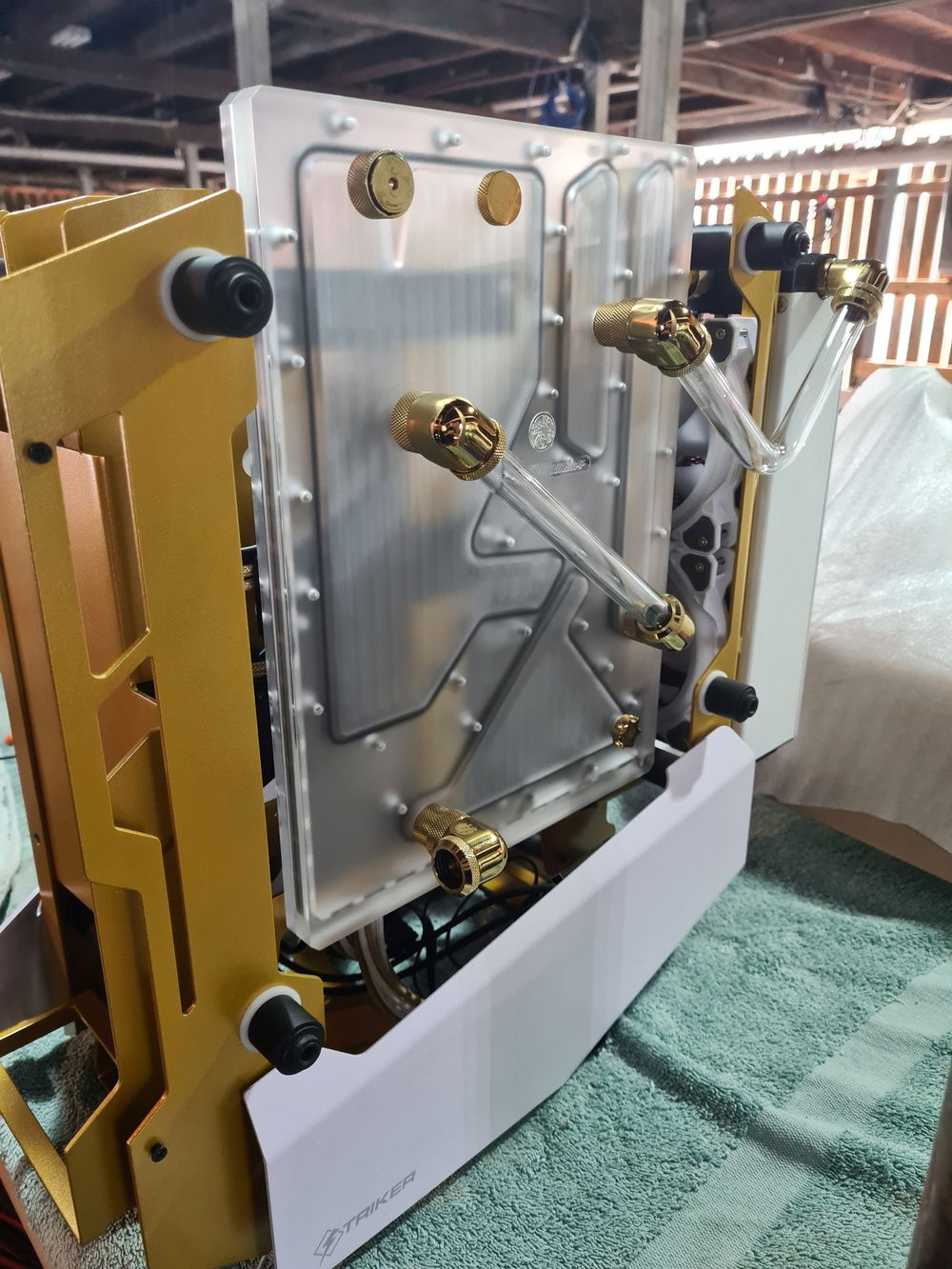

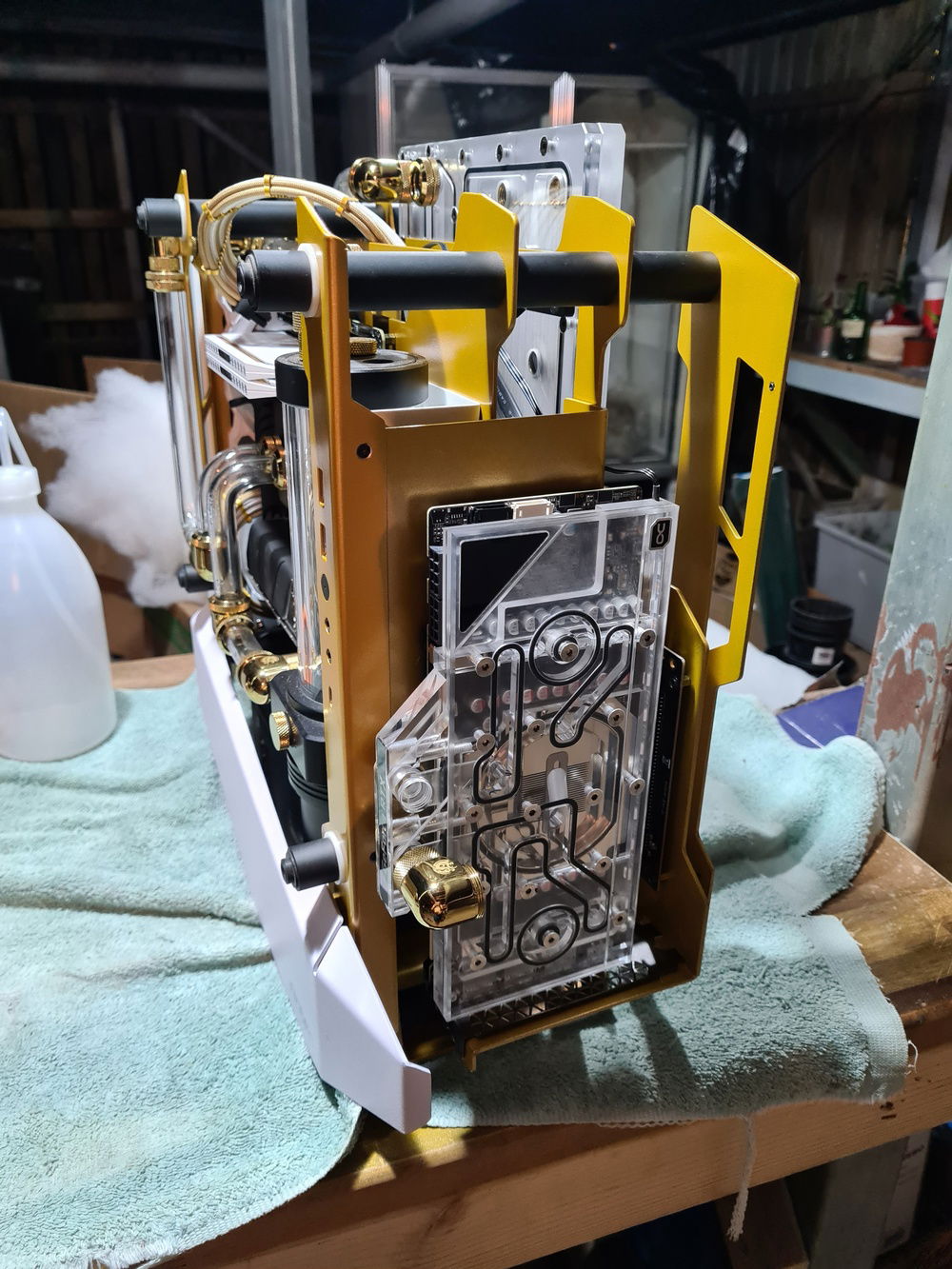

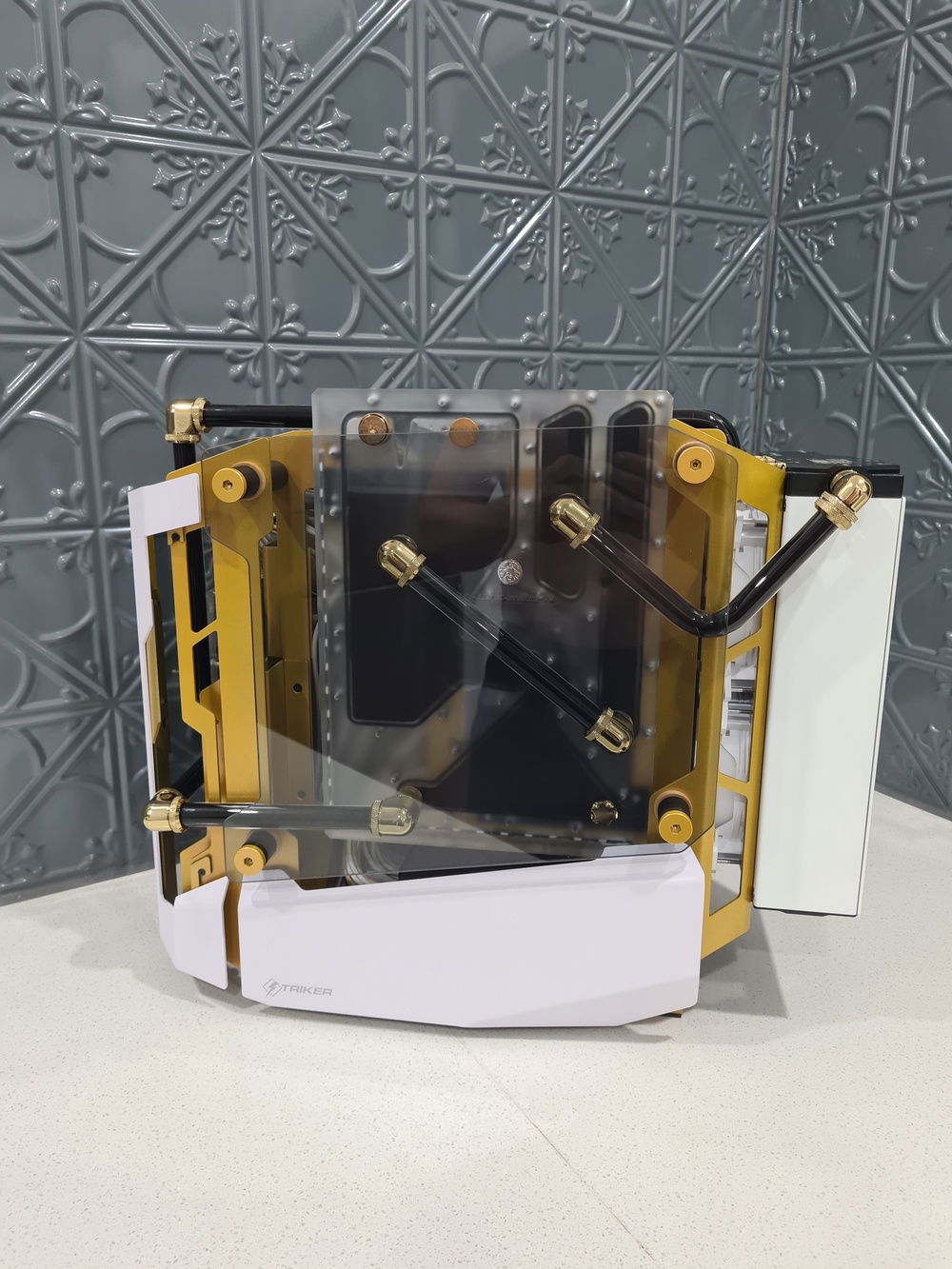

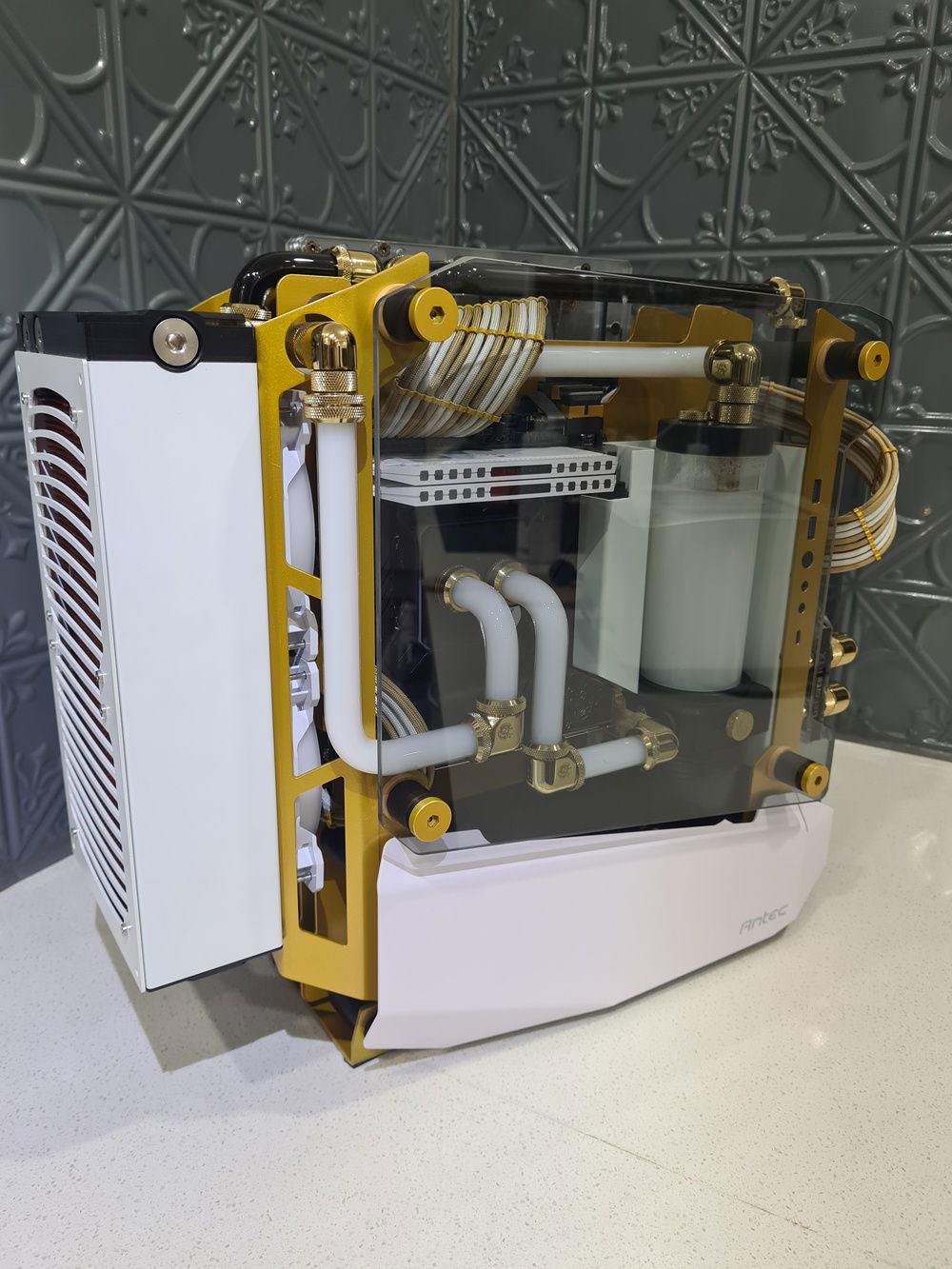

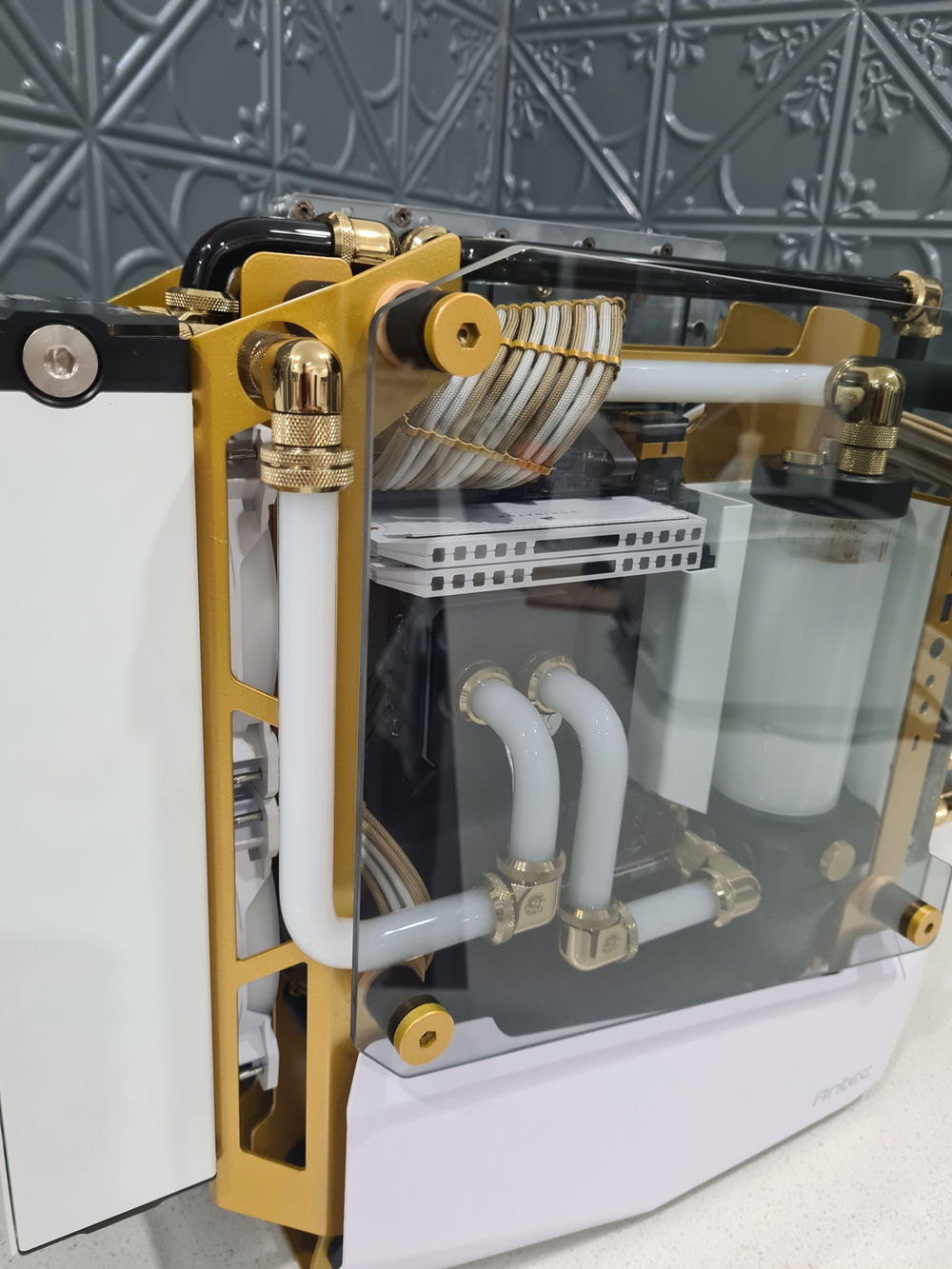

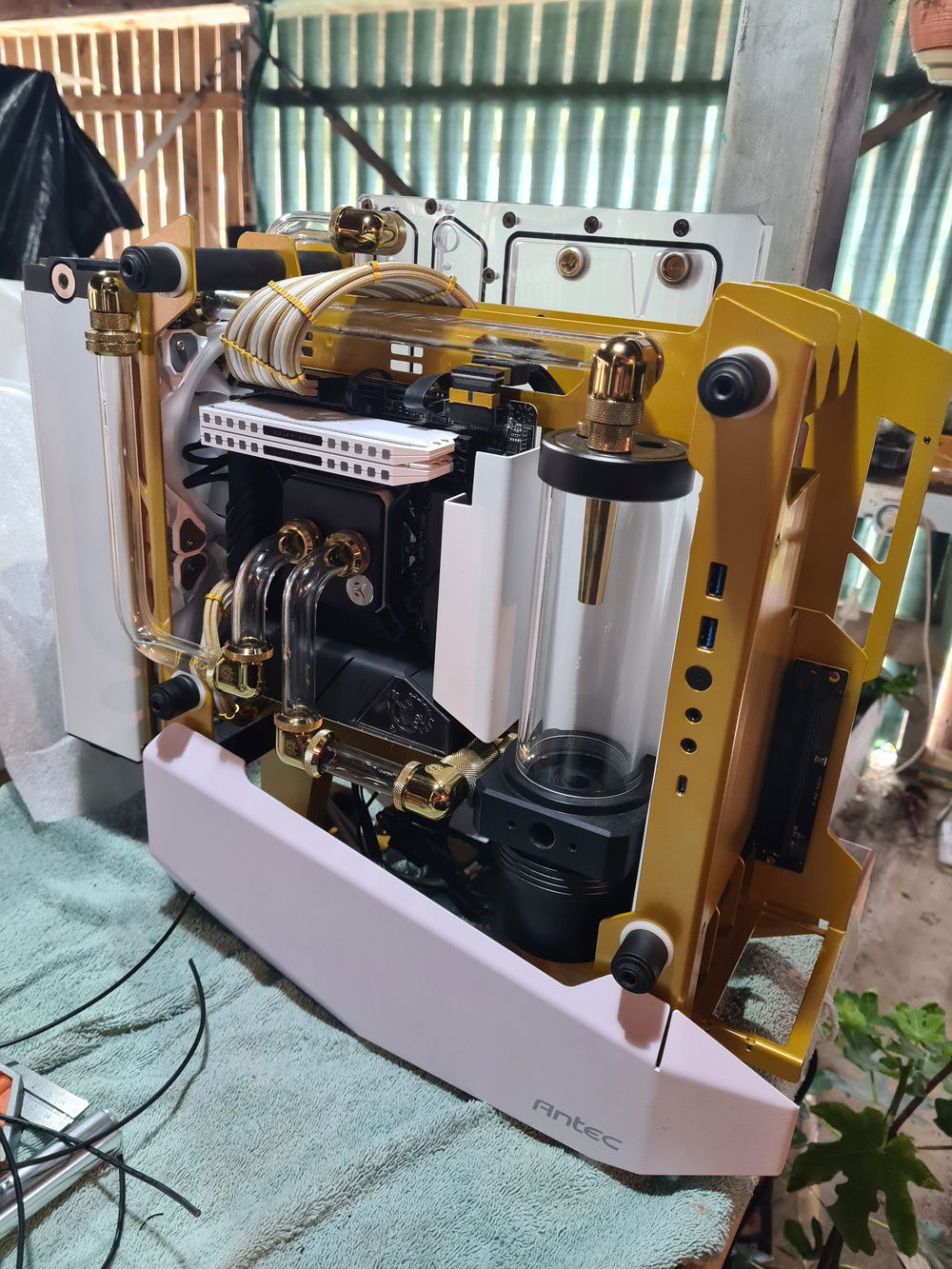

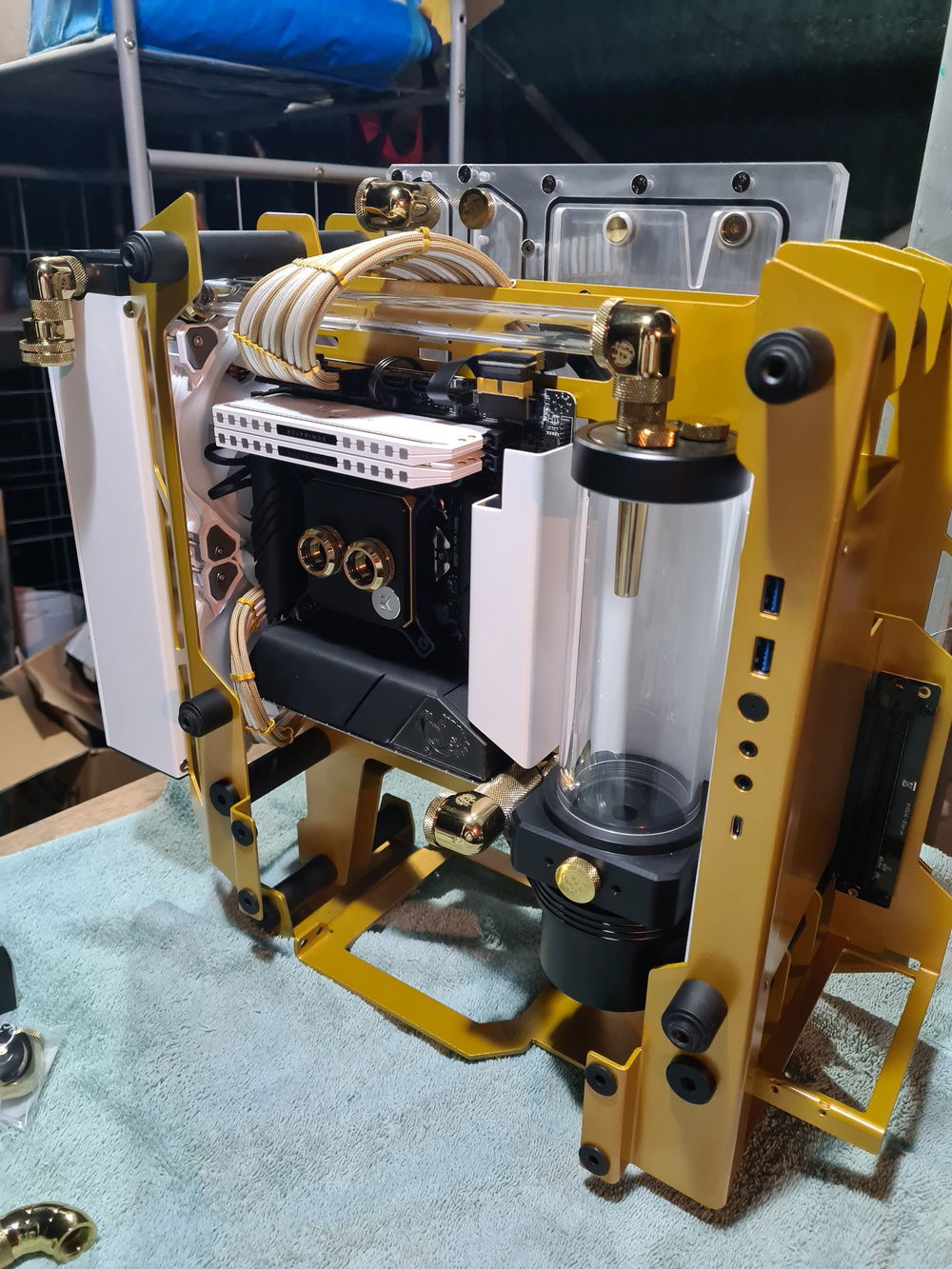

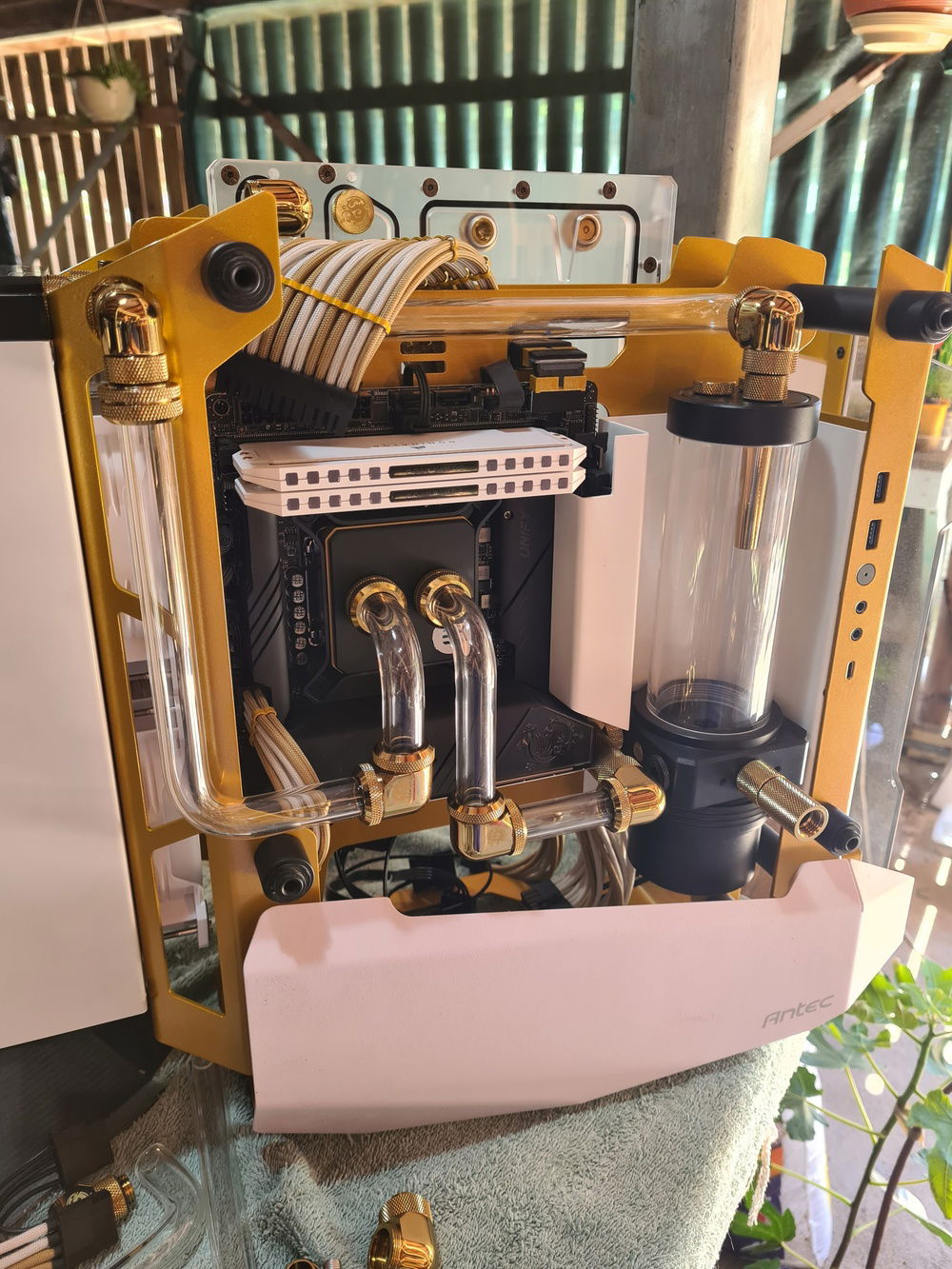

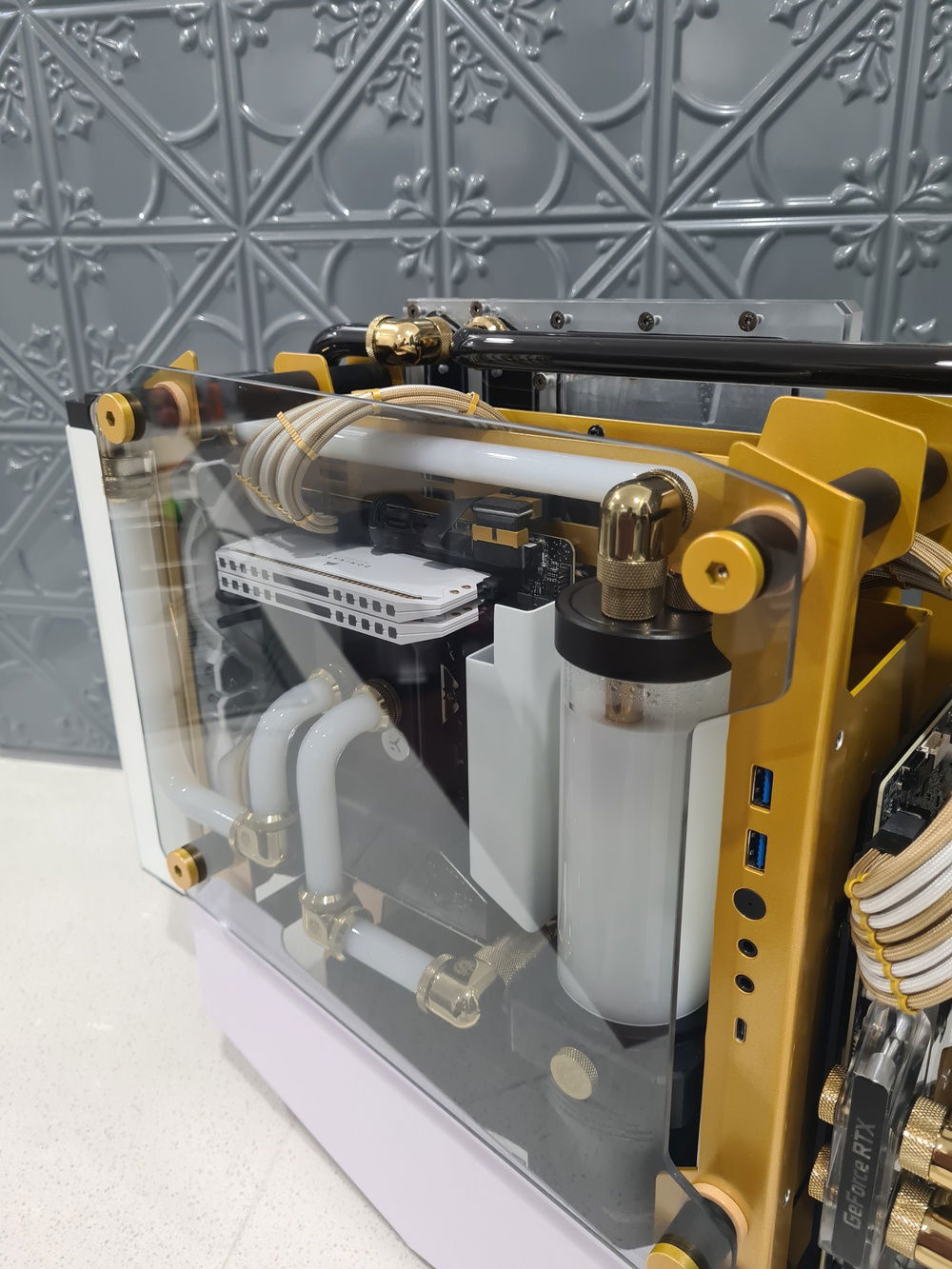

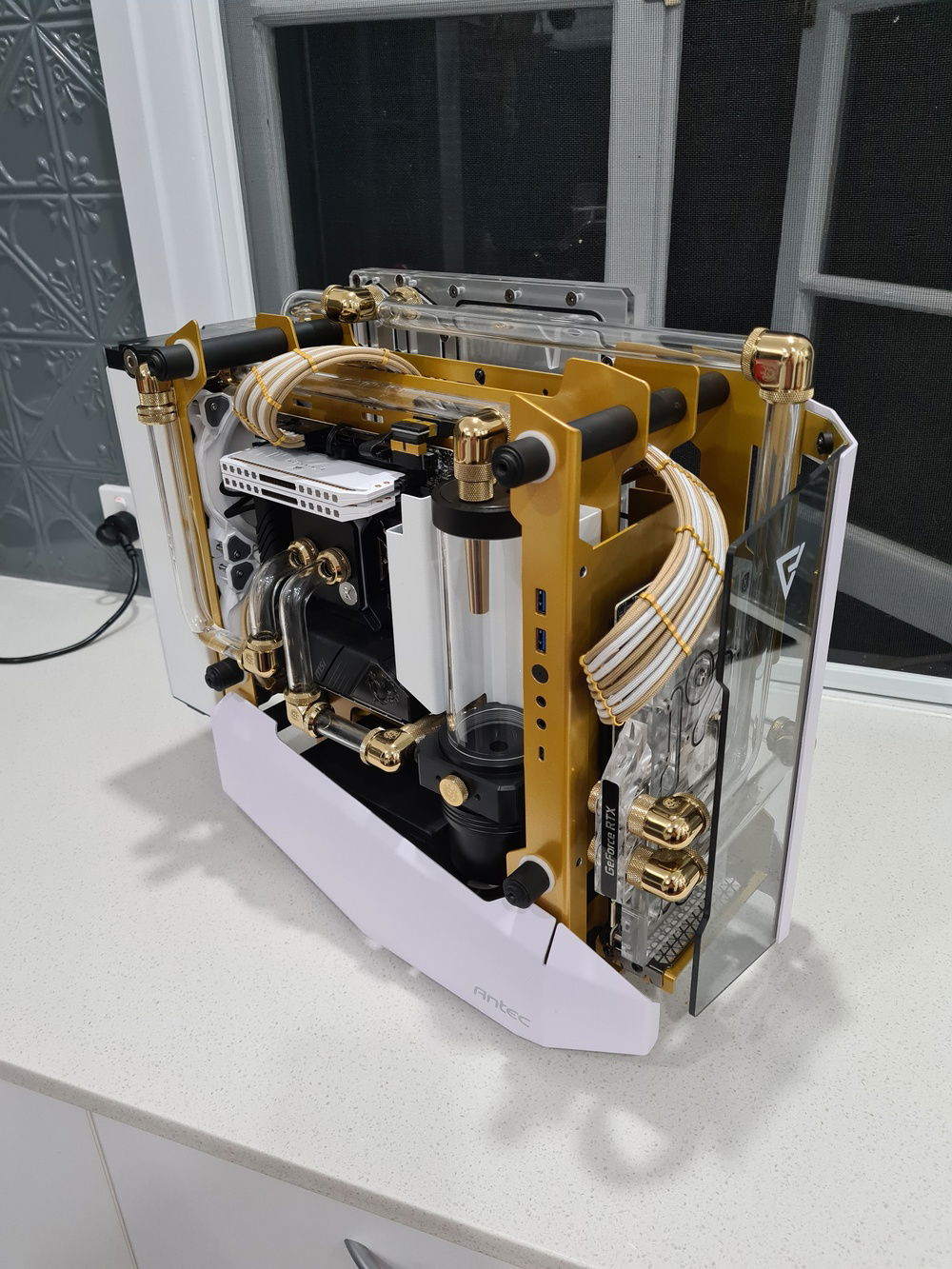

This system took me about 6 months to build as parts were hard to procure in 2020 also I wanted this system to have a 30 series gpu which was going to be a wait in itself. The system ended up with a 3090 instead of the 3080 I ordered as the wait was going to be as late as January even after the card was ordered in October. I ran with the bitspower true brass fittings along with 16mm glass tubing throughout. The glass wasnt to bad to cut and fit in the end, you just need to have a crack, which is what happened on the first few runs.

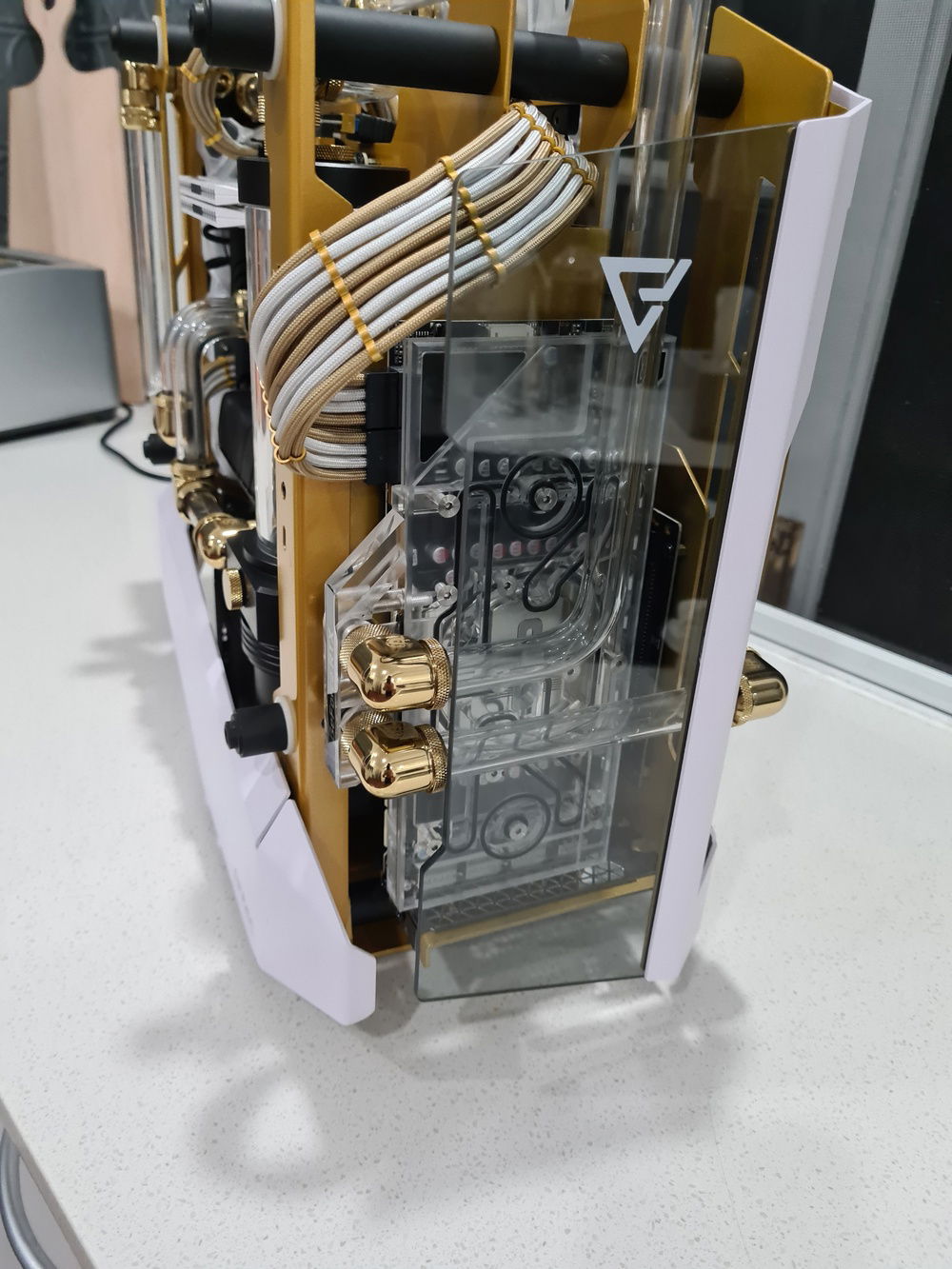

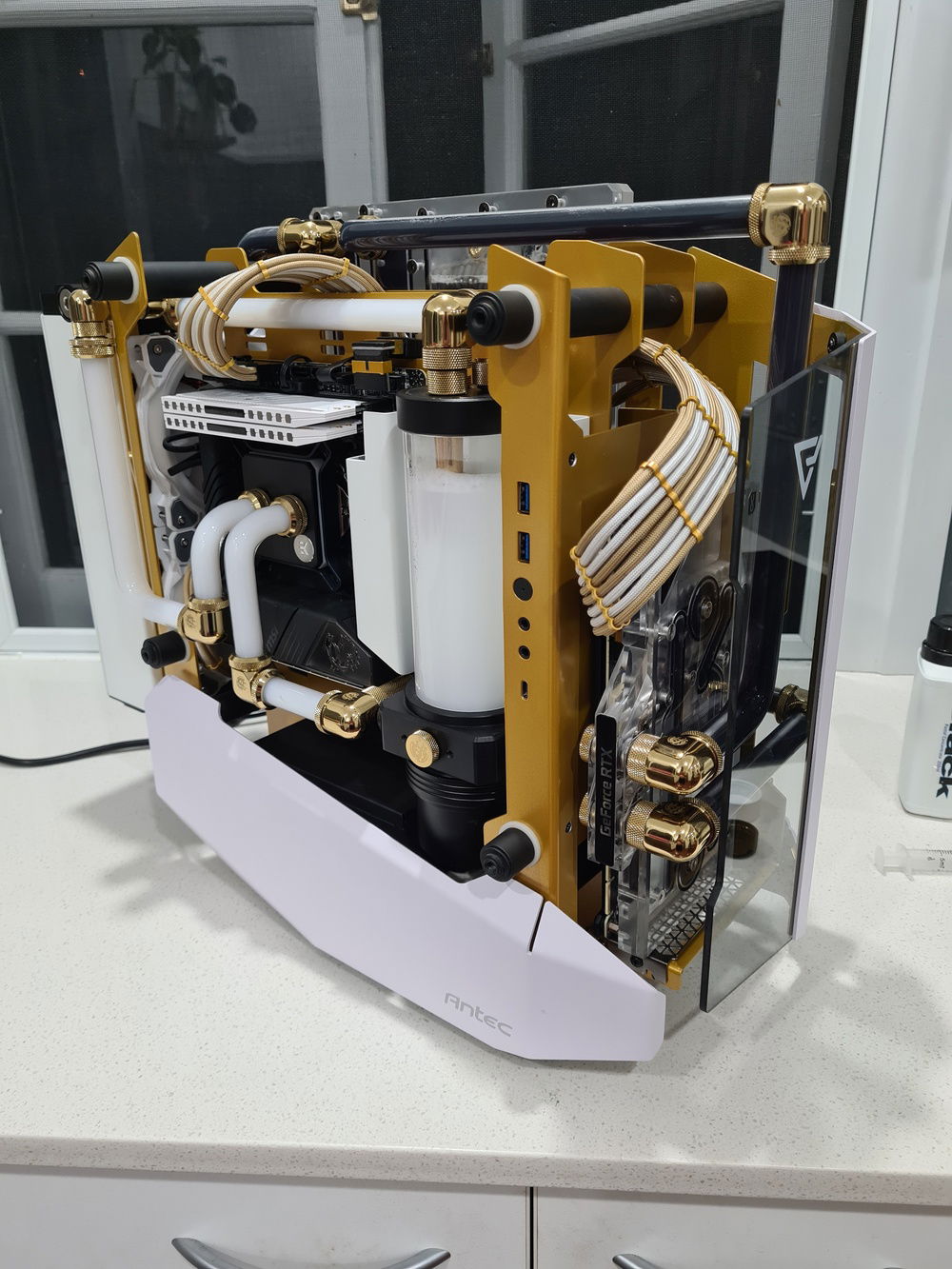

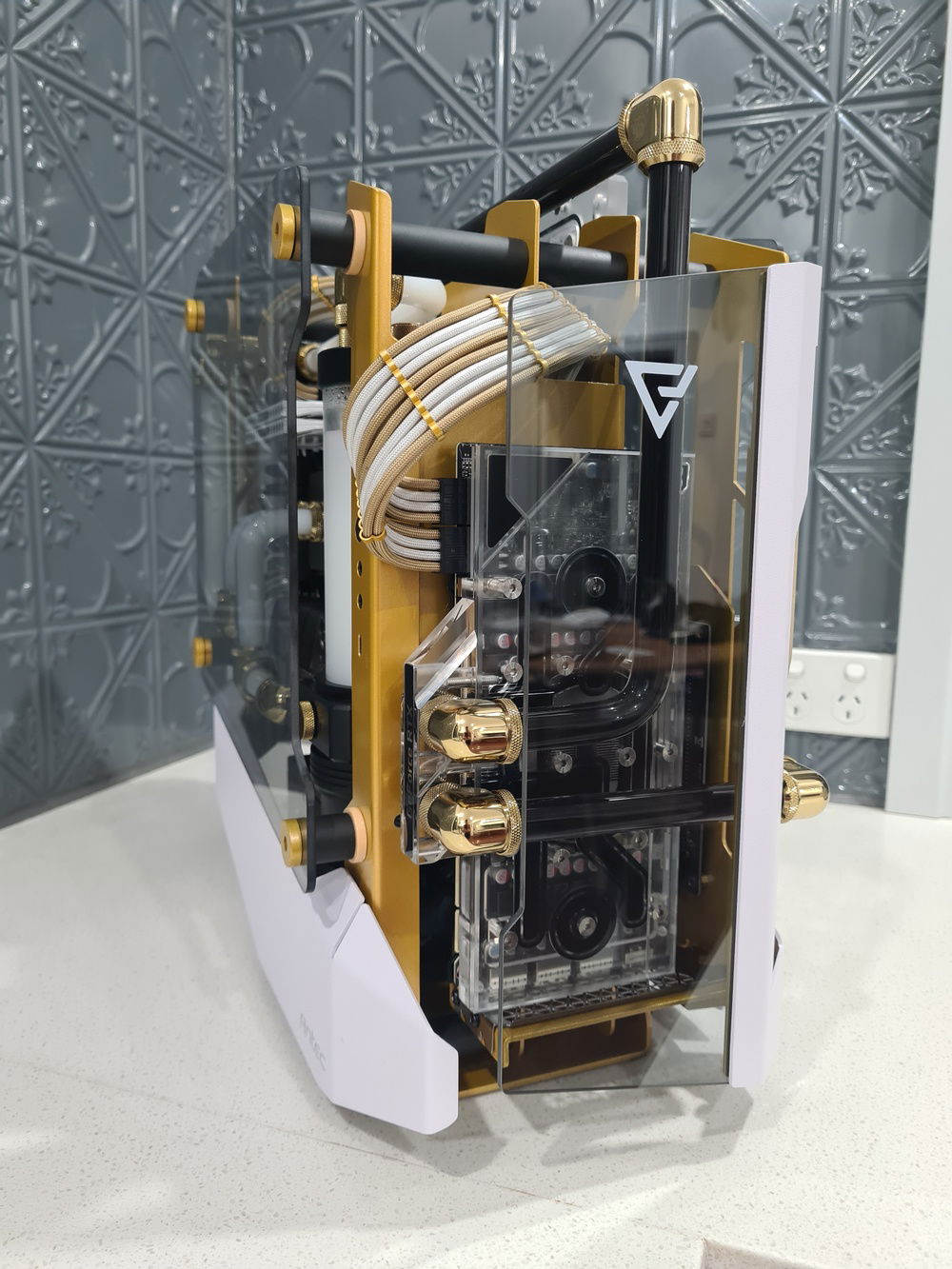

I made all the cables gold and white para cord which has a nice silky and not as course as some of the other stuff around.

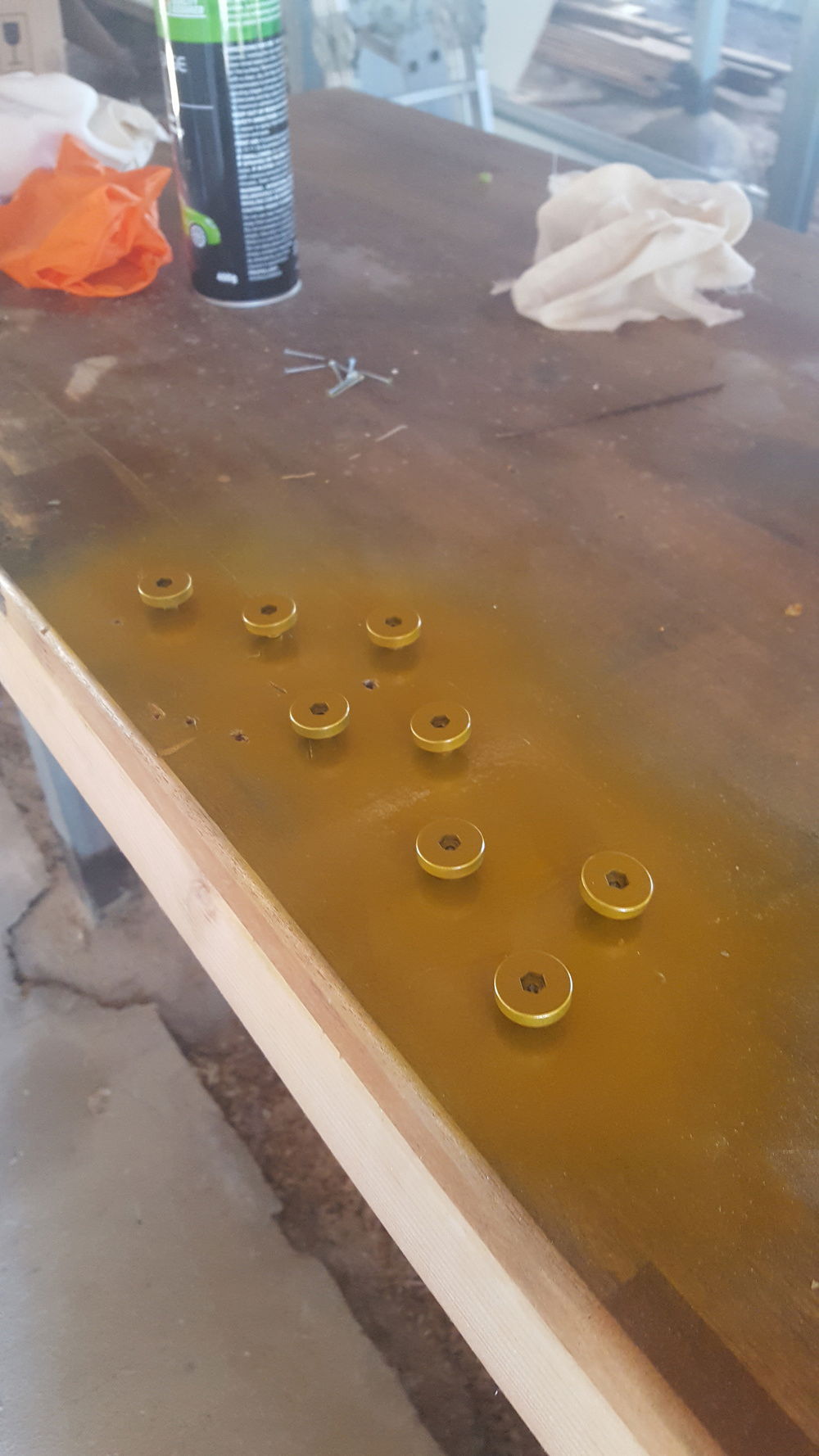

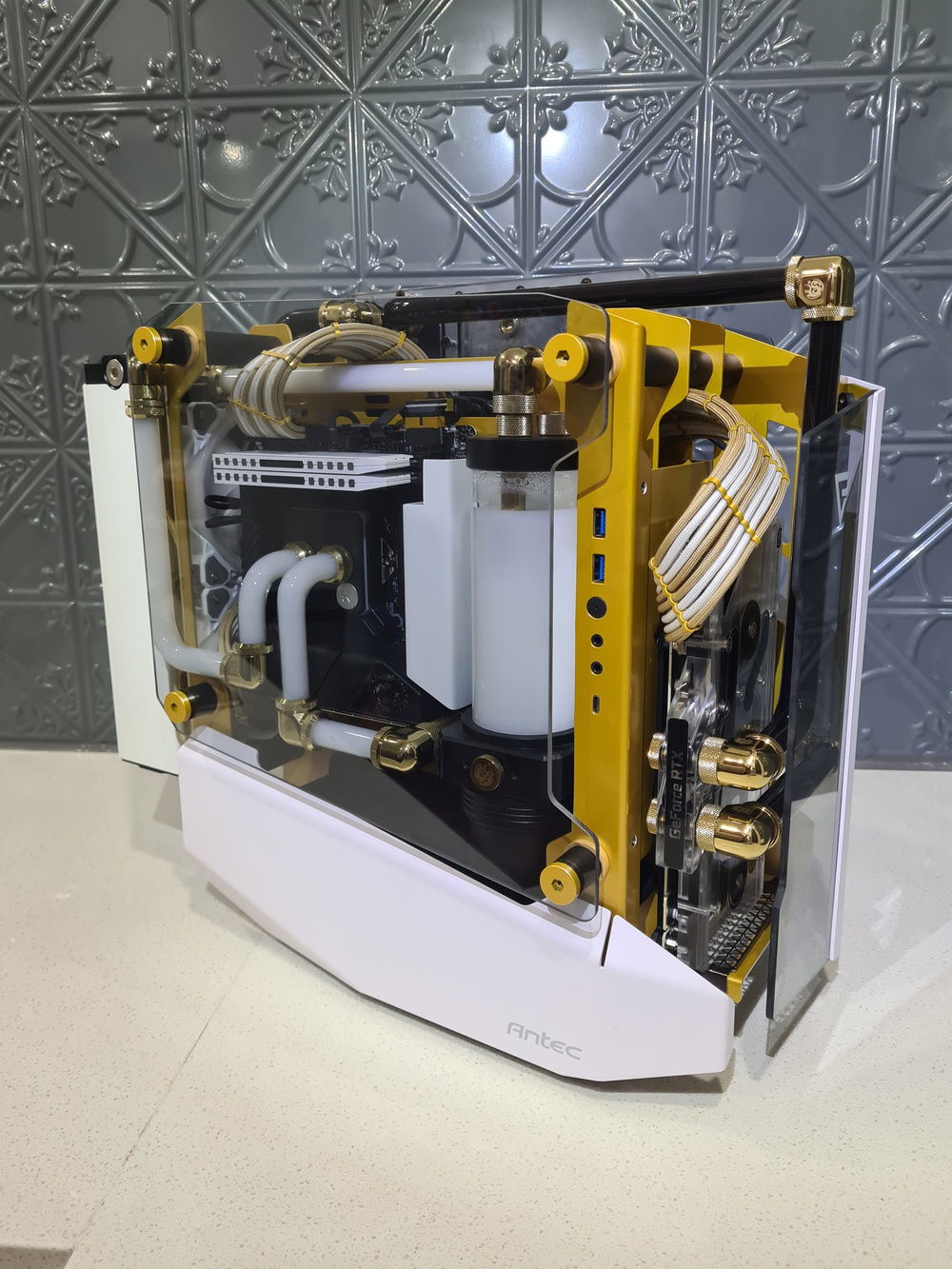

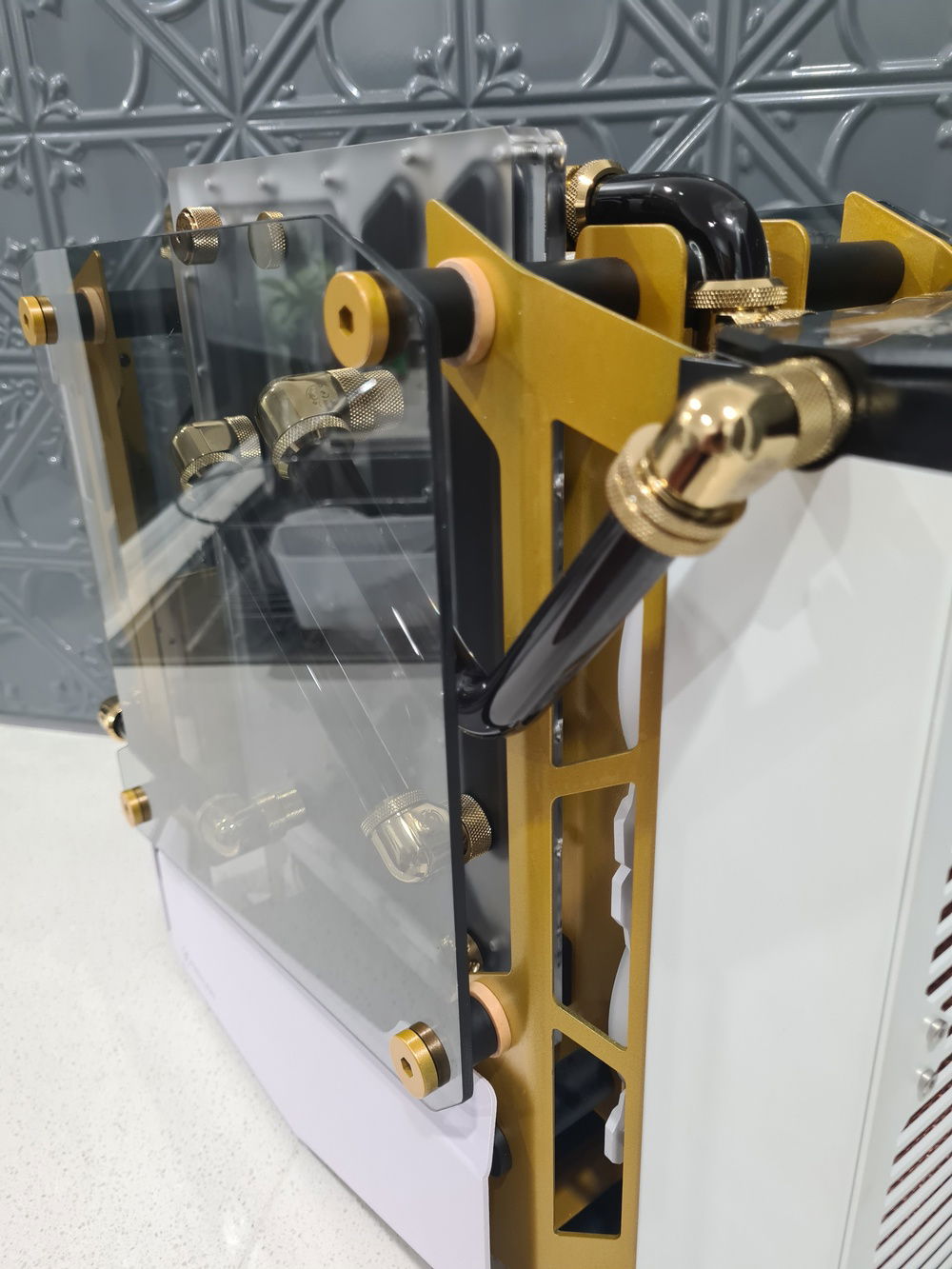

I ran into a issue with the glass panels touching on the fittings so I had my old man turn up some huon pine washers to space them out a bit.

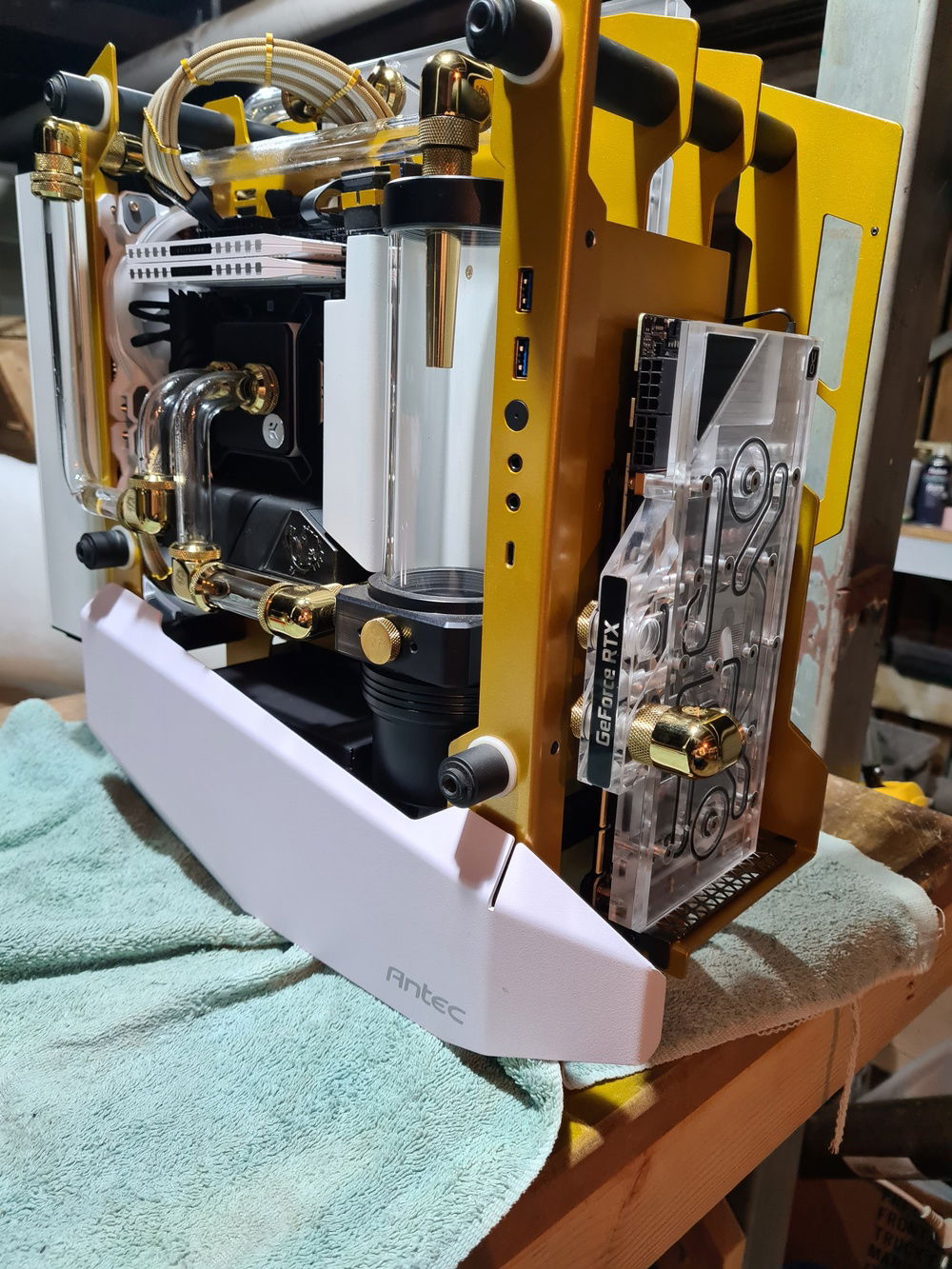

The system cools everything quite well surprisingly, gpu doesn’t make it past 60 degrees in all testing I’ve done so far,
However cinebench r23 will get the 10900k up into the low 90s. I was happy with it considering I am from a hot climate where ambient rarely drops bellow 25c.

Let me know what you think
Color(s): Black Gold White
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 4 contests.

Hardware

CPU
$ 565.00
Intel - Core i9-10900K
Socket: LGA 1200
Cores: 10
Motherboard
$ 378.68
MSI - MEG Unify
Chipset: Z490
CPU Socket: LGA 1200
Size: ATX
Memory
$ 149.98
Corsair - Dominator Platinum (3200MHz) (Black/RGB) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
ZOTAC - GeForce Gaming Trinity
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 170.48
Gigabyte - NVMe Gen4
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 396.92
Seagate - FireCuda 510
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
Seasonic - SSR-750GD
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
Antec - Striker
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 119.99
Cooling
Aquacomputer - Radiator
Type: Custom Loop
Cooling
Bitspower - Fittings
Type: Custom Loop
Monitor
$ 600.00
Acer - Predator X34
Size: 34 Inch
Panel: IPS
Refresh Rate: 100 Hz
Mouse
$ 95.99
Logitech - G903
Interface: Wireless
