Kodderschnauze
André
  • App Happy
Member since 2021-07-16
Berlin, Germany
Build Views
458
Build Approvals
7
Fistbumps
22
Followers
3
Posts
12

clean white sNow

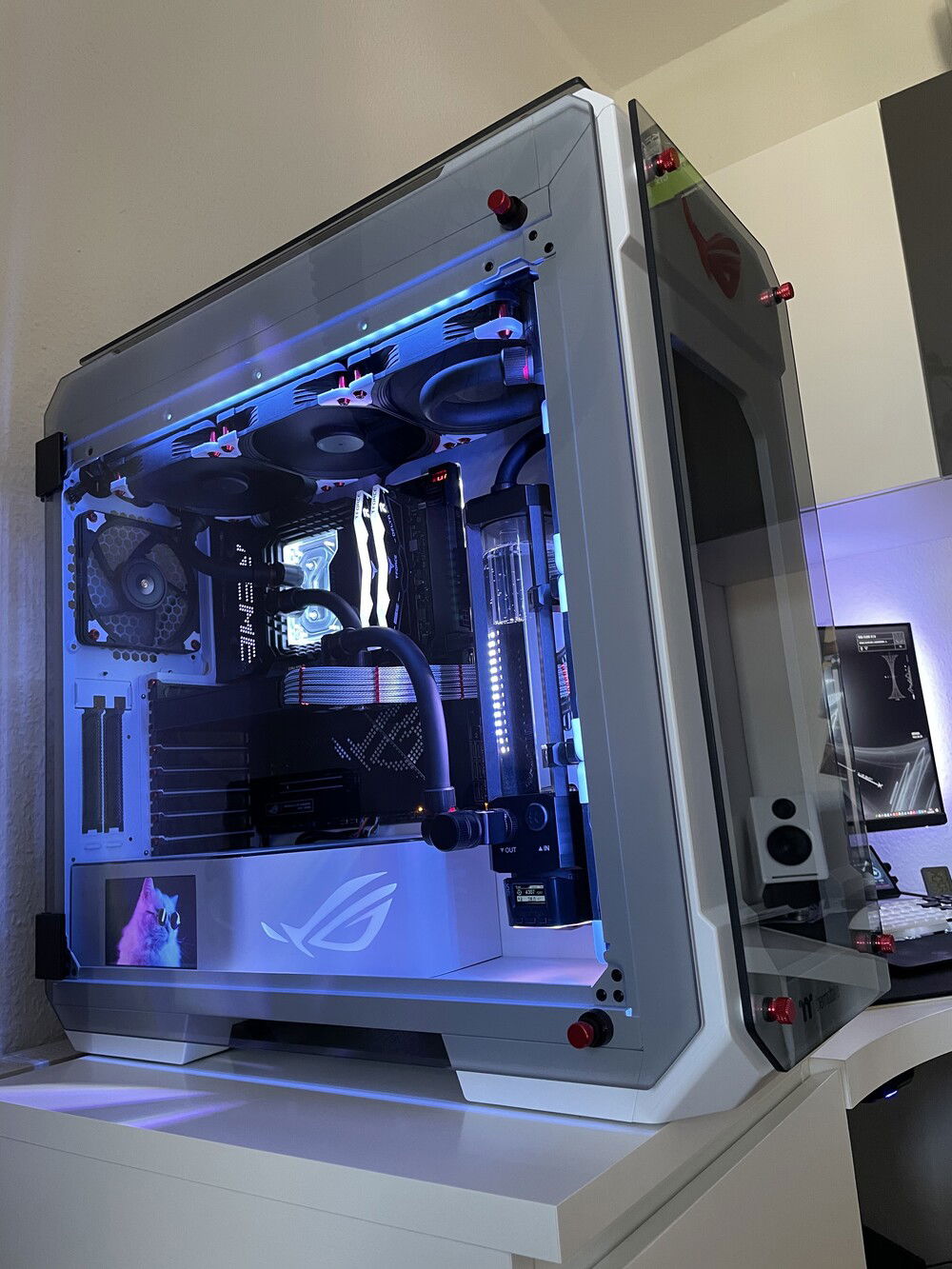

Hello, my name is André, I work professionally in the craft, which has also reflected in my hobby, I love challenges and I always try to pursue them. I always try to do everything myself and if something doesn't work, I try it until it works 😉... and here's my result 😅

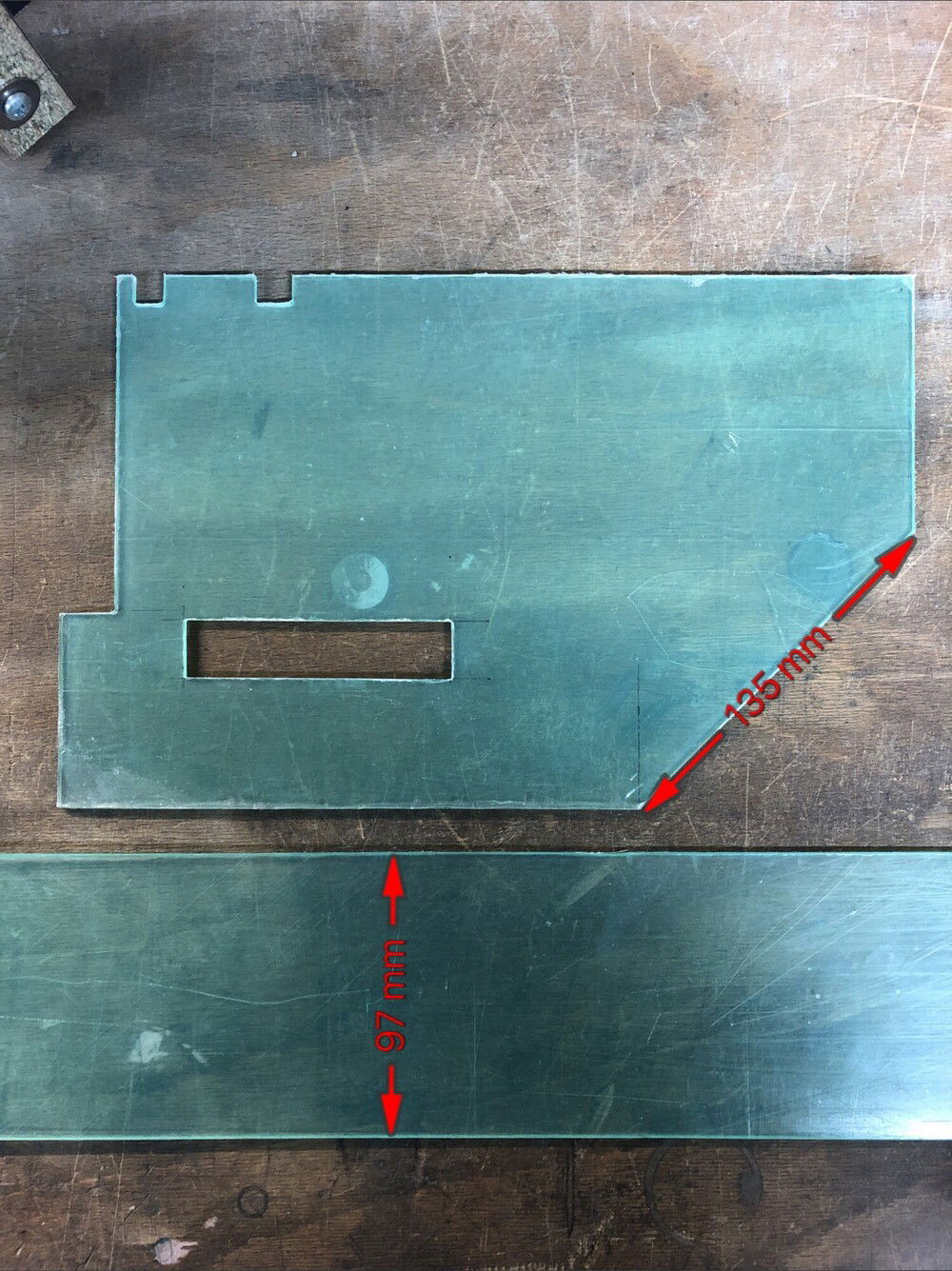

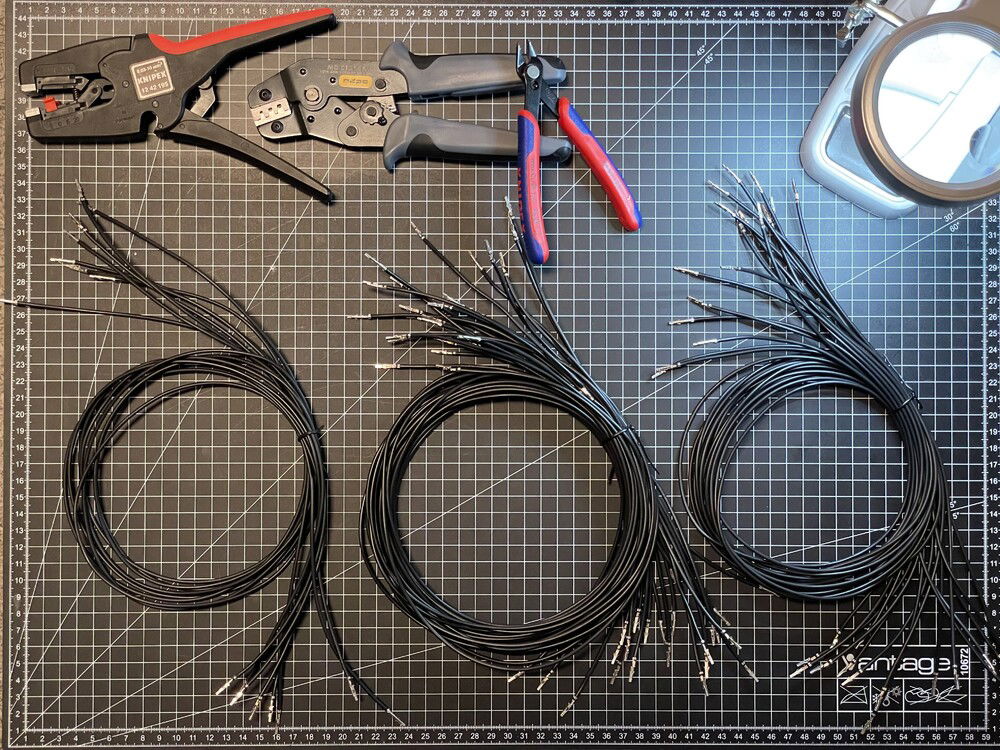

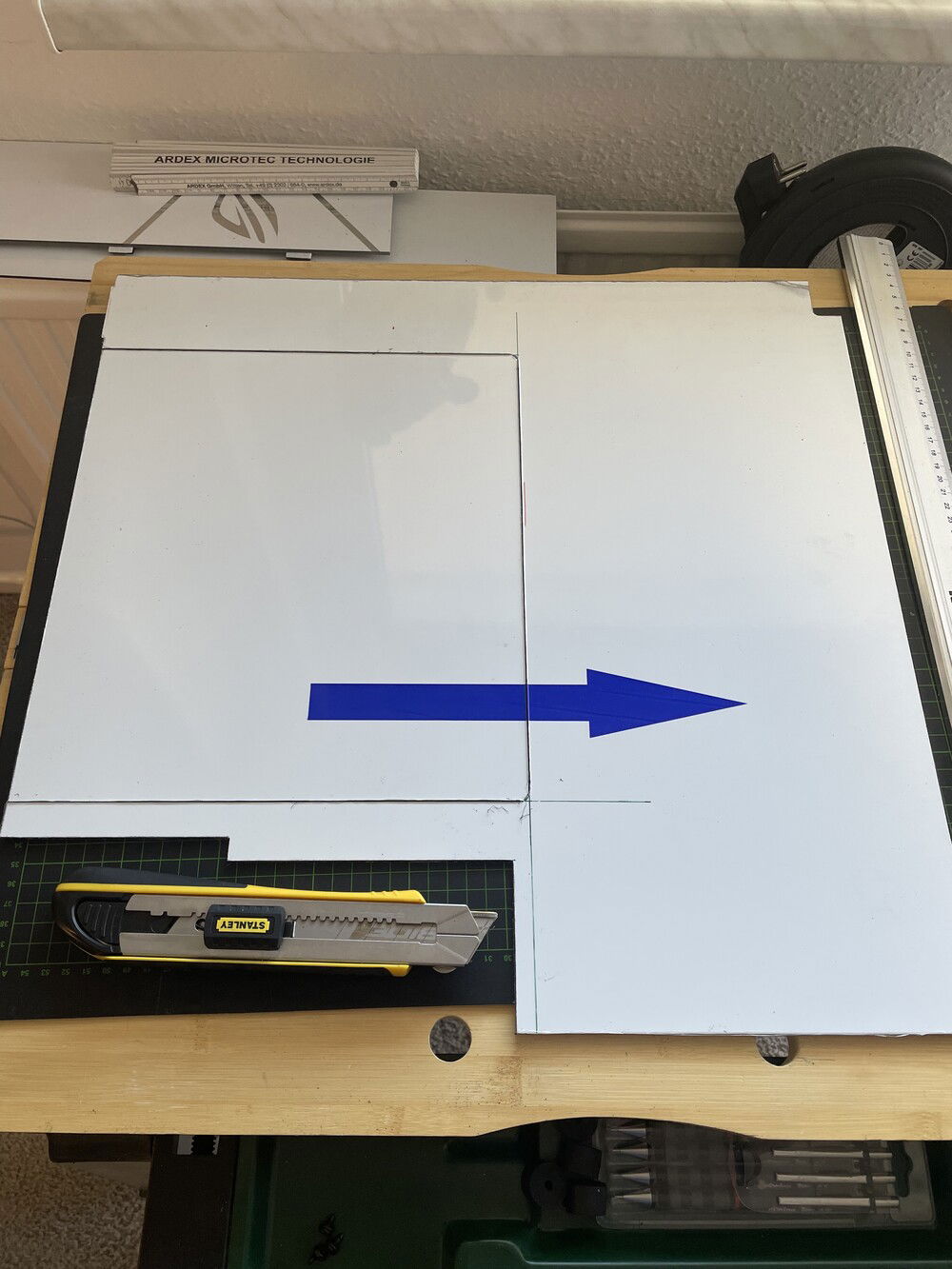

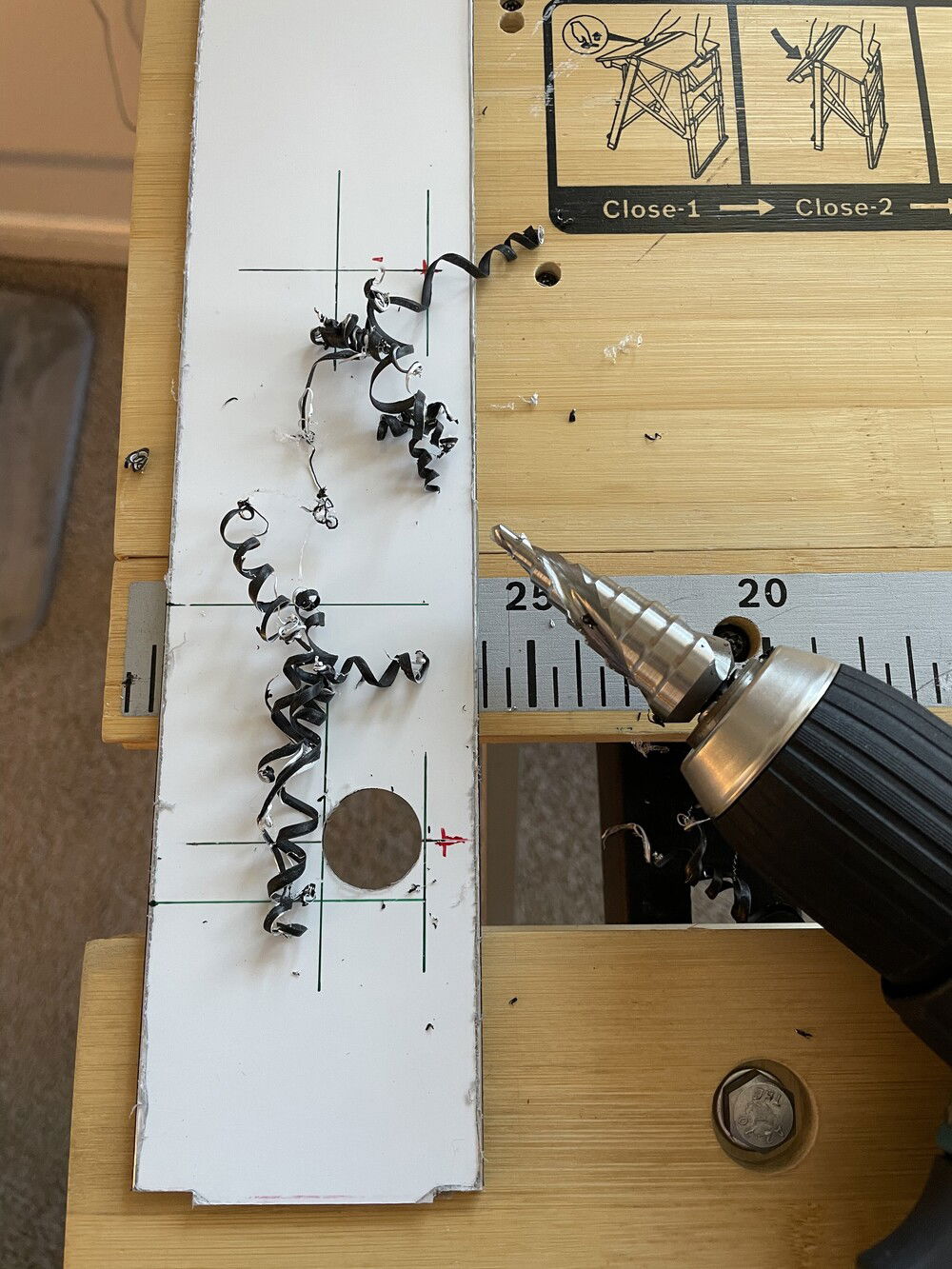

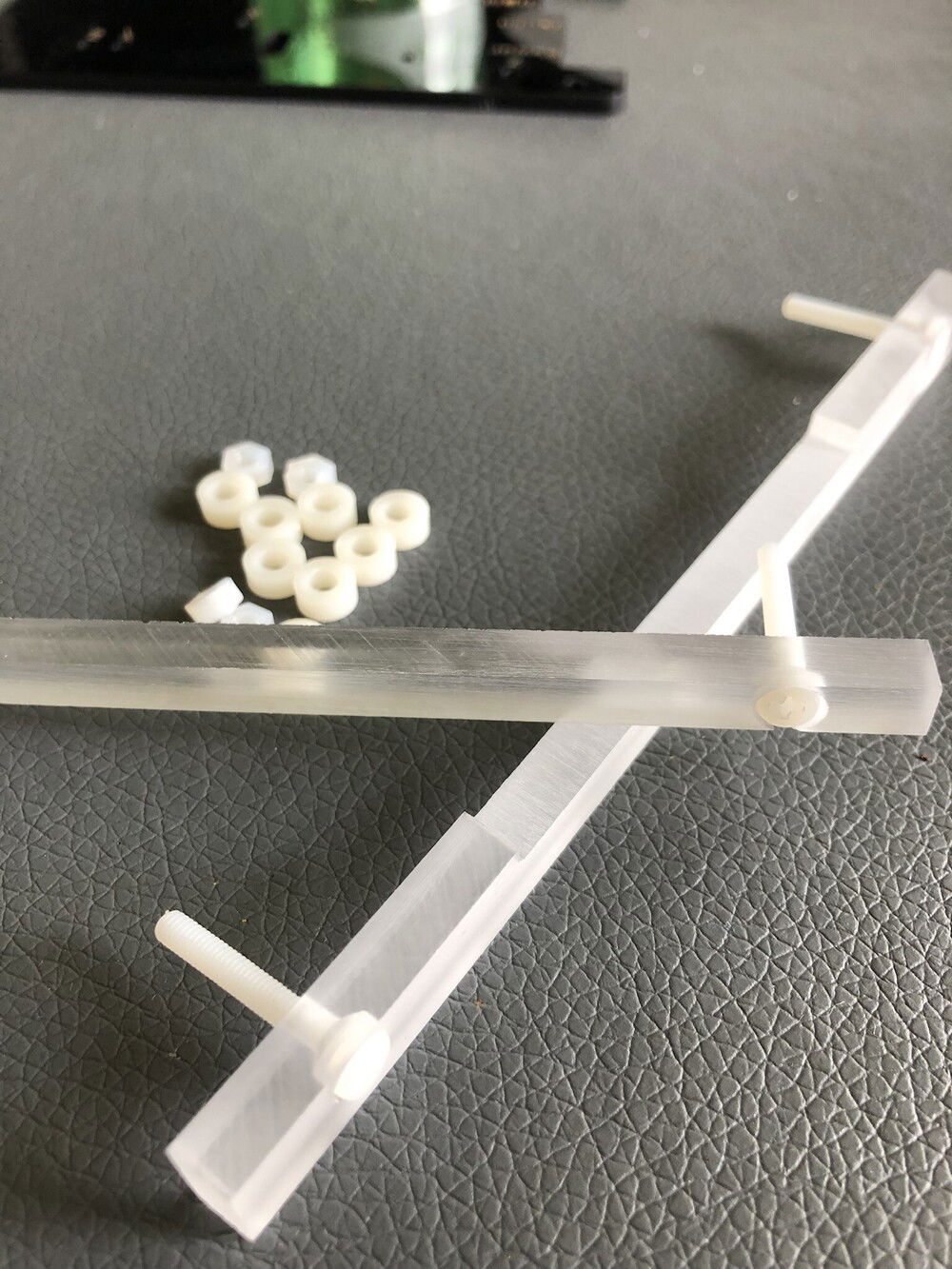

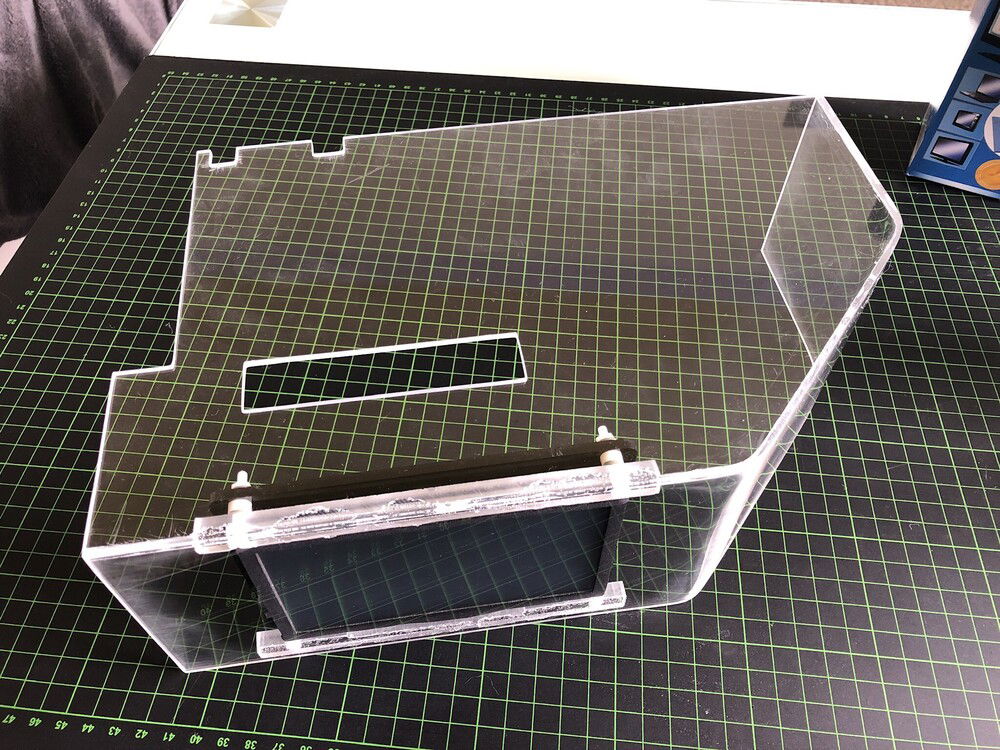

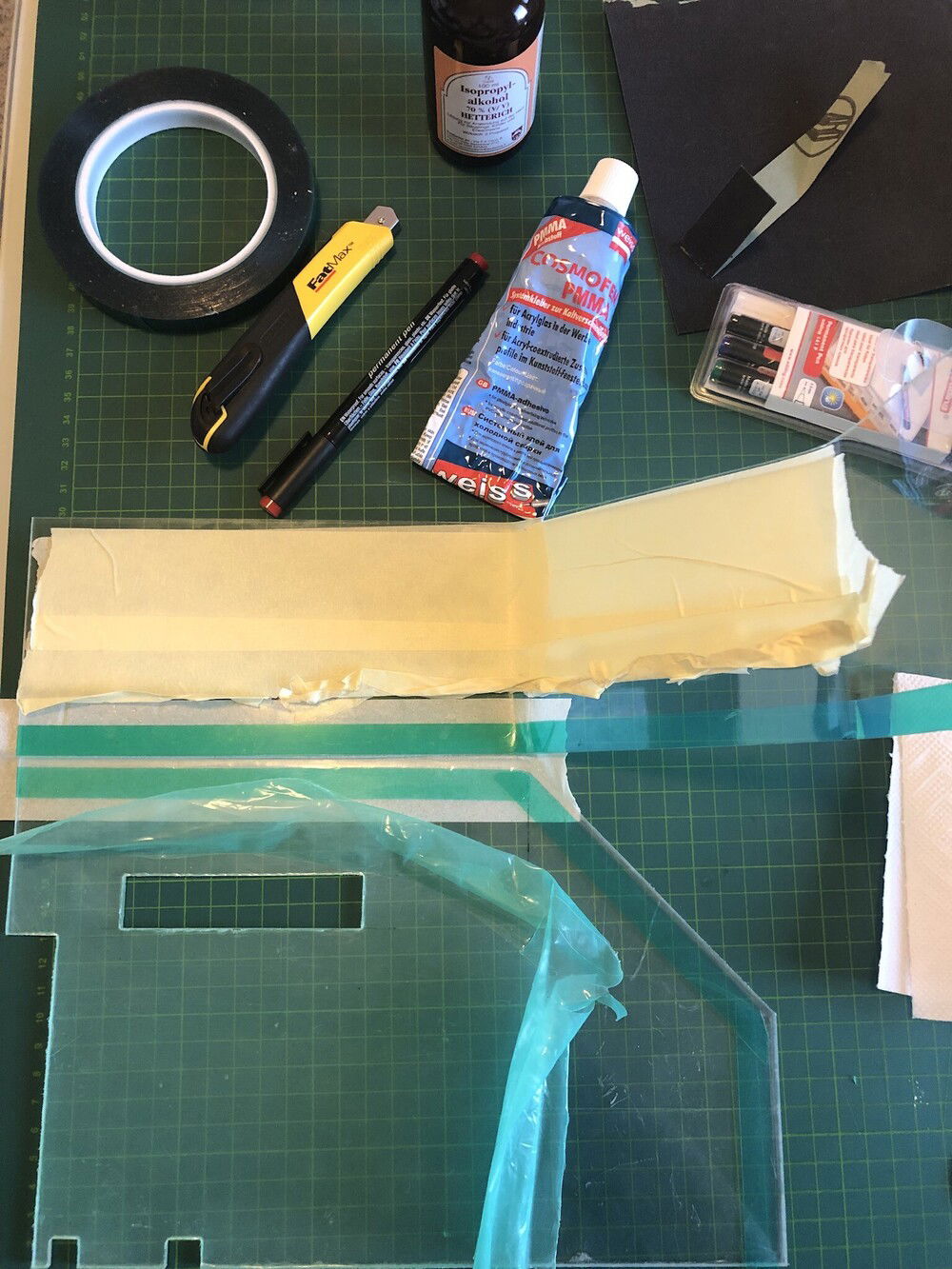

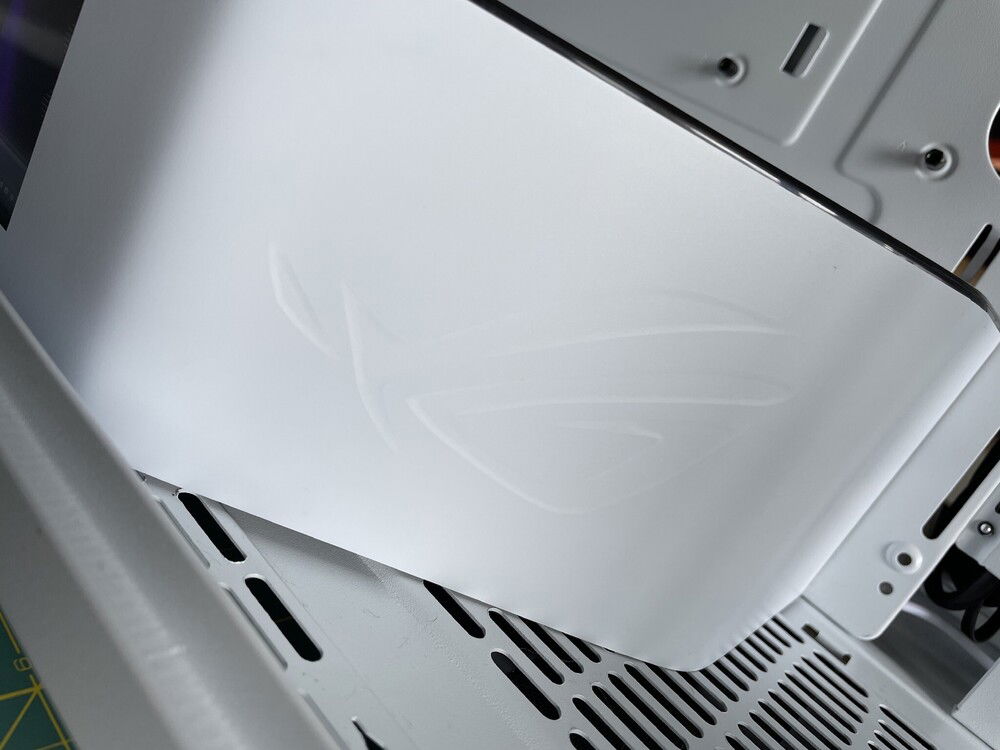

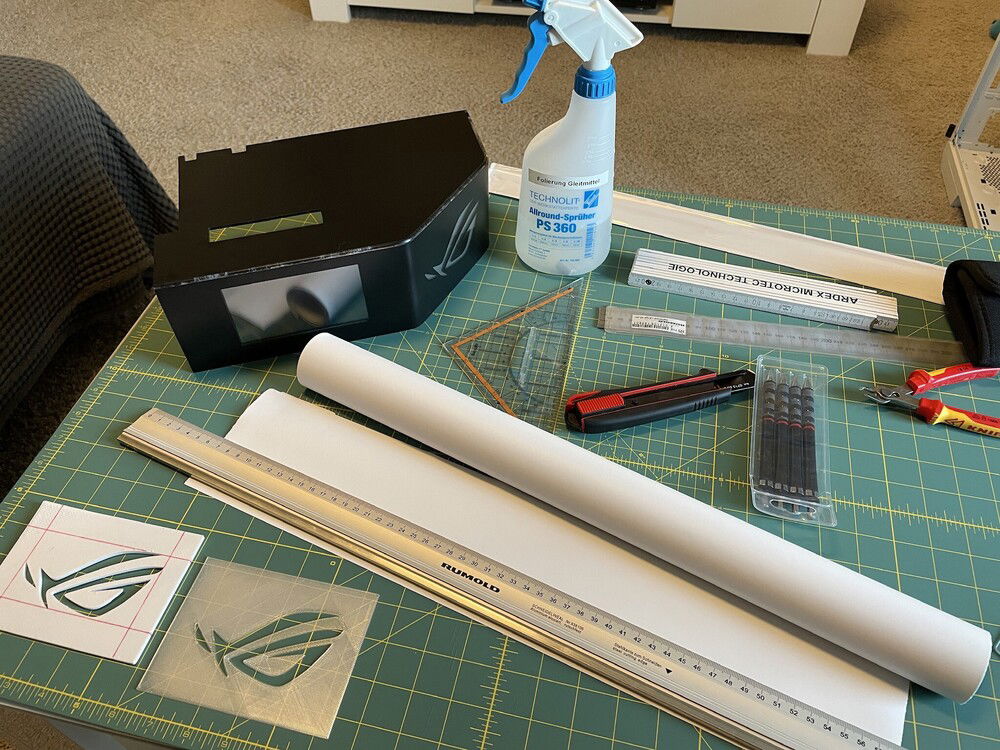

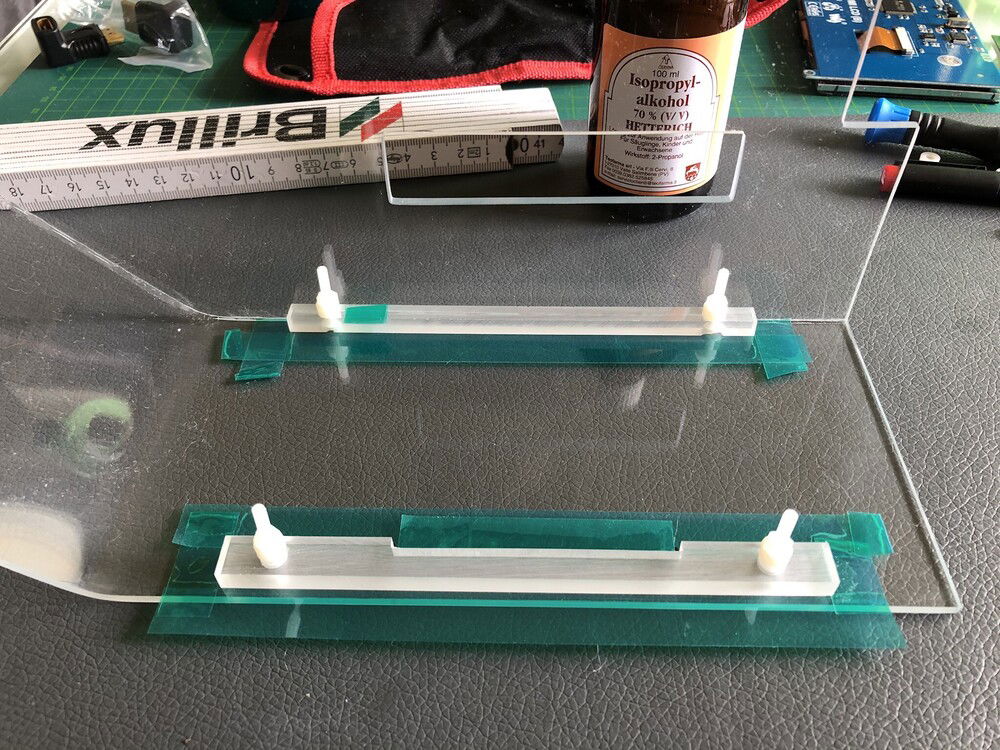

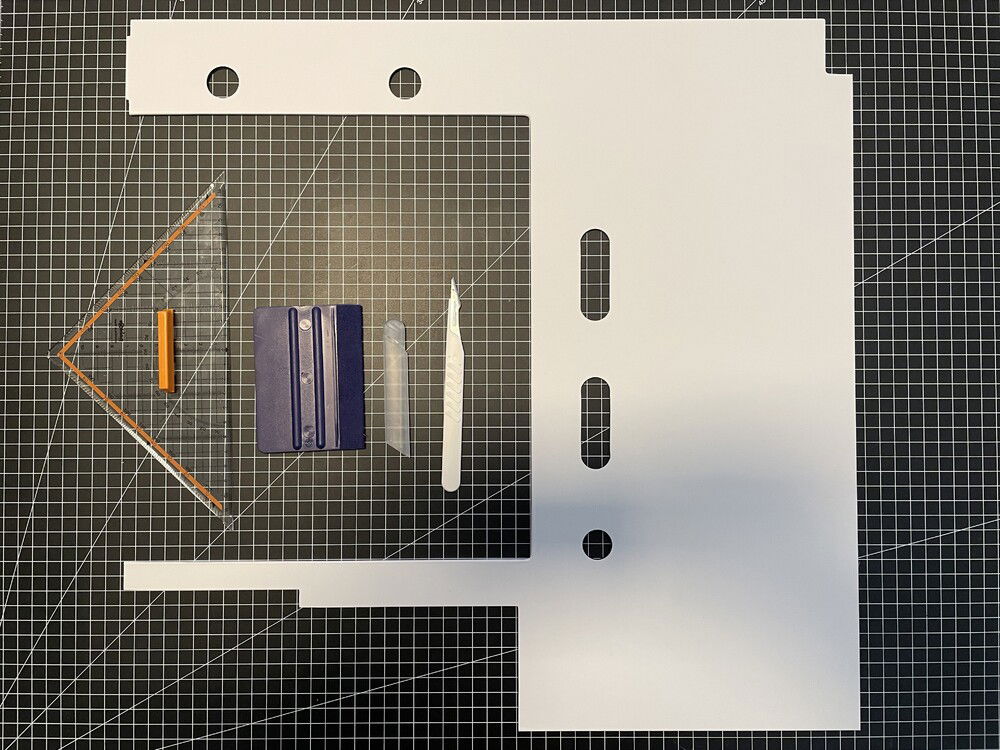

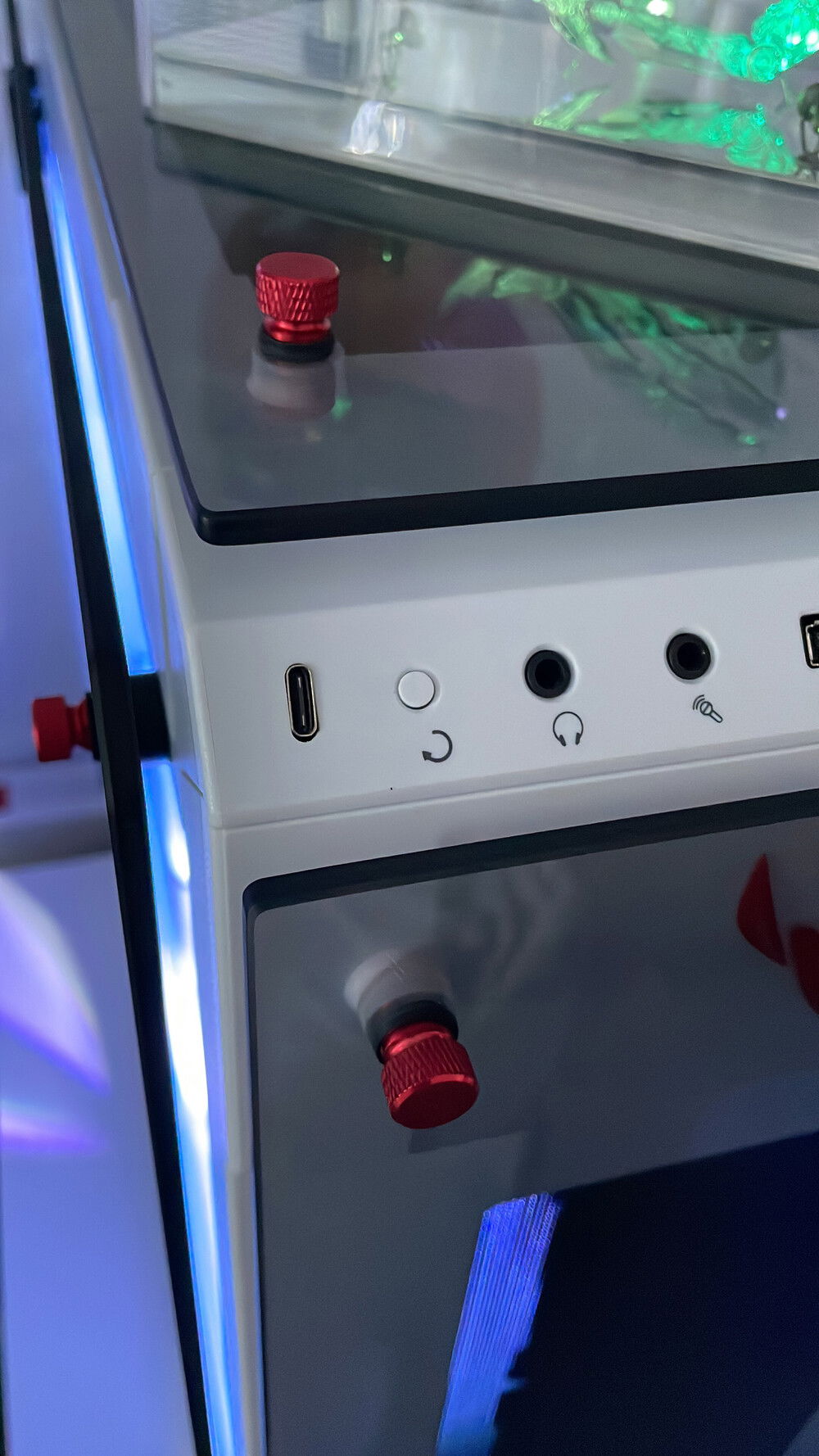

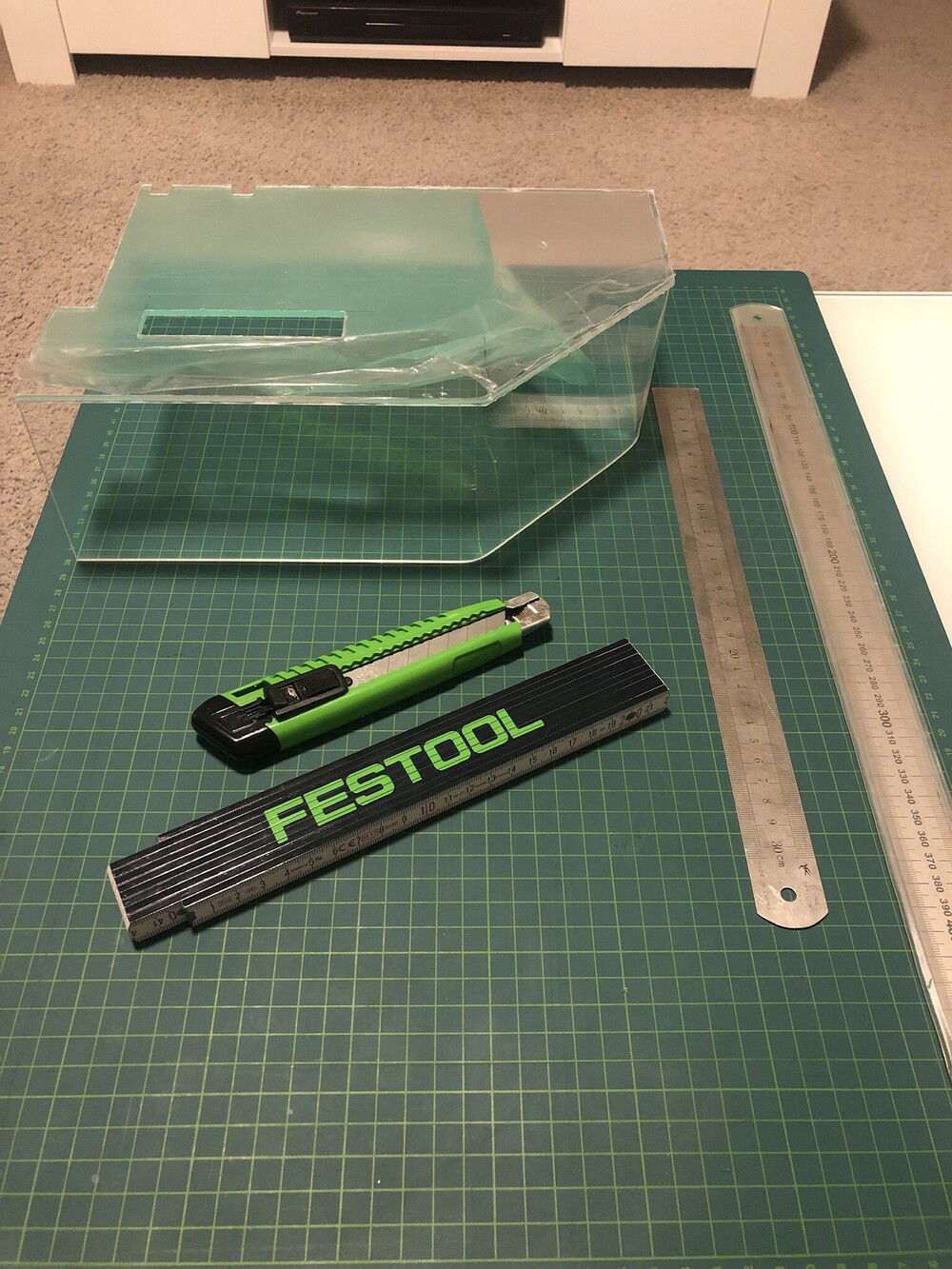

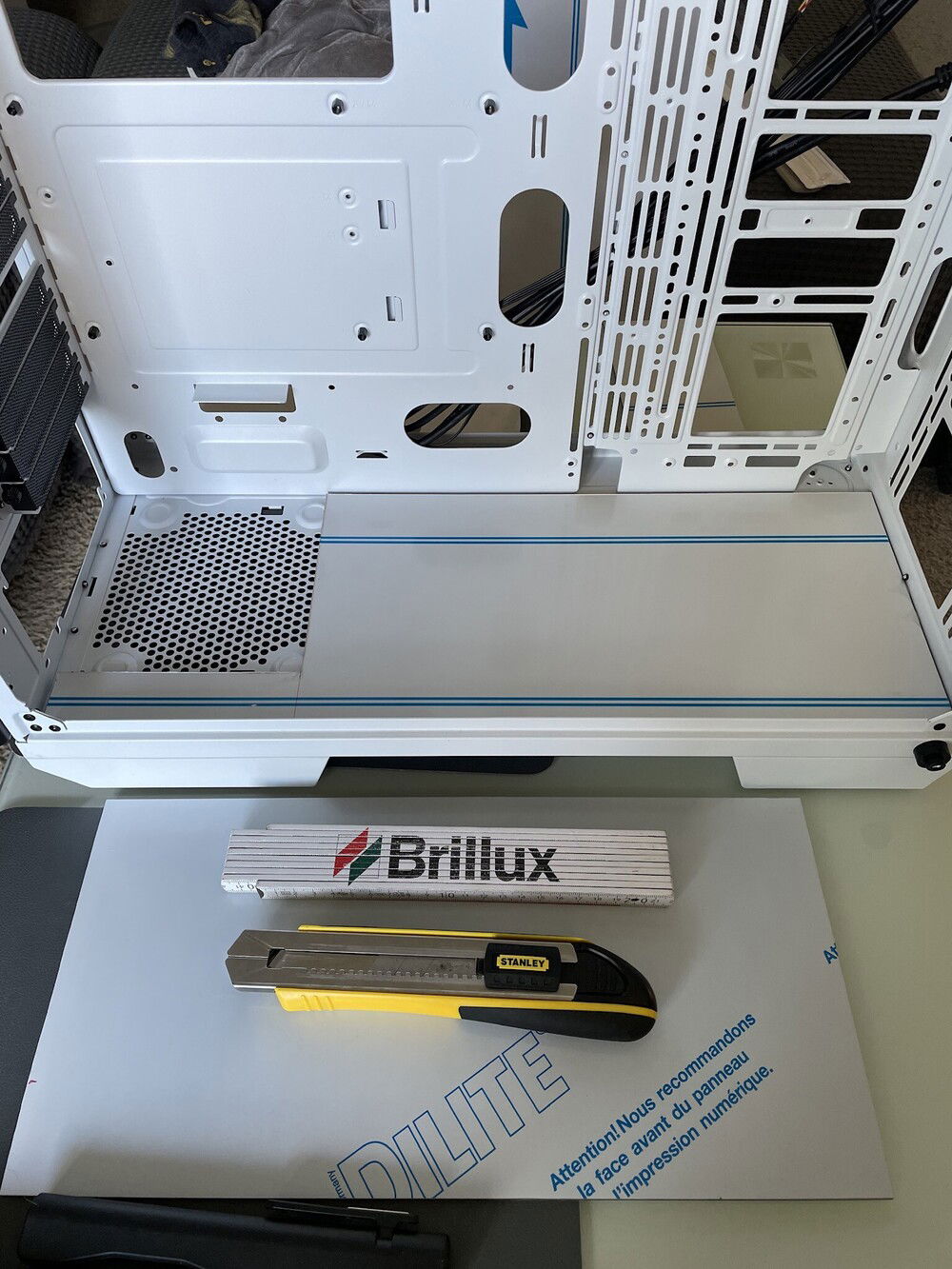

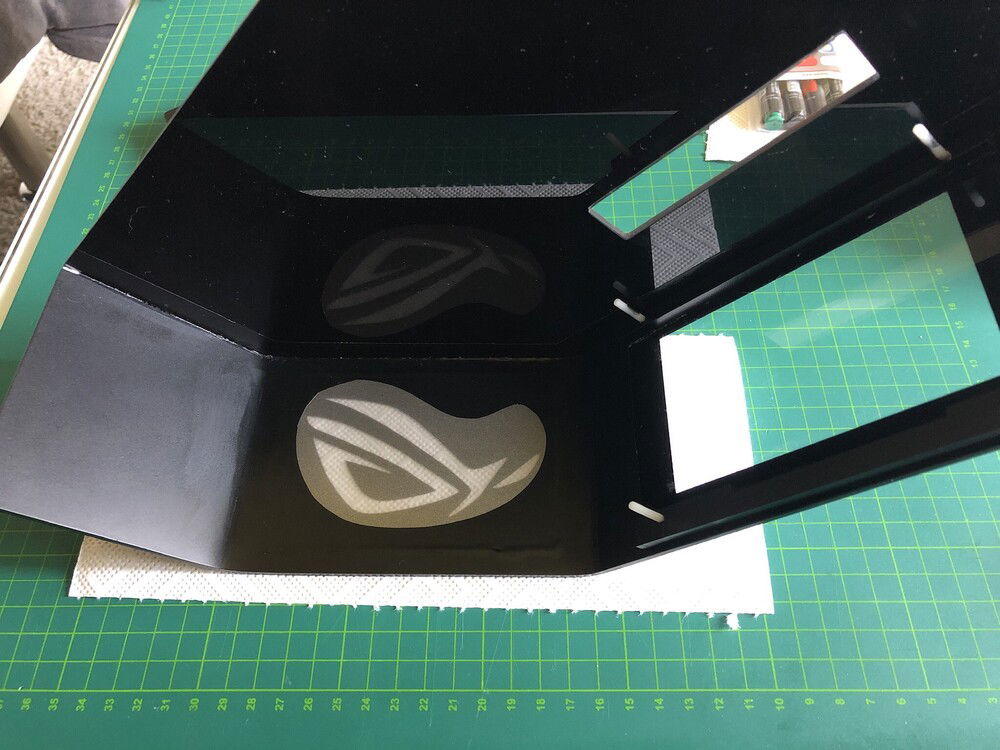

custom psu cover, custom case plates, custom sleeve from psu , front usb c / Material: Acryl, Dibond, foil

Hardware :

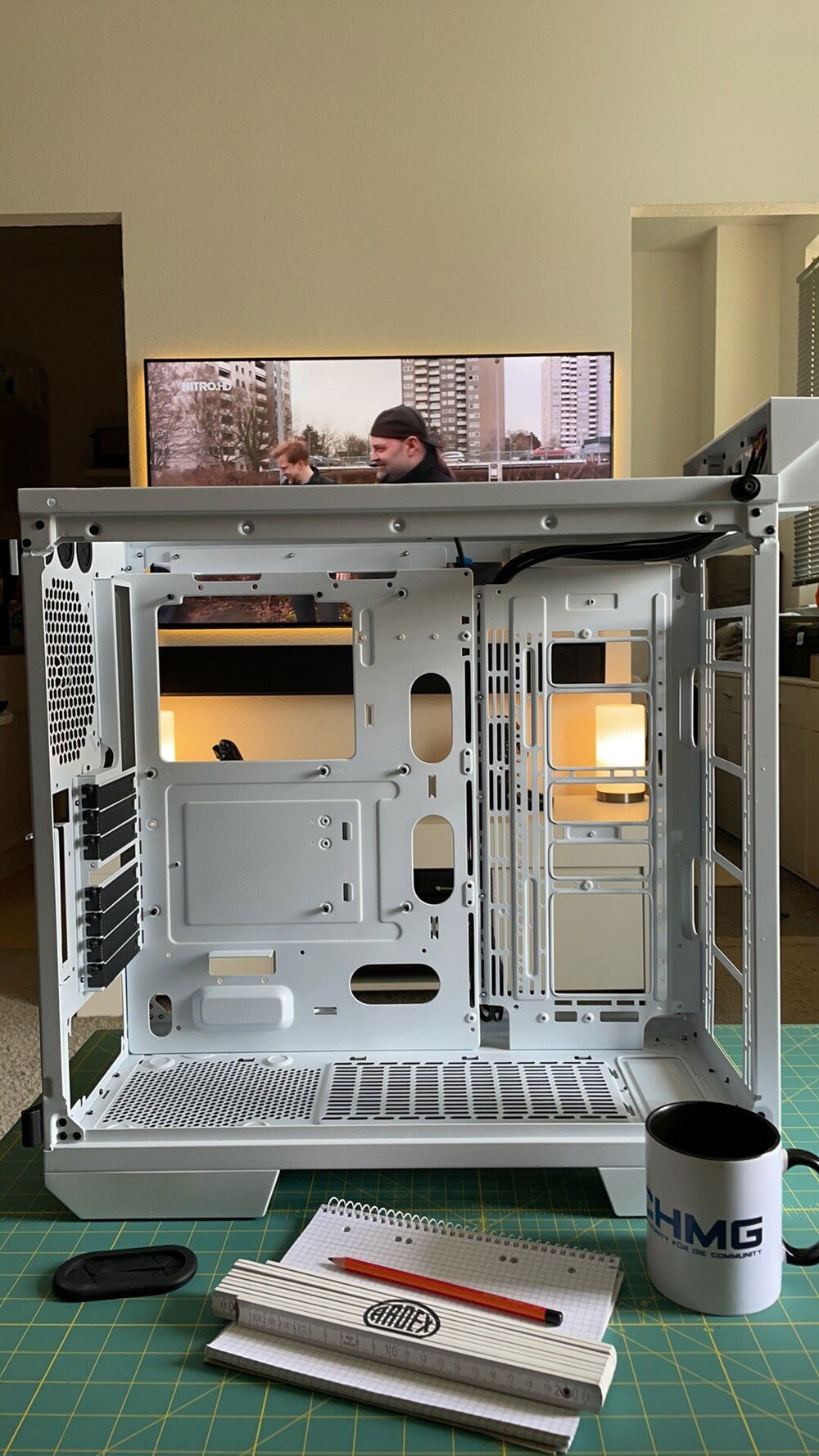

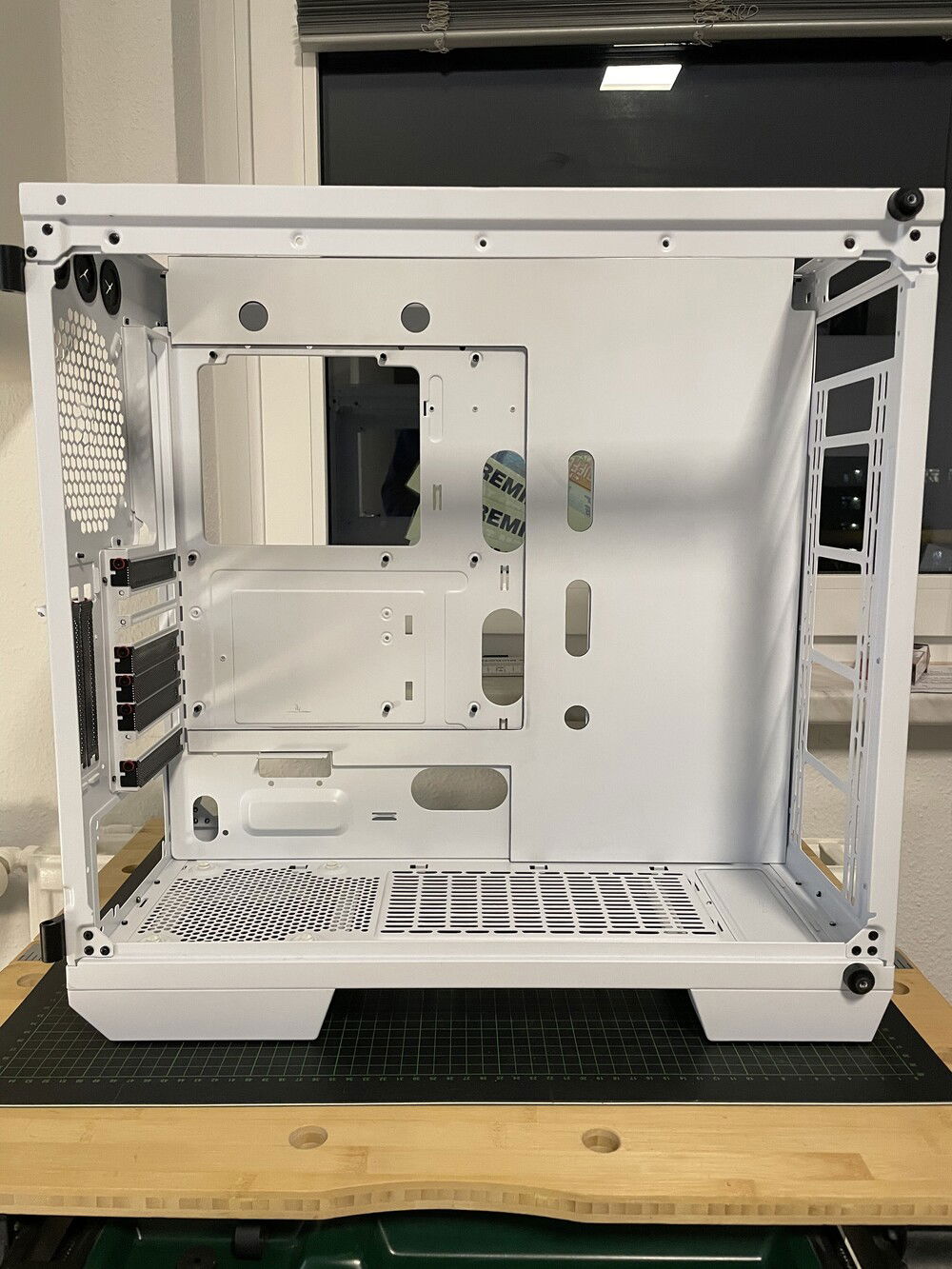

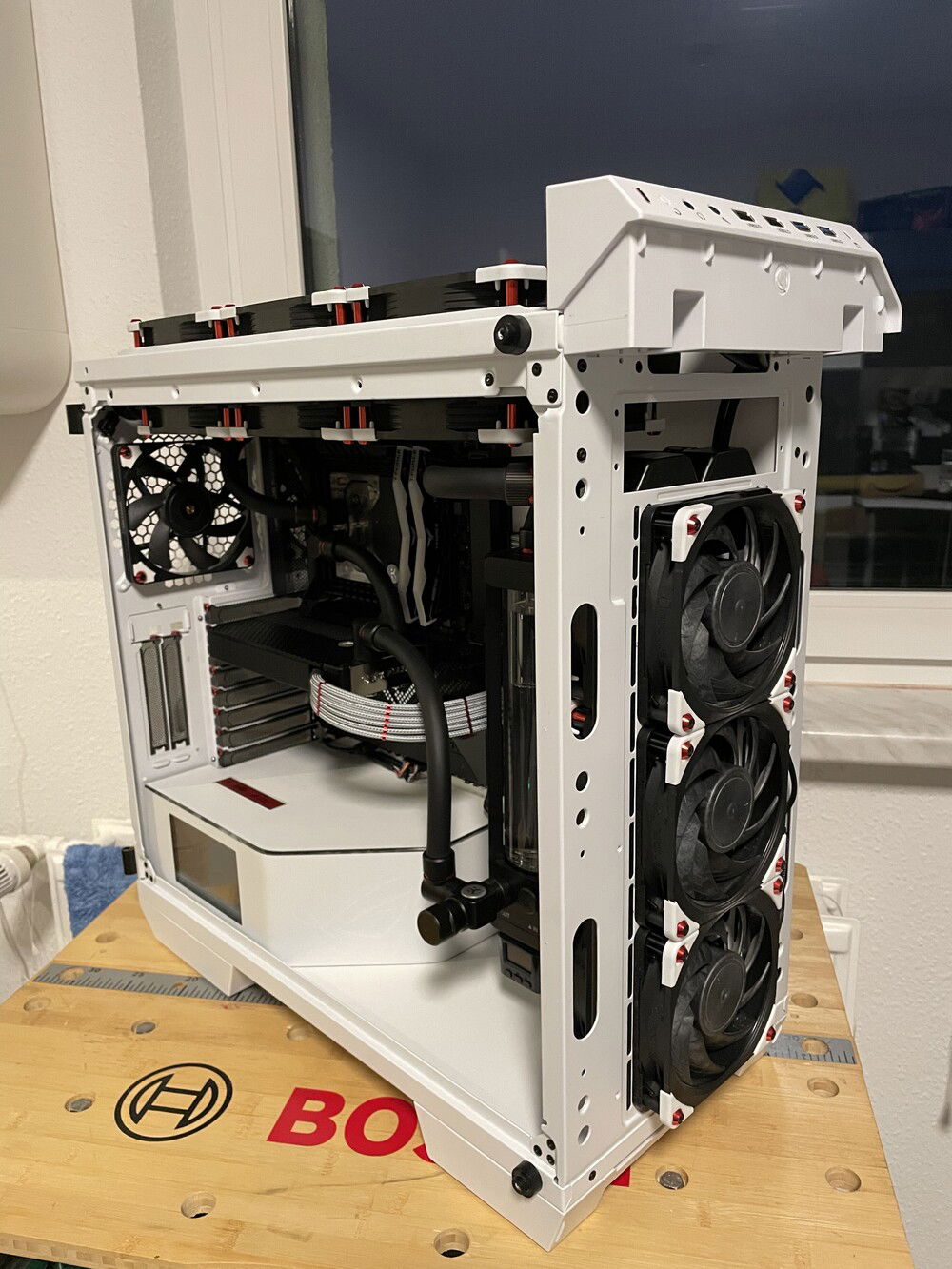

HOUSING* View 71 + USB C + custom Plates

FAN* 6x Noctua NF-A12X25 PWM chromax black 120mm

FAN* 6x Noctua NF-A14 PWM chromax black 140mm

FAN* 1x Noctua NF-A12x15 PWM chromax black 120mm

+ Aqua Computer OCTO

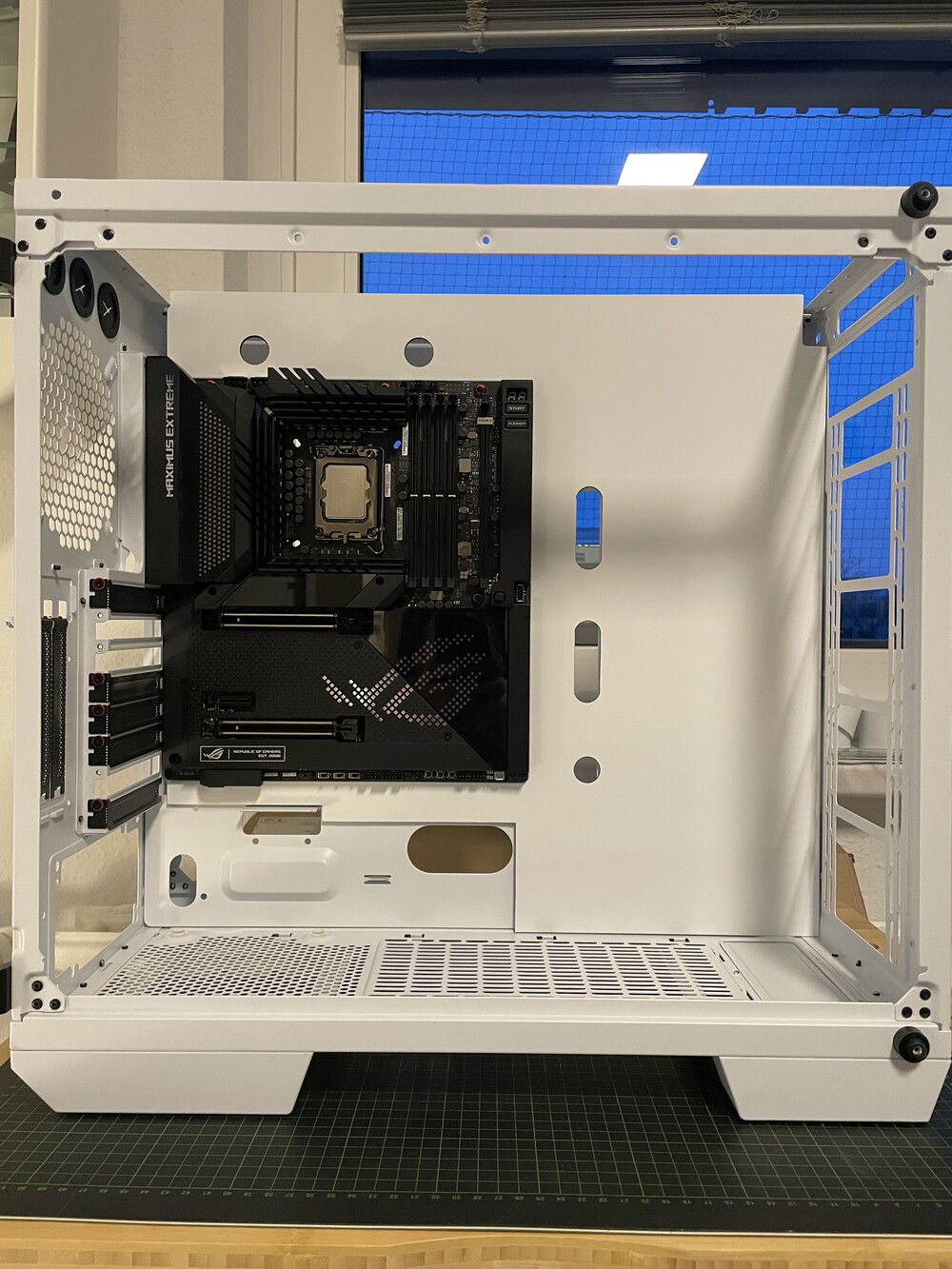

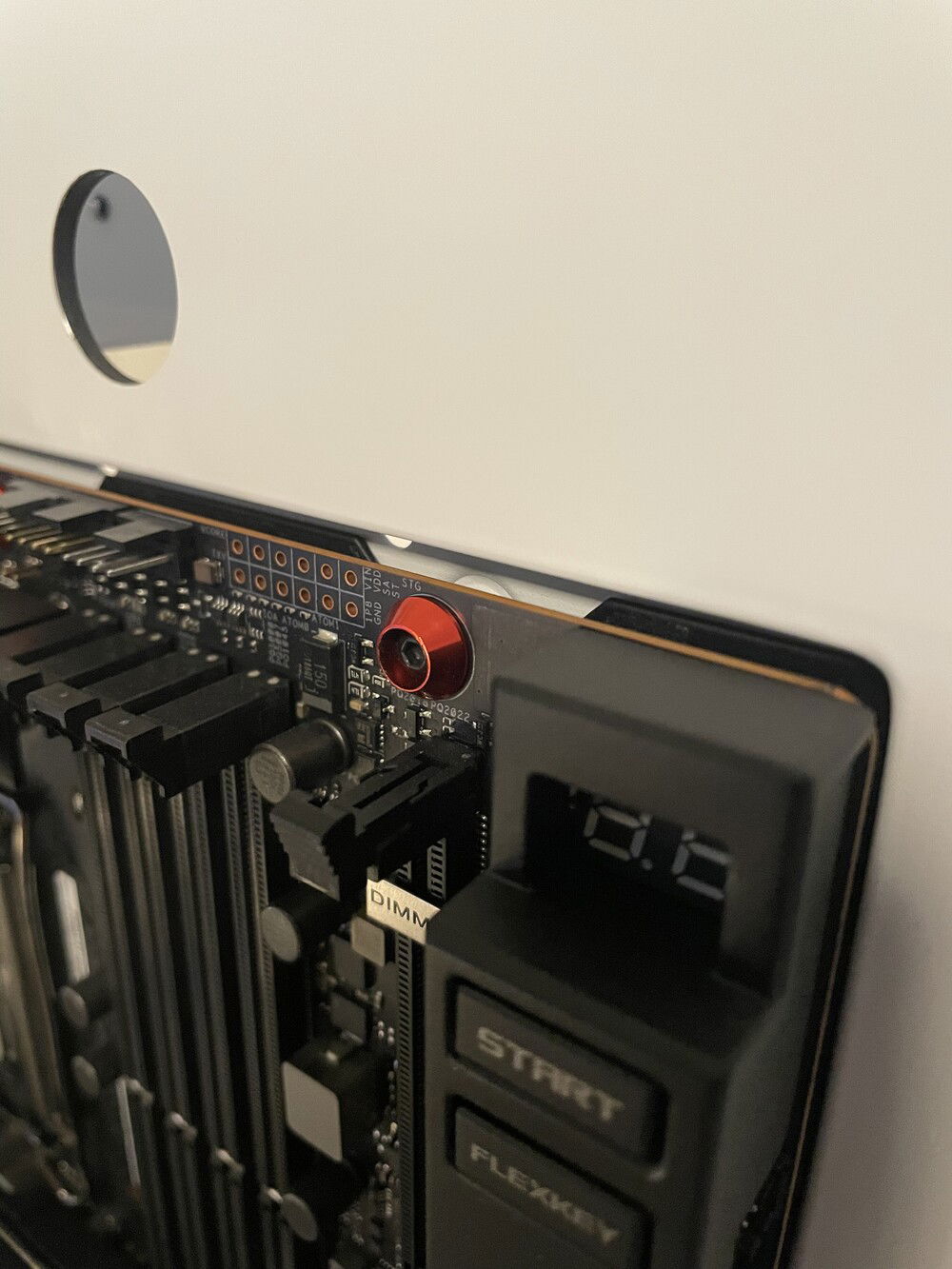

BOARD* Asus Rog Maximus z690 Extreme

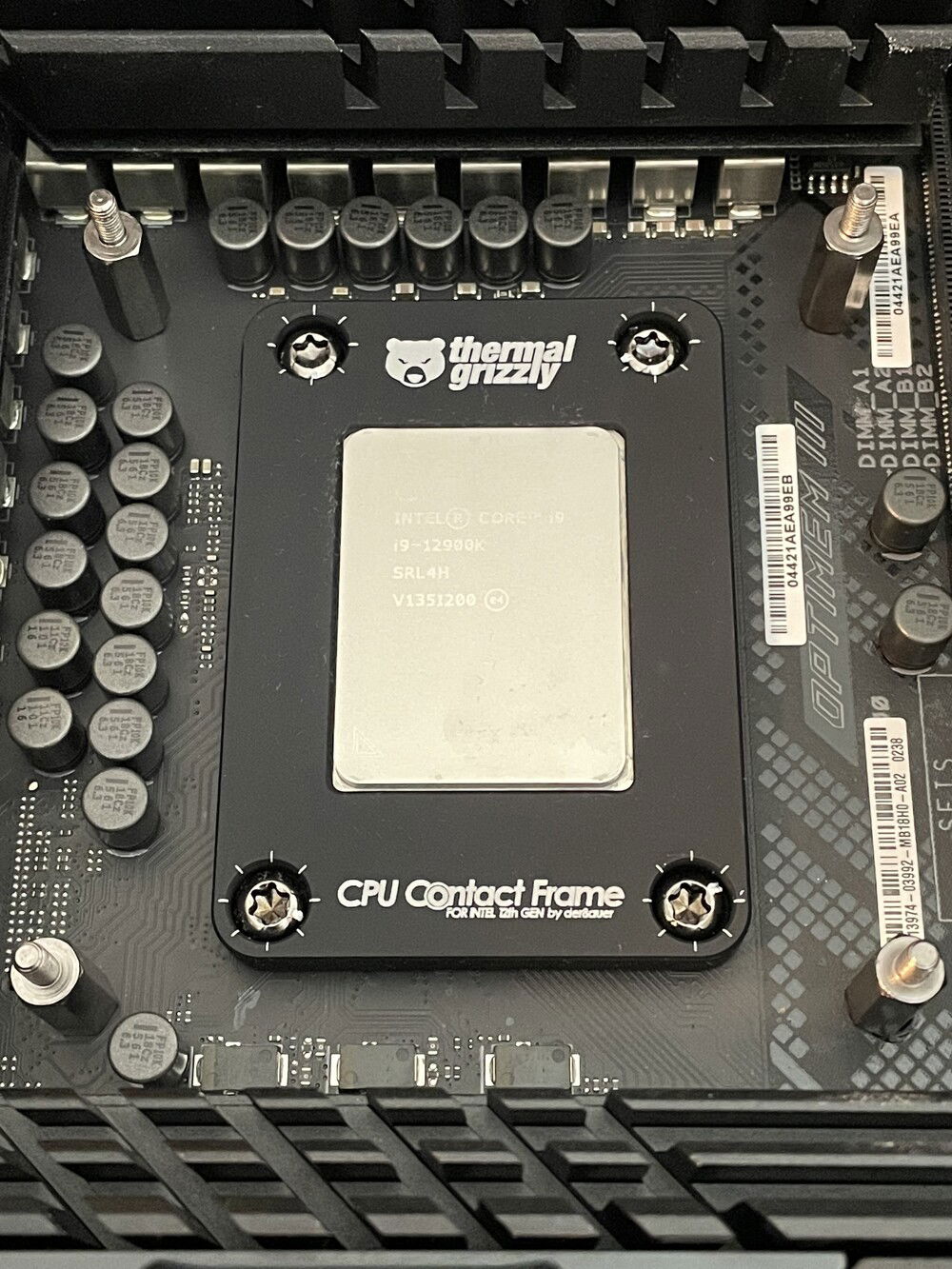

CPU* Intel i9 12900k ( SP97 - P core 108/ E core 77 ) + Thermal Grizzly Intel 12th Gen. CPU Contact Frame

Memory* 32 GB T-Force 6200 MHz CL 38 DDR5

STORAGE* Samsung 970 Pro NVMe M.2 - 1000 GB

GPU* Nvidia GeForce RTX 3080 Ti Founders Edition

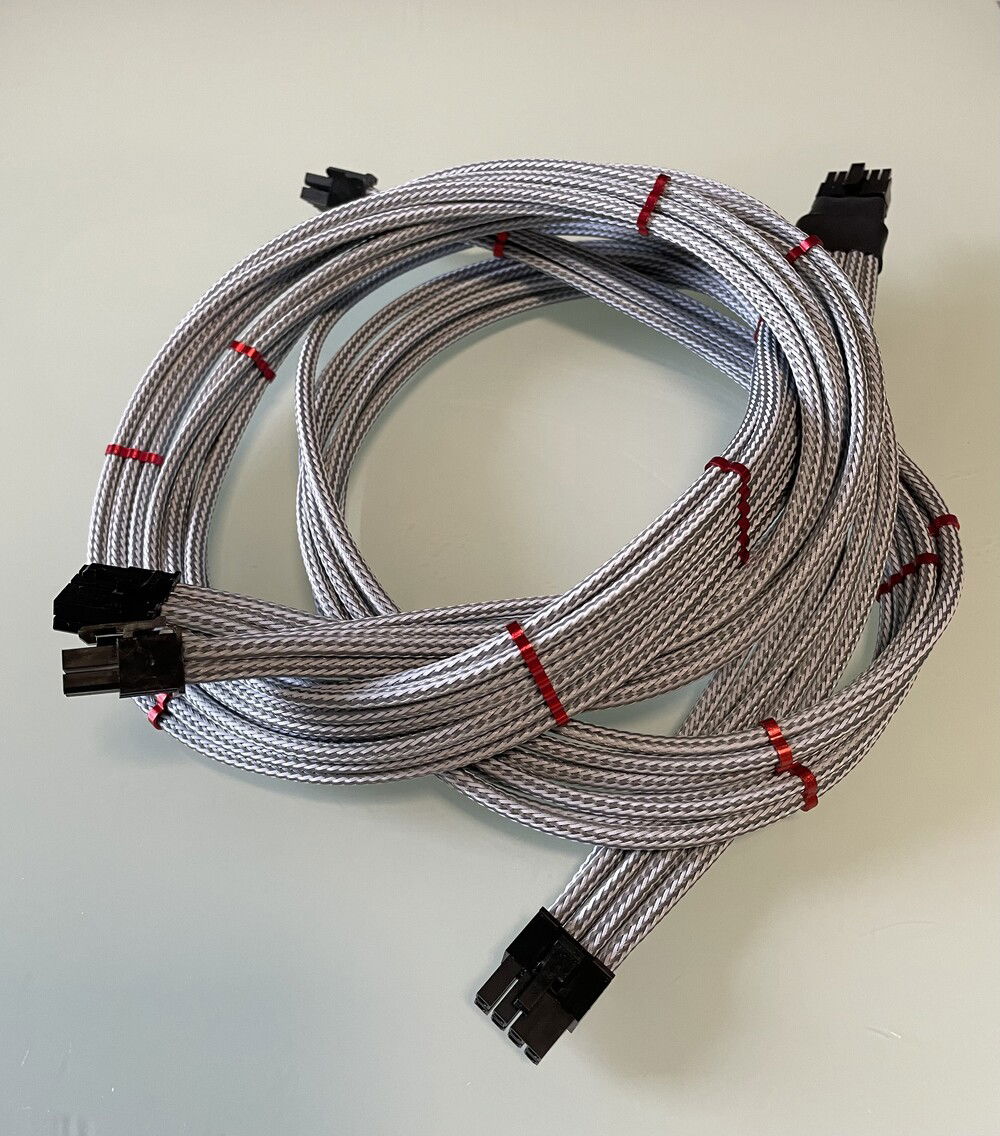

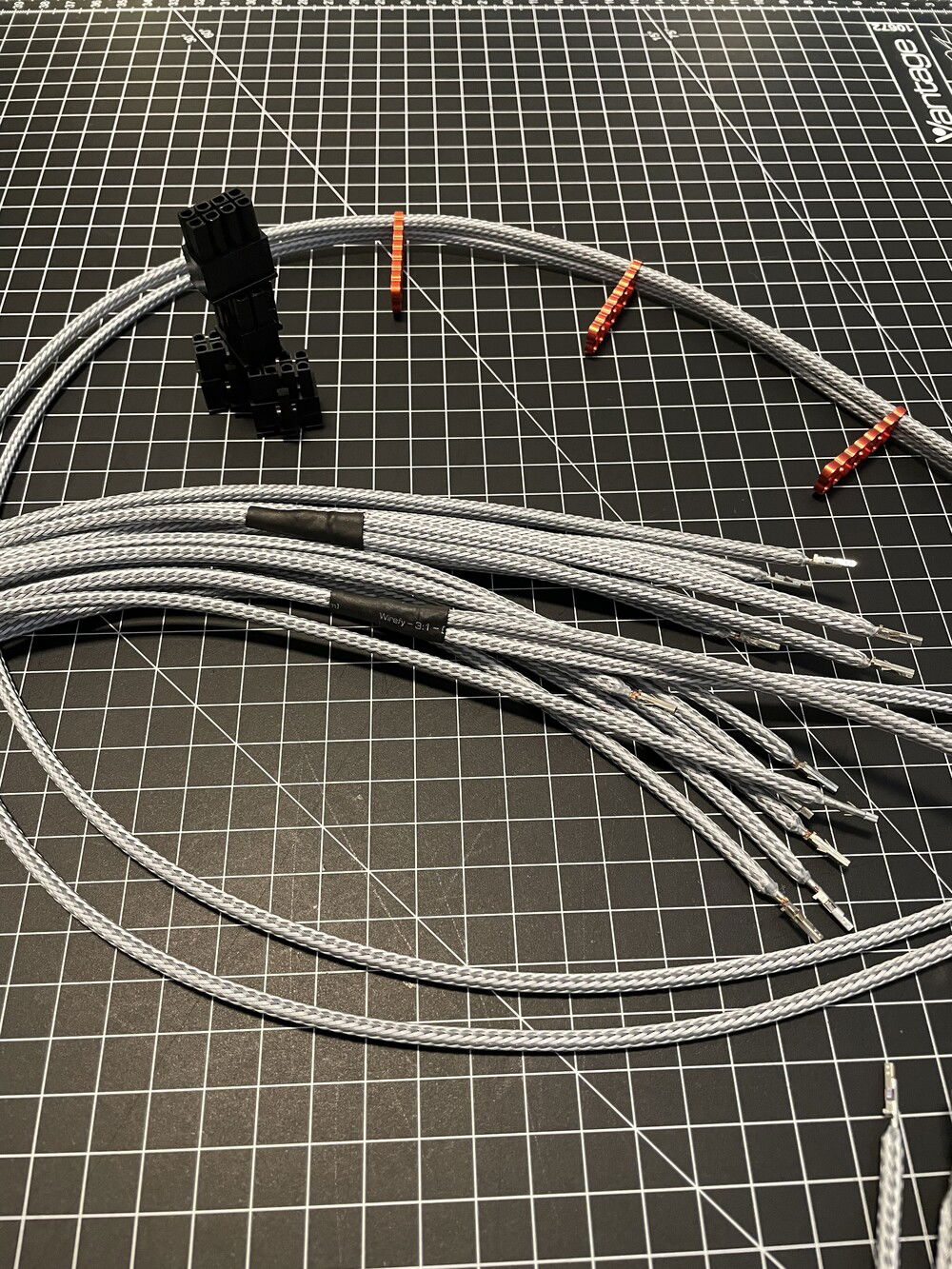

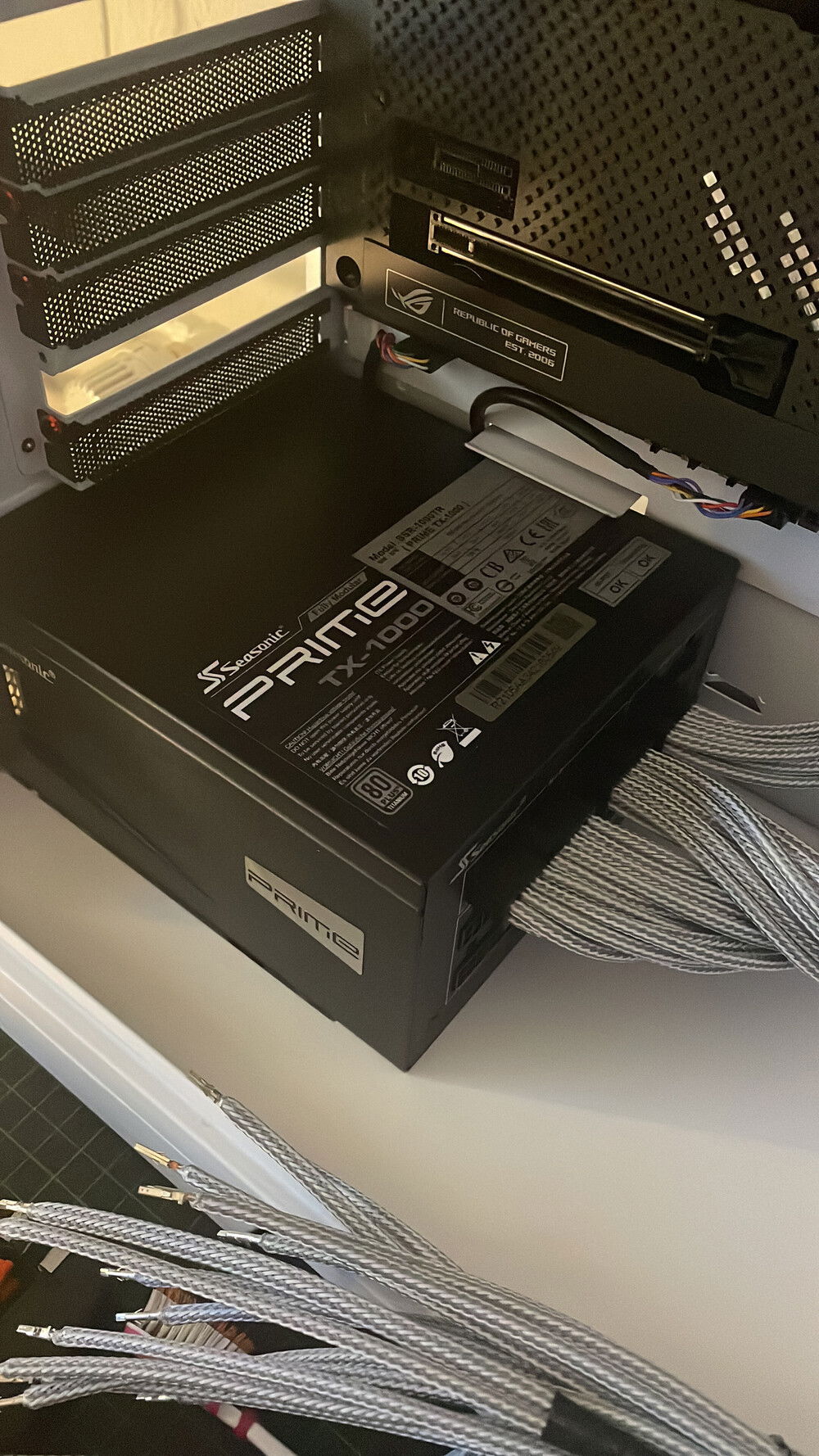

PSU* Seasonic Prime TX - 1000 + custom Sleeves ab Netzteil


Sound :

Speaker* Audioengine A2+ ( Stereo/Aktiv ) + Fostex PM Submini 2

Headset* Beyerdynamic DT 990 Edition + ansteckbares Mikrofon Beyerdynamic custom Headset Gear

DAC* Sound BlasterX G6 7.1 HD

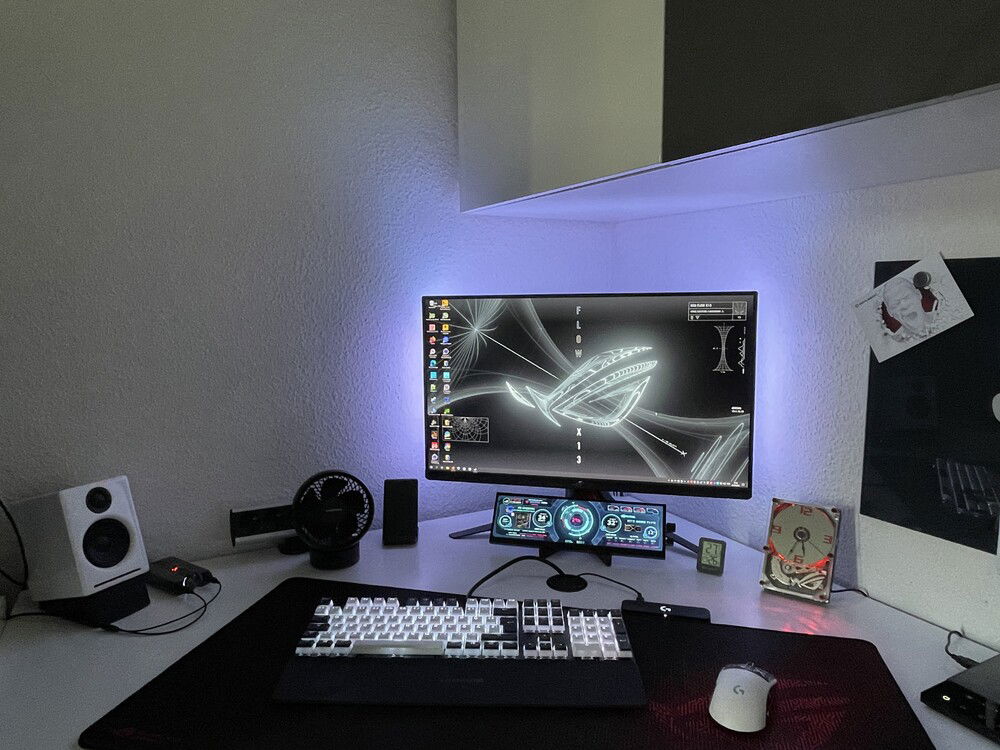

Equipment :

DISPLAY 1* Asus ROG Strix XG279Q IPS 27 Zoll 170 Hz / Asus Halo (Ambilght)

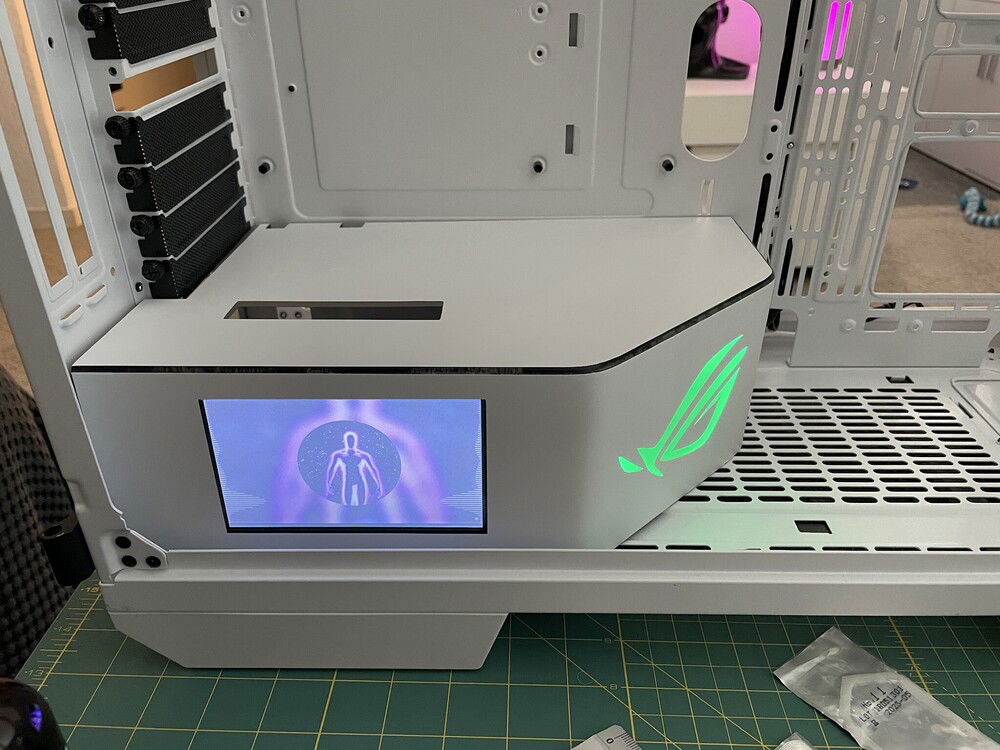

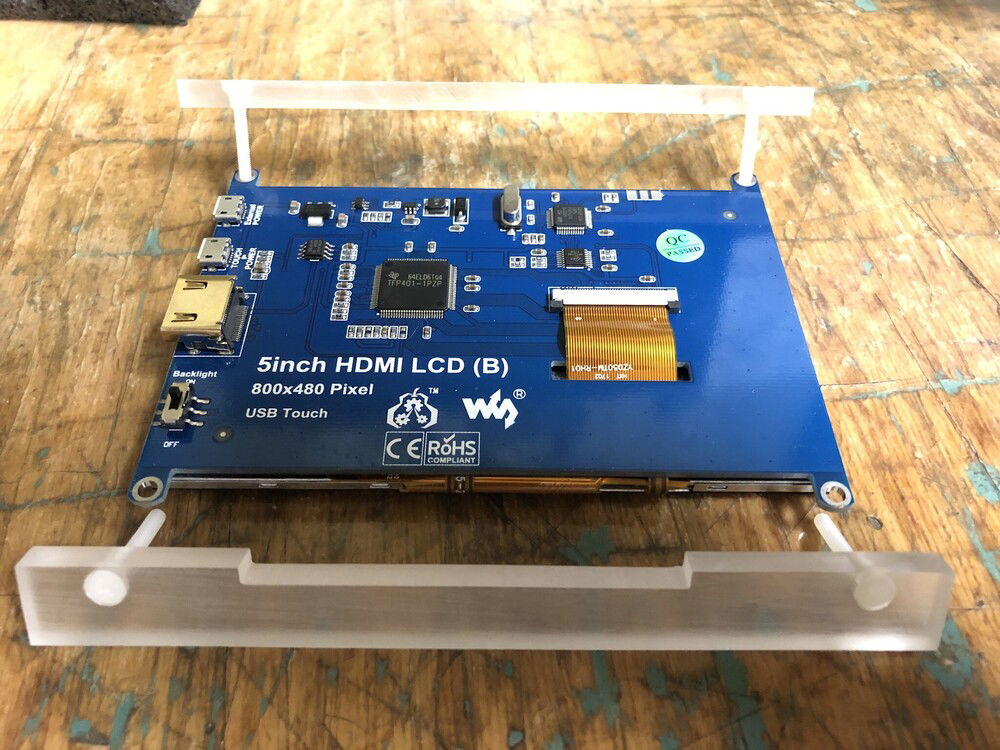

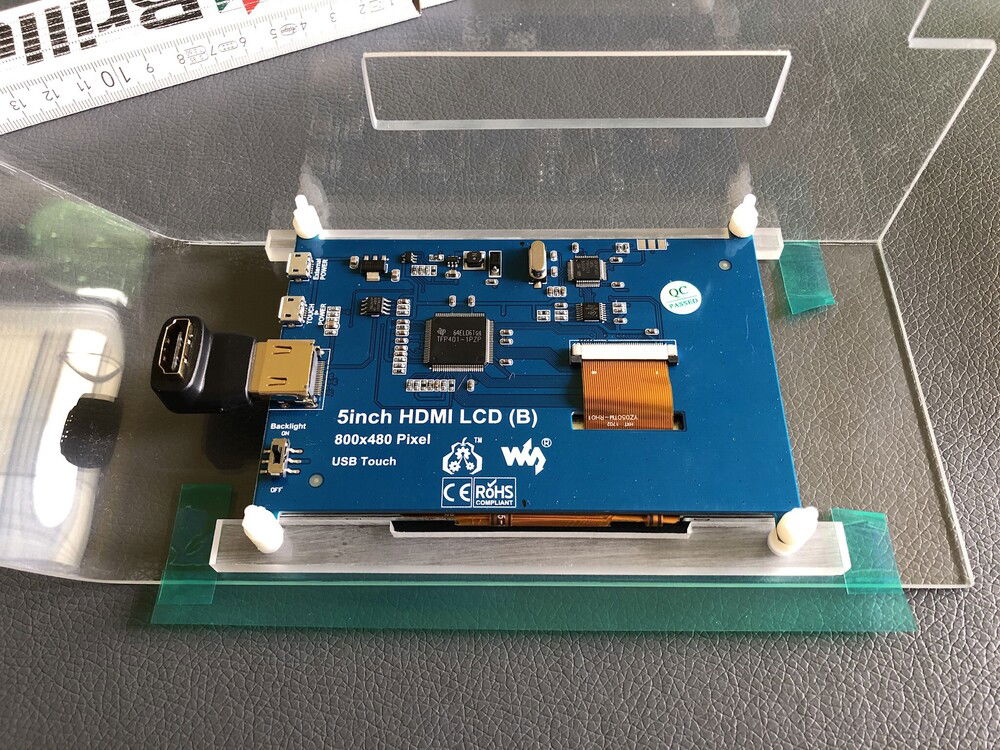

DISPLAY 2* ( PSU custom cover ) 5 Zoll 800 x 480 Touch Screen

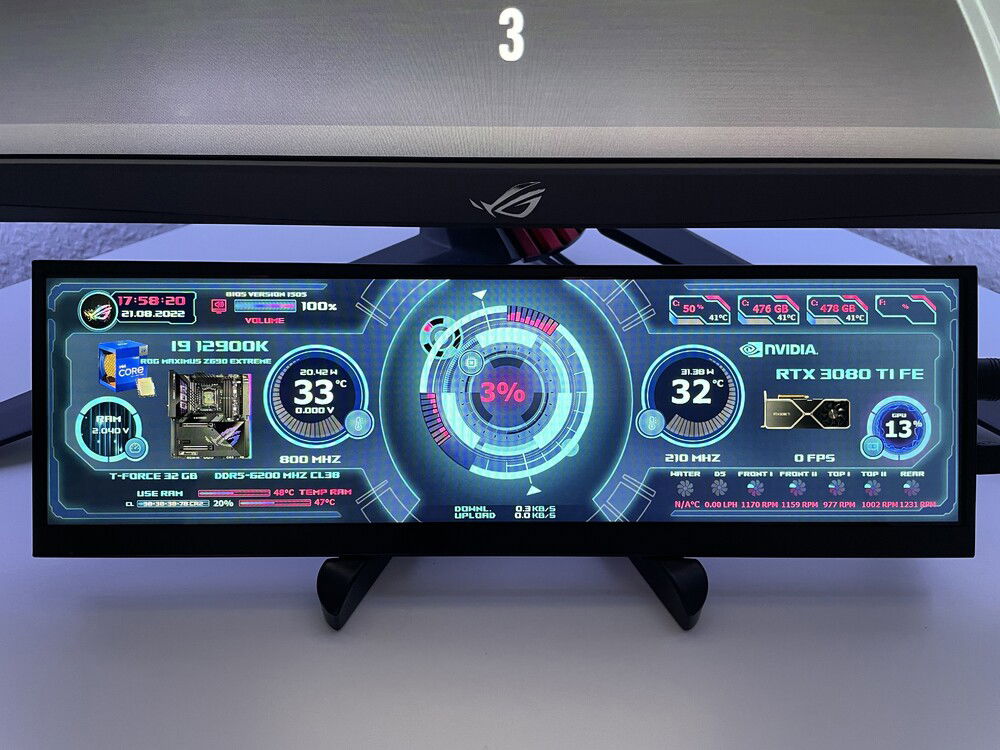

DISPLAY 3* 12,6 Zoll 1920 x 515 - Aida64 Sensor Info

DISPLAY 4* ASUS ROG Strix XG16AHPE-W 15,6 Zoll IPS, 144 Hz

keyboard* SteelSeries Apex Pro + Steelseries black & white Prismcaps

Mouse* Logitech G PRO X Superlight + G Powerplay

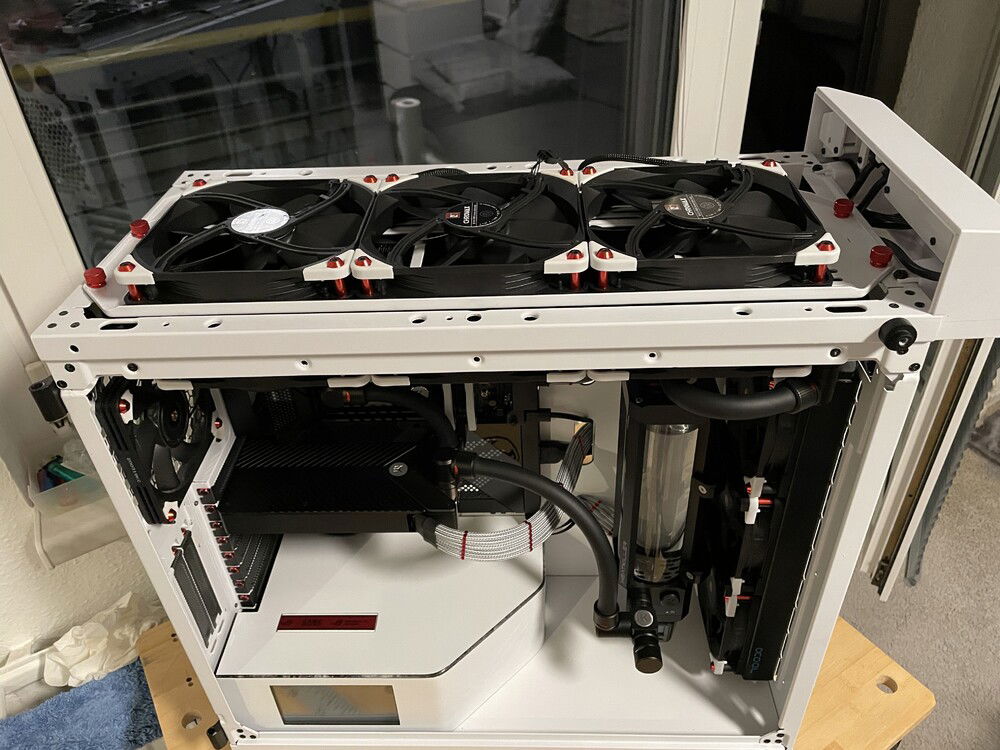

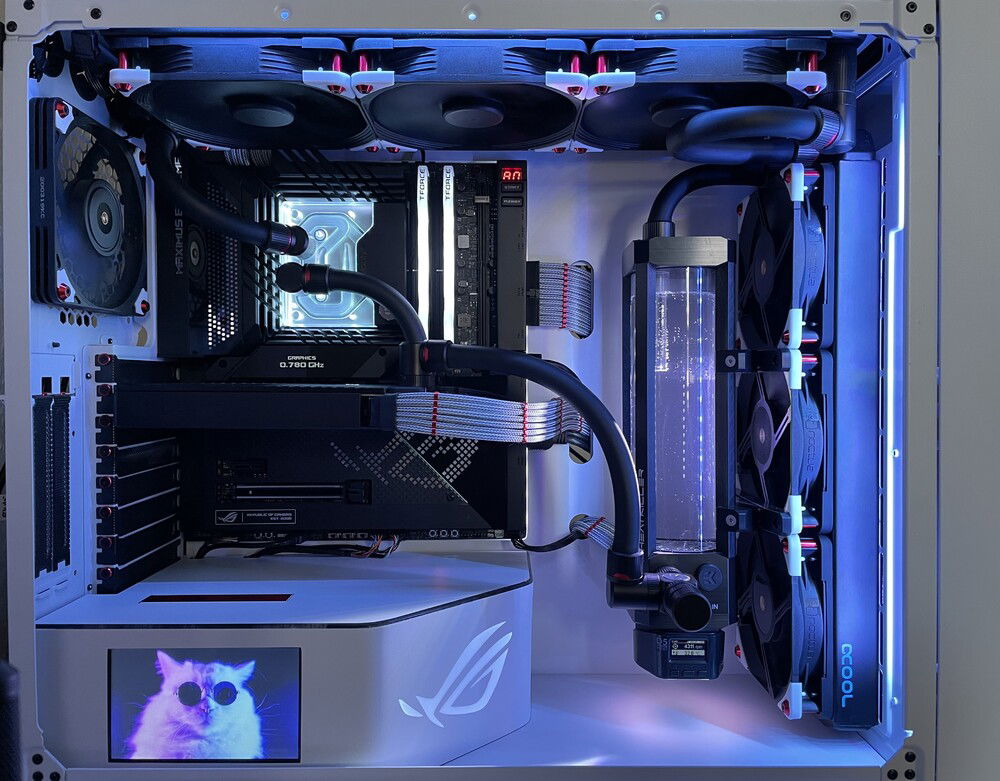

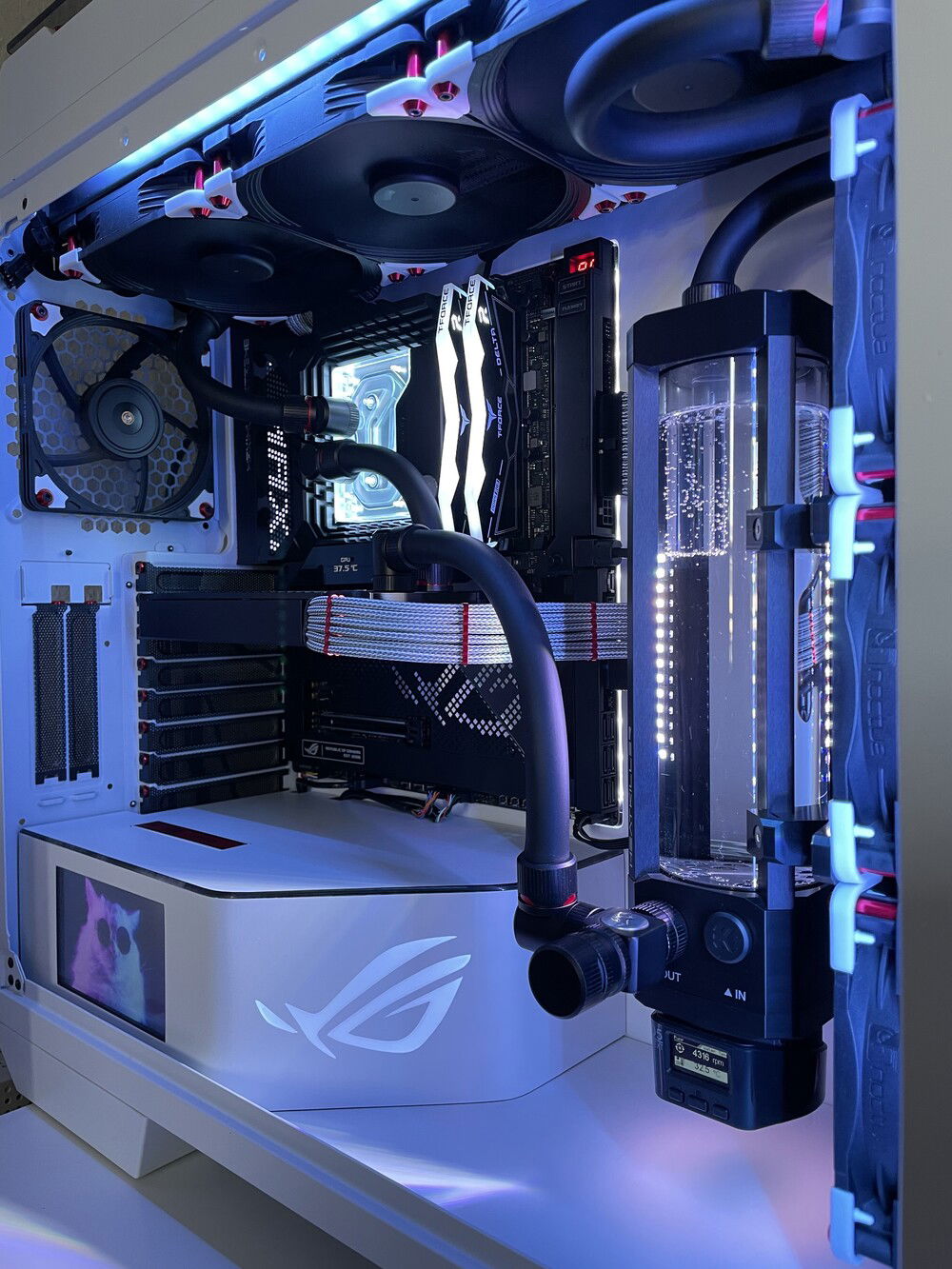

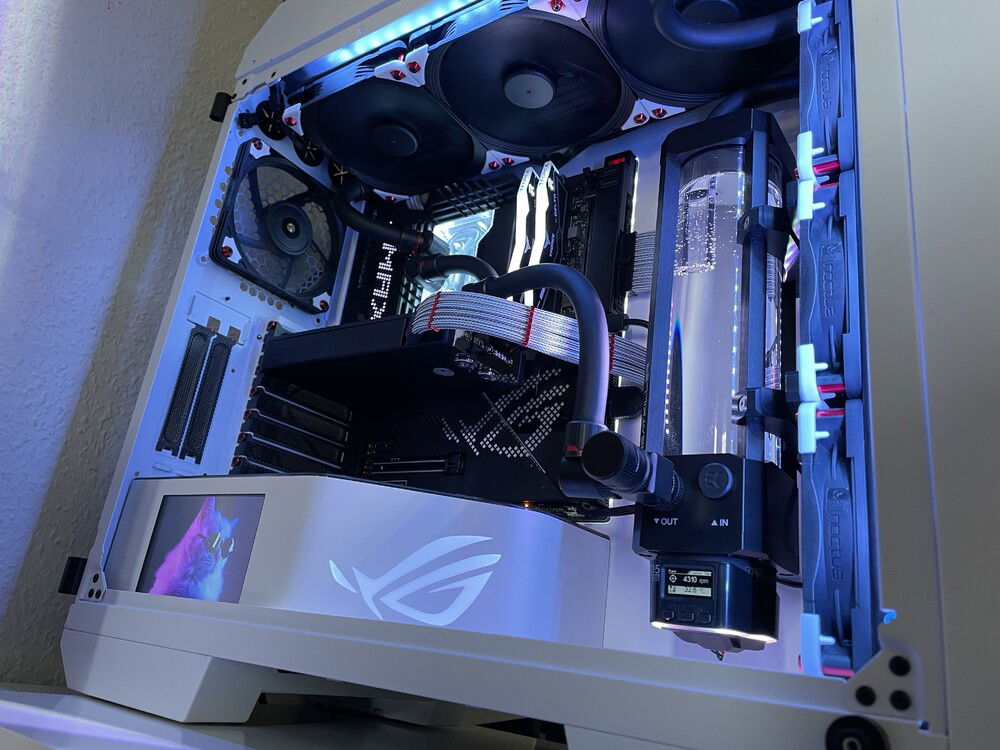

Watercooling :

Alphacool NexXxoS ST30 Full Copper X-Flow Radiator - 420 mm

Alphacool NexXxoS ST30 Full Copper Radiator - 360mm

Watercool Heatkiller Tube 200 D5

Aqua Computer D5 NEXT Pumpe

EK Water Blocks EK-Quantum Velocity²

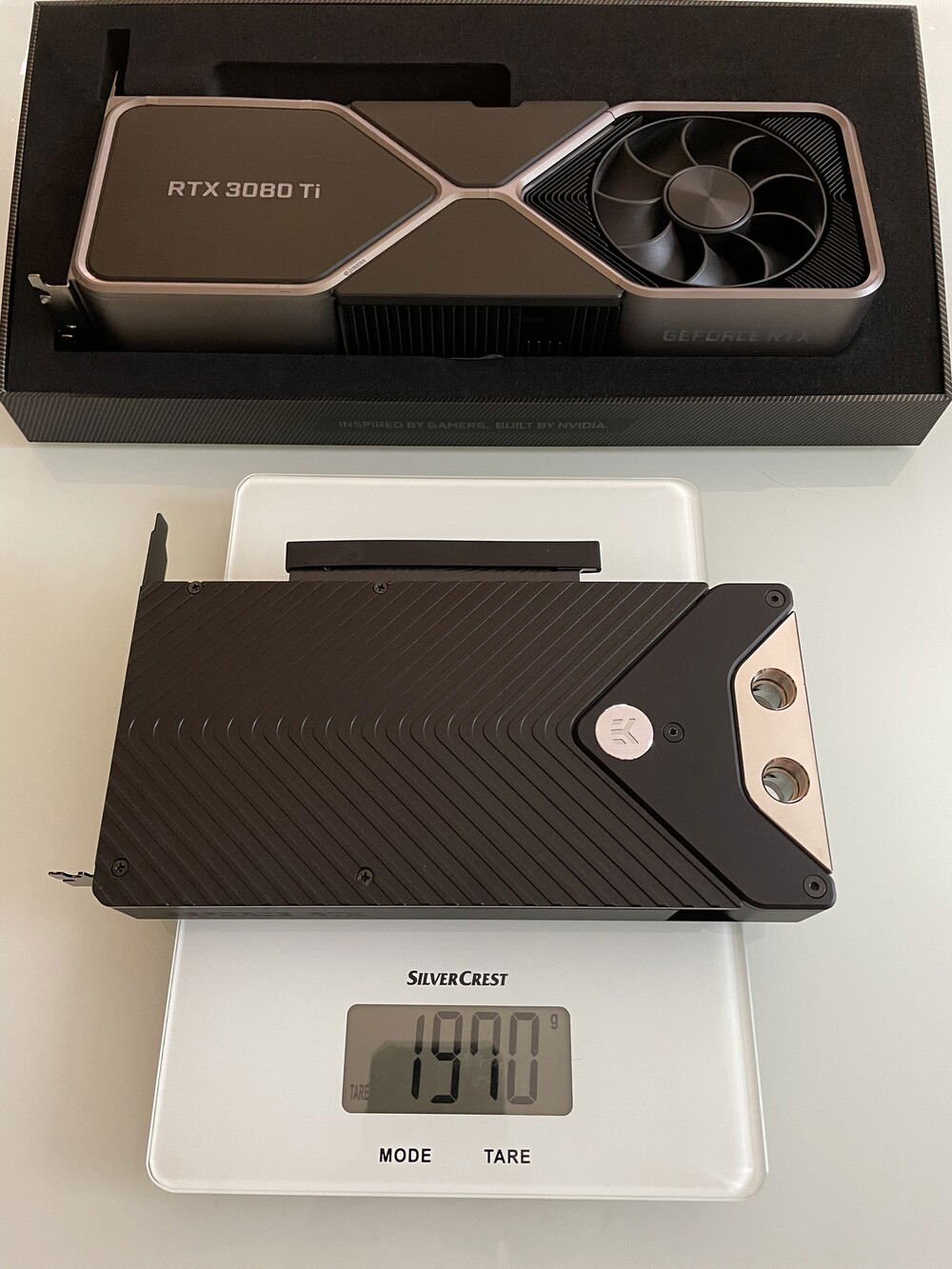

EK-Quantum Vector FE RTX 3080 Full
Metal - Black Special Edition

EK-Tube ZMT Schlauch 16/10 mm - mattschwarz

EK-Quantum Torque STC 10/16 schwarz + Farbringe

EK-Quantum Torque Ablassventil

EK-AF Adapter T-Splitter 3x G1/4 Zoll IG

EK-Torque Adapter 90 Grad G1/4 Zoll AG auf G1/4 Zoll IG

EK-Torque Adapter 45 Grad G1/4 Zoll AG auf G1/4 Zoll IG - drehbar

EK-Quantum Torque G1/4 Zoll Verlängerung gerade MF 28 - schwarz

EK-Quantum Torque Verschlussstopfen G1/4 Zoll
Color(s): White
RGB Lighting? Yes
Theme: Brand
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Hardware

CPU
$ 309.99
Intel - Core i9-12900K
Socket: LGA 1700
Cores: 16
Motherboard
$ 710.49
ASUS - Rog Maximus Extreme
Chipset: Z690
CPU Socket: LGA 1700
Size: E-ATX
Memory
$ 405.00
TeamGroup - T-Force Delta (6200MHz) (White/RGB)
Type: DDR5
Capacity: 32 GB
Graphics
$ 1,639.00
NVIDIA - GeForce Founders
Chip Manufacturer: NVIDIA
Chip: RTX 3080 Ti
Interface: PCIe x16
Storage
$ 269.84
Samsung - 970 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 323.09
Seasonic - Prime TX-1000
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 219.99
Thermaltake - View 71 Snow
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 179.70
Case Fan
$ 29.95
Case Fan
$ 173.70
Cooling
$ 61.25
Alphacool - NexXxoS ST30 Full Copper
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 155.48
Alphacool - NexXxoS ST30 Full Copper X-Flow
Type: Custom Loop
Size (WxHxD): 420 mm (3 x 140 mm)
Cooling
$ 152.50
Aquacomputer - D5 NEXT
Type: Pump
Cooling
$ 32.18
Cooling
$ 12.37
Cooling
$ 127.20
EKWB - EK-Quantum Torque Plug (Black) (8x)
Type: Fittings
Cooling
$ 139.98
Cooling
$ 51.60
Cooling
$ 16.49
Cooling
$ 424.08
Cooling
$ 723.91
Cooling
$ 154.99
Cooling
$ 529.90
EKWB - EK-Torque STC-10/16 (Black) (10x)
Type: Fittings
Cooling
$ 42.99
EKWB - EK-Tube ZMT
Type: Tubing
Cooling
$ 115.45
Watercool - HeatKiller Tube 200 D5
Type: Reservoir
Accessories
$ 78.03
Accessories
$ 279.00
Accessories
$ 169.99
Monitor
$ 476.24
ASUS - ROG Strix (XG279Q)
Size: 27 Inch
Panel: IPS
Refresh Rate: 170 Hz
Monitor
$ 561.23
ASUS - ROG Strix Portable Gaming (XG17AHP)
Size: 17 Inch
Panel: IPS
Refresh Rate: 240 Hz
Keyboard
$ 198.99
SteelSeries - Apex Pro
Interface: Wired
Key Switch Type: Hybrid Capacitive
Type: Full Size
Mouse
$ 108.99
Logitech - G Pro X Superlight
Interface: Wireless
Desk
$ 100.00
Ikea - Malm
Material: Wood
Color: White
Shape: L-Shape
Estimated total value of this build:
$ 6,952.34
