RGB Mancave - Complete Setup!

*DO NOT REFER TO THE HARDWARES I LISTED ABOVE AS IT IS INACCURATE ( TOO MANY PARTS MISSING ON THIS WEBSITE)*

-------------------------- PC Specs --------------------------

Case : Thermaltake Versa J22 TEMPERED GLASS RGB Edition (x3 120MM Thermaltake RGB Fans Inc)
Motherboard : ASROCK B450M Pro 4
Processor : AMD Ryzen 5 3600 OC
Graphic : ZOTAC GEFORCE GTX 1660 6GB SUPER AMP OC

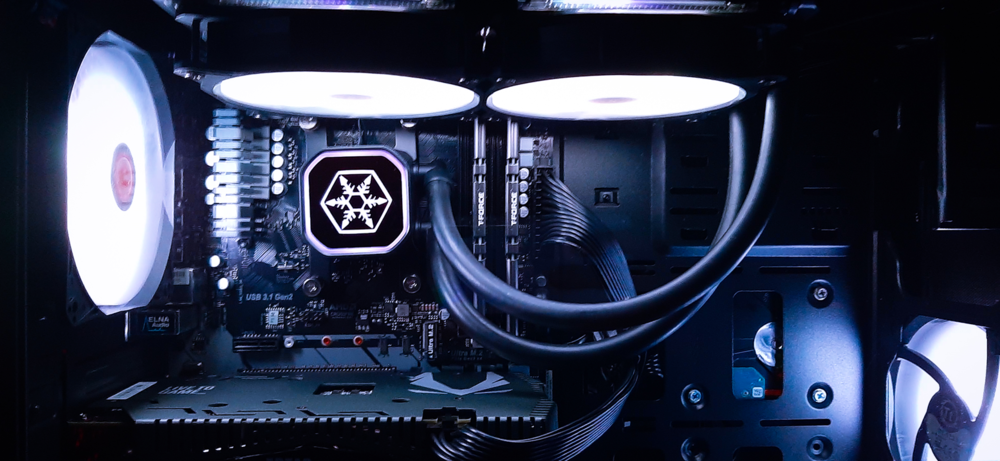

CPU Cooler : SilverStone Tundra TD02-RGB Liquid AIO
Memory : T-Force Vulcan Z 16GB(8GBx2) DDR4-3200 OC
Storage 1 : Team MS30 1TB SSD M.2
Storage 2 : Seagate BarraCuda 1TB HDD
Power Supply : SilverStone ST55F-PB 550 watt, Fully Modular


-------------------------- Peripherals --------------------------

Mouse - Razer DeathAdder Essential

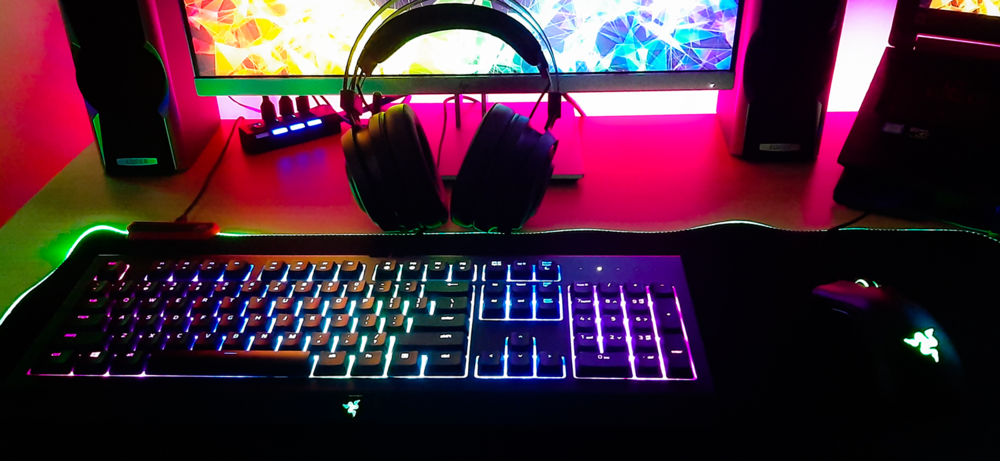

Keyboard - Razer Cynosa Chroma RGB
Mousepad - Razer Goliathus Control Edition / LuxComs XXXL RGB

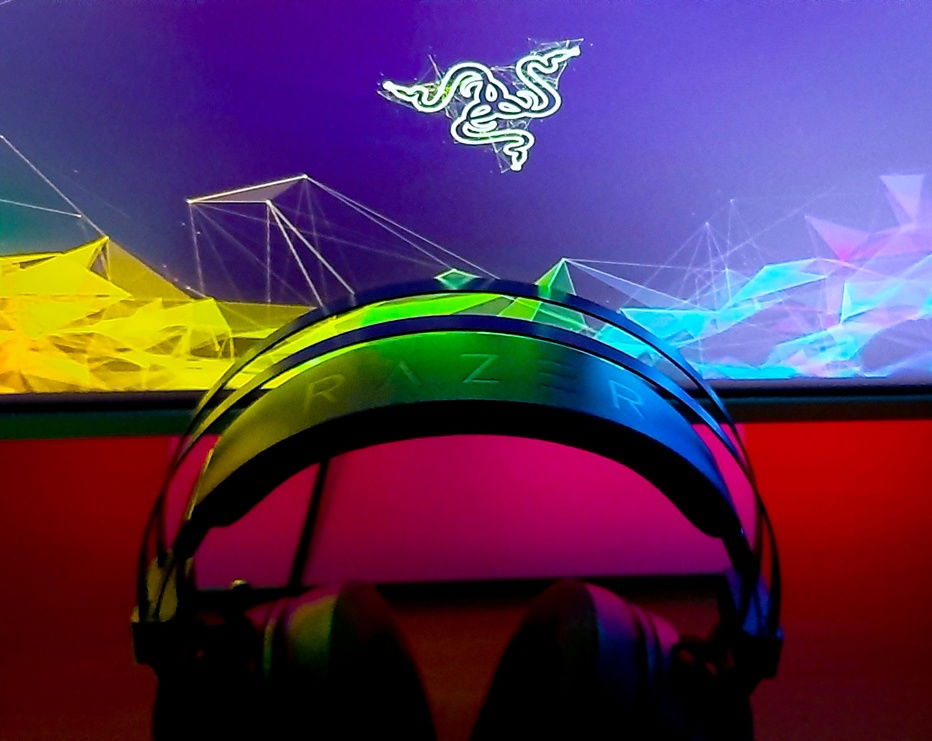

Headset - Razer Nari 7.1
Speakers - Edifier XM6BT 2.1
Monitor - HP E223 27inch FHD 1920x1080


------------------------- OC / Benchmarking -------------------------

R5 3600 OC values - 4.3Ghz all cores (Vcore 1.38125v ) (PBO disabled)
Idle temp - 32°C
Max temp - 57-60°C (Aida64 Extreme stress test +1hour)
Usual temps while gaming - 47-55°C

Gtx 1660 Super OC values - (+150Mhz Core , +800Mhz Mem)
Idle temp - 30°C
Max temp - 60-64°C (Aida64 Extreme stress test +1hour)
Usual temps while gaming - 57-62°C

T-force Vulcan Z OC timings - 3600Mhz (18-20-20-20-42 1T) (1.35v) (FCLK 1800Mhz)

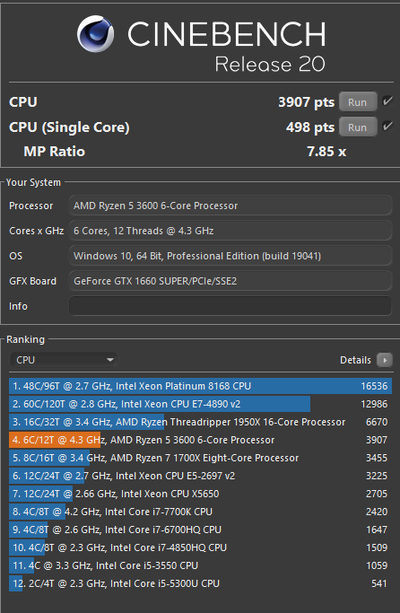

Cinebench R20 scores:-

User Image


-------------------------- Fan Config --------------------------

Fans has been daisy chained using a Y splitter cable (4 Male) and connected to fan connector on the mobo.

2x front fans as intake
2x top fans on rad as exhaust(push)
1x rear fan as exhaust


-------------------------- PC/FAN RGB Lighting --------------------------

x3 Thermaltake fans LED cables connected to a thermaltake hub , hub is then connected to LED connector on the mobo

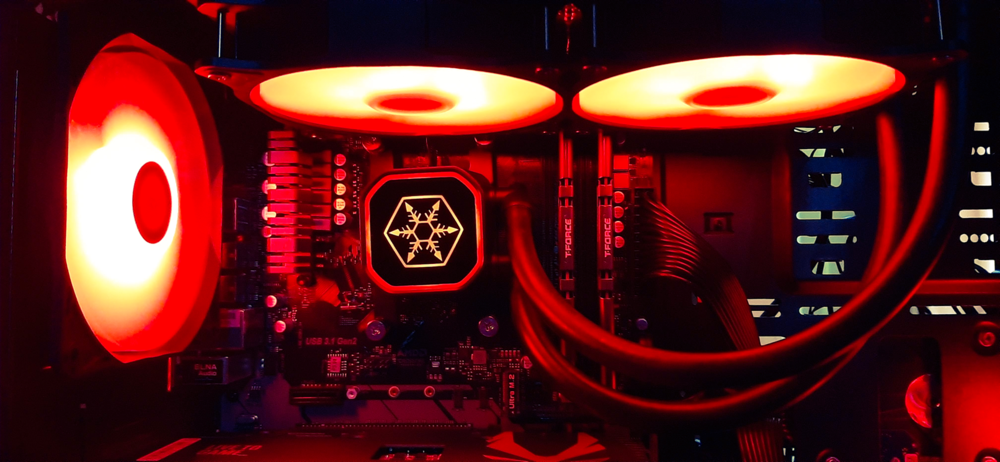

x2 Radiator fans + pump LED Cables daisy chained together using individual PIN headers and plugged to single LED connector on the mobo.


-------------------------- Gaming Laptop Specs --------------------------

Acer Nitro 5 AN15-51:-

Processor : Intel Core i5-7300HQ (Undervolted)(-150.4 mV)
GPU : NVIDIA GeForce GTX 1050 Ti 4 GB OC (+260Mhz Core , +650Mhz Mem)
Display : 15.6" FHD (1920 x 1080) IPS Panel
RAM : Kingston 16GB (8GBx2) DDR4 2666Mhz (Upgraded)
Storage 1 : 256GB NVME M.2 SSD
Storage 2 : Seagate BarraCuda 1TB HDD
Battery Capacity : 3220 mAh


Total setup cost : 121,800 MUR
Color(s): Black
RGB Lighting? Yes
Theme: Futuristic
Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 85.99
AMD - Ryzen 5 (3600)
Socket: AM4
Cores: 6
Motherboard
$ 159.49
ASRock - B450M-HDV
Chipset: B450
CPU Socket: AM4
Size: Micro-ATX
Memory
$ 144.04
TeamGroup - T-Force Vulcan Z (3200MHz) (Red)
Type: DDR4
Capacity: 32 GB
Graphics
$ 229.99
ZOTAC - GeForce (Twin)
Chip Manufacturer: NVIDIA
Chip: GTX 1660
Interface: PCIe x16
Storage
$ 55.00
Seagate - Barracuda (ST1000LM048)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 67.98
TeamGroup - MS30 (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
$ 98.69
SilverStone Technology - SST-ST50F-PB
Wattage: 500
Form Factor: ATX
Efficiency: 80+ Bronze
Case
$ 90.00
Thermaltake - Versa J22 RGB
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
$ 100.00
Estimated total value of this build:
$ 966.07
