80TB Compact NAS from used parts

Built from last-generation server-grade parts, this 8-drive unraid NAS is the new home for
- PC backups
- Plex server
- Large-scale data storage for business

The only new parts are the case, video card and a few of the disks

Storage amount
8 TB
10 TB
10 TB
10 TB
14 TB
14 TB
14 TB
14 TB
--------
80 TB storage
14 TB single parity disk
2x WD Red 2TB Cache Drives (Raid 1)
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Air Cooling
Size: Micro-ATX
Type: General Build

Hardware

CPU
$ 189.95
Intel - Xeon E5-2680 v4
Socket: LGA 2011-3
Cores: 14
Motherboard

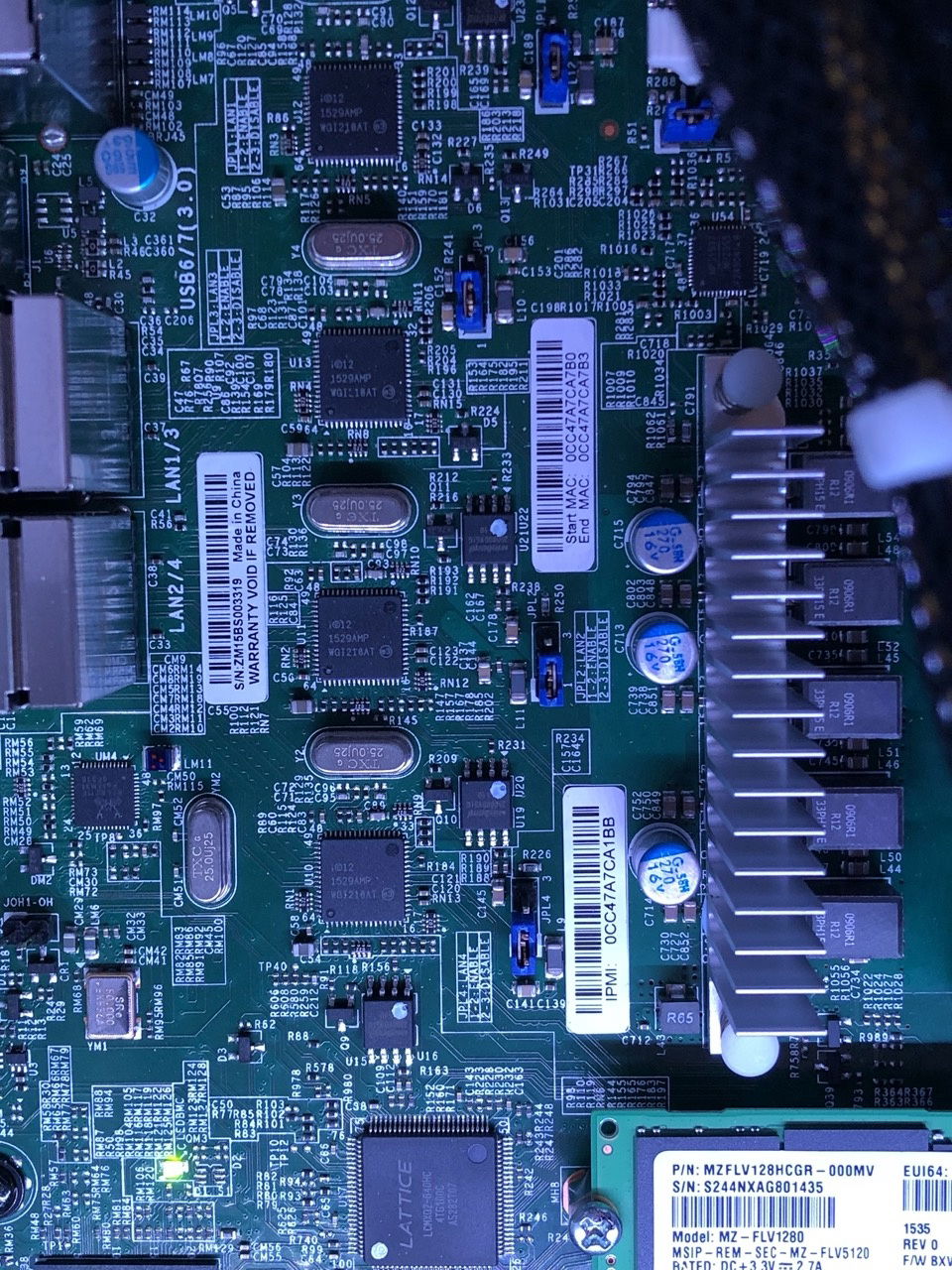

Supermicro - X10SRM-TF
Chipset: C612
CPU Socket: LGA 2011-3
Size: Micro-ATX
Memory

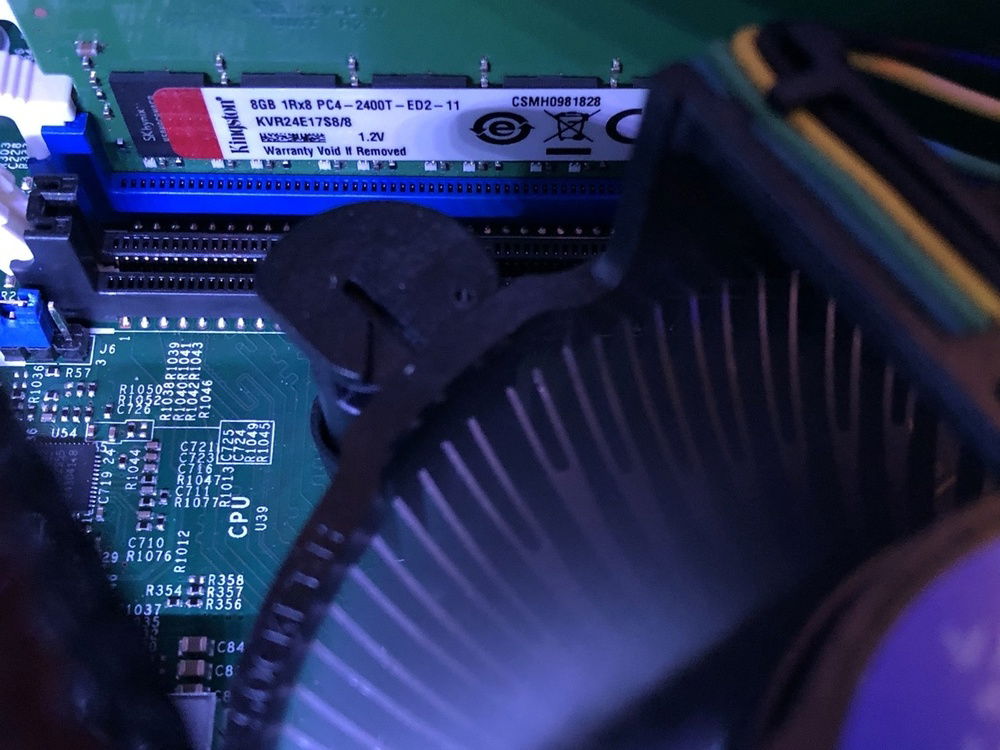

Kingston - Value (KVR24E17S8/8) (2x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 237.80

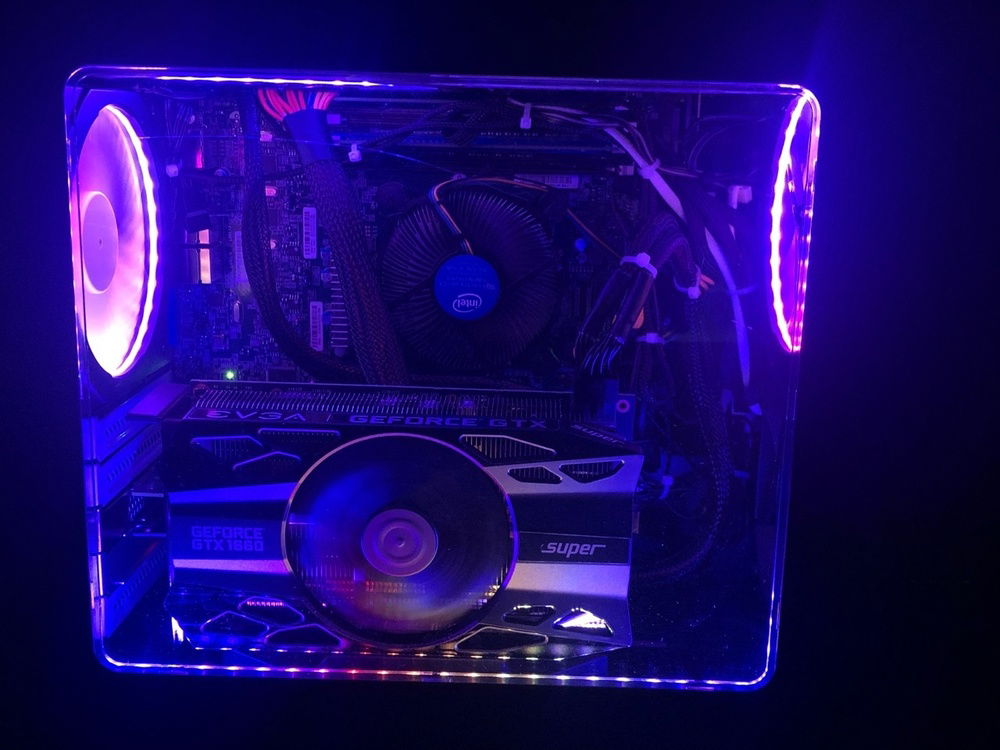

EVGA - Super SC Ultra
Chip Manufacturer: NVIDIA
Chip: GTX 1660
Interface: PCIe x16
Storage
$ 130.43

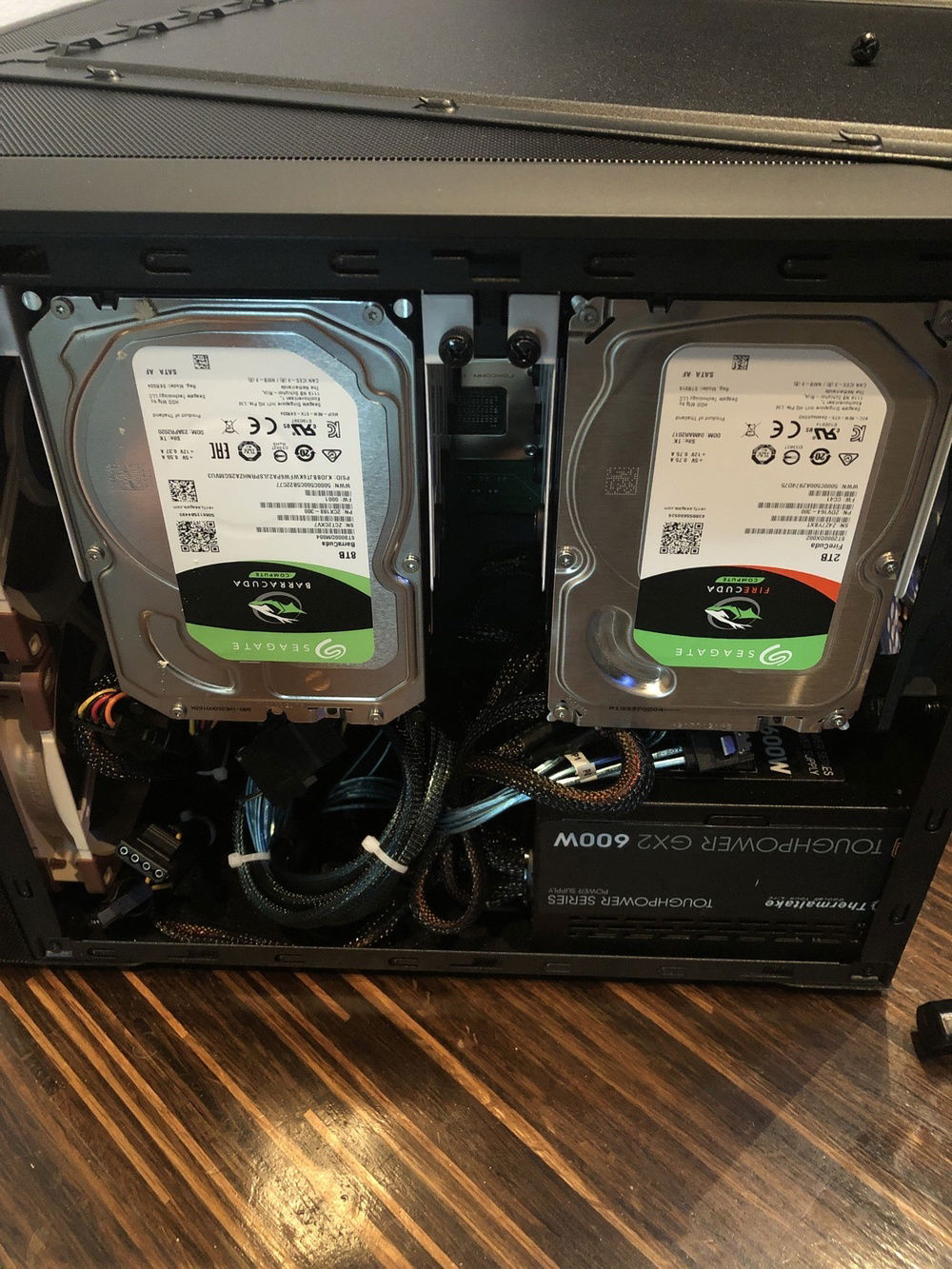

Seagate - Barracuda Compute (ST8000DM004)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 8 TB
Storage
$ 1,000.00
Western Digital - Ultrastar (4x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 14 TB
Storage
$ 749.97
Western Digital - WD Red NAS (3x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 10 TB
Storage
$ 226.90
Western Digital - WD Red SA500
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 79.99
Thermaltake - Toughpower GX2
Wattage: 600
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 147.95

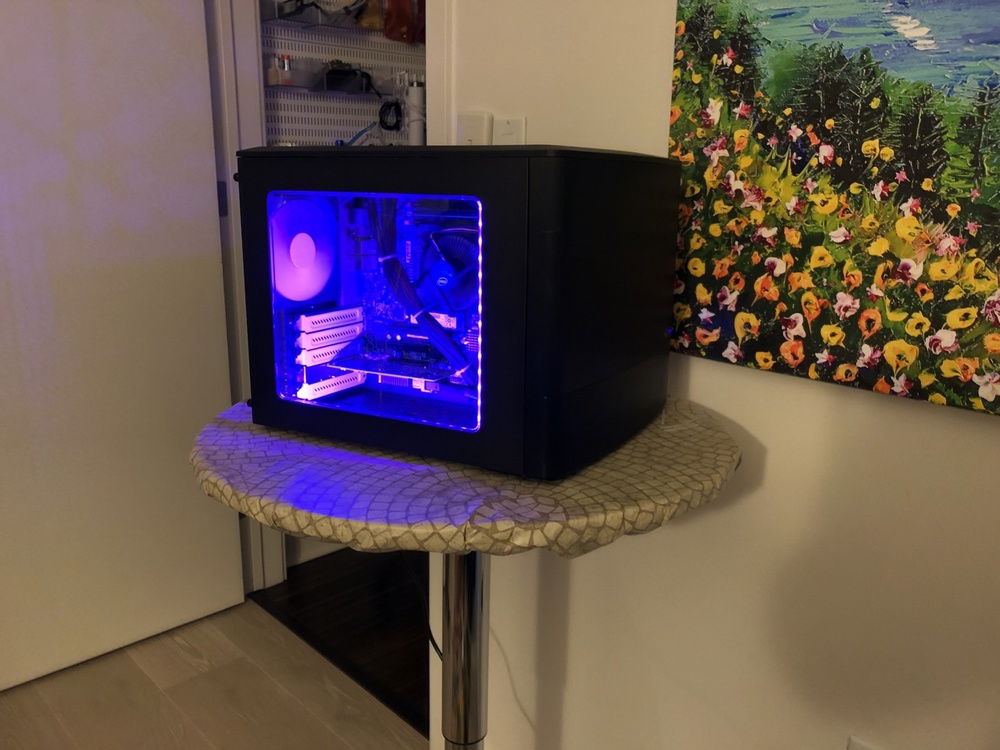

Fractal Design - Node 804
Type: Mid-Tower
Side Panel: Window
