Aura Master 2017

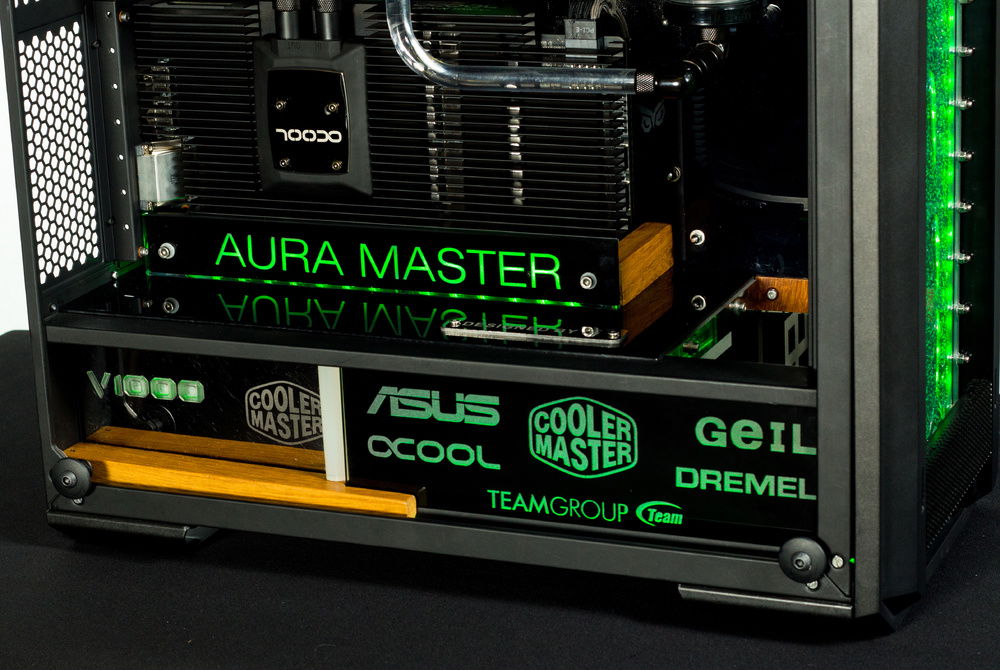

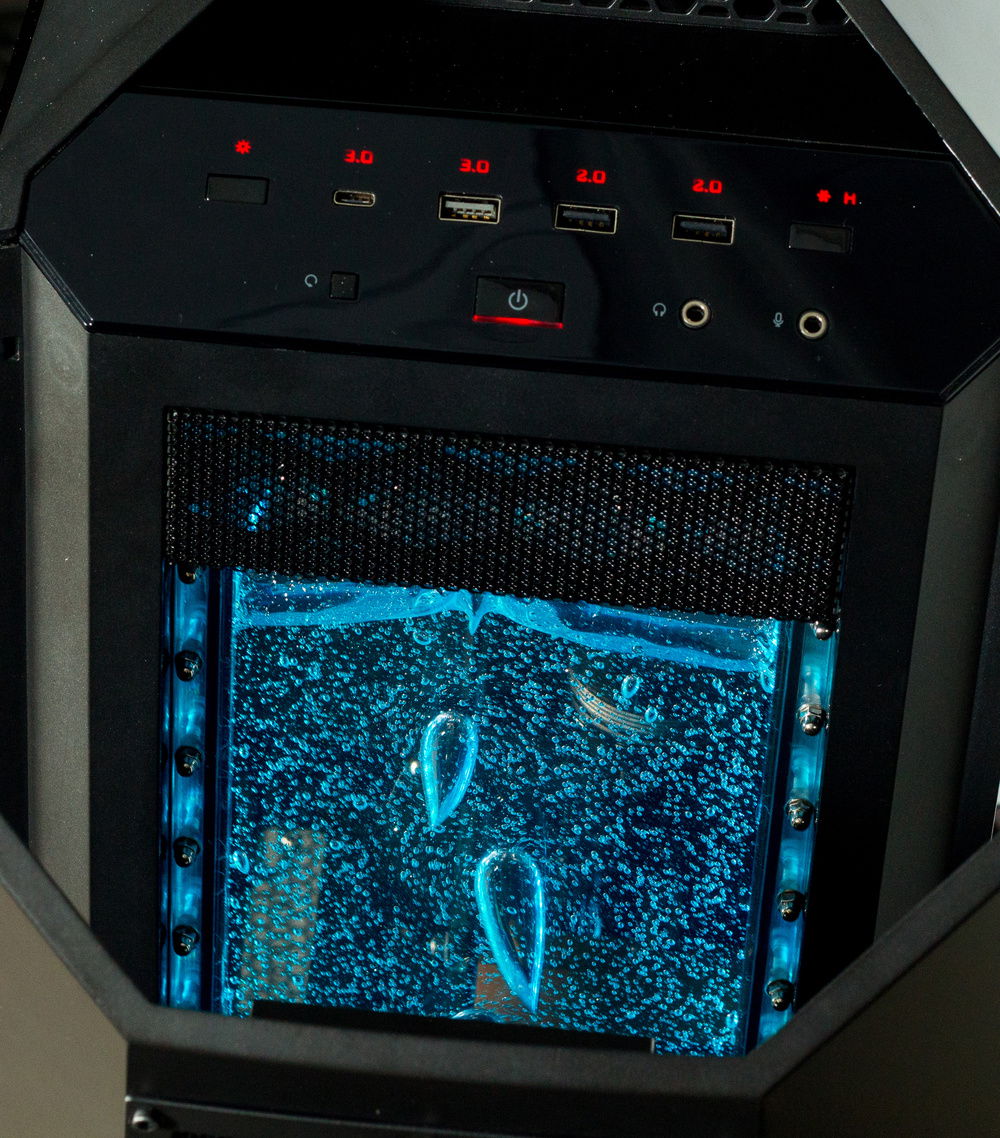

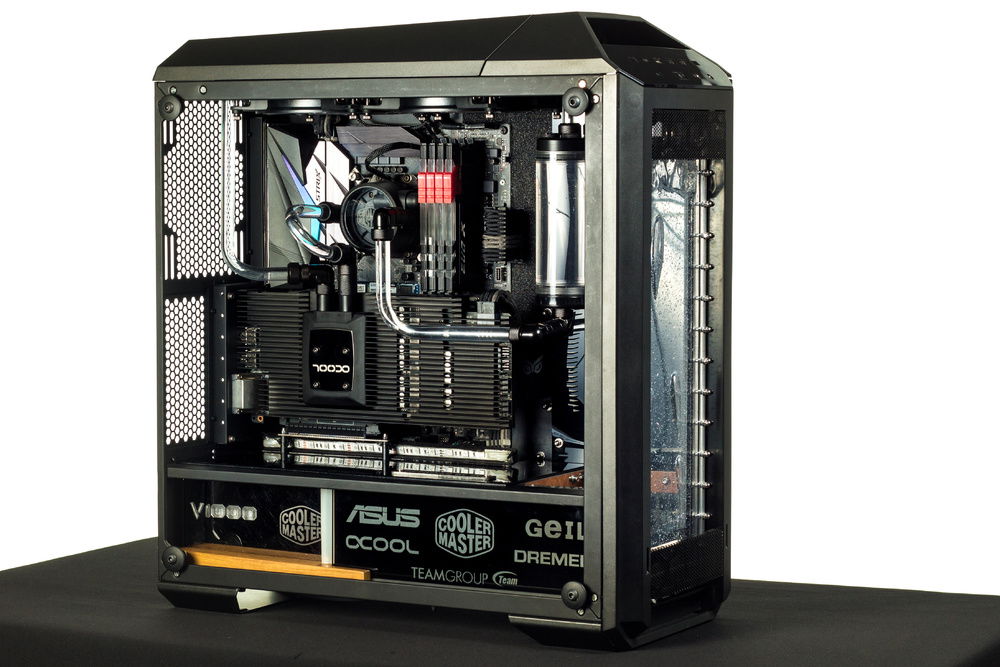

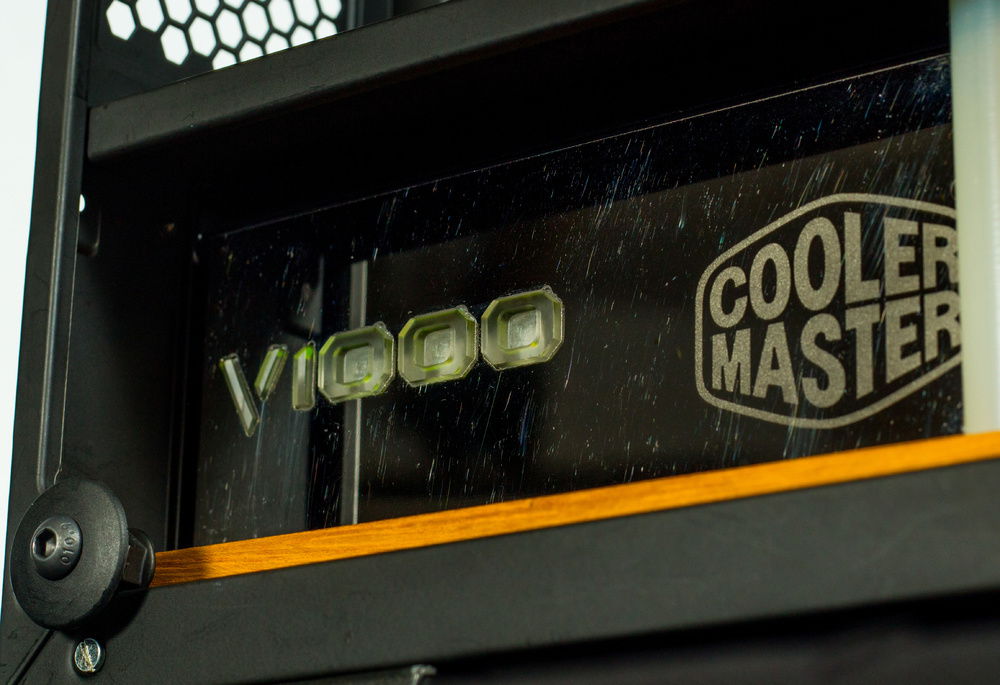

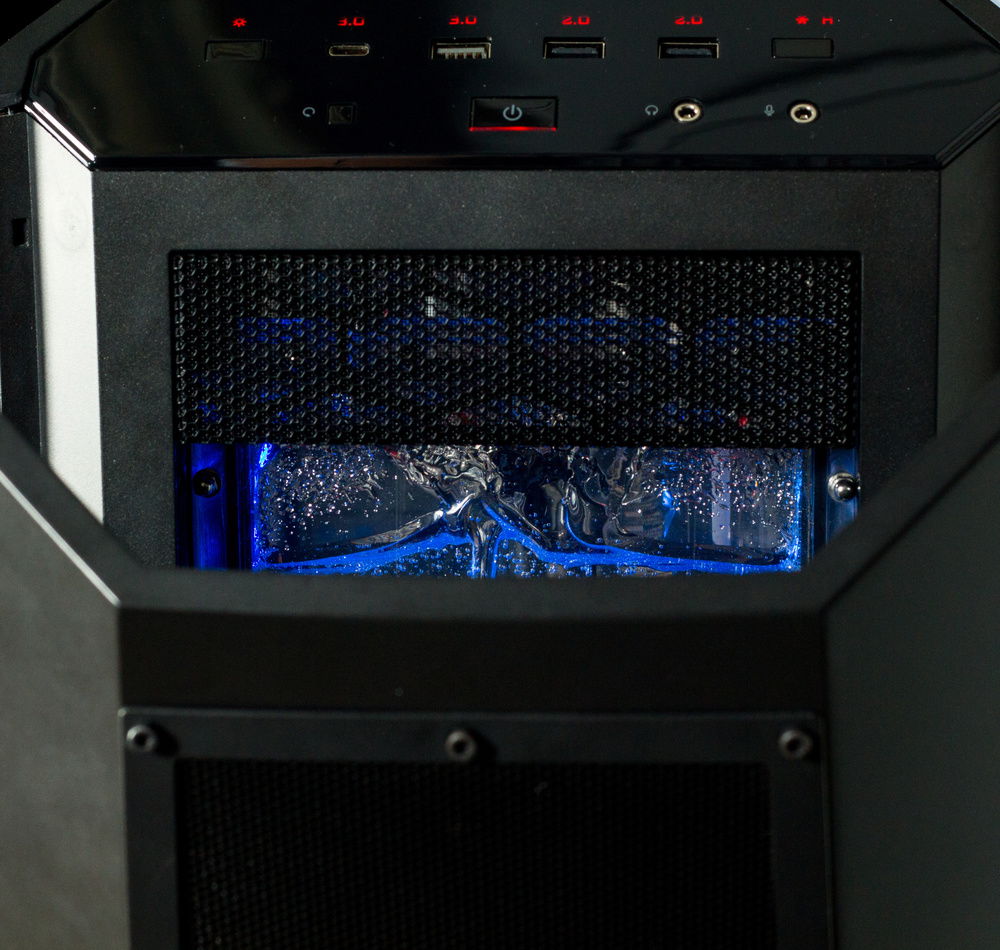

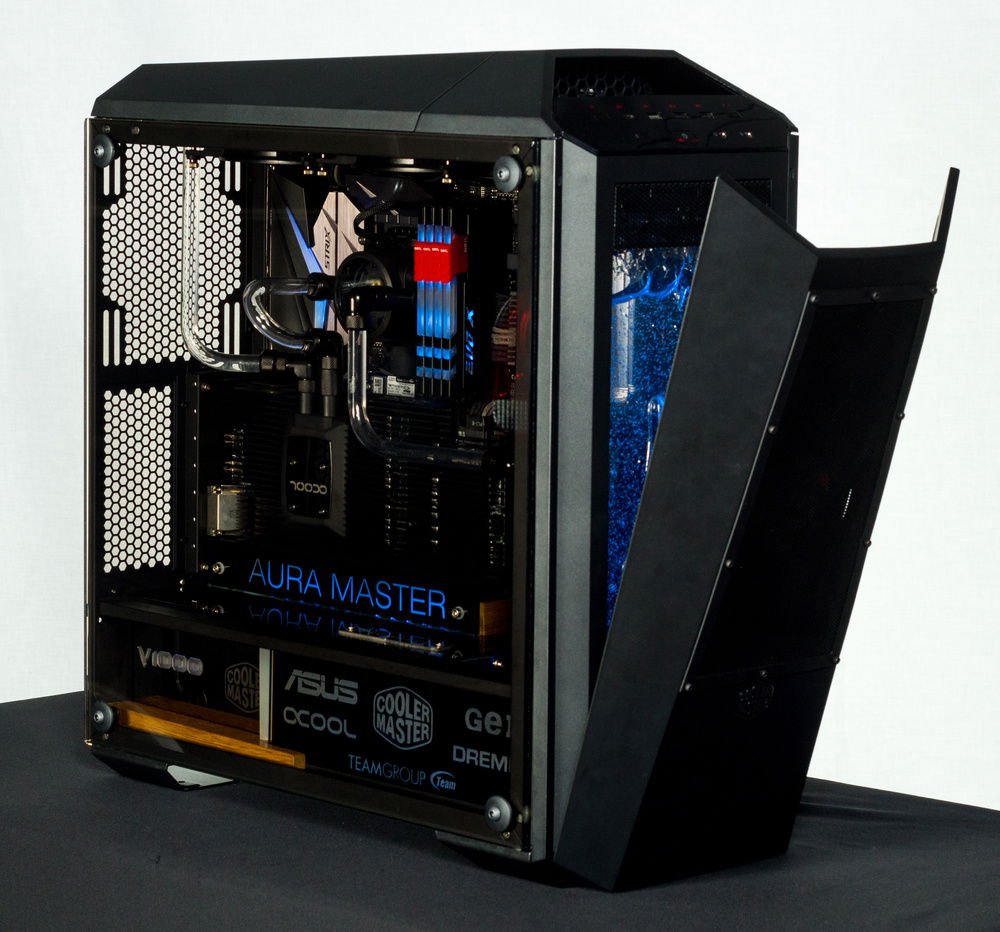

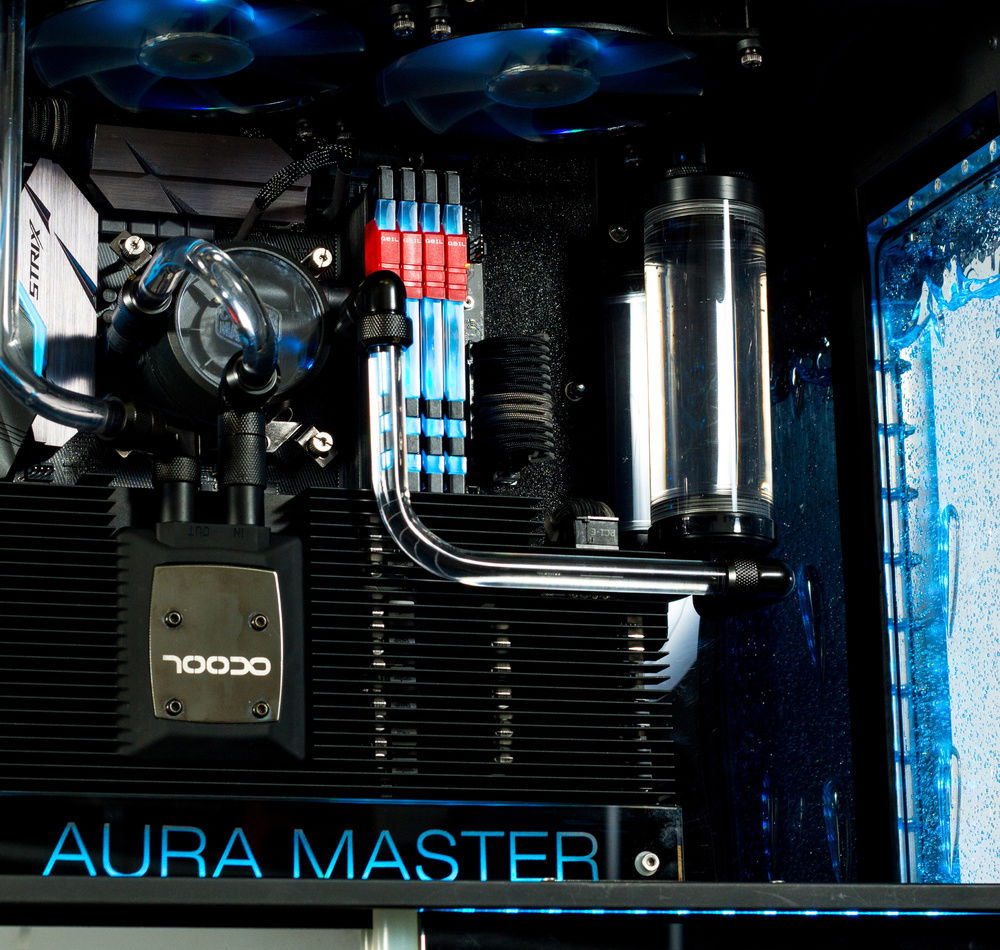

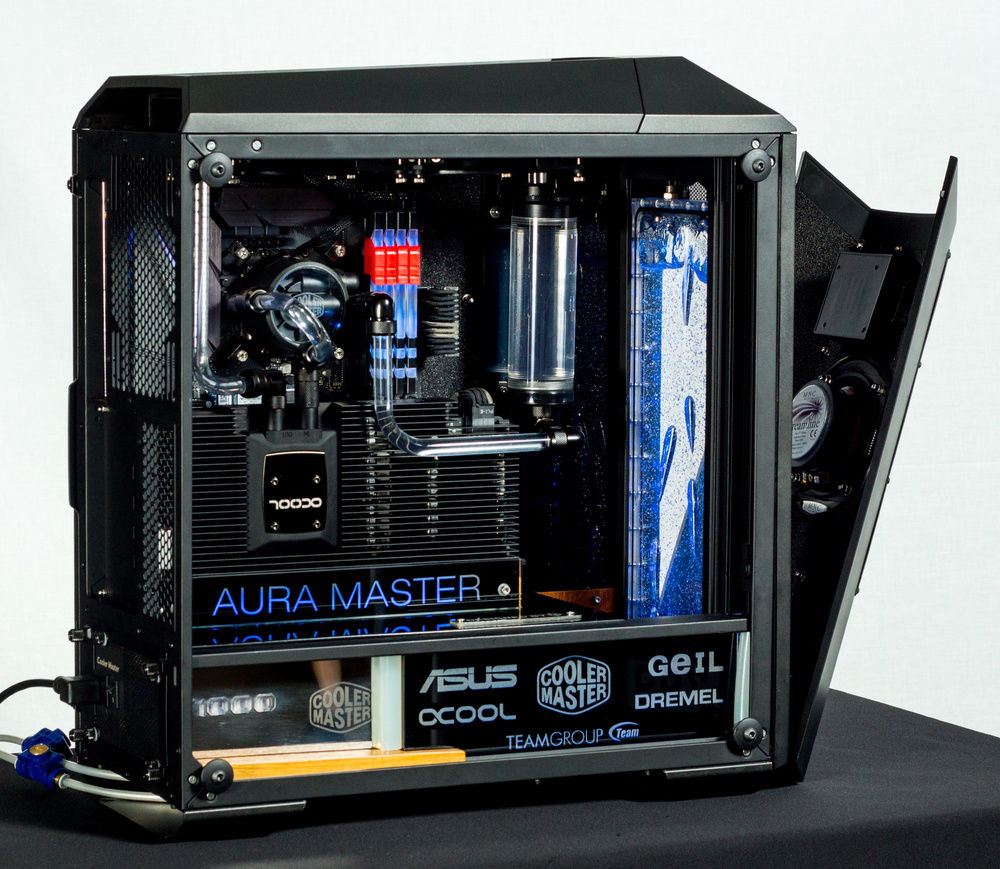

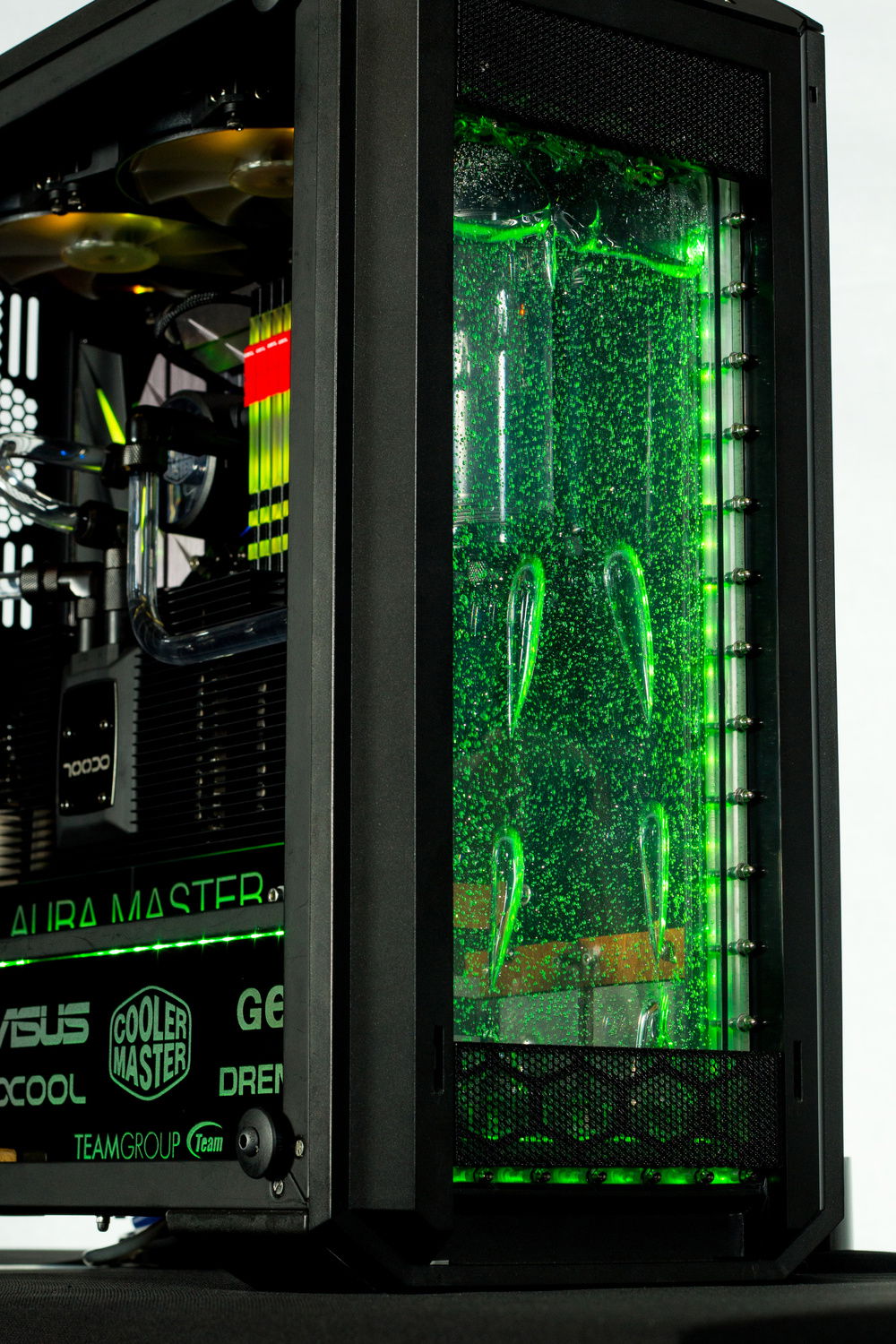

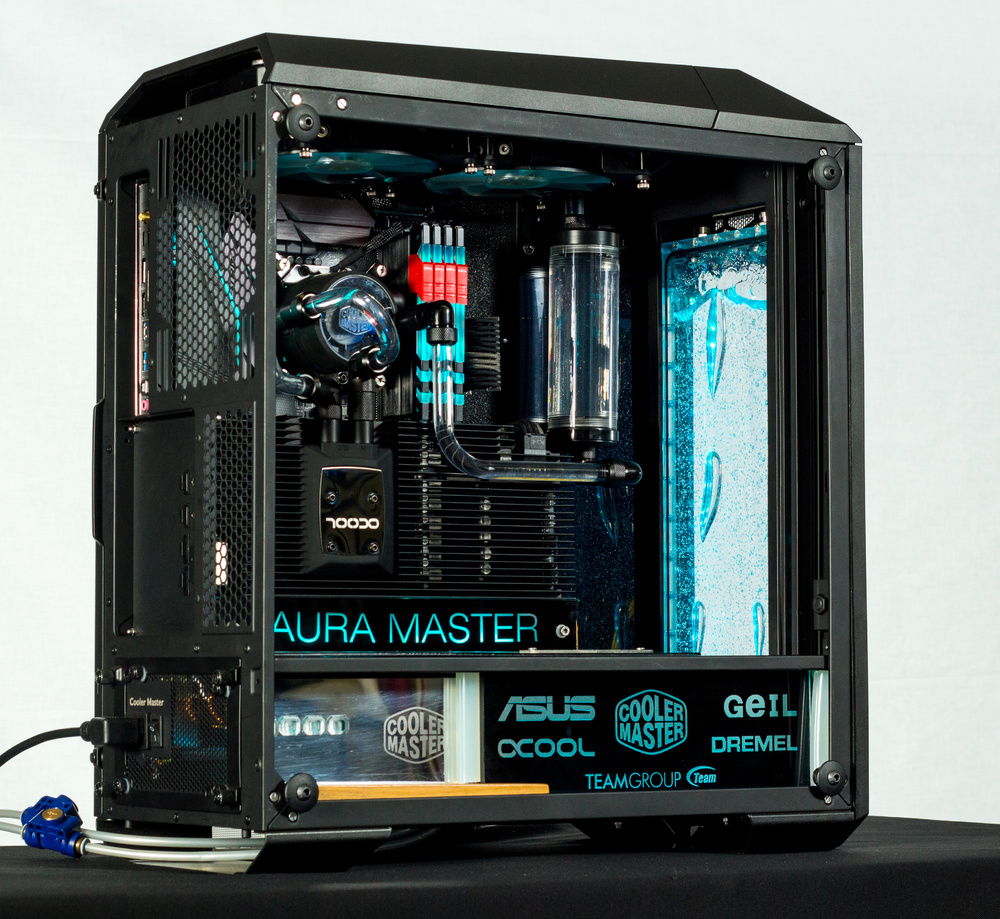

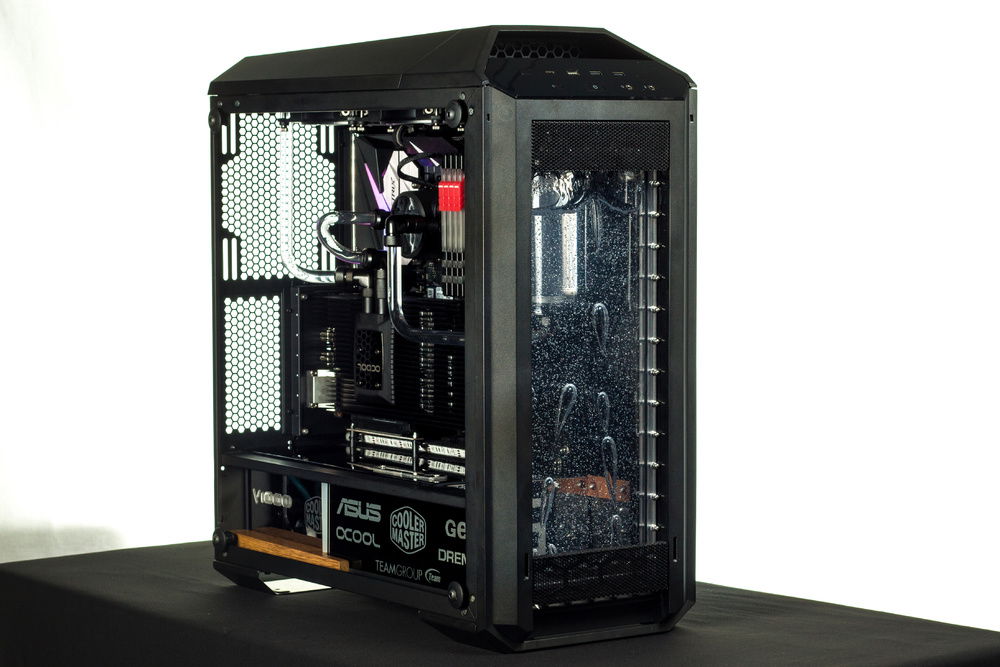

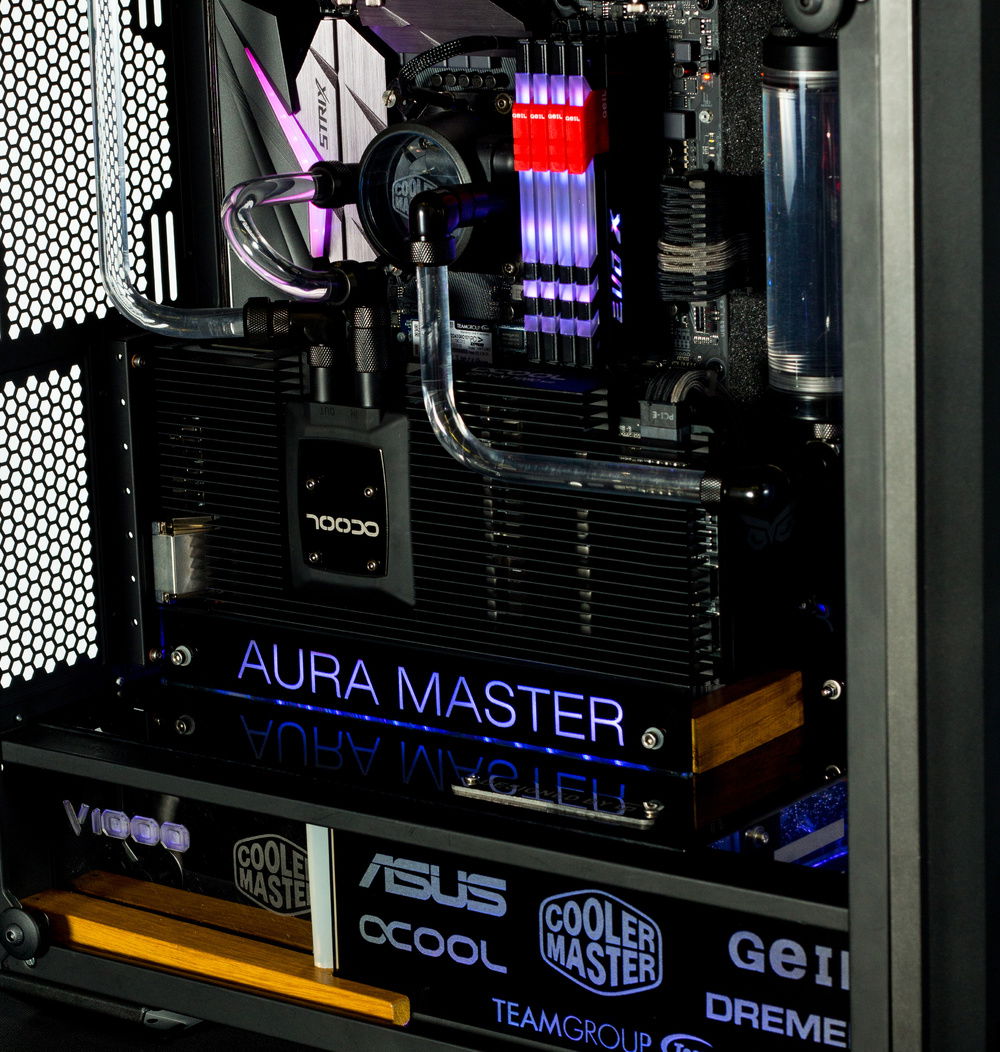

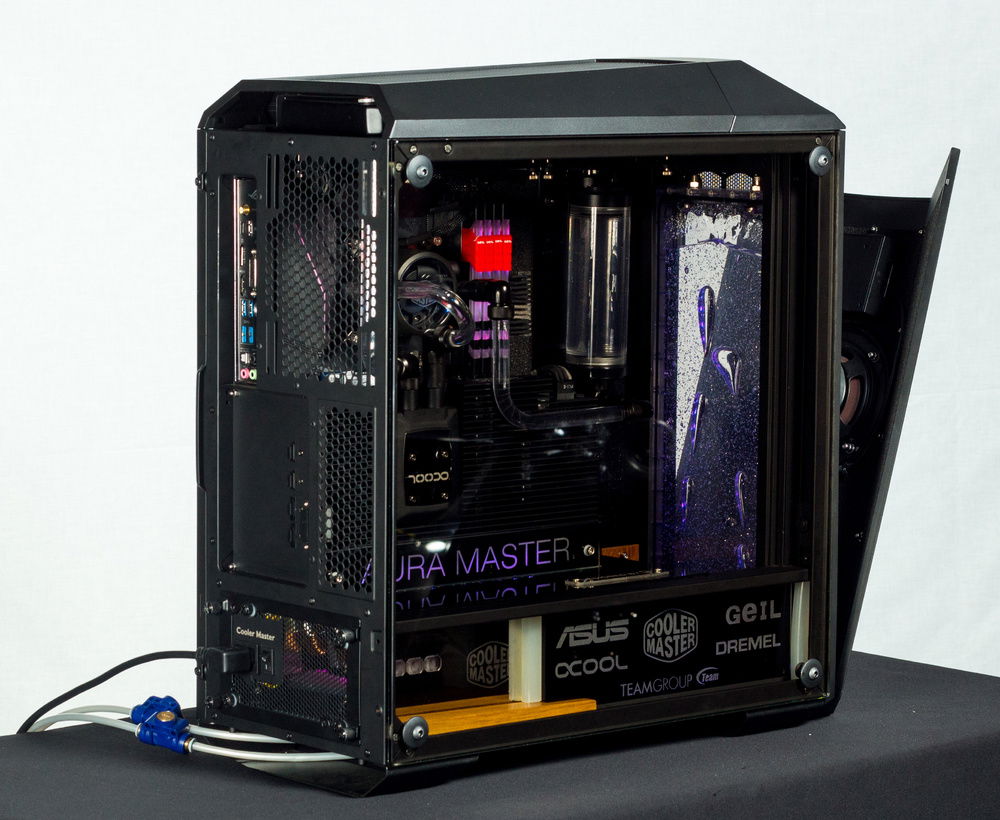

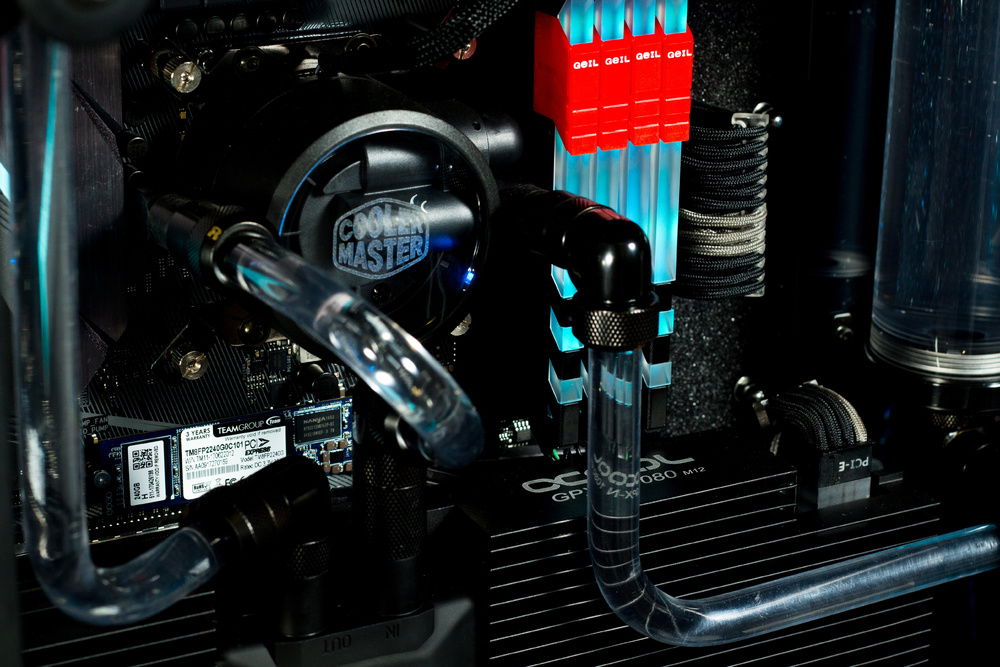

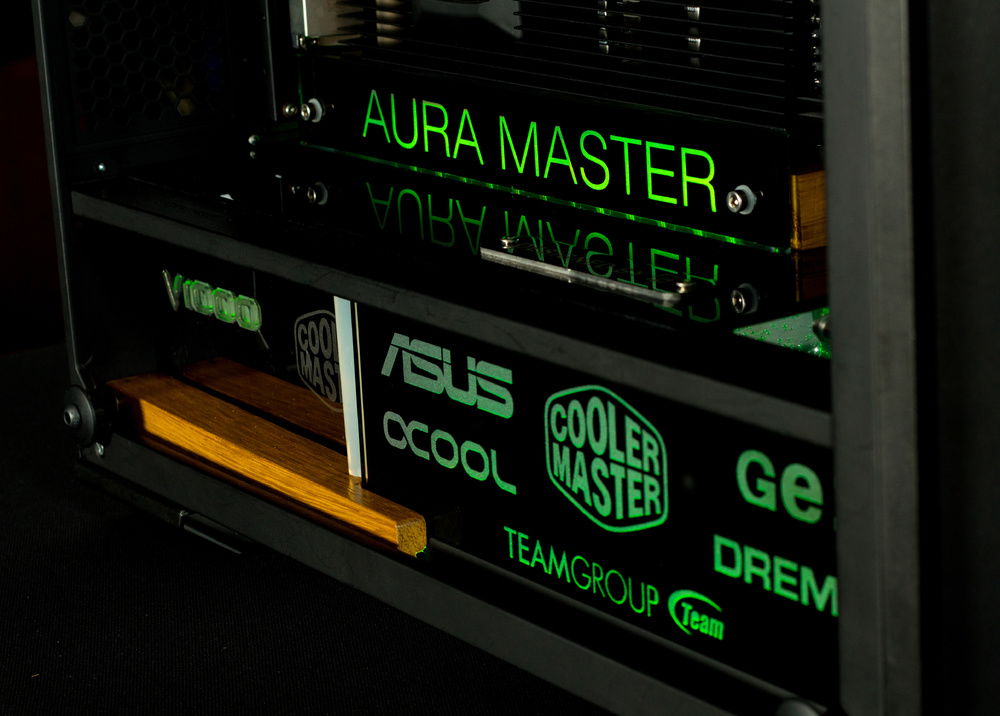

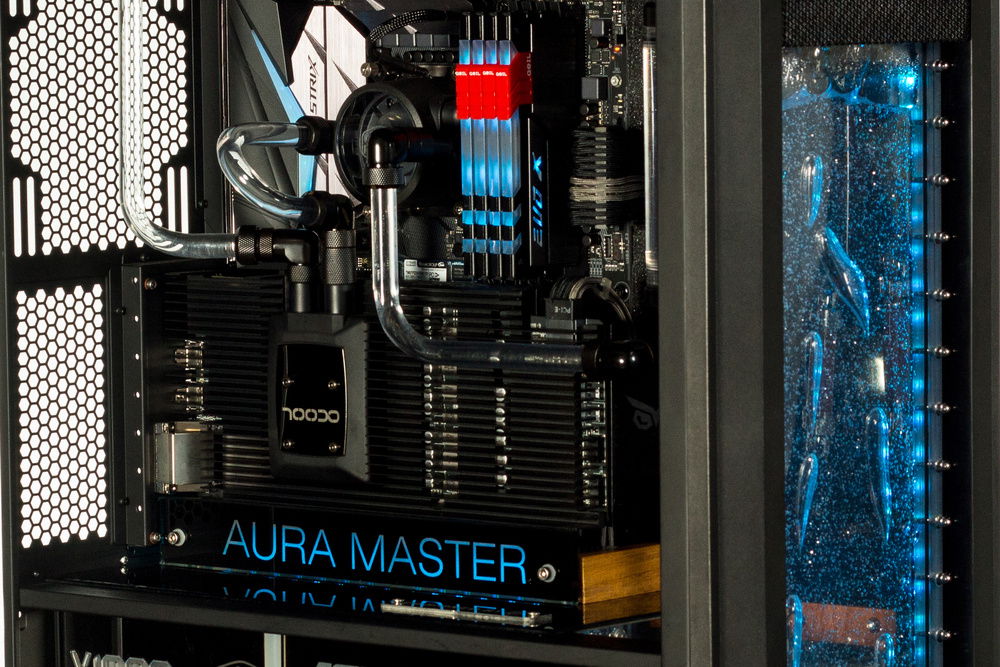

The base is a CoolerMaster MasterCase Maker 5 . The theme of the machine is RGB light, Aura. I built a special attraction in the front of the case. I've designed a 400*200mm tank that contains a special liquid with my own mixture. I flow air through the liquid. The tank is lighten by RGB LEDs which are connected to the mainboard's Aura system. The original front door got a new function with a complete bluetooth audio system with speakers. This can be removed with a single move so I can take the music with me. The GPU is built in 90 degrees rotated. The system is cooled by Aphacool liquid cooling. The power supply is also modified it got a policarbonate RGB panel and the original vent has been changed to an RGB one too. The sides of the case has been replaced by glass panels. The base structure of the case is also modified and got a powder paint finish. The cables are covered with paracord.
The world's first and only bubble wall computer.
Color(s): Black
RGB Lighting? Yes
Theme: Futuristic
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 170.00
Intel - Core i5-7500
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
ASUS - ROG STRIX Z270E
Chipset: Z270
CPU Socket: LGA 1151
Size: ATX
Memory
GeIL - Evo X (discontinued)
Type: DDR4
Capacity: 16 GB
Graphics
$ 525.00
ASUS - GeForce ROG Strix Gaming
Chip Manufacturer: NVIDIA
Chip: GTX 1060
Interface: PCIe x16
Storage
TeamGroup - P30
Form Factor: PCIe x4
Capacity: 240 GB
PSU
$ 350.99
Cooler Master - V1000
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
Cooler Master - MasterCase Maker 5
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
Alphacool - GPU Blocks
Type: Custom Loop
Cooling
Alphacool - NexXxoS ST30 Full Copper
Type: Custom Loop
Size (WxHxD): 280 mm (2 x 140 mm)
Cooling
$ 65.00
