A.C.M.E.A.

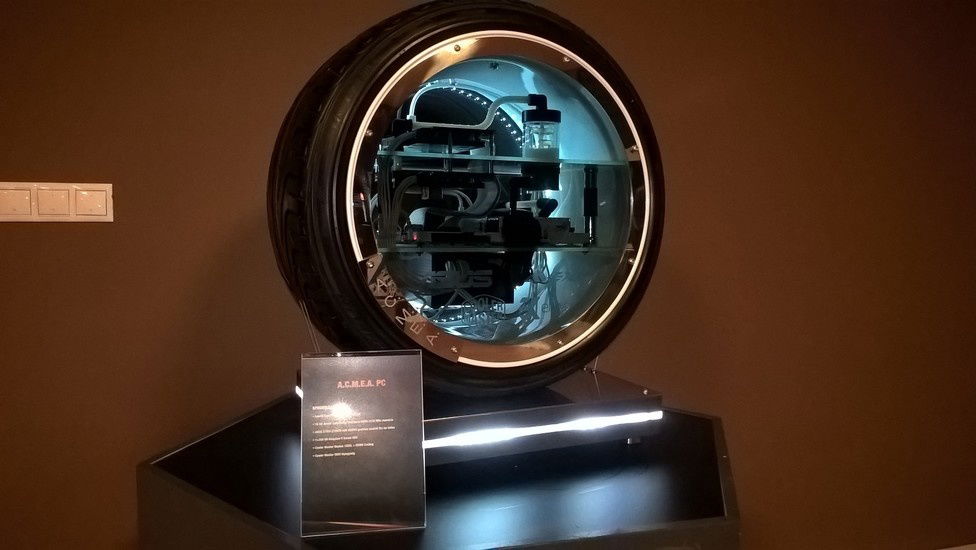

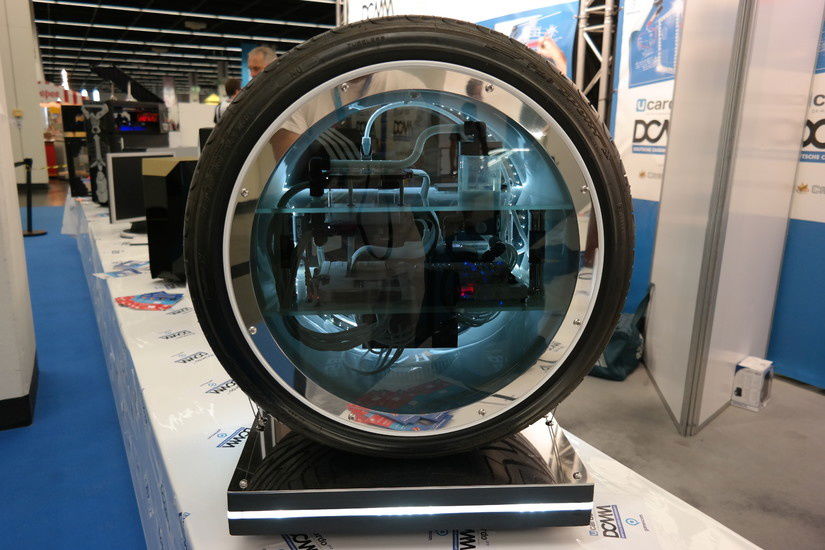

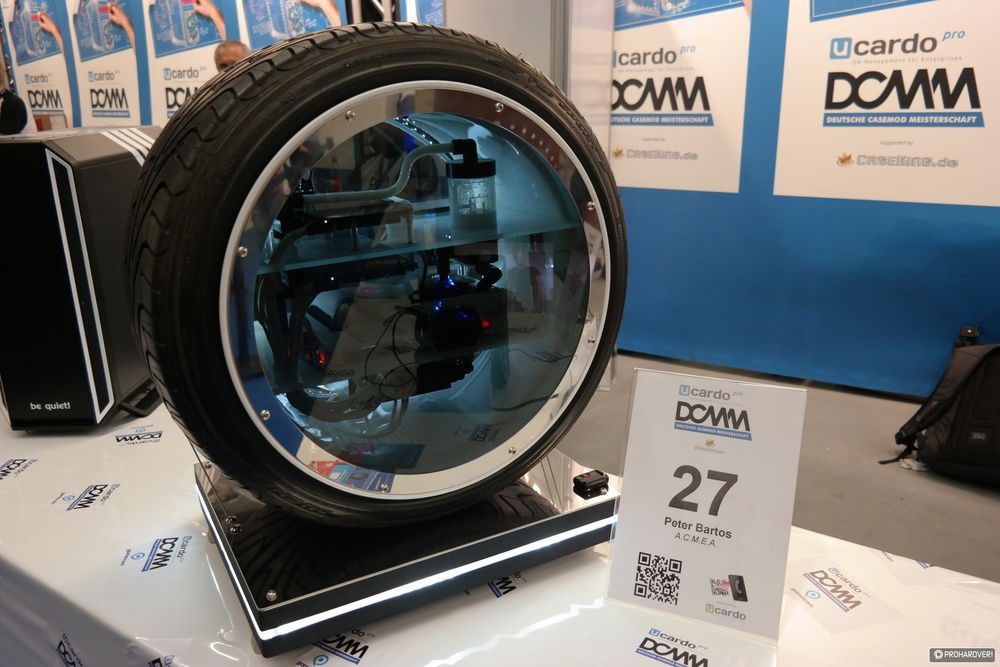

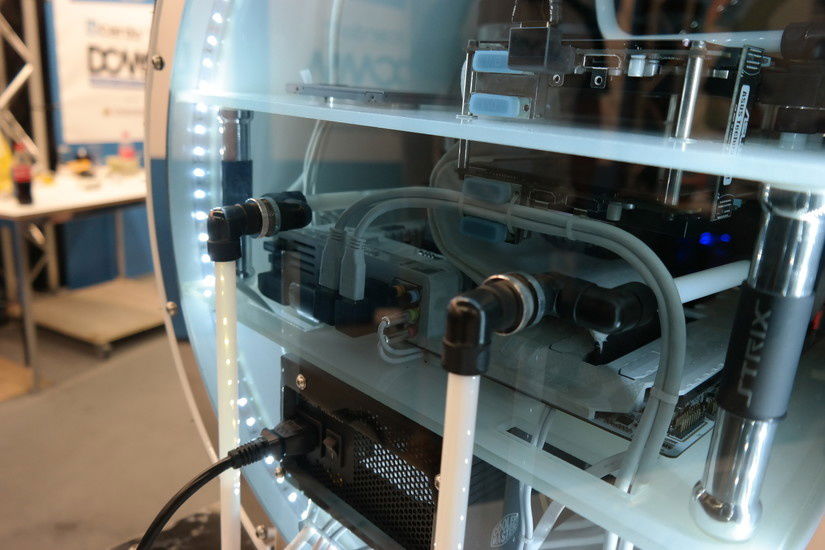

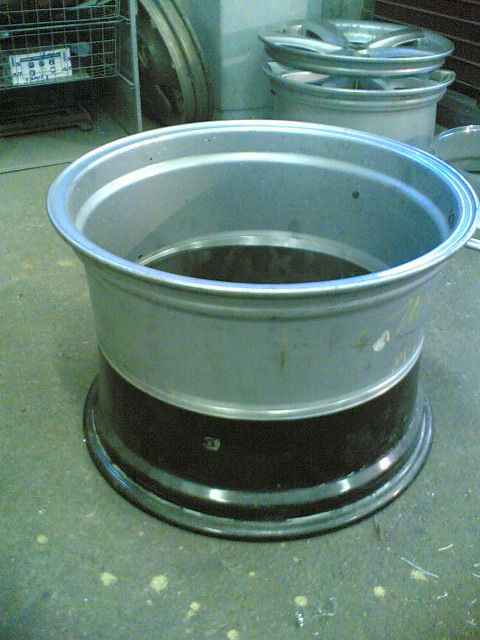

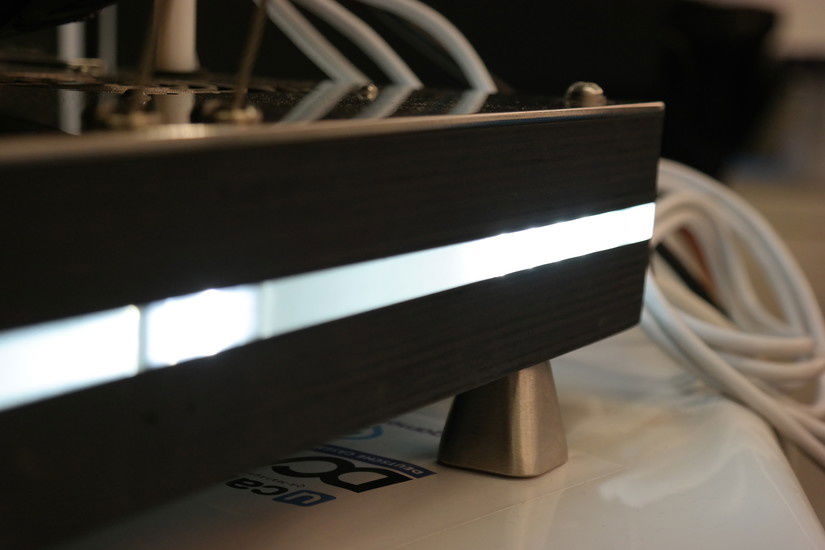

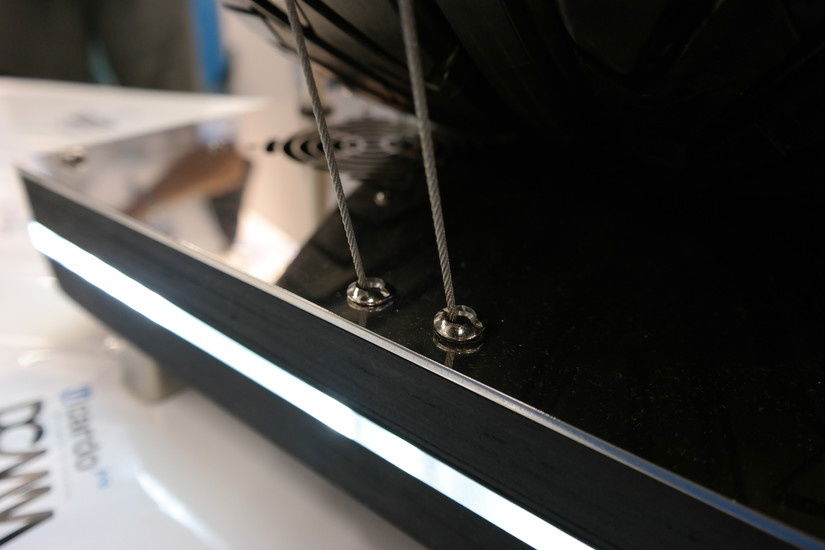

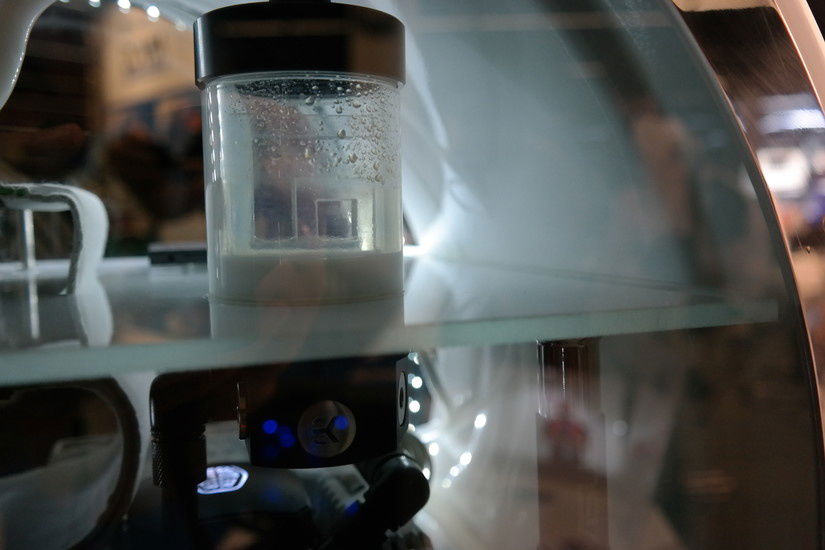

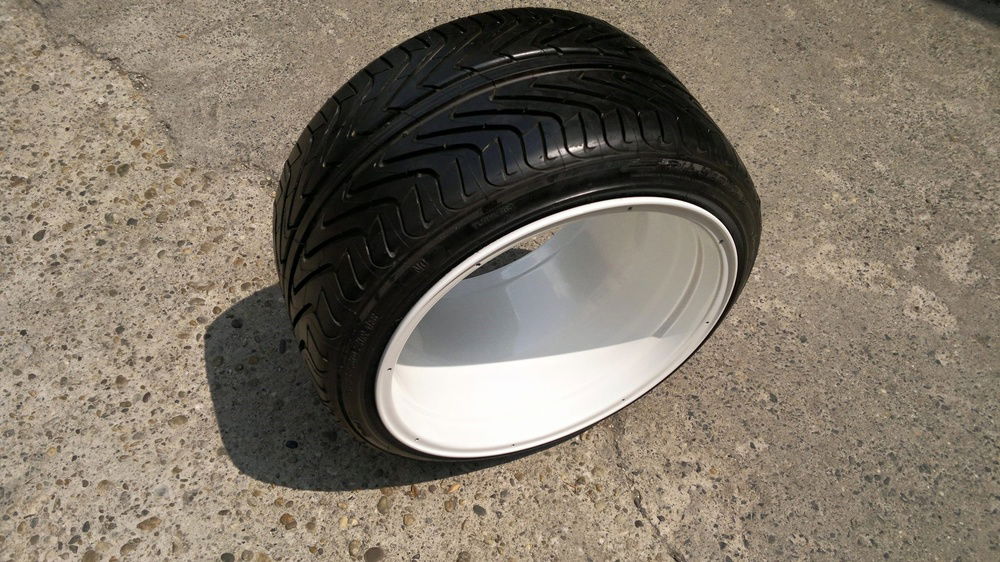

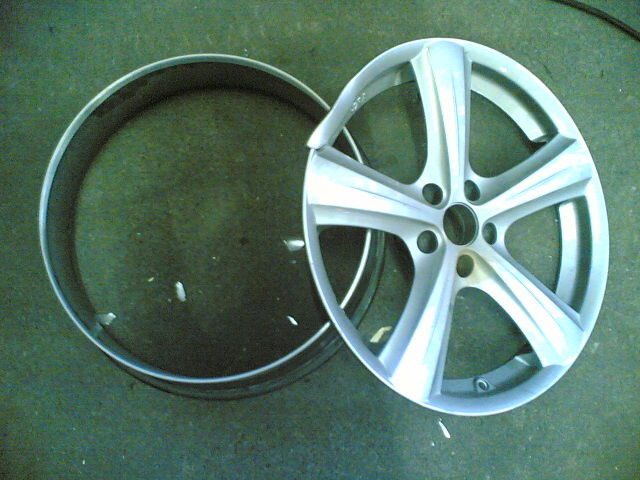

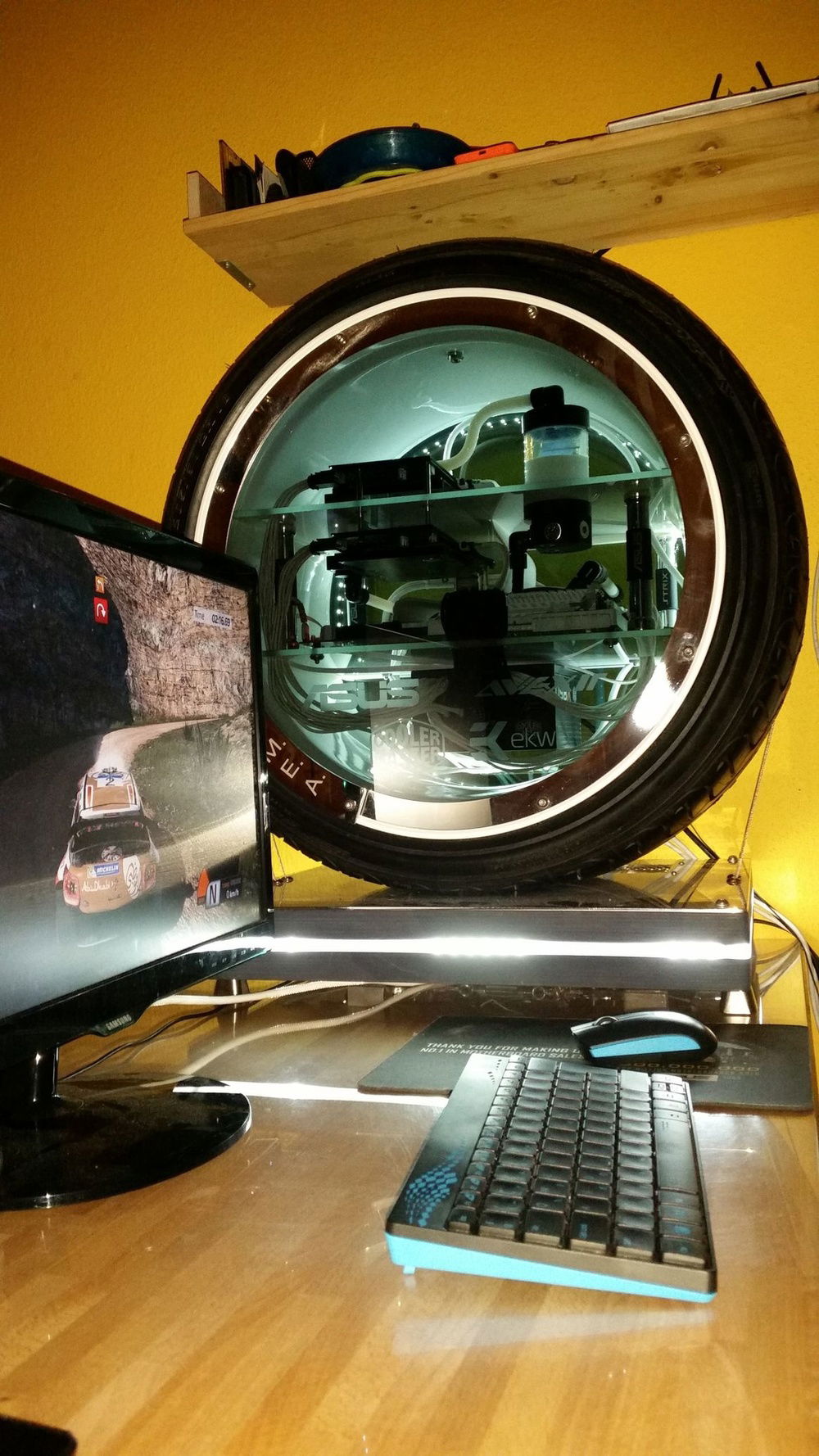

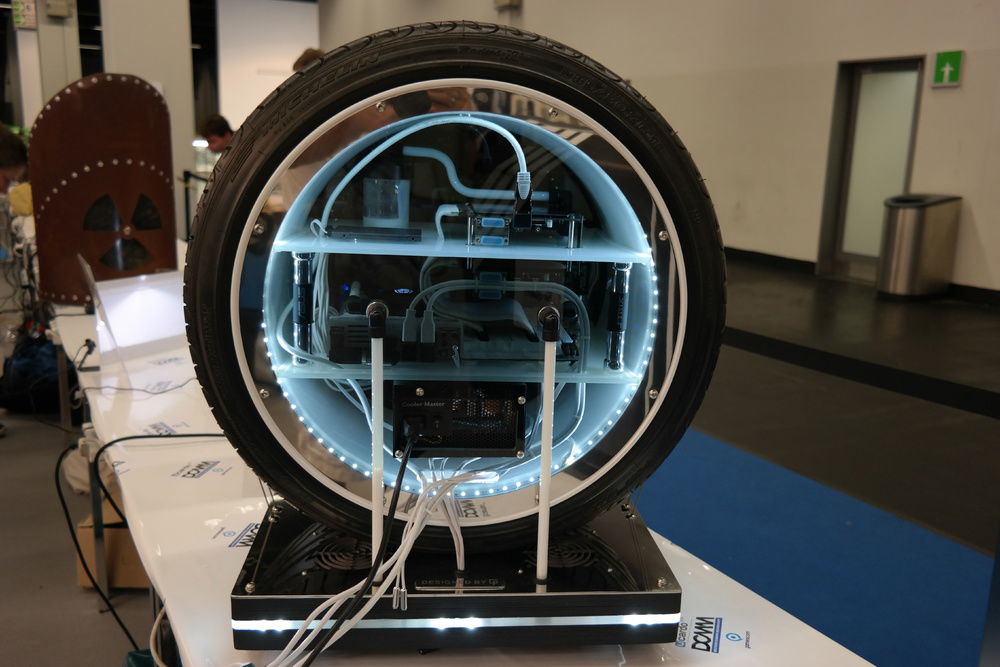

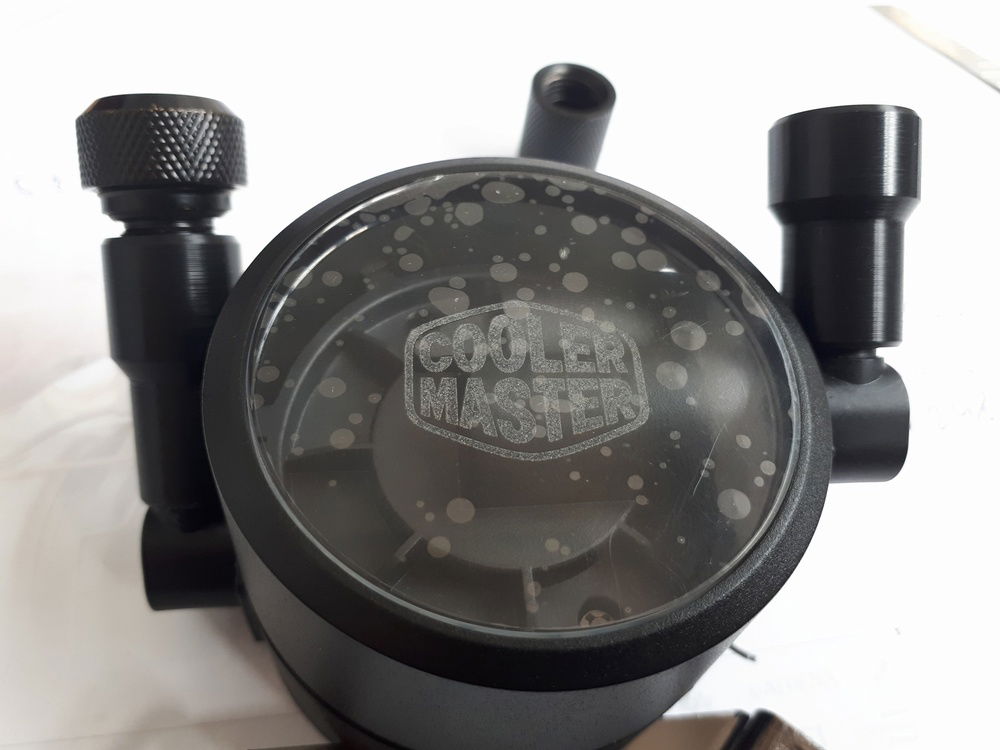

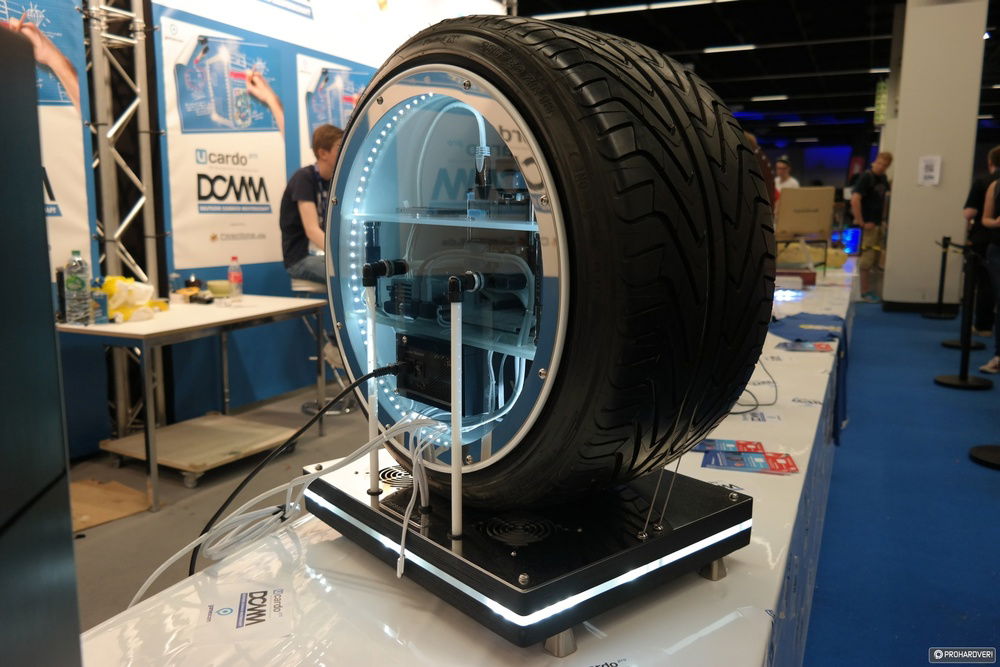

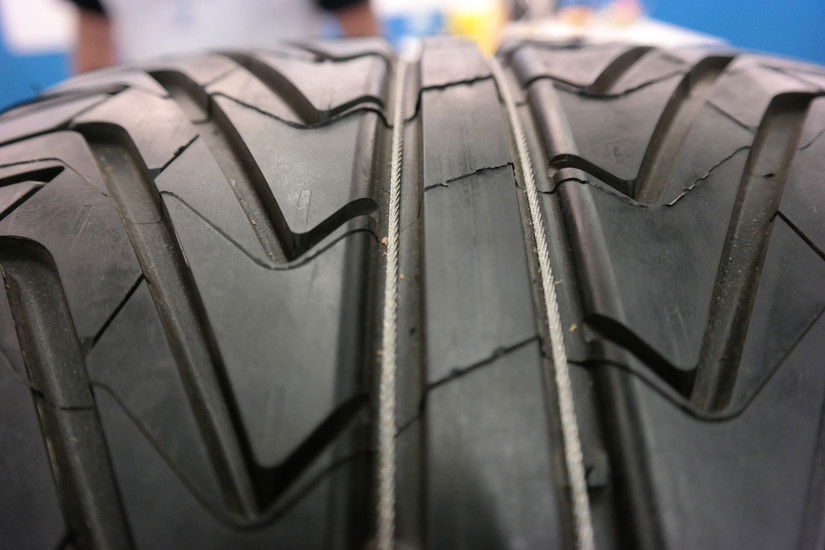

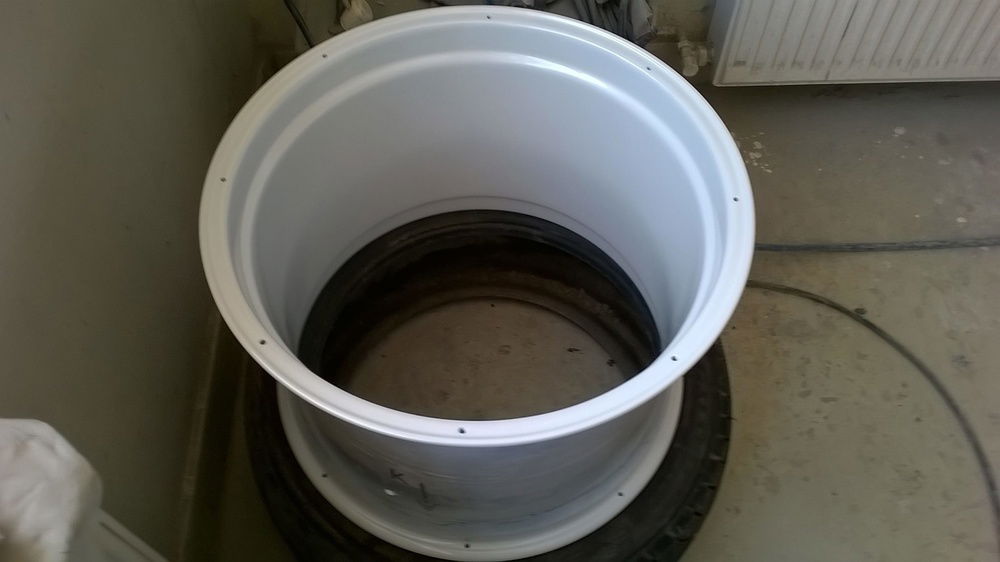

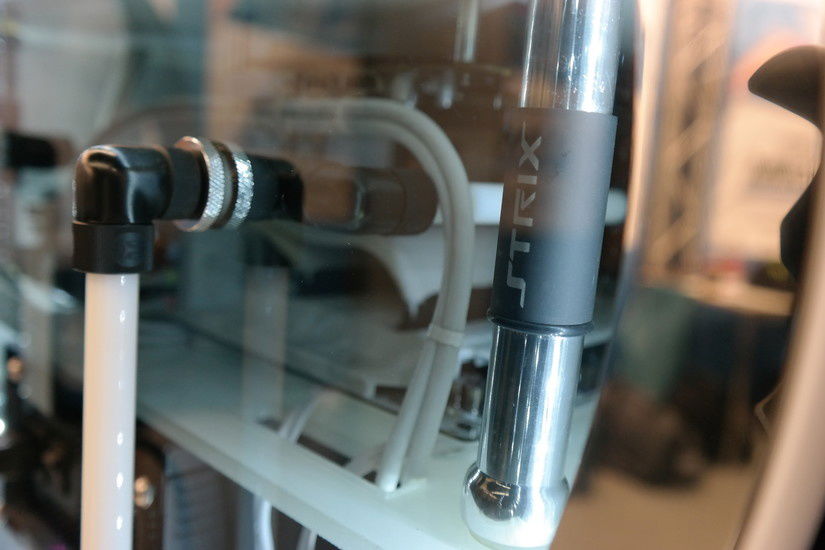

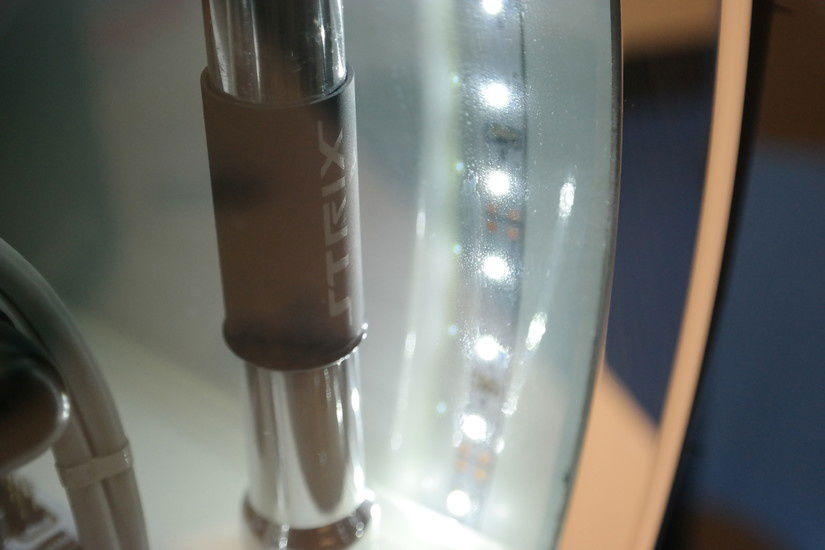

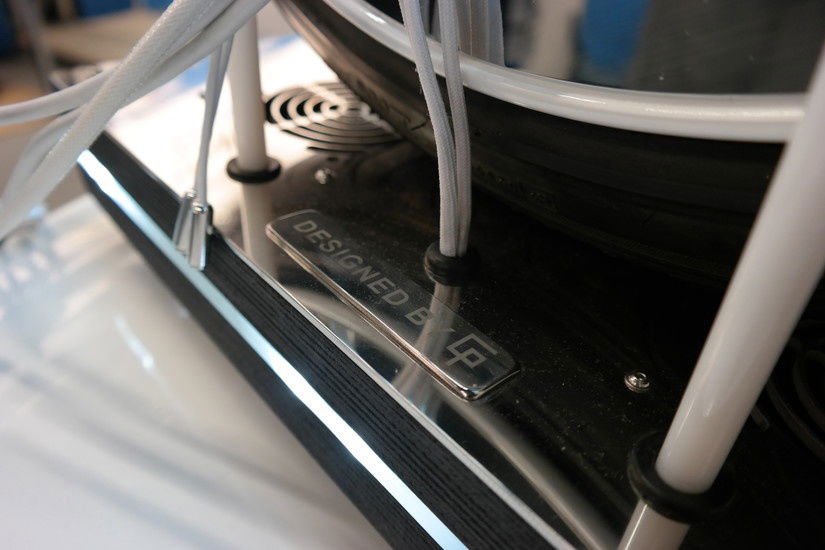

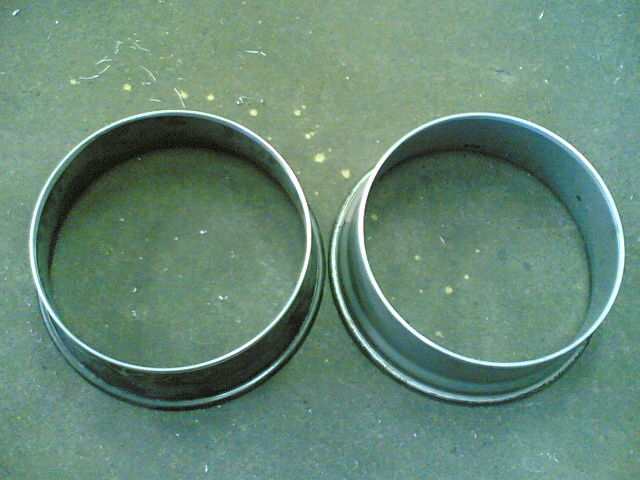

The case of the computer is made of the disks of two aluminium rims which has been melded together. After that I put a tire on it (285/30-18 Michelin Pilot Sport). I put two glass shelves in the cylinder to make place for the hardware components. The shelves are mounted on 4 adjustable aluminium stands. The stands are made by me of solid aluminium bars. The computer is liquid cooled. The radiators are assembled in the footing which is made of wood-policarbonat-wood and iron plate sandwiches. The hosing is made of Nanoxia rigid tubes. The EKWB tank must have been modified to make it fit and allowing the custom assembly in the shelf. The CoolerMaster Nepton system has been disassembled. This block and 2 Eisberg coolers are used in the system.


Color(s): White
RGB Lighting? No
Cooling: Custom Liquid Cooling
Theme: Vehicle
Size: XL-ATX

Contests

This build participated in 1 contest.

Rank Contest Date
#793 The builds.gg 10K Challenge ended

Hardware

Category Brand / Part Info
CPU Intel - Core i5 4690K
Cores: 4
Socket: LGA 1150
Motherboard ASUS - Sabertooth Z97 Mark S
Memory Support: DDR3
Size: ATX

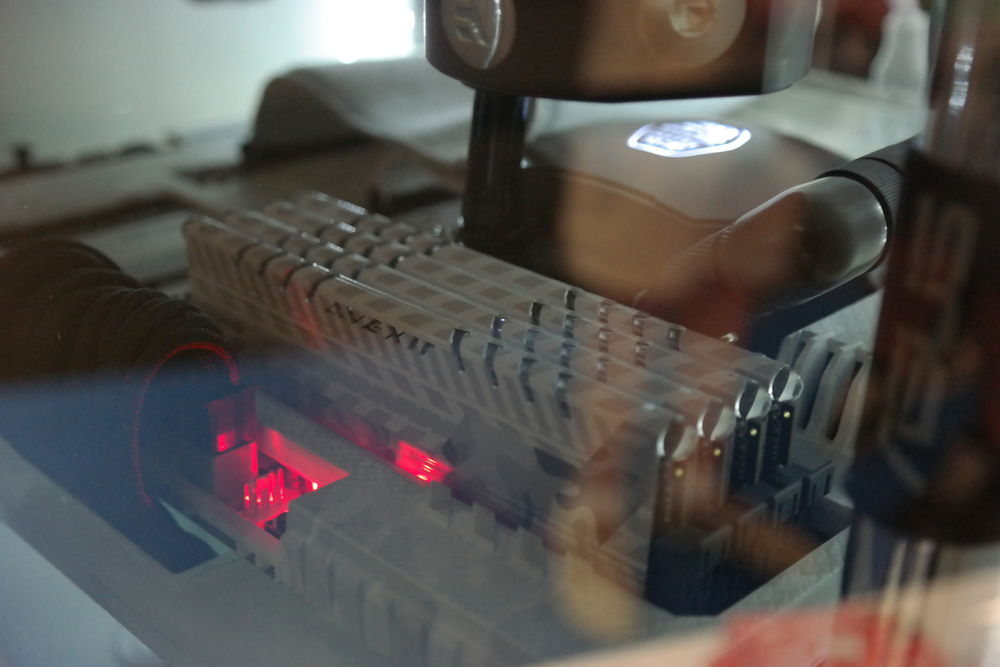

Memory AVEXIR - Avexir Core Series Sabranco Edition white LED
Capacity: 16 GB
Type: DDR3
Storage Kingston - V+100E
Capacity: 128 GB
Form Factor: 2.5 Inch
Type: SSD
Graphics ASUS - ROG Strix
Chip: GTX 970
Chip Manufacturer: NVIDIA
Graphics ASUS - ROG Strix
Chip: GTX 970
Chip Manufacturer: NVIDIA
PSU Cooler Master - V850
Efficiency: 80+ Gold
Form Factor: ATX
Modularity: Fully-Modular
Case Custom - Custom (custom)
Case Custom - Custom, CaseCon category 2 pieces Toora Aluminium Wheels size 8*18
Cooling Cooler Master - Nepton 120XL
Compatibilty: AM2+, AM3, AM3+, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1366, LGA 2011, LGA 2011-3
Size (WxHxD): 150 mm
Type: AIO
Cooling EKWB - EK-RES X3 TUBE 150
Size (WxHxD): 150 mm
Type: Custom Loop
Cooling EKWB - GPU Blocks (discontinued)
Type: Custom Loop
