Singer / DeSigner

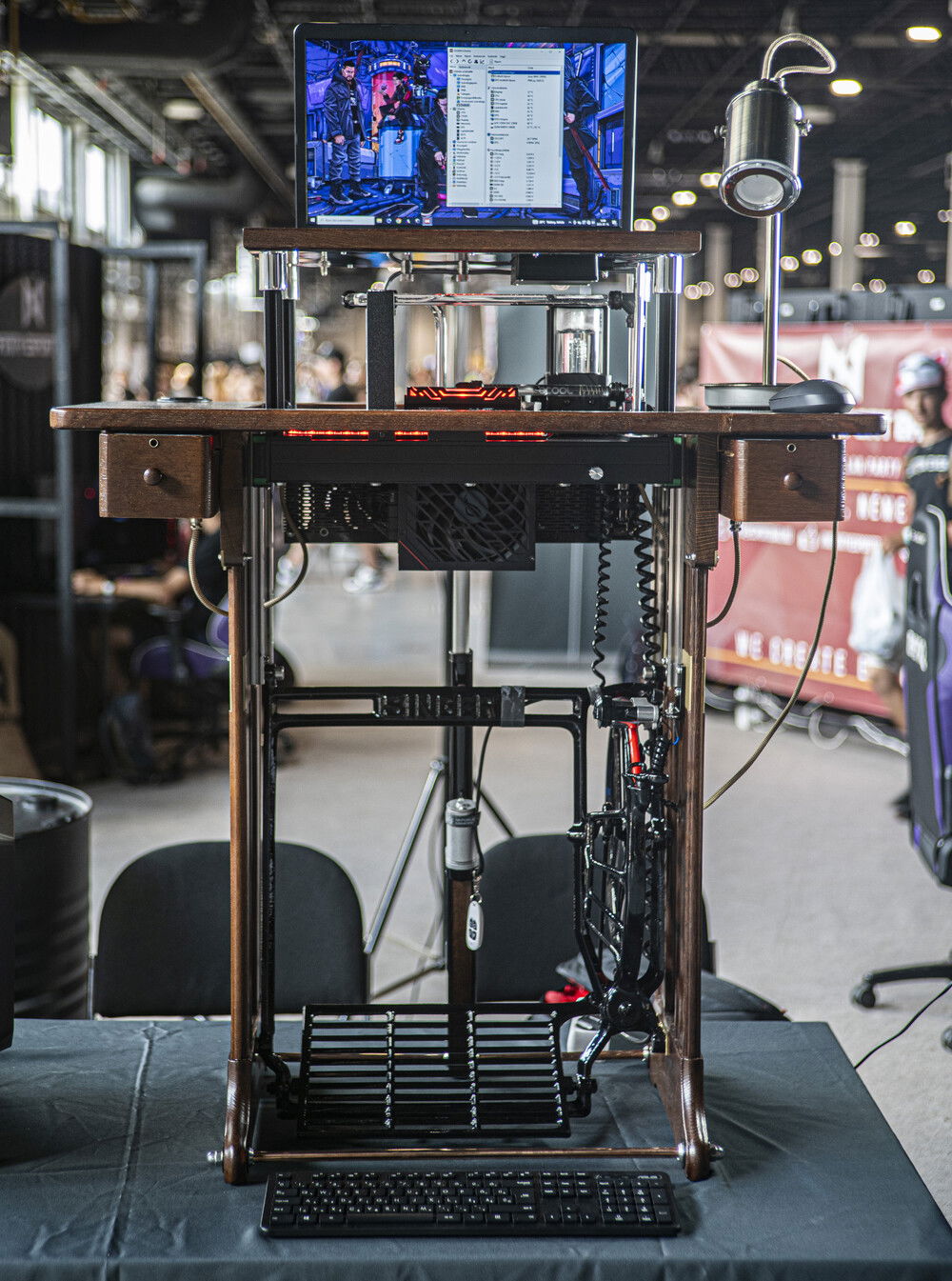

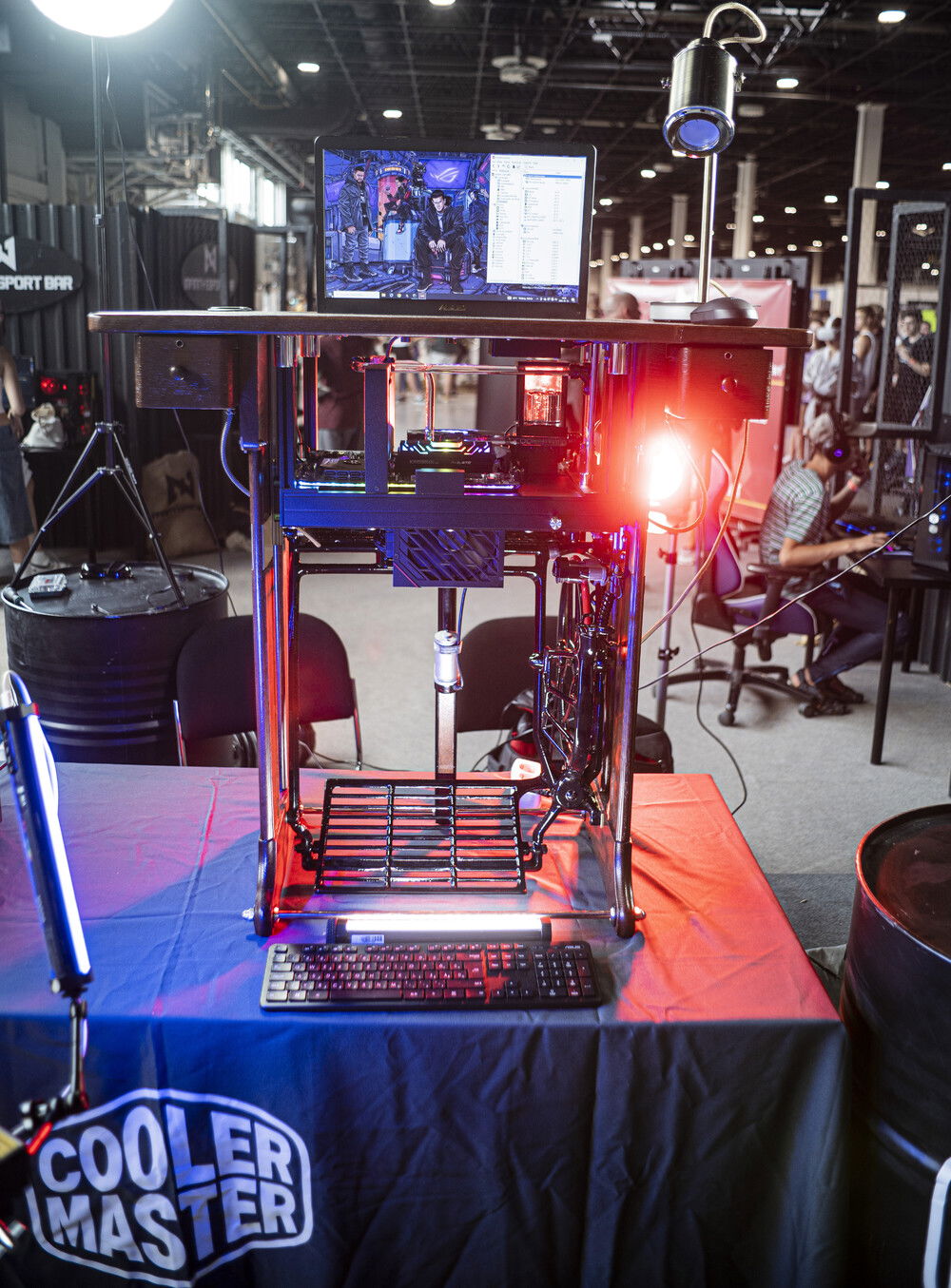

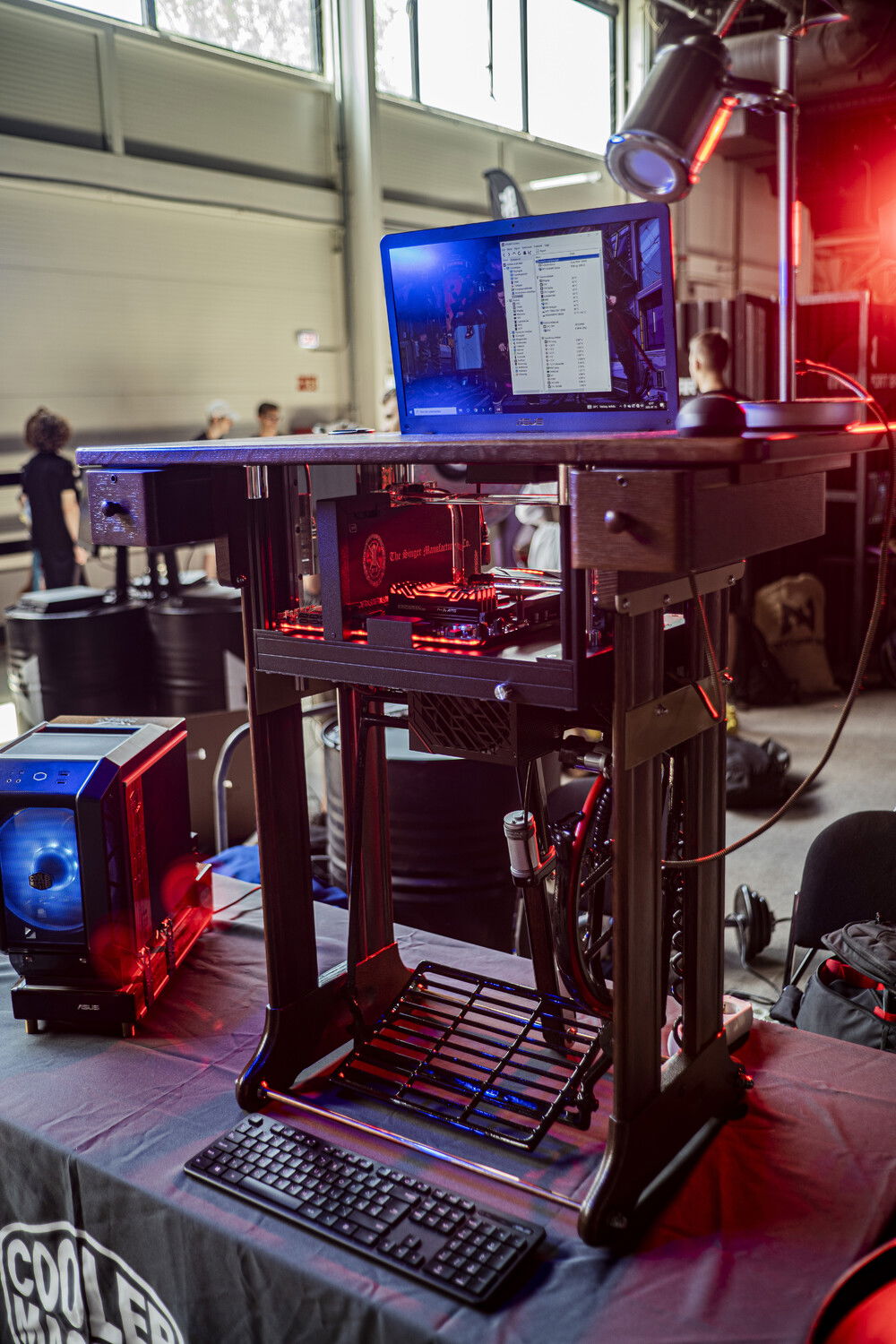

The base is a 1920 Singer sewing machine table. The table legs and the steel leg drive are original, I redesigned everything else. The table is made of oak, so the new elements are also made of oak.

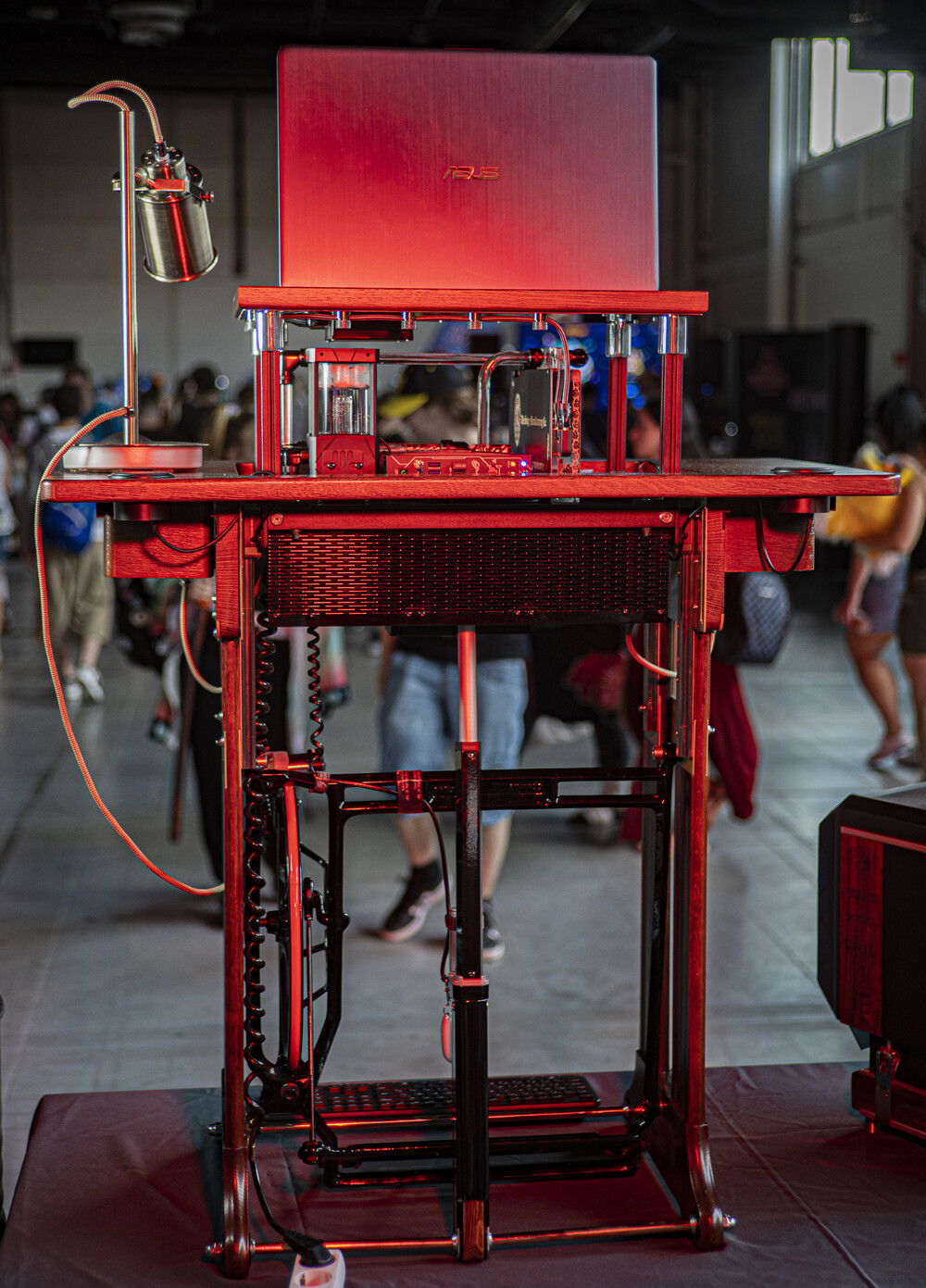

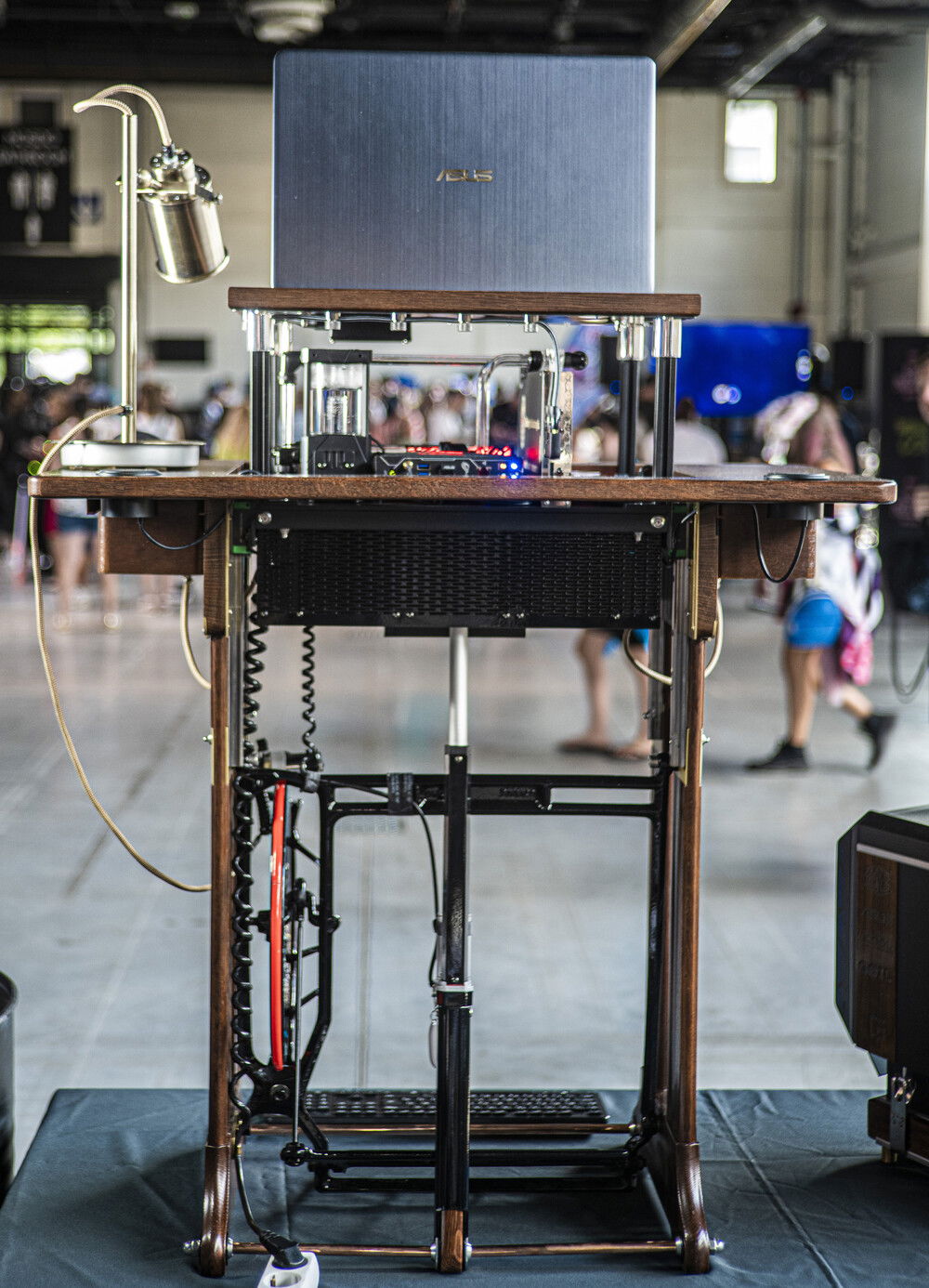

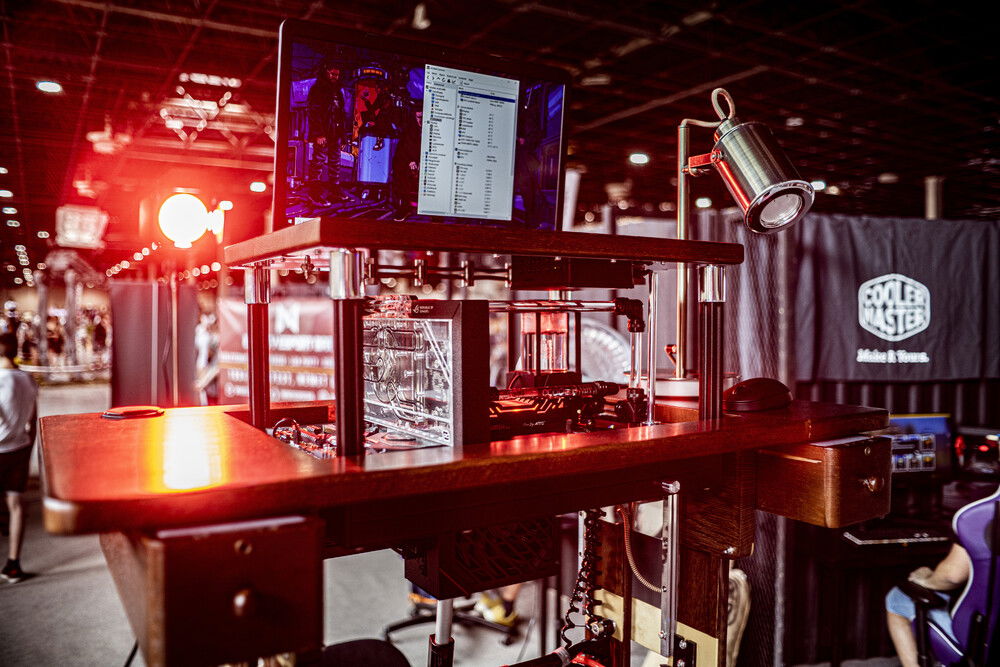

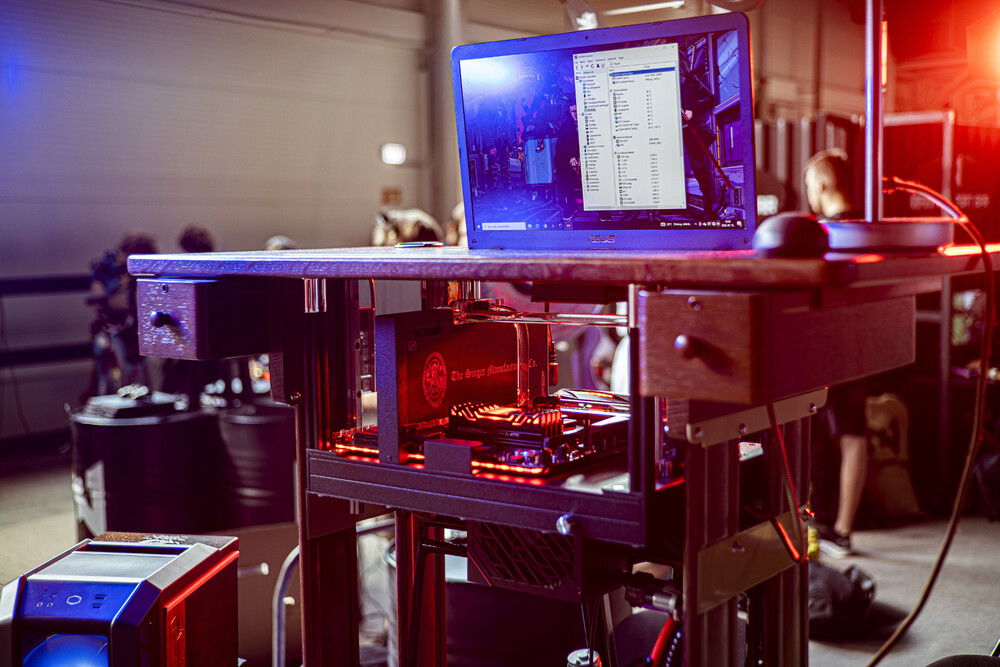

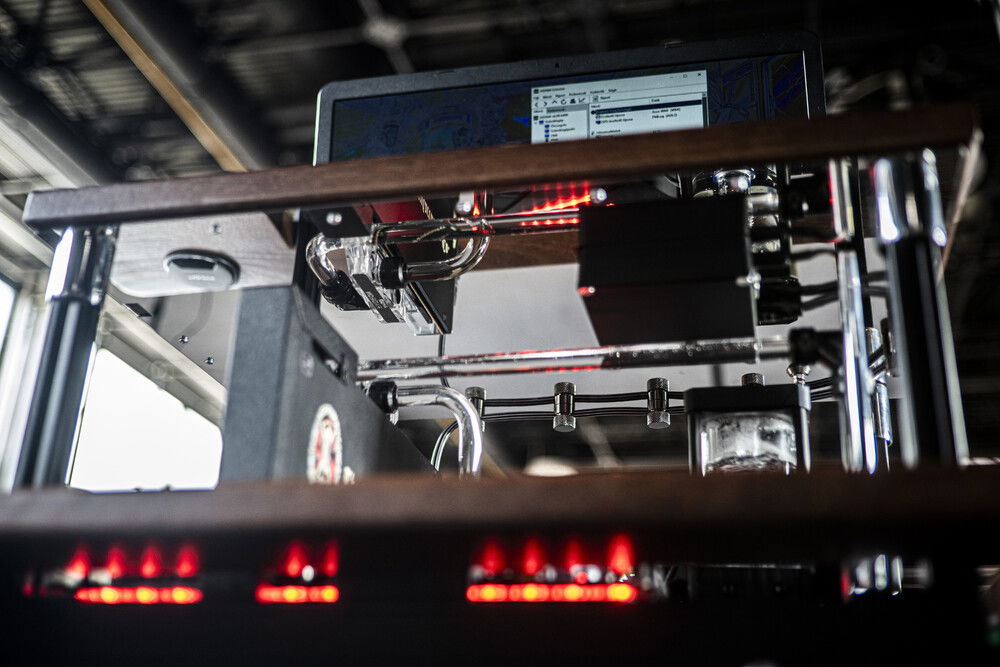

An aluminum drawer extends 200 mm from the sewing machine, which comes out of the top of the original Singer table, into which I installed the entire liquid cooling system. The motherboard, the GPU and the tank are on the top, the radiator and the power supply are on the bottom. The movement is ensured by a linear actuator, which I connected to a garage door opener controller, it works with a radio remote control.

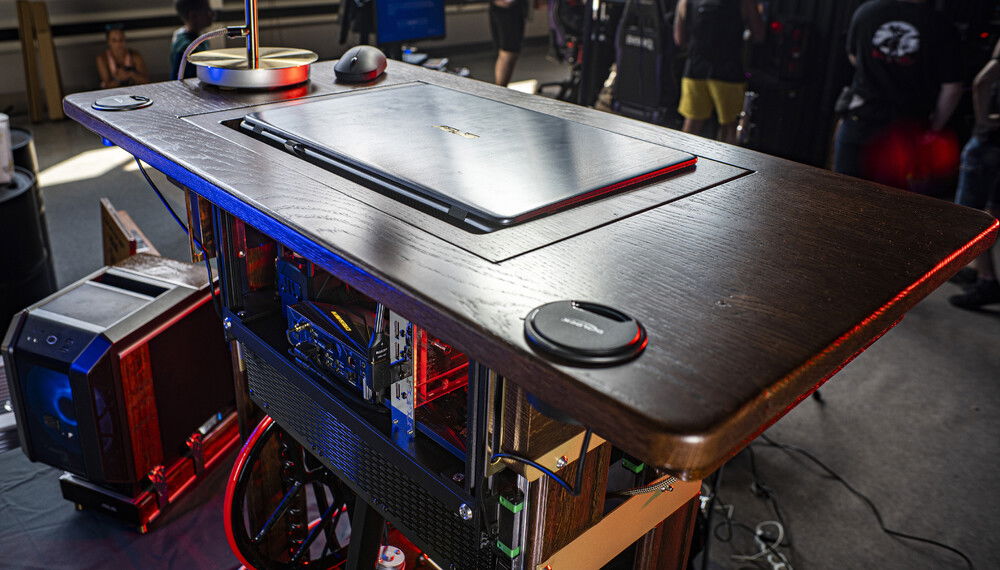

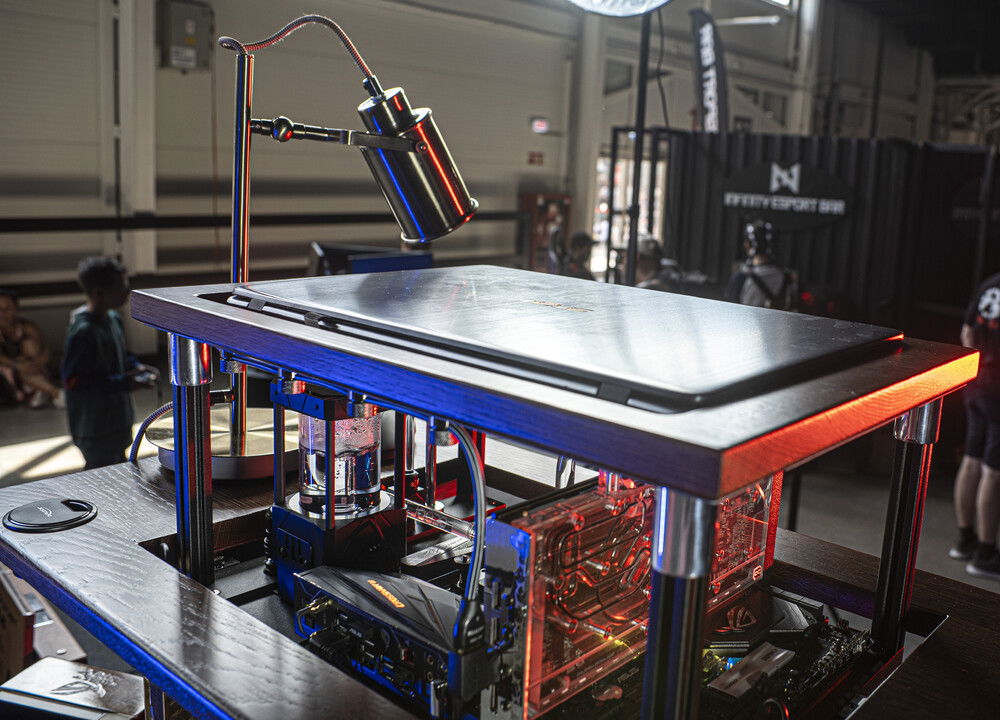

I built a bad Asus notebook display on the top sheet, which works as part of the system.
This entire top unit can be removed in one go.
Asus hardware, Alphacool clear liquid system and AITC Global M.2 and memory kit from new support.

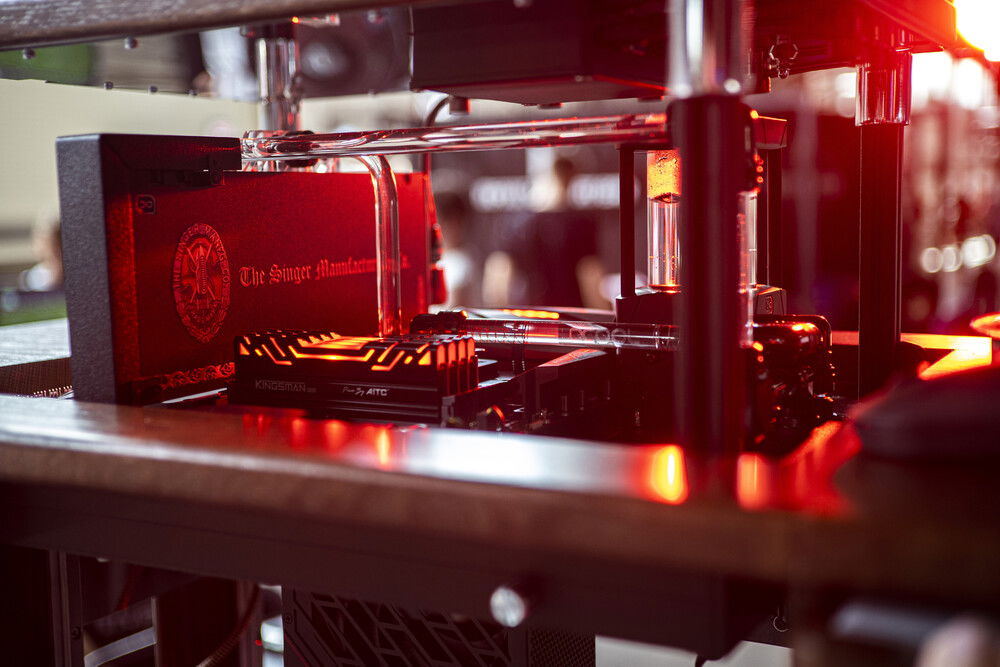

The GPU cooling has a unique design, I designed a 2-point GPU connection for it, in which the 2x8 power cable is hidden. The machine's wires are hidden at the bottom. The garage door controller and the Wi-Fi antenna are also hidden here.
I also installed a mini Bluetooth sound amplifier in the lower part.
I converted the two Singer drawers into speakers.

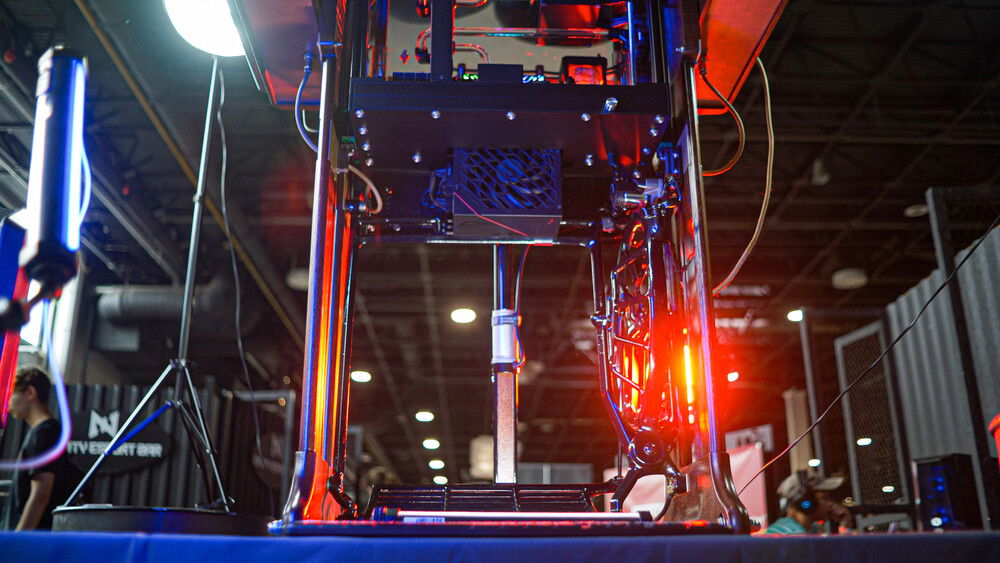

The radiator is hidden between perforated steel plates and powder coated.
Some distinguishing elements are made of brass and plexiglass.

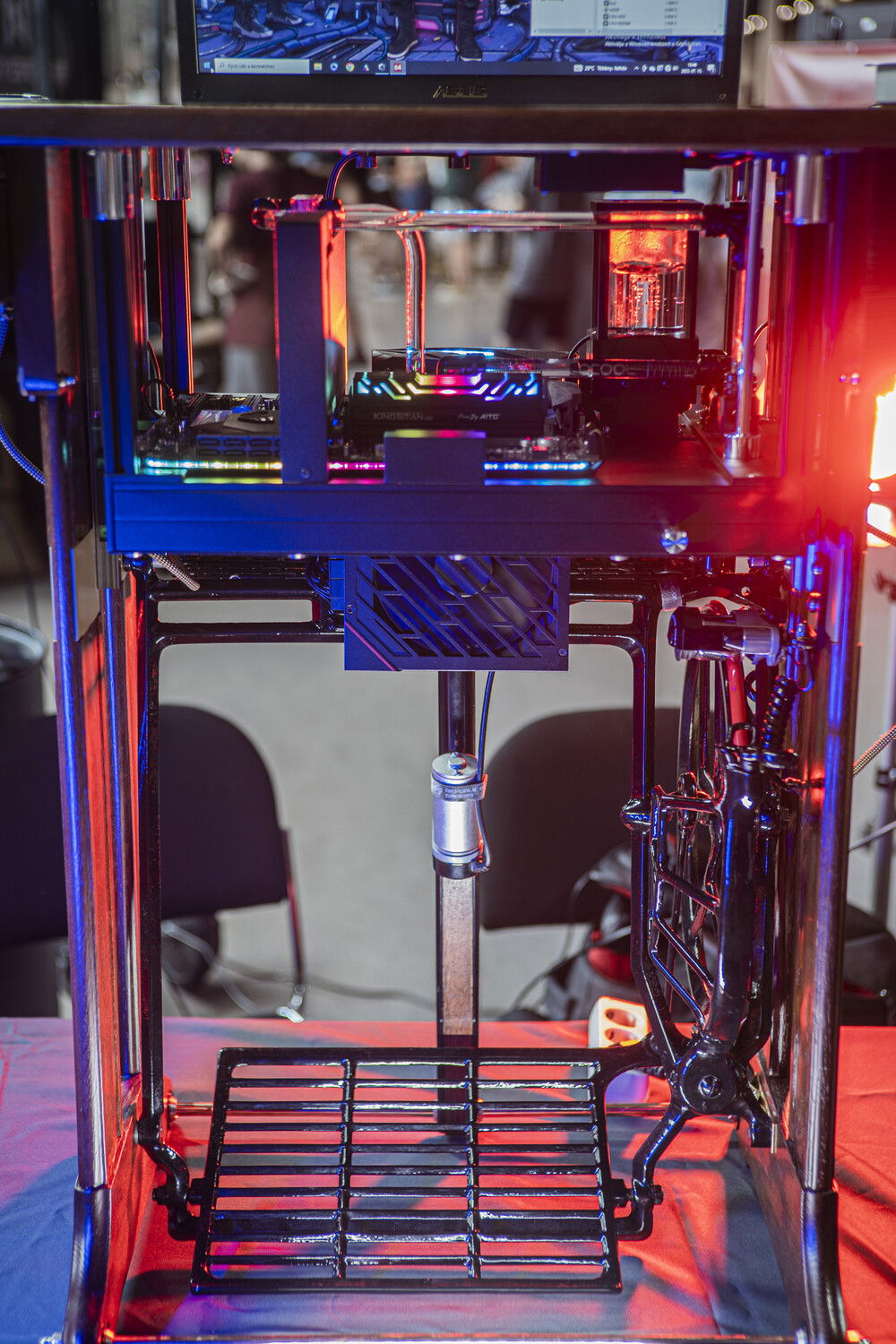

A Sanyo bicycle dynamo is activated to drive the blade, which supplies the lamp with electricity.🤪
Color(s): Black Brass Brown
RGB Lighting? Yes
Theme: Futuristic
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 126.00
AMD - Ryzen 5 (5600X)
Socket: AM4
Cores: 6
Motherboard
$ 598.86
ASUS - ROG Crosshair VI Extreme
Chipset: X370
CPU Socket: AM4
Size: E-ATX
Memory
$ 100.00
AITC - Kingsman
Type: DDR4
Capacity: 32 GB
Graphics
$ 404.42
ASUS - Rog Strix
Chip Manufacturer: AMD
Chip: RX 6700 XT
Interface: PCIe x16
Storage
AITC - KM600
Form Factor: M.2
Interface: PCIe x4
Capacity: 128 GB
PSU
$ 149.99
ASUS - Rog strix 850g
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 1.00
ASUS - Vintage AE1
Type: Mid-Tower
Cooling
Cooling
$ 79.99
Alphacool - Eispumpe VPP755 Single Edition V.3
Type: Water Cooling
Size (WxHxD): 60 mm
Cooling
$ 106.10
