16 Cores, 17 Liters

CPU: AMD Ryzen 3950x

Motherboard: Asus ROG Crosshair VIII Impact

RAM: 64 GB Corsair Vengeance LPX 3600cl18

Case: Sliger Cerberus

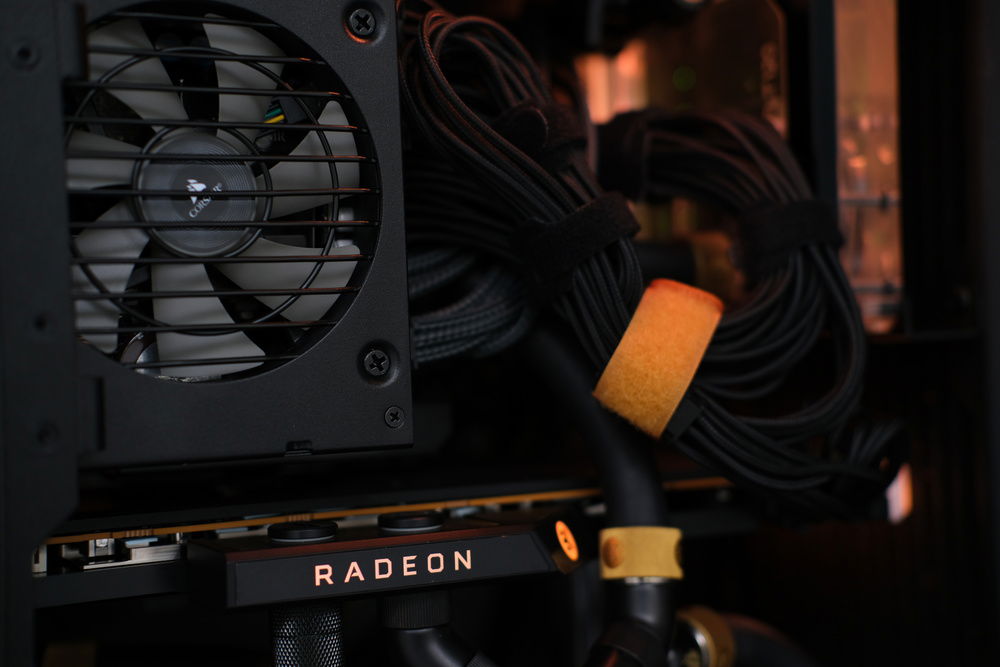

GPU: AMD Radeon RX 5700xt 50th Anniversary Edition w/ EKWB RGB Waterblock

Storage: 1x Sabrent Rocket 4.0 2TB NVMe, 2x Samsung 860 Evo 4TBSSD

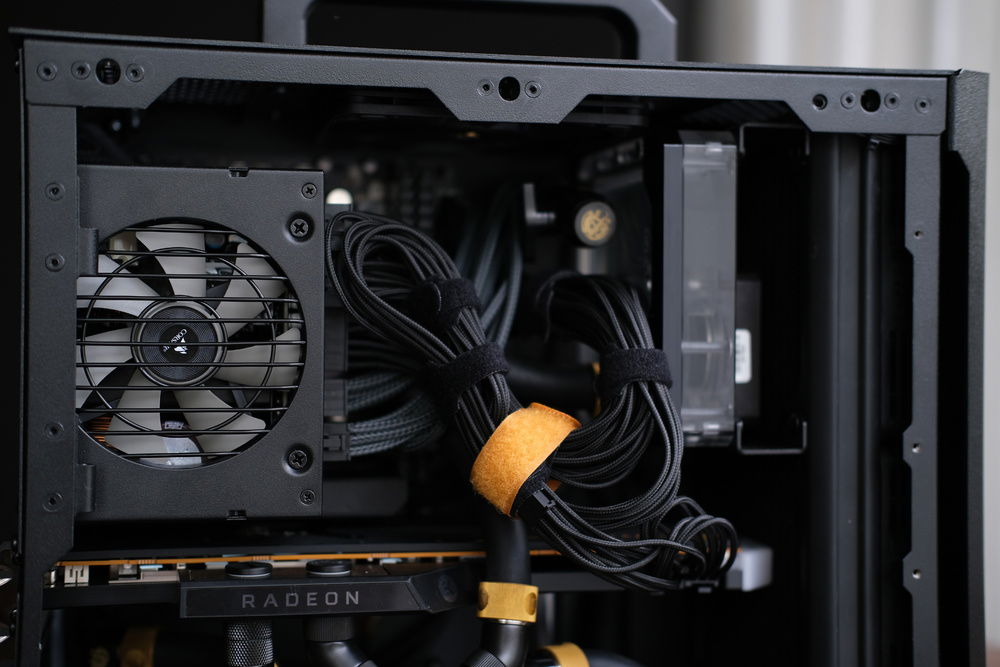

PSU: Corsair SF750

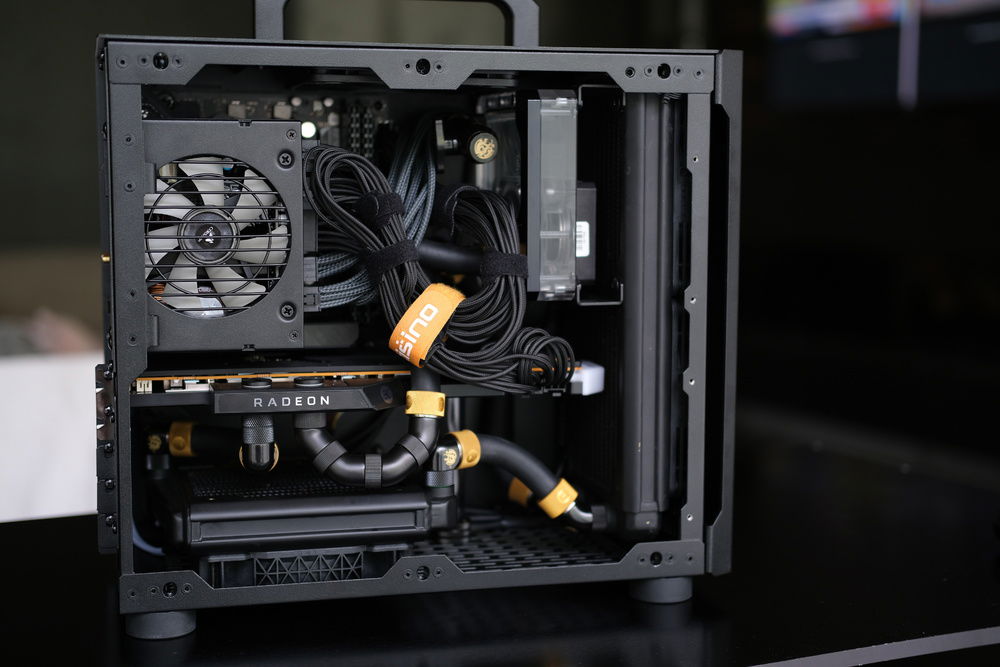

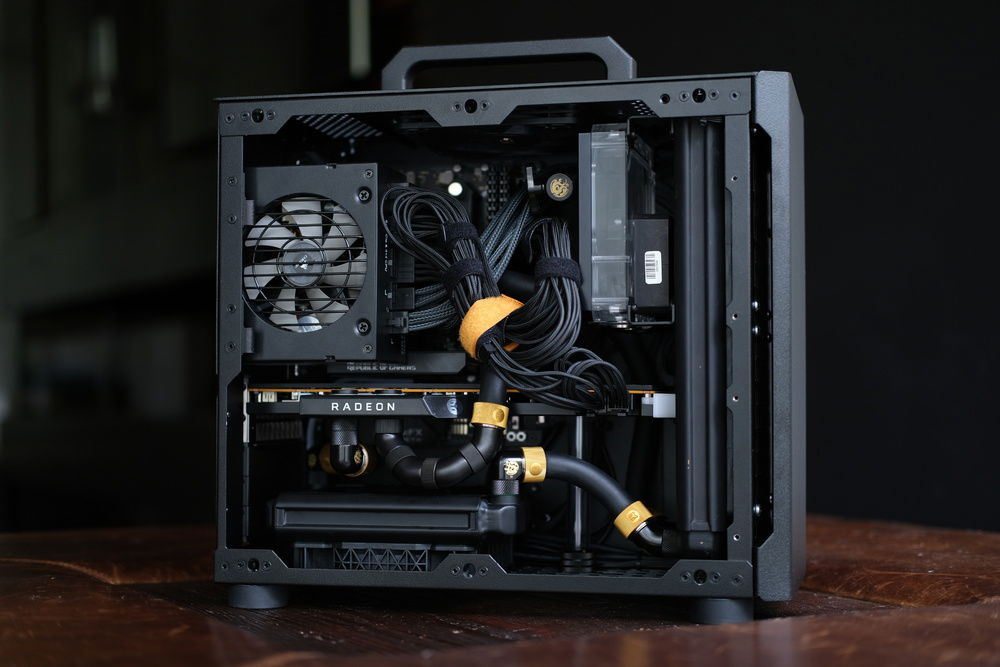

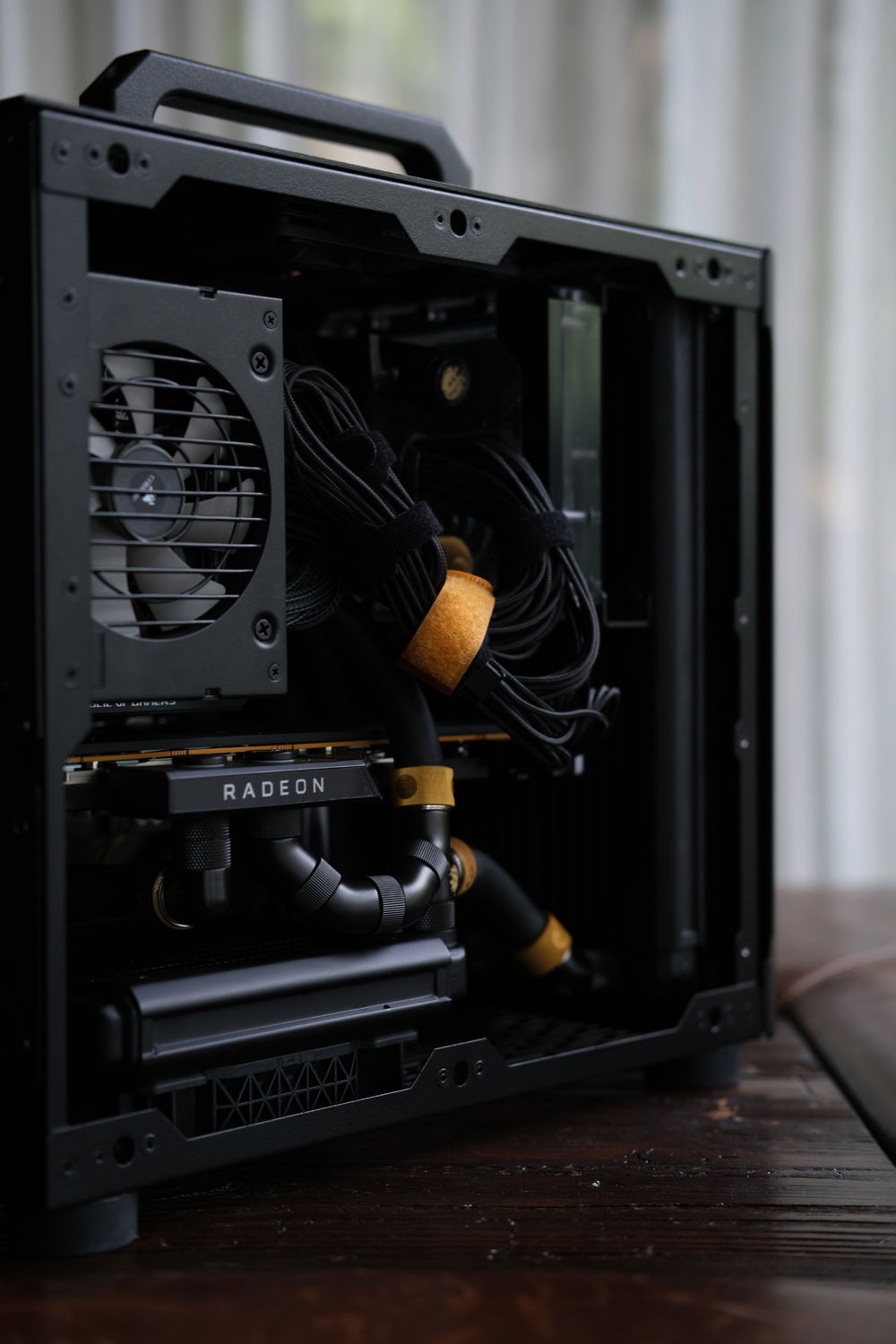

This system was built for high-end content creation in a small, desktop form factor. Despite its size, this system is cooled by a full custom watercooling loop built to last.

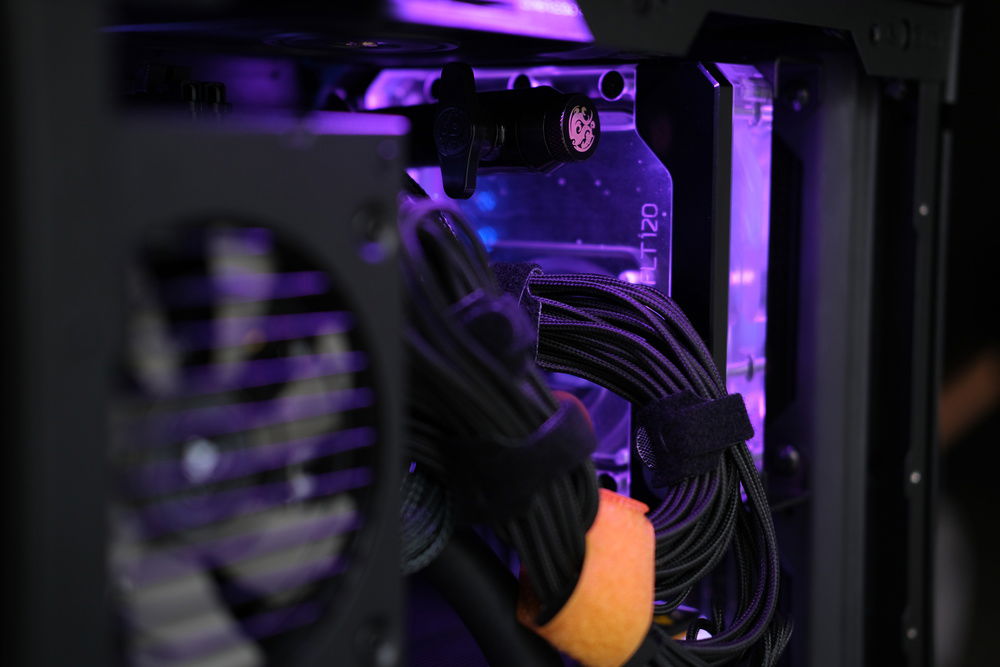

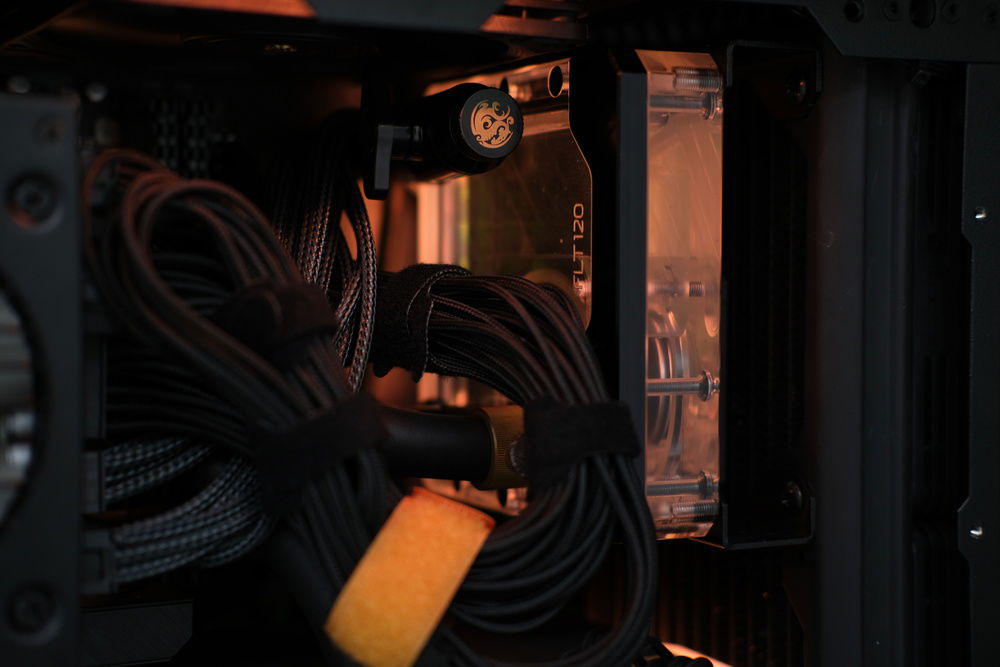

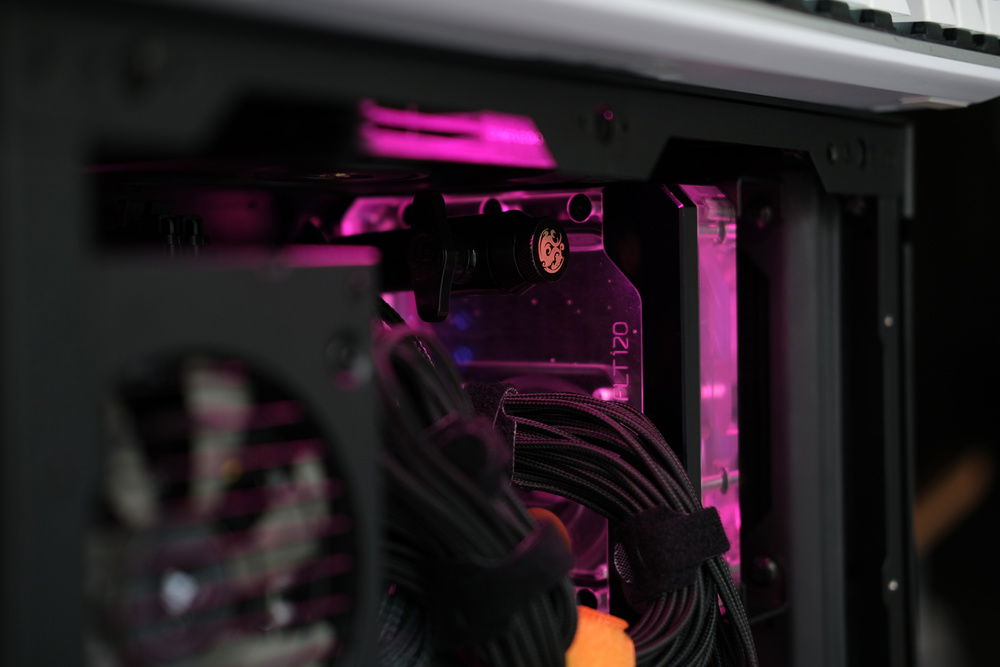

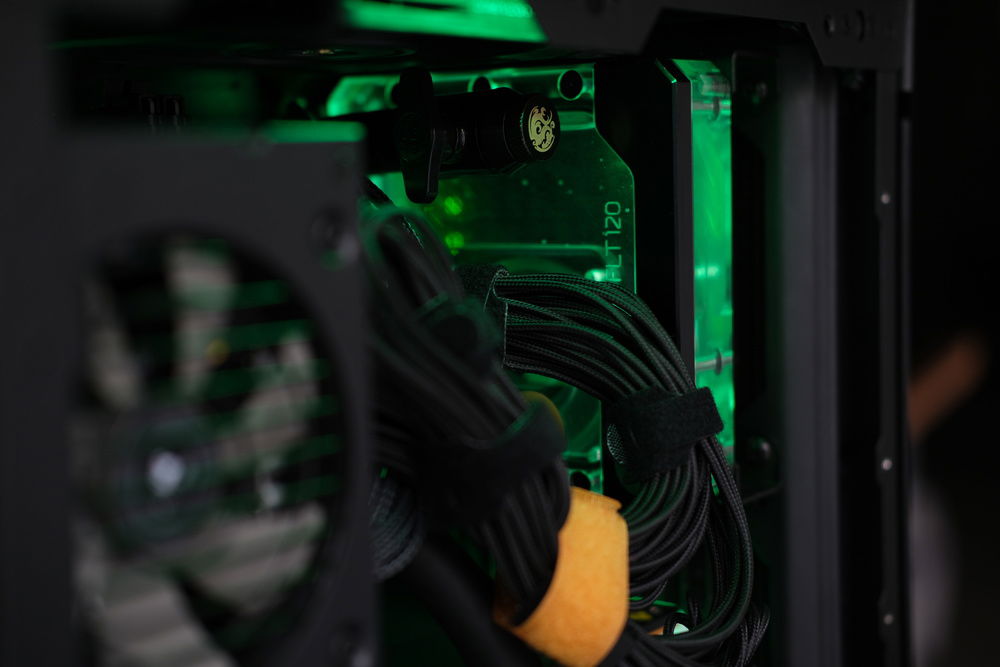

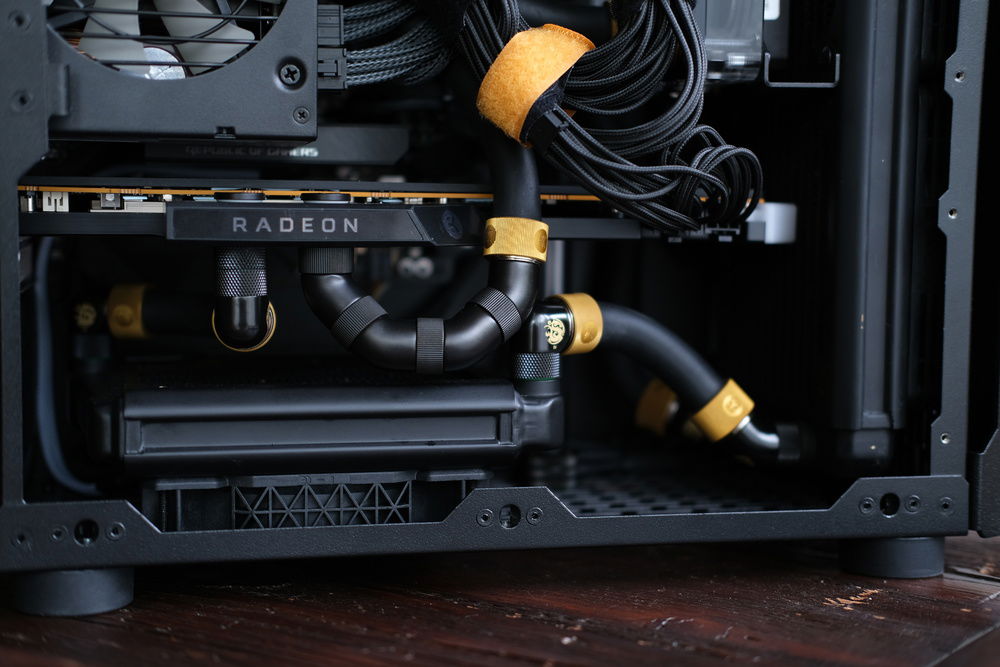

The custom watercooling in this sytem incorporates acetyl water blocks from EK for both the CPU and GPU, two HWlabs GTS radiators in 120mm and 240mm at 30mm thick, and a PWM DDC pump mounted to an EK flat reservoir. Fittings are a combination of Bitspower and EK.

This case is well built and spacious even at just over 17 liters in volume. While the case supports up to mATX motherboards, I chose the DTX Asus ROG Crosshair Impact VIII for its superior VRM and overclocking capabilities in order to support the 16 core AMD 3950x.

Running near silent with a mix of Noctua and Corsair fans, this computer brings full-tower performance to a compact form factor.
Color(s): Black Gold

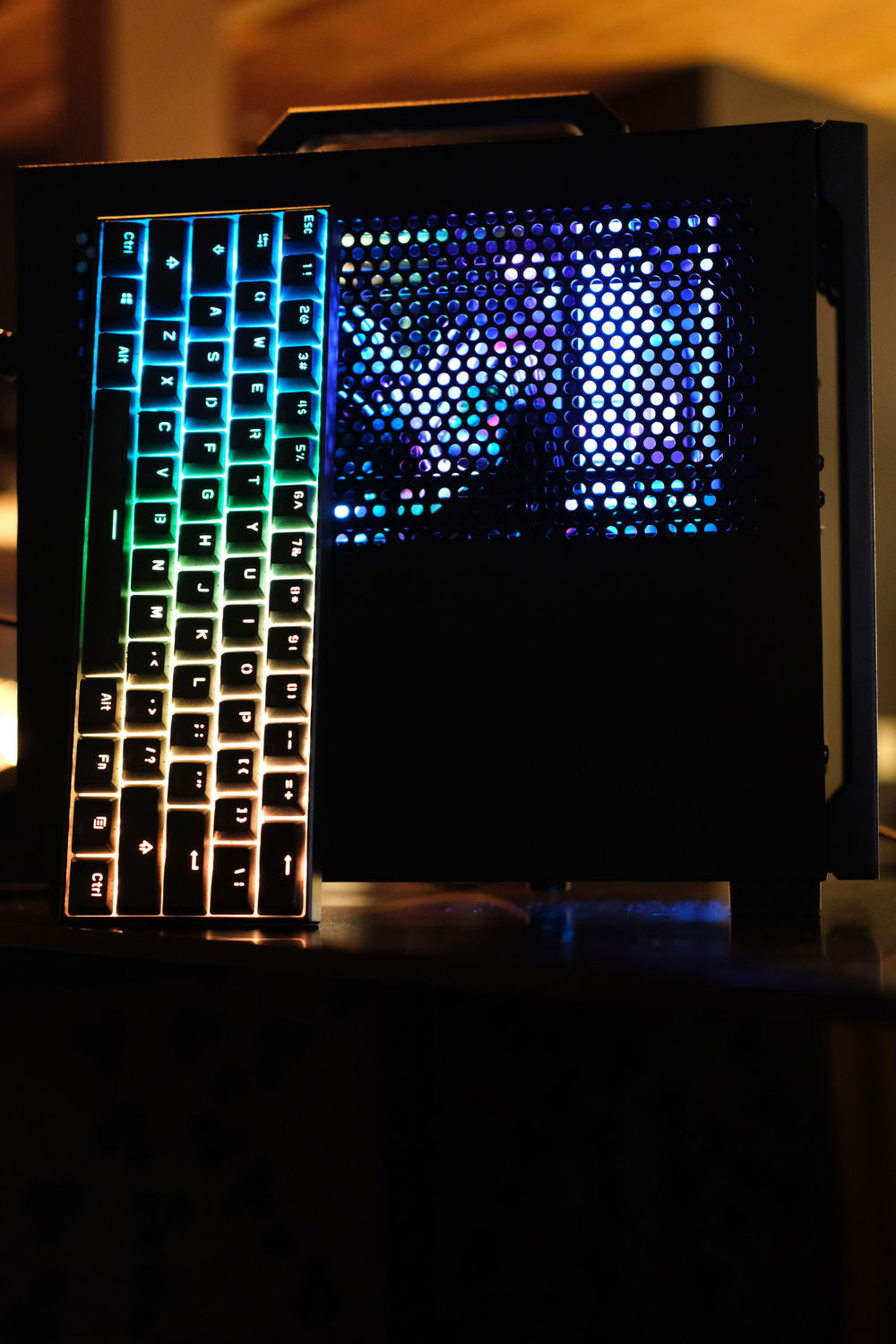

RGB Lighting? Yes
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 3 contests.

Hardware

CPU
AMD - Ryzen 9 (3950X)
Socket: AM4
Cores: 16
Motherboard
$ 389.99
ASUS - Crosshair VIII Impact
Chipset: X570
CPU Socket: AM4
Size: Mini-DTX
Memory
$ 133.99
Corsair - Vengeance LPX (2666MHz) (Black)
Type: DDR4
Capacity: 64 GB
Graphics
AMD - Radeon RX 50th Anniversary Edition
Chip Manufacturer: AMD
Chip: 5700 XT
Storage
$ 180.00
Sabrent - Rocket (PCIe 4.0)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
Sliger - Cerberus
Type: Mid-Tower
