Hotrod Prime - Multi-Threaded Gaming Chassis

Computer Name: HotRod Prime

Intent: Make a bleeding edge Gaming PC that is based on the 4th Gen AMD Ryzen 5900x CPU lending its multi-threaded capabilities with a high end mainboard, RGB and no SATA SSD or Platter drives for the cleanest cabling possible with the inevitable RGB “snakes”.
.
Case, Fans and Cooling: Cougar Conquer Open-Air Gaming Chassis (https://cougargaming.com/products/cases/conquer/ ) with a total of 6 fans running, including the PSU internal fan. Closed Loop Liquid cooling support with RGB Pull Configuration Fans and a 360 radiator on top
3 x 120mm in Push Configuration for the Radiator Lian Li (SL120) Uni Fans with RGB (Rainbow Default)
2 x 120 mm Radiator Lian Li (SL120) Uni Fans with RGB (Rainbow Default)
1 x 135 mm ASUS ROG Thor PSU Fan
All fans are running performance mode based on CPU Temp

Mobo: Gigabyte X570 Auros Extreme (Rev 1.2)
https://www.gigabyte.com/Motherboard/X570-AORUS-XTREME-rev-12#kf
Details:
AMD X570 AORUS Motherboard with Direct 16 Phases Infineon Digital VRM, Fins-Array Heatsink, NanoCarbon Baseplate, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6E 802.11ax, ESS SABRE HiFi 9218, AQUANTIA® 10GbE LAN+1GbE LAN, RGB FAN COMMANDER, RGB Fusion 2.0
Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 16 Phases Infineon Digital VRM Solution with 70A Power Stage
Thermal Reactive Armor Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
Onboard Intel® WiFi 6E 802.11ax 2T2R & BT 5.2 with 2X AORUS Antenna
Rear 130dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9218 DAC with WIMA Audio Capacitors
AQUANTIA® 10GbE BASE-T LAN + Intel® Gigabit LAN with cFosSpeed
Exclusive RGB FAN COMMANDER for Professional Casemoders
USB TurboCharger for Mobile Device Fast Charge Support
RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
Front & Rear USB 3.2 Gen 2 Type-C™ Headers
Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

PSU: (PSU mounted behind front foot) ASUS ROG Thor 80+ Platinum 1200 Watt Fully Modular RGB Power Supply with LiveDash OLED and 10 year warranty
https://www.asus.com/us/Graphics-Cards-Accessories/ROG-THOR-1200P/
Details:
80+ Platinum certification for energy efficiency, built with 100% Japanese capacitors for stability and durability
0db cooling with dustproof IP5X wing-blade fans and integrated ROG heatsinks for cooler operation
OLED Power Display : Real-time power draw monitoring with OLED Power Display
Aura Sync addressable RGB lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
10-year warranty for core product operation

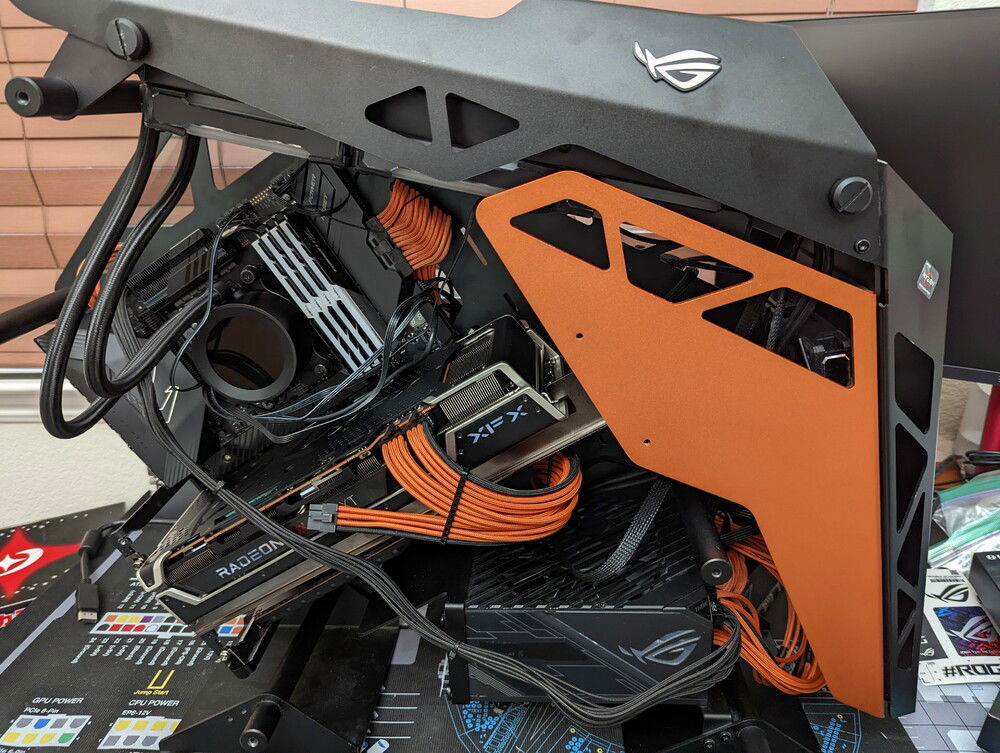

Cable Mods: Custom 24-pin ATX, 8-pin ESP, 8-pin ATX, and 16-pin PCI-E Custom length Paracord Pro cables with Aluminum Black Cable Combs, Cables: Orange & Orange & Black in color ( https://store.cablemod.com/configurator/ )

CPU: AMD Ryzen 5900X (12-core/24-thread) Desktop Processor:
3.7GHz Ghz all cores for 100% stress tests.
4.275 Ghz all cores/Vcore 1.4 for Gaming OC
4.8 Ghz Single Core OC with Precision Boost

CPU Cooler: (Top Mounted) ASUS ROG Ryujin II 360 with LCD Display with Thermal Grizzly Kyronaut Extreme Paste. Push Configuration with 3 x 120mm Lian Li (SL120) Uni Fans with RGB (Rainbow Default) ( Link to Ryujin II 360 AIO

RAM: 64 Gigs (4 x 16) G.SKILL Ripjaws V 64GB (4 x 16GB) 288-Pin DDR4 SDRAM DDR4 3600 Mhz AMD Ryzeen Kit. CL18-22-22-42 1.35v Model: F4-3600C18Q-64GVK

GPU: ROG-STRIX-LC-RX6900XT-O16G-GAMING || ROG Strix LC Radeon™ RX 6900 XT is a liquid-cooled leviathan.
https://rog.asus.com/us/graphics-cards/graphics-cards/rog-strix/rog-strix-lc-rx6900xt-o16g-gaming-model/

Boot Drive: Aorus Gen4 M.2 TB NVMe PCI-Express 4.0 x4 Internal Solid State Drive (SSD)

Star Citizen Drive: Intel Optane SSD 905P Series (960GB, 1/2 Height PCIe x4, 3D XPoint)

Gaming Drive: WD_Black SN850 Gen 4 M.2 2 TB NVMe PCI-Express 4.0 x4 Internal Solid State Drive (SSD)

Content Drive: Aorus Gen4 M.2 TB NVMe PCI-Express 4.0 x4 Internal Solid State Drive (SSD)


Primary Monitor: LG UltraGear 27GN950-B 27" UHD 3840 x 2160 (4K) 1ms (GTG at Faster) 144 Hz 2xHDMI, DisplayPort, USB AMD FreeSync Premium Pro and NVIDIA G-SYNC Compatible Nano IPS Gaming Monitor (Display Port used)

Secondary Monitor: Samsung 44 inch 4k TV (Wall Mounted above workstation) (HDMI to HDMI In used)


Headset: Corsair Void Pro RGB Wireless Headset with Corsair ST100 RGB Stand

Keyboard: Corsair K68 RGB Mechanical Gaming Keyboard — CHERRY® MX Red

Mouse: Corsair Scimitar Pro RGB Gaming MMO Mouse

RGB Controller: LianLi Uni Controller (Gen 1)

Network: 10G/bit Wired from LAN port direct to Google Wifi Router + Mesh Network System
Connectivity: 1 Gigabit downlink/ 30 Megabit Uplink Cable Internet 15 ms or less latency to speedtest

Audio: SoundBlasterX Katana Soundbar: Soundbar: 60.0 x 600.0 x 79.0 mm (2.4 x 23.6 x 3.1 inches), Subwoofer: 333 x 130 x 299 mm (5.1 x 11.8 x 13.1 inches) 2.1 system

Software:
Streaming/Recording Software:
OBS
AMD Radeon Suite
Adobe After Effects and Premier Pro CC (Latest build)
Color(s): Black Orange
RGB Lighting? Yes
Theme: Futuristic
Cooling: AIO Cooling
Size: ATX
Type: General Build

Build Updates

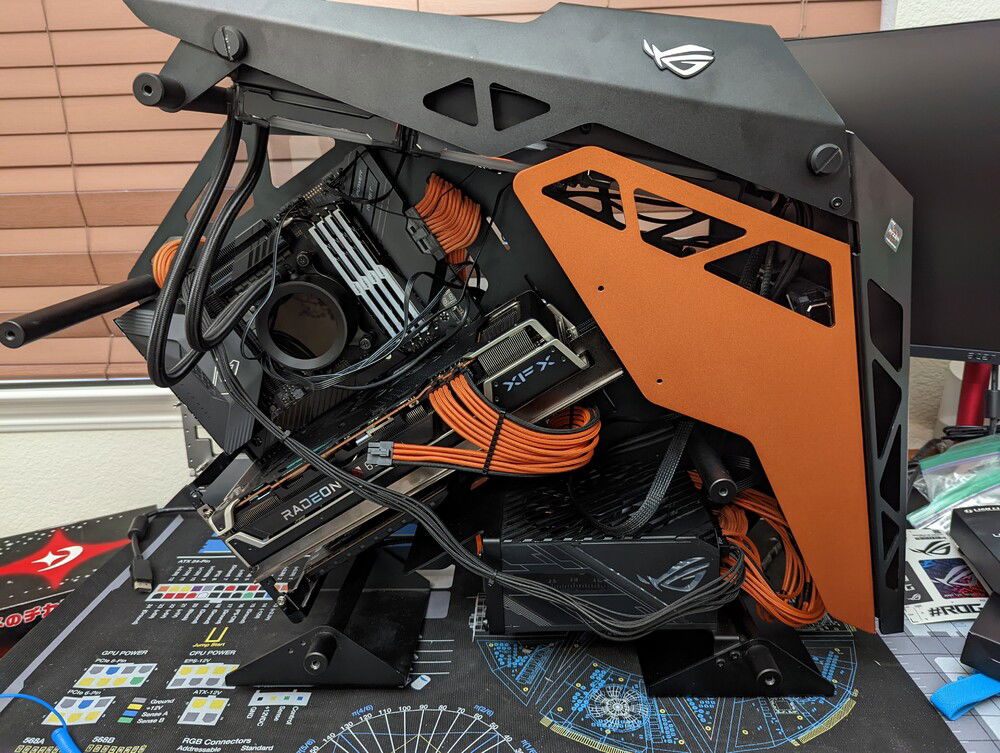

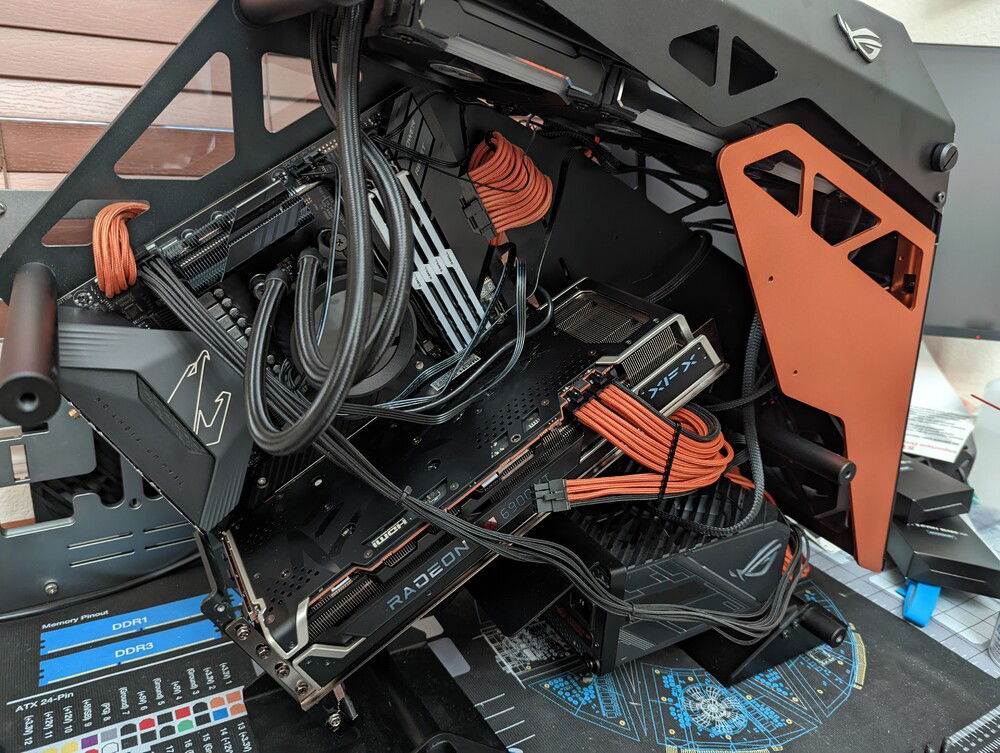

Upgraded Original HotRod to HotRod-Prime. New Mobo with 12 core AMD 5900x and XFX Merc 319 6900XT and Lian Li RGB fans for a cleaner cable managed build

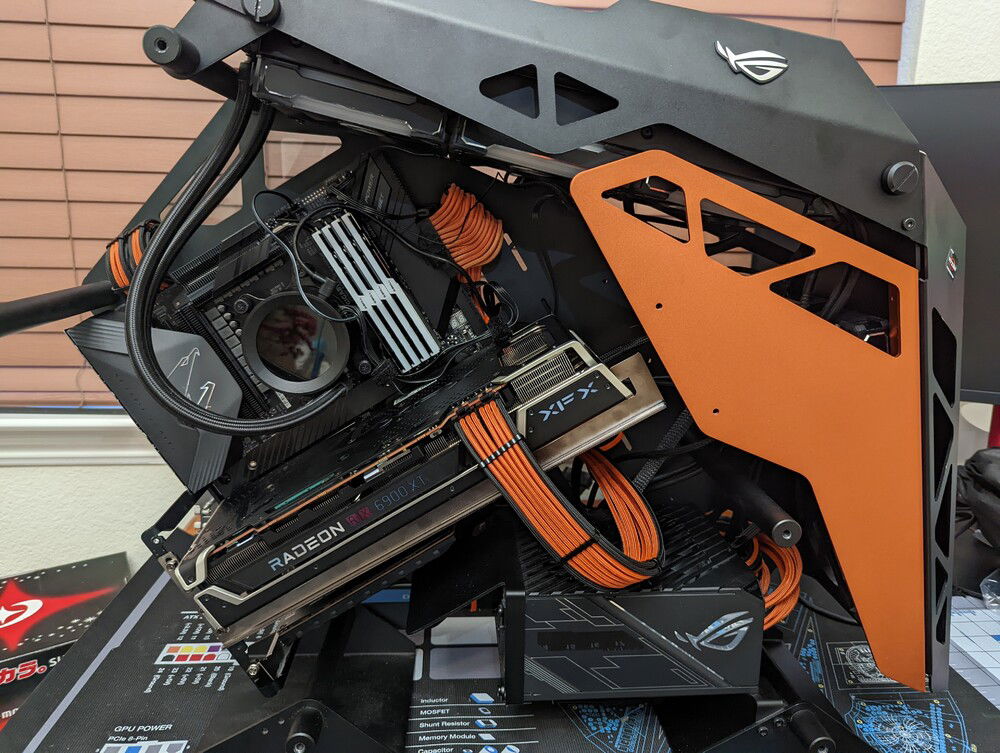

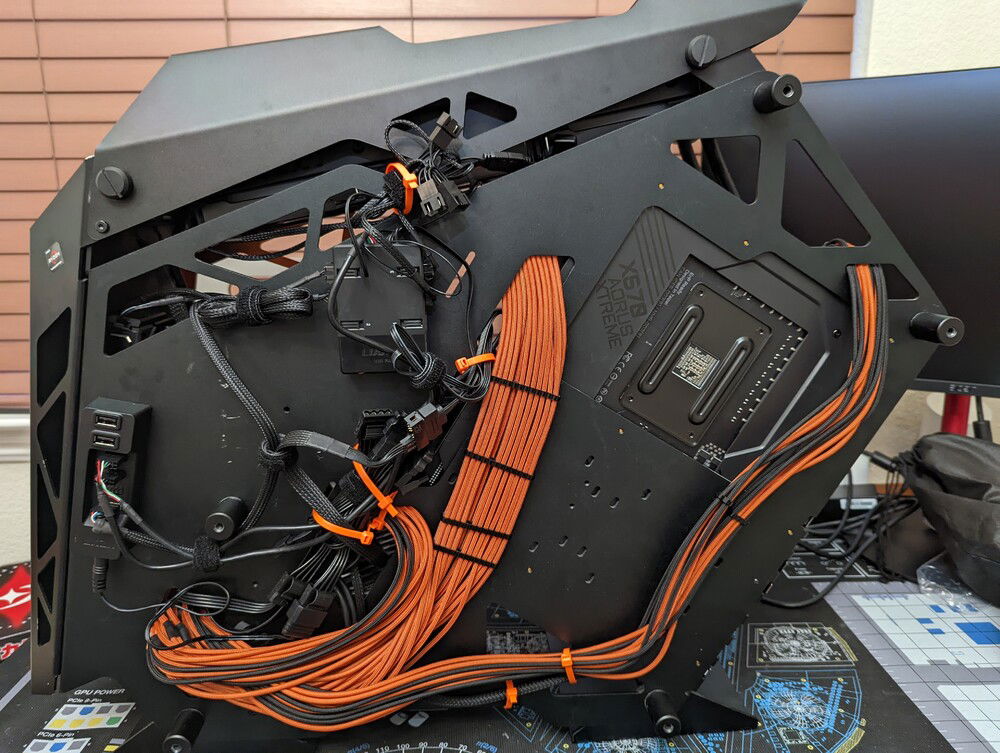

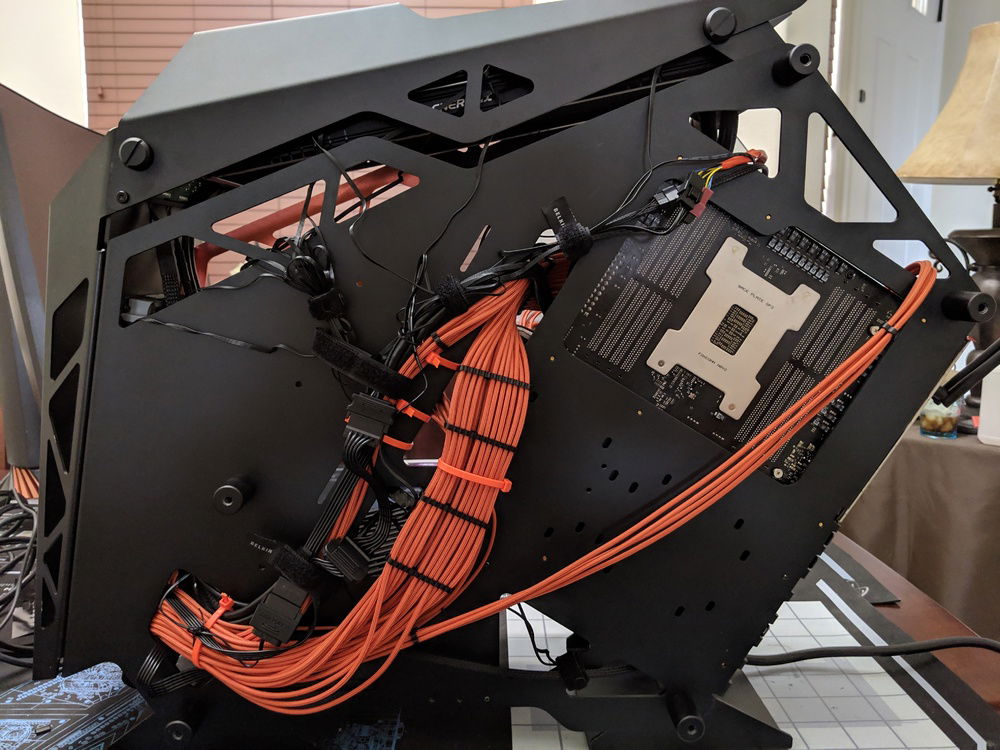

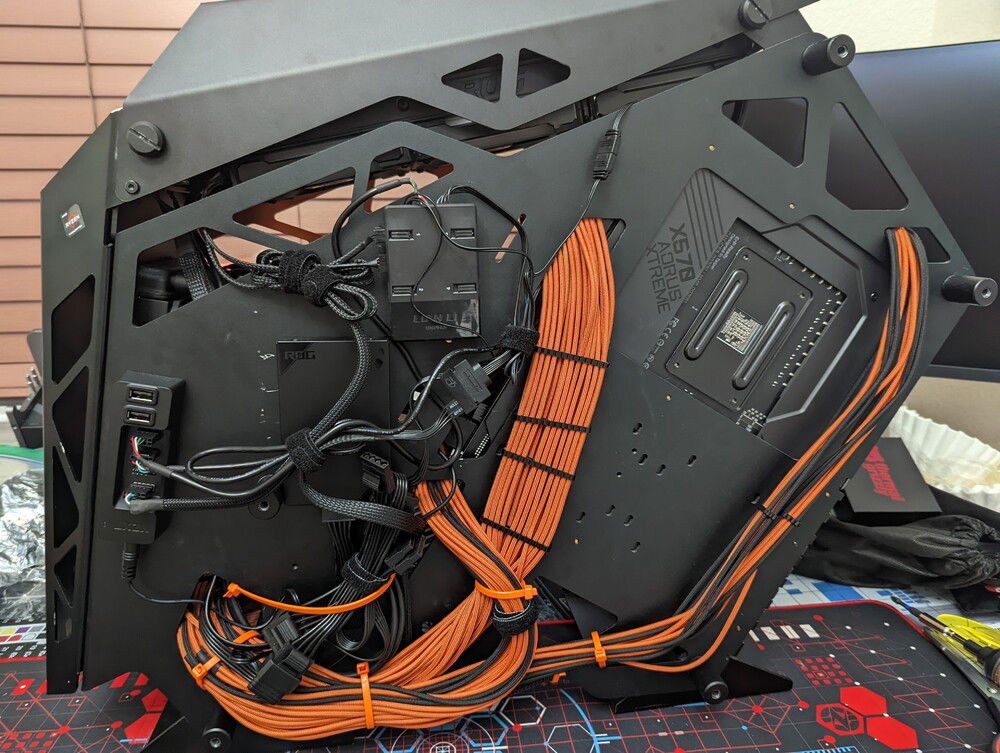

Added new pictures after my CableMod cables came in and I cleaned up the cable management some

Replaced and upgraded to a 4k Monitor and RTX 3090

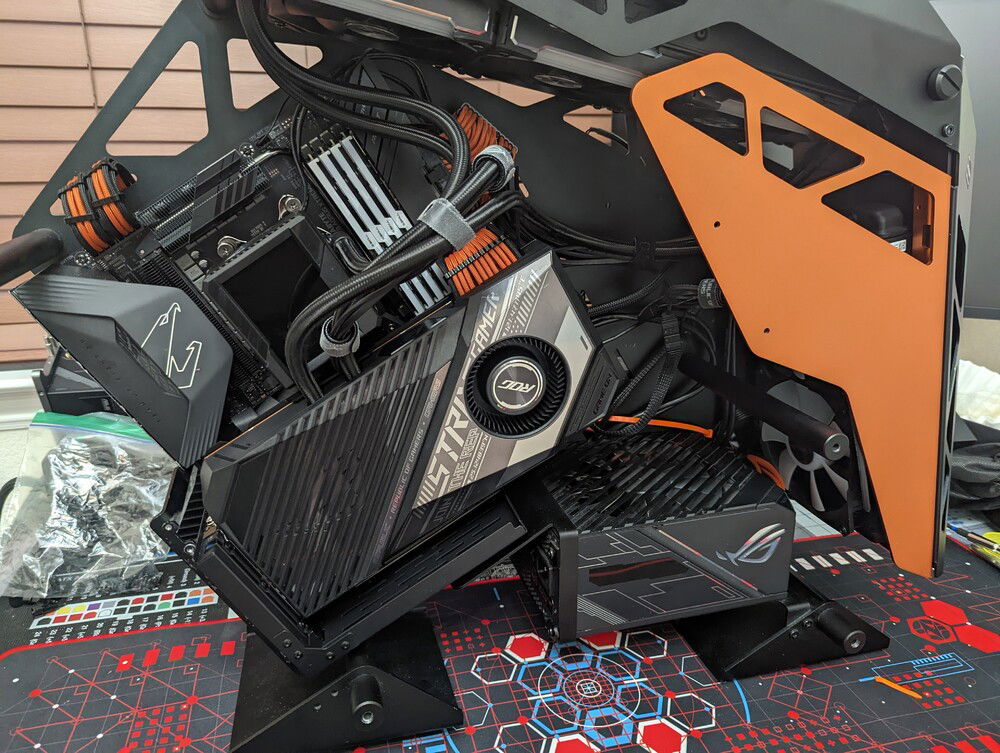

Replaced air cooled XFX RX 6900 XT with a quieter ASUS ROG Strix LC RX 6900 XT

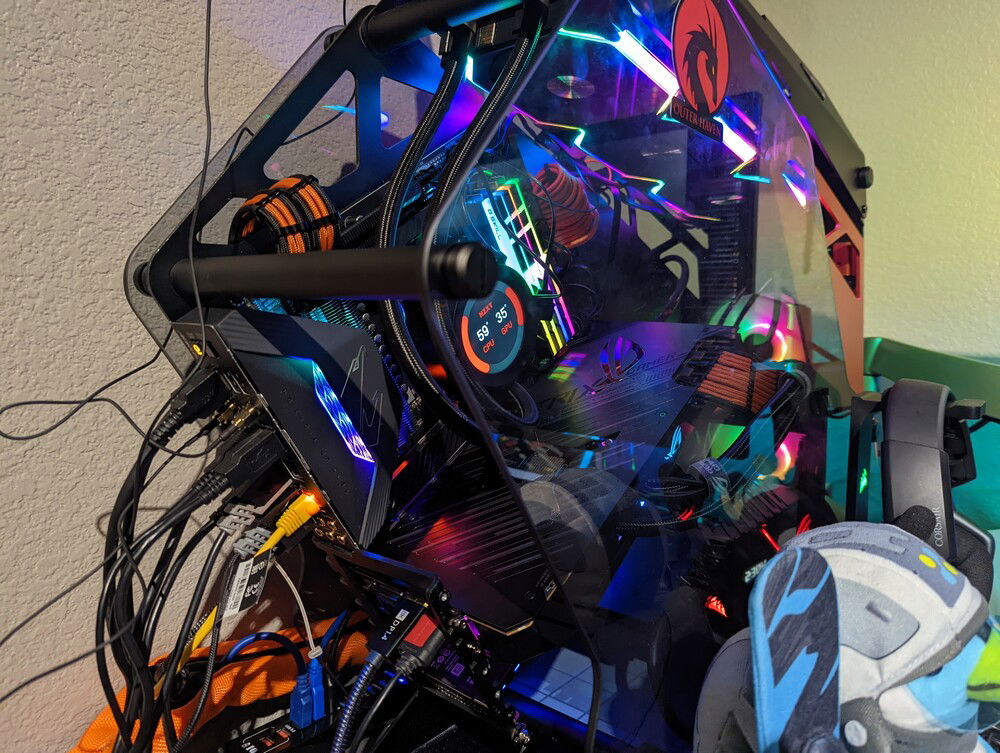

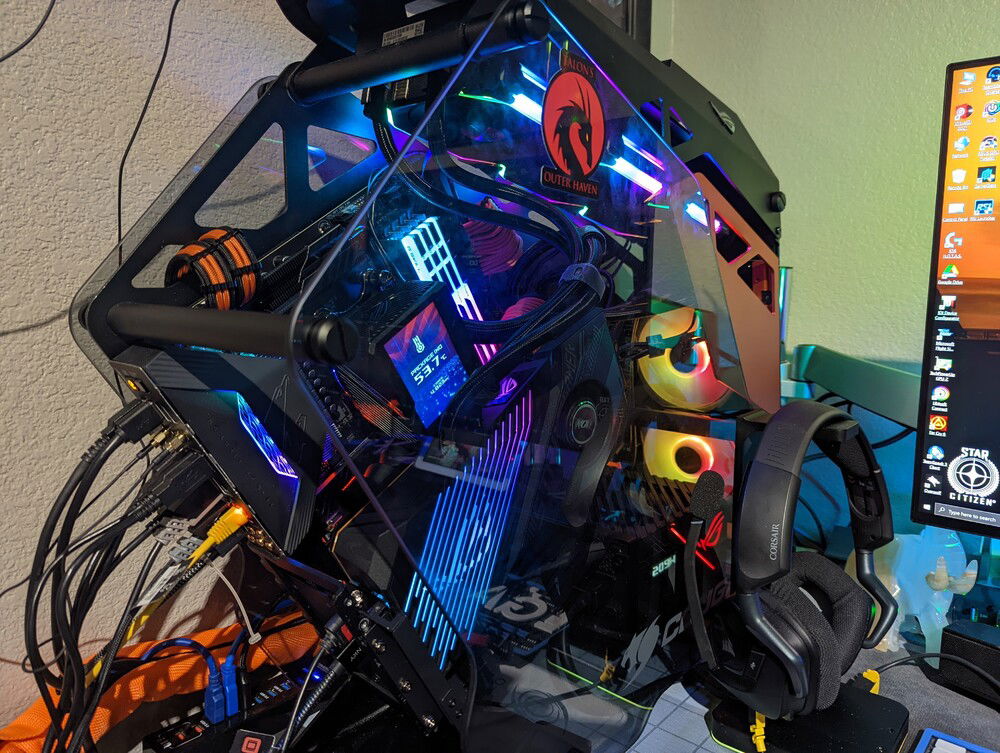

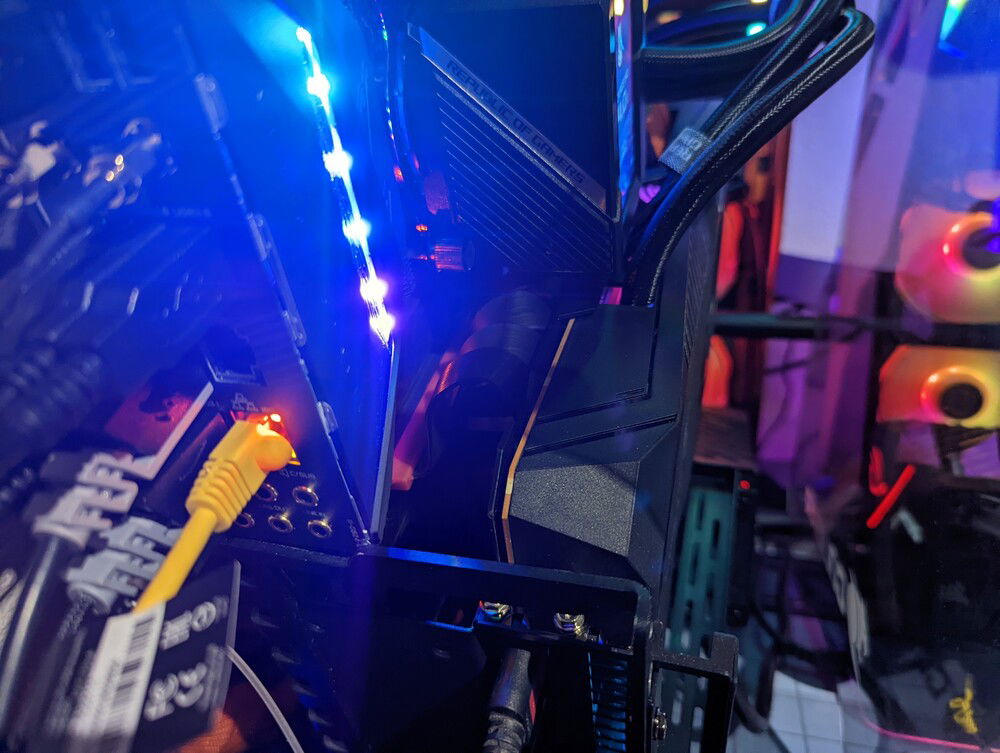

Swapped in ASUS ROG Ryujin II 360 AIO and added a vertical GPU mount for style

Switched out to a new AIO CLC

Hardware

CPU
$ 340.00
AMD - Ryzen 9 (5900x)
Socket: AM4
Cores: 12
Motherboard
$ 903.99
Gigabyte - Aorus Extreme
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 179.99
G.Skill - Ripjaws V (3600MHz) (Black)
Type: DDR4
Capacity: 64 GB
Graphics
$ 820.68
ASUS - Radeon Rog Strix LC OC
Chip Manufacturer: AMD
Chip: RX 6900 XT
Interface: PCIe x16
Storage
$ 399.98
Gigabyte - Aorus (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 1,980.00
Intel - Optane 905P
Form Factor: PCIe x4
Interface: PCIe x4
Capacity: 960 GB
Storage
$ 499.99
Western Digital - WD Black SN850
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 416.53
ASUS - ROG Thor
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 368.28
COUGAR - Conquer
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 239.97
Lian Li - Uni Fan SL120 (3x)
Size: 120 mm
Cooling
$ 178.18
ASUS - Rog Ryujin II 360
Type: AIO
Size (WxHxD): 360 mm (3 x 120 mm)
CableMod
$ 150.00
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModFlex
Color: Orange
Accessories
$ 20.00
Monitor
$ 674.05
LG - Ultragear (27GN950-B)
Size: 24 Inch
Panel: IPS
Refresh Rate: 144 Hz
Keyboard
$ 82.44
Corsair - K68 RGB
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Full Size
Mouse
$ 52.29
Corsair - Scimitar Pro RGB
Interface: Wired
Estimated total value of this build:
$ 7,376.20
