TA|CH| 2.0

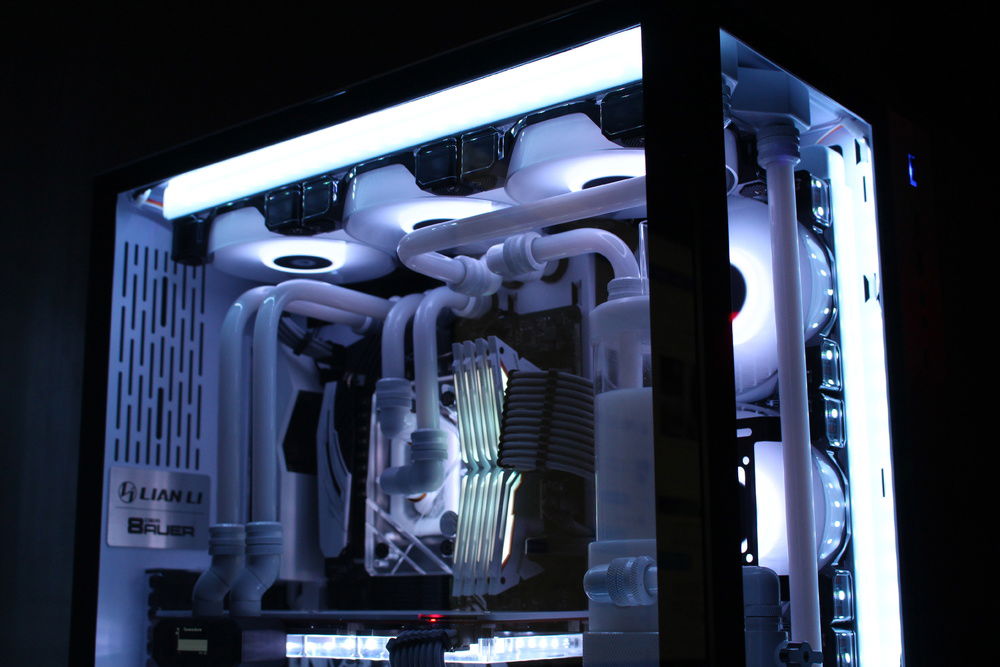

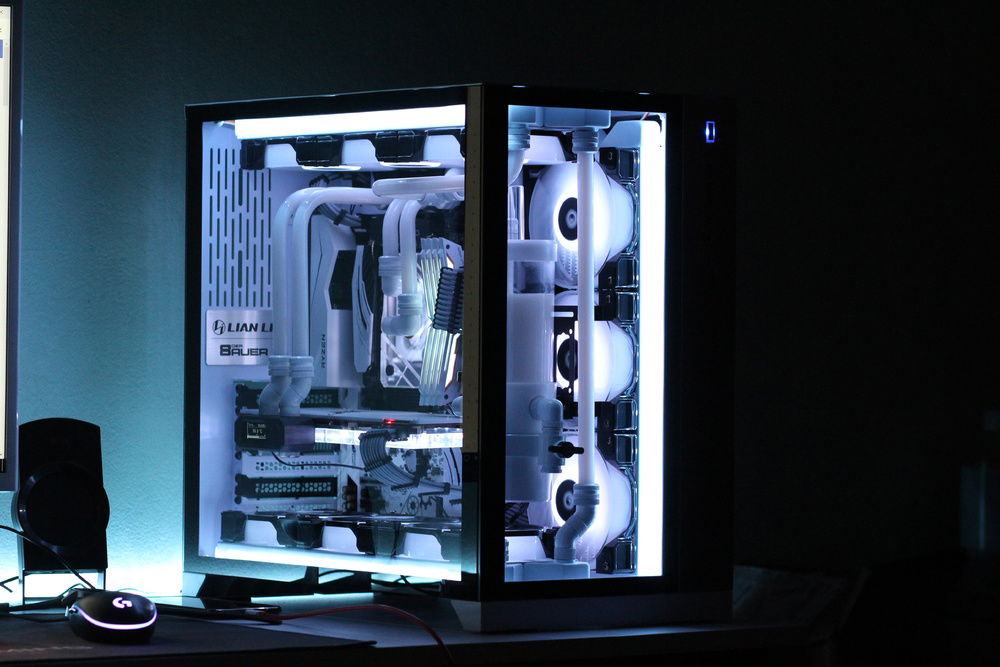

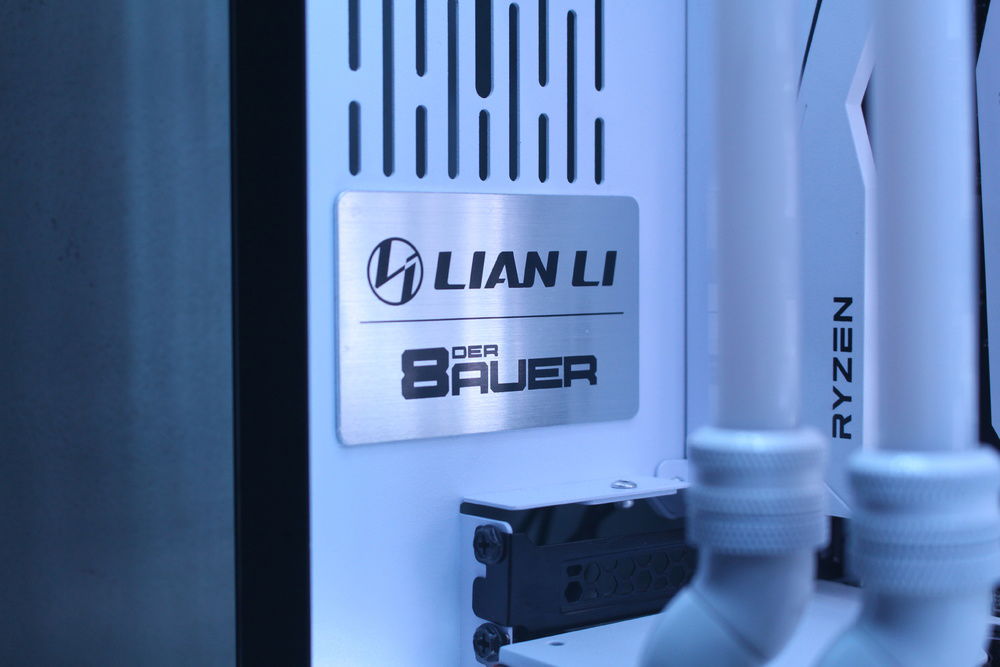

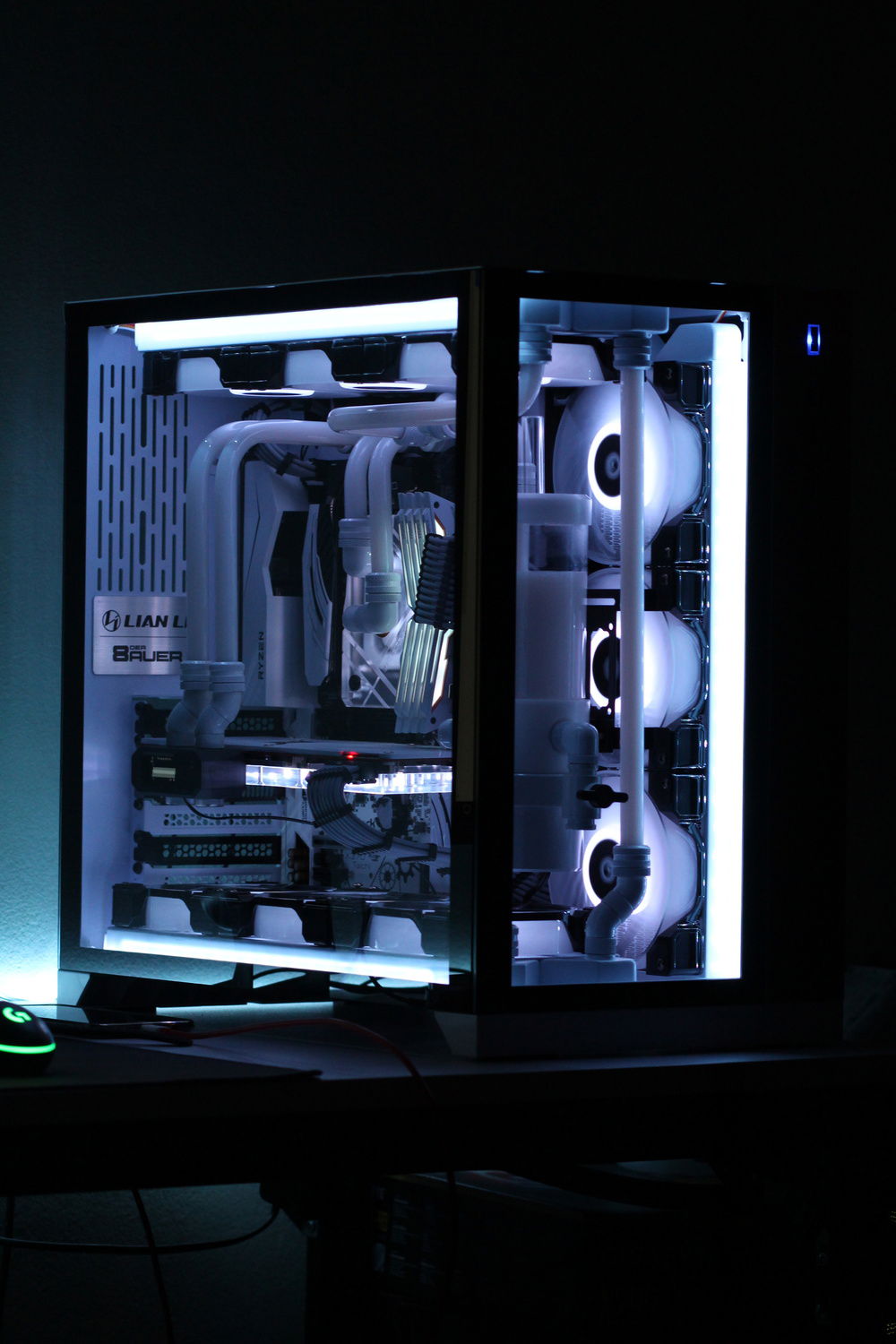

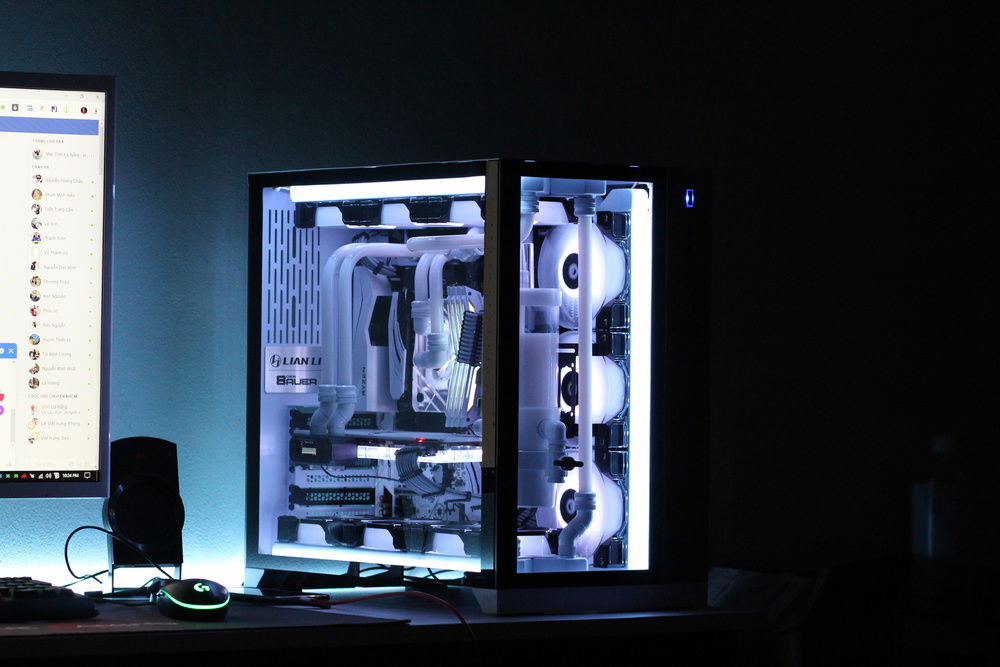

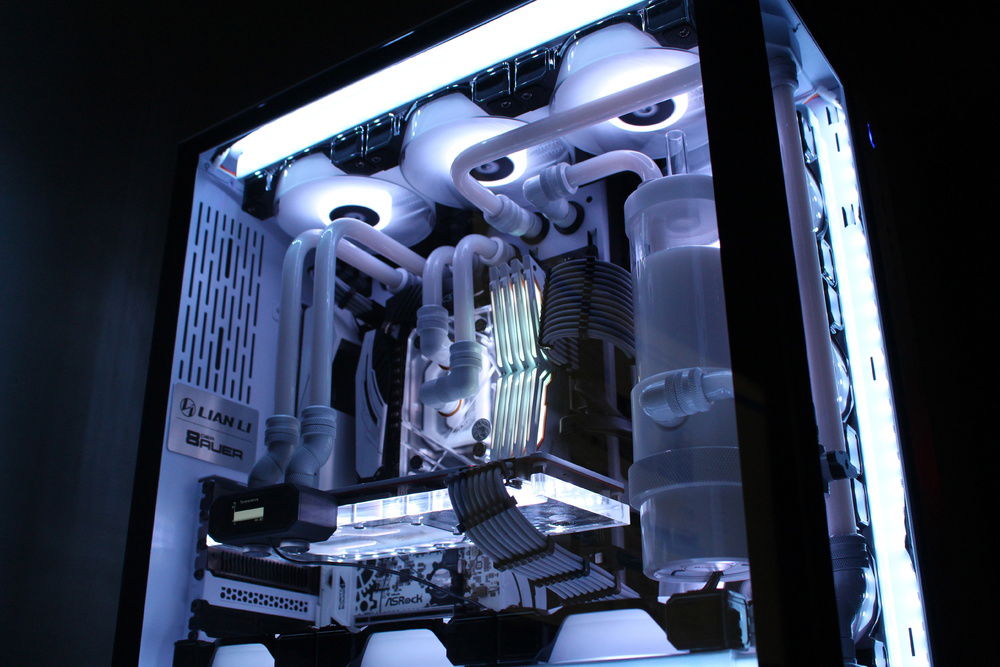

Fractal Design Meshify C was awesome but I need more cooling capacity and space so I decided to replace it with a Lian Li PC-O11 Dynamic.

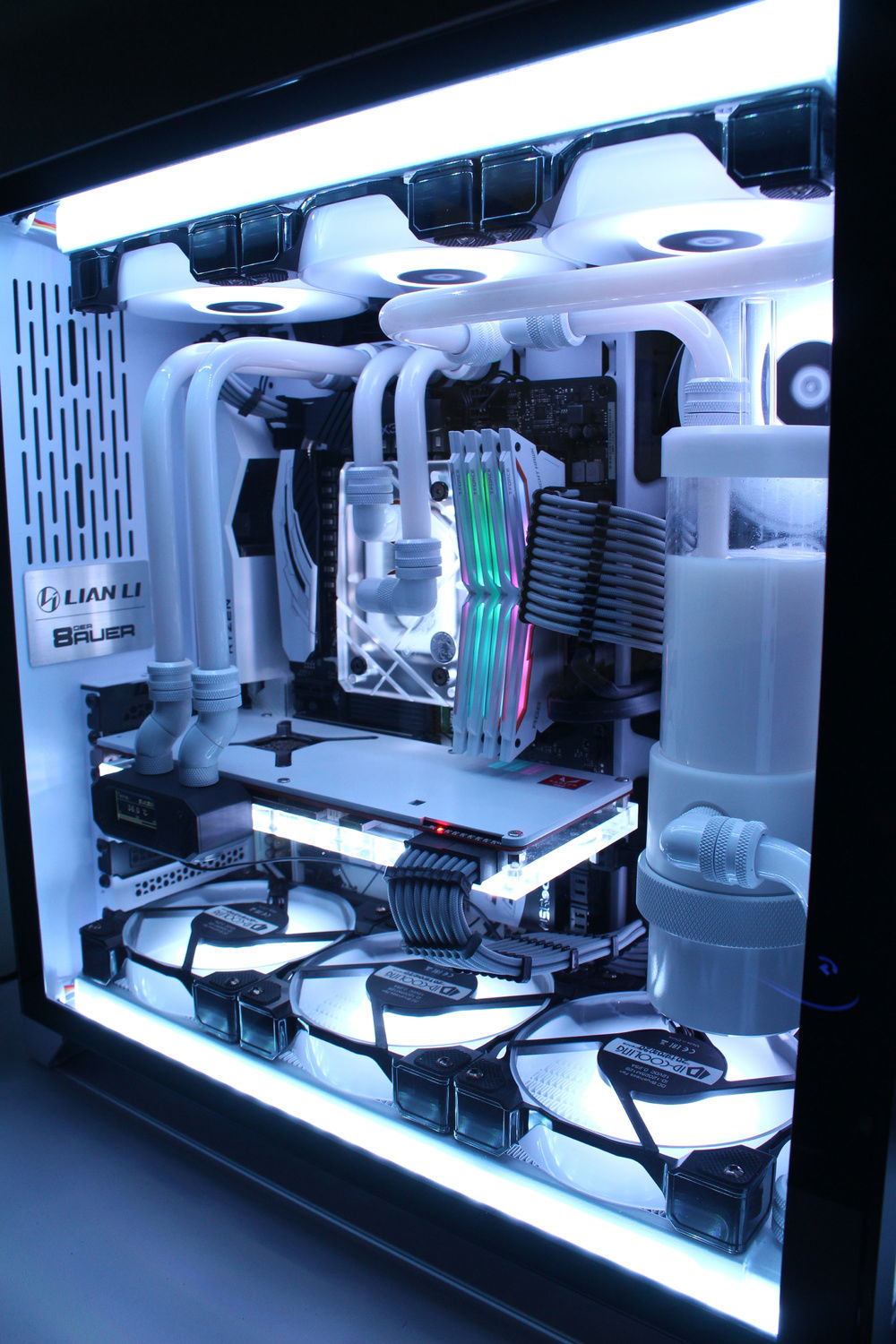

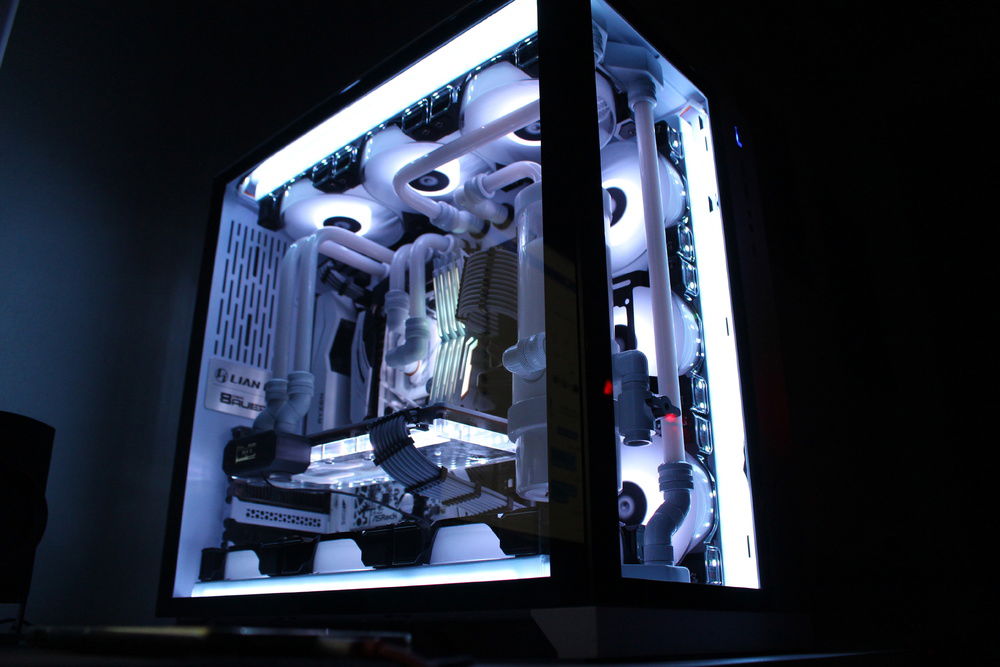

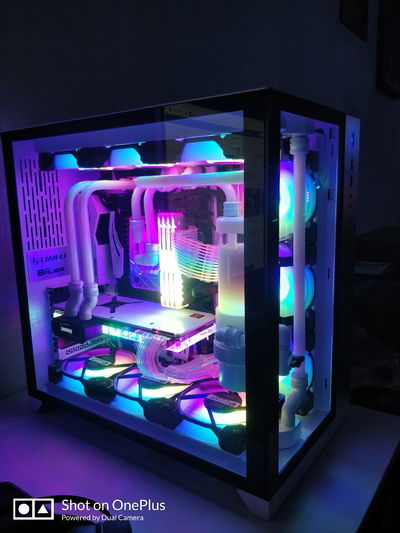

With the Lian Li PC-O11 Dynamic I can now use 3 360mm radiator, more fan, more RGB blink.

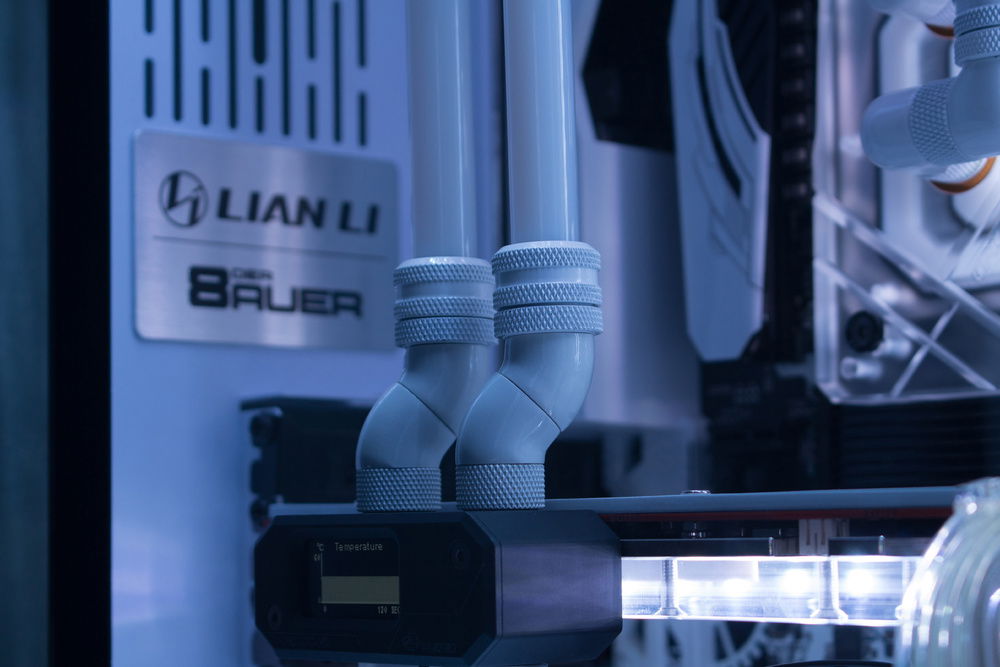

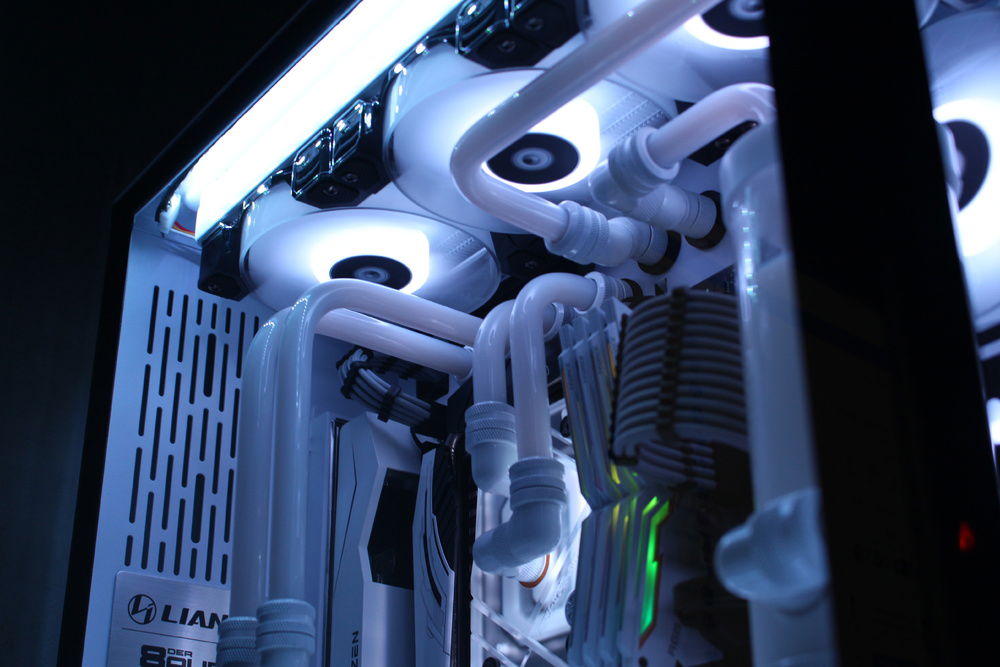

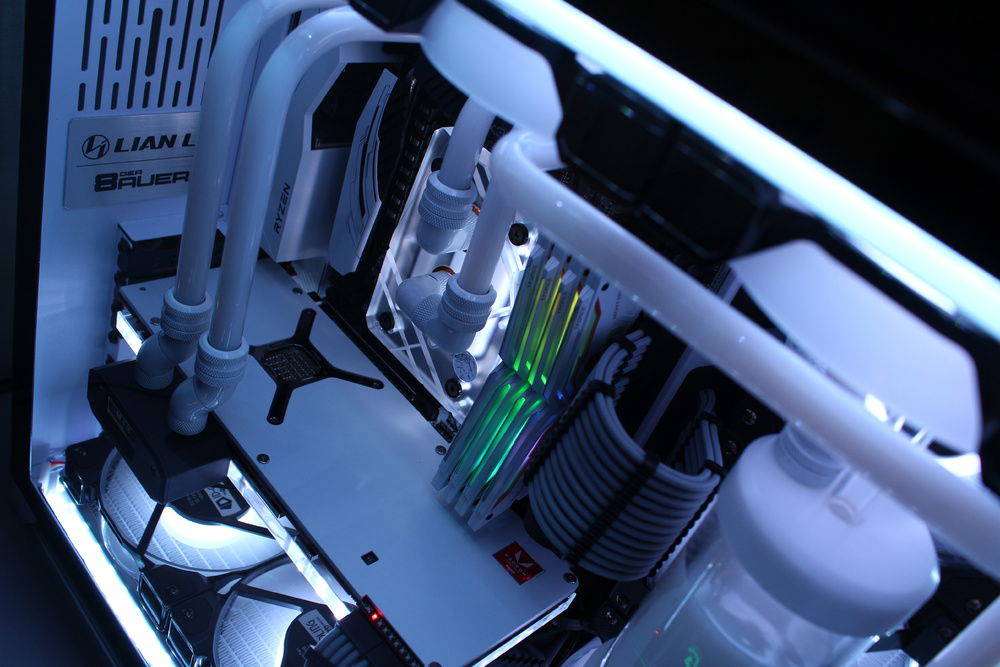

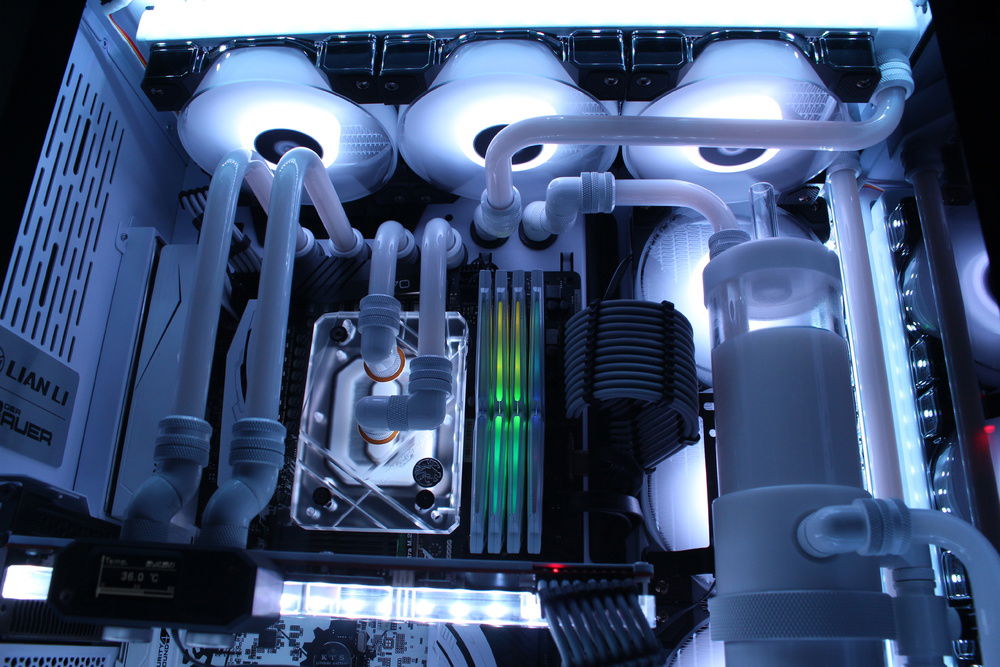

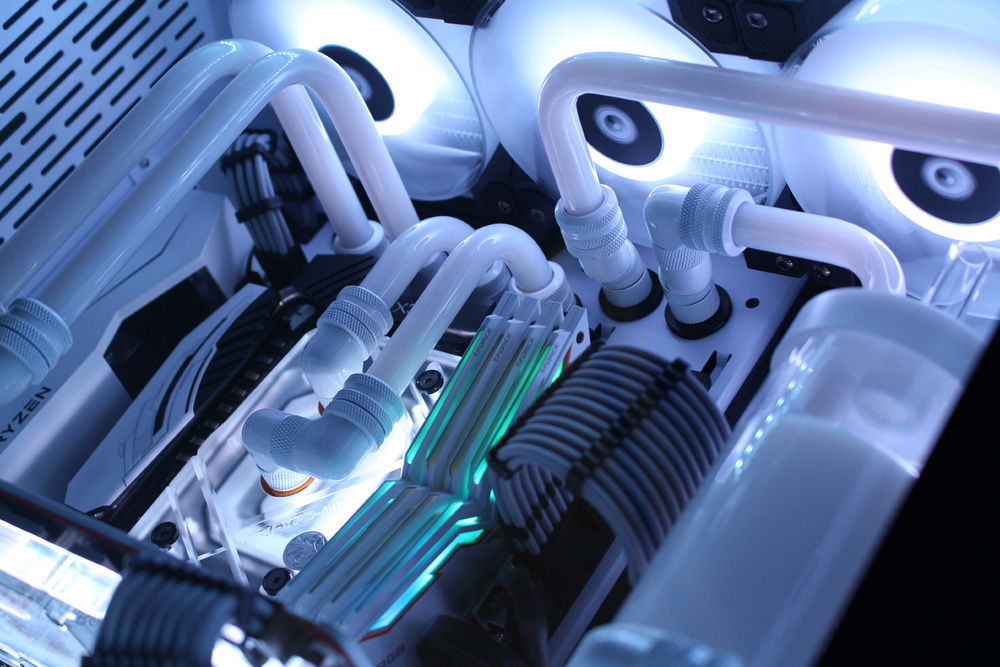

My main problem while building this is to connect the vertical radiator to the main loop, there are really not much space and a way to get the fitting in after install the fan on that radiator so I thought what if I flip it 180 degrees, point G1/4 connector to the back side of the case and then punch some hole above the motherboard area to connect whole loop from the PSU chamber, FINALLY, it's done !

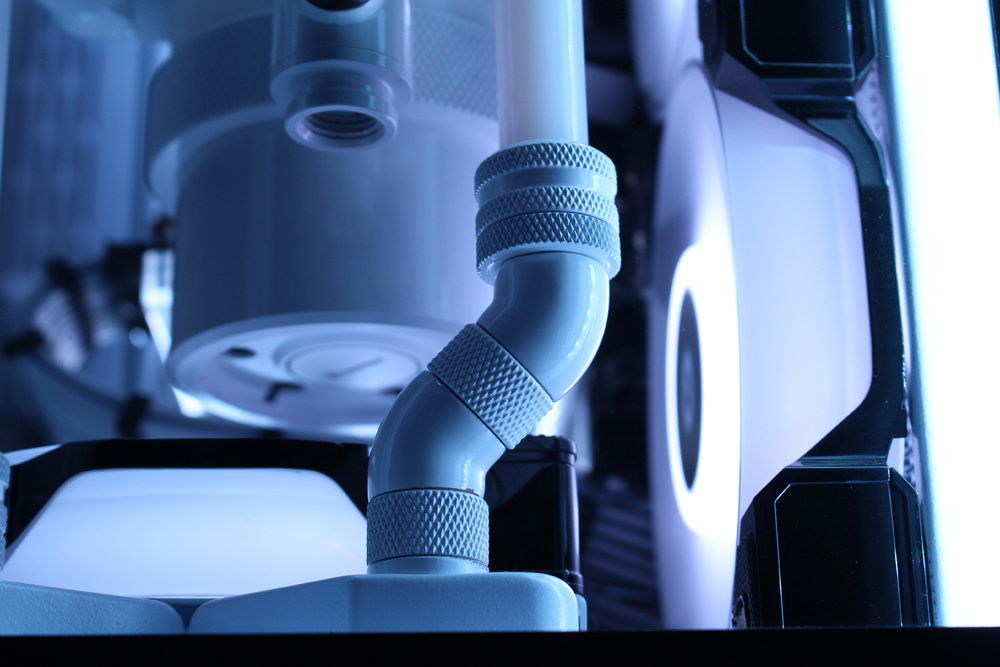

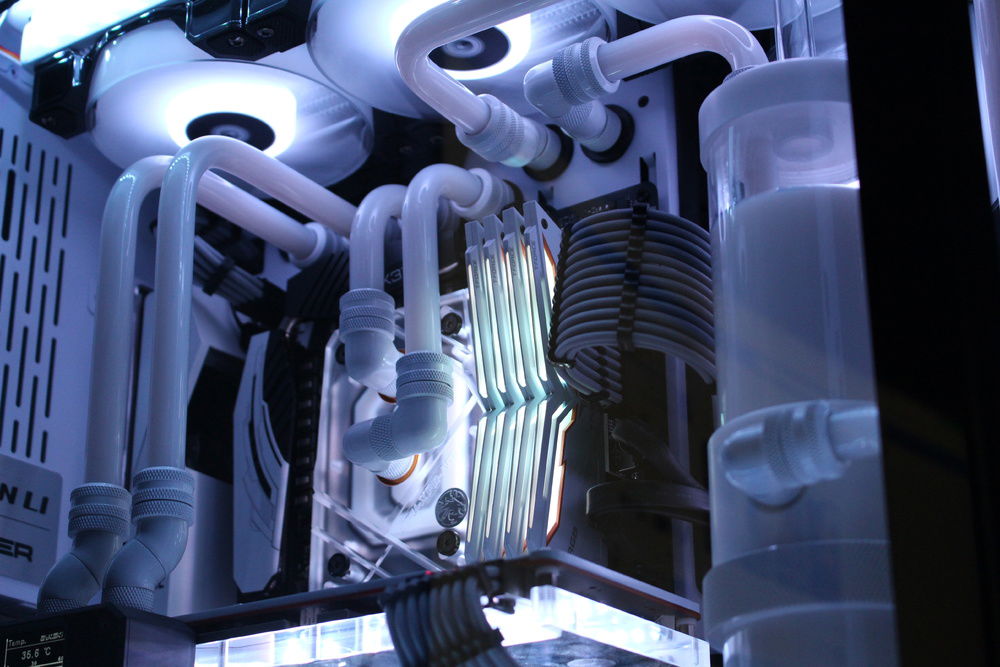

In the end, I like the way I bend those tubes more than I thought I would, really happy that I didn't mess up the drilling process, completed 6 holes with super precision.
Color(s): White
RGB Lighting? Yes
Theme: Brand
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Build Updates

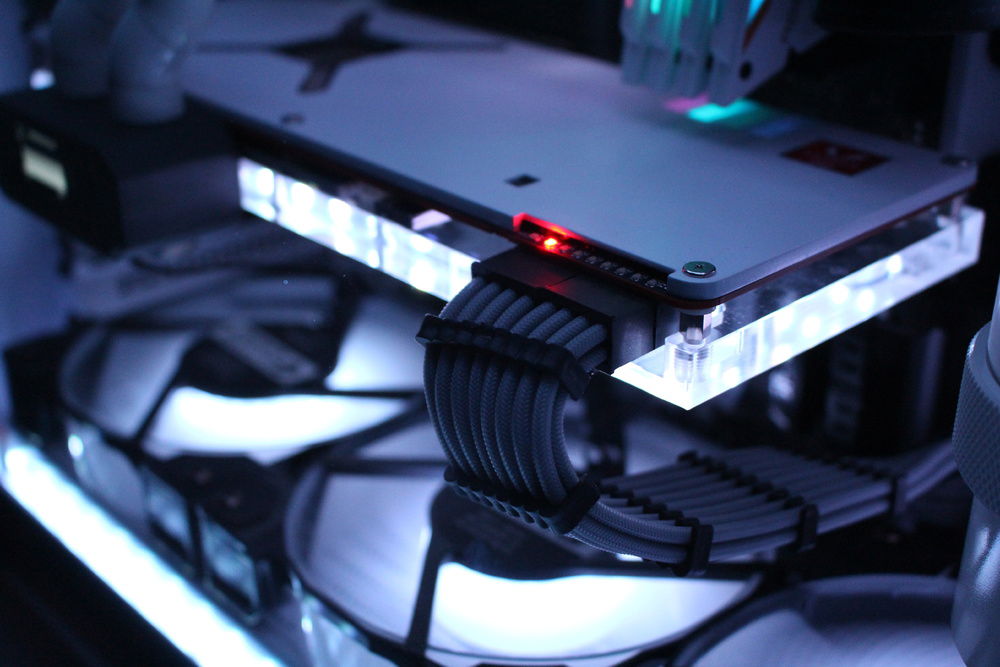

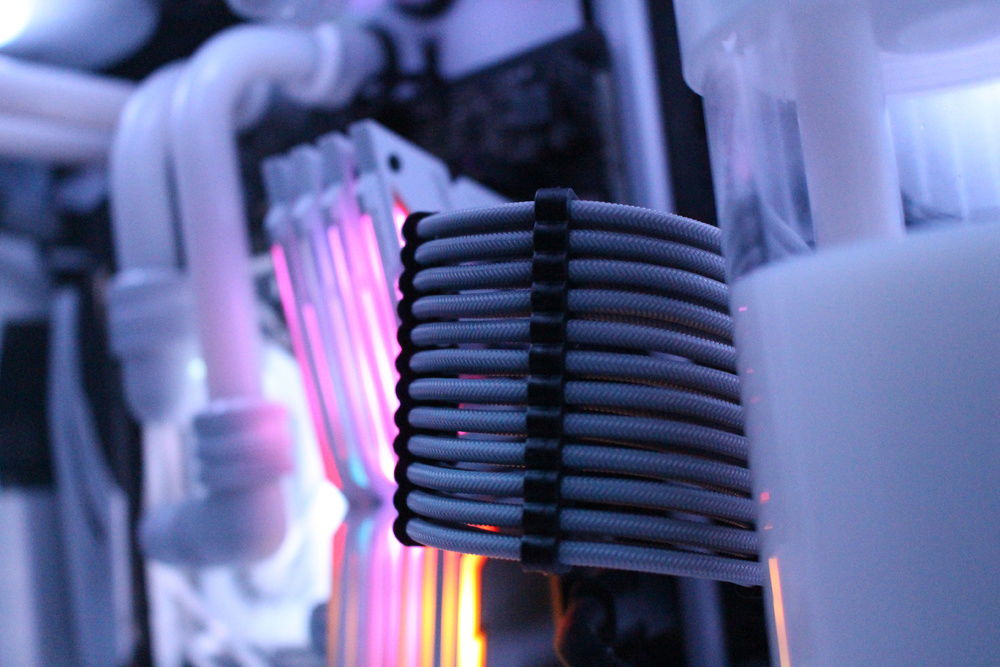

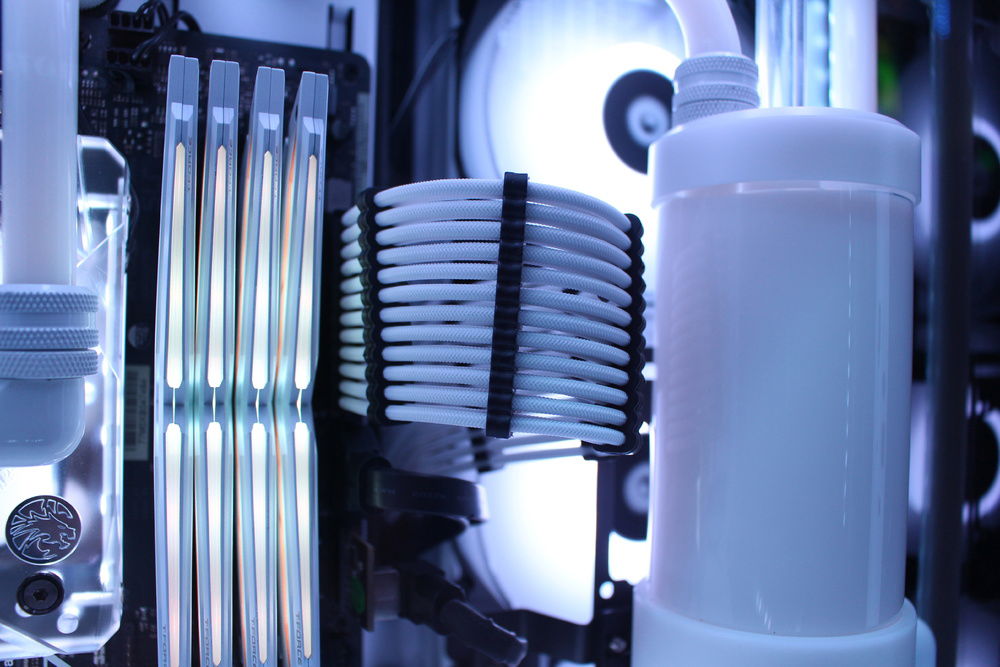

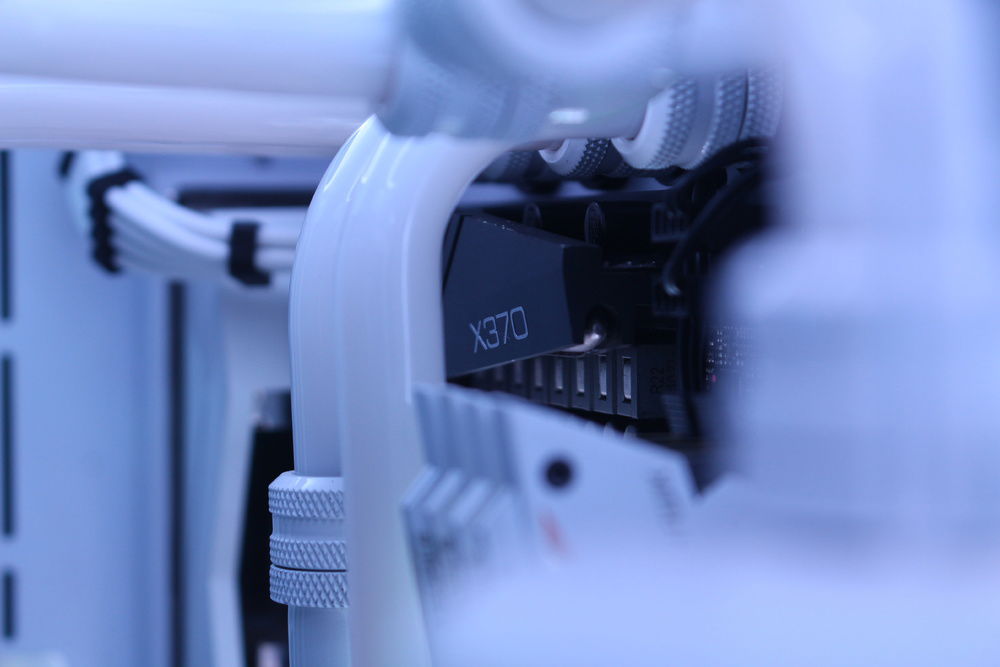

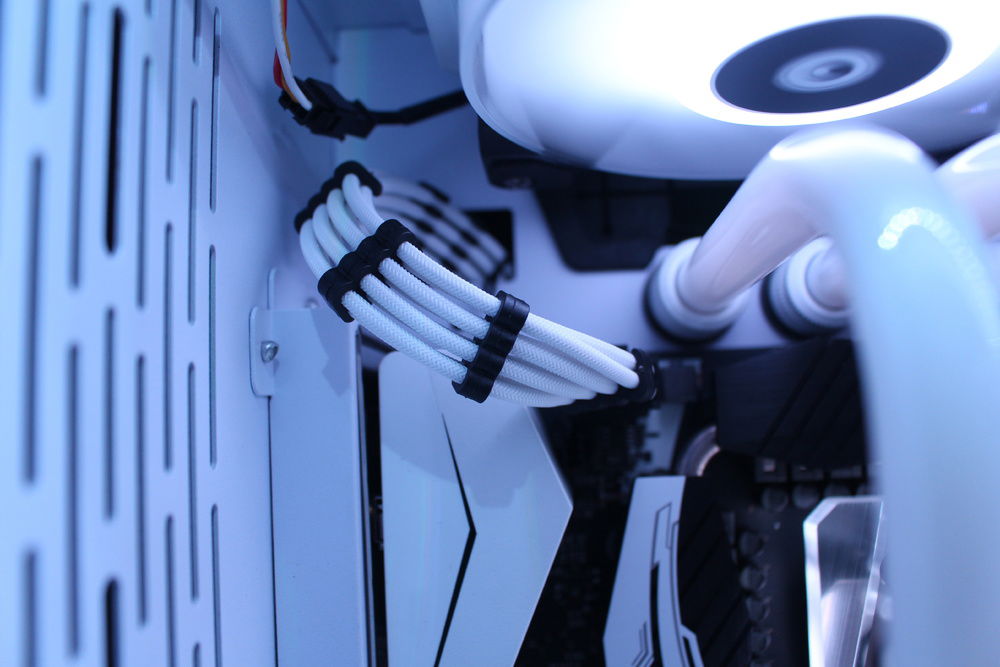

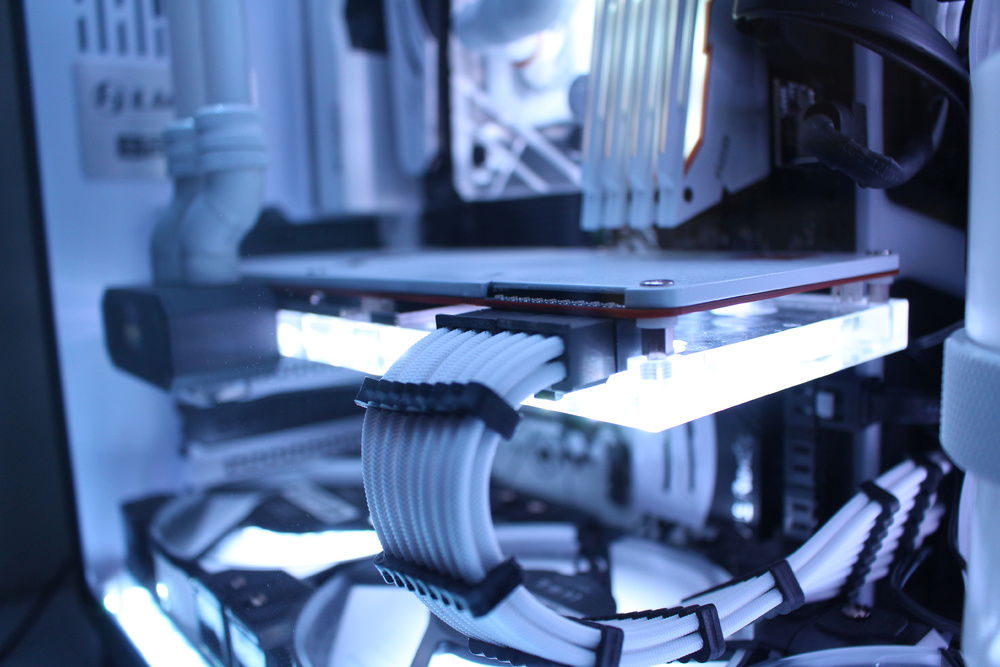

Replaced custom sleeve cable to White + More closeup shots

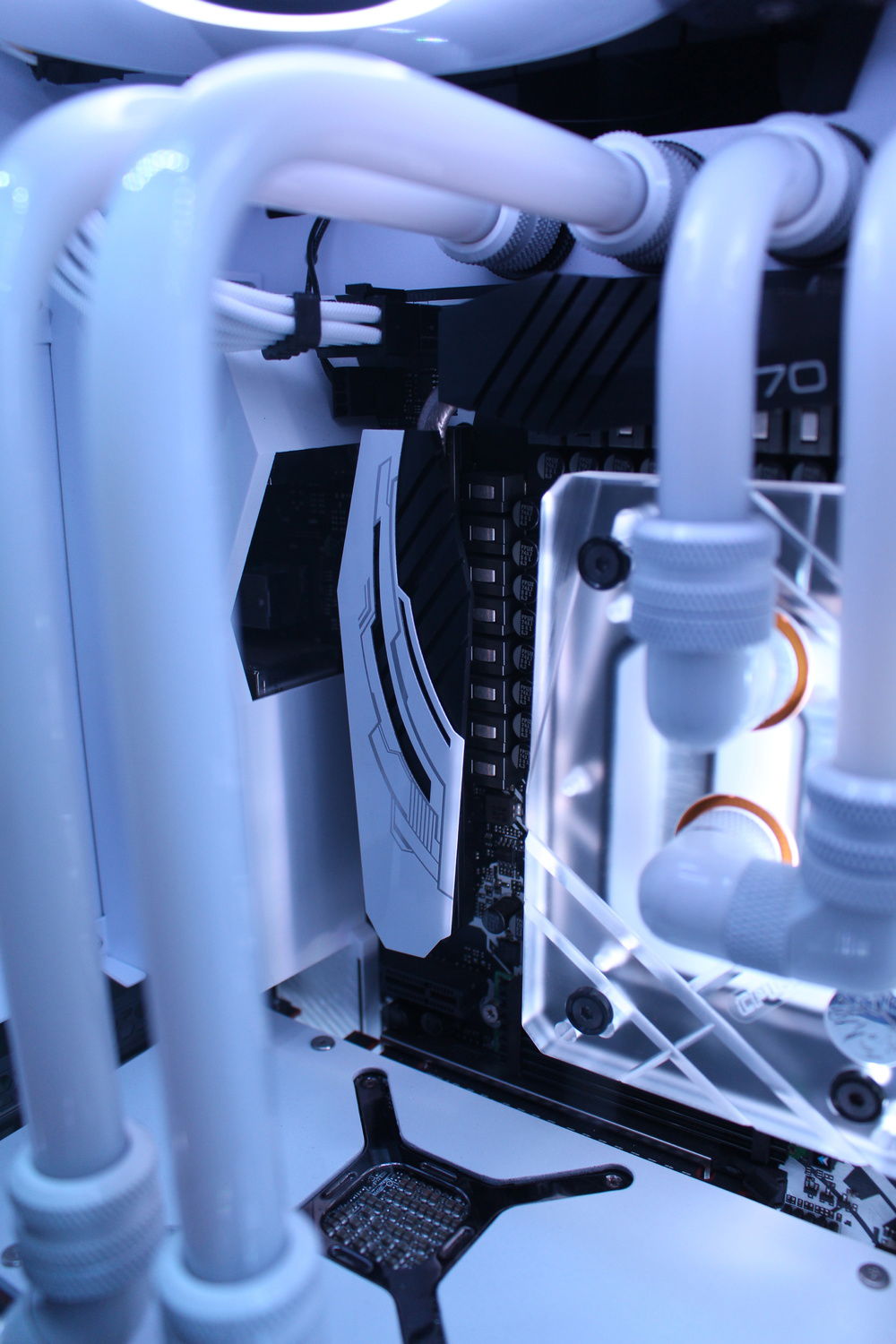

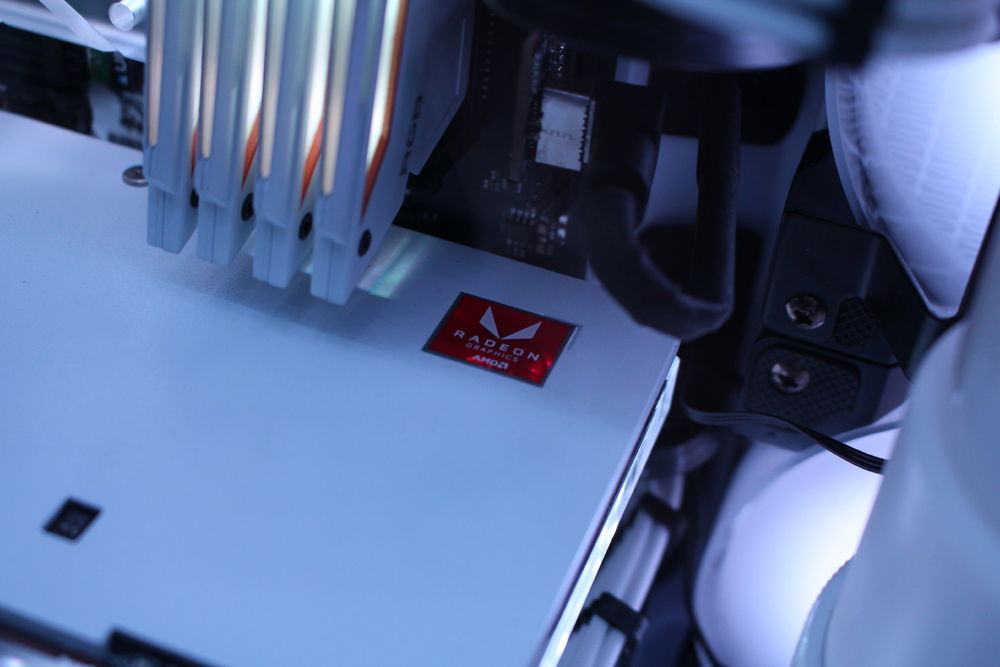

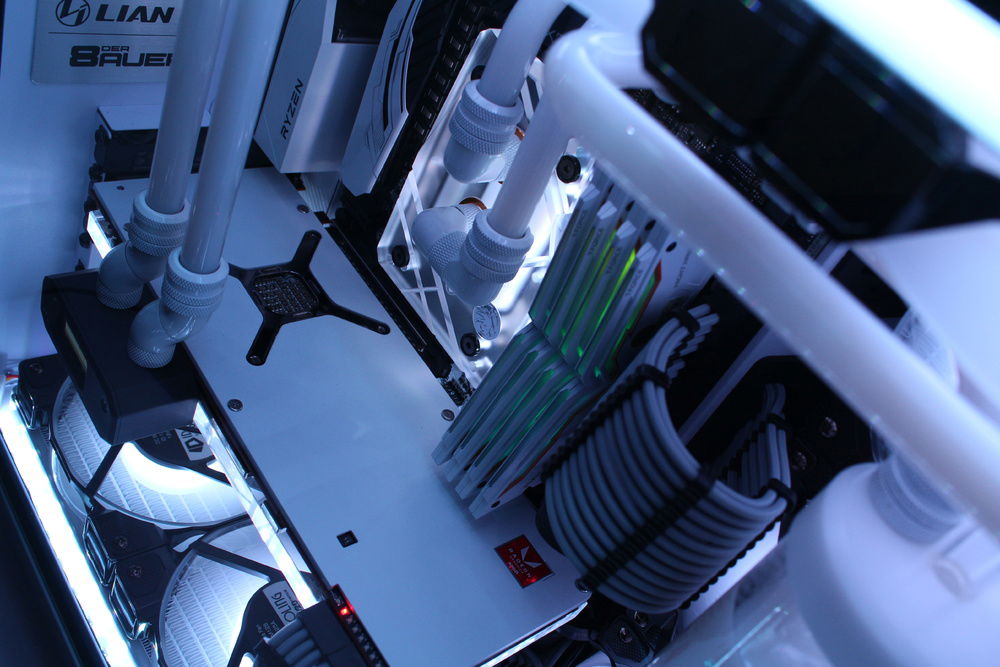

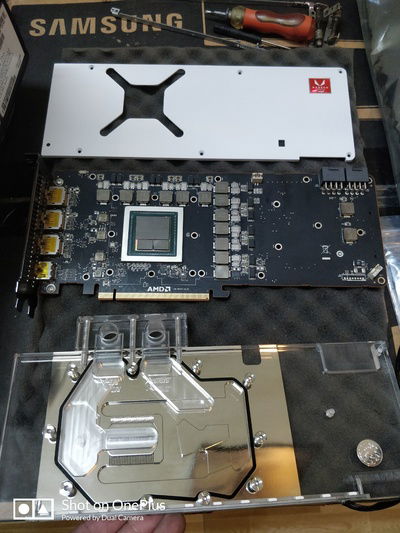

Upgrade from Rx480 Red Devil to Rx Vega 64 + Re-bend tubings + Replace coolant with Thermaltake C1000 White + Lian Li Strimer

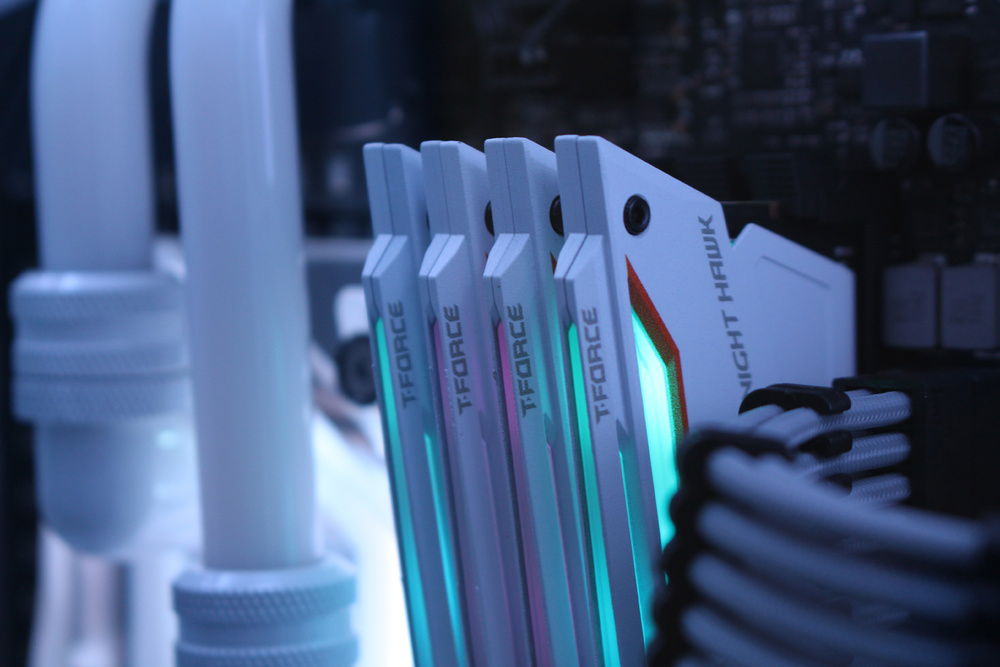

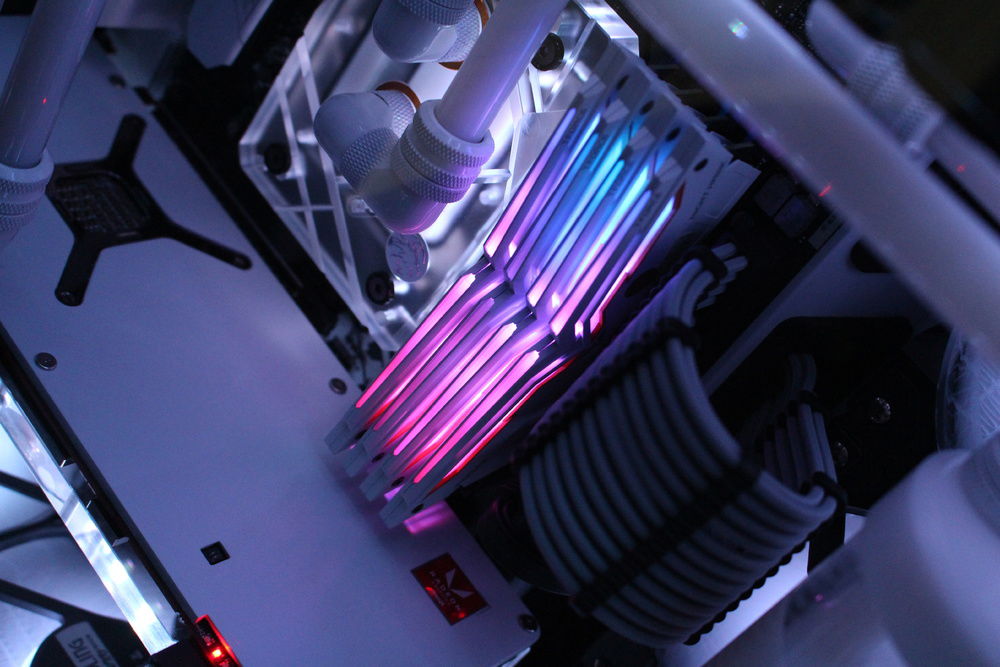

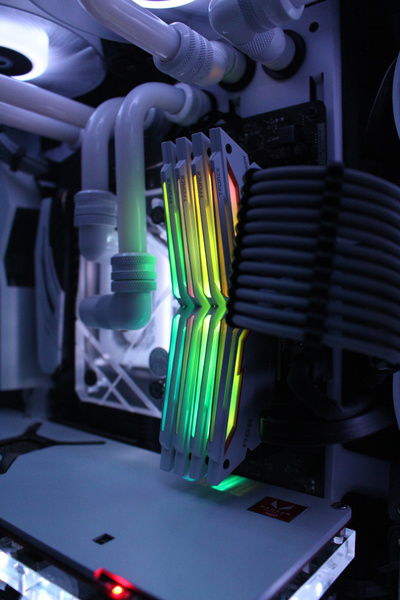

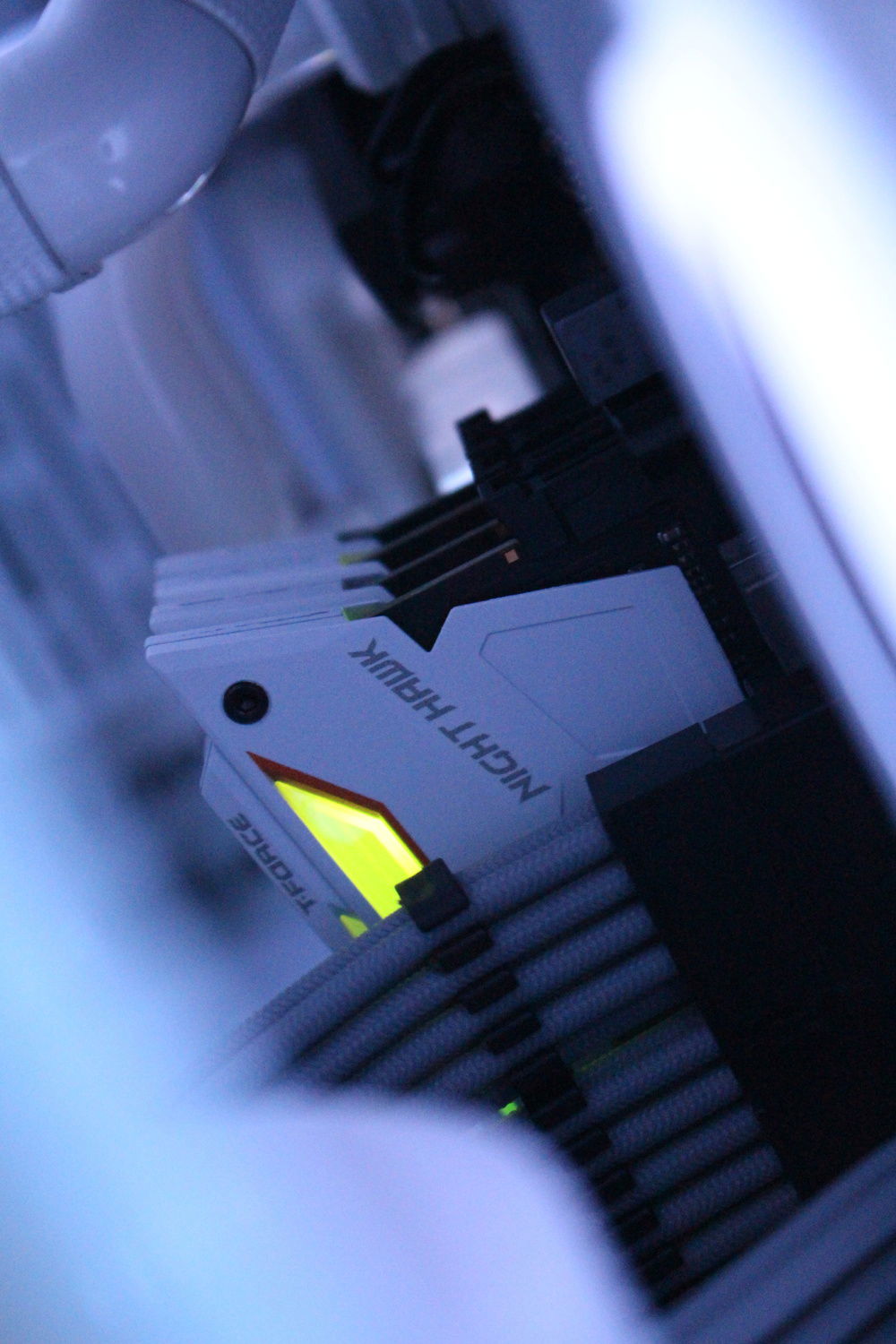

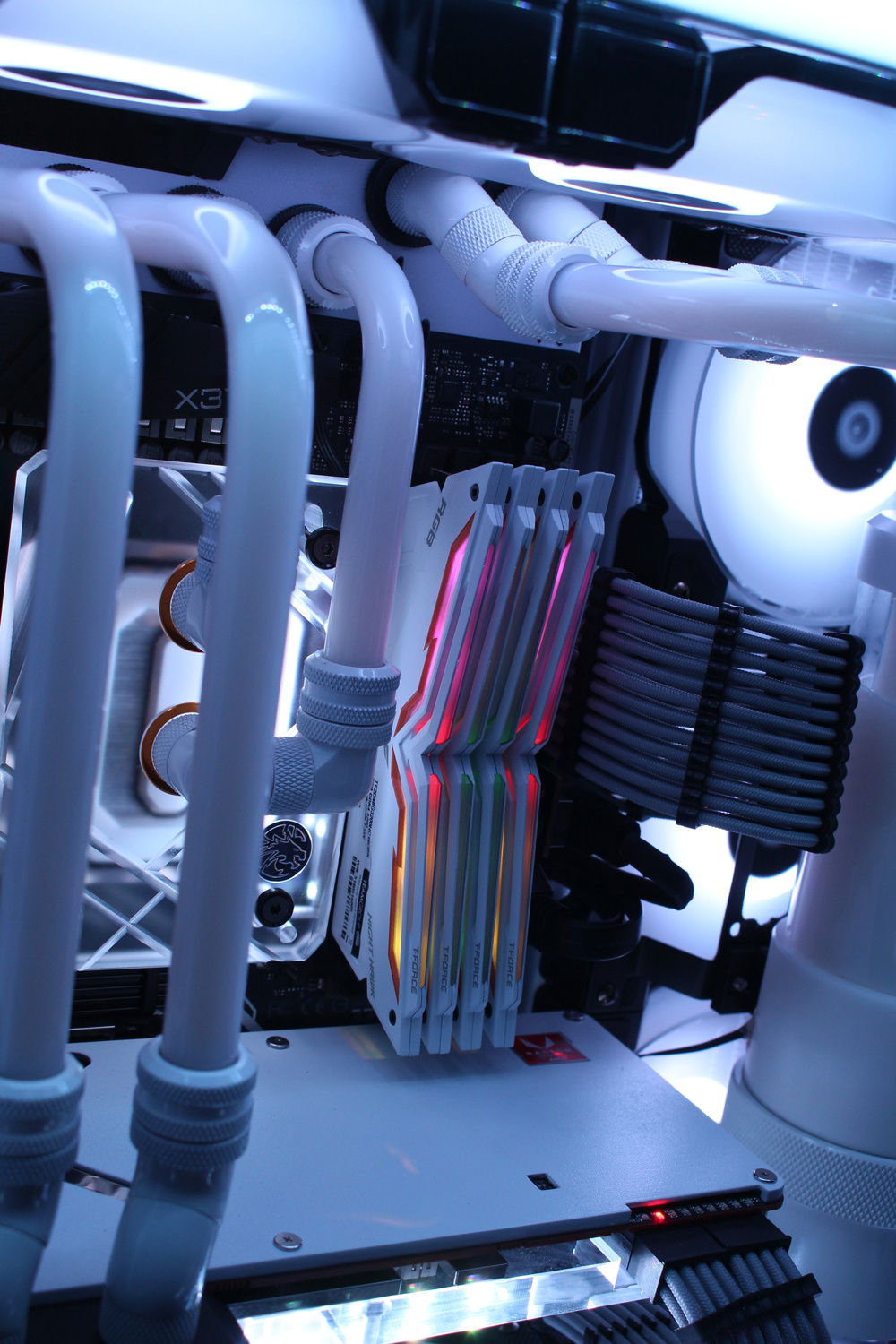

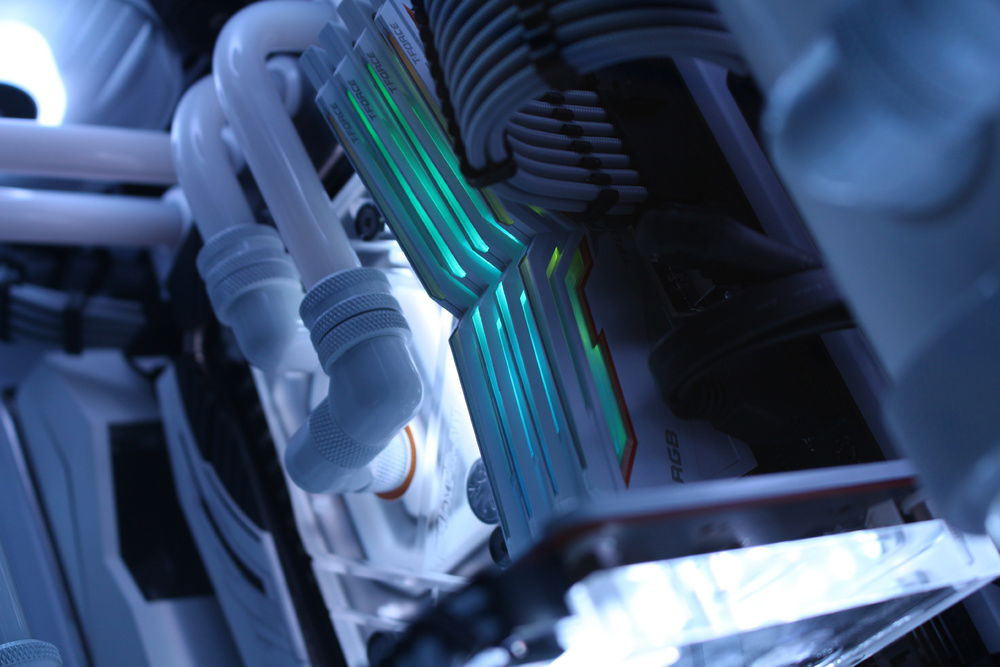

Upgraded to Teamgroup T-Force Night Hawk RGB White 3200Mhz (4 x 8GB)

Hardware

CPU
$ 254.97
AMD - Ryzen 7 (2700X)
Socket: AM4
Cores: 8
Motherboard
$ 298.86
ASRock - Taichi
Chipset: X370
CPU Socket: AM4
Size: ATX
Memory
TeamGroup - Nighthawk RGB
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,389.00
POWERCOLOR - Reference
Chip Manufacturer: AMD
Chip: Vega 64
Storage
$ 97.99
Samsung - SM961
Form Factor: M.2
Interface: M.2 (M)
Capacity: 256 GB
Storage
$ 44.38
Seagate - Barracuda Compute (ST1000DM010)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 34.99
Western Digital - WD Blue Desktop (WD10EZEX)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 239.00
Rosewill - Photon 1200
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 149.99
Lian Li - O11 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
ID-COOLING - DF-12025-ARGB
Size: 120 mm
Cooling
Barrow - Fittings
Type: Custom Loop
Cooling
Barrow - Pump
Type: Custom Loop
Cooling
Barrow - Tubing
Type: Custom Loop

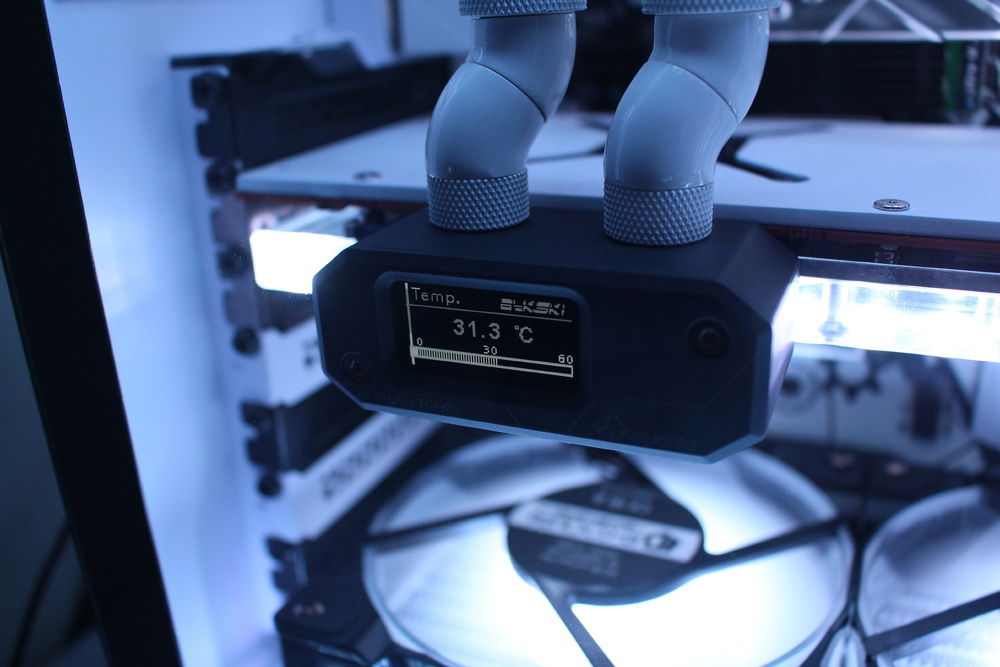

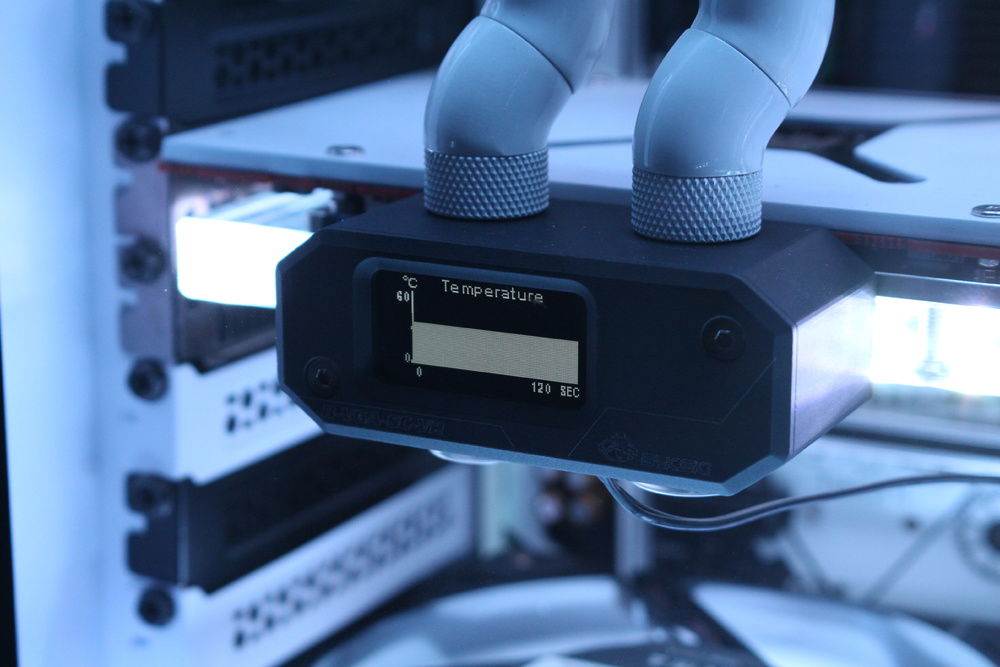

Cooling
Bykski - Asus ROG Strix Vega64
Type: Waterblock
Cooling
Bykski - CPU Blocks
Type: Custom Loop
Cooling
Magicool - Slim
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
