Fractal Design Focus G - Mystic Red

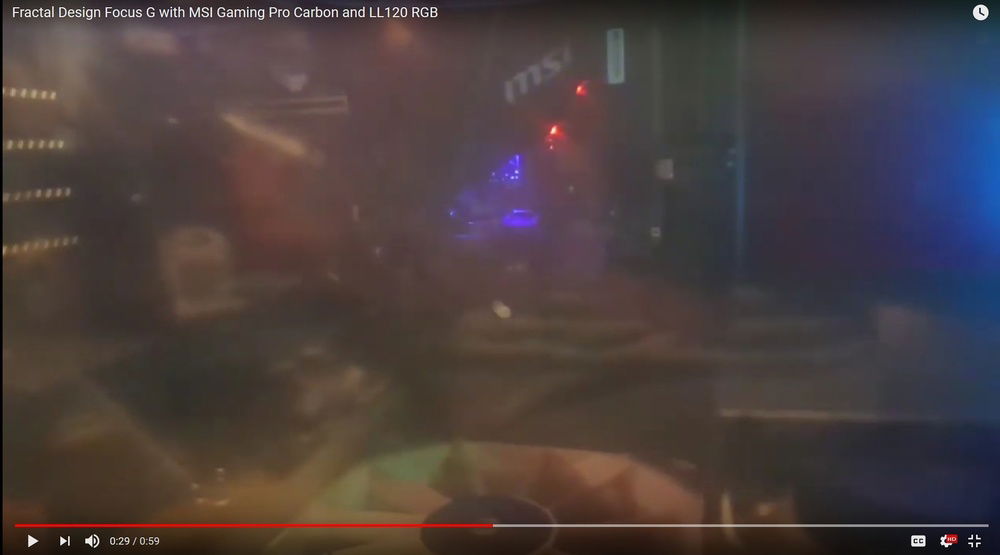

If you wonder why it looks so blurry, it's because I filmed it with the protective side film still on. I wanted to let him peel that back for himself.

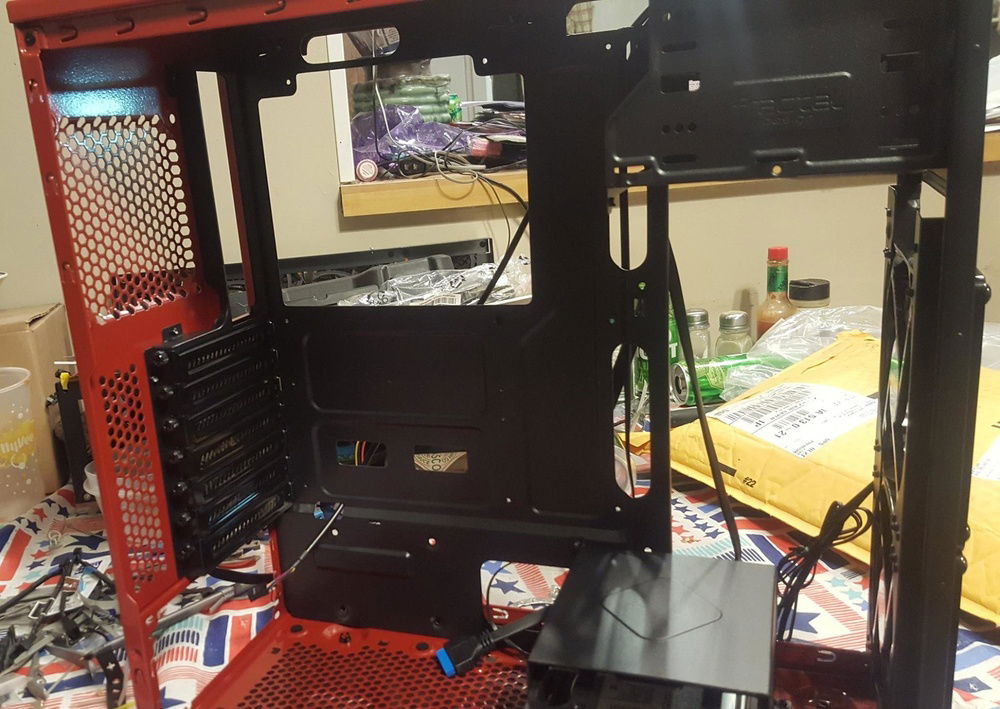

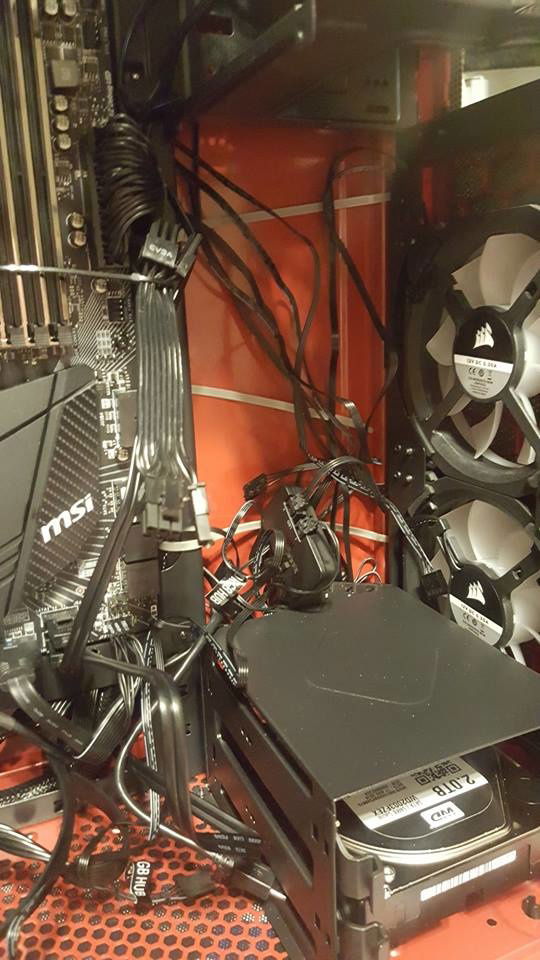

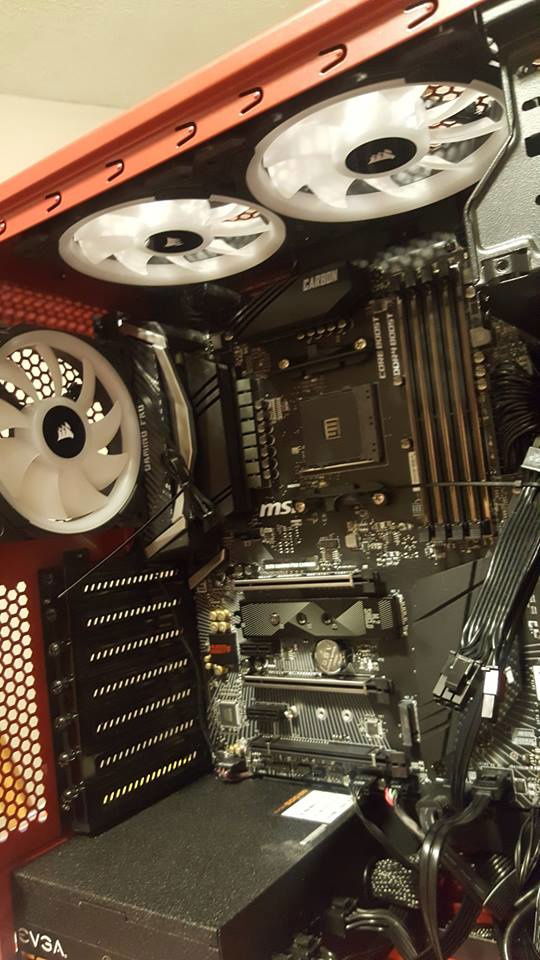

The Focus G is a pretty nice case to work with if you've done tons of builds. Most all the videos on it say you have to remove the hard drive cage to add a bottom fan. Not true, the hard drive cage can be re-positioned to the front, gaining some much needed breathing room, so I placed a Noctua F12 on the bottom for added intake. I hacked the front bezel by taking all the hold down tabs, pulling them back, removing the filter, then re-assemble with the now free filter positioned on the inside. This is a temp fix till I get him some magnetic ones that will allow the LL120's to shine brighter through the front. Wire management was kind of UGH but do-able with patience and an abundance of tie straps. Plenty of upgrade options for later on, though I'd start beefier on the power supply for good measure.
Color(s): Red
RGB Lighting? Yes
Cooling: Air Cooling
Theme: none
Size: ATX
Type: General Build

Hardware

CPU
AMD - Ryzen 5 (1600)
Cores: 6
Socket: AM4
Motherboard
MSI - Gaming Pro Carbon
Chipset: X470
CPU Socket: AM4
Memory Support: DDR4
Memory
GeIL - Super Luce RGB
Capacity: 8 GB
Type: DDR4
Memory
GeIL - Super Luce RGB
Capacity: 8 GB
Type: DDR4
Storage
ADATA - SU800
Capacity: 512 GB
Form Factor: M.2
Type: SSD
Storage
Western Digital - WD Black Desktop
Capacity: 2 TB
Form Factor: 3.5 Inch
Type: HDD
Graphics
MSI - Camo Squad (discontinued)
Chip: GTX 1060
Chip Manufacturer: NVIDIA
PSU
EVGA - 110-BQ-0500-K1
Efficiency: 80+ Bronze
Form Factor: ATX
Modularity: Semi-Modular
Case
Fractal Design - Focus G, Red
Motherboard Support: ATX
Side Panel: Window
Type: Mid-Tower
Case Fans
Corsair - LL120 (RGB) (White)
Size: 120 mm
Case Fans
Noctua - NF-F12 PWM
Size: 120 mm
