1 Year Later

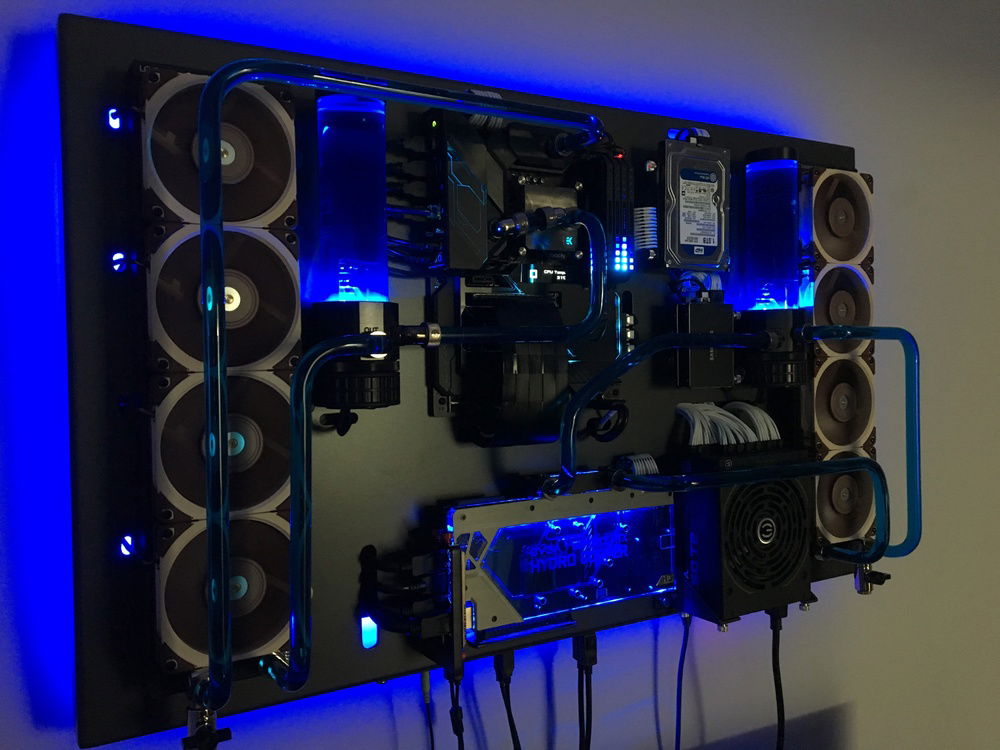

Close up, from the left Custom Aluminum PC Wall-Mounted Case, Dual Water loop. RGB back-lit

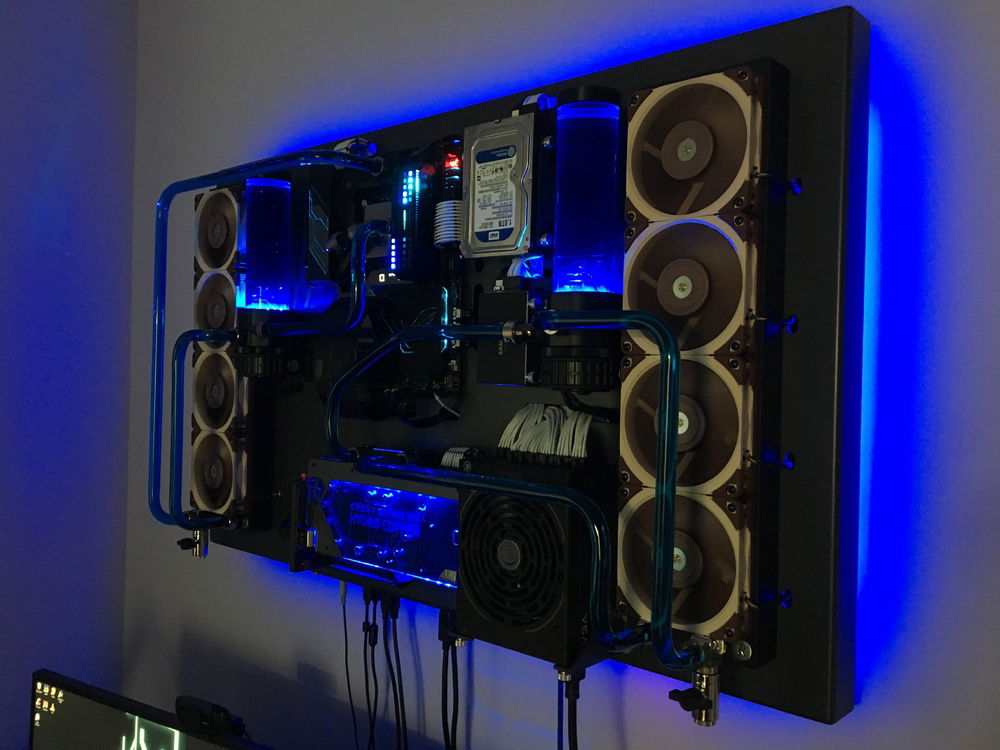

Close up, from the right Custom Aluminum PC Wall-Mounted Case, Dual Water loop. RGB back-lit

The whole room setup.

The room, from an angle

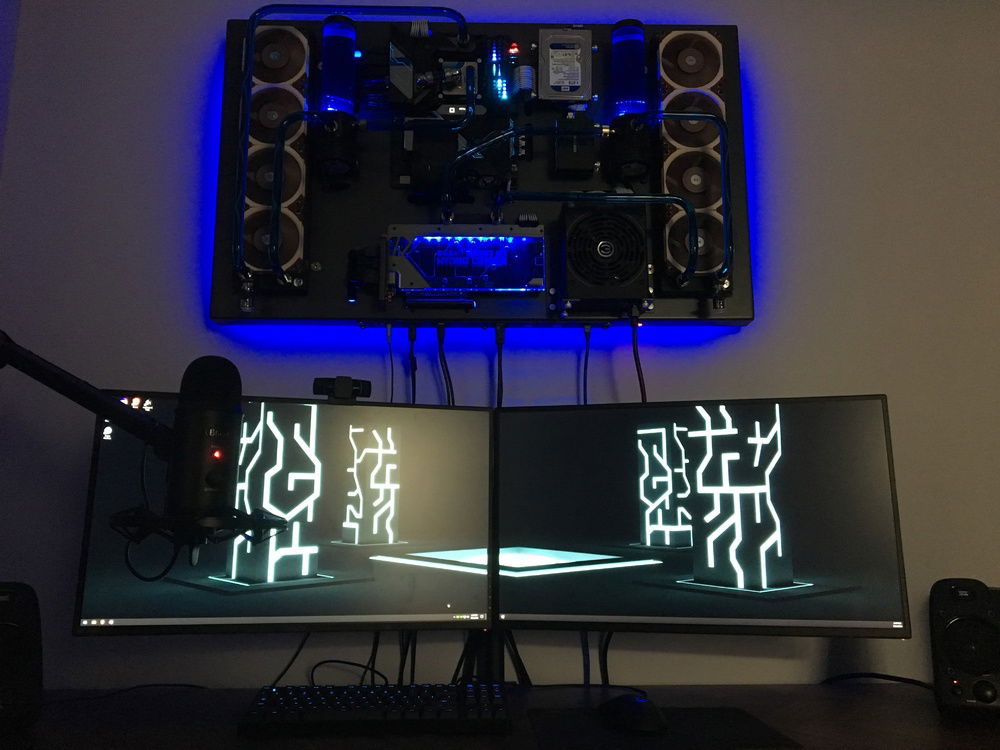

The view from The Chair.

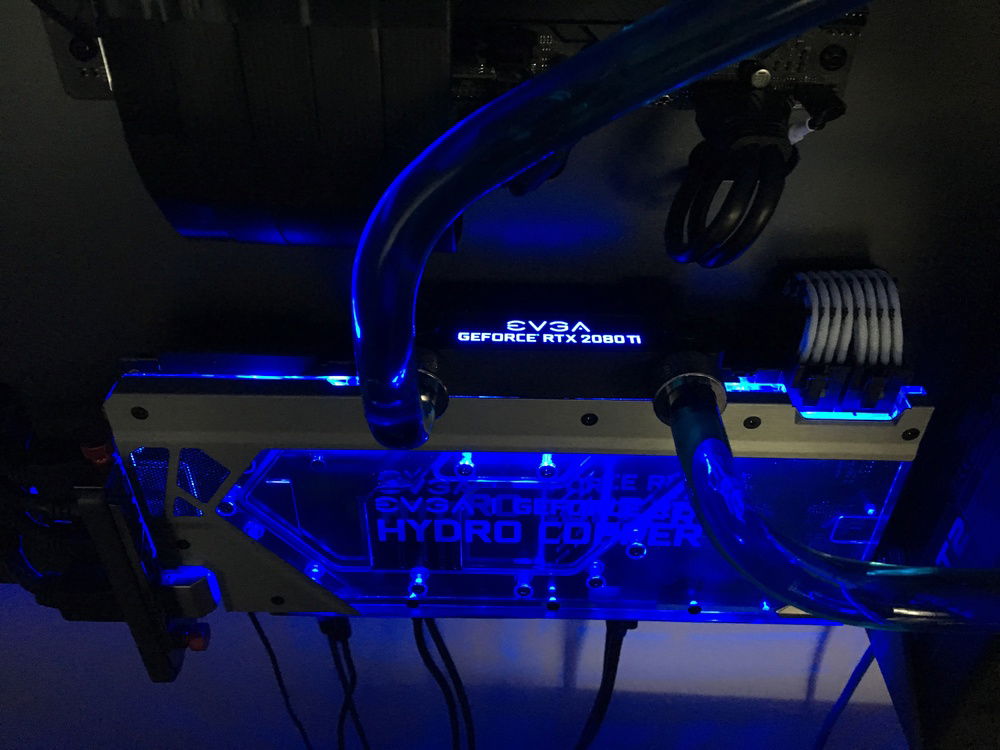

EVGA RTX 2080 Ti FTW3 Ultra Hydro Copper, mounted on a custom vertical GPU bracket

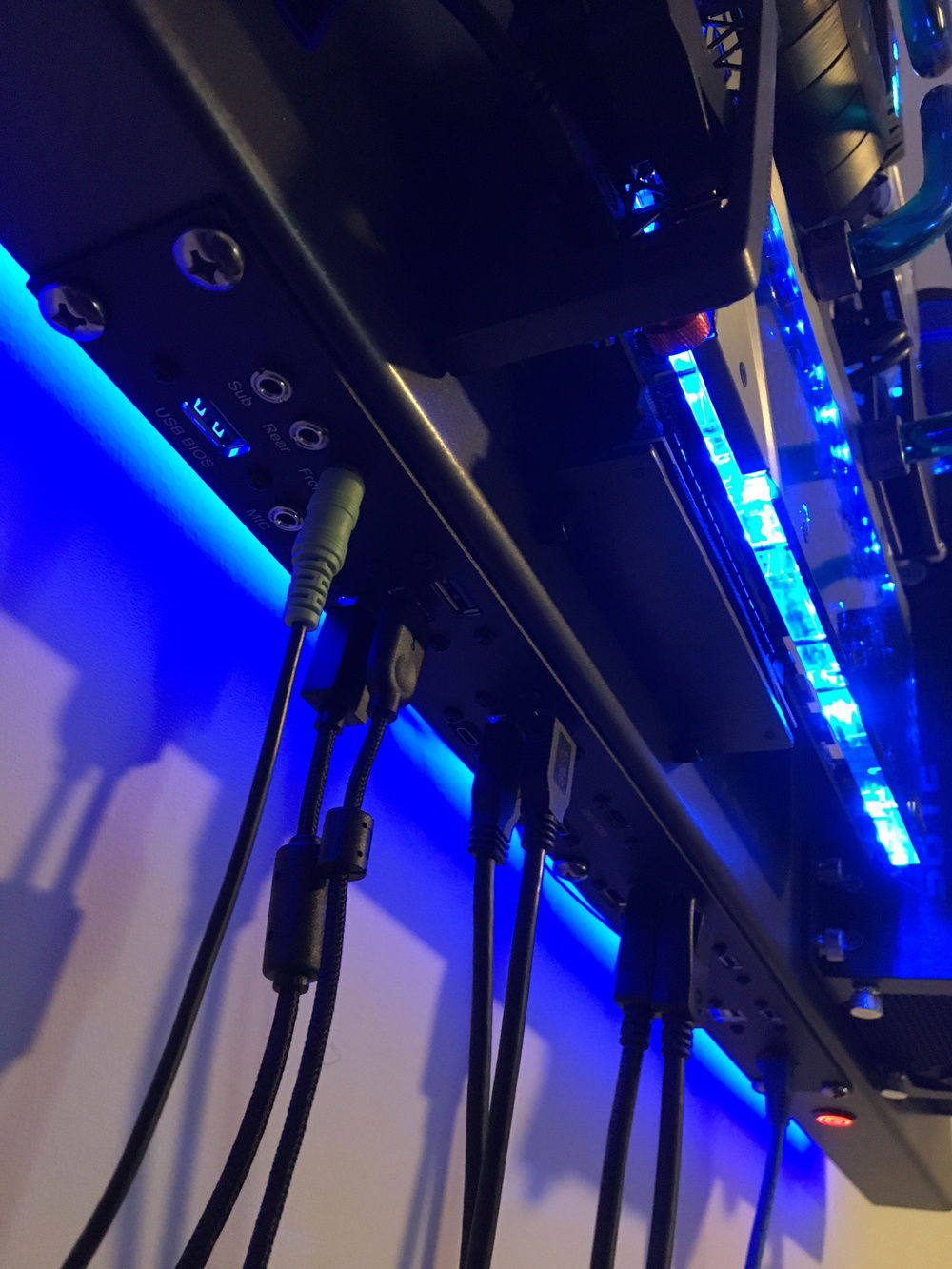

Customized I/O Panel 4x 3.5mm audio, 4x USB 2.0, 8x USB 3.2 Gen1, 2x USB-C (3.2 Gen2), 3x DP, 1x HDMI, 1x RJ-45 LAN, & s Power Button

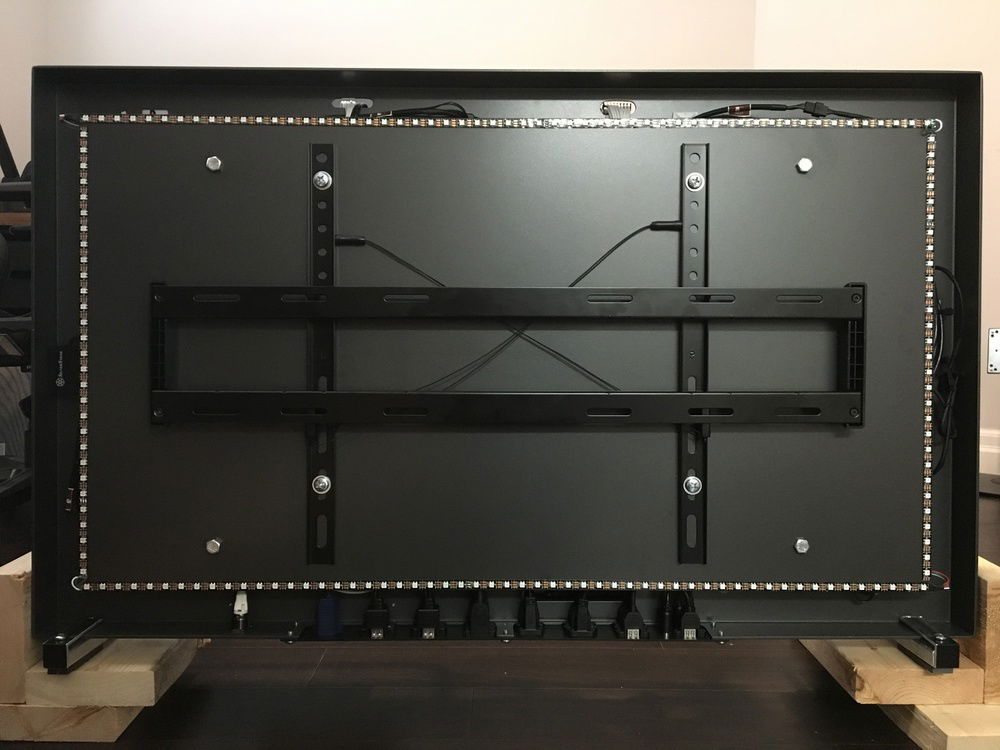

Rear panel, with the VESA wall mount and RGB back-light configuration shown

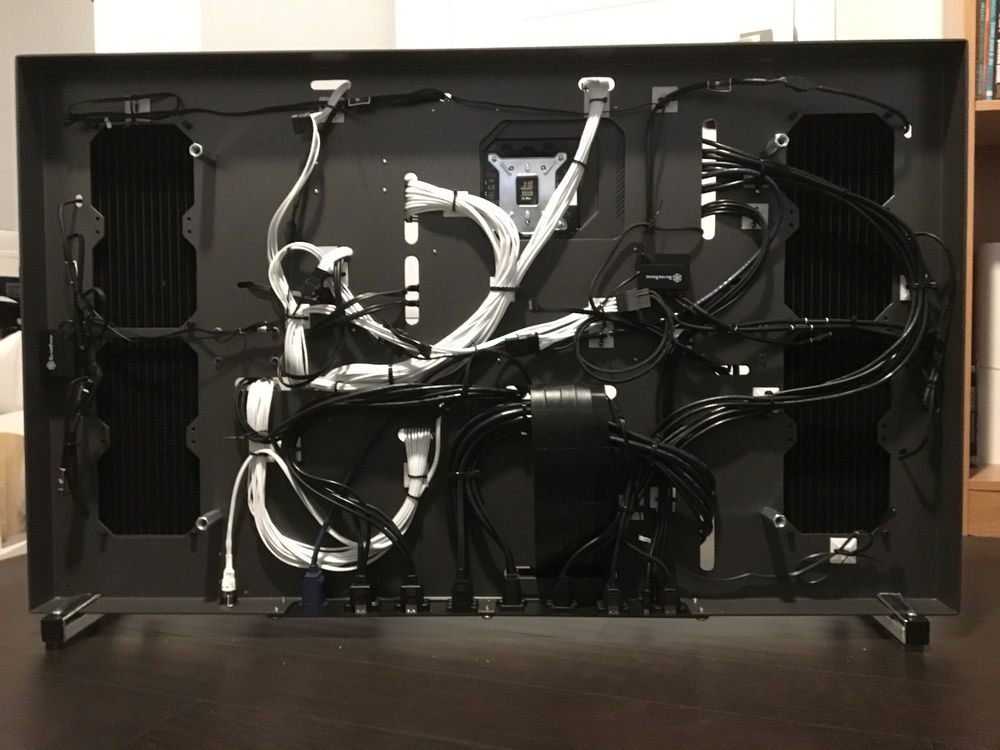

Cable Management, with the rear panel removed. You can see the many I/O panel cables routed to the bottom for easy access once installed.

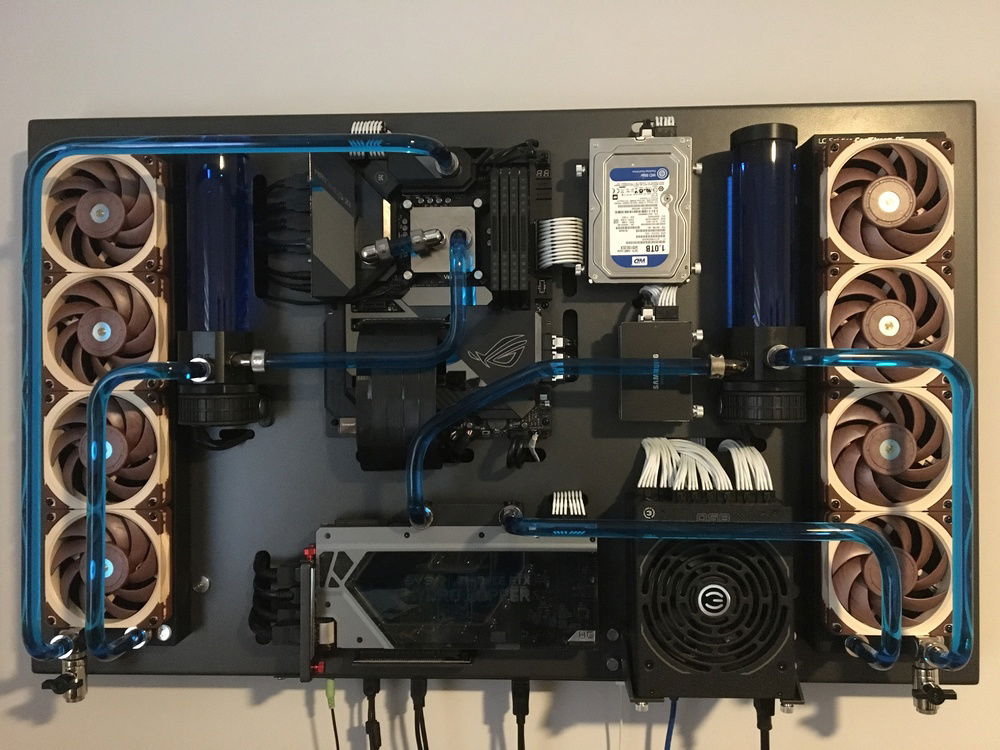

Lights on, Power off, so you can see the parts

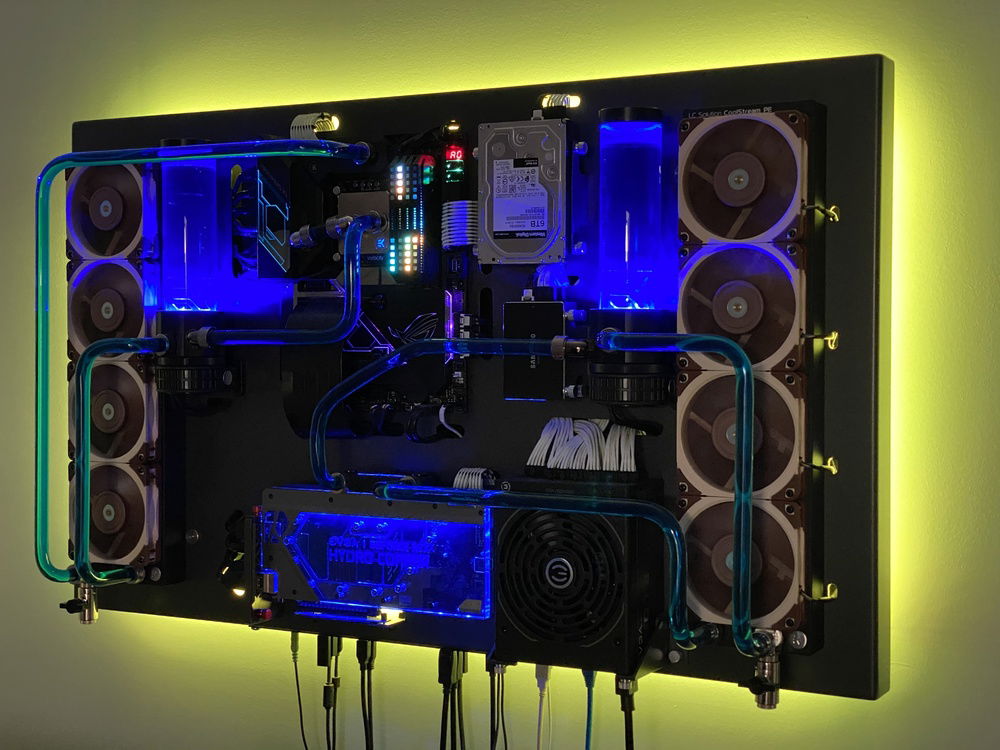

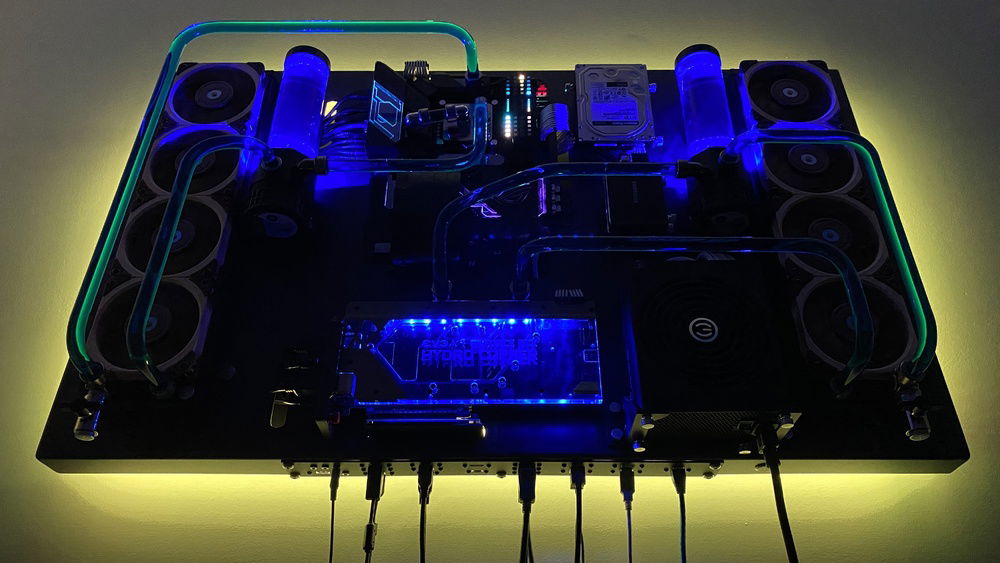

Cyberpunk 2077

Custom Wall PC

Custom Built, Wall Mounted PC.
My first custom looped, water cooled PC, and it's a two-fer!

Custom, hand-made and powder-coated aluminum panel / case. Silver and Red anodized thumbscrews.

ASUS Maximus XI Formula, i7-9700K & EVGA FTW3 Ultra Hydro Copper 2080Ti.

Video of RGB backlighting in action: https://streamable.com/p660c

Check the build log section for more pictures!

Hope you like it!

Color(s): Black Blue Carbon White

RGB Lighting? Yes

Theme: Wall

Cooling: Custom Liquid Cooling

Size: ATX

Type: General Build

Build Updates

Custom Aluminum Case Fabrication

A Build Log of the case fabrication process. Everything was done by hand, except the GPU bracket and the powder-coating process.

Scale Template - not 100% accurate, ended up re-doing template by hand

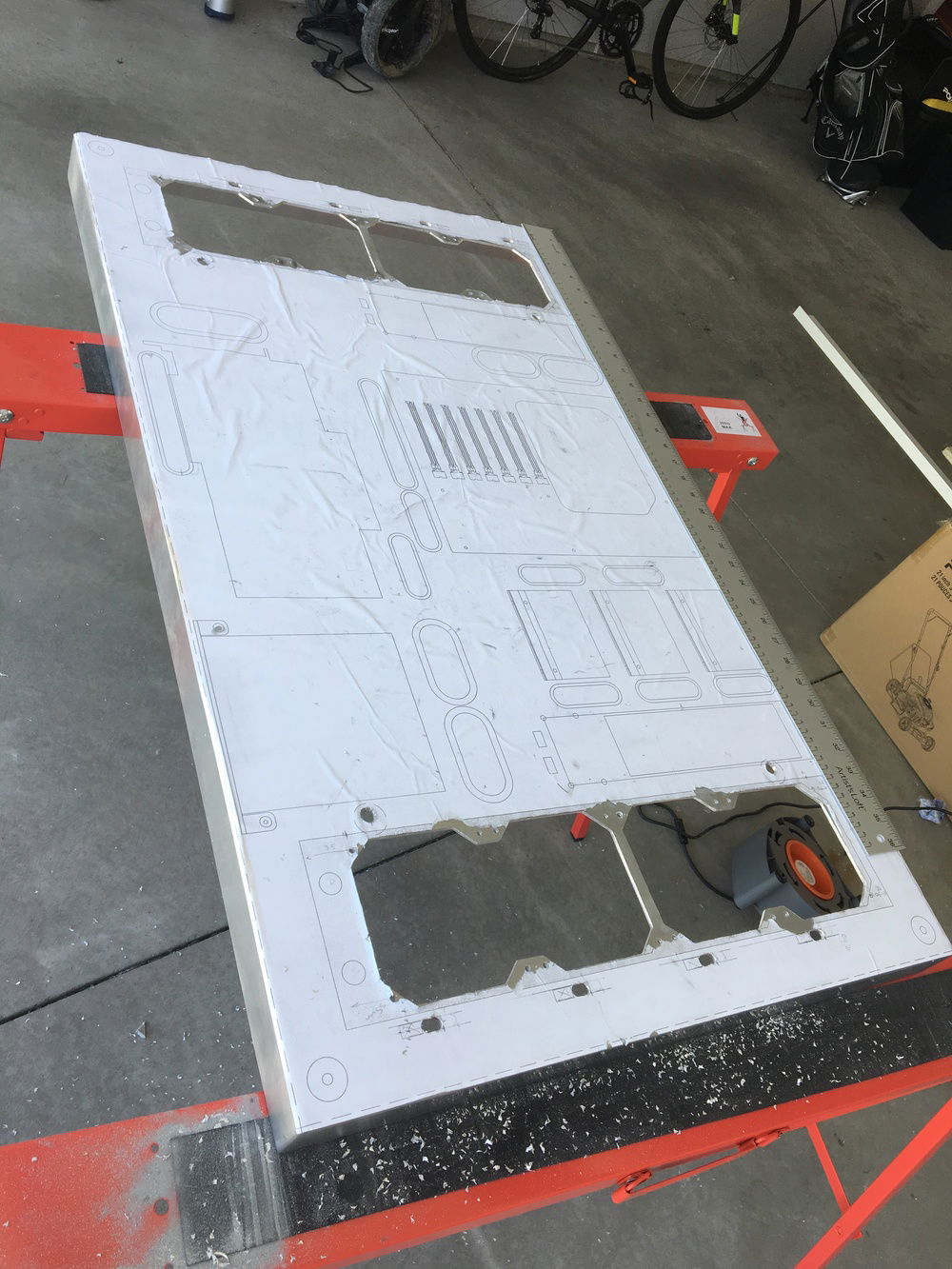

Radiators #1 and #2 cut-outs done. Holes were cut using a grinder, hand saw, and drill. Then, edges were filed and sanded smooth.

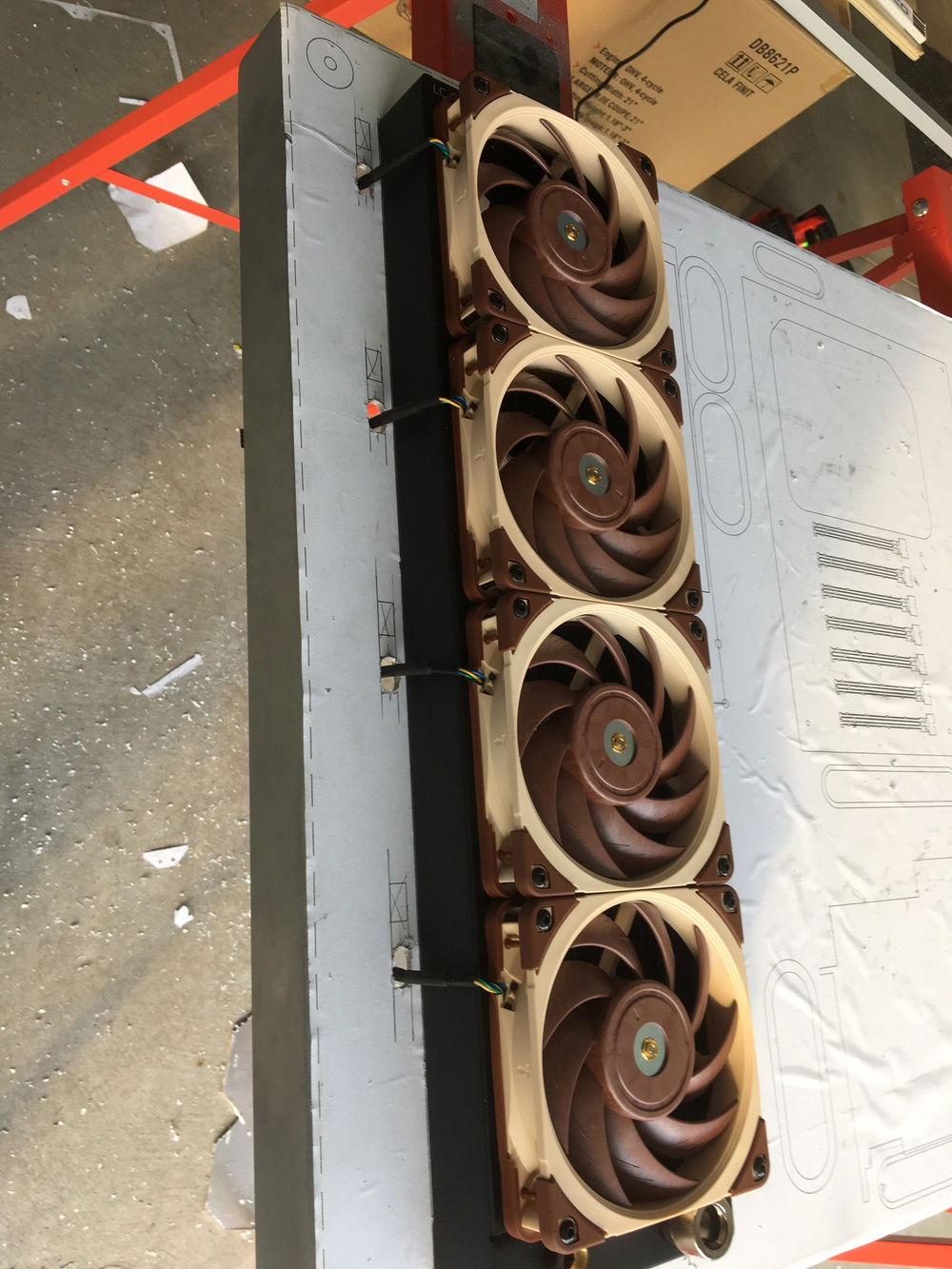

Test fit of radiator - figured out the scaling issues here. Also, I cut cable holes for the fans.

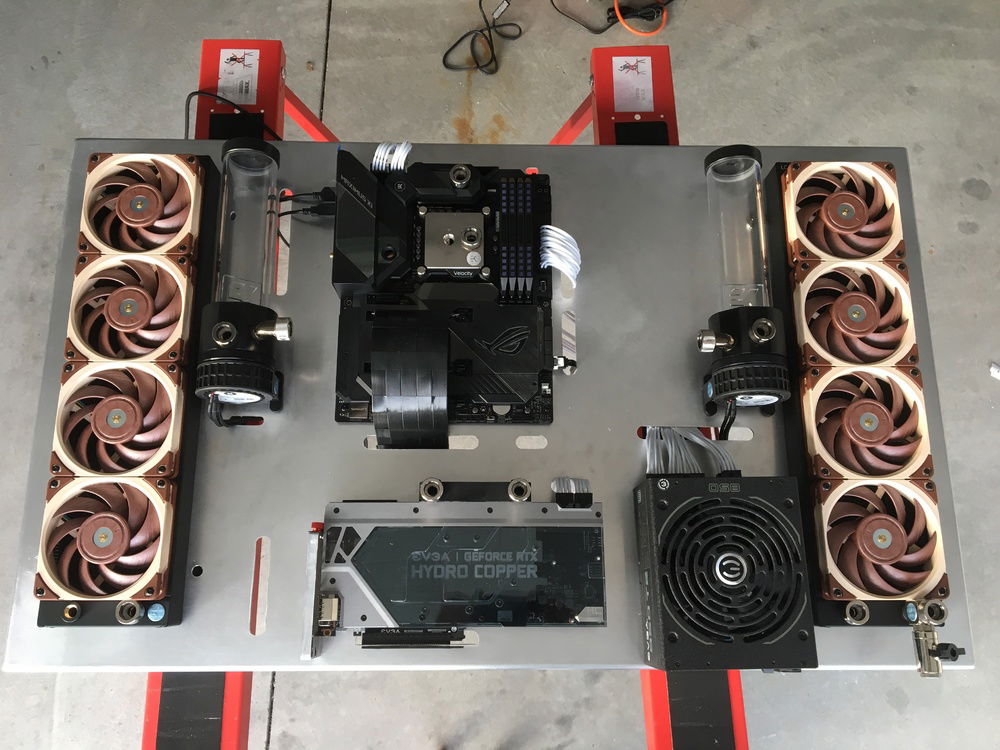

Mostly finished, all slots, openings, and tapped screw holes are done for dry-fitting. Have yet to finish smaller parts like HDD/SSD mounts, GPU mounts, PSU mounts.

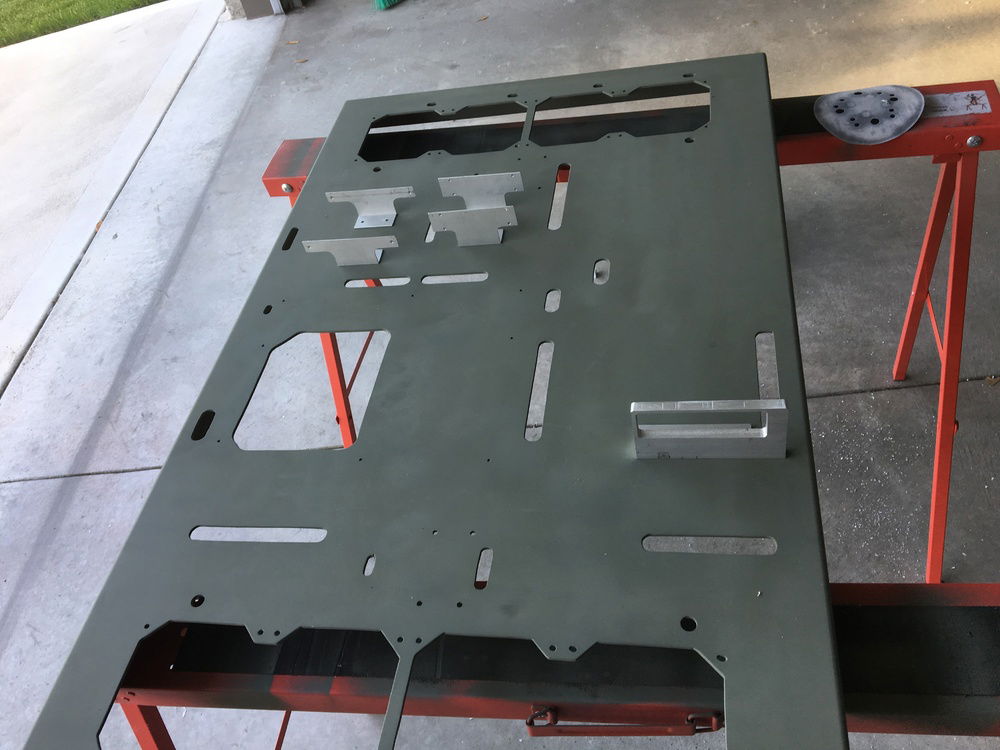

Finished the miscellaneous aluminum parts, and primed the panels.

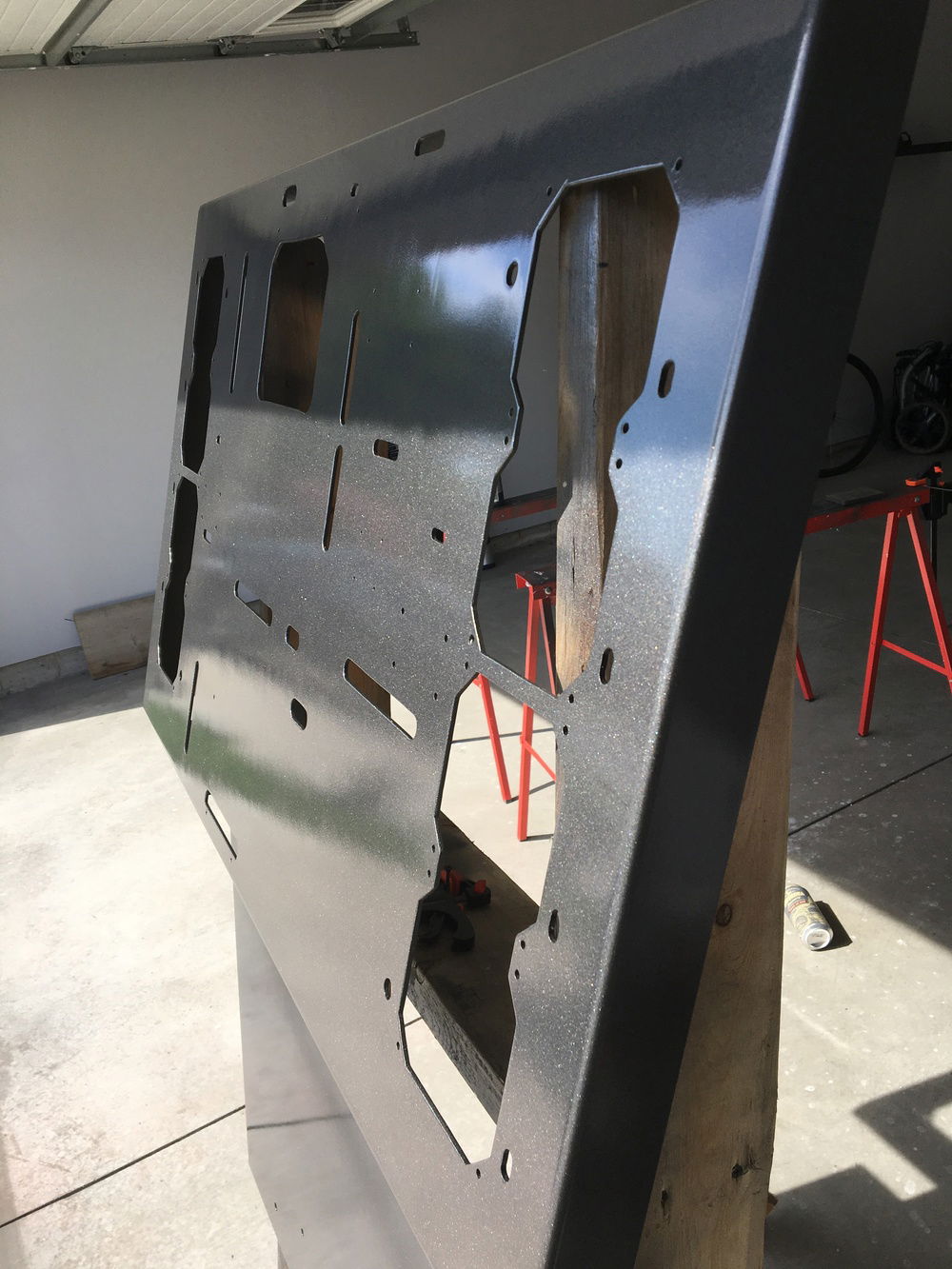

Painted and clear coated the panels. This didn't work. The clear coat didn't cure and the surface stayed soft. I ended up stripping/cleaning the entire project and sent it out to get powder-coated.

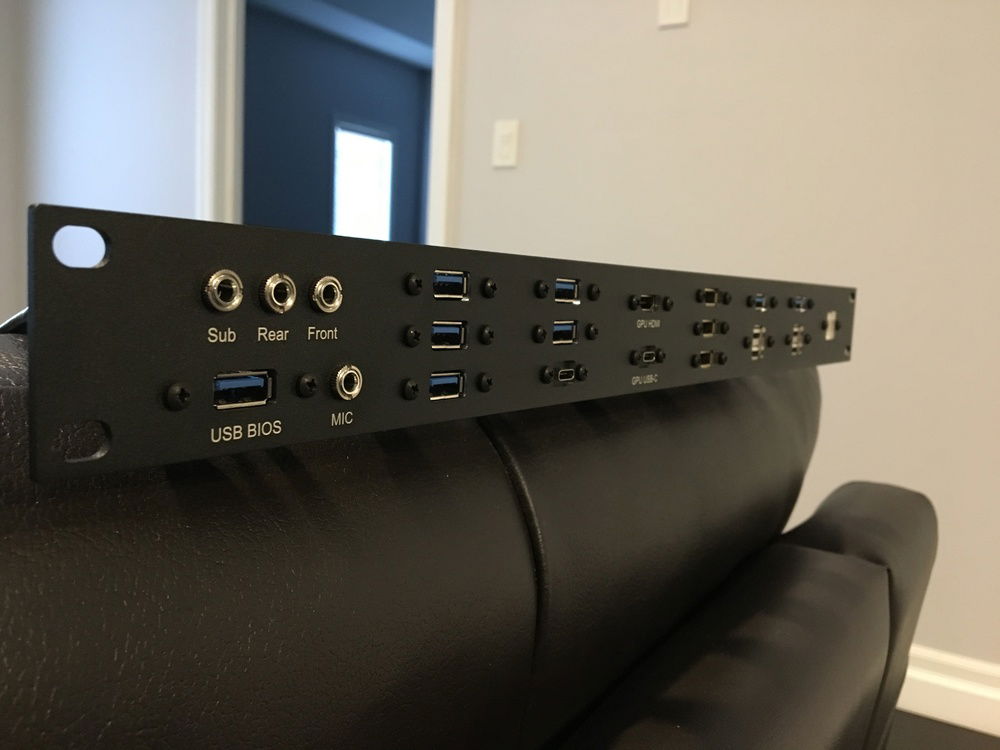

Close up of the custom DataPro 1U Server rack panel I used for an I/O front panel. Best investment of the whole project.

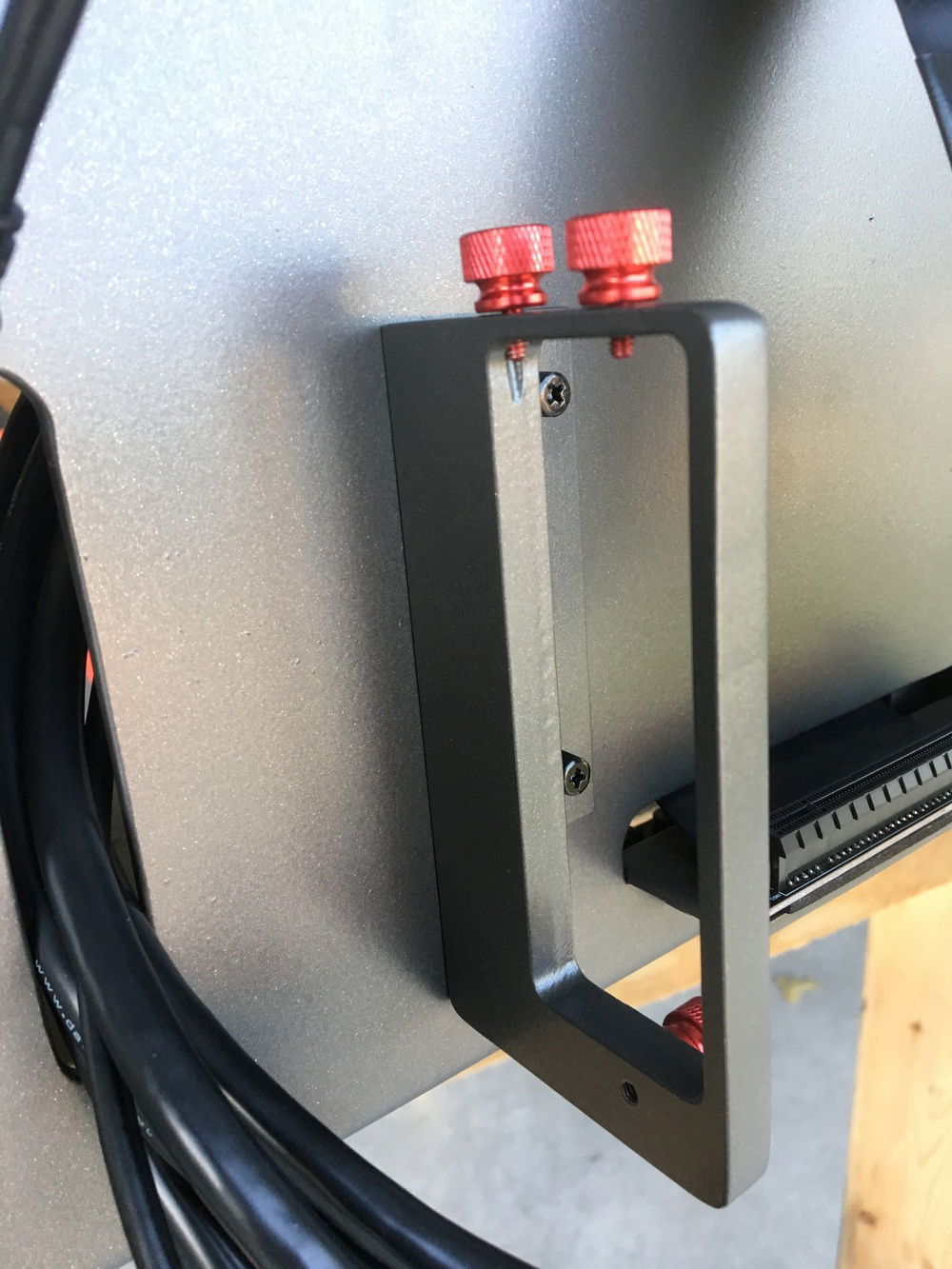

Close up of the custom GPU vertical panel mount. Fits standard two-slot PCIe Graphics cards.

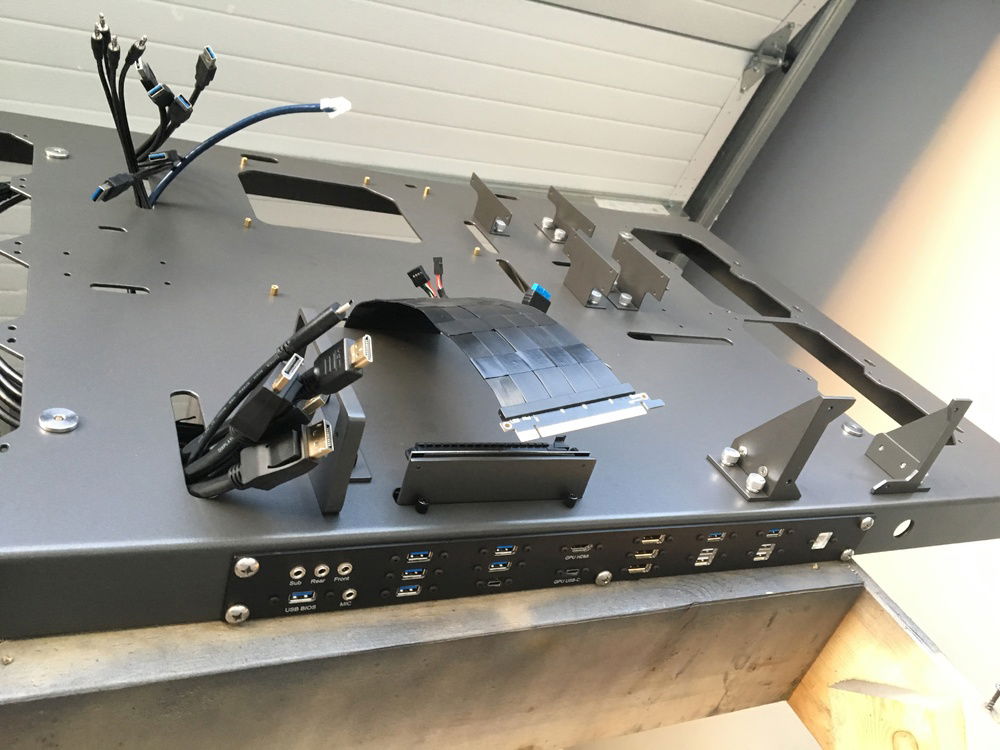

Finished Case. Everything assembled and ready for PC component installation.

Water Cooling & Final Assembly

Showing the water cooling bending and assembly process. Also shows the custom removable rubberized legs which kept the case upright while I worked on it.

Before Bending - all the components installed (except for the storage)

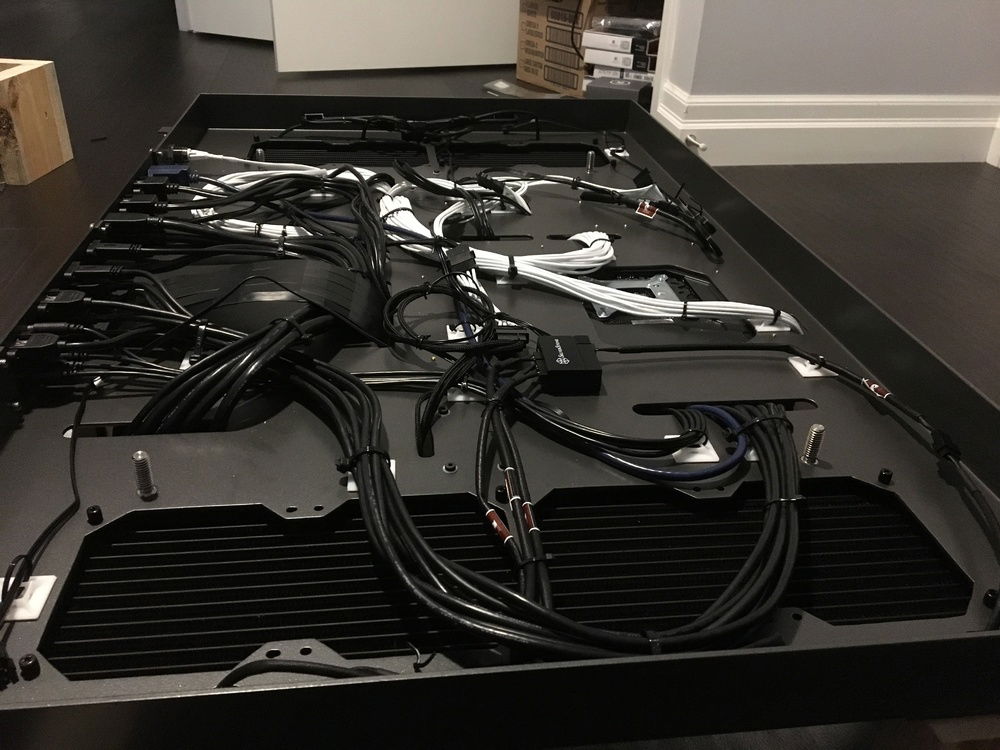

Everything is cable managed. fits within the 2" overall depth of the computer case

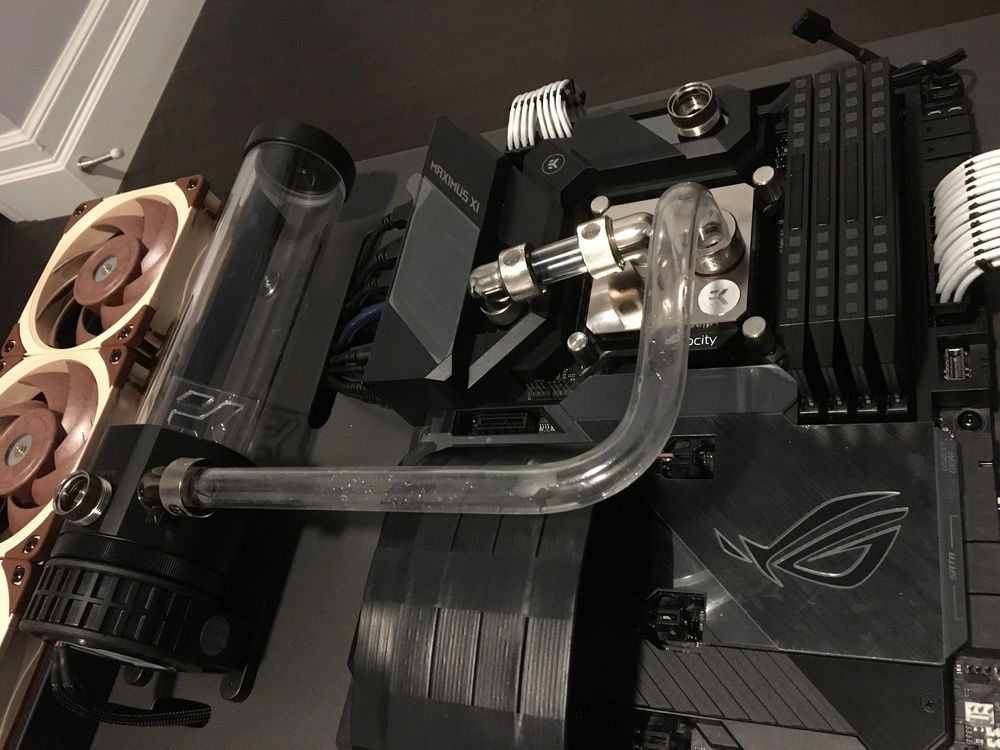

First tube bend... ever. Did I mention this was my first time doing a custom loop?

My heat gun setup. Vicat Softening Temperature of acrylic is 150 deg. C. The heat gun 'display temps' were twice as much as the actual air temps, so this ensured I didn't melt the tubing.

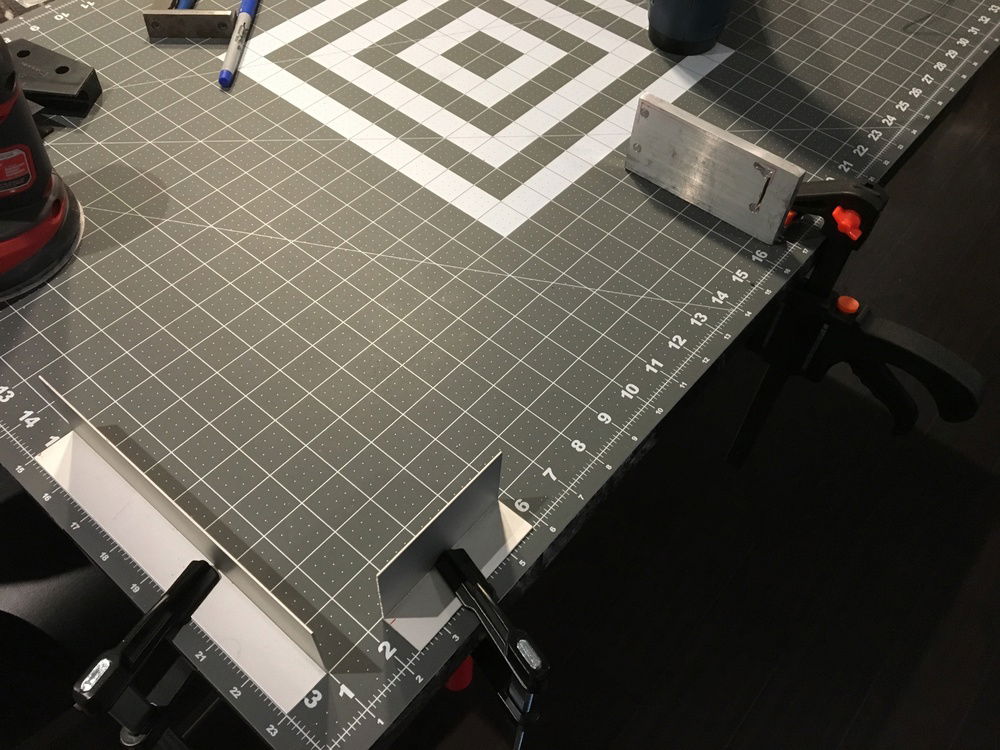

My bending jig. Made sure I got the right dimensions, every time... OK well almost every time.

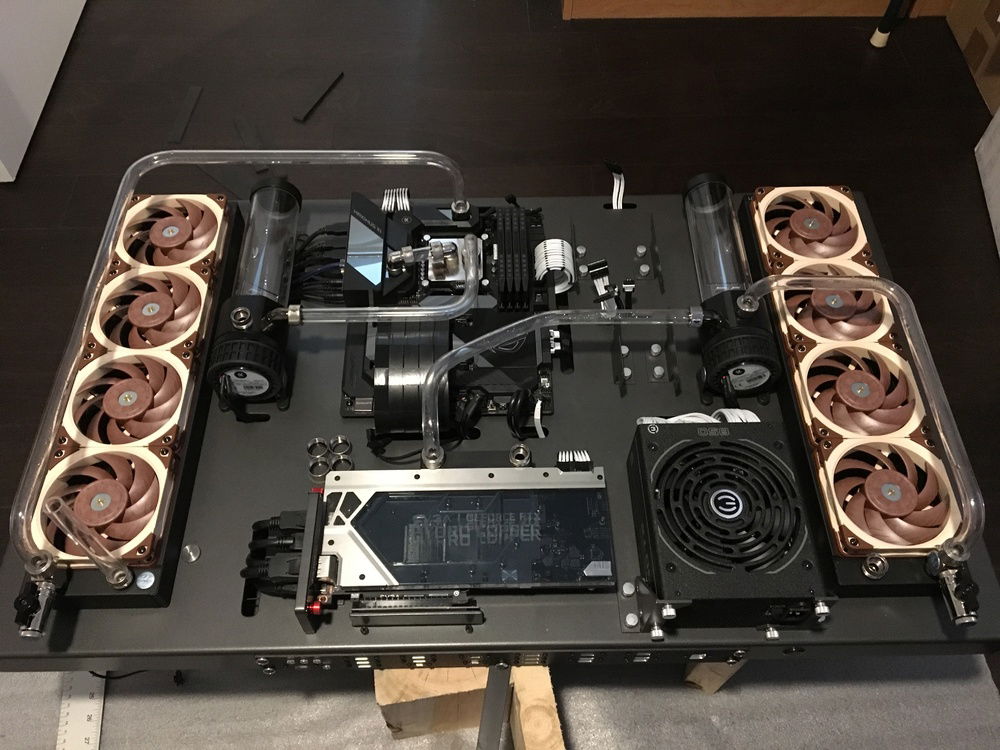

Partially complete. The long run to the CPU used 97 cm of tubing.

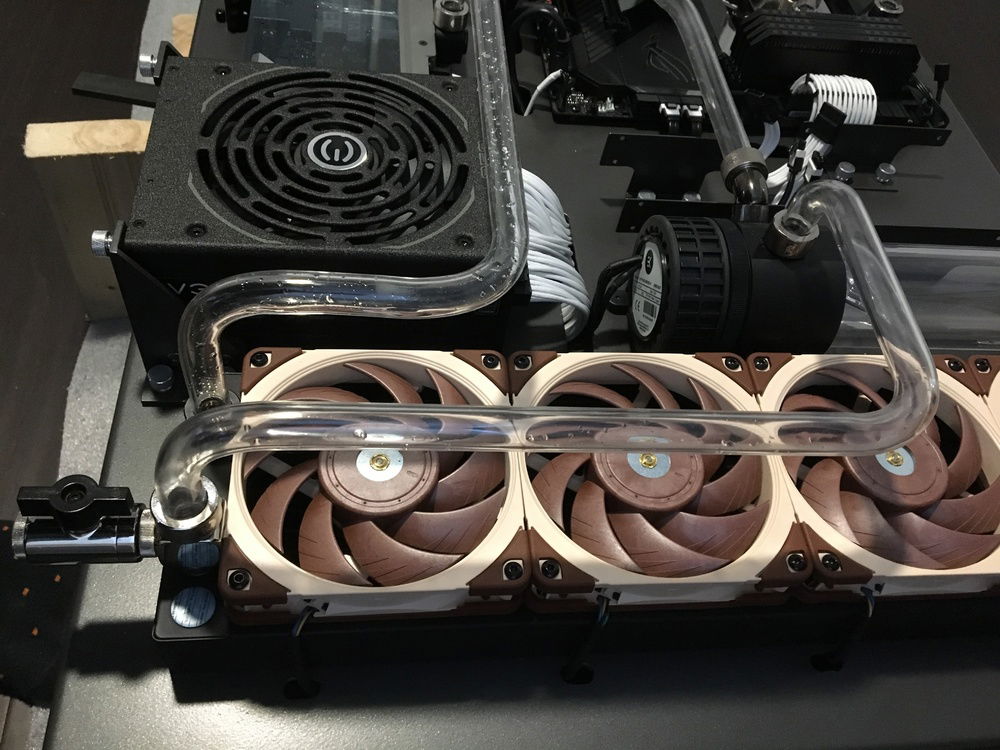

GPU loop = complete

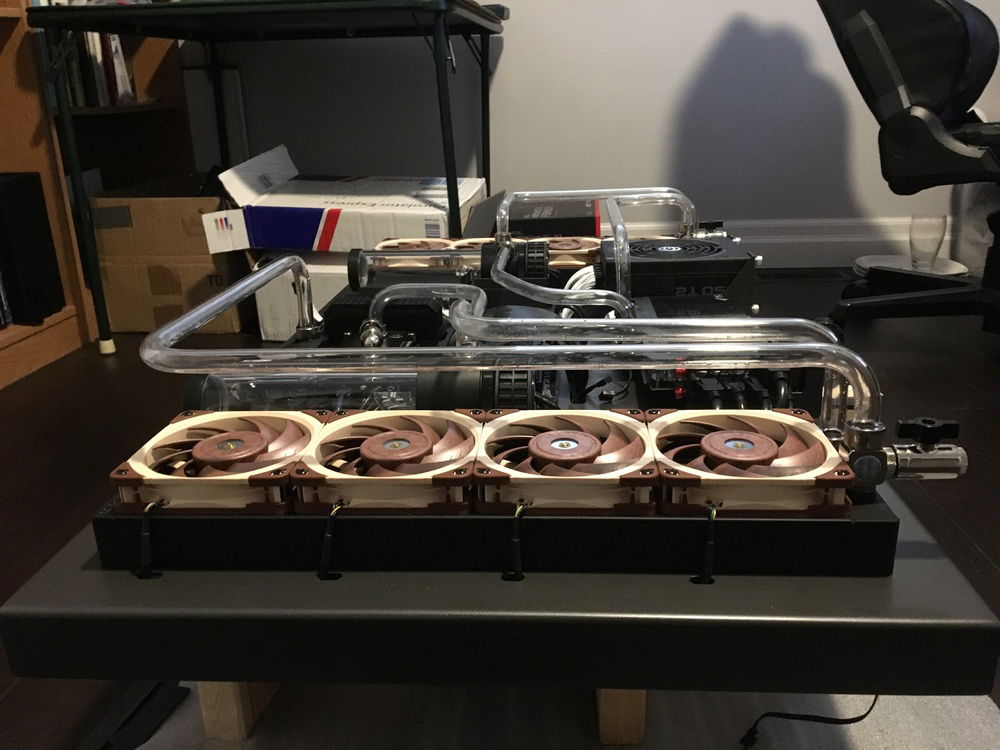

Side view - All the outer tube heights are equal, and the inner tube heights are equal.

Hardware

Category / Value

Brand / Part

CPU

$ 243.30

Intel - Core i7 9700K

Socket: LGA 1151

Cores: 8

Integrated Graphics: Yes

Motherboard

$ 589.00

ASUS - ROG Maximus XI Formula

Chipset: Z390

CPU Socket: LGA 1151

Size: ATX

Memory

$ 400.00

Corsair - Dominator Platinum (3200MHz) (Grey)

Type: DDR4

Capacity: 64 GB

Graphics

EVGA - Ultra Hydro Copper Gaming

Chip Manufacturer: NVIDIA

Chip: RTX 2080 Ti

Storage

$ 252.52

Samsung - 850 Pro

Form Factor: 2.5 Inch

Interface: SATA 6 Gb/s

Capacity: 1 TB

Storage

$ 252.52

Samsung - 850 Pro

Form Factor: 2.5 Inch

Interface: SATA 6 Gb/s

Capacity: 1 TB

Storage

$ 199.99

Samsung - 970 EVO

Form Factor: M.2

Interface: M.2 (M)

Capacity: 1 TB

Storage

$ 42.99

Western Digital - Blue 7200RPM

Form Factor: 3.5 Inch

Interface: SATA 6 Gb/s

Capacity: 1 TB

PSU

$ 299.99

EVGA - SuperNOVA T2

Wattage: 850

Form Factor: ATX

Efficiency: 80+ Titanium

Case

Custom - Custom (custom)

Case Fan

$ 34.95

Noctua - NF-A12x25 PWM

Size: 120 mm

Cooling

$ 199.00

EKWB - CoolStream PE

Type: Custom Loop

Size (WxHxD): 480 mm (4 x 120 mm)

Cooling

$ 131.36

EKWB - EK-Velocity RGB Intel - Full Nickel

Type: CPU Waterblock

Cooling

$ 219.00

EKWB - EK-XRES 140 Revo D5 RGB PWM

Type: Pump

Accessories

$ 99.99

Blue - Yeti (Silver)

Accessories

$ 109.99

Logitech - C922 Pro Stream Webcam

Accessories

$ 226.99

Logitech - Z623 200 W 2.1Ch

Monitor

$ 299.98

ASUS - PG278QR

Size: 27 Inch

Panel: TN

Refresh Rate: 165 Hz

Monitor

$ 299.98

ASUS - PG278QR

Size: 27 Inch

Panel: TN

Refresh Rate: 165 Hz

Keyboard

$ 69.00

Logitech - G Pro

Interface: Wired

Key Switch Type: Romer-G

Type: Tenkeyless

Mouse

$ 104.99

Logitech - G Pro

Interface: Wireless
