Thumbnail image (I don't know why but the embed image always shows the first image, which is annoying)
Thumbnail image (I don't know why but the embed image always shows the first image, which is annoying)
Got this casing for free. The previous owner toss it into the bin because "button broke and brittle plastic piece"
Got this casing for free. The previous owner toss it into the bin because "button broke and brittle plastic piece"

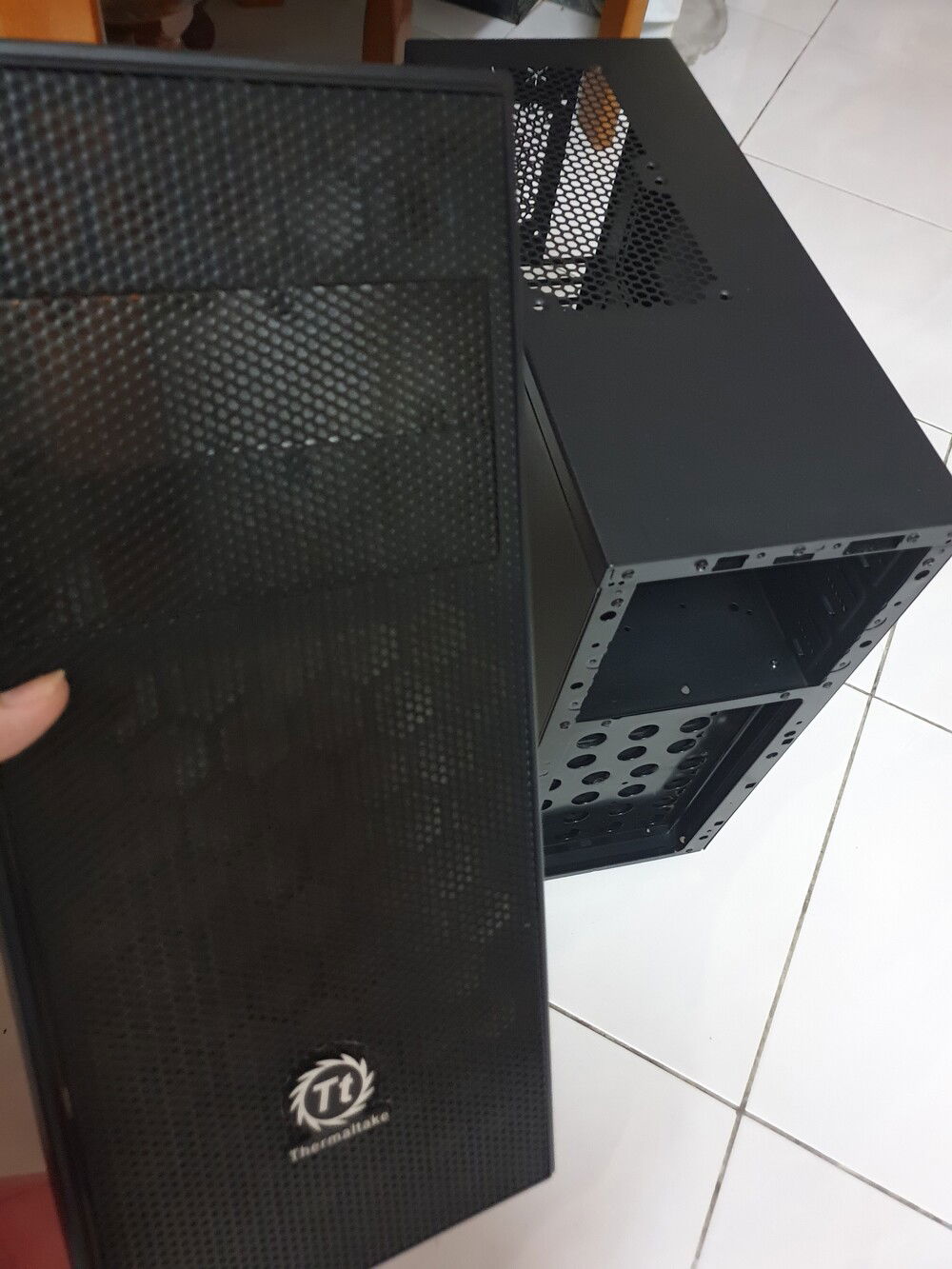

And uhhh, because the casing is very dusty and fragile so I have to clean them completely while being carefully lol
And uhhh, because the casing is very dusty and fragile so I have to clean them completely while being carefully lol

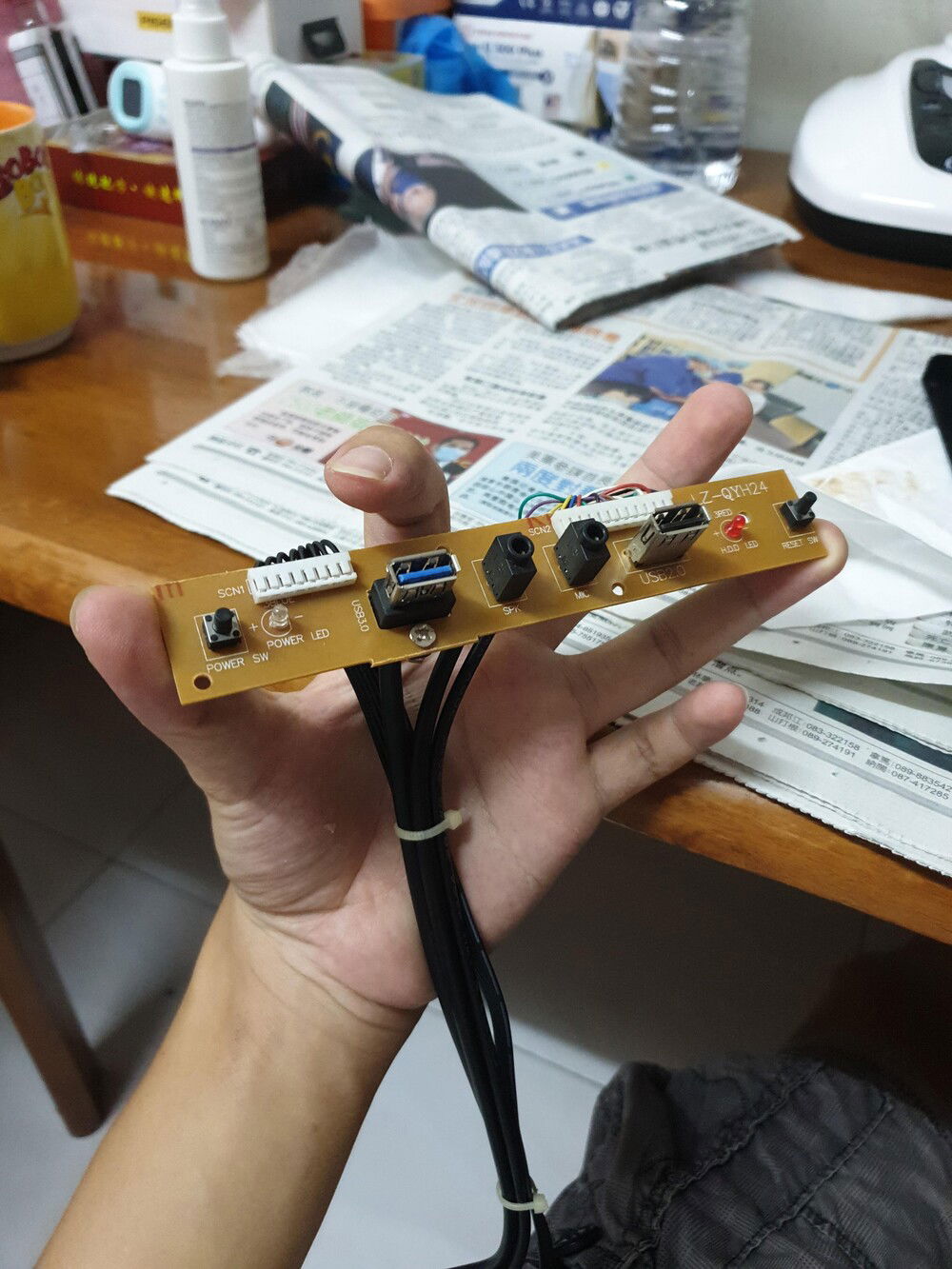

Gotta resolder the old button off and put the new one on
Gotta resolder the old button off and put the new one on

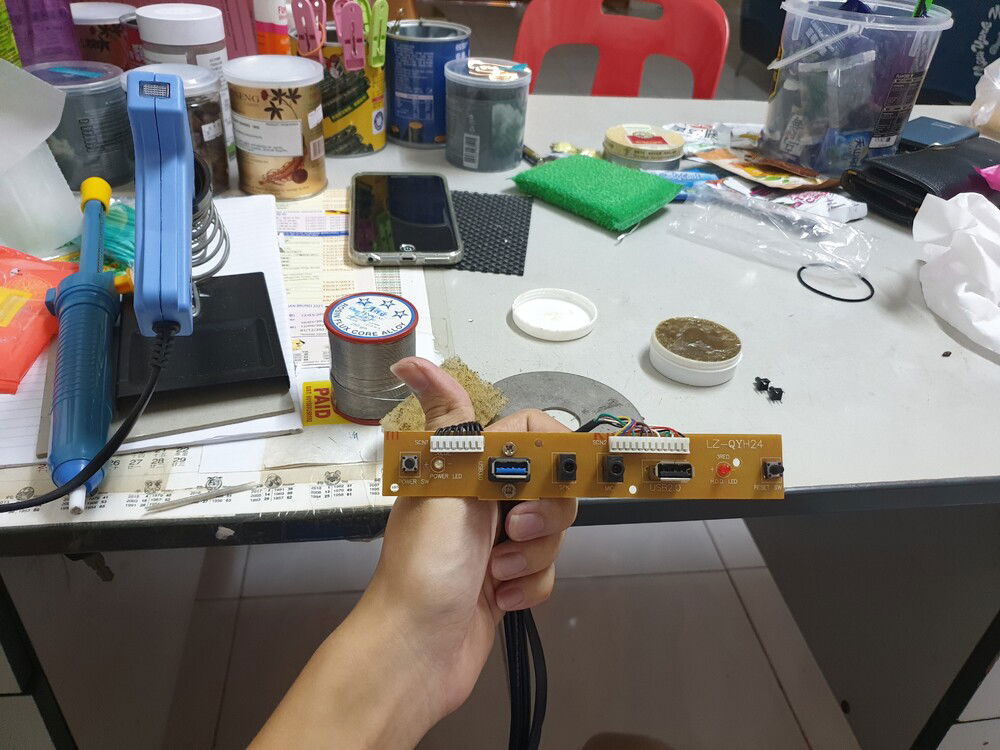

New button slap on, clean up the mess and done
New button slap on, clean up the mess and done

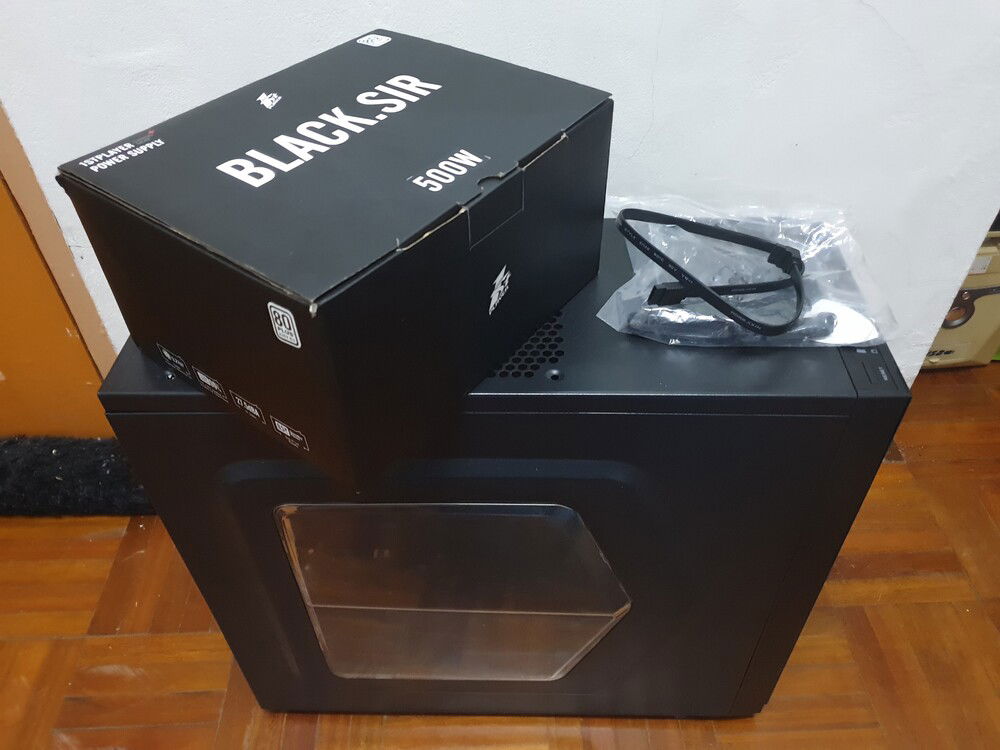

Got the power supply on Setember 20th for RM100 from a discord guy, thanks to NesloAis#8457 (724695463147864216)
Got the power supply on Setember 20th for RM100 from a discord guy, thanks to NesloAis#8457 (724695463147864216)

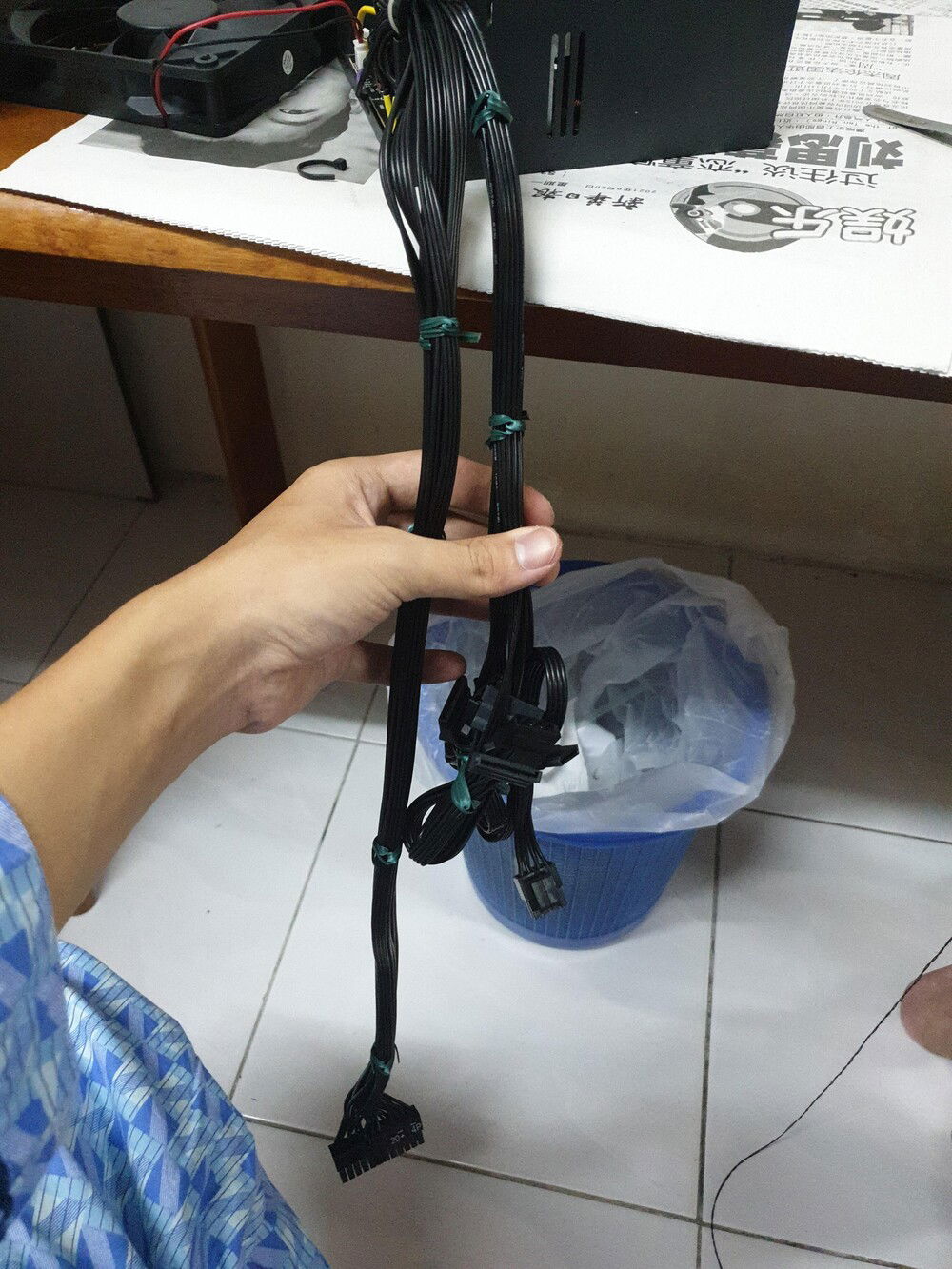

Uhhhhhh, OCD thing, y'know
Uhhhhhh, OCD thing, y'know

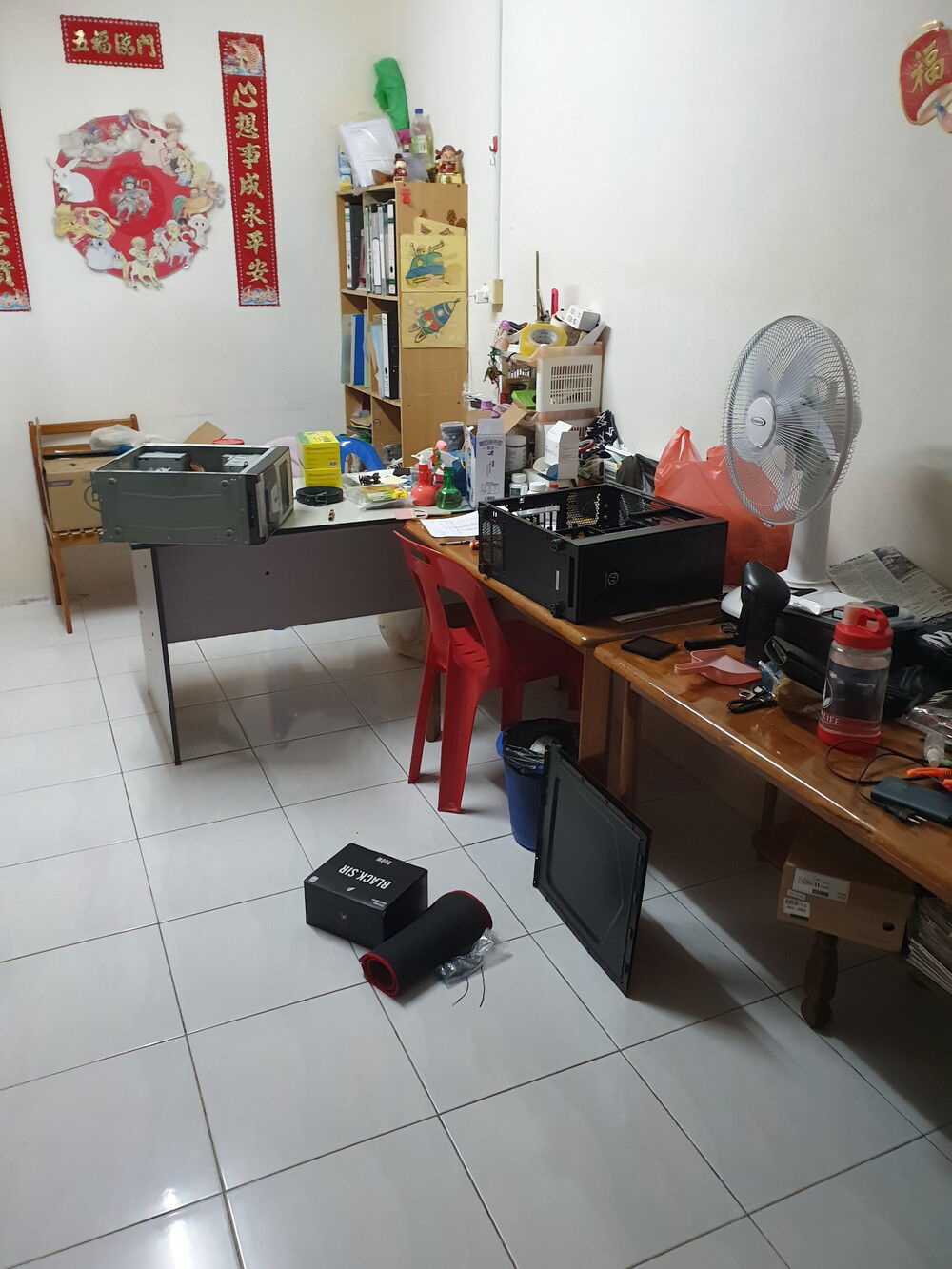

As I'm having a hard time defining the new spec for my new build, I decided to switch the casing instead, as the old one is kinda out of fashion in my opinion
As I'm having a hard time defining the new spec for my new build, I decided to switch the casing instead, as the old one is kinda out of fashion in my opinion

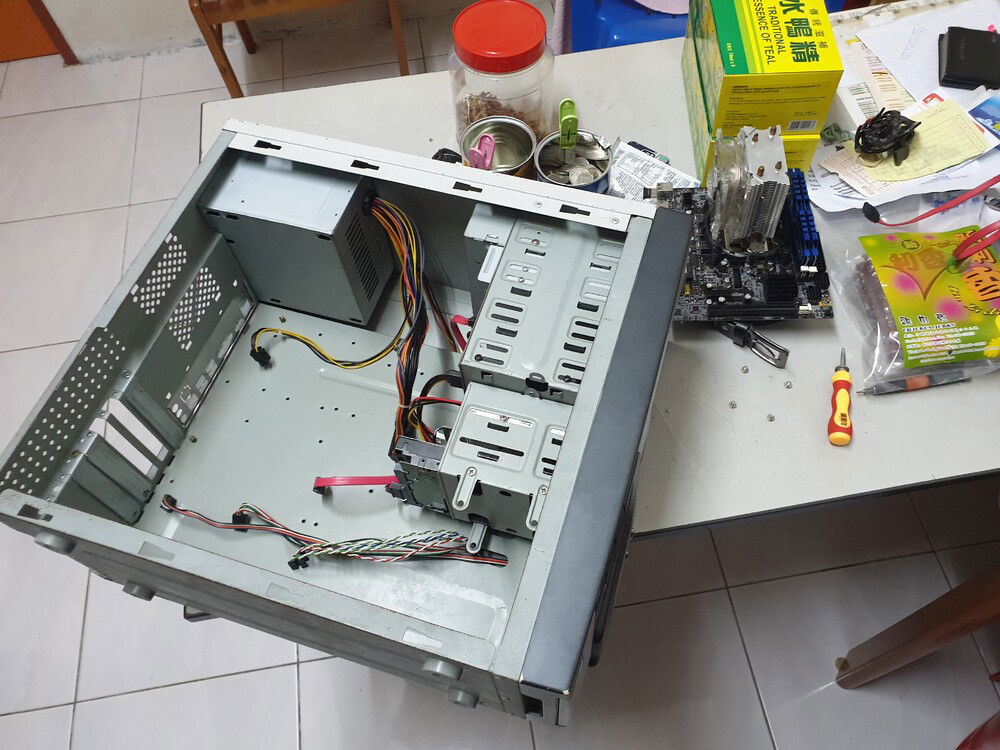

I'm going to miss ya, my lil' old fella
I'm going to miss ya, my lil' old fella

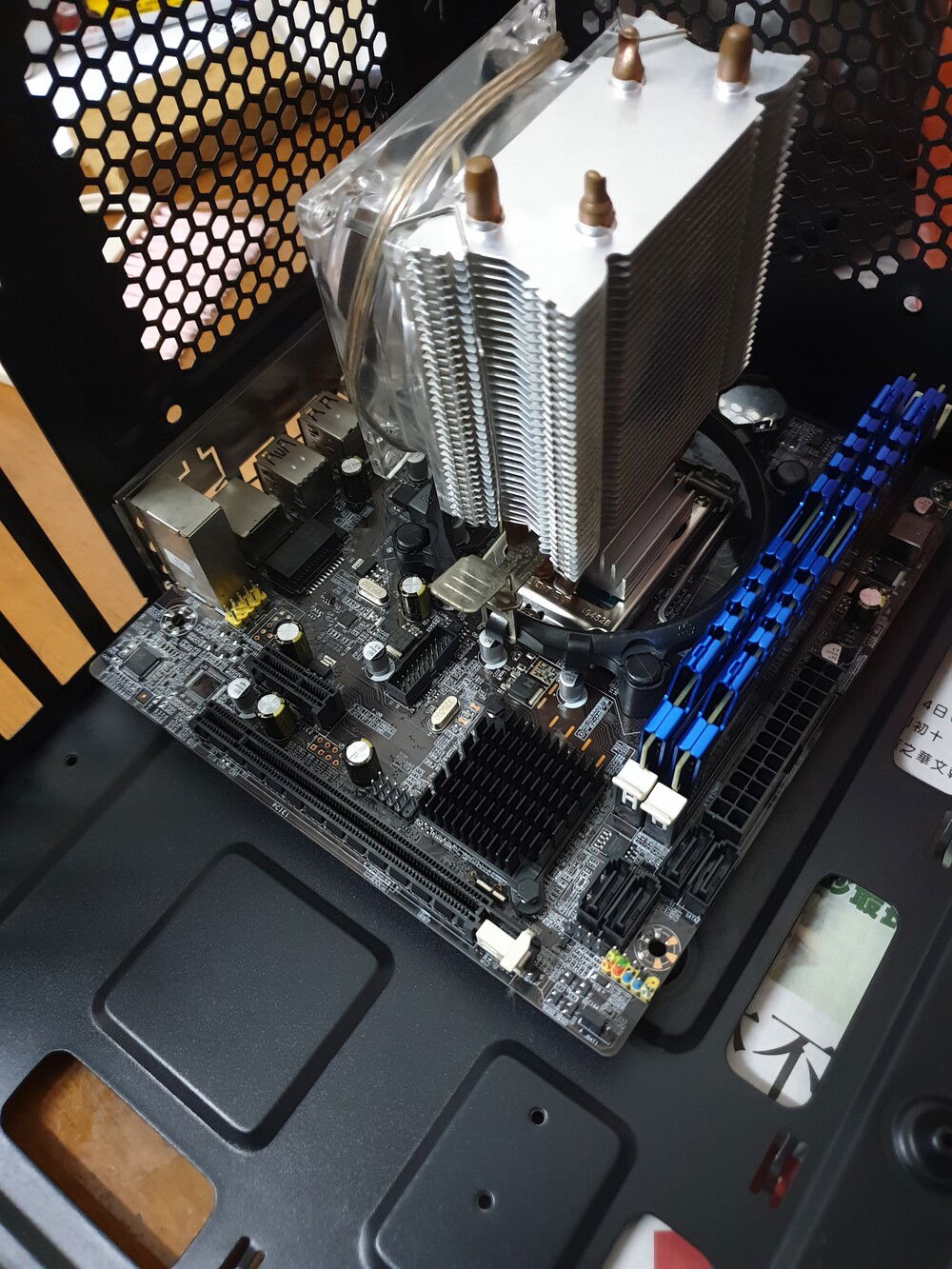

Wait uhhhh, I forgot that some modern casing has its stand-off, and I'm stupid enough to screw the stand-off into it and this happened :P
Wait uhhhh, I forgot that some modern casing has its stand-off, and I'm stupid enough to screw the stand-off into it and this happened :P

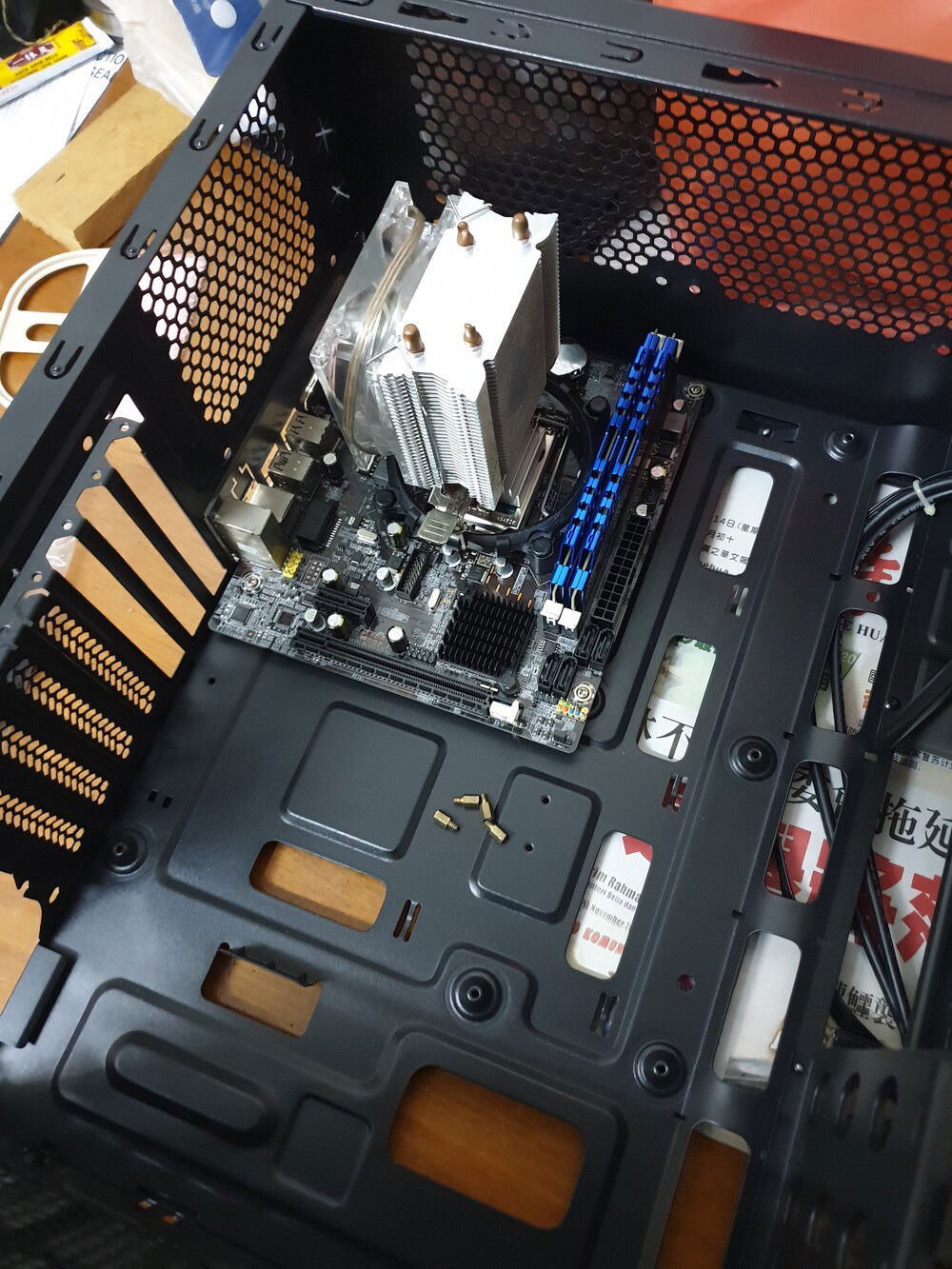

Remove the stand-off and now it fit
Remove the stand-off and now it fit

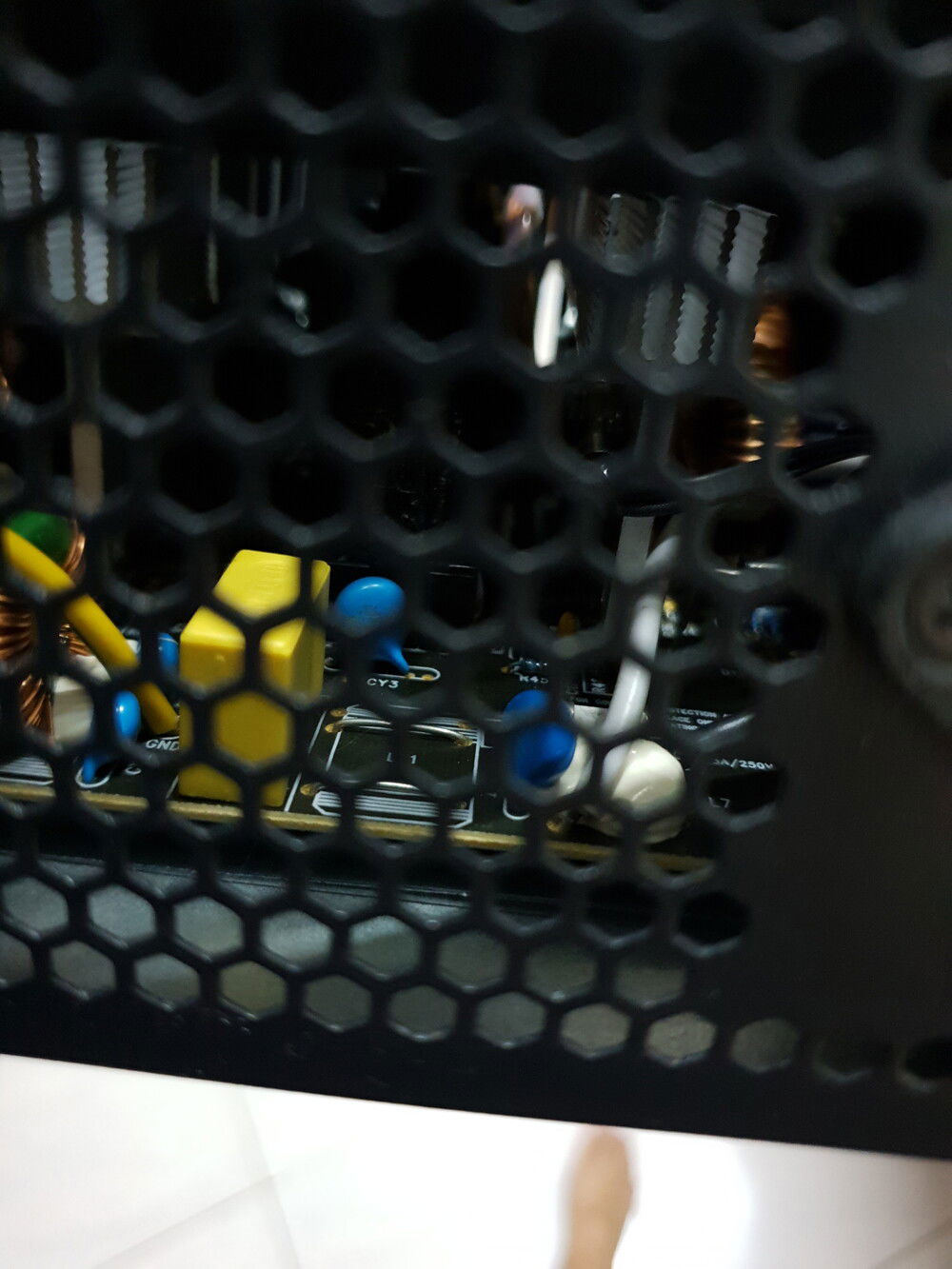

Hold on, why are those "cut corner" things happening in these modern days?
Hold on, why are those "cut corner" things happening in these modern days?

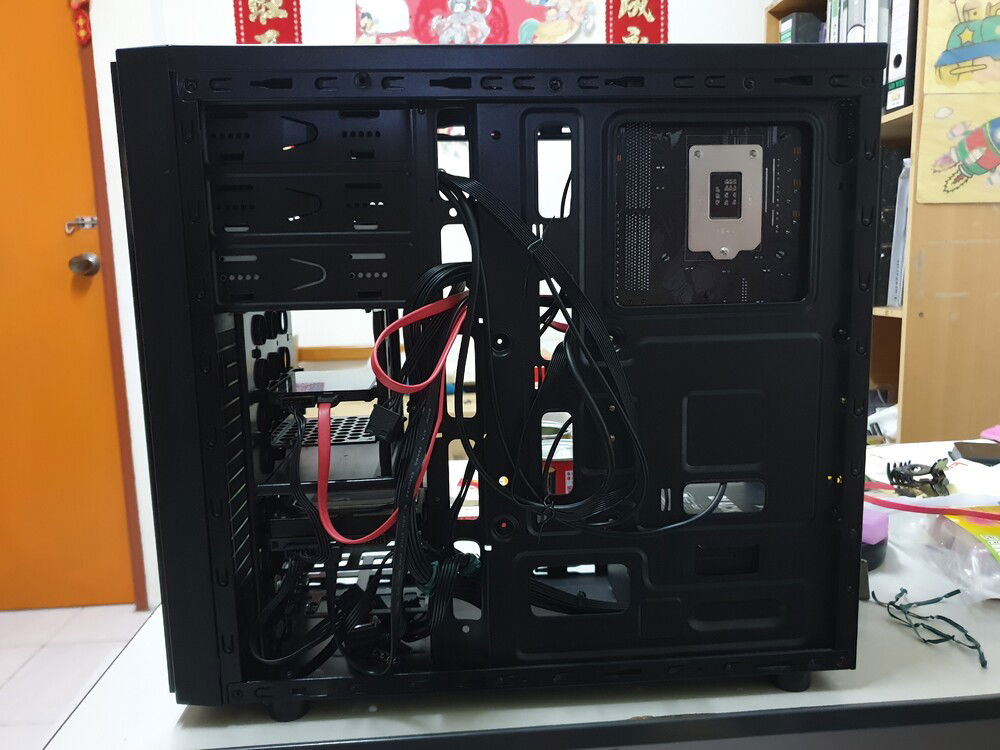

Not the best Cable management, but I tried :P
Not the best Cable management, but I tried :P

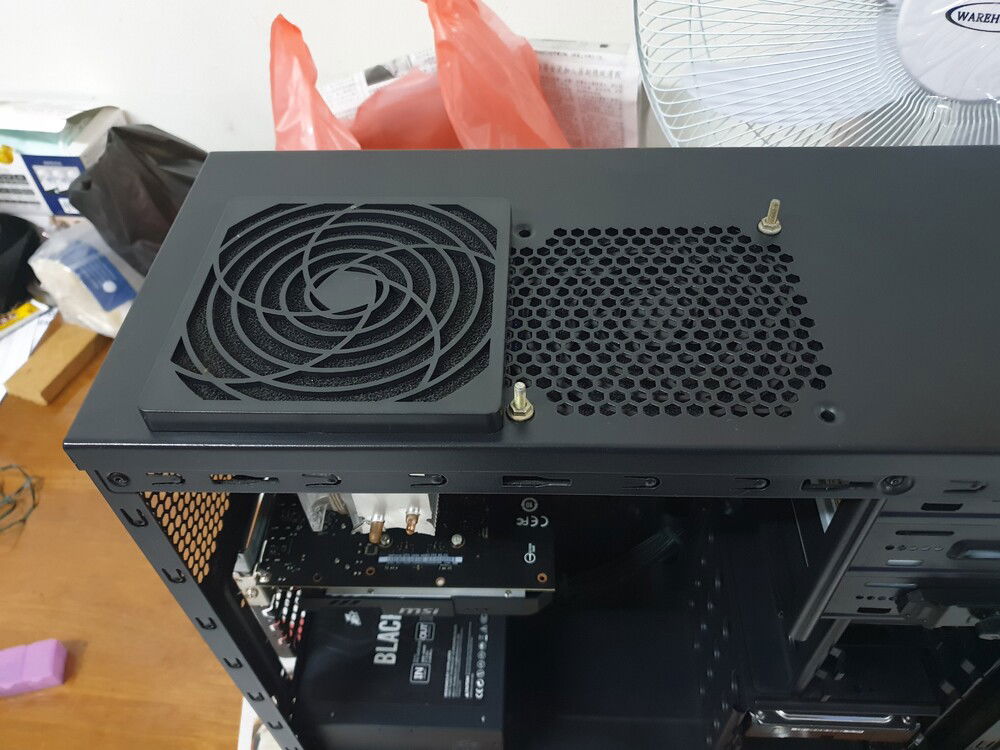

Add two dust filters on the top panel as I didn't need them, try to make two of them fit together but too bulky so, here's some funky setup
Add two dust filters on the top panel as I didn't need them, try to make two of them fit together but too bulky so, here's some funky setup

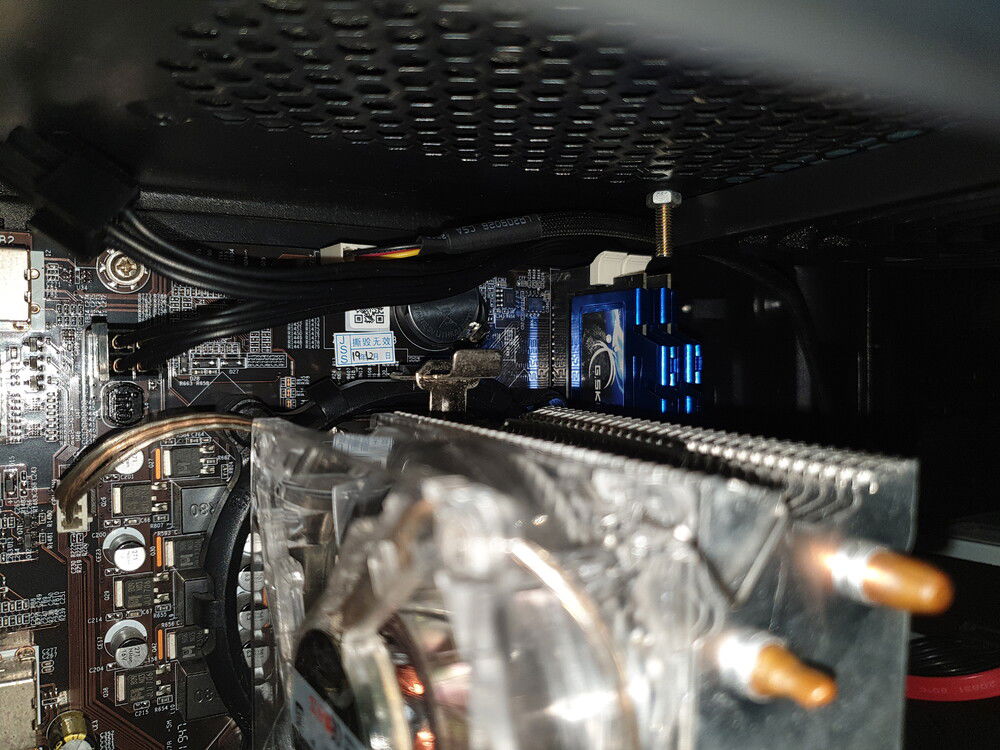

At least the screw didn't hit the motherboard or anything but would be hard when replacing the motherboard in the future
At least the screw didn't hit the motherboard or anything but would be hard when replacing the motherboard in the future

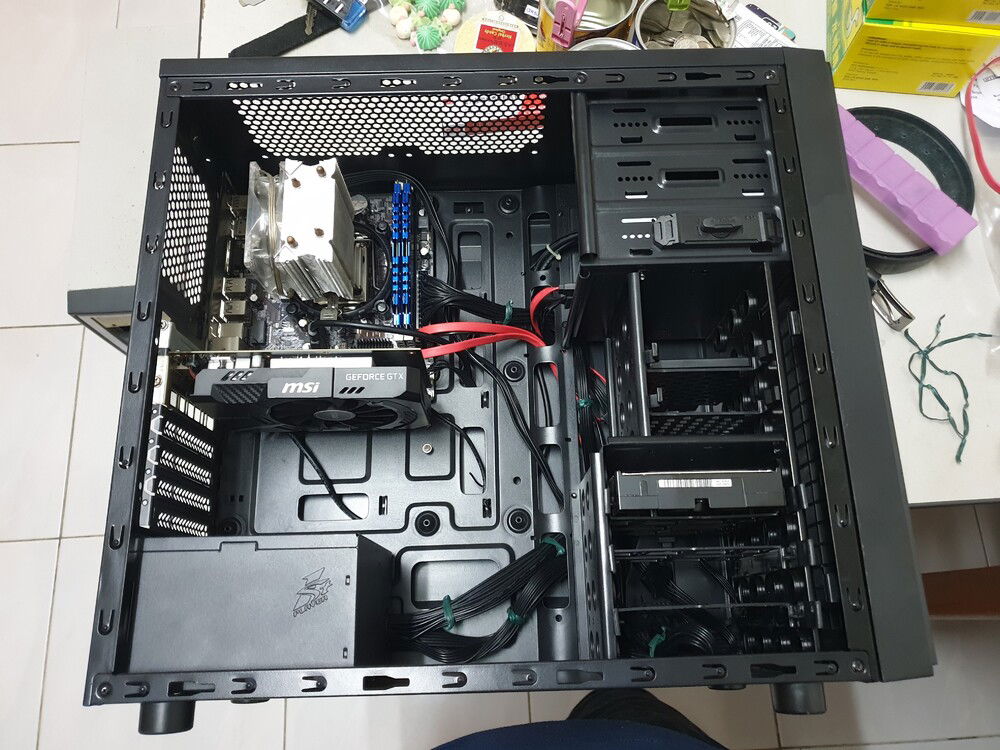

The casing that's being tossed away, now become my new casing (sort of because of the rust, not noticeable)
The casing that's being tossed away, now become my new casing (sort of because of the rust, not noticeable)

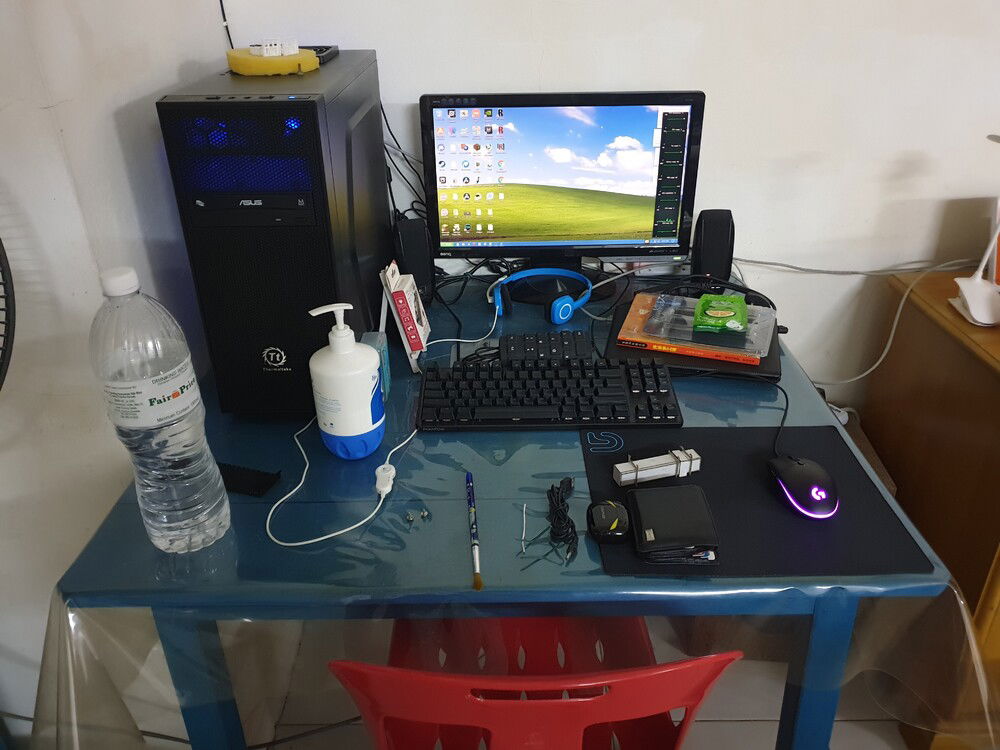

And here we... Wait, why is my CPU and GPU overheating?
And here we... Wait, why is my CPU and GPU overheating?

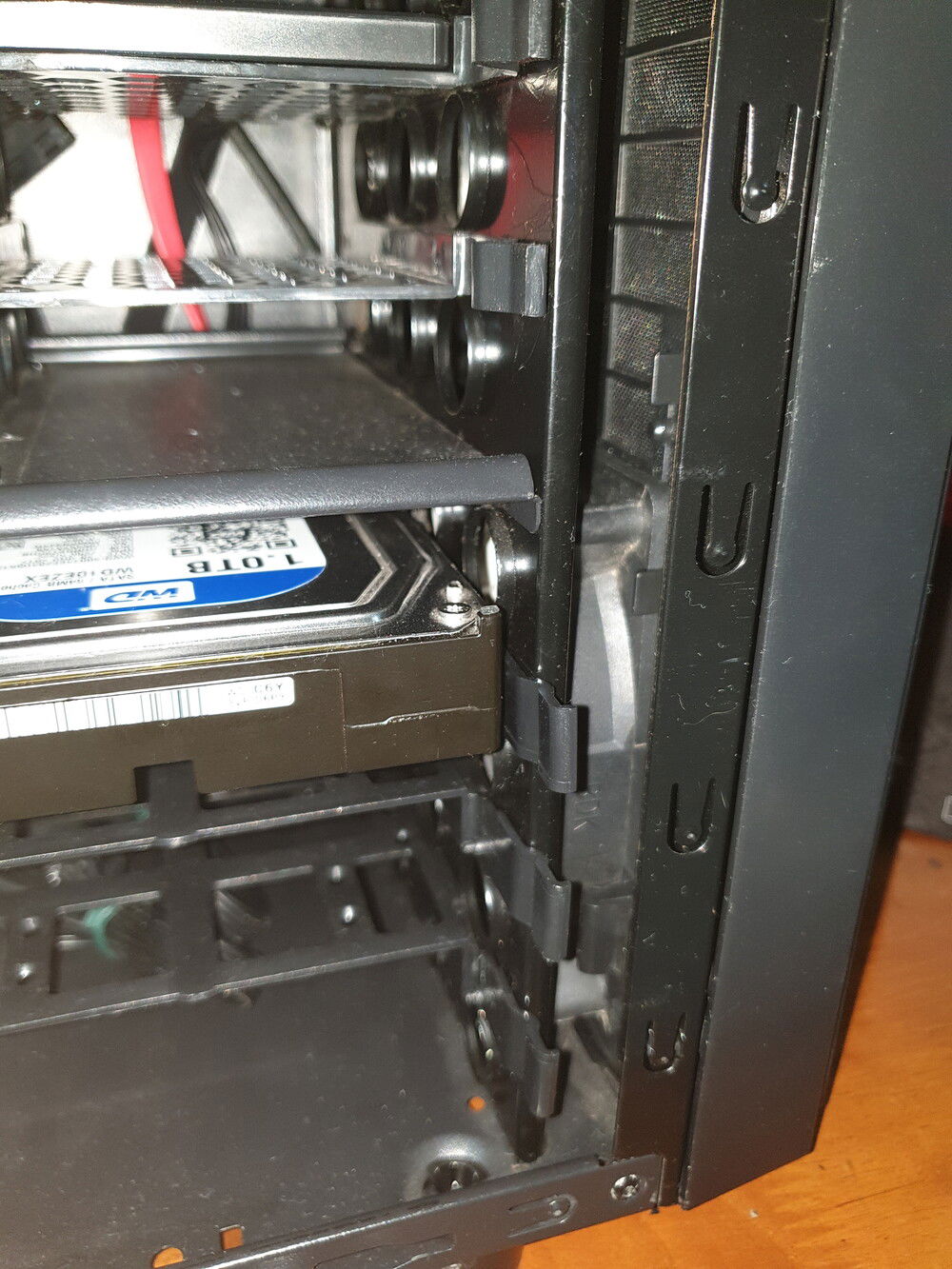

There, a fan at the front panel, it should do the job, and maybe make the hard disk chill a bit
There, a fan at the front panel, it should do the job, and maybe make the hard disk chill a bit

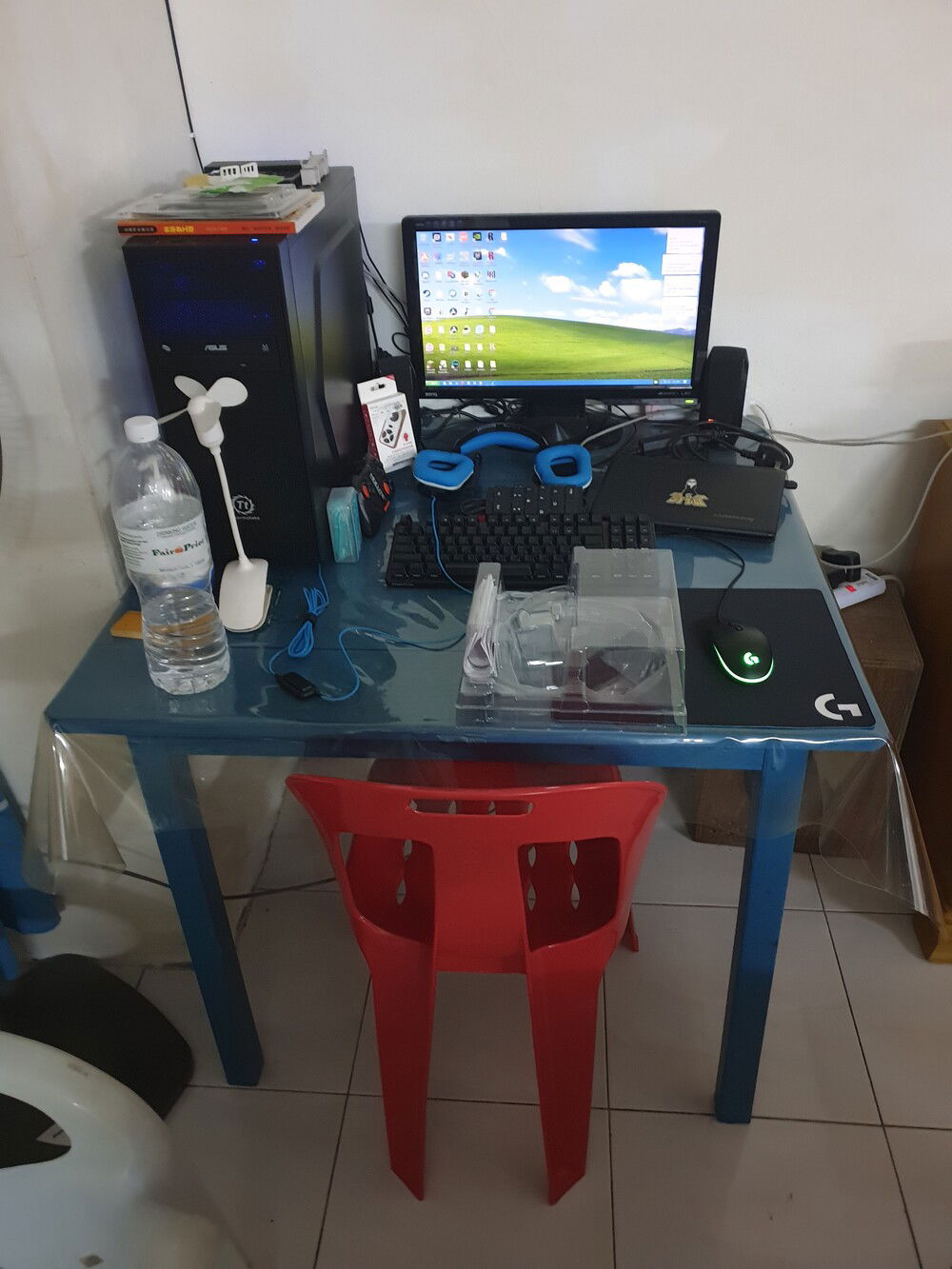

Hmmm, found the old G430 Headset, the leather was brittle and falling apart so, do some cleaning and boom, brand new (Also why did I have it in the first place? 🤔)
Hmmm, found the old G430 Headset, the leather was brittle and falling apart so, do some cleaning and boom, brand new (Also why did I have it in the first place? 🤔)

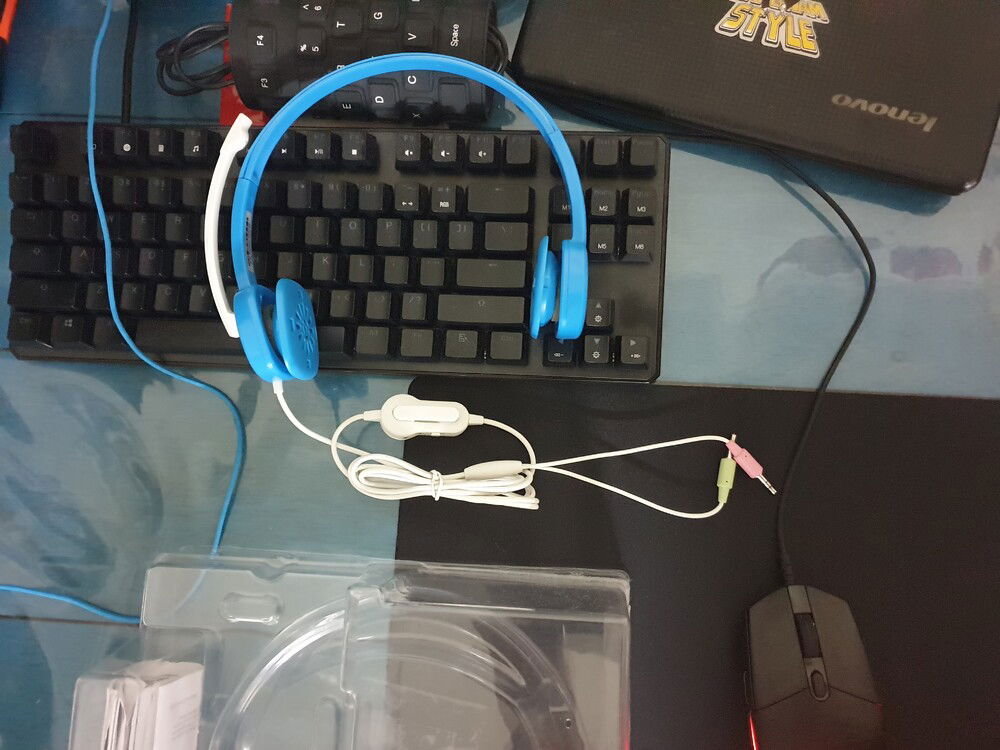

Ah, the old Headset, guess I'll keep it just in case when I need it
Ah, the old Headset, guess I'll keep it just in case when I need it

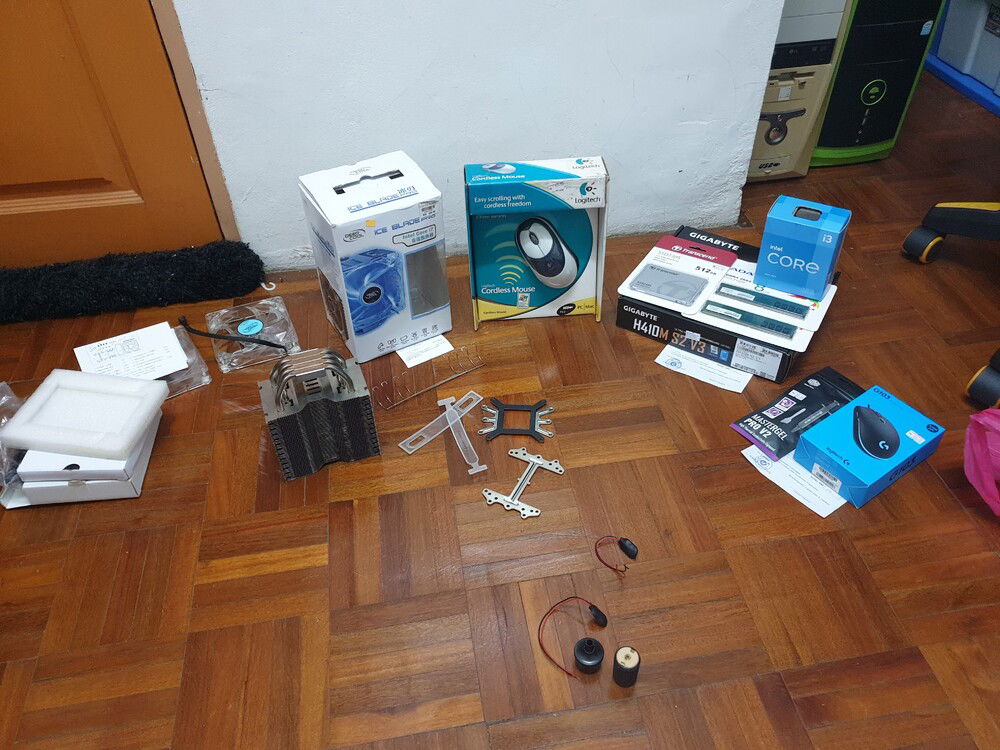

And here we are, got the whole thing purchased and ready to build
And here we are, got the whole thing purchased and ready to build

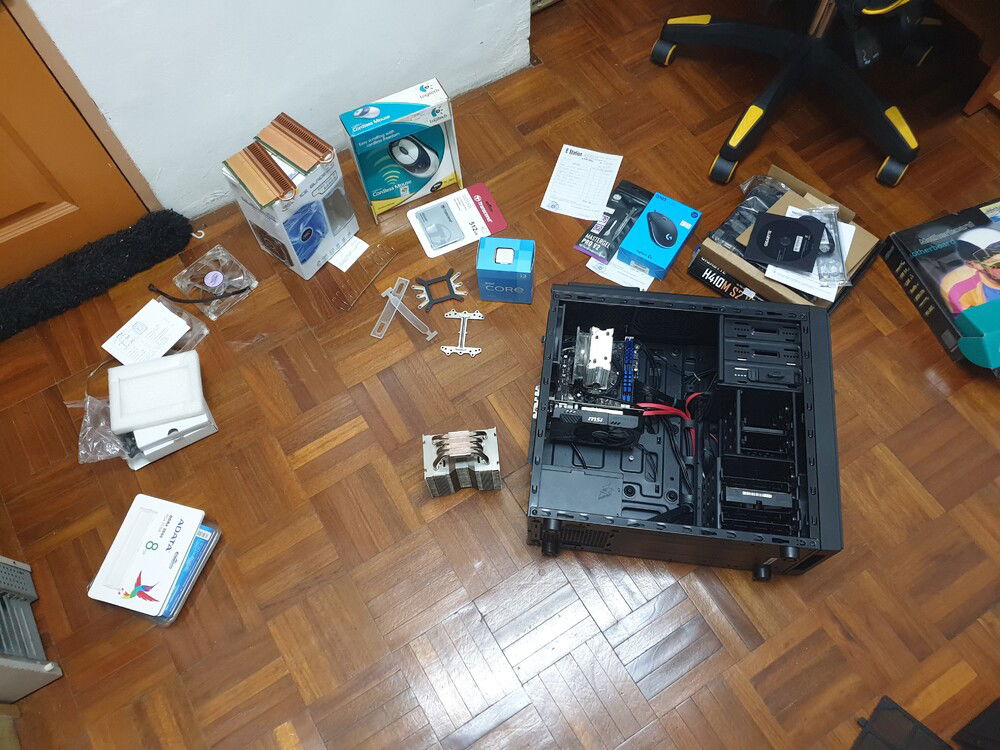

Time to upgrade :P
Time to upgrade :P

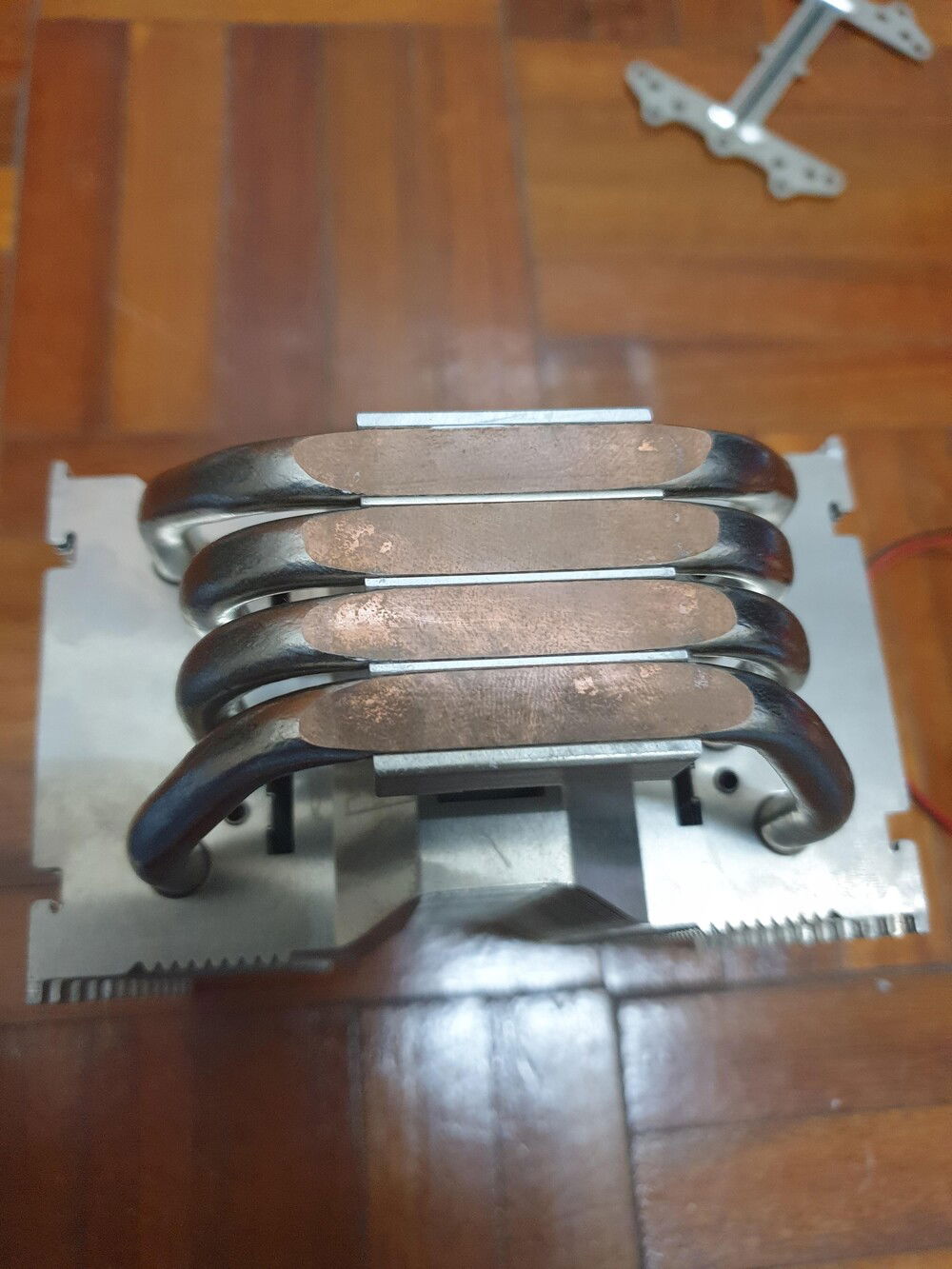

Ewww, this heatsink must be standing on the shelf probably over a decade already
Ewww, this heatsink must be standing on the shelf probably over a decade already

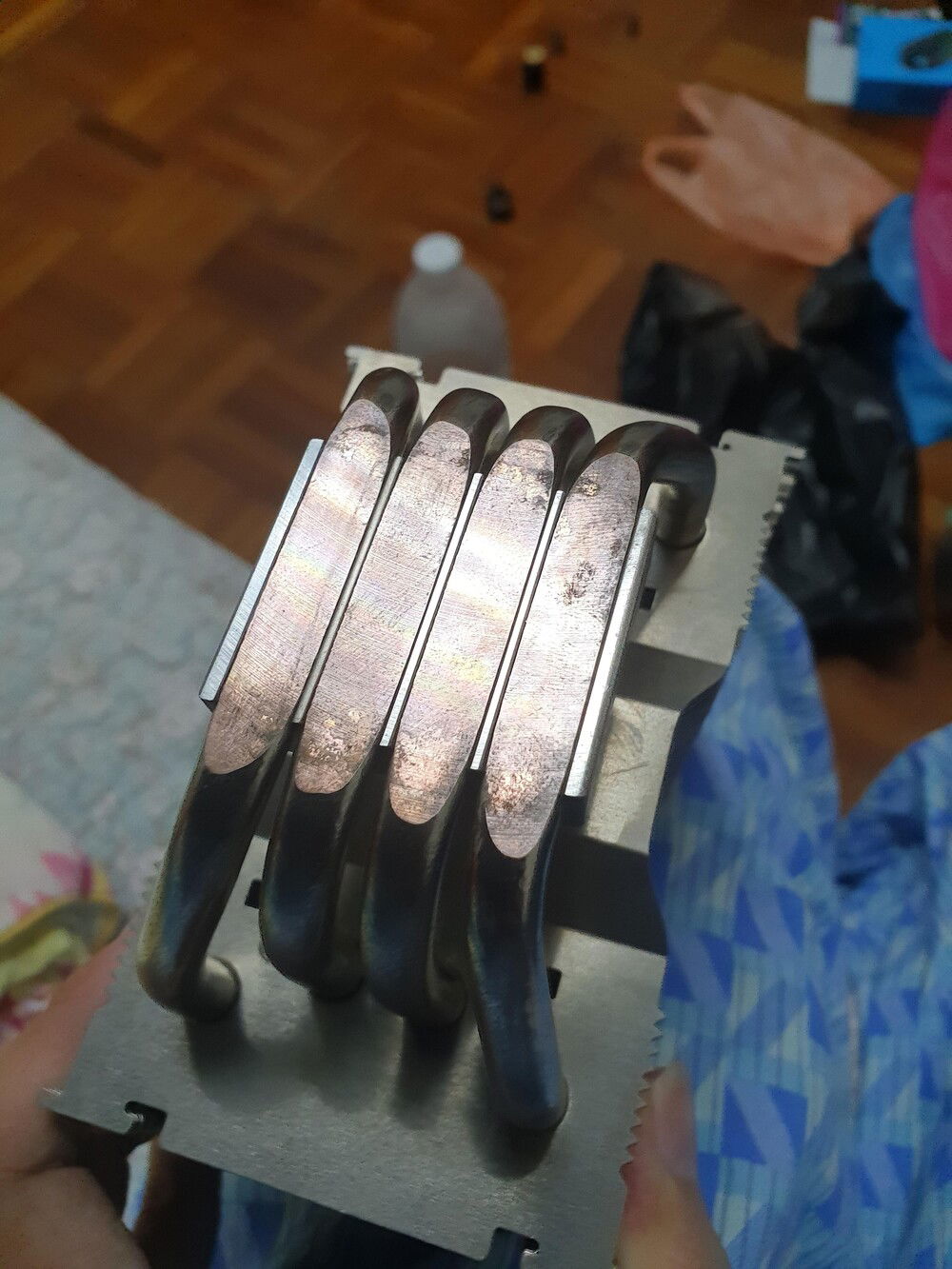

Much better, tho I couldn't clean it fully but my OCD is satisfied
Much better, tho I couldn't clean it fully but my OCD is satisfied

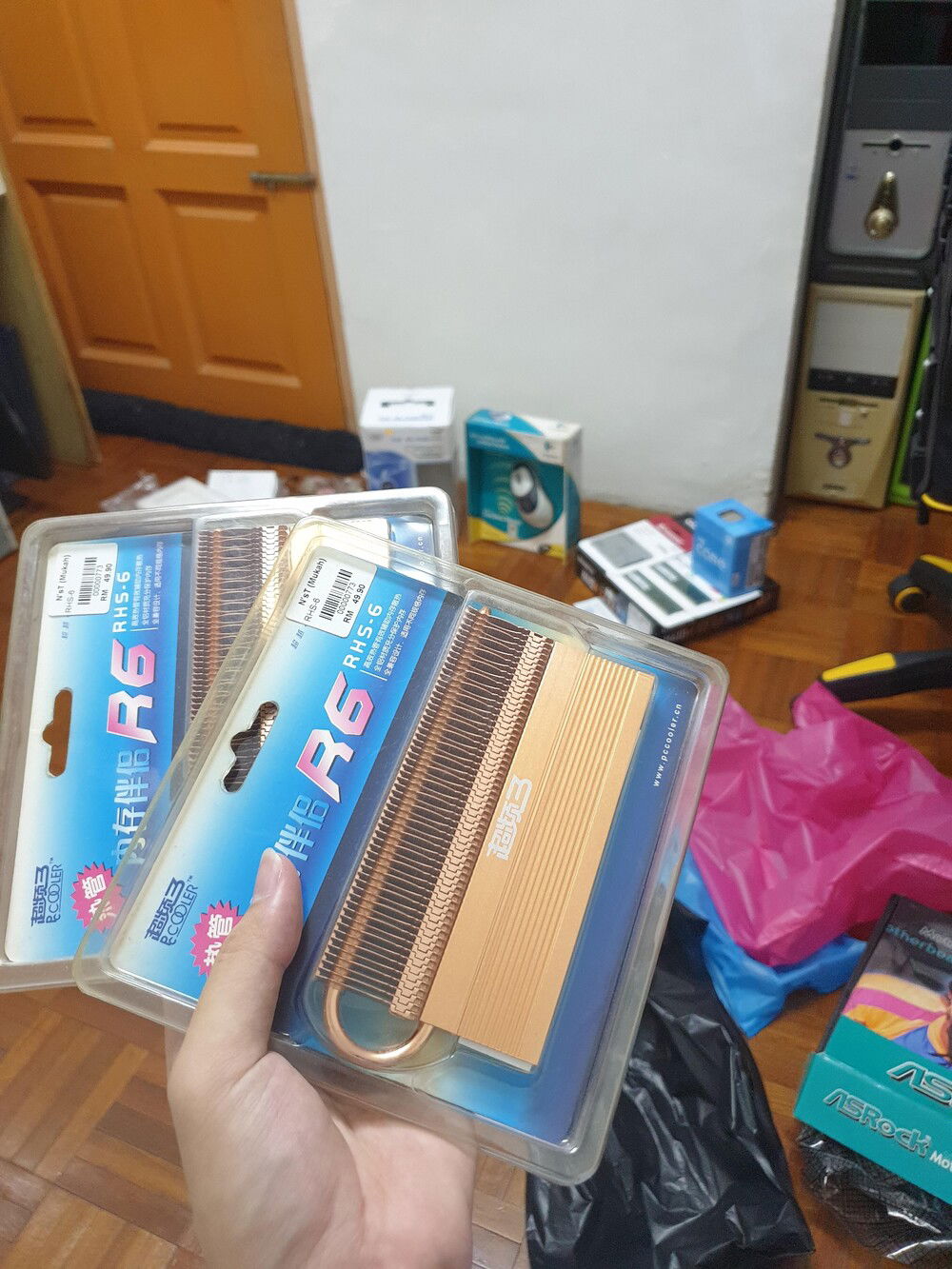

RAM Heatsink Decoration, grab them while looking for the old heatsink for passive cooling, looking cool tho
RAM Heatsink Decoration, grab them while looking for the old heatsink for passive cooling, looking cool tho

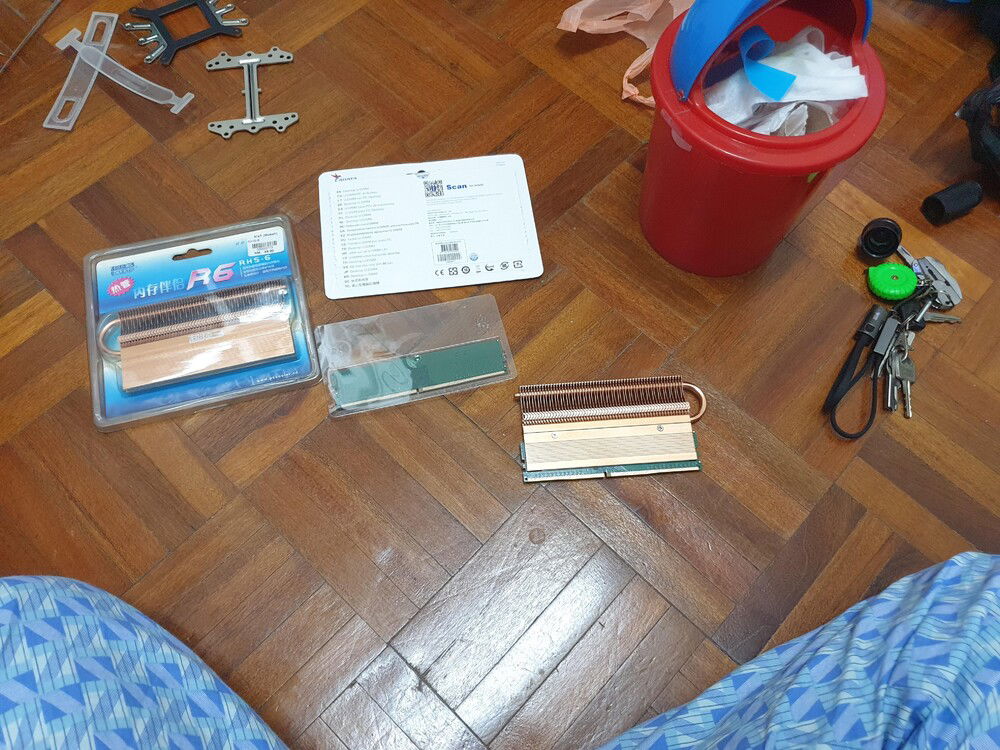

Boom, got one done, one more to do
Boom, got one done, one more to do

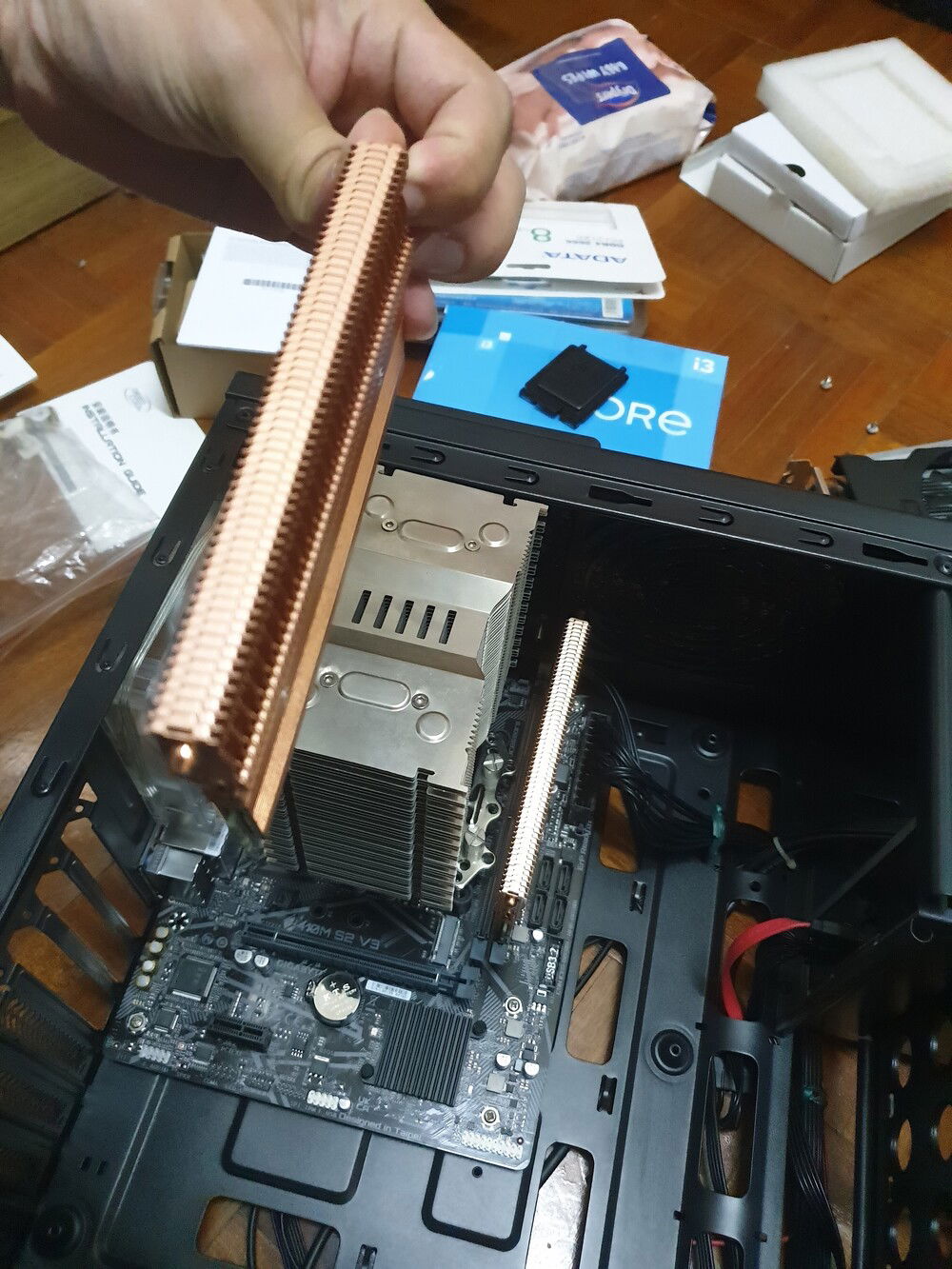

And time to install the uhhhhh NEVERMIND
And time to install the uhhhhh NEVERMIND

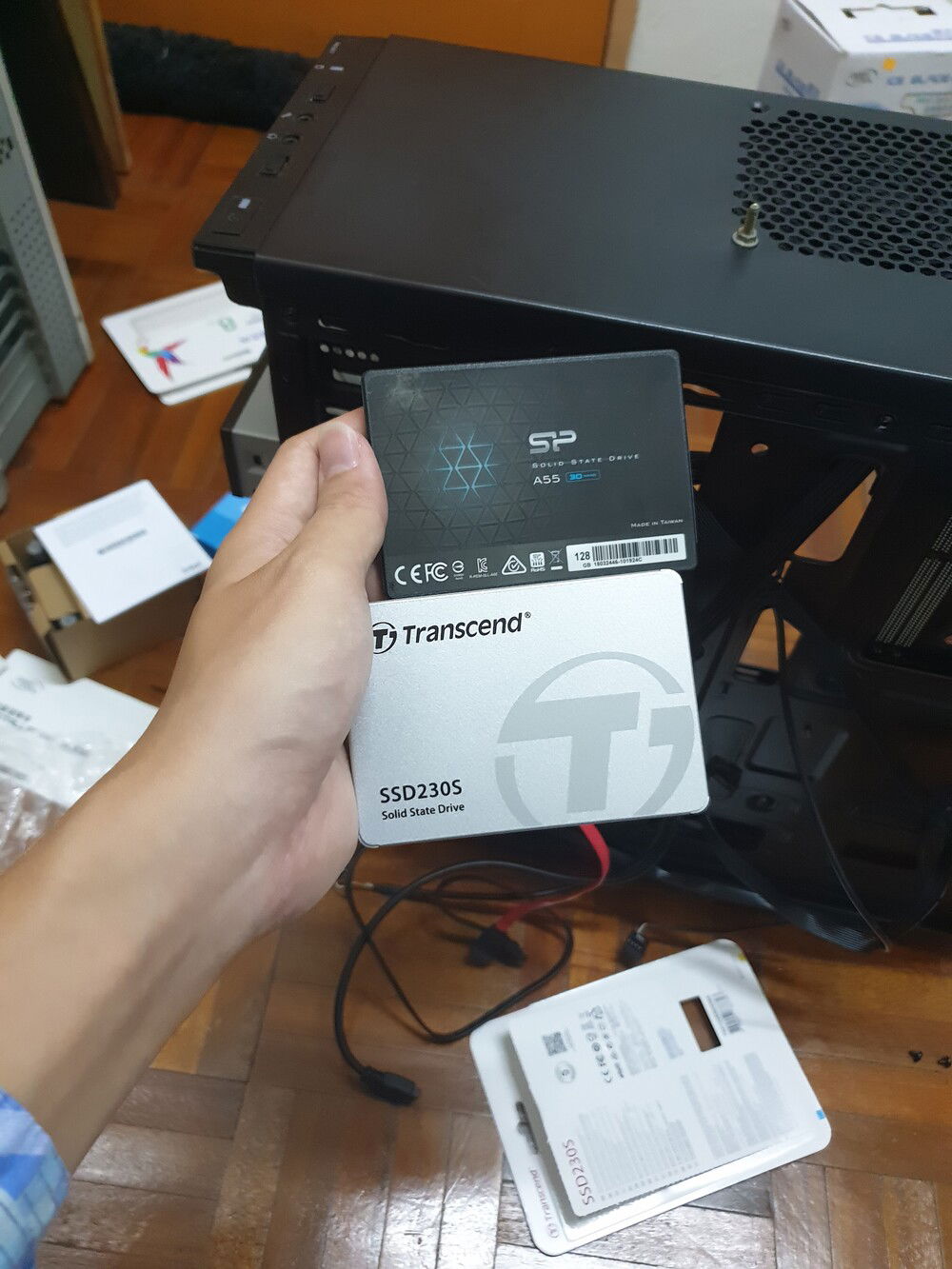

Upgrade the SSD as well (I've running out of storage :v)
Upgrade the SSD as well (I've running out of storage :v)

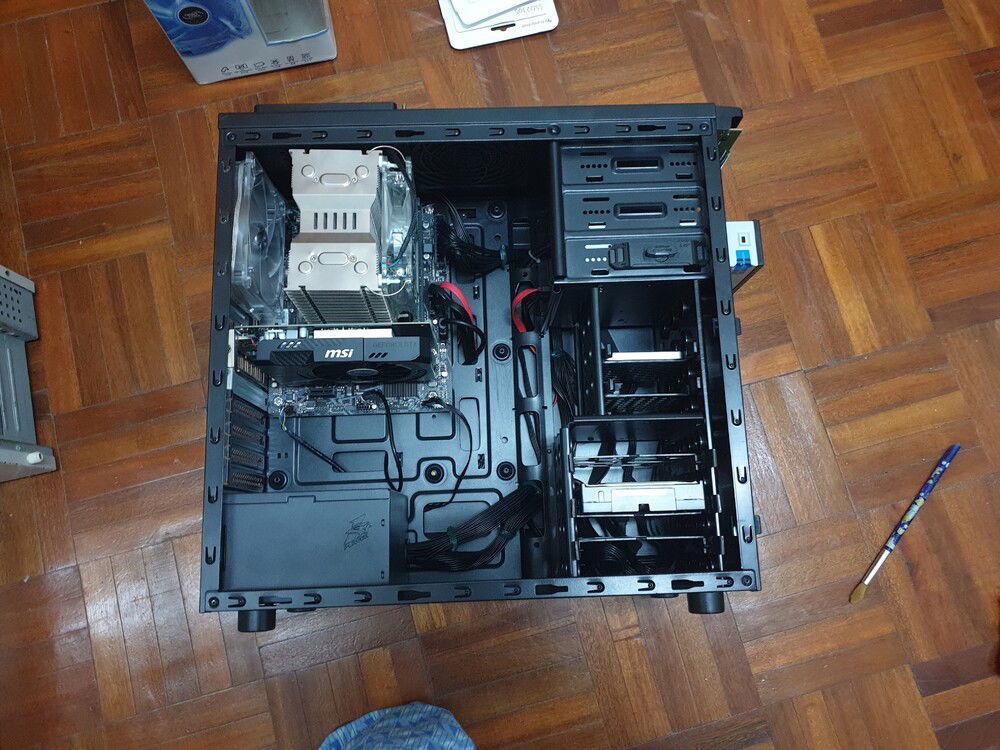

Here's the view for the whole build without cover (Forgot to mention I got two of the fan that are mounted at front)
Here's the view for the whole build without cover (Forgot to mention I got two of the fan that are mounted at front)

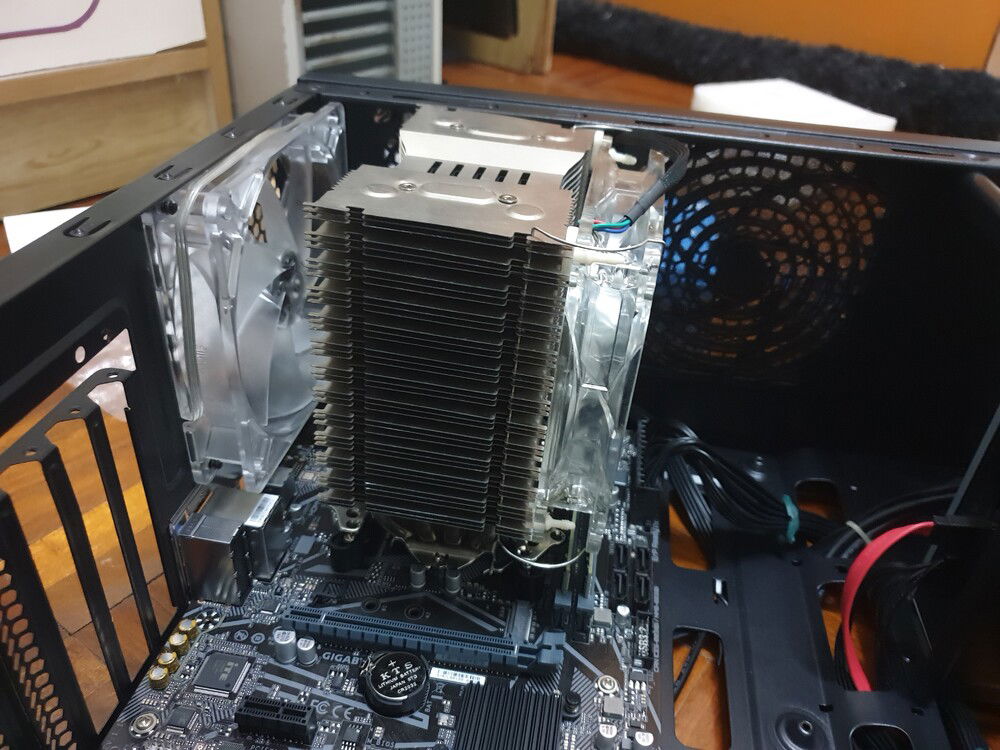

Sweet Jesus, this isn't what I've expected o.o
Sweet Jesus, this isn't what I've expected o.o

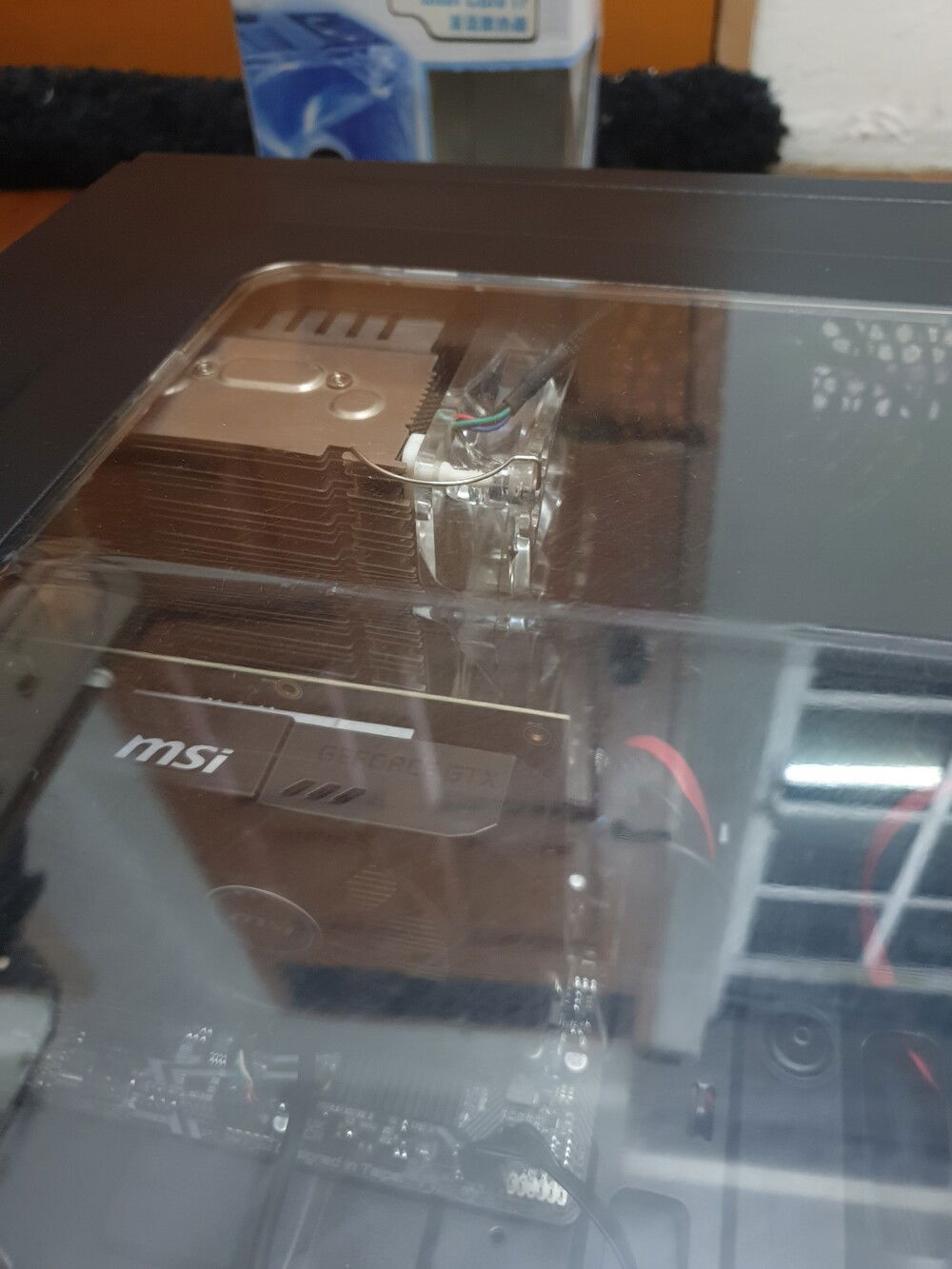

It just uhhh, fit? Wasn't expect for that :L
It just uhhh, fit? Wasn't expect for that :L

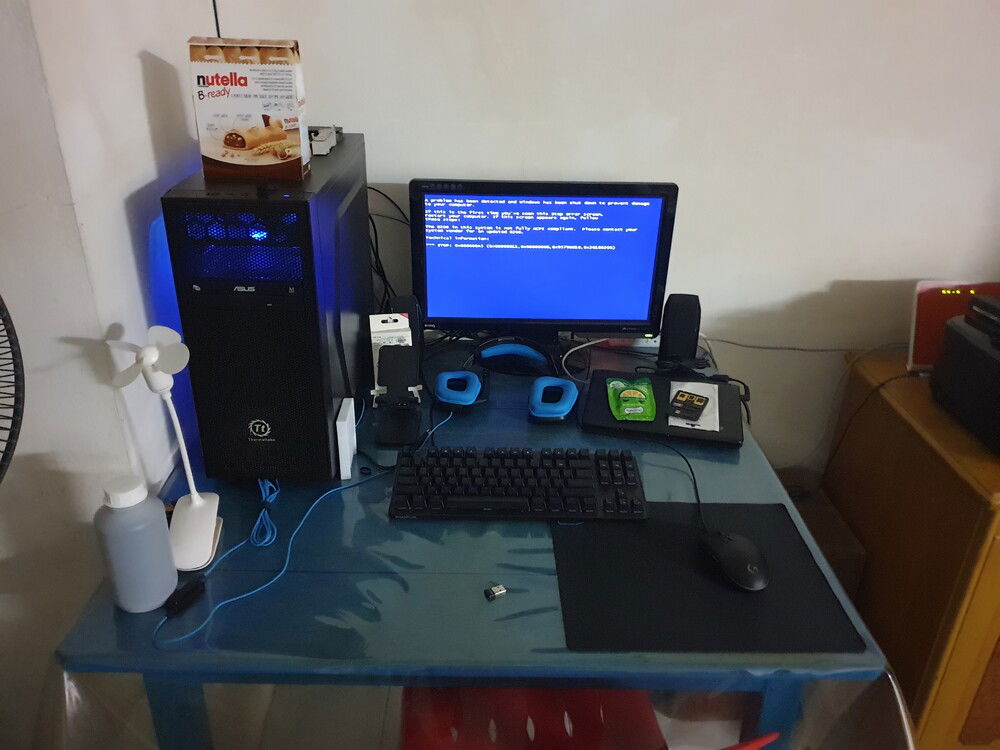

Bruh, I've tried to install Windows 7 on this thing directly but didn't realize the driver doesn't exist nor supported on win7 installation
Bruh, I've tried to install Windows 7 on this thing directly but didn't realize the driver doesn't exist nor supported on win7 installation

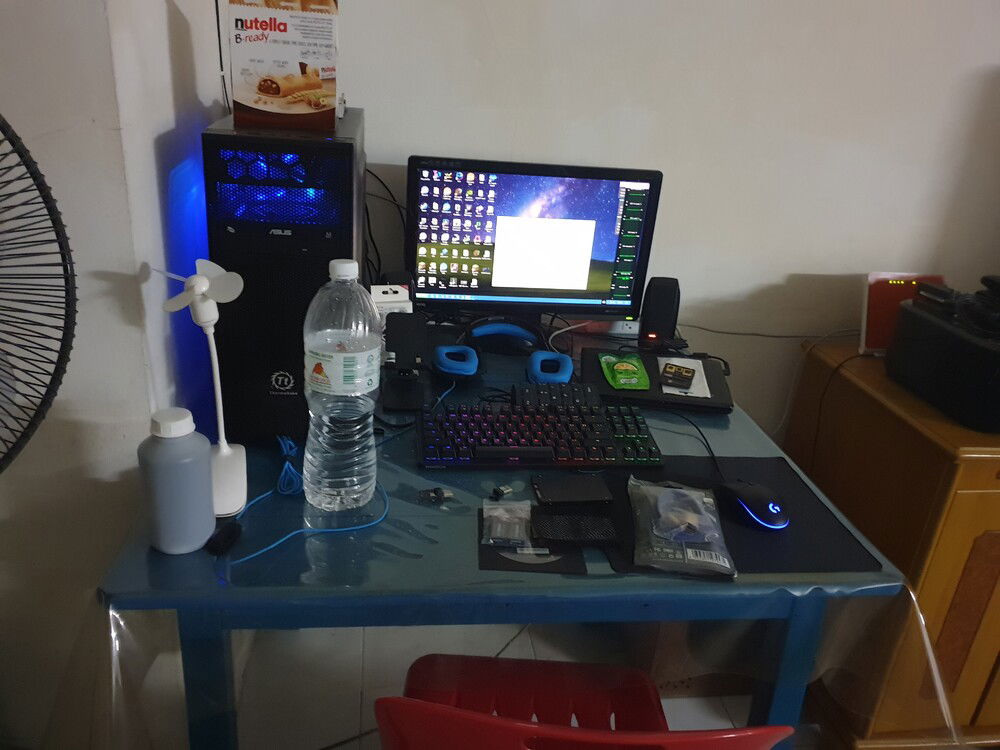

And here we are, I've done the fan tuning (lower fan speed), build the whole thing within a day, spend another day for the OS setup and it's windows 11 ready
And here we are, I've done the fan tuning (lower fan speed), build the whole thing within a day, spend another day for the OS setup and it's windows 11 ready

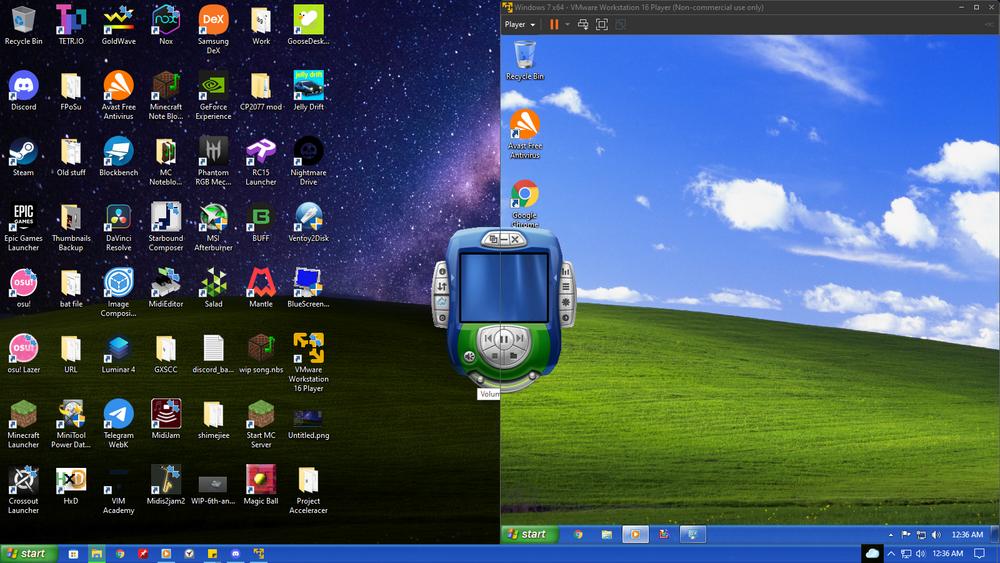

Okay, just manage to get the VM Workstation Player to work smoothly by inserting this code ulm.disableMitigations = "TRUE" into the .vmx (VMware virtual machine configuration file) and it works like a charm (tho lag sometime could occur as I'm doing multitasking thus the PC itself is underclocked)
Okay, just manage to get the VM Workstation Player to work smoothly by inserting this code ulm.disableMitigations = "TRUE" into the .vmx (VMware virtual machine configuration file) and it works like a charm (tho lag sometime could occur as I'm doing multitasking thus the PC itself is underclocked)

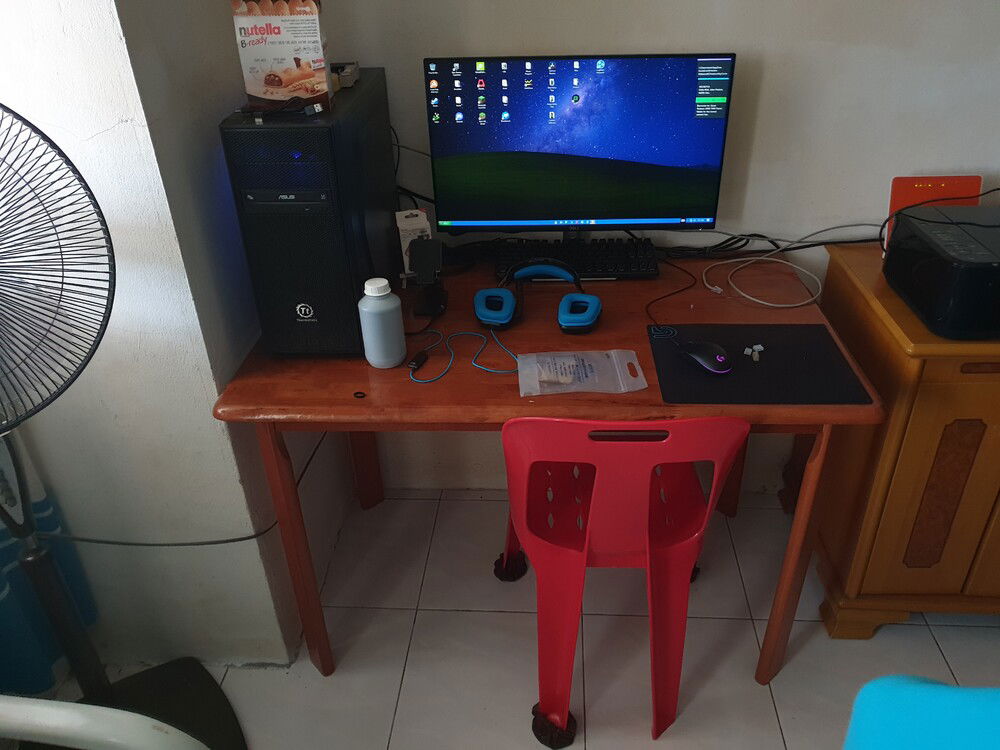

New (Second hand) Monitor And not gonna lie, it's way larger than the previous one o.o (And higher refresh rate too, forgot to mention that I've replaced the table because the display is too large lol)
New (Second hand) Monitor And not gonna lie, it's way larger than the previous one o.o (And higher refresh rate too, forgot to mention that I've replaced the table because the display is too large lol)

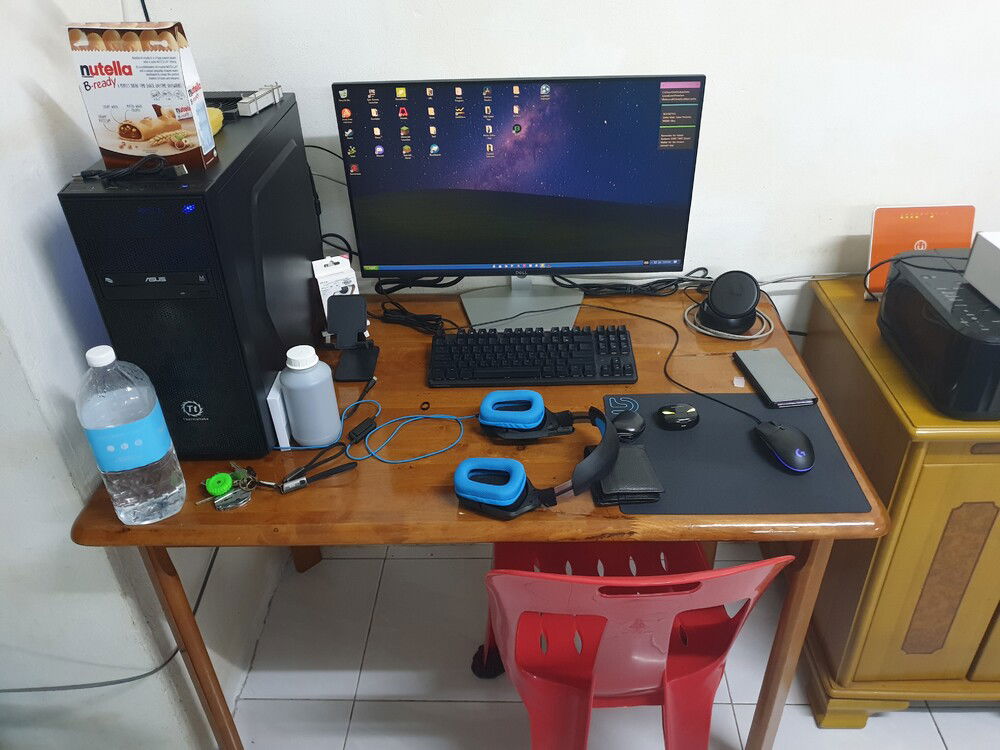

Decide to put the DeX Station beside it as the monitor support two HDMI Input thus it's collecting dust in my bedroom Tho it won't bother me to re-route the mouse and keyboard from the PC to the DeX station as I've simplified the cable mess (Fewer cable mess)
Decide to put the DeX Station beside it as the monitor support two HDMI Input thus it's collecting dust in my bedroom Tho it won't bother me to re-route the mouse and keyboard from the PC to the DeX station as I've simplified the cable mess (Fewer cable mess)

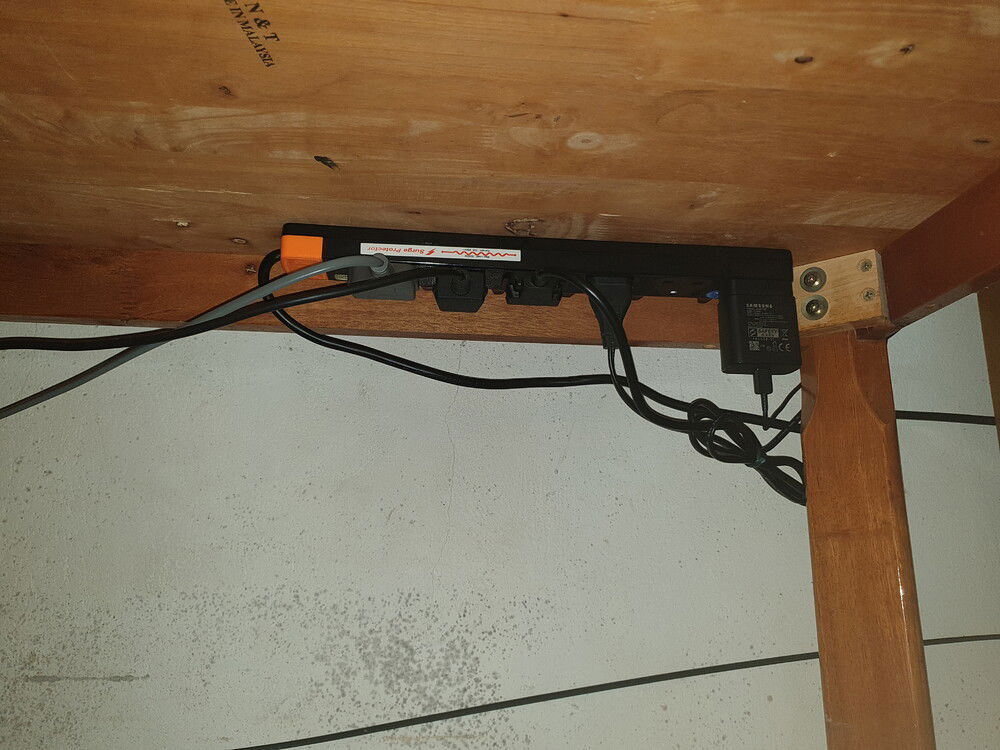

Hmmm, feel like I could do something here?
Hmmm, feel like I could do something here?

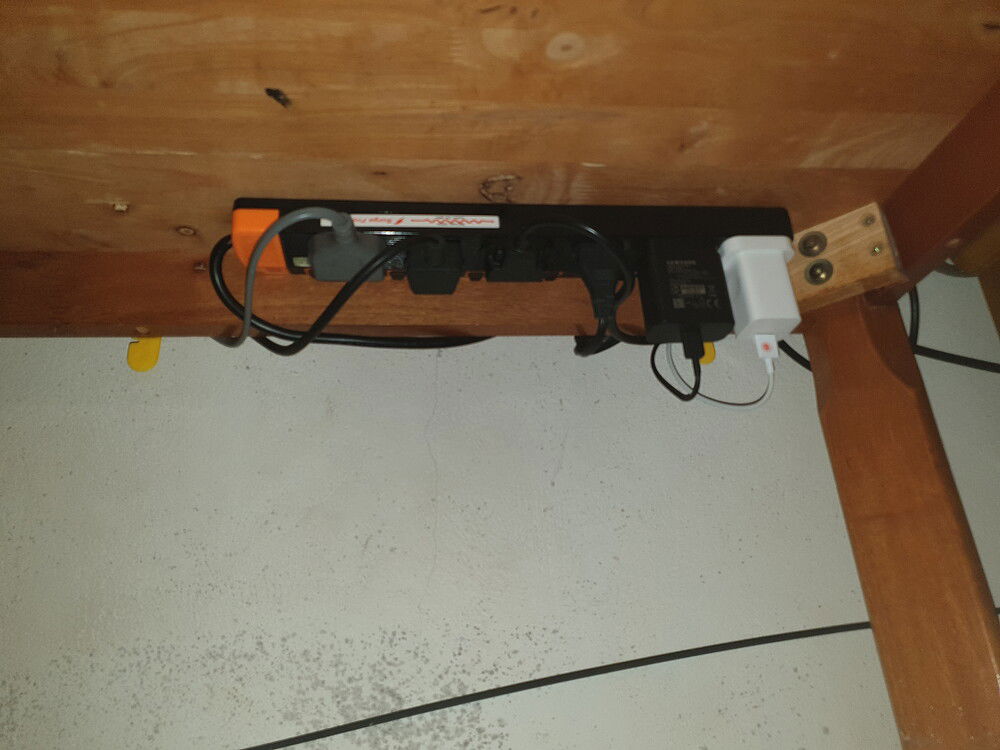

Okay, at least it's not that messy anymore. Also found another unused fast charging adapter, yoink
Okay, at least it's not that messy anymore. Also found another unused fast charging adapter, yoink

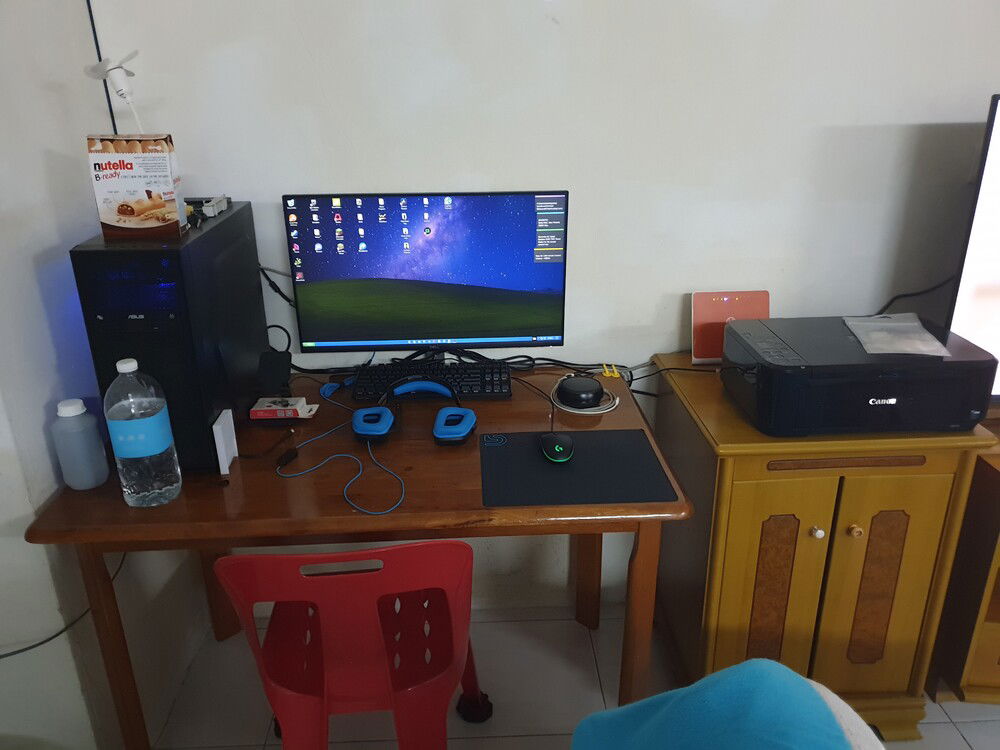

Ah yes, fewer cable mess compare to last year's build
Ah yes, fewer cable mess compare to last year's build

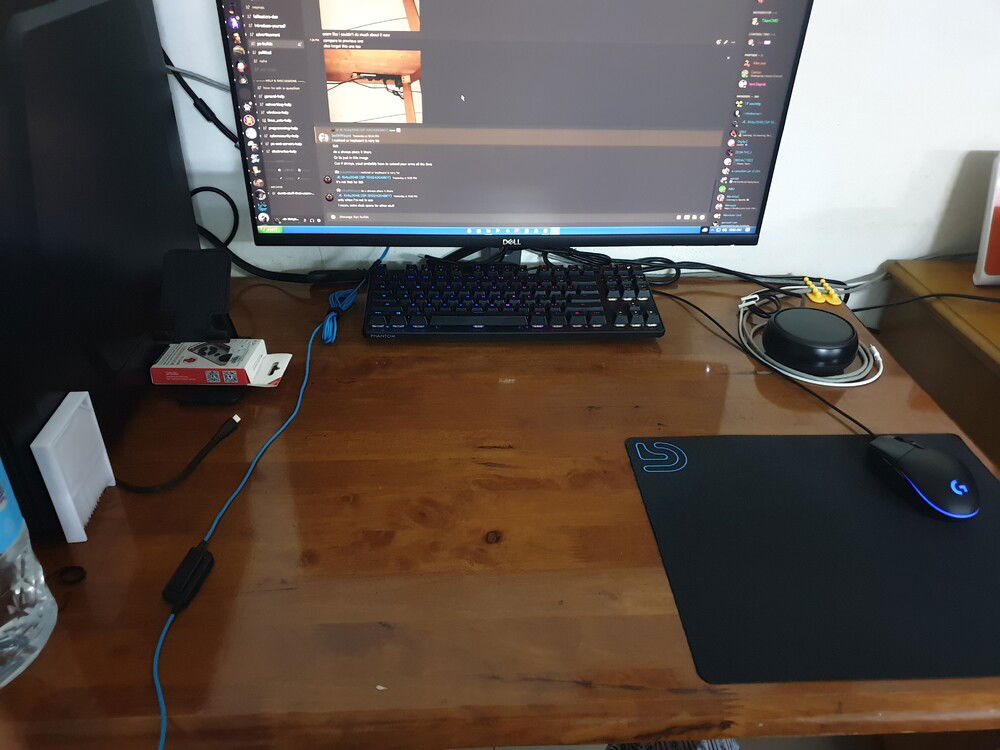

And after moving the keyboard away, I'm pretty much good to sleep on the table (Just Kidding)
And after moving the keyboard away, I'm pretty much good to sleep on the table (Just Kidding)

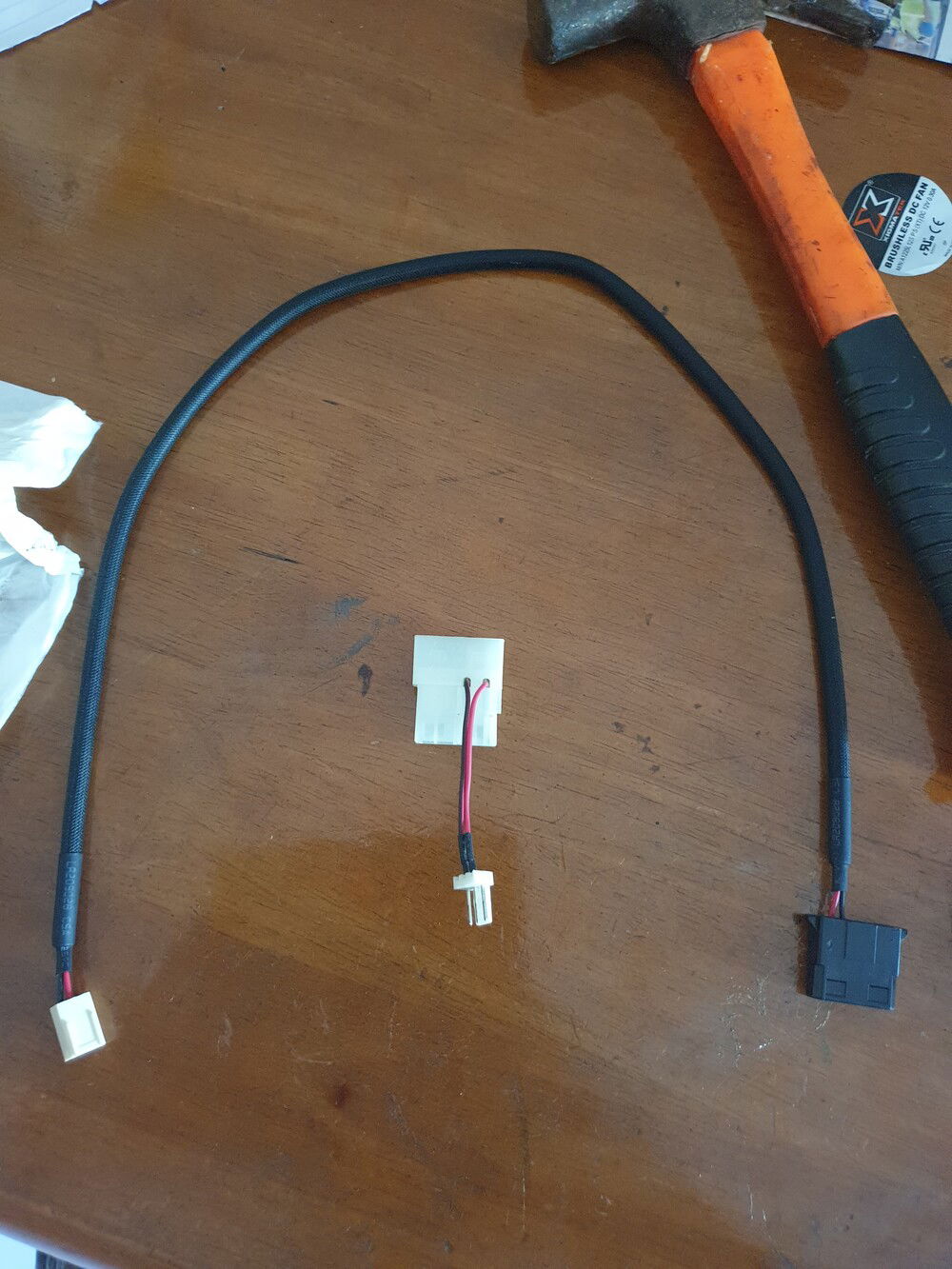

Decide to do some fan modding, as there isn't any 3-Pin Female Fan Adapter to 4-Pin Male Molex available in my local shop (it's too rare to find) other than 3-Pin Male Fan Adapter to 4-Pin Male Molex (which is very common)
Decide to do some fan modding, as there isn't any 3-Pin Female Fan Adapter to 4-Pin Male Molex available in my local shop (it's too rare to find) other than 3-Pin Male Fan Adapter to 4-Pin Male Molex (which is very common)

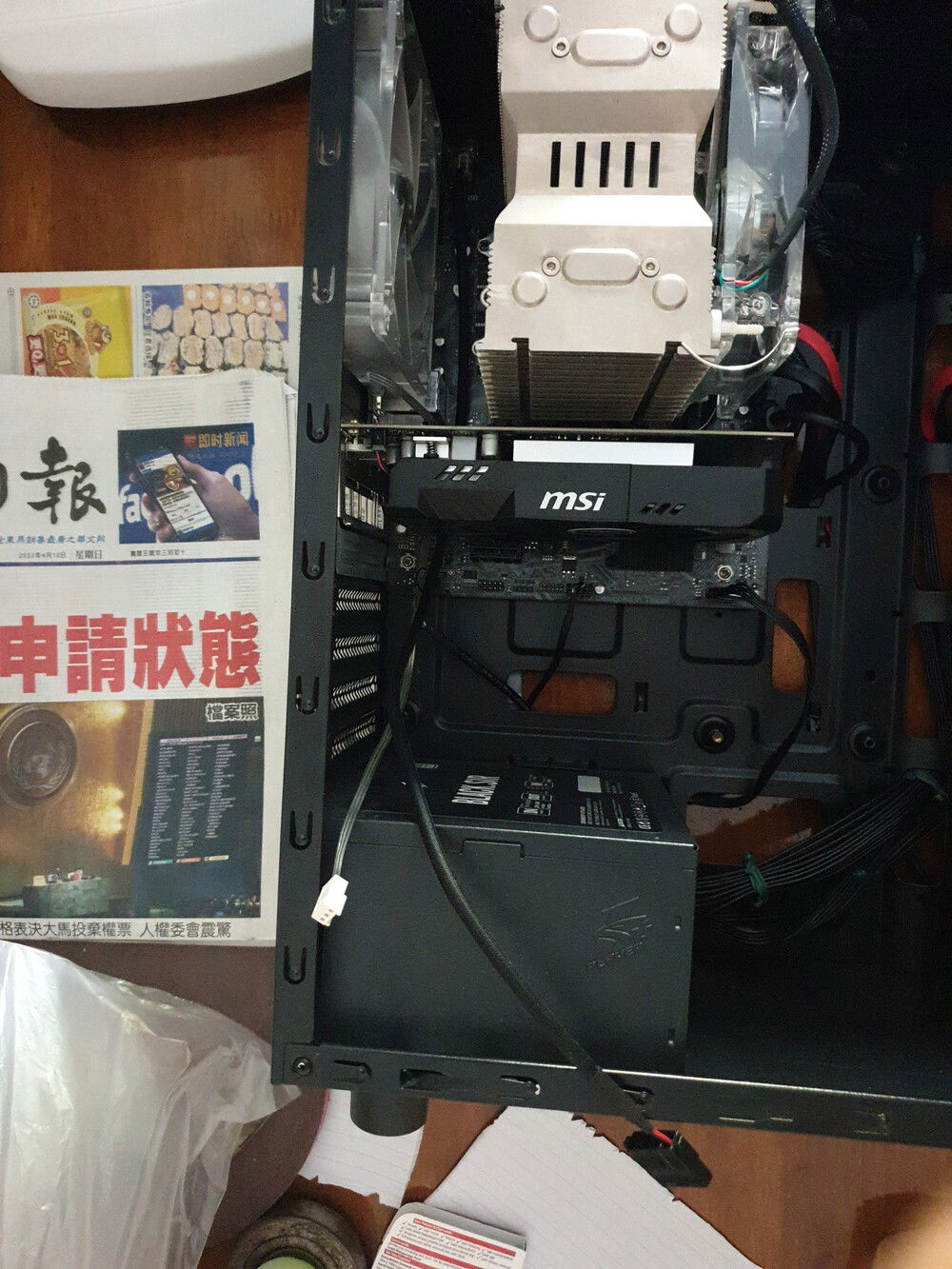

Welp, that's a tight fit :v Really tight that I have to use the chopstick to operate it (Yes, I know how to use the chopstick as well, and no, my hand won't fit into that gap even with the rear fan removed) In case you're wondering, I'm attempting to modify the front fan (which is using 4-Pin Molex) and combined the rear fan (so both would run at "low rpm" speed) And yes, I've set my motherboard's fan operation mode to voltage instead of PWM, and fan detection disabled
Welp, that's a tight fit :v Really tight that I have to use the chopstick to operate it (Yes, I know how to use the chopstick as well, and no, my hand won't fit into that gap even with the rear fan removed) In case you're wondering, I'm attempting to modify the front fan (which is using 4-Pin Molex) and combined the rear fan (so both would run at "low rpm" speed) And yes, I've set my motherboard's fan operation mode to voltage instead of PWM, and fan detection disabled

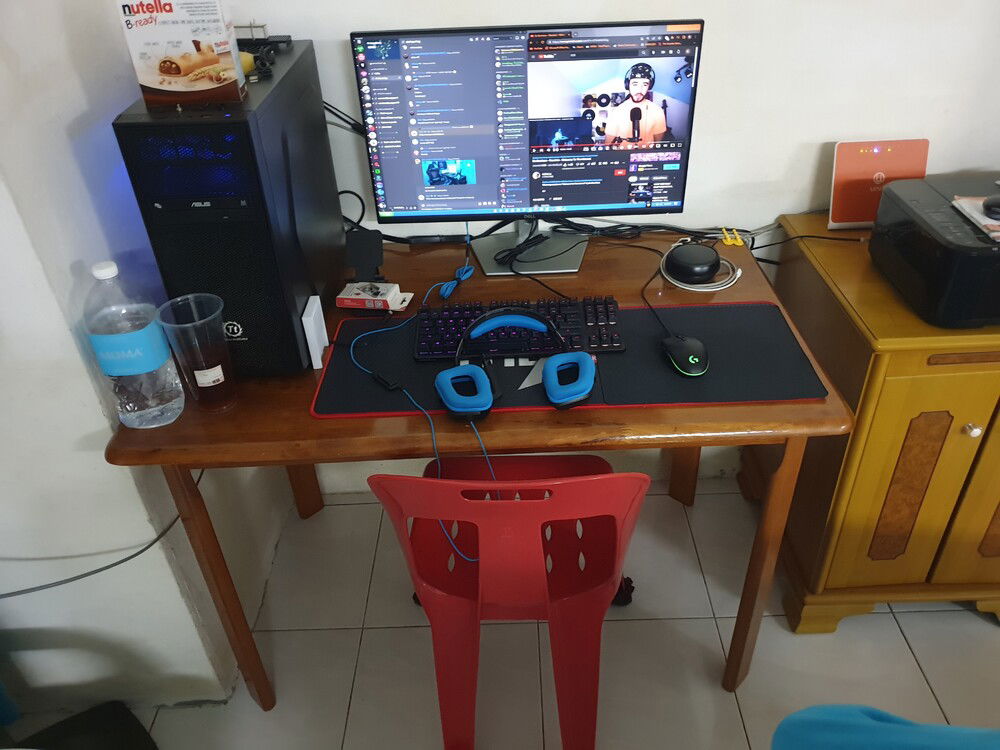

Put the wide mousepad on and done The final form =w=
Put the wide mousepad on and done The final form =w=

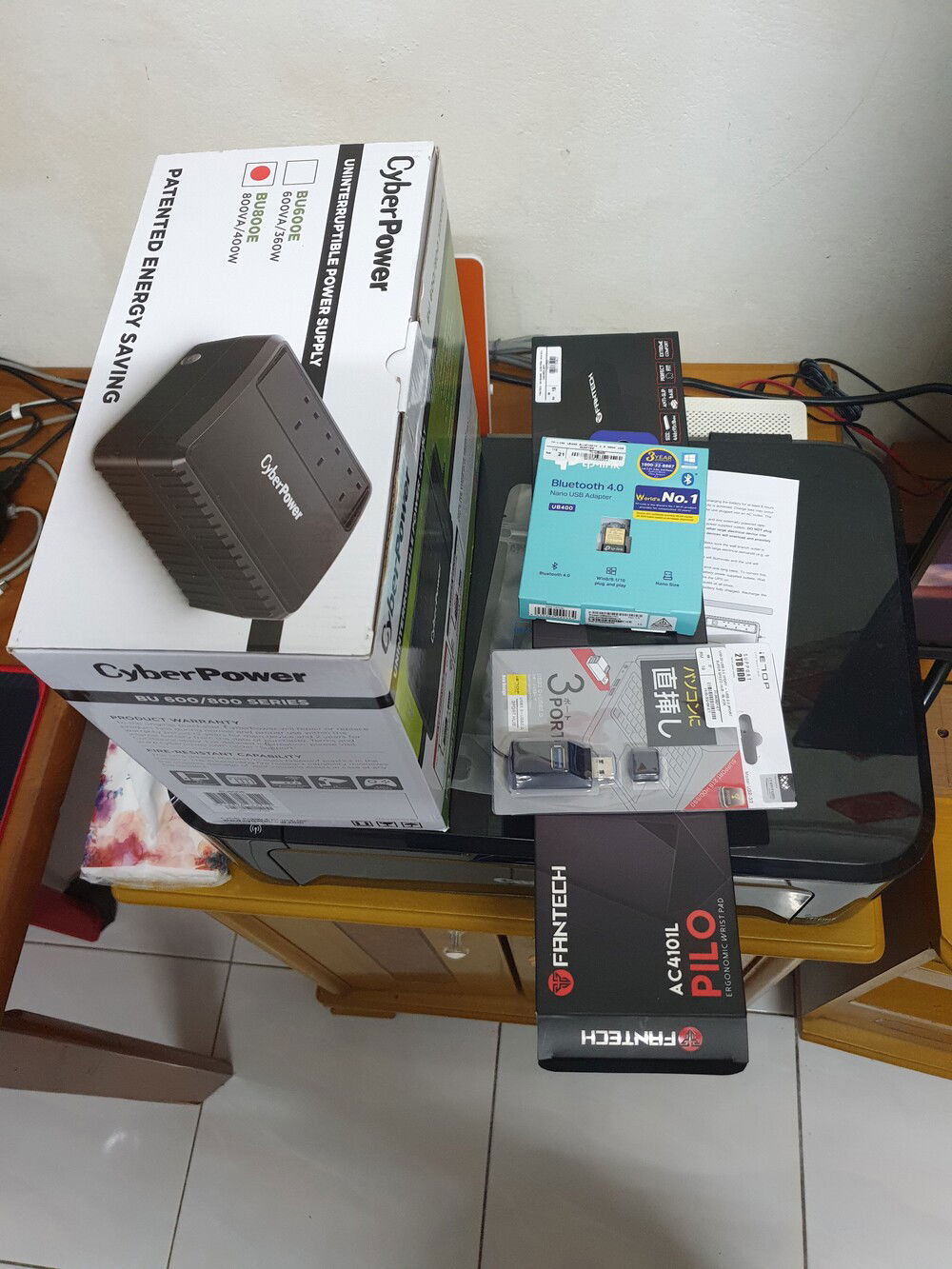

Okay, got the rest of the thing
Okay, got the rest of the thing

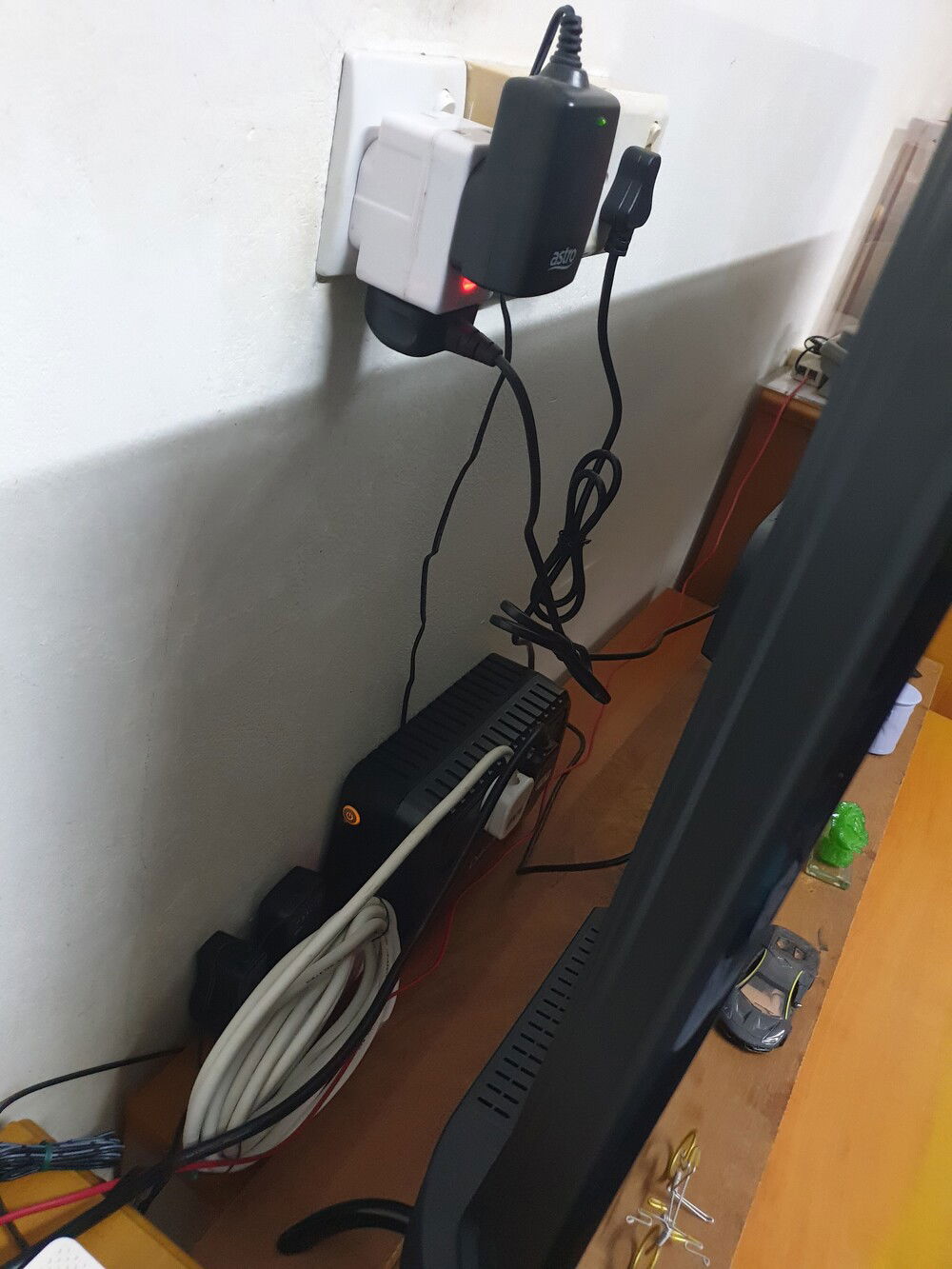

There, cheap UPS couldn't last longer than 10 minutes, but it should be enough for me to save anything during the blackout
There, cheap UPS couldn't last longer than 10 minutes, but it should be enough for me to save anything during the blackout

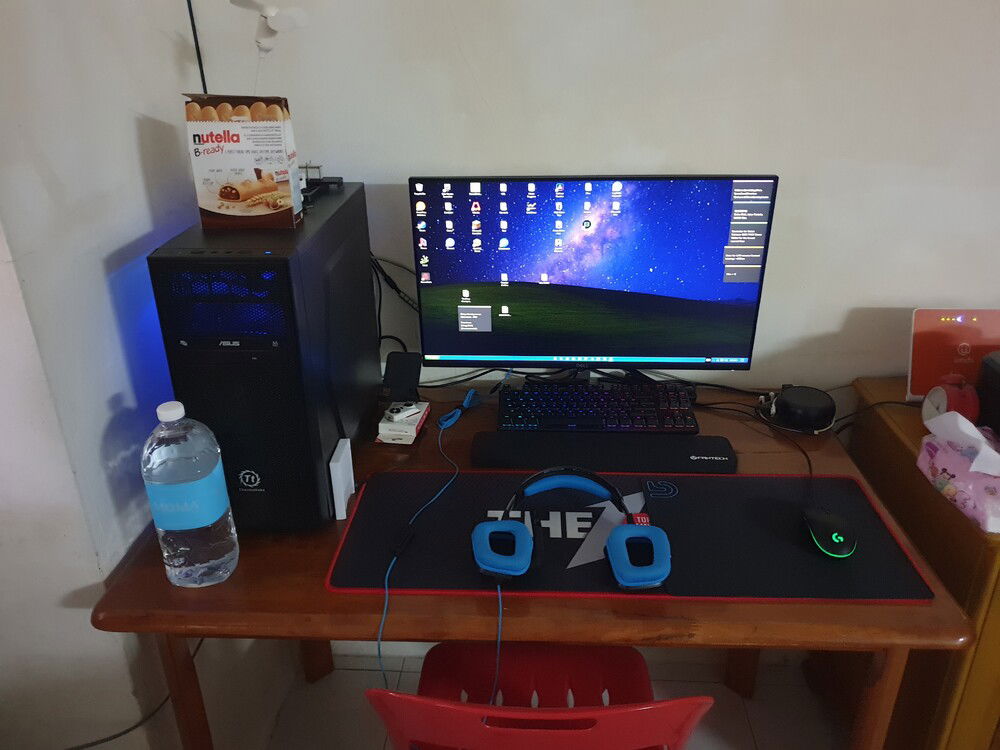

Forgot to update the pic as it's not up-to-date
Forgot to update the pic as it's not up-to-date

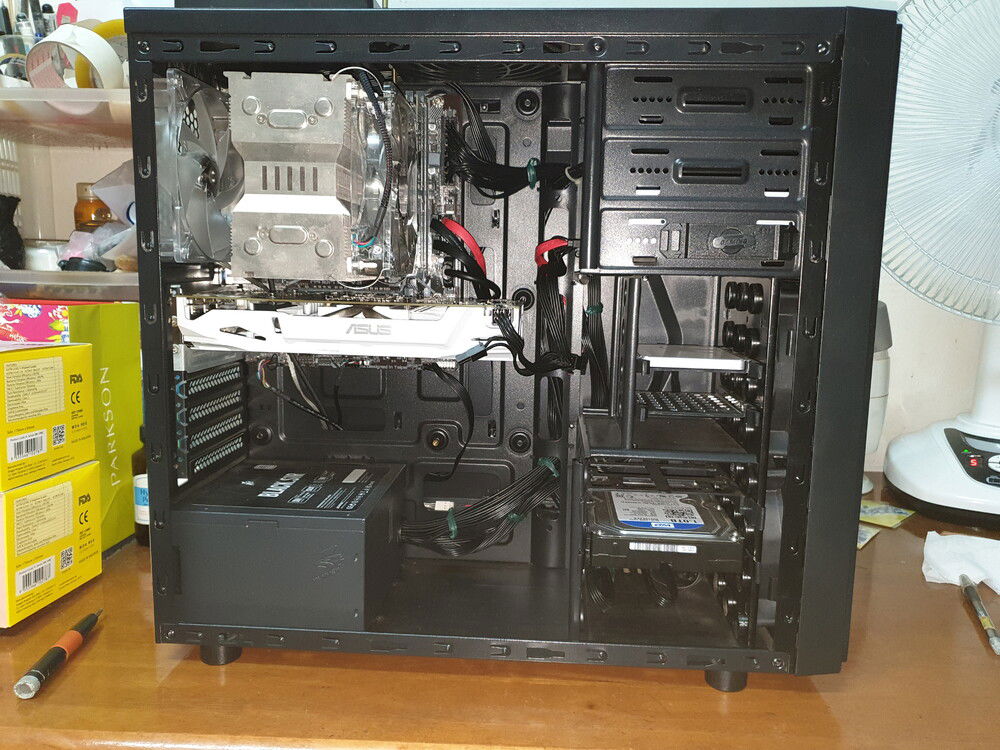

Welp, got the GTX 1060 6GB for RM400 because of the crypto flood, so it's time to upgrade (And redo the whole record and benchmark :P)
Welp, got the GTX 1060 6GB for RM400 because of the crypto flood, so it's time to upgrade (And redo the whole record and benchmark :P)

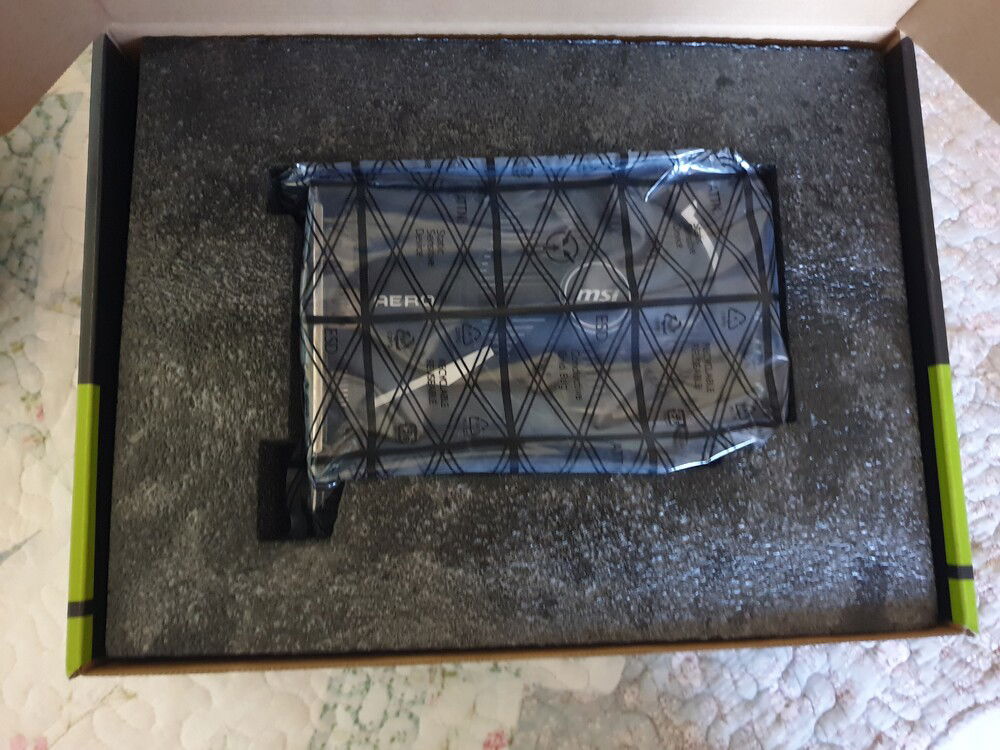

Rest well my friend, you've served me for over 2 years, 10 months, and 20 days for hard work. Now it's time for you to rest until when I need you
Rest well my friend, you've served me for over 2 years, 10 months, and 20 days for hard work. Now it's time for you to rest until when I need you

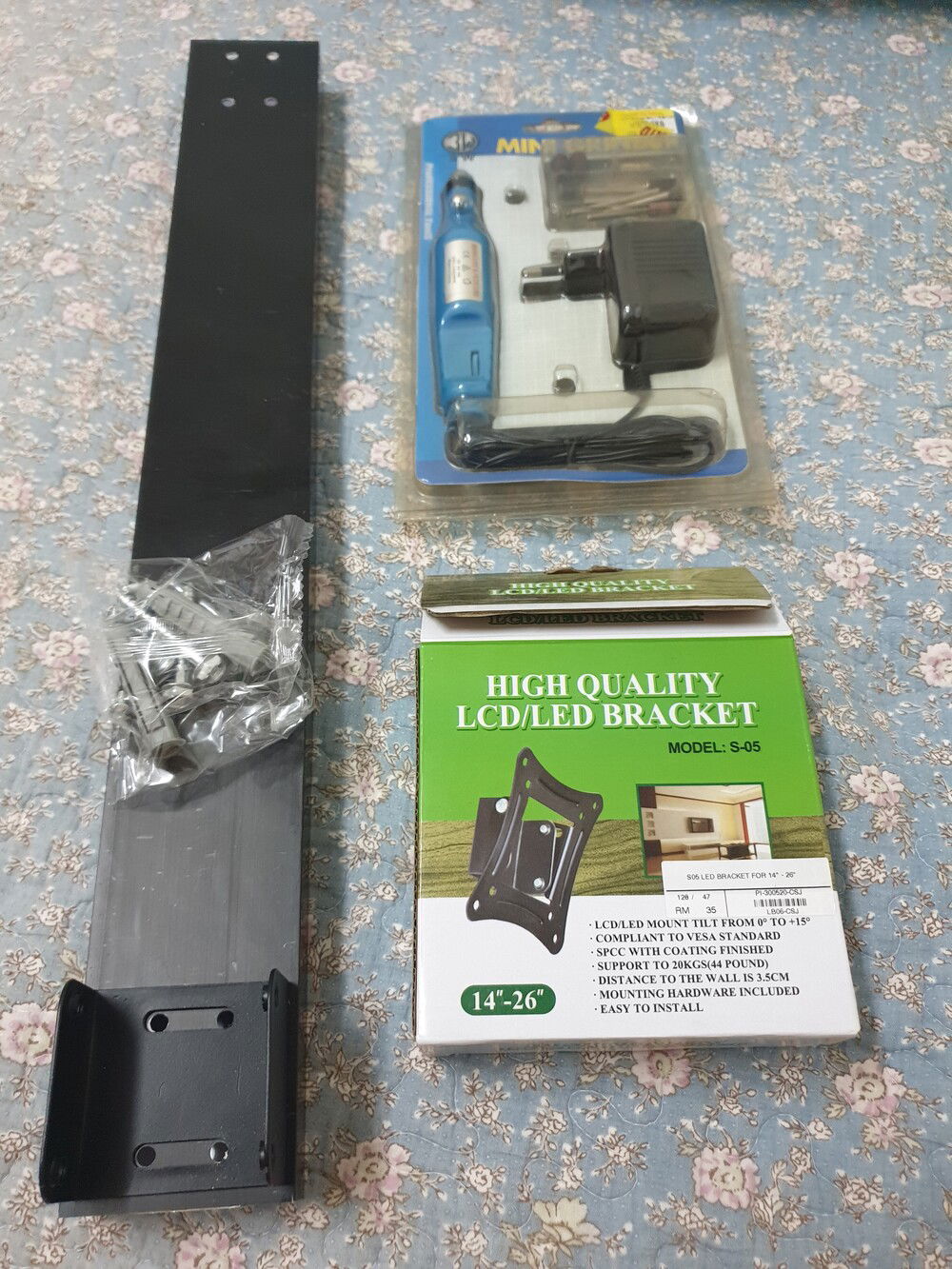

Just spend RM67 for the material, it's time to assemble the mount for myself :P
Just spend RM67 for the material, it's time to assemble the mount for myself :P

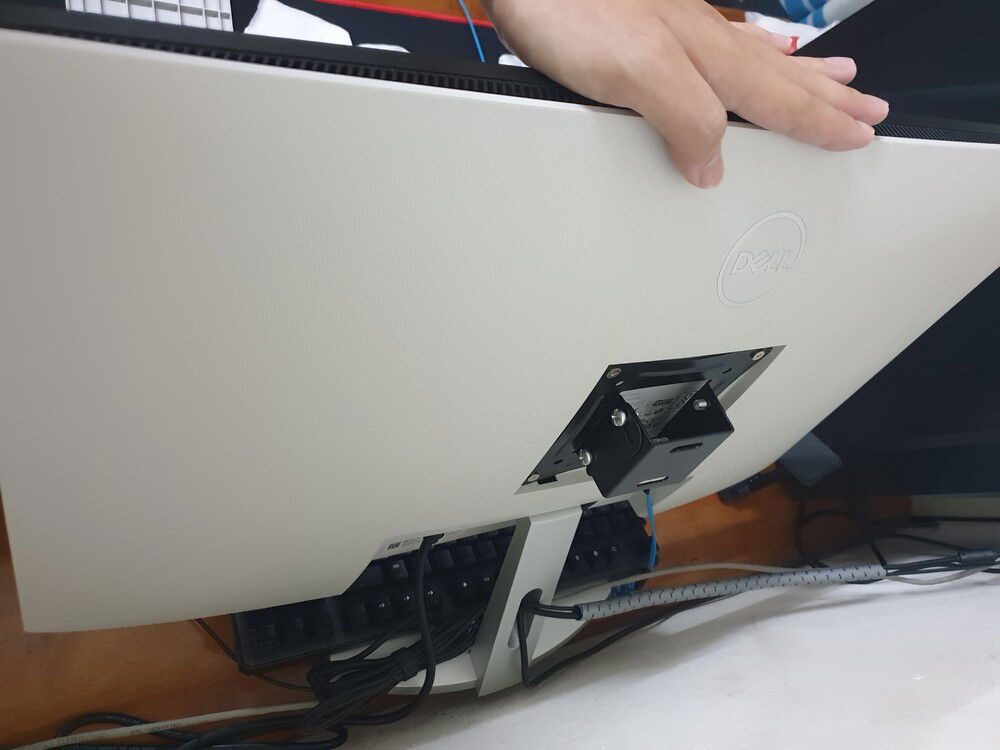

Got the primary monitor installed with monitor mount, though it's supposed to be wall mount, I decided to go with bracket mount
Got the primary monitor installed with monitor mount, though it's supposed to be wall mount, I decided to go with bracket mount

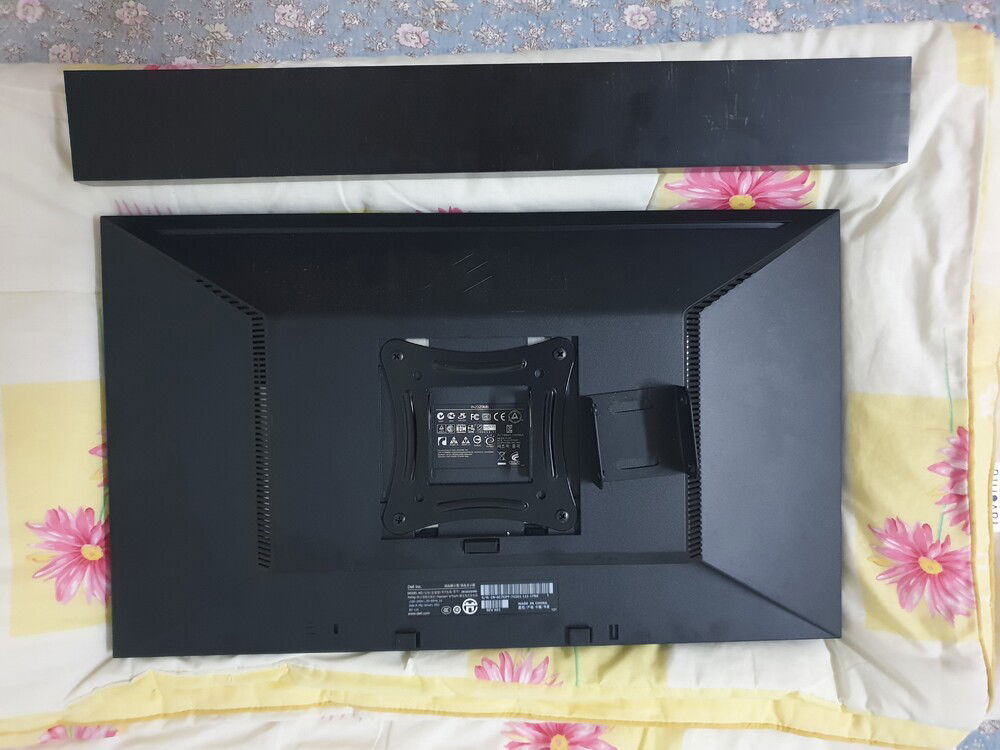

The secondary monitor installed, now I just have to drill the hole in the aluminum frame
The secondary monitor installed, now I just have to drill the hole in the aluminum frame

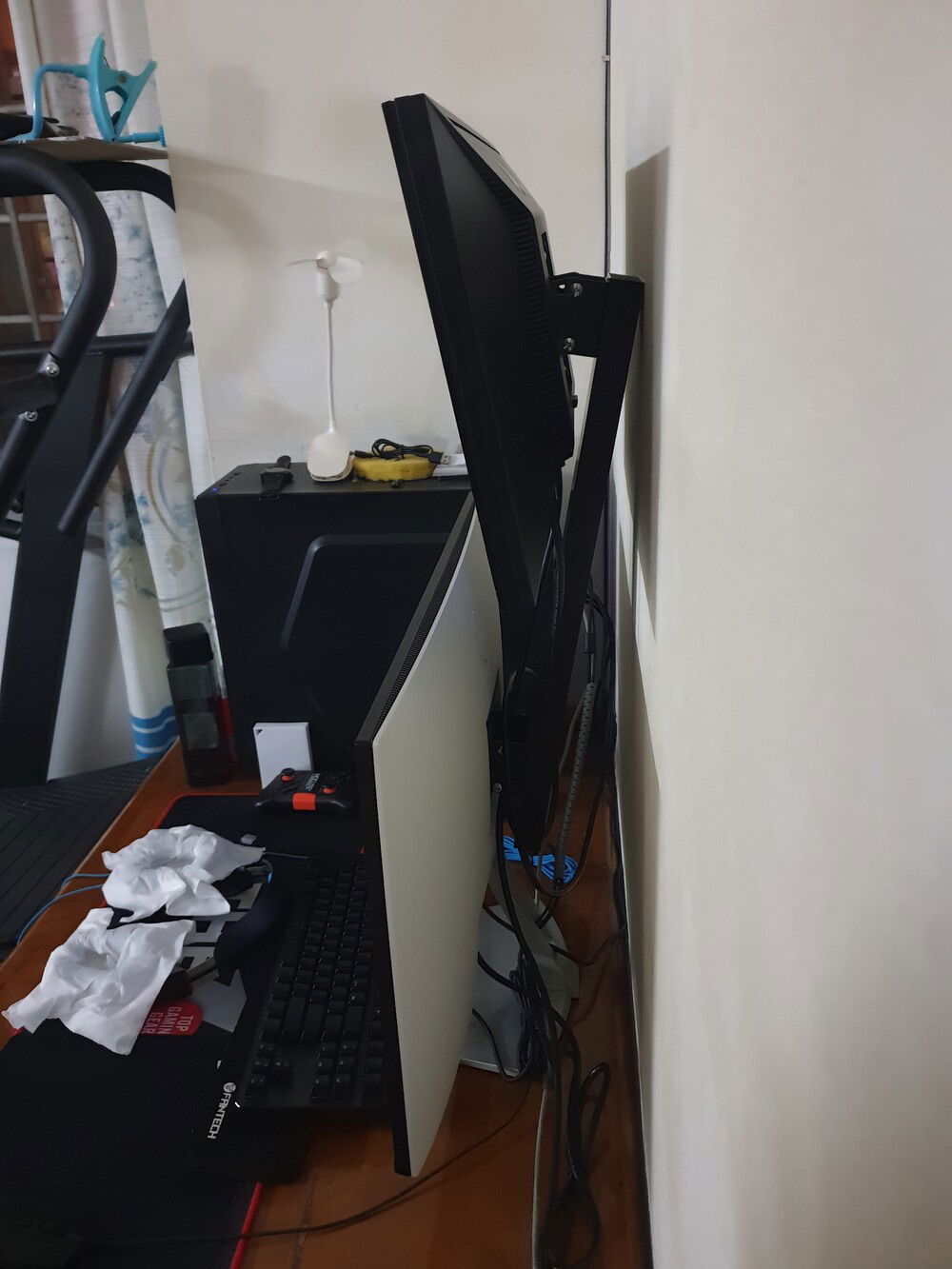

Though I can't adjust the angle a bit lower, but I guess this is fair enough
Though I can't adjust the angle a bit lower, but I guess this is fair enough

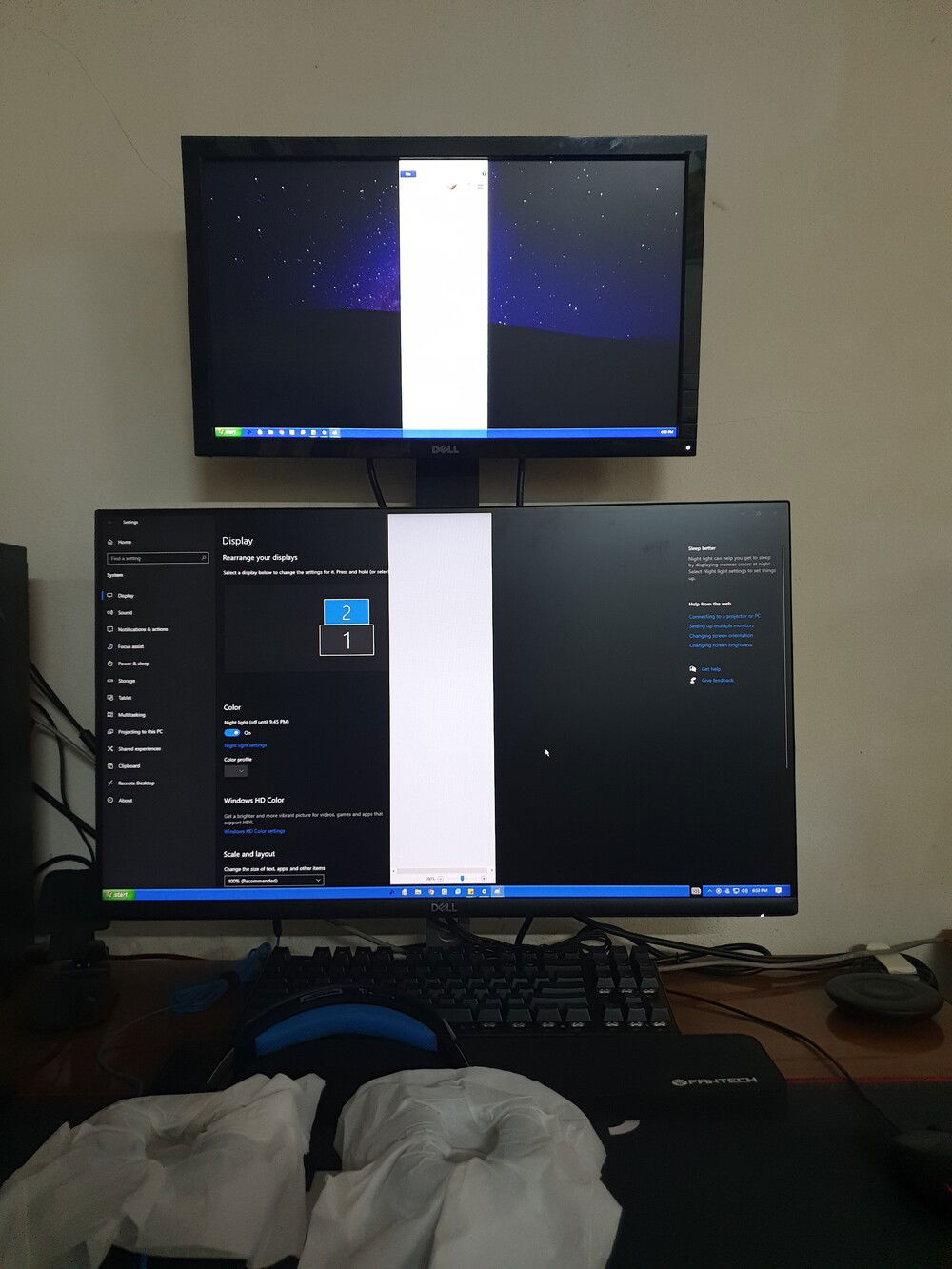

Adjusting the secondary monitor just to make both of them aligned
Adjusting the secondary monitor just to make both of them aligned

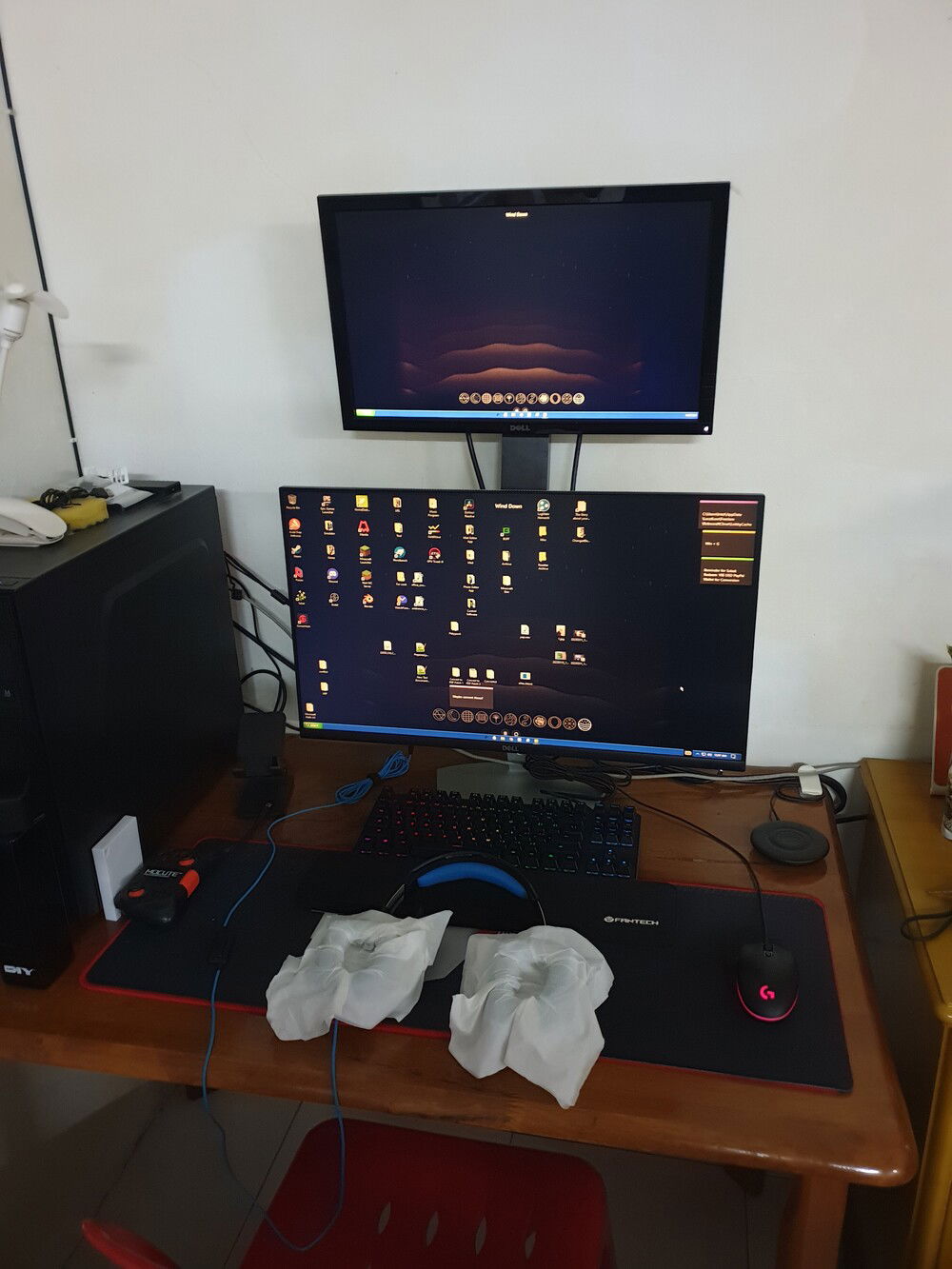

Here goes the secondary monitor, still using the plastic chair :v
Here goes the secondary monitor, still using the plastic chair :v

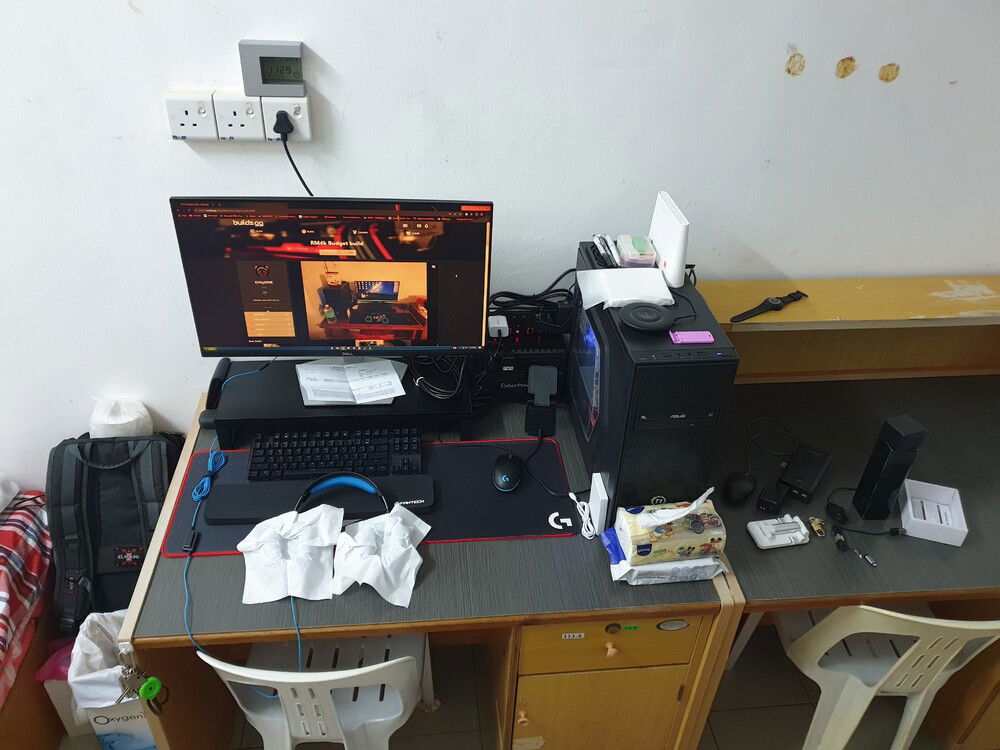

Currently, space in the college hostel room is pretty limited, so I have to temporarily reduce my secondary monitor and spend the last budget on the monitor stand (which has a USB hub beside it) to extend the spacing. Damn, that's a lot of stuff (ignore the clock btw)
Currently, space in the college hostel room is pretty limited, so I have to temporarily reduce my secondary monitor and spend the last budget on the monitor stand (which has a USB hub beside it) to extend the spacing. Damn, that's a lot of stuff (ignore the clock btw)

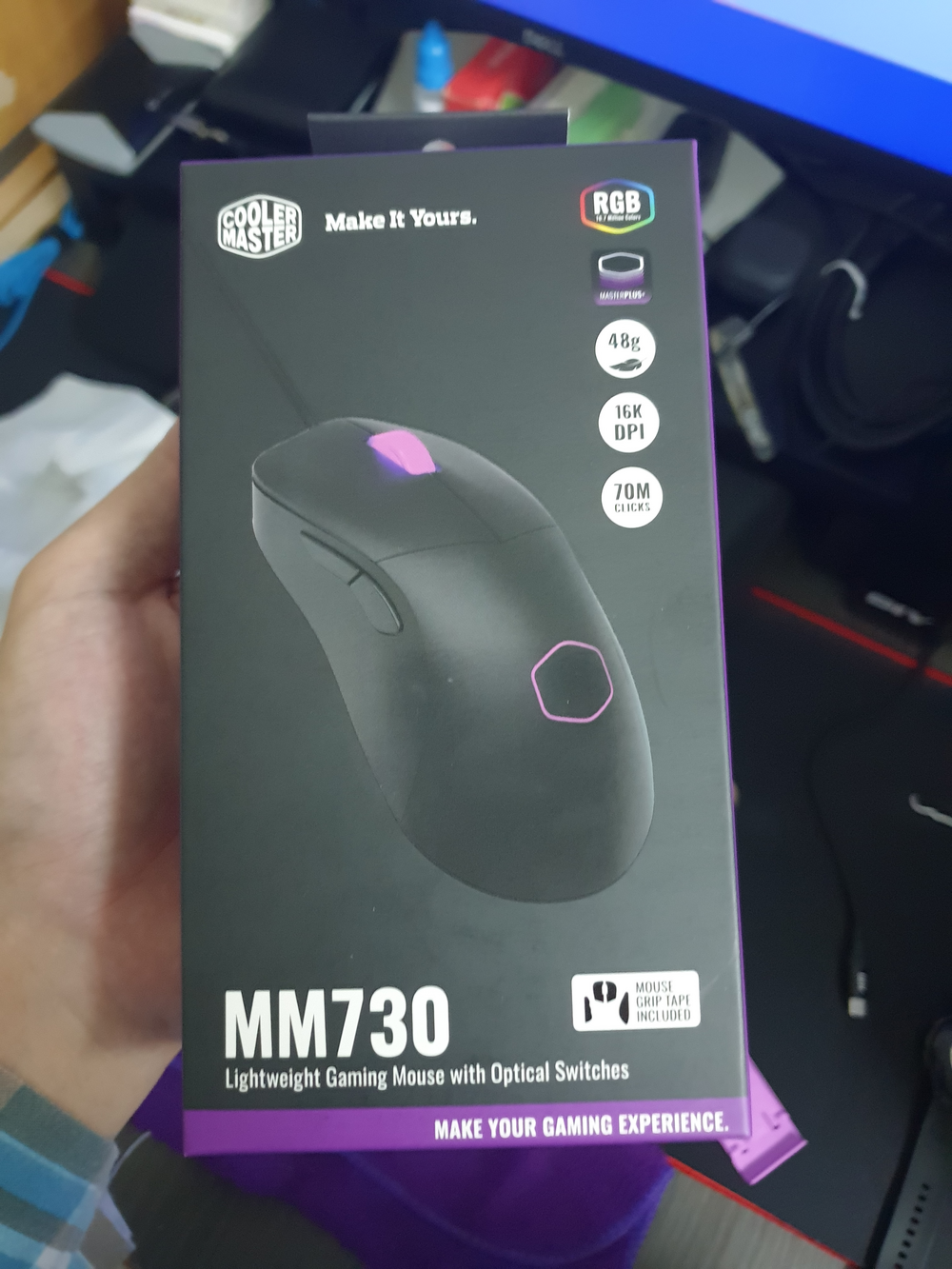

There we go, full optical mouse, shouldn't be problematic with both clicking and scrolling anymore
There we go, full optical mouse, shouldn't be problematic with both clicking and scrolling anymore

RM4k Budget build

Another building project for my own Gaming PC

Like Previous, but limited at RM4000
Though for the underclocking part, I don't think I'd have to do much here?


The new hardware I've spent on this build:

PSU: (Arrive at 20/9/2021, additional info in Update/Log, cost: RM100)

Motherboard: Gigabyte H410M S2 V3 (VGA only)
CPU: I3 10105
RAM: 2x Adata 8GB 2666mhz DDR4 (all bundle as CPU RAM and Mobo combo, cost: RM1250)
Storage: Transcend - TS512GSSD230S 512GB (cost: RM300)

CPU Cooler: All-in-one Old Heatsink Tower (More info in the Pictures description, cost: RM255)

Mouse: Logitech G103 (Need to get a new one as the old one started to have double click issue, cost: RM90) Cooler Master MM730 (as full optical switch + scroll wheels encoder, RM110)
Logitech M-RN67 (old spec hunt, plan to modify the battery section as the rechargeable lipo battery, cost: RM65)

Primary Monitor: Dell S2721HN (Purchased from my friend at second-hand price, cost: RM750)

UPS: CyberPower BU800E with 800VA/400Watt Model (cost: RM168)
Keyboard Wristpad: 2x Fantech Keyboard Wristpad AC4101L (It's been a long time I've been looking for this thing, cost: RM30) (Update, I bought two of them)
Bluetooth Dongle: TP-Link UB400 (Yeah, Bluetooth Dongle, cost: RM18)
USB Dongle: U32-32 USB Dongle (For Ease of switching keyboard & mouse from PC to DeX, cost:15) The dongle was too long, decide to leave it docked at DeX station

GPU: Asus GTX 1060 6GB (Dual-fan OC edition, purchased from my friend at second-hand price, cost: RM400)

Secondary Monitor: Dell IN2020M (Purchased from someone during their house clean-out, cost: RM200)
Monitor Mount: Assembled by myself, with Aluminium and monitor mount bracket (cost: RM50 + RM11 + RM6 = RM67)

ZH006-B Monitor Stand with 4 Port USB 3.0 hub (cost: RM159)

Spec transfer from the previous build:

GPU: MSI GTX 1650 (Aero ITX OC edition, from the previous build, cost: RM640 with Standard warranty) Being replaced by 1060 6GB, act as backup GPU
Case Fan: 2x Non-brand base fan, power by the old 4 Pin Molex, RM20 each (cost: RM40)
Mousepad: Logitech G240 (got two of them, and I'd say free from this point?)
Speaker: Logitech S-150 (Old speaker since 2015)
Storage: 1TB WD Blue (Got the deal from someone, RM50)
Keyboard: Tecware Phantom - Outemu Brown (no-keypad version, cost: RM169)
Headset: Logitech G430 (living inside my storage, didn't notice that)
Monitor (Forgot to mention it in the previous build): BenQ GL2023A 19.5-Inch LCD Monitor (Same goes with the Speaker, old too)

Benchmark Score:
Default: http://www.3dmark.com/spy/29154338
Underclocked: http://www.3dmark.com/spy/29154840

Power Drain record (Yes, with the whole setup, monitor mouse and keyboard backlight included, and extra for my phone plugged into the system):

Default:
50 Watt idle (Main PC idle, DeX station not in use, New Monitor being power on)
213.1 Watt Peak (Main PC doing CPU + GPU Mining, DeX station not in use, New Monitor being power on)

After Underclock:
48 Watt idle (Main PC idle, DeX station not in use, New Monitor being power on)
138.7 Watt Peak (Main PC doing CPU + GPU Mining, DeX station not in use, New Monitor being power on)

(Bear in mind that the old record was done with 1650, and without secondary monitor)

(Old) Benchmark Score:
Default: https://www.3dmark.com/3dm/72554284?
Underclock version: https://www.3dmark.com/3dm/72553899?

(Old) Power Drain record:

Default configuration:
60 Watt Idle (Main PC idle, DeX station not in use, Old Monitor being power on)
158 Watt Peak (Main PC doing CPU + GPU Mining, DeX station not in use, Old Monitor being power on)

After underclock:
58 Watt Idle (Main PC idle, DeX station not in use, Old Monitor being power on)
136.5 Watt Peak (Main PC doing CPU + GPU Mining, DeX station not in use, Old Monitor being power on)

(Old) Whole device usage:
60 Watt Idle (Main PC Idle, DeX Station not in use, Charger (White Cable beside DeX Station) in use and New Monitor being power on)
150.8 Watt full usage (Main PC doing CPU + GPU mining, DeX Station Docked and New Monitor being power on)

(Old) UPS benchmark:
Load Peak: (PC itself + monitor n phone charger, 151 Watt) + (2 Router, one with decoder and one with receiver, 27 Watt) = 178 Watt Total
Duration: (Benchmarking with full load configuration) 8 Minutes

The money I have spent:
(RM100 + RM1250 + RM300 + RM225 + RM90, New system for win11 support) RM1965 +
(RM640 + RM40 + RM50 + RM169, From previous build) RM899 RM259 +
(New Primary Monitor) RM750 +
(GPU) RM400 +
(RM168 + RM15 RM30 + RM18 + RM15, UPS plus other dongle n stuff) RM216 +
(New Secondary Monitor + Material for monitor mount) RM267 +
Monitor Stand (more like mini table) RM159 +
RM20 (off-set from switching Logitech G103 - RM90 to Cooler Master MM730 - RM110) =

Total of RM3857 RM4036

Wait, I haven't spent my money on the chair :v
Color(s): Black
RGB Lighting? No
Theme: Desk / Table
Cooling: Air Cooling
Size: ATX
Type: General Build

Build Updates

Got the new mouse - again (17/9/2023)

Decide to continue the project via old build

Second Hand power supply arrive (20/9/2021)

All Hardware Obtained (21/2/2022)

Doing benchmark comparison and post result (27/2/2022)

Forgot to update the Build info (19/4/2022)

Got the GPU for cheap (01/7/2022)

Prepared for the Monitor Bracket (14/3/2023)

Hardware

CPU
Intel - Core i3-10105
Socket: LGA 1200
Cores: 4
Integrated Graphics: Yes
Motherboard
Gigabyte - H410M S2
Chipset: H410
CPU Socket: LGA 1200
Size: Mini-ATX
Memory
ADATA - Desktop (2666MHz) (2x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 299.00
ASUS - Dual OC (White)
Chip Manufacturer: NVIDIA
Chip: GTX 1060
Interface: PCIe x16
Storage
$ 59.99
Transcend - TS512GSSD230S
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 512 GB
Storage
$ 36.87
Western Digital - WD Blue Desktop (WD10EZEX)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
1stplayer - Black Sir
Wattage: 500
Form Factor: ATX
Efficiency: 80+ White
Case
$ 154.00
Thermaltake - Versa H24
Type: Mid-Tower
Side Panel: Window
Accessories
Custom - ZH006-B Monitor Stand Medium Version with 4 Port USB 3.0 - Black
Accessories
CyberPower - BU800E
Accessories
Fantech - Keyboard Wrist Pad AC4101L
Accessories
$ 11.39
Logitech - G240 Mousepad
Accessories
$ 38.95
Logitech - S150 Stereo Speakers
Accessories
$ 9.97
TP-Link - UB400 Bluetooth 4.0 Nano USB Adapter
Monitor
$ 100.93
Dell - FHD (S2721HN)
Size: 27 Inch
Panel: TFT
Refresh Rate: 75 Hz
Monitor
Dell - IN2020M
Size: 20 Inch
Panel: LED
Refresh Rate: 60 Hz
Keyboard
Tecware - Phantom (RGB)
Interface: Wired
Key Switch Type: Outemu Brown
Type: Tenkeyless
Mouse
$ 19.99
Cooler Master - MM730
Interface: Wired
296
3
Approved by:
