Piñasphere (Asrock Deskmini X300)

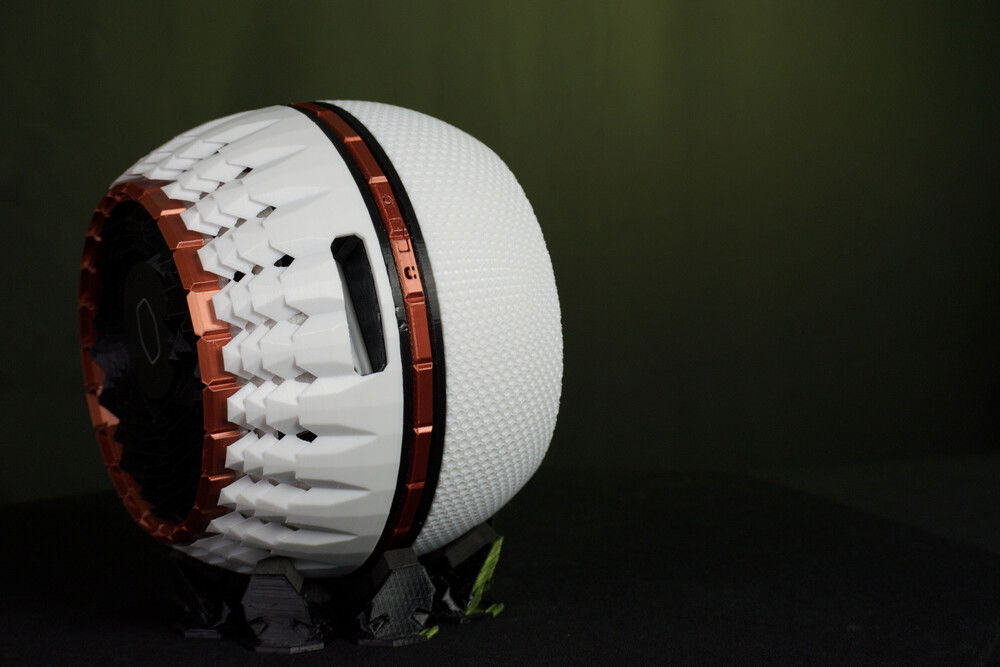

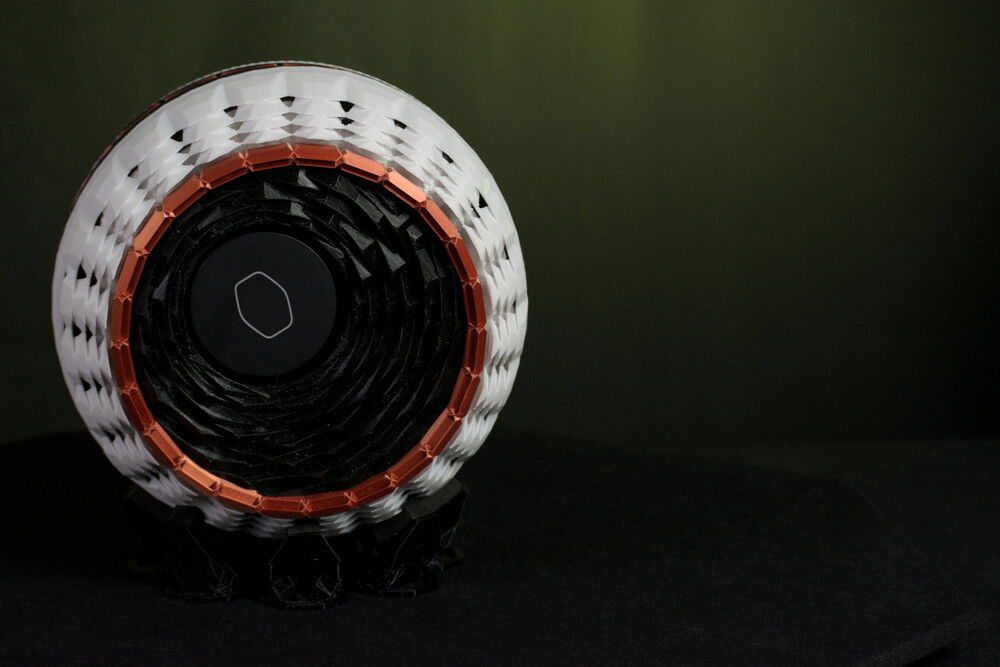

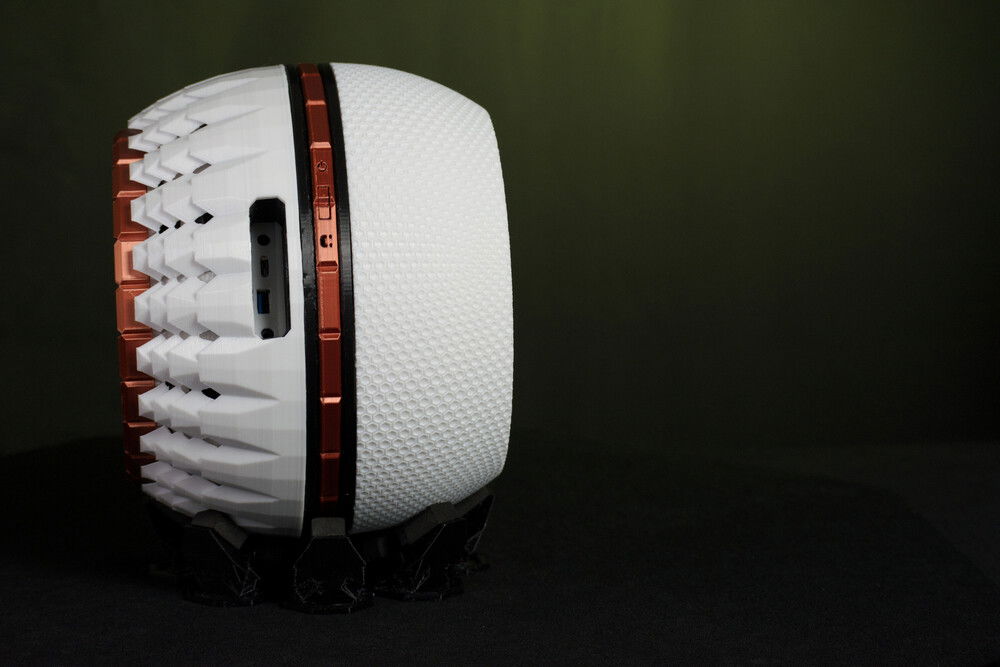

Piñasphere is my first fully 3D Printed and modeled project.

I wanted to experiment how far I could get with the design of a Computer case, from the standard that people picture in their mind when you talk about a PC, a boxy shape, now it's more like a functional desk sculpture.

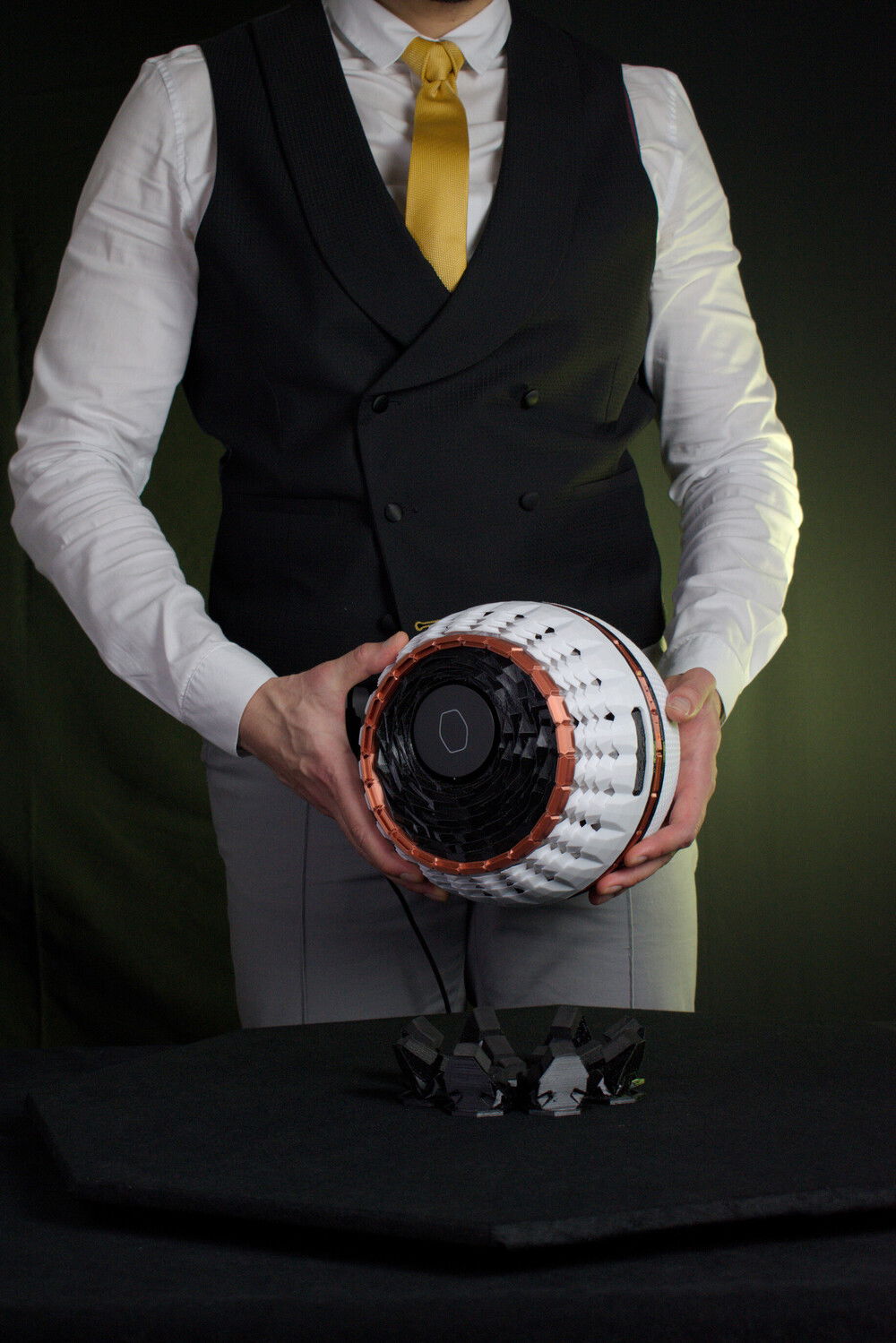

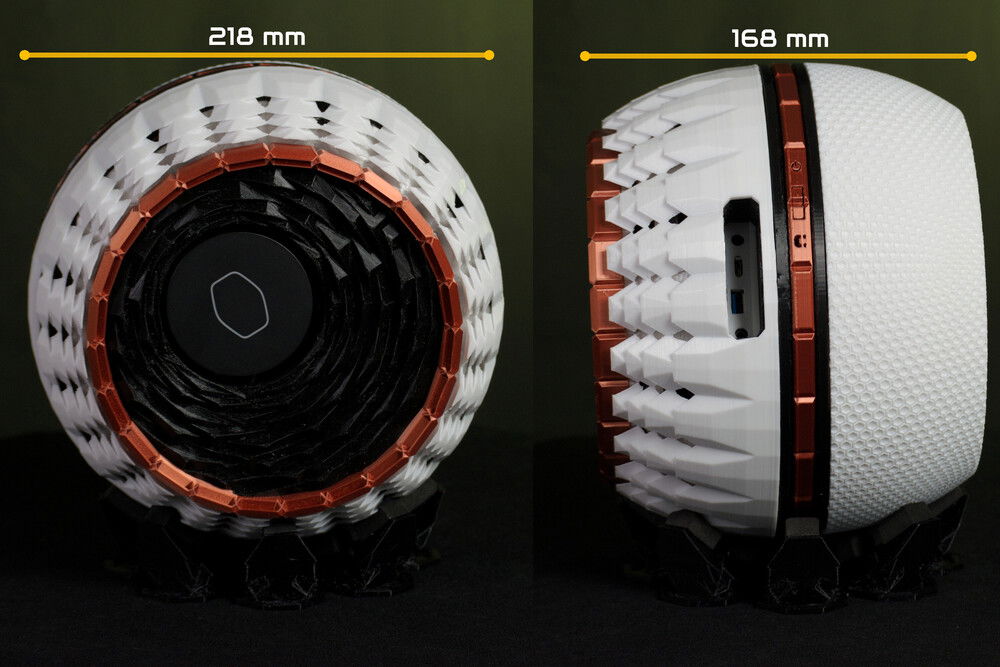

Even though it is watercooled, it is also small 218mm for 168mm less than 5 litres, and weighs about 2 Kgs, it can sit on almost any desk, the base also has a 75 x75 Vesa mount compatible hole pattern.

I didn't paint it because I wanted to reach a point in which it looked good that way.

The copper parts are made out of PLA filament, the rest of the case is Petg, the black Petg of the case is Recycled Pet because I wanted to try out the greener options I had within my budget.

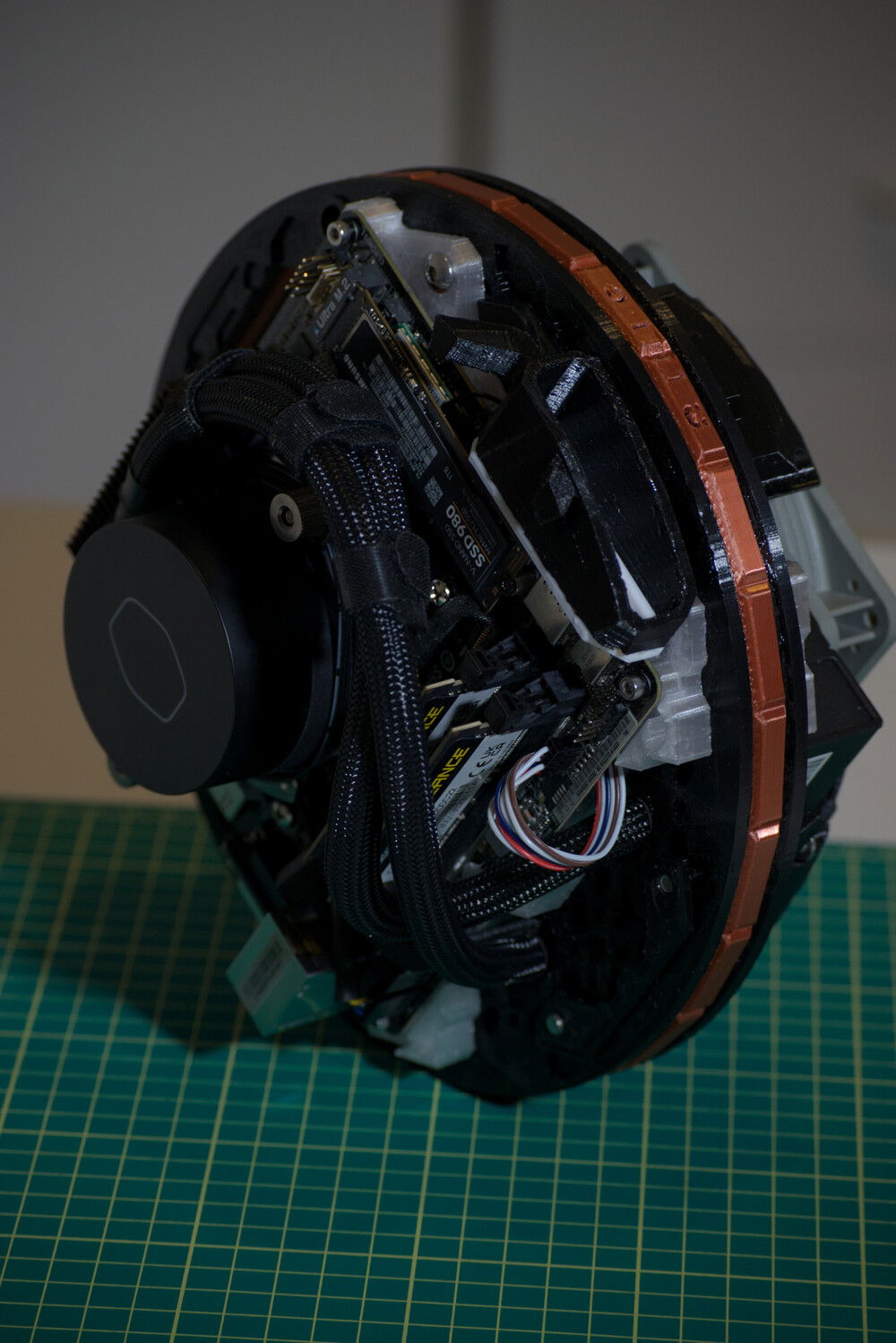

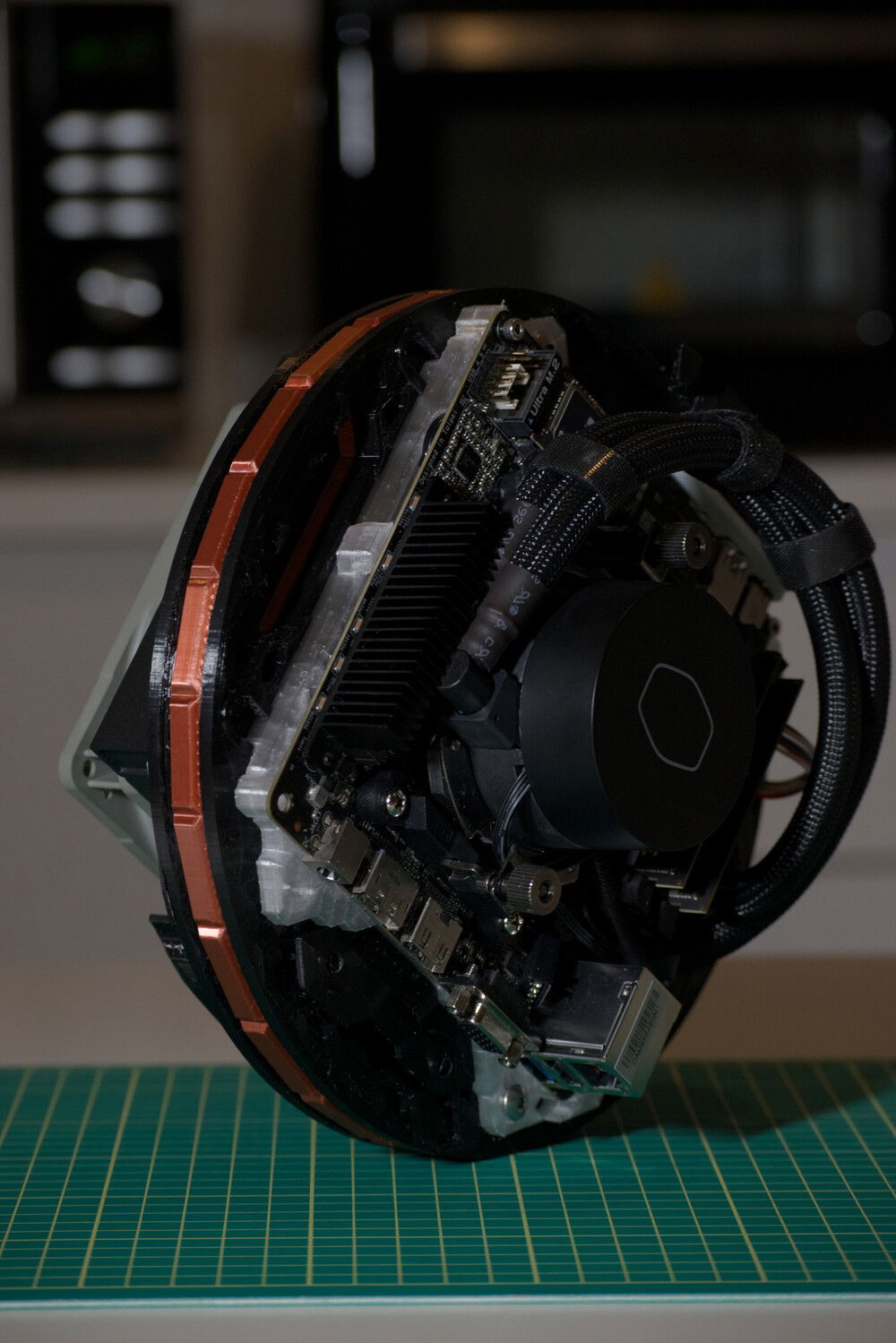

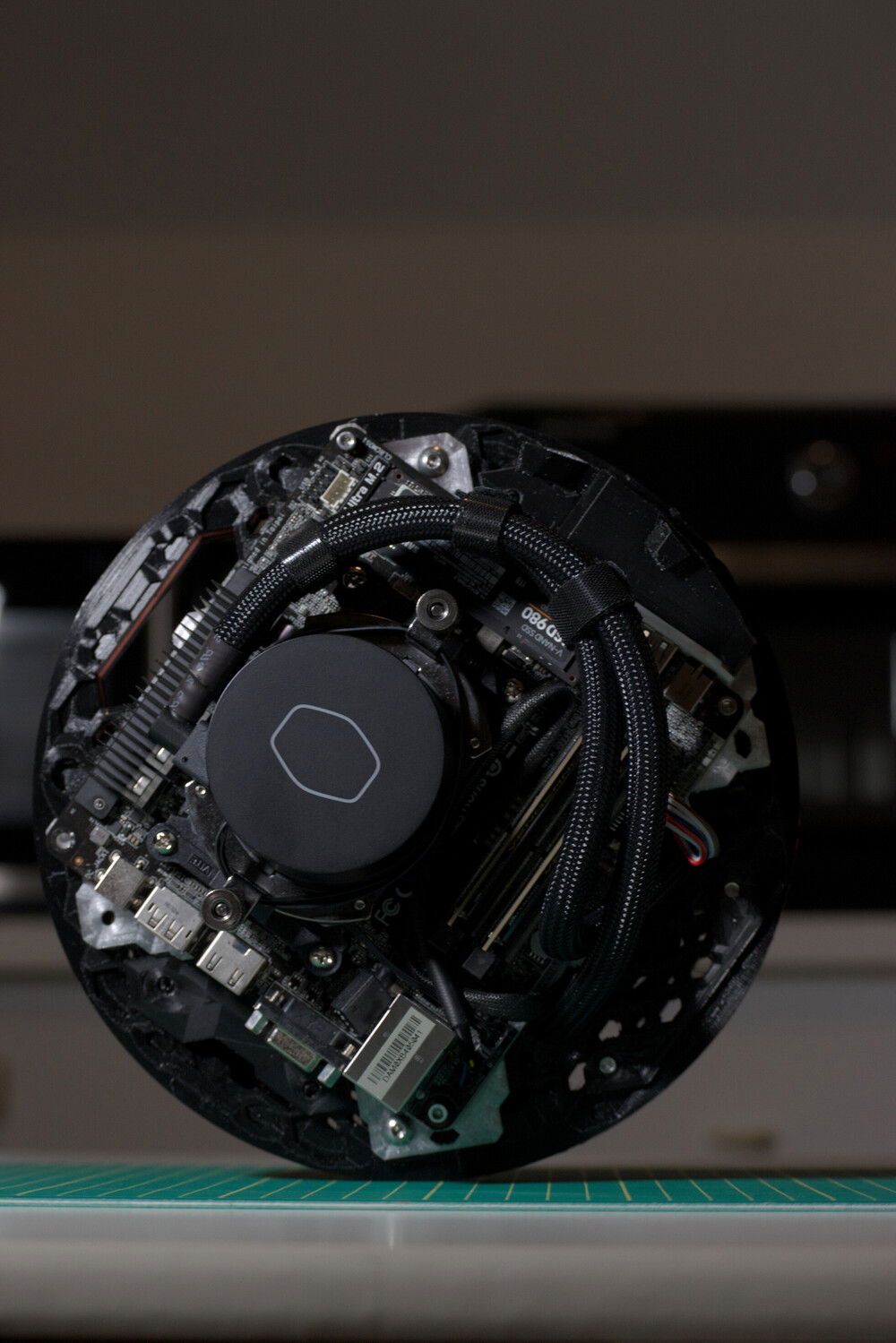

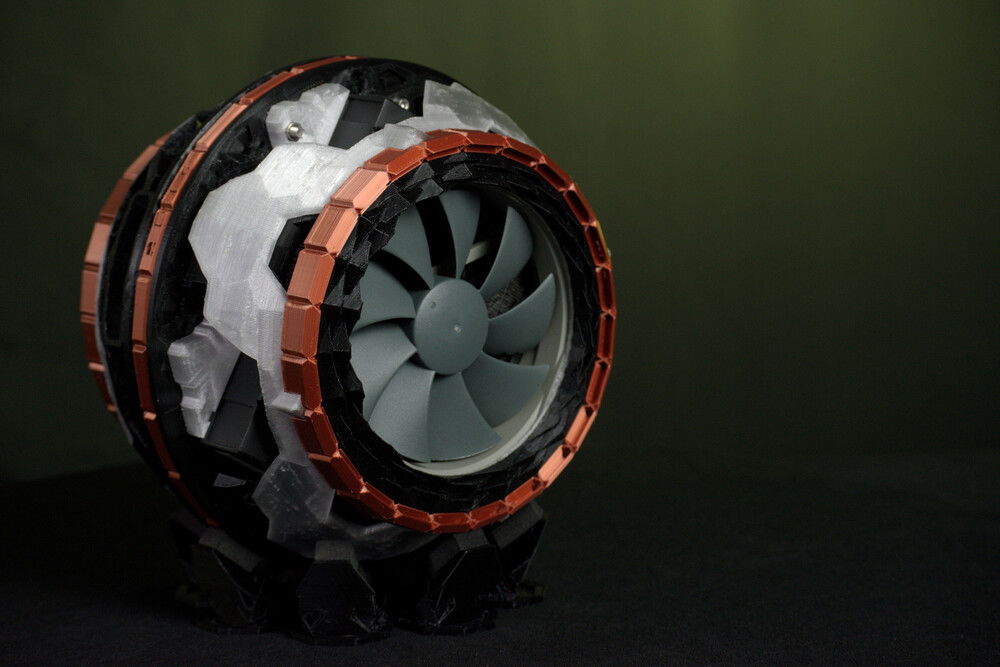

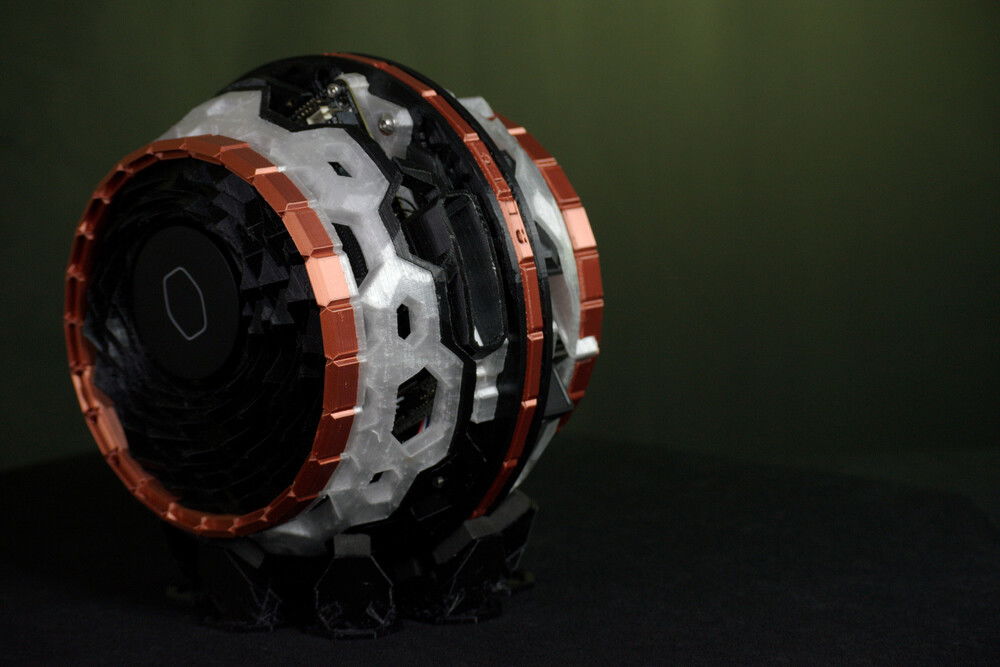

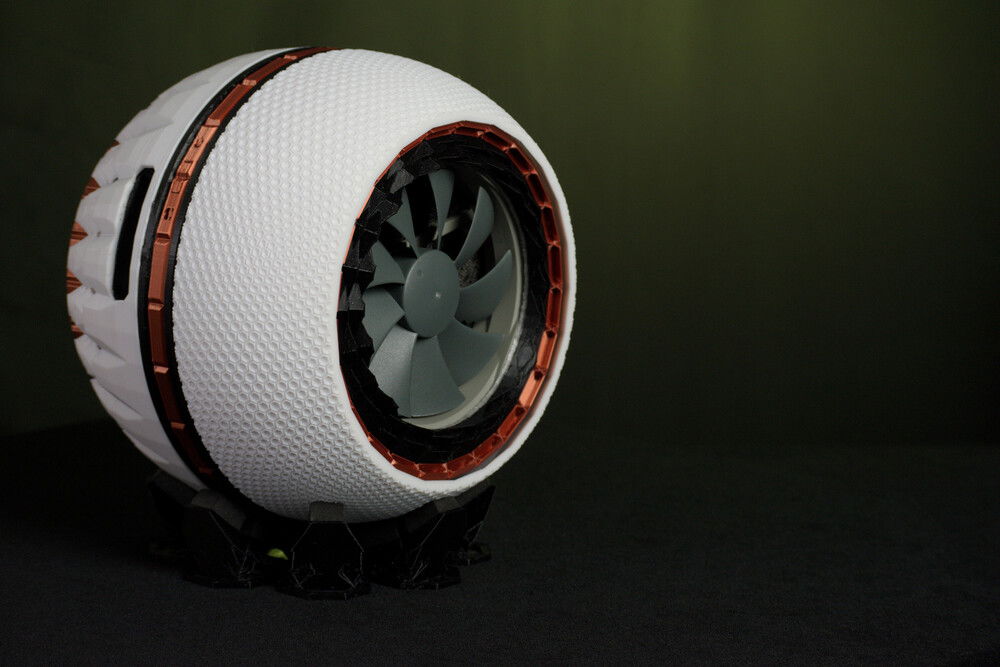

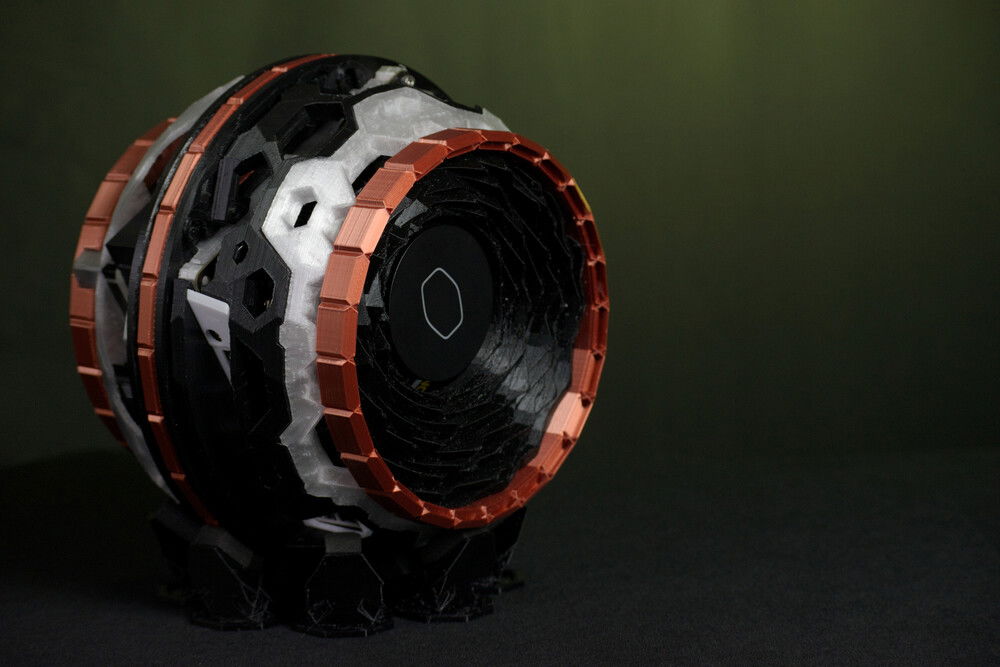

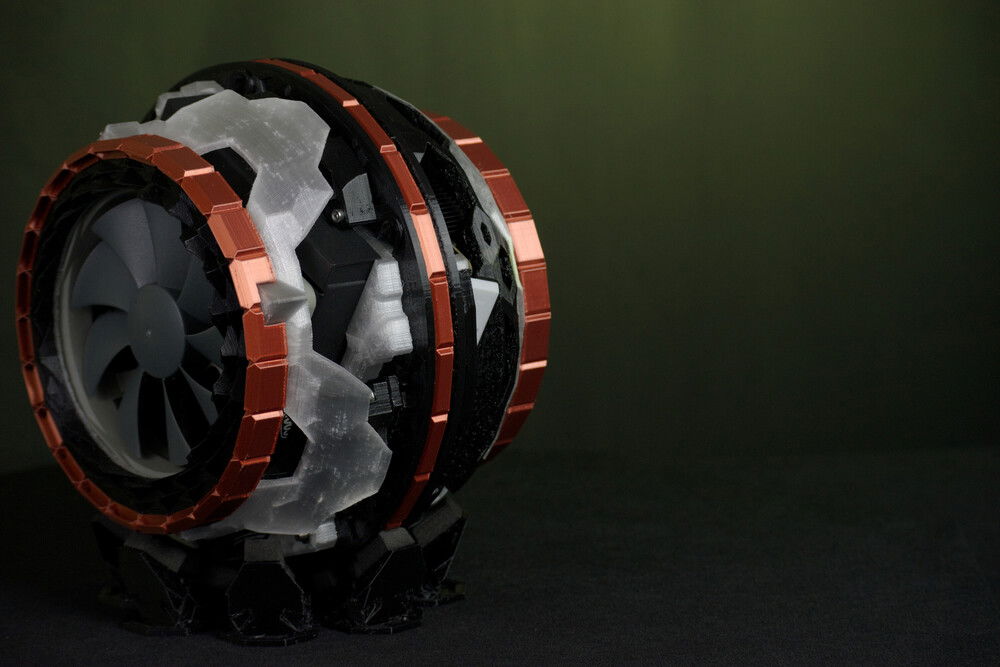

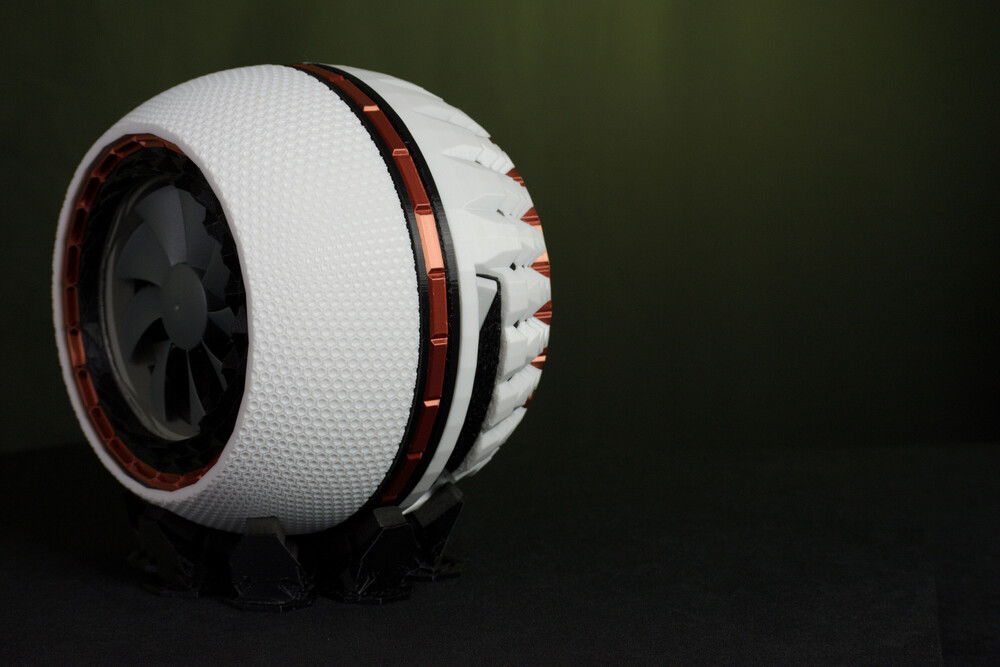

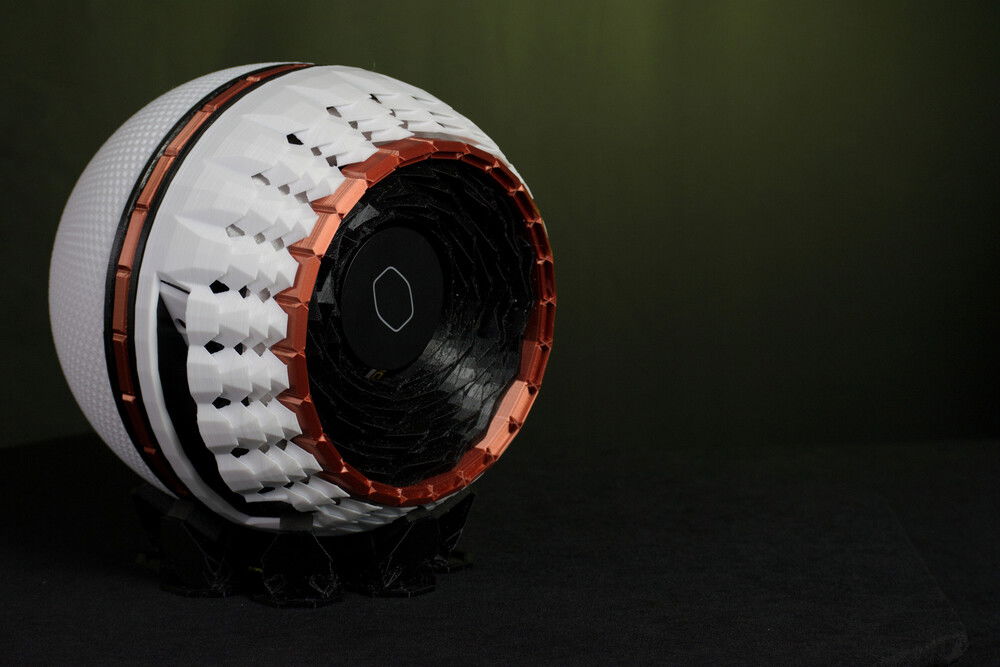

The design allows for it to be used as an open air case or enclosed like a "normal" case, I like it both ways, it takes some seconds and you can change it on the fly, no screws just twist and "pop" the white domes out and it's open.

Right now It is my main PC, I wanted it to work for everything and the specs allow for it within reason, from 3D editing on Blender and Fusion 360 to playing at 1080p.

Video: https://youtu.be/K830WAXJh_I

Build log: https://forums.bit-tech.net/index.php?threads/pi%C3%B1asphere.384915/

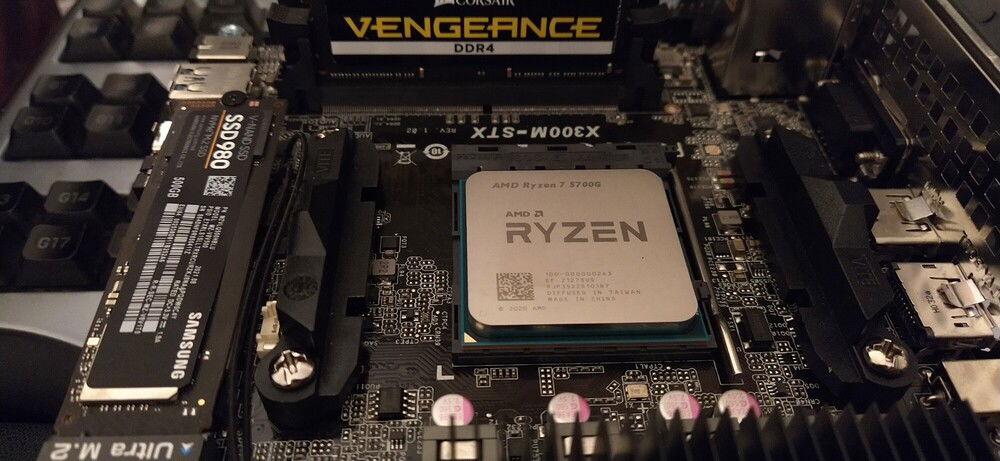

Specs Sub ITX PC Case:

Mobo: Asrock Deskmini X300 M-STX

CPU: AMD Ryzen 7 5700G

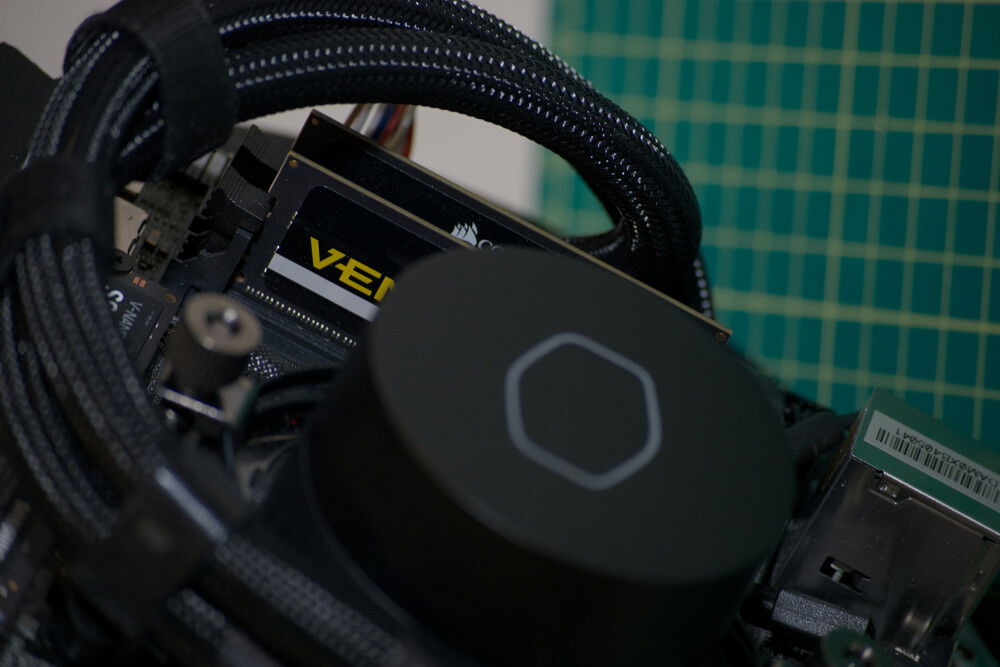

CPU Cooler: AIO Cooler Master MasterLiquid ML120L V2

Fan: Noctua NF-P12 redux-1700 PWM

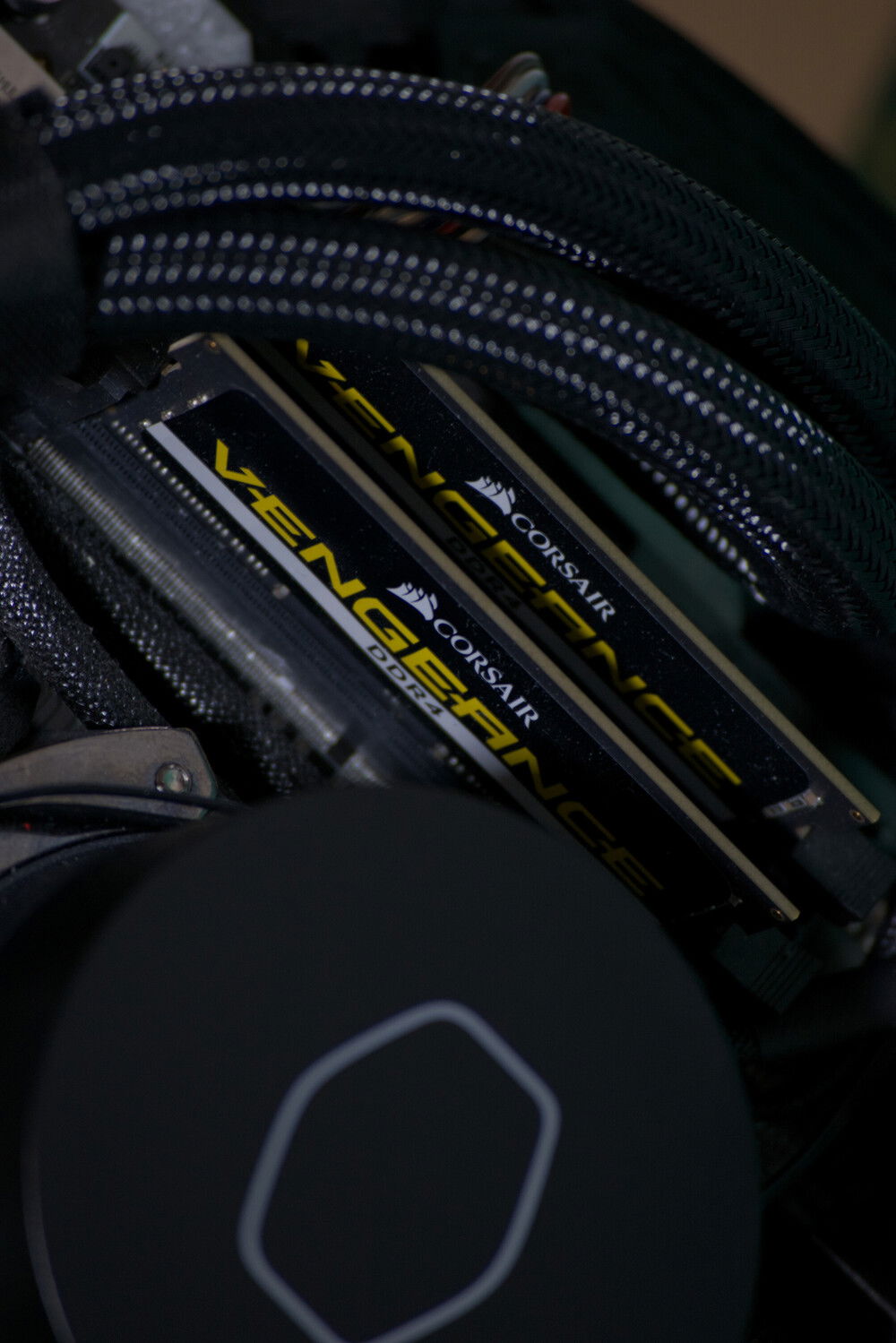

RAM: Corsair vengeance SoDIMM 2x32Gb@3200

1st & 2nd SSD: Samsung 980 M.2 1Tb

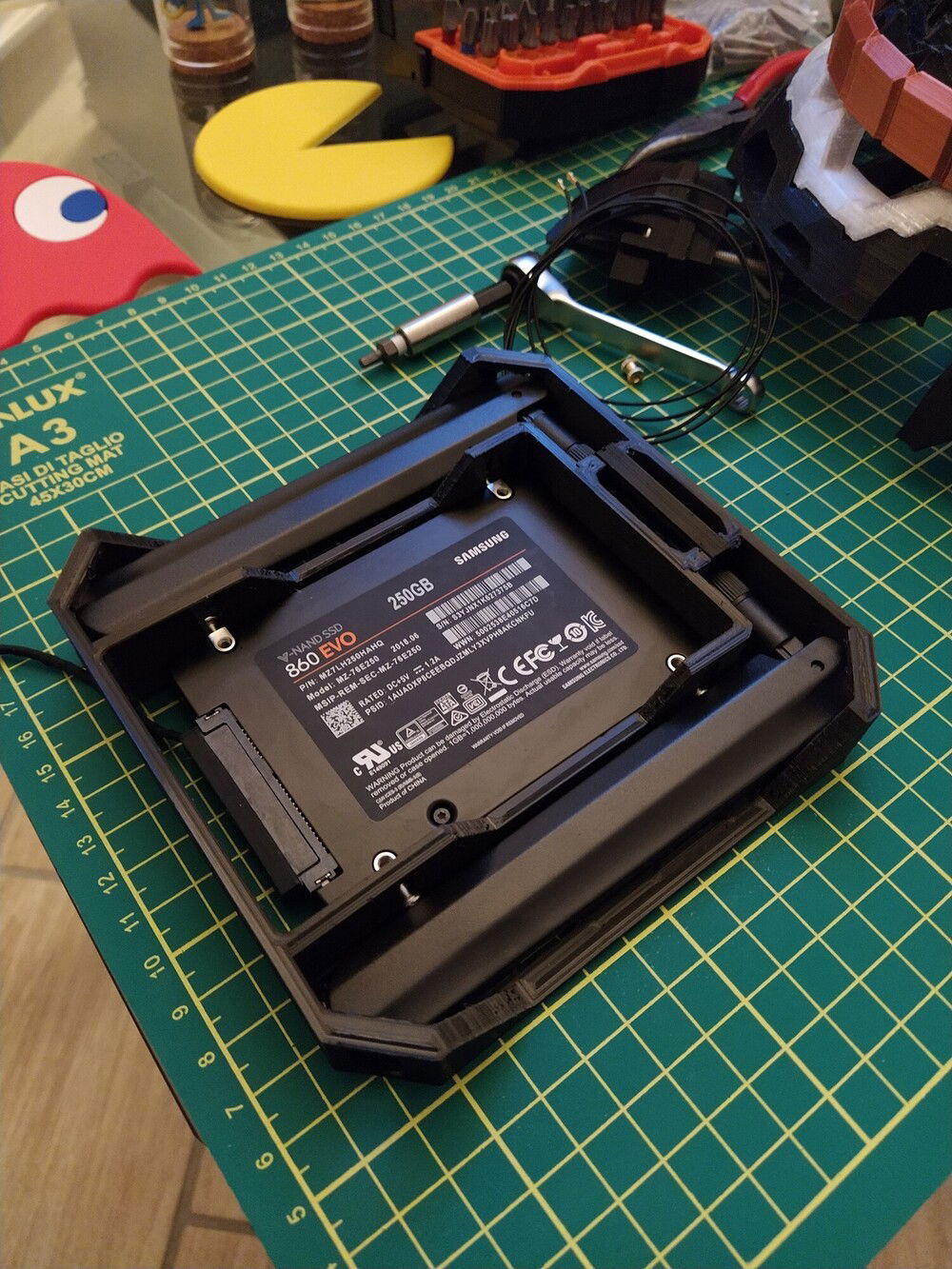

3rd SSD: Samsung 860EVO 2.5" 250 Gb

WiFi: Intel WiFi 6 AX200
Color(s): White
RGB Lighting? No
Theme: none
Cooling: AIO Cooling
Size: SFF
Type: General Build

Build Updates

Updated the Memory

Hardware

CPU
AMD - Ryzen 7 5700G
Socket: AM4
Cores: 8
Integrated Graphics: Yes
Motherboard
ASRock - X300M
Chipset: X300
CPU Socket: AM4
Size: Mini-STX
Memory
$ 139.98
Corsair - Vengeance SODIMM (3200MHz) (Black) (2x)
Type: DDR4
Capacity: 32 GB
Graphics
AMD - Radeon Vega
Chip Manufacturer: AMD
Chip: Vega
Interface: PCIe x16
Storage
$ 48.95
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
Storage
$ 159.18
Samsung - 980 (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
ASRock - X300
Wattage: 65
Form Factor: SFX
Efficiency: none
Case
Custom - Custom (custom)
Case Fan
$ 15.95
Noctua - NF-P12 redux-1700
Size: 120 mm
Cooling
$ 59.00
Cooler Master - MasterLiquid ML120L RGB
Type: AIO
Size (WxHxD): 157 mm
Accessories
$ 20.99
