Leviathan
This is my first custom water loop build, would love any criticism, opinions, etc.
Most of the parts are the same from my previous build: Metatron.
Parts:
Case: In Win 805 Infinity Black
Motherboard: Asus ROG Strix X99
Processor: Intel Core i7-6850K
RAM: Corsair Dominator Platinum 32GB DDR4 3000
Power Supply: EVGA SuperNOVA T2 1000
Graphics Card: EVGA 1080ti FE
SSD: Samsung 950 Pro M.2 512GB
PCIE M.2 Adapter: Angelbird Wings PX1

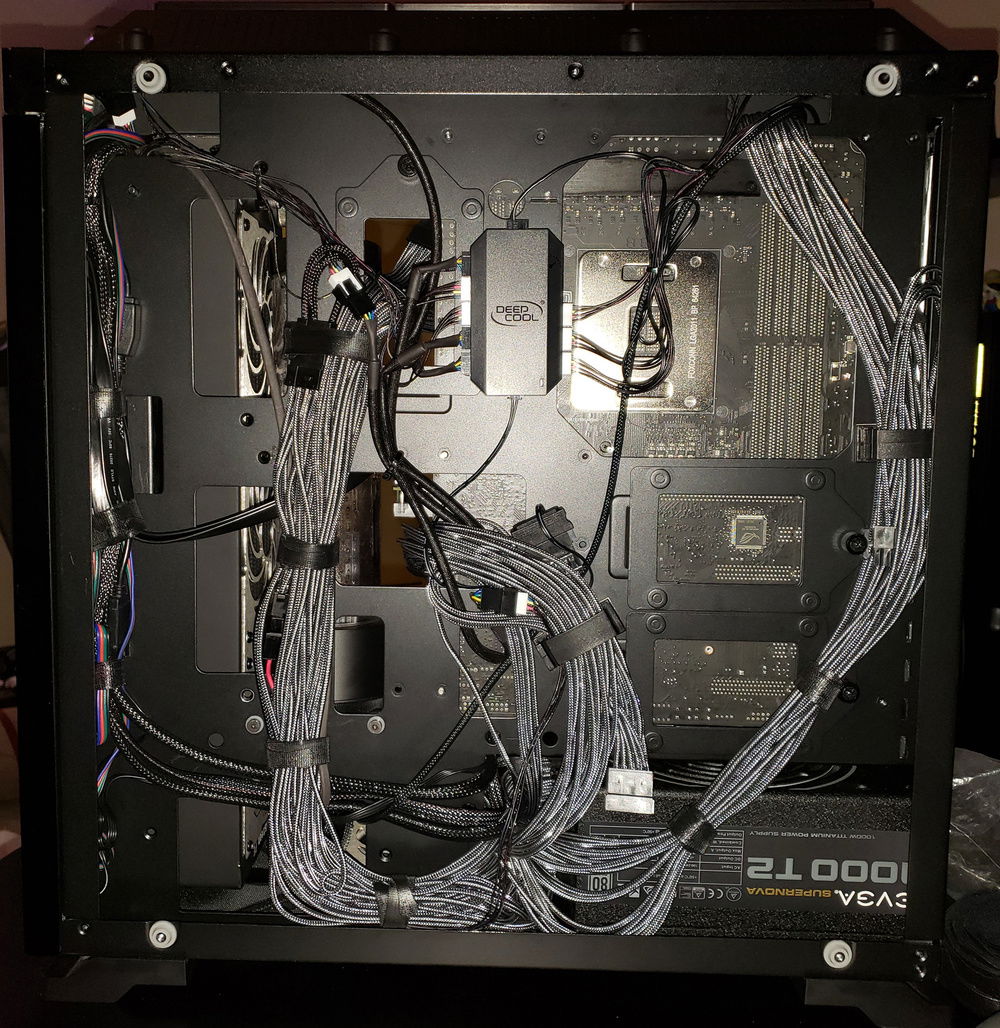

Custom Sleeving: CableMod E-Series CARBON
LED: Cablemod RGB Strip
Fans: Gentle Typhoon 120MM fan 2150 PWM x7
Grills: Mayhems (inner) & MNPCTECH (outer)
Action Figure Display: Anime, Berserk, Figma Berserker Armor
Monitor: Acer Predator X34
Small Monitor: AOC
Keyboard: Corsair K95 RGB Platinum
Mouse: Logitech G900 Chaos Spectrum
Mousepad: Razer Manticor
Speakers: Bose Companion 2 Series III
Headphones: Bose QC 25
Headset: Sennheiser GAME ZERO Special Edition Black
Controller: Xbox One Elite
Liquid Cooled Parts:
Fittings: EK 12mm HDC Nickle
Tubes: EK 12mm PETG
Flow indicator: Bitspower
Drain Valve: XSPC
CPU Block: EK X99
GPU Block: EK 1080ti
GPU Backplate: EK
Reservoir/Pump Combo: EK D5
Radiators: EK 360x40mm, EK 360x25mm
Coolant: PrimoChill Vue Gray
Mods:
Inner PC case bracket cut to accommodate 360mm radiator, also cut further for clear airflow from fan to radiator.
Drilled holes for reservoir/pump mount.

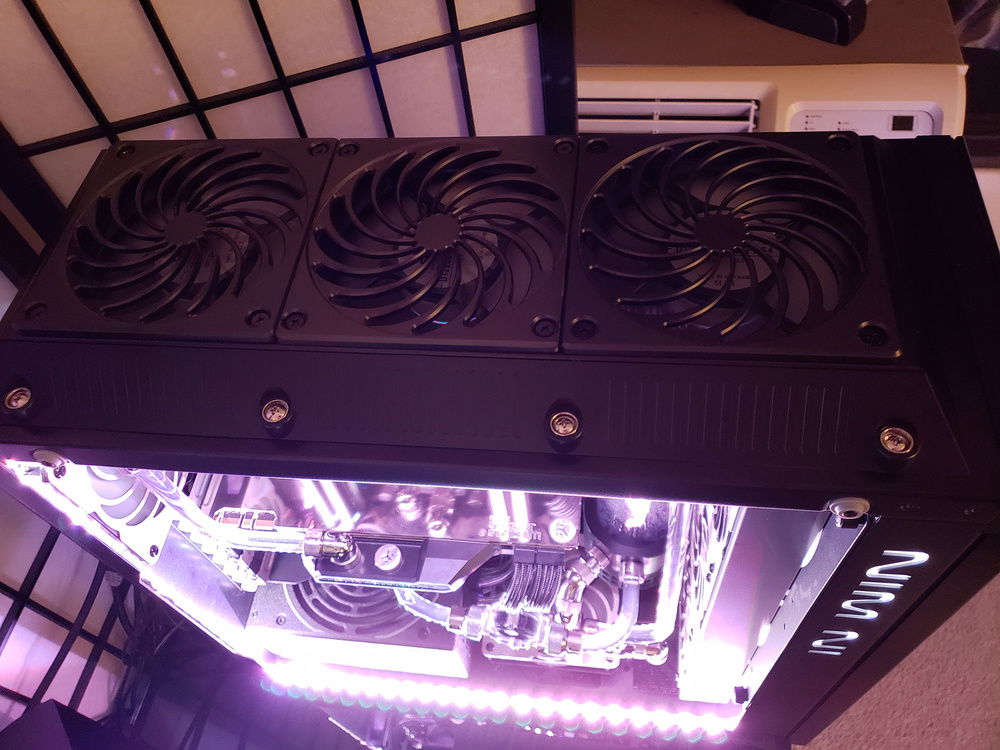

Cut out large holes on the top/drilled new screw holes for MNPCTECH outer grill/fan mounting x2 120mm capability.
Painted PCIE Brackets.
Bitspower Thumb Screws.
Temperatures/OC:
Gaming Test: Ghost Recon: Wildlands
CPU OC: 4.5ghz 1.4v
Temp: 54C
GPU OC: 2075mhz
Temp: 51C
RAM OC: 3000mhz
Most of the parts are the same from my previous build: Metatron.
Parts:
Case: In Win 805 Infinity Black
Motherboard: Asus ROG Strix X99
Processor: Intel Core i7-6850K
RAM: Corsair Dominator Platinum 32GB DDR4 3000
Power Supply: EVGA SuperNOVA T2 1000
Graphics Card: EVGA 1080ti FE
SSD: Samsung 950 Pro M.2 512GB
PCIE M.2 Adapter: Angelbird Wings PX1
Custom Sleeving: CableMod E-Series CARBON
LED: Cablemod RGB Strip
Fans: Gentle Typhoon 120MM fan 2150 PWM x7
Grills: Mayhems (inner) & MNPCTECH (outer)
Action Figure Display: Anime, Berserk, Figma Berserker Armor
Monitor: Acer Predator X34
Small Monitor: AOC
Keyboard: Corsair K95 RGB Platinum
Mouse: Logitech G900 Chaos Spectrum
Mousepad: Razer Manticor
Speakers: Bose Companion 2 Series III
Headphones: Bose QC 25
Headset: Sennheiser GAME ZERO Special Edition Black
Controller: Xbox One Elite
Liquid Cooled Parts:
Fittings: EK 12mm HDC Nickle
Tubes: EK 12mm PETG
Flow indicator: Bitspower
Drain Valve: XSPC
CPU Block: EK X99
GPU Block: EK 1080ti
GPU Backplate: EK
Reservoir/Pump Combo: EK D5
Radiators: EK 360x40mm, EK 360x25mm
Coolant: PrimoChill Vue Gray
Mods:
Inner PC case bracket cut to accommodate 360mm radiator, also cut further for clear airflow from fan to radiator.
Drilled holes for reservoir/pump mount.
Cut out large holes on the top/drilled new screw holes for MNPCTECH outer grill/fan mounting x2 120mm capability.
Painted PCIE Brackets.
Bitspower Thumb Screws.
Temperatures/OC:
Gaming Test: Ghost Recon: Wildlands
CPU OC: 4.5ghz 1.4v
Temp: 54C
GPU OC: 2075mhz
Temp: 51C
RAM OC: 3000mhz
Color(s): Black Silver
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build
Hardware
CPU
$ 85.00
Motherboard
$ 698.86
Memory
$ 200.00
Graphics
$ 535.00
PSU
$ 378.02
CableMod
CableMod - E-Series Cable Kit for EVGA G5 / G3 / G2 / P2 / T2
Mode: Stock
Sleeve: PRO ModMesh
Color: Carbon
Approved by:
