Destiny Vex Mod

Blog complete Article: Link Text

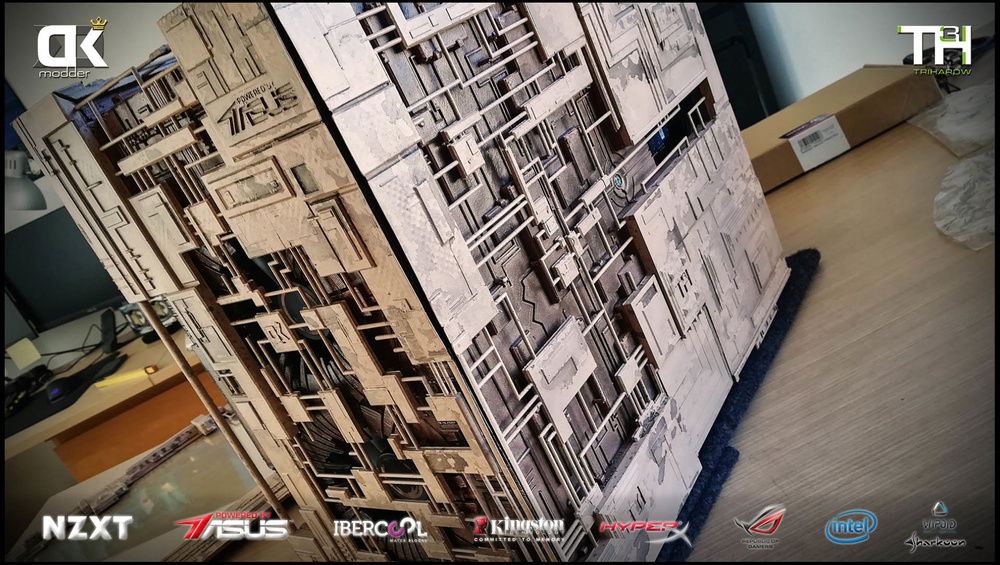

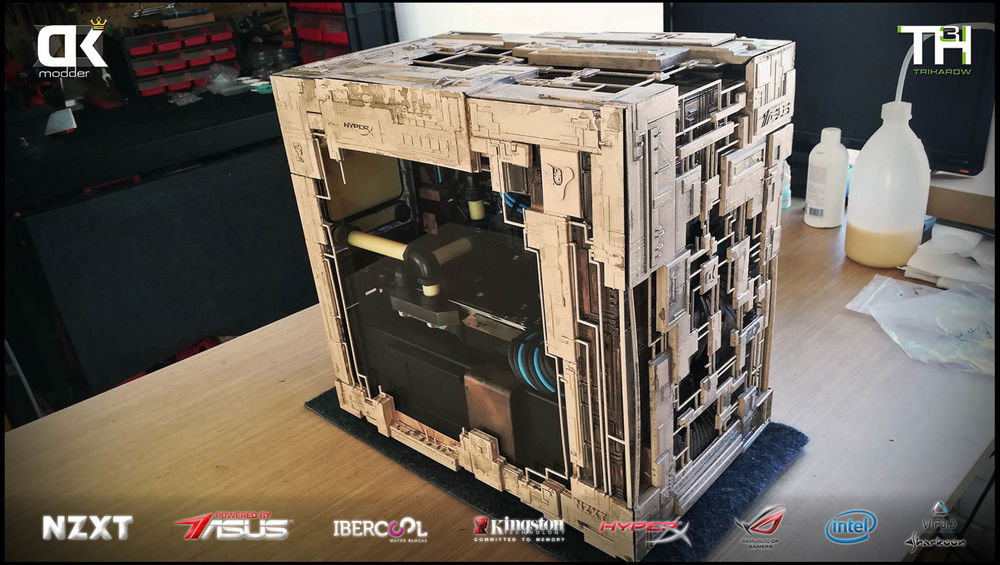

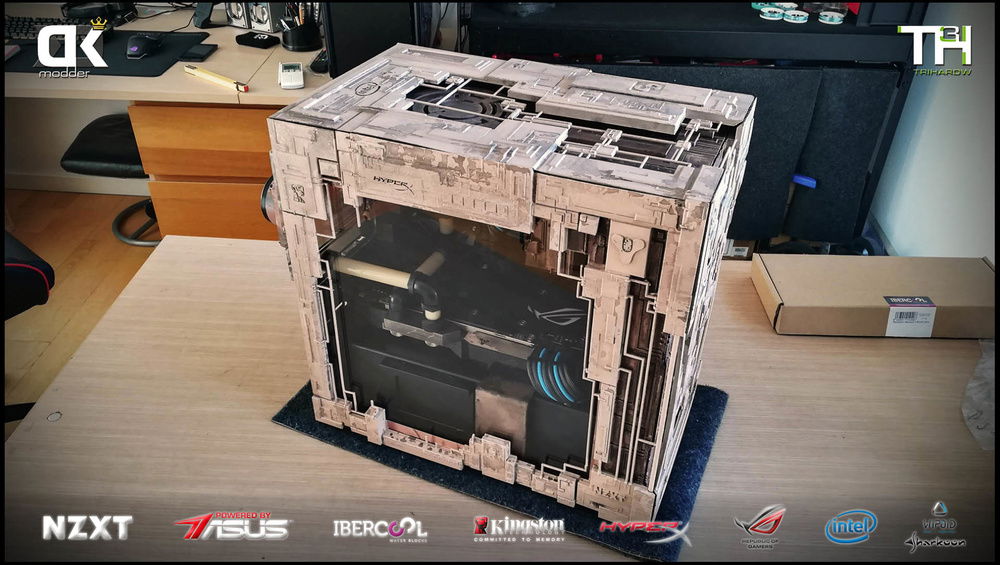

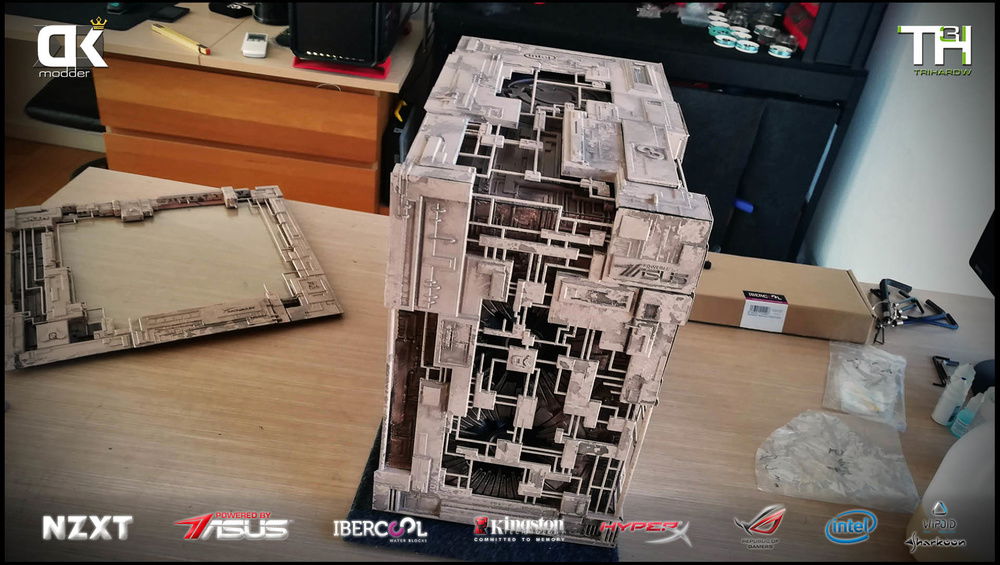

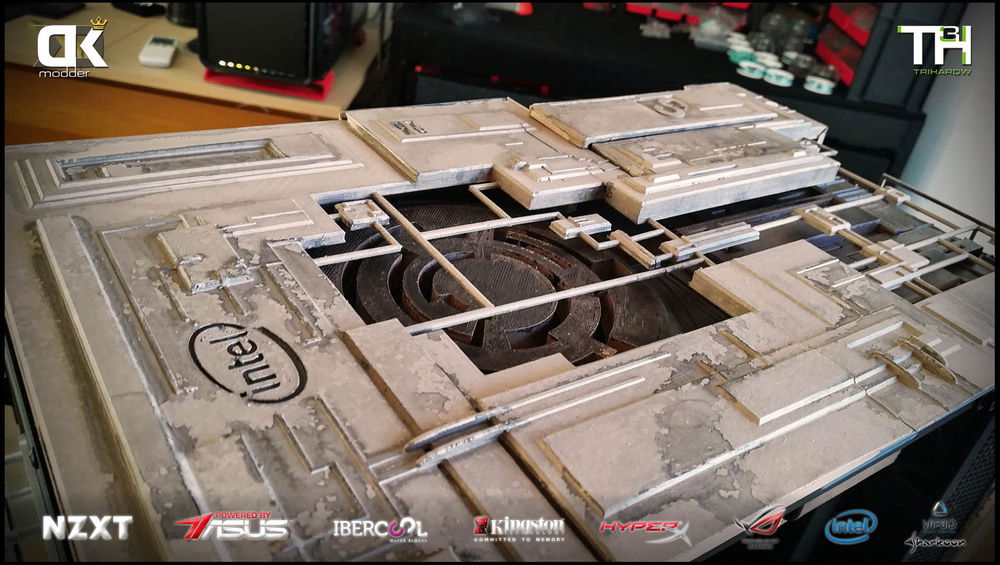

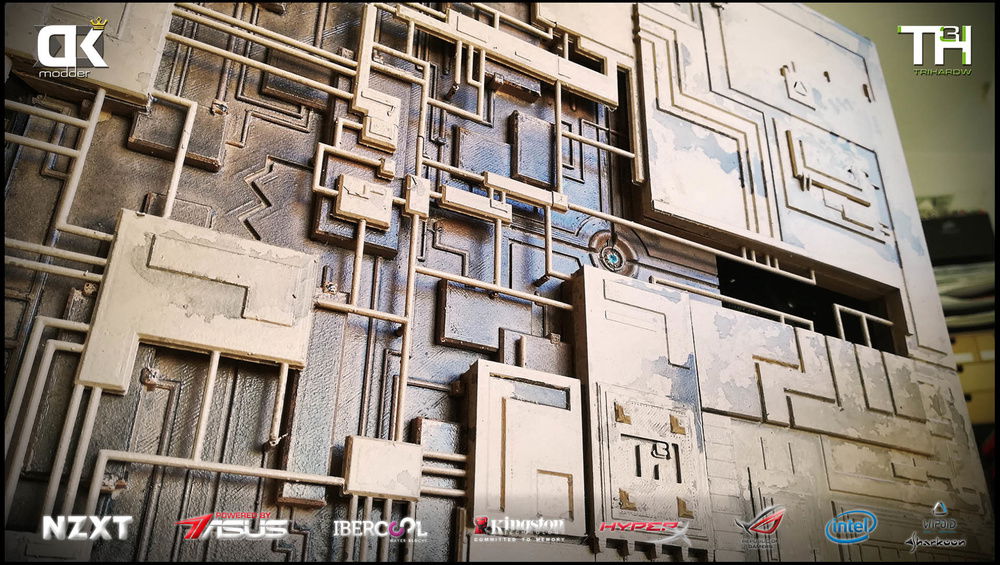

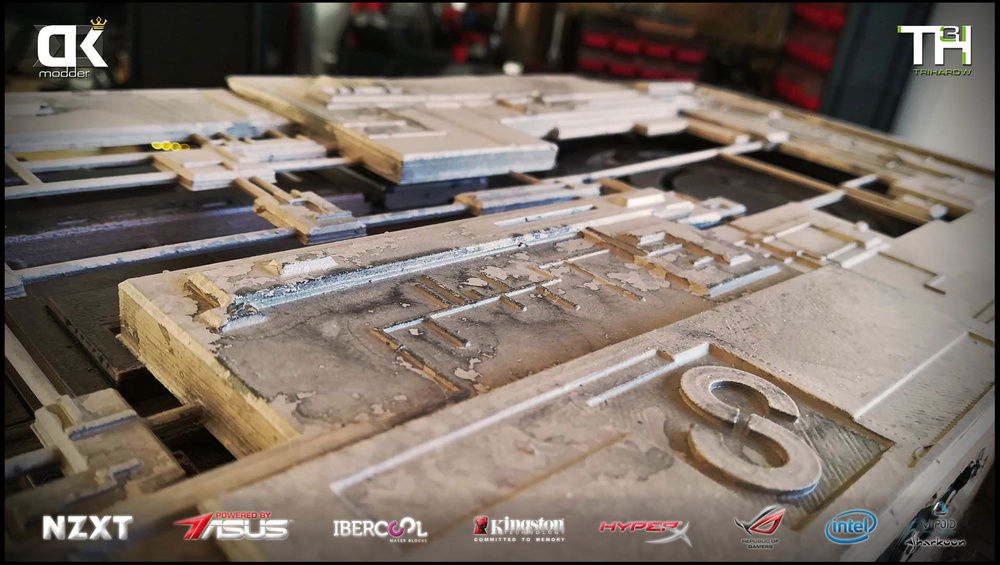

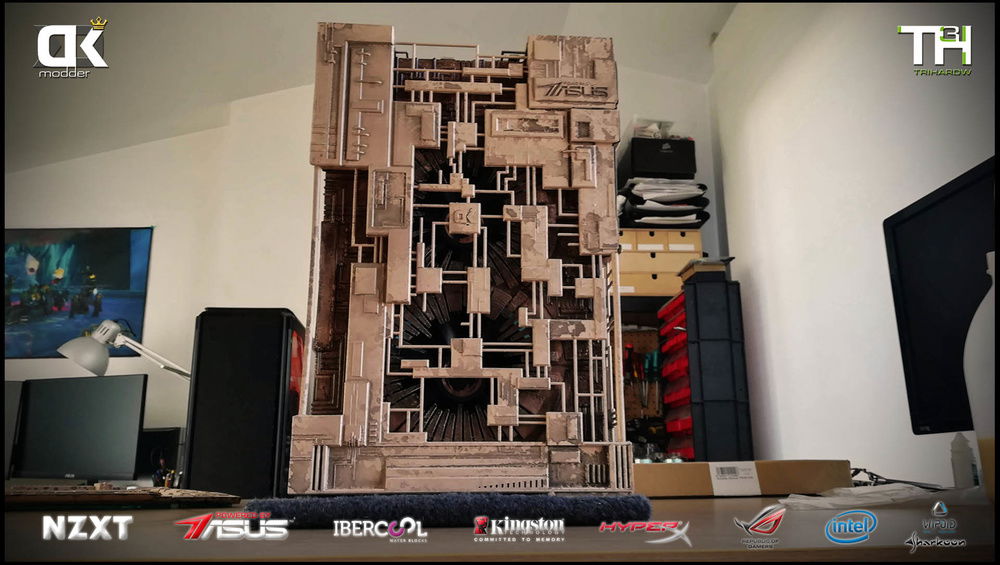

Case modding of a mini itx NXZT H200i.

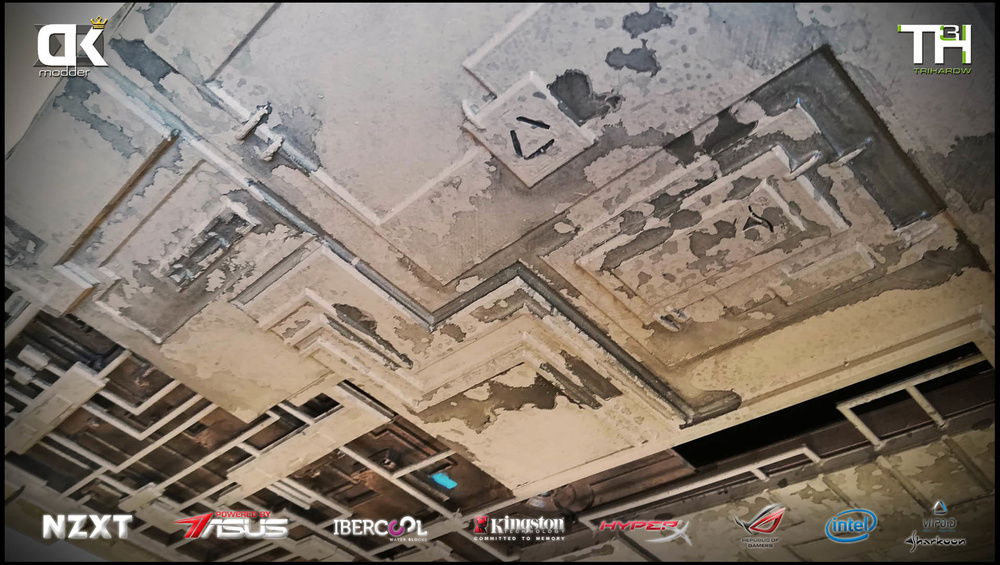

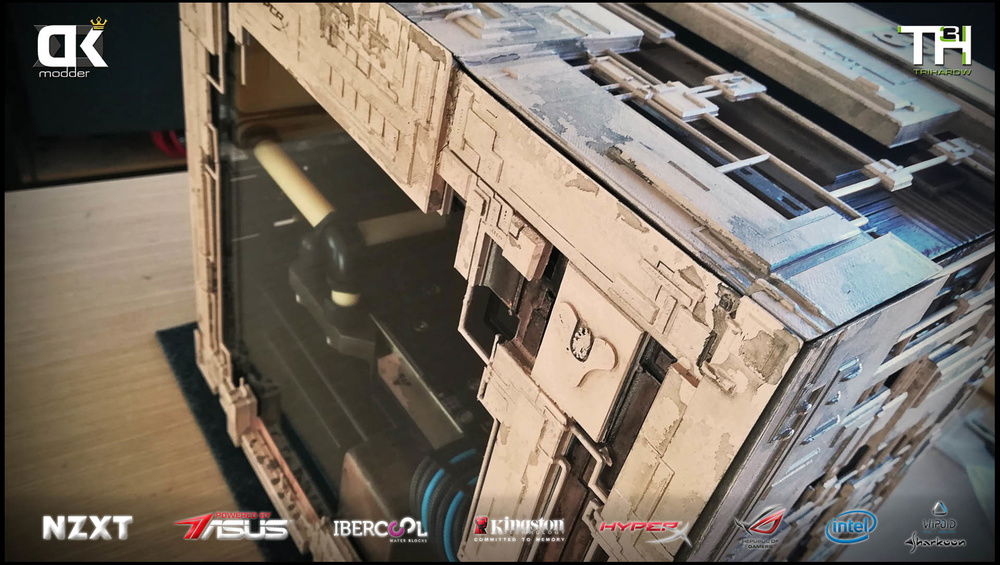

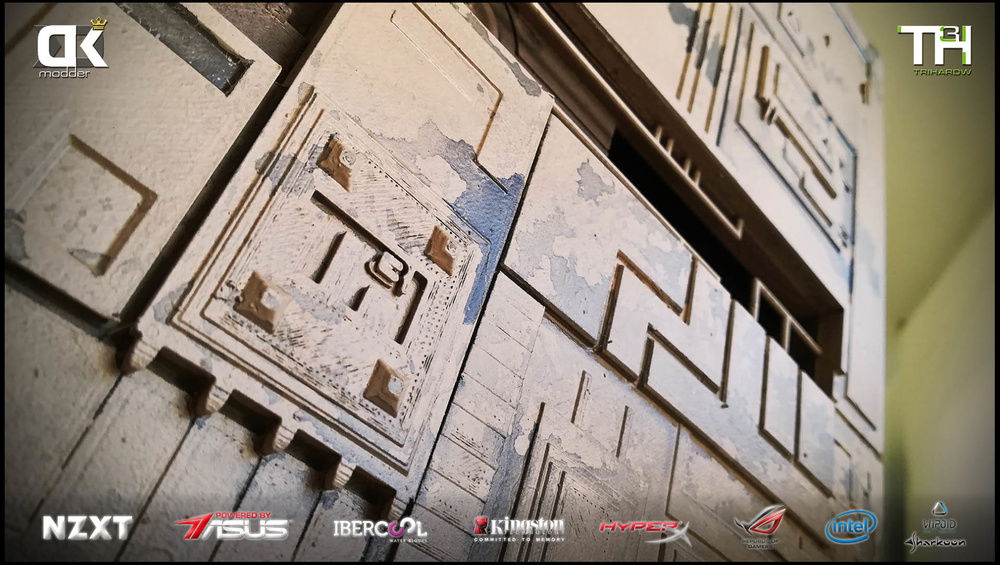

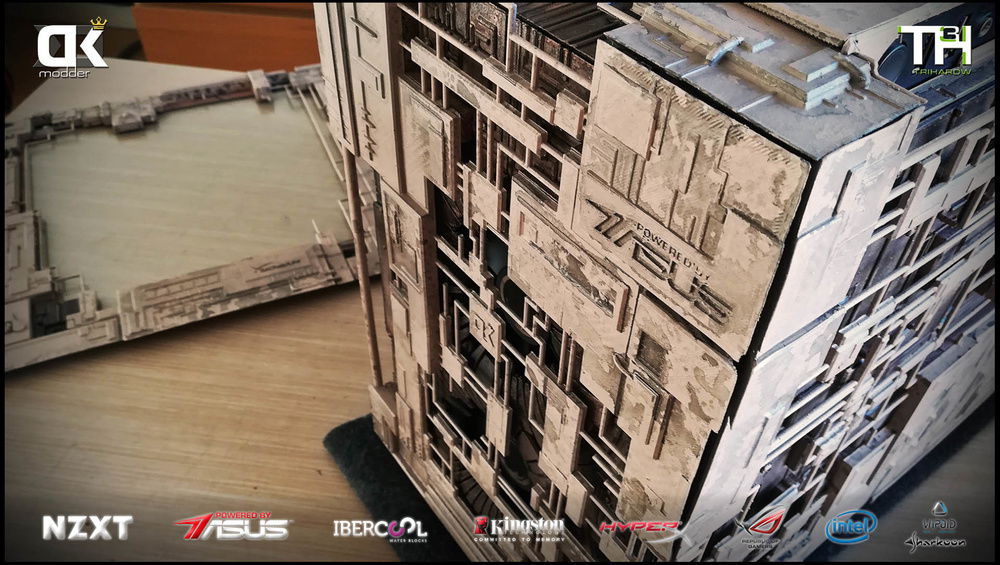

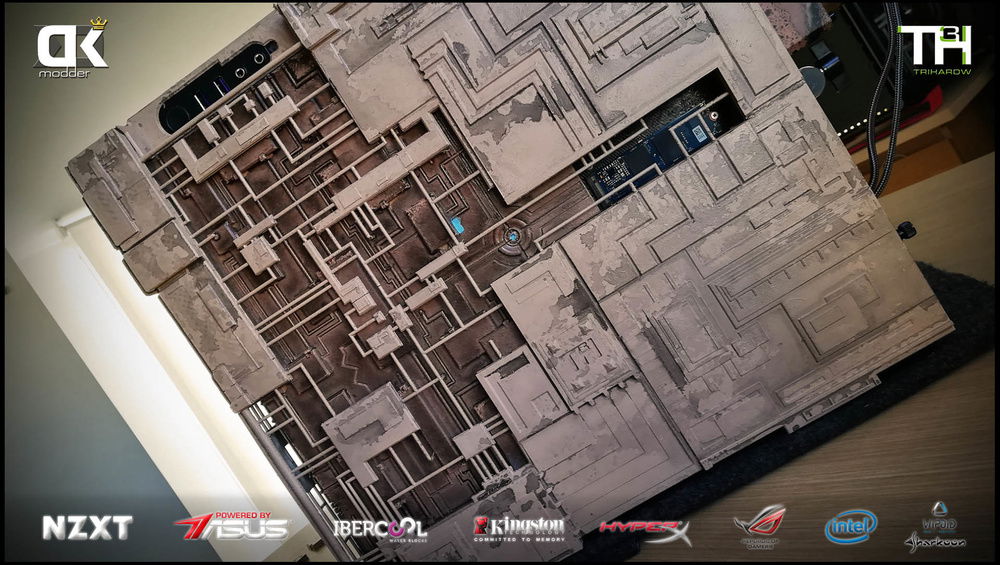

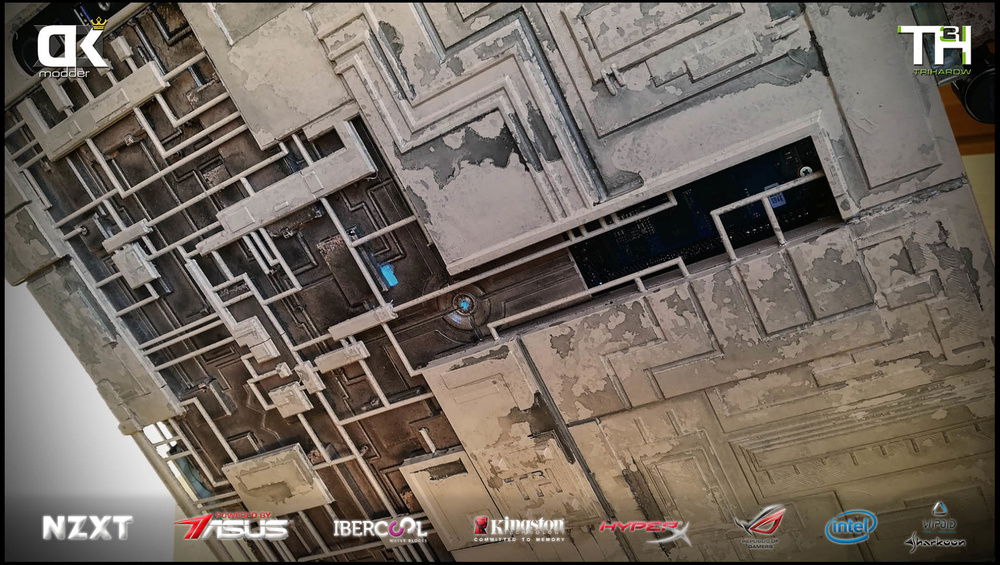

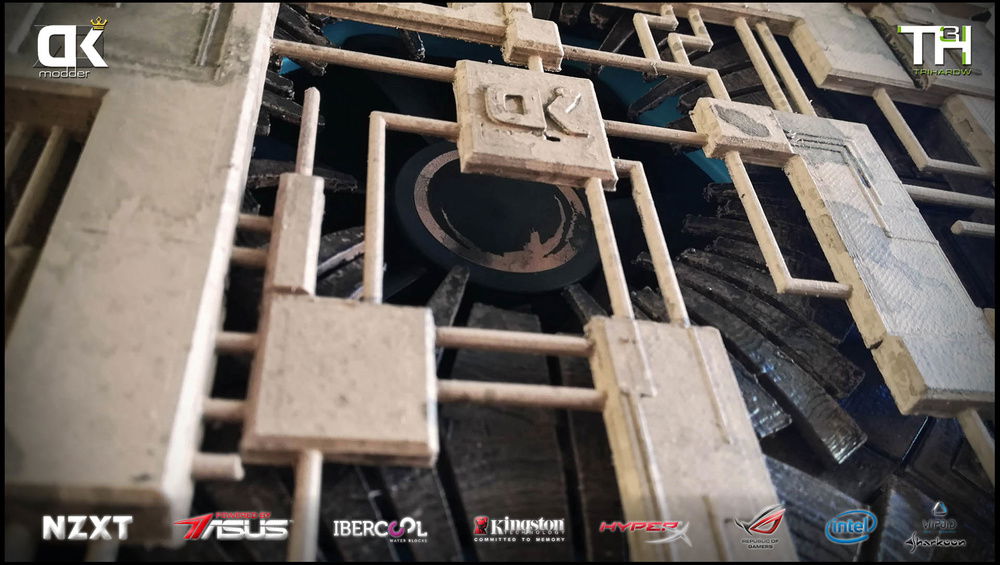

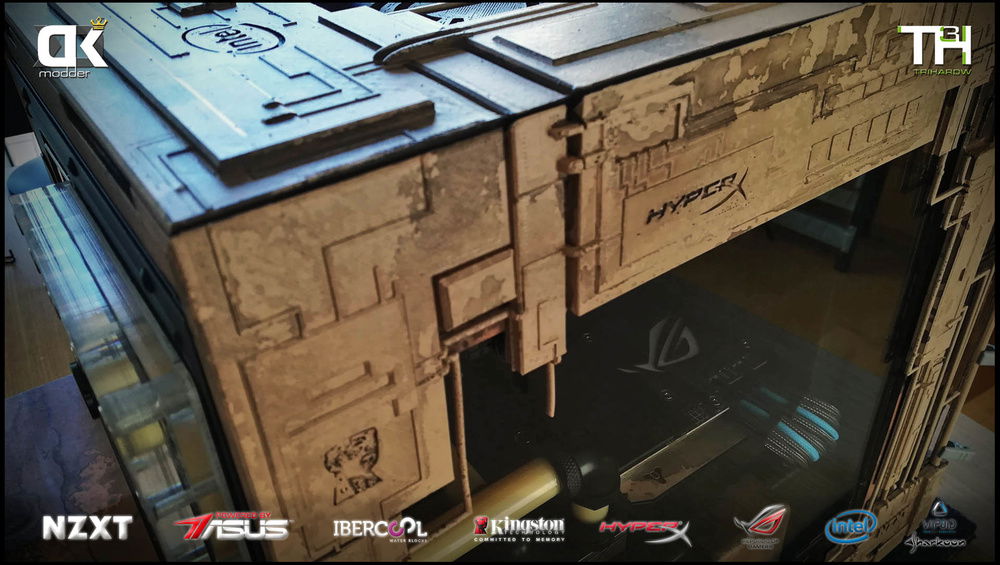

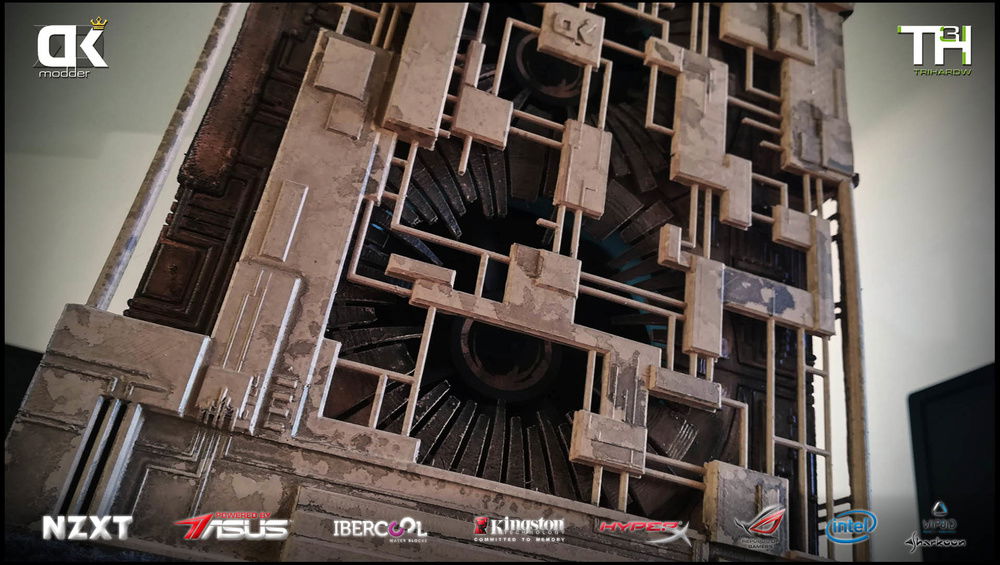

It represents the Vex architecture of the videogame Destiny 2. The Vex are a timeless race, half war machines. That's why the Borg type look of the design. This design is by Ethan Scheu made for Bungie and adapted to this fan art by me.

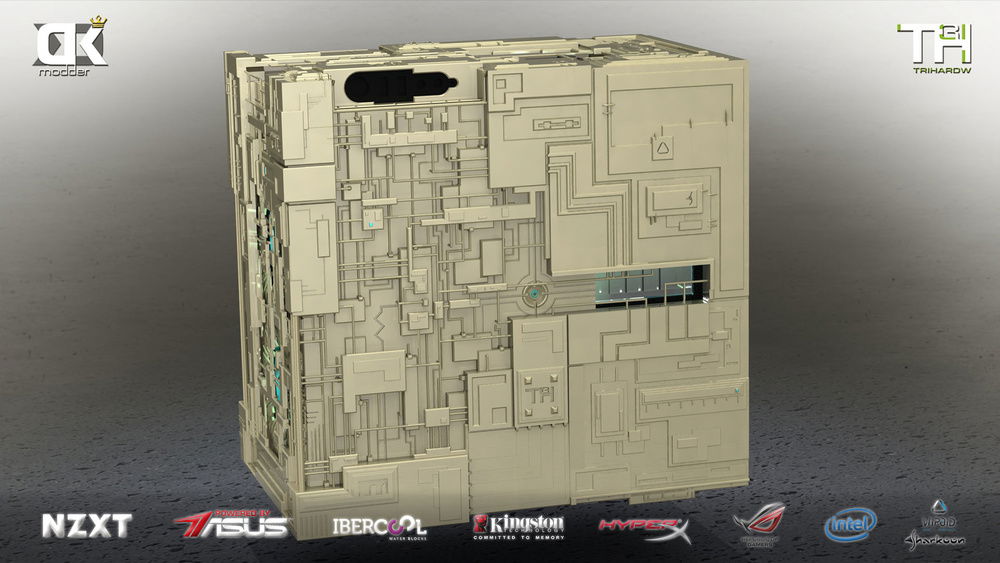

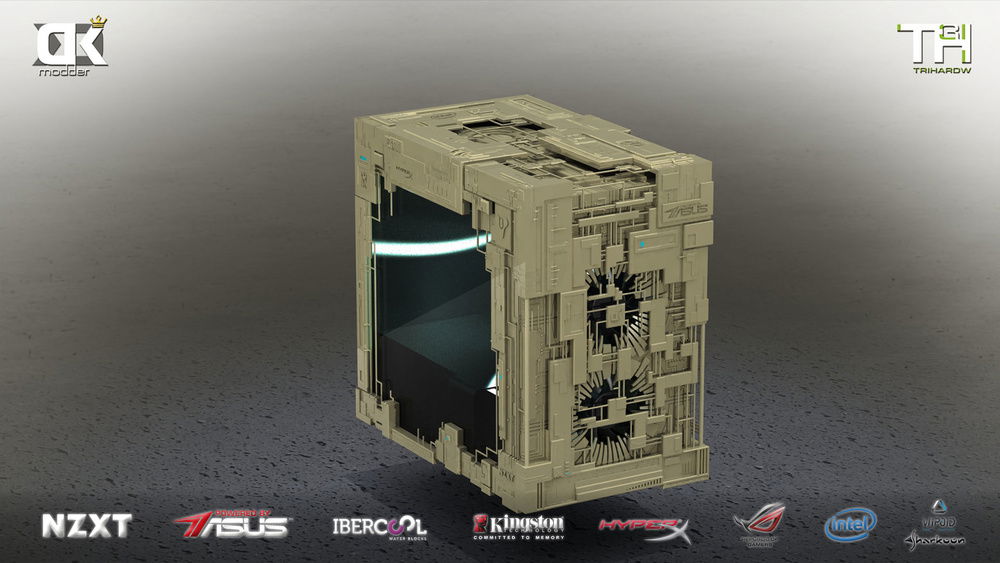

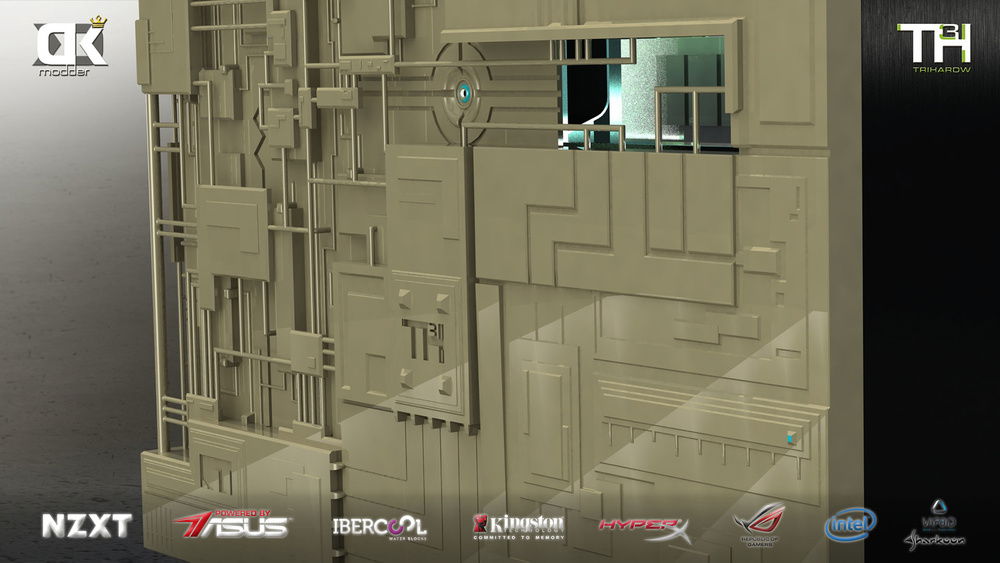

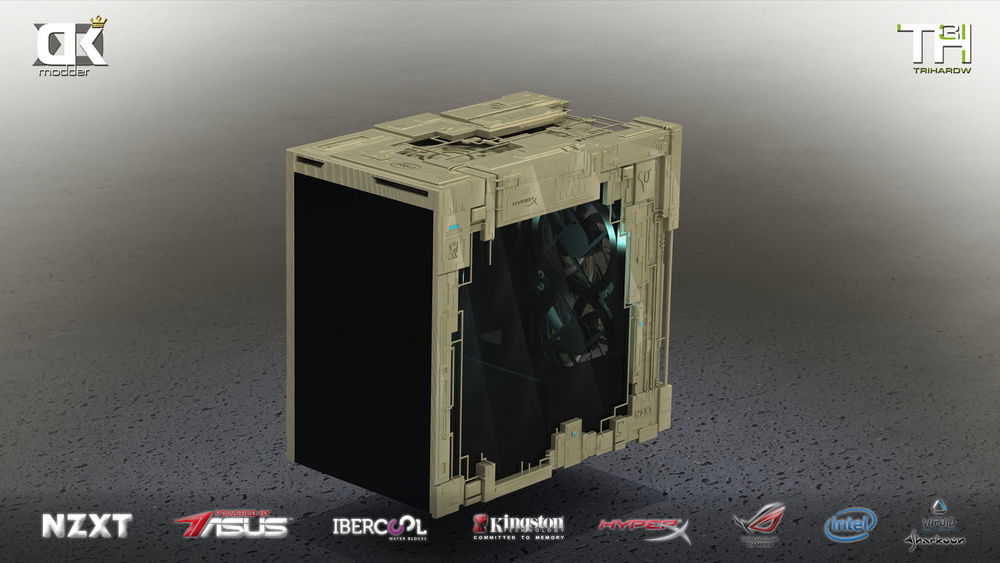

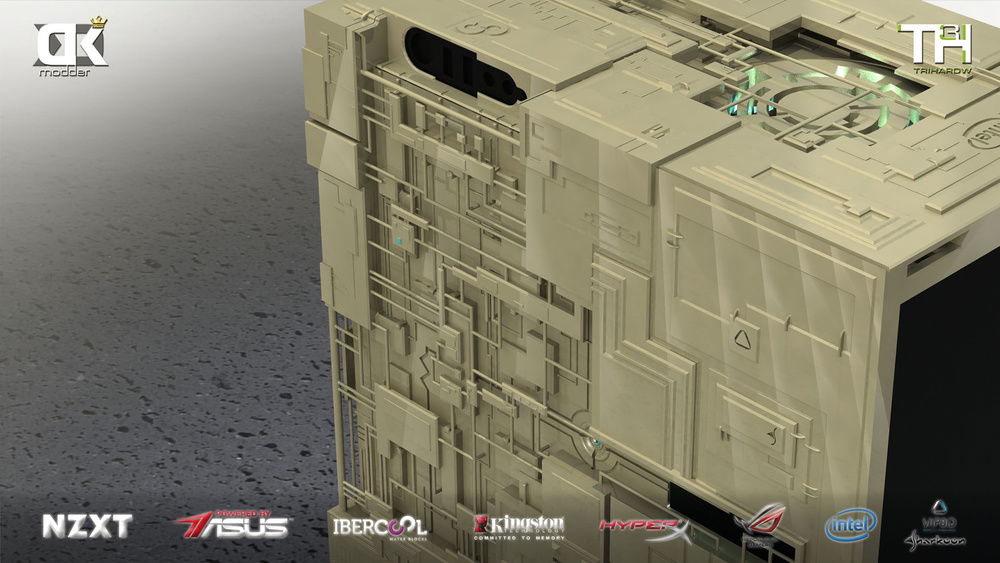

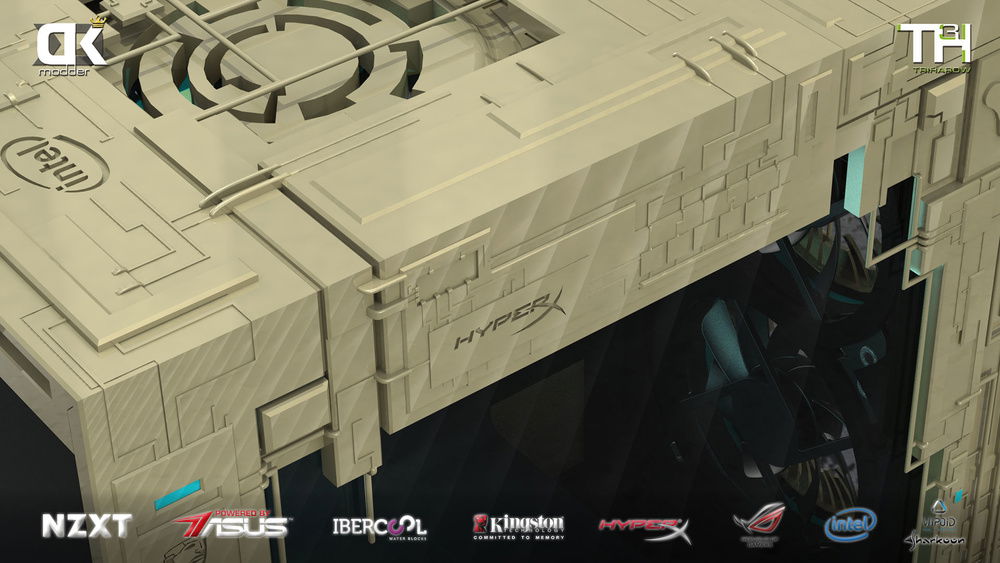

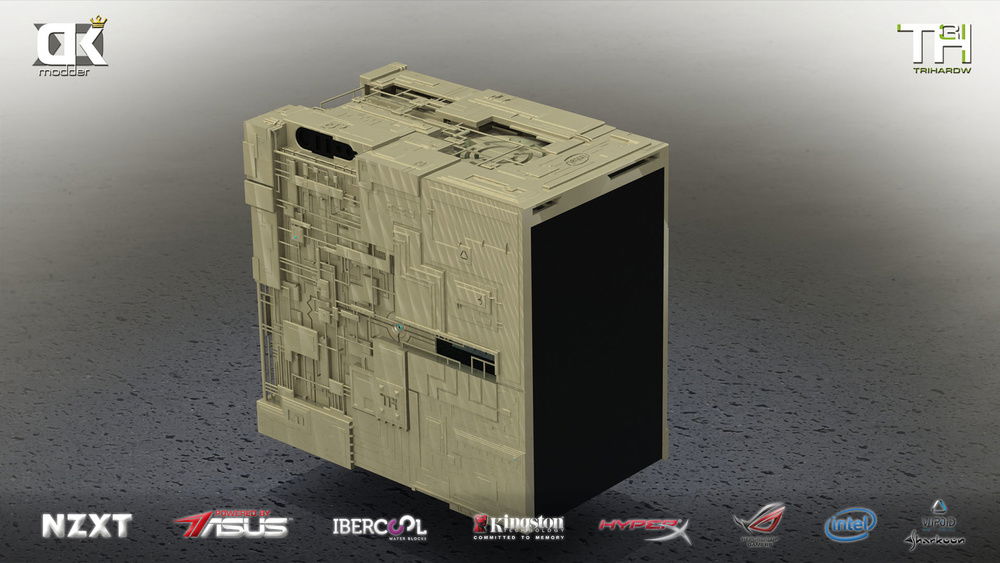

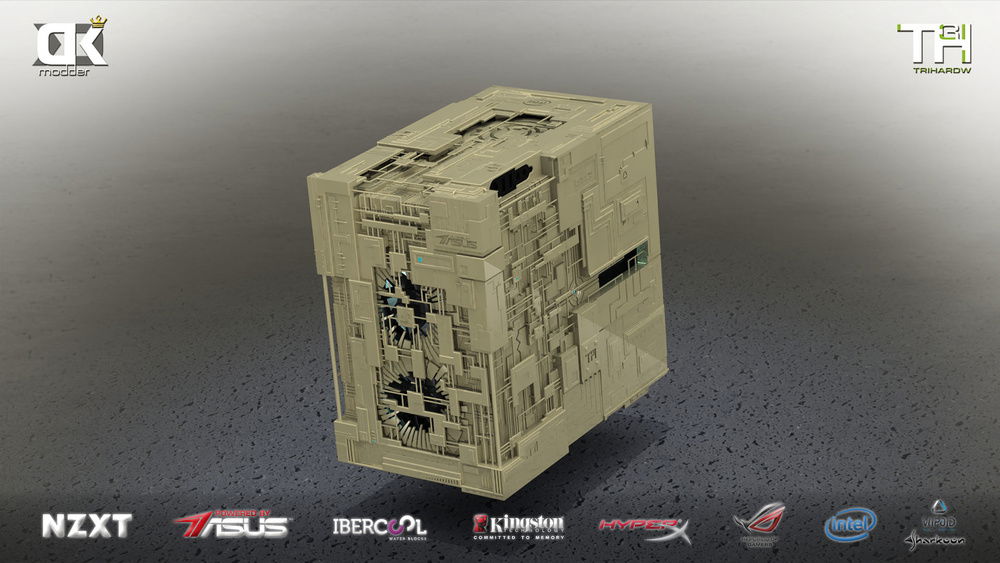

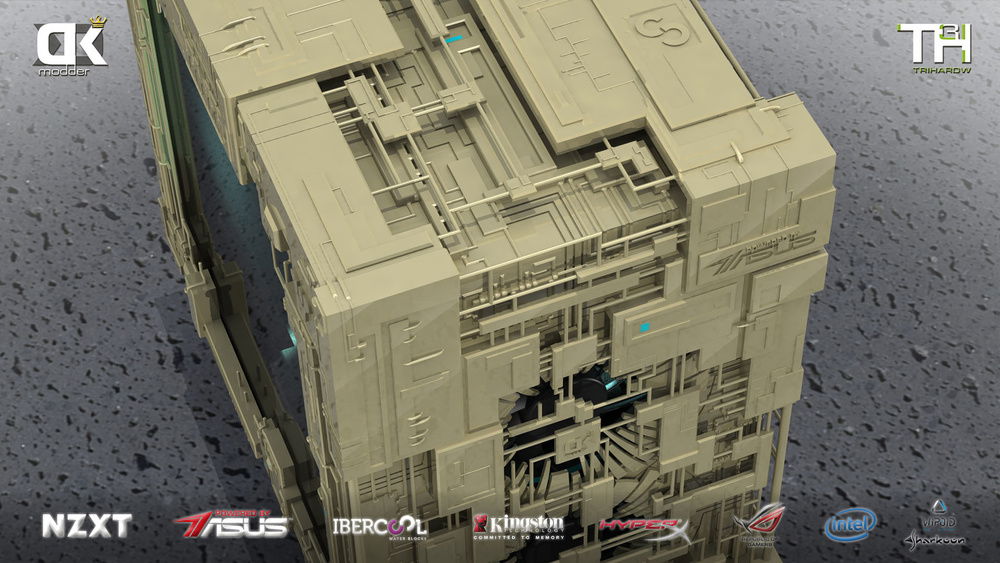

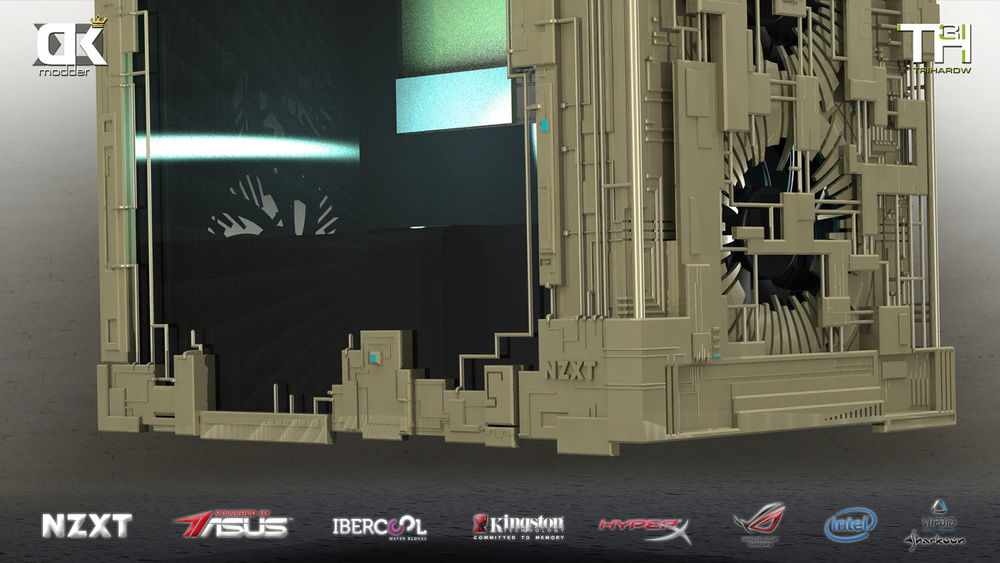

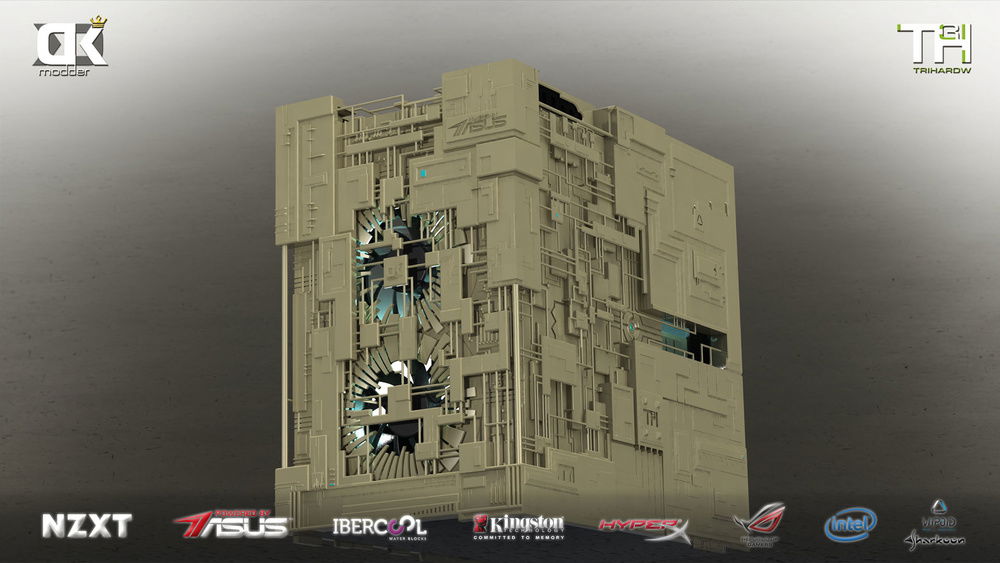

The whole project is designed and created in CAD by me, in streaming and with my YouTube community for a joint project with two other Spanish technology influencers.

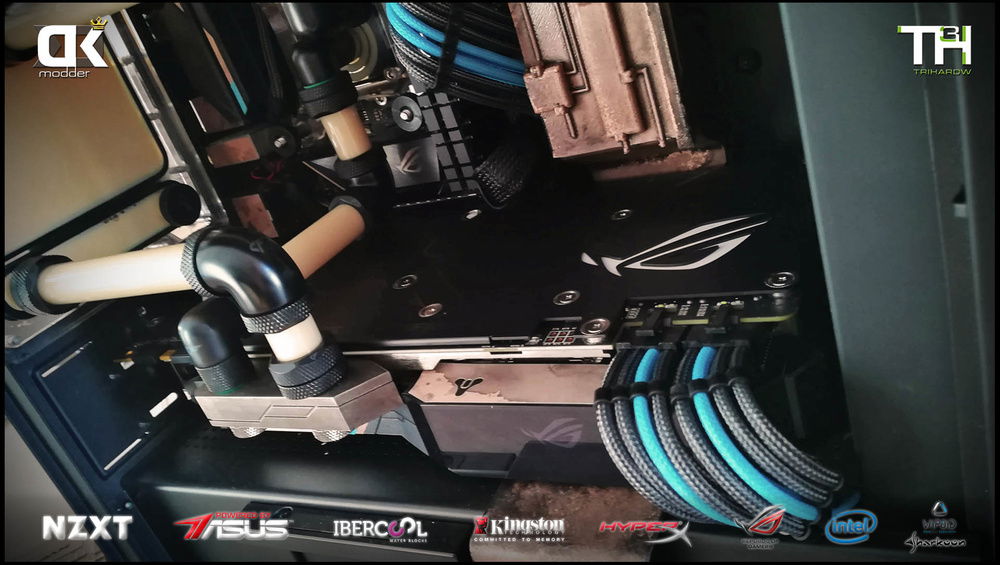

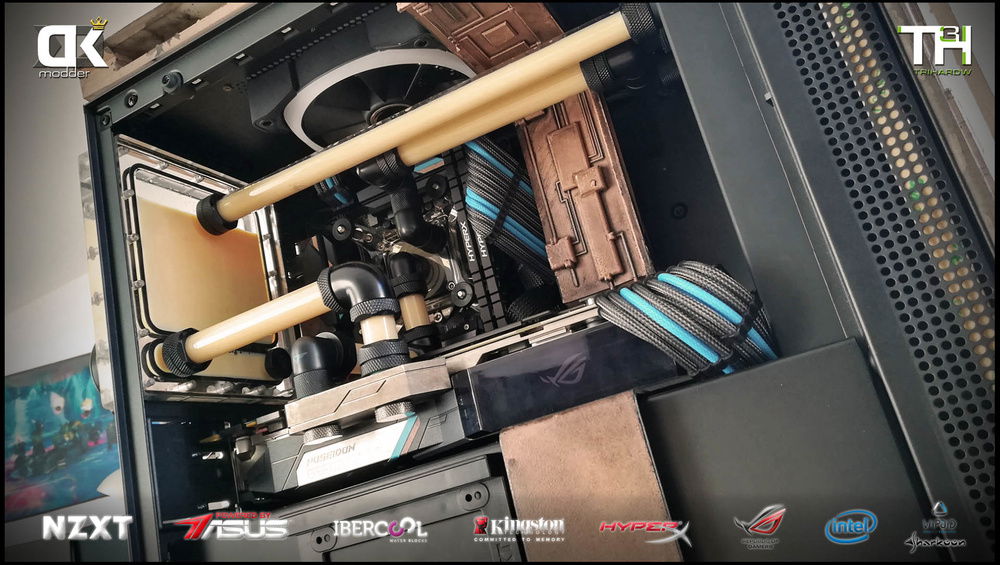

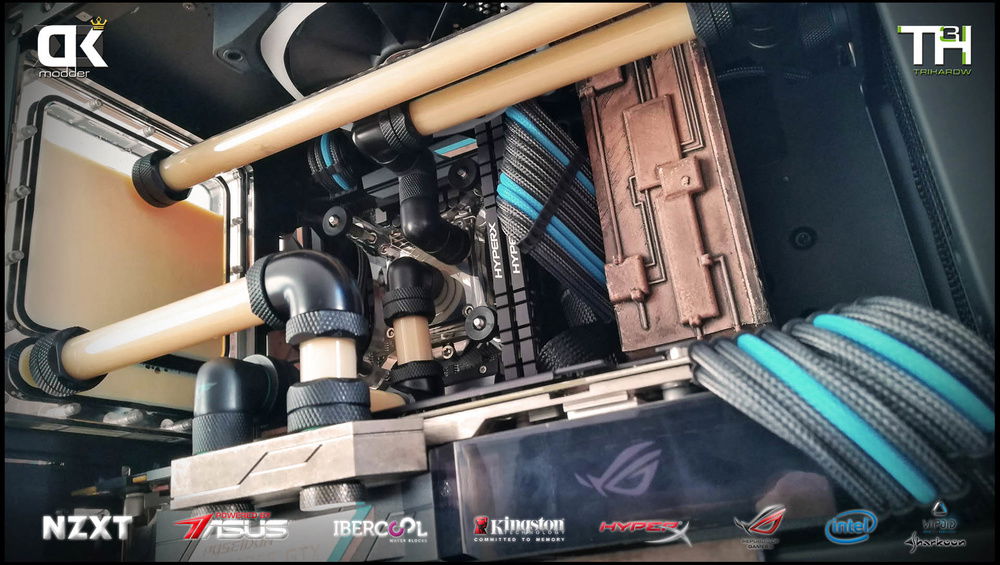

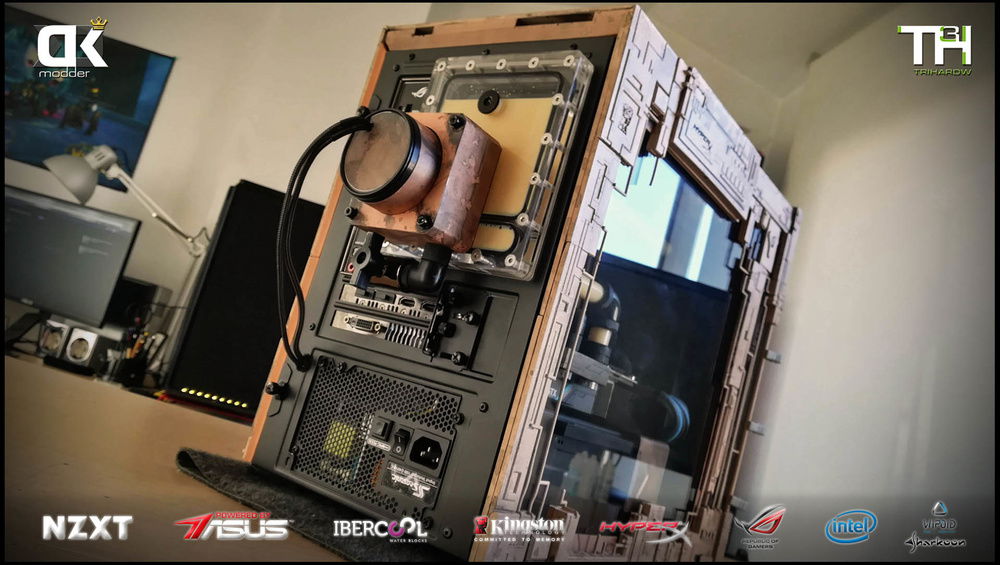

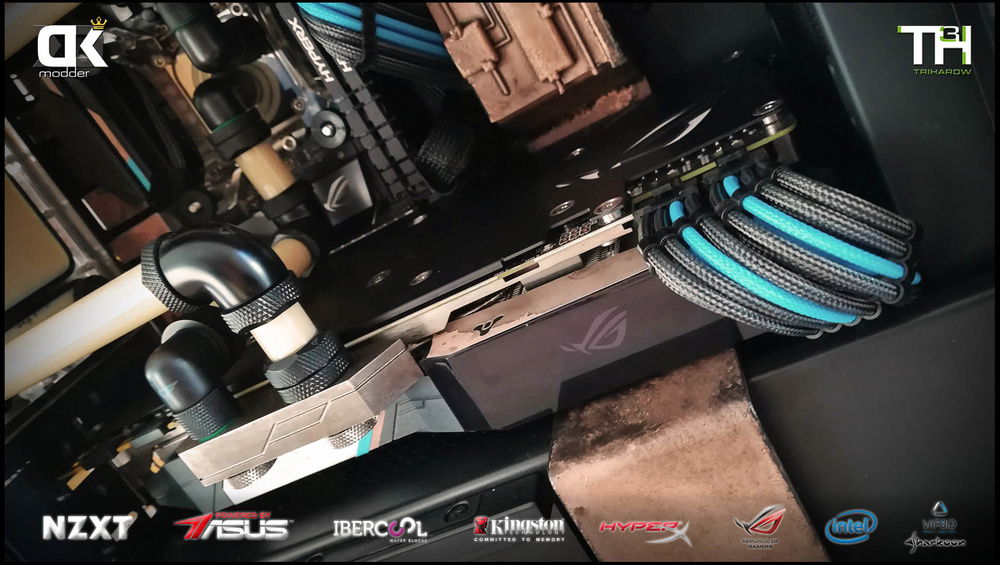

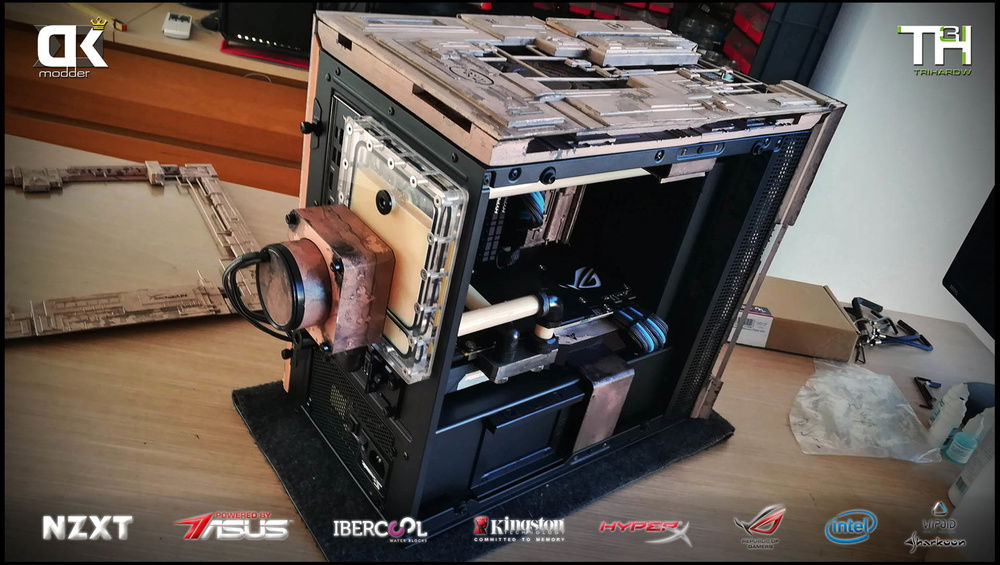

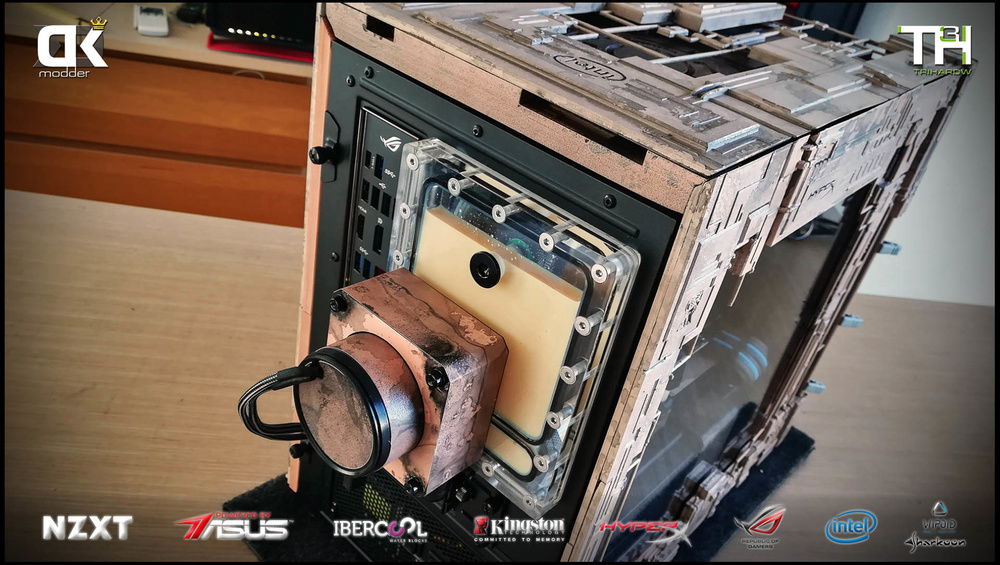

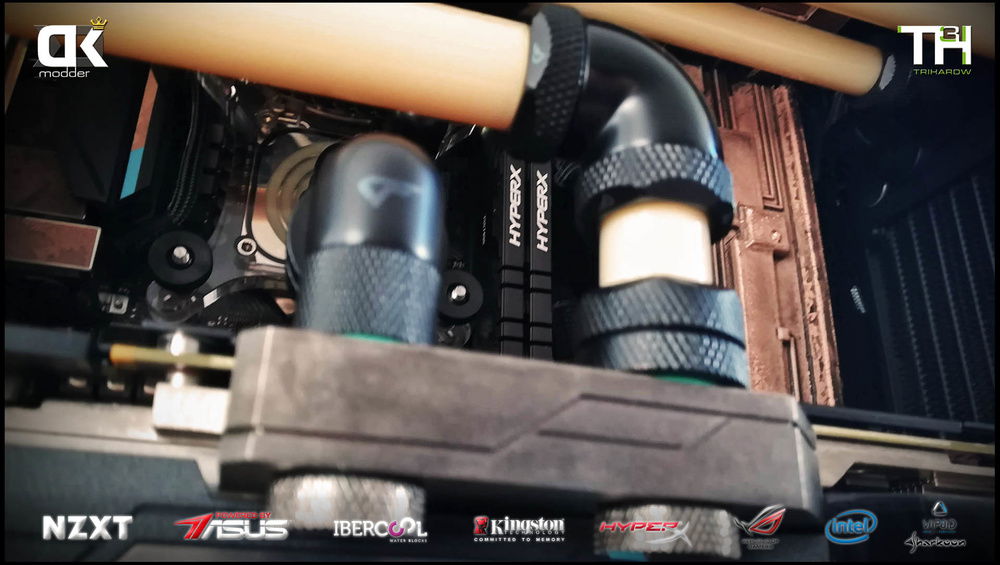

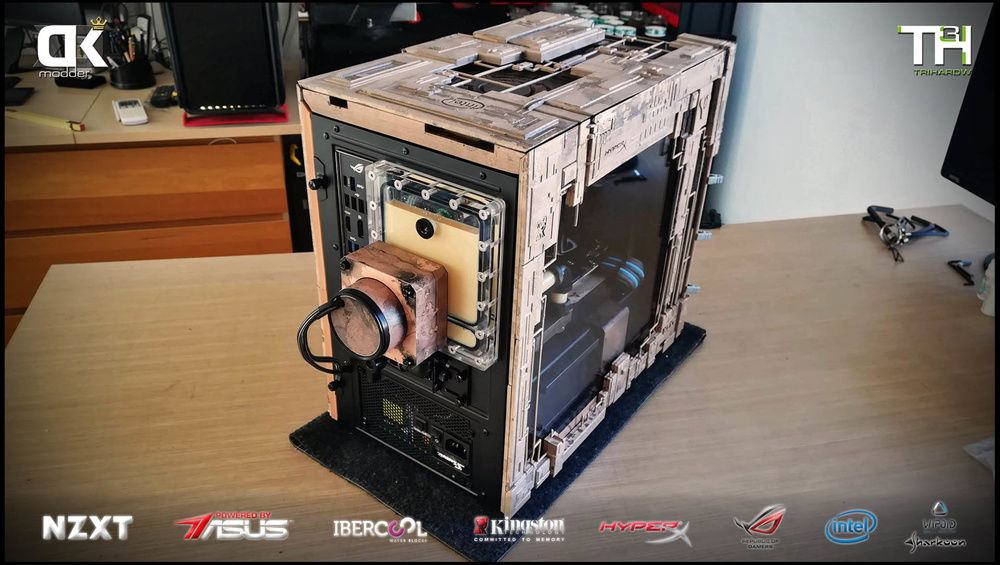

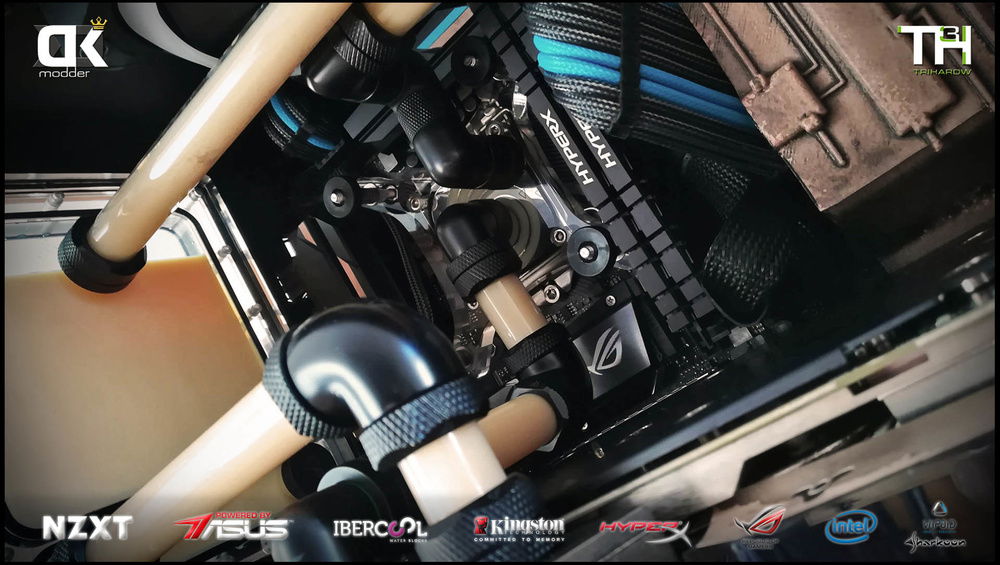

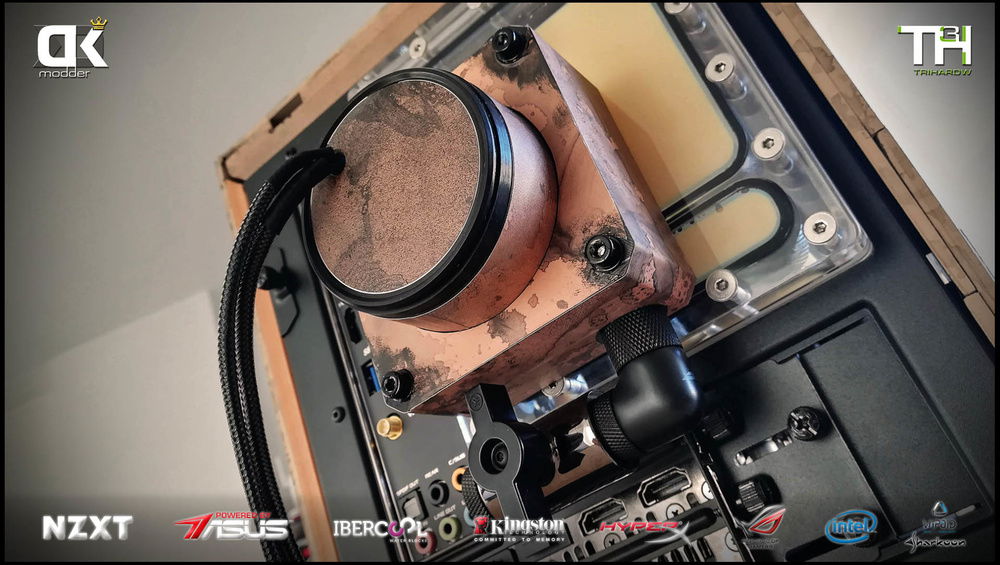

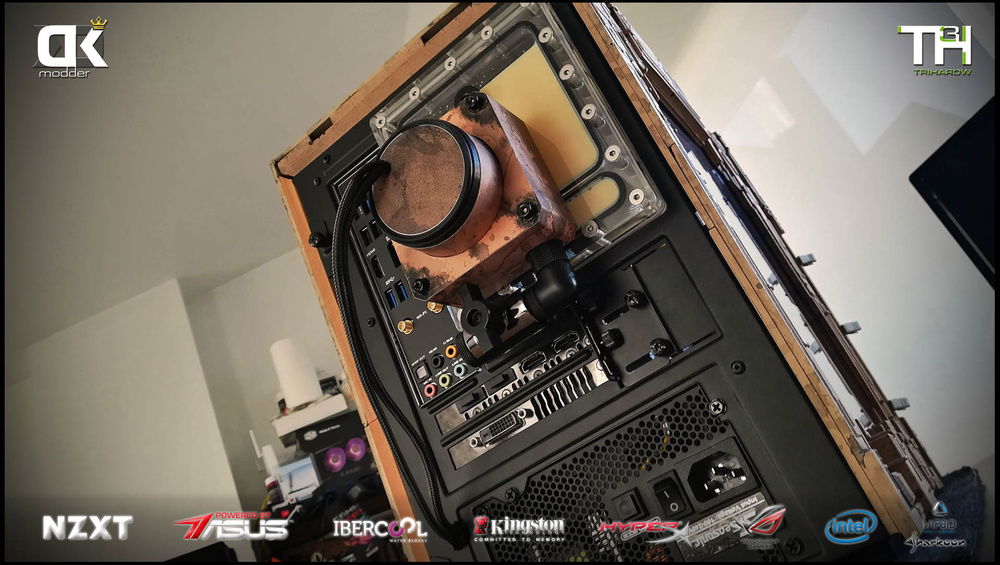

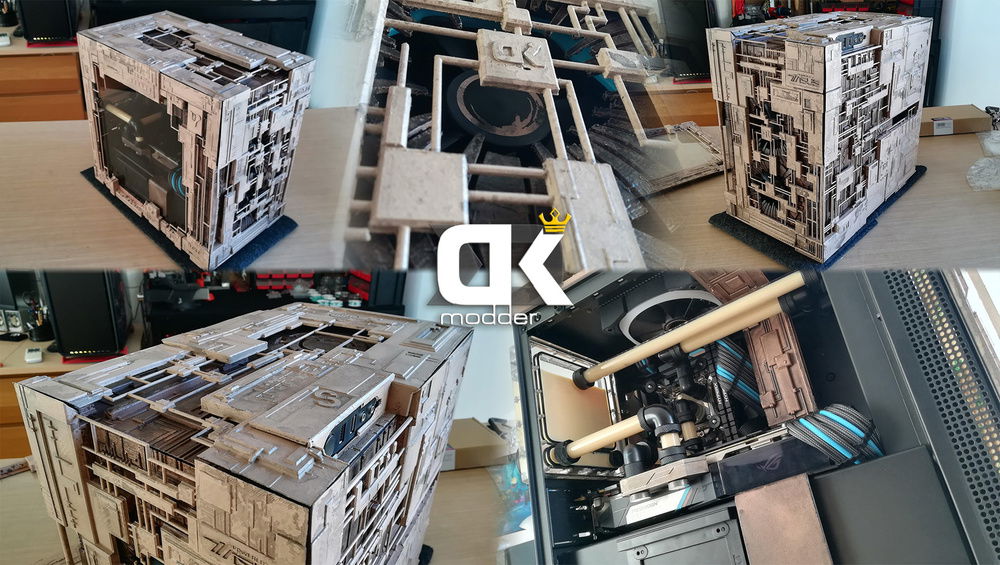

This PC has a special custom RL, the reservoir located on the back of the pc, just where the rear fan would be, it is completely made for the project, it improves both aesthetics and for the airflow inside the case, since it has attached the pump of water D5 on the outside of the case. The graphic is an Asus 1080TI poseidon and has hybrid cooling, a water block full cover that also has an air cooler and fans. The space is small and there is a lot of heat, this graphics card helps the dissipation process, getting temperatures no higher than 55º in CPU and GPU with fans at 900 RPMs (delta temperature not higher than 10º)
Complete hand-held and custom-made wiring for the Seasonic Focus platinum PSU, m.2 NVME disk and Hyperx SSD, an ultra-quiet PC.
Color(s): Beige Light Blue
RGB Lighting? No
Theme: Video Game
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 169.83
Intel - Core i7-8700K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 105.00
ASUS - ROG Strix (Z370-I)
Chipset: Z370
CPU Socket: LGA 1151
Size: Mini-ITX
Memory
$ 244.05
Kingston - HyperX Predator (3600MHz) (Black)
Type: DDR4
Capacity: 32 GB
Graphics
ASUS - Poseidon
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 69.99
HyperX - Savage
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 120 GB
Storage
$ 128.00
Intel - Optane Memory
Form Factor: M.2
Interface: M.2 (M)
Capacity: 32 GB
PSU
$ 129.99
Seasonic - Focus Plus
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 171.99
NZXT - H200i Black/Red
Type: Mini-Tower
Side Panel: Tempered Glass
Cooling
$ 79.99
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
Nanoxia - Fittings
Type: Custom Loop
