Minionmod

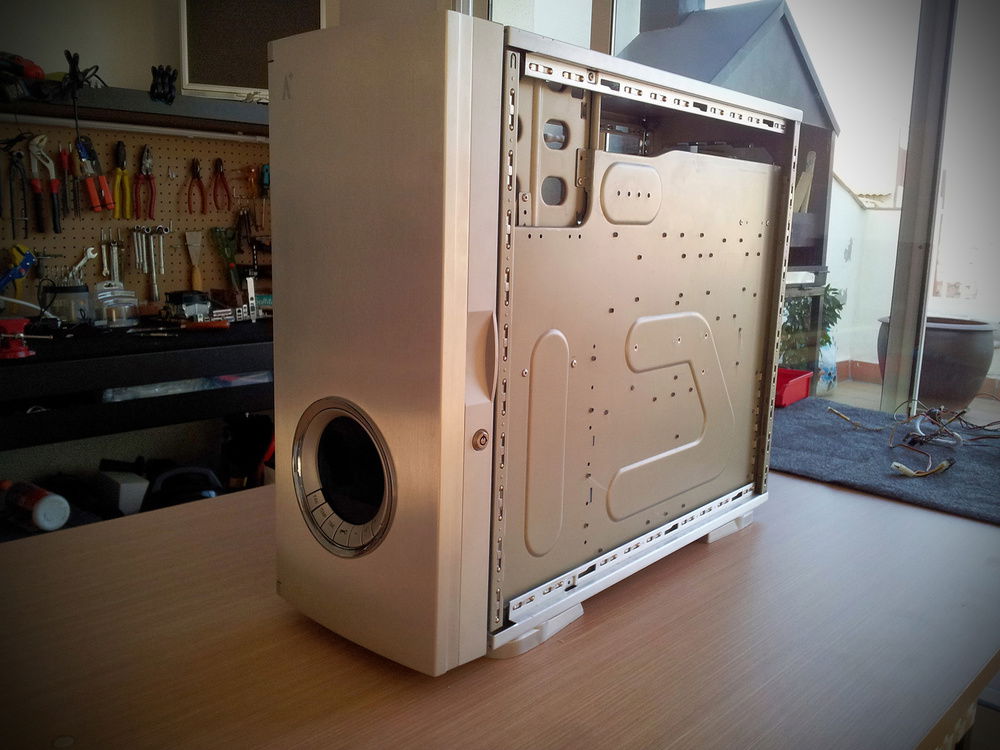

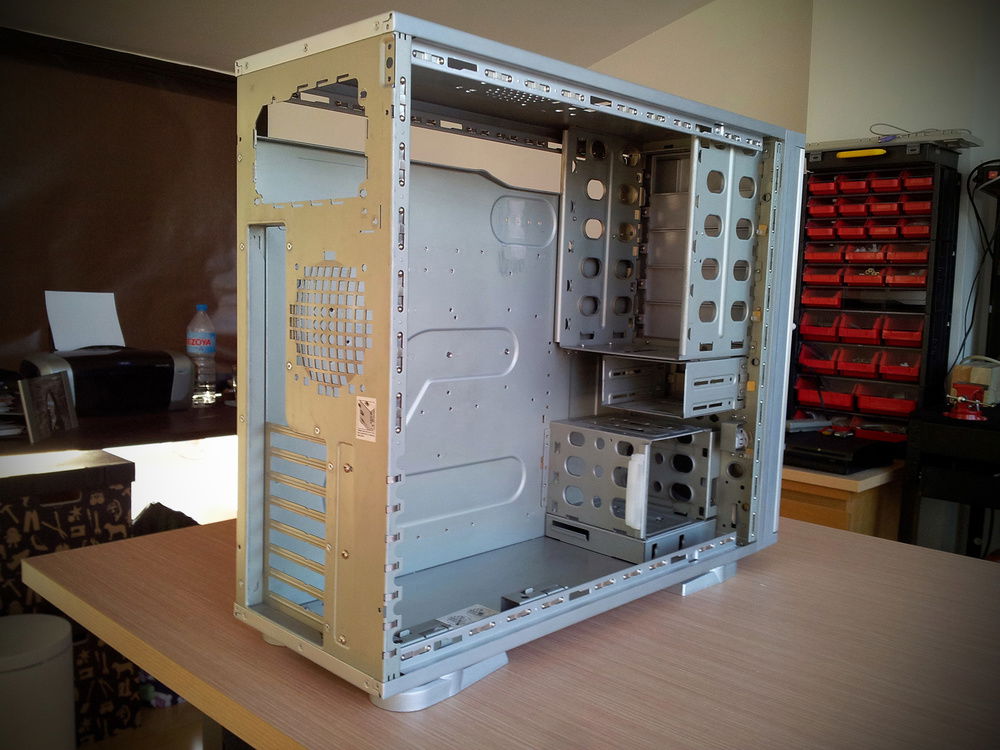

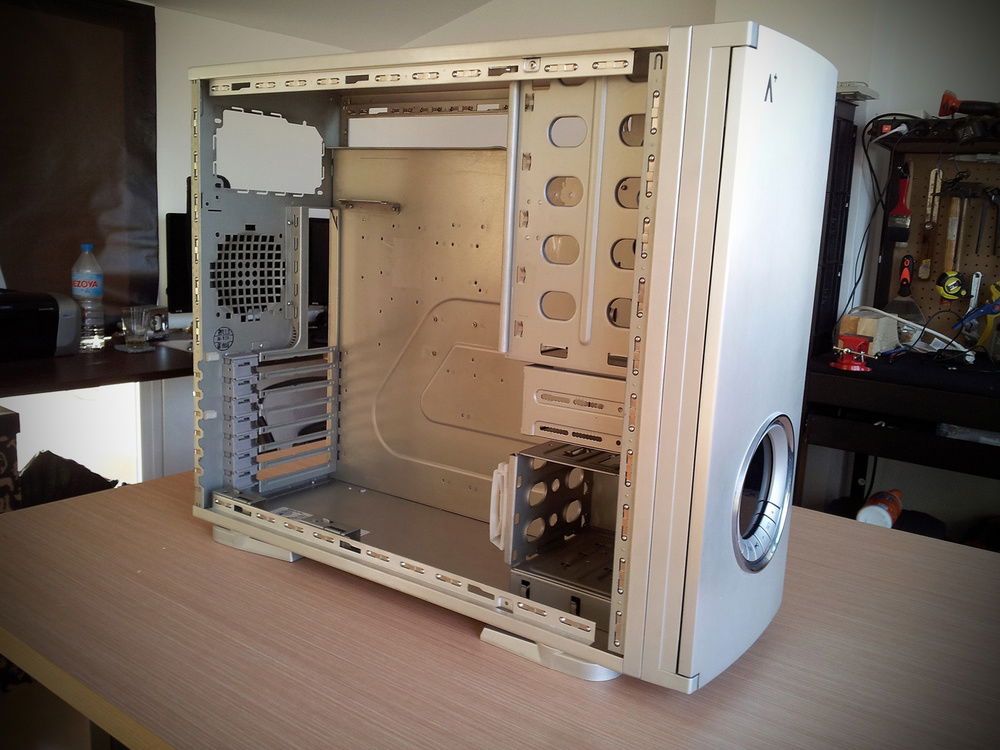

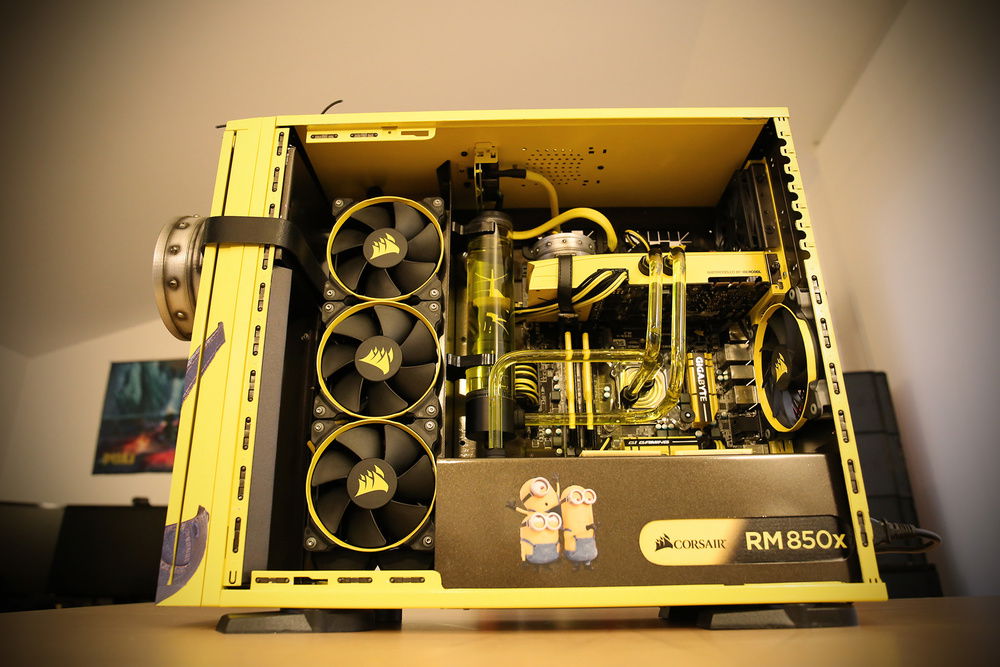

A restoration project, using an old Acase Eye chassis, modernizing it completely.

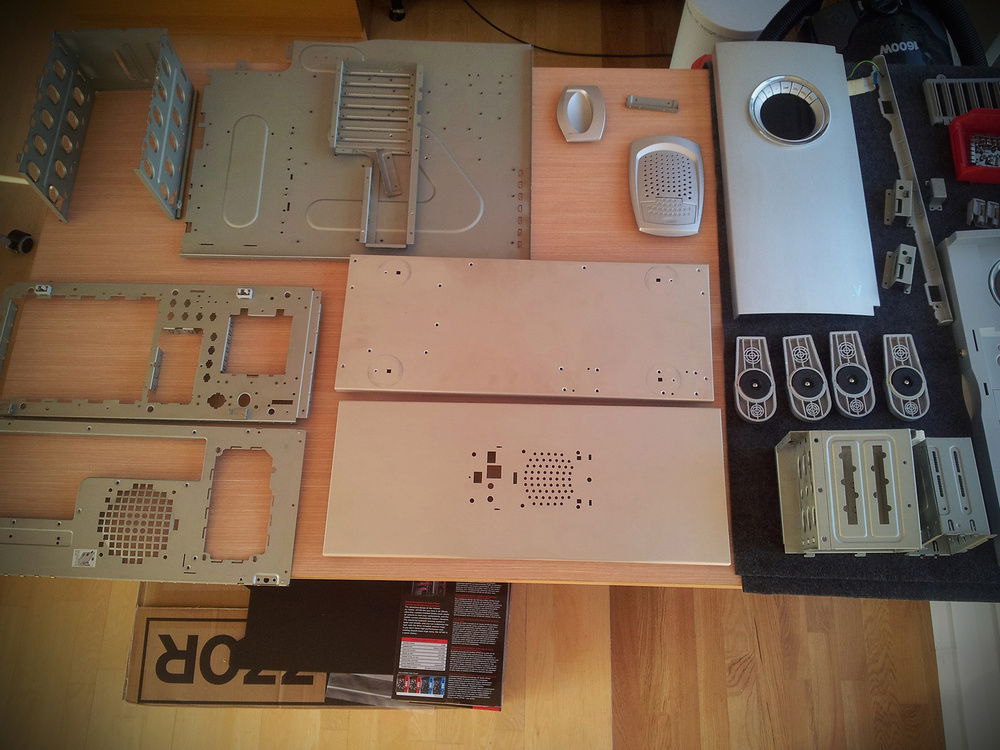

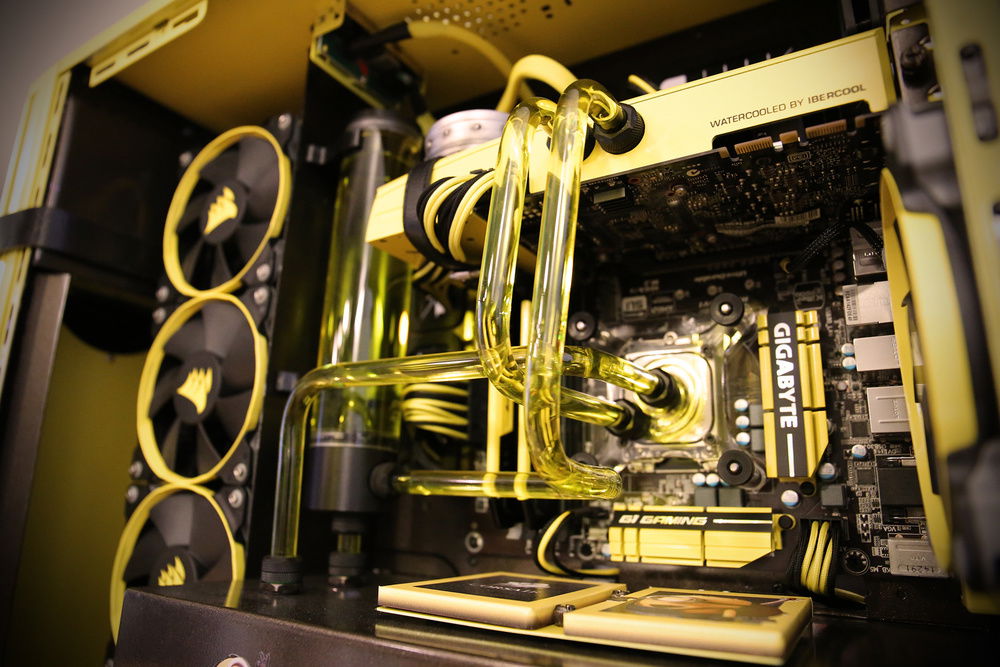

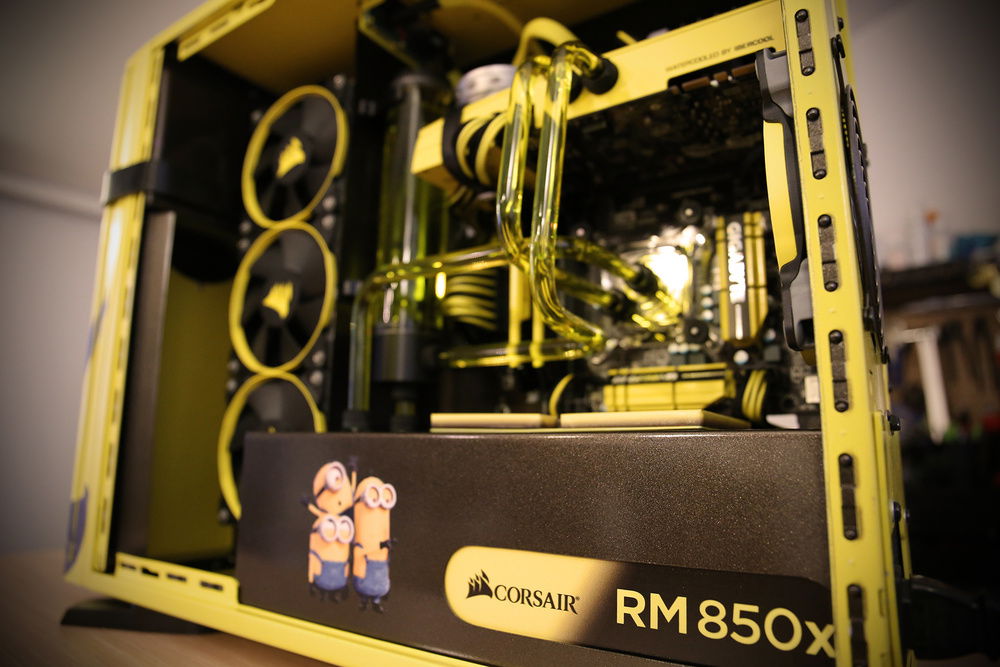

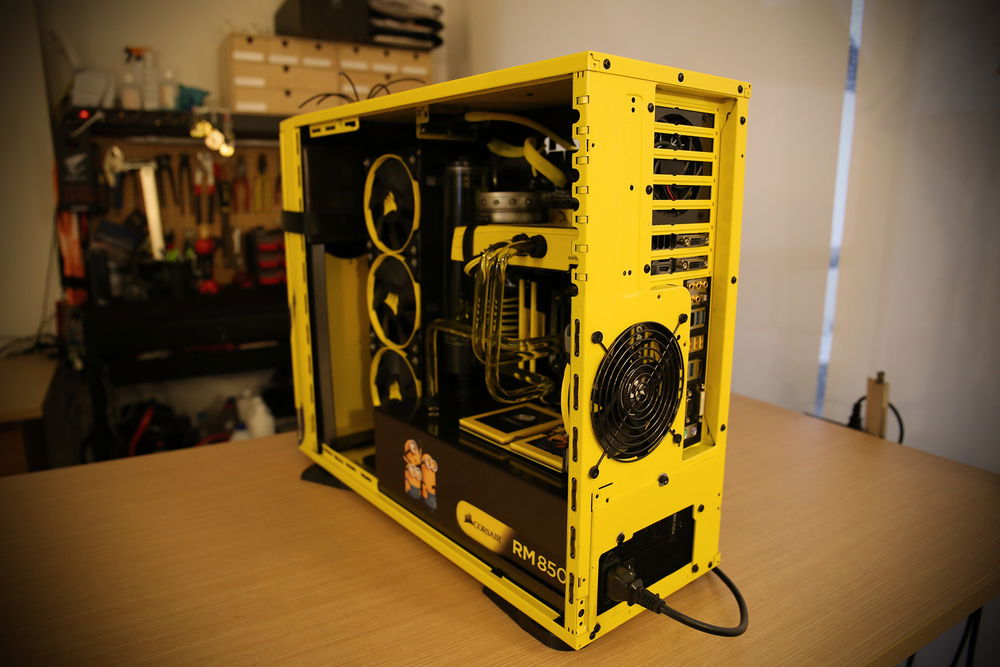

The orientation of the chassis was reversed completely, leaving the window on the right and the PSU below. The interior was completely redistributed, housing a 360mm x 60mm radiator inside with an atypical side orientation, extracting hot air directly from the side. A cover was made for the power supply and the discs.

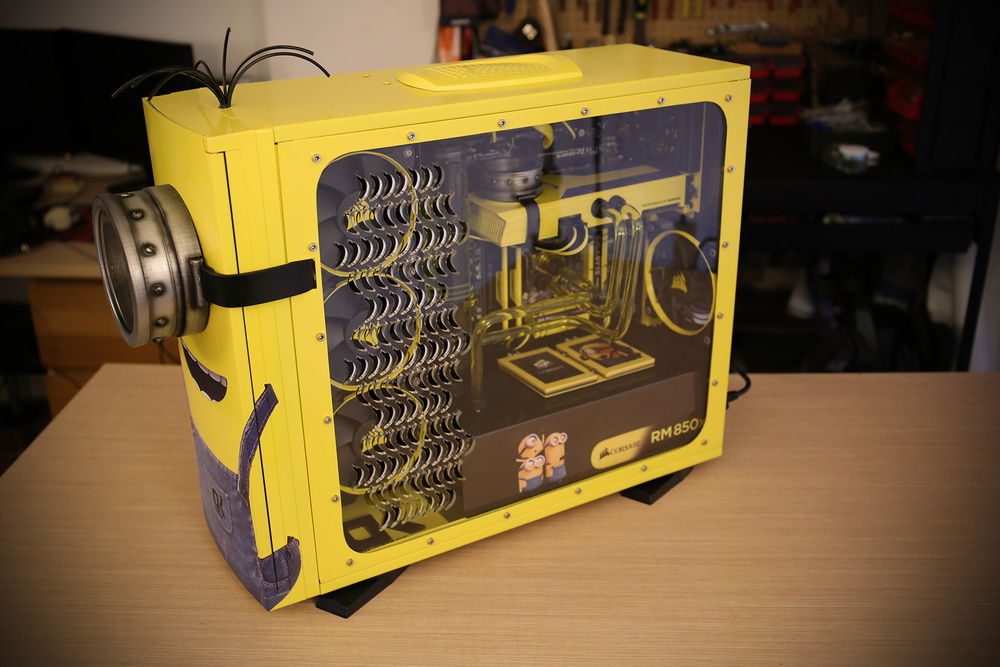

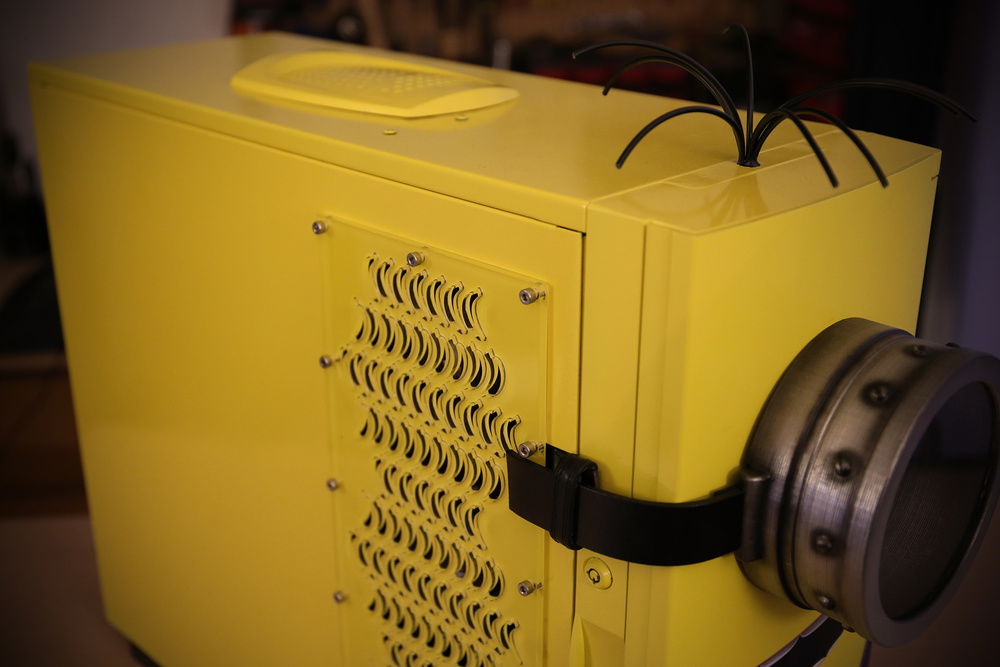

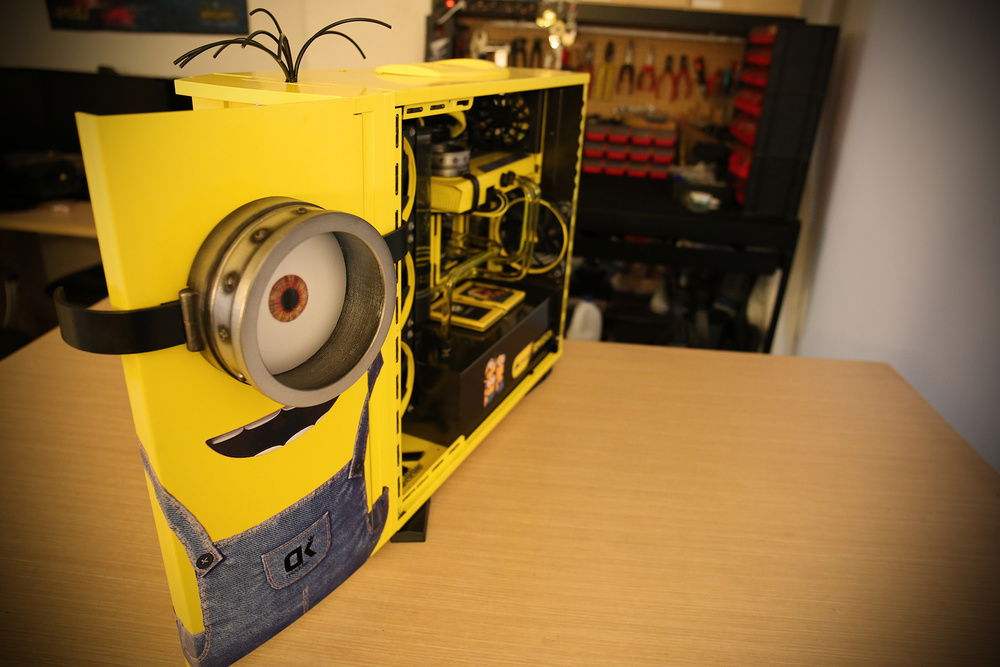

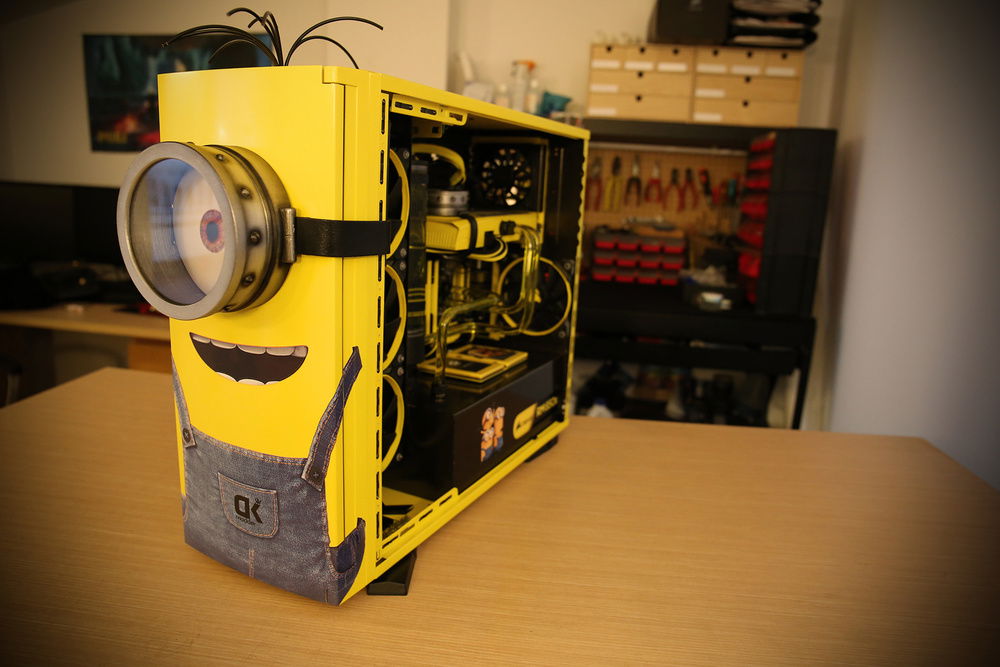

The Minion appearance is in the case and in the GPU, both will become a minion with a monocle.

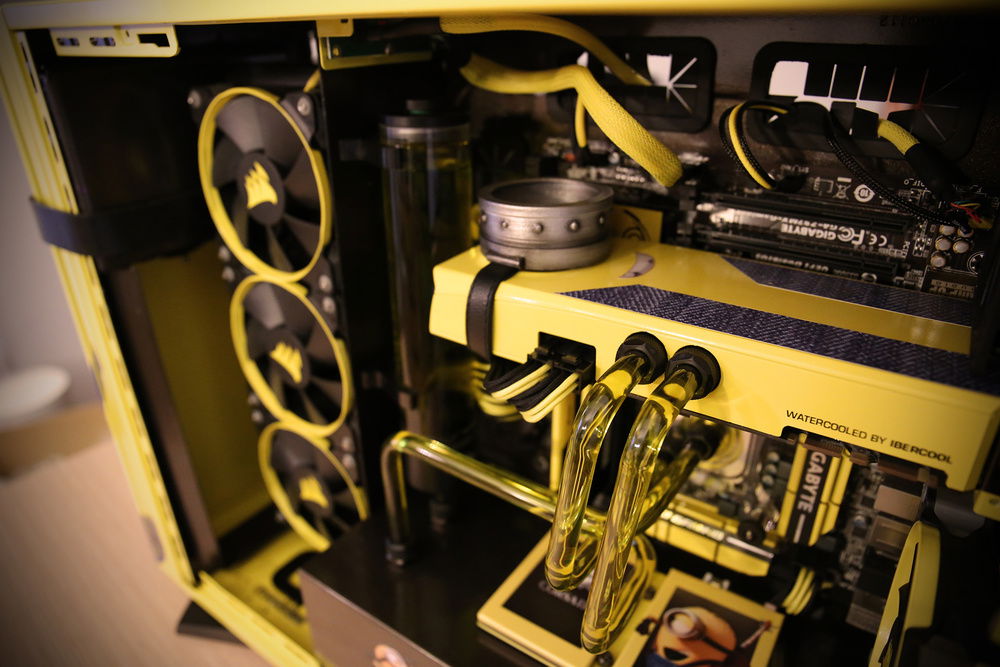

The GPU is an Nvidia 970 from EVGA with turbine heatsink, inside I removed the aluminum heatsink and placed a universal block of water cooling for the core of the GPU, the vram and vrms are still cooled by the original fan, while the core of the gpu by Water.

Youtube video:

Blog Article: Link Text

Spanish:
Un proyecto de restauración, usando un chasis antiguo Acase Eye, modernizando lo por completo.
Se invirtió por completo la orientación del chasis, dejando la ventana a la derecha y la PSU abajo. Se redistribuyó por completo el interior, alojando un radiador de 360mm x 60mm en el interior con una orientación atípica de lado, extrayendo el aire caliente directamente por el lateral. Se fabricó un cover para la fuente de alimentación y los discos.
La apariencia Minion está en el case y en la GPU, ambos se convirtieron en un minion con monóculo.
La GPU es una Nvidia 970 de EVGA con disipador de turbina, dentro retiré el disipador de aluminio y coloqué un bloque universal de water cooling para el core del GPU, las vram y vrms siguen refrigeradas por el ventilador original, mientras el core del gpu por agua.
Color(s): Black Yellow
RGB Lighting? No
Theme: TV & Movie
Cooling: Custom Liquid Cooling
Size: Micro-ATX
Type: General Build

Hardware

CPU
Intel - Core i7 4790K
Socket: LGA 1150
Cores: 4
Motherboard
Gigabyte - GA-Z97MX-Gaming 5
Chipset: Z97
CPU Socket: LGA 1150
Size: Micro-ATX
Memory
$ 80.00
Corsair - Vengance Pro - CMY16GX3M2A1600C9R
Type: DDR3
Capacity: 16 GB
Graphics
EVGA - GeForce SC GAMING
Chip Manufacturer: NVIDIA
Chip: GTX 970
Storage
$ 490.59
Corsair - Force GS
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
PSU
Corsair - RM750x (discontinued)
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
TBD/To Be Determined - TBD/To Be Determined (custom)
Case Fan
Corsair - Air SP120 (Quiet)
Size: 120 mm
CableMod
CableMod - PRO ModMesh C-Series RMi & RMx Cable Kit
Mode: Stock
Sleeve: ModMesh
