ZS Cases A4S v3 6.2 liter- 5600X RX6800

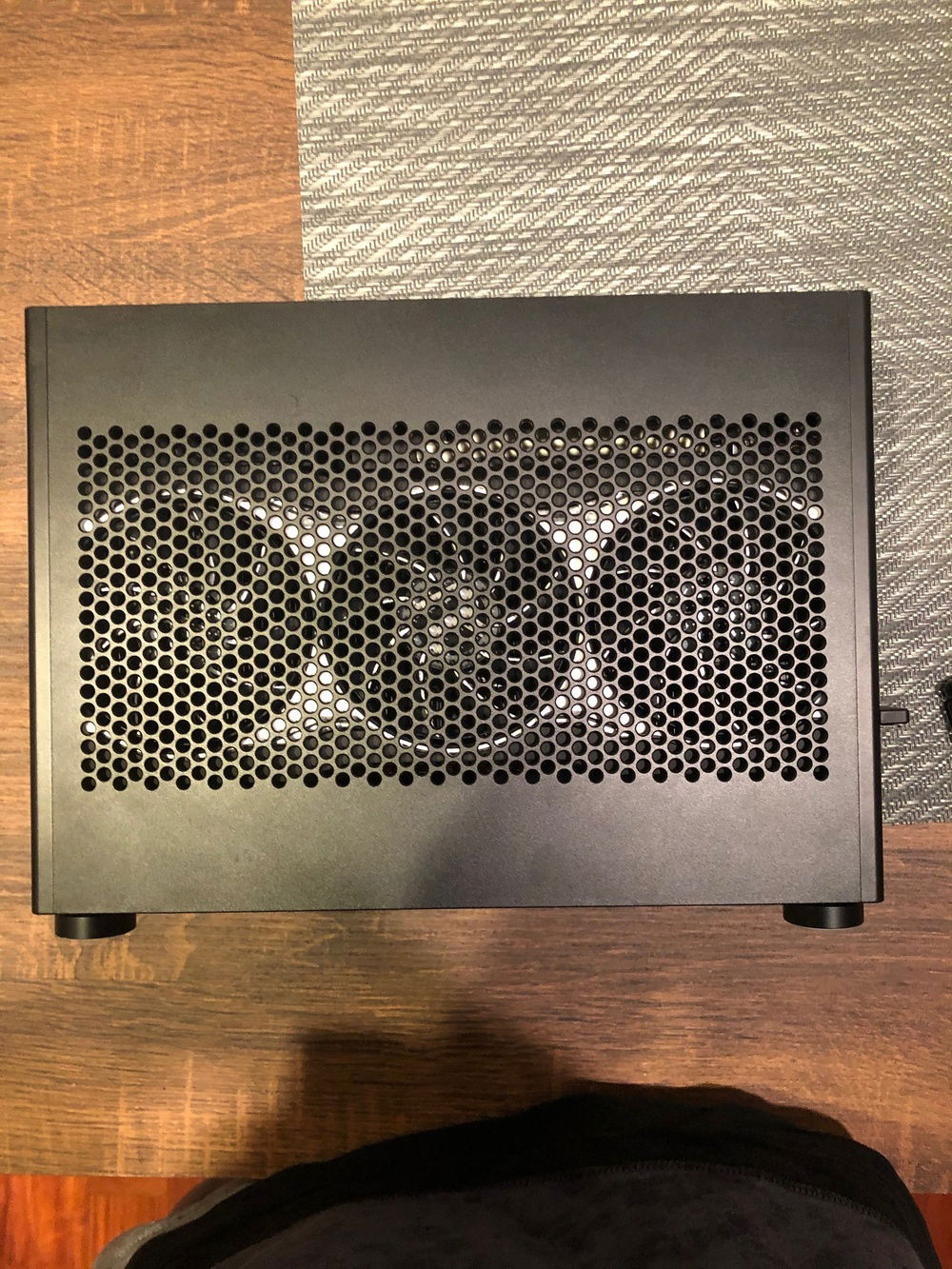

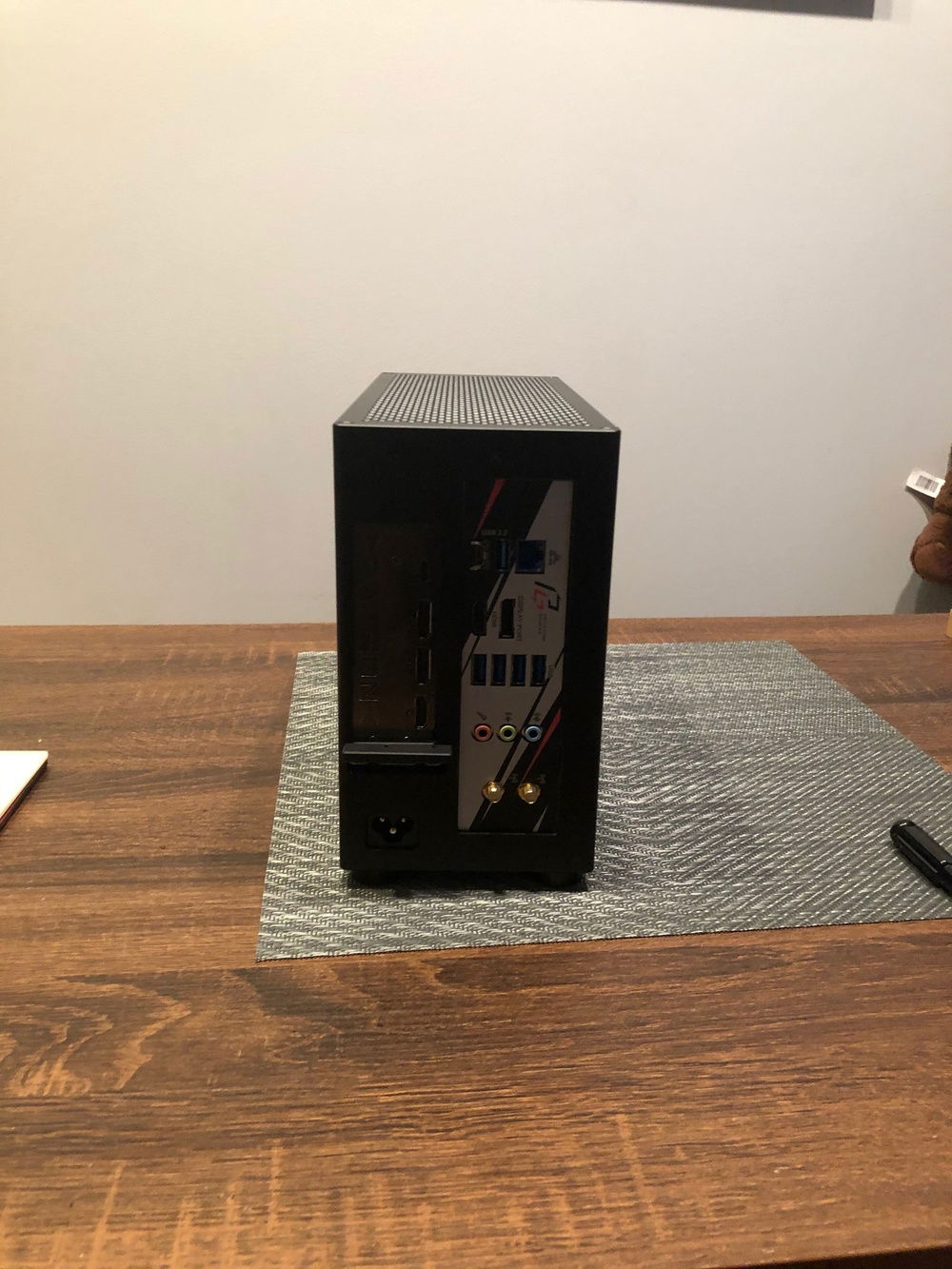

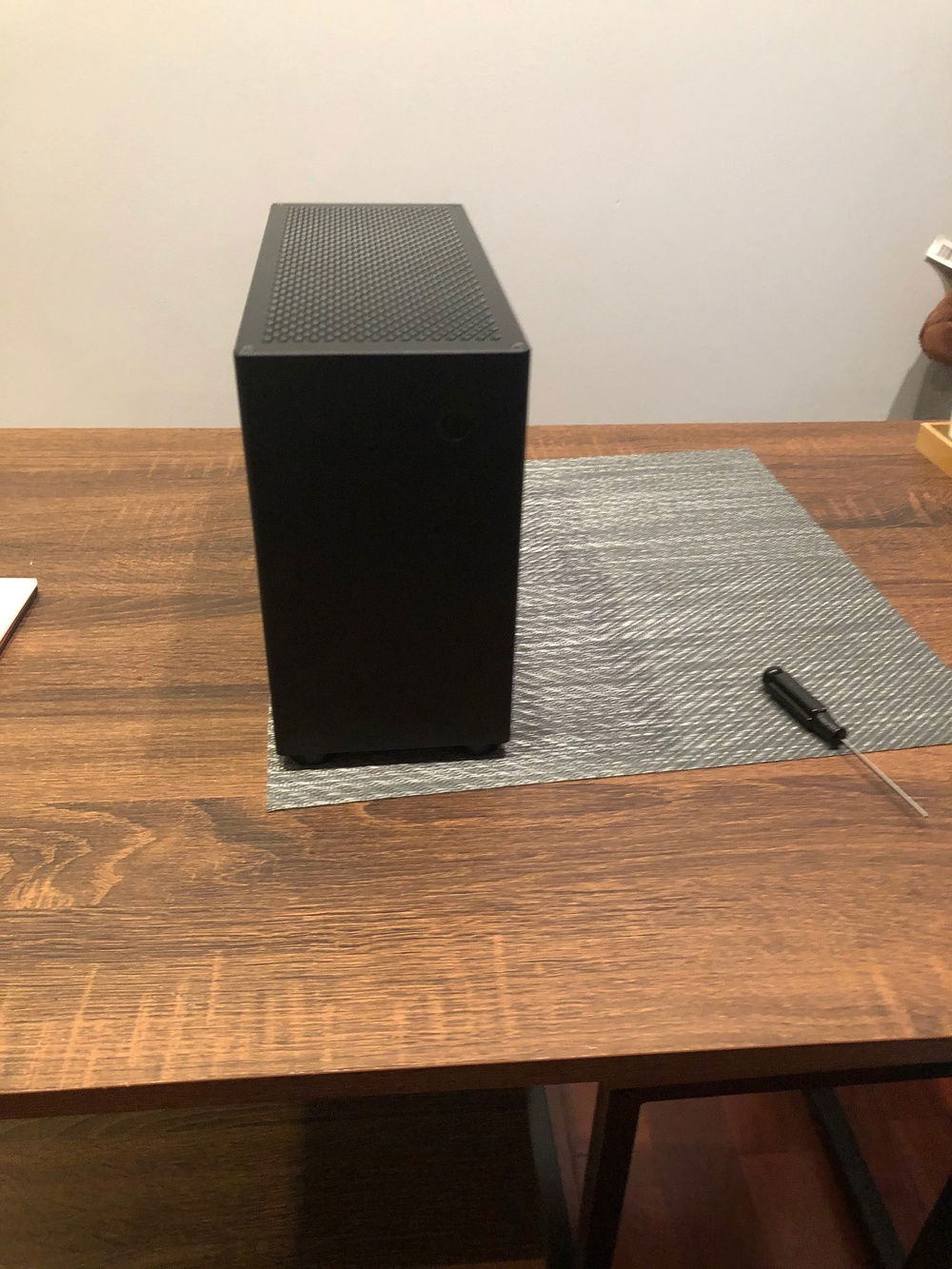

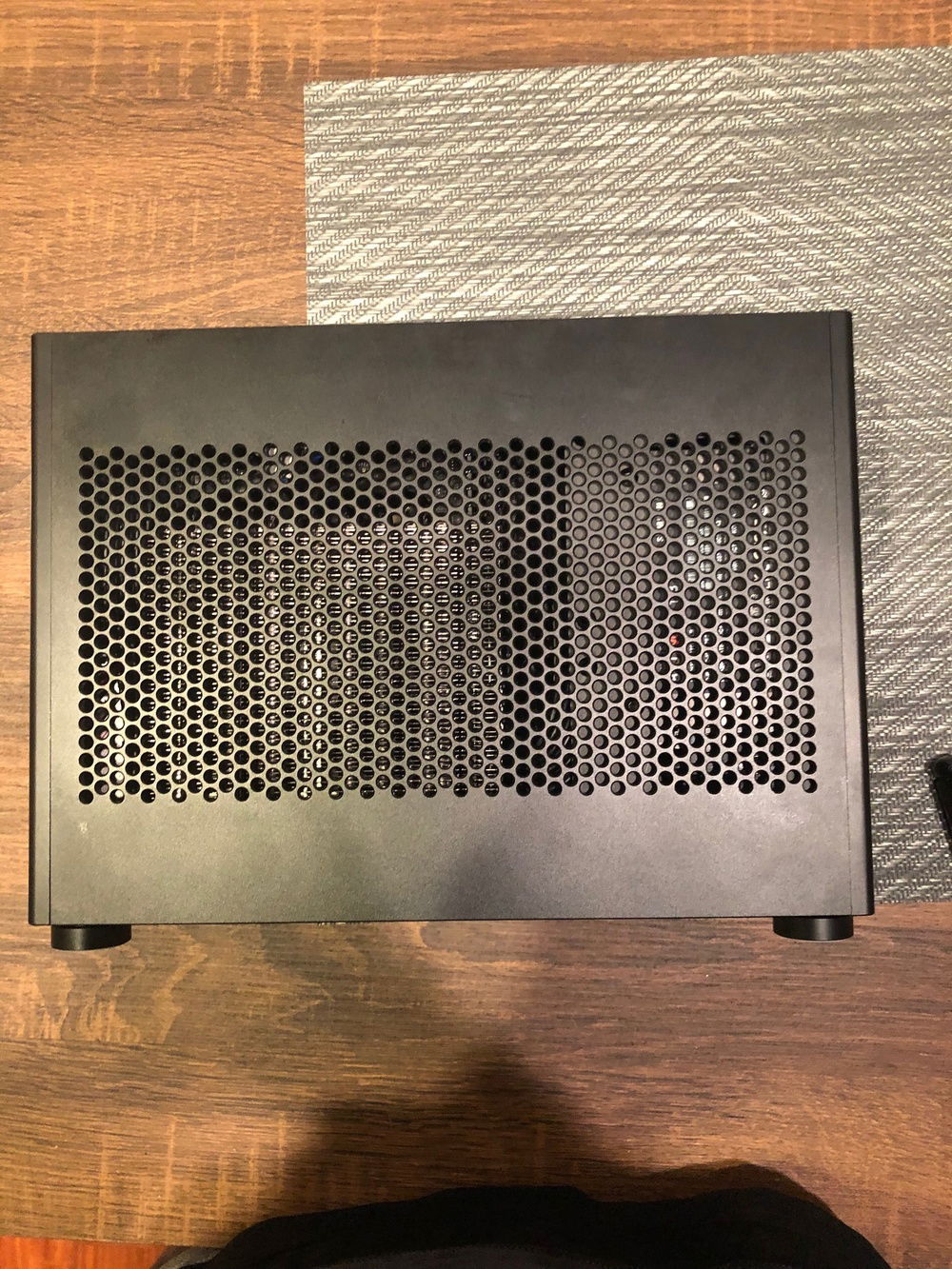

My second rig update of 2021 built to replace my Dan A4 v4.1. To say it at the top, this case is incredible. The build quality, parts compatibility, and attention to detail are absolutely insane. At 6.2 liters, I'm able to run a bunch of storage, a 47mm cpu cooler, and a reference 6800. It's kind of like a mashup of the Dan and a K39, which is really cool. Not the most exciting build in terms of innovations, but the case is so well made and everything came out so clean I figured I'd share.

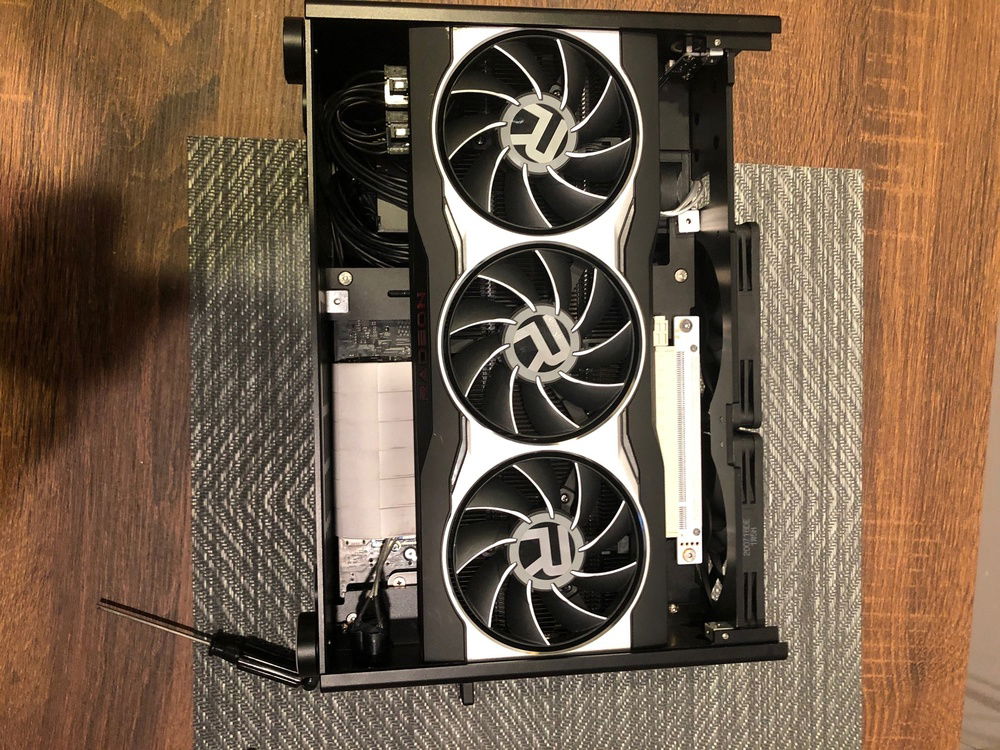

In terms of components, I'm running a 5600x at stock under a Black Ridge cooler with a Noctua A9x14 HS, an AMD reference 6800, 16GB of Vengence LPX, a 350GB, 970 EVO boot Drive, 1 TB Sabrent Rocket Q, and two 1 TB 860 EVO SSDs. The PSU is a Velkase 7660B and the case fans are two Noctua A9x14 HS. Everything is blacked out and the cable management came out really well.

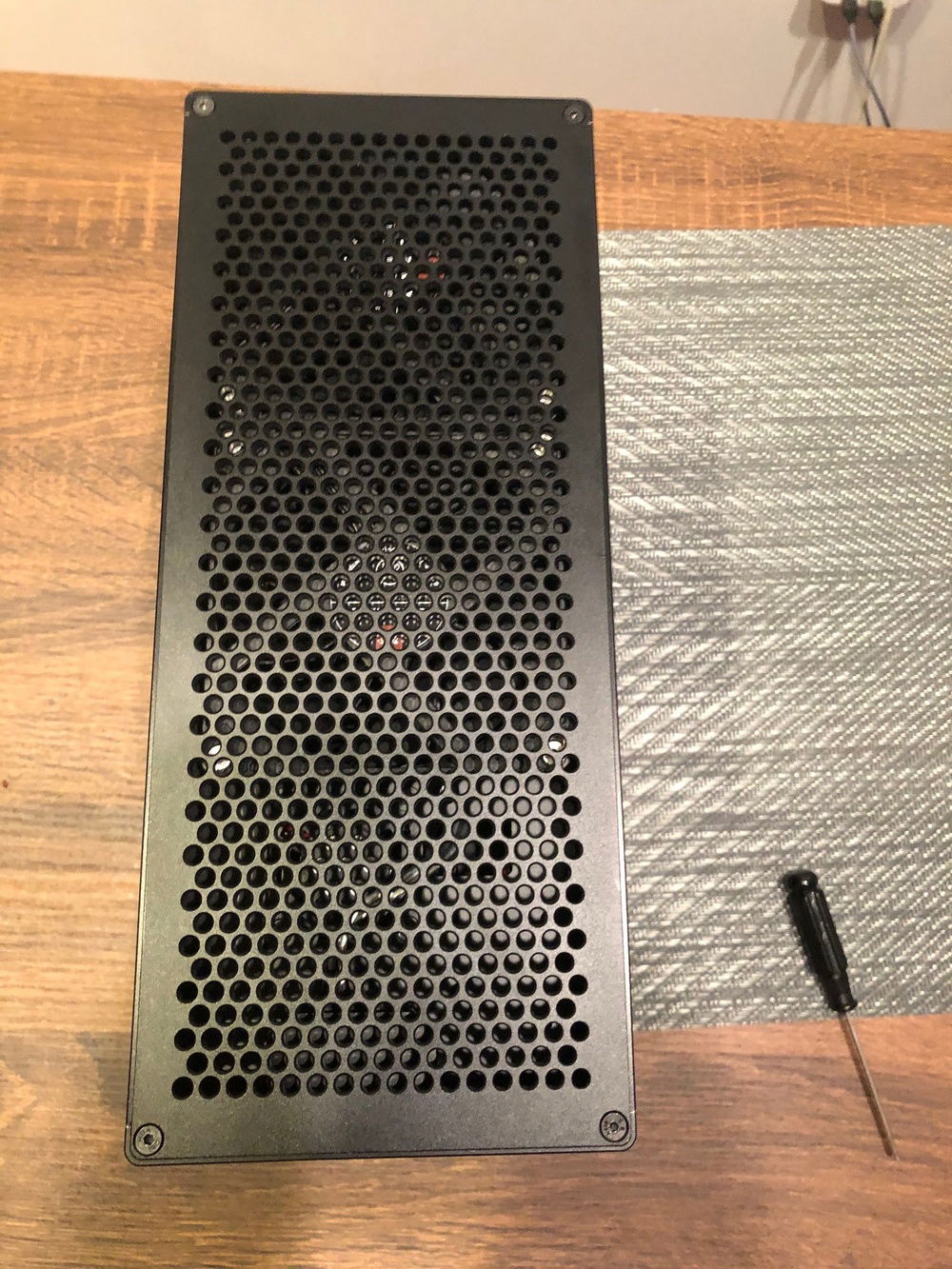

For thermals, the CPU maxes out at 65C and the GPU hits 75C when running Cyberpunk on the highest settings on my 4K TV. Everything performs very well and the dual 92mm top fans seem to do a much better job of cooling the components than the bottom-mounted single 92mm in the Dan. I'm really over the moon with the way this came out.
Color(s): Black
RGB Lighting? No
Theme: none
Cooling: Air Cooling
Size: SFF
Type: General Build

Hardware

CPU
$ 126.00
AMD - Ryzen 5 (5600X)
Socket: AM4
Cores: 6
Motherboard
$ 159.99
ASRock - Phantom Gaming (ITX/ax)
Chipset: B550
CPU Socket: AM4
Size: ITX
Memory
Corsair - Vengeance LED (3200Mhz) (Black)
Type: DDR4
Capacity: 8 GB
Graphics
AMD - Raden
Chip Manufacturer: AMD
Chip: RX 6800 XT
Interface: PCIe x16
Storage
$ 61.97
Sabrent - Rocket Q
Form Factor: M.2
Interface: PCIe x4
Capacity: 1 TB
Storage
$ 149.98
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 149.98
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
Samsung - 970 EVO NVMe
Form Factor: M.2
Capacity: 250 GB
PSU
Enhance - ENP7600
Wattage: 6000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
ZS Cases - A4 V3
Type: Mini-ITX
Side Panel: Mesh
Case Fan
$ 21.95
Cooling
Alpenfoehn - Black Ridge
Type: CPU Block
Size (WxHxD): 140 mm
