Fit's my office just perfect.
Fit's my office just perfect.
whole setup & office
whole setup & office

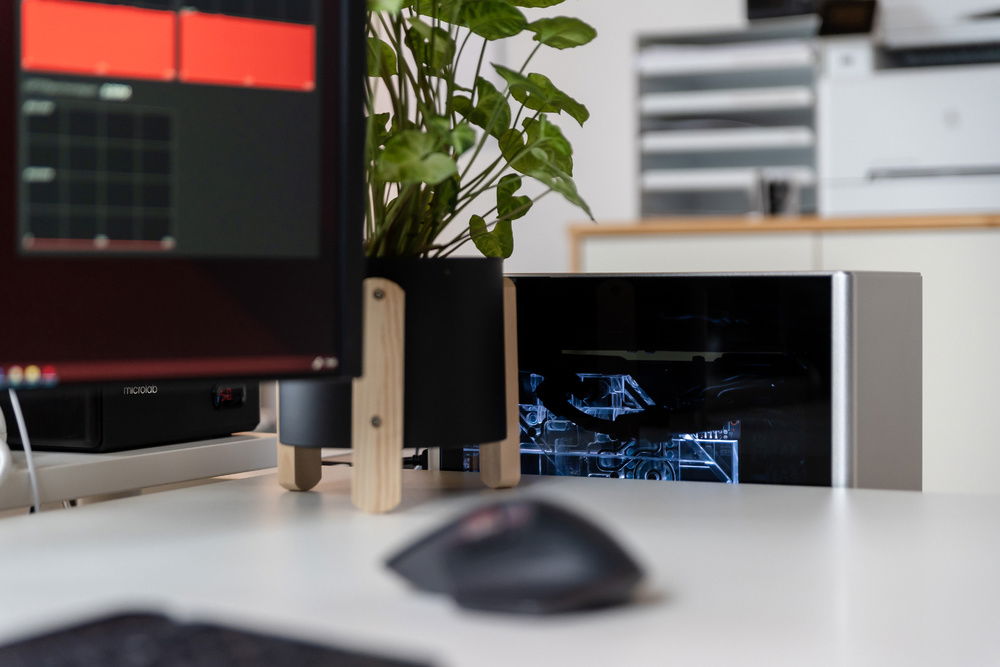

GPU watching me work.
GPU watching me work.
obligatory semi-small plants ✔️
obligatory semi-small plants ✔️

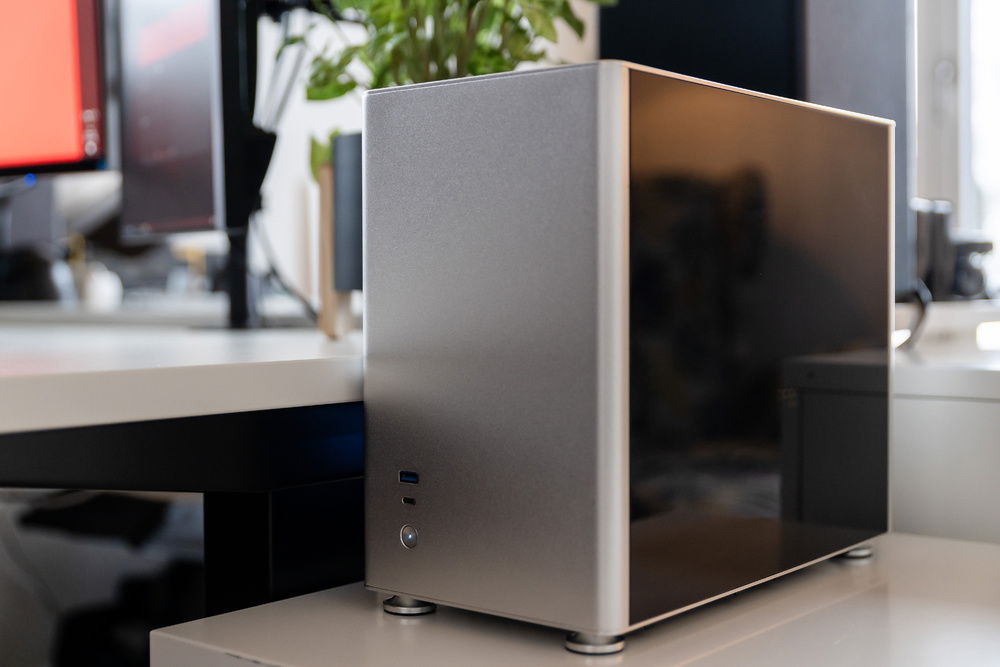

sideview
sideview

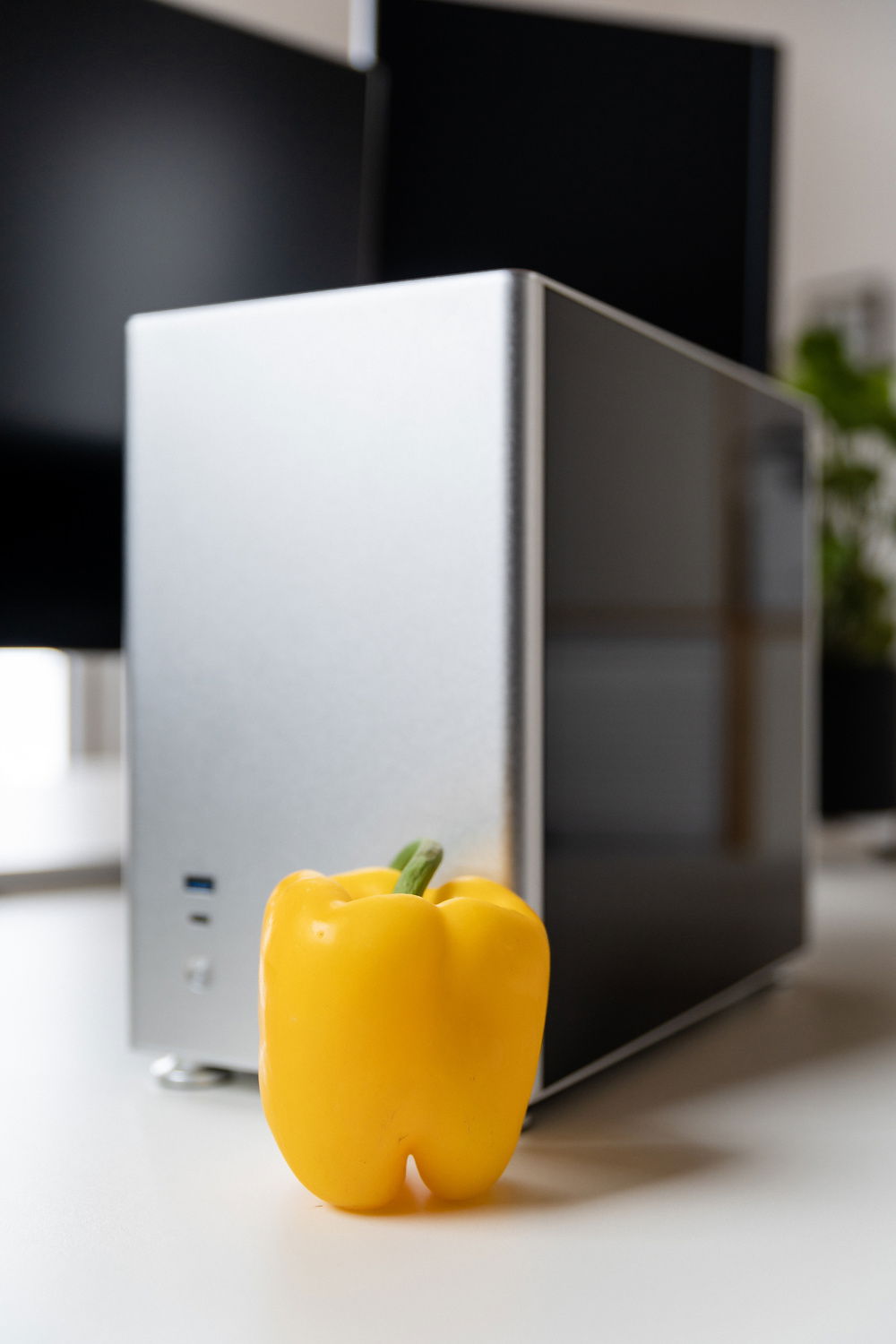

paprika for scale
paprika for scale
I really dig the pattern of the top-grill
I really dig the pattern of the top-grill
minimalistic back. Position of the psu-extension is not well thought out.
minimalistic back. Position of the psu-extension is not well thought out.
top-exhaust - good ventilation.
top-exhaust - good ventilation.
Tube layout lucky fit. Modded the LT240 AIO to a full custom loop
Tube layout lucky fit. Modded the LT240 AIO to a full custom loop

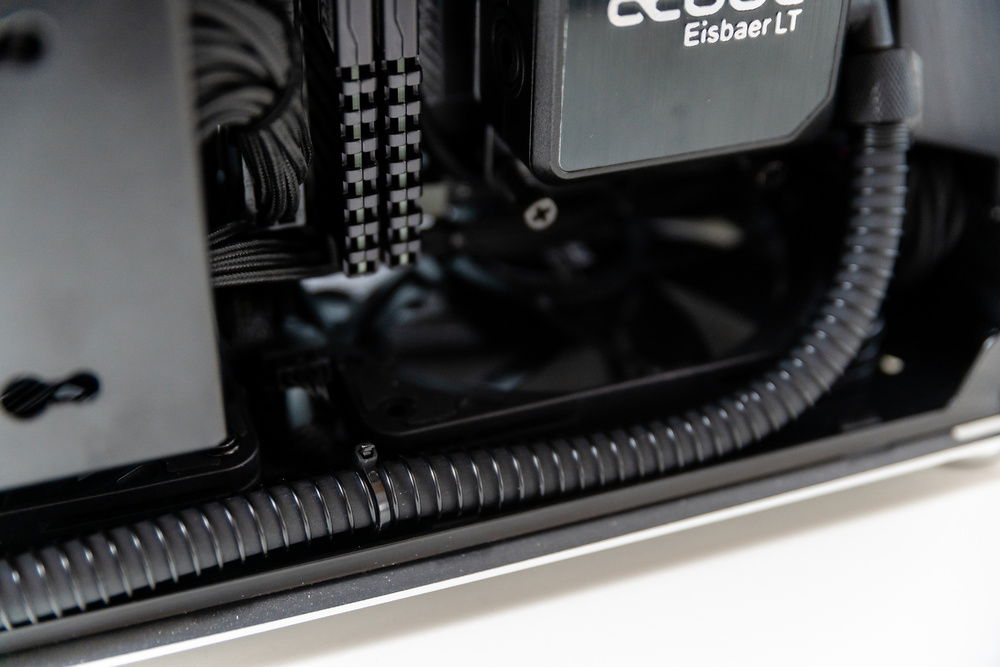

fits like a glove with 11/8 mm Norprene tubing.
fits like a glove with 11/8 mm Norprene tubing.
cable management is really easy with that psu shroud
cable management is really easy with that psu shroud
Their is still room for a second pump with an reservoir. This will be an future update.
Their is still room for a second pump with an reservoir. This will be an future update.
used the quick-disconnect to fill the loop with an external reservoir-pump-combo
used the quick-disconnect to fill the loop with an external reservoir-pump-combo
fan under the psu with grill
fan under the psu with grill
PCI-E cable routing is very elegant in this case.
PCI-E cable routing is very elegant in this case.
dust filters in the bottom
dust filters in the bottom

Watercooled SFF Workstation for a graphicdesigner

Searched for an asthetic and rather cheap sff case for my work (and light gaming) PC and found the Jonsbo A4 case.

Detailed build log: https://imgur.com/gallery/oJfDDDq
Color(s): Aluminum Black
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: SFF
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

In the next few weeks I'll add a second radiator, second pump, reservoir, flow sensor and optimized tubing to the build. Stay tuned. 💪

Hardware

CPU
$ 278.99
AMD - Ryzen 7 (3700X)
Socket: AM4
Cores: 8
Motherboard
$ 169.99
Gigabyte - Aorus Pro AX (B550I)
Chipset: B550
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 317.98
Corsair - Vengeance LPX (3200MHz) (Black) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 599.00
POWERCOLOR - Radeon RX
Chip Manufacturer: AMD
Chip: 5700 XT
Storage
$ 239.80
Crucial - P2 (CT1000P2SSD8) (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 300.00
Corsair - SF600
Wattage: 600
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Jonsbo - A4 (Ver1.1)
Type: Mini-ITX
Side Panel: Tempered Glass
Case Fan
$ 59.90
Noctua - NF-A12 PWM (Chromax/Black/Swap) (2x)
Size: 120 mm
Case Fan
$ 59.90
Noctua - NF-A12x15 PWM (Chromax/Black/Swap) (2x)
Size: 120 mm
Cooling
$ 77.75
Alphacool - Aurora Plexi GPX-A AMD Radeon 5700 XT Sapphire Pulse/MSI Mech & Evoke
Type: GPU Block
Cooling
Alphacool - DC-LT 2
Type: Pump
Cooling
Alphacool - DC-LT Plexi top
Type: Pump/Reservoir Combo
Cooling
$ 168.50
Alphacool - Eisbaer LT240 CPU
Type: AIO
Size (WxHxD): 240 mm
Cooling
Alphacool - Reservoir
Type: Custom Loop
Cooling
$ 147.59
XSPC - TX Crossflow Ultrathin
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Keyboard
$ 153.06
Logitech - Craft Advanced
Interface: Wireless
Type: Full Size
Mouse
$ 107.99
Logitech - MX master 3
Interface: Wireless
