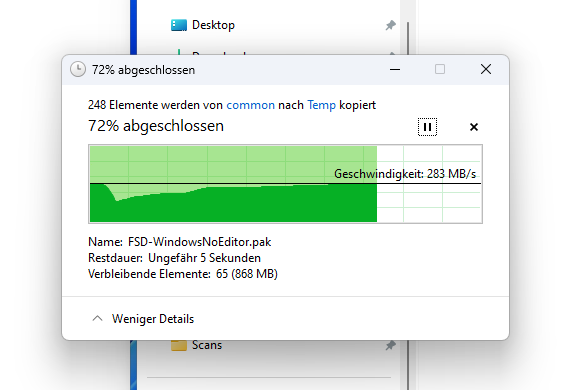

Copy Files via SMB from my PC to the Homeserver
Copy Files via SMB from my PC to the Homeserver

UnRaid Homeserver

Fileserver / NAS, some Docker Containers and maybe VMs.
Shoud be upgradeable in the Future, thats why i went for Full ATX instead of Mini ITX.

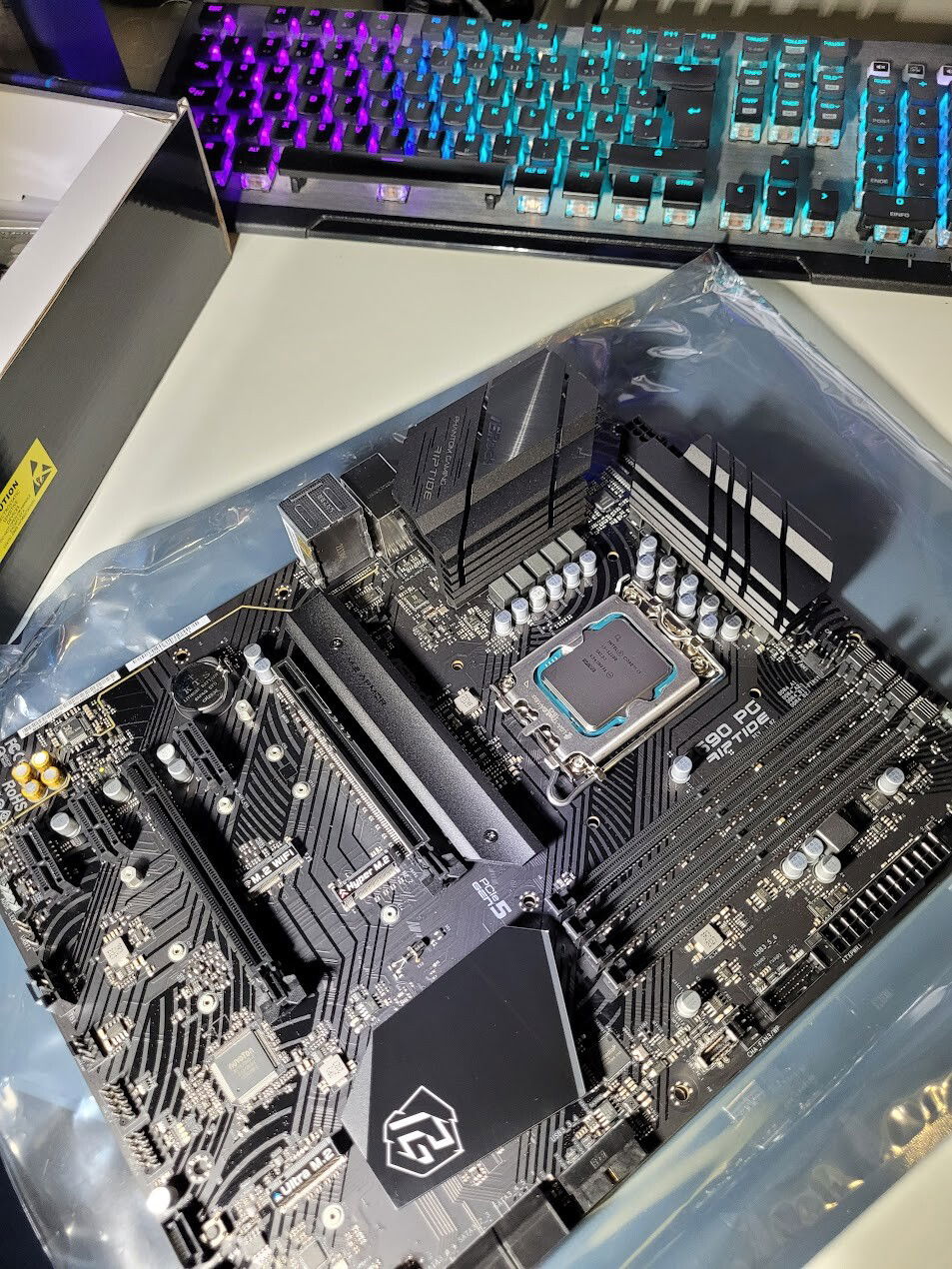

The Board has already 2.5Gb Ethernet, 8 SATA Ports and 3 NVME Slots.
Color(s): Beige
RGB Lighting? No
Theme: none
Cooling: Air Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 113.99
Intel - Core i3-12100
Socket: LGA 1700
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 239.93
ASRock - PG Riptide (Z690m)
Chipset: Z690
CPU Socket: LGA 1700
Size: Micro-ATX
Memory
$ 49.99
G.Skill - Aegis (3200MHz)
Type: DDR4
Capacity: 32 GB
Graphics
Intel - HD Graphics
Storage
$ 115.32
Lexar - NM620 (2x)
Form Factor: M.2
Interface: PCIe x4
Capacity: 512 GB
Storage
$ 296.00
Seagate - IronWolf NAS (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
Storage
$ 273.88
Western Digital - WD Red Plus (4x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 296.00
Western Digital - WD Red Pro NAS (WD102KFBX)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 10 TB
PSU
be quiet! - Pure Power 11
Wattage: 500
Form Factor: ATX
Efficiency: 80+ Gold
Case
Yeong Yang - YY-0221 Server Cube
Type: Full-Tower
Side Panel: Solid
Cooling
$ 216.47
Intel - Laminar RM1
Type: Air Cooler
Size (WxHxD): 100 mm
