Ultimate Shift

Inspired by CrazyTechLab's Evolv Shift mod I set out to do my first custom loop simlir to that.

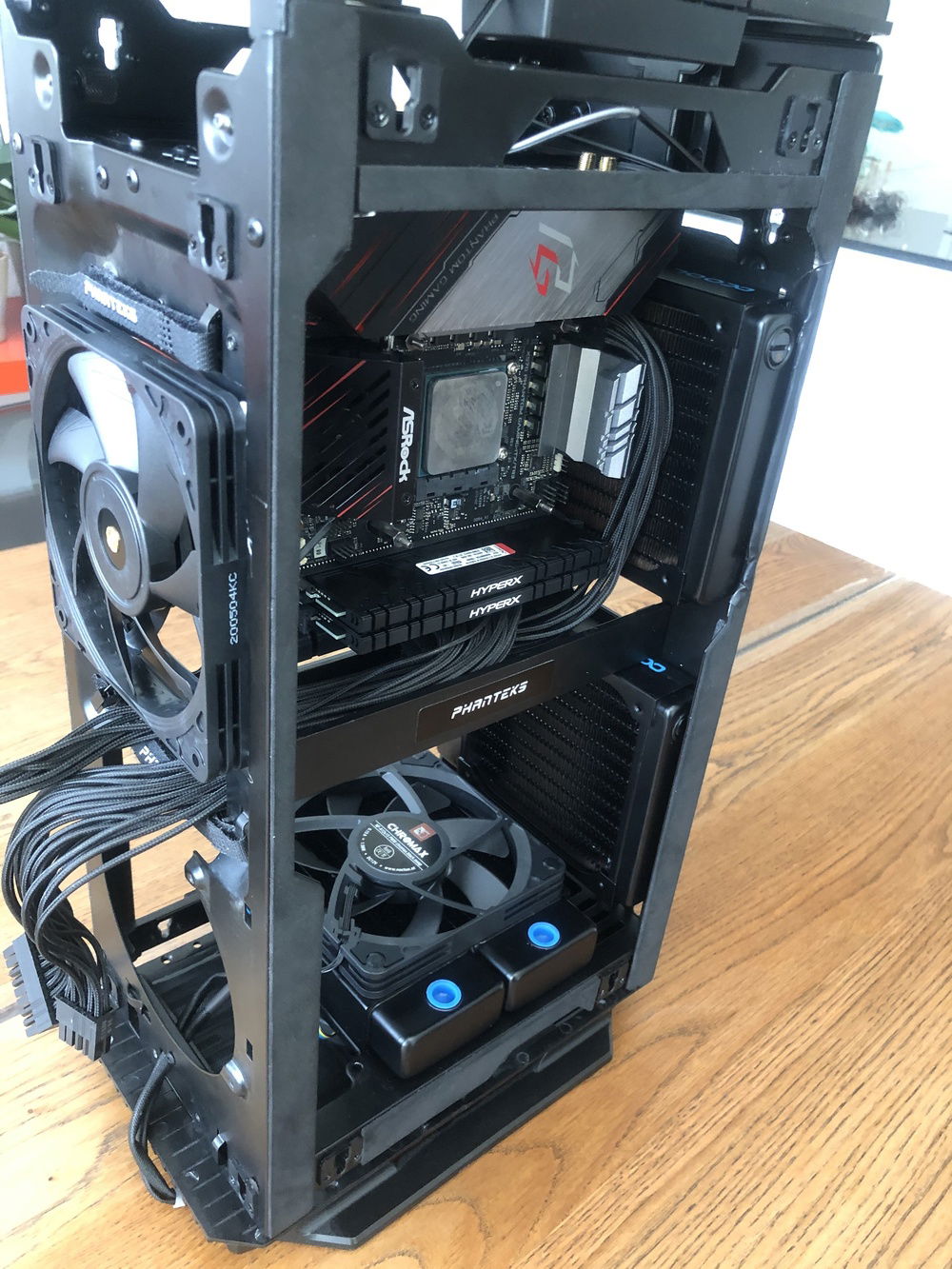

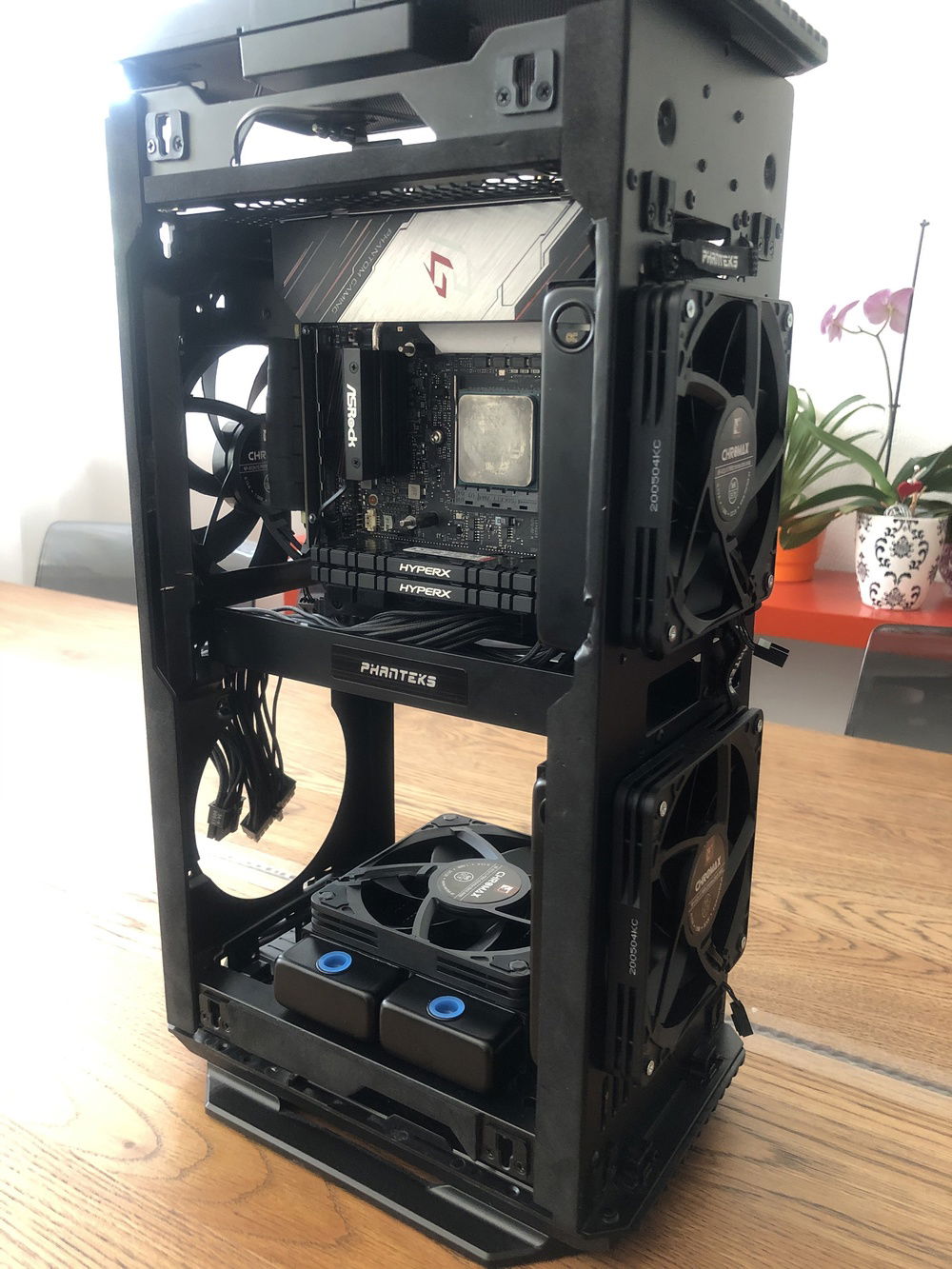

Requiring waterjet cutting and an angle grinder I could fit 3 120mm radiators and 5 120mm fans (2 push/pull bottom intake, 1 back intake and 2 front outtake).

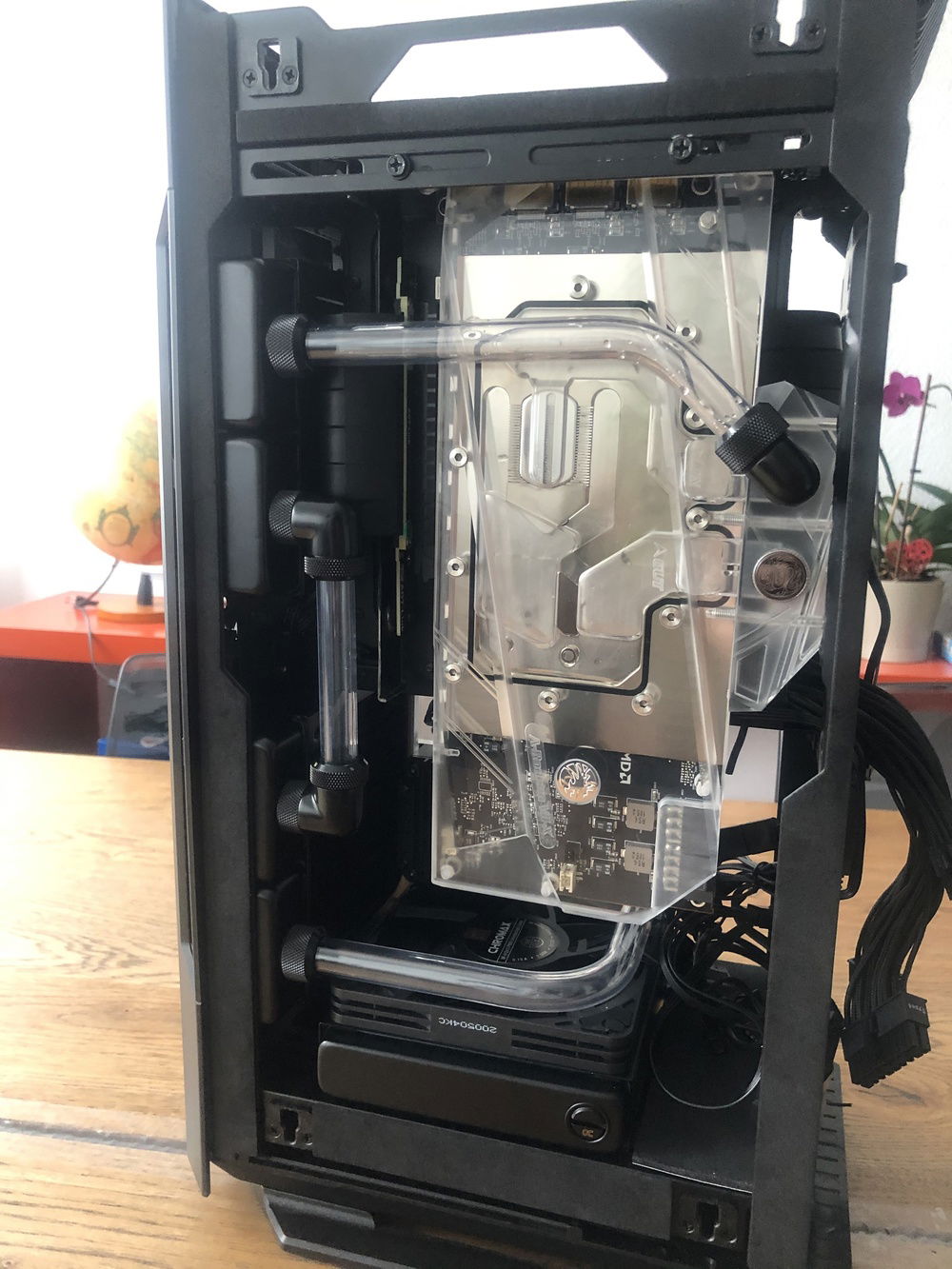

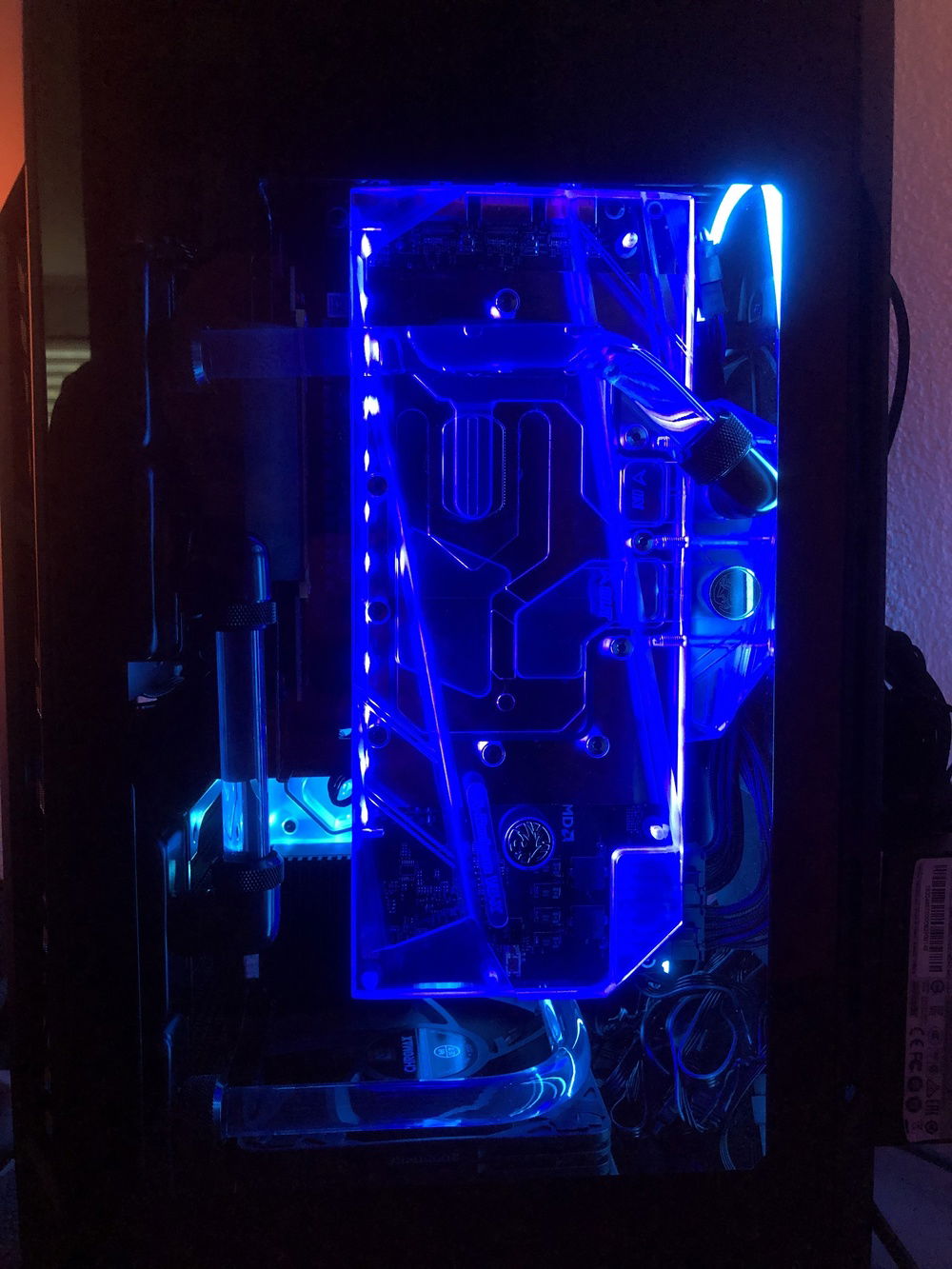

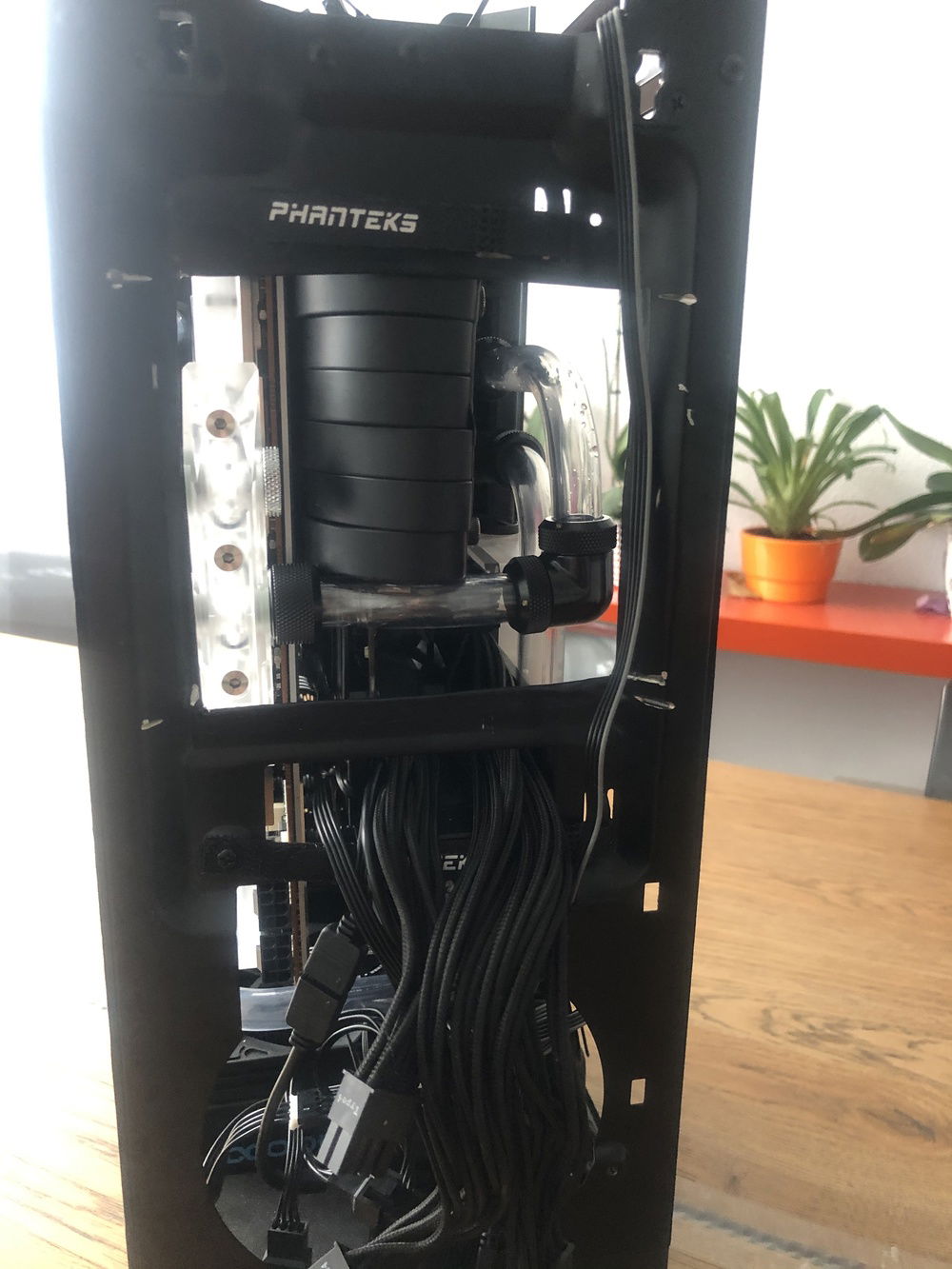

As the Radeon VII is crazy big I had to move the PSU outside the case (mounted on the rear panel). But this allowed me to mount the GPU all the way to the right and have the tube coming in straight from behind.

Running some graphics benchmarks the CPU sits below 45C and the VII below 55C with the pump running at 30% and fans with a very conservative profile.

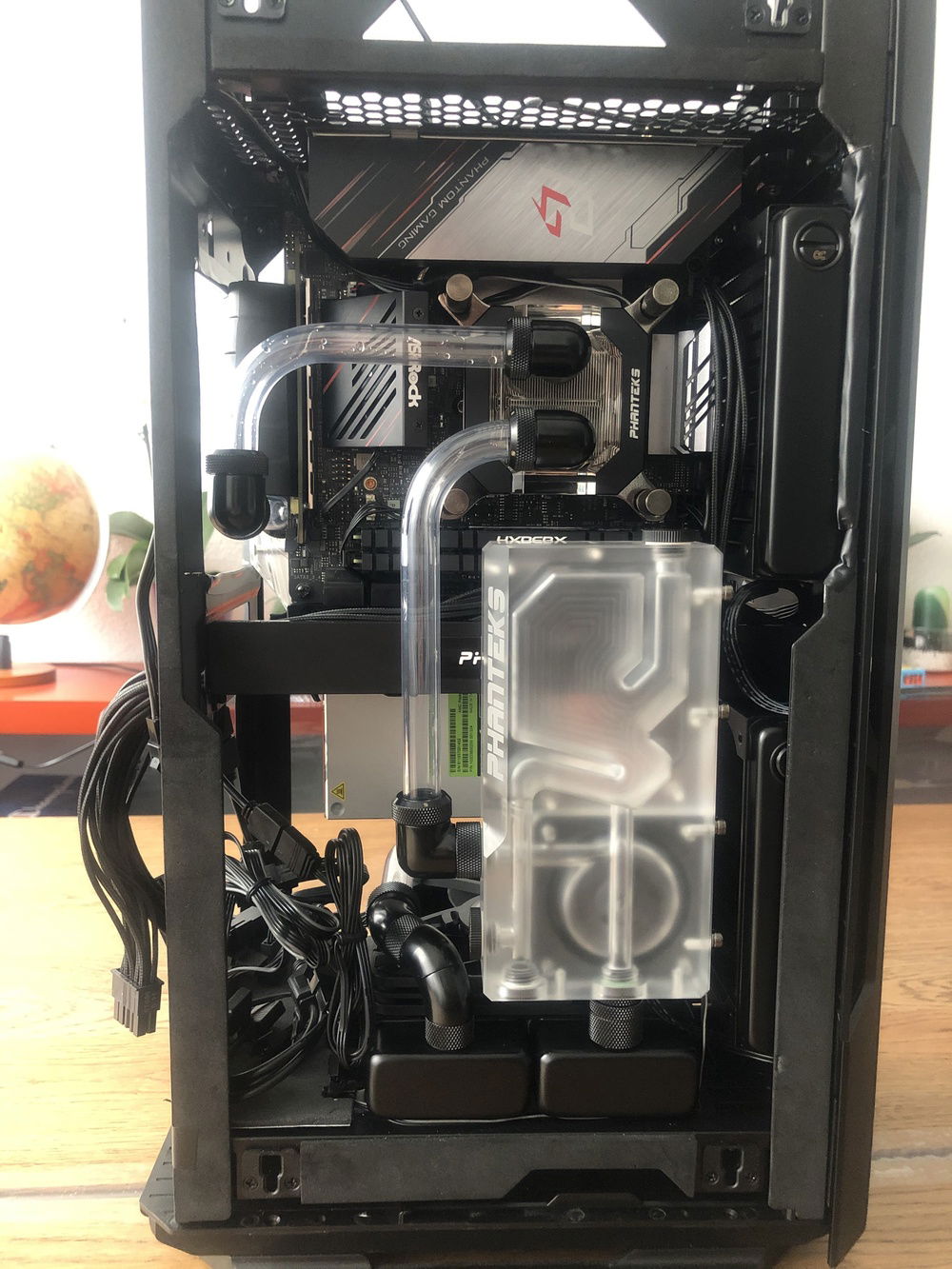

Filling the loop was a little tricky as I've chosen the drain port for in which leads to air from the loop being pulled right back into it again. The Alphacool radiators additional fill port on the back were quite helpful here.

As my boards wp header has enough power I've removed the molex connector from the water pump and rewired power to the PWM header too. To fill the loop I've used a little PWM tester from AliExpress.
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 415.00
AMD - Ryzen 9 (3900X)
Socket: AM4
Cores: 12
Motherboard
$ 219.33
ASRock - Phantom Gaming (ITX/TB3)
Chipset: X570
CPU Socket: AM4
Size: ITX
Memory
$ 488.10
Kingston - HyperX Predator (3600MHz) (Black) (2x)
Type: DDR4
Capacity: 32 GB
Graphics
$ 499.99
XFX - Radeon VII
Chip Manufacturer: AMD
Chip: RX 5700
Interface: PCIe x16
Storage
$ 215.99
Corsair - Force MP600
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 225.00
Corsair - SF600
Wattage: 600
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 149.99
Phanteks - Evolv Shift
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 119.80
Noctua - NF-A12x15 PWM (Brown) (4x)
Size: 120 mm
Case Fan
$ 27.95
Cooling
$ 137.16
Alphacool - NexXxoS ST30 Full Copper (3x)
Type: Custom Loop
Size (WxHxD): 120 mm
Cooling
Barrow - Fittings
Type: Custom Loop
Cooling
Bykski - AMD Radeon VII
Type: GPU Waterblock
Cooling
$ 84.95
Bykski - DDC Pump
Type: Water Cooling
Cooling
$ 129.99
Phanteks - Glacier (C350I)
Type: Waterblock
Cooling
$ 135.35
Phanteks - Glacier (R160)
Type: Reservoir
Size (WxHxD): 80 mm
