Typhoon

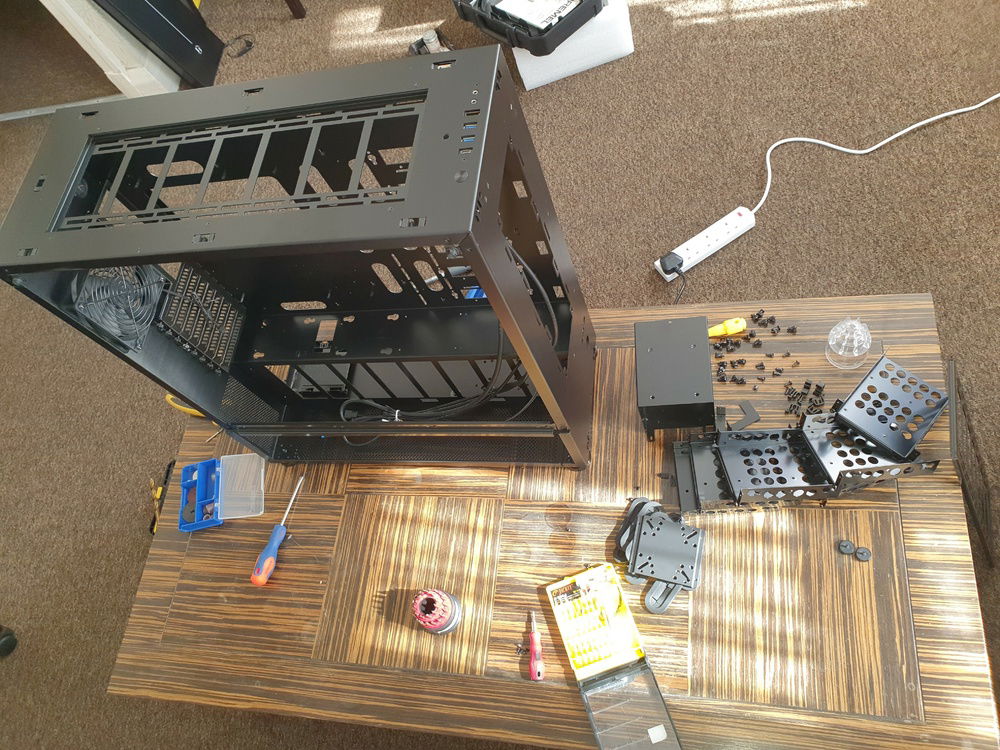

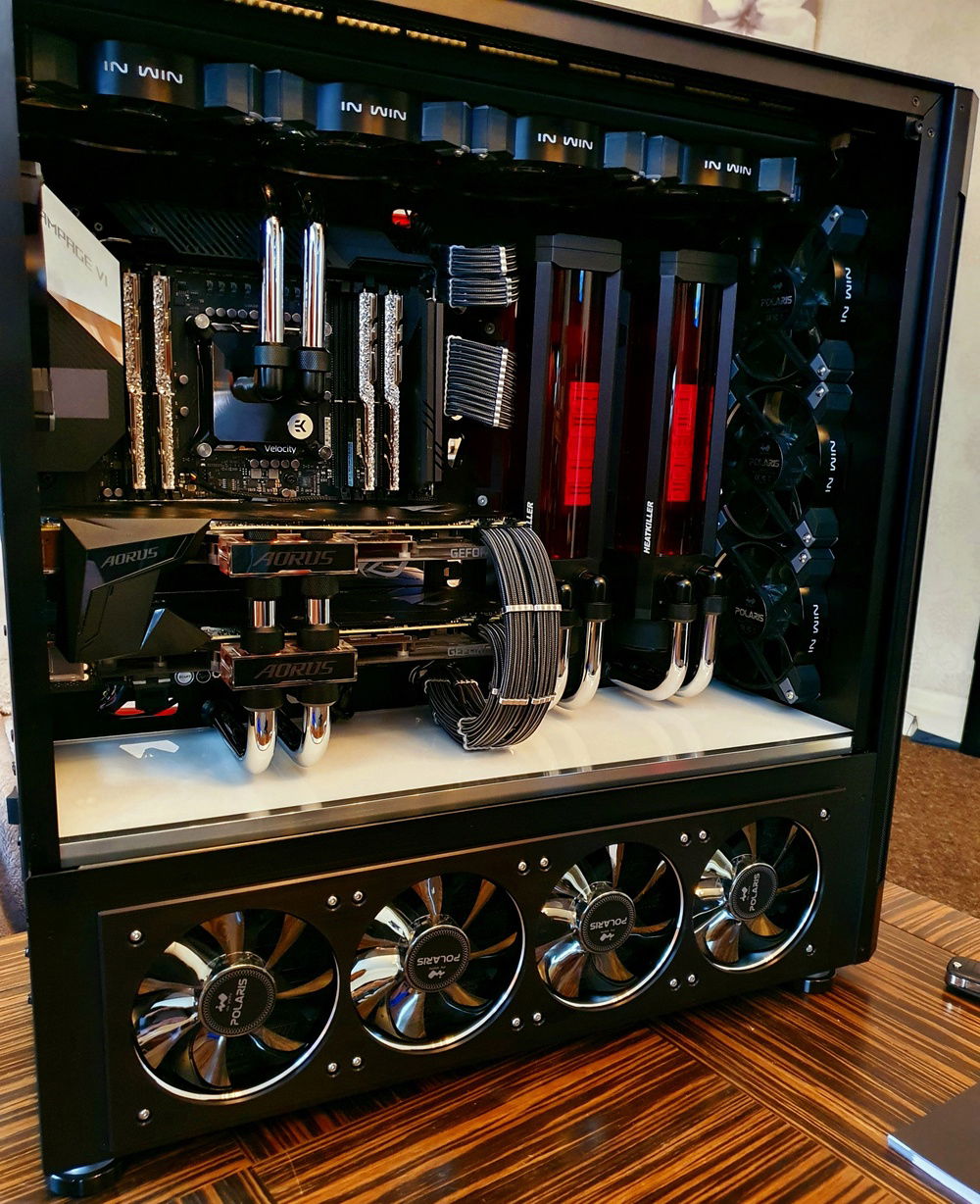

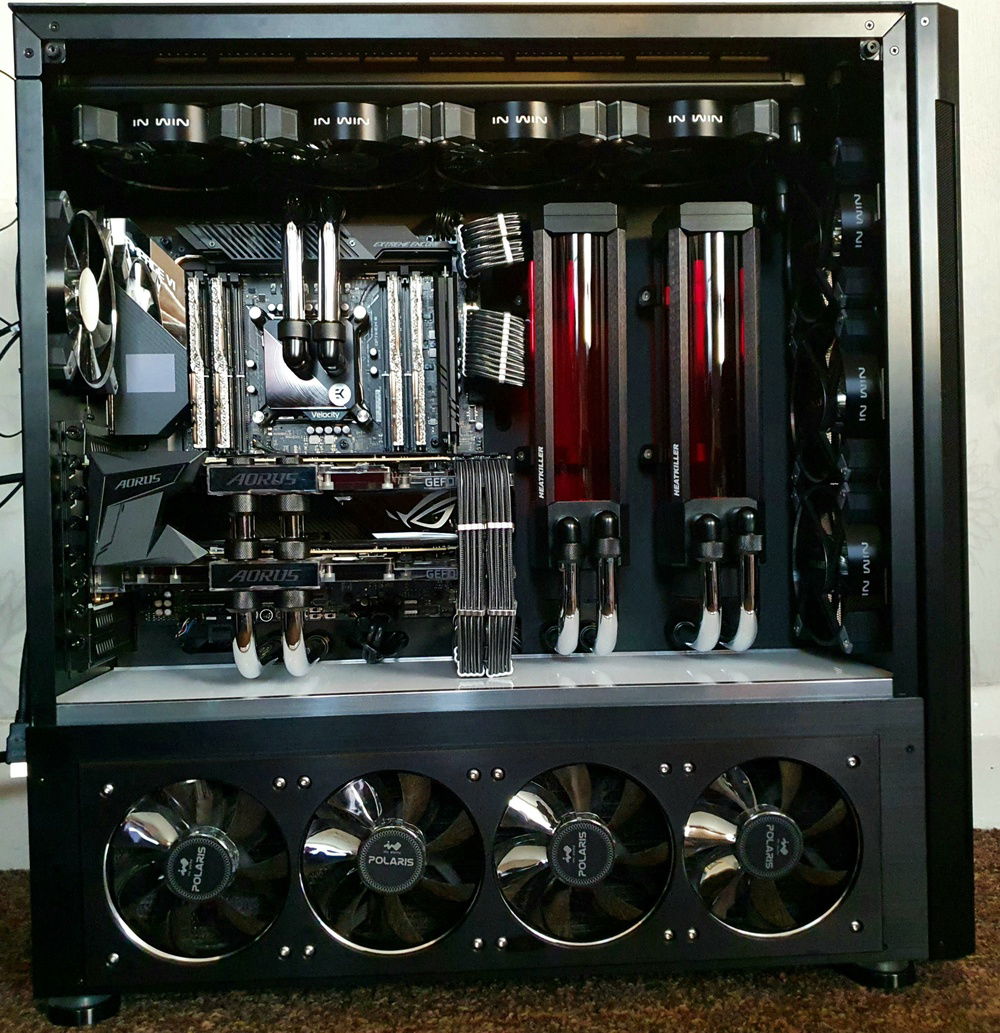

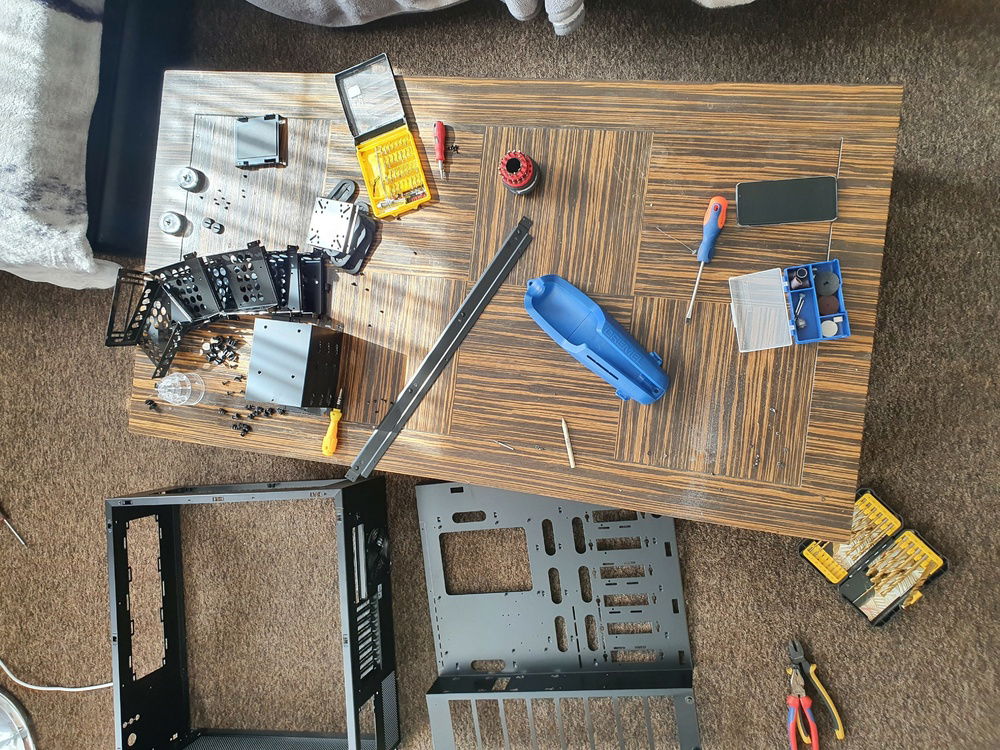

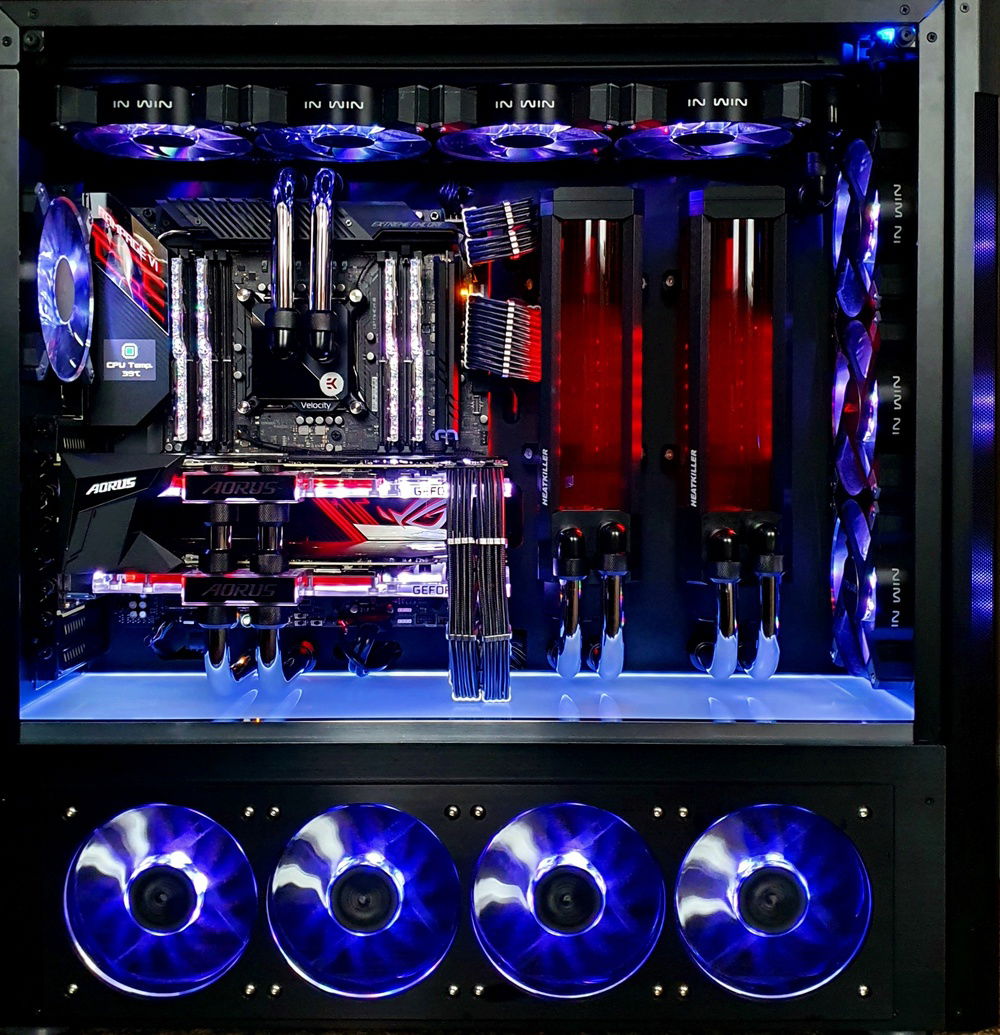

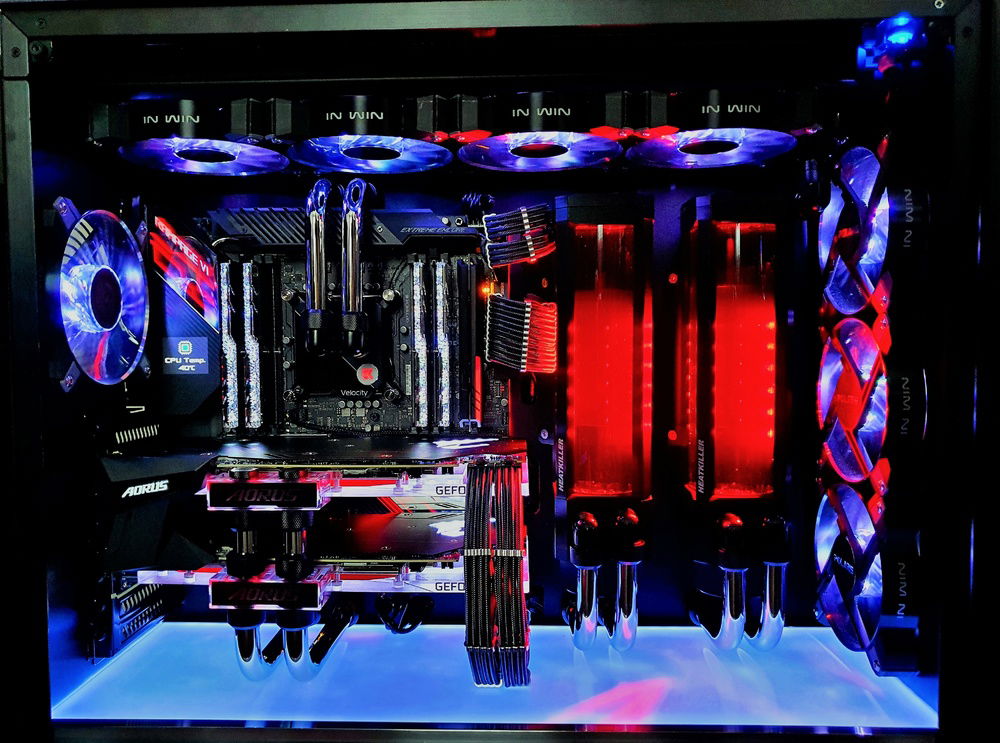

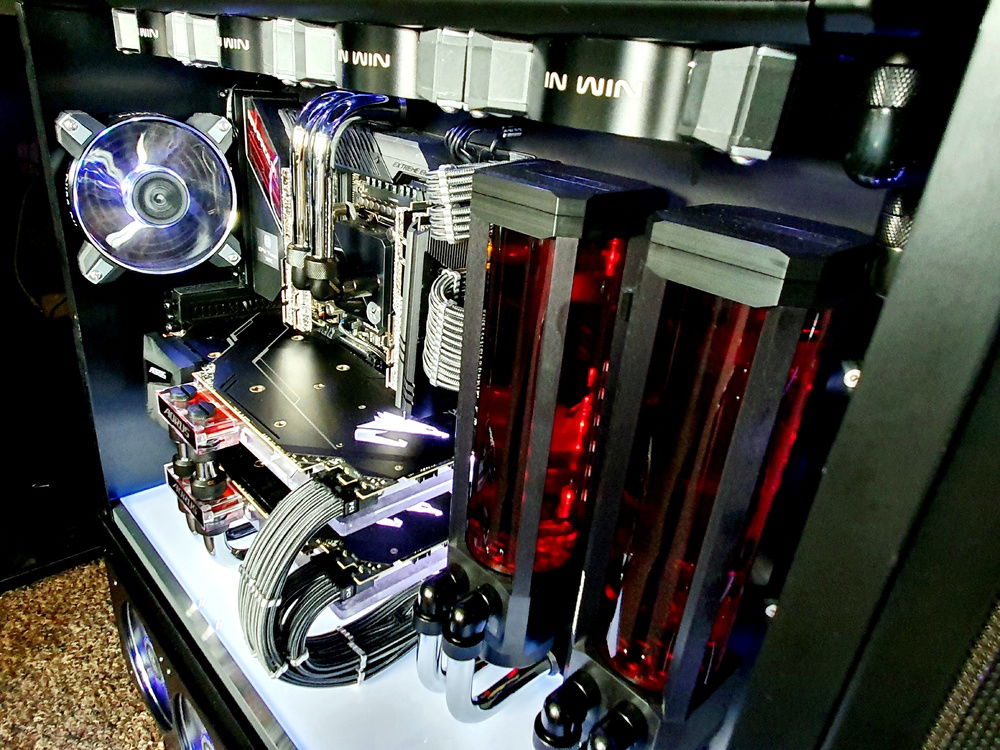

After creating my first build two years ago, I was constantly thinking about ways to improve it. After getting some inspiration from mithiral67, who created his Greenhorn Dragon build I was finally set on what to build. It took me two months, a lot of DIY and constantly doing some small tweaks to have it complete, but here it is, finally done.


Spec/parts:
intel i9 10940x

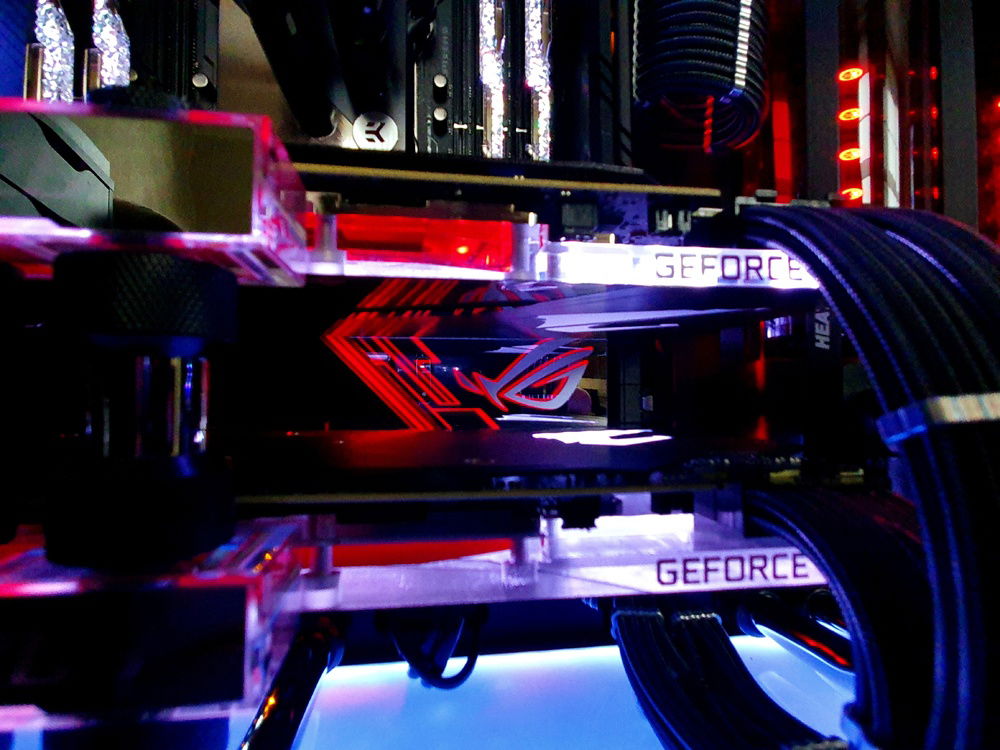

2 x AORUS GeForce RTX™ 2080 Ti XTREME WATERFORCE WB 11G

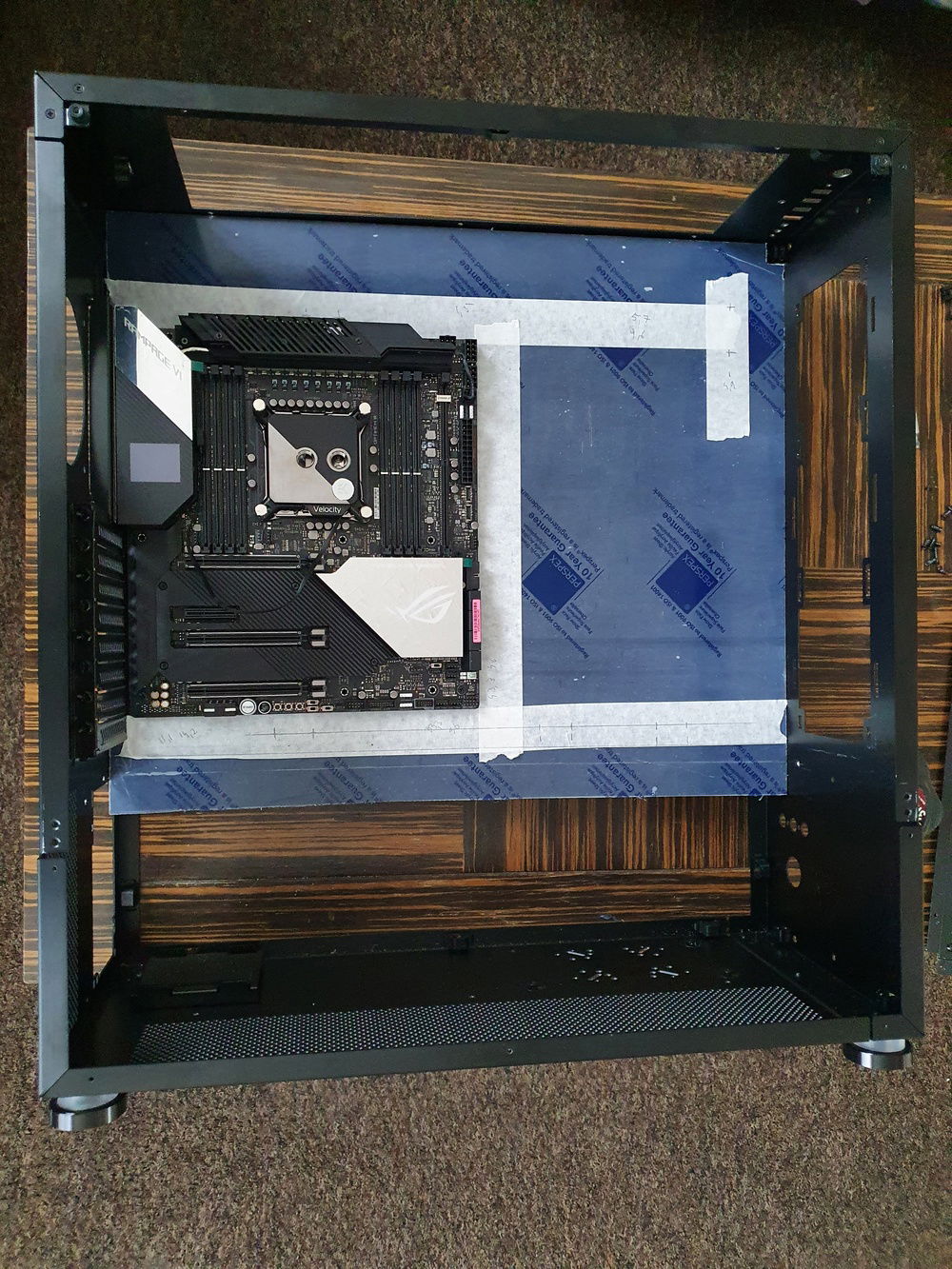

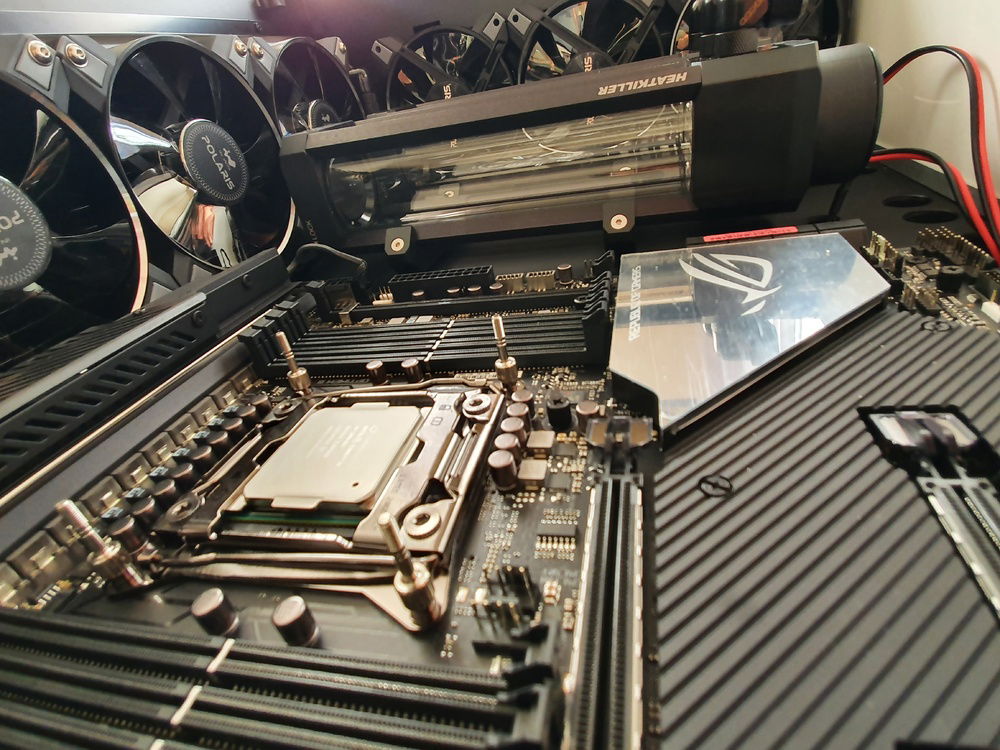

ROG RAMPAGE VI EXTREME ENCORE

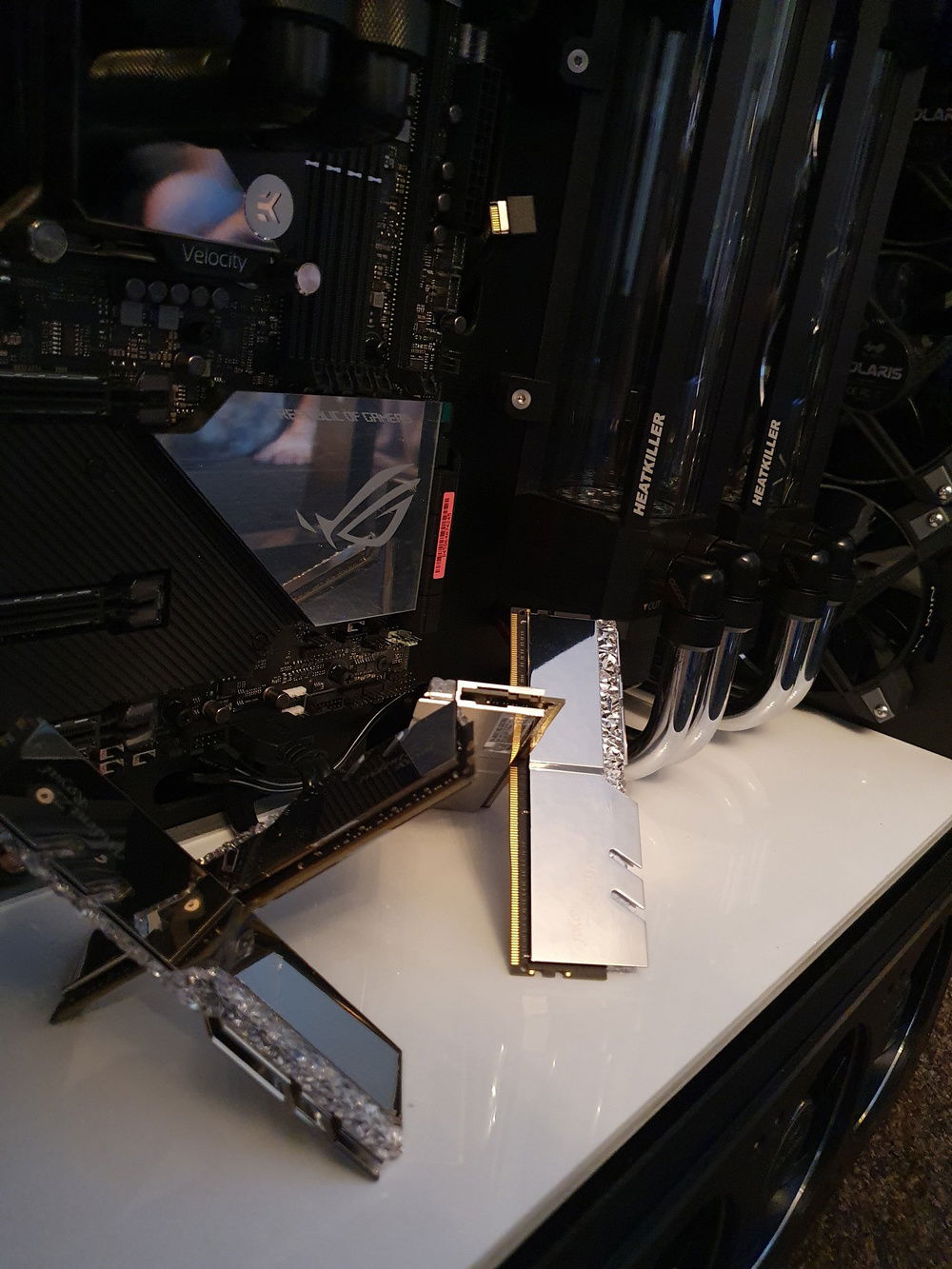

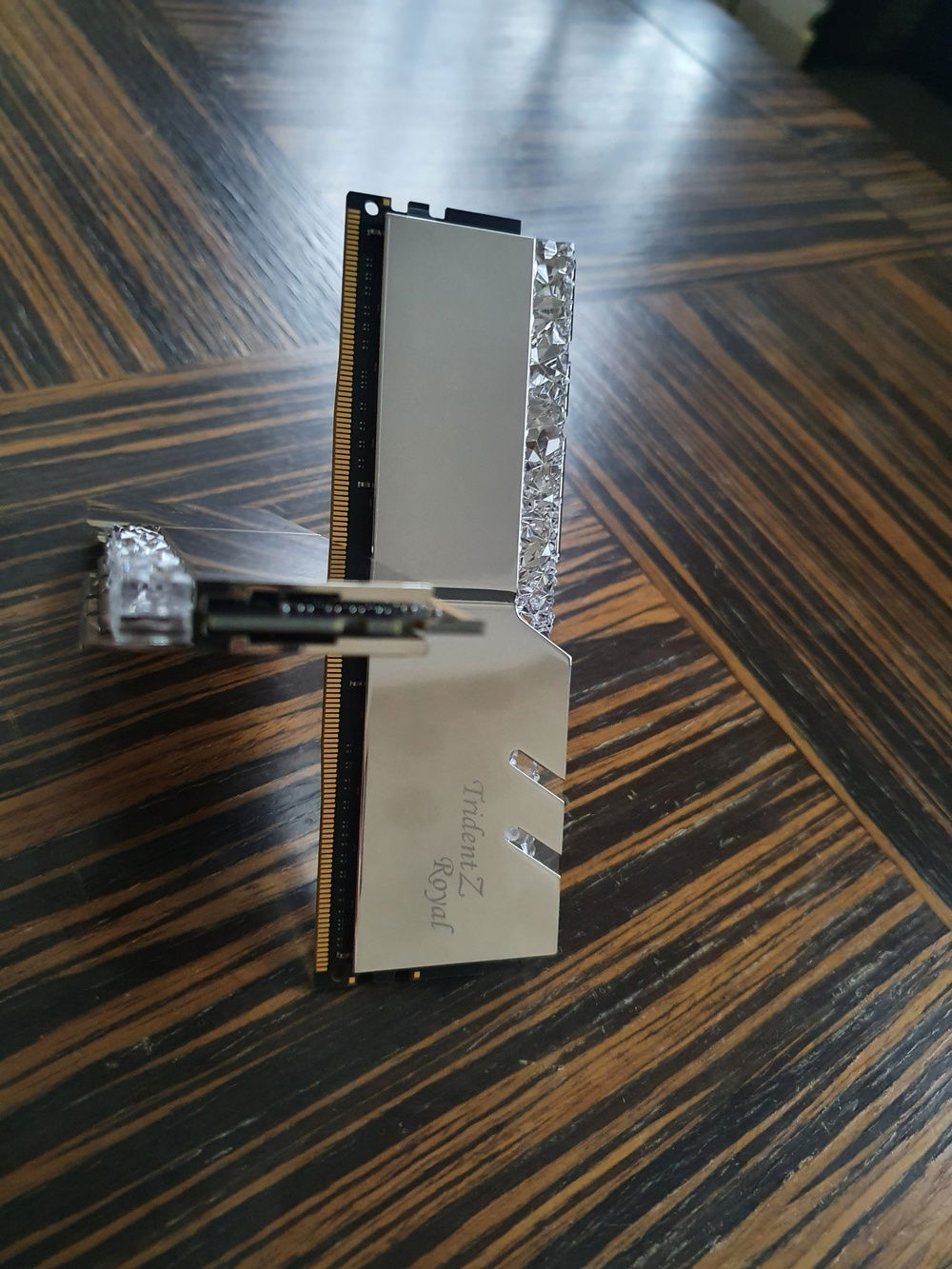

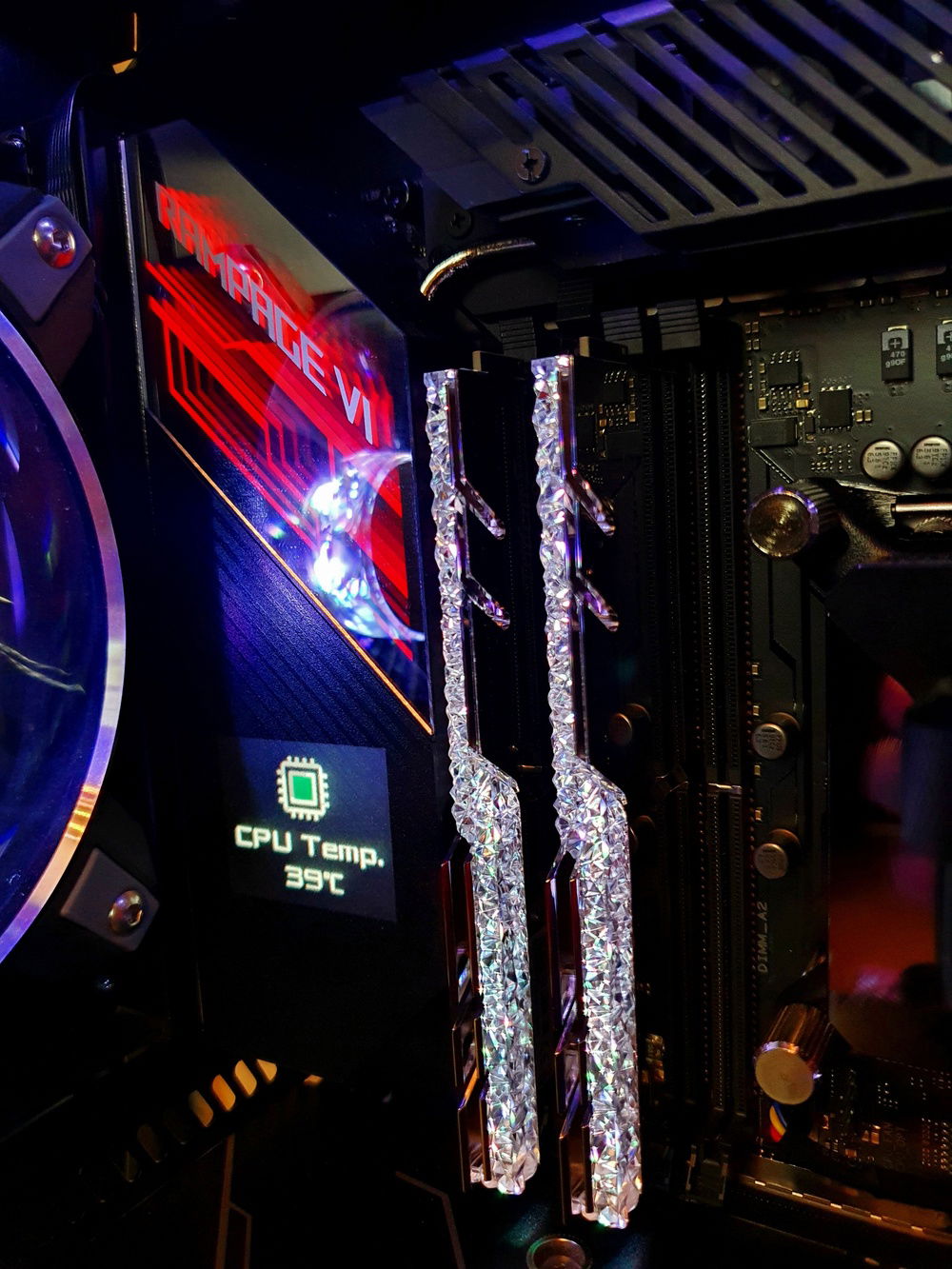

4 x 16 G.Skill Trident Z Royal F4-3600C19D
Samsung 970 Evo Plus 250 GB M.2
Samsung 970 Evo 1 TB M.2
Samsung 860 Evo 2 TB 2.5"
EVGA SuperNOVA P2 1600 W 80+ Platinum
Gigabyte AORUS NVLINK Bridge

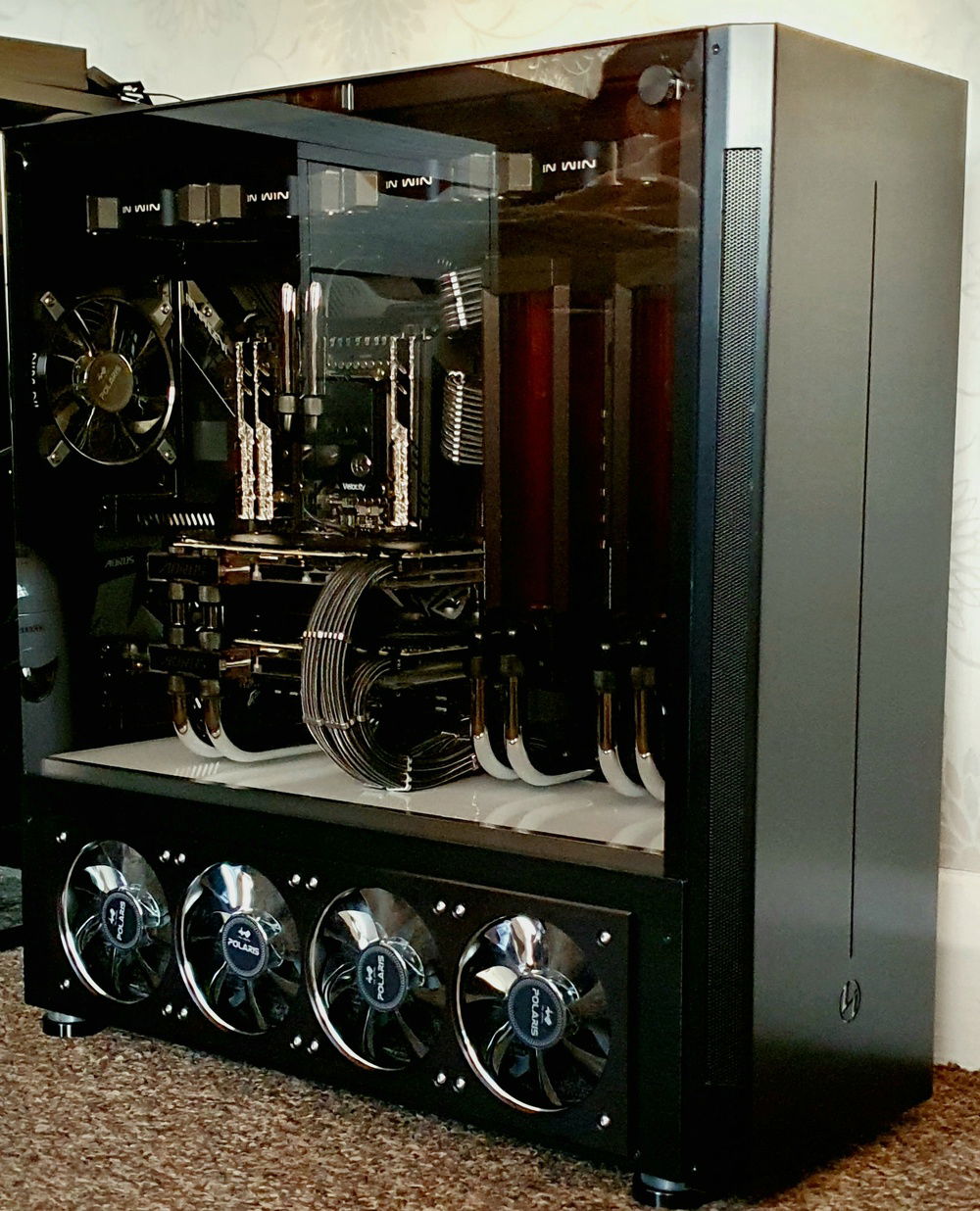

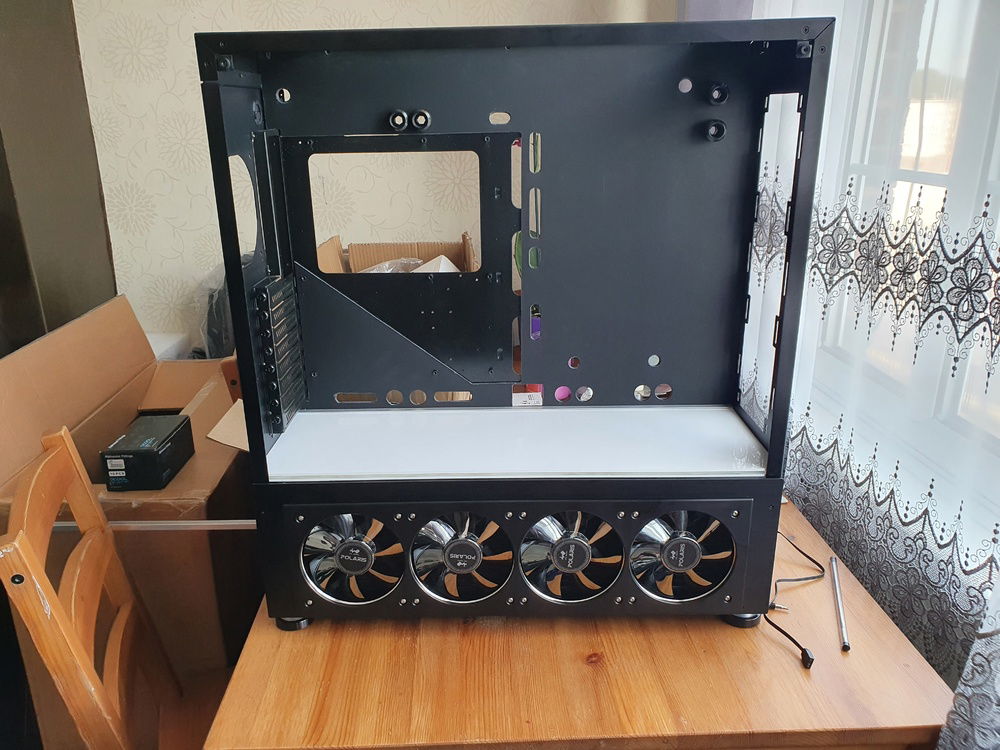

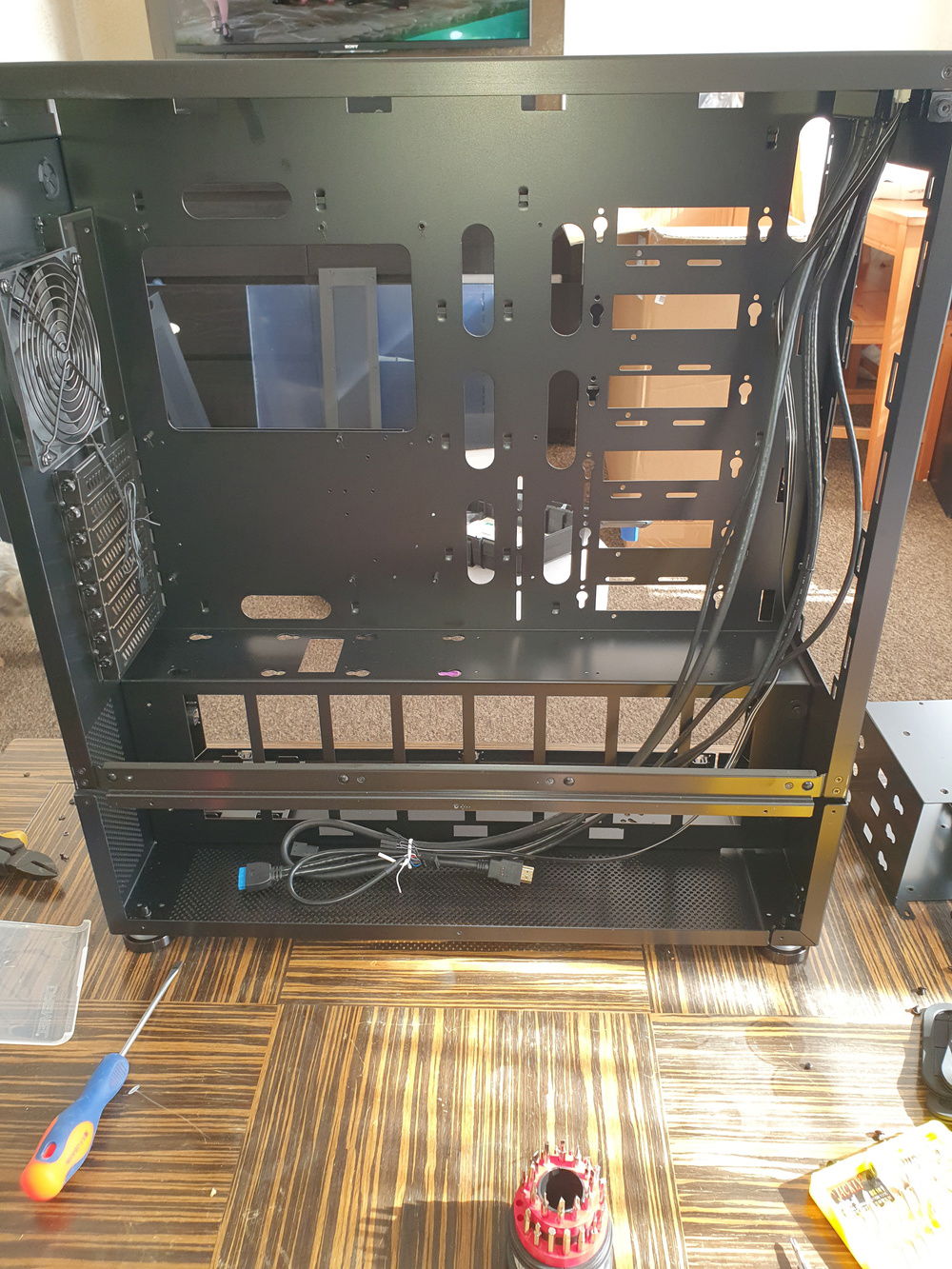

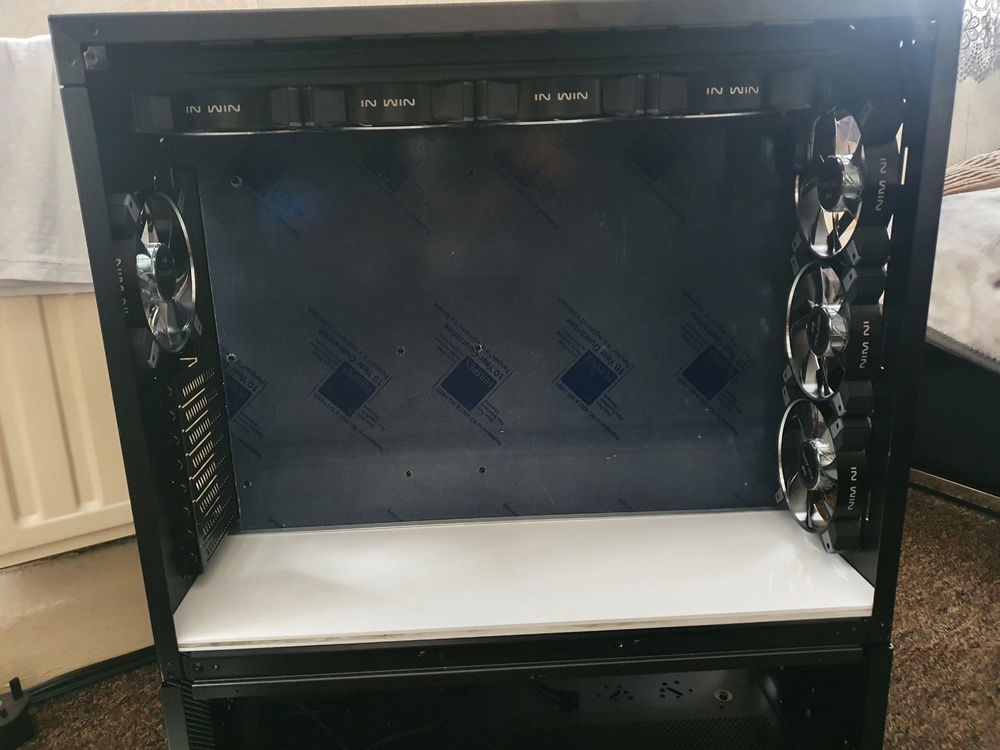

Lian Li PC-V3000 ATX Full Tower Case

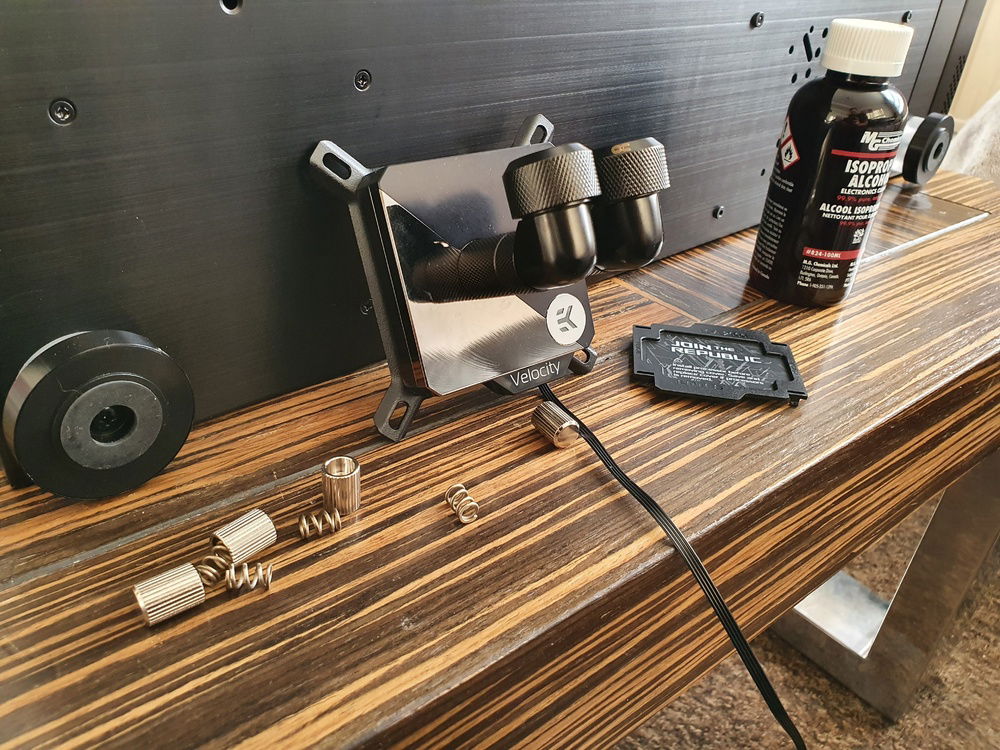

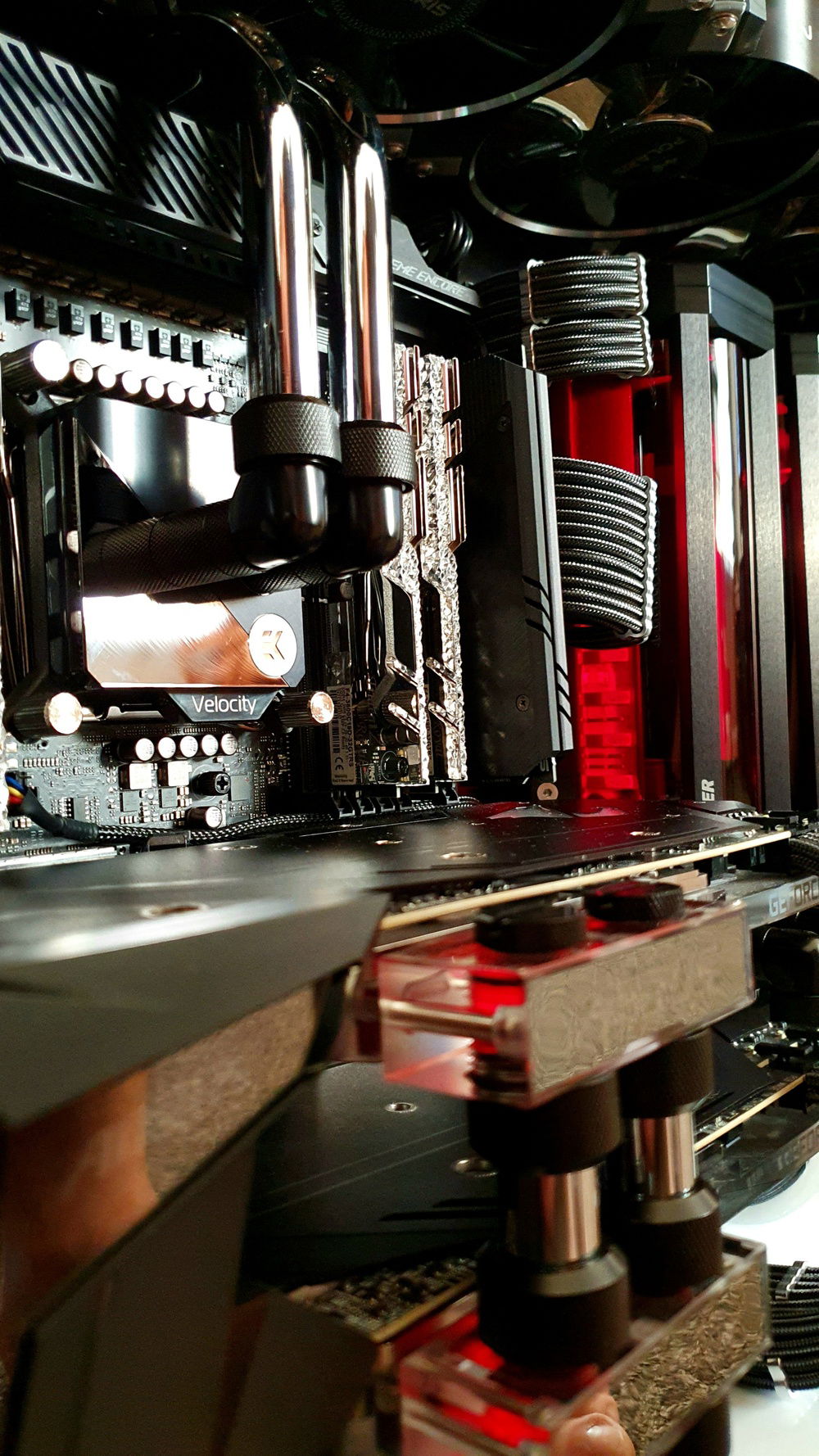

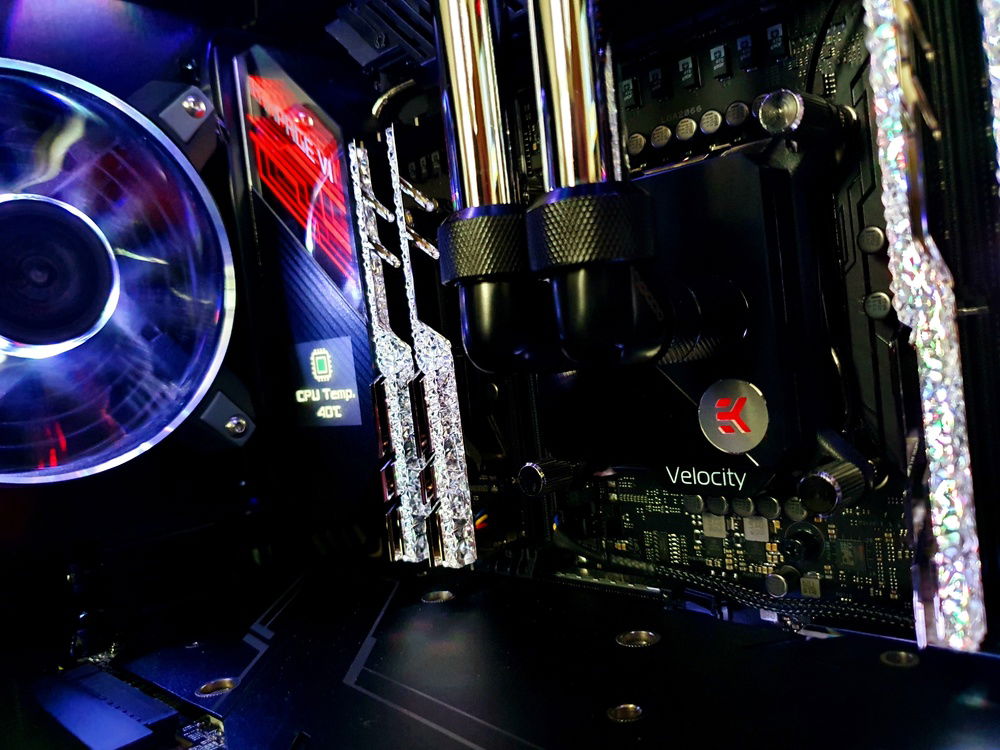

CPU Water block EK-Velocity Strike RGB - Black Nickel + Black
Aquacomputer aquabus X4 for aquaero 5/6
2 x Aquacomputer QUADRO Fan Controller for PWM-Fans
Aquacomputer RGB LED strip, IP65, black, length 50cm
Aquacomputer Connector for IP65 RGB LED strips, black, 70cm
Aquacomputer aquaero 6 XT blue USB fan-controller

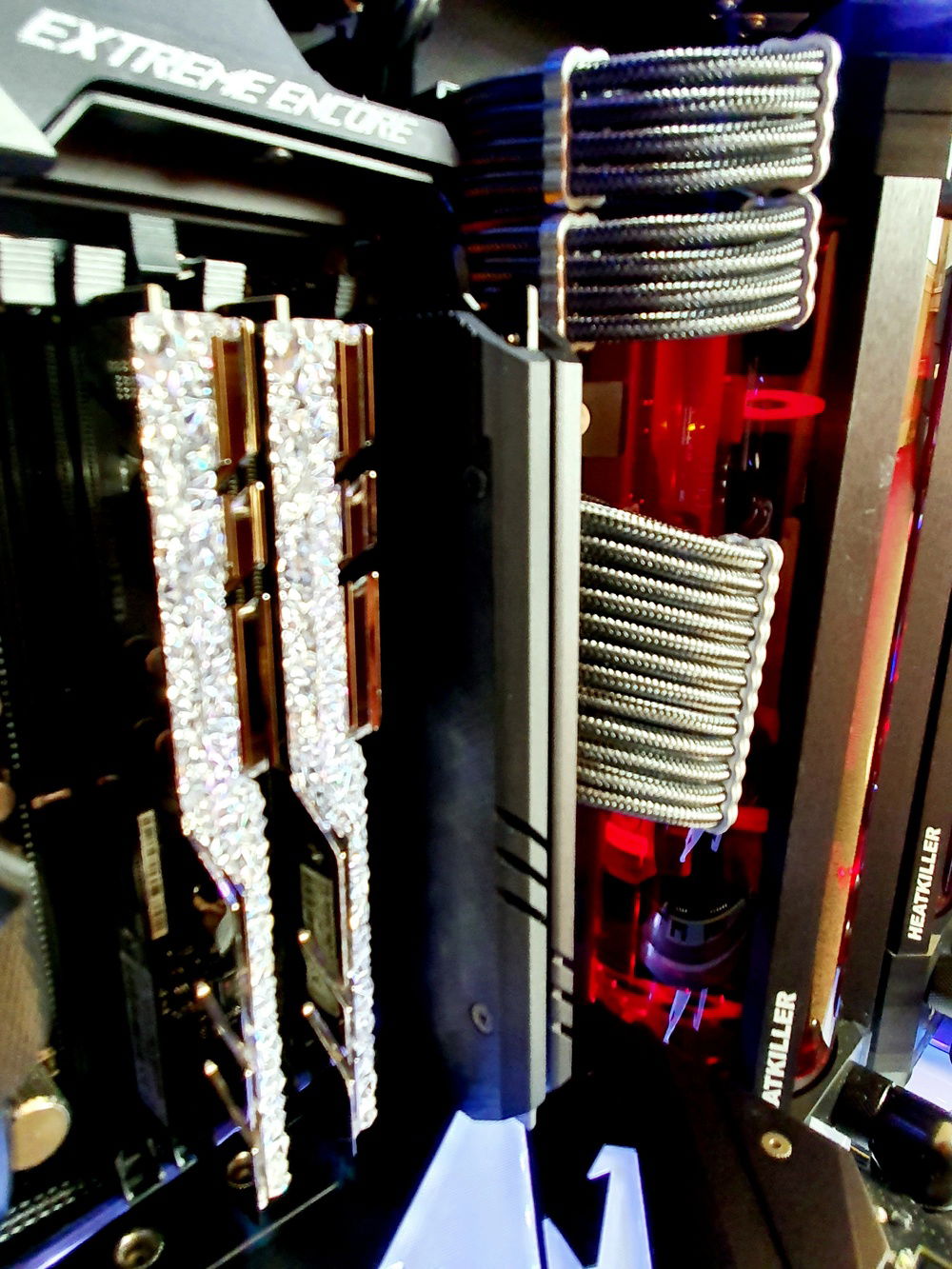

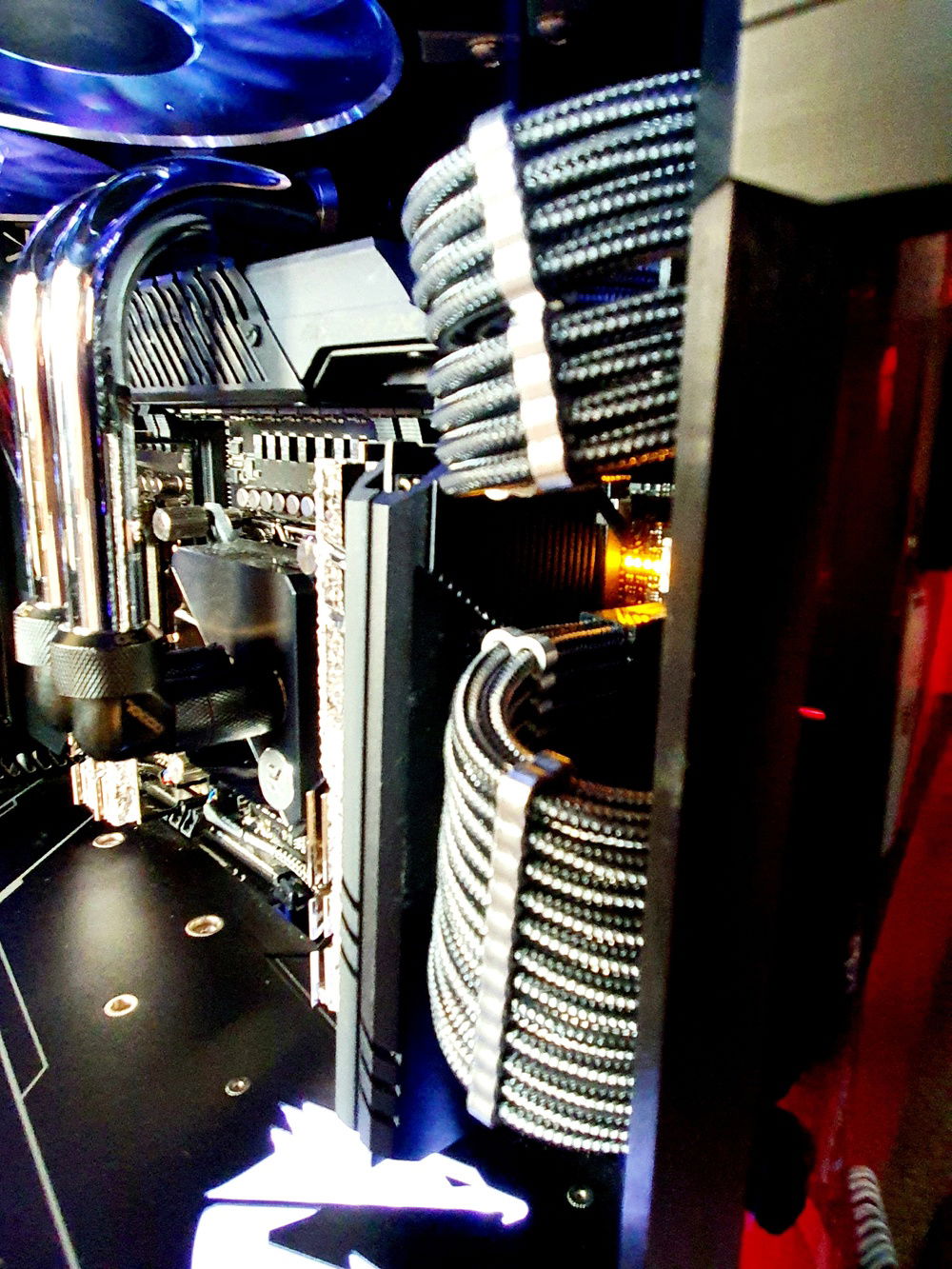

Custom CableMod Cable - CARBON
12 x Alphacool HF bulkhead connector G1/4 - deep black
18 x Alphacool Eiszapfen 16mm HardTube compression fitting 90° rotatable G1/4 - knurled - deep black
16 x Alphacool Eiszapfen 16mm HardTube compression fitting 90° L-connector for plexi- brass tubes (rigid or hard tubes) - knurled - deep black
2 x Alphacool Eisrohr 16/13mm PETG HardTube 60cm - 4pcs
4 x Alphacool Eiszapfen screw plug G1/4 - deep black
3 x Alphacool Eiszapfen 16mm HardTube compression fitting G1/4 - knurled - deep black sixpack
2 x Alphacool Eiszapfen 2-way ball valve G1/4 - Deep Black
8 x Alphacool HF angled adaptor 90° revolvable G1/4 outer thread to G1/4 inner thread - deep black
4 x Aquacomputer Temperatursensor inner/outer thread G1/4
2 x Alphacool Eiszapfen Y-connector 45° rotatable G1/4 outer thread to 2x G1/4 inner thread - deep black
4 x Alphacool Eiszapfen double nippel rotatable G1/4 outer thread to G1/4 outer thread - deep black
2 x Aquacomputer Flow sensor 'high flow' G1/4 for aquaero, aquastream XT ultra and poweradjust
2 x aquabus-Kabel 4-pins for VISION, QUADRO, D5 NEXT
2 x Aquacomputer flow meter cable 3-pin
2 x Watercool HEATKILLER® Tube - Basic Mounting Kit
6 x Alphacool HF angled adaptor 45° - revolvable - G1/4 outer thread to G1/4 inner thread - Deep Black
4 x Alphacool Eiszapfen extension 20mm G1/4 outer thread to G1/4 inner thread - deep black
2 x Aquacomputer farbwerk USB, aquabus version
2 x Aquacomputer aquabus cable 4-Pin

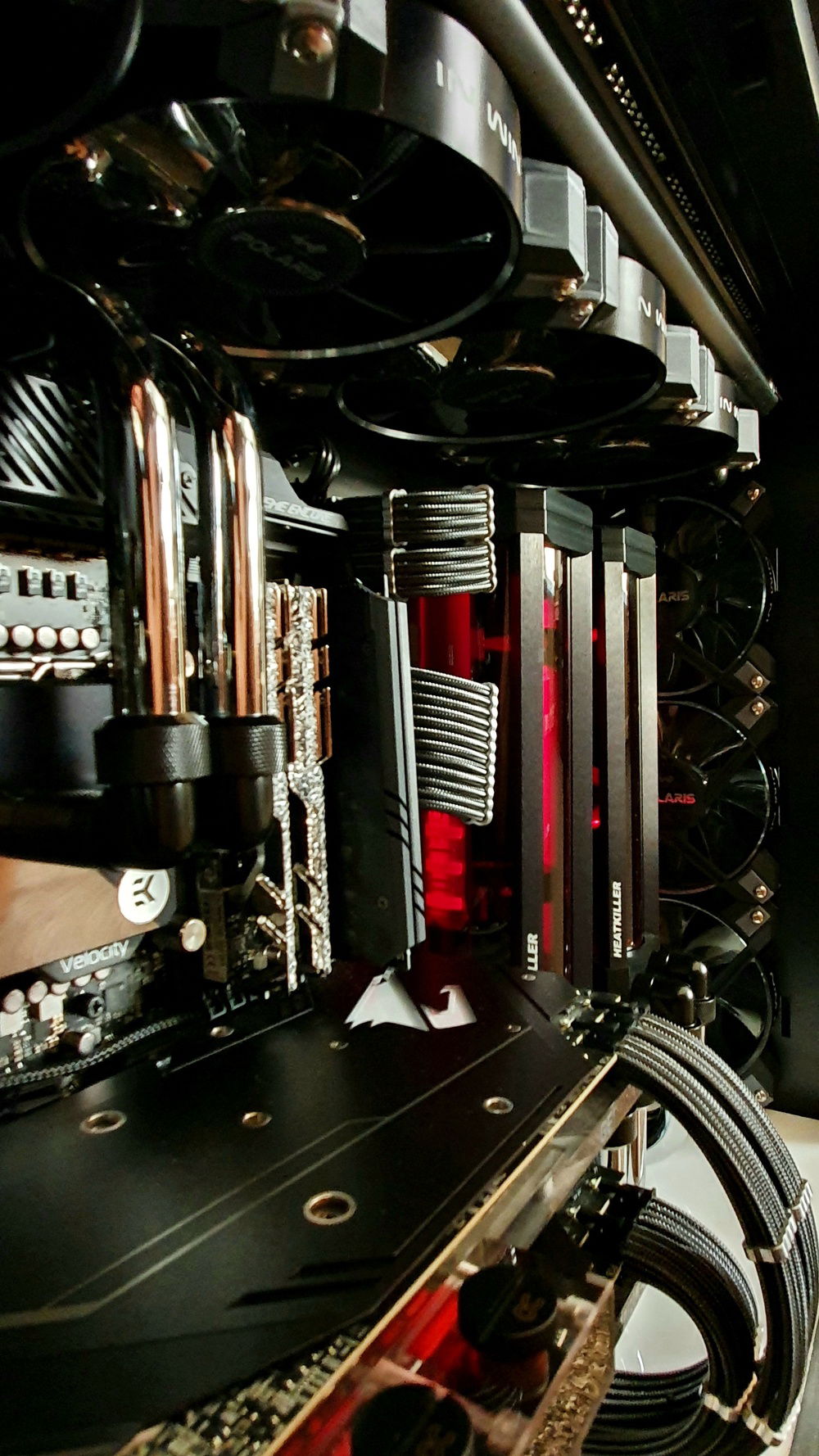

2 x Watercool HEATKILLER® Tube 200

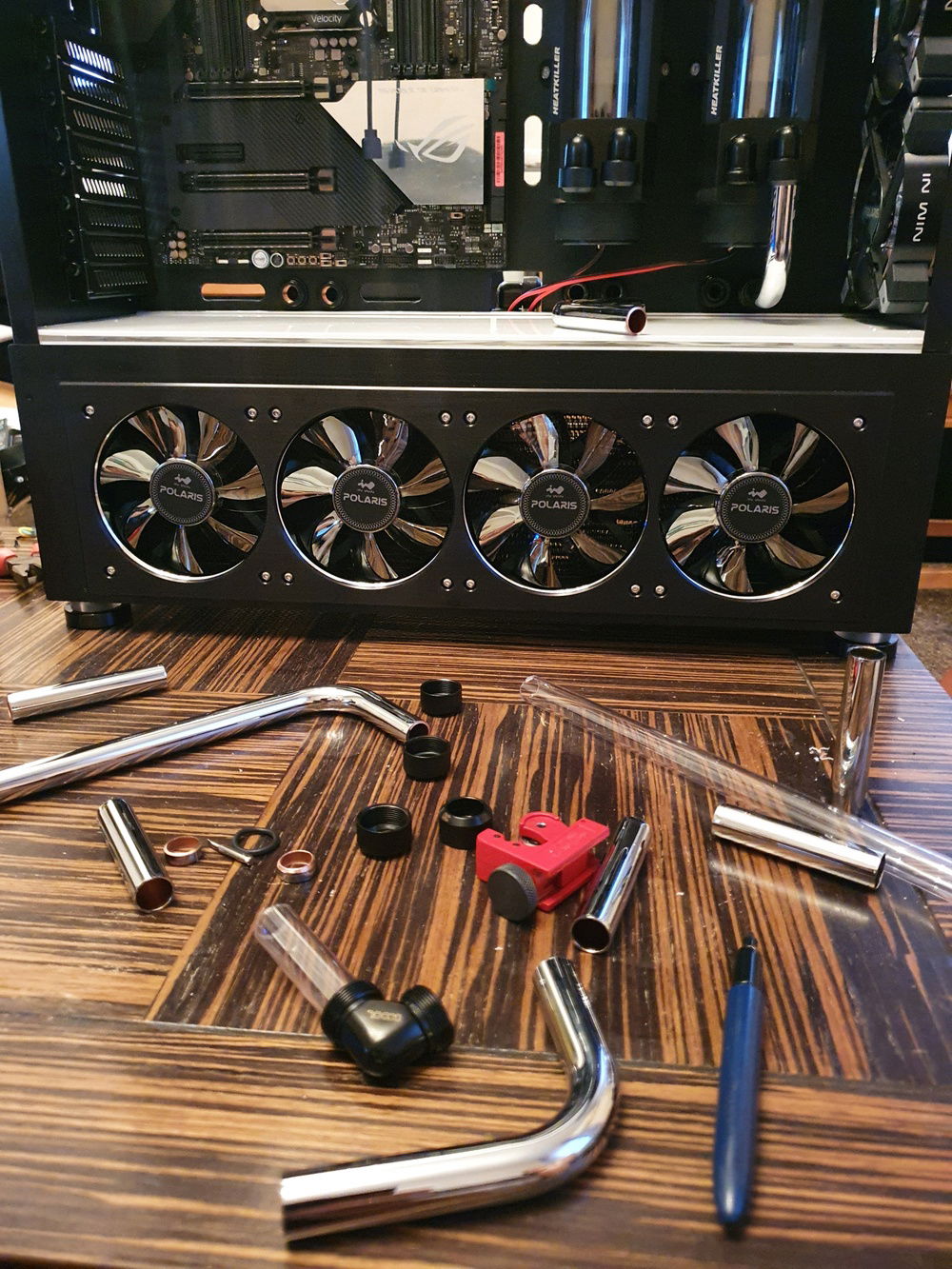

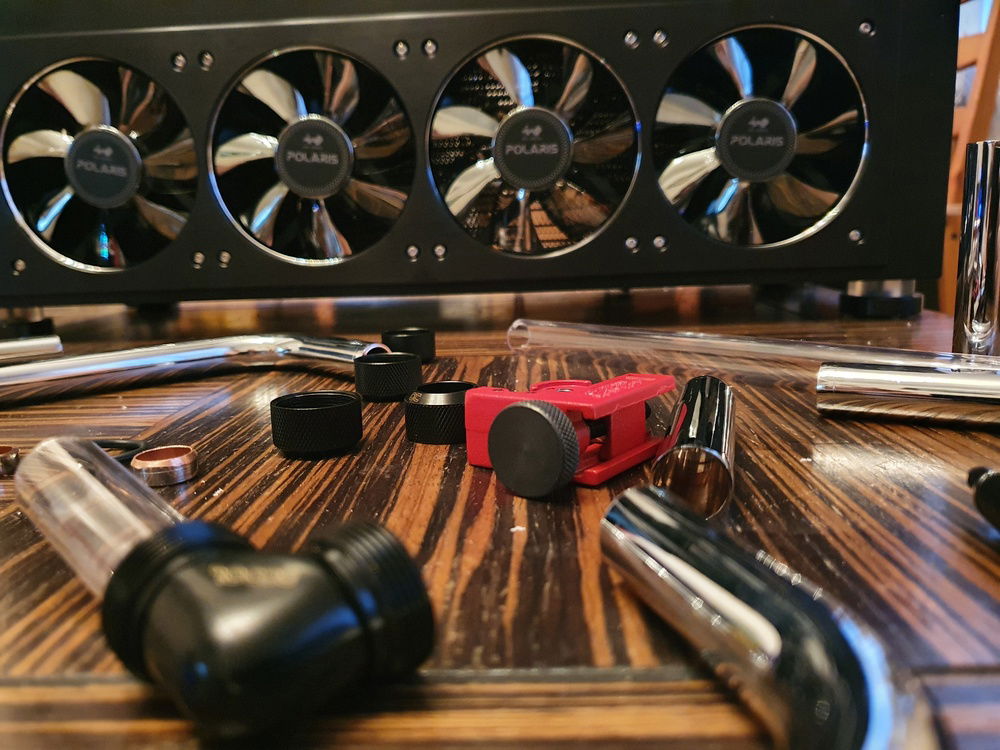

8 x Barrowch 16mm pre-bending 90°chrome-plated copper rigid tube - single 90°

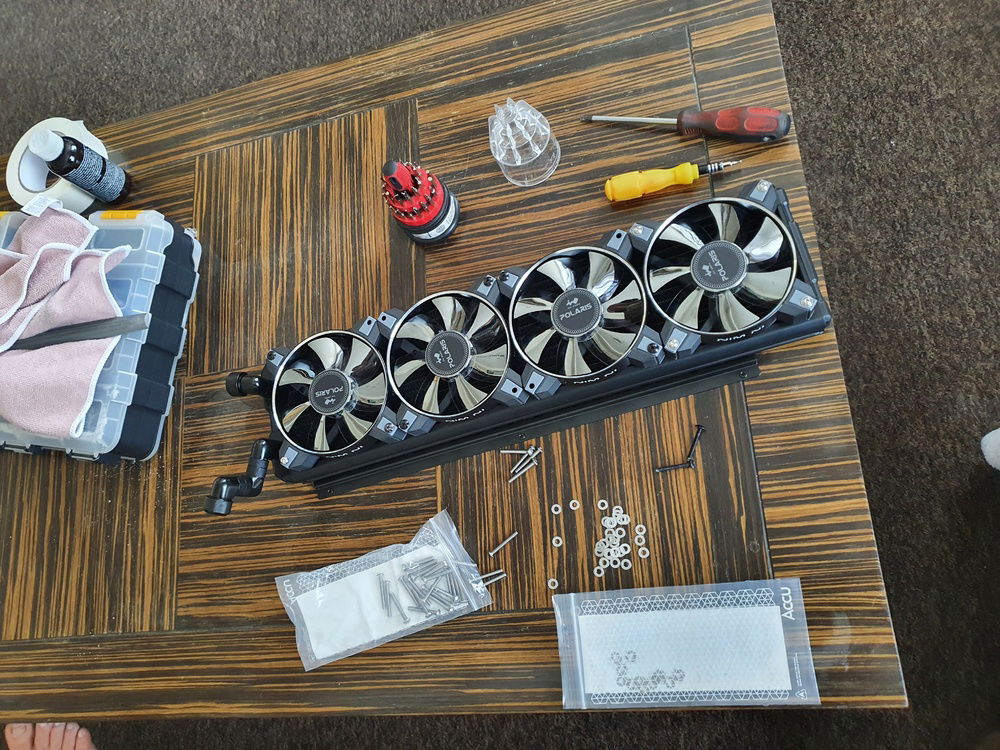

2 x Black Ice Nemesis radiator GTS 480

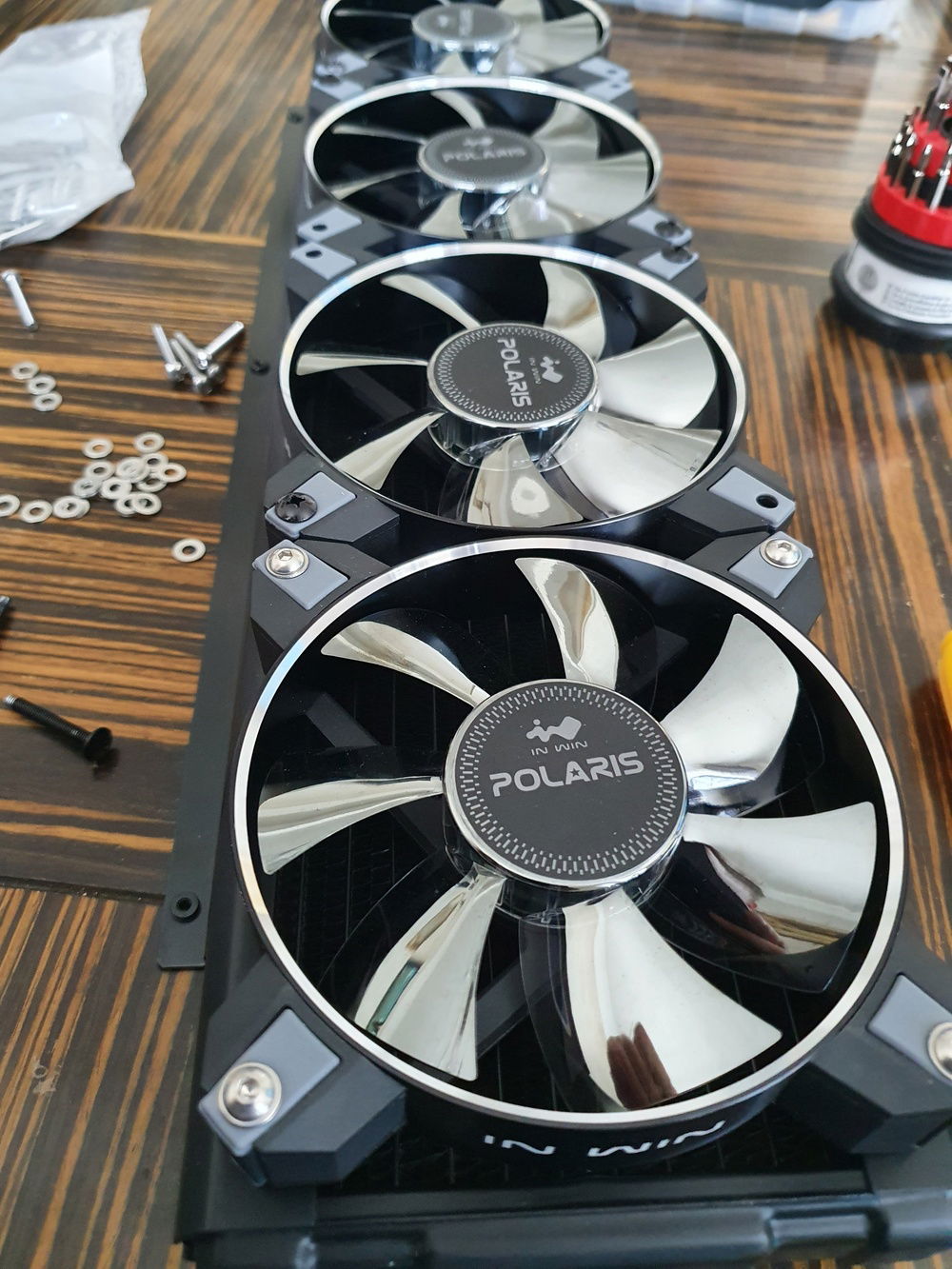

6 x In Win Polaris RGB Aluminum Twin Pack Fan
3 x Mayhems X1 BLOOD RED COOLANT
50 x M4 Form A Flat Washers - Stainless Steel
50 x M4 X 30mm Socket Button Screws - Stainless Stee
20 x Black A2 Stainless Steel Metric Coarse Acorn Cap Cover Dome Head Nuts
mnpctech Radiator/Case Fan Grill 480mm (120mm x 4)
Thermal Grizzly Conductonaut 1 g
Color(s): Black Carbon Red Silver

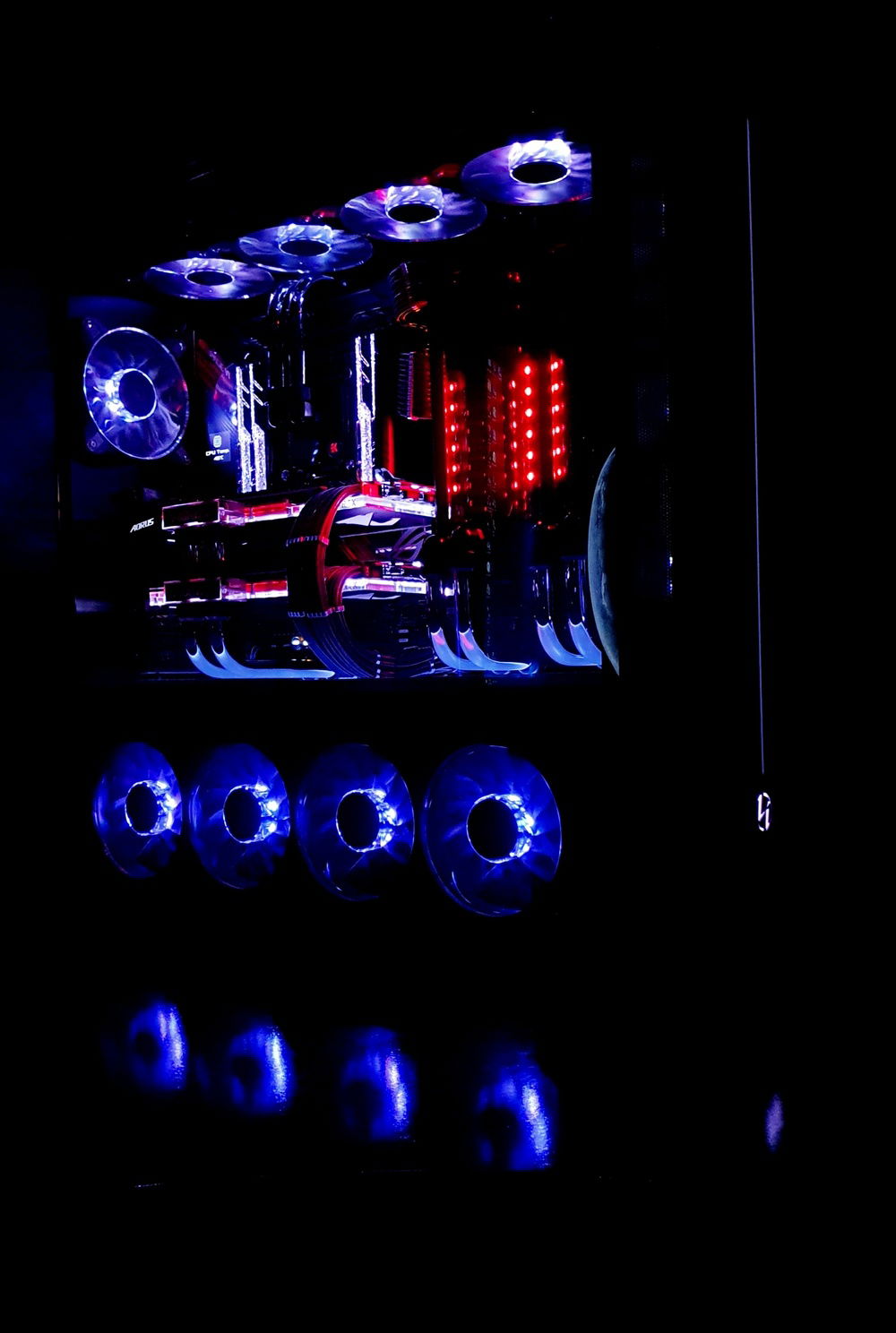

RGB Lighting? Yes
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 780.00
Intel - i9 10940x
Socket: LGA 2066
Cores: 14
Motherboard
$ 1,286.86
ASUS - ROG Rampage VI Extreme
Chipset: X299
CPU Socket: LGA 2066
Size: E-ATX
Memory
$ 263.93
G.Skill - Trident Z Royal (3600MHz) (Silver)
Type: DDR4
Capacity: 16 GB
Graphics
$ 999.98
Gigabyte - Aorus GeForce Xtreme Waterforce (2x)
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Interface: PCIe x16
Storage
$ 229.00
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
Storage
$ 152.99
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 69.99
Samsung - 970 EVO NVMe
Form Factor: M.2
Capacity: 250 GB
PSU
$ 339.99
EVGA - SuperNOVA P2
Wattage: 1600
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Lian Li - PC-V3000WX
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 508.98
IN-WIN - Polaris RGB Aluminium
Size: 120 mm
Cooling
$ 171.90
Hardware Labs - Nemesis GTS
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
CableMod
$ 359.68
Accessories
$ 277.69
Accessories
$ 207.90
Aquacomputer - D5 PWM pump (discontinued)
Accessories
$ 99.40
Accessories
$ 65.42
Accessories
$ 10.12
Monitor
$ 727.98
Alienware - AW3418DW
Size: 34 Inch
Panel: IPS
Refresh Rate: 120 Hz
Keyboard
$ 169.00
Alienware - AW768
Interface: Wired
Key Switch Type: Cherry MX Brown
Type: Full Size
Mouse
$ 89.43
Alienware - AW958
Interface: Wired
