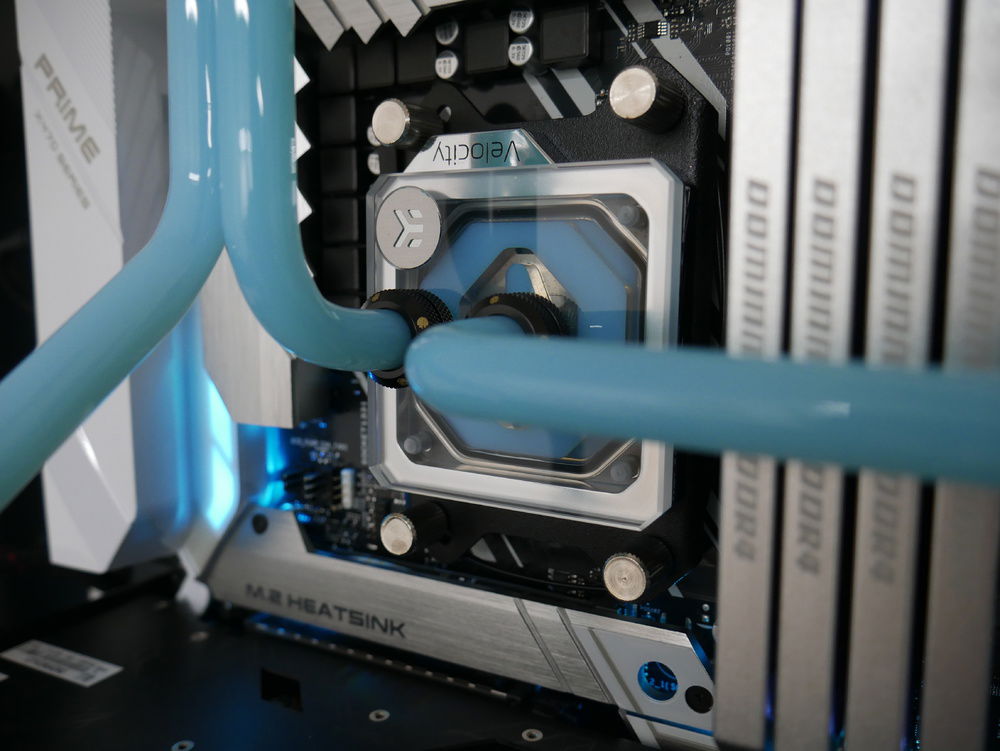

Yes I know the block is upside down, but I wanted the inlet and outlet to be turned around.

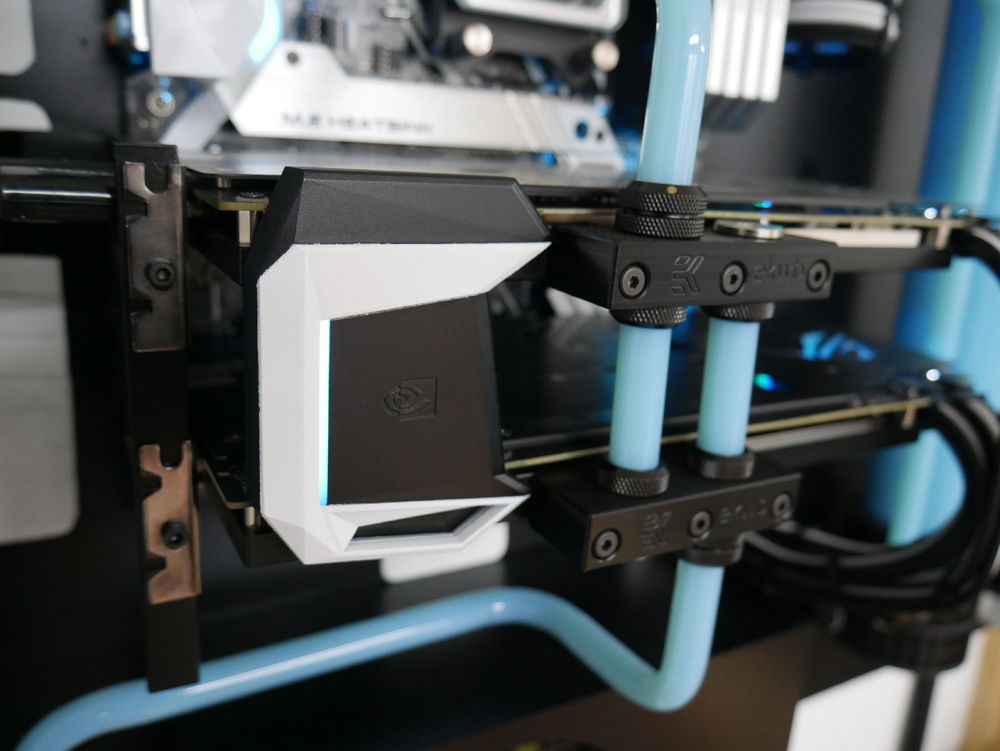

Painted and change the light color for the SLI bridge.

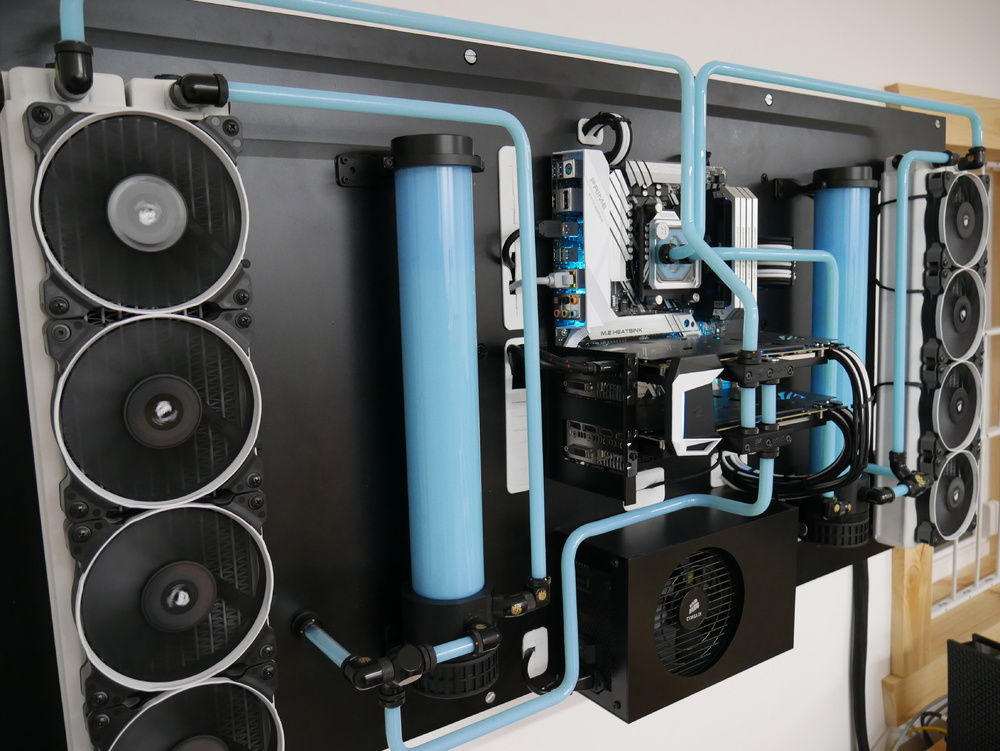

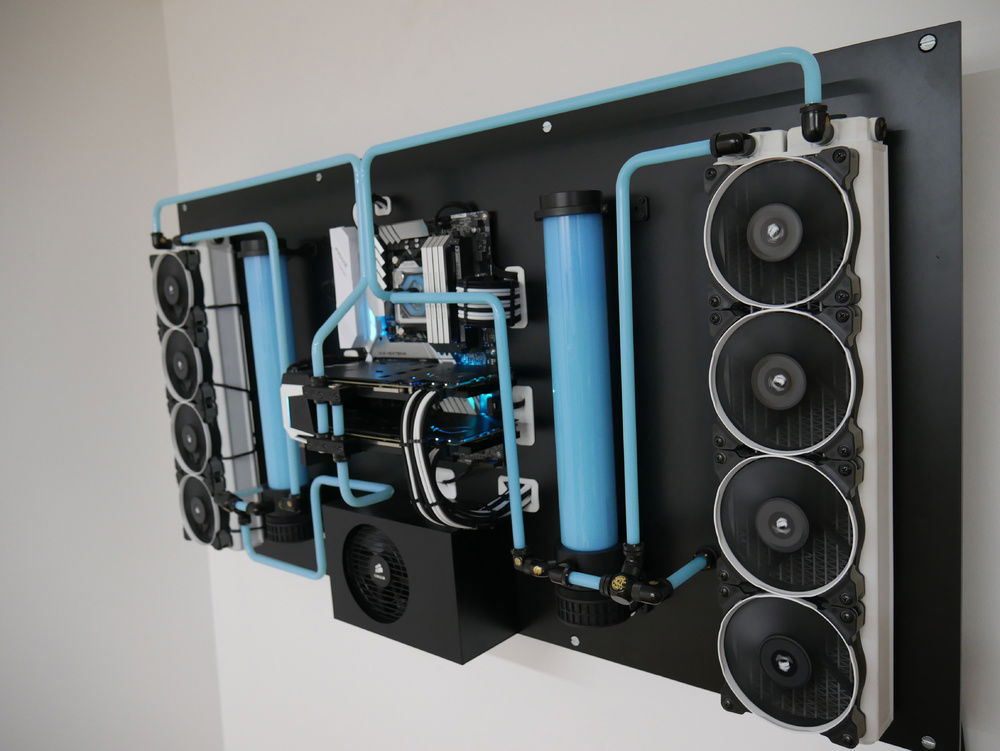

To celebrate the opening of my shop I decided to build a unique wall build PC for myself. The PC itself has a Ryzen 2700x, 2x GTX 1080s, 32GB of RAM, 500 GB SSD, and 3 TB HDD. The parts came from my last build including the main water cooling components. It has EK water blocks for the CPU and the GPUs. All the fittings are bitspower fitting and I'm using bitspower crystal link 12mm acrylic tubing. The radiators are 480mm rads from Hardware Labs, and I filled the loop with Mayhem's pastel white coolant and dyed it with Mayhem's blue dye to give it a light blue color. My last build was very bulky and took up a lot of space on my desk so I figured "Hell I'll just wall mount the PC". I made the frame myself using 1" square tubing and 1/4" acrylic which I cut using my X-Carve CNC router. Overall I'm very happy with the build and it looks great and it is for sure a center piece in the shop.
