The Project 9

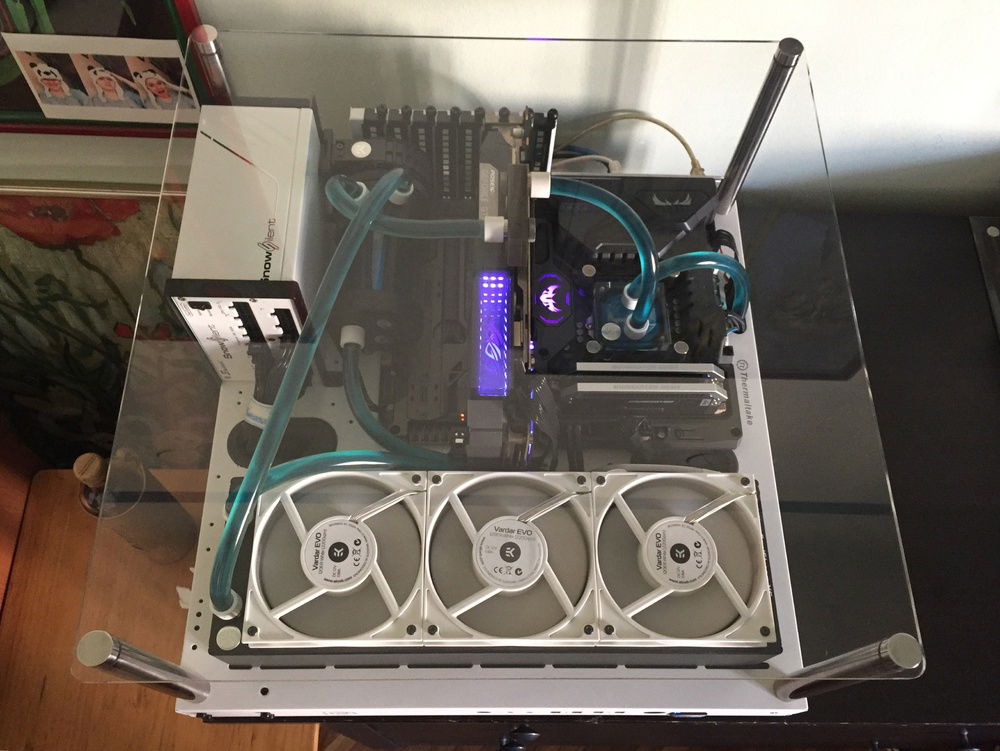

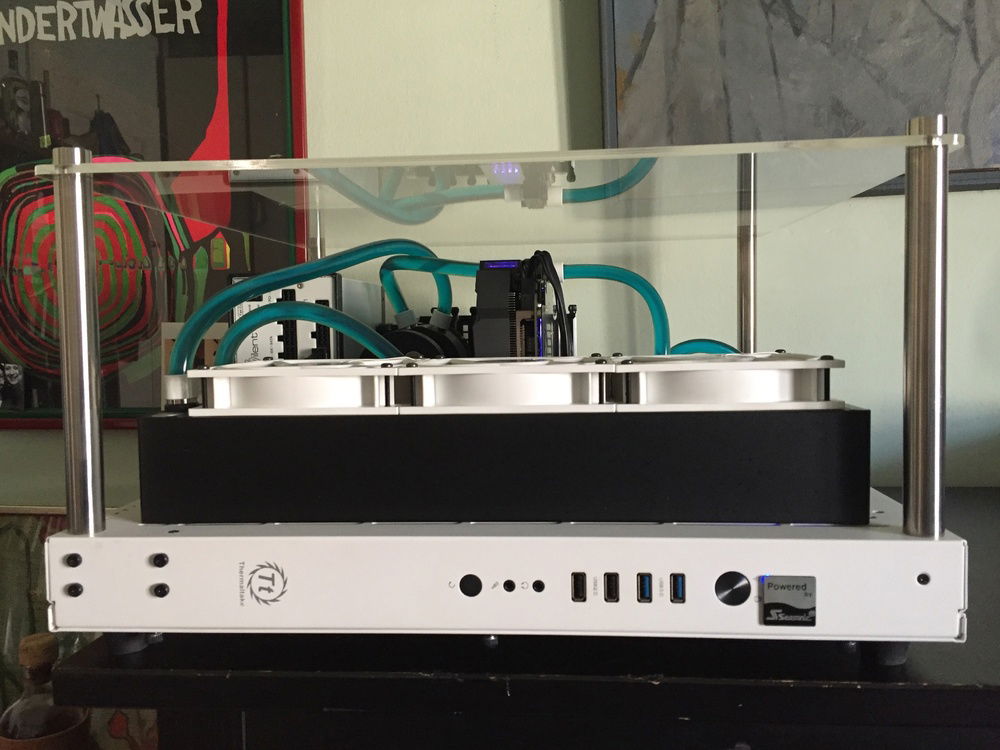

The goal was to build a truly personal pc with minimal modding, as I am a big sci-fi fan the aesthetic was clear.
The build is happily running from 23.10.2017.
As the budget is tight as always the "bling" side was kept to a minimum.

The switch from a MAC is life changing as The build is used primarily used to crush through design applications halving the work time. On the other hand for music production and sound design. Gaming oh man you know it!
Also was really lucky during the mining craze so the Poseidon 1080 ti practically paid for itself.

i7 7700k @ 5.2 Ghtz 34-75c temps with fans @ 580rpm, (29-65c on fans @ max rpm)
the GPU max temp 52c fan @ 0 rpm,
the ram is @ 3200 @ 40c (only 16GB still waiting for the price drop)

I'm planning an aesthetic upgrade soon, primarily focusing on cables lighting an tubing, also a plan to add a water block for the m.2 (because it is basically the hottest part of the build running @ constant 65-75c)

All in all the total cost was around 3000eur-900eur (mining) worth every penny!
Hope this inspires people to do they're own dream build, i had absolutely 0 regrets and only benefits.
Color(s): White
RGB Lighting? Yes
Theme: Futuristic
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 250.00
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
ASUS - TUF Z270 Mark 1
Chipset: Z270
CPU Socket: LGA 1151
Size: ATX
Memory
$ 189.99
Corsair - Dominator Platinum (3200MHz) (Grey)
Type: DDR4
Capacity: 8 GB
Graphics
ASUS - Poseidon
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 43.34
Corsair - Force MP500
Form Factor: M.2
Interface: M.2 (M)
Capacity: 240 GB
Storage
$ 34.99
Crucial - MX500
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
Storage
$ 237.01
Seagate - Barracuda (STGS2000401)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 477.00
Seasonic - Prime Snow Silent
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 137.22
Thermaltake - Core P3 (White)
Type: Mid-Tower
Side Panel: Open
Cooling
$ 118.95
EKWB - CoolStream XE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
EKWB - CPU Blocks (discontinued)
Type: Custom Loop
Cooling
EKWB - Pump
Type: Custom Loop
