Finished build
Finished build

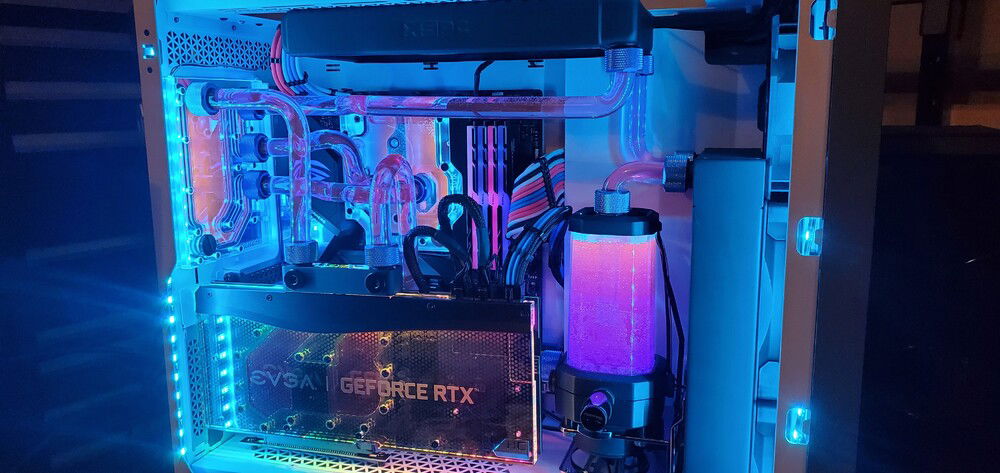

Waiting on last 2 pcie 8pin cablemod cables to arrive.
Waiting on last 2 pcie 8pin cablemod cables to arrive.

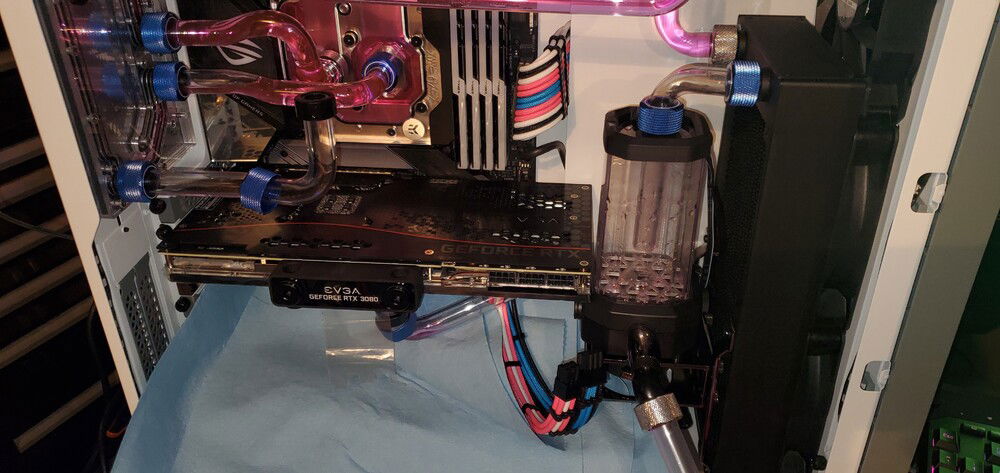

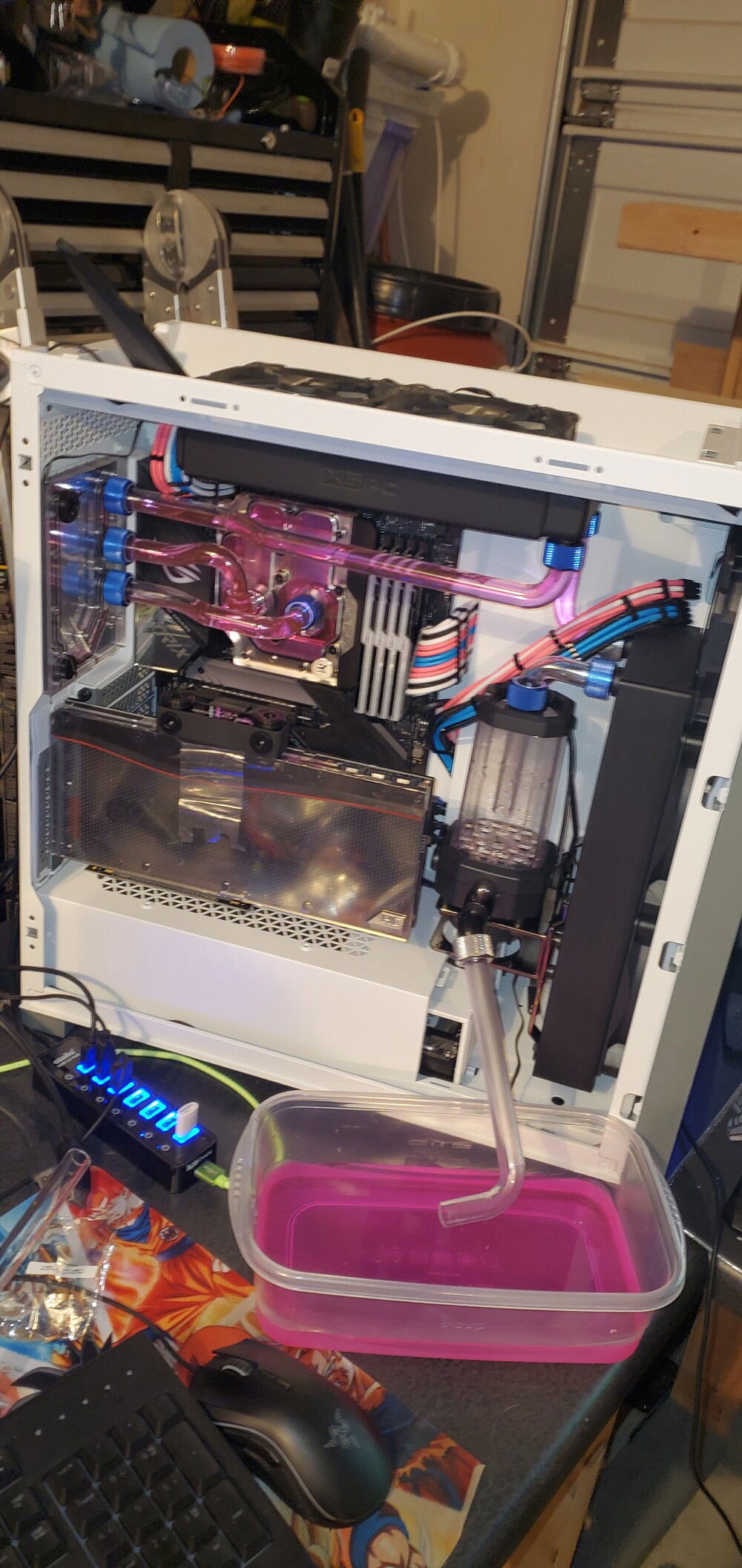

Testing fitment just got my 3080 hydro today to replace my evga 2070 with a corsair hydro block
Testing fitment just got my 3080 hydro today to replace my evga 2070 with a corsair hydro block

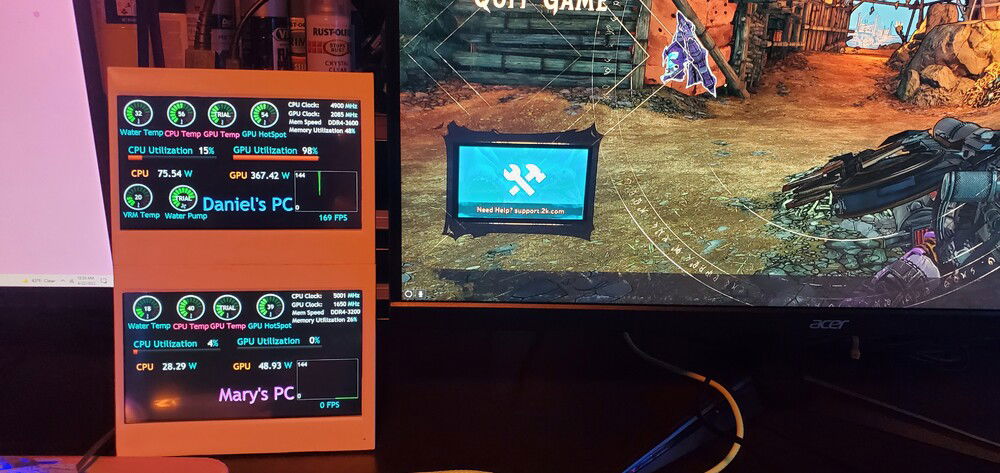

I 3d printed the house using dual 7" pi screens to me and my wifes PC's
I 3d printed the house using dual 7" pi screens to me and my wifes PC's
Gonna use my wifes Cricut maker 3 to cut out a huge spider gwen vinyl sticker for the front of the pc. Still gotta take trim to pc off and paint it pink and light blue

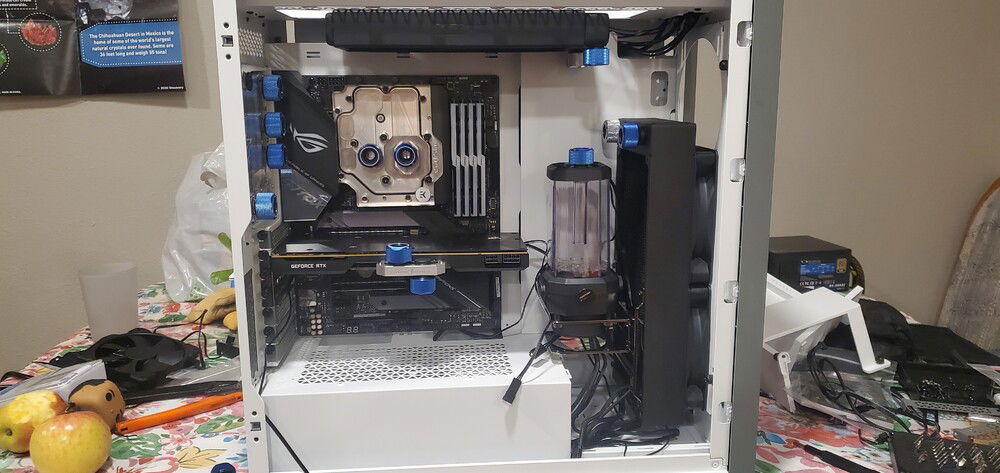

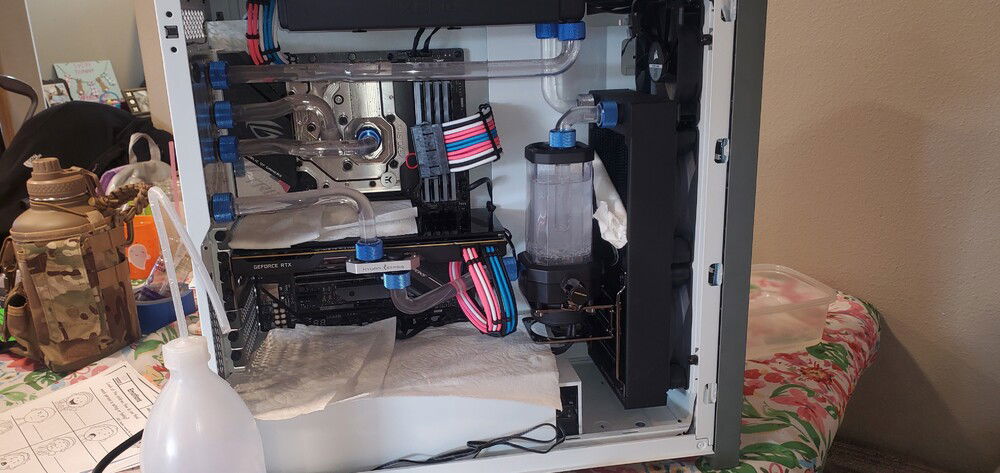

2070 before adding 3080
2070 before adding 3080
2070 before adding 3080
2070 before adding 3080

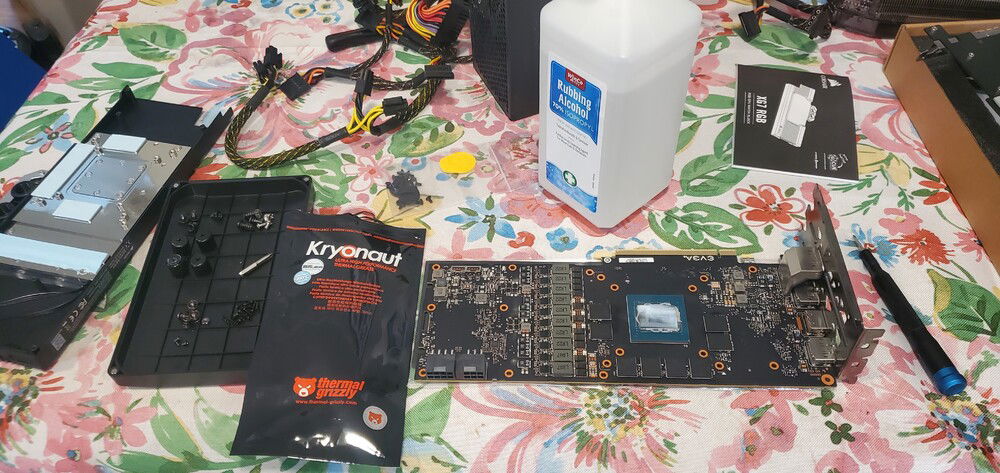

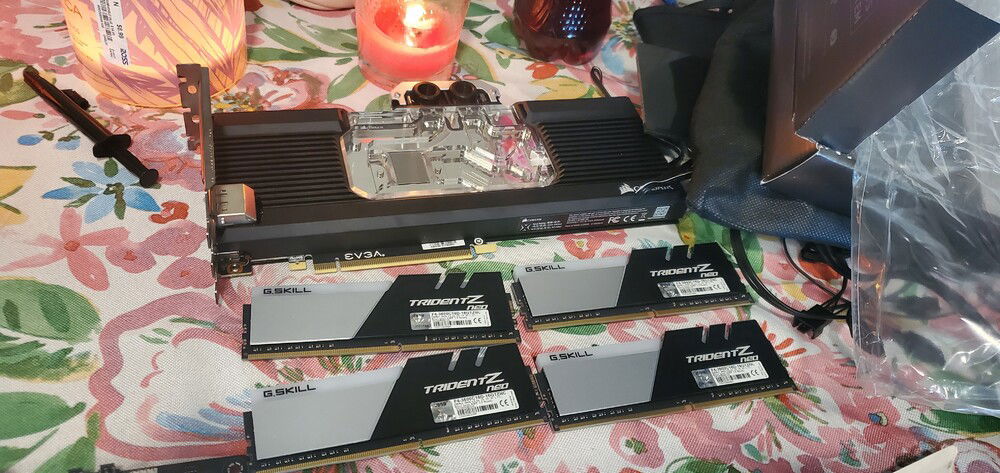

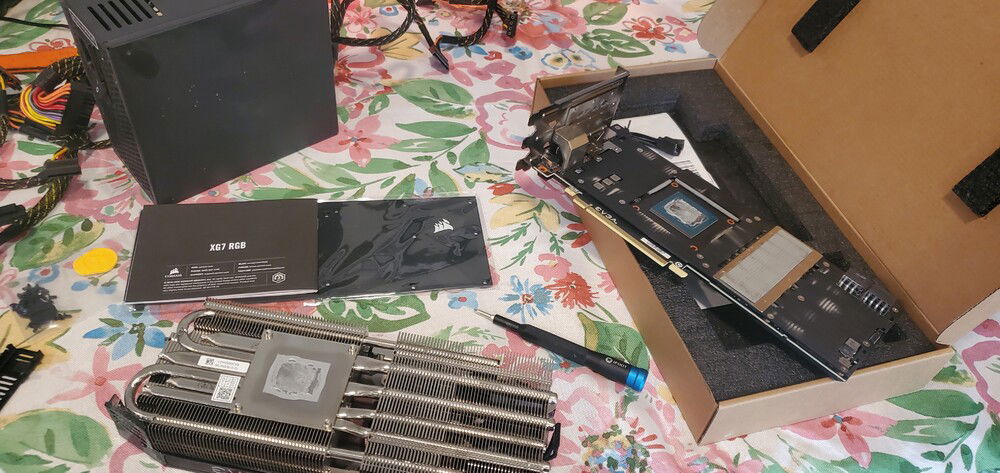

2070
2070
2070
2070
2070
2070

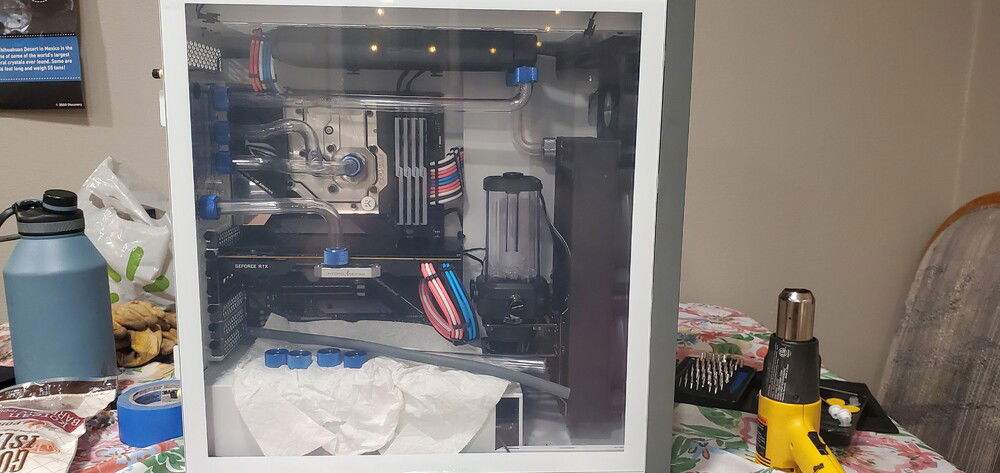

2070 before adding 3080
2070 before adding 3080
2070 before adding 3080
2070 before adding 3080

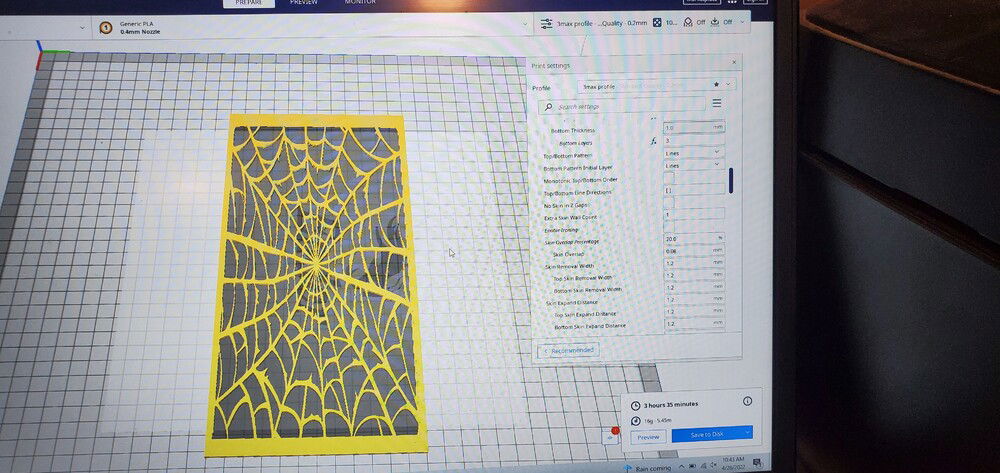

3d printing a spider web cover using pink pla for the hole i cut.
3d printing a spider web cover using pink pla for the hole i cut.

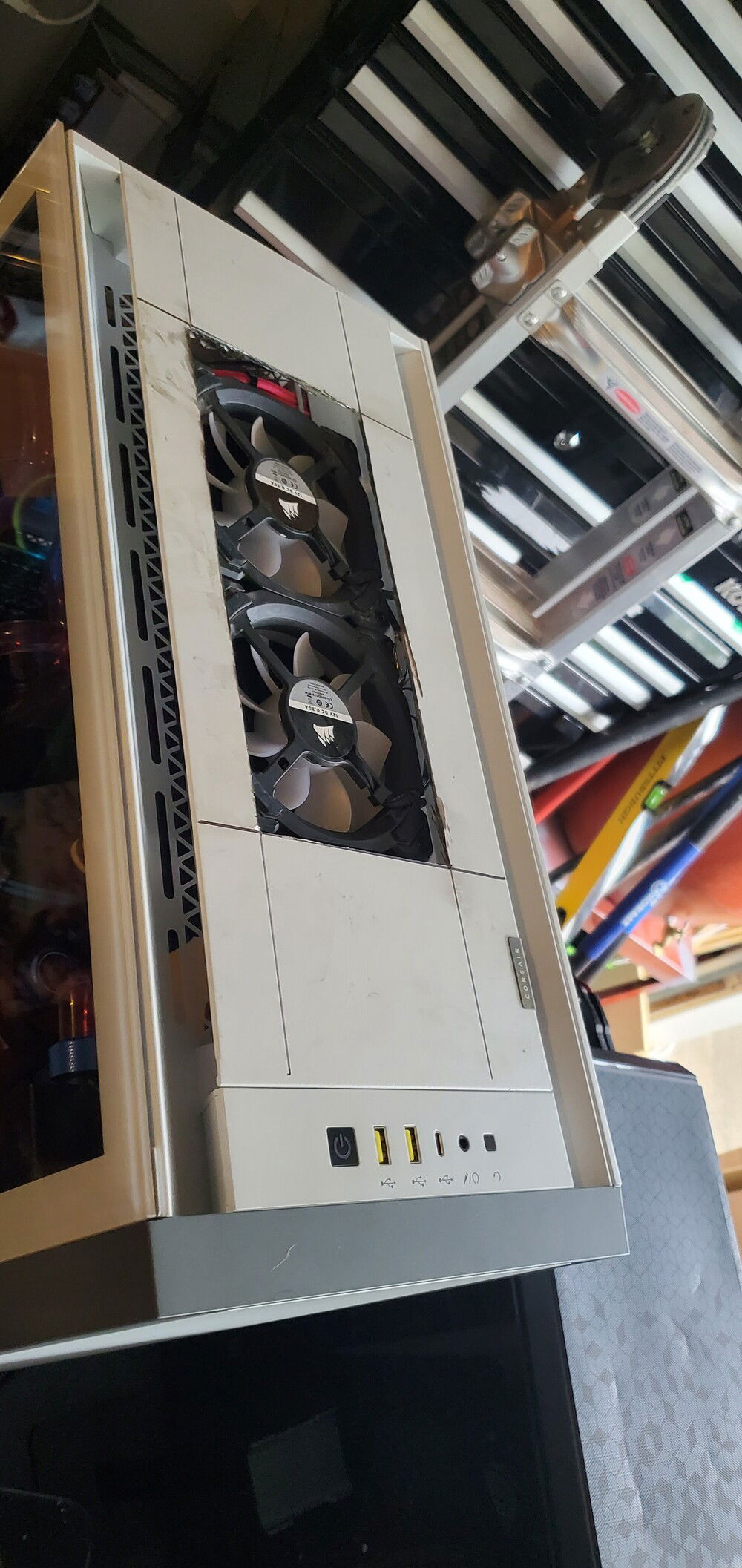

Used a cut off wheel and made an opening for my rad and fans. Next is grinding the edge and painting all the case parts.
Used a cut off wheel and made an opening for my rad and fans. Next is grinding the edge and painting all the case parts.

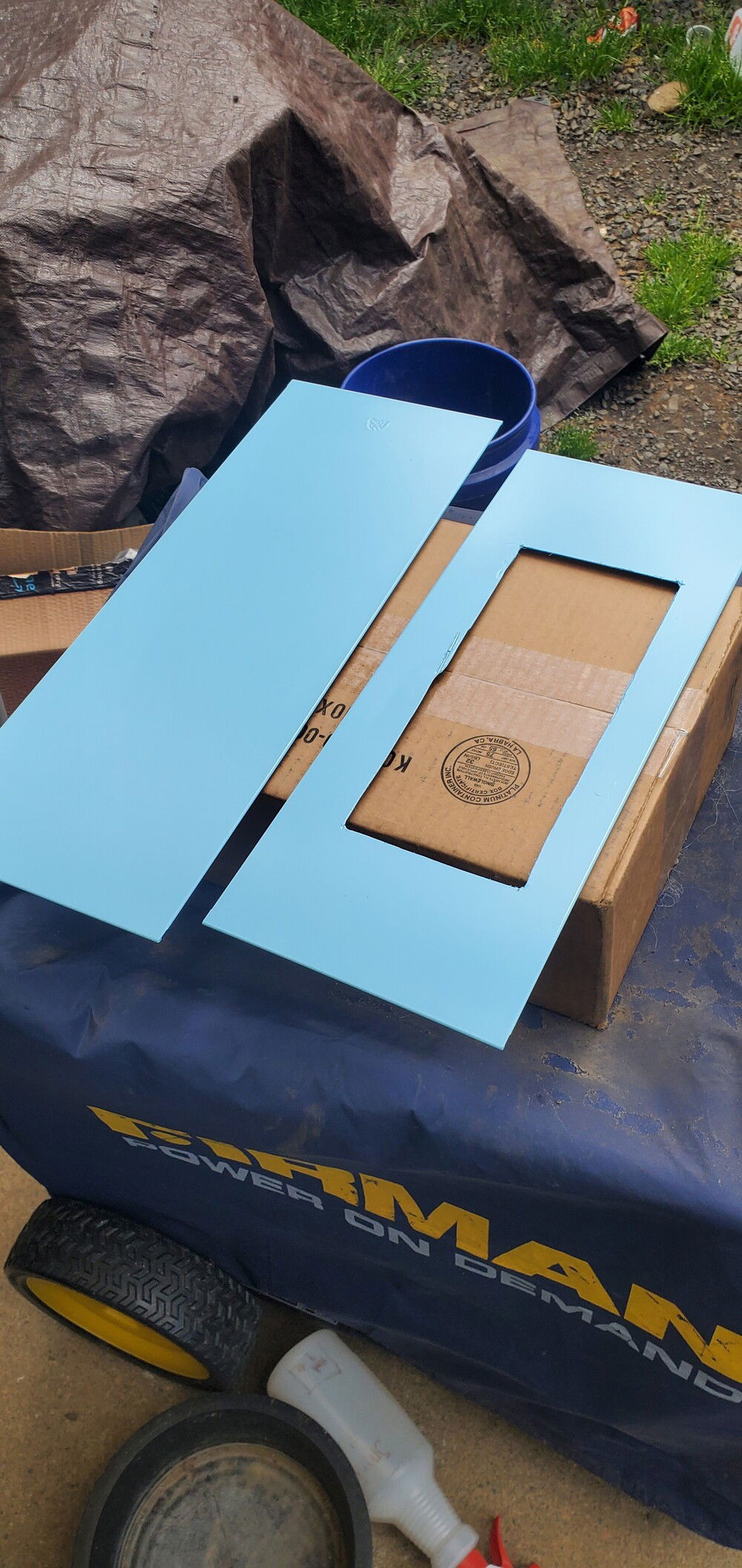

Top panel painted and clear coated
Top panel painted and clear coated

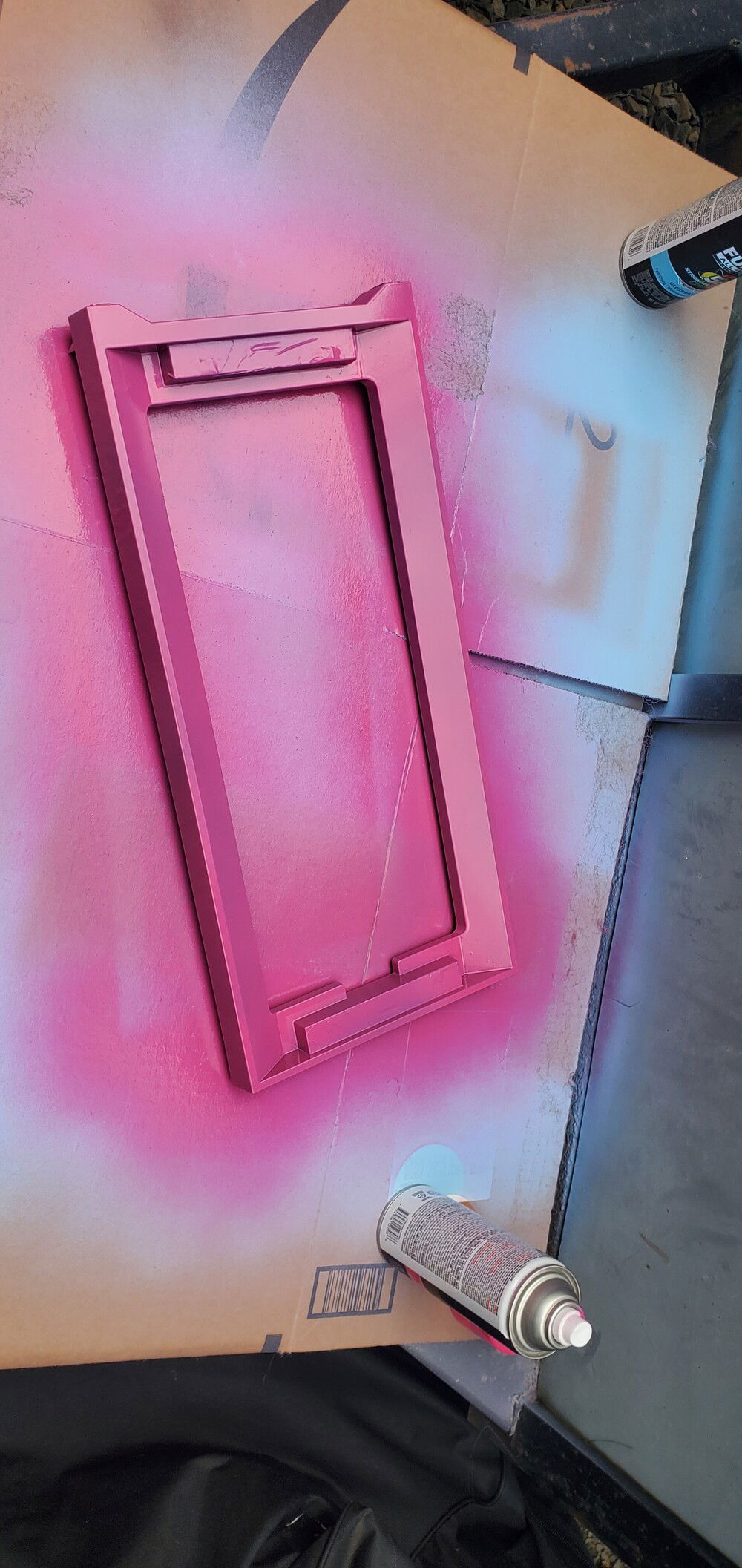

Front trim painted and cleared
Front trim painted and cleared

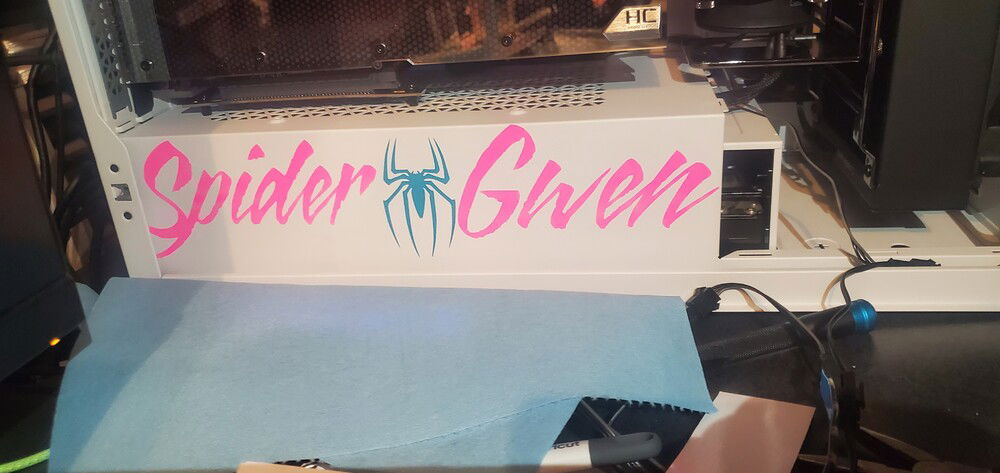

Psu shroud. Used the cricut maker 3 to custom make vinyl stickers
Psu shroud. Used the cricut maker 3 to custom make vinyl stickers

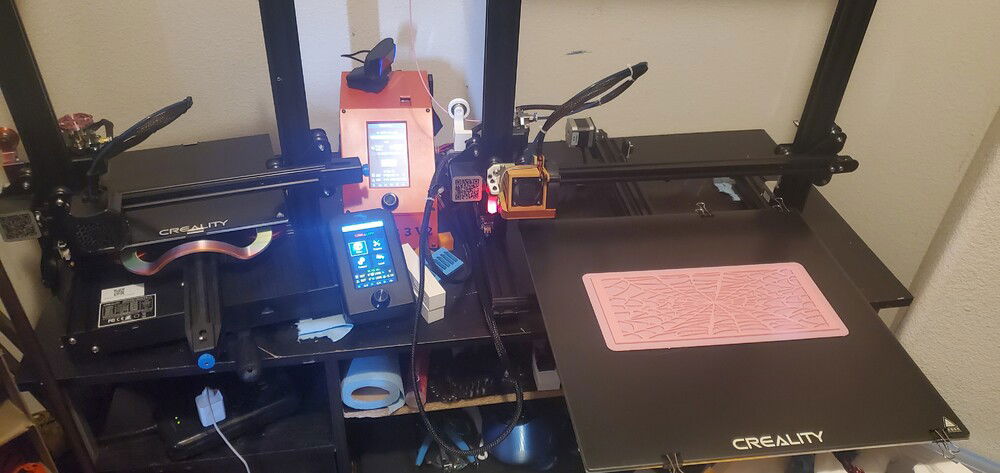

3d printed a spider web fan grille
3d printed a spider web fan grille

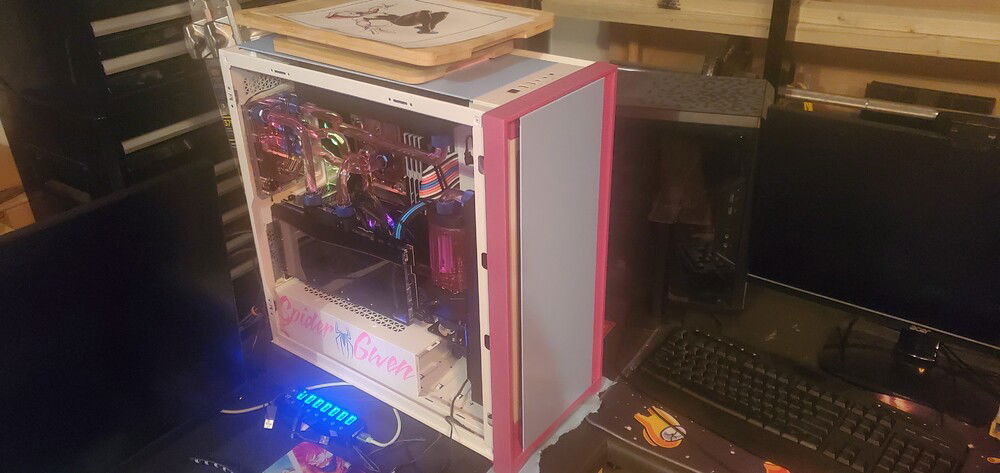

Assembled but waiting for glue to dry on 3d print
Assembled but waiting for glue to dry on 3d print

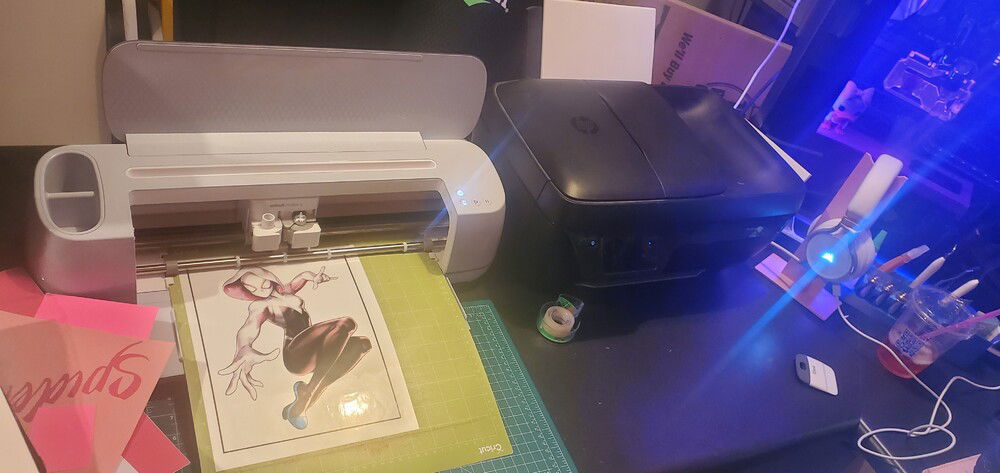

Used the Cricut maker 3 to cut out spider gwen vinyl sticker
Used the Cricut maker 3 to cut out spider gwen vinyl sticker

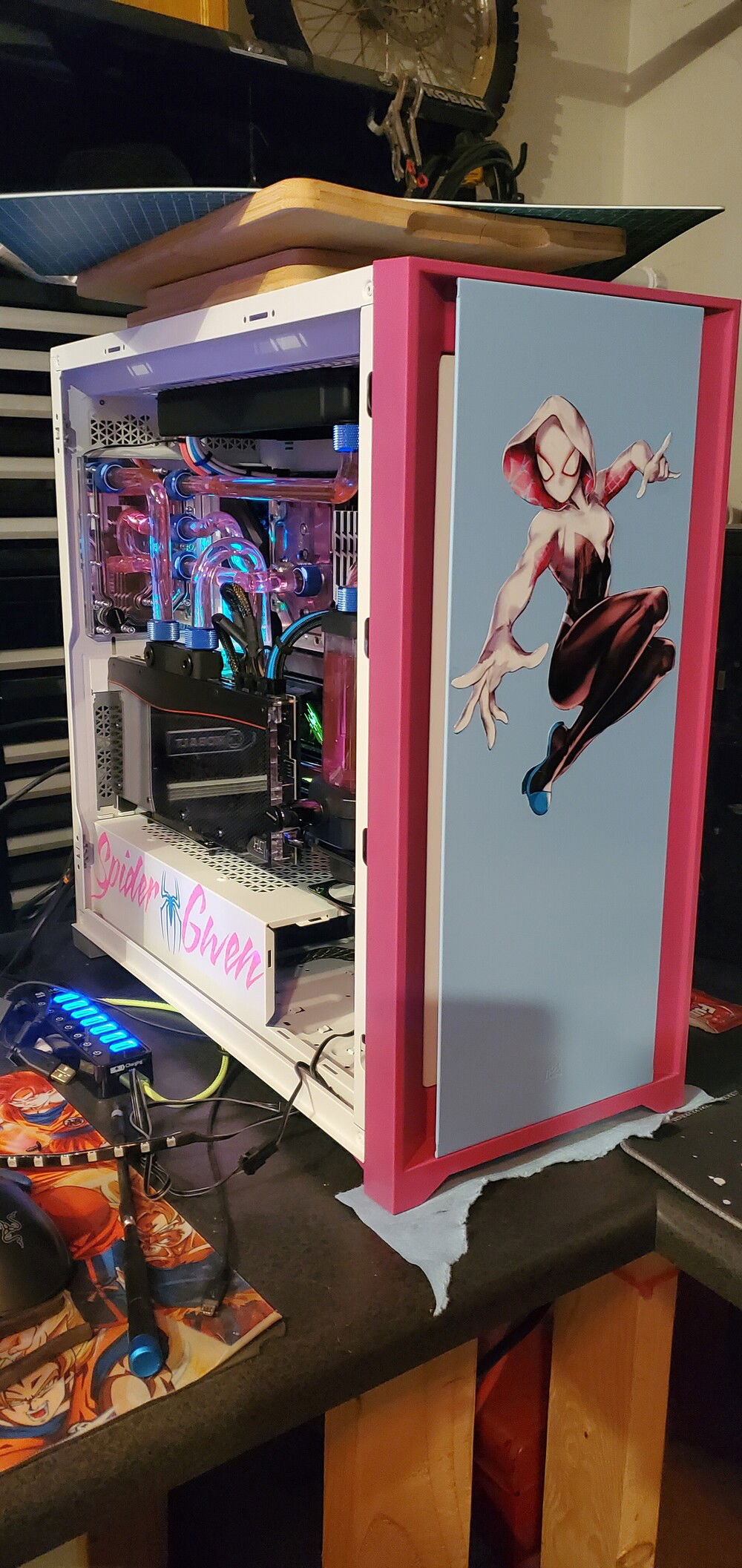

Partly assembled.
Partly assembled.

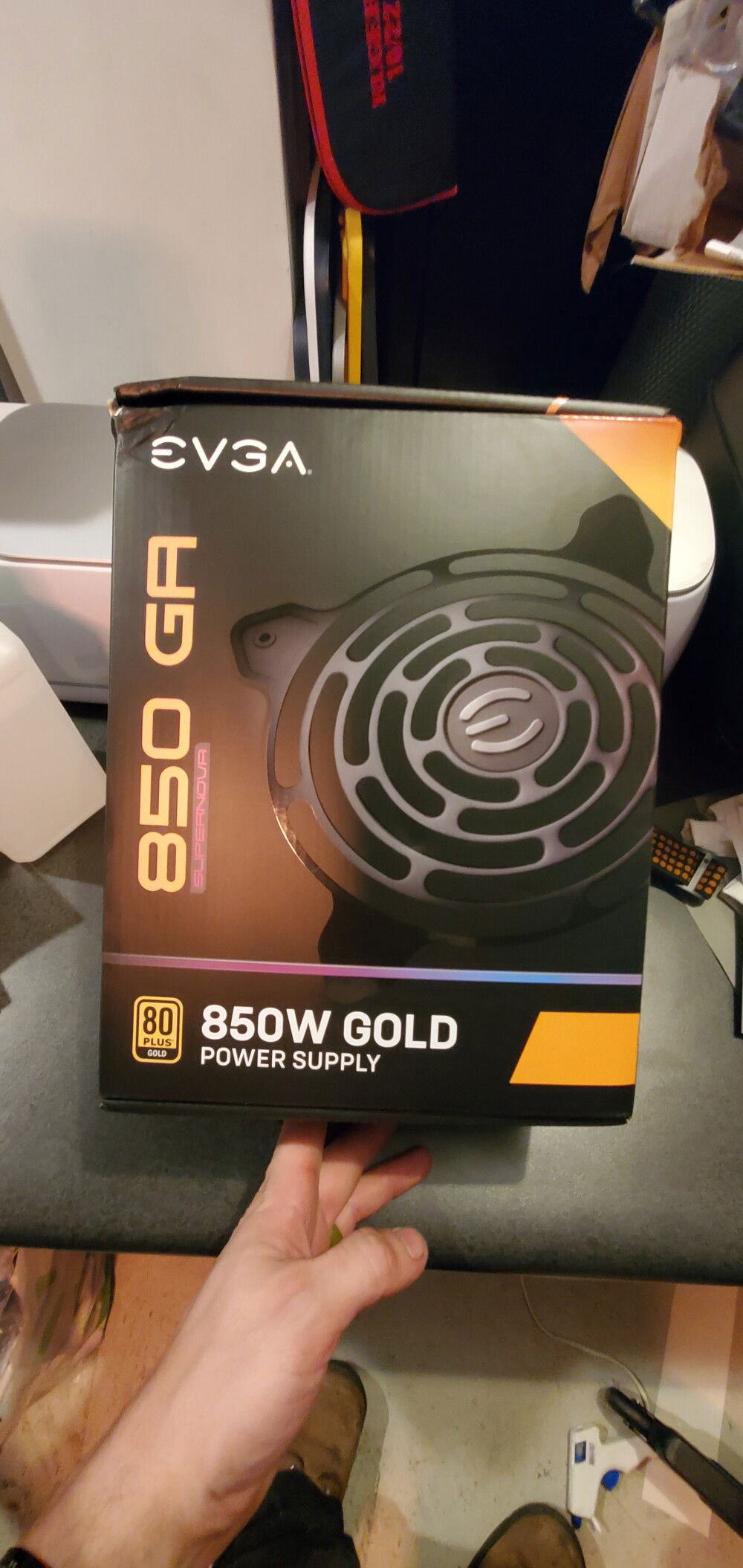

Decided to buy a new psu for the 3080 450watt vbios. I only had 2 8 pin cables. I didnt like spliting 1 150watt 8pin into 2 on gpu. So now cpu has 2 dedicated 8+4pin cables and gpu has 3 dedicated 8pins
Decided to buy a new psu for the 3080 450watt vbios. I only had 2 8 pin cables. I didnt like spliting 1 150watt 8pin into 2 on gpu. So now cpu has 2 dedicated 8+4pin cables and gpu has 3 dedicated 8pins

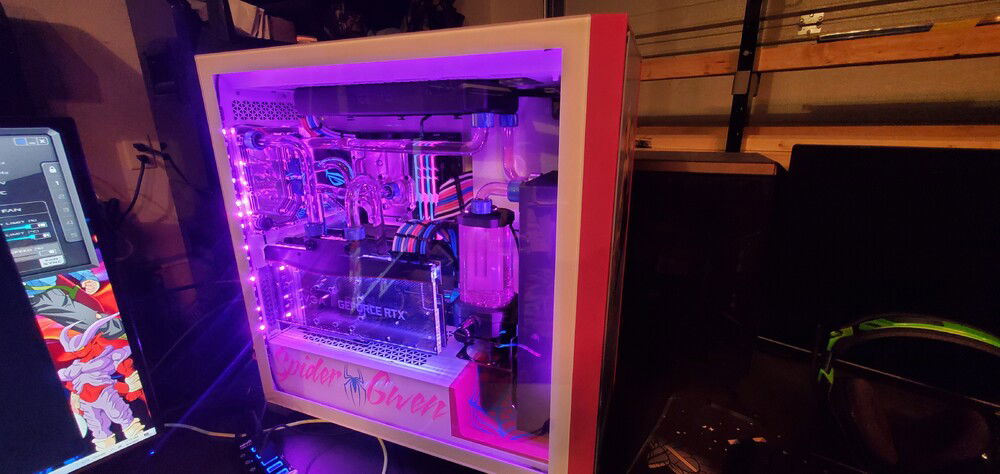

Finally got my last 2 custom 8 pin gpu cables in from cable mod. With pink led
Finally got my last 2 custom 8 pin gpu cables in from cable mod. With pink led

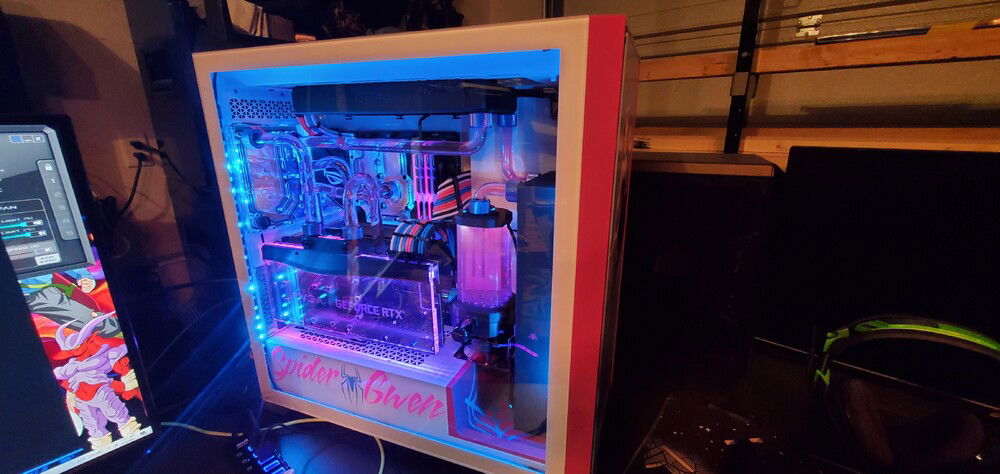

Finally got my last 2 custom 8 pin gpu cables in from cable mod. With blue led
Finally got my last 2 custom 8 pin gpu cables in from cable mod. With blue led

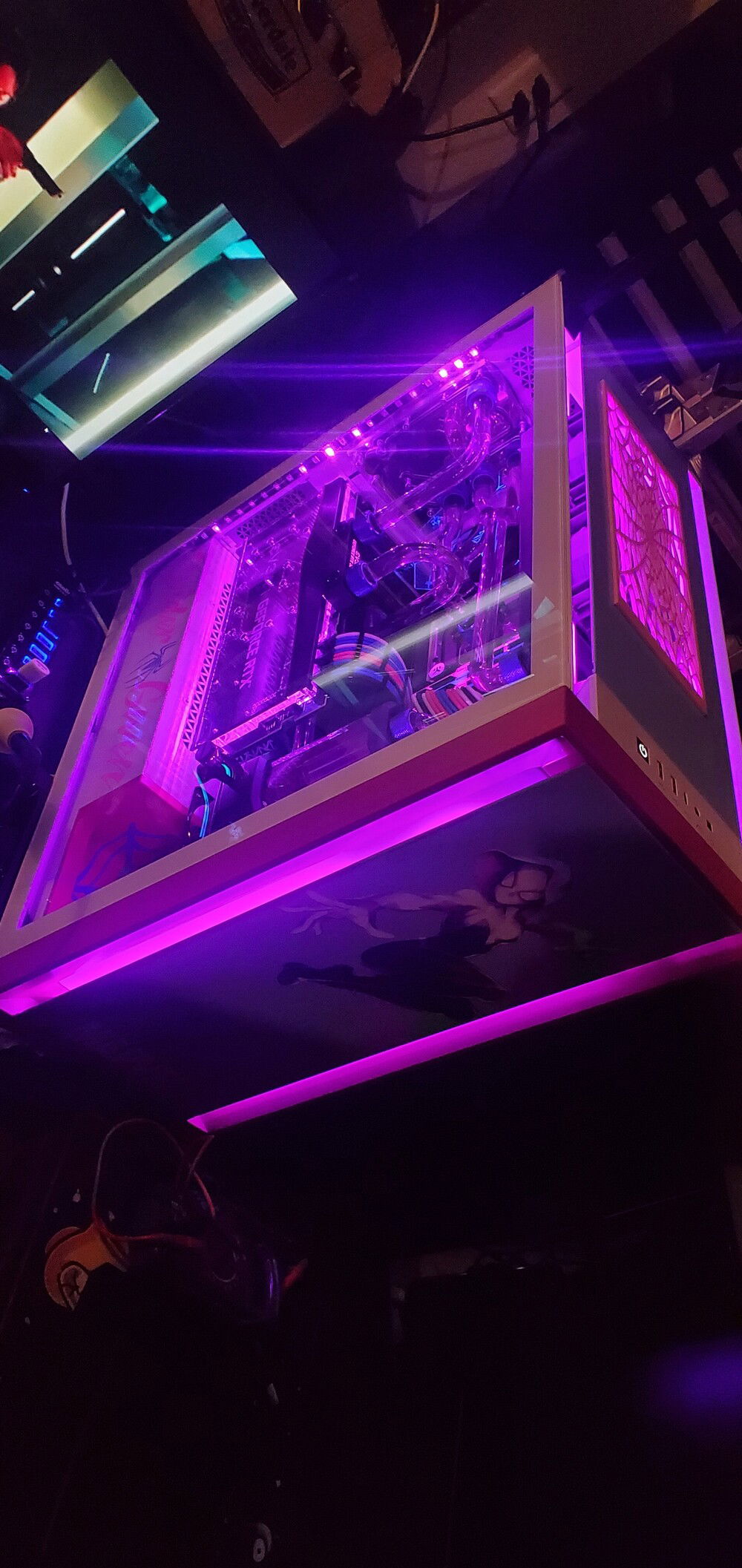

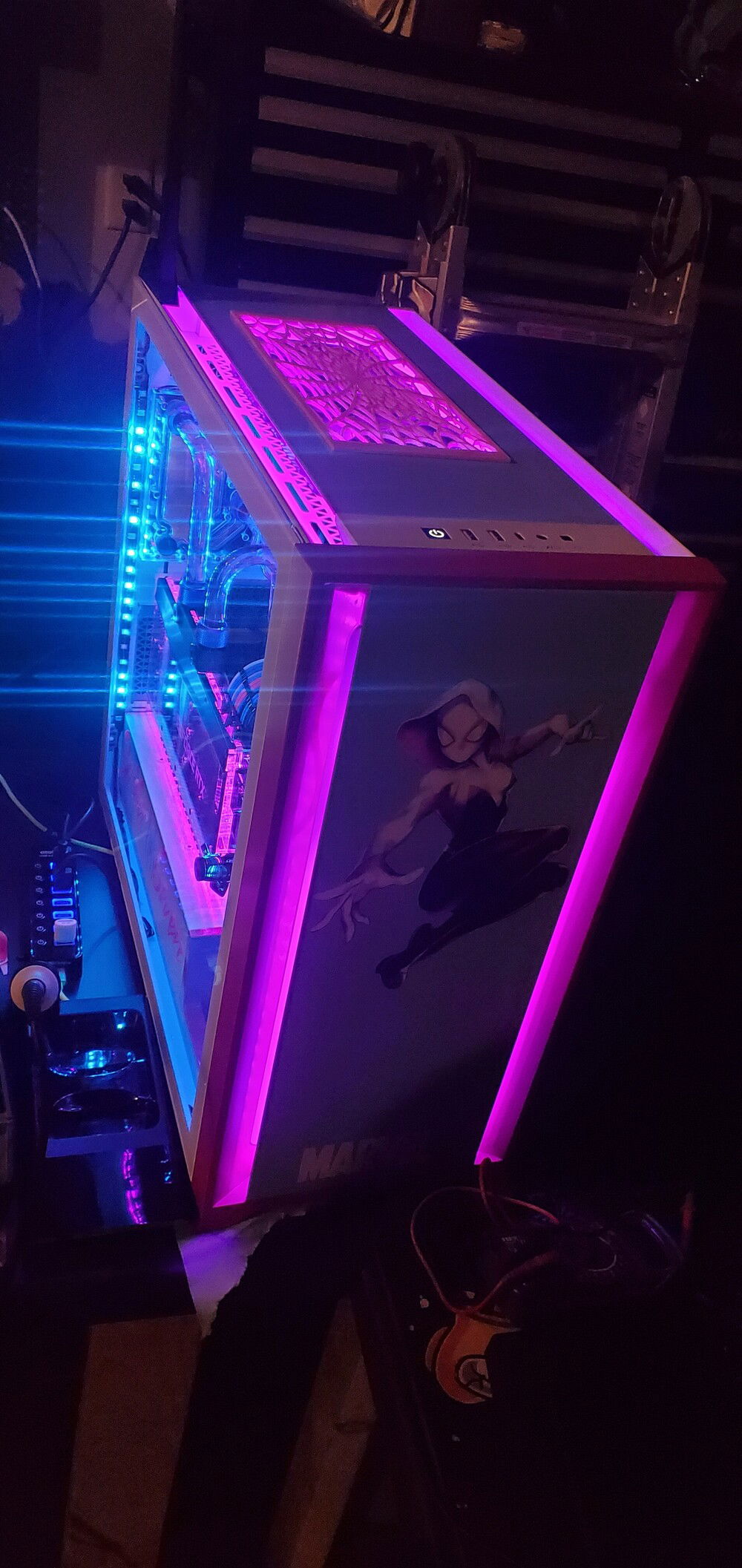

Led lights are wired in
Led lights are wired in
Led lights are wired in
Led lights are wired in

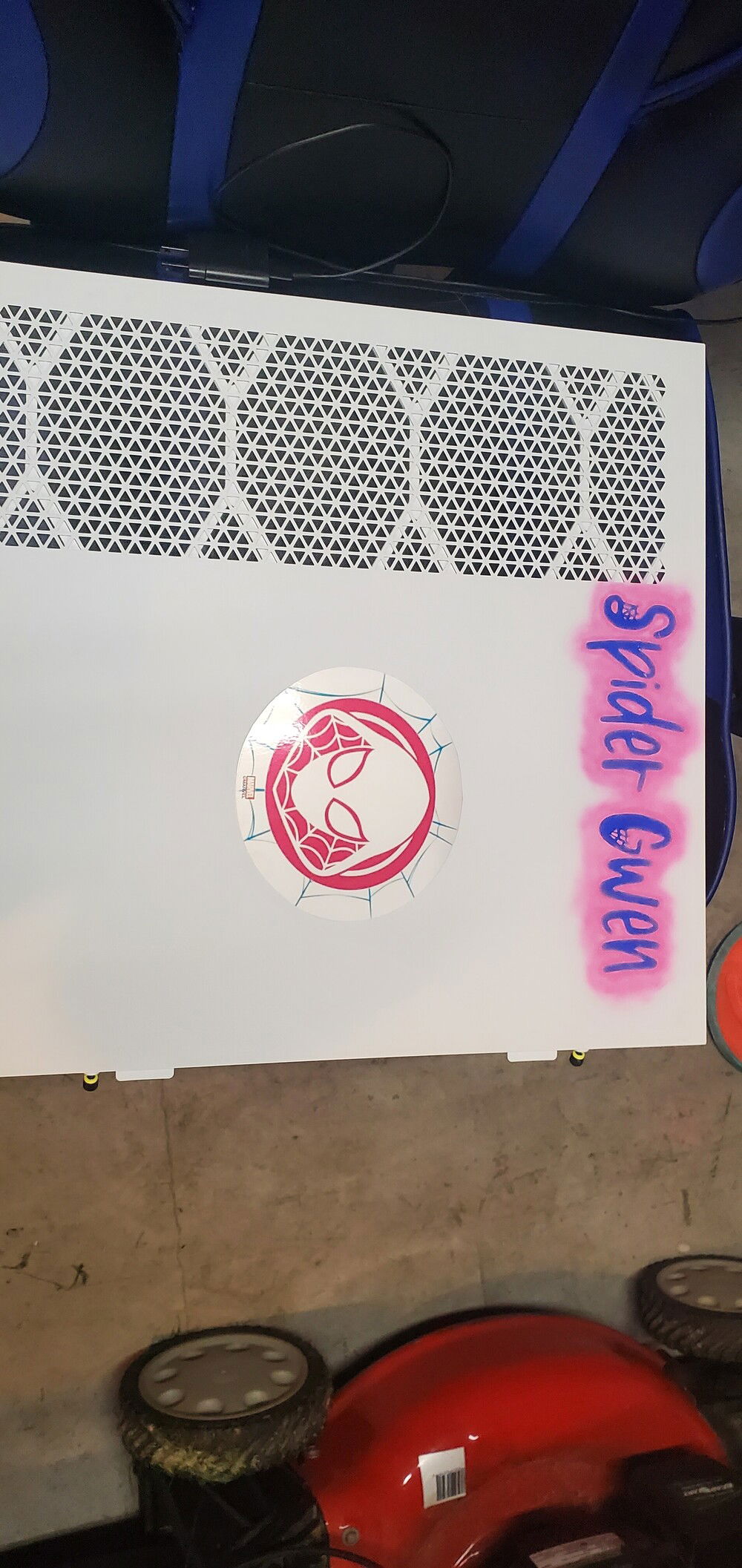

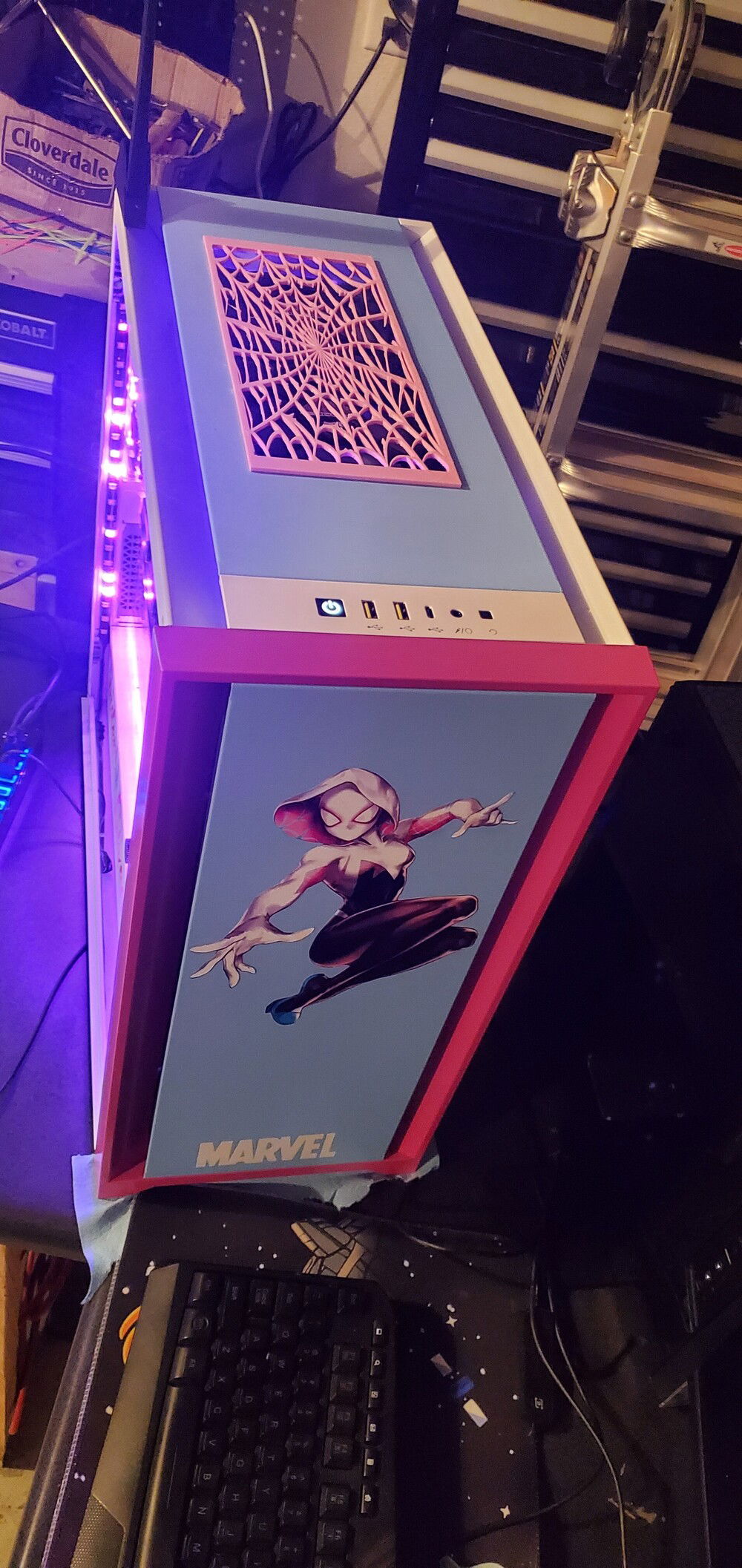

Air brush and last custom made sticker is on! The build is done!
Air brush and last custom made sticker is on! The build is done!

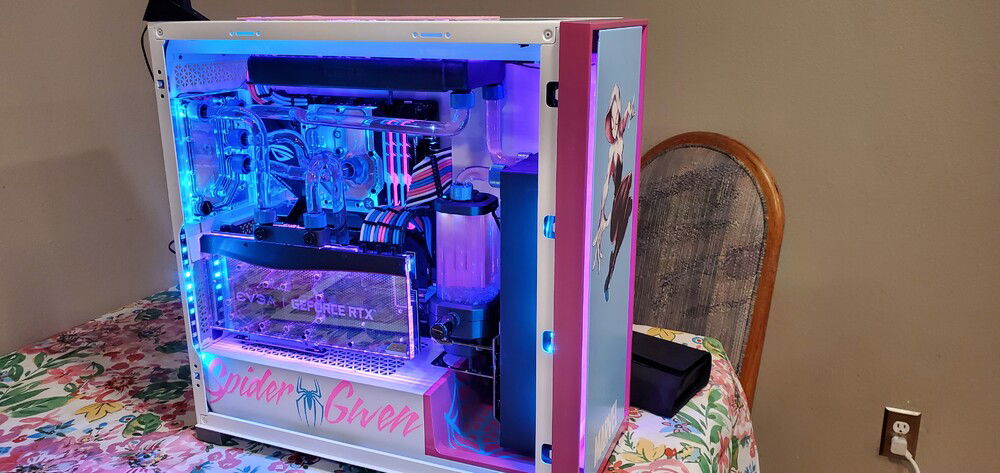

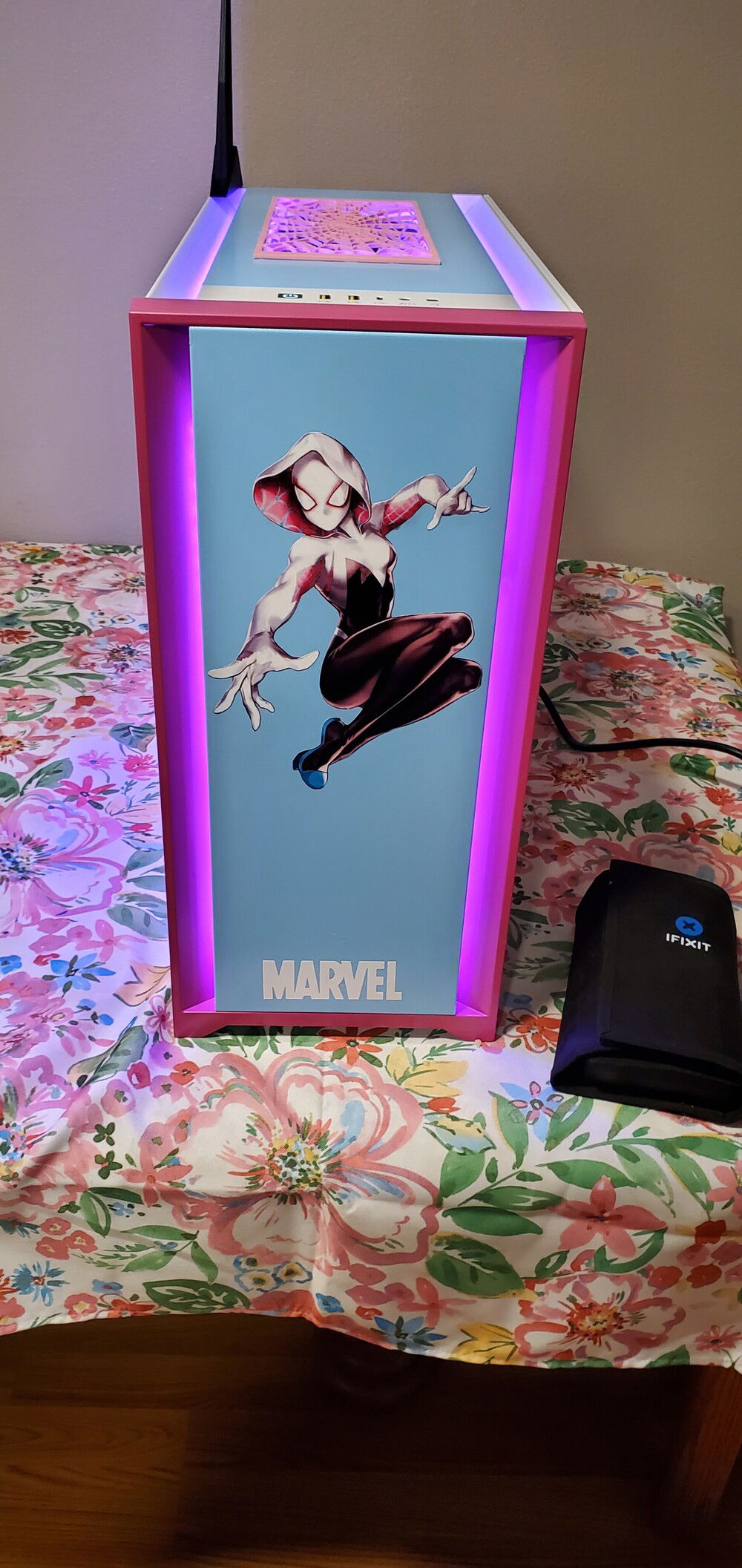

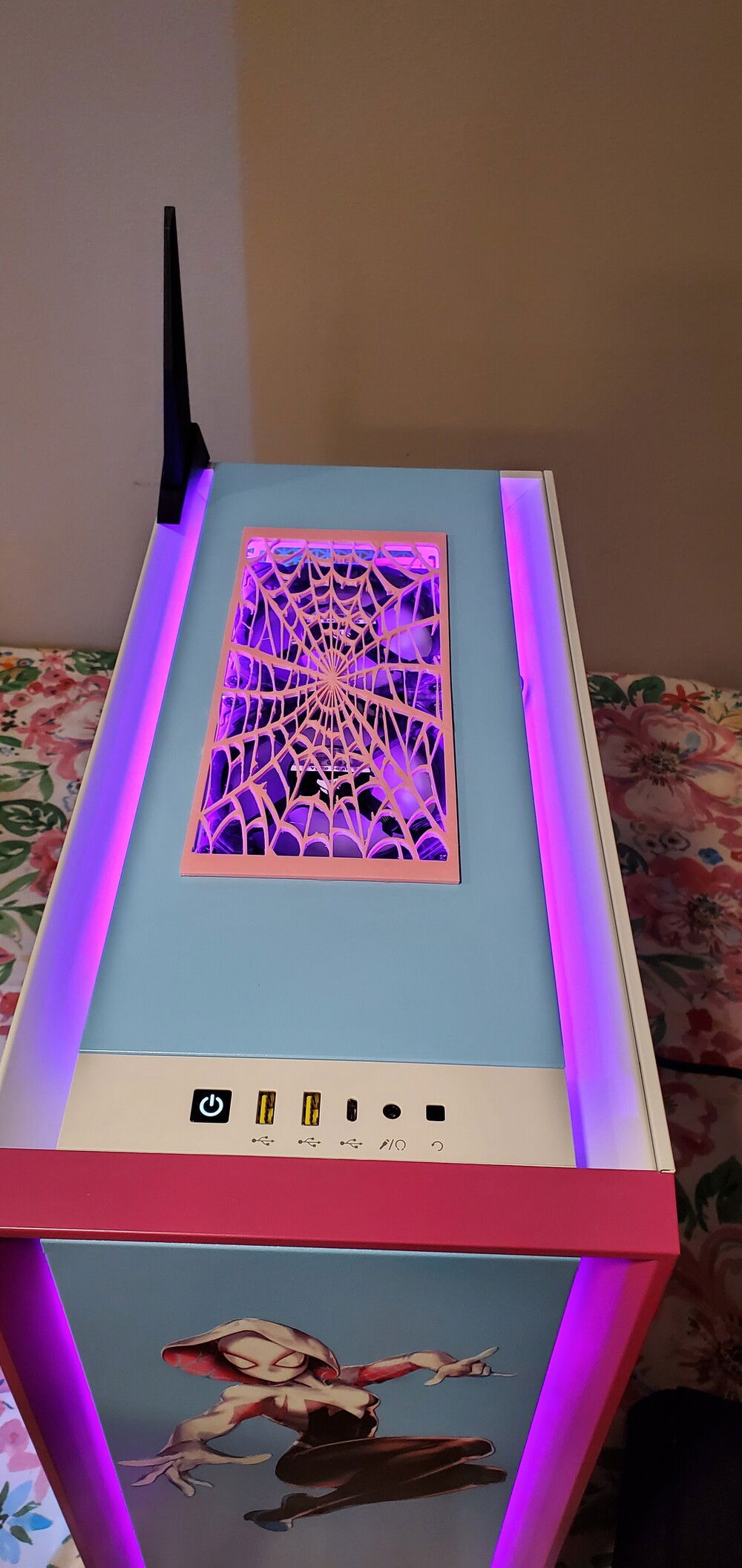

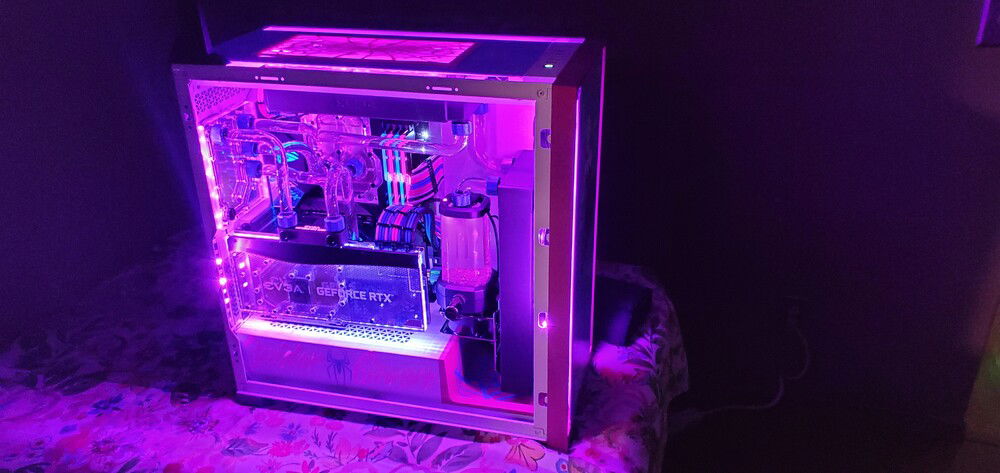

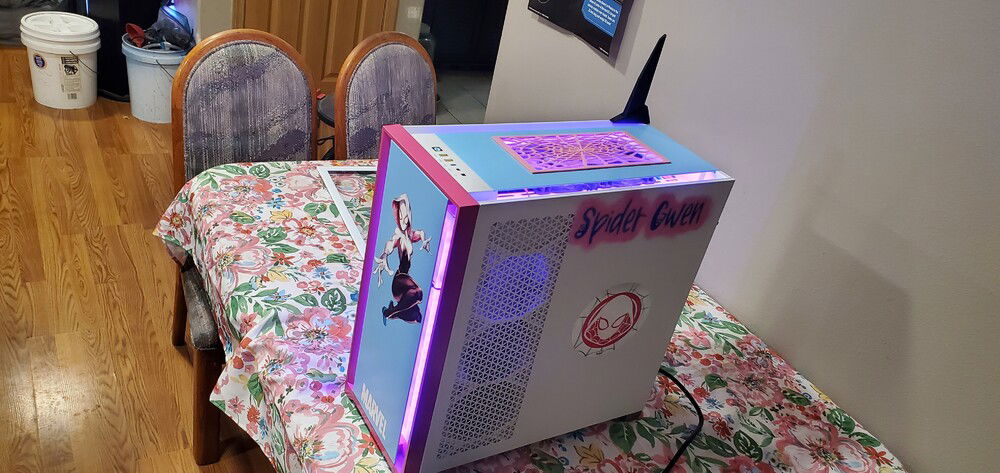

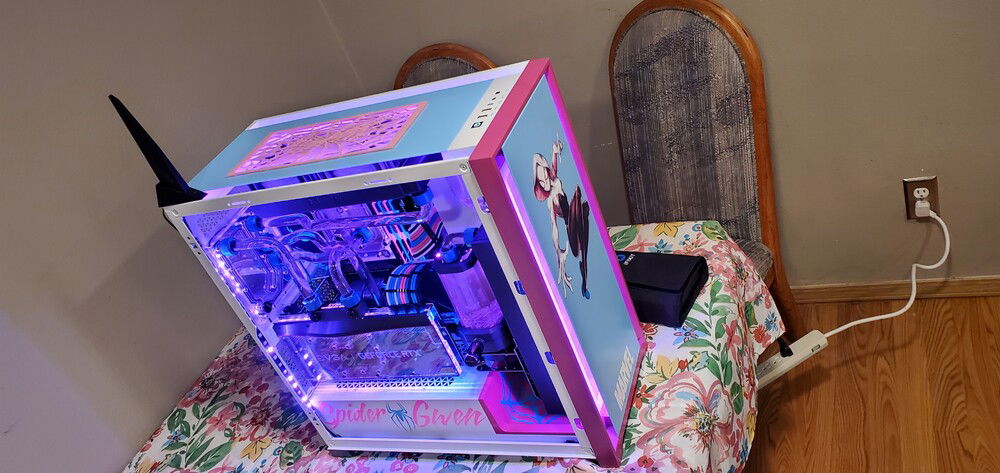

Finished build
Finished build
Finished build
Finished build
Finished build
Finished build
Finished build
Finished build
Finished build
Finished build

Spider Gwen PC

This is a Spider Gwen build its now finished as of may 5th 2022. Im on my 5th version of building this pc and im settled on this one!

I had so much fun doing my 1st themed pc build with alot of help from my wife.
5800x is 5.1ghz on 2 fastest cores and 4.9ghz on the rest 14cores. Temps stay under 70* at the hottest.
Evga 3080 ftw3 ultra has the 450watt vbios and im able to pull 420watts at +118% power with +1300mhz memory and +150core and temps stay under 45* on core and 55* memory.
VRM stay under at water temp and dont budge. Water temp stays under 35* after 1hr of gaming.
Color(s): Light Blue Pink
RGB Lighting? Yes
Theme: Anime
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 248.00
AMD - Ryzen 7 (5800X)
Socket: AM4
Cores: 8
Motherboard
$ 489.00
ASUS - Rog Strix X570-E Gaming II (Wifi)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 279.99
G.Skill - Trident Z Neo (3600MHz) (White/Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 919.00
EVGA - GeForce FTW3 Ultra Hydro Copper Gaming (10G)
Chip Manufacturer: NVIDIA
Chip: RTX 3080
Interface: PCIe x16
Storage
$ 704.55
Samsung - 870 Evo (3x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 379.62
Samsung - 970 EVO Plus (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 299.99
EVGA - SuperNOVA Ga
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 174.99
Corsair - 5000D Airflow (White)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 246.00
be quiet! - SHADOW WINGS 140mm PWM (3x)
Size: 140 mm
Case Fan
$ 79.22
Corsair - LL120 (RGB) (Black) (2x)
Size: 120 mm
Cooling
$ 249.00
Corsair - Hydro X XD5 (RGB)
Type: Pump/Reservoir Combo
Cooling
$ 143.03
EKWB - CoolStream CE
Type: Custom Loop
Size (WxHxD): 280 mm (2 x 140 mm)
Cooling
$ 150.00
EKWB - EK-Quantum Momentum ROG Strix X570-E D-RGB - Plexi
Type: Monoblock
Cooling
$ 135.25
Phanteks - Glacier D120 (PH-D120_01)
Type: CPU Block
Cooling
$ 88.20
Thermaltake - Pacific C-Pro G1/4 PETG 16mm OD Compression (White) (3x)
Type: Fittings
Cooling
$ 99.95
XSPC - EX Series
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 26.99
XSPC - G1/4" Ball Valve
Type: Fittings
CableMod
$ 50.00
CableMod - Cable Extension Kit
Mode: Stock
Sleeve: PRO ModMesh
Color: Black, White
CableMod
$ 75.00
CableMod - Vertical PCI-e Bracket
Color: Black
Accessories
$ 145.99
Astro - A50 Wireless Gaming Headset (Black/Blue)
Monitor
$ 290.00
Acer - Nitro (VG271U)
Size: 27 Inch
Panel: IPS
Refresh Rate: 144 Hz
Keyboard
$ 172.99
Razer - Blackwidow Chroma V2
Interface: Wired
Key Switch Type: Razer Orange
Type: Full Size
Mouse
$ 69.99
Razer - Mamba Chroma Tournament Edition
Interface: Wired
Estimated total value of this build:
$ 4,837.78
