ROBO RONE


perdoe o ingles mas é que como nao sei escrever usei o traduto.

Project ROBO RONE. (ostensible rounds of special nature)
Forgive the English but it is that as I do not know how to write I used the translator.
especificacoes
placa mae asrock taichi x399
processador threadripper 1920x
memorias team group tforce 8x8gb
placa de video gtx 1080ti galax hof
font 750w evga
ssd 240gb teamgroup 2x

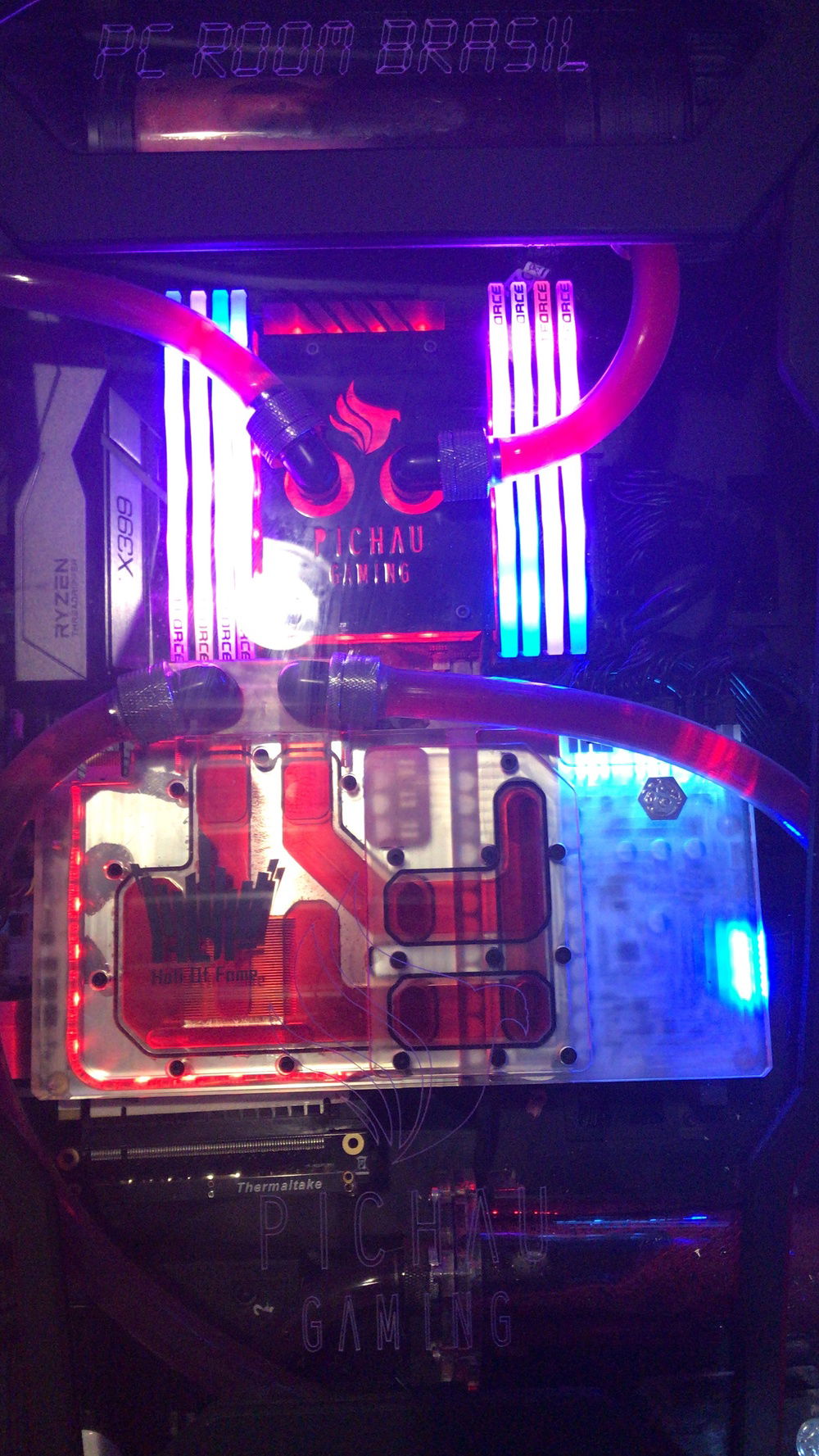

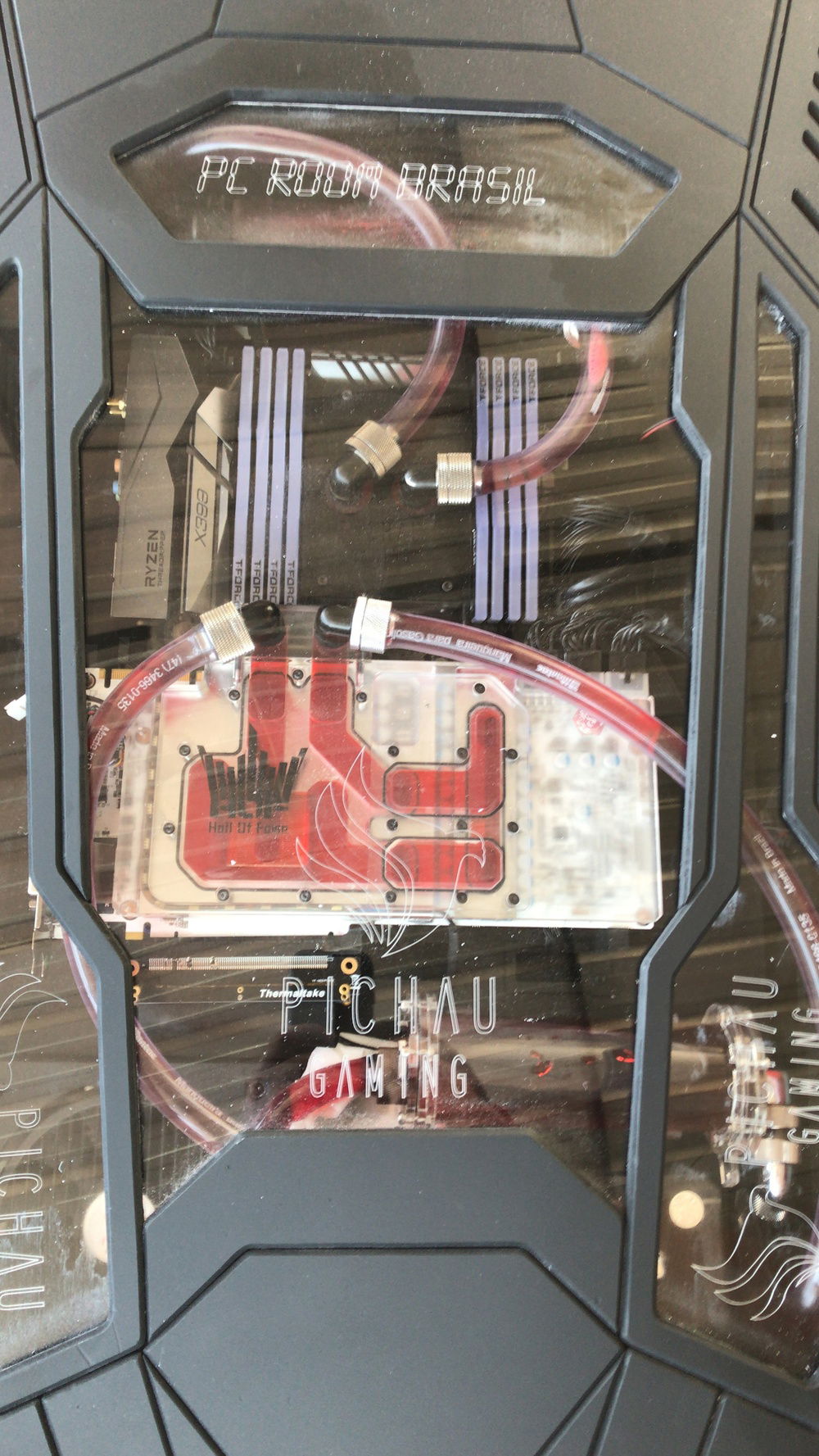

sistem custom liquido
radiador 360mm alphacool
radiador 240mm thermaltake
2x pump d5
reservoir ek and thermaltake.
5 fans thermaltake riing plus
mangueira e fittings de varias marcas.

specifications
mother board asrock taichi x399
1920x threadripper processor
team group tforce 8x8gb memories
gtx 1080i video card galax hof
evga 750w font
ssd 240gb teamgroup 2x

custom liquid system
radiator 360mm alphacool
radiator 240mm thermaltake
2x pump d5
reservoir ek and thermaltake.
5 fans thermaltake riing plus
hose and fittings of various brands.

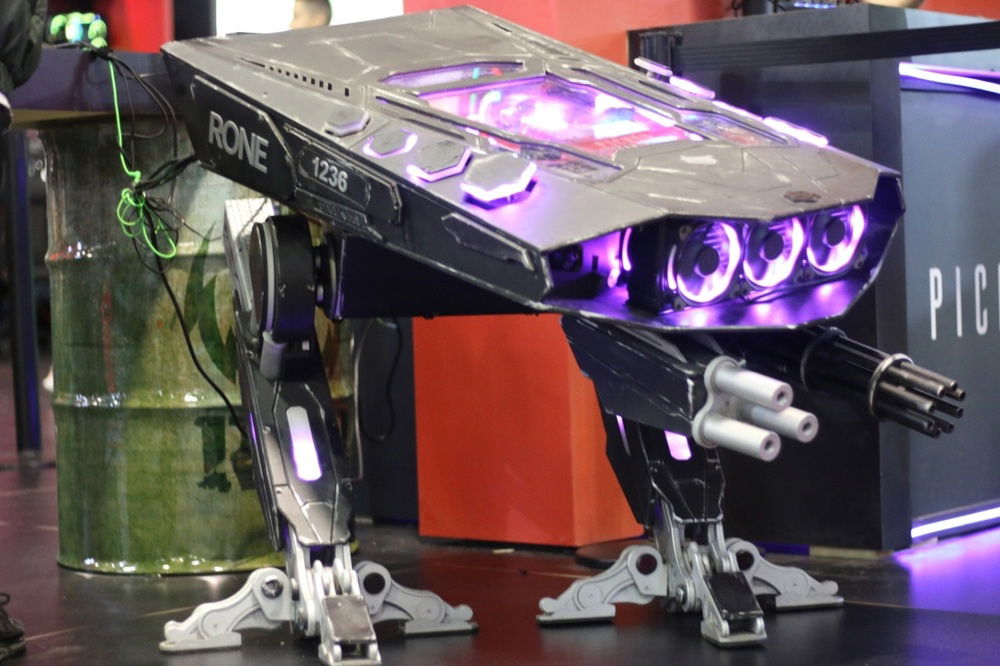

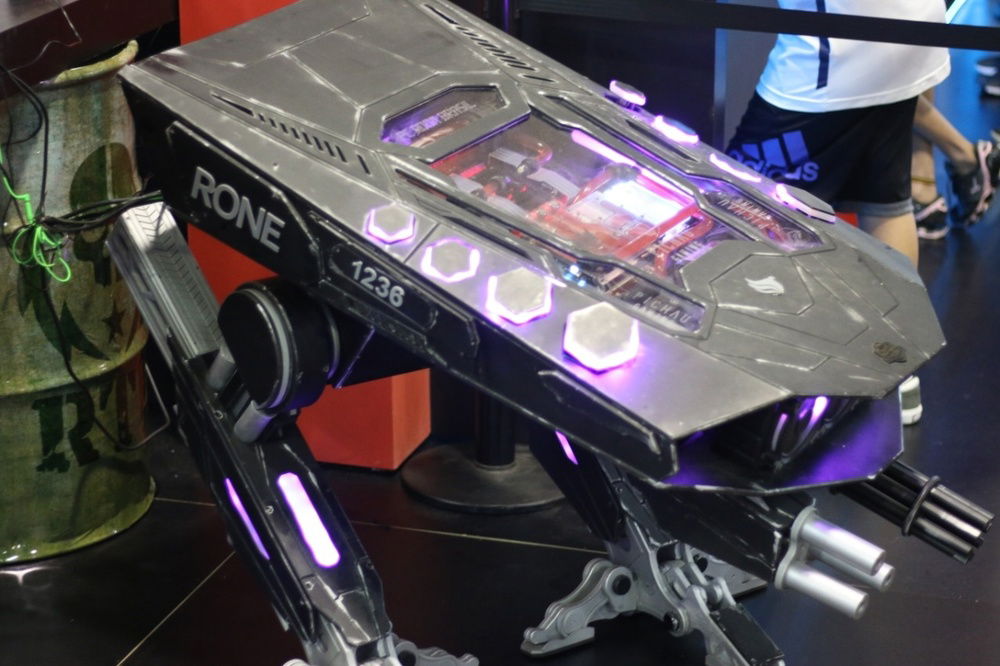

Sou Policial Militar no brasil e trabalhei nas operacoes especiais do paraná/brasil chamada de RONE. Para esse projeto pensei em fazer um robo que lembrasse o ED-209 do filme ROBOCOP.
Para isso utilizei o programa sketchup para projetar o desenho.

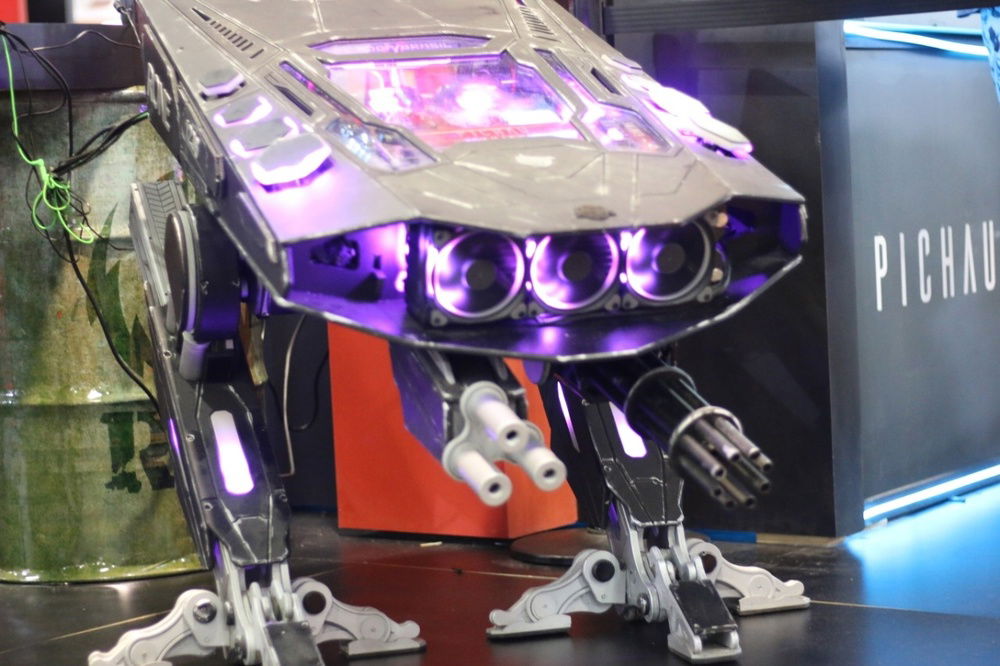

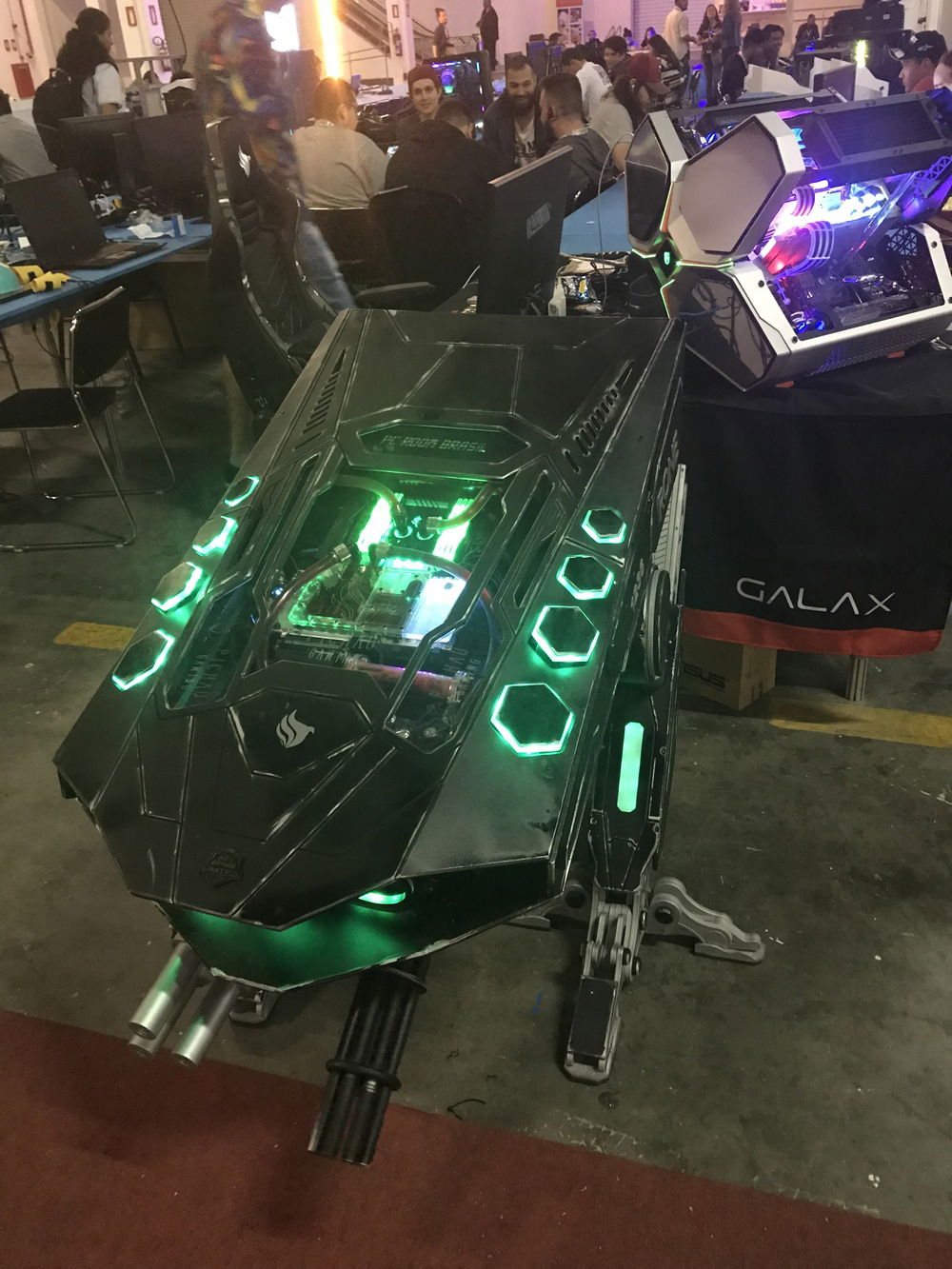

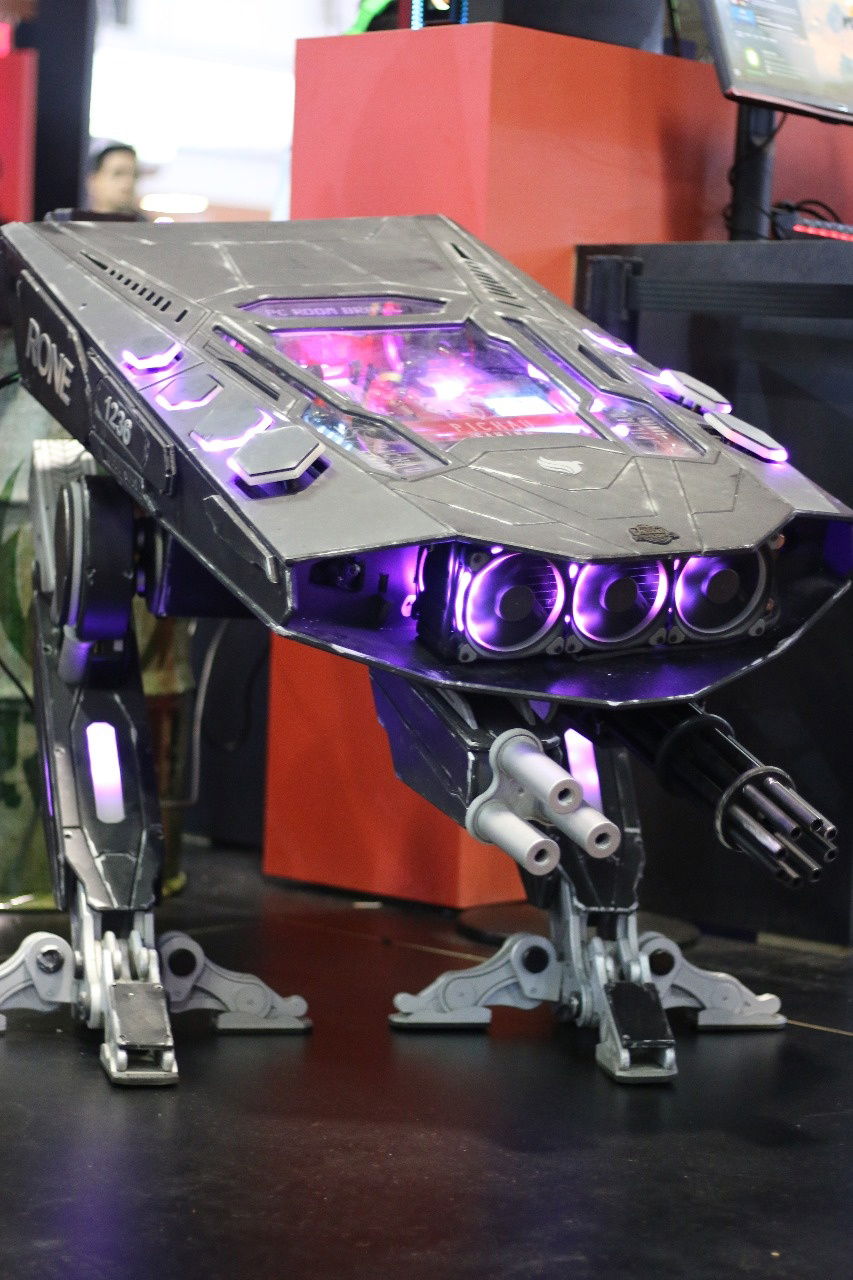

I am a Military Police Officer in Brazil and I worked in the special operations of the paraná / brazil called RONE. For this project I thought of doing a robot that would resemble the ED-209 from the movie ROBOCOP.
For this I used the sketchup program to design the drawing.
Resolvi trabalhar com acrilico para suportar o peso da estrutura, e para dar forma utilizei PVC expandido. Depois de terminar de realizar o projeto, comprei uma cnc router e utilizei o Skechucam para realizar os cortes. fiz os recortes e depois dava acabamento com lixa e tupia. depois colei as partes com superbonde e reforcei a estrutura com cola plastica.
I decided to work with acrylic to support the weight of the structure, and to shape I used expanded PVC. After completing the project, I bought a cnc router and used the Skechucam to perform the cuts. I made the cutouts and then finished with sandpaper and tupia. then glued the parts with superbonde and reinforced the structure with plastic glue.

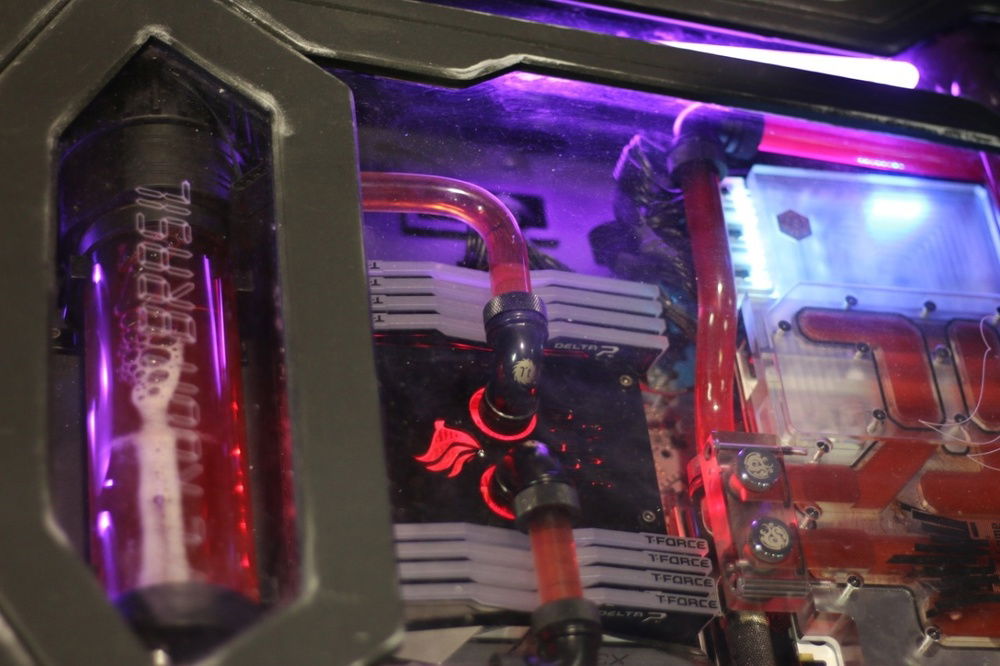

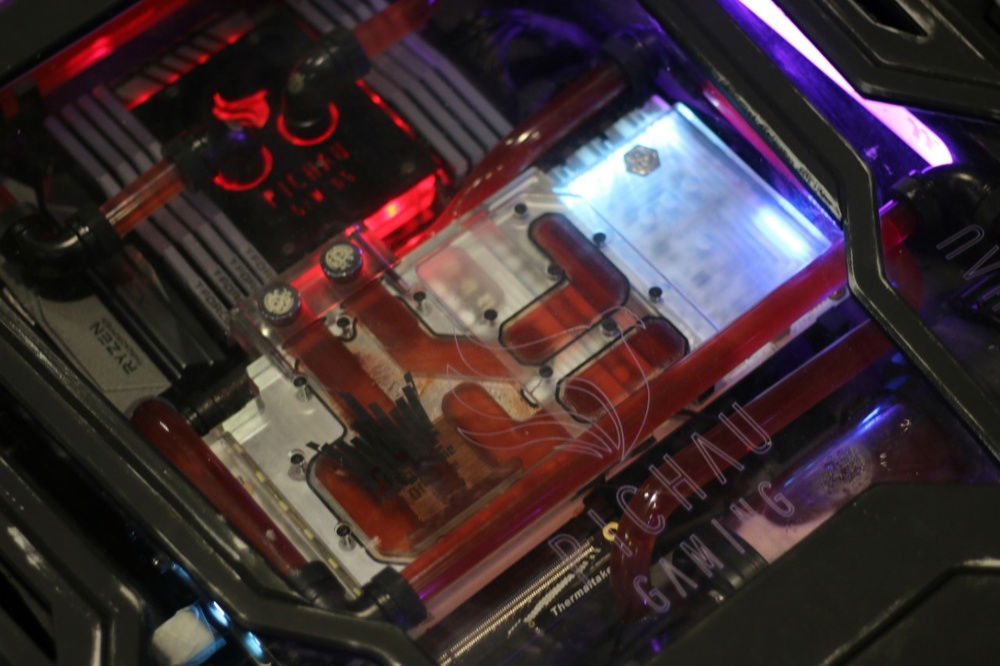

Tive de criar um block processador pois não tinha no brasil.
I had to create a block processor because I did not have it in Brazil.

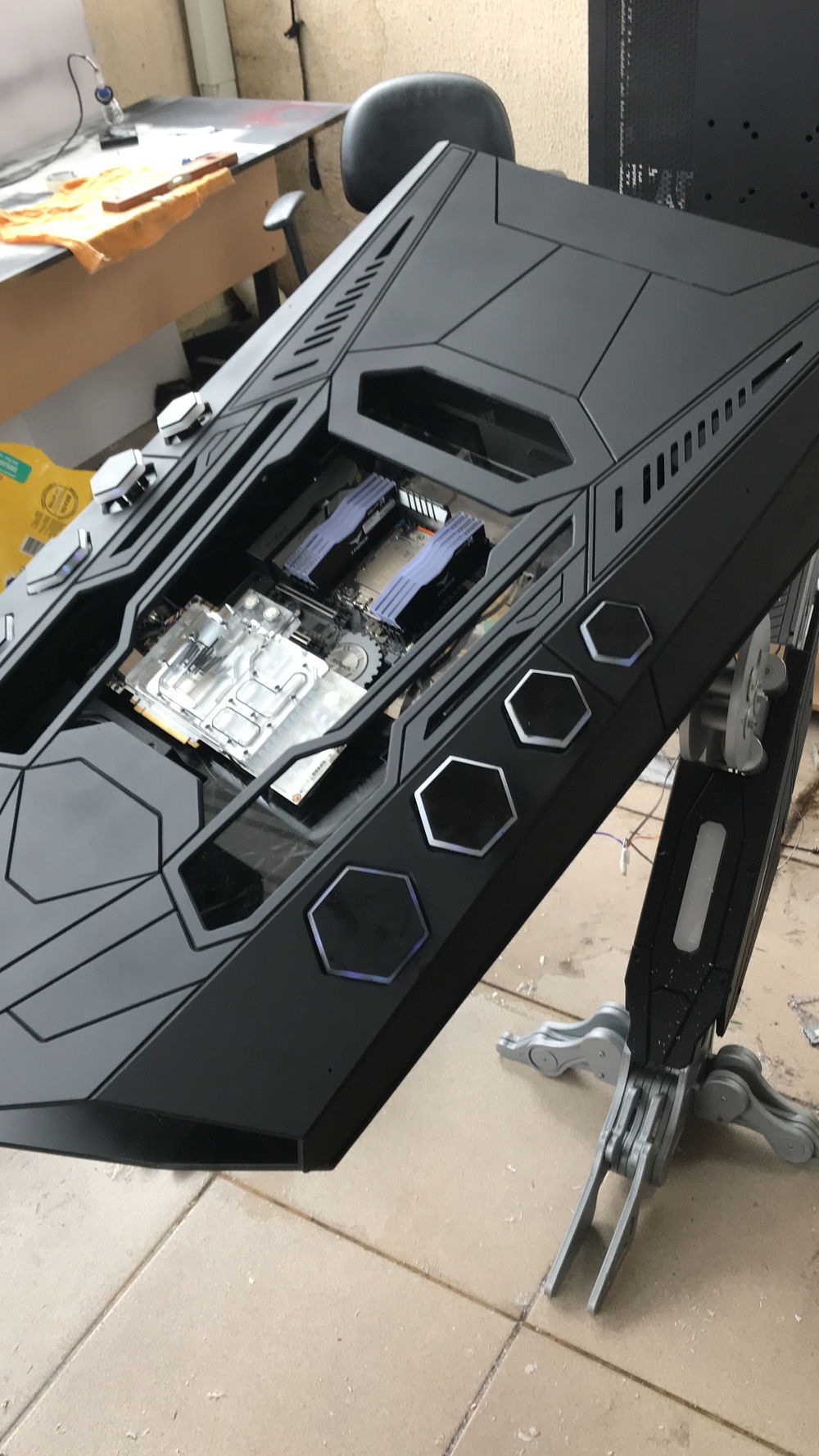

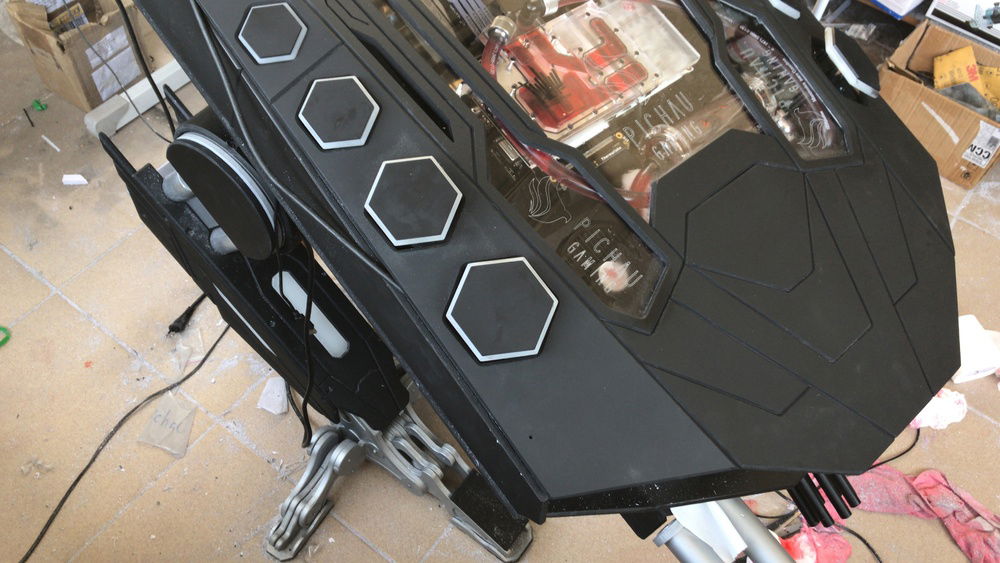

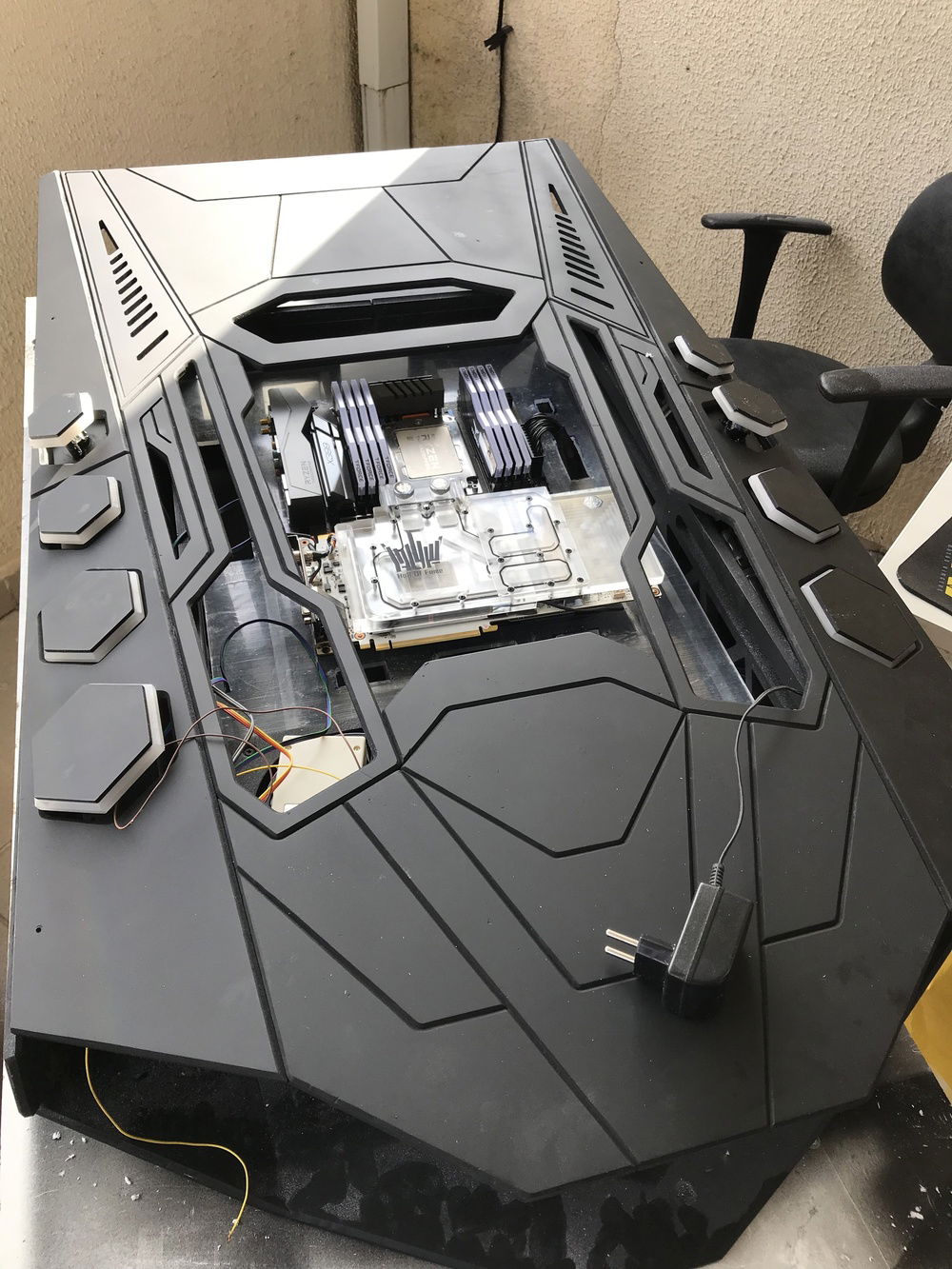

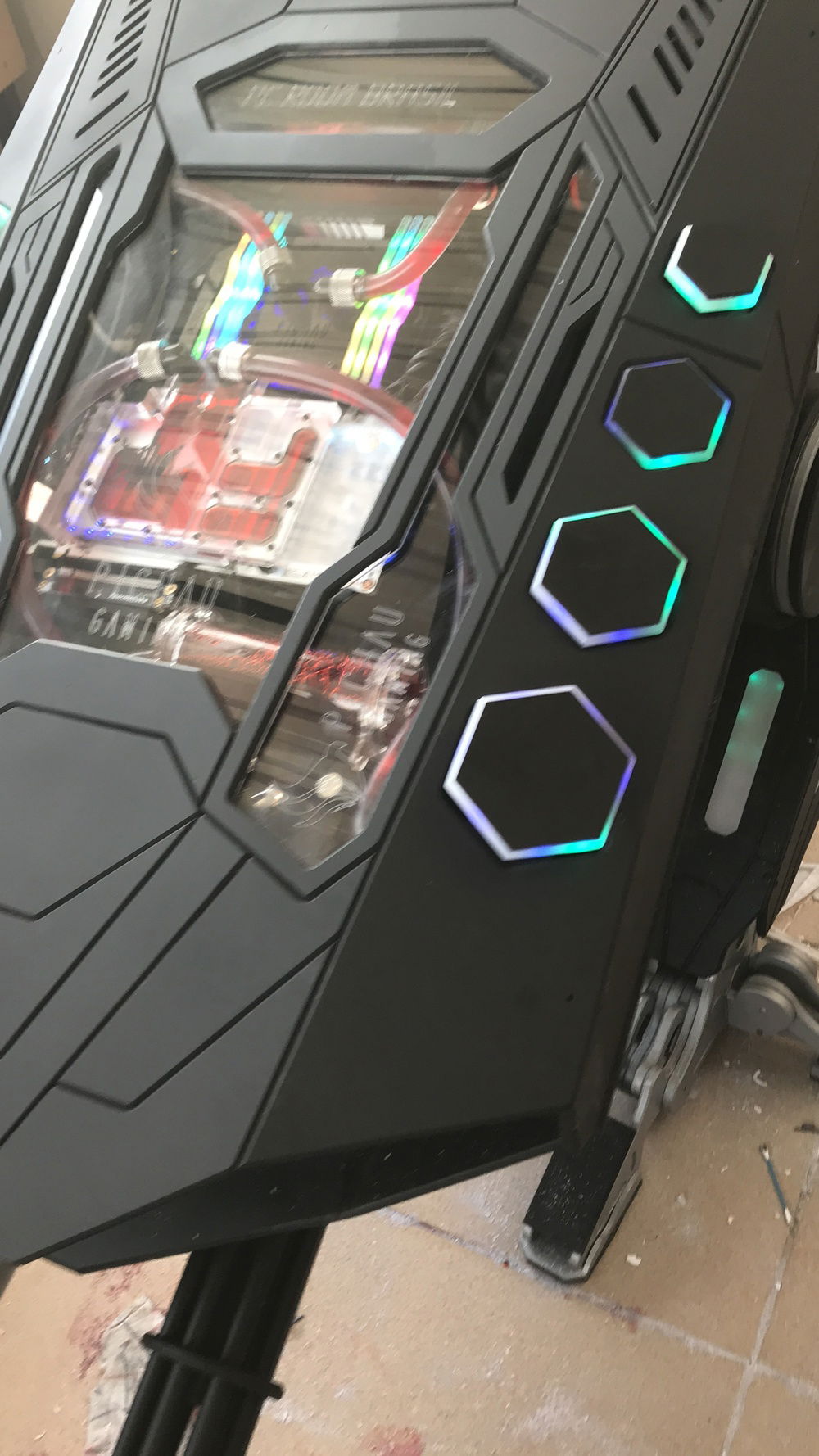

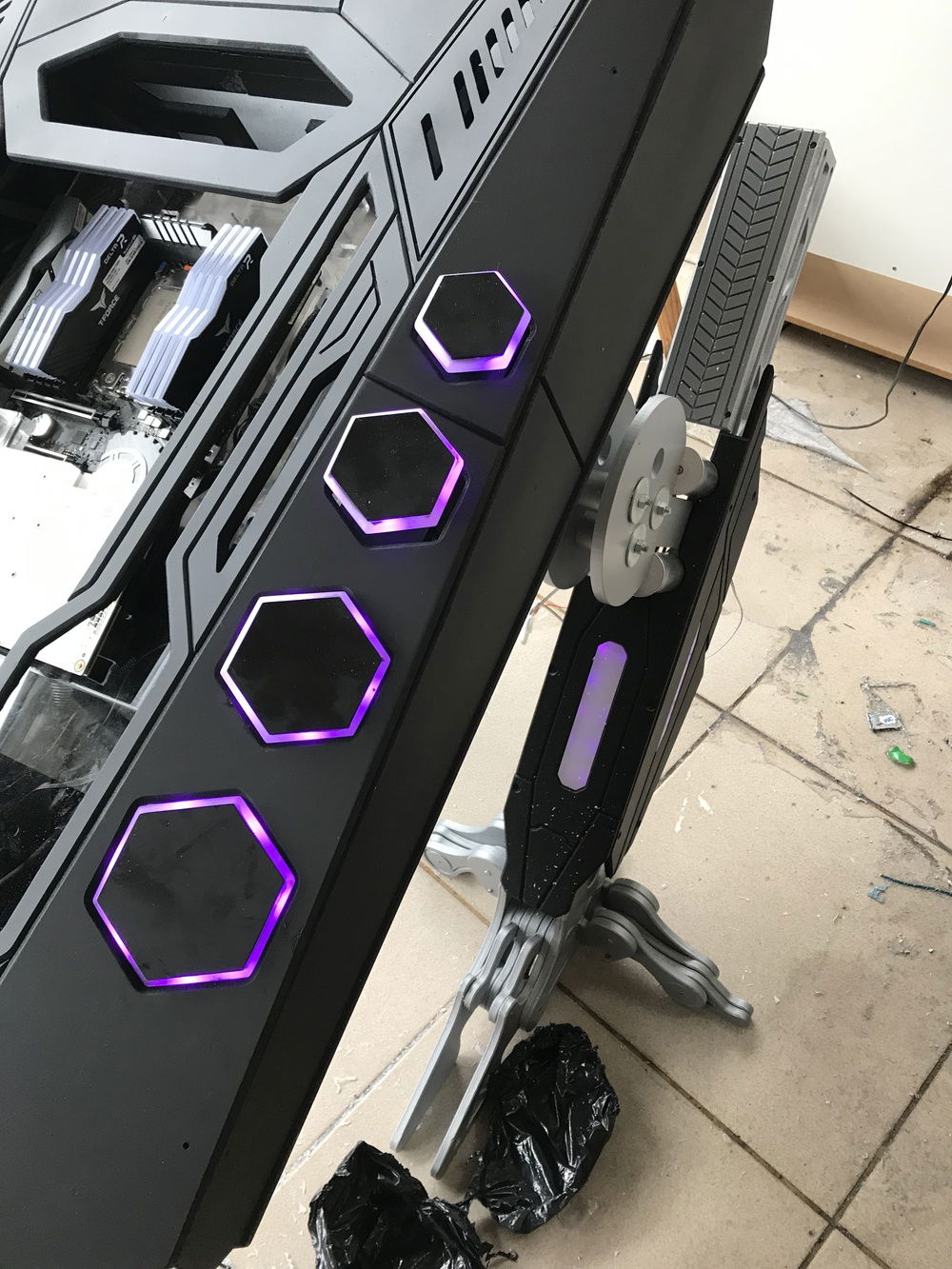

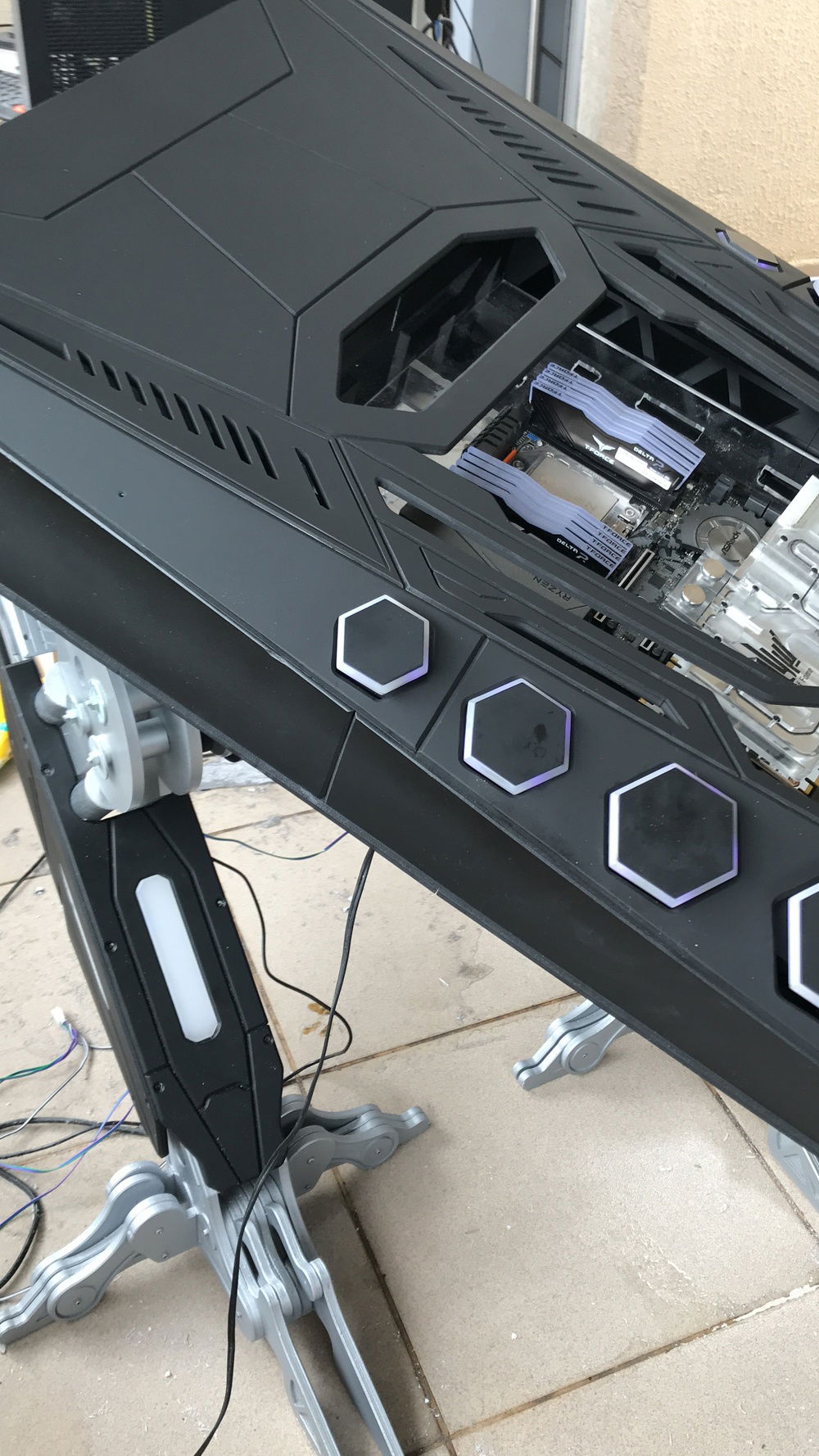

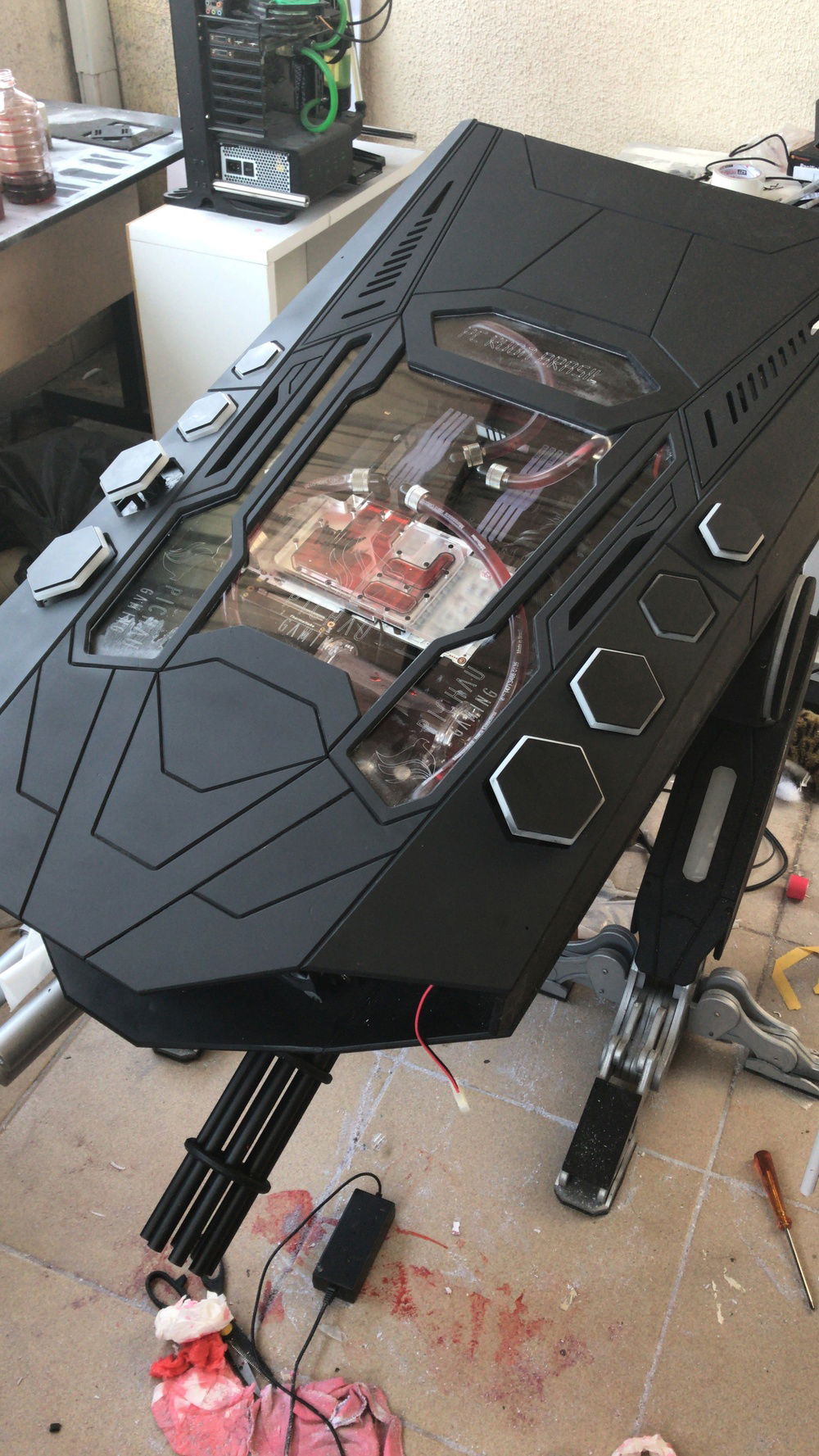

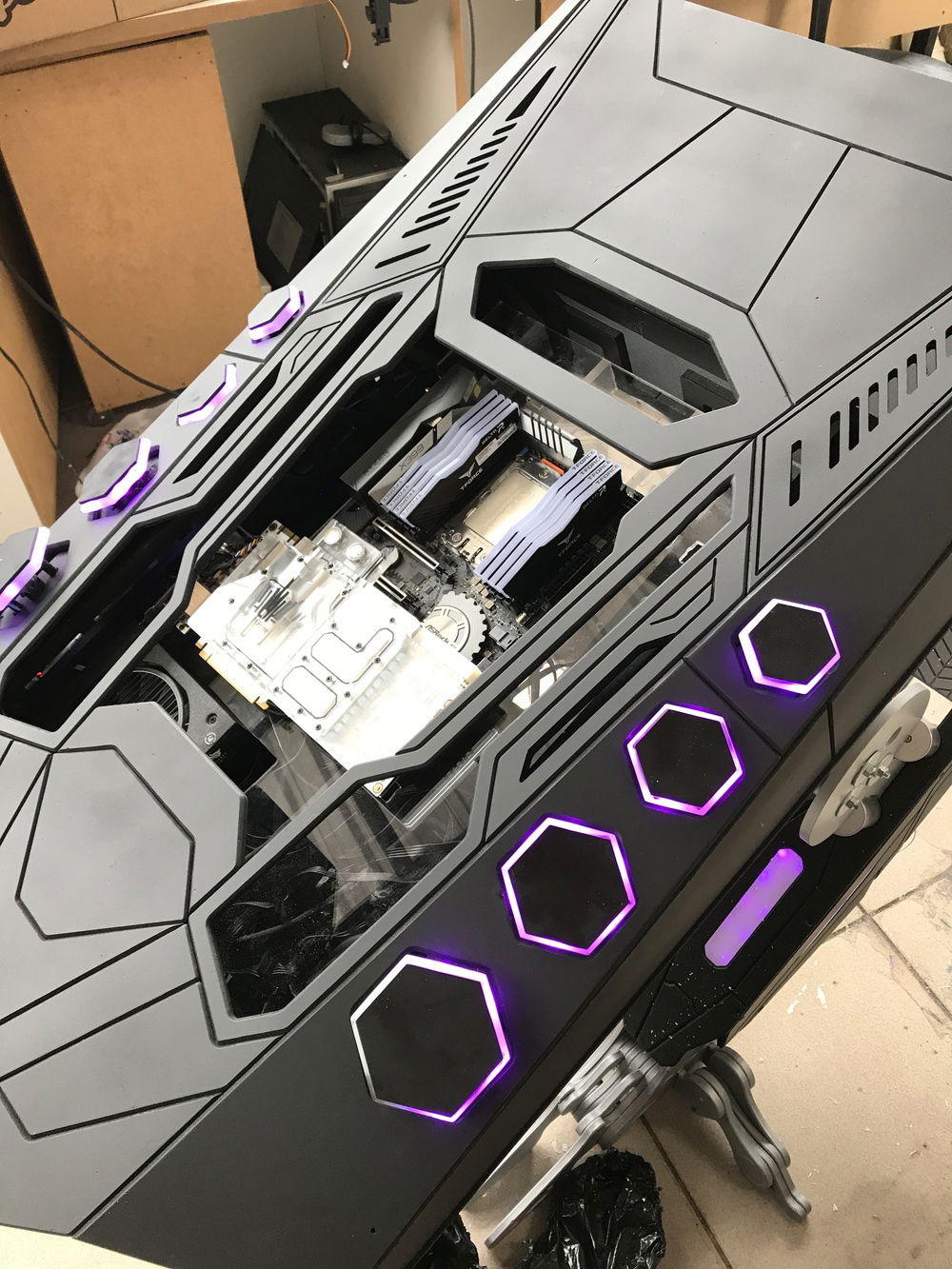

comecei a pintar as pecas e montar. usei a cor aluminio para parecer metal e preto para a parte principal.
I began to paint the parts and assemble. I used the color aluminum to look like metal and black for the main part.

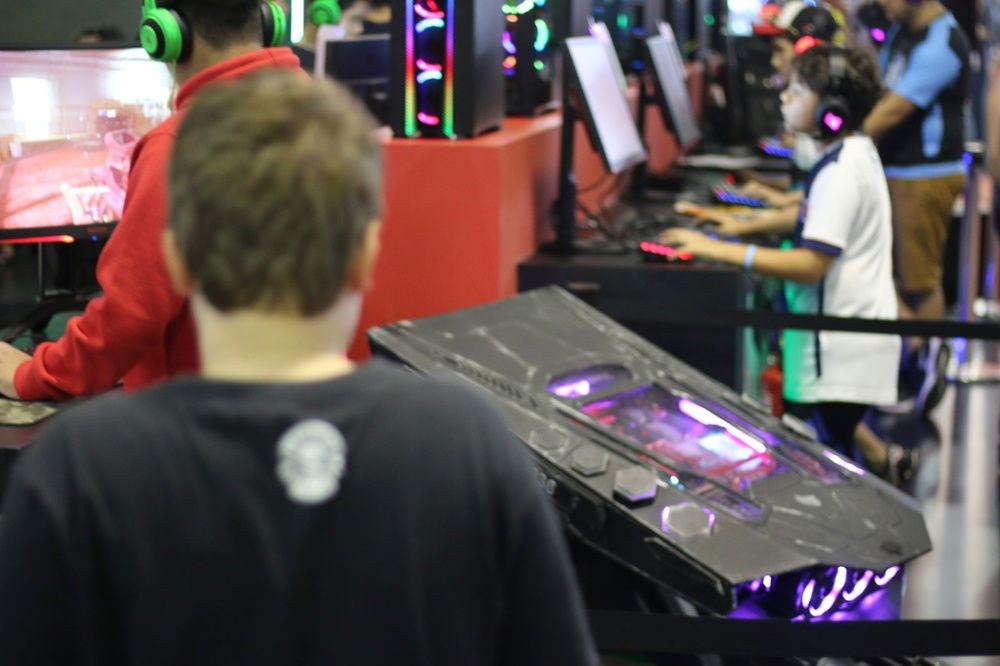

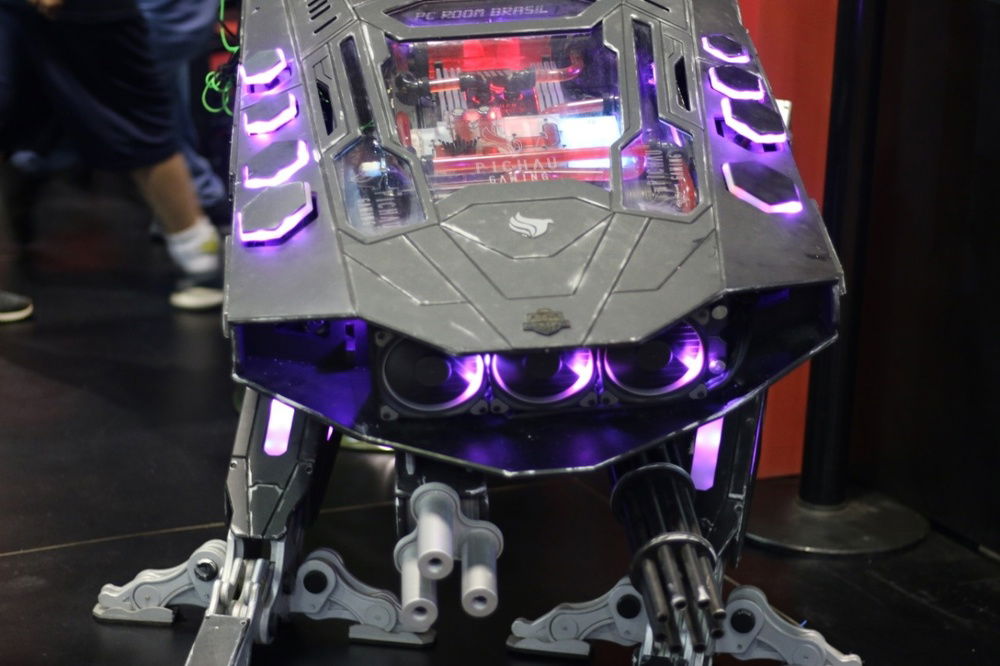

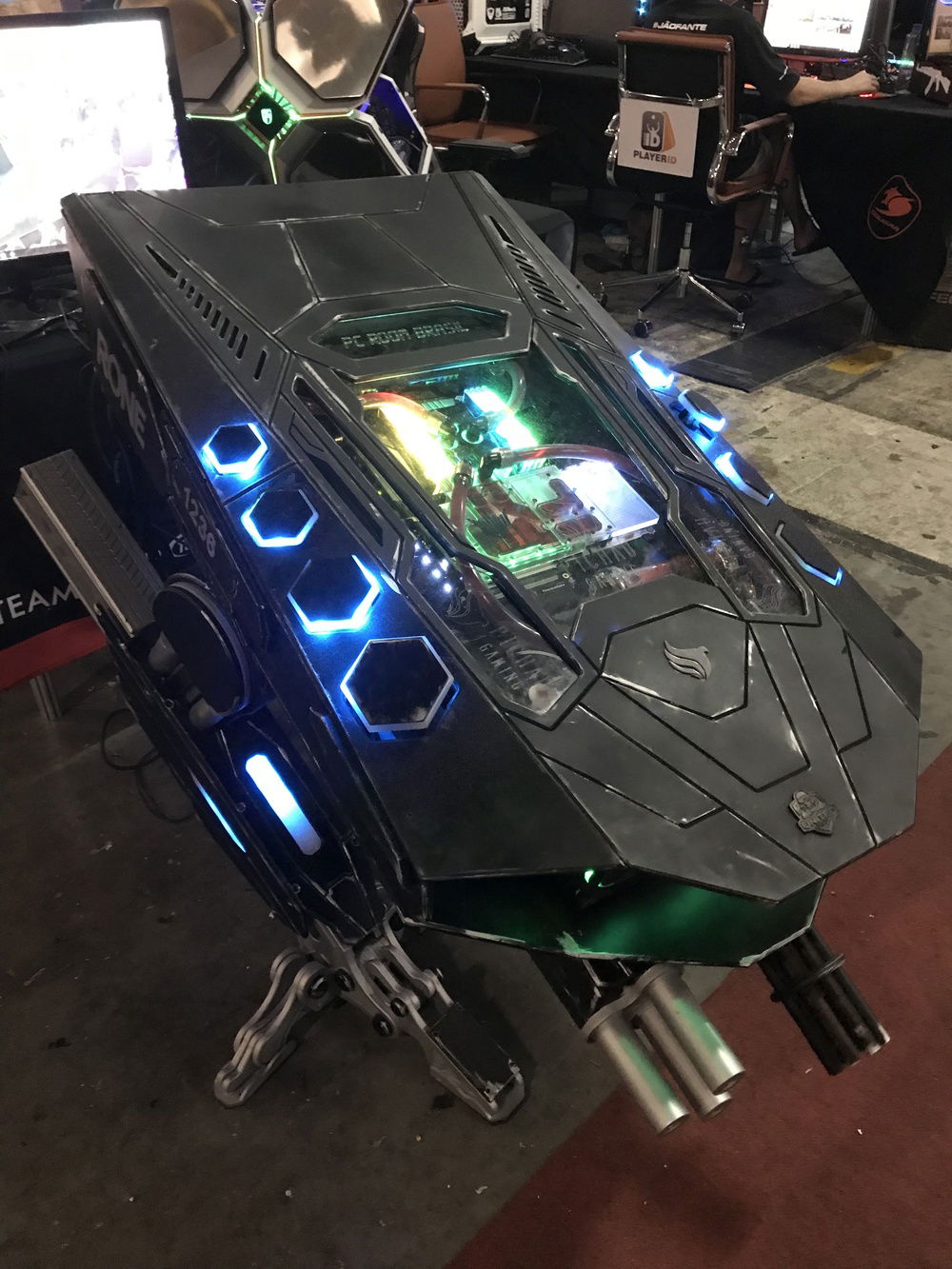

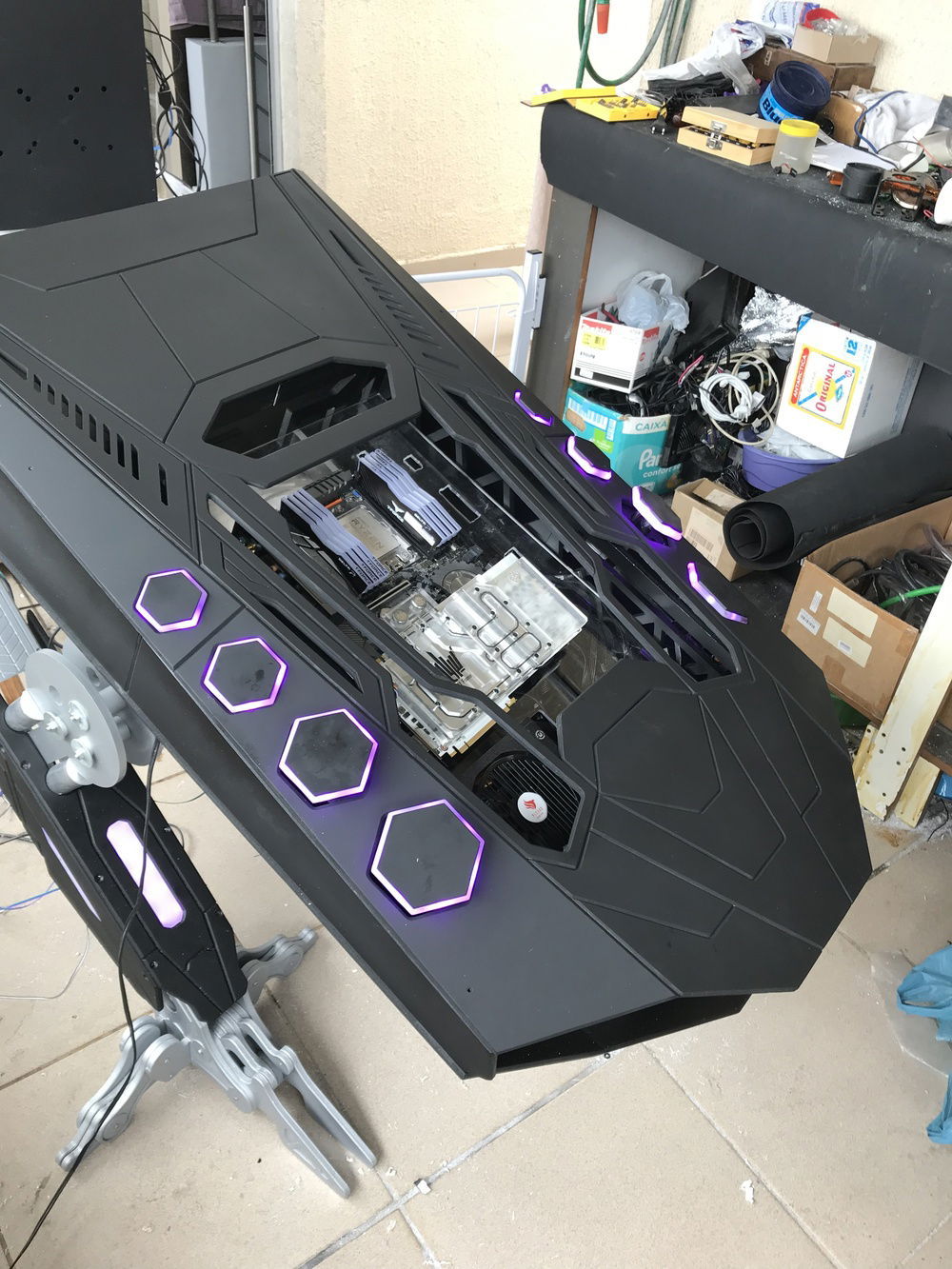

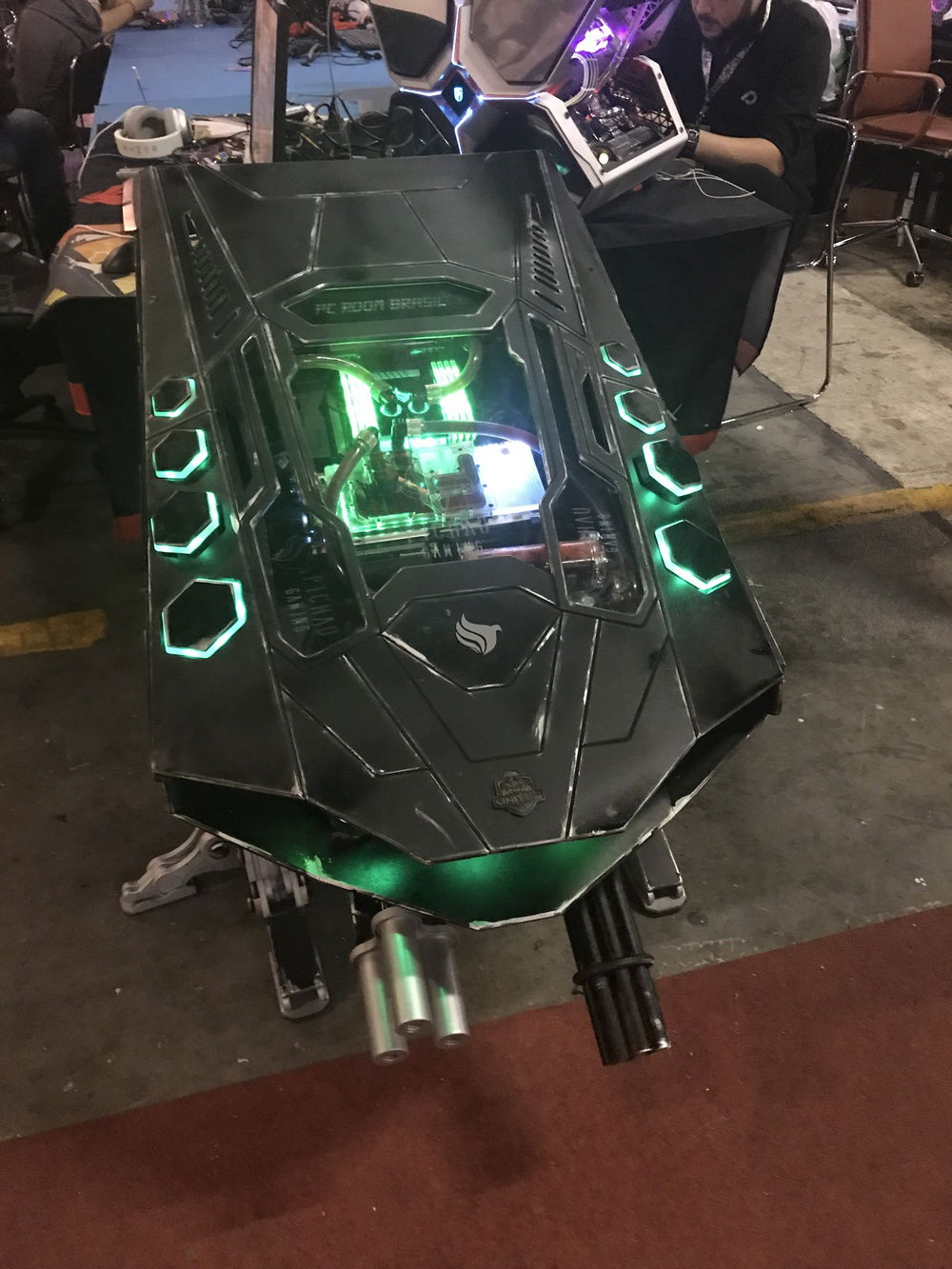

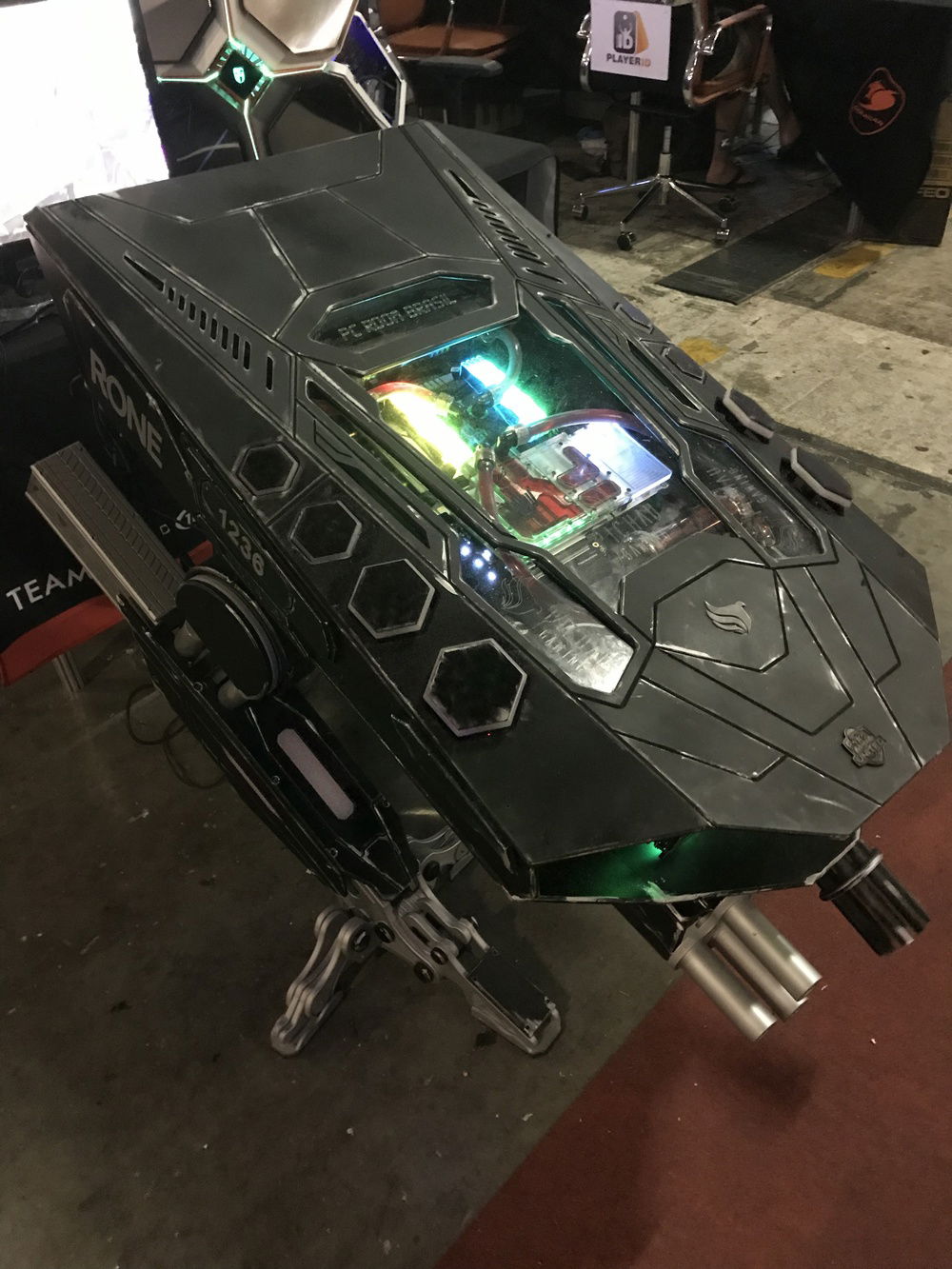

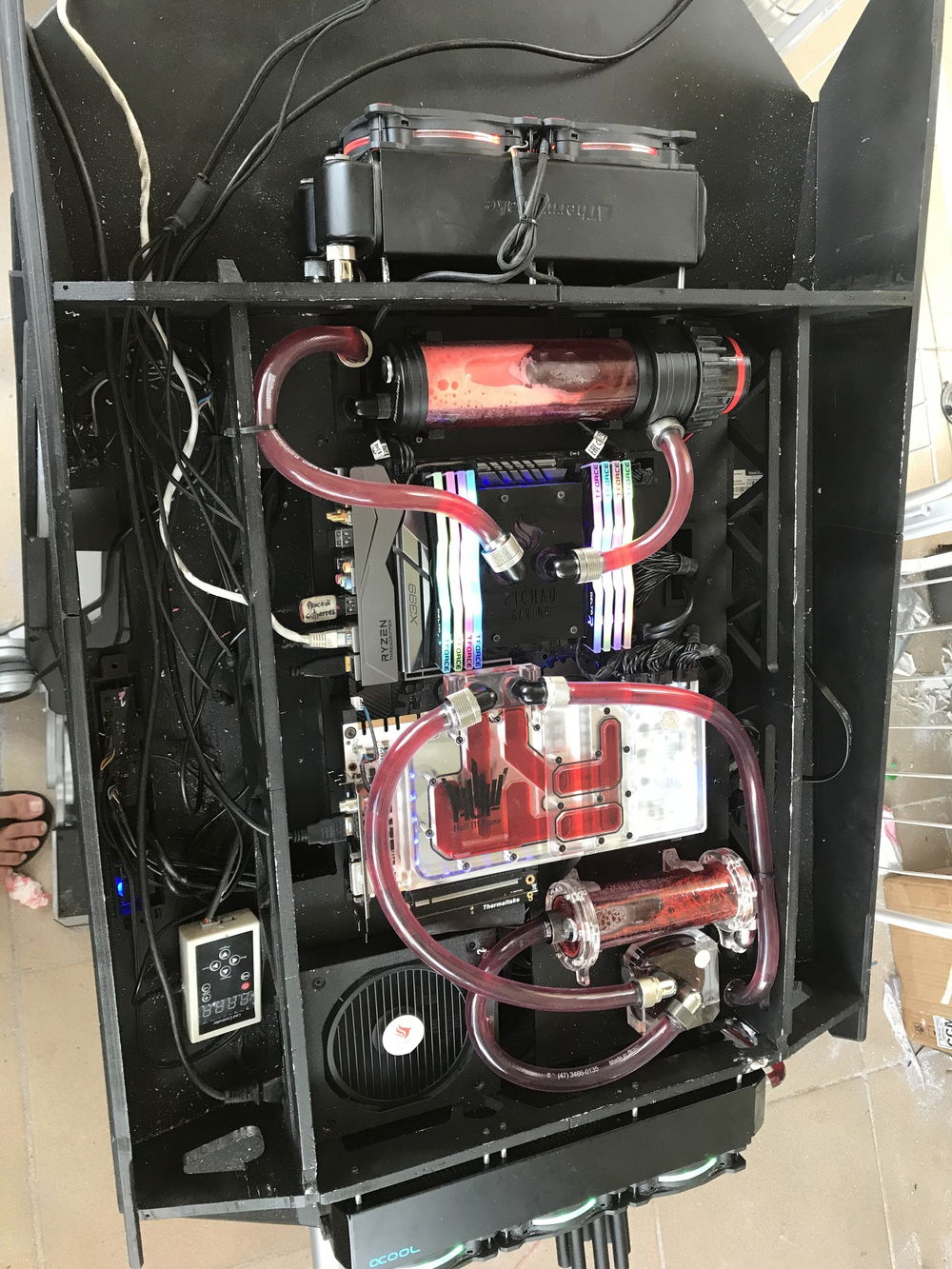

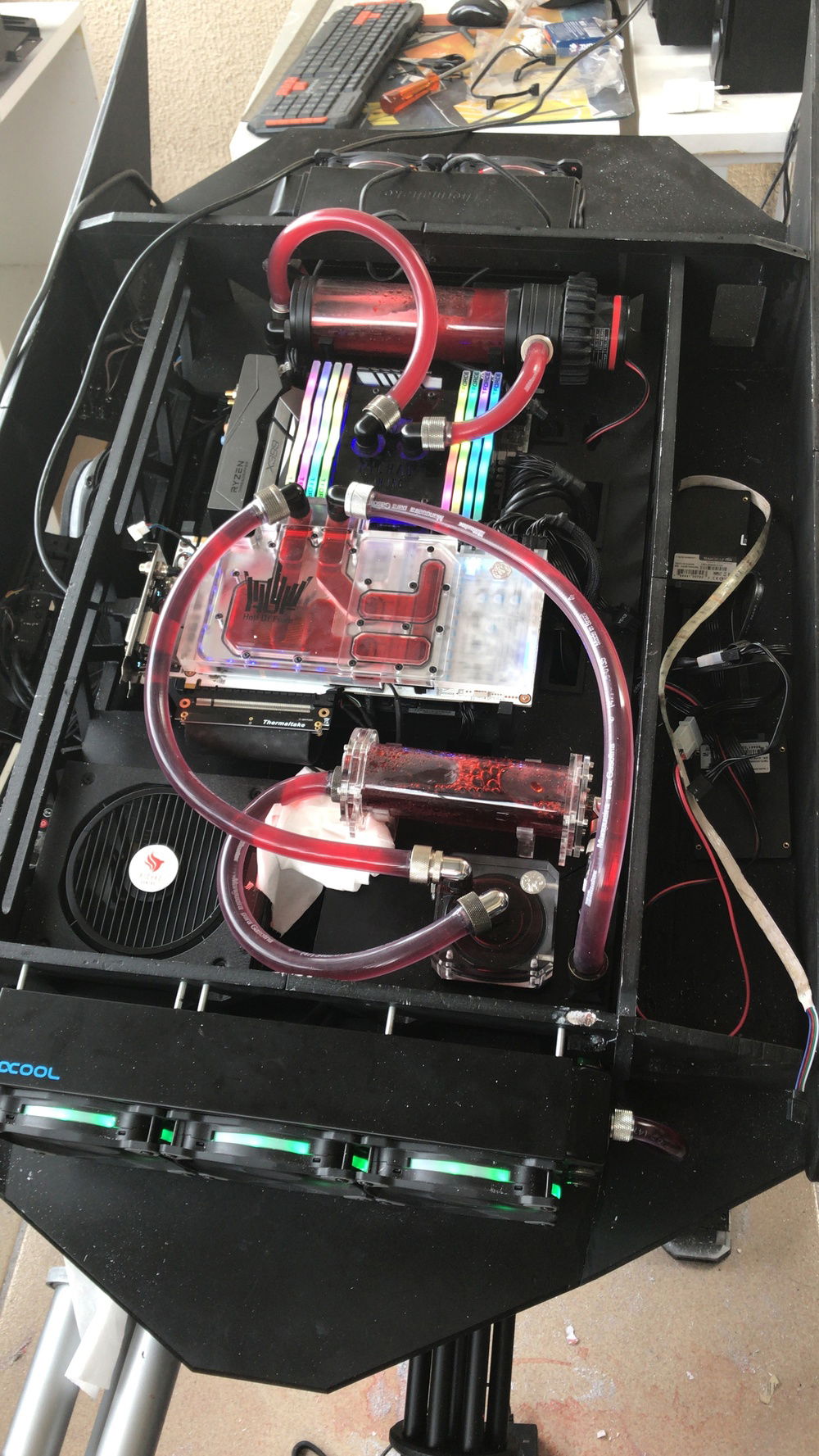

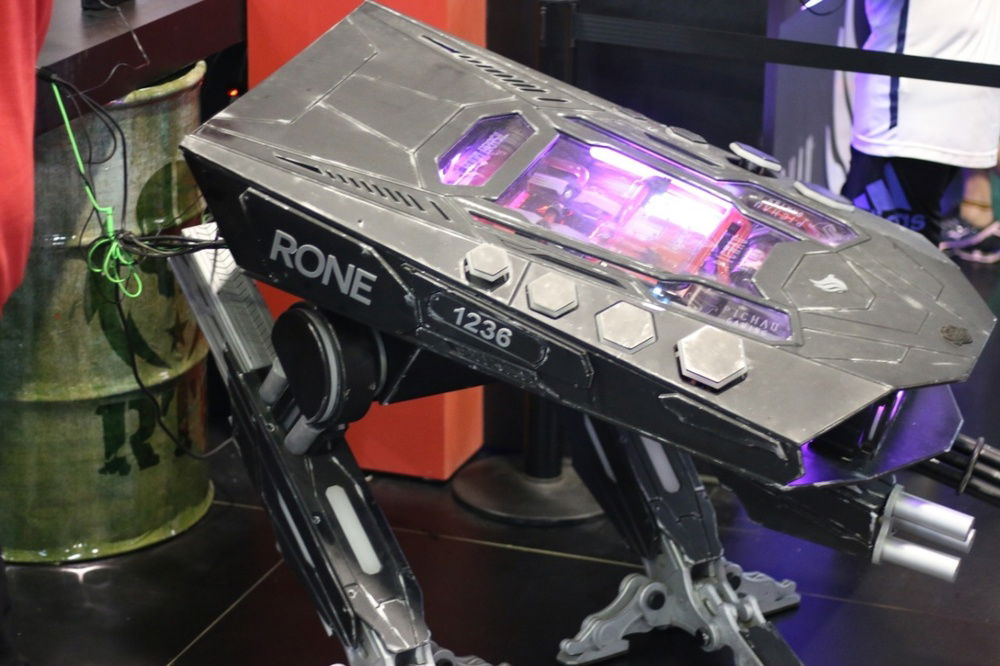

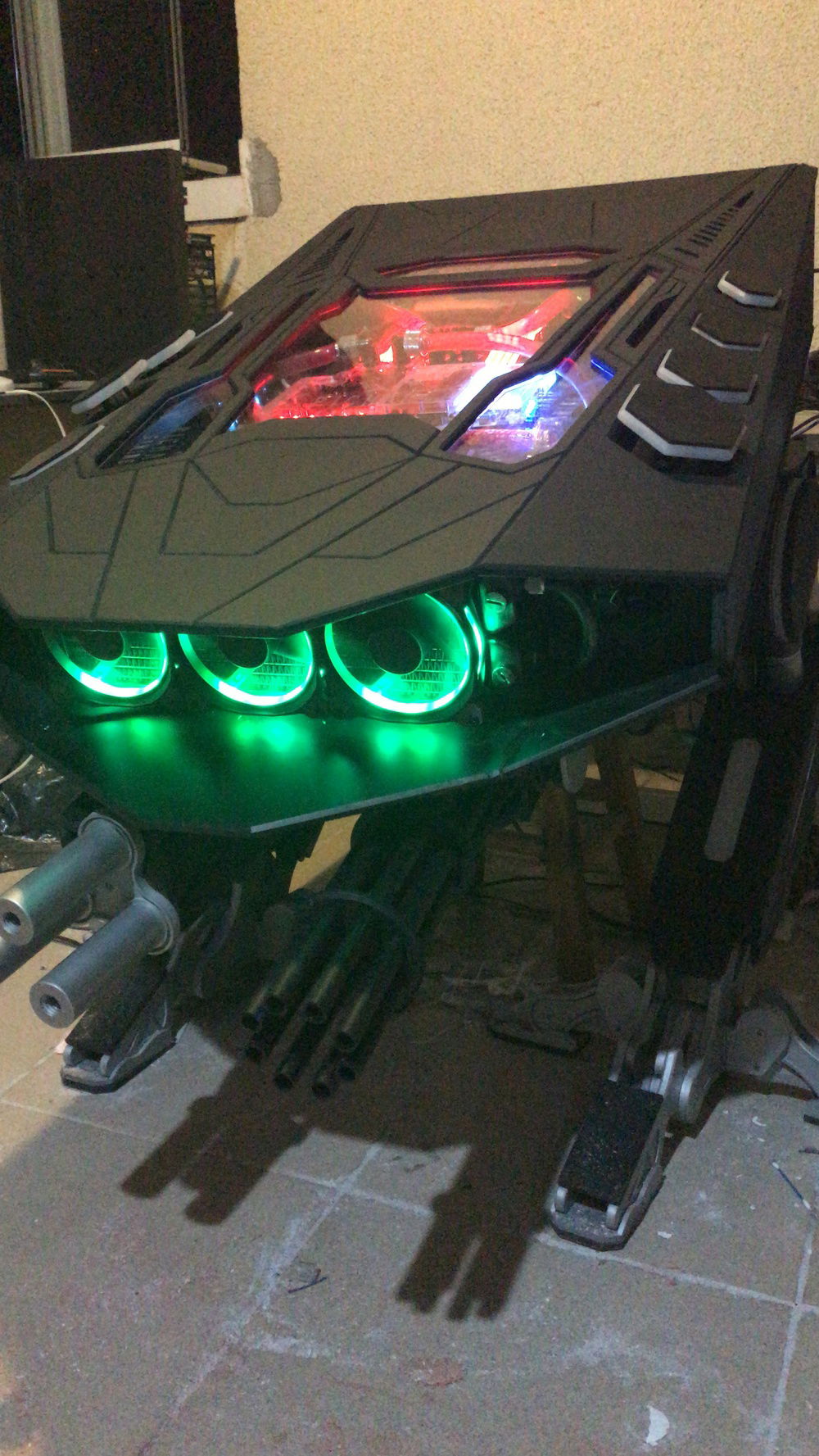

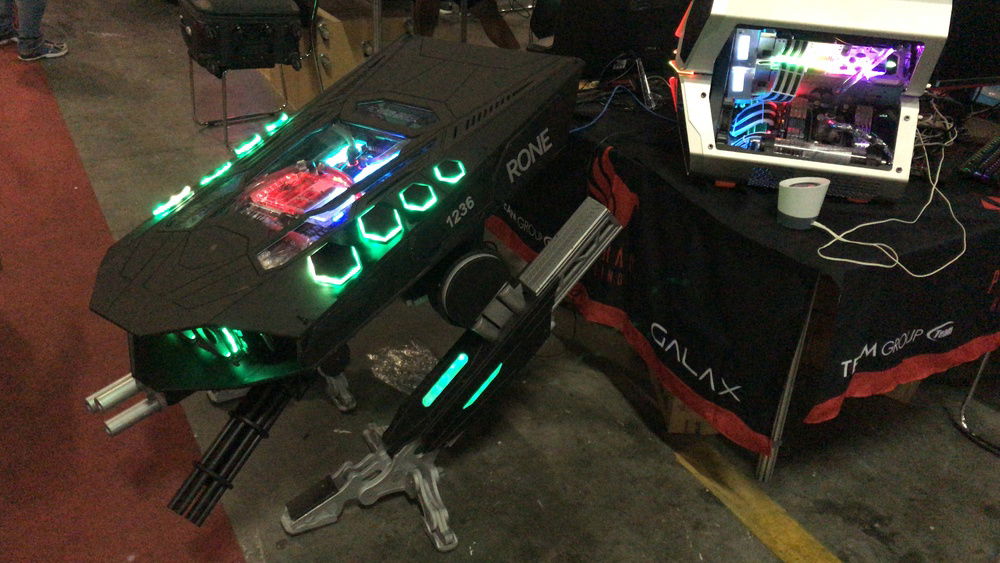

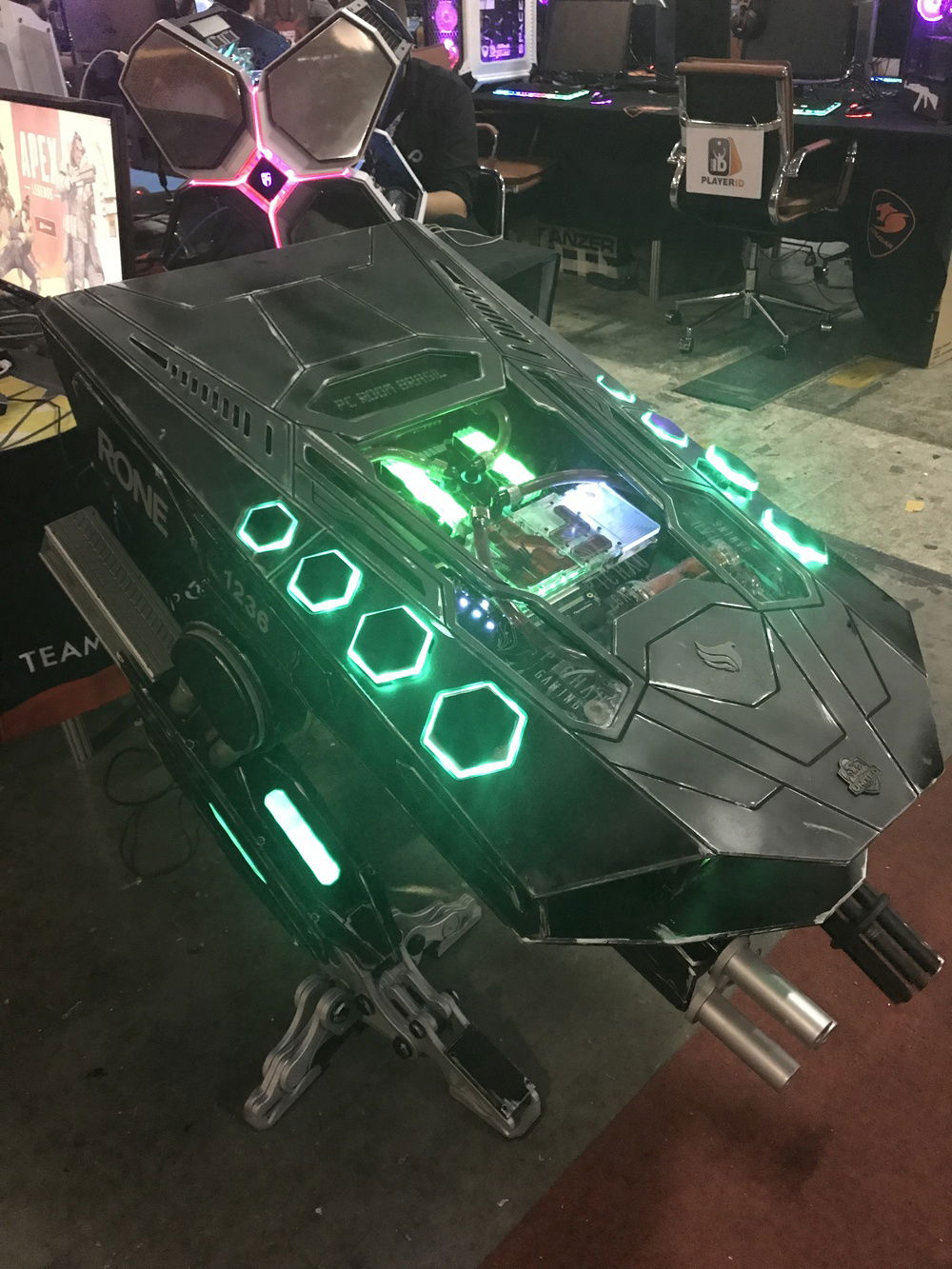

e por fim a montagem e teste finais .
and finally final assembly and testing.
Link Text
Color(s): Black
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Futuristic
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 500.06
AMD - Threadripper 1920X
Socket: TR4
Cores: 12
Motherboard
$ 349.99
ASRock - Taichi
Chipset: X399
CPU Socket: TR4
Size: ATX
Memory
TeamGroup - Delta RGB
Type: DDR4
Capacity: 8 GB
Graphics
Galax - Exoc (discontinued)
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
TeamGroup - T-Force Cardea
Form Factor: M.2
Interface: M.2 (M)
Capacity: 240 GB
PSU
$ 98.94
EVGA - 750 B3
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Bronze
Case
Custom - Custom (custom)
Case Fan
$ 28.99
Cooling
Alphacool - Radiators
Type: Custom Loop
Cooling
Bykski - Fittings
Type: Fittings
Cooling
$ 189.99
Thermaltake - Pacific PR22-D5 Plus RGB
Type: Pump/Reservoir Combo
Unable to dertermine total build value (missing part value)
