Prototype 05

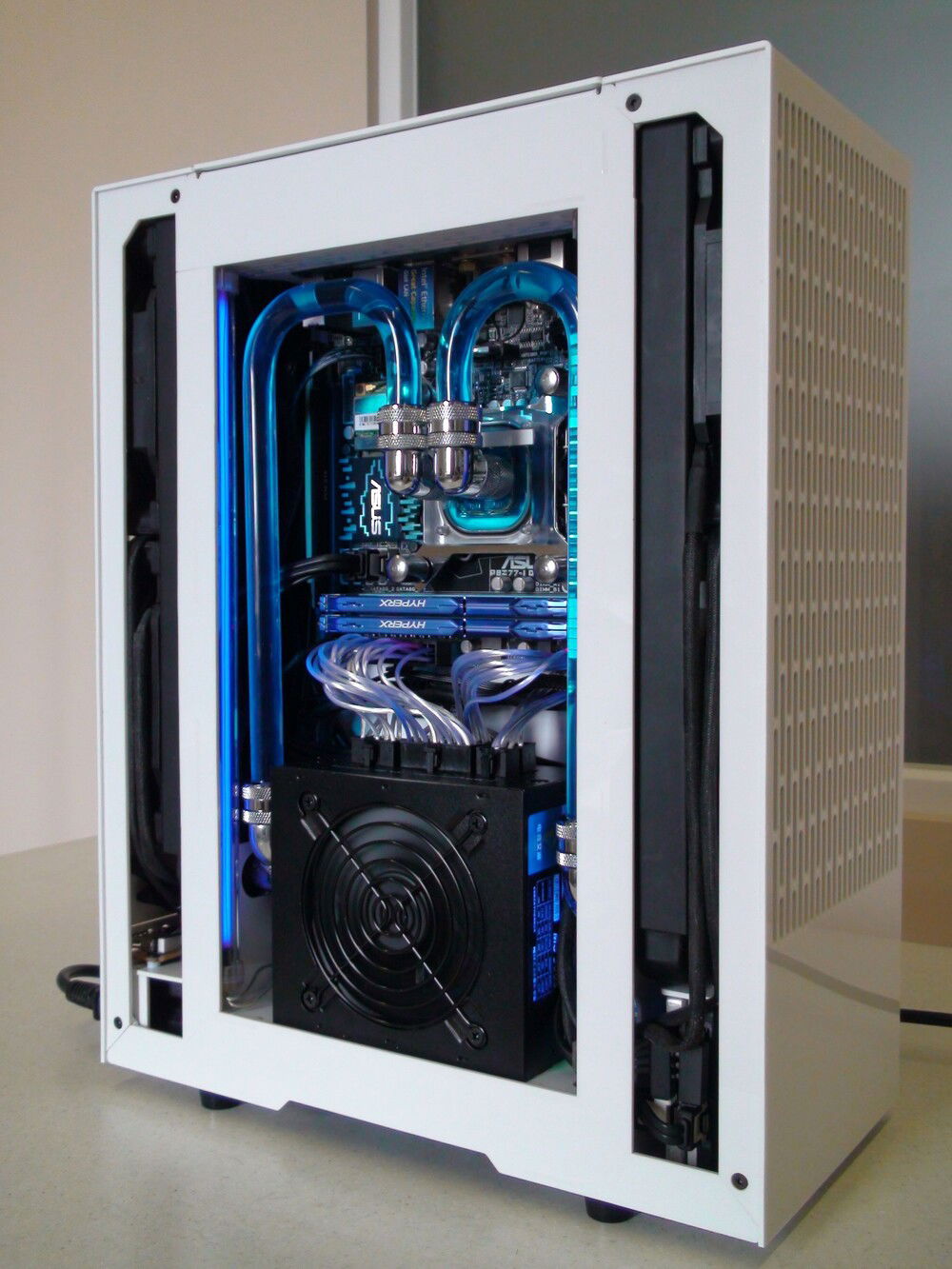

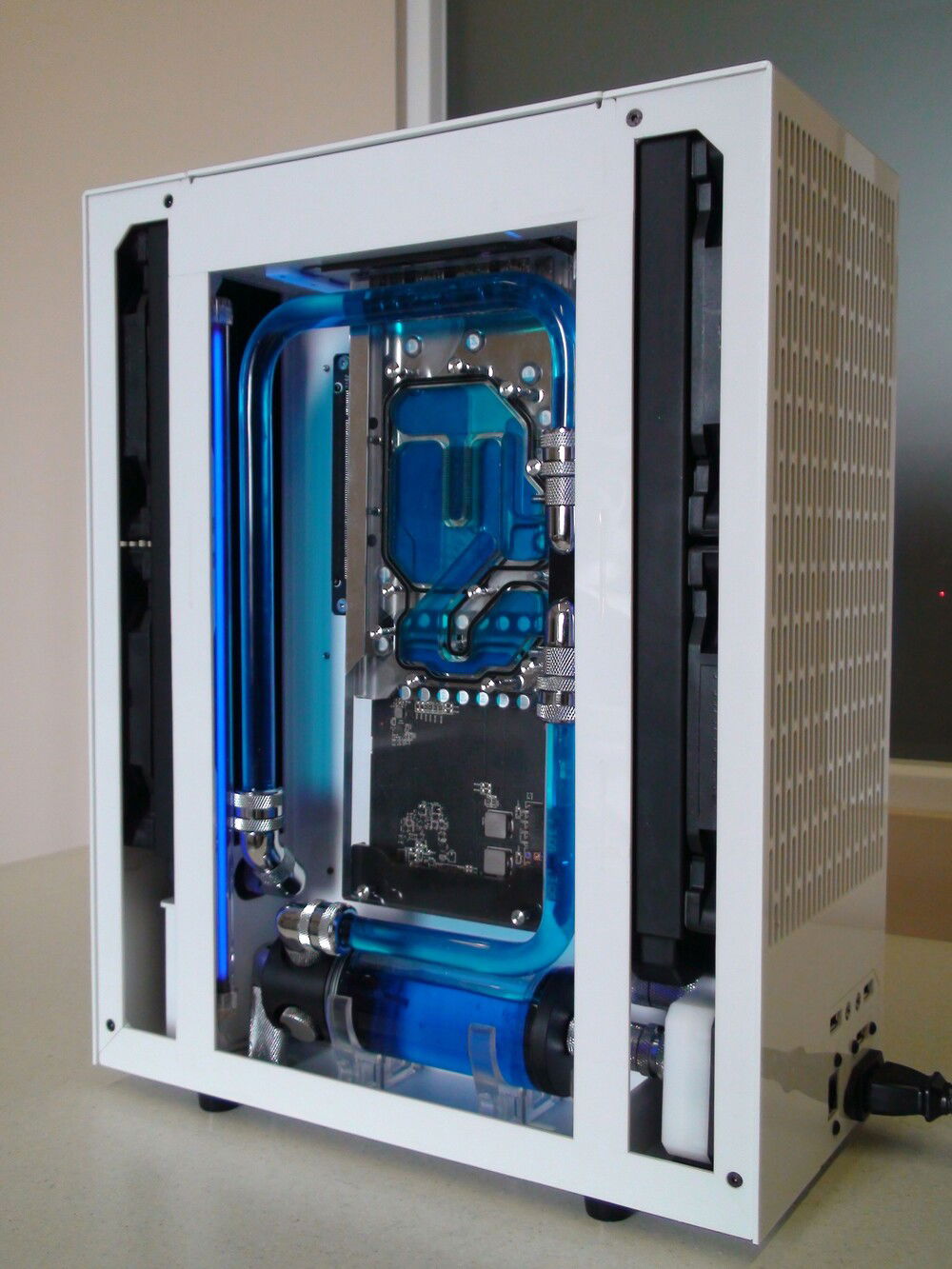

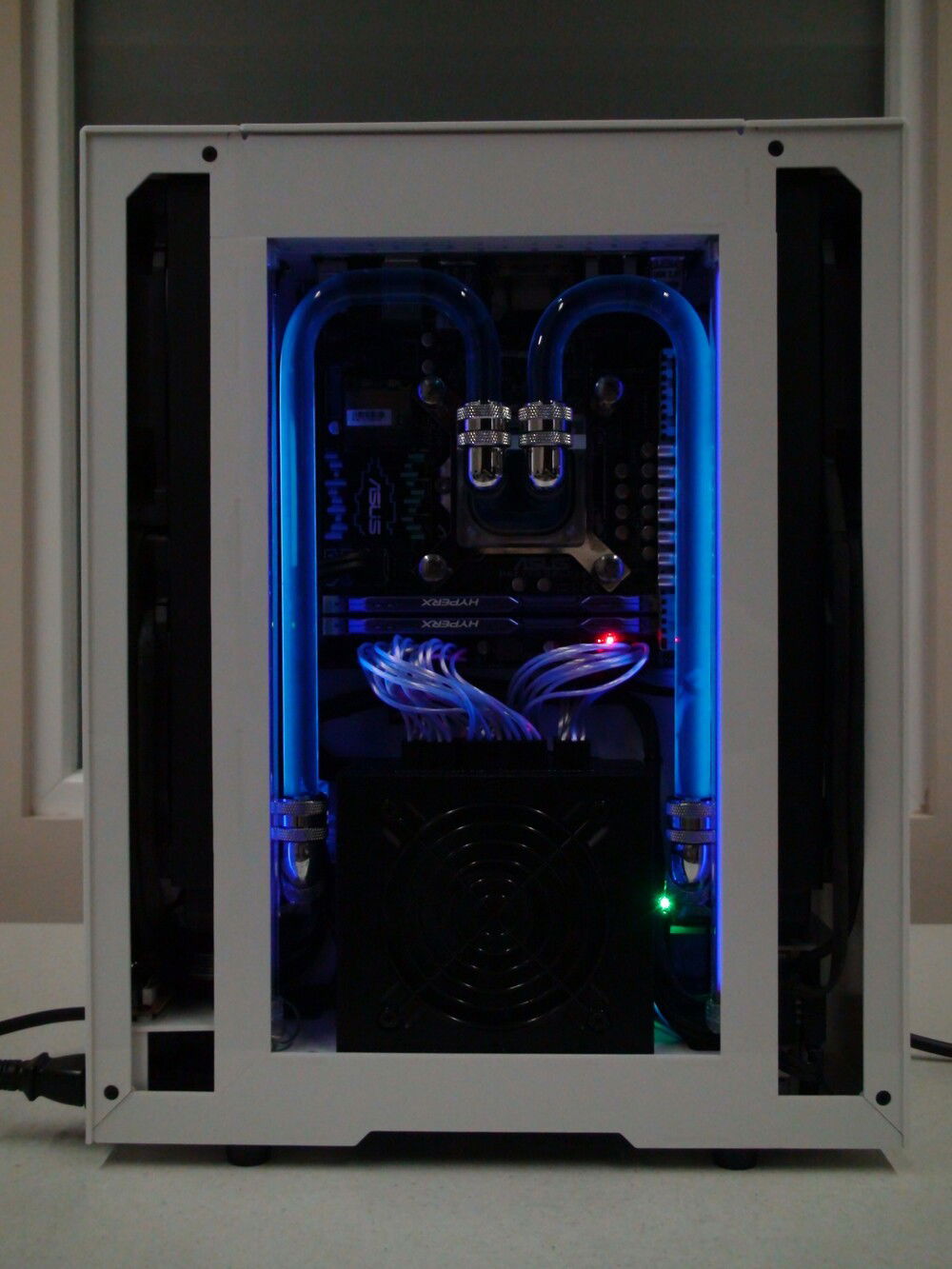

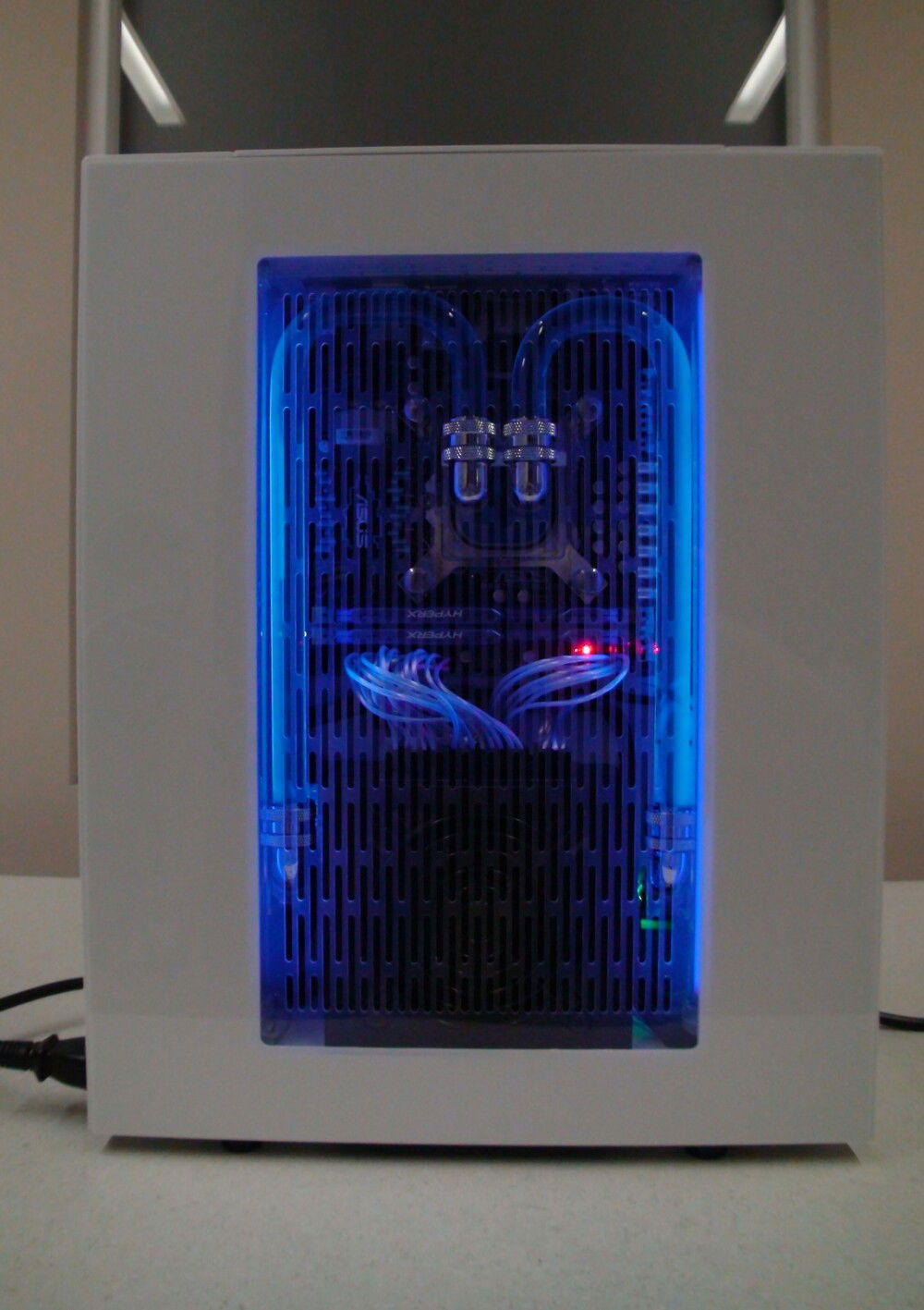

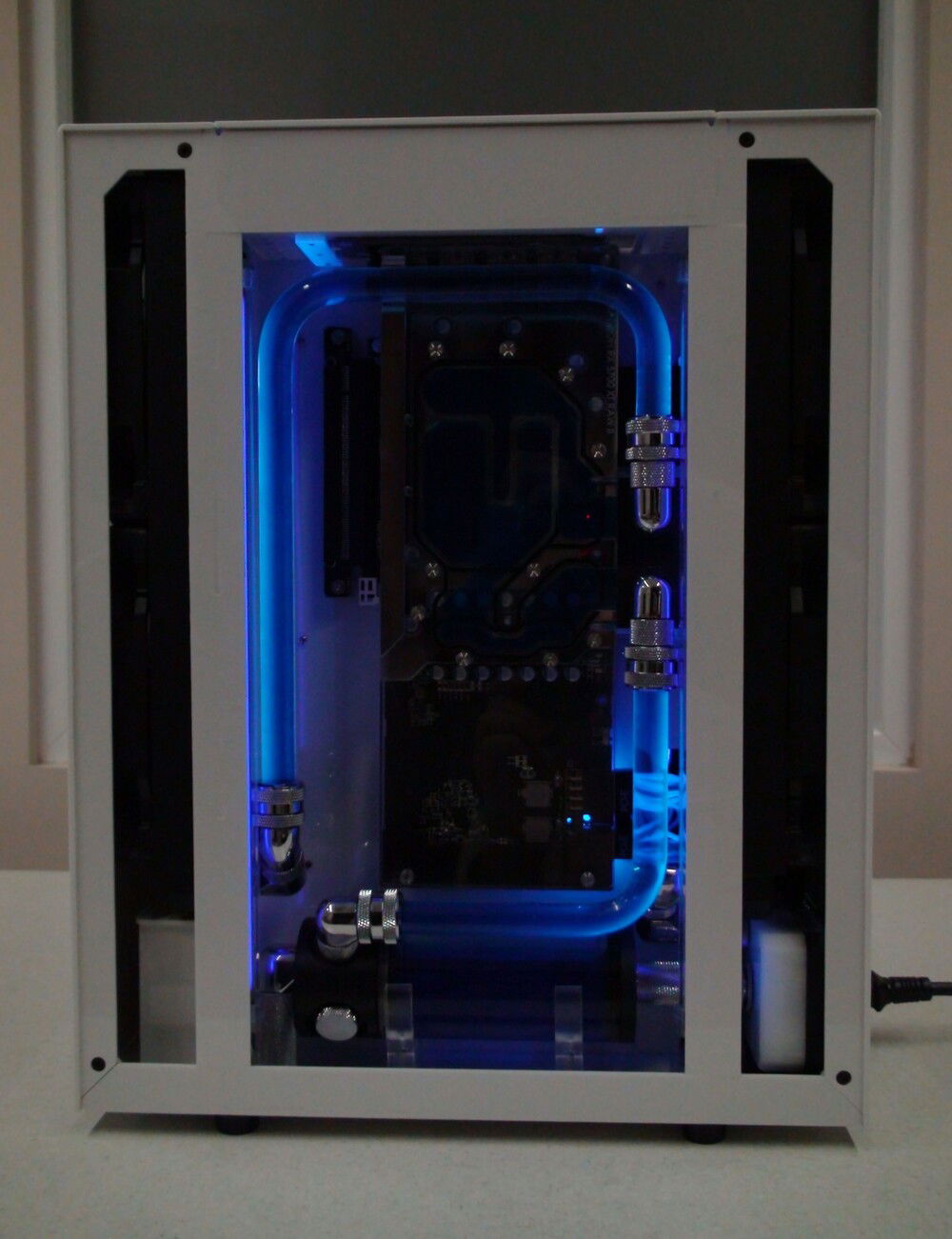

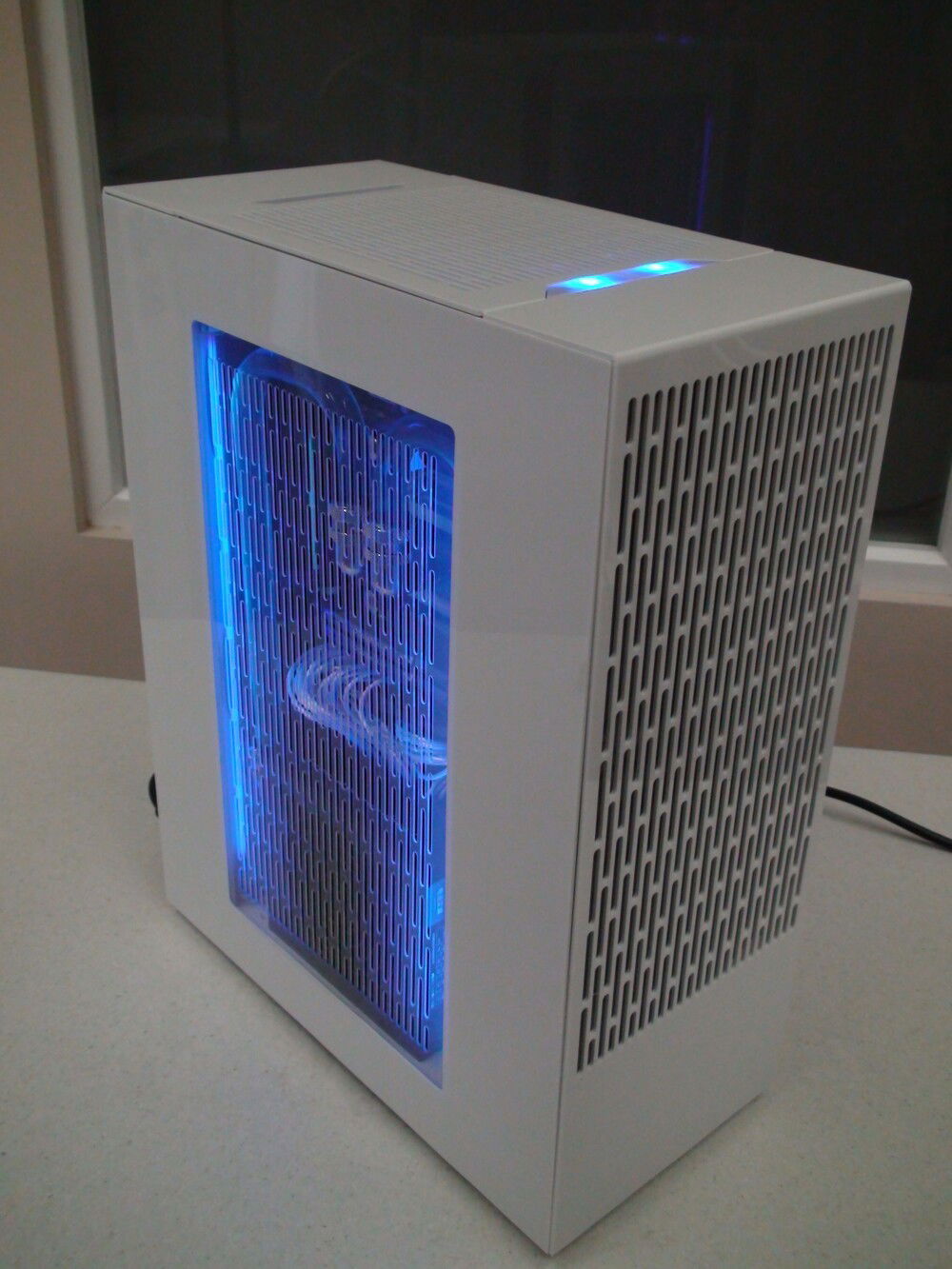

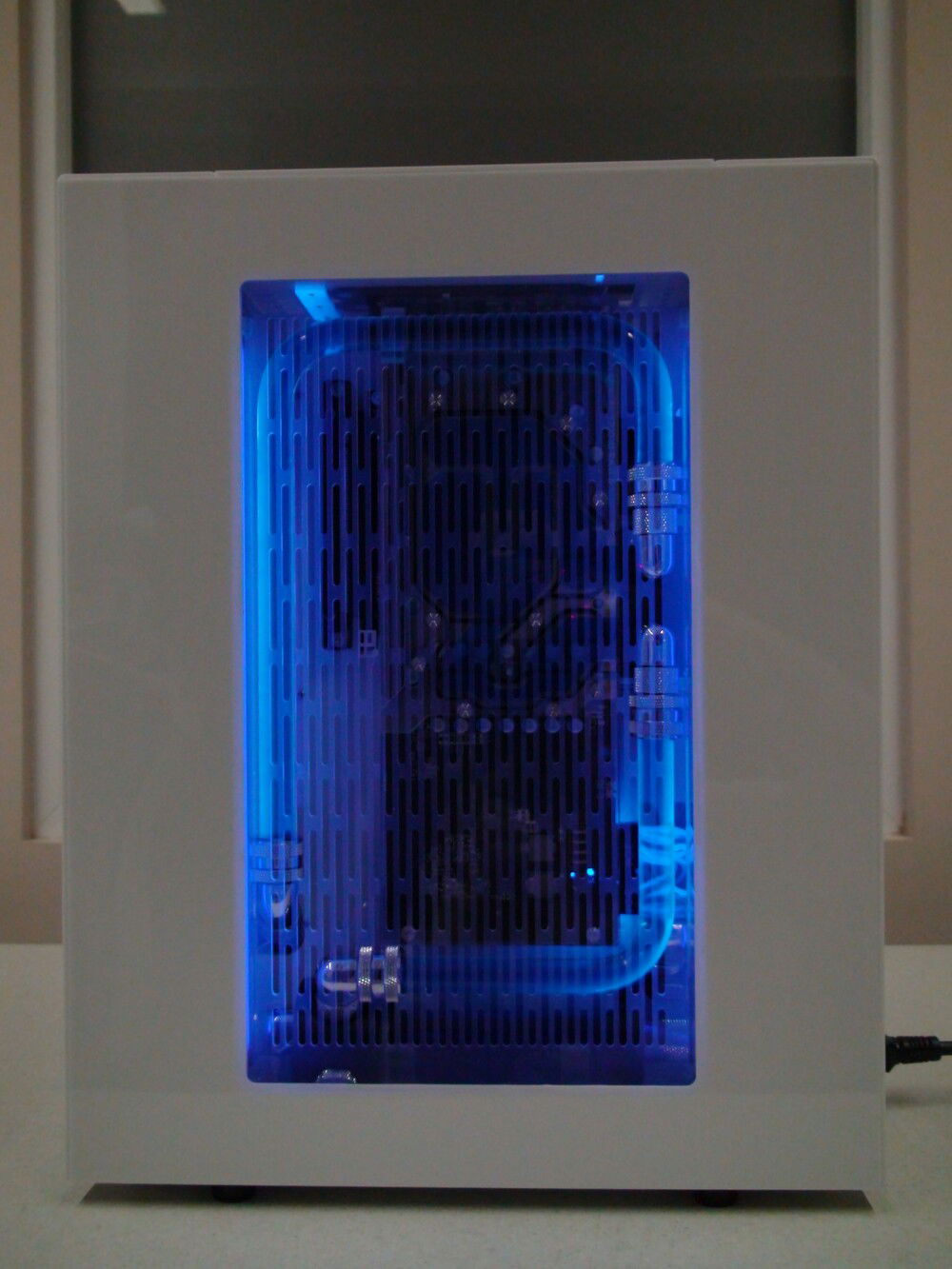

This is my attempt to create my own case. The main goal is good cooling capacity and good airflow. Also symmetrical design, it can be used on both left and right sides. I wanted to have minimal dimensions of the case itself. So I used 2*280mm radiators, a mini-ITX motherboard and a SFX PSU. The GPU can be almost any length up to 285mm. The reservoir is standard 50mm diameter. No custom parts, everything is stock. Overall dimension 319x155x396mm.

3D model

Color(s): White
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 74.99
Intel - Core i7 2600K
Socket: LGA 1155
Cores: 4
Motherboard
ASUS - P8Z77-I DELUXE
Chipset: Z77
CPU Socket: LGA 1155
Size: Mini-ITX
Memory
$ 304.68
Kingston - HyperX Fury (1866MHz) (Red) (2x)
Type: DDR3
Capacity: 8 GB
Graphics
$ 899.99
XFX - Radeon RX
Chip Manufacturer: AMD
Chip: 5700 XT
Interface: PCIe x16
Storage
$ 94.99
Crucial - MX200 (OLD VERSION)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
Storage
$ 218.47
Patriot - P200
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 109.99
FSP - Dagger
Wattage: 600
Form Factor: SFX
Efficiency: 80+ Gold
Case
Custom - Custom (custom)
Case Fan
$ 99.96
Phanteks - PH-F140MP BLACK (4x)
Size: 140 mm
