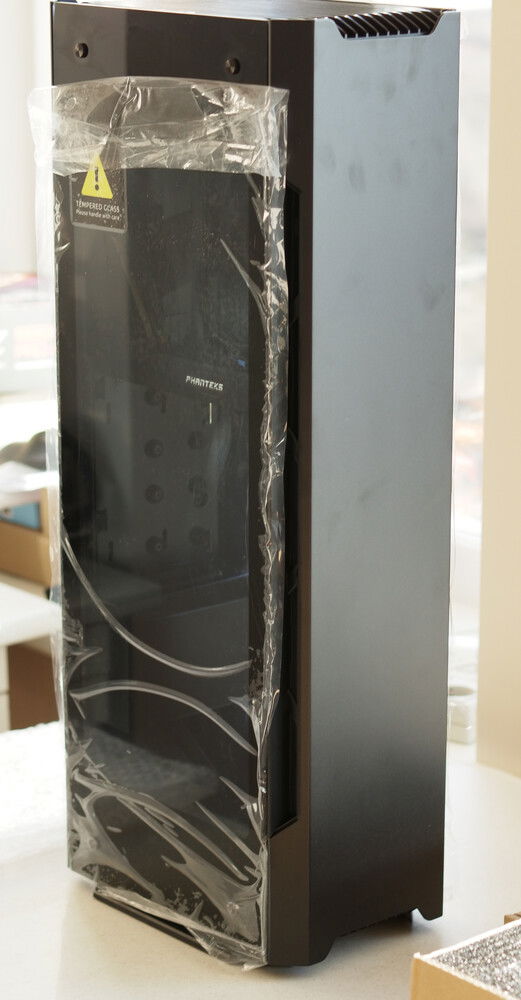

original form

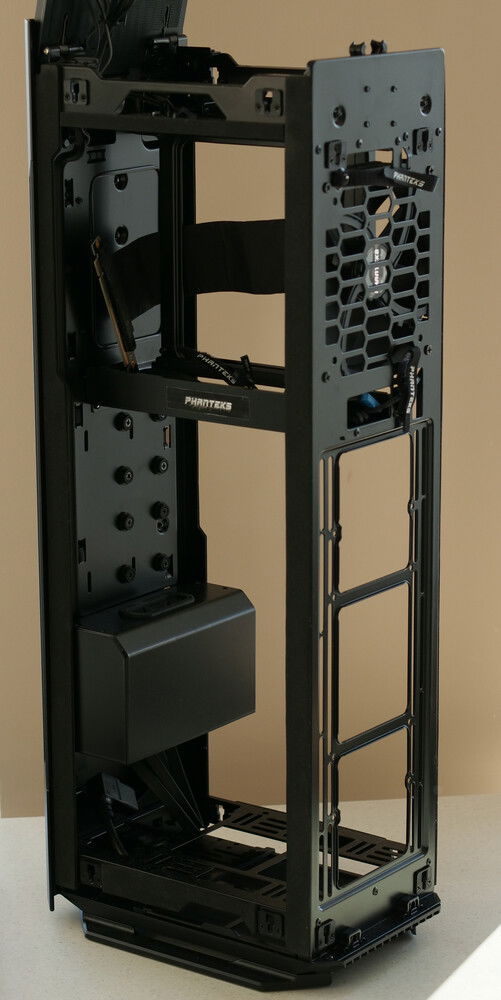

panel-free interior

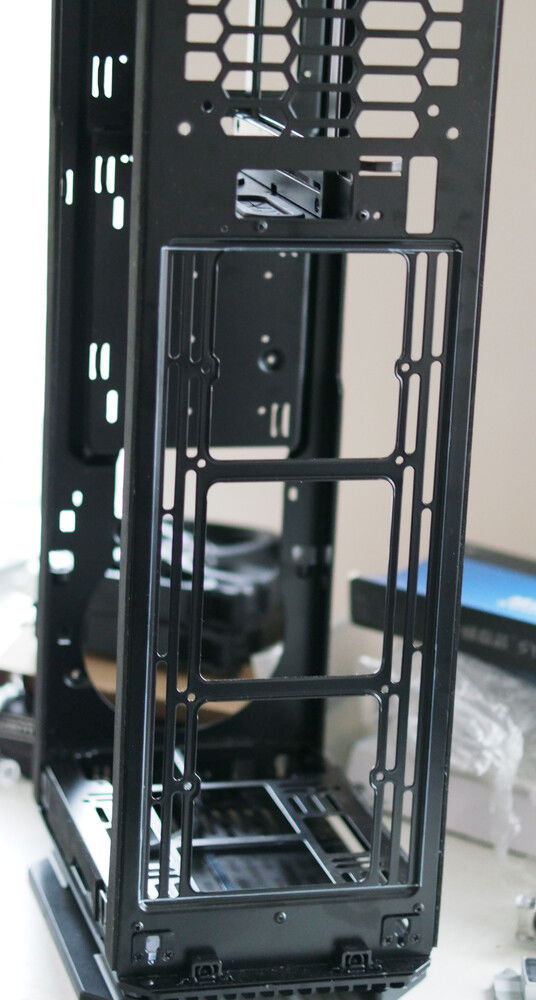

markup

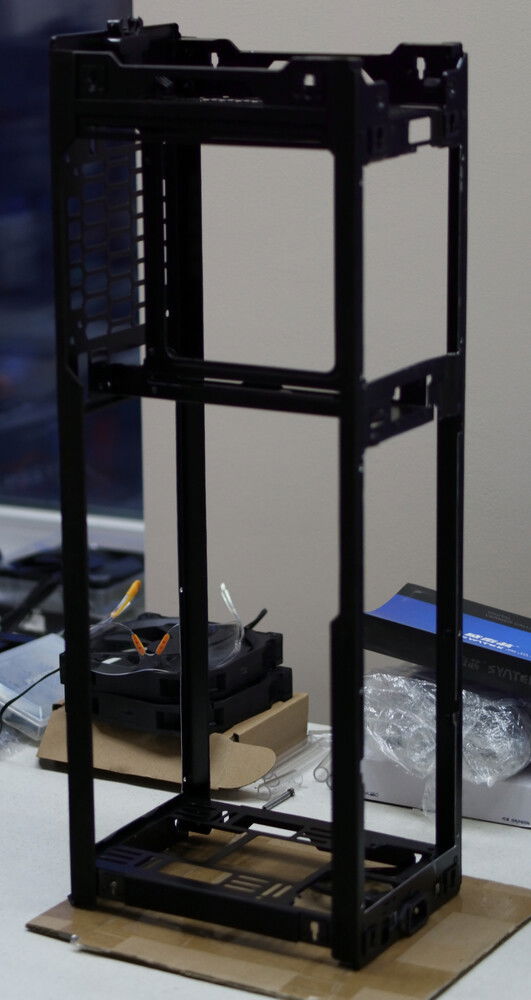

cut off all unnecessary

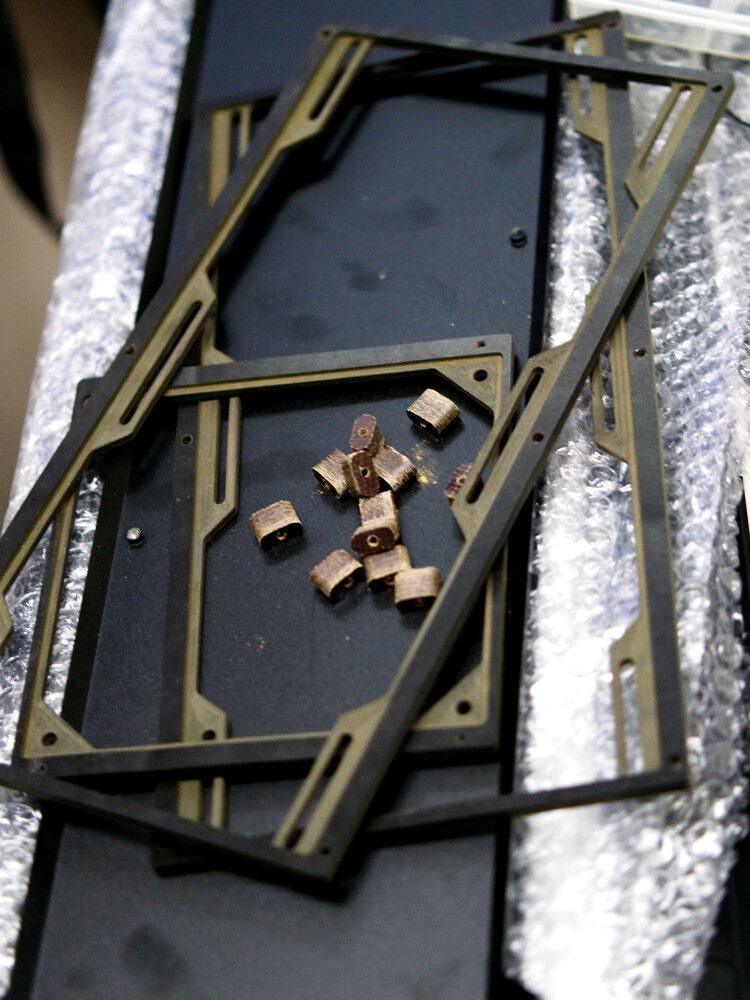

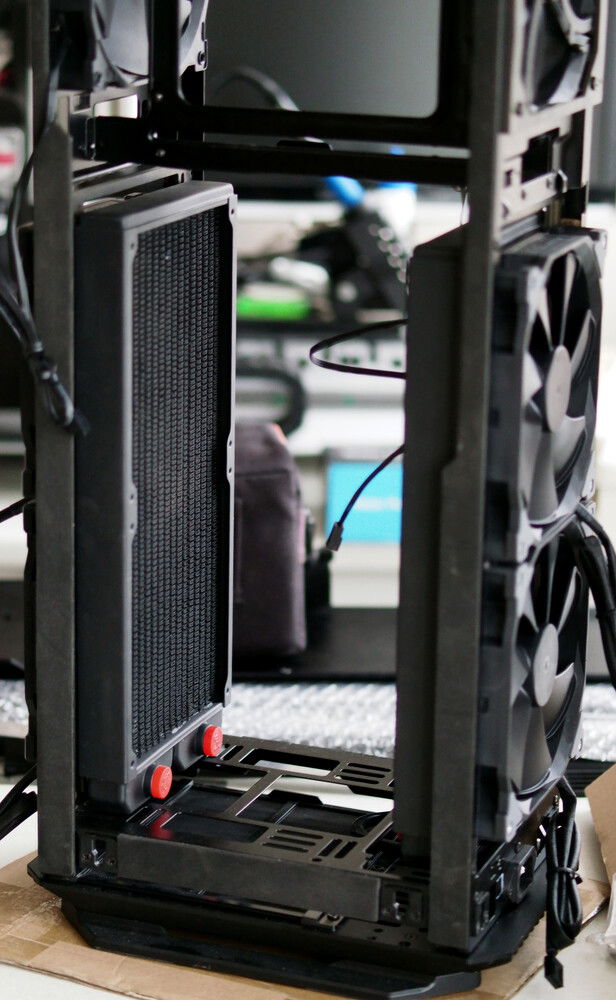

frames and spacers on which the radiators will be held

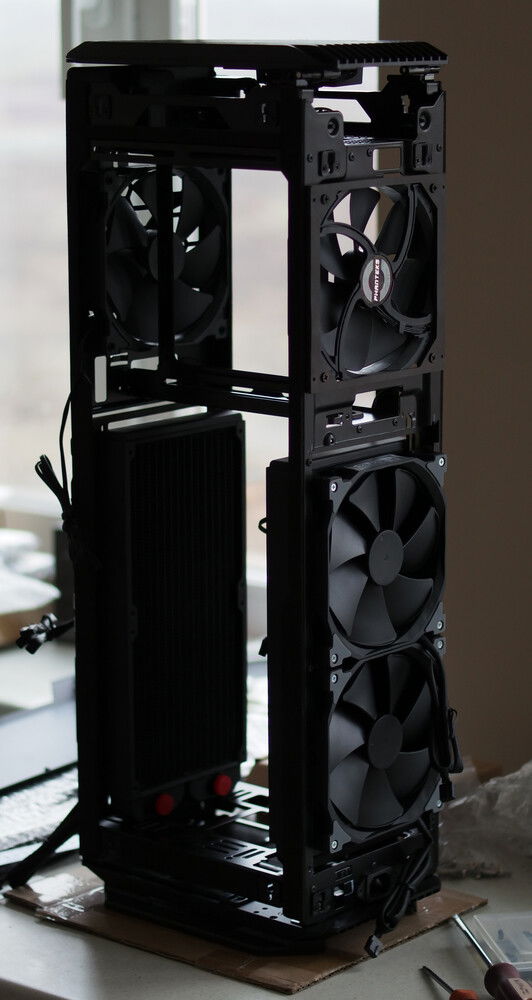

quick fit

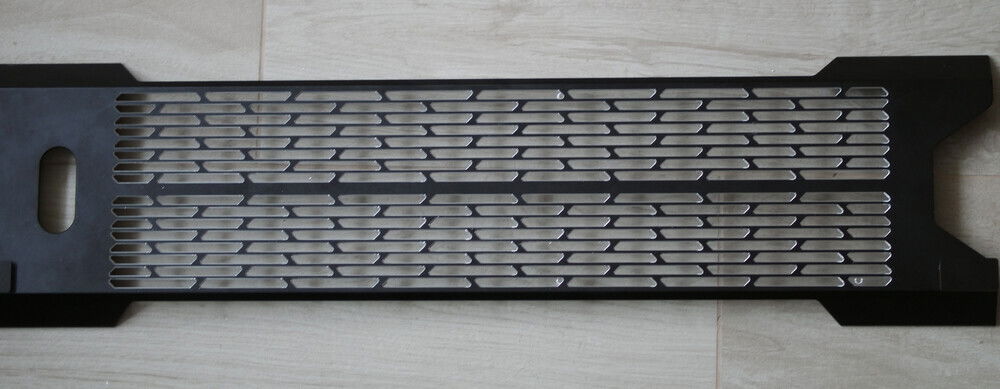

perforation of the first panel
satinizing and grinding

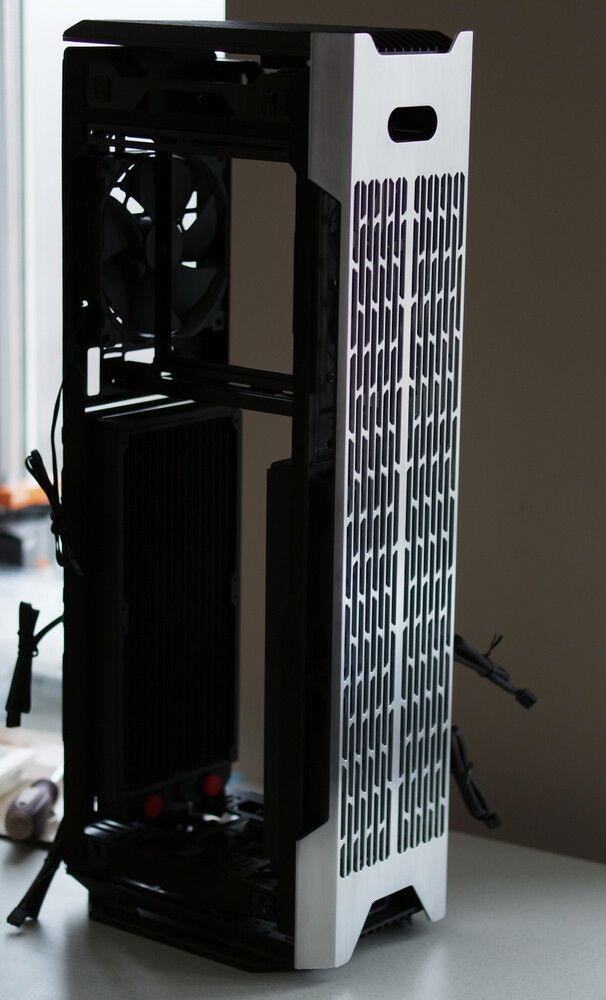

The first panel is ready

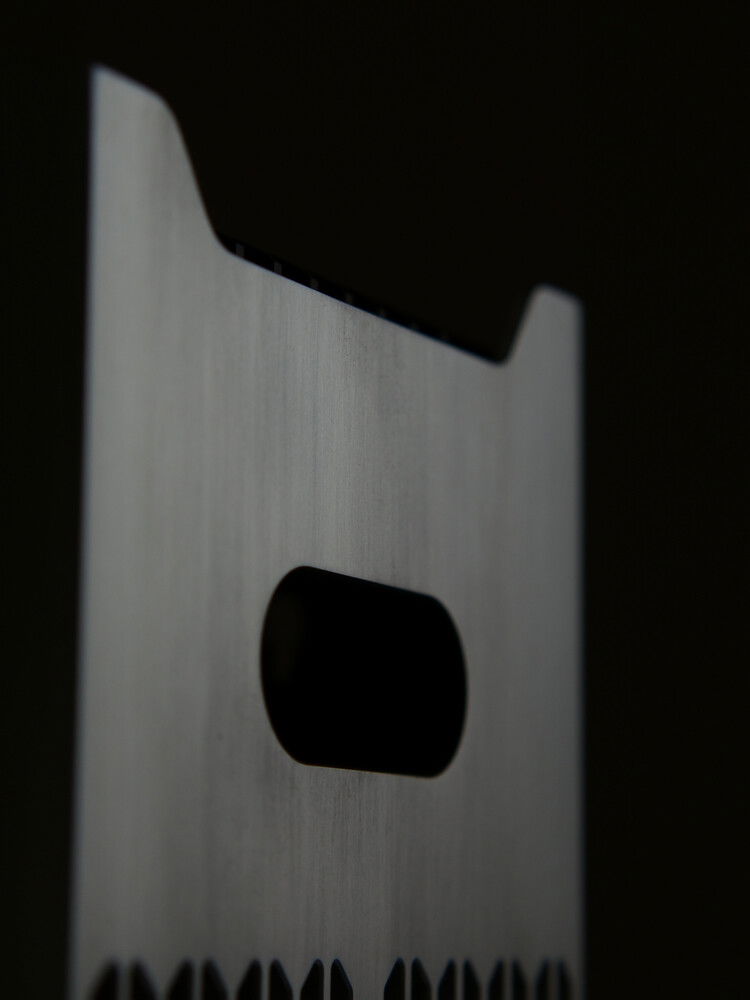

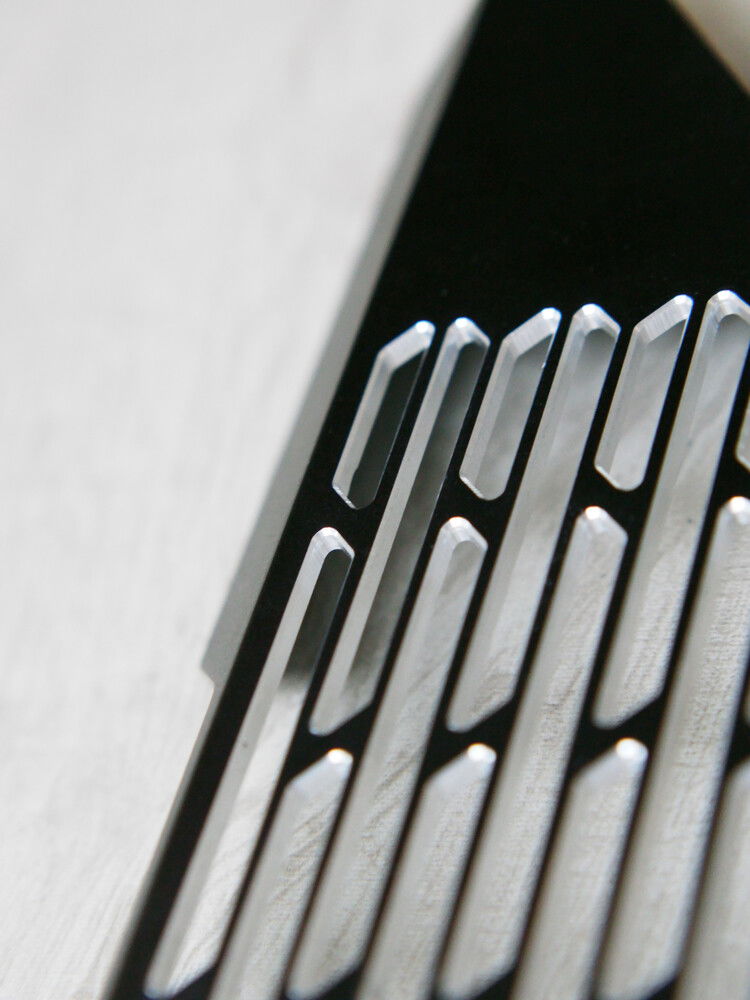

closer look

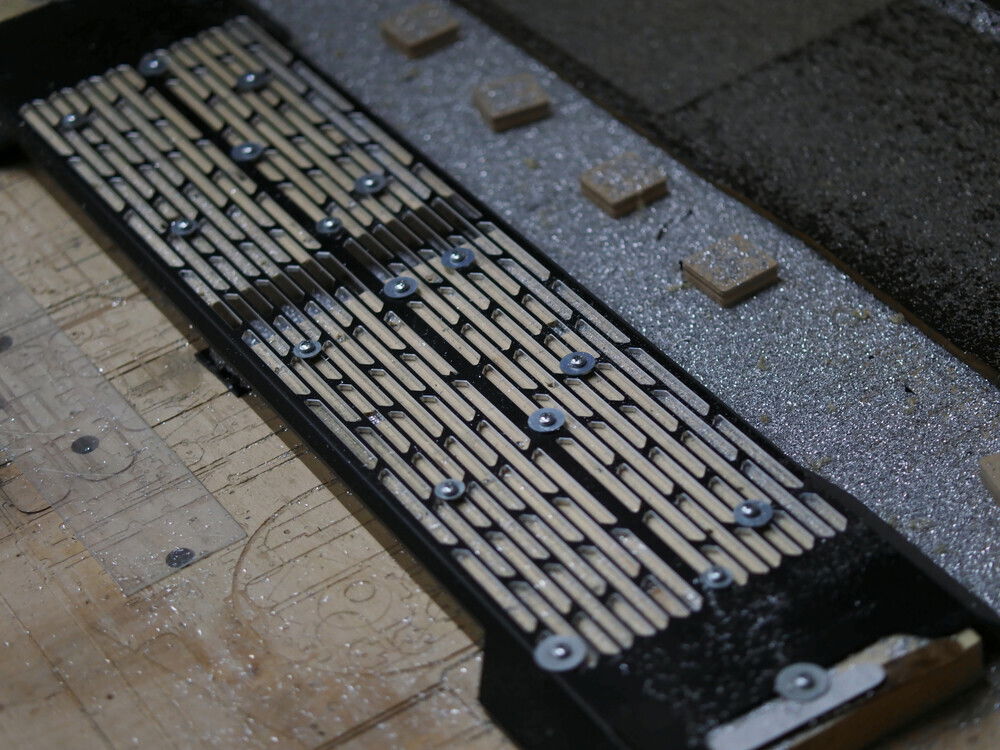

another panel, milled

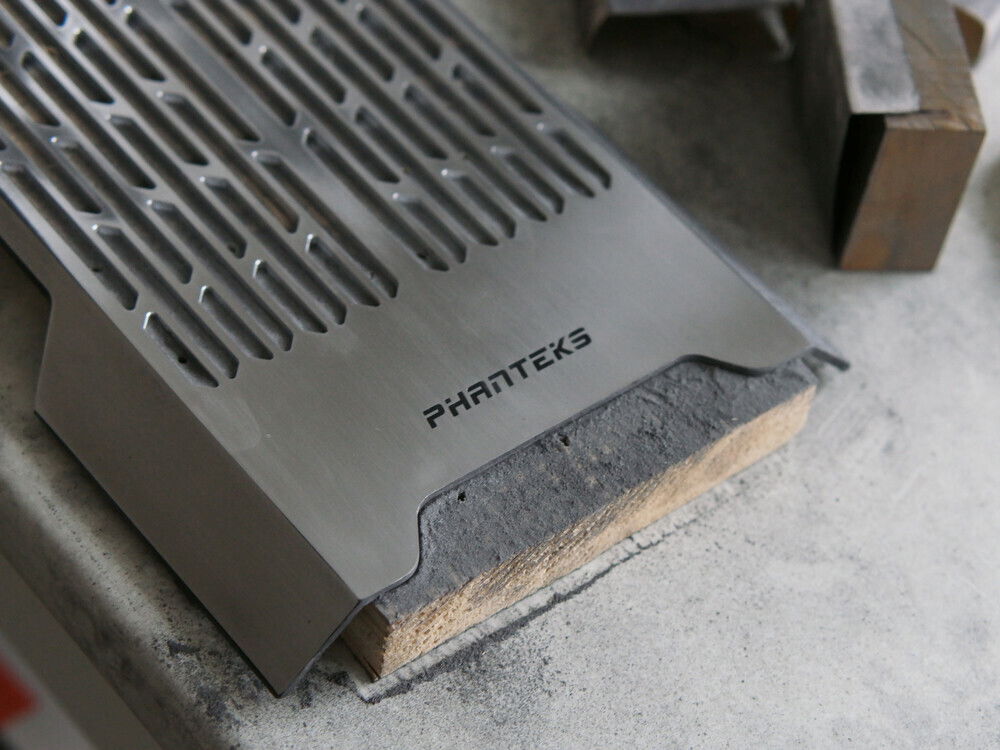

and grinding again

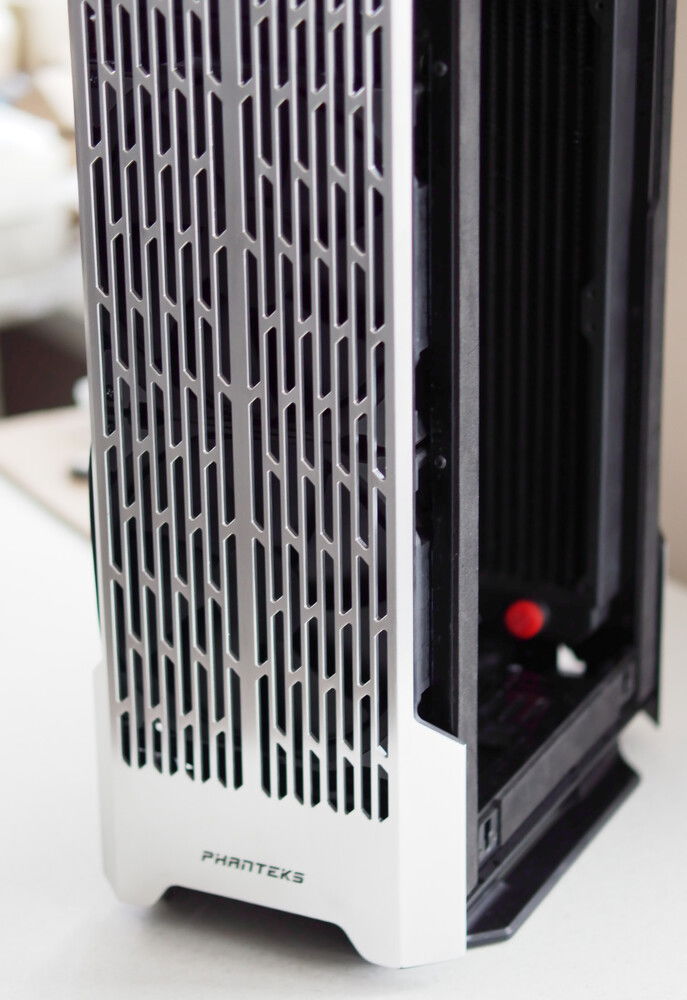

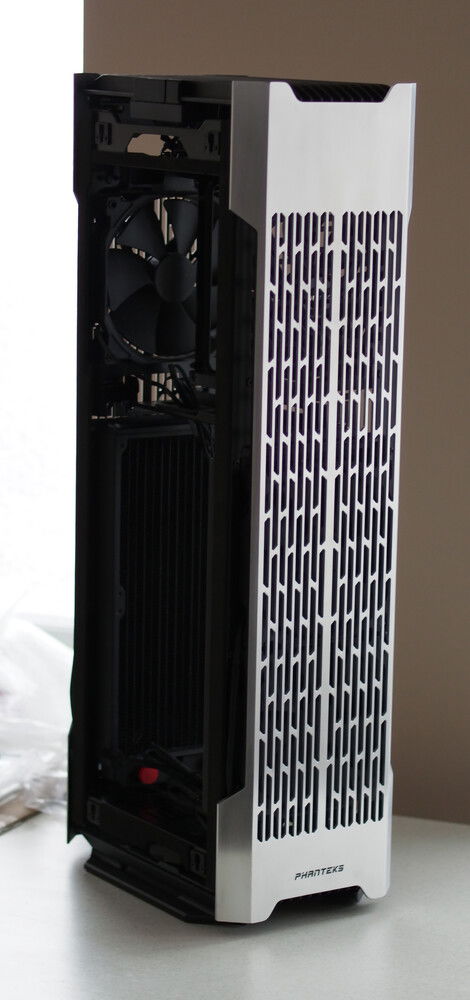

the panels are finally ready

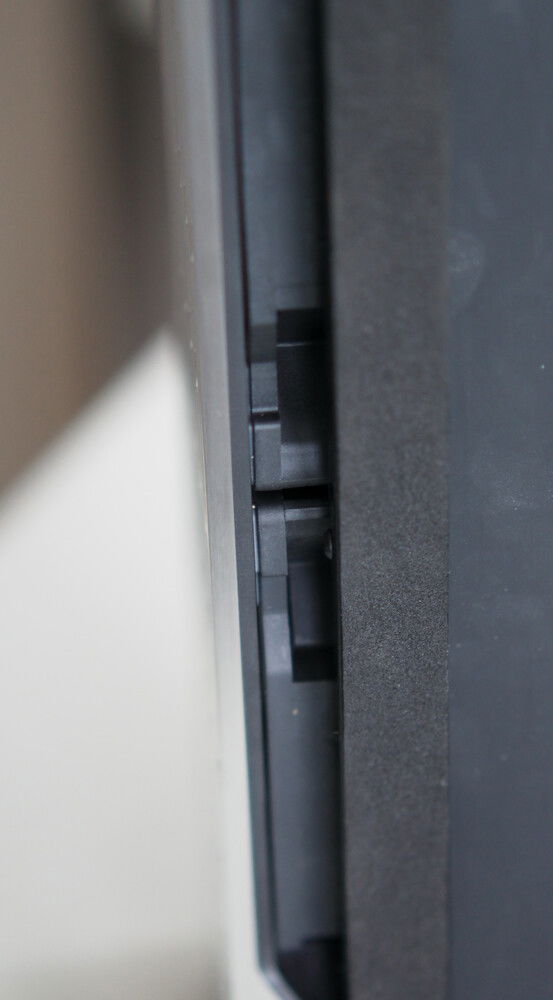

tight fit, but clearance is clearance

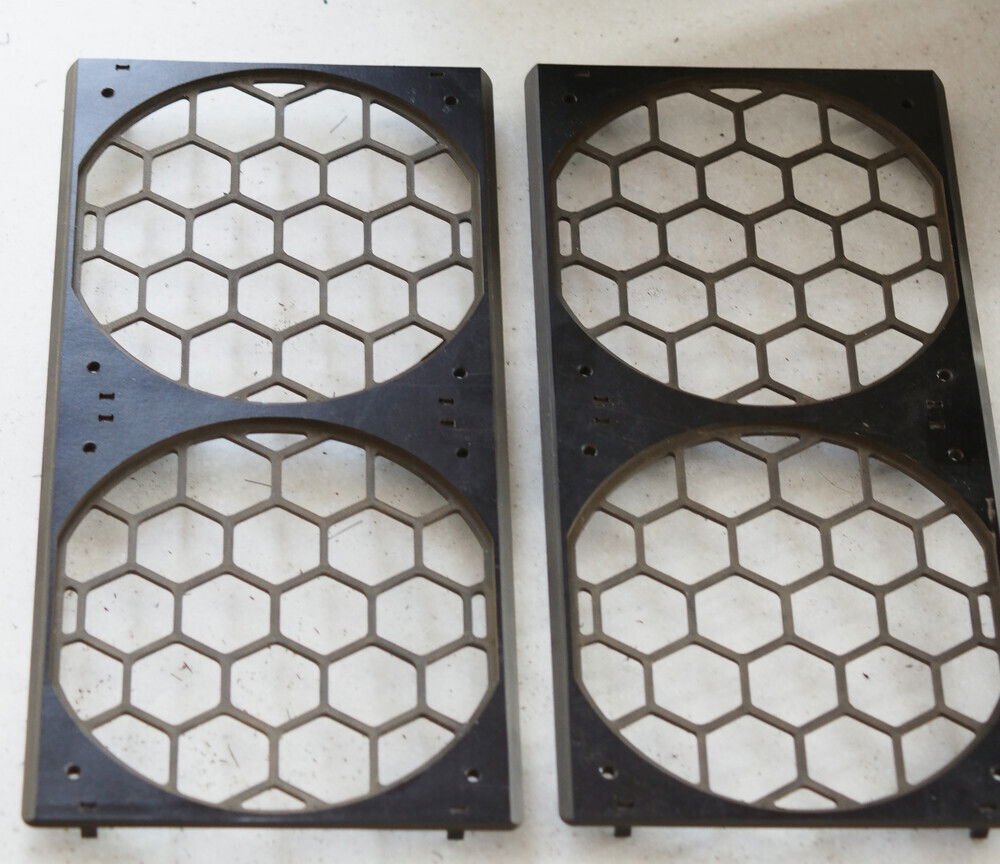

custom dust filter frames

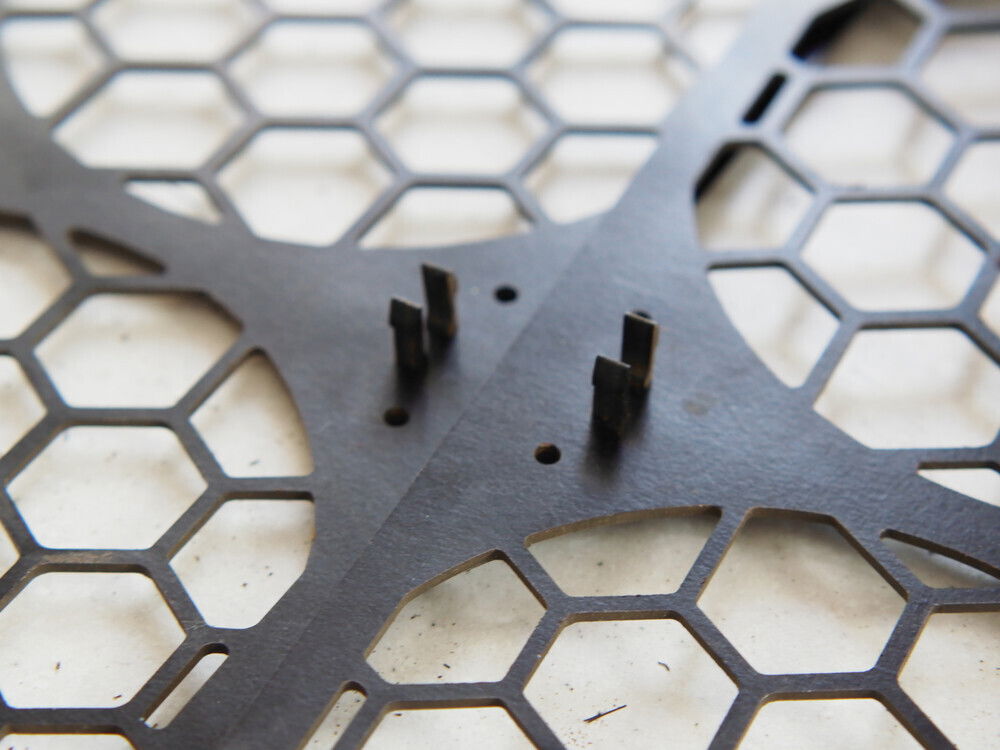

latches

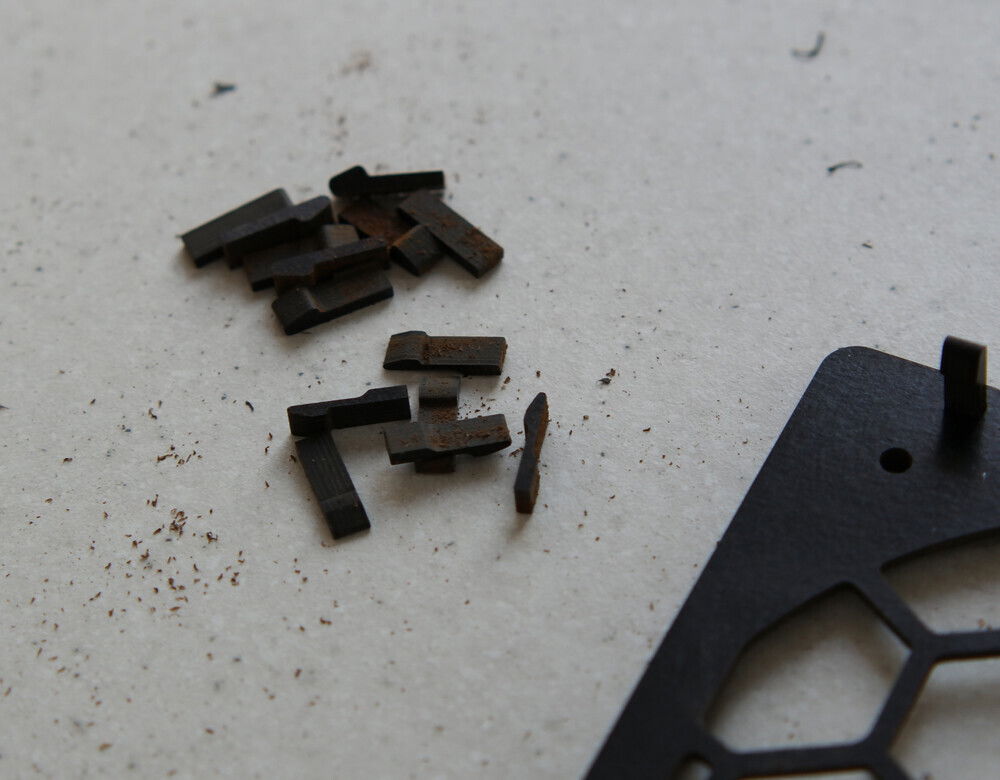

several kinds of latches, I was looking for the best fit

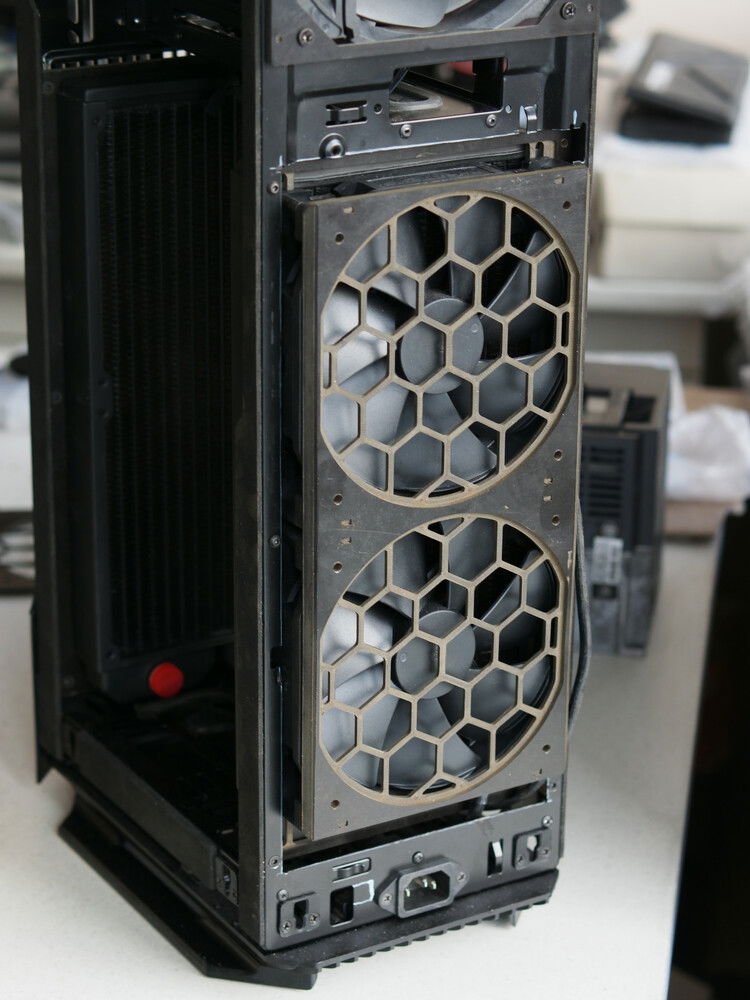

I got it just as I planned, easy to remove but tightly seated

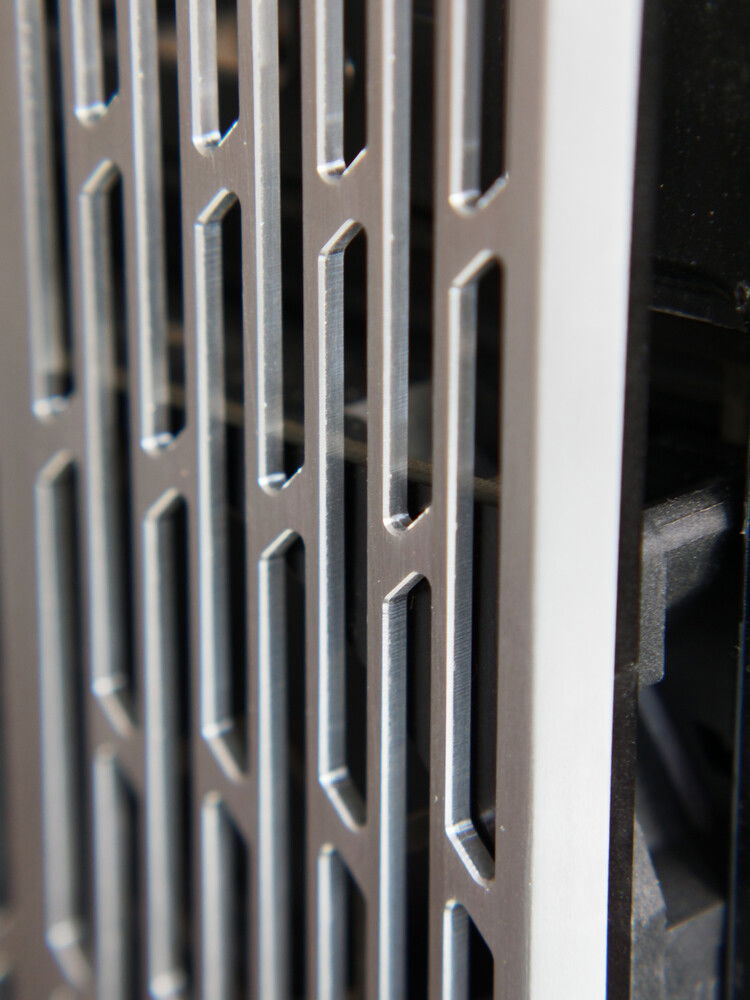

gap between frames and panel ~1mm

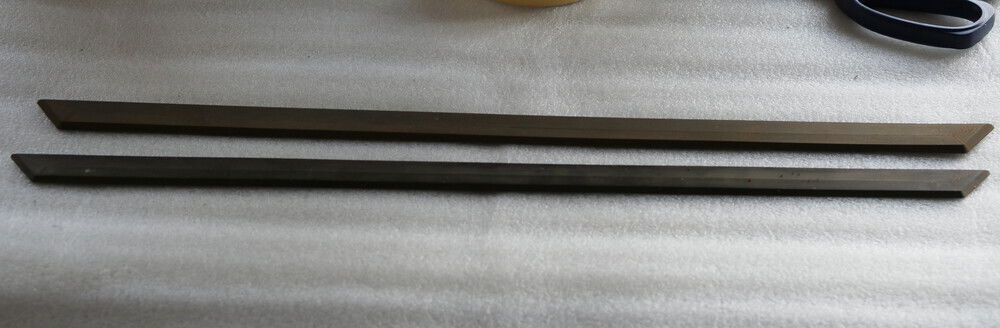

strips that cover the space between the panels and the case

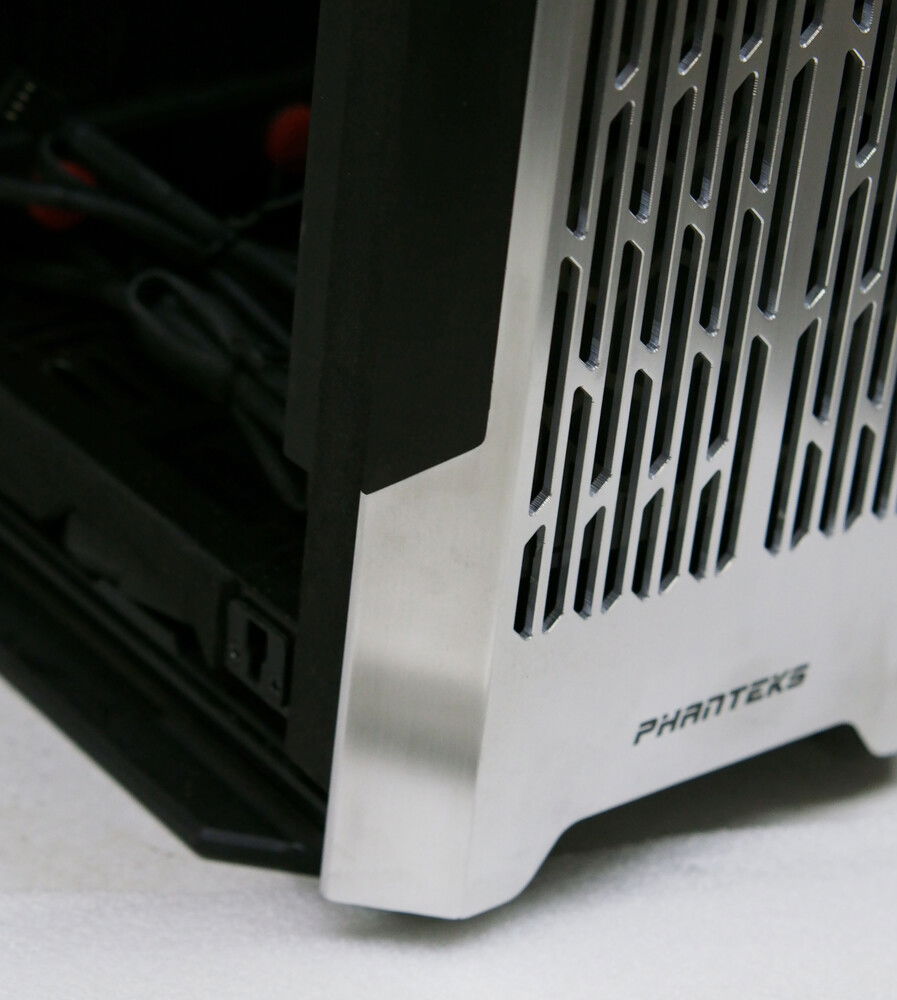

fit perfectly

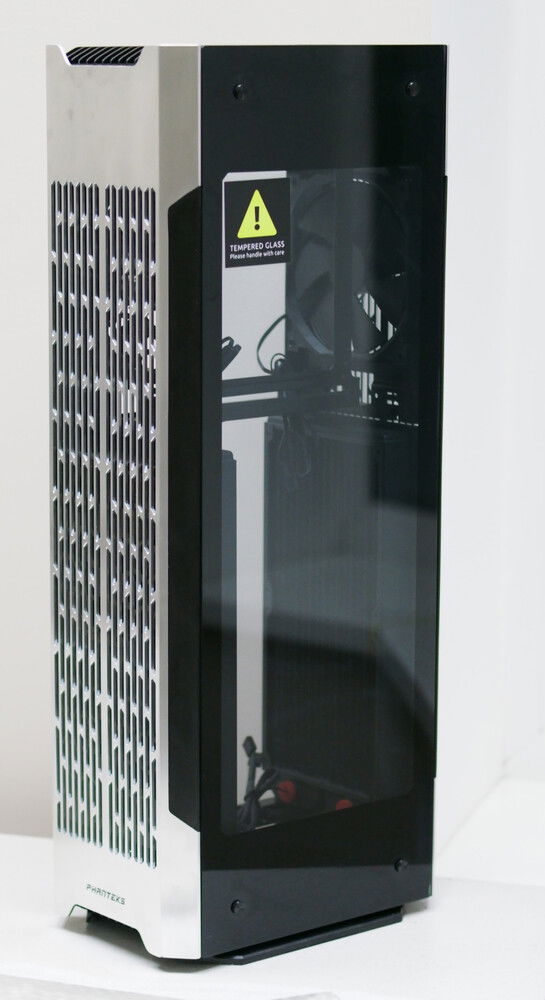

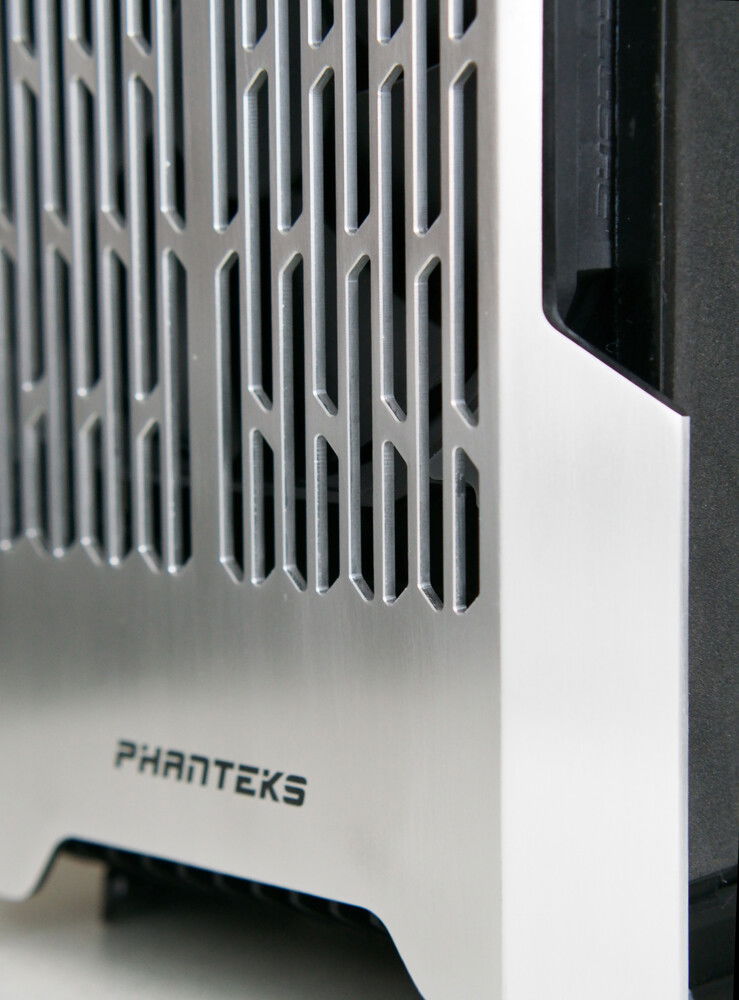

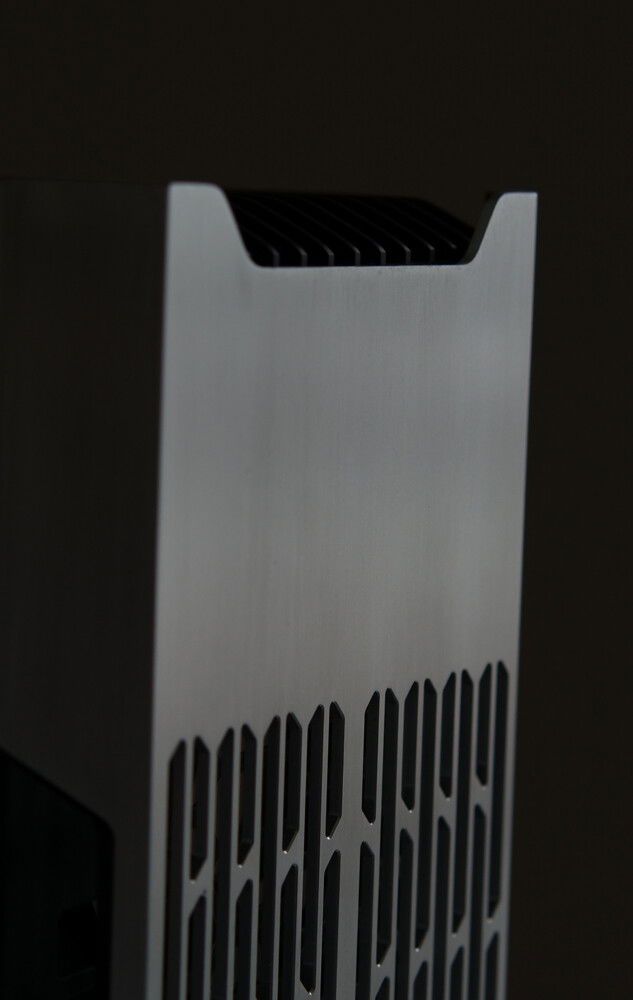

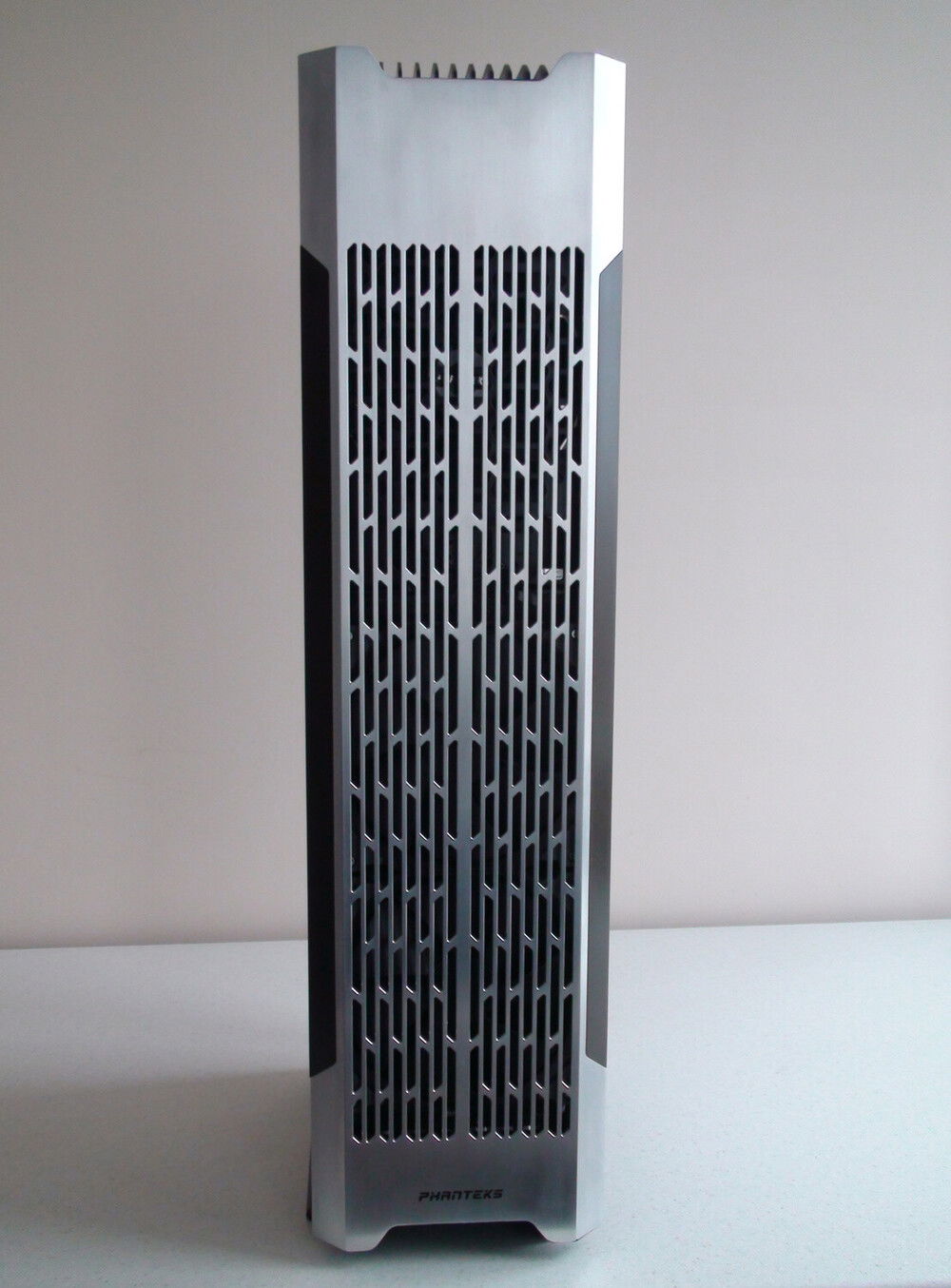

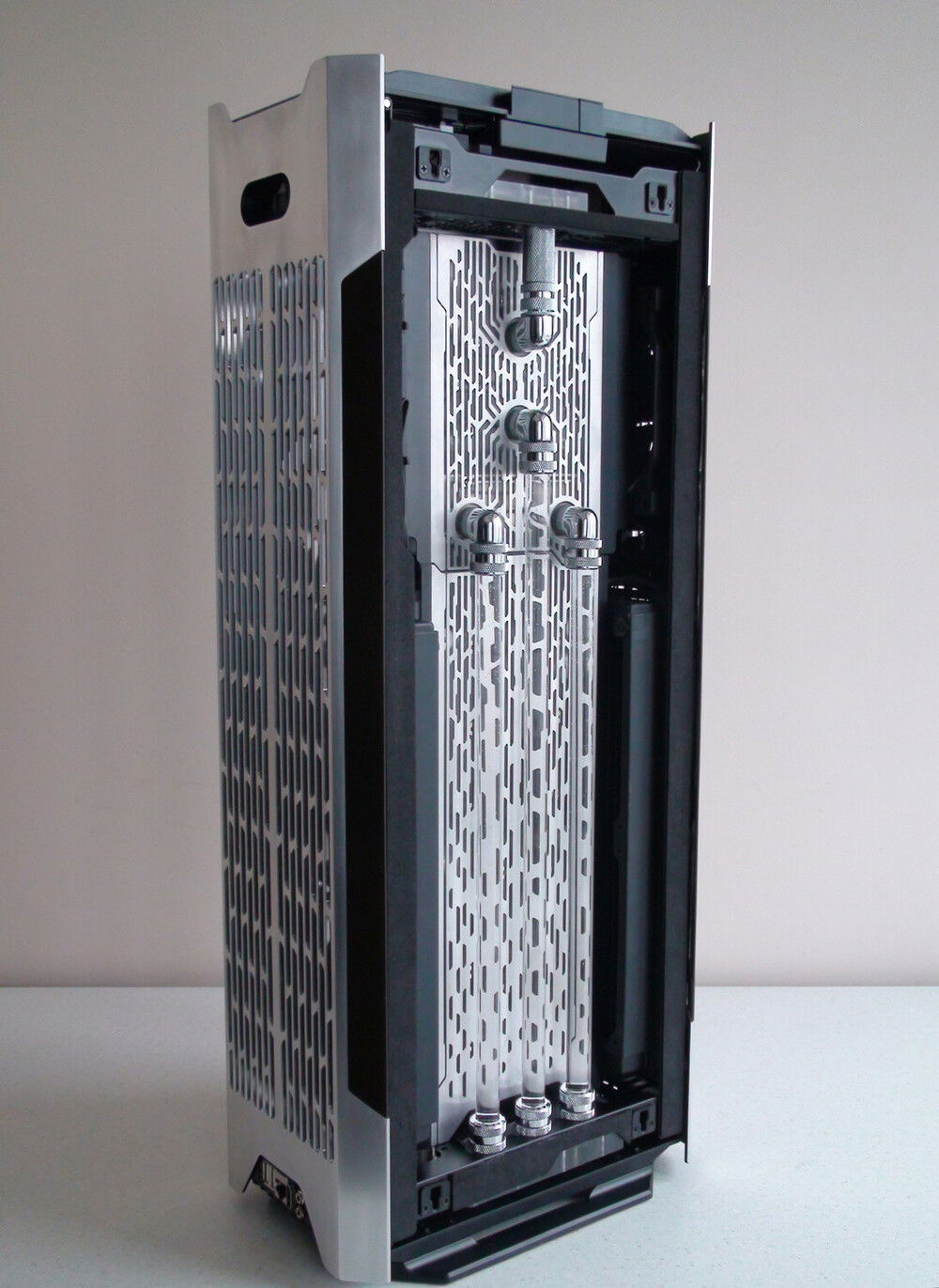

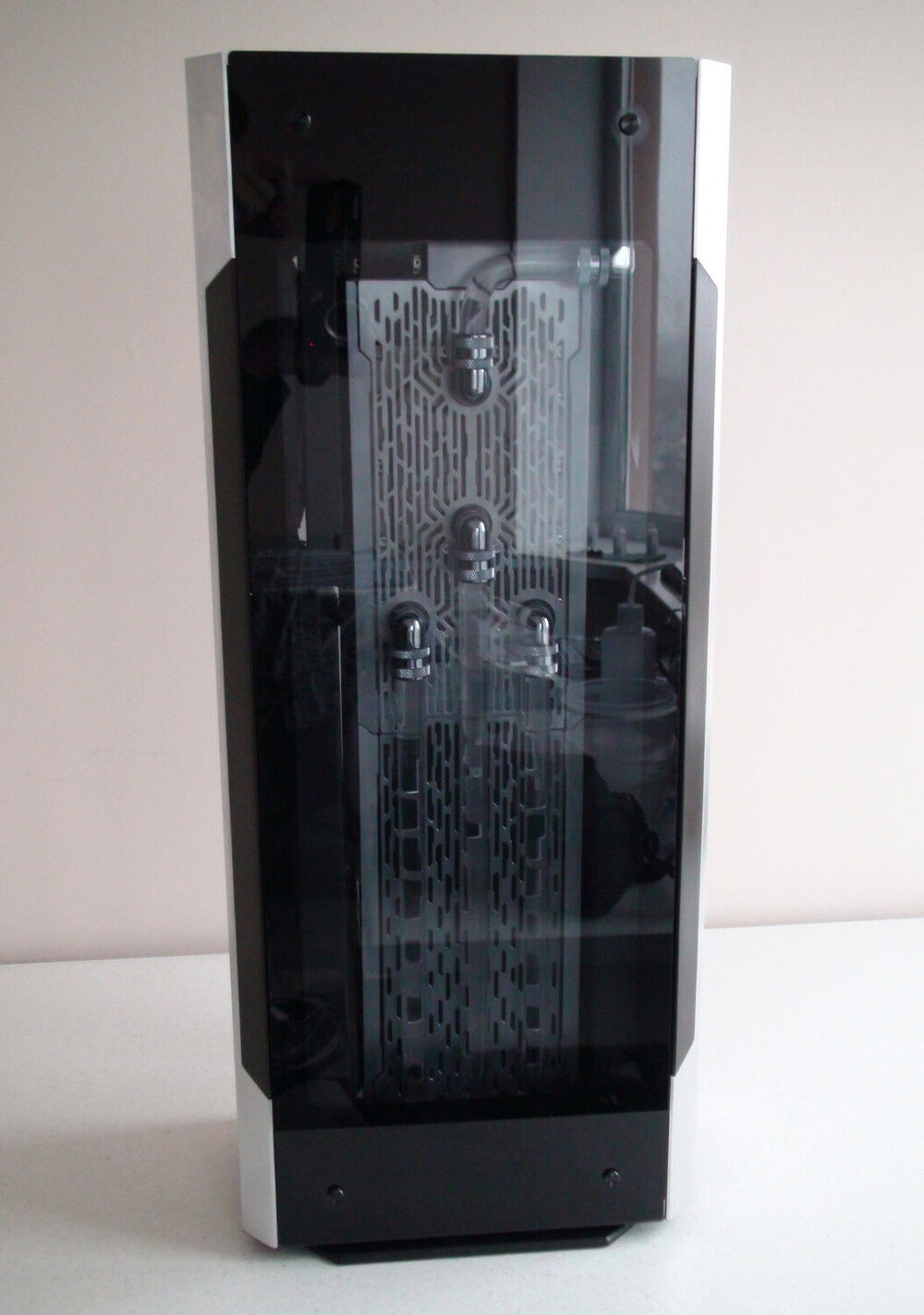

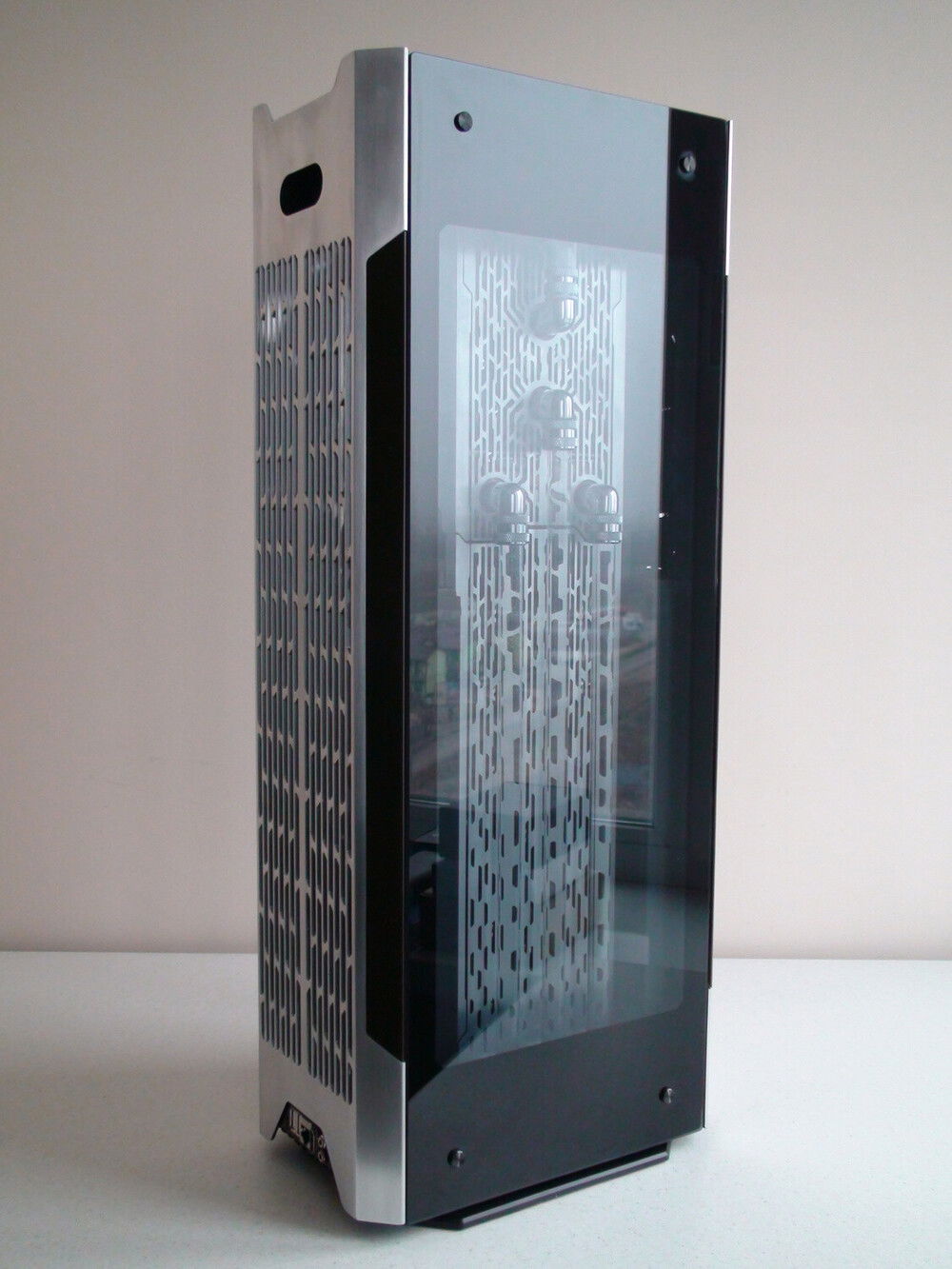

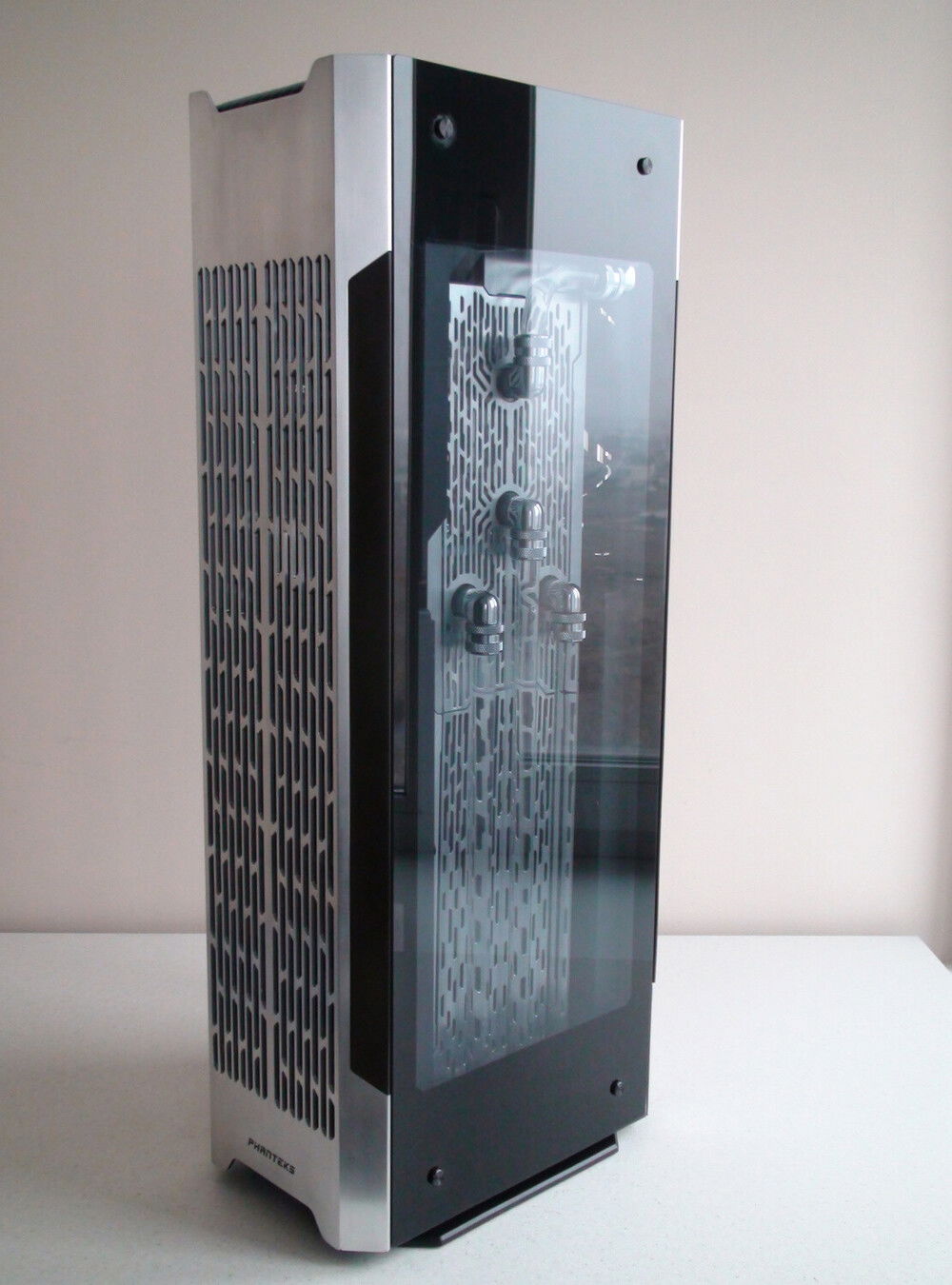

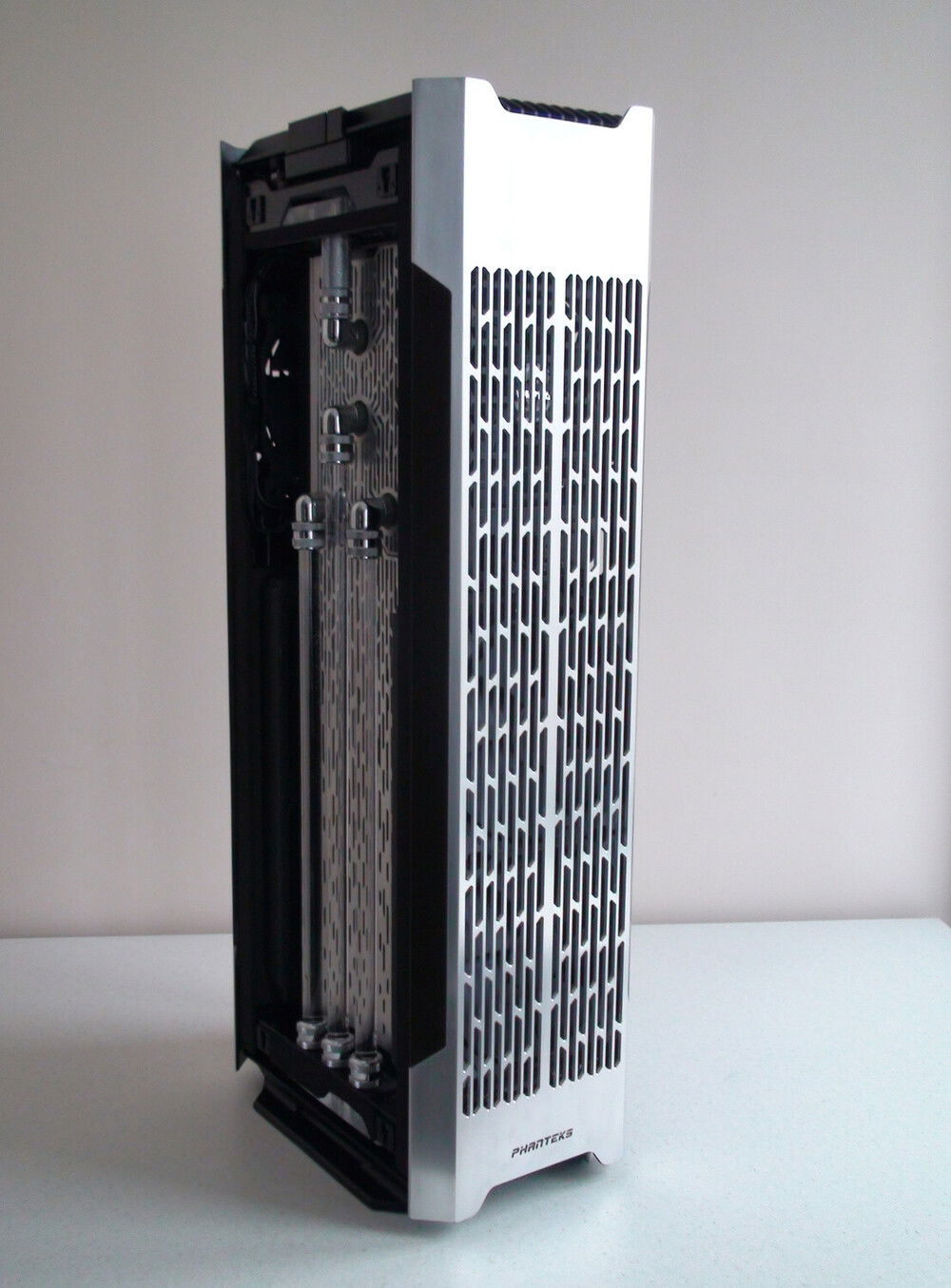

general view, case exterior ready

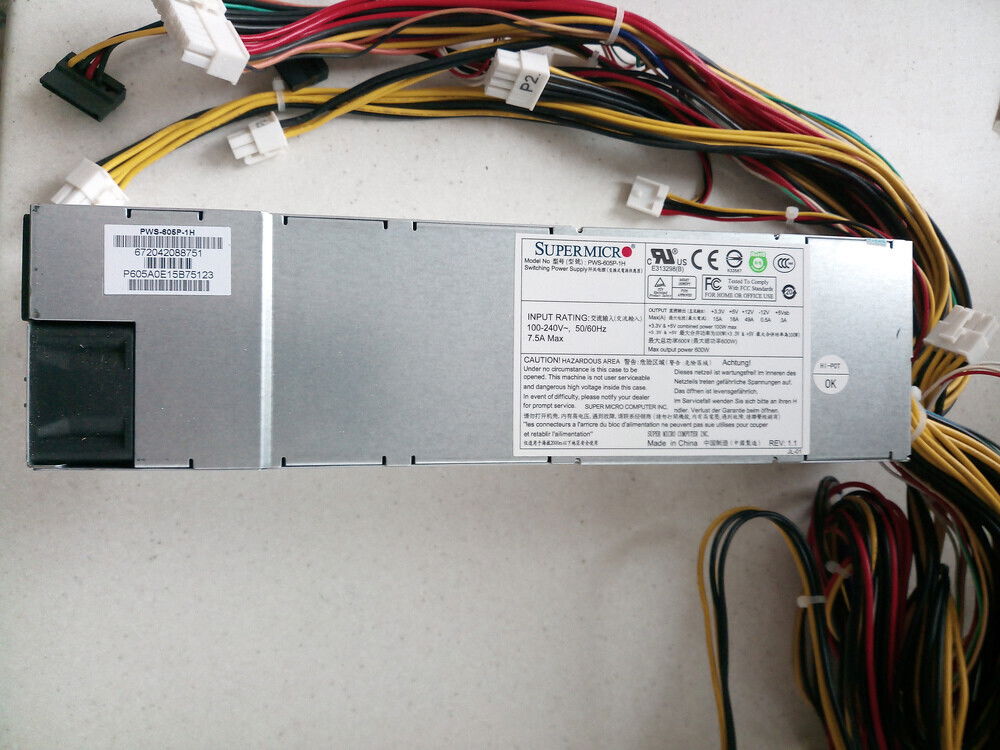

Since the space for the standard PSU is now occupied by 2 radiators, I decide to use a server PSU

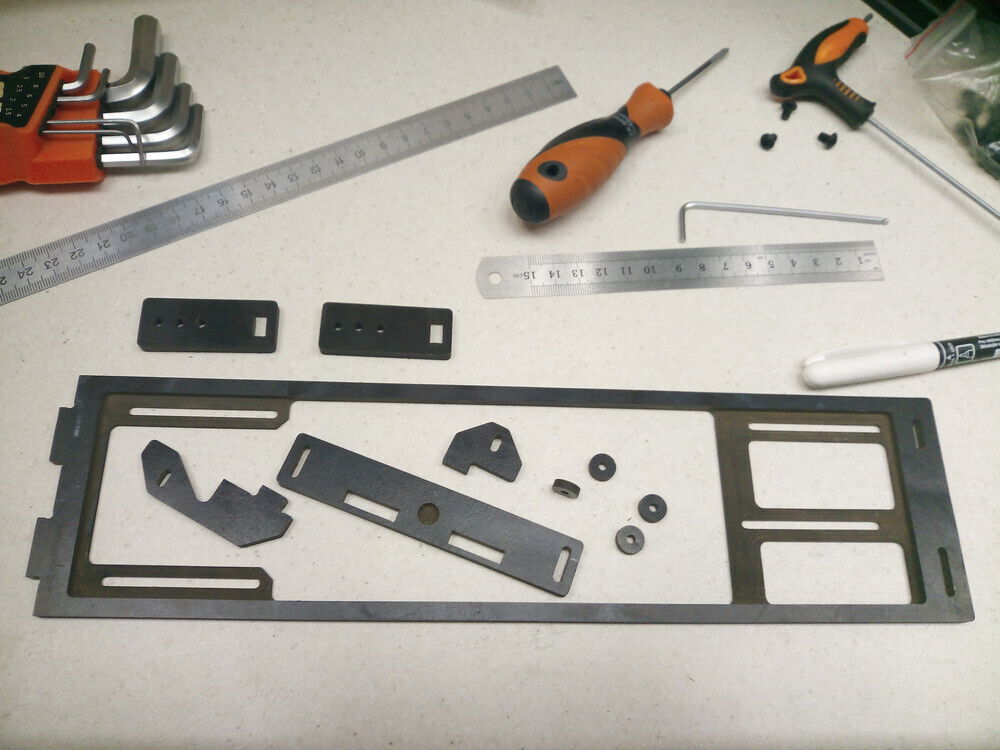

custom PSU mount

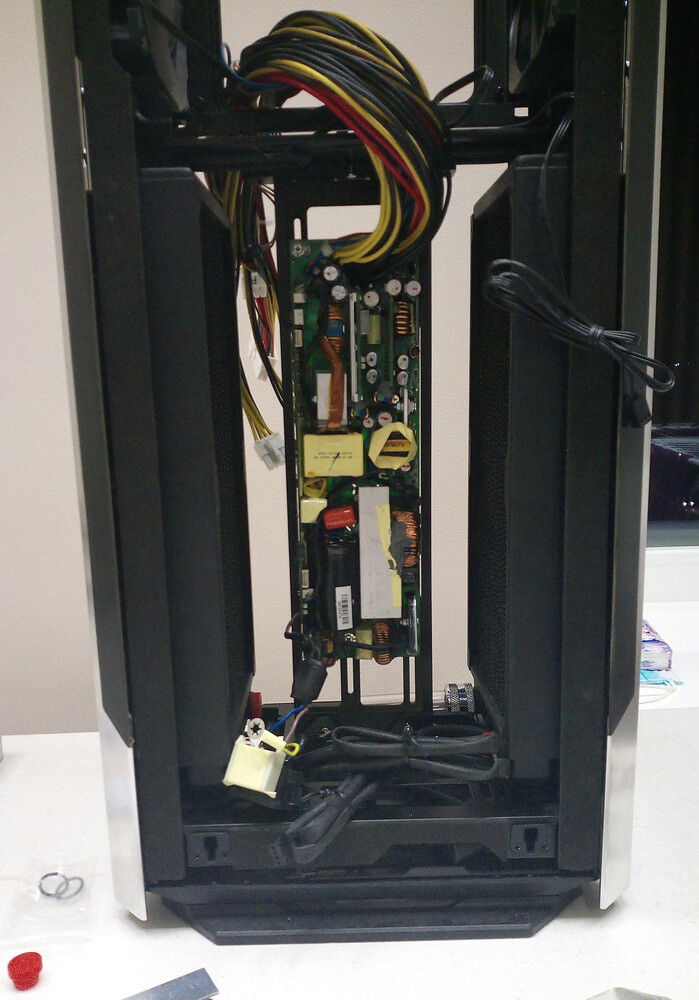

The PSU is in place

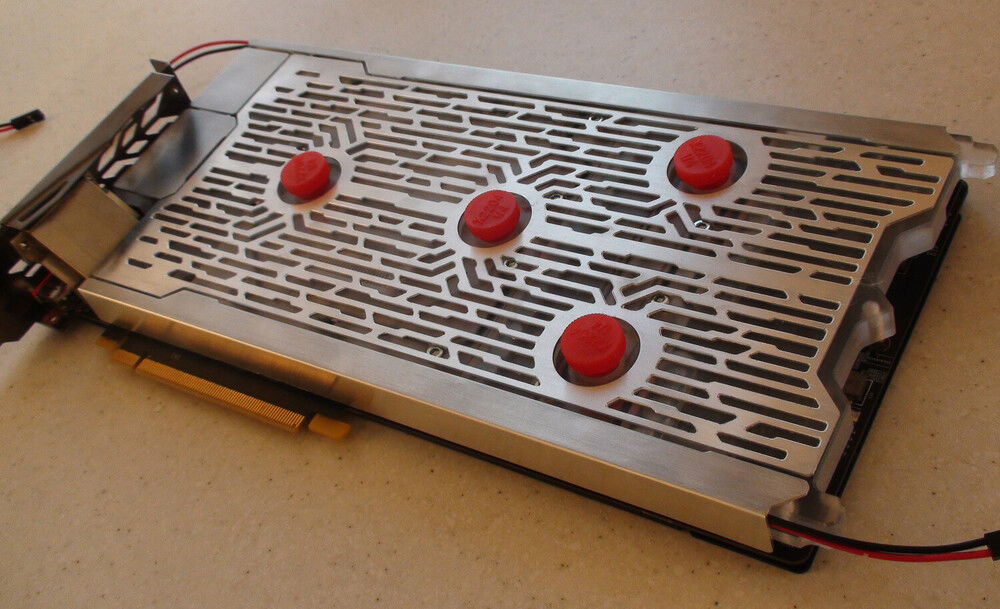

videocard with custom waterblock

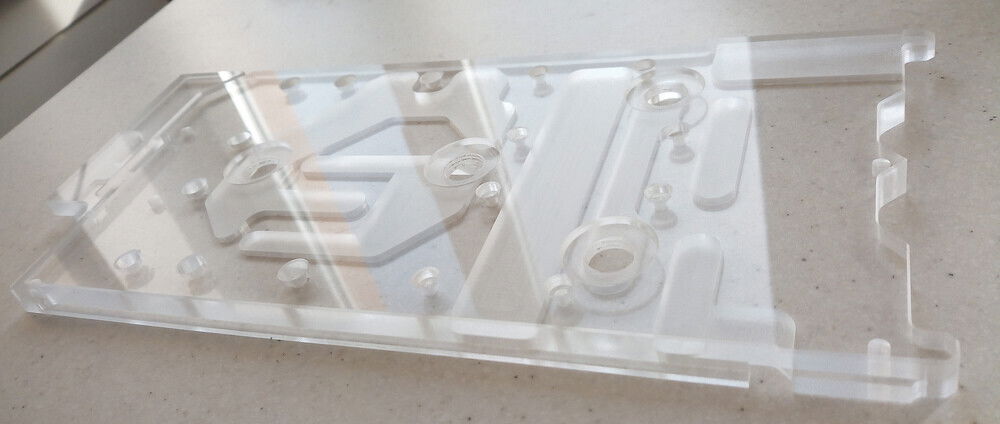

acrylic panel

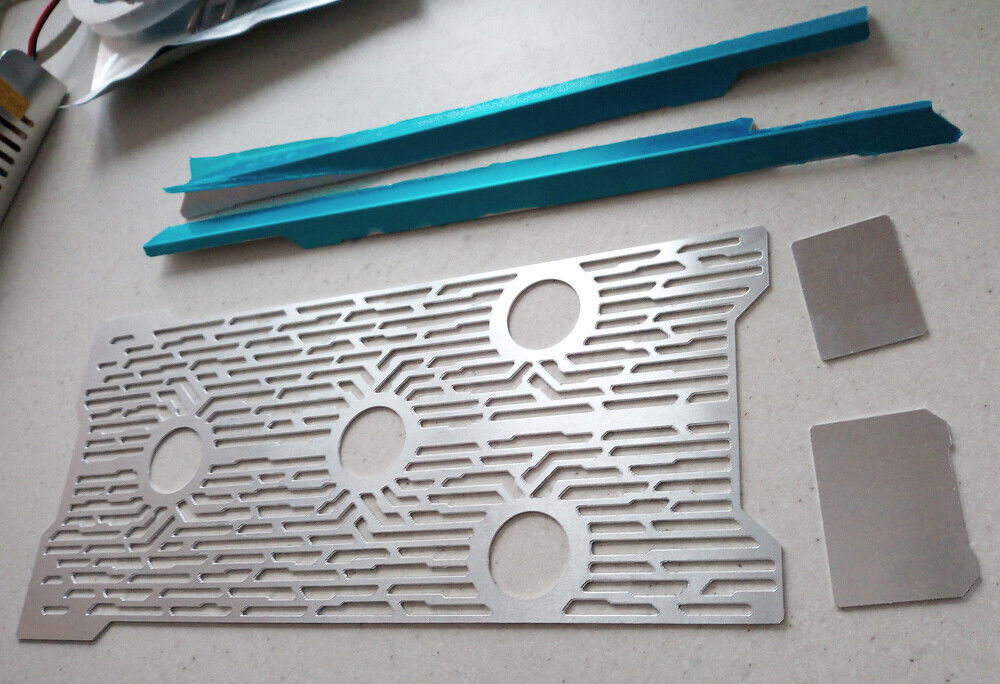

aluminum covers

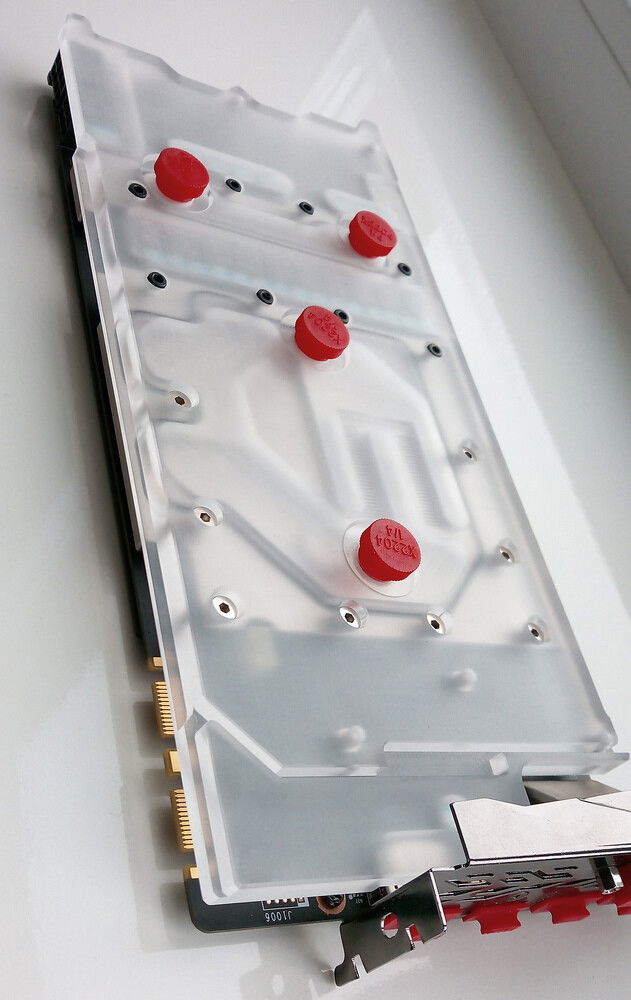

satinizing acrylic

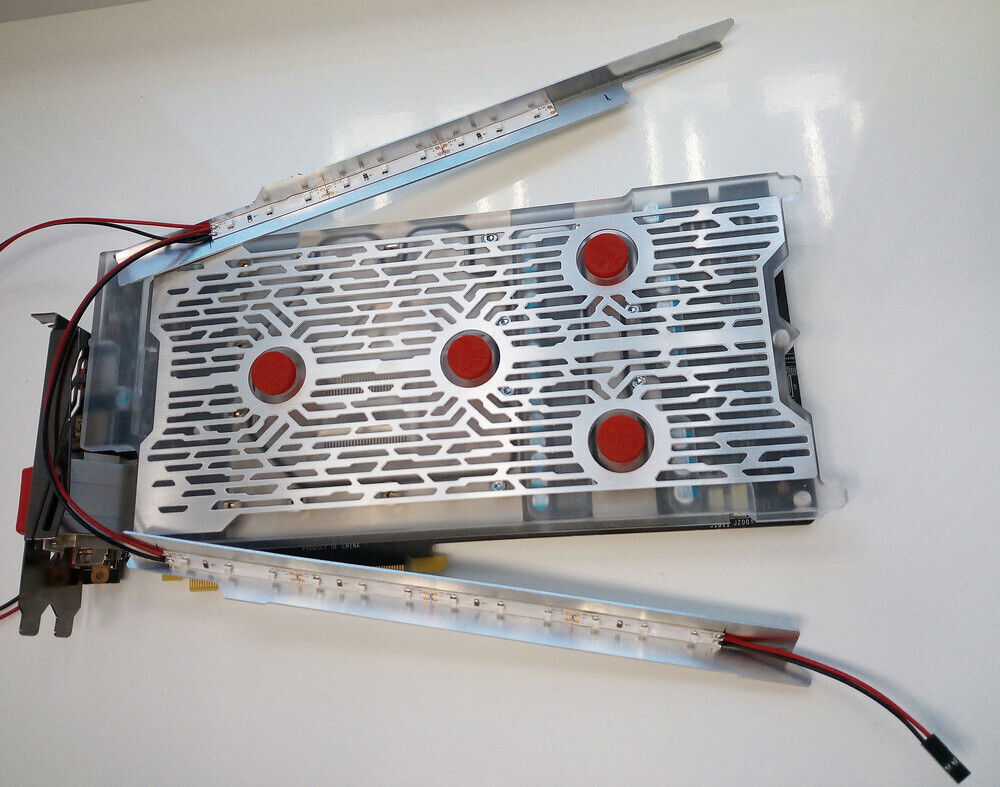

add UV-led strips

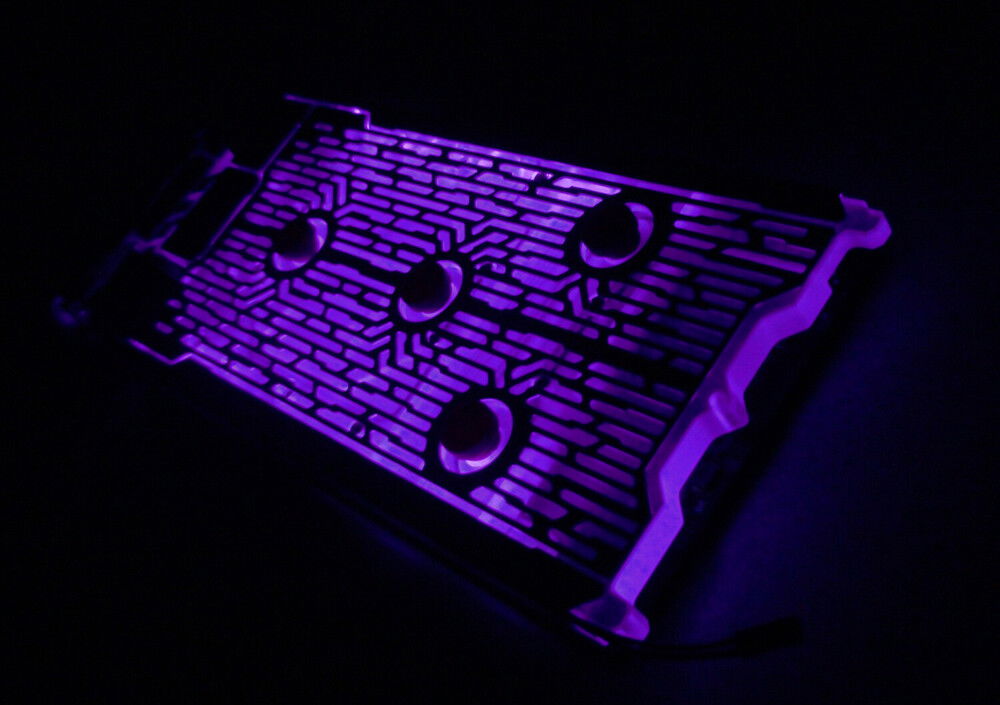

with light

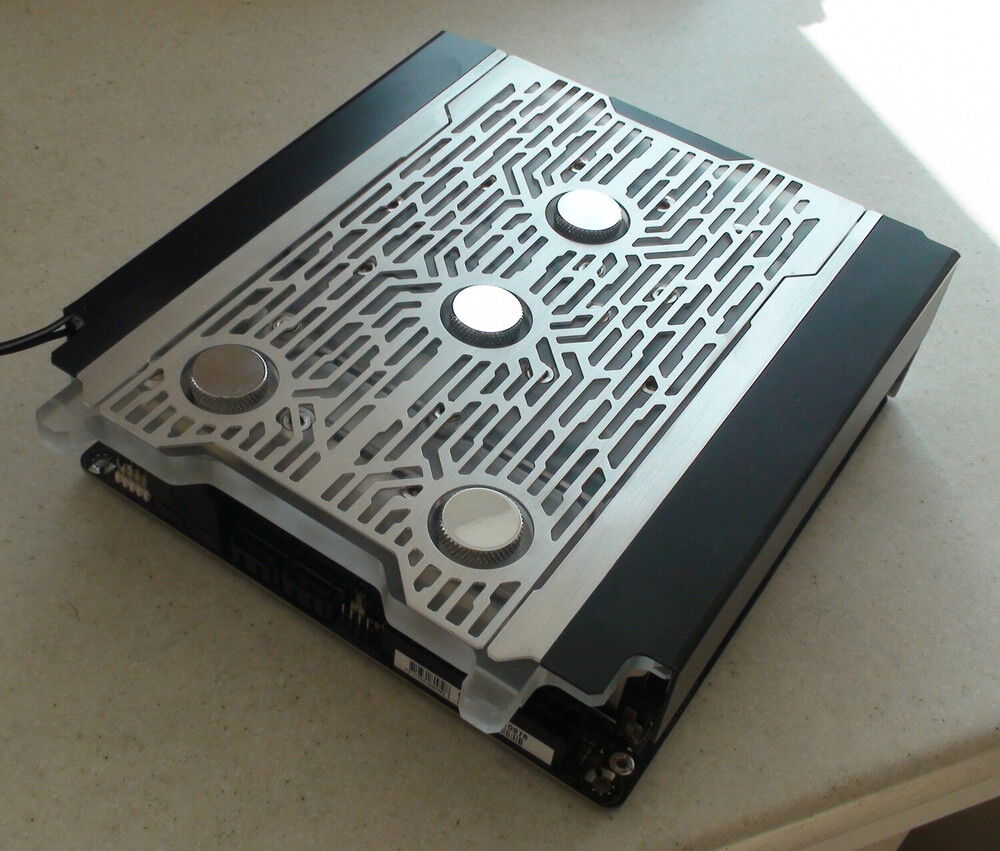

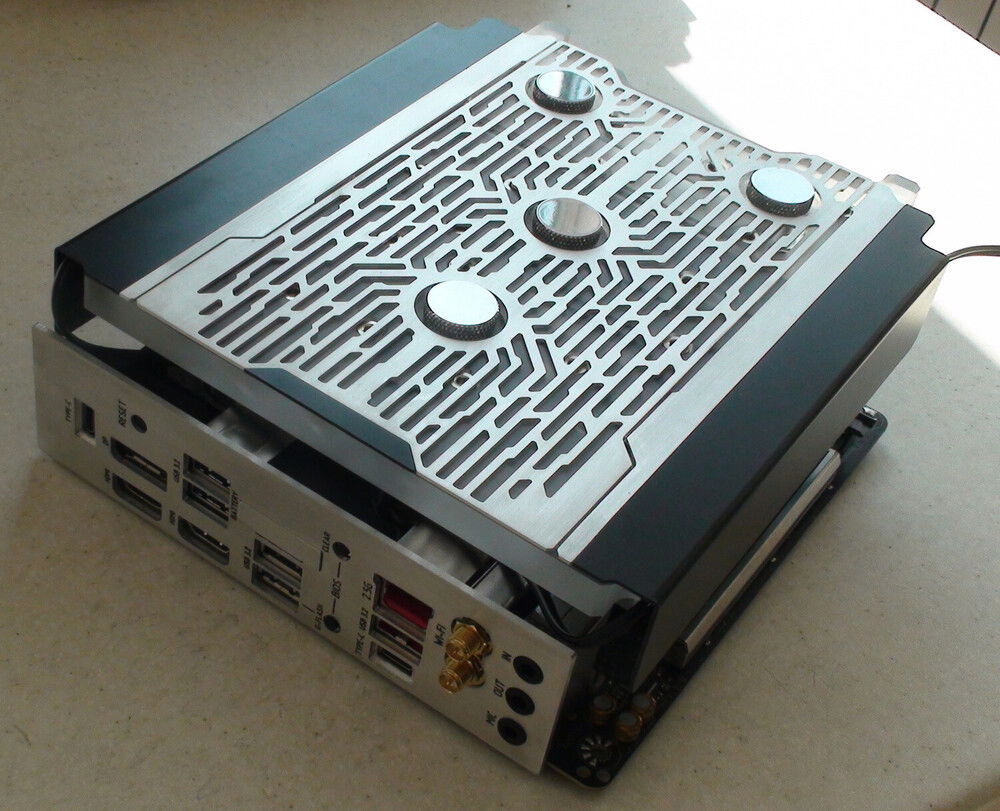

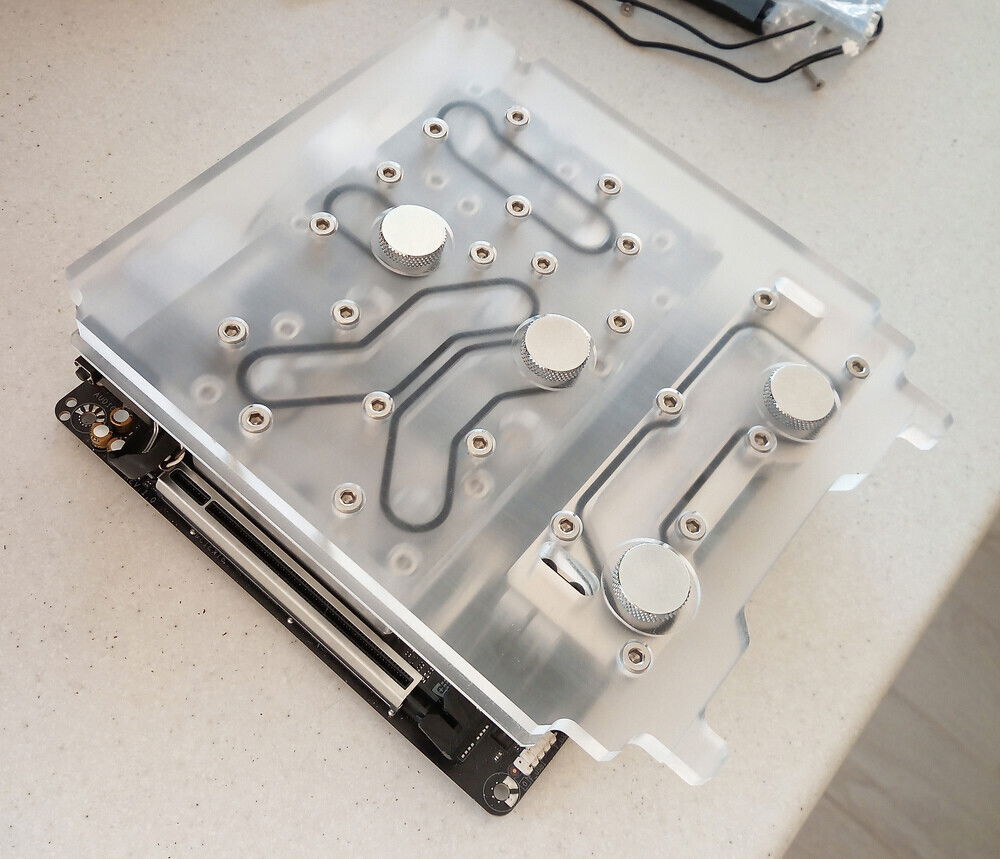

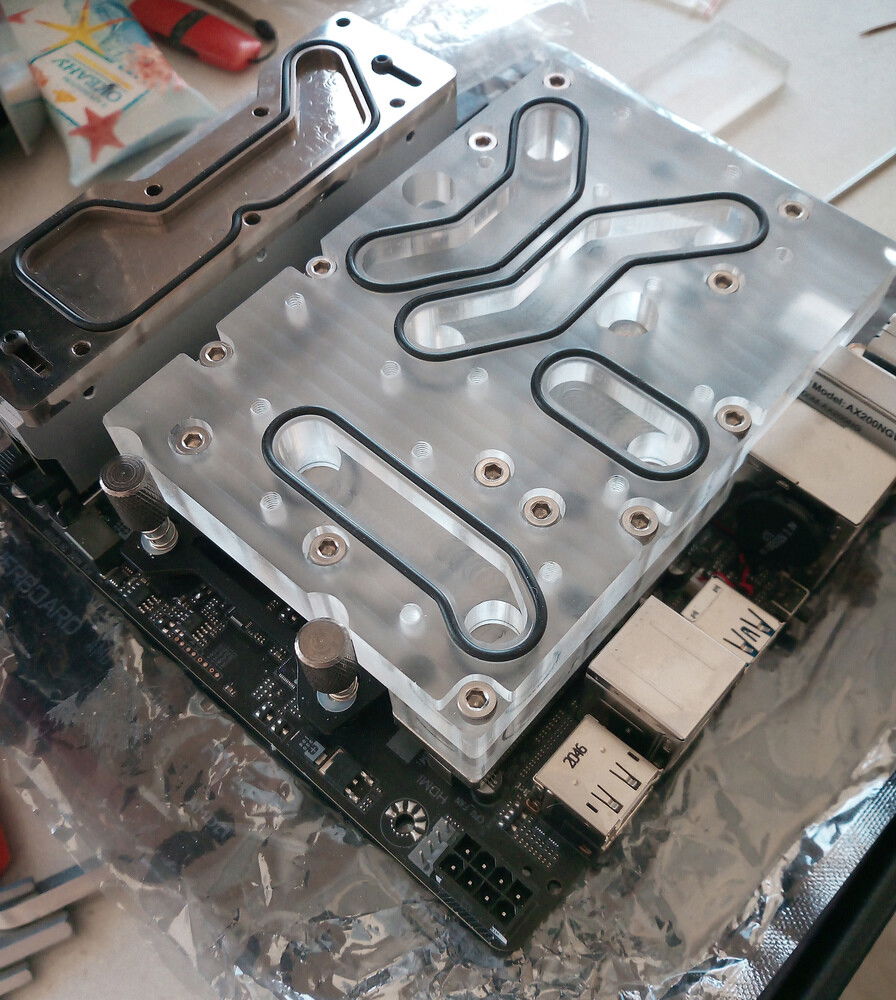

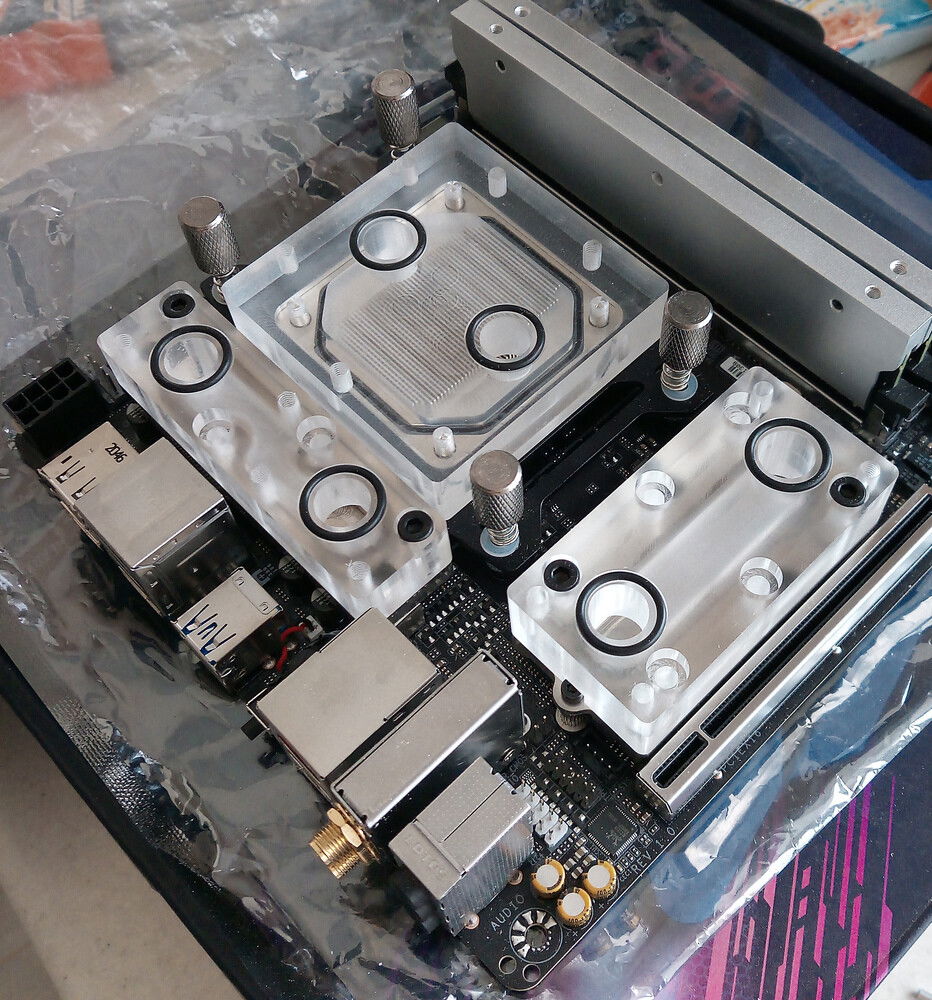

motherboard with custom waterblocks and multilayer distro

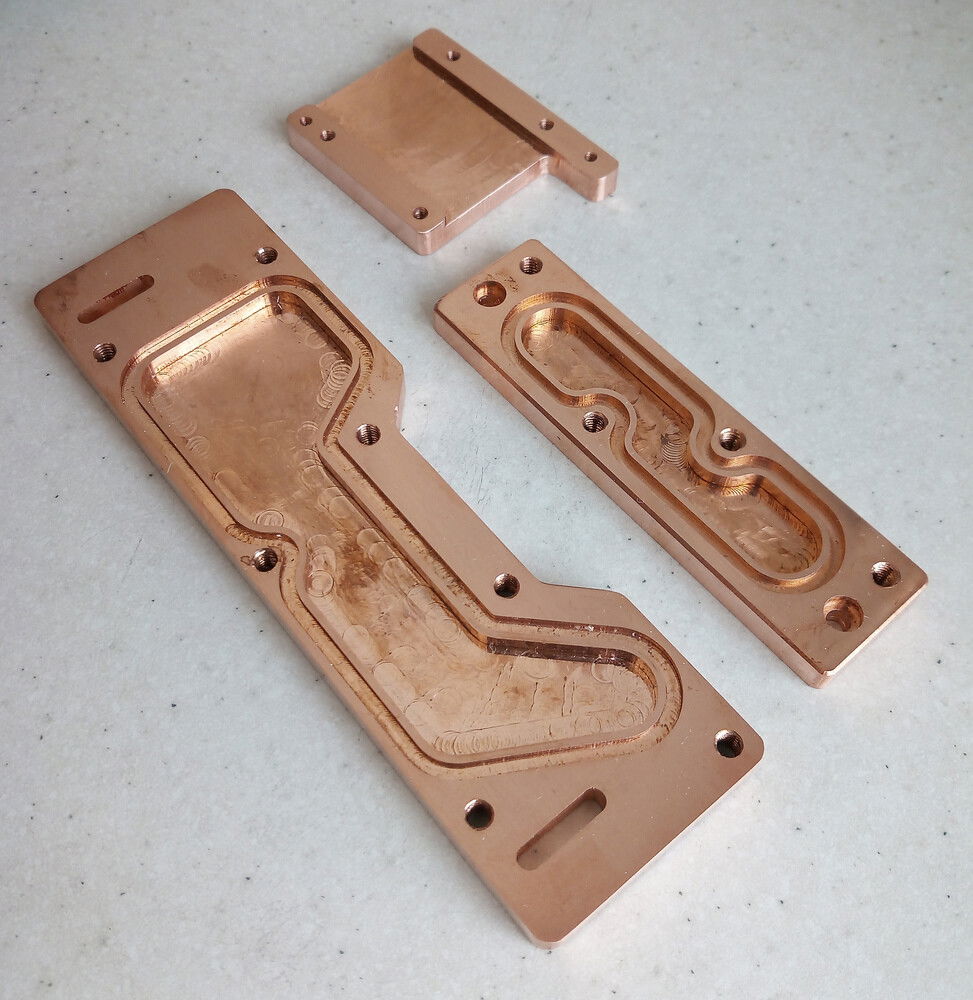

first custom copper parts

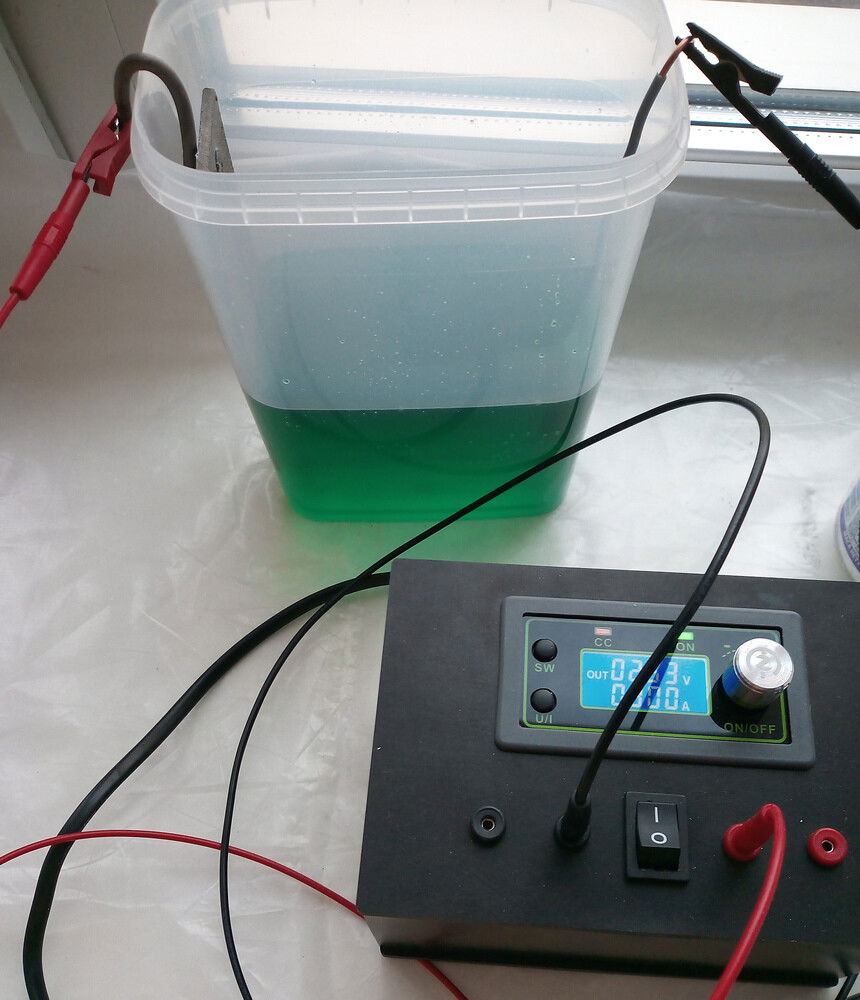

nickel electroplating

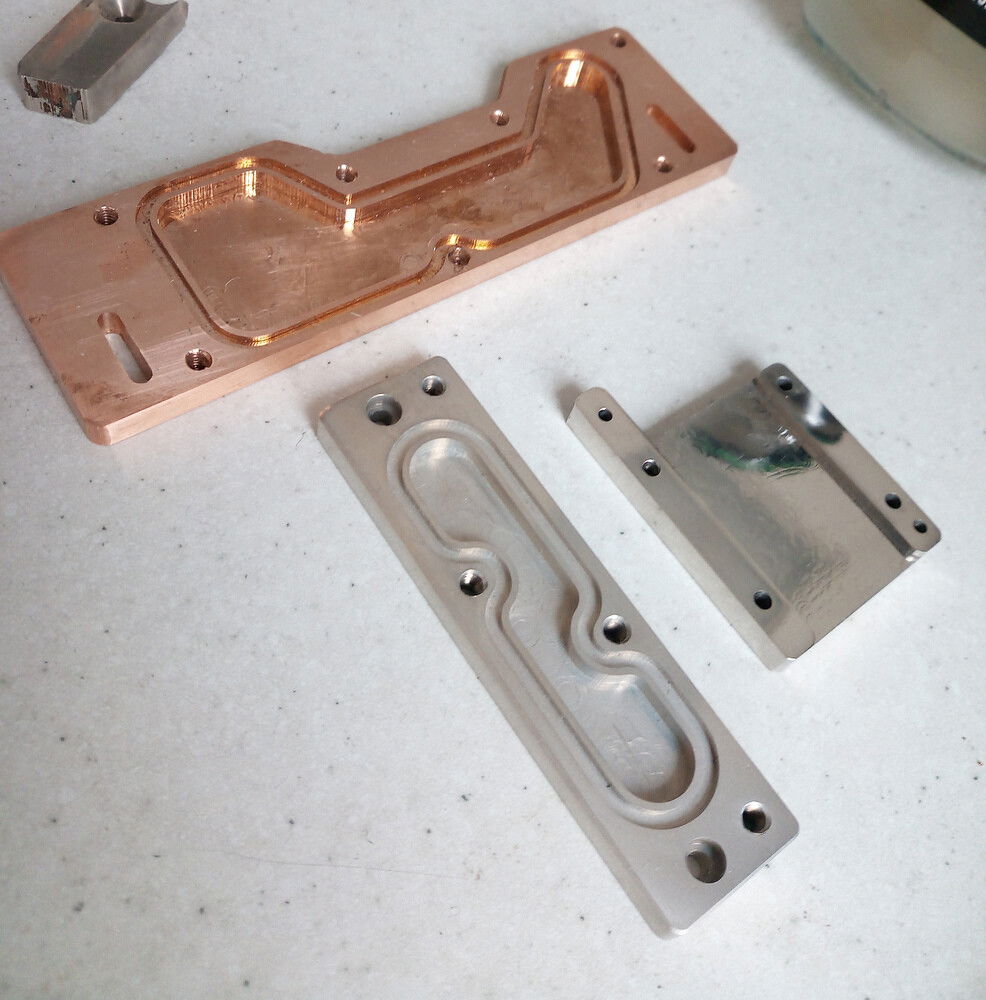

w/o plating, with nickel plating and after polishing

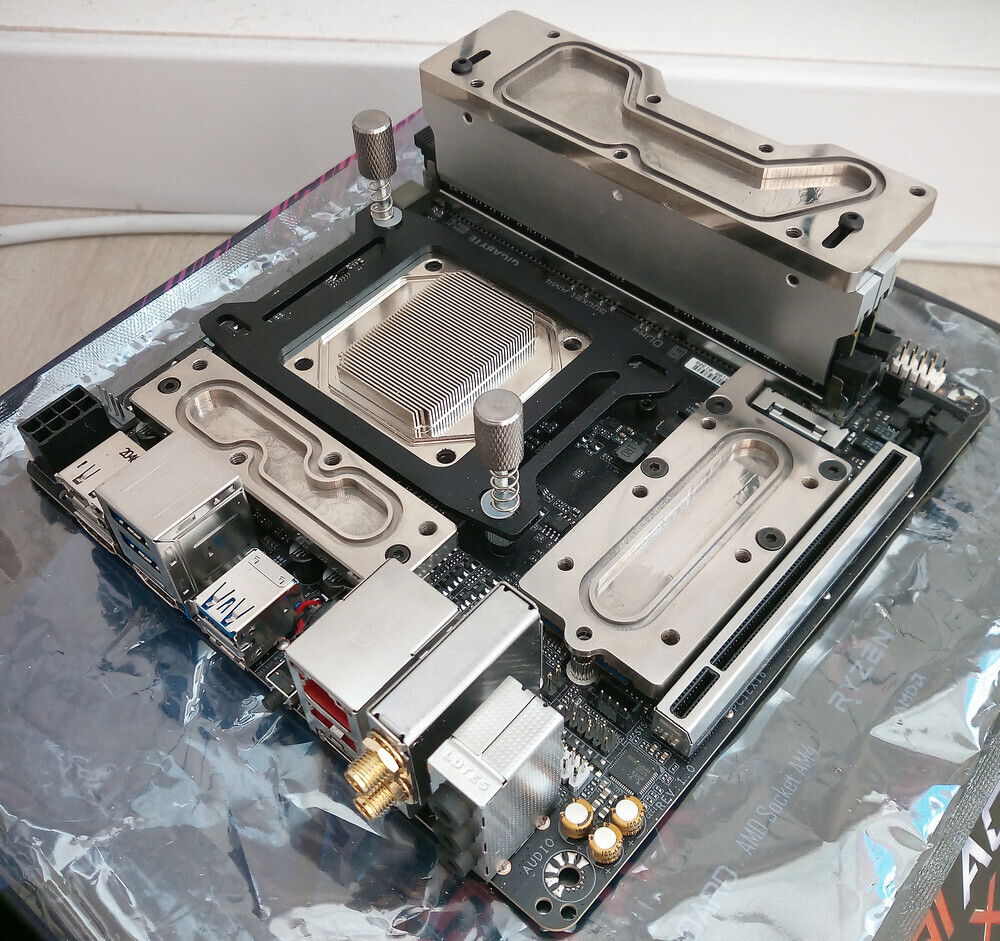

all cold plates

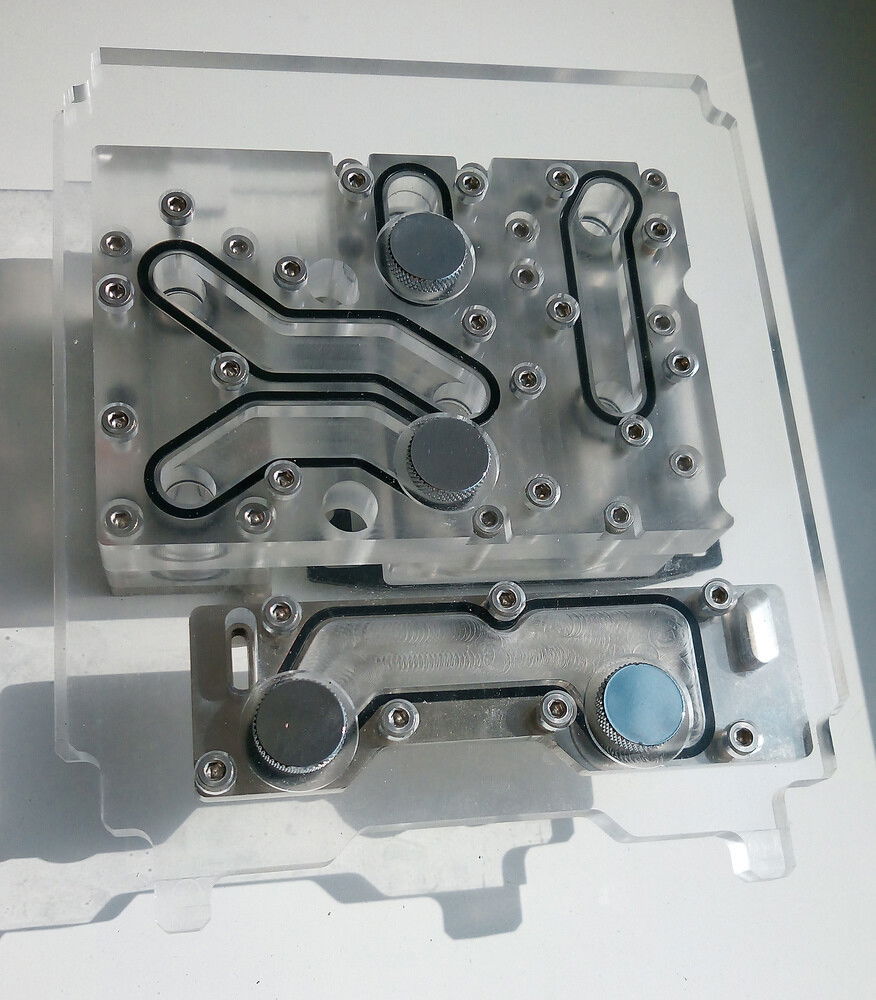

all assembly w/o board

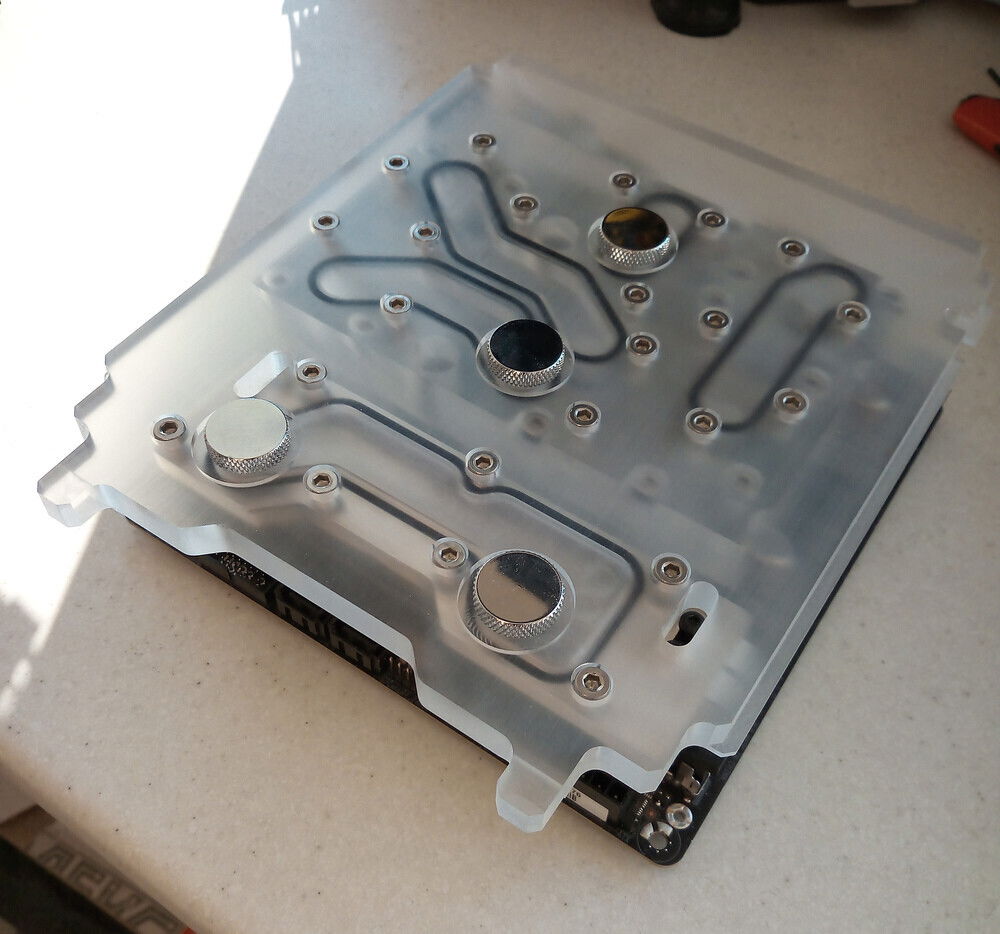

satinizing upper acrylic plate

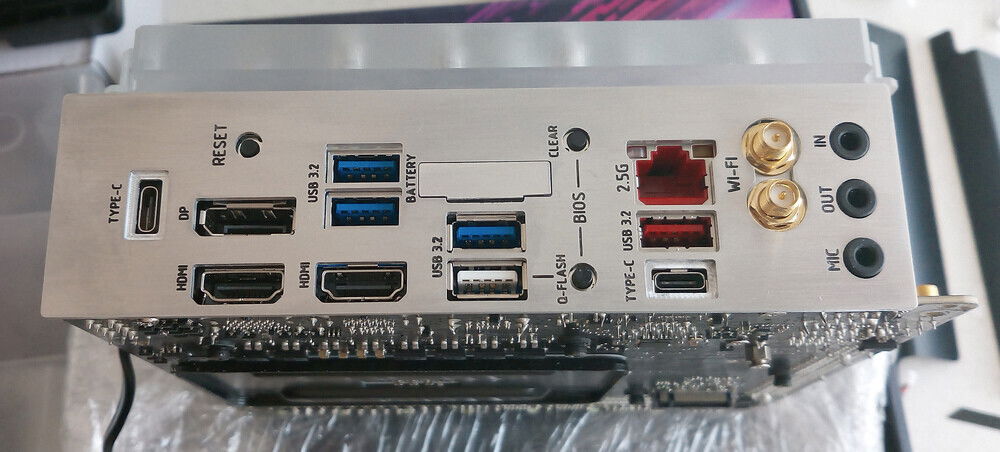

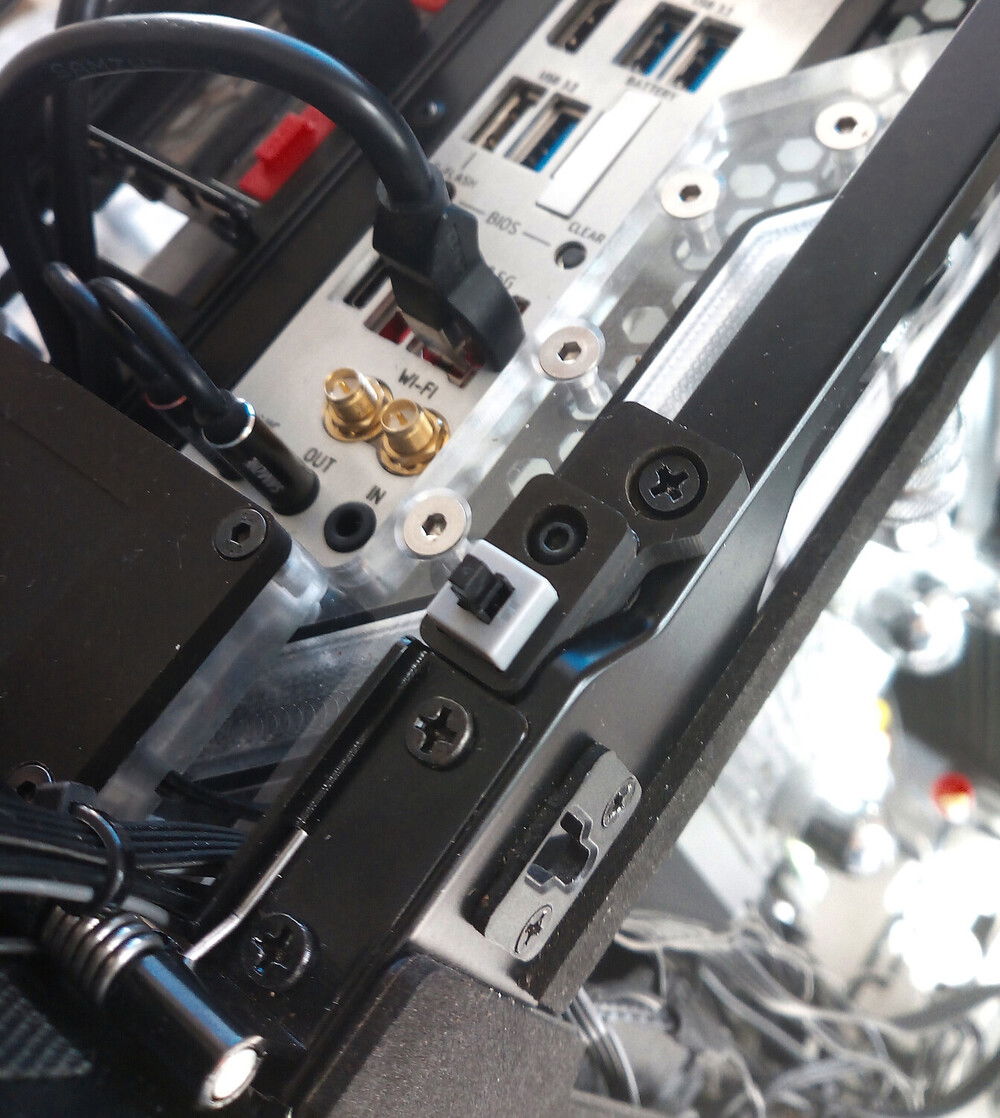

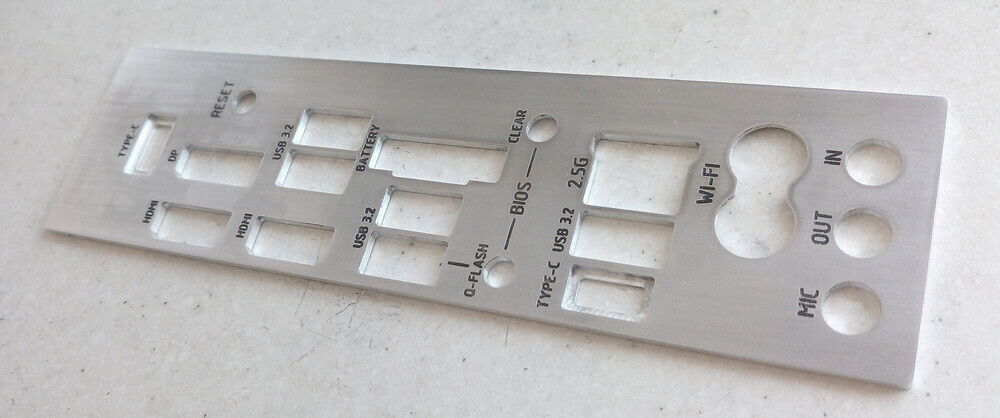

custom I/O panel

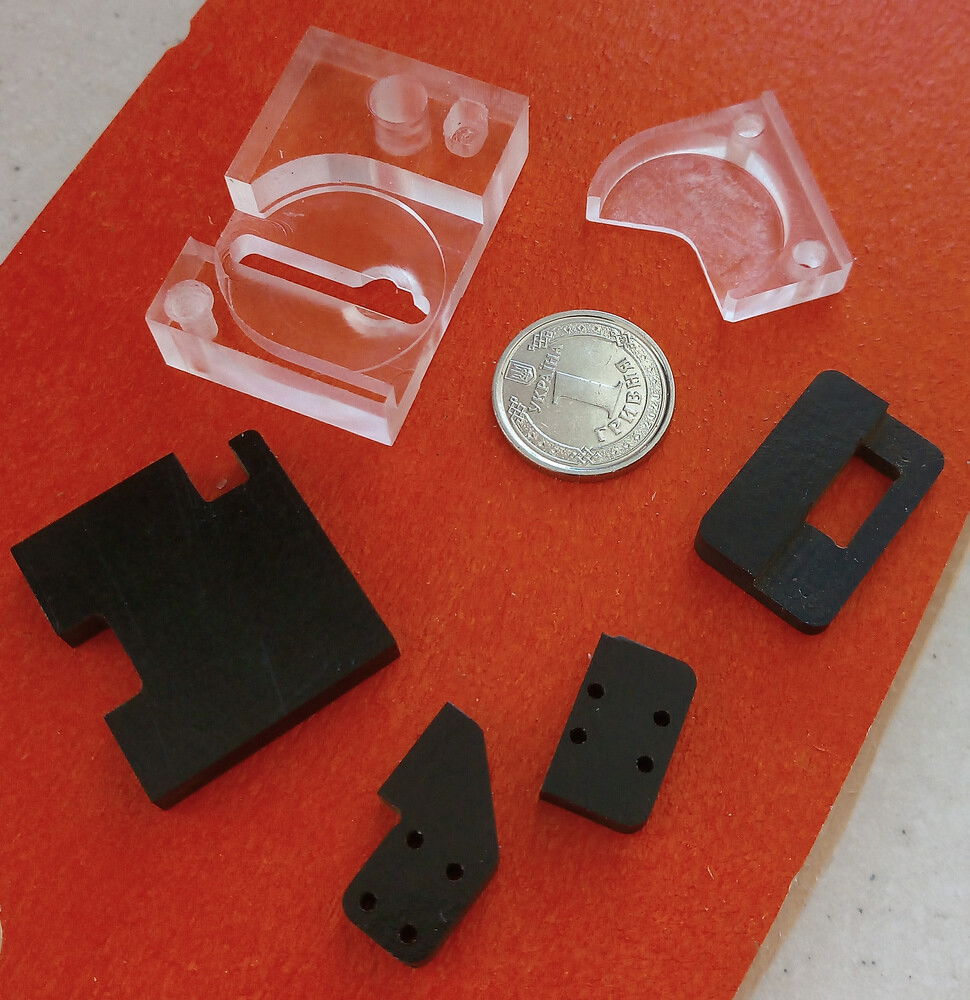

parts for extended battery box and type-c connector

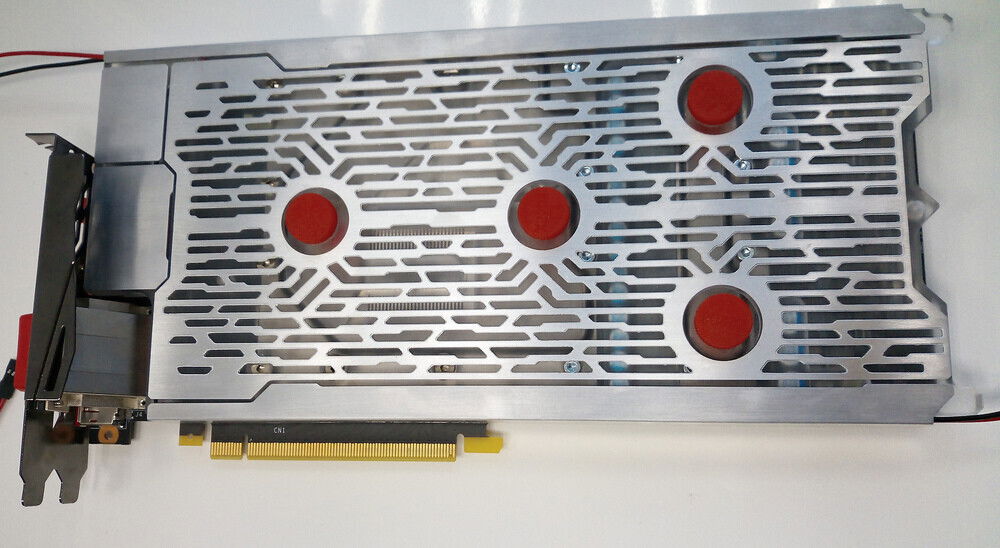

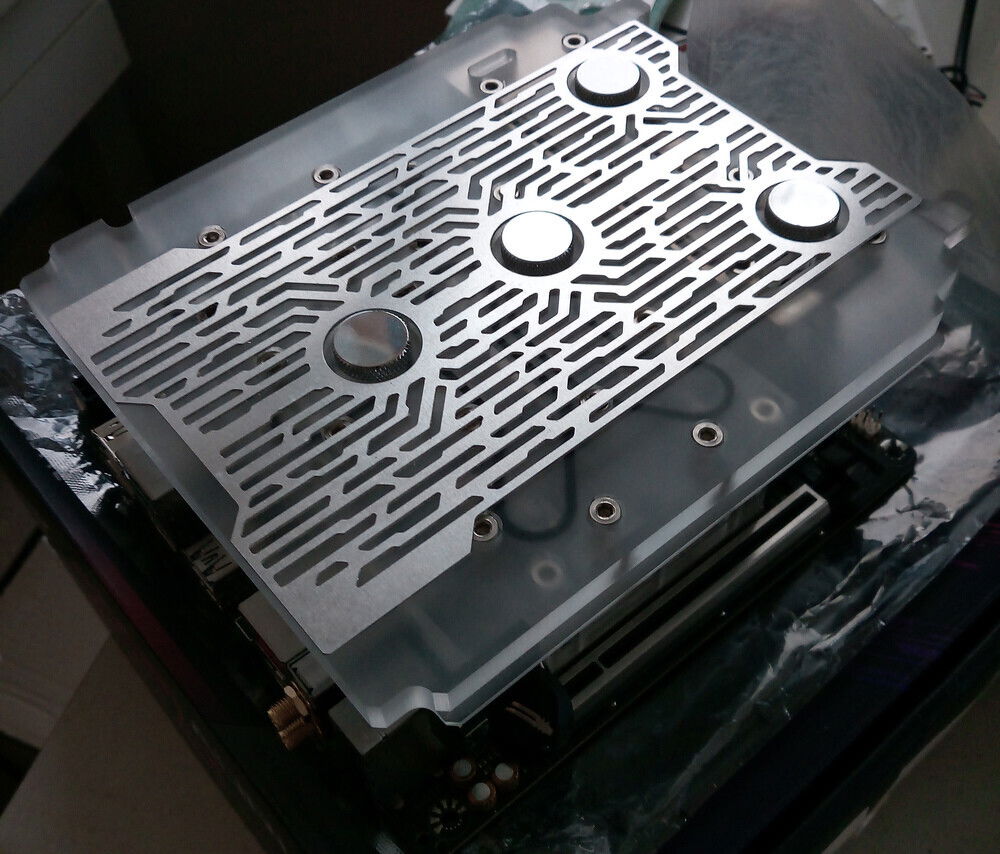

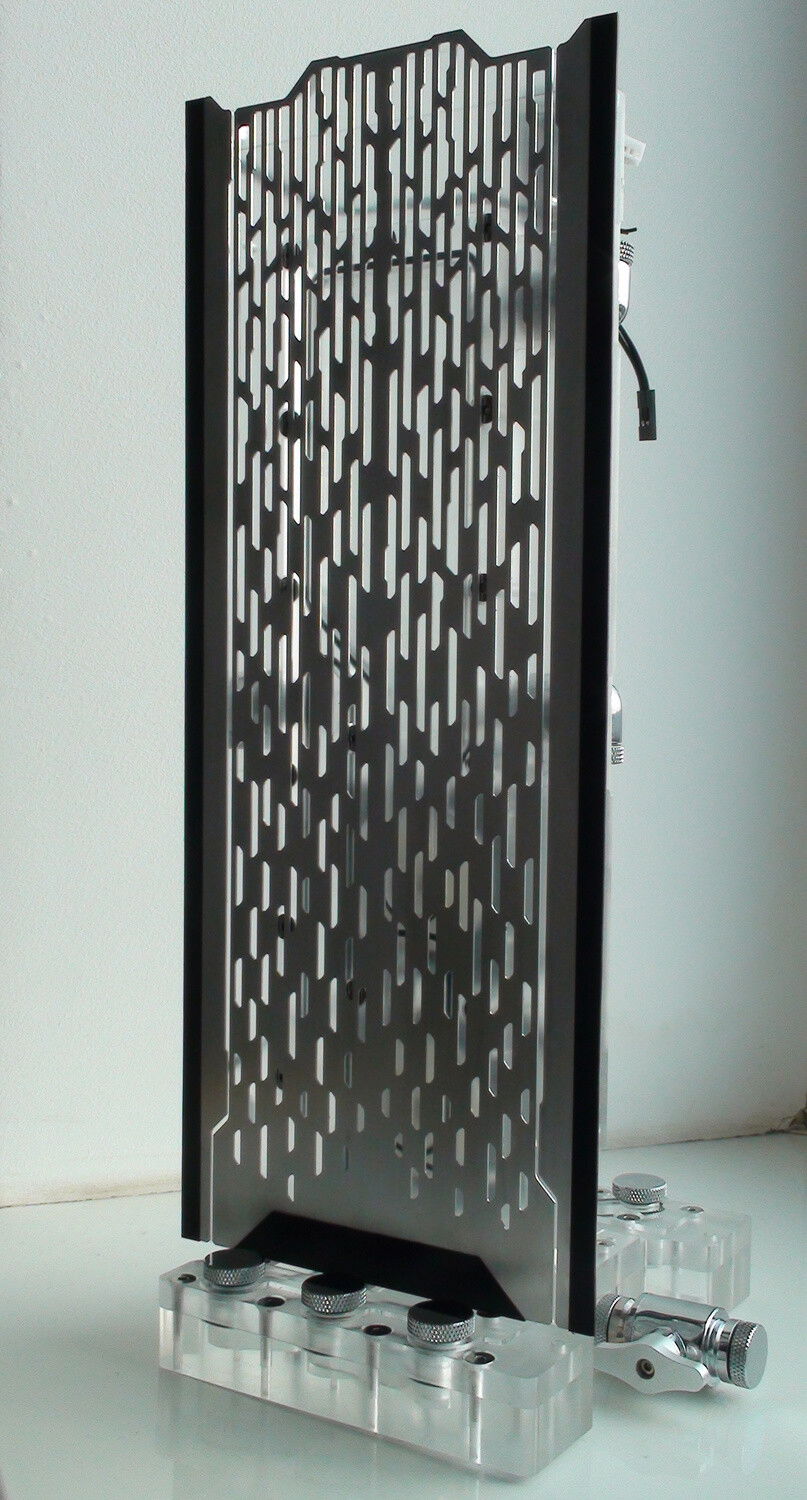

aluminum cover

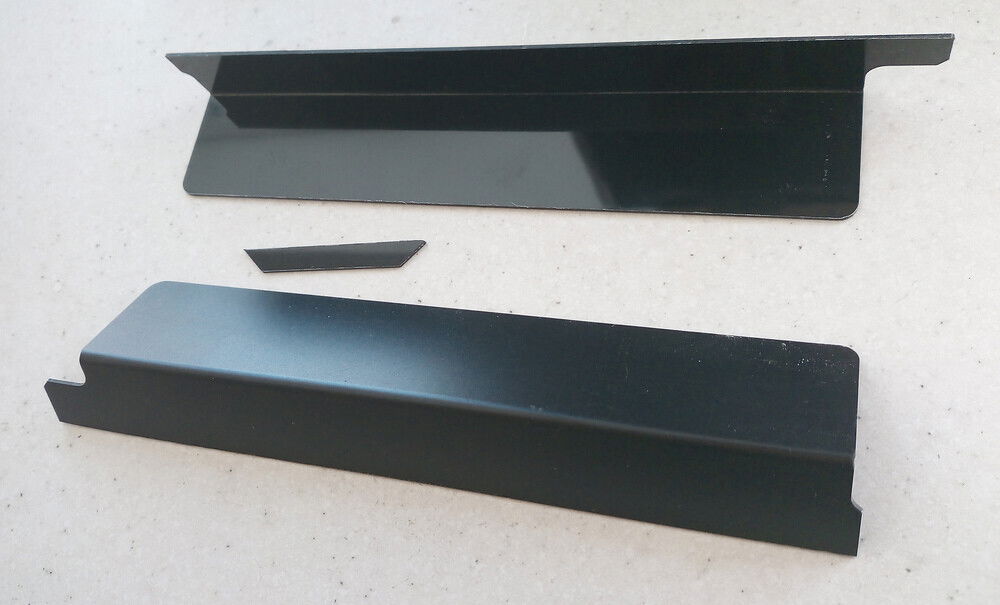

plastic covers

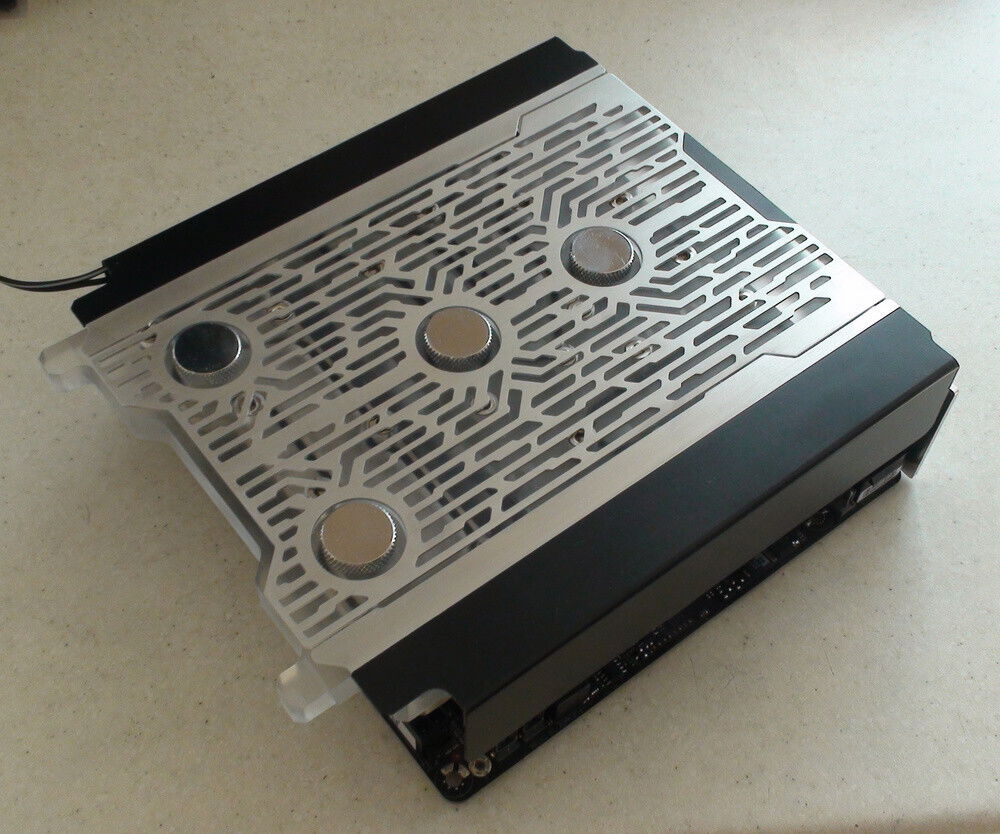

everything is in place

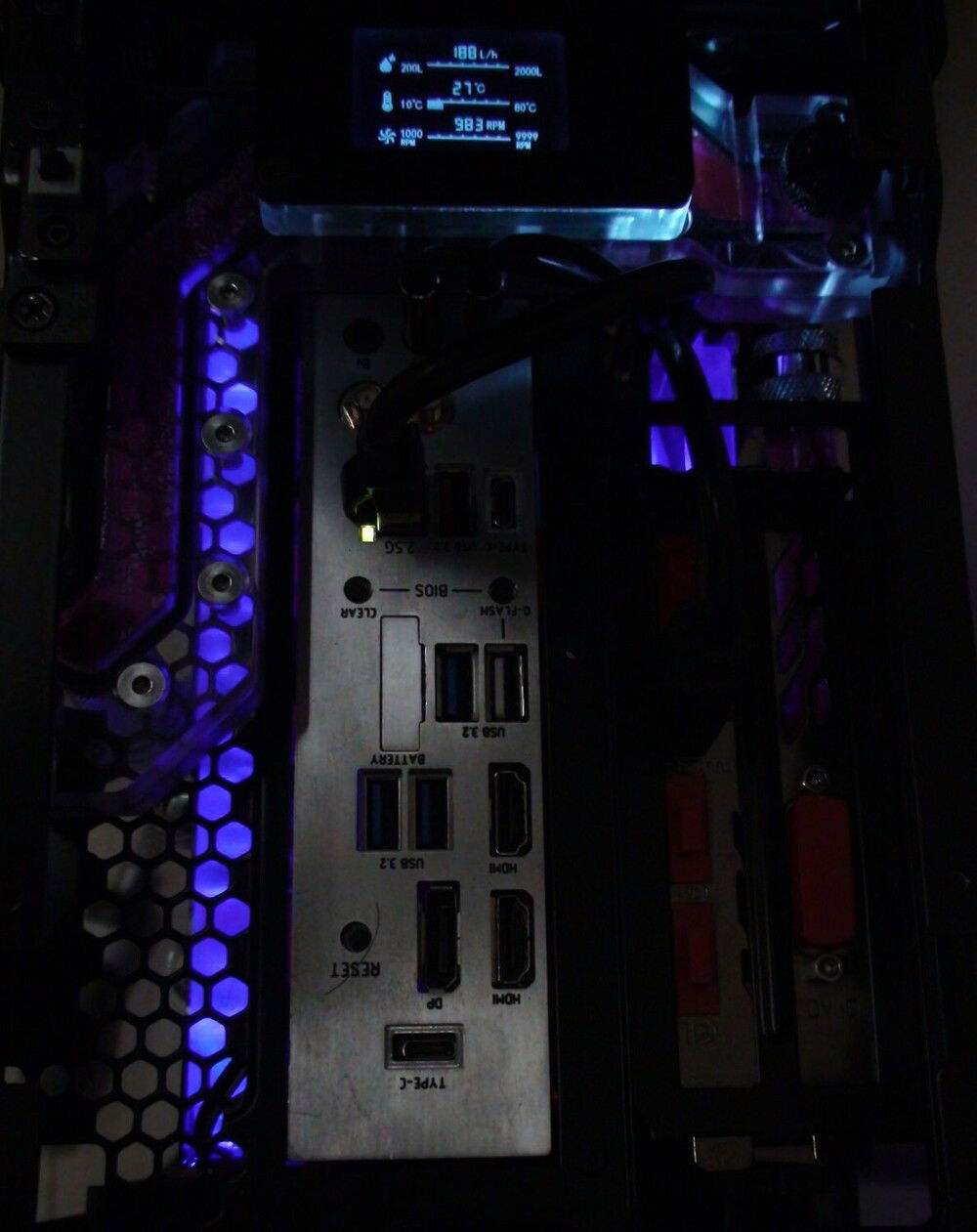

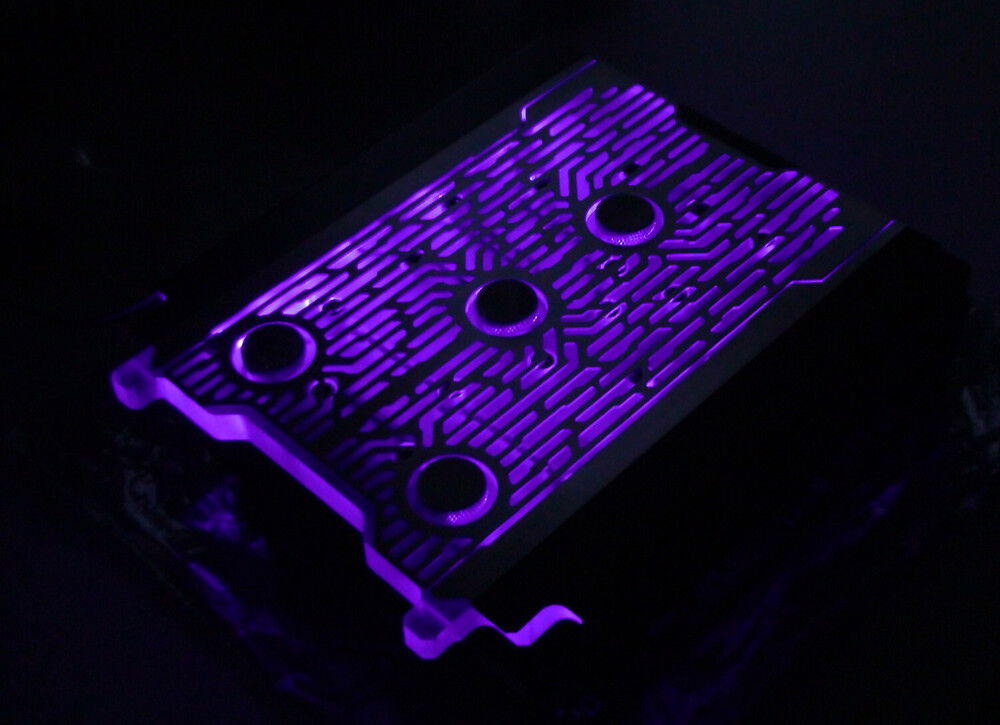

with UV light

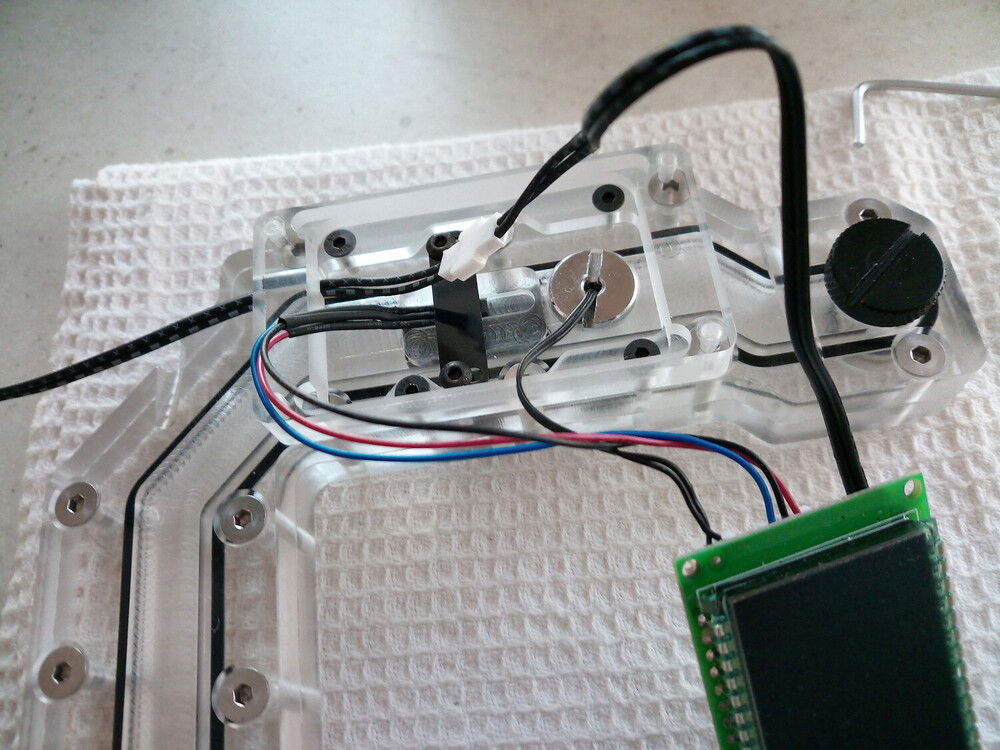

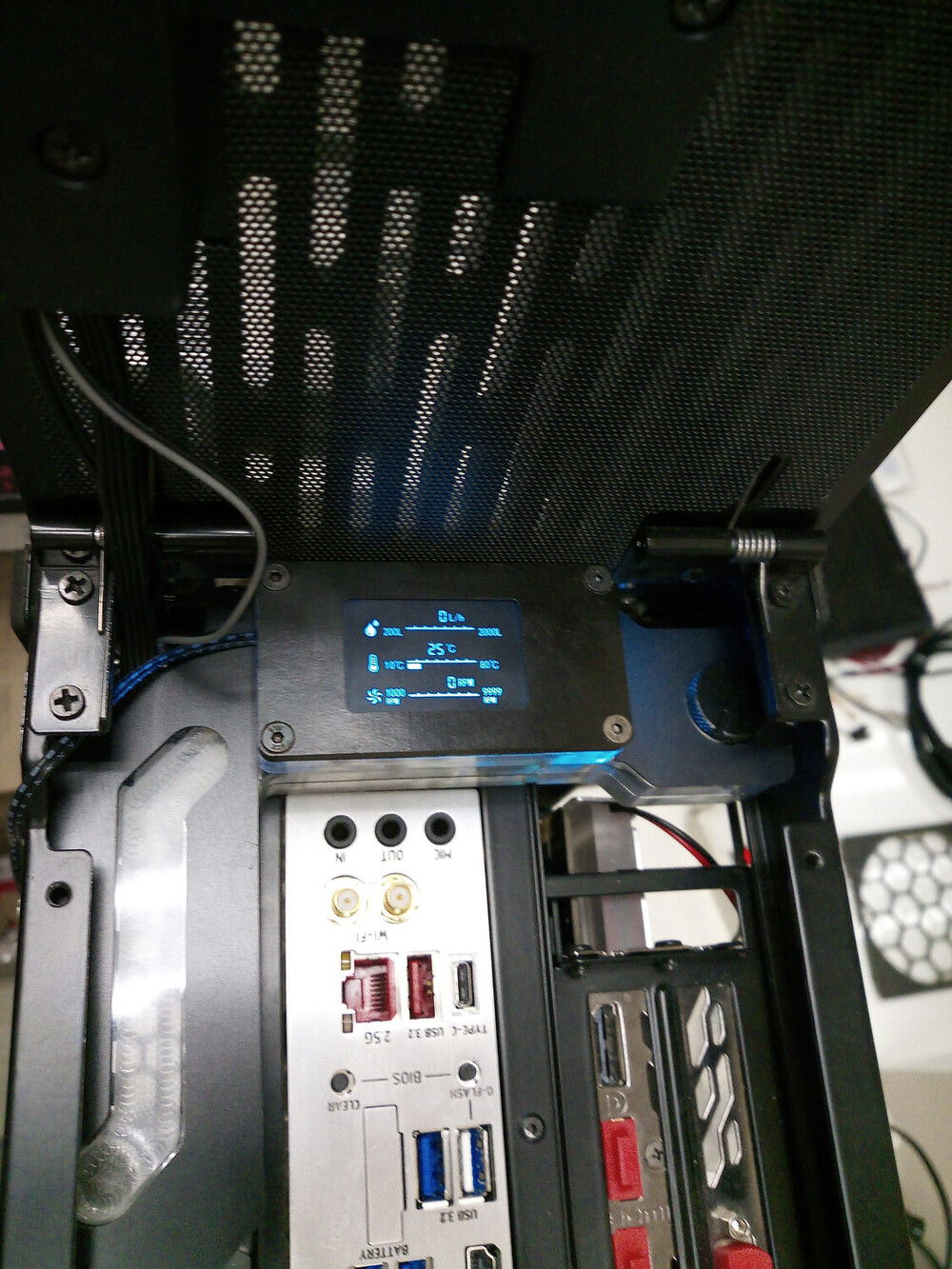

custom distro with flow sensor

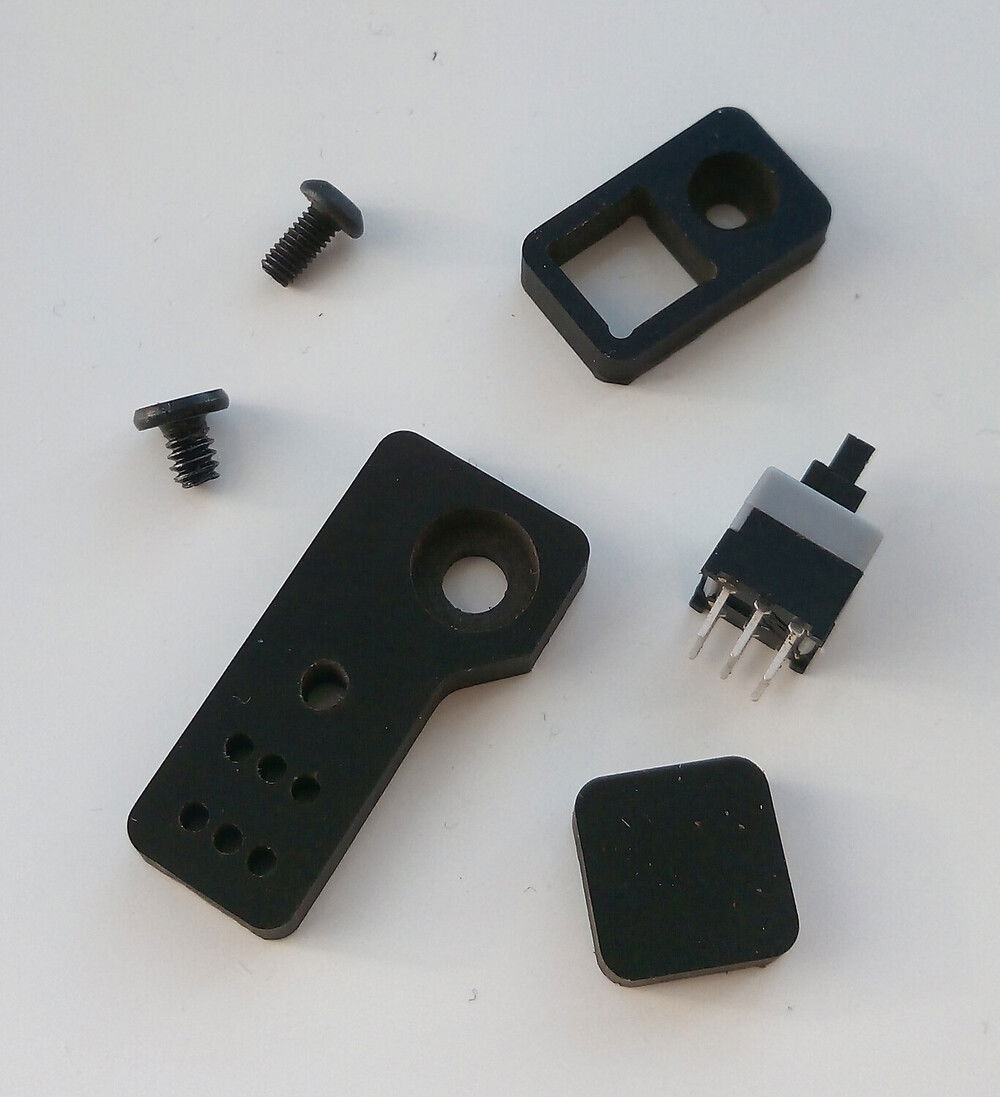

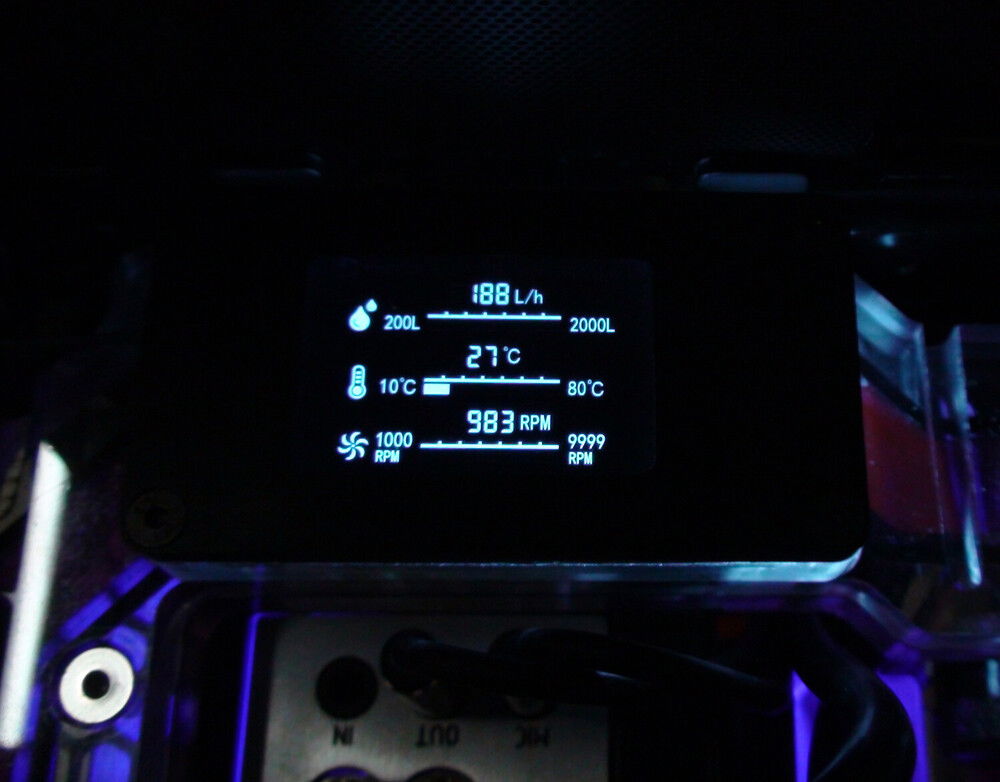

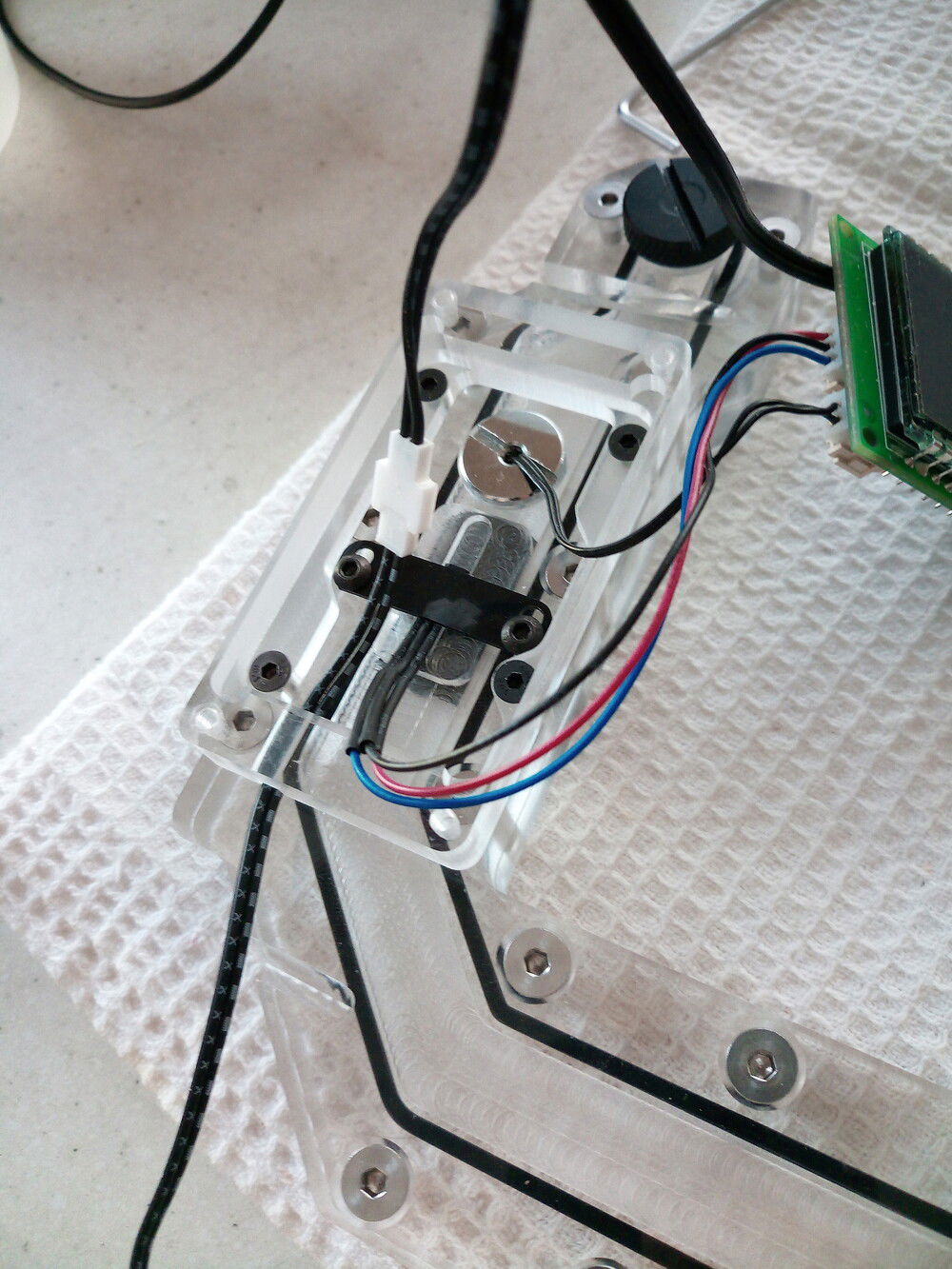

switch for flow sensor, it working only if upper cover is open

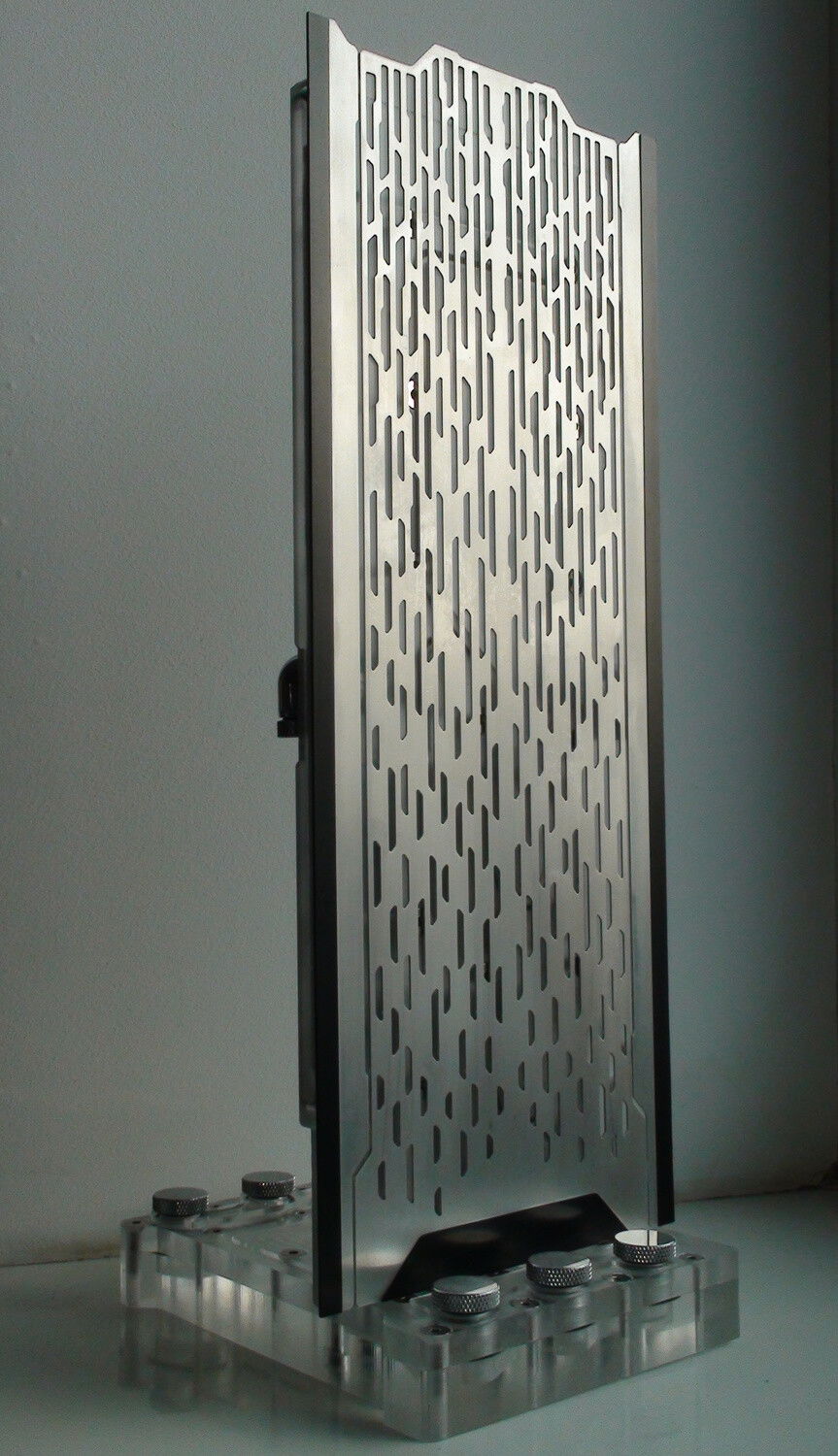

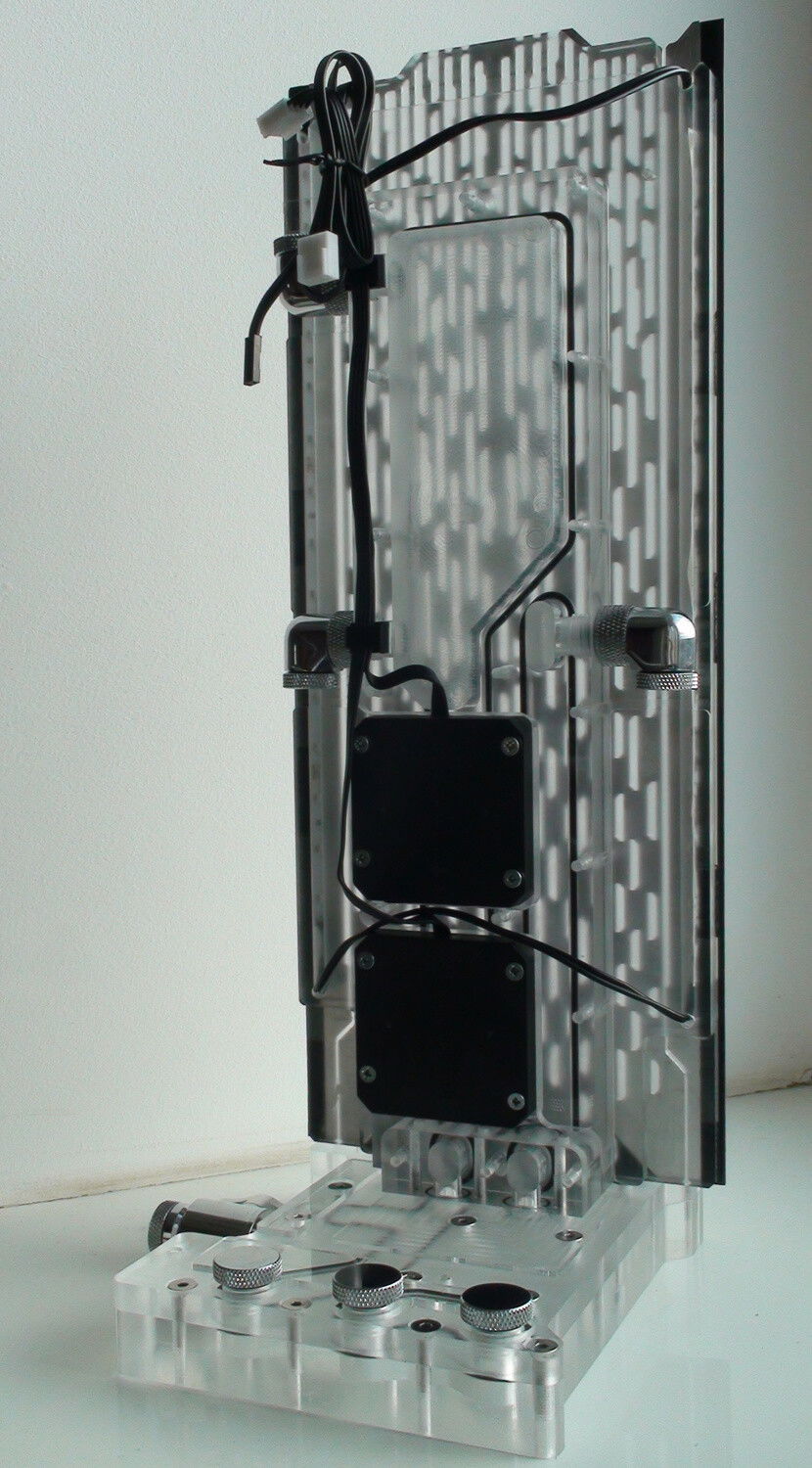

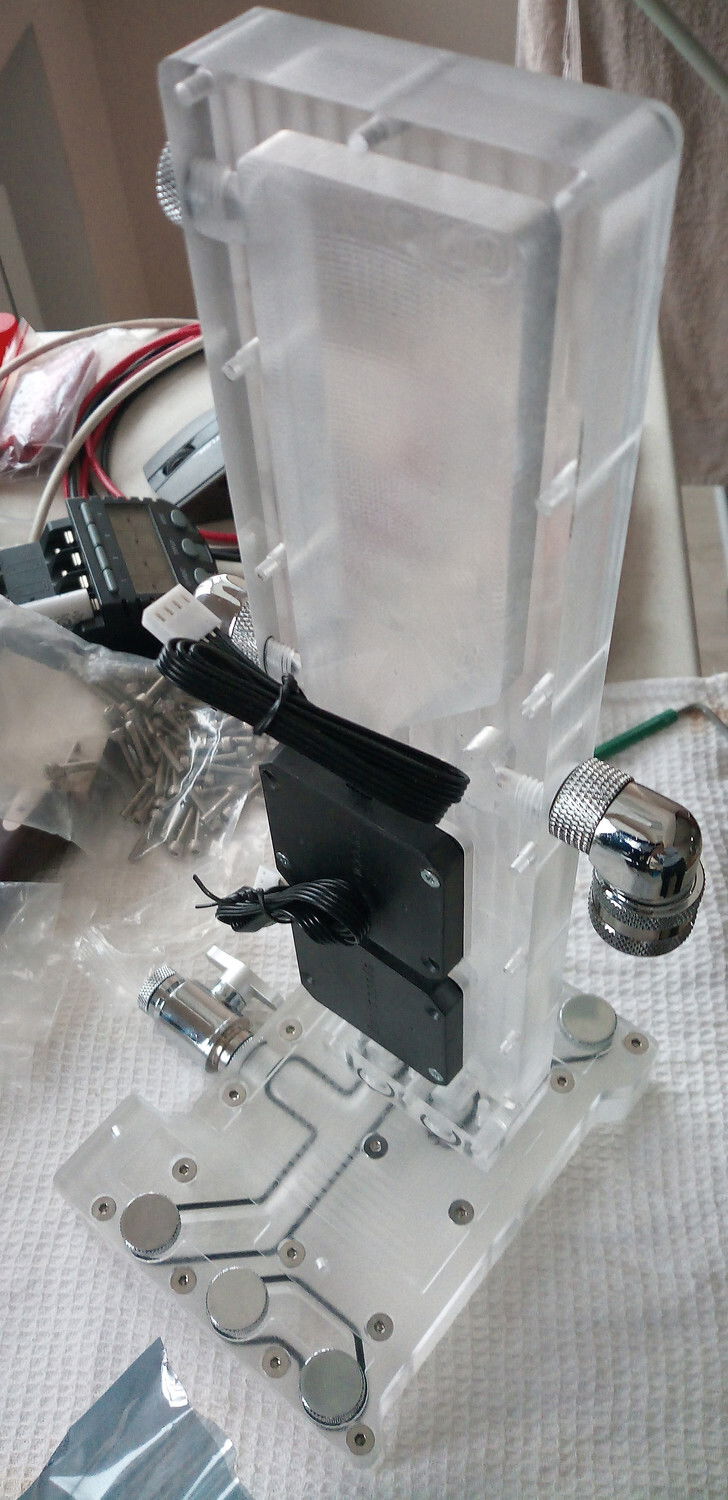

custom dual top + res + distro

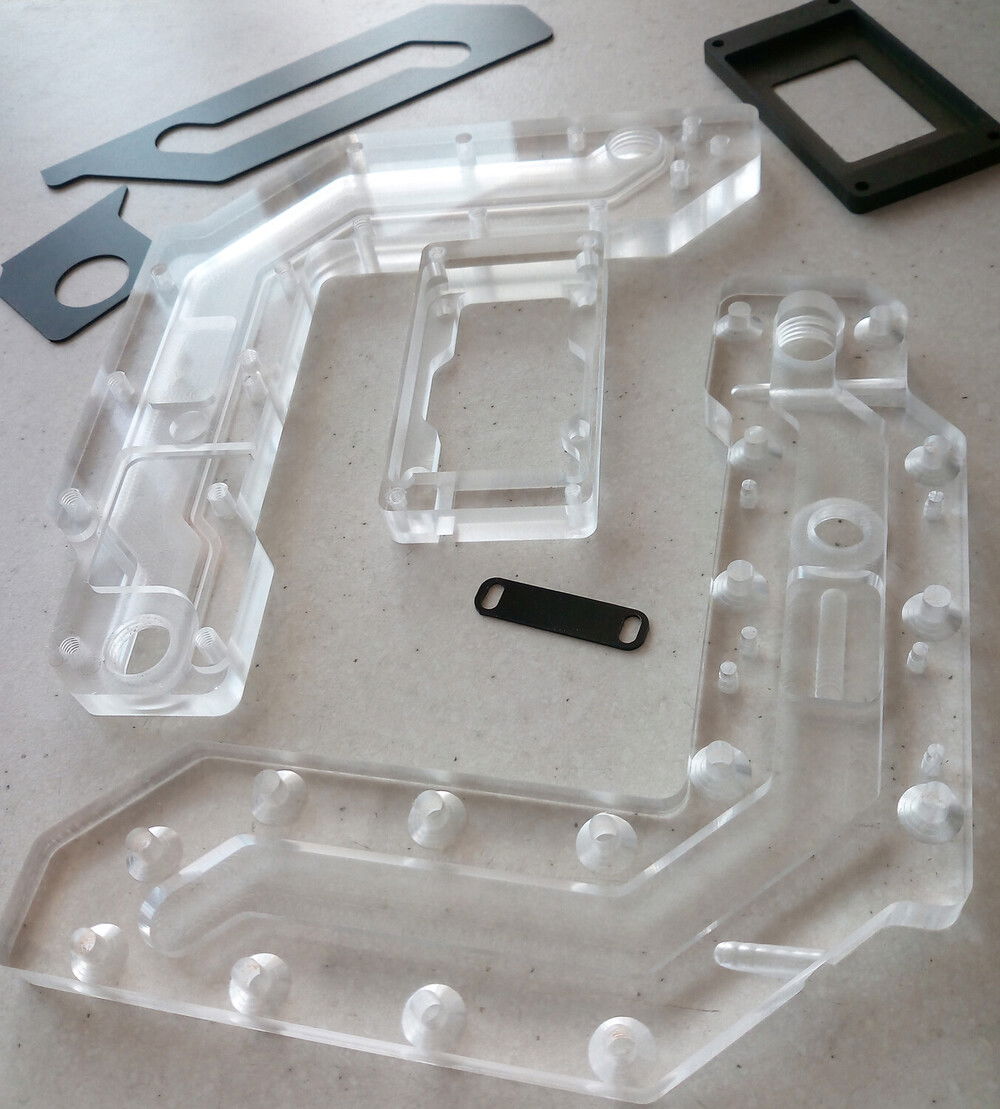

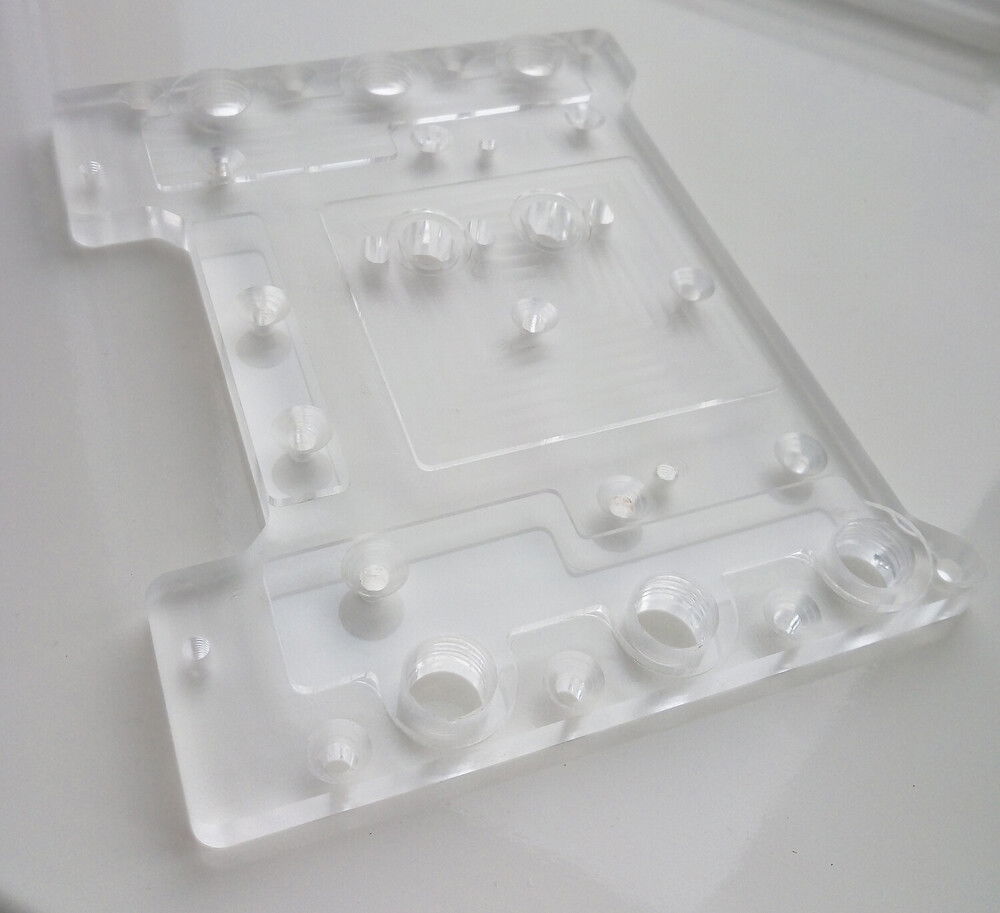

first acrylic plate for bottom distro

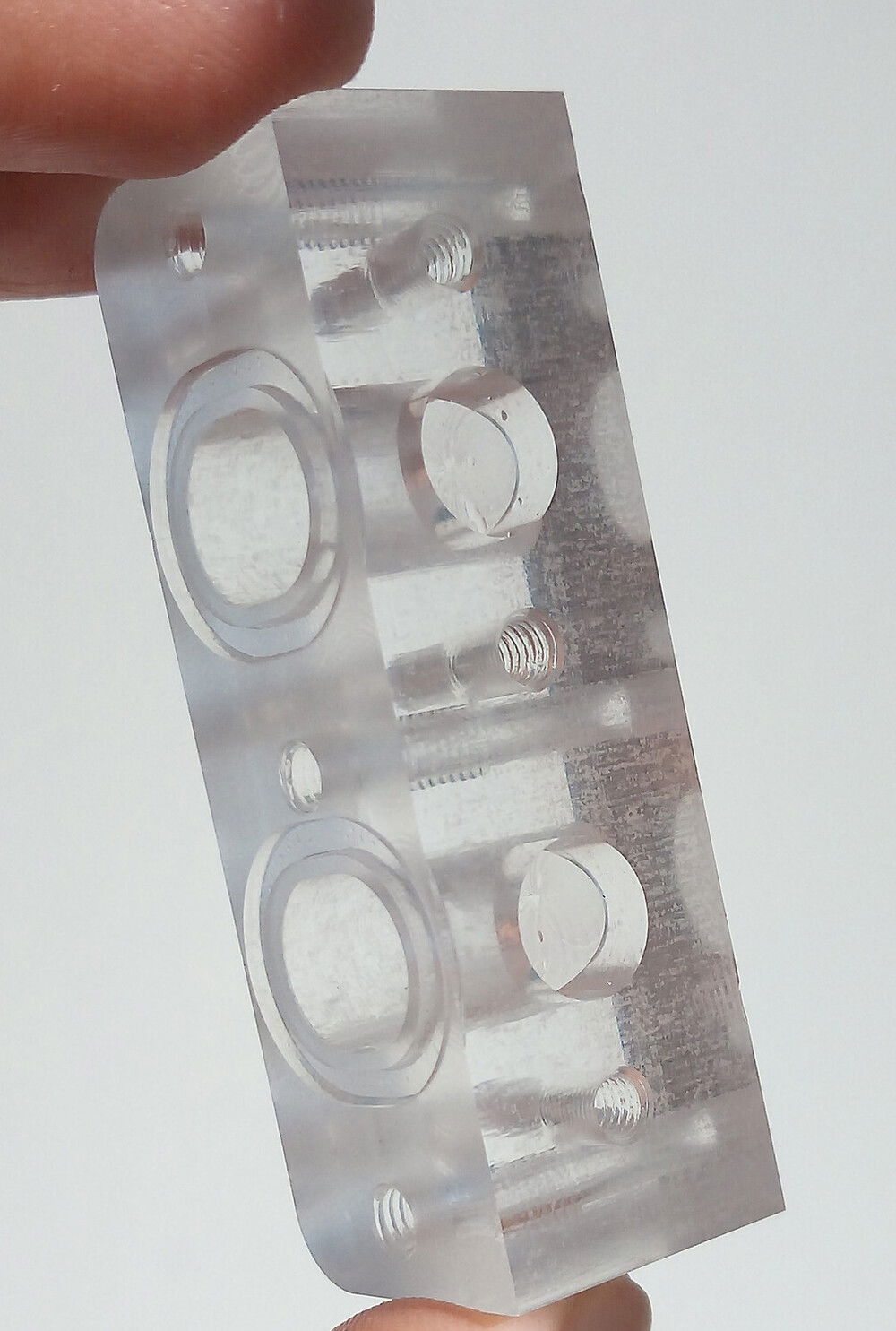

the terminal that can be used to move the distro and dualtop relative to each other

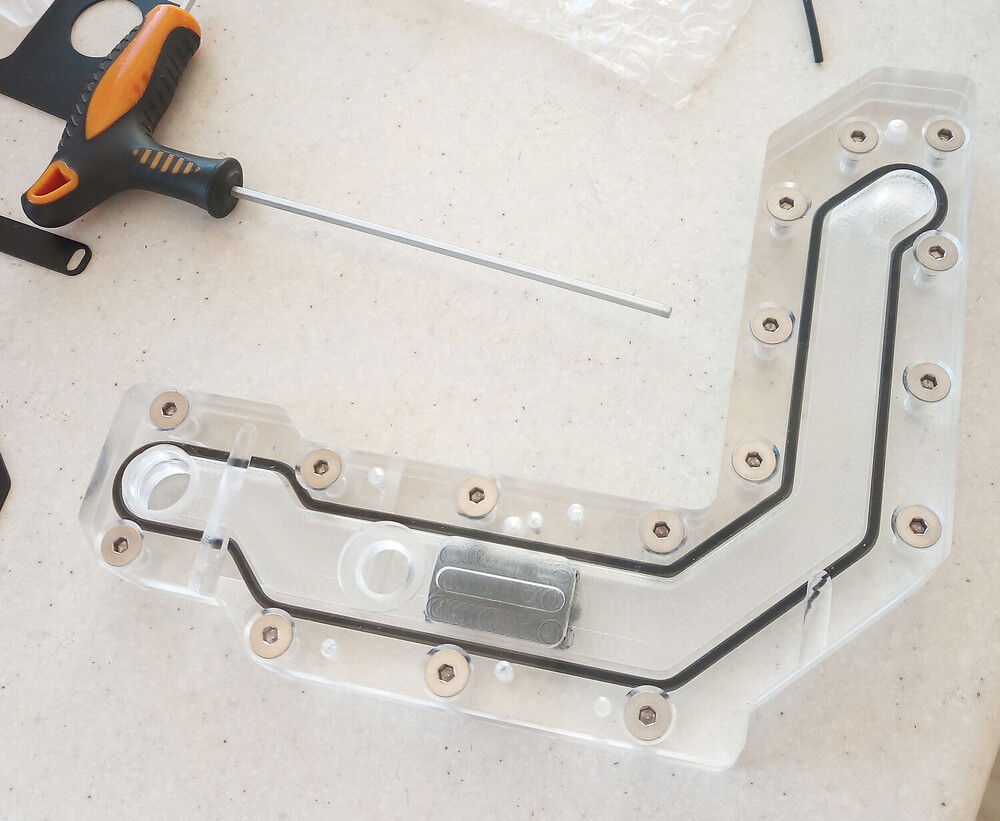

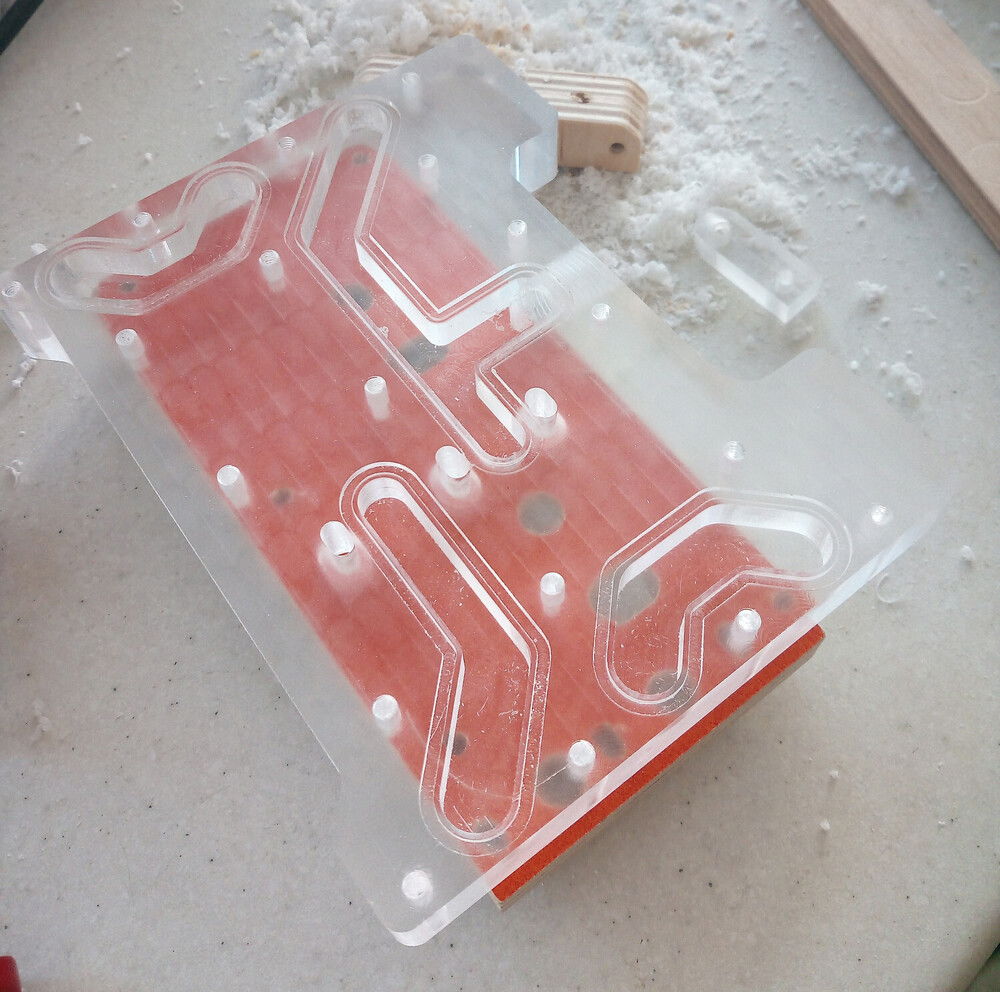

second acrylic plate foe distro

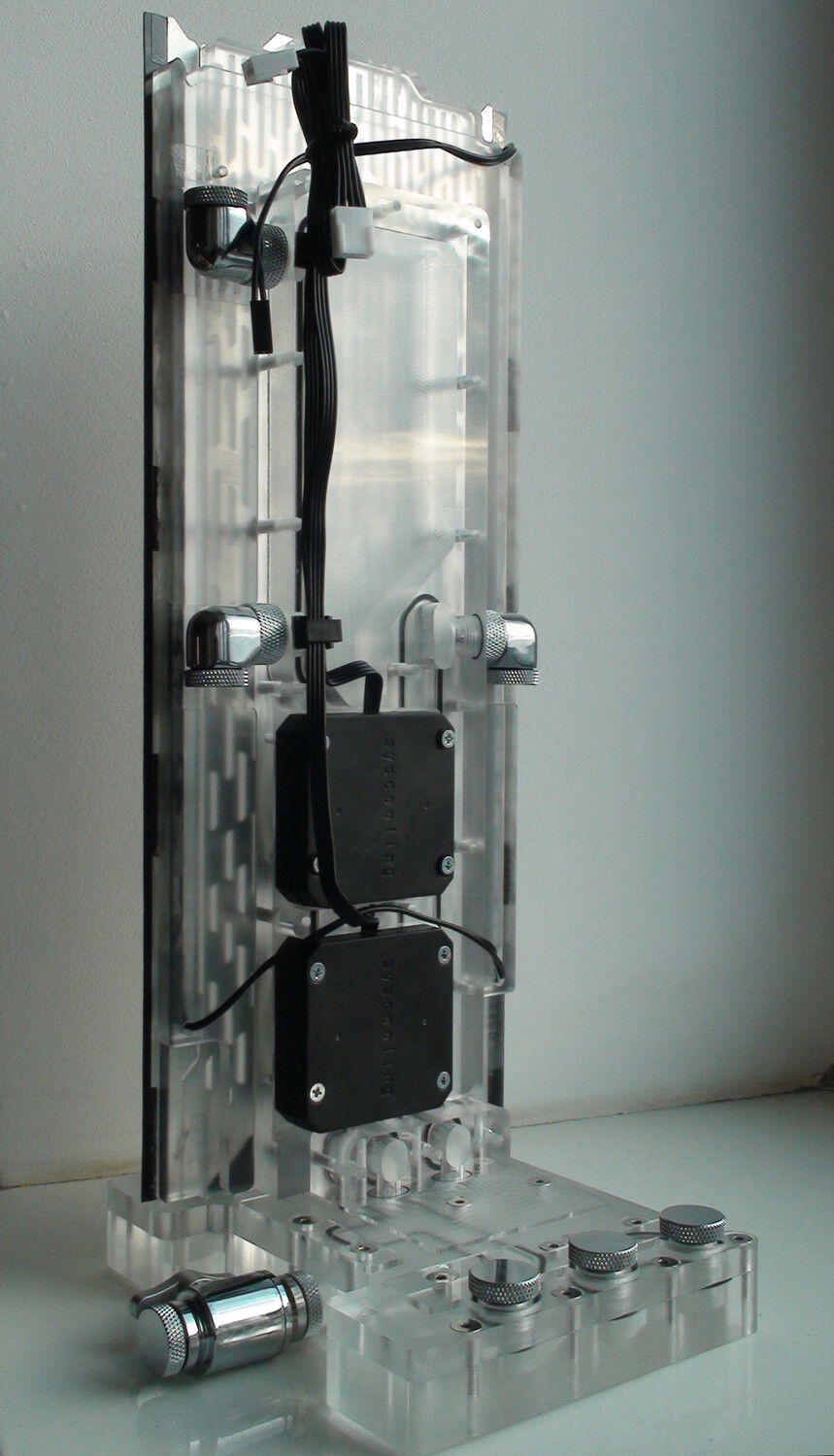

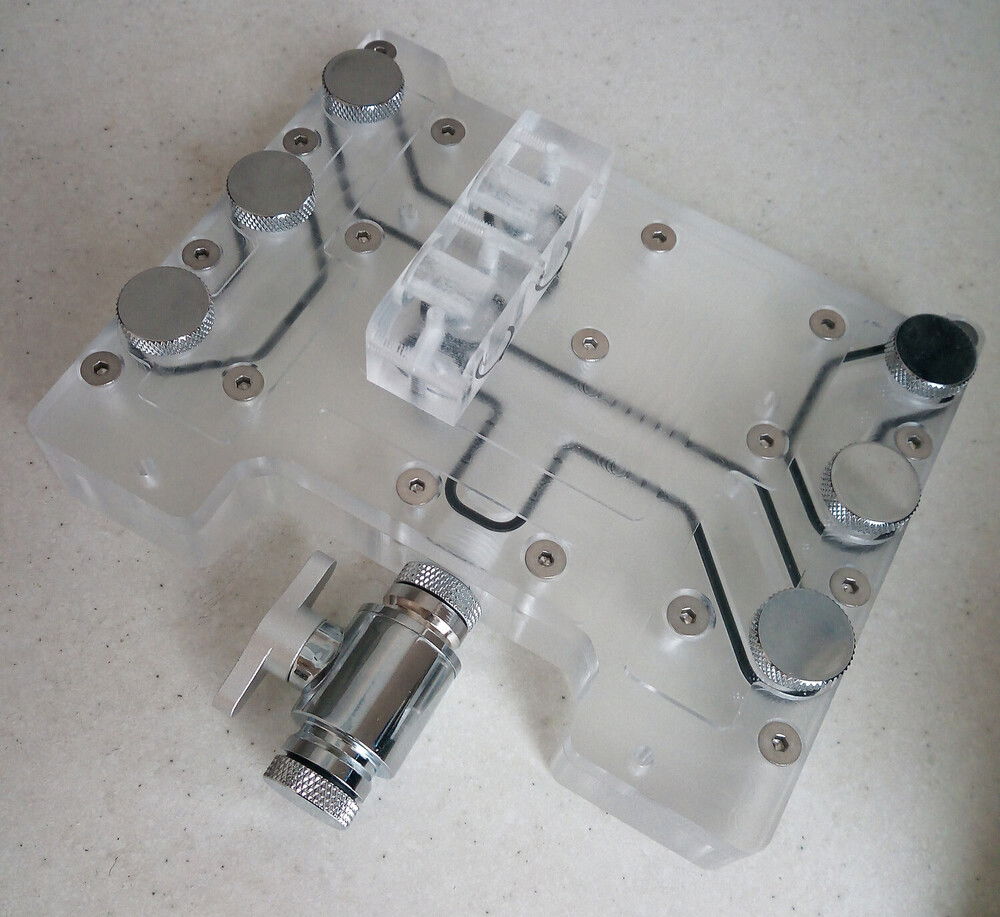

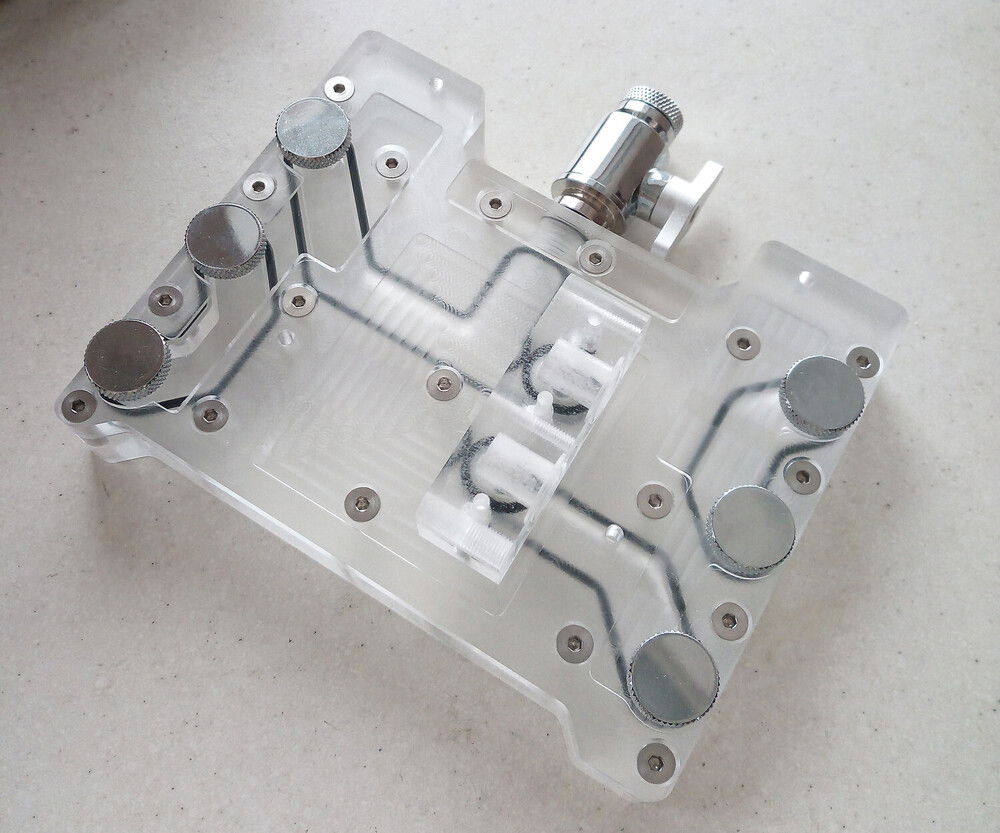

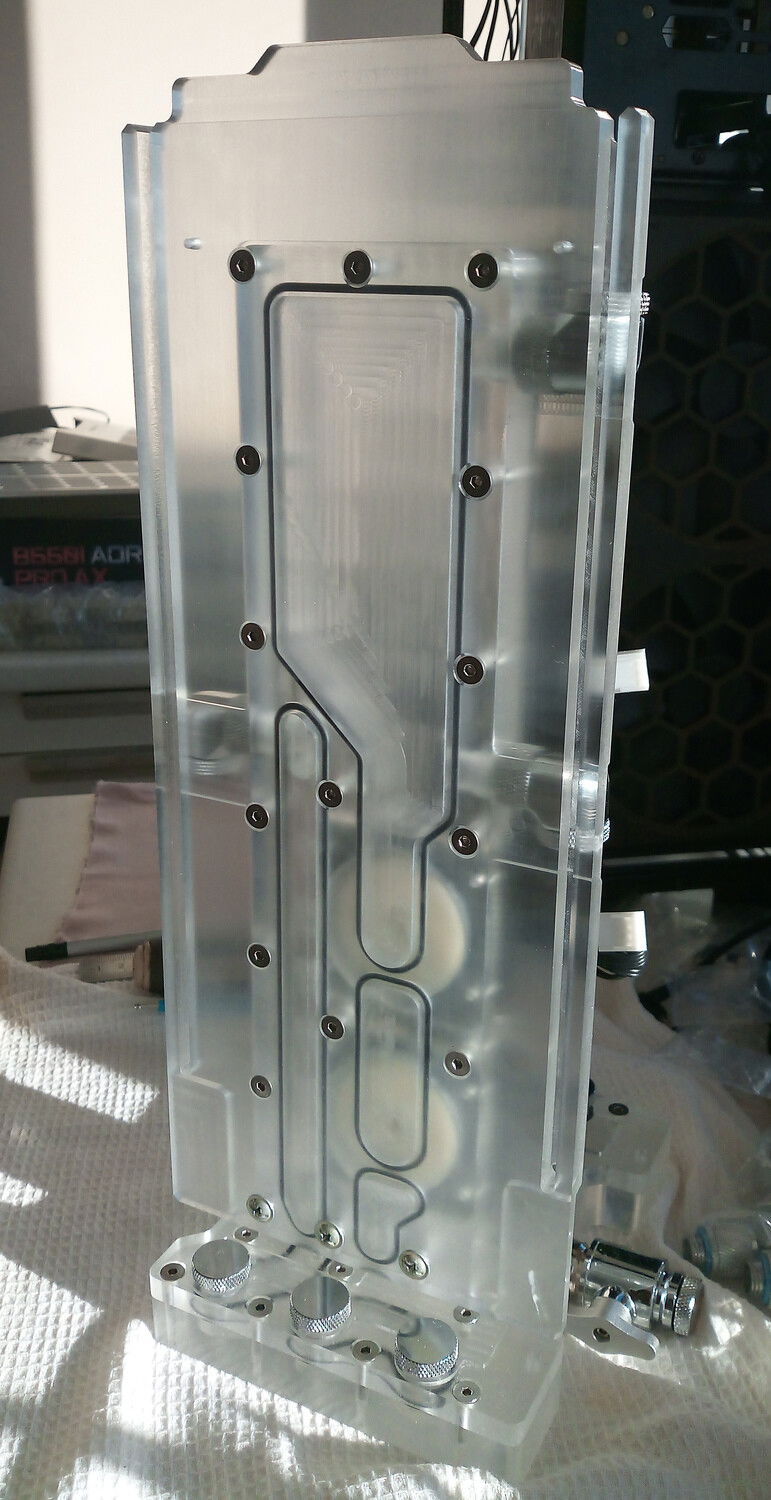

complete distro

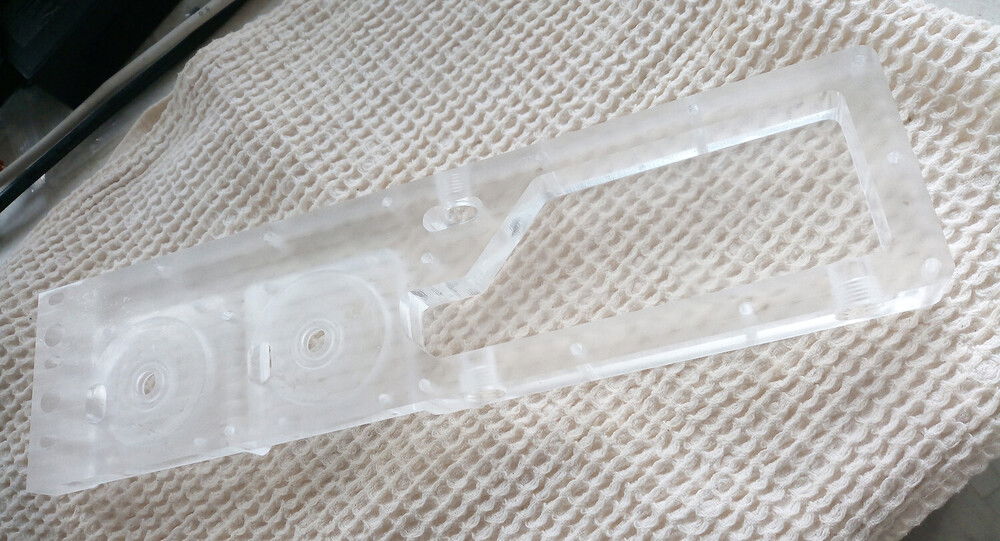

20vv thick acrylic plate for dualtop and reservoir

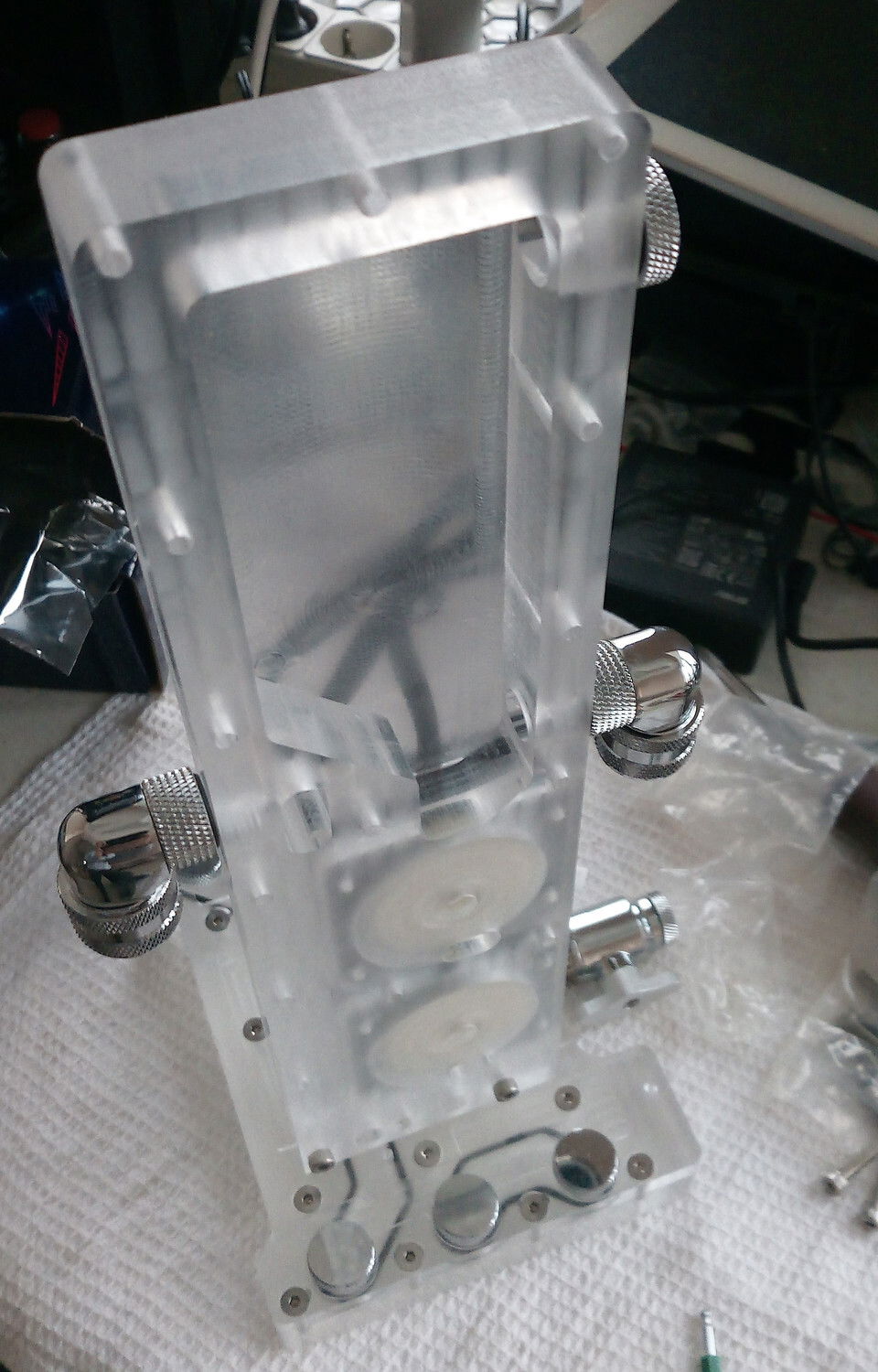

quick check

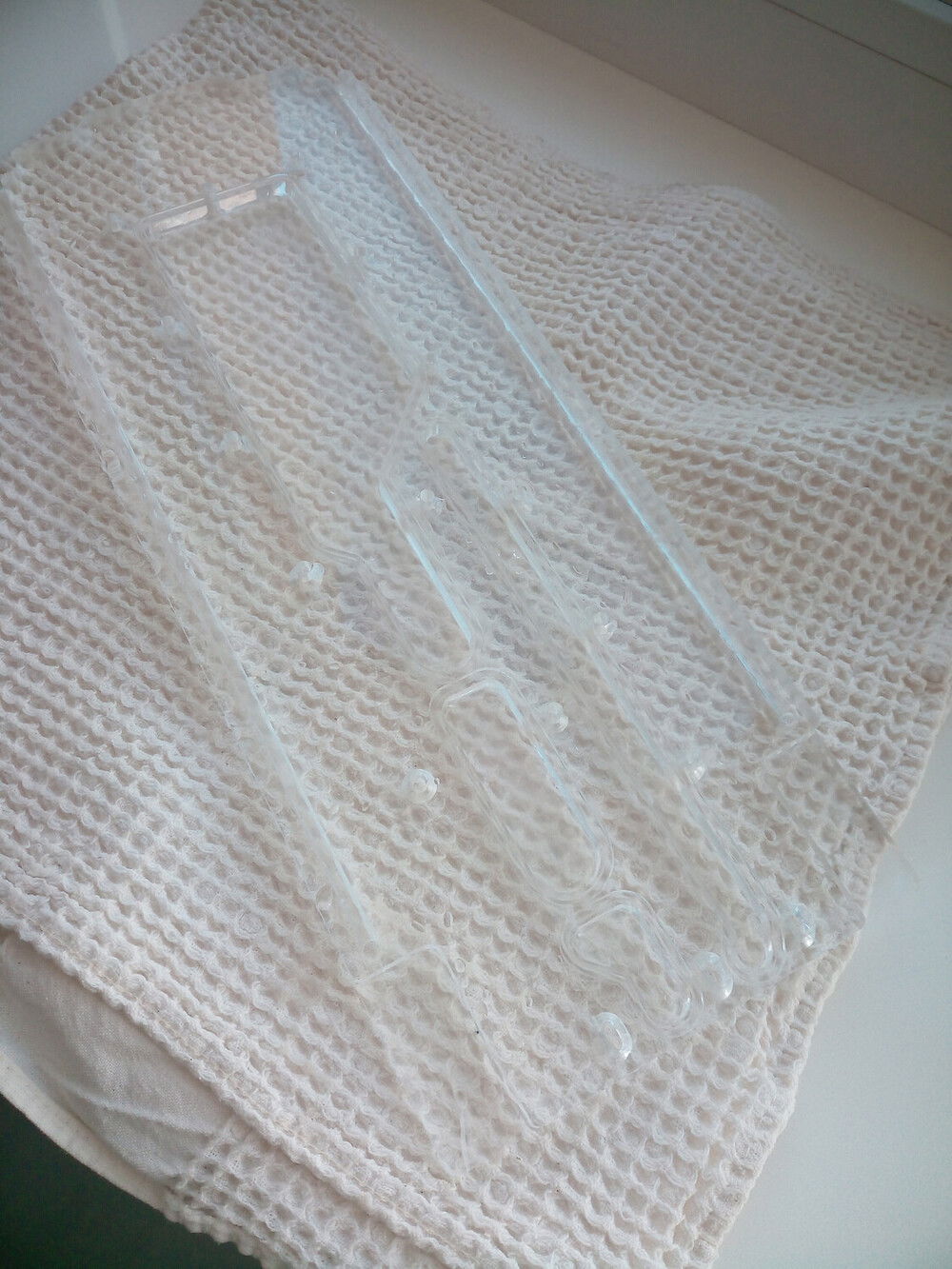

second acrylic plate for dualtop + res

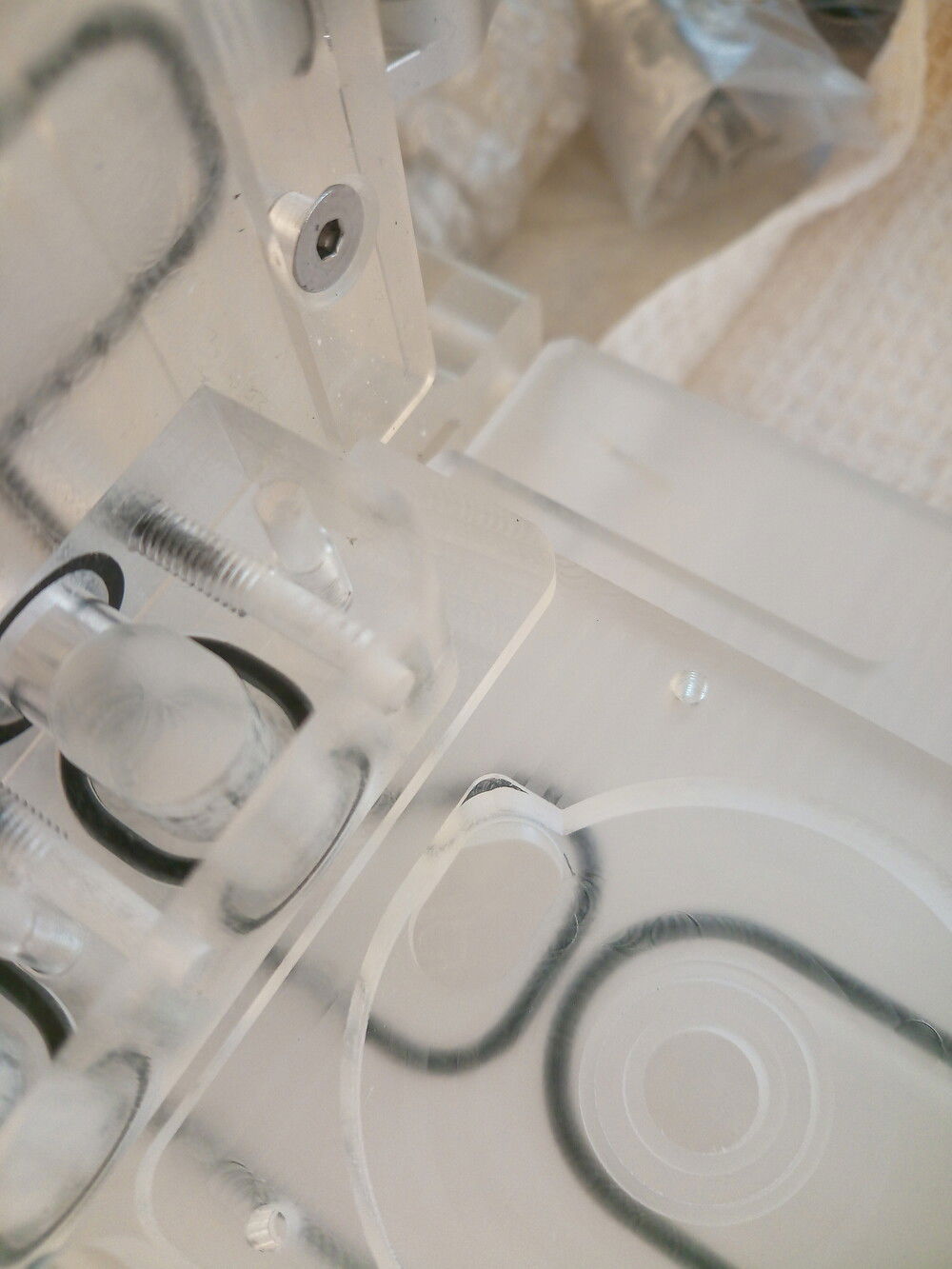

even small details like this pocket (2x2x0.5mm) make a difference

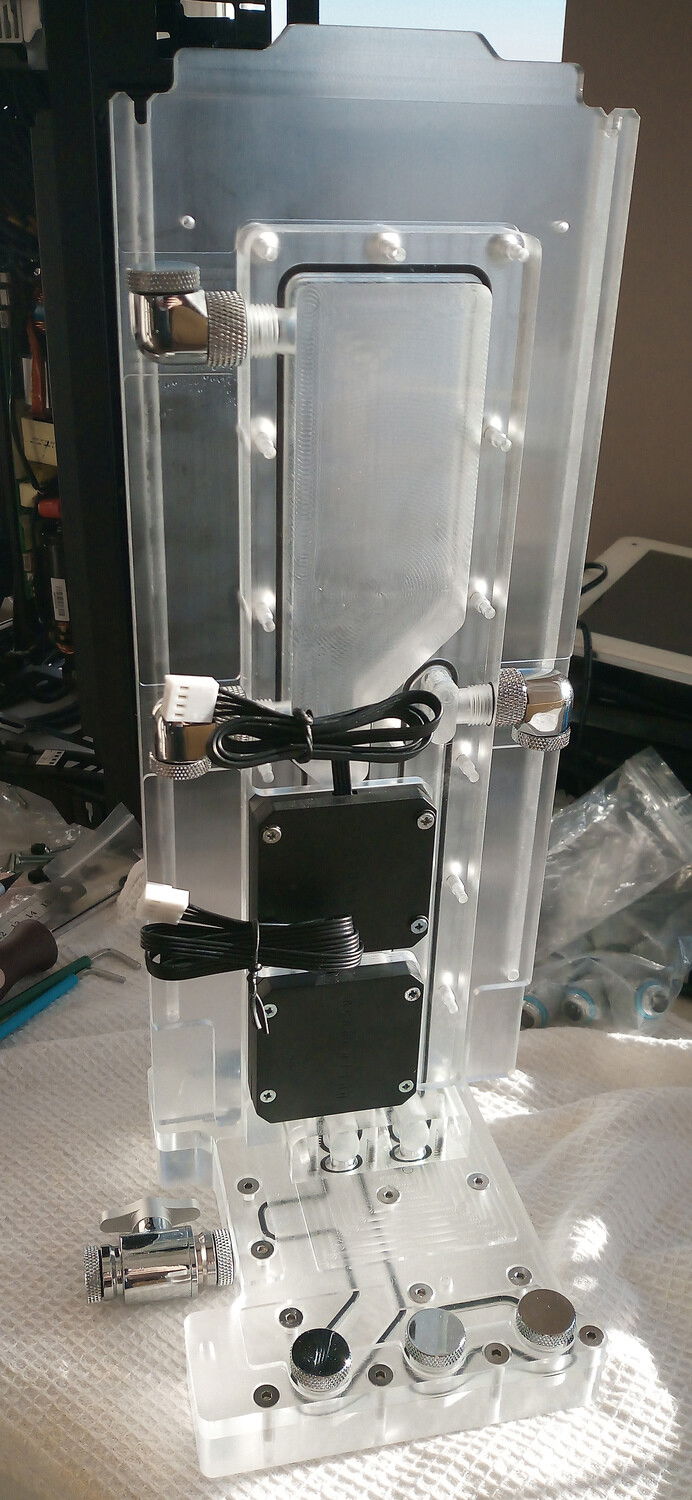

overall assembly without aluminum covers

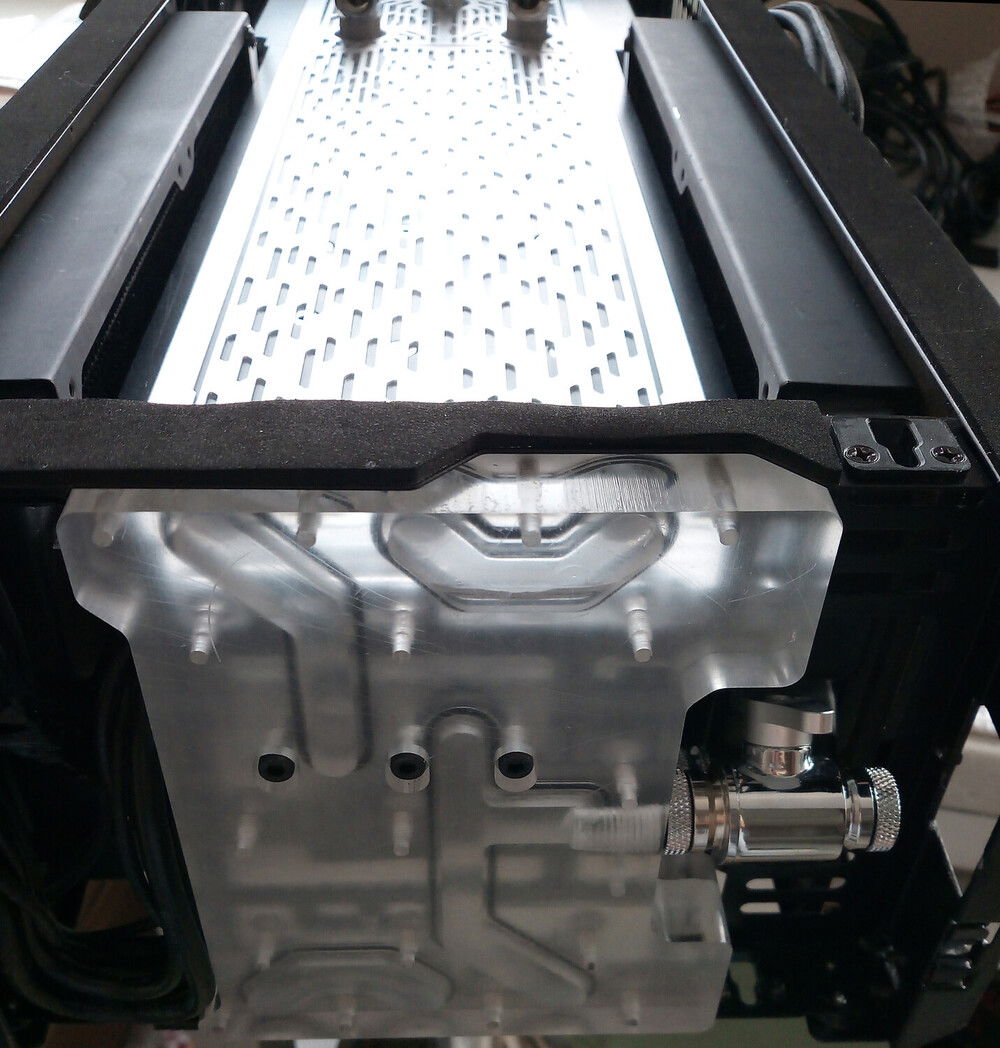

fit very tight

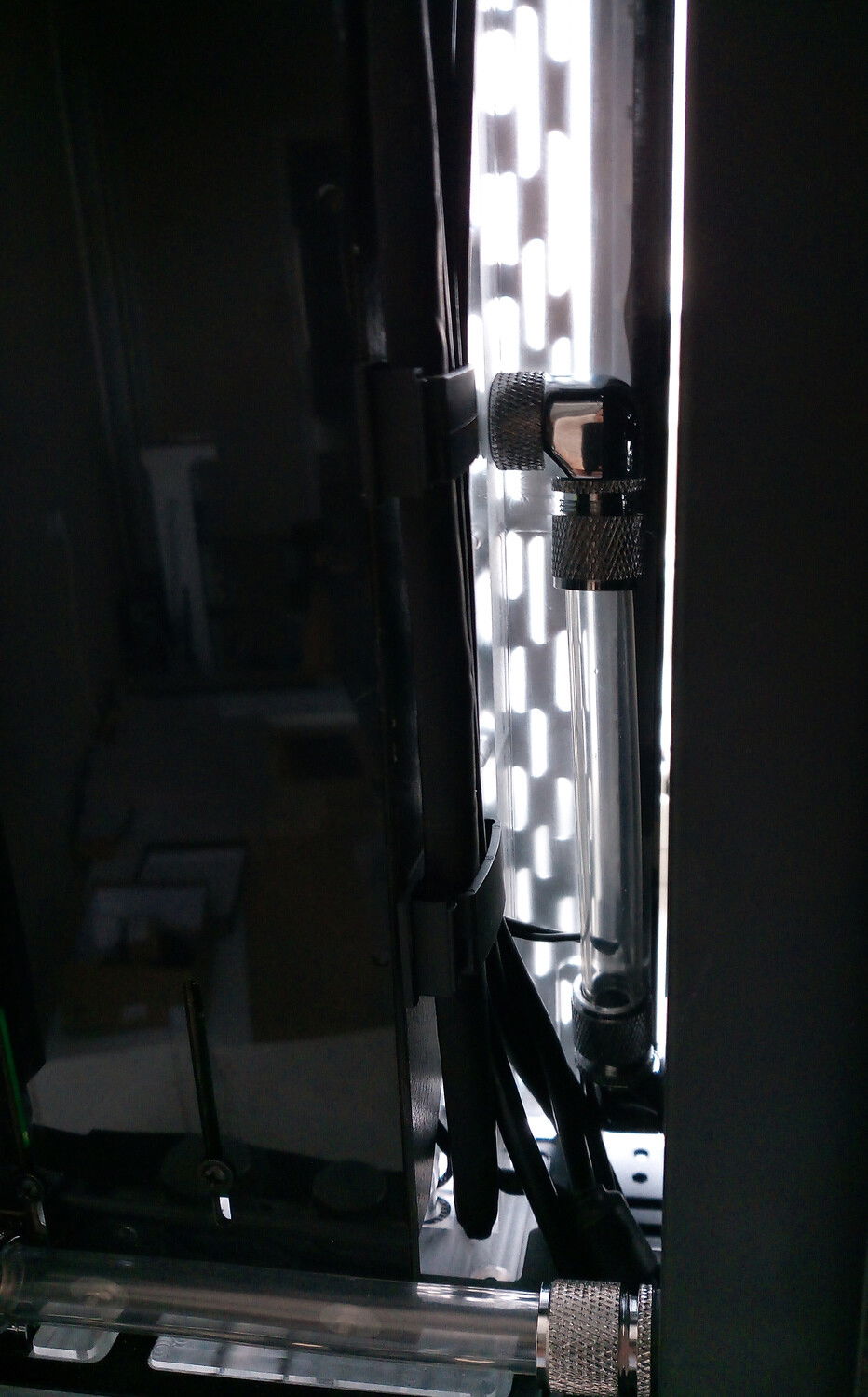

it was little bit tricky to to get those fittings inside

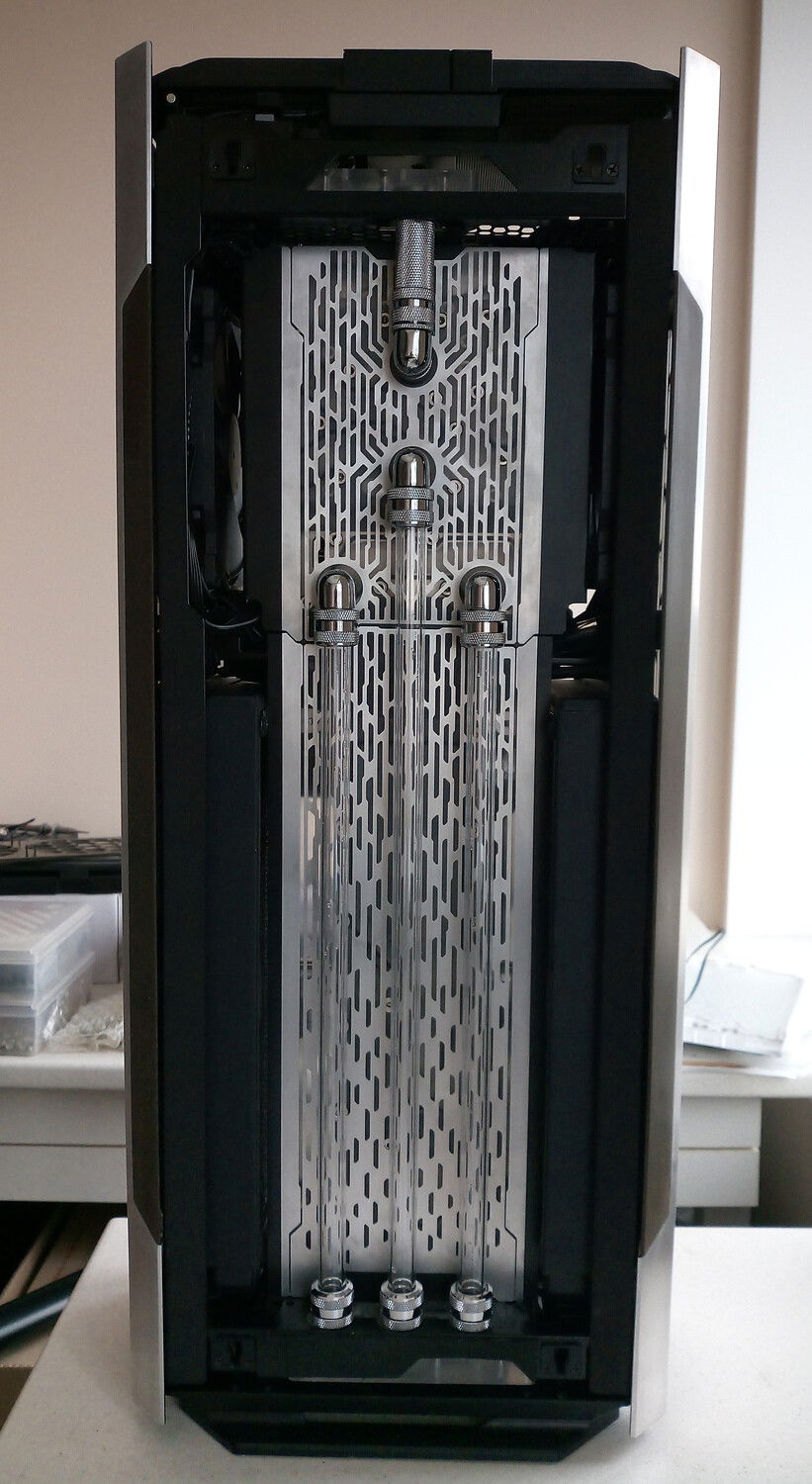

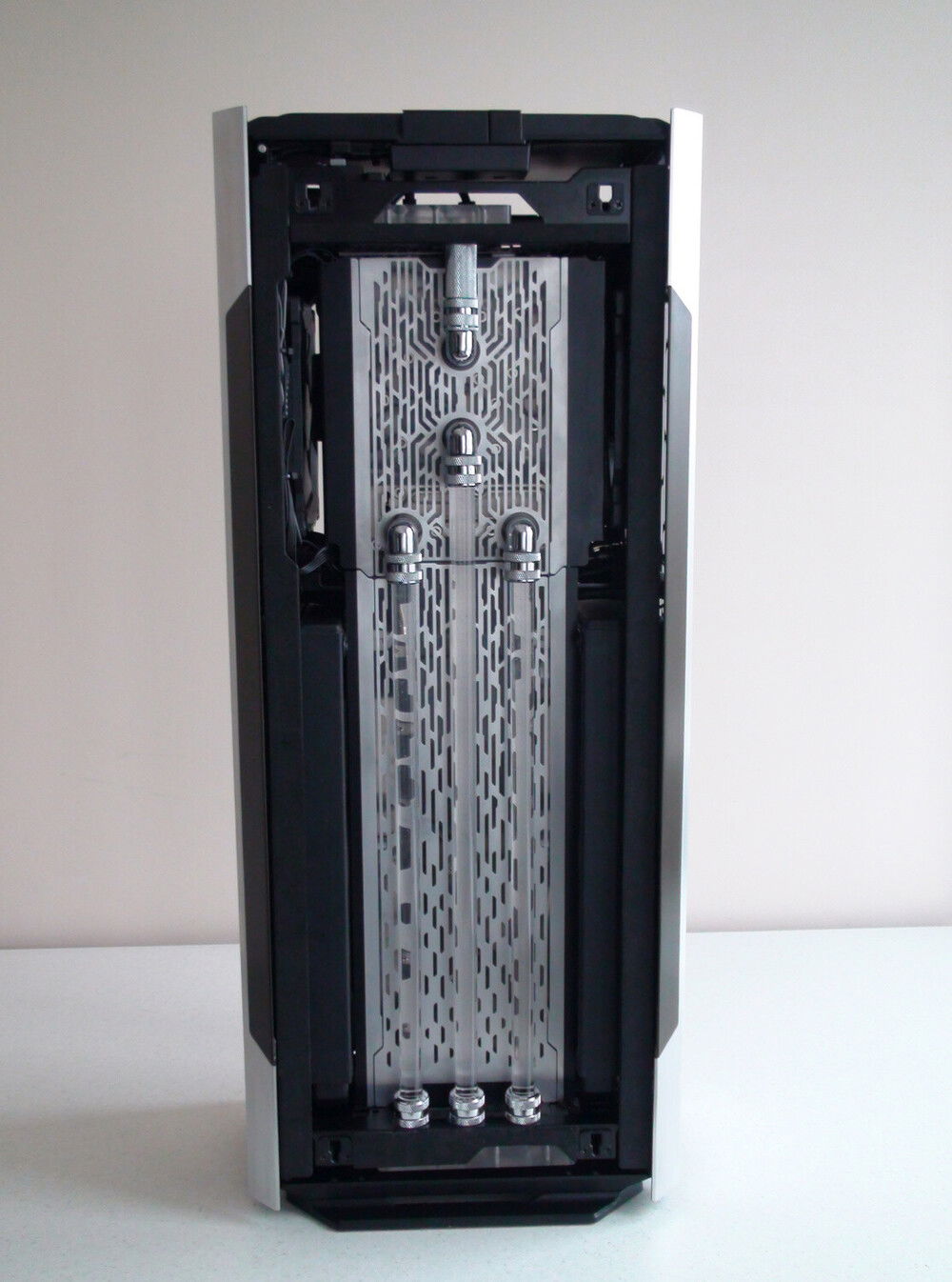

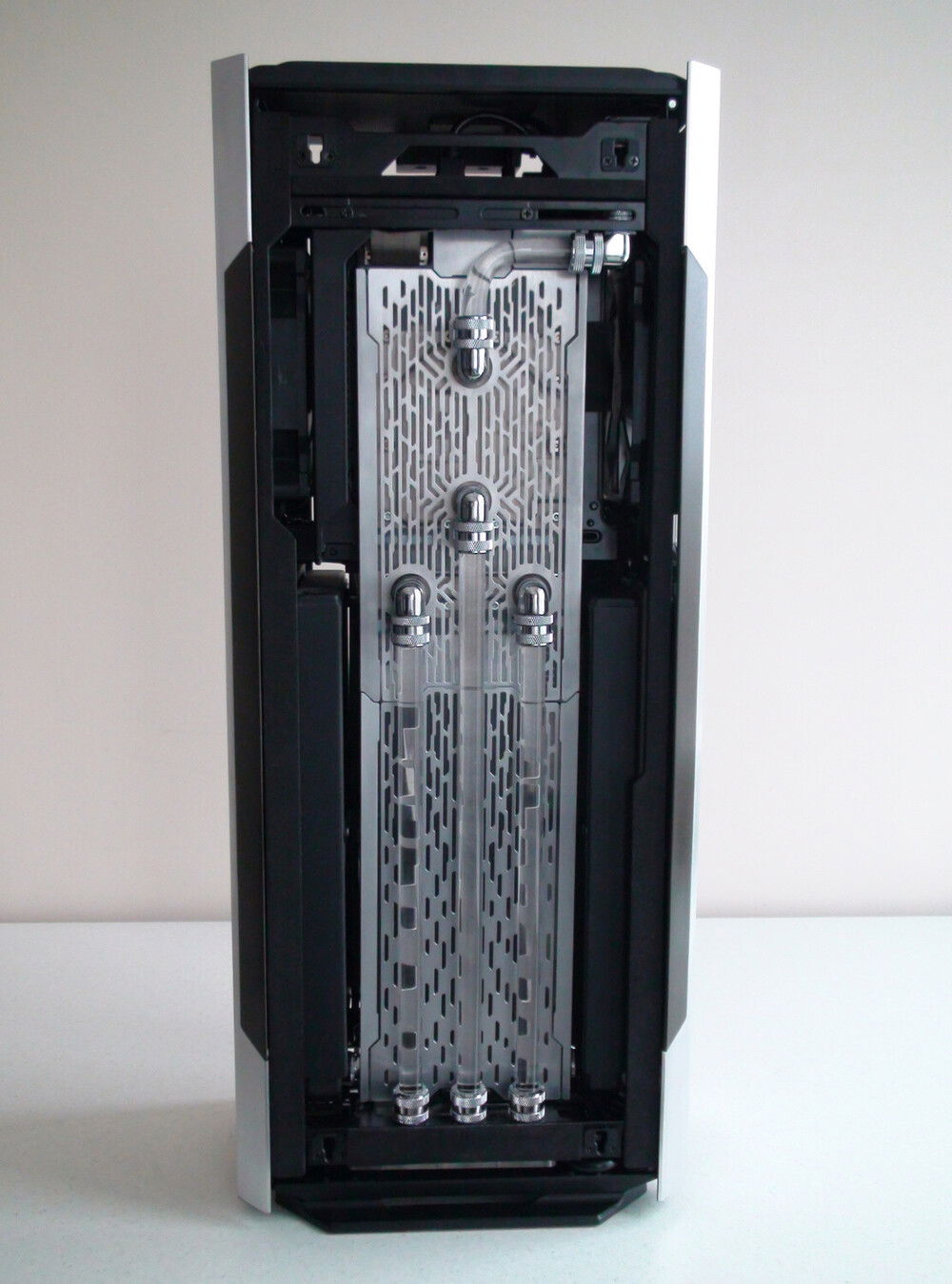

fit perfectly

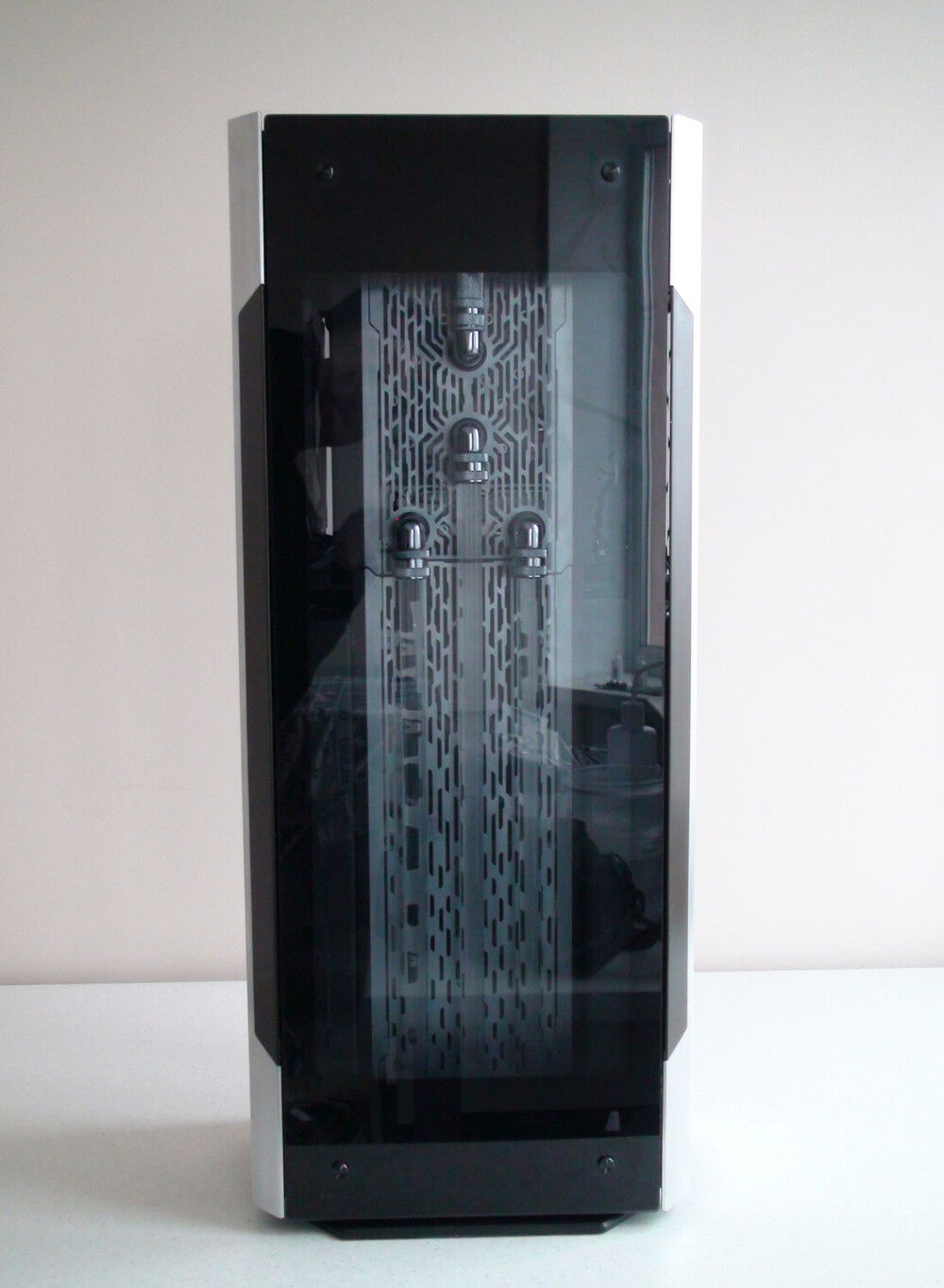

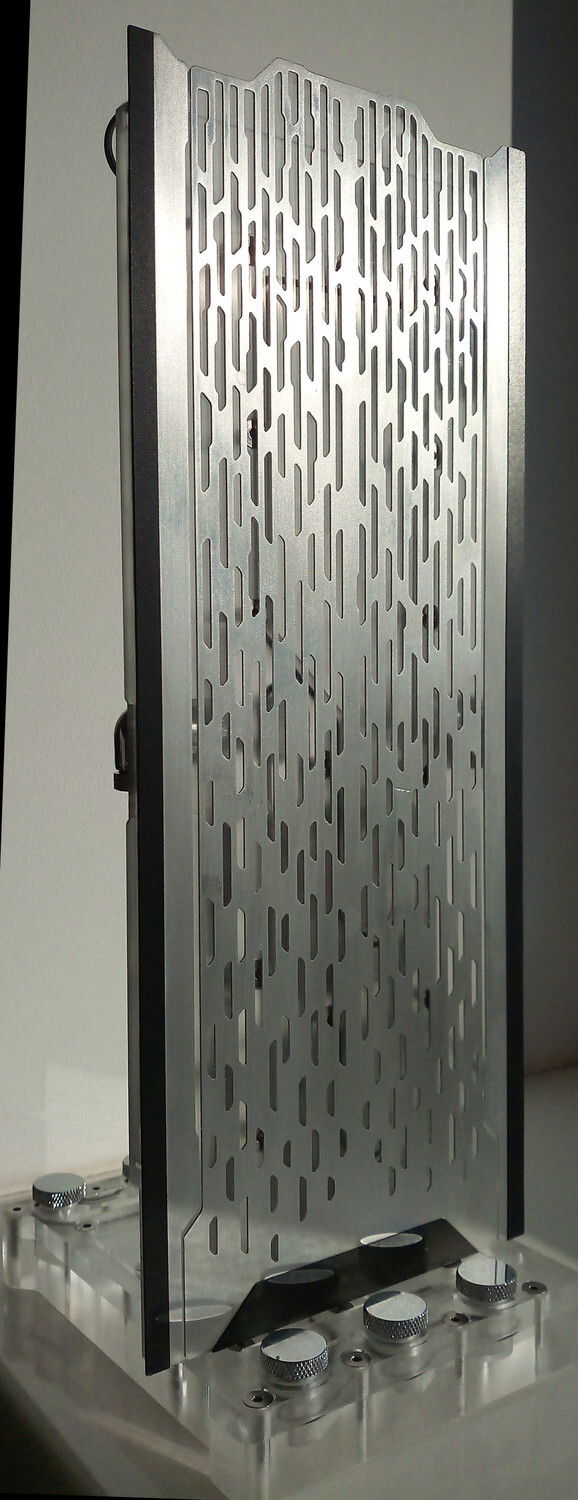

Symmetry Essence
When I started working with this case I didn't think much about the general idea, I just tried to make it as clean as possible. In the process of work I came up with the idea to try to make the most symmetrical design. But to achieve this using standard parts is very difficult, and I did not have the opportunity to make custom parts at that time. So I stopped work, made my own CNC, learned to work on it, and then came back to this project. Even so, I did a lot of things for the first time, like completely custom waterblocks, including cold plates, nickel plating, multilayer distros, aluminum perforated panels, etc. I did all the work on this case including design, parts production and assembly myself without outsourcing. It took over a year total, and I don't even know how many hundreds of hours. So it's been a long journey, but the satisfaction of making it was worth it.
More pictures here - https://ibb.co/album/4snsH2
More pictures here - https://ibb.co/album/4snsH2
Color(s): Aluminum
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build
