Pinball Wizard Build

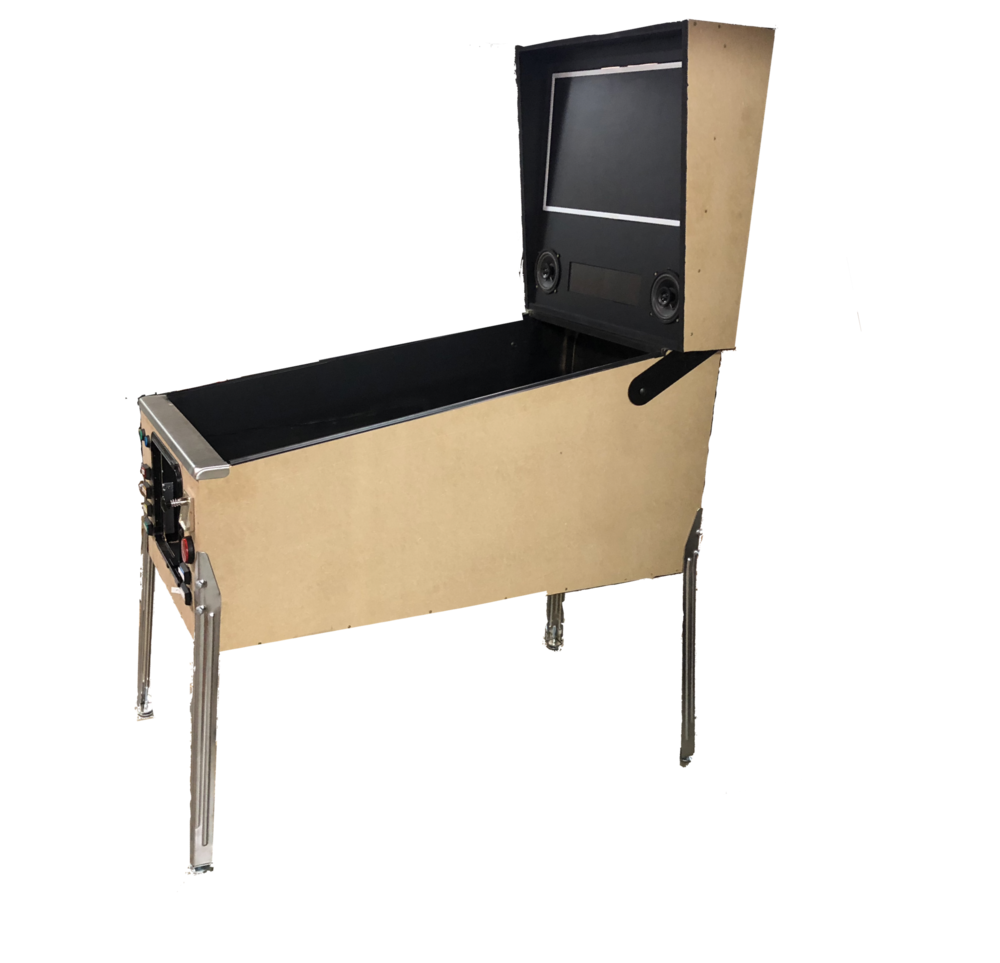

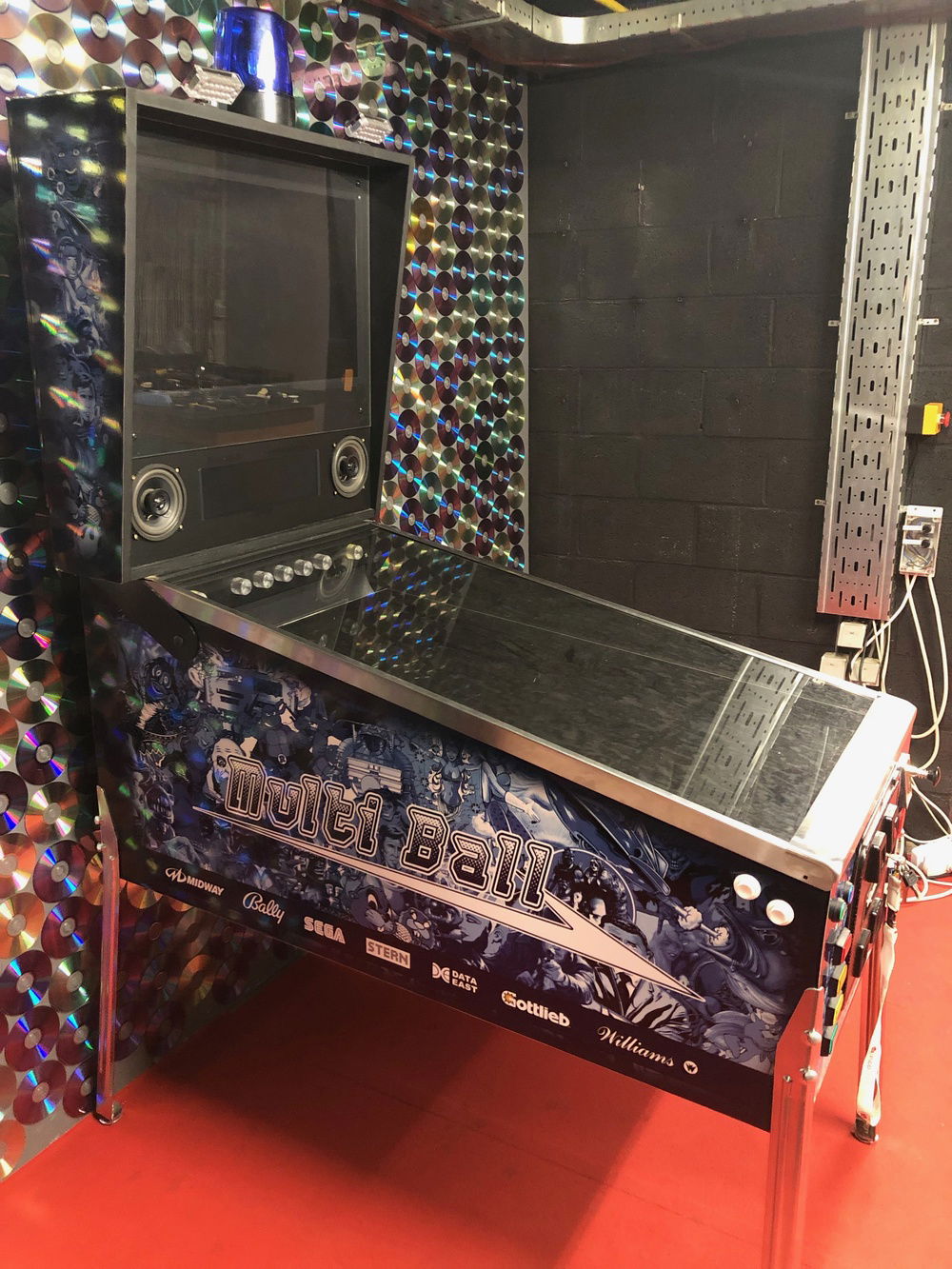

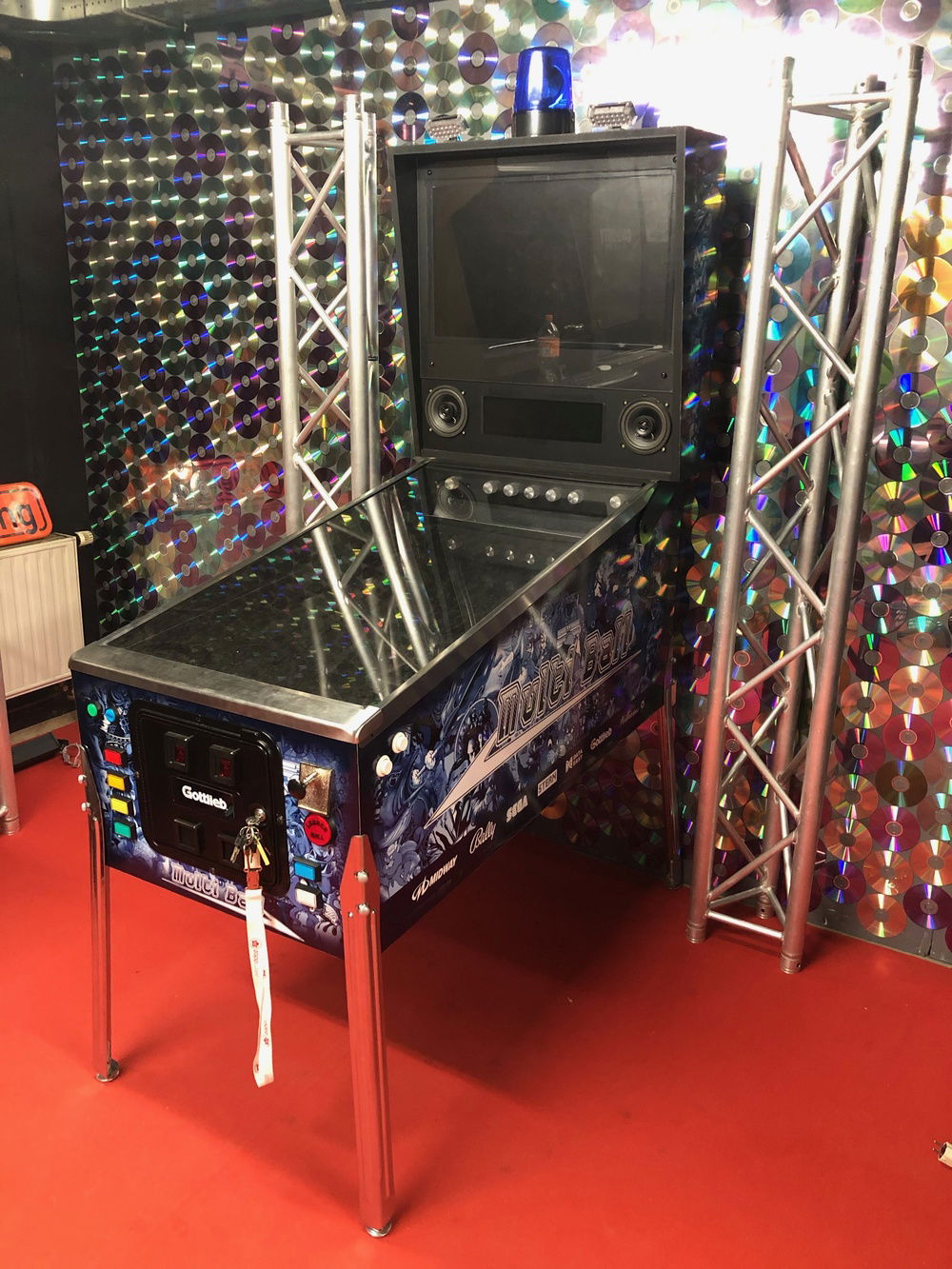

Virtual Pinball Case dedicated for pinball games and vertical arcade games.

TV: 43" 1080p 120hz
Video in action: https://www.youtube.com/watch?v=VvCd1szjoz0

Features:
- Over 600 Tables, including many popular original pinball tables that have existed as a real pinball (Twilight zone, Tron, Funhouse)
- RGB Led strip left&right on the bottom and back of the cabinet, Two flashers on top of the backbox, rotary light, button LEDs all controlled over USB
- (real) analog plunger, very responsive and allows you to do skill shots
- Knocking/moving the cabinet will actually move the ball in the game in that direction (this is allowed in real pinball), TILT sensor when you overdo this aswell.

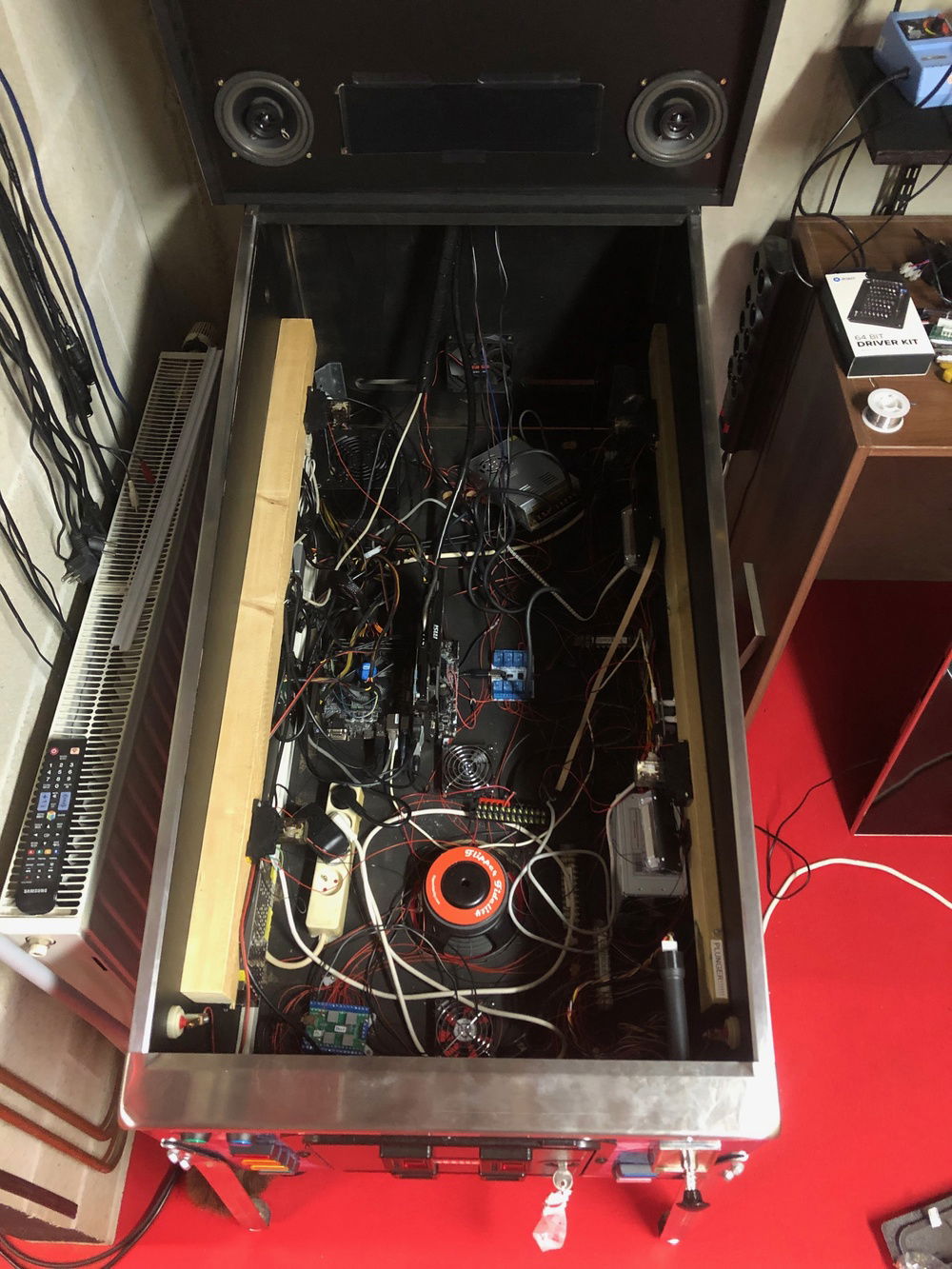

- 5 Relays installed under the TV which will simulate the sound and feel of the bumpers/Flippers going off just like a real mechanical pinball machine.
- Real 4096 LED Matrix DMD screen (running at 25% brightness, any higher will literally blind you, 60FPS, 24Bit RGB, USB)

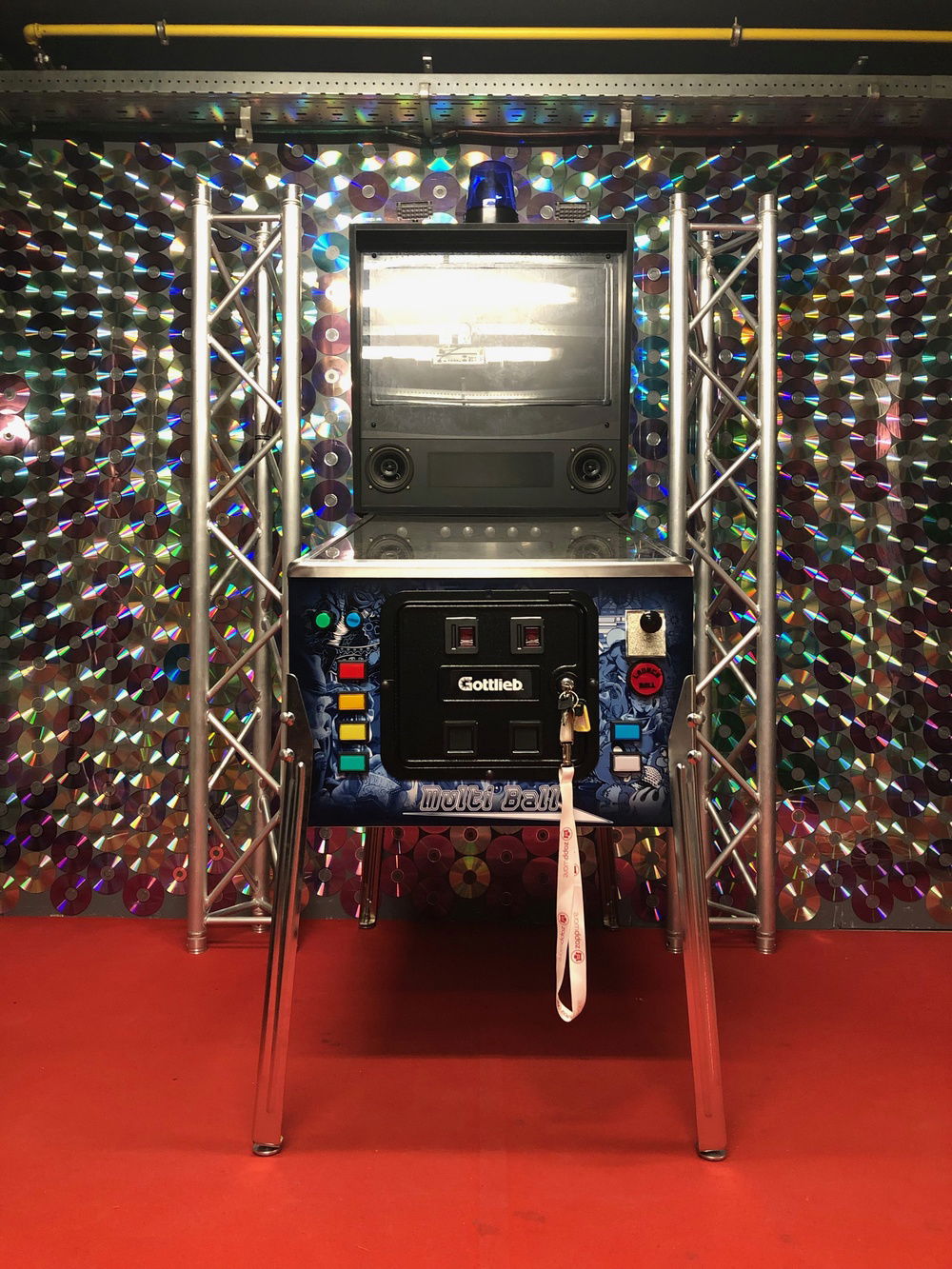

- Every LED, Relay, Button... is controlled over USB and controls are recognized as a normal XBOX Controller
- ...

Main Games:
Pinball X
Virtual Pinball X
Pinball FX 2/3
Pinball Arcade
Vertical MAME games
Color(s): Blue White
RGB Lighting? Yes
Theme: Retro
Cooling: Air Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 228.68
Intel - Core i3-8300
Socket: LGA 1151
Cores: 4
Motherboard
$ 148.86
MSI - Pro (VDH)
Chipset: H310
CPU Socket: LGA 1151
Size: Micro-ATX
Memory
$ 23.99
Crucial - Generic
Type: DDR4
Capacity: 8 GB
Graphics
$ 166.22
MSI - GTX 770 Twin Frozr
Chip Manufacturer: NVIDIA
Chip: GTX 770
Storage
OCZ - Vertex 460A
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 120 GB
Storage
$ 45.00
Seagate - Barracuda Compute (ST1000DM010)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
be quiet! - BN201 (discontinued)
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Gold
Case
Custom - Custom (custom)
