Phanartic

This build was one long learning process and that is exactly what I wanted it to be from the start. A year ago, I knew next to nothing about building computers. I considered myself a software-only guy but some friends of mine sparked my interest and I went from there. The number one reason I decided to do this was the advantage of being able to swap parts in/out and having the option to upgrade. I really wanted to have tangible or measurable outcomes for each piece of hardware I upgraded or added. I started with the most basic setup, case, cpu+cooler, 16gb RAM, integrated graphics instead of discrete, and an old 2.5" HDD. Part by part I would add/replace components and get some benchmarks to see what kind of difference each addition would get me. There weren't really any surprises, as I wasn't doing anything revolutionary, I just needed to do the steps myself and learn. Eventually I reached what I considered the first completed version of my build (nothing overclocked) which is documented here at PCPartPicker.

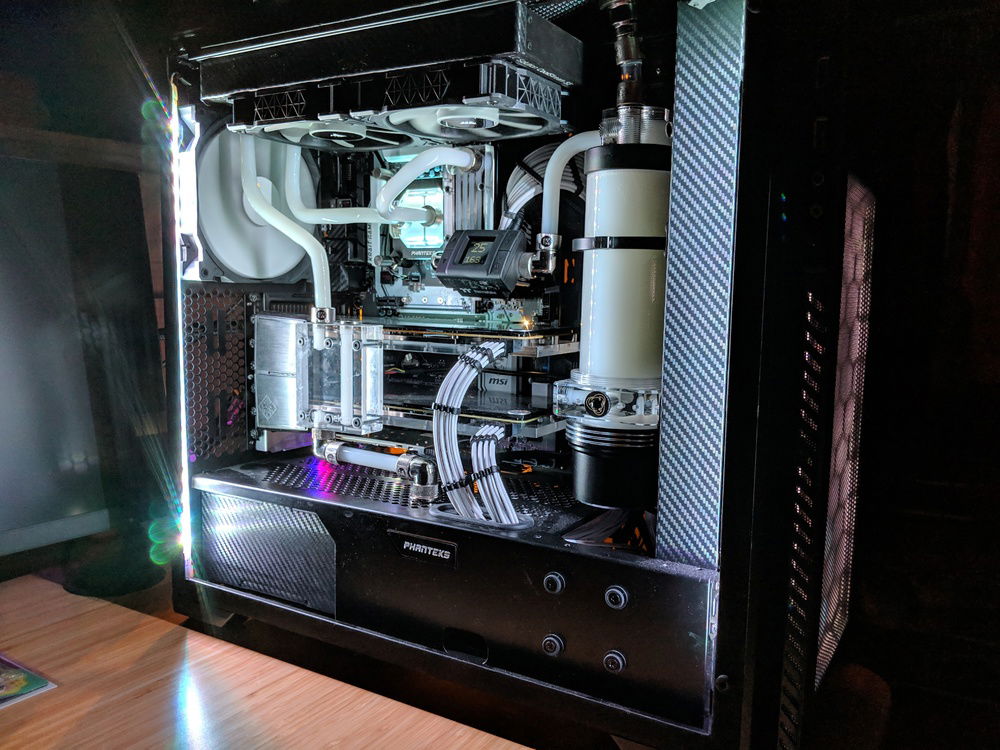

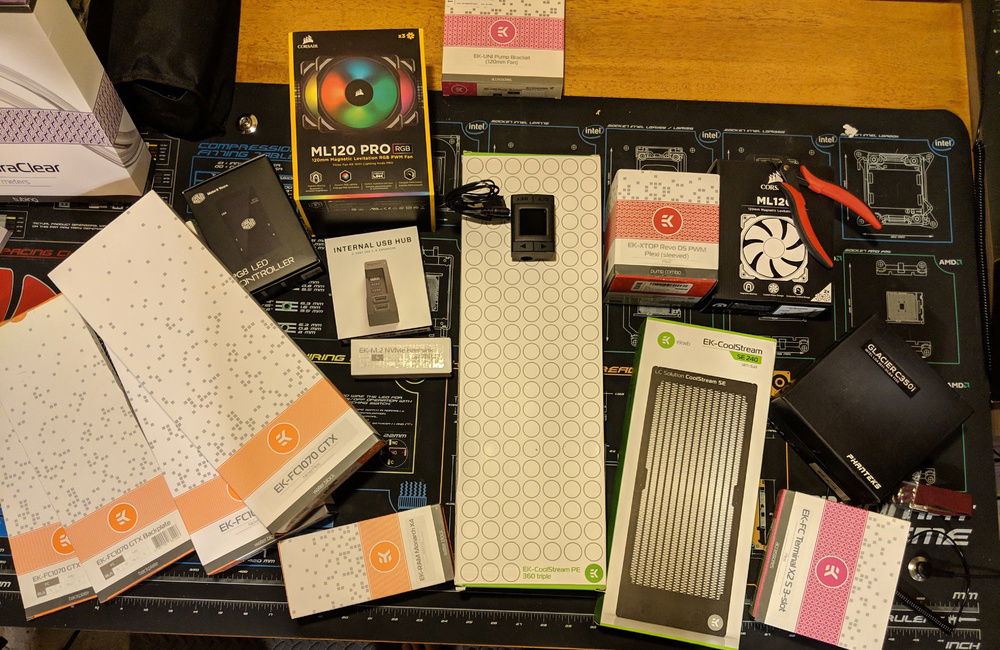

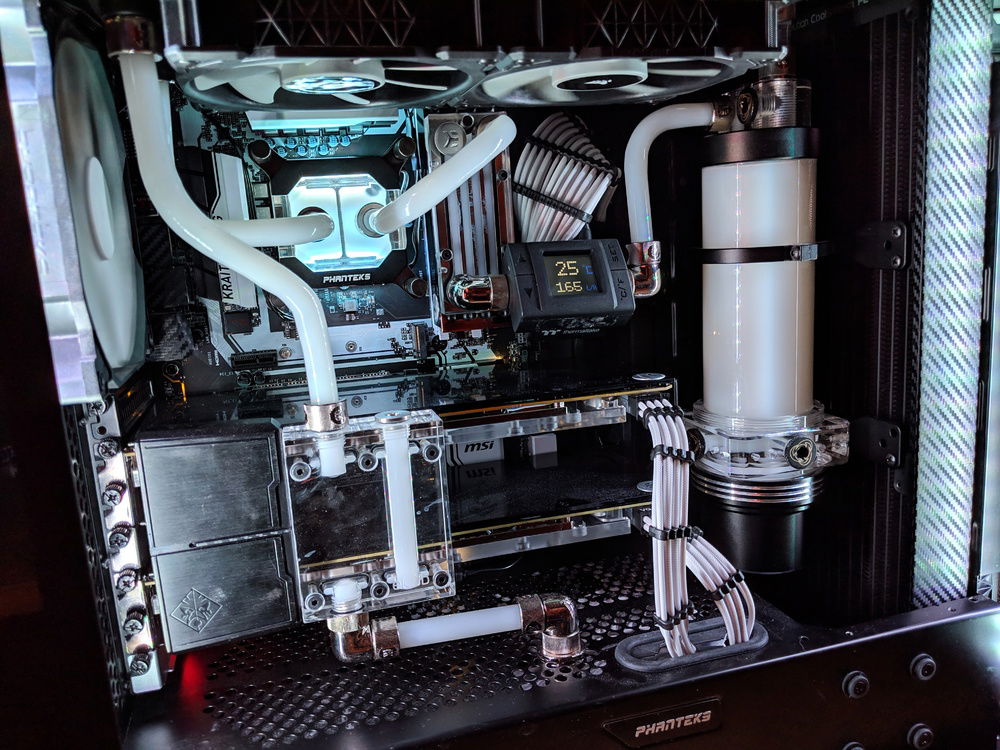

Quite a bit has changed since then, the most notable being the custom water loop but these are some other changes:
2nd card for SLI
revamping the storage solution
doubling the RAM
beefing up the PSU to handle overclocking and the extra components
a monitor worthy of this hardware

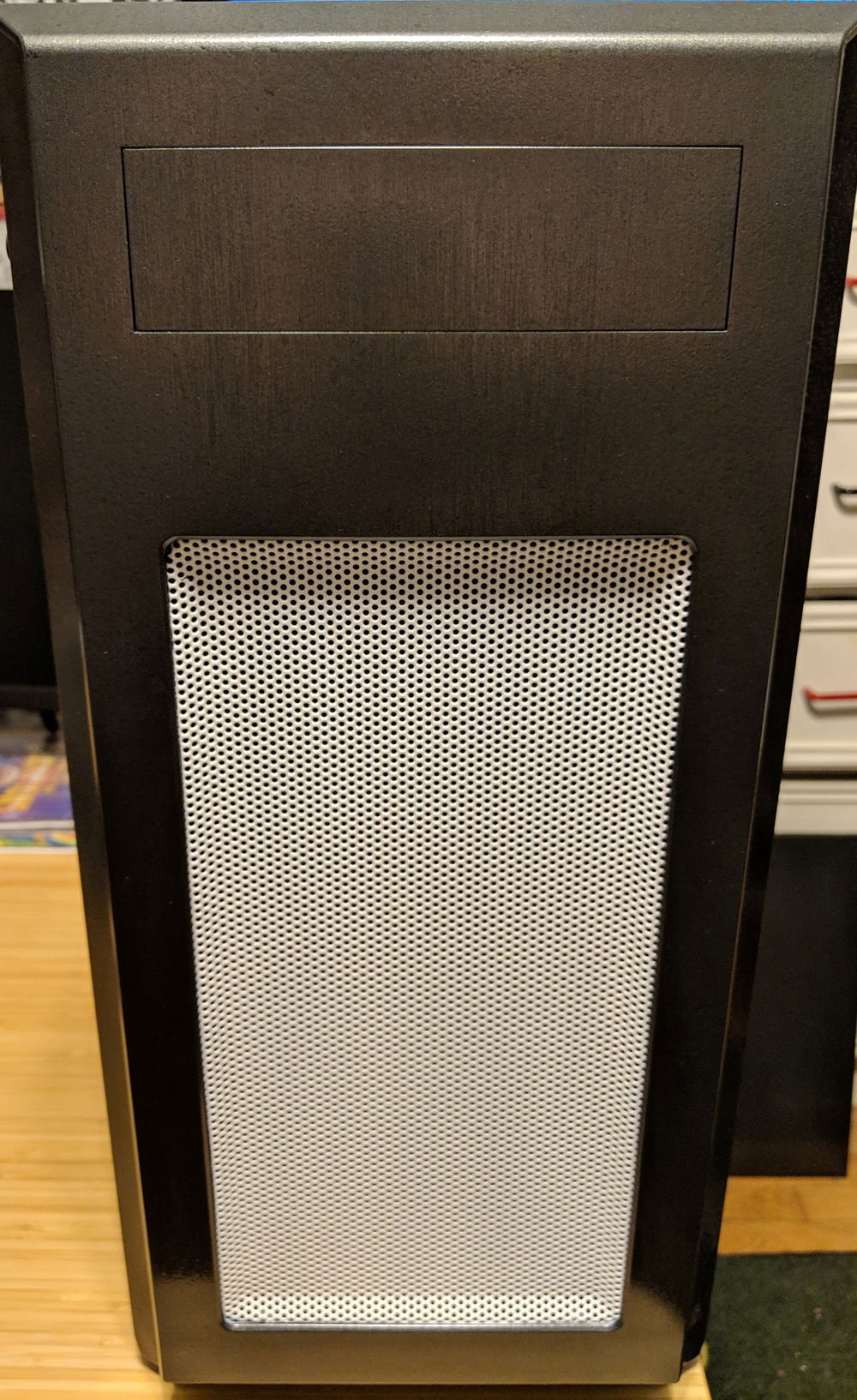

painted the case and dustscreens
carbon fiber paper on the PSU, radiators and mobo IO casings

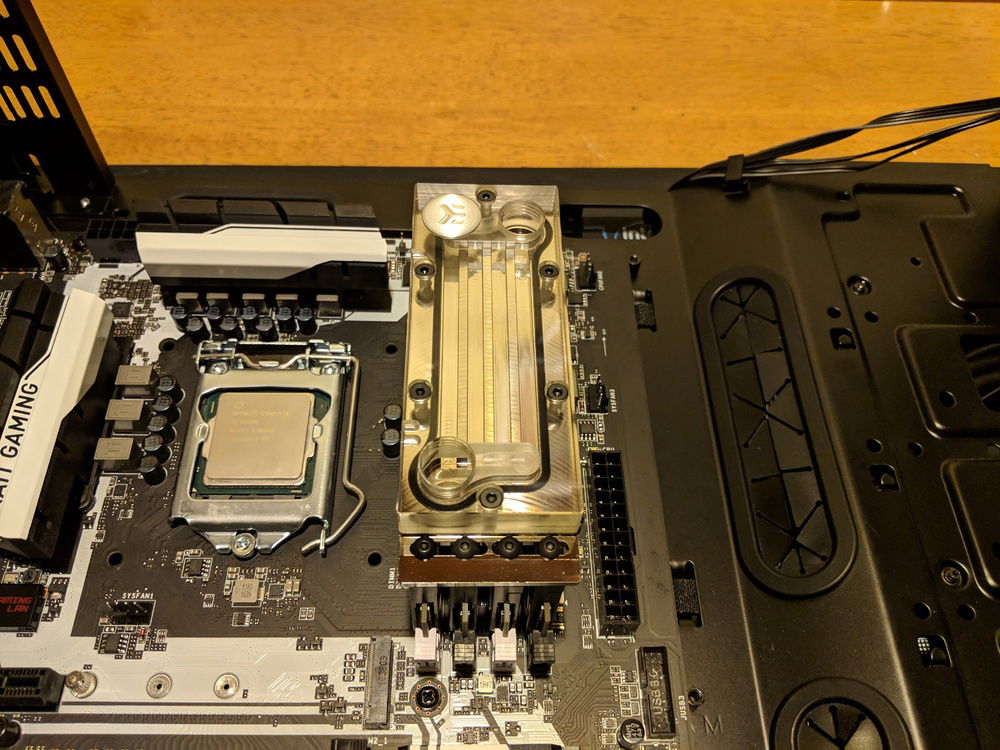

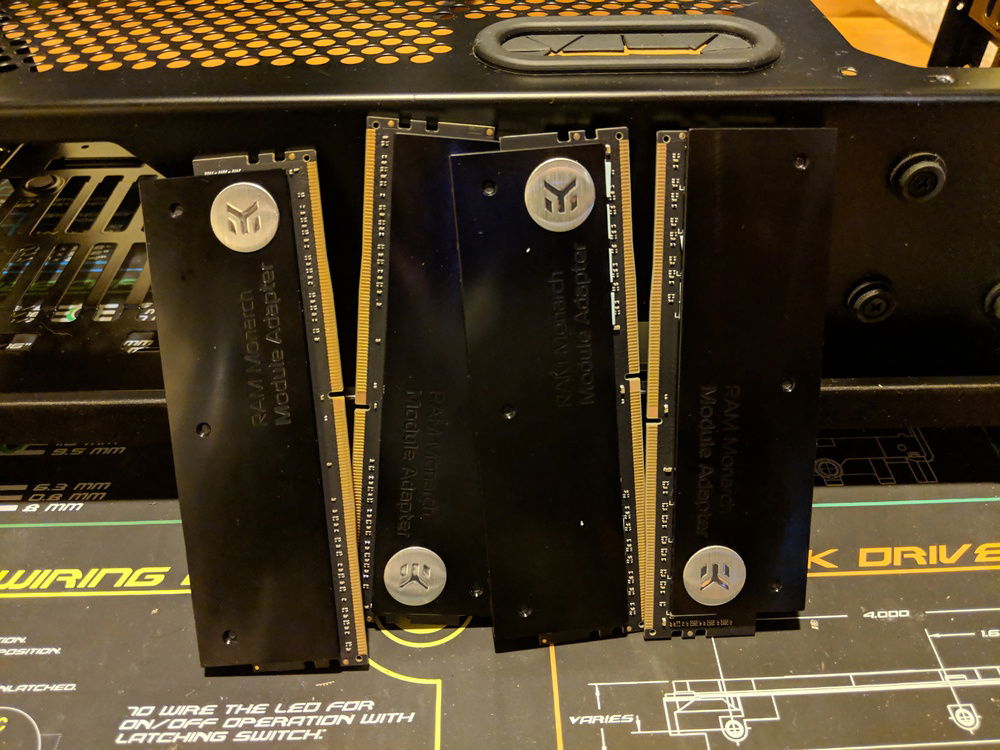

The clearest bottleneck in this system is the CPU and while I realize there are options for upgrading without having to replace the entire infrastructure (6700k or 7700k), I am committed to getting the most out of what I decided on initially and at some point in the future upgrading my chipset as well as CPU choice. I also realize that a lot of people are of the opinion that SLI vs a better single base card is not worth the money, but like I planned from day 1, this build was about improving and upgrading, not just buying the best possible combination of parts for a given price. While some extravagant costs prevented some cutting-edge choices as far as hardware goes, I wouldn't have spent the money to add RAM cooling to my custom loop if cost were that much of a priority. Everybody has their lines and eventually you just have to make a decision and be happy with it.

Were I to start a build today with what I know now, a lot of things would be done differently. That being said, I have no regrets about the part choices I made (I'll refer anyone who disagrees with said choices to my repeated comments about this being a learning, upgrading process with careful intentional choices ;)) and love this machine! I plan on it being my personal rig for many years to come.

Notes: Included the monitors and primary peripherals, but did not itemize the water cooling parts, internal hubs, etc. I'm happy to share that information if it's desired but for now I'll save myself some tedious work.
Color(s): Black White
RGB Lighting? Yes
Theme: Desk / Table
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 89.99
Intel - Core i5-6600K
Socket: LGA 1151
Cores: 4
Motherboard
$ 158.86
MSI - Z170A Krait Gaming 3X
Chipset: Z170
CPU Socket: LGA 1151
Size: ATX
Memory
$ 69.99
G.Skill - Aegis (3200MHz)
Type: DDR4
Capacity: 32 GB
Graphics
$ 258.68
EVGA - SC Gaming
Chip Manufacturer: NVIDIA
Chip: GTX 1070
Graphics
$ 258.68
EVGA - SC Gaming
Chip Manufacturer: NVIDIA
Chip: GTX 1070
Storage
$ 589.63
Samsung - 860 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 239.99
Samsung - 970 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 39.99
Seagate - Barracuda (ST3000DM008)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 3 TB
PSU
$ 199.99
EVGA - SuperNOVA G1+
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 265.99
Phanteks - Enthoo Pro M
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 38.43
Corsair - ML120 Premium 2-pack
Size: 120 mm
Case Fan
$ 19.99
Phanteks - PH-F140SP WHITE
Size: 140 mm
Accessories
$ 29.99
Accessories
$ 70.99
Accessories
$ 24.99
Monitor
$ 1,488.88
AOC - Agon (AG352UCG)
Size: 35 Inch
Panel: VA
Refresh Rate: 100 Hz
Monitor
$ 159.69
HP - 22CWA
Size: 21.5 Inch
Panel: IPS
Refresh Rate: 60 Hz
Monitor
$ 288.00
HP - VH240a
Size: 23.8 Inch
Panel: IPS
Refresh Rate: 60 Hz
Keyboard
$ 59.99
Logitech - K360
Interface: Wireless
Type: Full Size
Mouse
$ 69.99
Logitech - MX Master 2S (Gray)
Interface: Wireless
Estimated total value of this build:
$ 2,390.57
